INSTALLATION & MAINTENANCE MANUAL
EMTWINIP
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product:
EMTWINIP
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current building regulations. If in any doubt, please consult a qualified electrician.
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for installation
• This product is Class I and must be earthed
• This product is IP65 rated
INSTALLATION
• Provide power to the required point of installation. Suitable IP rated junction boxes should be used where
required
• Unscrew the four fastening screws and remove the front cover (see Fig. 1)
Page 3
EMTWINIP
These instructions should be read carefully and retained after installation by the end user for future reference and
maintena nce.
These instructions should be used to aid installation of the following product:
EMTWINIP
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations
(BS7671) and current building regulations. If in any doubt, please consult a qualified electrician.
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating
of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for
installation
• This product is Class I and must be earthed
• This product is IP65 rated
• This product is non-dimmab le
INSTALL ATION
• Provide power to the required point of installation. Suitable IP rated junction boxes should be used
where required
• Unscrew the four fastening screws and remove the front cover (see Fig. 1)
Unscrew
• Drill the fixing holes in the rear of the fitting. Mark the location of the fixing holes, and drill ensuring not to
infringe with any gas / water pipes or electrical cables
• Choose a suitable cable entry. 20mm drilling guides are provided on the rear or side of the unit. Ensure a
suitable gland is used to retain the IP rating. Fix the luminaire to the surface using appropriate fixings
• Connect the luminaire to the mains supply (via the terminal connector) ensuring the correct polarity is
observed (see Fig 2). Live (brown), Neutral (blue) and Earth (green and yellow)

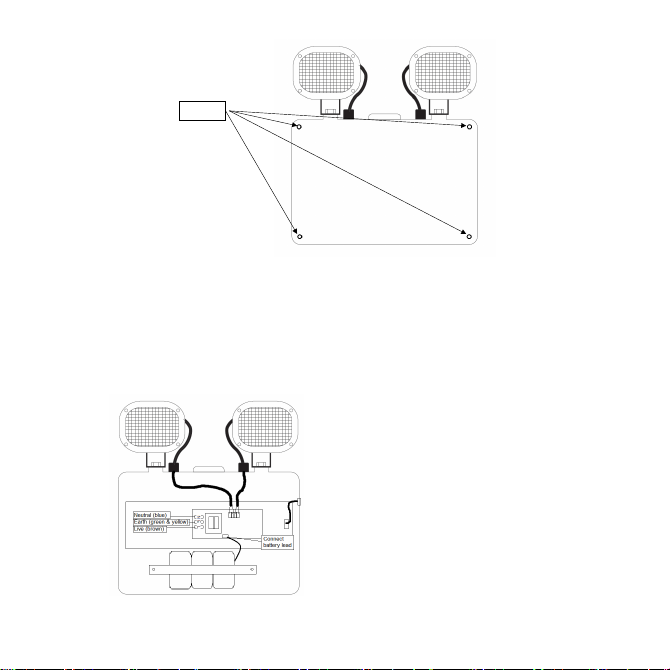

Fig. 1
• Connect the battery to the battery connector on the PCB
(see Fig. 2)
• Refasten the cover
• Switch on and check for correct operation ensuring the
green indicator LEDs are illuminated
• We recommend, on commissioning the installation, a
minimum charge period of 24 hours before carrying out
Fig. 2
an emergency duration test
Page 4
If the batteries have been left in a discharged state for a long period of time, we recommend that one or
more charge and discharge cycles are performed, to restore the battery to its full capacity
The indicator lamp marked “CHARGE” will be lit when the battery is charging. If it is not lit, check that the
battery is connected to the PCB, and that there is a 230V mains supply. The indicator lamp marked “LAMPS”
will be lit if the lamp circuit is complete and the lamps are healthy. (NB the indicator lamps will not work
when the fitting is in emergency mode, only while it is connected to the mains supply)
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed
GENERAL
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire should be replaced.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
This product is non-dimmable.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
The batteries in this luminaire are Nickel Cadmium and must be disposed of correctly. Please contact the local
authorities for the disposal of this toxic waste.
Page 5
WARRANTY
This product has a warranty of 3 years (excluding battery) from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal
of the batch code will invalidate the warranty. If this product should fail within its warranty period, it should
be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept
responsibility for any installation costs associated with the replacement product. Your statutory rights are not
affected. ML Accessories reserve the right to alter product specification without prior notice.
Page 6
TESTING FOR EMERGENCY LUMINAIRES
Recommended routine test procedure in accordance with BS5266
• Daily check – check LED charge indicator is illuminated
• Monthly functional test – simulate a mains supply failure for approx. 30 seconds by operation of key switch
or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is
illuminated
• Annual 3-hour duration test - simulate a mains supply failure for a 3-hour continuous test by operation of
key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge
indicator is illuminated
• If the luminaire fails any of the above tests, please contact a qualified electrician. See below for test record
sheet
Page 7
TEST RECORD SHEET
INITIAL COMMISSIONING
3 HOUR TEST
MONTH TEST
1 FUNCTIONAL
2 FUNCTIONAL
3 FUNCTIONAL
4 FUNCTIONAL
5 FUNCTIONAL
6 FUNCTIONAL
7 FUNCTIONAL
8 FUNCTIONAL
9 FUNCTIONAL
10 FUNCTIONAL
11 FUNCTIONAL
12 3 HOUR
FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR
SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE
Installed by: Installation date:
Contact number:
SIGNED DATE
Page 8
INTERNATIONAL
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
CONTACT DETAILS
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
45°C
54
0~
TA
DCSEP21_V4
