INSTALLATION & MAINTENANCE MANUAL
DGZ10B / DGZ10C / DGZ10CBR / DGZ10W
SGZ10B / SGZ10C /SGZ10CBR / SGZ10W
Page 2
INSTALLATION & MAINTENANCE MANUAL
Product code
Cut-out diameter (mm)
DGZ10xxx
60
SGZ10xxx
80
Cut-out diameter (mm)
60
80
E

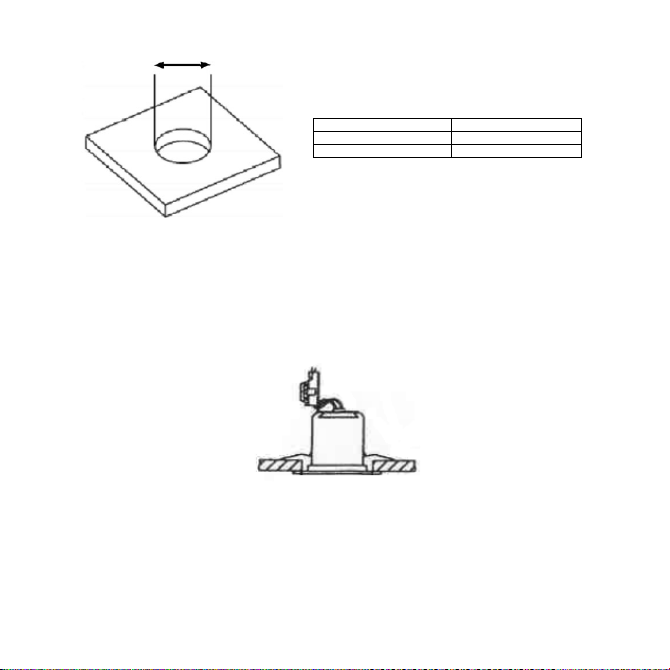

Fig. 1
• Remove the terminal block cover
• Connect the luminaire to the mains supply ensuring the correct polarity is observed: L - Live (brown),
E - Earth (green/yellow), N - Neutral (blue)
• Secure the mains cable under the cable clamp and refit the terminal cover
• Insert the terminal block bracket into the side of the luminaire (see Fig. 2) and tighten the screw
Fig. 2
• Lift both of the spring clips on the sides of the fitting and push into the ceiling
• Insert a suitable GU10 lamp (max. 50W) using the rubber suction cup provided
• Switch on and check for correct operation
Page 3
GENERAL
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
This product is dimmable dependent on lamp type.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
WARRANTY
This product has a warranty of 1 year from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place
of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.
Page 4
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following products:
DGZ10B / DGZ10C / DGZ10CBR / DGZ10W / SGZ10B / SGZ10C / SGZ10CBR / SGZ10W
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for installation
• Allow 50mm above and around the fitting for air dissipation (do not cover the fitting with insulation)
• This product is for indoor use only
• This product is Class I and must be earthed
• This product is IP20 rated
INSTALLATION
• Provide power to the required point of installation
• Cut a suitable hole in the mounting surface as per the cut-out details (see Fig. 1) ensuring not to infringe
with any joists, gas/water pipes or electrical cables
Page 5
INTERNATIONAL
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
CONTACT DETAILS
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
14
DCSEP21_V2
