INSTALLATION & MAINTENANCE MANUAL
BTxxCTEMS
Page 2
These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following product:
BT9CTEMS / BT14CTEMS / BT20CTEMS
Page 3
BTxxACT

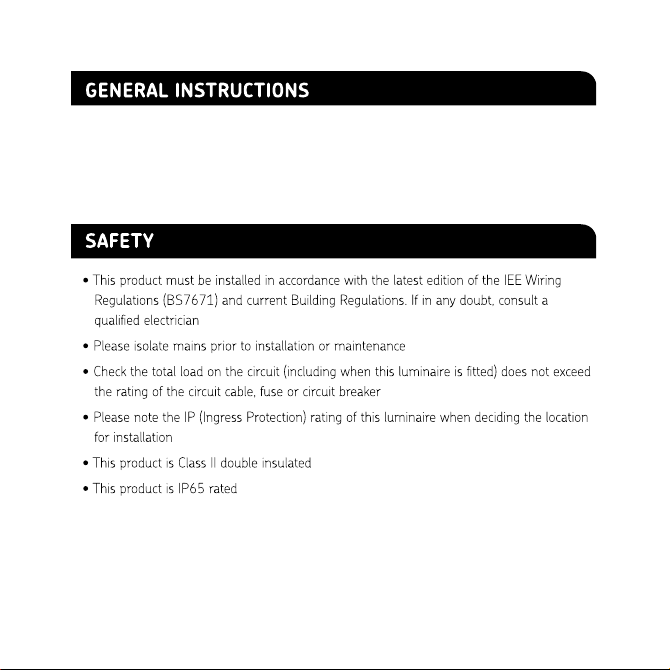

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician
rating of the circuit cable, fuse or circuit breaker
installation
where required
Page 4

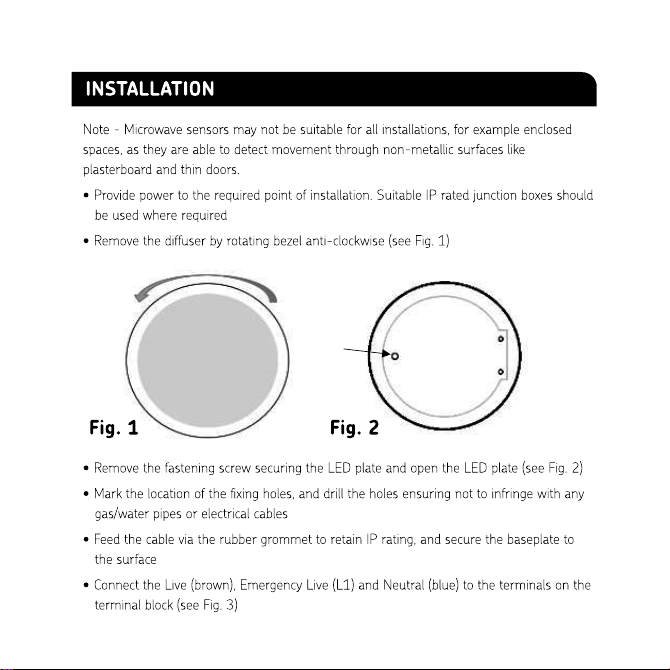

• Provide power to the required point of installation. Suitable IP rated junction boxes should be used
where required
• Remove the diffuser by rotating bezel anti-clockwise (see Fig. 1)
pipes or electrical cables

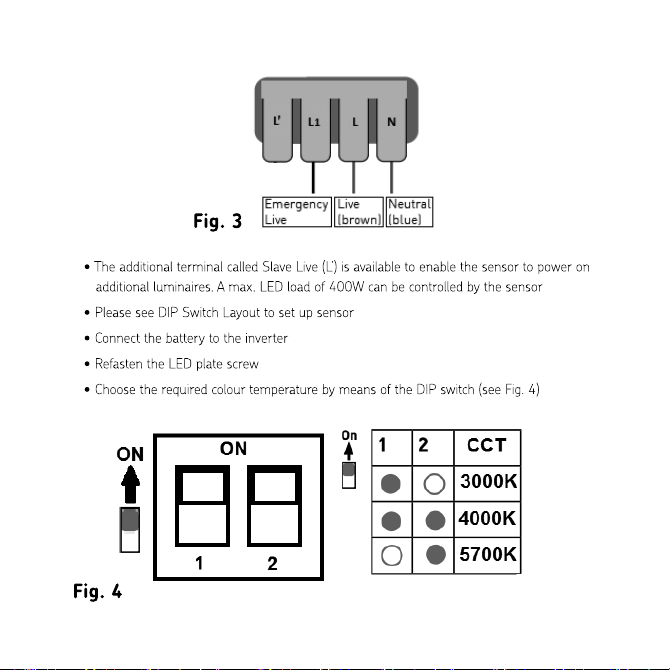

block (see Fig. 3)
Page 5

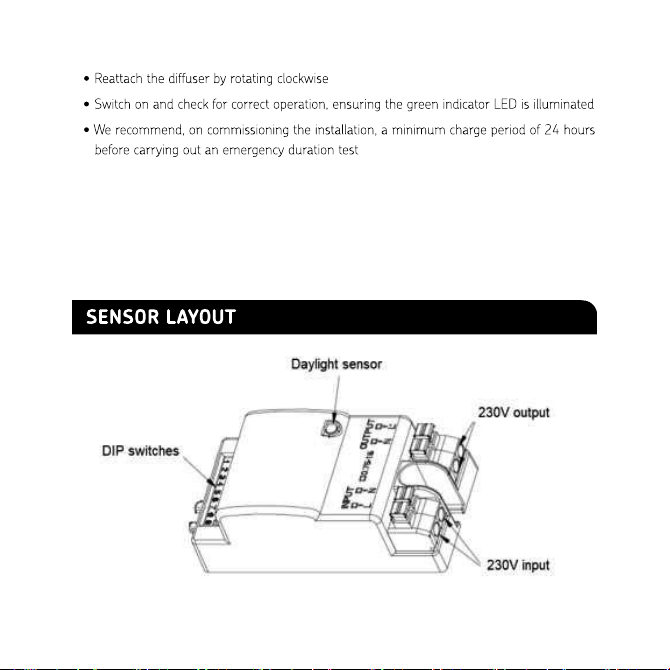

• If the batteries have been left in a discharged state for an extended period, we
recommend that one or more charge and discharge cycles are completed which should
help to restore the battery capacity
Page 6

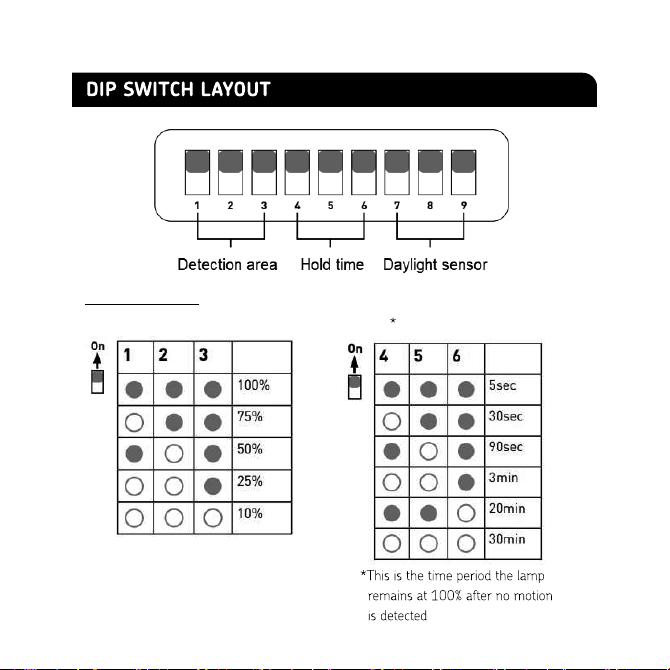

DIP SWITCH SETTINGS
Detection area
DIP SWITCH SETTINGS
Detection area
Hold time
Page 7

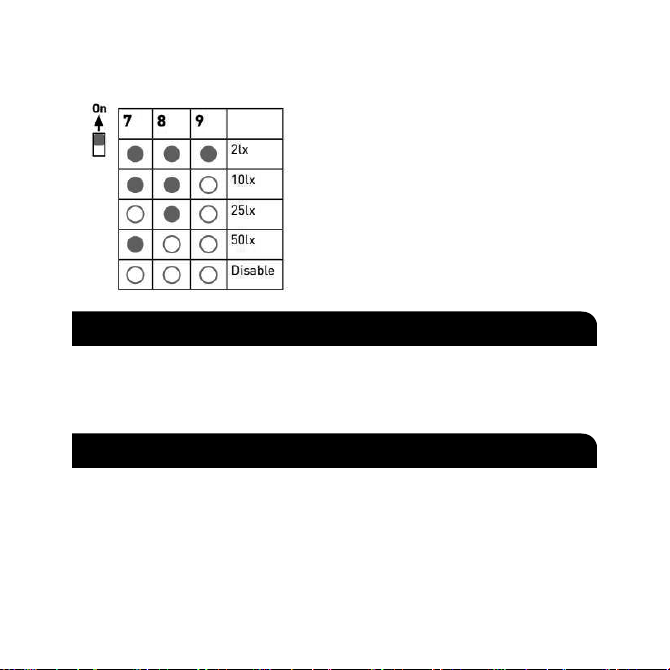

Daylight sensor
When set to Disable, the daylight sensor will
switch the lamp on when motion is detected
regardless of the ambient light level
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product contains a light source of energy efficiency class D to Regulation (EU) No.
2019/2015.

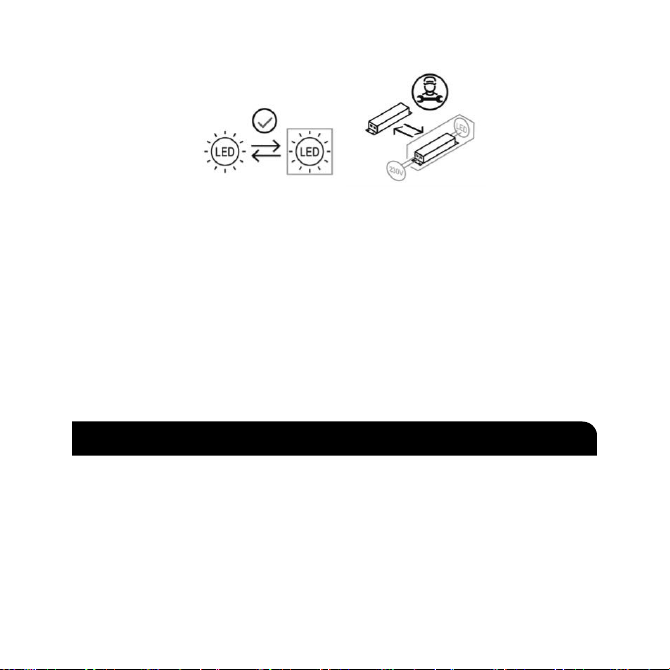

This product contains an LED light source which can be replaced by the end user and a
control gear which can be replaced by a professional.
Page 8
This product contains a light source of energy efficiency class D to Regulation (EU) No. 2019/2015.
This product contains an LED light source which can be replaced by the end user and a control gear which can
be replaced by a professional.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please see website for
dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
For emergency versions:
GENERAL
This product contains a light source of energy efficiency class D to Regulation (EU) No. 2019/2015.
This product contains an LED light source which can be replaced by the end user and a control gear which can
be replaced by a professional.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please
see website for dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.
The batteries in this luminaire are Nickel Cadmium and must be disposed of correctly.
Please contact the local authorities for the disposal of this toxic waste.
WARRANTY
This product has a warranty of 3 years (excluding battery) from date of purchase. Failure
to install this product in accordance with the current edition of the IEE Wiring Regulations,
improper use, or removal of the batch codes will invalidate the warranty. If this product
should fail within its warranty period, it should be returned to the place of purchase for a
free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.
Page 9
TESTING FOR EMERGENCY LUMINAIRES
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
Recommended routine test procedure in accordance with BS5266
• Daily check – check LED charge indicator is illuminated
• Monthly functional test – simulate a mains supply failure for approx. 30 seconds by
operation of key switch or switching off circuit breaker. Ensure normal supply is restored
after test and ensure charge indicator is illuminated
• Annual 3-hour duration test - simulate a mains supply failure for a 3-hour continuous
test by operation of key switch or switching off circuit breaker. Ensure normal supply is
restored after test and ensure charge indicator is illuminated
• If the luminaire fails any of the above tests, please contact a qualified electrician
Please note: the Switched Live should not be re-energised during the emergency test
02
INTERNATIONAL
CONTACT DETAILS
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
DCAUG21_V4
Page 10
TEST RECORD SHEET
INITIAL COMMISSIONING
3 HOUR TEST
MONTH TEST
1 FUNCTIONAL
2 FUNCTIONAL
3 FUNCTIONAL
4 FUNCTIONAL
5 FUNCTIONAL
6 FUNCTIONAL
7 FUNCTIONAL
8 FUNCTIONAL
9 FUNCTIONAL
10 FUNCTIONAL
11 FUNCTIONAL
12 3 HOUR
FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR
SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE
SIGNED DATE
Installed by: Installation date:
Contact number:
