ML Accessories BATS6EMS, BATS5EMS User guide

INSTALLATION & MAINTENANCE MANUAL

BATS5EMS / BATS6EMS

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following products:
BATS5EMS / BATS6EMS

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a
qualified electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed
the rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location
for installation

• This product is for indoor use only

• This product is Class I and must be earthed

• This product series is IP20 rated

Squeeze

of the circuit cable, fuse or circuit breaker

installation

pipes or electrical cables. The fitting can also be mounted over conduit boxes - for distance
between fixing centres please see below:

Part Code

Distance (mm)

BATS5EMS

600

BATS6EMS

600

Squeeze

INSTALLATION

Note - Microwave sensors may not be suitable for all installations, for example enclosed
spaces, as they are able to detect movement through non-metallic surfaces like
plasterboard and thin doors.

• Provide power to the required point of installation (refer to BS7671 for correct cabling
methods)

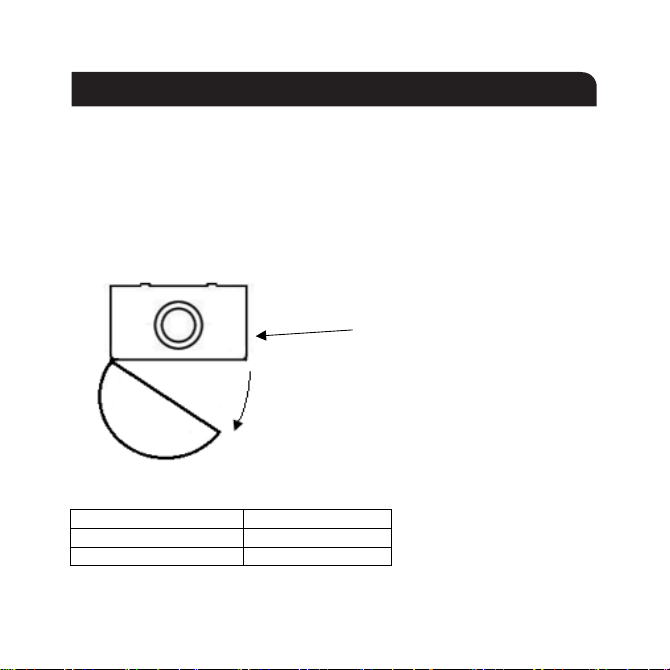

• Squeeze the sides and hinge the diffuser away from the fitting (see Fig. 1)

• Mark the location of the fixing holes and drill the holes
ensuring not to infringe with any gas/water pipes or
electrical cables. The fitting can also be mounted over
conduit boxes: for distance between fixing centres
please see below:

Fig. 1

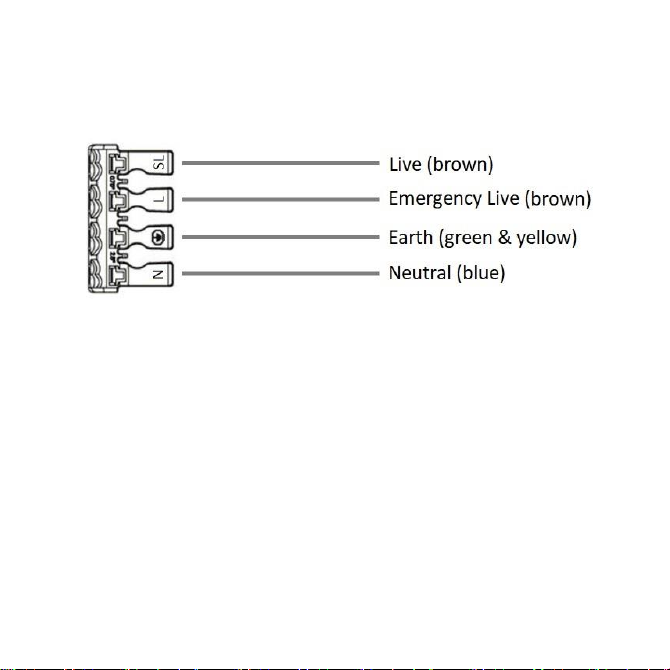

• Ensuring correct polarity is observed, carefully wire as shown in Fig. 2. Two cables can be

Distance (mm)

600

600

Squeeze

inserted into the push-fit terminal block in order to achieve loop-in / loop-out wiring

Fig. 2

• Connect the battery to the inverter

• Switch on and check for correct operation ensuring that the green LED indicator is
illuminated

• We recommend, on commissioning the installation, a minimum charge period of 24 hours
before carrying out an emergency duration test

Note - This fitting shuts off power to the Lithium Ion battery periodically to prevent
overcharging. Therefore, the green LED indicator has been set up to indicate that the
emergency inverter is in good condition, not to indicate that the battery is charging. The
installer must ensure that the battery is connected.

NB Martin this whole sensor section is identical
to BATC5S if you want to save yourself a job
and just copy the layout from there - DC

SENSOR LAYOUT

NB Martin this whole sensor section is identical
to BATC5S if you want to save yourself a job
and just copy the layout from there - DC

SENSOR LAYOUT

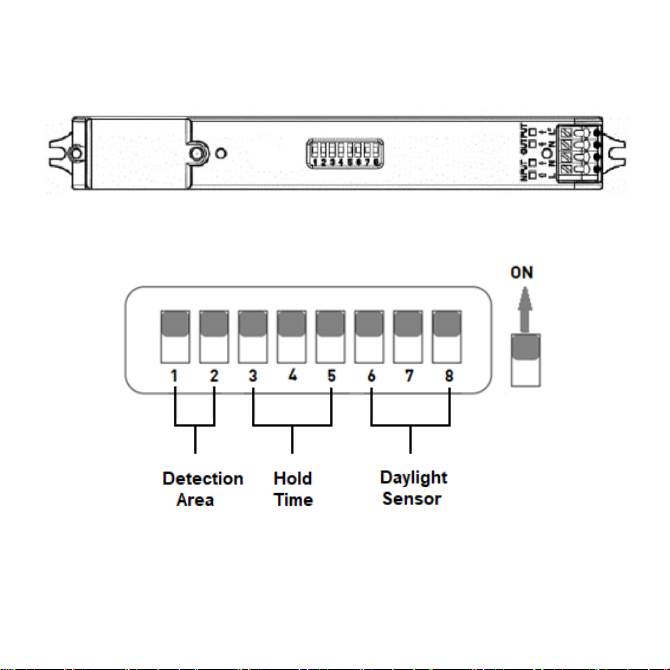

DIP SWITCH LAYOUT

SENSOR LAYOUT

DIP SWITCH LAYOUT

NB Martin this whole sensor section is identical
to BATC5S if you want to save yourself a job
and just copy the layout from there - DC

NB Martin this whole sensor section is identical
to BATC5S if you want to save yourself a job
and just copy the layout from there - DC

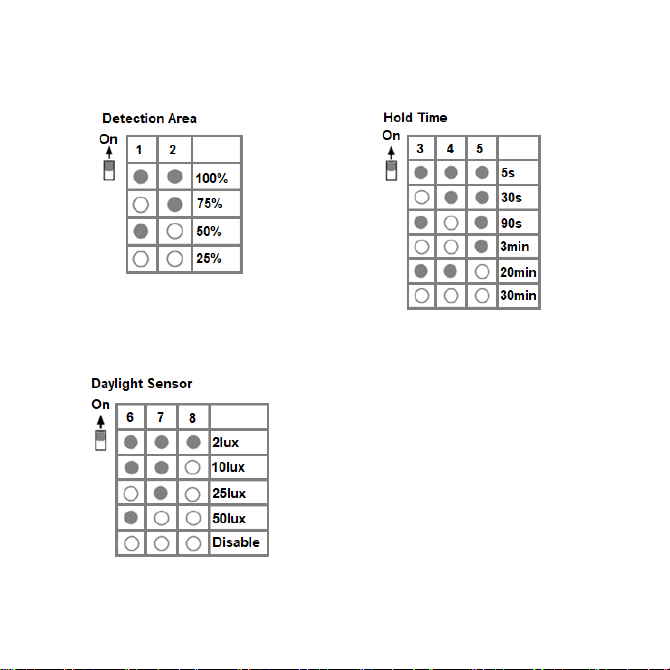

DIP SWITCH SETTINGS

Detection area can be adjusted by
the combination of the DIP switches

This is the time period the luminaire
remains at 100% after no motion
is detected

When set to disable, the daylight sensor
will switch the luminaire on when
motion is detected regardless of the
ambient light level

WARNING

This luminaire must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed
.

GENERAL

This product contains a light source of energy efficiency class E to Regulation (EU) No.
2019/2015.

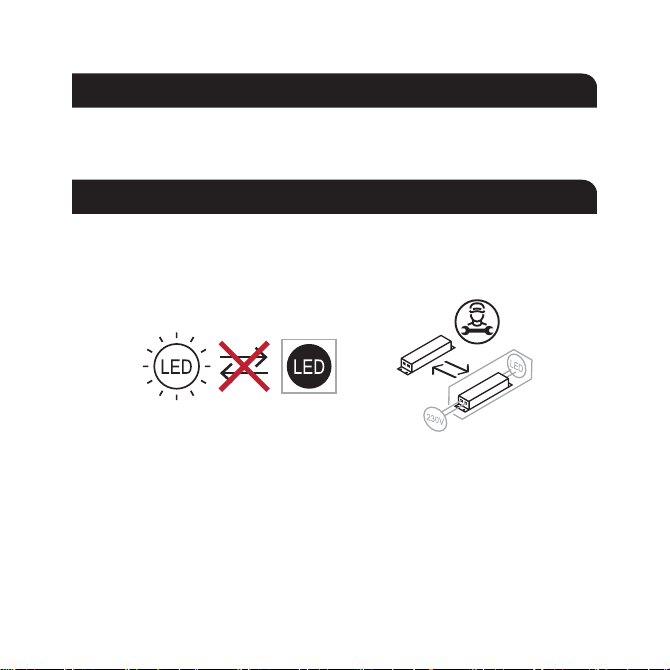

This product contains a non-replaceable LED light source and a control gear which can be
replaced by a professional.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product.
This product is non-dimmable
This product should be dismantled for disposal when it reaches the end of its life. Please
see website for dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.
The batteries in this luminaire are Lithium Ion and must be disposed of correctly. Please
contact the local authorities for the disposal of this toxic waste.

WARRANTY

This product has a warranty of 5 years (excluding battery) from date of purchase. Failure
to install this product in accordance with the current edition of the IEE Wiring Regulations
(BS7671), improper use, or removal of the batch code will invalidate the warranty. If this
product should fail within its warranty period, it should be returned to the place of purchase
for a free of charge replacement. ML Accessories does not accept responsibility for any
installation costs associated with the replacement product. Your statutory rights are not
affected. ML Accessories reserve the right to alter product specification without prior notice.

TESTING FOR EMERGENCY LUMINAIRES

Recommended routine test procedure in accordance with BS5266

• Daily check – check LED charge indicator is illuminated

• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by
operation of a key switch or switching off the circuit breaker. Ensure normal supply is
restored after test and ensure charge indicator is illuminated

• Annual three-hour duration test - simulate a mains supply failure for three-hour
continuous test by operation of a key switch or switching off the circuit breaker. Ensure
normal supply is restored after test and ensure charge indicator is illuminated

• If the luminaire fails any of the above tests, please contact a qualified electrician. See
below for test record sheet

TEST RECORD SHEET

INITIAL COMMISSIONING

3 HOUR TEST

MONTH TEST

1 FUNCTIONAL

2 FUNCTIONAL

3 FUNCTIONAL

4 FUNCTIONAL

5 FUNCTIONAL

6 FUNCTIONAL

7 FUNCTIONAL

8 FUNCTIONAL

9 FUNCTIONAL

10 FUNCTIONAL

11 FUNCTIONAL

12 3 HOUR

FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR

SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE

SIGNED DATE

Installed by: Installation date:

Contact number:

INTERNATIONAL

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

CONTACT DETAILS

ML Accessories Limited LU5 4LT

www.mlaccessories.co.uk

52

-20~
50°C

TA

DCAUG21_V2
