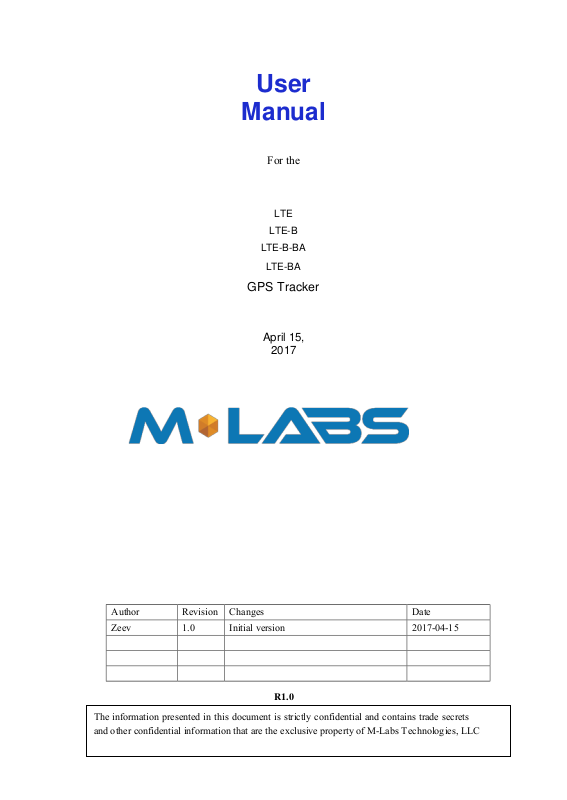

M Labs Technologies MLTE001T User Manual

Download

User

Manual

For the

LTE

LTE-B

LTE-B-BA

LTE-BA

GPS Tracker

April 15,

2017

Author Revision Changes Date Zeev 1.0 Initial version 2017-04-15

R1.0

The information presented in this document is strictly confidential and contains trade secrets

and other confidential information that are the exclusive property of M-Labs Technologies, LLC

Contents

1 Introduction ...................................................................................................................................... 5

2 Hardware Design ............................................................................................................................. 6

2.1 Basic Hardware ...................................................................................................................... 6

GPS .................................................................................................................................................. 7

GPIO ................................................................................................................................................ 7

LED’s ................................................................................................................................................ 7

UART ............................................................................................................................................... 7

USB .................................................................................................................................................. 8

Relay Driver ..................................................................................................................................... 8

Power and Battery .......................................................................................................................... 8

Timers ............................................................................................................................................. 8

Watchdog ........................................................................................................................................ 8

Accelerometer ................................................................................................................................ 8

2.2 Basic RF Performance ................................................................................................................. 8

2.3 Certification and Safety ........................................................................................................ 11

3 Software Features ......................................................................................................................... 11

3.1 Basic Software ...................................................................................................................... 11

3.2 Remote Update ........................................................................................................................ 11

3.3 Power Modes ........................................................................................................................... 11

3.4 AT Commands ........................................................................................................................... 12

Command Summary ..................................................................................................................... 12

3.5 Ack’ed Mode ............................................................................................................................. 13

3.6 Event Report Format ................................................................................................................. 14

3.7 Reset ......................................................................................................................................... 14

3.7.1 Context Preservation .......................................................................................................... 14

3.8 Startup Banner ......................................................................................................................... 14

4 Test Method .................................................................................................................................. 15

4.1 Hardware .............................................................................................................................. 15

4.2 Software Test ........................................................................................................................ 15

Mechanical Structure (mm) .................................................................................................................. 16

FCC Statement ...................................................................................................................................... 17

RF Exposure Warning Statements: ........................................................................................................ 17

IC STATEMENT ....................................................................................................................................... 17

1 Introduction

The LTE CAT1 cellular connectivity. It is primarily a location reporting device that responds to requests (user, server) and events (timers, geo-fences). Data reports consist of a single record that contains all location data and system status.

The device comes pre-configured from the factory. It is ready to use. The LTE

a user or a server application as an endpoint device. It can be queried, updated and configured

either through a serial connection, an over the air IP connection, or through SMS messaging.

The LTE

attached functional elements. These elements include:

Access to these elements and general purpose interfaces is done through an extended AT

command set. Configuration parameters are stored to flash memory and are automatically used on the next power up event. For more details, please reference the AT Command document.

Diagram

is a self-contained vehicle tracking device that combines GPS location with LTE

appears to

presents itself over these connections as an enhanced cellular modem with

 GPS location engine

 Accelerometer  Input/outputs dedicated for ignition, relay, buzzer, and general purpose

 Serial UART port  Timers

 Watchdog lockup protection  Power management

 Event reporting  Voltage monitoring

This LTE

(

LTE CAT 1, wireless

product is designed based on the Sequans Communications or VZ120Q

data/SQN3223) b

aseband module, which includes an ARM CPU, 4M serial

flash, LTE_B2&B4&B12 RF transceiver, and triple-band RF front end circuit.

Antennas for cellular and GPS are internal to the device.

2 Hardware Design

2.1 Basic Hardware

Items Requirement

US130Q LTE E-UTRA

Baseband Module

Cellular Network Interface Support for LTE B12, B4, B2 Frequency B2(MHZ):TX(1850-1910) RX(1930-1990)

Based on SQN3223 baseband chipset and SQN3241 RF 4G Transceiver

B4(MHZ): TX(1710-1755) RX(2110-2155) B12(MHZ): TX(698-716) RX(728-746)

US130Q LTE E-UTRA

Antenna

Internal Dual Antennas󰦅Main & Diversity󰦆 [B2&B4&B12]

GPS Antenna Dedicate high performance ceramic antenna UIM requirement

Support：2FF SIM Interrupt Mode No Support: Hot Plug/Unplug

Battery Monitor Internal analog input

Build in battery manager Yes Interface

Debug UART

Application UART

USB 12V DC Input󰦅1A current󰦆, Ground Relay Drive (12V Output ,500mA current) Dedicated Output for buzzer control Ignition Input GPIO

Dedicate Timers Yes Watchdog External HW via MCU Motion Detect

Supported󰦅GPS/G-Sensor󰦆

LED 2 LED Supported

1- RED; 1- Green

Battery

Build in battery󰦅80MAH Lion󰦆

Working Time 4 hours Power switch

Power Cable color 10 colors Power Cable connector type 10-pin connector Power Consumption < 5Watts

The LTE

provides support for specialized hardware features through extended AT

commands. The features supported include the following:

GPS

GPS location functionality is provided by the device GPS receiver. NMEA GPS records can be

extracted in real time from the unit via the UART connection using special debug commands

that are outside the scope of this document.

GPIO

One dedicated input, two dedicated outputs, and one general purpose IO are presented to the

external

generate a report or drive logic levels to external devices. These lines are 2.8V logic level and

are 16V tolerant. These pins default to input and are pulled down representing 0 when

disconnected. They should be asserted to a known value if used.

environment

on the main connector. They are capable of providing system interrupts to

LED’s

Two LED status indicators are provided to verify correct installation and operation. The status

LEDs are color coded and directly convey the status of the cellular and GPS subsystems as

described in the table below. Their valid operation also indicates operational status and power.

LED Function Status

Red GPS

Green Cellular

Connection

The LTE

provides user control allowing the LEDs to be extinguished once installation is

verified. This feature reduces power and further conceals the LTE

parties wishing to defeat its operation.

On: GPS satellites acquired and Locked

Flash Slow: GPS satellite search is in progress Off: No power or GPS subsystem fault

On: Indicates LTE connection is made

Flash Slow: LTE subsystem initialization in progress

Flash Fast: LTE initialization but no data connection available Off: No power or LTE subsystem fault

Tracker from untrained

UART

There are two UART’s provided. A debug UART port is provided for AT commands, data

interaction and optionally for application specific control. A second, application UART is

provided to be used as an expansion port for sensors and other peripherals

USB

The USB port is provided for provisioning or debug.

Relay Driver

A 500mA sink capable output pin is provided. This pin is meant to drive a relay coil indented to

interrupt the starter solenoid relay for the ignition circuit to a car.

Power and Battery

The battery monitor is internal analog input scaled such that the DC value of the power input

pin to the LTE

of the A/D and consequently covers a scale from 0 to 25.5 Volts.

system is measured. This value is scaled to span the most significant 8 bits

Timers

Timers resident on the baseband chip generate periodic interrupts for power down wakeup,

watchdog support, periodic report generation and other timer related functions.

Watchdog

SQN3223 chipset provides internal software Watchdog. The LTE device also includes an

MCU that acts as a failsafe external watchdog. The MCU power cycles the system, if no

activity is detected for 1 hour.

Accelerometer

The accelerometer can be used for motion detection and driver behavior monitoring.

2.2 Basic RF Performance

Items Requirements

TRP free space B2/B4/B12: >= 20 dBm TRP free space

TIS free space

Antenna loss <= -3dB TRP-TX Power Conducted

Antenna Loss

Board RF Specification LTE_B4 RX

B4 Frequency range 2110-2155MHZ Sensitivity -99.5dBm (10MHZ_50RB_Downlink) Dynamic range

Main: <= -91dBm Div: <= -88dBm

<= -3dB

-23～-99.5dBm

Remark

TIS free space

RX receive sensitivity conducted – TIS

LTE_B4 TX

B4 Frequency range

1710MHz～1755MHz

Maximum Frequency error ±10Hz Maximum output power 23.38dBm

Minimum control output power <-40dBm

ACLR

UTRA2: 46.48 UTRA1: 41.21 E-UTRA1:39.23

UTRA2: 43.87 UTRA1: 40.51 E-UTRA2:38.05 OBW 8.87MHZ (10MHZ Nominal) IQ OFFSET < -55.6dbc

EVM

LTE_B12_RX

Frequency range 728MHz ~ 746MHz Sensitivity Dynamic range -23 ~ -100dBm

LTE_B12 _TX

Frequency range 699MHz ~ 716MHz Maximum Frequency error Maximum output power Minimum control output power <-40dBm

ACLR

OBW 8.87MHZ (10MHZ Nominal) IQ OFFSET < -54.7dbc EVM <3%

LTE_B2 _RX

Frequency range (1930-1990)MHZ Sensitivity Dynamic range -23 ~ -100dBm

LTE_B2 _TX

Frequency range Maximum Frequency error Maximum output power Minimum control output power <-40dBm

ACLR

OBW 8.87MHZ (10MHZ Nominal) IQ OFFSET < -54.9dbc EVM <3%

<3%

-100dBm (10MHZ_50RB_Downlink)

±10Hz

23.29dBm

UTRA2: 45.48 UTRA1: 41.41 E-UTRA1:39.43

UTRA2: 44.87 UTRA1: 41.51 E-UTRA2:38.25

-100dBm (10MHZ_50RB_Downlink)

˄ 1850-1910˅MHZ

±10Hz

23.28dBm

UTRA2: 46.48 UTRA1: 41.51 E-UTRA1:39.49

UTRA2: 44.45 UTRA1: 42.51 E-UTRA2:38.29

GPS

Frequency Support

Sensitivity

Tracking Time Requirement

2.3 Certification and Safety

Items Requirement

Drop Design Temperature Range

Humidity:

Altitude: Vehicle ISO Test

FCC Certification Other Certifications ESD Requirement

Operator Certifications

L1-band (1.57542GHz)

Channels: 210 PRN， 66 Search， 22 Simultaneous

tracking

Sensitivity (UHIS):

Tracking: -156dBm

Reacquisition: -153dBm

Acquisition: -144dBm

Acquisition time:

Hot: <2s

Warm: <15s

Cold: <60s

Reacquisition: 2s - 10s Depends on signal level

1.2 meter 6 direction standard drop test

-20 to 40°C Operation

-50 to +100° C Storage

20% to 90% Operation 10% to 95% Storage

-500 to +18,000m

ISO7637-2-2004; ISO7637-3-2007; ISO10605-2008; ISO16750-2-2010 FCC 47 CFR Part 15 Industry Canada (optional) 10KV non-Conductive

Verizon and/or PTCRB / AT&T (optional)

3 Software Features

3.1 Basic Software

Items Requirement

Network Interface LTE B2, B4, B12 IP Stack Upgrade Method

IPV4/IPV6 Remote update/ PC tool

Remote Update Supported – including OMA DM Power Modes

AT Commands Report

Supported Supported

Supported: 3000 records

Drivers GPIO，LED，GPS，UART, USB Accelerometer GPIOs

Interrupt for Ignition Status, Buzzer, Relay

LEDs Watch Dog Reset Startup Banner

GPS Status, Network Status Supported Soft reset, hard reset, GPS reset, RF reset Supported

3.2 Remote Update

The LTE supports OTA field upgrades of the resident application. An over the air

(Trivial File Transfer Protocol) connection is made over a

n IP

connection. A replacement file is

TFTP

then transferred from a server to the LTE and that file replaces the previous application

image. Additionally the whole stack can be updated using an OMA- DM protocol.

3.3 Power Modes

The LTE device supports several power modes that are set by AT commands. In full

power mode the GPS is active and the cellular subsystem will maintain a persistent cellular

connection whenever service is available. IP connection is maintained according to the

configuration of the device.

The device can be put in low power mode whenever it runs on a backup battery or if the external

battery is low or if it is not moving. In low power mode the GPS is not running and the LED’s

are off. The device would return to full power whenever an event occurs that triggers a report.

Those events include:

 Periodic report  GPIO change  IP change  Battery threshold  Heartbeat  Watchdog

11 / 17

 Power-up  Ignition  Trip start and stop

Any hardware or software reset will return the device to full power mode.

3.4 AT Commands

Extended AT commands are specific to the LTE device. They are closely based on

commands that are as similar as possible industry common devices and are essentially subsets of

standard LTE

also available via the serial and USB interfaces.

Command Summary

commands. Native AT commands supported by the SQN3223 modules are

The following commands are specific to the LTE

. The commands listed are intended to

be similar to counterparts found in other tracking products by the same vendor.

1. AT+IONAA: Set append mode

2. AT+IONACK: Set acknowledgement mode

3. AT+IONAPN: Set APN

4. AT+IONBIN: Read the factory core software version (read only)

5. AT+IONBZ: Buzzer setting

6. AT+IONCV: Configuration version

7. AT+IONDI: Set distance interval interrupt

8. AT+IONDTE: Set driving time events

9. AT+IONFR: Restore factory defaults

10. AT+IONGF: Set geo fence borders

11. AT+IONGFH: Set geo fence around current location

12. AT+IONGPIO: GPIO Read/Write

13. AT+IONGS: GPS State report

14. AT+IONHB: Heartbeat

15. AT+IONHC: Heading Change

16. AT+IONINFx: List system information segments

17. AT+IONIP: Set target server IP address and port number

18. AT+IONIPC: IP Change report

19. AT+IONIS: Ignition State

20. AT+IONLT: LEDs’ Timing and Intensity

21. AT+IONLPORT: Set the local IP port number

12 / 17

22. AT+IONNR: Set time before IP session is closed and restarted

23. AT+IONNW: Set watchdog timeout if no network found

24. AT+IONPM: Set auto power down mode

25. AT+IONRF: Report Format – Binary

26. AT+IONRI: Set report timer interval

27. AT+IONRM: Report Mask

28. AT+IONRN: Queue report record for transmission

29. AT+IONRR: Set reset report

30. AT+IONRS: Reset setting - soft/hard, periodic

31. AT+IONSD: Set SMS response destination

32. AT+IONSI: Set interrupt

33. AT+IONSQ: Set queue length

34. AT+IONSR: Set relay driver (GP3) state high or low

35. AT+IONSV: Read the factory application software version (read only)

36. AT+IONTA: Tow Alert

37. AT+IONTID: CDMA tower ID and location data

38. AT+IONUA: Update application firmware OTA

39. AT+IONUC: Update configuration files OTA

40. AT+IONVO: Virtual Odometer

41. AT+IONVTO: Virtual Trip Odometer

3.5 Ack’ed Mode

UDP is not a 100% reliable connection and occasional reports or command/responses may be

lost. Since all commands have responses, the server can repeat any command to which there is no

response. In order to assure reliable reception of reports, LTE devices can be confi gured

either in Normal or Ack’ed mode to send the reports. In the Normal mode the reports are simply

sent “as is” with no acknowledgment from the server. In the Ack’ed mode every report sent is

expected to be acknowledged by the server by sending back an ACK message back. If

acknowledgement

not acknowledged after the specified number of attempts, it is queued. If acknowledgement is

received after the report is queued (i.e. past timeout of the last attempt), it is ignored.

Report is not considered “complete” until its acknowledgement is received. Thus, if report X is

sent and report X+1 is triggered while waiting for acknowledgement of X, report X+1 will be

queued until such acknowledgement is received and only then sent. The LTE will attempt

to re-send queued report(s) every time a new report is triggered. If there is more than one report

is not received within the specified timeout, the report is re-sent. If the report is

13 / 17

queued, the reports will attempt to be sent in the order of triggering and only once the report is

acknowledged, the next report is attempted. This assures that reports are sent and received in

order

Ack’ed mode assures that all reports are received, but adds overhead in time and data. Report

that is not

acknowledged

is sent again and

eventually

will be queued and sent again. The number

and frequency of re-tries is configurable via the Report Acknowledgement command.

3.6 Event Report Format

Reports are encoded as binary hex. It is also echoed to the debug UART in ASCII format.

3.7 Reset

There are a number of resets available on the device. Soft reset only restarts the software

running on the device. Hard reset is caused by resetting the whole basband module via a reset

pin. There is also an option to reset the GPS and the cellular sub-systems individually.

3.7.1 Context Preservation

When a self-initiated reset is performed due to Network Watchdog or by the Reset command

(modes 0, 1), the context of the system is being preserved and is restored after the reset. The

context includes all the periodic timers, the report queue, the odometer, etc. This allows reset

o f the unit as a troubleshooting or preventive measure without losing reports that are already in

the queue or are pending on running timers. Note that the reset process may cause 1-2min of

inaccuracy in the timers and should not be considered as very precise.

3.8 Startup Banner

After a reset a startup banner is printed through the UART only.

14 / 17

4 Test Method

4.1 Hardware

Test Item Description Baseband Function Test

RF Test

• Power Input Test

• Power Consumption and Current Test

• Heat Dissipation Test

• UART Stability Test

• GPIO Level Test

• LED Stability Test

• Drop Down Test

• ESD Test

• High/Low Temperature Test

• Humidity Test

• RF Performance Test

• GPS Performance Test

• Antenna Performance Test

4.2 Software Test

Test Environment Construct

 Message Test environment

1. USB dongle and PC as message server

2. Send message to LTE  UDP Test environment

1. Connect dongle to PC and create dialup as ip server

2. LTE create IP connection to server  UART Test environment

1. Connect LTE

2. Open Terminal tool and send at command

3. Response can be shown at terminal window

to PC with com serial cable

15 / 17

Mechanical Structure (mm)

16 / 17

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter

ISEDC Warning :

This device complies with Innovation, Science, and Economic Development Canadalicence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada(Industrie Canada) applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement

Cet ÿuipement est conforme aux limites d'exposition de la radiation dÿerminÿs pour un environnement non contrÿ? Cet ÿuipement devrait ÿre install?et ÿre actionn?avec la distance minimum 20cm entre le radiator& votre corps.Cet ÿetteur ne doit pas ÿre Co-plac?ou ne fonctionnant

en mÿe temps qu'aucune autre antenne ou ÿetteur

17 / 17

M Labs Technologies MLTE001T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
