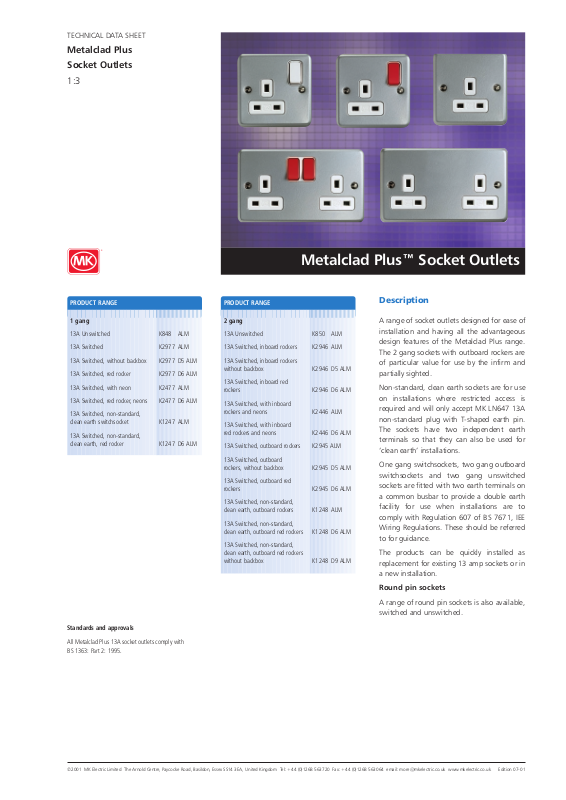

Page 1
TECHNICAL DATA SHEET
Metalclad Plus
Socket Outlets
1:3
Metalclad Plus™ Socket Outlets
PRODUCT RANGE
1 gang
13A Unswitched K848 ALM
13A Switched K2977 ALM
13A Switched, without backbox K2977 D5 ALM
13A Switched, red rocker K2977 D6 ALM
13A Switched, with neon K2477 ALM
13A Switched, red rocker, neons K2477 D6 ALM
13A Switched, non-standard,
clean earth switchsocket K1247 ALM
13A Switched, non-standard,
clean earth, red rocker K1247 D6 ALM
Standards and approvals
All Metalclad Plus 13A socket outlets comply with
BS 1363: Part 2: 1995.
PRODUCT RANGE
2 gang
13A Unswitched K850 ALM
13A Switched, inboard rockers K2946 ALM
13A Switched, inboard rockers
without backbox K2946 D5 ALM
13A Switched, inboard red
rockers K2946 D6 ALM
13A Switched, with inboard
rockers and neons K2446 ALM
13A Switched, with inboard
red rockers and neons K2446 D6 ALM
13A Switched, outboard rockers K2945 ALM
13A Switched, outboard
rockers, without backbox K2945 D5 ALM
13A Switched, outboard red
rockers K2945 D6 ALM
13A Switched, non-standard,
clean earth, outboard rockers K1248 ALM
13A Switched, non-standard,
clean earth, outboard red rockers K1248 D6 ALM
13A Switched, non-standard,
clean earth, outboard red rockers
without backbox K1248 D9 ALM
Description
A range of socket outlets designed for ease of
installation and having all the advantageous
design features of the Metalclad Plus range.
The 2 gang sockets with outboard rockers are
of particular value for use by the infirm and
partially sighted.
Non-standard, clean earth sockets are for use
on installations where restricted access is
required and will only accept MK LN647 13A
non-standard plug with T-shaped earth pin.
The sockets have two independent earth
terminals so that they can also be used for
‘clean earth’ installations.
One gang switchsockets, two gang outboard
switchsockets and two gang unswitched
sockets are fitted with two earth terminals on
a common busbar to provide a double earth
facility for use when installations are to
comply with Regulation 607 of BS 7671, IEE
Wiring Regulations. These should be referred
to for guidance.
The products can be quickly installed as
replacement for existing 13 amp sockets or in
a new installation.
Round pin sockets
A range of round pin sockets is also available,
switched and unswitched.
©2001 MK Electric Limited The Arnold Centre, Paycocke Road, Basildon, Essex SS14 3EA, United Kingdom Tel: +44 (0)1268 563720 Fax: +44 (0)1268 563064 email: [email protected] www.mkelectric.co.uk Edition 07-01
Page 2
TECHNICAL DATA SHEET
Metalclad Plus
Socket Outlets
2:3
Features
■ Moulded ‘on’ indicator flash on
switches will not rub off – totally safe
■ Optional neon indicators in the switch
rockers with 175° visibility in the
horizontal and vertical planes
■ Unique 3 pin operated safety shutter
■ White terminal markings on grey rear
mouldings for clearer identification
■ Top access, angled terminals make
wiring easier and quicker
■ Minimum 3mm contact gap
■ Double pole switching
■ Choice of inboard or outboard
positioned rockers
■ Frontplates and backboxes
manufactured from heavy gauge steel
■ Additional electrical safety from neutral
‘make first’, ‘break last’ feature
■ Switch contacts with silver contacts on
both surfaces for good continuity
■ Only one size of screwdriver required
for installation
■ Dual earth terminals for high integrity
earthing on list Nos. K850 ALM,
K2977 ALM, K2477 ALM, K2945 ALM,
K2757 WHI
■ Backed out and captive terminal screws
■ Non-standard ‘clean earth’ sockets
available
■ Socket inserts manufactured from a
specially formulated PC/ABS blend
TECHNICAL SPECIFICATION
Electrical
Voltage rating:
250V a.c.
Current rating:
13A per socket outlet
Terminal capacity:
Live, neutral & earth
2
3 x 2.5mm
2
3 x 4mm
3 x 6mm2(stranded)
(Dual earth terminals on list Nos.
K850 ALM, K2977 ALM, K2477 ALM, K2945 ALM
Physical
Ambient operating temperature:
–5°C to +40°C
(not to exceed an average of more than 25°C in any
24 hour period)
IP rating:
IP4X
Max. installation altitude:
2000 metres
Box Knockouts
1 gang
6 x 20.5 dia
2 in one side
1 in each of the other 3 sides
1 in base
2 gang
8 x 20.5 dia
3 in top
2 in bottom
1 in each side
1 in base
Box types
Flush Flush (for extra Surface Metal
wiring space)
1 gang 861 ZIC 866 ZIC as supplied
2 gang 862 ZIC 886 ZIC as supplied
Installation
Metalclad Plus socket outlets can be wall or
bench mounted. Do not mount or use as a
trailing socket or where they may be subject
to excessive moisture or dampness.
2 gang switchsocket – view from rear
Top-facing, angled, backed-out terminals
make wiring easier and quicker.
©2001 MK Electric Limited The Arnold Centre, Paycocke Road, Basildon, Essex SS14 3EA, United Kingdom Tel: +44 (0)1268 563720 Fax: +44 (0)1268 563064 email: [email protected] www.mkelectric.co.uk Edition 07-01
Page 3
TECHNICAL DATA SHEET
Metalclad Plus™
Socket Outlets
3:3
Dimensions (mm)
1 gang
86
2 gang
86
60.3
146
30
17
30
51
47
51
86
86
120.6
146
120.6
28
17
17
47
51
47
©2001 MK Electric Limited The Arnold Centre, Paycocke Road, Basildon, Essex SS14 3EA, United Kingdom Tel: +44 (0)1268 563720 Fax: +44 (0)1268 563064 email: [email protected] www.mkelectric.co.uk Edition 07-01
