Mk electric EDGE DATASHEET

Slim profile frontplates of only 1.5mm with matching flat head screws throughout

A clean and practical range of products that complement the finest interiors

Total safety

Unique 3-pin operated “child resistant shutter system”, which is designed to inhibit access to
the electricity supply, unless all 3 pins of a standard British 13 Amp plug are in position

Comprehensive range of sockets, switches and modular ancillary products

Mean that whatever the application, the Edge range has a wiring device to suit

Ten standard high quality finishes with the option for custom design service

Allows designers the flexibility to provide the finish of their choice

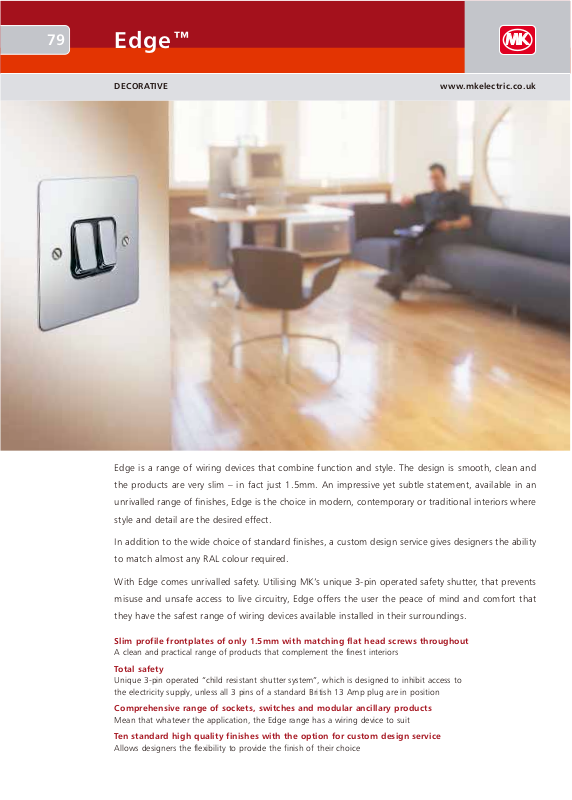

Edge is a range of wiring devices that combine function and style. The design is smooth, clean and

the products are very slim – in fact just 1.5mm. An impressive yet subtle statement, available in an

unrivalled range of finishes, Edge is the choice in modern, contemporary or traditional interiors where

style and detail are the desired effect.

In addition to the wide choice of standard finishes, a custom design service gives designers the ability

to match almost any RAL colour required.

With Edge comes unrivalled safety. Utilising MK’s unique 3-pin operated safety shutter, that prevents

misuse and unsafe access to live circuitry, Edge offers the user the peace of mind and comfort that

they have the safest range of wiring devices available installed in their surroundings.

Edge™

79

DECORATIVE www.mkelectric.co.uk

80

Edge

TECHNICAL HOTLINE [phone] DECORATIVE

The built-in lock in the Edge 13 amp

Lockable Socket ensures that power

cannot be provided without key

operation making it ideal for communal

areas such as hotel lobbies.

FLATHEAD SCREWS

THROUGHOUT

MATCHING METAL

ROCKER SWITCHES

OPTIONAL BLACK OR WHITE

INSERTS ON SELECTED FINISHES

Provide impact in any environment

TEN HIGH QUALITY

FINISHES TO

CHOOSE FROM

UNIQUE 3-PIN “CHILD RESISTANT

SHUTTER SYSTEM”

Designed to inhibit access to the

electricity supply, unless all 3 pins

of a standard British 13 Amp plug

are in position

STYLISH

SLIM-LINE

DESIGN

Frontplate

profile only

1.5mm

Terminal screws are backed out and

captive. Terminals are upwards facing to

make installation easier.

Funnel entrance to terminals.

Clear terminal markings for easy

identification.

DOUBLE POLE

SWITCHING

ANTIQUE BRONZE

Due to the special processes required

to obtain the authentic finish there

will be a slight finish variation

between ABR products.

Combination plates provide one neat

solution to all power, data, TV and

satellite outlet requirements.

Edge

81

DECORATIVE www.mkelectric.co.uk

Switchsocket
Outlets

1 GANG DP
DUAL EARTH
13 AMP

1 GANG DP
WITH NEON
DUAL EARTH
13 AMP

NON STANDARD
1 GANG DP
CLEAN EARTH
13 AMP

2 GANG DP
DUAL EARTH
13 AMP

2 GANG DP
CLEAN EARTH
13 AMP

2 GANG DP
WITH NEON
DUAL EARTH
13 AMP

LEAD TIMES
Please contact our Customer
Services Department on:
01268 563000

MOUNTING BOXES

FLUSH 35mm: 866 ZIC
FLUSH 46mm: 877 ZIC
(for extra wiring space)

DIMENSIONS:
86 x 86mm

FIXING CENTRES:

60.3mm

BS.1363 Pt. 2: 1995

MOUNTING BOXES

FLUSH 35mm: 866 ZIC
FLUSH 46mm: 877 ZIC
(for extra wiring space)

DIMENSIONS:
86 x 86mm

FIXING CENTRES:

60.3mm

BS.1363 Pt. 2: 1995

Neon is only available
in white or black rocker.

MOUNTING BOXES

FLUSH 35mm: 886 ZIC
FLUSH 47mm: 878 ZIC
(for extra wiring space)

DIMENSIONS:
86 x 146mm

FIXING CENTRES:

120.6mm

BS.1363 Pt. 2: 1995

MOUNTING BOXES

FLUSH 35mm: 886 ZIC
FLUSH 47mm: 878 ZIC
(for extra wiring space)

DIMENSIONS:
86 x 146mm

FIXING CENTRES:

120.6mm

BS.1363 Pt. 2: 1995

Neon is only available
in white or black rocker.

FINISHES

BLACK ANODISED
ALUMINIUM

BRUSHED
STAINLESS STEEL

POLISHED BRASS

SILVER ANODISED
ALUMINIUM

POLISHED
CHROME

WHITE

POLISHED BRONZE

ANTIQUE BRONZE

BRUSHED BRASS

GOLD PLATED

W White Inserts

Black Inserts

Standard Black or

White

Option Black or
White

OPT

OPT

STD

STD

B

OPT

STD

STD

OPT

OPT

STD

STD

OPT

STD

STD

STD

STD

STD

OPT

STD

OPT

K14357 BSS W K14657 BSS W K14268 BSS W K14347 BSS W K14345 BSS W K14647 BSS W

K14357 BSS K14657 BSS K14268 BSS K14347 BSS K14345 BSS K14647 BSS

K14357 PBR W K14657 PBR W K14268 PBR W K14347 PBR W K14345 PBR W K14647 PBR W

K14357 PBR K14657 PBR K14268 PBR K14347 PBR K14345 PBR K14647 PBR

K14357 SAA W K14657 SAA W K14268 SAA W K14347 SAA W K14345 SAA W K14647 SAA W

K14357 SAA K14657 SAA K14268 SAA K14347 SAA K14345 SAA K14647 SAA

K14357 POC W K14657 POC W K14268 POC W K14347 POC W K14345 POC W K14647 POC W

K14357 POC K14657 POC K14268 POC K14347 POC K14345 POC K14647 POC

BBBBBB

BBBBBB

BBBBBB

BBBBBB

K14357 WHI W K14657 WHI W K14268 WHI W K14347 WHI W K14345 WHI W K14647 WHI W

K14357 BLA K14657 B LA K14268 BLA K14347 BLA K14345 B LA K14647 BL A

K14357 PBZ K14657 P BZ K14268 PBZ K14347 PB Z K14345 PBZ K14647 PBZ

K14357 ABR K14657 ABR K14268 ABR K14347 ABR K14345 ABR K14647 ABR

BBBBBB

BBBBBB

BBBBBB

K14357 BBR W K14657 BBR W K14268 BBR W K14347 BBR W K14345 BBR W K14647 BBR W

K14357 BBR K14657 BBR K14268 BBR K14347 BBR K14345 BBR K14647 BBR

K14357 GLD W K14657 GLD W K14268 GLD W K14347 GLD W K14345 GLD W K14647 GLD W

K14357 GLD K14657 GLD K14268 GLD K14347 GLD K14345 GLD K14647 GLD

BBBBBB

BBBBBB

MOUNTING BOXES

FLUSH 35mm: 866 ZIC
FLUSH 46mm: 877 ZIC
(for extra wiring space)

DIMENSIONS:
86 x 86mm

FIXING CENTRES:

60.3mm

BS.1363 Pt. 2: 1995
(where relevant)
These products are
provided with facilities
for ‘clean earth’
connections and are
suitable for non­standard plugs with ‘T’
shaped earth pins.

MOUNTING BOXES

FLUSH 35mm: 886 ZIC
FLUSH 47mm: 878 ZIC
(for extra wiring space)

DIMENSIONS:
86 x 146mm

FIXING CENTRES:

120.6mm

BS.1363 Pt. 2: 1995
(where relevant)

Dual Earth

Fitted with two earth terminals to provide a double earth
facility for use when installations are to comply with
Section 607 of BS.7671 IEE Wiring Regulations

Dual Earth (see note box)

Dual Earth (see note box)

82

Edge

TECHNICAL HOTLINE [phone] DECORATIVE

NON STANDARD
2 GANG DP
CLEAN EARTH
13 AMP

1 GANG DP
ROUND PIN
15 AMP

LOCKABLE
1 GANG DP
DUAL EARTH
13 AMP

MOUNTING BOXES

FLUSH 35mm: 886 ZIC
FLUSH 47mm: 878 ZIC
(for extra wiring space)

DIMENSIONS:
86 x 146mm

FIXING CENTRES:

120.6mm

BS.1363 Pt. 2: 1995
(where relevant)

These products are
provided with facilities for
‘clean earth’ connections,
and are suitable for non­standard plugs with T
shaped earth pins. Refer
to non-standard plugs
page 170.

MOUNTING BOXES

FLUSH 35mm: 866
ZIC
FLUSH 46mm: 877
ZIC
(for extra wiring
space)

DIMENSIONS:
86 x 86mm

FIXING CENTRES:

60.3mm

BS.546: 1950

MOUNTING BOX

FLUSH 47mm: 878 ZIC

DIMENSIONS
86 x 146mm

FIXING CENTRES

120.6mm

BS.1363 Pt. 2: 1995

MOUNTING BOXES* (for K14200)

FLUSH 35mm: K14201
FLUSH 47mm: K14202

DIMENSIONS:
86 x 442.8mm

FIXING CENTRES: 417.4mm

BS.1363 Pt. 2: 1995

* See page 50 for box dimensions

K14355 BSS W K14246 BSS W K14383 BSS W K14200 BSS W K14205 BSS W K14100 BSS W

K14355 BSS K14246 BSS K14383 BSS K14200 BSS K14205 BSS K14100 BSS

K14355 PBR W K14246 PBR W K14383 PBR W K14200 PBR W K14205 PBR W K14100 PBR W

K14355 PBR K14246 PBR K14383 PBR K14200 PBR K14205 PBR K14100 PBR

K14355 SAA W K14246 SAA W K14383 SAA W

K14355 SAA K14246 SAA K14383 SAA

K14355 POC W K14246 POC W K14383 POC W K14200 POC W K14205 POC W K14100 POC W

K14355 POC K14246 POC K14383 POC

K14200 POC K14205 POC K14100 POC

BBBBBB

BBB

BBBBBB

BBBBBB

K14355 WHI W K14246 WHI W K14383 WHI W K14200 WHI W K14205 WHI W K14100 WHI W

K14355 BLA K14246 B LA K14383 BLA

K14355 PBZ K14246 P BZ K14383 PBZ

K14200 PBZ K14205 PBZ K14100 PBZ

K14355 ABR K14246 ABR K14383 ABR

K14200 ABR K14205 ABR K14100 ABR

BBBBBB

BBBBBB

BBB

K14355 BBR W K14246 BBR W K14383 BBR W K14200 BBR W K14205 BBR W K14100 BBR W

K14355 BBR K14246 BBR K14383 BBR K14200 BBR K14205 BBR K14100 BBR

K14355 GLD W K14246 GLD W K14383 GLD W

K14355 GLD K14246 GLD K14383 GLD K14200 GLD K14205 GLD K14100 GLD

BBB

BBB

BBB

BBB

IN-LINE COMBINATION PLATES
4 GANG DP DUAL EARTH 13A EURO 4
MODULE 100 X 50mm

2 GANG DP DUAL EARTH 13A EURO 6
MODULE 50 X 50mm (x3)

Dual Earth (see note box)

MOUNTING BOXES* (for K14205)

FLUSH 35mm: K14206
FLUSH 47mm: K14207

DIMENSIONS:
86 x 407.9mm

FIXING CENTRES: 382.5mm

BS.1363 Pt. 2: 1995

* See page 50 for box dimensions

Dual Earth (see note box)

MOUNTING BOXES**

FLUSH 35mm: K14101
FLUSH 47mm: K14102

DIMENSIONS:
173 x 293.6mm

FIXING CENTRES: 268.2mm / 87.3mm

BS.1363 Pt. 2: 1995

** See page 51 for box dimensions

STACKED COMBINATION PLATE
4 GANG DP DUAL EARTH 13A
EURO 8 MODULE
100 x 50mm (x2)

Not available
in this finish

Not available
in this finish

Not available
in this finish

Not available
in this finish

Not available
in this finish

Not available
in this finish

K14200

K14205

Dual Earth (see note box)

Mains operated products and extra low voltage modules must not be installed within the same frontplate aperture.
Refer to BS. 7671 IEE Wiring Regulations for details.

Dual Earth (see note box)
