118
Available in Brushed Stainless Steel, Matt Chrome, and
Satin Brass finishes, Albany Plus brings stylish yet subtle
good looks to both contemporary and classical interiors.
Being manufactured from the finest materials, Albany Plus
wiring devices maintain their high quality appearance for
years to come.
Now available in Brushed Stainless Steel, Matt Chrome
and Satin Brass
Providing a range of products that complement the décor and
requirements of any interior
Albany Plus Brushed Stainless Steel is manufactured
using food grade Stainless Steel
Produced with 304 grade stainless steel, used for making catering and
medical equipment, Albany Plus Brushed Stainless Steel is ideal for use in
commercial kitchens and other corrosion resistant applications
Albany Plus Matt Chrome and Satin Brass are pre-treated
with a heat-cured powder lacquer finish
Matt Chrome and Satin Brass products are coated with a special heatcured powder lacquer finish ensuring that the range is durable, tarnish
resistant and maintains its stylish and understated appearance for many
years, and eliminates the need for a gasket
Total Safety
MK sockets have a 3-pin operated “child resistant shutter system”, which
is designed to inhibit access to the electricity supply unless all 3 pins of
a standard British 13 Amp plug are in position
Ease of Installation
Ideal for retrofits and other decorative applications where back box
space is limited
wiring devices |decorative www.mkelectric.co.uk
range introduction feature benefits
Albany Plus™
119
technical hotline +44 (0)1268 563720 decorative |wiring devices
Albany Plus
Terminal screws are backed out
and captive. Terminals are upwards
facing to make installation easier.
Funnel entrance to terminals.
Clear terminal markings for easy
identification.
Matt Chrome finish complements
modern interior design.
Satin Brass finish has subtle good looks
to suit classic interiors.
13 AMP SOCKET AVAILABLE
WITH NEON INDICATORS
STYLISH CURVED DESIGN
WITH WHITE INSERTS
Blends unobtrusively into
the environment
3-PIN “CHILD RESISTANT
SHUTTER SYSTEM”
Designed to inhibit access to the
electricity supply, unless all 3 pins
of a standard British 13 Amp plug
are in position
DOUBLE POLE
SWITCHING
PRE-TREATED HEAT-CURED POWDER
LACQUER FINISH (MCO AND SAB)
Ensures that the range is durable and
tarnish resistant and eliminates the
requirement for a gasket
MATCHING
SCREWS
FOOD GRADE
STAINLESS STEEL (BSS)
120
wiring devices |decorative www.mkelectric.co.uk
Albany Plus
Switchsocket
Outlets
13 AMP
FLUSH
WITH OUTBOARD
ROCKERS
13 AMP
FLUSH
NON STANDARD
13 AMP
FLUSH
MOUNTING BOXES
FLUSH 25mm
1 GANG: 861 ZIC
2 GANG: 862 ZIC
FLUSH 35mm (for extra wiring space)
1 GANG: 866 ZIC
2 GANG: 886 ZIC
SURFACE WITH KNOCKOUTS
1 GANG: K899 ALM
2 GANG: K897 ALM
SURFACE WITHOUT KNOCKOUTS
1 GANG: K829 ALM
2 GANG: K830 ALM
K2958 MCO
K2958 SAB
K2958 BSS
1 GANG DP
DUAL EARTH TERMINALS
K2948 MCO
K2948 SAB
K2948 BSS
2 GANG DP
5
5
101010
10
High Integrity Earthing
K2958, K2458, K2947
Fitted with two earth terminals to
provide a double earth facility for use
when installations are to comply with
Section 607 of BS.7671, IEE Wiring
Regulations
Double pole switching
All switchsockets have double pole
switching (neutral makes first, breaks
last).
K2458 MCO
K2458 SAB
K2458 BSS
1 GANG DP
DUAL EARTH TERMINALS
WITH NEON
K2448 MCO
K2448 SAB
K2448 BSS
2 GANG DP
WITH NEONS
5
5
5
10
10
10
K2947 MCO
K2947 SAB
K2947 BSS
2 GANG DP
WITH OUTBOARD
ROCKERS AND
DUAL EARTH TERMINALS
K2947D6 MCO
K2947D6 BSS
2 GANG DP
WITH OUTBOARD
RED ROCKERS AND
DUAL EARTH TERMINALS
K2947CE MCO
K2947CE SAB
K2947CE BSS
2 GANG DP
WITH OUTBOARD
ROCKERS AND
‘CLEAN EARTH’ FACILITY
5
5
5
5
555
5
K1258, K1259,
These products are provided
with facilities for ‘clean earth’
connection and are suitable for
non standard plugs with ‘T’
shaped earth pin.
See page 202.
BS.1363 Pt.2: 1995
where relevant
K1258 MCO
K1258 SAB
K1258 BSS
1 GANG DP WITH
CLEAN EARTH FACILITY
K1259 MCO
K1259 SAB
K1259 BSS
2 GANG DP WITH
CLEAN EARTH FACILITY
K1259D6 MCO
K1259D6 BSS
2 GANG DP
WITH RED ROCKERS AND
CLEAN EARTH FACILITY
1111111
5
K2458 MCO
K2458 SAB
K2448 BSS
K1258 MCOK2958 MCO
K2958 SAB
K2948 BSS
K2947 D6 BSS
K1258 SAB
K1259 MCO
DIMENSIONS:
1 GANG: 86 x 86mm
2 GANG: 86 x 146mm
FIXING CENTRES:
1 GANG: 60.3mm
2 GANG: 120.6mm
BS.1363 Pt. 2: 1995
K2958D6 MCO
K2958D6 BSS
1 GANG DP WITH RED ROCKER
DUAL EARTH TERMINALS
K2948D6 MCO
K2948D6 BSS
2 GANG DP WITH RED ROCKERS
5
5
10
10
K2958D6MCO
K2948 BSS
K2947 MCO
K2947 SAB
K2947CE MCO
K2947CE SAB
This product is provided with
facilities for ‘clean earth’
connection.
BS.1363 Pt.2: 1995
where relevant
121
technical hotline +44 (0)1268 563720 decorative |wiring devices

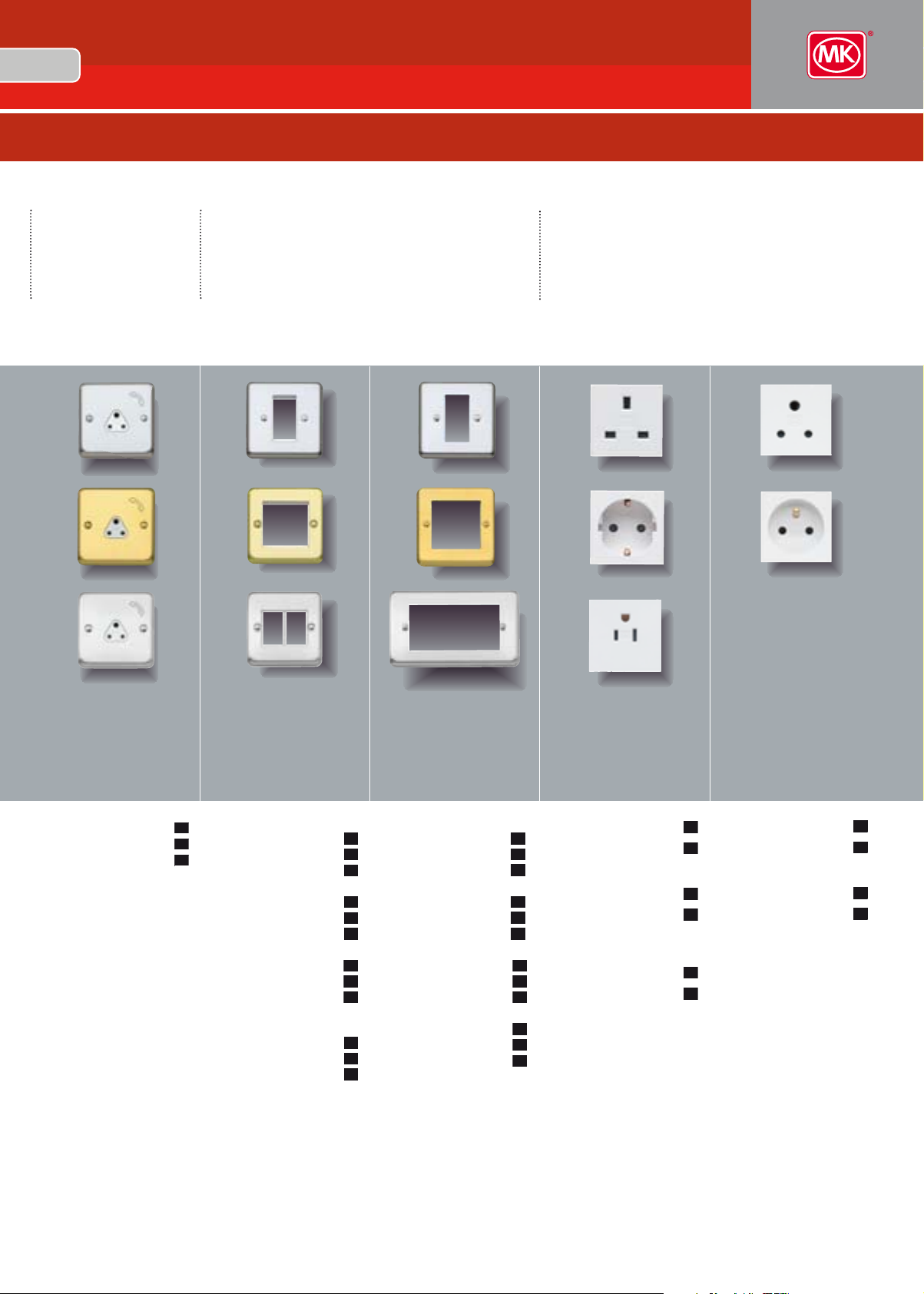

Albany Plus
RCD PROTECTED
13 AMP
FLUSH
ROUND PIN
FLUSH
Socket Outlets
13 AMP
FLUSH
MOUNTING BOXES
FLUSH 25mm: 861 ZIC
FLUSH 35mm: (for extra wiring
space) 866 ZIC
SURFACE
WITH KNOCKOUTS: K899 ALM
WITHOUT KNOCKOUTS: K829 ALM
DIMENSIONS: 86 x 86mm
FIXING CENTRES: 60.3mm
BS.546: 1950
K2881 MCO
K2881 SAB
K2881 BSS
1 GANG DP
5 AMP
SHUTTERED
K2883 MCO
K2883 SAB
K2883 BSS
1 GANG DP
15 AMP
SHUTTERED
5
555
5
5
MOUNTING BOXES
FLUSH 25mm
1 GANG: 861 ZIC
2 GANG: 862 ZIC
FLUSH 35mm (for extra wiring space)
1 GANG: 866 ZIC
2 GANG: 886 ZIC
SURFACE WITH KNOCKOUTS:
1 GANG: K899 ALM
2 GANG: K897 ALM
WITHOUT KNOCKOUTS:
1 GANG: K829 ALM
2 GANG: K830 ALM
DIMENSIONS:
1 GANG: 86 x 86mm
2 GANG: 86 x 146mm
FIXING CENTRES:
1 GANG: 60.3mm
2 GANG: 120.6mm
BS.1363: Pt 2: 1995
K2881 MCO
K2881 SAB
K732 MCOK6101 MCO
K6101 BSS
K6101 SAB
K6301 MCO
K6304 BSS
K6301 SAB
K2883 BSS
K732 SAB
K733 MCO
FILTERED
13 AMP
FLUSH
MOUNTING BOX
866 ZIC
Provides two way filtering to
reduce voltage spikes and radio
frequency interference.
Protected by thermal cut out.
Fitted with two earth terminals to
provide a double earth facility for
use when installations are to
comply with Section 607 of
BS.7671, IEE Wiring Regulations
Maximum total load 13 amps
DIMENSIONS:
86 x 146 x 39mm
FIXING CENTRES: 120.6mm
BS.5733: 1995
K2826 MCO
K2826 BSS
2 GANG DP
SPIKE AND RFI
K1800 WHI
REPLACEMENT
FILTER SOCKET
5
1
1
K2826 MCO
K1800 WHI
MOUNTING BOXES
FLUSH: 886 ZIC
Boxes must have a minimum depth of 35mm
SURFACE
WITH KNOCKOUTS: K897 ALM
WITHOUT KNOCKOUTS: K830 ALM
Earth pin operated shutter.
It is important to ensure that the correct control circuit, active or passive, is selected
for each application, see page 260 for definitions.
These products are pulsating d.c. and a.c. fault current sensitive.
Only suitable for supply voltage of 240V a.c., 50Hz.
DIMENSIONS: 86 x 146mm
FIXING CENTRES: 120.6mm
BS.7288: 1990
K6301 MCO
K6301 SAB
K6301 BSS
1 GANG
30mA RATED TRIPPING CURRENT
ACTIVE CONTROL CIRCUIT
K6304 MCO
K6304 SAB
K6304 BSS
1 GANG
30mA RATED TRIPPING CURRENT
PASSIVE CONTROL CIRCUIT
11111
1
K6101 MCO
K6101 SAB
K6101 BSS
1 GANG
10mA RATED TRIPPING CURRENT
ACTIVE CONTROL CIRCUIT
111
K732 MCO
K732 SAB
K732 BSS
1 GANG
K733 MCO
K733 SAB
K733 BSS
2 GANG WITH DUAL EARTH
TERMINALS
5
555
5
5
High Integrity Earthing
K733 is provided with dual earth
terminals for use when installations
are to comply with Section 607 of
BS.7671, IEE Wiring Regulations
Switchsocket
Outlets
122
wiring devices |decorative www.mkelectric.co.uk

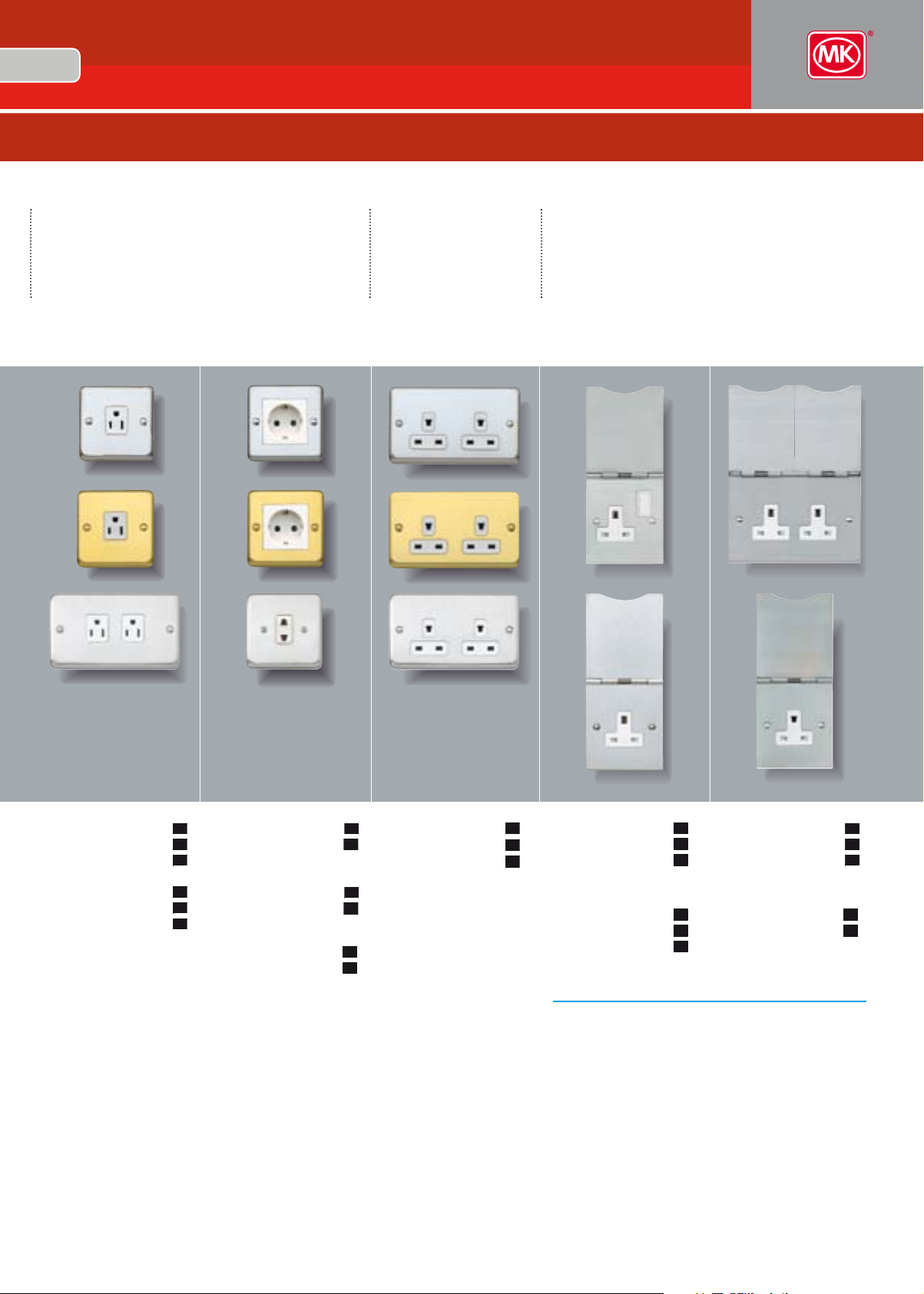

Albany Plus
Non Standard
Socket Outlets
13 AMP
FLUSH
MOUNTING BOXES
FLUSH 25mm: 862 ZIC
FLUSH 35mm: 886 ZIC
(for extra wiring space)
SURFACE (MCO) :
WITH KNOCKOUTS: K897 ALM
WITHOUT KNOCKOUTS:
K830 ALM
K1239/749
These products are provided with
facilities for ‘clean earth’ connections
and are suitable for non-standard
plugs with ‘T’ shaped earth pins.
For compatible non standard plugs see
page 170.
DIMENSIONS: 86 x 146mm
FIXING CENTRES: 120.6mm
BS.1363 Pt. 2: 1995
where relevant
K1239 MCO
K1239 SAB
K1239 BSS
2 GANG WITH
CLEAN EARTH FACILITY
5
5
5
Floor
Mounted
Socket Outlets
13 AMP
MOUNTING BOXES
FLUSH:
1 GANG: 866 ZIC
2 GANG: 886 ZIC
Boxes must have a minimum depth of 35mm
Rotary operated shutter.
DIMENSIONS:
1 GANG: 102 x 86mm
2 GANG: 102 x 146mm
FIXING CENTRES:
1 GANG: 60.3mm
2 GANG: 120.6mm
BS.1363: Pt 2: 1995
740 MCO
740 SAB
740 BSS
1 GANG SWITCHSOCKET
WITH SPRING LOADED
HINGED COVER PLATE
741 MCO
741 SAB
741 BSS
1 GANG SOCKET
WITH SPRING LOADED
HINGED COVER PLATE
1010101010
10
742 MCO
742 SAB
742 BSS
2 GANG SOCKET
WITH SPRING LOADED
HINGED COVER PLATE
749 MCO
749 BSS
1 GANG NON STANDARD
SOCKET WITH SPRING LOADED
HINGED COVER PLATE
10
10
111
740 MCO
741 SAB
K1239 MCO
K1239 SAB
K1239 BSS
(NON UK)
16 AMP
MODULAR FORMAT
FLUSH
MOUNTING BOXES: FLUSH 35mm
(2P+E SOCKETS)
1 GANG: 866 ZIC 2 GANG: 886 ZIC*
SURFACE WITH KNOCKOUTS:
1 GANG: K899 ALM 2 GANG: K897
ALM*
WITHOUT KNOCKOUTS:
1 GANG: K829 ALM 2 GANG: K830
ALM*
DIMENSIONS: 1 GANG: 86 x 86mm
2 GANG: 86 x 146mm*
The universal socket does not incorporate
an earth contact. Therefore, appliances
needing earth connection (class 1
equipment) must NOT be used with this
socket. The socket is intended for use
with BS, USA and CEE standard plugs.
DIMENSIONS: 1 GANG: 86 x 86mm
IEC 60884-1: 2002
BS.5733:1995 (Universal)
* German type only
K182 MCO / SAB / BSS
with K5831 WHI
1 GANG 16 AMP 250V SHUTTERED
GERMAN TYPE (2P+E) SOCKET
K184 MCO / SAB / BSS
with 2 x K5831
2 GANG 16 AMP 250V SHUTTERED
GERMAN TYPE (2P+E) SOCKETS
K3431 MCO / SAB / BSS
with K4901 WHI & K3701
1 GANG 16 AMP 125/250V
SHUTTERED UNIVERSAL TYPE SOCKET
101010
1101
15 AMP
127V
FLUSH
MOUNTING BOXES
FLUSH 25mm
1 GANG: 861 ZIC
2 GANG: 862 ZIC
FLUSH 35mm (for extra wiring space)
1 GANG: 866 ZIC
2 GANG: 886 ZIC
SURFACE WITH KNOCKOUTS:
1 GANG: K899 ALM
2 GANG: K897 ALM
WITHOUT KNOCKOUTS:
1 GANG: K829 ALM
2 GANG: K830 ALM
DIMENSIONS:
1 GANG: 86 x 86mm
2 GANG: 86 x 146mm
FIXING CENTRES:
1 GANG: 60.3mm
2 GANG: 120.6mm
SSA 444:1985
K2261 MCO
K2261 SAB
K2261 BSS
1 GANG SHUTTERED
K2262 MCO
K2262 SAB
K2262 BSS
2 GANG SHUTTERED
11111
1
K2261 MCO
K2261 SAB
K2262 BSS
K182 MCO / K5381 WHI
K182 SAB / K5381 WHI
K3431 BSS / K4901 WHI
Socket Outlets
742 MCO
749 BSS
123
technical hotline +44 (0)1268 563720 decorative |wiring devices

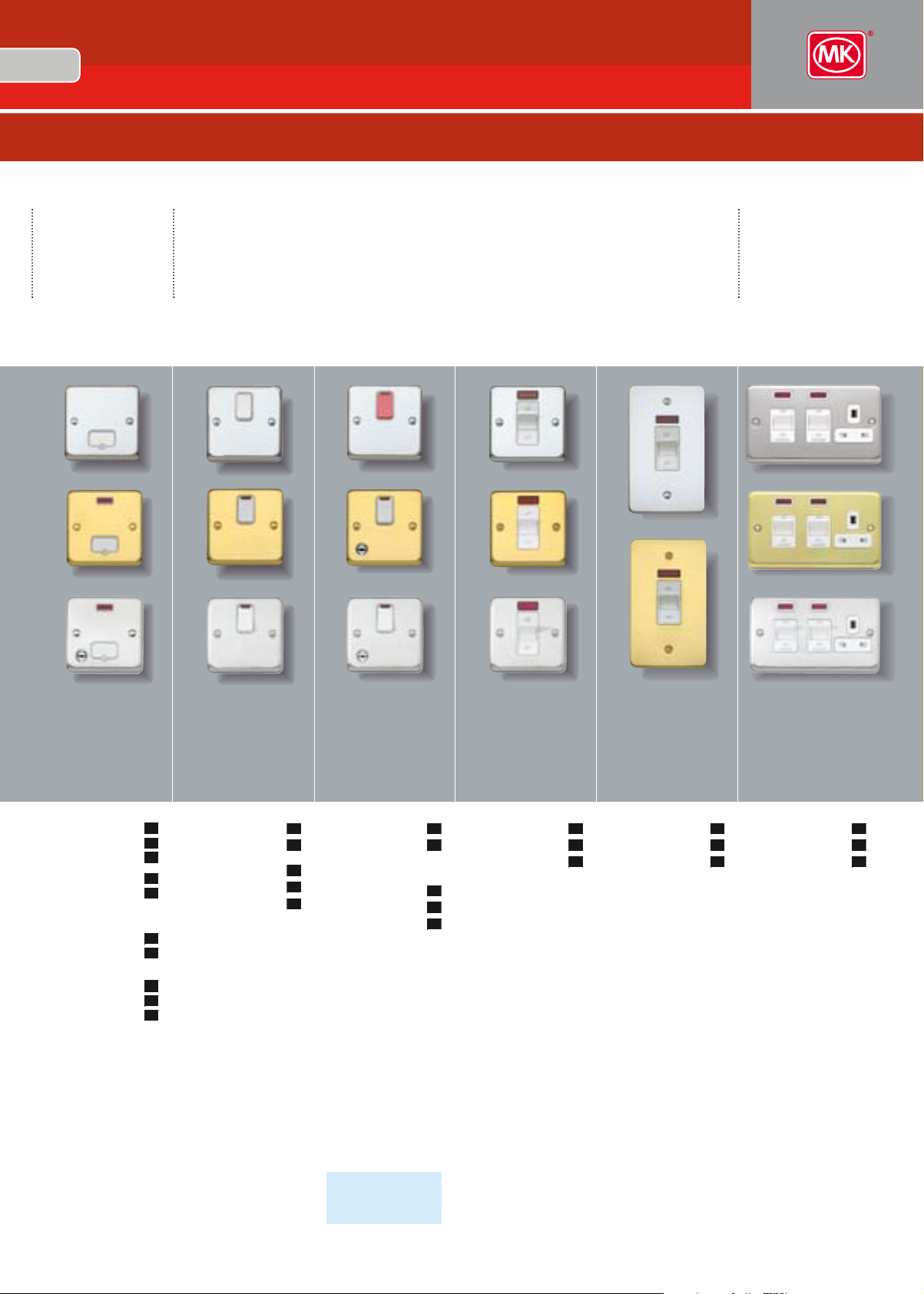

Albany Plus
Connection Units
SWITCHED
FUSED
FLUSH
MOUNTING BOXES
FLUSH: 866 ZIC
SURFACE (MCO):
WITH KNOCKOUTS: K899 ALM
WITHOUT KNOCKOUTS: K829 ALM
All connection units are fitted with a 13amp fuse (to BS1362)
TERMINAL CAPACITY: 2 x 6mm
2
stranded (max)
DIMENSIONS: 86 x 86mm
FIXING CENTRES: 60.3mm
BS. 1363 Pt 4: 1995
K931 MCO
K931 SAB
K931 BSS
DP SWITCHED
WITH FLEX OUTLET
K941 MCO
K941 SAB
K941 BSS
DP SWITCHED
K941KO MCO
K941KO BSS
DP SWITCHED
WITH TAMPERPROOF FUSE
CARRIER SCREW
111
1
10
5
5
5
K961 MCO
K961 SAB
K961 BSS
DP SWITCHED WITH NEON
K961KO SAB
DP SWITCHED
WITH TAMPERPROOF FUSE
CARRIER SCREW
K961D6 MCO
K961D6 BSS
DP SWITCHED WITH NEON
AND RED ROCKER
K971 MCO
K971 SAB
K971 BSS
DP SWITCHED
WITH FLEX OUTLET AND NEON
555
11111
10
K971D6 MCO
K971D6 BSS
DP SWITCHED
WITH FLEX OUTLET,
NEON AND RED ROCKER
K971KO MCO
K971KO BSS
DP SWITCHED
WITH FLEX OUTLET,
NEON AND TAMPERPROOF FUSE
CARRIER SCREW
K973KO MCO
K973KO BSS
DP WITH SECRET KEY
OPERATED SWITCH, NEON
AND TAMPERPROOF
FUSE CARRIER SCREW
11111
1
790 MCO
790 SAB
790 BSS
1 GANG STANDARD FLOOR
MOUNTED EURO FRAME
791 MCO
791 SAB
791 BSS
1 GANG RECESS FLOOR
MOUNTED EURO FRAME
1010101010
10
K941 SAB
K941 BSS
K971 D6 MCO
K961 MCO
K961 KO SAB
K971 KO BSS
K961 D6 BSS
K931 MCO
1 GANG
795 MCO
795 SAB
795 BSS
2 GANG STANDARD FLOOR
MOUNTED EURO FRAME
796 MCO
796 SAB
796 BSS
2 GANG RECESS FLOOR
MOUNTED EURO FRAME
1010101010
10
2 GANG
Floor
Mounted
Euro Frame
(Available September 06)
MOUNTING BOXES
FLUSH:
1 GANG: 866 ZIC
2 GANG: 886 ZIC
Boxes must have a minimum depth
of 35mm
Recessed Euro Frame products must
be used with ’F’ Type connectors.
This ensures full lid closure when
the aerial lead is disconnected.
Power sockets must only be used
with the standard Euro Frame
products as the recessed type may
NNOOTT
allow full plug engagement.
MOUNTING BOXES
FLUSH:
1 GANG: 866 ZIC
2 GANG: 886 ZIC
Boxes must have a minimum depth
of 35mm
Recessed Euro Frame products must
be used with ’F’ Type connectors.
This ensures full lid closure when
the aerial lead is disconnected.
Power sockets must only be used
with the standard Euro Frame
products as the recessed type may
NNOOTT
allow full plug engagement.
790 BSS
795 BSS
791 SAB
796 SAB
124
wiring devices |decorative www.mkelectric.co.uk
Albany Plus
32 AMP
FLUSH
45 AMP
FLUSH
K5233D6 MCO
K5233D6 BSS
WITH NEON AND
RED ROCKER
K5250 MCO
K5250 SAB
K5250 BSS
WITH FLEX OUTLET
AND NEON
11111
MOUNTING BOXES
FLUSH:
866 ZIC (6mm
2
conductors)
877 ZIC (10mm2 conductors)
SURFACE (MCO) :
WITH KNOCKOUTS:
K899 ALM
WITHOUT KNOCKOUTS:
K829 ALM
DIMENSIONS:
86 x 86mm
FIXING CENTRES:
60.3mm
BS EN 60669-1: 2000
K5106 MCO
K5106 SAB
K5106 BSS
WITH NEON
1
1
1
MOUNTING BOXES
FLUSH:
886 ZIC (6mm
2
conductors)
878 ZIC (10mm2 conductors)
SURFACE (MCO)
WITH KNOCKOUTS
K897 ALM
WITHOUT KNOCKOUTS
K830 ALM
DIMENSIONS:
86 x 146mm
FIXING CENTRES:
120.6mm
BS EN 60669-1: 2000
K5236 MCO
K5236 SAB
K5236 BSS
WITH NEON
1
1
1
Cooker
Switches
K5250 MCO
K5106 MCO
K5250 BSS
K5106 SAB
K5236 MCO
K5236 SAB
K5106 BSS
K5233 D6 MCO
DP Switches are not
recommended for
switching large banks
of PCs
K5261 MCO
K5261 SAB
K5261 BSS
1
1
1
45 AMP
DP MAIN SWITCH
AND 13 AMP
SWITCH SOCKET
OUTLET WITH
NEONS
MOUNTING BOXES
FLUSH:
886 ZIC
(Up to 6mm
2
conductor)
878 ZIC
(Up to 10mm2conductor)
Rotary operated shutter.
DIMENSIONS:
86 x 146mm
FIXING CENTRES:
120.6mm
BS.4177: 1992
K5261 BSS
Connection
Units
UNSWITCHED
FUSED
FLUSH
DP Switches
20 AMP
FLUSH
MOUNTING BOXES
FLUSH:
866 ZIC
SURFACE (MCO) :
WITH KNOCKOUTS:
K899 ALM
WITHOUT KNOCKOUTS:
K829 ALM
All connection units are
fitted with a 13amp fuse (to
BS1362)
TERMINAL CAPACITY
2 x 6mm
2
stranded (max)
DIMENSIONS: 86 x 86mm
FIXING CENTRES: 60.3mm
BS. 1363 Pt 4: 1995
MOUNTING BOXES
FLUSH:
866 ZIC
SURFACE (MCO)
WITH KNOCKOUTS:
K899 ALM
WITHOUT KNOCKOUTS:
K829 ALM
TERMINAL CAPACITY
2 x 6mm
2
stranded (max)
DIMENSIONS:
86 x 86mm
FIXING CENTRES:
60.3mm
BS EN 60669-1: 2000
K5213 MCO
K5213 BSS
K5233 MCO
K5233 SAB
K5233 BSS
WITH NEON
1
1
1
1
1
K948 MCO
K958 SAB
K978 BSS
K5233 SAB
K5233 BSS
K5213 MCO
K948 MCO
K948 SAB
K948 BSS
K948KO MCO
K948KO BSS
WITH TAMPERPROOF
FUSE CARRIER SCREW
K958 MCO
K958 BSS
WITH NEON
K978 MCO
K978 SAB
K978 BSS
WITH FLEX OUTLET
AND NEON
1
1
5
1
1
1
1
1
1
5
K5261 SAB
K5261 MCO
125
technical hotline +44 (0)1268 563720 decorative |wiring devices
Albany Plus
Triple Pole &
Neutral Switch
32 AMP
FLUSH
Shaver Supply
Units
FLUSH
Flex Outlets
(NON UK)
FLUSH
Plateswitches
10 AMP
FLUSH
10 AMP
WIDE ROCKER
FLUSH
MOUNTING BOX
FLUSH:
878 ZIC
This product is rated at 440
volts with a motor load
rating of up to 12kW - 16
HP at 415V 3 phase.
It has a utilisation category
of AC22A– switching of
mixed resistive and inductive
loads including moderate
overloads for a continuous
duty of 32 amps. Making
capacity is 2000 amps peak.
TERMINAL CAPACITY:
16mm
2
conductors.
DIMENSIONS:
146 x 86mm
BS EN 60947-3: 1992
K5114 MCO
K5114 BSS
WITH NEON
1
1
MOUNTING BOXES
FLUSH: 878 ZIC
This design incorporates a
double wound isolating
transformer rated 20VA at
230 or 115 volts and meets
BS EN 61558-2-5: 1998
making it safe for use in
bathrooms.
Insertion of a shaver plug
automatically switches on by
energising the primary side
of the isolating transformer
– removal automatically
switches off. The transformer
is protected against overload
by an automatic solid state
overload device with
automatic resetting.
DIMENSIONS: 146 x 86mm
FIXING CENTRES: 120.6mm.
BS EN 61558-2-5: 1998
K703 MCO
K703 SAB
K703 BSS
DUAL VOLTAGE
115/230V OUTPUT
(220/240V 50HZ INPUT)
K707 MCO
K707 SAB
DUAL VOLTAGE
115/230V OUTPUT
(120/130V 50HZ/60HZ INPUT)
(NON UK)
1
1
1
1
1
MOUNTING BOXES
FLUSH:
866 ZIC
SURFACE (MCO)
WITH KNOCKOUTS:
K899 ALM
WITHOUT KNOCKOUTS:
K829 ALM
Cable diameter:
Minimum 4mm
Maximum 14.5mm
DIMENSIONS:
1 gang: 86 x 86mm
FIXING CENTRES:
1 gang: 60.3mm
K2240 MCO
K2240 SAB
K2240 BSS
FLEX OUTLET
1
1
1
MOUNTING BOXES
FLUSH: 3995 ZIC
SURFACE (MCO) :
WITH KNOCKOUTS: K899 ALM
WITHOUT KNOCKOUTS: K829 ALM
These switches do not have to be derated when used with
fluorescent or inductive loads.
Switches can be wired as either one-way or two-way.
DIMENSIONS: 86 x 86mm
FIXING CENTRES: 60.3mm
BS EN 60669-1:2000
If an intermediate switch is required, a modular (Grid Plus)
version is available. Order K3431 MCO/SAB grid plate, K3701
grid frame and K4893 WHI 20A intermediate switch.
K4671 MCO
K4671 SAB
K4671 BSS
1 GANG SP TWO-WAY
K4672 MCO
K4672 SAB
K4672 BSS
2 GANG SP TWO-WAY
K4673 MCO
K4673 SAB
K4673 BSS
3 GANG SP TWO-WAY
555
5
5
5
5
5
5
K4761 MCO
K4761 SAB
K4761 BSS
1 GANG SP TWO-WAY
WIDE ROCKER
K4762 MCO
K4762 SAB
K4762 BSS
2 GANG SP TWO-WAY
WIDE ROCKERS
5
5
5
5
5
5
K703 MCO
K707 SAB
K4671 MCO
K4672 SAB
K4673 BSS
K4761 MCO
K4761 SAB
K5114 MCO
K4762 BSS
K5114 BSS
K2240 MCO
K2240 SAB
K2240 BSS
3 Pole Fan
Isolator
10 AMP
FLUSH
K4860 MCO
K4860 SAB
K4860 BSS
WITHOUT SWITCHLOCK
K4858
SWITCHLOCK
FOR FAN ISOLATOR
10
111
K4858
K4860 MCO
MOUNTING BOXES
FLUSH:
3995 ZIC
SURFACE:
K2160 WHI
For local isolation of fans
with or without timers for
repair or routine
maintenance.
DIMENSIONS:
86 x 86mm
FIXING CENTRES:
60.3mm
BS EN. 60947-3: 1992
K4860 SAB
K4860 SAB
Standard
Dimmer Switches
230V a.c. 50Hz
TUNGSTEN FILAMENT
FLUSH
230V a.c. 50Hz
TUNGSTEN FILAMENT
AND LOW VOLTAGE
FLUSH
Dimmer Switches
(NON UK)
200-240V a.c.
50Hz or 60Hz
FLUSH
K1534 MCO
K1534 SAB
K1534 BSS
1 GANG TWO WAY SINGLE
40W min, 250W max
K1551 MCO
K1551 SAB
K1551 BSS
1 GANG TWO WAY SINGLE
60W min, 500W max
K1532 MCO
K1532 SAB
K1532 BSS
1 GANG TWO WAY DOUBLE
40W, 250W max for each dimmer
1
1
1111111
K1552 MCO
K1552 SAB
K1552 BSS
2 GANG TWO WAY DOUBLE
60W min, 450W max for each dimmer
K1533 MCO
K1533 SAB
K1533 BSS
2 GANG TWO WAY TRIPLE
40W min, 250W max for each dimmer
1
11111
Conforming to the latest standards BS EN 60669-2-1 and BS EN 55015, they
are overload protected and are suitable for use with tungsten filament lamps
only.
Two way dimmers use push on/push off switches.
They are not suitable for use with fluorescent loads or with
electronic or with wire-wound transformers in low voltage
lighting systems
Conforming to the latest standards BS EN 60669-2-1 and BS EN 55015, they
use ‘state of the art’ micro controller based circuitry to provide soft start and
overload protection.
The soft start feature helps in greatly prolonging the life of tungsten, normal or
halogen lamps.
Suitable for use with good quality electronic or wire wound transformers. Can
also be used with good quality mains voltage halogen lamps incorporating
GU10 bases. Please check with lamp manufacturer to determine suitability.
Not suitable for use with fluorescent loads.
K1536 MCO LV
K1536 SAB LV
K1536 BSS LV
1 GANG TWO WAY SINGLE
40W/VA min, 300W/240VA max
K1551 MCO LV
K1551 SAB LV
K1551 BSS LV
1 GANG TWO WAY SINGLE
60W/VA min, 500W/400VA max
1
11111
K1532 MCO LV
K1532 SAB LV
K1532 BSS LV
1 GANG TWO WAY DOUBLE
40W/VA min, 300W/240VA max
for each dimmer
K1552 MCO LV
K1552 SAB LV
K1552 BSS LV
2 GANG TWO WAY DOUBLE
60W/VA min, 450W/360VA max
for each dimmer
1
11111
K1531 MCO
K1531 SAB
1 GANG
ONE WAY 40–250W 50Hz
K1541 MCO
K1541 SAB
K1541 BSS
1 GANG SINGLE
ONE WAY 75–500W 50Hz
K1631 MCO
K1631 SAB
1 GANG SINGLE
ONE WAY 40–250W 60Hz
K1641 MCO
K1641 SAB
K1641 BSS
1 GANG SINGLE
ONE WAY 75–500W 60Hz
111
1
1
1
1
1
1
1
Intelligent
Dimmer Switches
K1536 MCO LV
K1536 SAB LV
K1534 MCO
K1551 SAB
K1532 BSS
K1531 MCO
K1541 SAB
K1641 BSS
K1552 MCO
K1552 SAB
K1533 BSS
K1551BSS LV
K1536 MCO LV
K1536 SAB LV
K1551 BSS LV
126
wiring devices |decorative www.mkelectric.co.uk
Albany Plus
127V a.c. 60Hz
FLUSH
Blank Plates
FLUSH
Conforming to relevant parts of
BS 5515, these dimmers are
suitable for use with tungsten
filament lamps only.
NOTE: Dimmer switches
specified to work at 50Hz are
not really suitable for use at
60Hz and vice versa.
The one way dimmers use rotary
on/off switches, while the two way
dimmers use push on/push off
switches.
These dimmer switches are not
suitable for use with fluorescent
loads or with electronic or with
wire-wound transformers in low
voltage lighting systems
K1561 MCO
K1561 SAB
K1561 BSS
1 GANG SINGLE
TWO WAY 100–1000W 50Hz
K1661 MCO
K1661 SAB
K1661 BSS
1 GANG SINGLE
TWO WAY 100–1000W 60Hz
1
11111
K1731 MCO
K1731 SAB
1 GANG SINGLE
ONE WAY 40–250W
K1741 MCO
K1741 SAB
1 GANG SINGLE
TWO WAY 60–450W
K1761 MCO
K1761 SAB
2 GANG SINGLE
TWO WAY 90–650W
1
1
111
1
MOUNTING BOXES
FLUSH:
1 GANG:866 ZIC
2 GANG:886 ZIC
SURFACE (MCO) :
WITH KNOCKOUTS:
1 GANG:K899 ALM
2 GANG:K897 ALM
WITHOUT KNOCKOUTS:
1 GANG:K829 ALM
2 GANG:K830 ALM
DIMENSIONS:
1 gang: 86 x 86mm
2 gang: 86 x 146mm
FIXING CENTRES:
1 gang: 60.3mm
K3330 MCO
K3330 SAB
K3330 BSS
1 GANG
K3329 MCO
K3329 SAB
K3329 BSS
2 GANG
5
5
5
10
10
10
Dimmer Switches
(NON UK)
200-240V a.c.
50Hz or 60Hz
FLUSH
K1731 MCO
K1731 SAB
K1741 BSS
K1761 SAB
K1561 MCO
K1561 SAB
K1661 BSS
K3330 MCO
K3329 SAB
K3329 BSS
MOUNTING BOXES FOR DIMMERS
FLUSH: 1 gang: 861 ZIC 25mm deep min
2 gang: 862 ZIC 25mm deep min
866 ZIC: 35mm min for
K1532 MCO LV
K1532 SAB LV
DIMENSIONS: 1 gang: 86 x 86mm
2 gang: 86 x 146mm
FIXING CENTRES: 1 gang: 60.3mm
2 gang: 120.6mm
127
technical hotline +44 (0)1268 563720 decorative |wiring devices
TV/FM Coaxial
Socket
Outlets
FLUSH
Satellite
Socket
Outlets
FLUSH
MOUNTING BOXES
FLUSH: 861 ZIC
SURFACE (MCO) :
WITH KNOCKOUTS: K899 ALM
WITHOUT KNOCKOUTS: K829 ALM
K3580
Single outlet for connection to a
single TV or FM co-axial aerial lead.
K3581, K3582
Provides safety isolation rated at
2000Va.c. between aerial lead and
socket. Single outlet for connection
to a single TV or FM co-axial aerial
lead. Twin outlet with TV/FM
diplexer for connection to single coaxial aerial lead with combined TV
& FM signals. Suitable for UHF TV
and VHF FM radio.
K3580 MCO
K3580 SAB
K3580 BSS
SINGLE OUTLET
(NON ISOLATED)
K3581 MCO
K3581 SAB
K3581 BSS
SINGLE OUTLET (ISOLATED)
K3582 MCO
K3582 SAB
K3582 BSS
TWIN OUTLET WITH
TV/FM DIPLEXER (ISOLATED)
555
5
5
555
5
IEC 169-2: 1965
DIMENSIONS: 86 x 86mm
FIXING CENTRES: 60.3mm
BS. 5733: 1995
where applicable
K3585 MCO
K3585 SAB
K3585 BSS
SINGLE OUTLET
F TYPE
SATELLITE SOCKET
1
1
1
K3585 MCO
K3585 SAB
K3582 BSS
K3580 MCO
K3581 SAB
K3585 BSS
Fully screened modular
TV/Satellite outlets are
available to fit Euro
frontplates.
See page 32 for details.
Albany Plus
128
wiring devices |decorative www.mkelectric.co.uk
Albany Plus
Telephone
Outlets
(NON UK)
3 PIN
FLUSH
Euro, LJU6C and
MK Modular
Data Frontplates
FLUSH
Accepts standard BS.646
2 amp 2 pin + earth plug where 2
pins are used for telephone circuits
and the earth pin is used to ensure
correct polarity.
DIMENSIONS: 86 x 86mm
FIXING CENTRES: 60.3mm
BS. 5733: 1995
where applicable
K3530 MCO
K3530 SAB
K3530 BSS
3 PIN SOCKET
WITH TELEPHONE SYMBOL
SINGLE OUTLET
1
1
1
K182 SAB
K172 BSS
K391 MCO
K394 BSS
K3530 MCO
K3530 SAB
K3530 BSS
EURO
K181 MCO
K181 SAB
K181 BSS
1 MODULE
K182 MCO
K182 SAB
K182 BSS
2 MODULE
K184 MCO
K184 SAB
K184 BSS
4 MODULE
LJU6C
K172 MCO
K172 SAB
K172 BSS
2 MODULE
555
555555555
MK MODULAR
K391 MCO
K391 SAB
K391 BSS
1 MODULE
K392 MCO
K392 SAB
K392 BSS
2 MODULE
K393 MCO
K393 SAB
K393 BSS
3 MODULE
K394 MCO
K394 SAB
K394 BSS
4 MODULE
5
5
5
555
10
1010101010
K181 MCO
K392 SAB
For a complete selection of Euro, LJU6C and MK Modular Data modules and
more information see pages 164-165 (MK Modular), 30-32 and 164-165 (Euro
/ LJU6C)
DIMENSIONS:
1 & 2 module: 86 x 86mm
3 & 4 module: 86 x 146mm
BS.5733: 1995
Note: LJU6C and Euro Data Frontplates: no grid required, modules just clip into
place. MK Modular require appropriate grid.
K5830
MOUNTING BOX: 35mm minimum
46mm (for extra wiring space)
DIMENSIONS: 50 x 50mm
BS. 1363: Part 2: 1995
K5831
MOUNTING BOX: 46mm
DIMENSIONS: 50 x 50mm
IEC 60884-1: 2002
K5832
MOUNTING BOX: 35mm
46mm (for extra wiring space)
DIMENSIONS: 50 x 50mm
SSA.444: 1985
K5830 WHI
K5830 BLK
UK 1 GANG EURO 2 MODULE
13 AMP 250V SHUTTERED
K5831 WHI
K5831 BLK
GERMAN 2P+E
16 AMP 250V SHUTTERED
EURO 2 MODULE (NON UK)
K5832 WHI
K5832 BLK
AMERICAN
15 AMP 127V SHUTTERED
EURO 2 MODULE (NON UK)
10
10
10
10
10
10
Power Modules
K5830 WHI
K5831 WHI
K5833 WHI
K5833
MOUNTING BOX: 35mm minimum
46mm (for extra wiring space)
DIMENSIONS: 50 x 50mm
BS 546: 1950
K5834
MOUNTING BOX: 46mm
DIMENSIONS: 50 x 50mm
NF C61-341
K5833 WHI
K5833 BLK
UK 1 GANG EURO 2 MODULE
5 AMP 250V SHUTTERED
K5834 WHI
K5834 BLK
FRENCH/BELGIAN 2P+E
16 AMP 250V SHUTTERED
EURO 2 MODULE (NON UK)
10
101010
K5833 WHI
K5834 WHI
129
technical hotline +44 (0)1268 563720 decorative |wiring devices
Albany Plus
Grid Plus
Frontplates
FLUSH
Grid Plus
Frontplates
FLUSH
K3431 MCO
K3432 SAB
K3431 MCO
K3431 SAB
K3431 BSS
1 MODULE
K3432 MCO
K3432 SAB
K3432 BSS
2 MODULE
K3433 MCO
K3433 SAB
K3433 BSS
3 MODULE
K3434 MCO
K3434 SAB
K3434 BSS
4 MODULE
For a complete selection of Grid Plus
switch modules see pages 149 – 153
DIMENSIONS:
Architrave: 118 x 38mm
1
& 2 module: 86 x 86mm
3
& 4 module: 86 x 146mm
BS.5733: 1995
55555
5
101010
10
10
10
K3436 MCO
K3436 SAB
K3436 BSS
6 MODULE
K3438 MCO
K3438 SAB
K3438 BSS
8 MODULE
K3439 MCO
K3439 SAB
K3439 BSS
9 MODULE
K3442 MCO
K3442 SAB
K3442 BSS
12 MODULE
For a complete selection of Grid Plus
switch modules see pages 149 – 153
DIMENSIONS:
Architrave: 118 x 38mm
6 & 8 module:146 x 146mm
9
& 12 module: 206 x 146mm
BS.5733: 1995
1
111
111
111
1
1
K3448 MCO
K3448 SAB
K3448 BSS
18 MODULE
K3454 MCO
K3454 SAB
K3454 BSS
24 MODULE
K3401 MCO
K3401 SAB
K3401 BSS
ARCHITRAVE 1 MODULE
For a complete selection of Grid Plus
switch modules see pages 149 – 153
DIMENSIONS:
Architrave: 118 x 38mm
18 module: 206 x 206mm
24 module: 206 x 267mm
BS.5733: 1995
10
10
10
1
111
1
1
K3434 BSS
K3436 MCO K3448 MCO
K3438 SAB
K3454 SAB
Loading...
