DRY BRICK SAW
SERIAL NUMBER:
BX-3 BRICK XTREME
Table of Contents
OWNER’S MANUAL &
OPERATING INSTRUCTIONS
CAUTION:
Read all safety and
operating instructions
before using this
Enter the Serial Number of your new saw in the
space below. The Serial Number is located on the
left side of the blade guard.
NOTE:
For your (1) one year warranty to be effective,
complete the warranty card (including the Serial
Number) and mail it in as soon as possible.
INTRODUCTION and TABLE OF CONTENTS
Page
INTRODUCTION:
We at MK Diamond want to congratulate you on selecting the BX-3 Dry Brick Saw. We are certain that you
will be pleased with your purchase. MK Diamond takes pride in producing the finest products in the industry.
Operated correctly, your BX-3 should provide you with years of quality service. In order to help you, we have
included this manual. This owners manual contains information necessary to operate and maintain your BX-3
safely and correctly. Please take a few minutes to familiarize yourself with the BX-3 by reading and reviewing
this manual.
If you should have questions concerning your BX-3, please feel free to call our friendly customer service
department at: 800 421-5830
TABLE OF CONTENTS
SAFETY:
Safety Messages 3
Damage Prevention Message 3
General Safety Precautions and Hazard Symbols 3
California Proposition 65 Message 5
Electrical Requirements and Grounding Instructions 6
Safety Label Locations 8
Brick Saw Specific Warnings 8
Product Specifications 9
UNPACKING AND ASSEMBLY
Unpacking 10
Contents 10
Transport 10
Assembly 11
SETUP, ADJUSTMENT AND OPERATION
Setup 12
Adjustment and Operation 14
Cleanup 17
MAINTENANCE AND TROUBLESHOOTING
Maintenance 18
Troubleshooting 24
EXPLODED VIEW AND PARTS LIST
Exploded View 26
Parts List 27
THEORY
Theory of Diamond Blades 29
ACCESSORIES, ORDERING and RETURN INSTRUCTIONS
Accessories 30
Ordering Information 31
Return Material Policy 31
Packaging Instructions 31
Authorized Service Centers 31
Manual Part No. 158168 Revision No. 2
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 2
SAFETY
Table of Contents
Read and follow all safety, operating and maintenance instructions. Failure to read and follow these
instructions could result in injury or death to you or others. Failure to read and follow these instructions could
also result in damage and/or reduced equipment life.
SAFETY MESSAGES:
Safety messages inform the user about potential hazards that could lead to injury, death and/or equipment
damage. Each safety message will be preceded by one of the following (3) three words that identify the
severity of the message.
Not following instructions WILL lead to DEATH or SERIOUS INJURY
Not following instructions COULD lead to DEATH or SERIOUS INJURY
Not following instructions CAN lead to injury
DAMAGE PREVENTION AND INFORMATION MESSAGES:
A Damage Prevention Message is to inform the user of important information and/or instructions that could
lead to equipment or other property damage if not followed. Information Messages convey information that
pertains to the equipment being used. Each message will be preceded by the word NOTE, as in the example
below.
NOTE:
Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS:
In order to prevent injury, the following safety precautions and symbols should be followed at all times!
Safety Precautions:
KEEP GUARDS IN PLACE.
In order to prevent injury, keep guards in place and in working order at all times.
REMOVE ADJUSTING KEYS AND WRENCHES.
Form a habit of checking to see that keys and adjusting wrenches are removed from the power tool before it
is turned on.
KEEP WORK AREA CLEAN.
Cluttered work areas and benches invite accidents.
DO NOT USE IN DANGEROUS ENVIRONMENTS.
Do not use power tools in damp or wet locations nor expose them to rain. Always keep the work area well
lighted.
KEEP CHILDREN AWAY.
All visitors and children should be kept a safe distance from work area.
MAKE THE WORKSHOP KID PROOF.
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
DO NOT FORCE THE TOOL.
A power tool will do a job better and safer operating at the rate for which it was designed.
USE THE RIGHT TOOL.
Do not force a tool or an attachment, to do a job that it was not designed to do.
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 3
SAFETY
Table of Contents
USE THE PROPER EXTENSION CORD.
If using an extension cord make sure it is in good condition first. When using an extension cord, be sure to
use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in
line voltage that will result in a loss of power and overheating. TABLE 1, Page 7 shows the correct AWG
size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage.
The smaller the gage number, the heavier the cord.
WEAR PROPER APPAREL.
Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may be caught in moving
parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.
ALWAYS USE SAFETY GLASSES.
Safety glasses should always be worn when working around power tools. In addition, a face,
dust mask or respirator should be worn if a cutting operation is dusty. Everyday eyeglasses only
have impact resistant lenses and may not prevent eye injury-they are NOT safety glasses.
SECURE WORK.
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free to operate a
power tool is safer.
DO NOT OVERREACH.
Keep proper footing and balance at all times by not overreaching.
MAINTAIN TOOLS WITH CARE.
Keep tools clean for the best and safest performance. Always follow maintenance instructions for
lubricating, and when changing accessories.
DISCONNECT TOOLS.
Power tools should always be disconnected before servicing or when changing accessories, such as blades,
bits, cutters, and the like.
REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure the trigger switch; locking button is in the RELEASE position before plugging in a power
tool.
USE RECOMMENDED ACCESSORIES.
Consult the owner's manual for recommended accessories. Using improper accessories may increase the
risk of personal or by-stander injury.
NEVER STAND ON THE TOOL.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally contacted.
CHECK FOR DAMAGED PARTS.
Before using a power tool, check for damaged parts. A guard or any other part that is damaged should be
carefully checked to determine it would operate properly and perform its intended function. Always check
moving parts for proper alignment or binding. Check for broken parts and mountings and all other conditions
that may affect the operation of the power tool. A guard, or any damaged part, should be properly repaired
or replaced.
DIRECTION OF FEED.
Always feed work into a blade or cutter against the direction of rotation. A blade or cutter should always be
installed such that rotation is in the direction of the arrow imprinted on the side of the blade or cutter.
NEVER LEAVE A TOOL RUNNING UNATTENDED – TURN POWER OFF.
Do not leave a tool until it comes to a complete stop. Always turn a power tool OFF when leaving the work
area, or, when a cut is finished.
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 4
SAFETY
Table of Contents
Hazard Symbols:
ELECTRICAL SHOCK!
Never touch electrical wires or components while the motor is running. Exposed, frayed or worn
electrical motor wiring can be sources of electrical shock that could cause severe injury or burns.
ACCIDENTAL STARTS!
Before plugging the equipment into an electrical outlet, be sure the trigger switch, locking button is in
the "RELEASE" position to prevent accidental starting. Unplug the power tool before performing any
service operation.
ROTATING OR MOVING PARTS!
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never operate a
power tool with covers, shrouds, or guards removed.
Sawing and drilling generates dust. Excessive airborne particles may cause irritation to eyes, skin and
respiratory tract. To avoid breathing impairment, always employ dust controls and protection suitable to the
material being sawed or drilled; See OSHA (29 CFR Part 1910.1200). Diamond Blades improperly used are
dangerous. Comply with American National Standards Institute Safety Code, B7.1 and, Occupational Safety
and Health Act covering Speed, Safety Guards, Flanges, Mounting Procedures, General Operating Rules,
Handling, Storage and General Machine Conditions.
CALIFORNIA PROPOSITION 65 MESSAGE:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contain
chemicals known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica, from bricks and cement and other masonry products and
• Arsenic and chromium, from chemically treated lumber
Your risk from these exposures varies depending on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment, such
as those dust masks that are specially designed to filter out microscopic particles.
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 5
SAFETY
Metal Screw
(A)
(B)
(D)
Means
Pin
Pin
Table of Contents
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS:
In order to prevent potential electrical shock and injury, the following electrical safety precautions and symbols
should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not modify the plug provided – if it will not fit the outlet; have the proper outlet installed by a
qualified electrician
• Improper connections of the equipment-grounding conductor can result in a risk of electric shock.
The equipment-grounding conductor is the insulated conductor that has an outer surface that is
green, with or without yellow stripes. If repair or replacement of the electric cord or plug is
necessary, do not connect the equipment-grounding conductor to a live terminal
• Check with a qualified electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that
accept the tool's plug
• Repair or replace a damaged or worn cord immediately
Grounding
(C)
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A
of Figure 1. The tool has a grounding plug that looks like the plug illustrated in Sketch A of FIGURE
1. A temporary adapter, which looks like the adapter illustrated in sketches B and C, may be used to
connect this plug to a 2-pole receptacle as shown in Sketch B, if a
properly grounded outlet is not available. The temporary adapter
should be used only until a properly grounded outlet can be
installed by a qualified electrician. The green-colored rigid ear,
Outlet Box
lug, and the like, extending from the adapter, must be connected
to a permanent ground such as a properly grounded outlet box.
ADAPTER
Grounding
Grounding
NOTE: Use of a temporary adapter is not permitted in Canada.
FIGURE 1
To reduce the risk of electrocution, keep all connections dry and off the ground.
A Ground Fault Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be used
for the Brick Saw. Receptacles are available having built-in GFCI protections and may be used for
this measure of safety.
When using an extension cord, the GFCI should be installed closest to the power source, followed
by the extension cord and lastly, the saw.
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 6
SAFETY
Tool
Table of Contents
To avoid the possibly of the appliance plug or receptacle getting wet, position the Brick Saw to one
side of a wall mounted receptacle. This will prevent water from dripping onto the receptacle or plug.

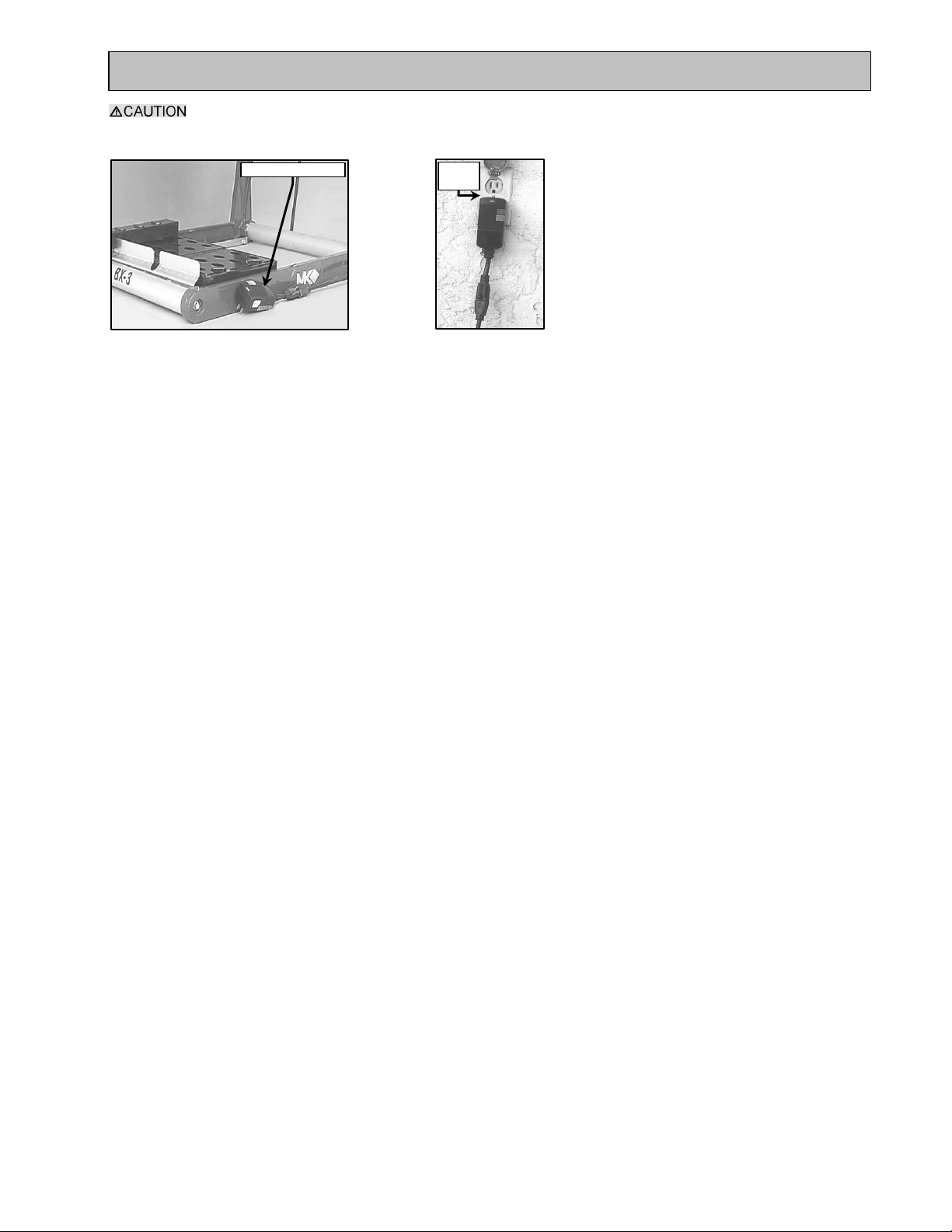

A "drip loop," shown in FIGURE 2, should be arranged by the user to properly position the power
cord relative to the power source.
Power
Cord
FIGURE 2
Use only extensions cords that are intended for outdoor use. These extension cords are identified
by a marking "Acceptable for use with outdoor appliances; store indoors while not in use." Use only
extension cords having an electrical rating not less than the rating of the product. Do not use
damaged extension cords. Examine extension cords before using and replace if damaged. Do not
abuse extension cords and do not yank on any cord to disconnect. Keep cords away from heat and
sharp edges. Always disconnect the extension cord from the receptacle before disconnection the
product form the extension cord.
Drip Loop
Power
Supporting
Surface
The "drip loop" is that part of the cord below the level of the receptacle, or
the connector, if an extension cord is used. This method of positioning the
cord prevents the travel of water along the power cord and coming in
contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect
the fuse or circuit breaker that supplies power to the tool. Then unplug and
examine for presence of water in the receptacle.
Use of undersize extension cords result in low voltage to the motor that can result in motor burnout
and premature failure. MK Diamond warns that equipment returned to us showing signs of being run
in a low voltage condition, through the use of undersized extension cords will be repaired or replaced
totally at the customers expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in TABLE 1 below.
• Once the proper length is found, move down the column to obtain the correct AWG size required
for that length of extension cord.
As an example, a fifty (50) foot extension cord would require an AWG size of 16.
Extension Cord Minimum Gage for Length
Volts Total Length of Cord in Feet
120V
25 ft. 50 ft. 100 ft 150 ft.
AWG AWG AWG AWG
14 12 Not Recommended
TABLE 1
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 7
SAFETY
4
Table of Contents
SAFETY LABEL LOCATIONS:
Safety labels are located according to Figures 1 to 4 below. The labels contain important safety information.
Please read the information contained on each safety label. These labels are considered a permanent part of
your saw. If a label comes off or becomes hard to read, contact MK Diamond or your dealer for a
replacement
Item Location Description Part No.
1. Left Side, Upper Cross Member Caution Safety Label 155576
2. Right Side, Upper Cross Member Dust Inhalation Warning Label 154337
3. Back, Upper Cross Member Extension Cord Warning Label 155672
4. Blade Guard Serial Number and Motor Specifications 158096
21
3
BRICK SAW SPECIFIC WARNINGS:
Ø Read Owners Manual
Ø Wear Protective Gear for –
• Head
• Lungs
• Ear
• Eye
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 8
SAFETY
Table of Contents
PRODUCT SPECIFICATIONS:
The BX-3 is a versatile lightweight, dry, masonry saw. Operated and used according to this manual, the BX-3
will provide years of dependable service.
General Description:
The BX-3, Brick Xtreme, is engineered as a 14" dry saw, consisting of a powerful 115v motor in a hard plastic
case. The saw is capable of cutting brick and masonry up to 8" x 8" x 16" in size; the blade has a five (5) inch
cutting depth.
Motor and Weight Specifications:
Motor and Weight specifications for the BX-3 are listed in Table 2 below.
Voltage 115 v
Amperage 13 A
Frequency 60 Hz
RPM 3,500 rpm
Weight 45 lbs.*
Table 2
Blade Capacity:

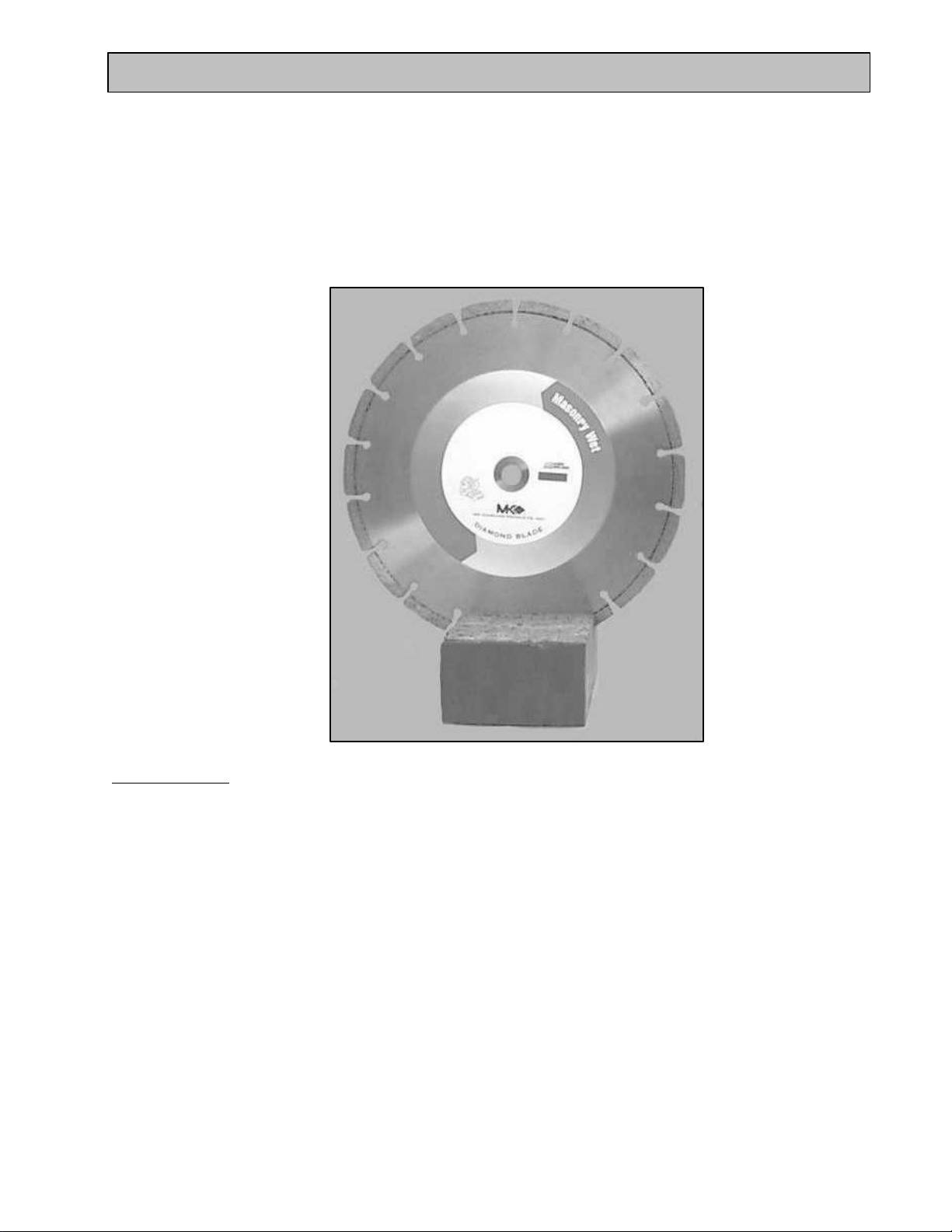

The BX-3 uses a 14-inch diameter segmented dry MK Diamond blade with a .110-inch cutting width.
Masonry Types:
The BX-3 can cut a variety of masonry types including, cinder block, slump stone block, wall brick, paver
brick, concrete block and cylinders, roofing tile, marble, granite, decorative rock or almost any other nonferrous material.
NOTE:
The BX-3 is not designed to cut plastic or ferrous (metals) material.
Spring Assisted Cutting Head:
The BX-3 is designed with a spring assisted Cutting Head to allow for easier step cutting. The Cutting Head
can be locked in the down position when cutting smaller pieces.
Lockable Trigger Switch:
The BX-3 is designed with a lockable trigger-operating switch in the handle to allow for ease of operation.
Removable Motor Air Filter:
The BX-3 is designed with an easy clean motor air filter to extend the life of the motor.
Replaceable Motor Brushes:
The BX-3 is designed with replaceable motor brushes to extend operating life.
*Without Movable Cutting Table
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 9
UNPACKING, TRANSPORT and ASSEMBLY
Lift Point
Locked Down
- OR -
Inserted
Table of Contents
UNPACKING:
Your BX-3 has been shipped from the factory thoroughly inspected. Only minimal assembly is required.
If not already done, remove the BX-3 from the carton and place it on a flat surface. Remove Strapping.
Remove the Accessories box from the main carton and place along side the BX-3 (Owners Manual is in
Accessories Box).
CONTENTS:
In the containers, you will find one (1) BX-3, one (1) 14 inch segmented dry diamond blade (or segmented
block blade), one (1) movable cutting table, one (1) adjustable cutting guide, one replacement motor air filter,
one (1) blade wrench, one (1) shaft wrench, one (1) owner's manual and one (1) warranty card.
BX-3 Segmented Dry
Diamond Blade
Blade
Wrench
TRANSPORT:
The BX-3 weighs approximately forty (45) pounds (Without the Movable Cutting Table), making transport easy.
Always observe safe lifting practices when lifting the BX-3.
NOTE: Lock the Cutting Head in the DOWN position, and remove the Movable Cutting Table when
transporting the BX-3.
Due to its lightweight construction, the BX-3 is designed to be carried by the durable aluminum frame. Simply
lock the spring assisted cutting head in the DOWN position, grasp the frame by the lower front and upper
back cross members, lift and transport the BX-3 to the desired work location
Shaft
Wrench
Adjustable
Cutting Guide
Owner's
Manual
Movable Cutting
Table
Warranty
Card
Extra Motor
Air Filter
Locking Pin
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 10
Cutting Head
UNPACKING, TRANSPORT and ASSEMBLY
Wrench Clockwise
Front
Roller Wheels
Guide Rail
Guide Rails
Roller Wheels
Ruler/Stop
Parallel Slots
Motor Shaft
Counter-clockwise
Rotation Direction
Turn to Loosen
Table of Contents
ASSEMBLY:
Follow the assembly instructions to prepare your BX-3 for operation.
1. Movable Cutting Table Installation:
Cutting Table
Ease of Movement
(See Maintenance Section
If Problems Arise)
(A)
Position Movable Cutting Table
(B)
Seat Roller Wheels on
Verify Correct Seating
(C)
Guide Rails
2. Adjustable Cutting Guide Installation:
Seated
(A)
Loosen Thumbscrew
Align
(B)
Position Adjustable Cutting Guide
Turn to Tighten
(C)
Seat and Tighten
Adjustable Cutting Guide
3. Diamond Blade Installation:
NOTE: When installing the Retaining Screw, do not “cross-thread" and DO NOT over tighten the screw.
Retaining Screw
Rotate Blade
Wrench
Seat Blade on
Inner Flange
Outer Flange
Hold Shaft
Stationary
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 11
(A)
Identify Retaining Screw
and Outer Flange
Rotate Blade
Wrench
(D)
Install Retaining Screw and
Outer Flange - Tighten
Hold Shaft
Wrench
Stationary
(B)
Remove Retaining Screw
and Outer Flange
(C)
Install and Seat Blade –
Verify Rotation
SETUP, ADJUSTMENT and OPERATION
Cracks
Points
Underside of Handle
(Push to Unlock)
Table of Contents
SETUP:
• Before powering or starting, check for damage that could prevent this equipment from proper operation or
performing its intended function. Check for binding and alignment of moving parts. Check for damaged,
broken, or missing parts.
• Verify the trigger switch, locking button is in the "RELEASE" position.
• Before connecting the BX-3 to a power supply, be sure the voltage, cycle and phase of the job site power
source meet the requirements of TABLE 3
VOLTAGE: 115v
CYCLE: 60hz
PHASE: single phase
TABLE 3
• If using an extension power cord, make sure the length and wire gauge corresponds to the requirements
listed in TABLE 1 on page 7. An extension power cord that is too small in wire gauge (diameter), or too
long in length, will cause the motor to overheat and could cause premature failure.
• Use an approved Ground Fault Circuit Interrupter (GFCI)
• Do not cover the motor vents as this could lead to motor overheating.
Portable Generator:
If using a portable generator to provide power, ensure the generator meets the following minimum
requirements:
8 kW 120/240 volts 66.7/33.3 amps Single Phase
Pre-start Inspection:
The pre-start inspection should be performed before beginning any job.
NOTE: In order to avoid breaker tripping, a 20-amp circuit breaker should be used.
If the Diamond Blade shows signs of fatigue cracking, replace the blade before starting work.
Ease of Movement
(See Maintenance Section
if Problems Arise)
Replace if Excessively Grooved
(See Maintenance Section
if Problems Arise)
(A)
Inspect Blade for Damage – Verify
Blade Correct for Material Being Cut
(B)
Inspect Wooden Strip for
Excessive Grooves
Check for Cleanliness
(See Maintenance Section)
Movable Cutting Table
Trigger Lock
(Push to Lock)
(C)
Moves Freely
Trigger Switch
Inspection
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 12
(D)
Inspect for Damage
(E)
Inspect Motor Air Filter for
Cleanliness
(F)
Verify Trigger Switch Unlocked
SETUP, ADJUSTMENT and OPERATION
GFCI
Source
Table of Contents
If an extension cord is used, first verify it meets the requirements of TABLE 1 (page 9). Plug the
BX-3 into the extension cord; plug the extension cord into a GFCI. Finally, plug the GFCI into the
power source in that order.
Power
(G)
Plug GFCI into BX-3
(H)
Plug GFCI into Power Source
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 13
SETUP, ADJUSTMENT and OPERATION
Length on Ruler/Stop
Hold Work
in Position
Push Direction
Push Stroke
Pull Direction
Head
Table of Contents

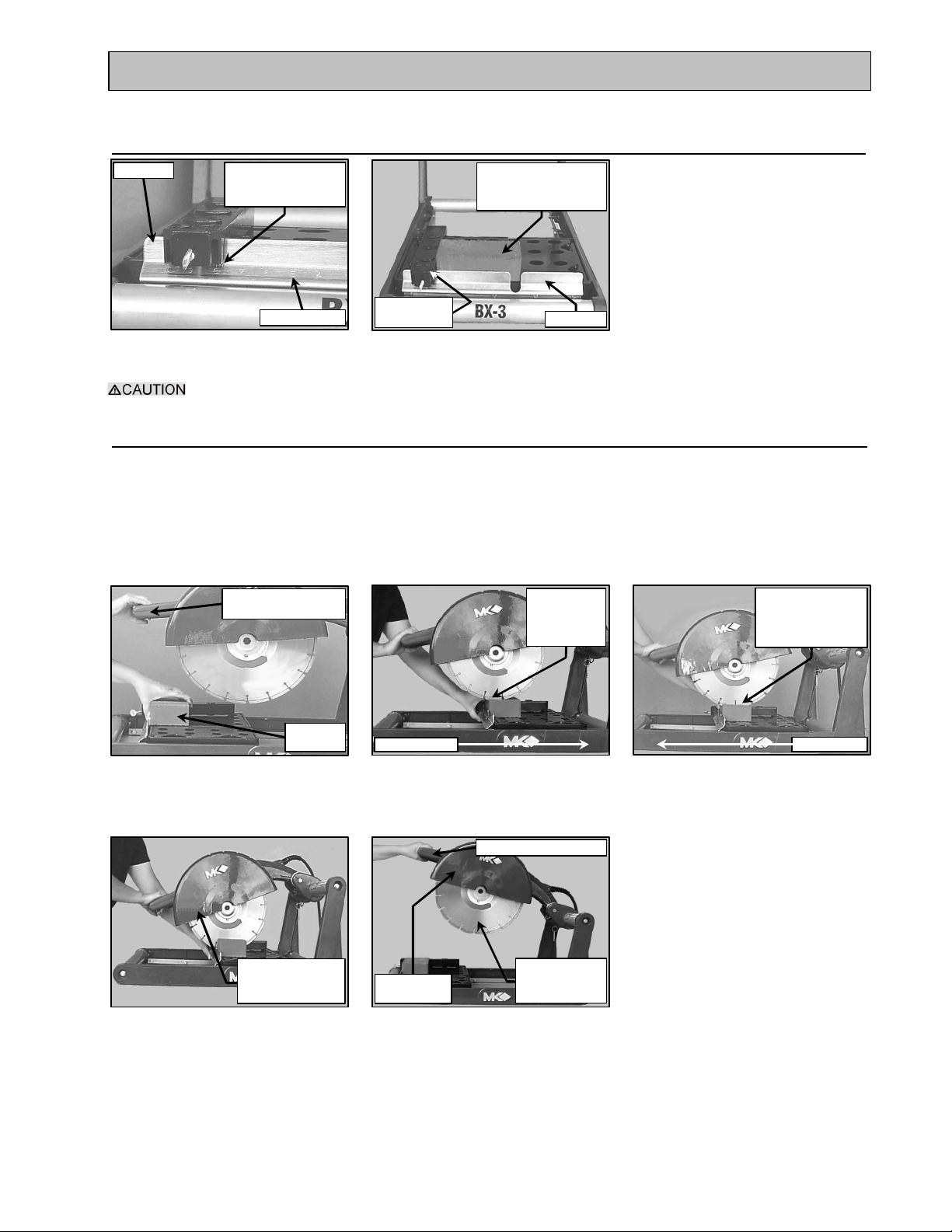

ADJUSTMENT AND OPERATION:
1. Cutting Setup:
Ruler/Stop
Set Edge of Cutting
Guide to Desired Cut
Set against Adjustable
Cutting Guide and
Ruler/Stop
Ruler Markings
(A)
Set Adjustable Cutting Guide
Adjustable
Cutting Guide
(B)
Position Masonry Piece
Ruler/Stop
DO NOT FORCE the blade to cut, it will do the job better and safer at rate for which it was
designed.
2. Step Cuts:
A Step Cut is performed when a series of small cuts of increasing depth are used to complete a single cut.
Step Cuts are used for large objects or for hard objects such as Firebrick and Pavers.
NOTE: 1. Step Cutting is the preferred cutting method for all cuts.
2. When cutting hard material Step Cutting should always be used.
3. Step Cutting will extend the life of the Diamond Blade.
Depress Trigger to
Start (Lock if Desired)
Lower Cutting
Head 1/4 -1/2
Inch During
Lower Cutting
Head Additional
1/4 -1/2 Inch During
Pull Stroke
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 14
(A)
Step Cut Setup
Repeat “Push”
and “Pull” Strokes
Until Cut Complete
(D)
Repeat Steps B and C
Until Cut Complete
(B)
Step Cut “Push” Stroke
Release Trigger Switch
Raise Cutting
(E)
Cutting Complete
(C)
Step Cut “Pull” Stroke
Allow Blade to
Stop Before
Removing Work
SETUP, ADJUSTMENT and OPERATION
(A)
Head
to Cut
Head in Position
Lock Trigger Switch
Hold Work
in Position
Push Slowly to Cut
Hold in Position
Push Slowly to Cut
Table of Contents
3. Chop Cutting:
A Chop Cut is performed by cutting completely through an object in one pass.
(B)
Lower Cutting
Head Smoothly
Continue to Lower
Cutting Head until
Cut Complete
(C)
Continue Lowering Head
until Cut Complete
Chop Cut Setup
Raise Cutting
Depress Trigger to
Start (Lock if Desired)
Position
Work Below
Cutting Head
Release Trigger Switch
Allow Blade to
Stop Before
Removing Work
Hold Roller
Trolley Stationery
Lower Cutting Head
to Begin Cutting
(D)
Cutting Complete

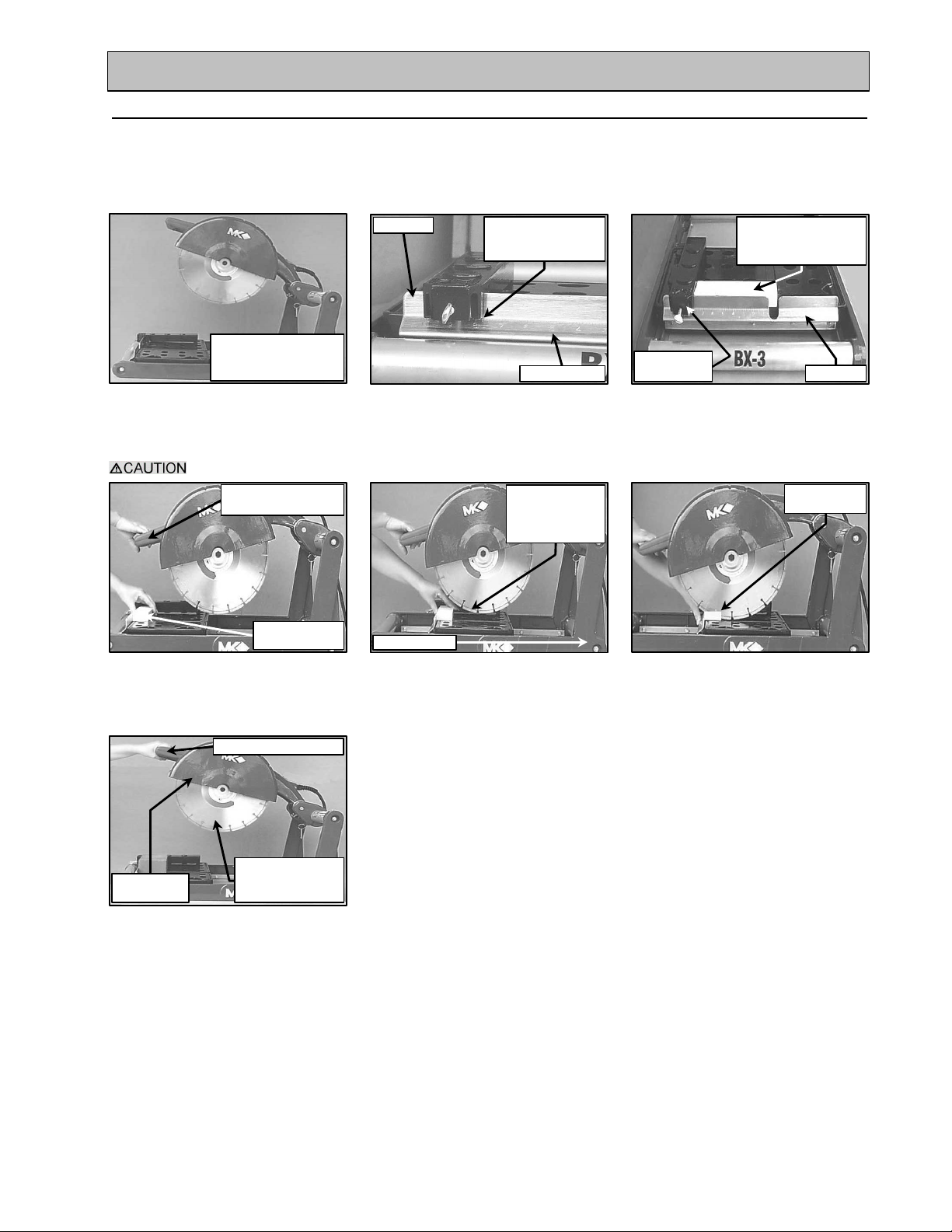

4. Cutting with the Cutting Head Locked Down:
This method is preferred when cutting small objects.
Unlock Trigger Switch
Continue to Push
until Cut Complete
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 15
Align Holes and
Lock Cutting
(A)
Lock Cutting Head in
the Down Position
When Cut Complete
Allow Blade to
Stop Before
Removing Work
(D)
Continue Pushing Piece into
Blade until Cut Complete
(B)
Locked Cutting Head Setup
Remove Locking
Pin to Release
Cutting Head
(E)
Cutting Complete
(C)
Slowly Push Piece toward Blade
to Begin the Cut
SETUP, ADJUSTMENT and OPERATION
Cutting Guide
Turn to Loosen
Head in Position
Lock Trigger Switch
Hold Work
in Position
Push Slowly to Cut
Hold in Position
Table of Contents
5. Angle Cuts:
Angle Cuts may be performed using the Step Cut, Chop Cut or the Locked Cutting Head cutting methods.
The following is utilizing the Locked Cutting Head method.
Align 45° Slots
to Ruler/Stop
Set against Adjustable
Cutting Guide and
Ruler/Stop
Remove Adjustable
Remove Adjustable
Cutting Guide
DO NOT FORCE TOOL, it will do the job better and safer at the rate for which it was designed.
Lock Cutting Head in
the Down Position
(A)
Align Holes and
(D)
Lock Cutting
Unlock Trigger
Switch when
Cut Complete
Ruler/Stop
(B)
Reposition Adjustable
Cutting Guide
(E)
Locked Cutting Head Setup
Unlock Trigger
Switch when
Cut Complete
Adjustable
Cutting Guide
Ruler/Stop
(C)
Position Adjustable
Cutting Guide
(F)
Slowly Push Piece toward Blade
to Begin the Cut
Continue to Push
until Cut Complete
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 16
(G)
Continue Pushing Piece into
Blade until Cut Complete
Allow Blade to
Stop Before
Removing Work
(H)
Cutting Complete
Remove Locking
Pin to Release
Cutting Head
(I)
Release Cutting Head
SETUP, ADJUSTMENT and OPERATION
(E)
(D)
(F)
Source
GFCI
Pins to seat
Clean Guide Rails
Using Clean Cloth
Wheels
Table of Contents
6. Cleanup:
Power
Pull Straight Back
To Remove Cap
(A)
Unplug GFCI from Power Source
Always wear eye protection when using compressed air.
Pull Foam Filter
Out of Filter Cap
Remove Filter from Filter Cap
Push Filter Cap
onto Spacer
(B)
Unplug GFCI from BX-3
Tap on Hard
Surface to
Dislodge Dirt
Clean Filter by Tapping on Hard
Surface or using Compressed Air
Clean Roller
(C)
Remove Motor Filter Cap
Install Foam Filter
into Filter Cap
Reinstall Filter into Filter Cap
Align Filter Cap
Retaining Clips
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 17
to Spacer Pins
Install Motor Filter
Cap onto Motor
(G)
(H)
Clean the Movable Cutting Table
Roller Wheels and Guide Rails
Clean BX-3
(I)
Clean Remainder of BX-3
MAINTENANCE AND TROUBLESHOOTING
Clean and Lubricate
Lubricate Guide Rails
Lubricate
Roller Wheels
Wear
Table of Contents
MAINTENANCE:
1. General Maintenance:
The following maintenance should be performed following each use. Use Light oil, such as WD-40 or 3 in 1
when lubricating parts.
Lubricate
Torsion Spring
Lubricate
(A)
Lubricate Cutting Head
Torsion Spring
Lubricate Movable Cutting Table
Roller Wheels and Guide Rails
(B)
2. Monthly Maintenance:
The following should be performed monthly. Items should be lubricated as directed.
Clean and
Inspect for
(A)
Clean and Lubricate Inner Flange
and Motor Shaft
Clean and Lubricate
Blade Retaining Screw
(B)
(C)
Check Roller Wheels and
Guide Rails for Wear
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 18
MAINTENANCE AND TROUBLESHOOTING
Stick in Position
Push Direction
Stick into Blade
Stroke 8-times
Head
Table of Contents
3. Blade Dressing:
Like most cutting instruments, a diamond blade performs best when it is dressed. Over time and use,
diamonds on the outer edge will become smooth or “glazed” over. This will reduce grinding efficiency and
may cause the blade to “wander” or bend, giving the illusion of an alignment problem. When this occurs, the
blade will need to be dressed. The diamond blade can be dressed using the MK Dressing Stick (part number
152792) and by following the steps below.
Set up for Operation
(See Setup, Adjustment
and Operation)
(A)
Set BX-3 for Operation
Ruler/Stop Set Edge of Cutting
Set Adjustable Cutting Guide
Guide to Desired Cut
Length on Ruler/Stop
Ruler Markings
(B)
Adjustable
Cutting Guide
Position Dressing Stick
to Cut 1/16-inch Strips
DON'T FORCE TOOL, it will do the job better and safer at the rate for which it was designed.
Depress Trigger to
Start (Lock if Desired)
Lower Cutting
Head while
Pushing Dressing
Set against Adjustable
Cutting Guide and
Ruler/Stop
Ruler/Stop
(C)
Repeat Cut
(D)
Set up for Blade Dressing
Release Trigger Switch
Allow Blade to Stop
Raise Cutting
Before Removing
Dressing Stick
(G)
Dressing Complete
Hold Dressing
(E)
Begin Blade Dressing
(F)
Repeat Cut Stroke
to Dress Blade
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 19
MAINTENANCE AND TROUBLESHOOTING
(A)
Wrench Clockwise
Rotation Direction
Counter-clockwise
Remove Blade
Table of Contents
4. Diamond Blade Change-out:
Disconnect the tool before servicing and when changing accessories, such as blades, bits,
cutters, and the like.
Set up for Operation
(See Setup, Adjustment
and Operation)
Setup BX-3 for Operation
Hold Shaft
Wrench
Stationary
Retaining Screw
(B)
Remove Retaining Screw
and Outer Flange
Rotate Blade
Wrench
(C)
Remove Blade from
Motor Shaft
NOTE: When installing the Retaining Screw, do not “cross-thread" and DO NOT over tighten the screw.
Seat Blade on
Inner Flange
Hold Shaft
Wrench
Stationary
Rotate Blade
(D)
Install Blade Under Blade Guard
and Onto Motor Shaft
(E)
Install Outer Flange and
Retaining Screw – Tighten
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 20
MAINTENANCE AND TROUBLESHOOTING
1/2-Inch Wrench
Roller Wheels
Counter-clockwise
Roller Wheel
1/2-Inch Wrench
Counter-clockwise
Clean Holes
Washer
Table of Contents
5. Movable Cutting Table Wheel Change Out:
NOTE: All four (4) Movable Cutting Table, Roller Wheels should be replaced at the same time (MK Diamond
Part No. – 133090).
Rotate Wrench
(A)
Place Movable Cutting
Table On Work Bench
(B)
Remove Roller Wheels
Prepare for Installation
Of New Roller Wheels
(C)
with Roller Wheels Up
NOTE: When installing the Retaining Bolt, do not “cross-thread" and DO NOT over tighten the Nut.
Rotate Wrench
Lubricate with
Light Oil (WD-40,
(D)
Install Wheel/Washer Assembly
Into Movable Cutting Table
Install Movable Cutting
Table (See Setup,
Adjustment and Operation
Install Roller Wheel
Retaining Nut – Tighten
(E)
(F)
Lubricate Roller Wheels
3 in 1, etc)
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 21
(G)
Install Movable Cutting Table
MAINTENANCE AND TROUBLESHOOTING
Screwdriver
with Roller Wheels Up
(E)
(D)
(F)
Roller Wheels
Screwdriver
Table of Contents
6. Protective Wooden Strip Replacement:
The protective wooden strip is to protect the Movable Cutting Table from damage during operation. Over
time, the wooden strip will become grooved from use. A grooved wooden strip will not support masonry
during cutting, causing the blade to "break through" the piece instead of performing a smooth cut (MK
Diamond Part No. – 156427).
(A)
Place Movable Cutting Table on
Work Bench – Wheels Up
Phillips
Retaining Screw
(B)
Remove the Two Protective
Wooden Strip Retaining Screws
Protective
Wooden Strip
(C)
Place Movable Cutting Table on
Work Bench – Wheels Down
Worn Wooden
Strip
New Wooden
Strip
Replace Worn
Protective Wooden Strip
Phillips
Retaining Screw
Place Movable Cutting Table on
Work Bench – Wheels Up,
Reinstall Retaining Screws
Install Movable Cutting
Table (See Setup,
Adjustment and Operation
Install Movable Cutting Table
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 22
MAINTENANCE AND TROUBLESHOOTING
(C)
Disconnect BX-3
Either Side of Motor
Counter-clockwise
Screwdriver
Remove Motor Brush
and Install the Brush
Driver Clockwise
Screwdriver
Motor Brush
Table of Contents
7. Motor Brush Change-out:
Disconnect the tool before servicing and when changing accessories, such as blades, bits,
cutters, and the like.
(A)
Disconnect the BX-3
One Cap on
Phillips
Locate and Remove One
Motor Brush Cap
Rotate Screw Driver
Clean Brush Housing
of Carbon All Carbon
Dust and Fragments
(B)
Remove Motor Brush and
Clean Brush Housing
NOTE: When installing motor brushes, care must be taken to ensure the spring end is straight before
installing the Motor Brush Cap.
Align Motor Brush
with Brush Housing
Phillips
Rotate Screw
Replace Second
(D)
Align and Install
New Motor Brush
(E)
Install Motor Brush Cap
(F)
Install the Second Motor Brush
(Repeat Steps B to E)
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 23
MAINTENANCE AND TROUBLESHOOTING
Return to
Return to
Verify Connected
BX-3 once
Change Blade
Table of Contents
TROUBLESHOOTING:
Verify the Lockable Switch is unlocked and the saw is disconnected from the power source before
performing any troubleshooting procedure.
1. Motor Stops Turning:
If GFCI Tripped,
Reset and Restart
If 20 Amp
Or Greater,
go to Step D
(A)
Verify all Plugs Fully Connected
If Connected, go to Step B
If Breaker Tripped,
Reset once -
Attempt Restart
If not
Tripped,
go to Step E
(D)
Verify Circuit Breaker
Not Tripped
If GFCI not Tripped,
go to Step C
(B)
Check Ground Fault Circuit
Interrupter (GFCI) Tripped
If Circuit is 115
Volts, go to
Step F
not115 Volts,
Change Circuit
(E)
Verify Source Voltage
is 115 Volts
If Circuit is
If Less than
20 Amps,
Switch to 20
Amp Breaker
(C)
Verify Circuit Breaker is
20 Amp or Greater
MK Diamond
for Repair
(F)
Return to MK Diamond
2. Blade Will Not Cut Properly:
If “Glazed,” Dress
(See Blade Dressing)
If not “Glazed,
go to Step B
If Rotation
Not Correct,
Reposition Blade
If Rotation
Correct, go
to Step C
Contact Place of Purchase or
MK Diamond (800 421-5830)
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 24
(A)
Check for Smoothness
or “Glazing”
To Verify Blade
If Blade
Correct, go
to Step E
(D)
Verify Blade Correct for
Material Being Used
(B)
Check for Proper Rotation
MK Diamond
for Repair
(E)
Return to MK Diamond
If Core Bent,
If Core Not
Bent, go to
Step D
(C)
Ensure Blade
Core Not Bent
MAINTENANCE AND TROUBLESHOOTING
Return to
Rails
to MK Diamond
Table of Contents
3. Movable Cutting Table Does Not Move Correctly:
If Dirty,
If Clean, go
to Step B
(A)
Check Guide Rails Clean
MK Diamond
for Repair
Clean
(B)
Check for Roller
Wheel Damage
If Damaged
Replace
If Not
Damaged,
go to
Step C
If Binding
Present, Return
If No Binding,
go to Step D
(C)
Verify Ease and Freedom
of Movement
(D)
Return to MK Diamond
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 25
EXPLODED VIEW AND PARTS LIST
Table of Contents
EXPLODED VIEW:
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 26
EXPLODED VIEW AND PARTS LIST
Table of Contents
PARTS LIST:
Item Description Qty MK p/n
A Assembly, Frame, Right 1 n/a
A1 Casting, Frame, Right 1 157367
A2 Casting, Frame, Left 1 157369
A3 Support, Horizontal Frame 3 157384
A4 Tube Connector, ¼-20 6 157930
A5 Screw, ¼-20 x 1 ½ Hex Head Cap 6 151914
A6 Washer, ¼ SAE Flat 6 151915
A7 Washer, ¼ Split Lock 6 152591
A8 Strap, Table Guide Rail 2 157383
A9 Screw, ¼-20 x ¾, Hex Head Cap 10 152370
A10 Washer, ¼ Split Lock 10 152591
A11 Drive Stud, Round Head Grooved #16 (¼) x ½ 2 158071
A12 Label, Adhesive “BX3” 1 157959
A13 Label, Safety Caution 1 155576
A14 Label, MK USA 1 154334
A15 Tag, Serial, Brick Saw 1 158096
A16 Label, Prop 65 1 154337
A17 Label, Warning, Extension Cord 1 155672
B Assembly, Arm, Motor Mount 1 n/a
B1 Casting, Arm, Motor Mount 1 157599
B2 Bushing, Nylon Flange 2 157932
B3 Label, Adhesive “Brick Xtreme” 1 157958
C Assembly, Pivot Clamp 1 n/a
C1 Casting, Pivot Clamp 1 157593
C2 Screw, ¼-20 x 1 ¼ Socket Hd. Cap 2 154683
C3 Washer, ¼ Split Lock 2 152591
C4
C5 Screw, Set ¼-20 x ¼ Cup Point 1 157528
C6 Spring, Torsion 1 157702
C7 Stop Block 1 158226
C8 Screw, ¼-20 x 5/8, Socket Hd Cap 1 152587
C9 Pin, Detent w/ Pull Ring 1 157933
C10 Lanyard 1 158072
D Assembly, Handle & Switch 1 n/a
D1 Handle, Upper 1 157874
D2 Handle, Lower 1 157875
D3 Screw, M3.5 x 12mm 8 158156
D4 Screw, ¼-20 x ¾, Socket Hd. Cap 2 152587
D5 Washer, ¼ SAE, Flat 2 151915
D6 Washer, ¼ Split Lock 2 152591
D7 Insert, Expansion, ¼-20 Standard 2 158147
D8 Switch, Trigger 1 157934
D9 Plate, Screw, Switch Mounting 1 157876
D10 Cord, AC Power 120V 1 157935
D11 Cover, Wire 1 157880
D12 Screw, # 6-32 x 1 ¼, Socket Flat Head 1 158160
D13 Washer, #6 Flat SAE 5 158231
E Assembly, Motor 1 n/a
E1 Motor, AC 115 Volt / 13 Amp, 3500 RPM 1 157801
E2 Flange, Outer 1 158105
Pin, Pivot ∅.625 x 5.6
1 157645
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 27
EXPLODED VIEW AND PARTS LIST
Table of Contents
Item Description Qty MK p/n
E3 Flange, Inner 1 158106
E4 Screw, M10 – 1.5 x 20mm Hex Flange 1 158107
E6 Screw, M6-1 x 20mm Hex Head Cap 4 158158
E7 Washer, M6 Split Lock 4 158159
E8 Cap, Motor 1 157877
E9 Cap, Motor Filter 1 157878
E10 Spacer Pin, Cap Screw 2 157879
E11 Filter Element 1 157729
E12 Screw, #6 x 1 ½, Combo Head Pan, Tapping 2 158157
F Assembly, Table 1 n/a
F1 Casting, Table 1 158144
F2 Stop, Rule 1 134387
F3 Screw, ¼-20 x ¾ Hex Head Cap 4 152370
F4 Nut, ¼-20, Hex w/ External Tooth Washer 4 153941
F5 Wheel, Roller 4 133090
F6 Nut, 5/16-18, Hex w/ External Tooth Washer 4 151051
F7 Wood Strip, Table Insert 1 156427
F8 Screw, #8 x 1 Pan Head Phil. 2 151047
F10 Casting, Squaring Arm 1 231276
F11 Screw, 5/16-18 x 1 ½, Thumb 1 151155
F12 Nut, 5/16-18 Square 1 151156
H Assembly, Accessory Pack 1 n/a
H5 Wrench, Blade Nut 1 158109
H6 Wrench, Shaft 1 158110
H7 Extra Filter Element 1 157729
H8 Blade, MK-BX10, Dry Cutting 14”, Segmented 1 157957
H8-A Blade, MK-BX30, Dry Cutting 14”, Segmented Block 1 157944
Owner's Manual 1 158168
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 28
THEORY
Table of Contents
THEORY OF DIAMOND BLADES:
Diamond blades do not really cut; they grind the material through friction. Diamond crystals, often visible at
the leading edge and sides of the rim/segment, remove material by scratching out particles of hard, dense
materials, or by knocking out larger particles of loosely bonded abrasive material. This process eventually
cracks or fractures the diamond particle, breaking it down into smaller pieces. As a result, a diamond blade
for cutting soft, abrasive material must have a hard metal matrix composition to resist this erosion long
enough for the exposed diamonds to be properly utilized. Conversely, a blade for cutting a hard, nonabrasive material must have a soft bond to ensure that it will erode and expose the diamonds embedded in
the matrix. These simple principles are the foundation of “controlled bond erosion”.
Types of Cutting:
There are two basic types of cutting-Dry or Wet. The choice of which type of blade to use depends on:
• The requirements of the job
• The machine/tool utilizing the diamond blade
• The preference of the operator
In the case of DRY cutting, the overwhelming popularity and quantity of hand-held saws and the flexible
nature of MK Diamond blades to professionally handle most ceramic, masonry, stone and concrete materials,
make the DRY cutting blade a very attractive tool. When using a DRY blade, the user must be aware of
distinct operating practices to ensure optimum performance. DRY cutting blades require sufficient airflow
about the blade to prevent overheating of the steel core. This is best accomplished by shallow, intermittent
cuts of the material with periods of “free-spinning” (for several seconds) between each cut, to maximize the
cooling process.
For WET cutting applications, MK has the exact blade to compliment both the material to be cut and the wet
cutting machine to be used. During cutting operations, liberal amounts of water act as a coolant to support
the cutting effectiveness and longevity of the WET blade. Additionally, using water adds to the overall safety
of cutting operations by keeping the dust signature down.
Know All You Can About the Material You Wish to Cut
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 29
ACCESSORIES, ORDERING and RETURN INFORMATION
Table of Contents
ACCESSORIES:
ITEM NUMBER DESCRIPTION
1.
157957 MK-BX10, Dry Cutting 14" Segmented Blade
2.
157944 MK-BX30, Dry Cutting 14" Segmented Block
Blade
3.
231276 Adjustable Cutting Guide
4.
5.
6.
7.
133090 Roller Wheel
156427 Protective Wooden Strip
157729 Motor Air Filter
152610 Ground Fault Circuit Interrupter
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 30
ACCESSORIES, ORDERING and RETURN INFORMATION
Table of Contents
ORDERING INFORMATION:
You may order MK Diamond products through your local MK Diamond distributor or, you may order direct
from MK Diamond.
NOTE: There is a $25.00 minimum order when ordering direct from MK Diamond. All purchases must be
made using VISA or MasterCard.
When ordering direct from MK Diamond, please have the following information ready before calling:
• The Model Number of the saw
• The Serial Number of the saw
• Where the saw was purchased and when
• The Part Number for the part(s) being ordered
• The Part Description for the part(s) being ordered
All parts may be ordered by calling toll free to – 800 421-5830 or 310 539-5221 and asking for Customer
Service. For technical questions, call – 800 474-5594.
RETURN MATERIALS POLICY:
To expedite the service relative to the return of a product purchased through MK Diamond, please observe
the following:
NOTE: When returning all items, they must have been purchased within the previous twelve (12) months.
• Have the Model Number of the saw
• Have the Serial Number of the saw
• Have the location of where the saw was purchased
• Have the date when the saw was purchased
• Contact Customer Service for approval to return the item(s)
• Obtain a Returned Goods Number (RGA) authorizing the return
• Follow the packaging instructions in the following section
• Ensure your item(s) are prepaid to the destination
For returned items, call toll free to – 800 421-5830 or 310 539-5221 and ask for Customer Service. For
technical questions, call – 800 474-5594 or 310 257-2845.
PACKAGING INSTRUCTIONS:
• Remove the Blade guard and Support Angle Assembly
• Dry the saw before shipping
• When packing, include the following: BX-3, Diamond Blade, Blade guard and Support Angle Assembly
and Adjustable Cutting Guide (Other Accessories are not required)
• Package the unit in its original container or one of comparable size (do not ship the unit partially exposed)
• Ensure all parts are secured in the packaging to prevent moving
AUTHORIZED SERVICE CENTERS:
For quicker repair time, you may contact MK Diamond Customer Service, toll free, at – 800 421-5830 or 310
539-5221 for the Authorized Service Center closest too you. For technical questions, call – 800 474-5594.
BX-3 Revision 11/00, Effective Date November 1, 2000 Page 31
BRICK SAW
CALIFORNIA PROPOSITION 65 MESSAGE:
BX-3 BRICK XTREME
Table of Contents
OWNER’S MANUAL &
OPERATING INSTRUCTIONS
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contain chemicals known [to the State of California] to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica, from bricks and cement and other masonry products and
• Arsenic and chromium, from chemically treated lumber
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to filter out microscopic particles.
MK DIAMOND PRODUCTS, INC
1315 STORM PARKWAY, TORRANCE, CA 90509-2803
310 539 5158
Loading...
