RM-2 HI TO LOW LEVEL CONVERTOR &

REMOTE SUBWOOFER V OLUME CONTROL

The M&K RM-2 allows you to use all M&K Powered Subwoof­ers with components that do not have RCA-type subwoofer
output jacks (especially for the MX-125 II, MX-5000THX II, MX­350THX, MX-150THX, and V-125THX).

It also provides a convenient way to precisely fine tune and
control the level of your M&K powered subwoofer without
having to use the control on the subwoofer's back panel.

LOCATION OF THE RM-2

The RM-2 must be placed close to your amplifier or receiver, so
that its input wires will reach the speaker output terminals of
your component. SPECIAL NOTE: Despite its full Faraday
shielding, in

rare

instances, when the RM-2 is very close to the
power amplifier, it may be sensitive to hum. If you hear system
hum after connecting the RM-2, move it away from any power
transformers in the receiver or amplifier.

WIRING THE RM-2

The RM-2 has three sets of connectors. From left to right:
RIGHT IN (- connection on top; + connection on bottom)
SUB OUT (2 jacks)
LEFT IN (- connection on top; + connection on bottom)

1. Connect the RIGHT IN wires attached to the RM-1 to the
Right Channel speaker output on your amp or receiver. Make
sure that the Red wire is connected to the (+) terminal on the
amplifier and that the Black wire is connected to the (-) terminal
on the amplifier.

2. Connect the LEFT IN wires attached to the RM-1 to the
Right Channel speaker output on your amp or receiver. Make
sure that the Red wire is connected to the (+) terminal on the
amplifier and that the Black wire is connected to the (-) terminal
on the amplifier.

3. Connect an RCA - RCA interconnect cable from either
one of the SUB OUT jacks on the RM-2 to the LEFT/MONO
input on your subwoofer. If you have two subwoofers, connect
one cable to each subwoofer.

USING THE RM-2 TO SET BASS LEVEL

The RM-2's convenience in setting the bass level of your M&K
subwoofer can be used for various purposes.

The most common purpose is to use it to increase or decrease
bass levels depending on the source. Its calibrated control
makes it easy to return the subwoofer to your reference level.
Here's the procedure:

After connecting the RM-2 as described above, set its level
control to the 0 dB position. Then calibrate the level of the
subwoofer by adjusting the BASS LEVEL control on the back
of the subwoofer. Do not adjust the RM-2. You can calibrate
levels through listening tests, or by using test tones or noise
with a sound level meter or with a third-octave analyzer.

Once calibrated, any time you wish to change the amount of
bass, simply adjust the RM-2. Do not adjust the subwoofer.
The RM-2 has a range of plus or minus 21 dB of adjustment.
Any time you need to reset the bass output to the calibrated
level, all you have to do is set the RM-2 to the 0 dB position!

Another use of the RM-2 is to control (and calibrate) the level
of subwoofers installed in locations that are difficult to access.
In these cases, you may be unable to calibrate bass levels by
using the BASS LEVEL control on the back of the subwoofer.

Under these circumstances, to use the RM-2, just set the
BASS LEVEL control on the back of the subwoofer(s) to
between the 12:00 (straight up) and about the 3:00 position.
Then use the RM-2 to calibrate the bass level.

For more detailed information on the subject of setting bass
levels, see your subwoofer owner's manual.

_

+

RIGHT

AMPLIFIER

Black

wire

Red
wire

CONNECT
WIRES TO
LEFT A ND

RIGHT

A M P L IF IE R

SPEAKER

TERMINALS

RIGHT

-

+

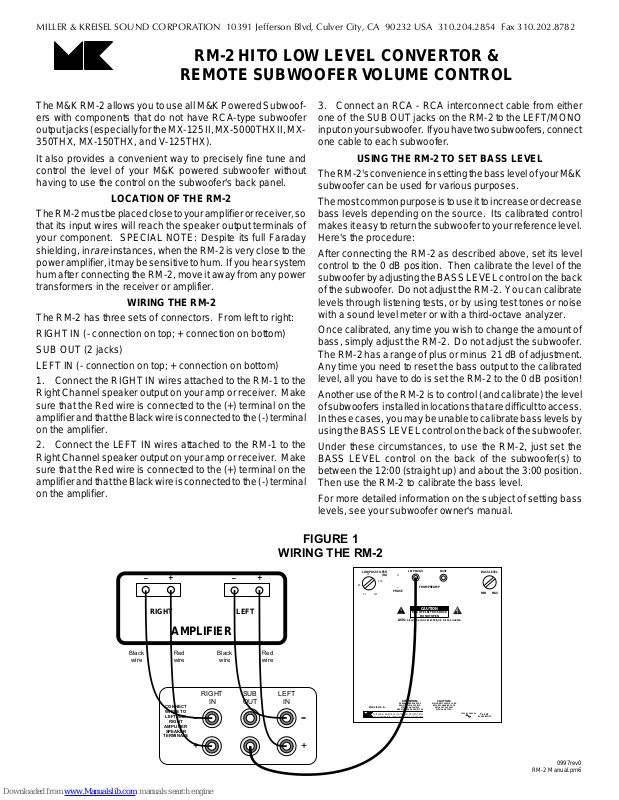

FIGURE 1

W IRING THE RM-2

(Hz)

+



PHASE

AVIS:

ATTENTION:

DEBRANCHER AVANT DE
REMPLACER LE FUSIBLE.

UTILIZER UN FUSIBLE

DE RECHANGE DE MEME TYPE.

LEFT/MONO

RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR.

LOW PASS FILTER

_

+

LEFT

SUB
OUT

Red
wire

LEFT

IN

Black

wire

IN

-

75

100

60

50

125

Made in U.S.A.

MILLER & KREISEL SOUND CORPORATION

10391 Jefferson Blvd, Culver City, CA 90232 310/204-2854

+

FROM PREAMP

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

DISCONNECT SUPPLY CORD

BEFORE CHANGING FUSE.

REPLACE FUSE ONLY

WITH SAME TYPE.

RIGHT

120 VAC 50/60 Hz

BASS LEVEL

MIN

4 AMP

T

SLOW-BLOW

MAX

0997rev0
