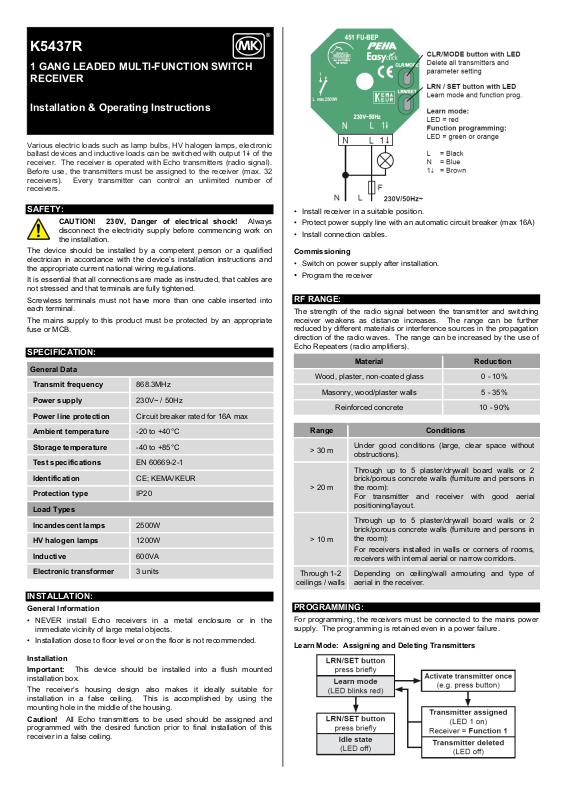

MK K5437R User Manual
®
K5437R
1 GANG LEADED MULTI-FUNCTION SWITCH
RECEIVER
Installation & Operating Instructions
Various electric loads such as lamp bulbs, HV halogen lamps, electronic
ballast devices and inductive loads can be switched with output 1v of the
receiver. The receiver is operated with Echo transmitters (radio signal).
Before use, the transmitters must be assigned to the receiver (max. 32
receivers). Every transmitter can control an unlimited number of
receivers.
SAFETY:
The device should be installed by a competent person or a qualified
electrician in accordance with the device’s installation instructions and
the appropriate current national wiring regulations.
It is essential that all connections are made as instructed, that cables are
not stressed and that terminals are fully tightened.
Screwless terminals must not have more than one cable inserted into
each terminal.
The mains supply to this product must be protected by an appropriate
fuse or MCB.
SPECIFICATION:
General Data
INSTALLATION:
General Information
• NEVER install Echo receivers in a metal enclosure or in the
• Installation close to floor level or on the floor is not recommended.
Installation
Important: This device should be installed into a flush mounted
installation box.
The receiver’s housing design also makes it ideally suitable for
installation in a false ceiling. This is accomplished by using the
mounting hole in the middle of the housing.
Caution! All Echo transmitters to be used should be assigned and
programmed with the desired function prior to final installation of this
receiver in a false ceiling.
CAUTION! 230V, Danger of electrical shock! Always
disconnect the electricity supply before commencing work on
the installation.
Transmit frequency 868.3MHz
Power supply 230V~ / 50Hz
Power line protection Circuit breaker rated for 16A max
Ambient temperature -20 to +40°C
Storage temperature -40 to +85°C
Test specifications EN 60669-2-1
Identification CE; KEMA/KEUR
Protection type IP20
Load Types
Incandescent lamps 2500W
HV halogen lamps 1200W
Inductive 600VA
Electronic transformer 3 units
immediate vicinity of large metal objects.
• Install receiver in a suitable position.
• Protect power supply line with an automatic circuit breaker (max 16A)
• Install connection cables.
Commissioning
• Switch on power supply after installation.
• Program the receiver
RF RANGE:
The strength of the radio signal between the transmitter and switching
receiver weakens as distance increases. The range can be further
reduced by different materials or interference sources in the propagation
direction of the radio waves. The range can be increased by the use of
Echo Repeaters (radio amplifiers).
Material Reduction
Wood, plaster, non-coated glass 0 - 10%
Masonry, wood/plaster walls 5 - 35%
Reinforced concrete 10 - 90%
Range Conditions
> 30 m
> 20 m
> 10 m
Through 1-2
ceilings / walls
Under good conditions (large, clear space without
obstructions).
Through up to 5 plaster/drywall board walls or 2
brick/porous concrete walls (furniture and persons in
the room):
For transmitter and receiver with good aerial
positioning/layout.
Through up to 5 plaster/drywall board walls or 2
brick/porous concrete walls (furniture and persons in
the room):
For receivers installed in walls or corners of rooms,
receivers with internal aerial or narrow corridors.
Depending on ceiling/wall armouring and type of
aerial in the receiver.
PROGRAMMING:
For programming, the receivers must be connected to the mains power
supply. The programming is retained even in a power failure.
Learn Mode: Assigning and Deleting Transmitters
Notes:
– No transmitter is assigned to the receiver in its delivered state.
– Several transmitters can be assigned or deleted (max. 32 receivers) in
learn mode.
– A transmitter is alternately assigned (LED on) or deleted (LED off)
each time the button is pressed!
– The receiver‘s Function 1 is preset after assigning a transmitter to the
receiver. The function can be changed for every transmitter.
– If no action takes place, learn mode will be terminated after 30s
Deleting All Transmitters
OPERATION WITH ECHO WALL TRANSMITTERS
Function 1 – Two Button Operation
Wall Transmitter Function
Press button I Switch on
Press button O Switch off
Note: Default function for a transmitter just assigned to the receiver and
also the function for motion sensors!
Function Programming
Note: If no action takes place, function programming will be terminated
after 30 s.
Transmitter detection, (e.g. press transmitter button)
Activate transmitter once
LED blinks orange – transmitter detected
Function setting, (e.g. function 3)
LRN/SET button 3 x activated
LED blinks 3 x orange – function3
Parameter setting, (e.g. parameter 2)
LRN/SET button 2 x activated
LED blinks 2 x green – parameter 2
OPERATION AND FUNCTIONS:
The receiver is operated with Echo transmitters (radio signal). Before
use, the transmitters must be assigned to the receiver (max. 32
receivers). The receiver‘s Function 1 is preset after assigning a
transmitter to the receiver. It can be changed by function programming.
Every transmitter can control an unlimited number of receivers.
Function 2: One Button Operation
Wall Transmitter Function
Press button Toggle switch state
Parameters
1 Button O is activated
2 Button 1 is activated
3 Button 1 and O are activated
Function 3: Button Control
Wall Transmitter Function
Press button Switch on
Release button Switch off
Parameters
1 Button O is activated
2 Button 1 is activated
3 Button 1 and O are activated
4 Button O is activated, (pulse time 5s)
5 Button 1 is activated, (pulse time 5s)
6 Button 1 and O are activated, (pulse time 5s)
Function 4: Stairwell Light
Wall Transmitter Function
Press button I or O
Parameters
1 2 min running time
2 1 min running time
3 5 min running time
4 10 min running time
5 20 min running time
6 30 min running time
7 60 min running time
8 120 min running time
Note: Following the preset running time, the light will be switched off for
2s (switch-off warning) and then switched on again for another 30s
Switch on with running time
(parameter)
