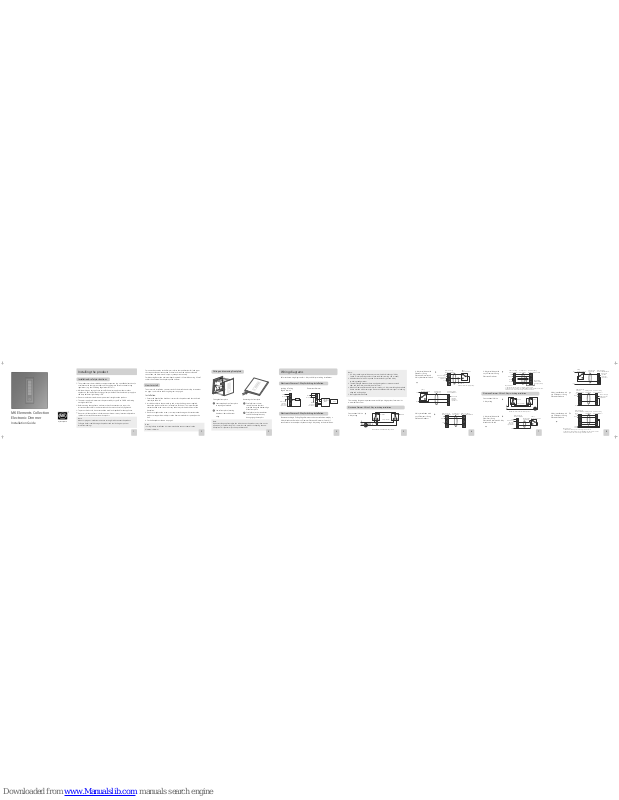

MK Elements Collection Installation Manual

MK Elements Collection
Electronic Dimmer

Installation Guide

Fitting and removing frontplate

Locate top hooks on front plate
to top edge of module.

Lower front plate, locating
hooks on sides and bottom
edge.

Carefully insert a 4mm
screwdriver into the slots
provided along the bottom edge
of the frontplate.
Carefully twist the screwdriver
and lift the frontplate away
disengaging the snap ts.

Fitting the frontplate Removing the frontplate

2

2

1

1

Note:

1. A 2-Way switching installation may not work with a Mechanical 2-Way
Switch, if incorporating an electric powered indicator (e.g. LED or neon)

2. Additional neutral wire is required on certain load types and 2-Way
switching congurations.

3. The cable length between the two end point products must not exceed
40m, and the minimum cable size of 0.75mm².

4. When an Elements Electronic Dimmer is used as a 2-Way controlling device, both
device must be of the same type. Do not mix dierent dimmer types i.e. leading
edge and trailing edge.

5. Not applicable to K34499.

Conventional 3-Wire
2-Way wiring

1 2 1 2

Common

Common

2-way switches

Dotted lines show alternative switch positions

NLSW.L

Lamp

2- Way installation with
Elements 1 Gang
Electronic Dimmer and
2-Way Mechanical Switch

L

N

1

R1

1

2

C

Elements 1 Gang
Electronic Dimmer

Existing 3-wire
2-way wiring

Refer to load
type table
for neutral
requirement

Load

Live

2-Way
Mechanical Switch

L

N

1

R1

1

2

C

Elements 1 Gang
Electronic Dimmer

Refer to load type
table for neutral

requirement

Load

Live

2-Way
Mechanical Switch

Unused wire.
Terminate both ends appropriately.

2-Way installation with
any 2 Elements 1 Gang
Electronic Products

L

N

1

R1

L

N

1

R1

*Elements 1 Gang
Electronic Dimmer/Switch

Elements 1 Gang
Electronic Dimmer

Existing 3-wire
2-way wiring

Neutral

Load

Live

2-Way installation with
Elements 1 Gang
Electronic Dimmer and 2-Way
Mechanical Switch

Conventional 2-Wire
2-Way wiring

1 2 12

Common

Common

2-way switches

Dotted lines show alternative switch positions

N

L

Lamp

2-Way installation with
any 2 Elements 2 Gang
Electronic Products

L

N

1

R1

L

N

1

22

R1

R2R2

*Elements 2 Gang
Electronic Dimmer/switch

Elements 2 Gang
Electronic Dimmer

Existing 3-wire
2-way wiring

1. *Neutral is mandatory on the controlling electronic device.

2. If multi core cable is used, do not run R1 & R2 wires in the same multi core cable.

3. Refer to note 4 in this section for type of dimmer to be used.

Important notes:

Neutral

Load 1
Load 2

Live

1

2

C

L

N

1

R1

Elements 1 Gang
Electronic Dimmer

Existing 2-wire
2-way wiring

Refer to load

type table
for neutral

requirement

Load

Live

2-Way
Mechanical Switch

2-Way installation with
any 2 Elements 1 Gang
Electronic Products

2-Way installation with
any 2 Elements 2 Gang
Electronic Products

L

N

1

R1

L

N

1

R1

Elements 1 Gang
Electronic Dimmer

Elements 1 Gang
Electronic
Dimmer/Switch

Existing 2-wire
2-way wiring

*Neutral

Refer to load type
table for neutral
requirement

Live

Load

L

N

1

R1

L

N

1

22

R1

R2

R2

Elements 2 Gang
Electronic Dimmer

Elements 2 Gang
Electronic Dimmer/
Switch

Existing 2-wire
2-way wiring

*Neutral

Live

Load 2
Load 1

Important notes:

1. *Neutral is mandatory on the controlling electronic device.

2. If multi core cable is used, do not run R1 & R2 in the same multi core cable.

3. Refer to note 4 in this session for type of dimmer to be used.

L

N

1

R1

1

2

C

Elements 1 Gang
Electronic Dimmer/Switch

Existing 2-wire
2-way wiring

Refer to load
type table
for neutral
requirement

Load

Live

2-Way
mechanical Switch

These wiring diagrams represent common 2-Way wiring options, for more visit
www.mkelectric.com.

For neutral connection to the Dimmer, refer to the specications for load types
that require a Neutral connection. If these loads are used without a Neutral
connection, the dimmer and lamp may not operate correctly.
For Mounting Boxes, the minimum depth required is 35mm. When using 2.5mm²
cables the minimum box depth required is 40mm.

Note:
When carrying out insulation resistance testing, rst disconnect the product.
Failing to do this could damage the product and could also give spurious
insulation readings.

Note:
Upon attaching new frontplate, the indication on the product may show erratic
operation i.e. rapid ashing. This is normal as the product is adapting the new
frontplate. This process may take up to 20 seconds.

Note:
In a single lamp installation it is recommended to connect neutral to the
electronic dimmer.

Installing the product

Installation & safety instructions

This product must be installed by a competent person (e.g. a qualied electrician) in
accordance with these instructions and the appropriate current national wiring
regulations. (e.g. the IEE Wiring Regulations BS 7671)
While working on any appliance, turn o the mains supply to make sure that
appliance is not live. Before changing a lamp or bulb ensure the electricity supply to
the lamp holder or light tting is o.
Do not use electric screwdrivers or power tools to tighten the product.
The mains supply to dimmer must be protected by a type ‘B’ or ‘C’ MCB with rating
not higher than 10A.
Before starting the appliance, make sure that all connections are as per the
instructions, the cables are not stressed and the terminals are fully tightened.
To prevent re hazard, do not exceed the rated load specied for the appliance.
Do not install the appliance in bathrooms, washrooms or any location subjected to
splashes of water, condensation or dampness.

How to install

To ensure safe installation, you must read all the installation & safety instructions
on page-1, and refer to the wiring diagrams on page-4.

Installation

1. Ensure the depth of the back box is correct for the product and that it is tted
securely to the wall.

2. Install the cables in the normal way and, using the xing screws supplied,
mount the product, still minus its frontplate, to the wall. It is important the
correct headed screws are used as any other may clash with the rear of the
frontplate.

3. Do not over tighten the screws, so as to prevent damage or distortion to the
product or support frame. Adjust so the frame or module sits squarely on the
wall.

4. Fit the frontplate as shown on page-3.

1 2

Refer to these wiring diagrams for 1-Way and 2-Way switching installations.

Elements Leading & Trailing Edge Dimmers can be controlled remotely by a
2-Way Mechanical Switch or an Elements Electronic Dimmer or Switch, if
connected to its control port by the existing 2-Way wiring in the installation.

Electronic Dimmer: 1-Way Switching Installation

L

N

1

R1

R2

2

Live

Load 2

Neutral

Load 1

Refer to load
type table
for neutral
requirement

Leading & Trailing
Edge Dimmers

Fluorescent Dimmer

L

N

1

+

-

Live

Neutral

connection

is mandatory

Neutral

Lamp

Analogue
Dimmable
Ballast

L
N

+

-

Electronic Dimmer: 2-Way Switching Installation

Wiring diagrams

4 5 6 7 8

Electronic Dimmer: 3-Wire 2-Way switching installation

Electronic Dimmer: 2-Wire 2-Way switching installation

3

by Honeywell

Unused wire.
Terminate both
ends appropriately.

Note:

1. Overload is indicated by the ring indicator ashing once every 3 seconds.

2. The Electronic Dimmer will resume normal operation once the overload is
removed, by switching o and on.

Soft start operation

When the Electronic Dimmer is switched on, light levels gradually reach the
desired level over a period of 1 to 3 seconds, greatly extending life expectancy of
lamps by avoiding initial power surge.

Overload protection

If the Electronic Dimmer is overloaded input to lamp(s) will be reduced (or
switched o if overload is severe) to protect the device and the installation.

Maintenance

Cleaning

Please clean the device with a dry and soft lint free cloth.
Do not use water or any abrasive solvent based or aerosol cleaners as this may
damage, discolor or aect the nish and safety of the appliance.

Features

Power failure recovery

In case of power failure, the dimmer will restore to its previous state upon
power restoration.

Minimum brightness adjustment

The User can adjust the minimum brightness level to suit their environment
and ensure optimum lamp performance. See User Guide for programming
details.

9 10 11

Trailing Edge Dimmers K34103

GLS/ Tungsten lament,
Mains Tungsten Halogen

25 – 500W

ELV Tungsten Halogen with
Dimmable Electronic Transformer

35 – 500VA

K34104 & K34105 (Per gang)

25 – 300W

35 – 300VA

Dimmable LED Driver

*4-150W

(Max 5 LED drivers only)

*4-120W

(Max 5 LED drivers only)

Neutral connection is mandatory on 1-10V Dimmer. Suitable for use with
dimmable uorescent or LED lighting which is driven by separate 0/1-10V
control gear.

Suitable for use with 0/1-10V analogue dimmable ballast operating in accordance
with IEC60929 annex E.

Note: This product is only suitable for use with ballasts which are the source of the
control voltage. It is not suitable for any other load type.

1-10V Dimmer K34499

Rated Load 6AX

Maximum number of ballasts 10

Standard compliances

The products in this range comply with IEC 60669-2-1 and the following EC:

• Low Voltage Directive (73/23/EEC)

• Electromagnetic Compatibility Directive (89/336/EEC)

• Restricted of Hazardous Substances (2011/65/EC)

Warranty

• The Company undertakes to replace or repair, at its discretion, this product
should it become defective within a period of 20 years after delivery (5 years for
mains related electronic products), solely as a result of faulty materials and/or
workmanship. Understandably, if the product has not been installed or
maintained in accordance with the Company’s instructions, has not been used
appropriately, or if any attempt has been made to rectify, dismantle or alter the
product in any way, the warranty will be invalidated. This warranty states the
company’s entire liability. It does not extend to cover consequential loss or
damage or installation costs arising from the defective product. This warranty
does not restrict or infringe the normal statutory rights of the consumer.

• MK Electric wishes to make it clear that it owns all original designs of the
products which it manufactures (whether or not listed in this leaet) and that it
will take all necessary legal action in any part of the world against any party
found to be manufacturing, distributing, selling or otherwise dealing with any
article which infringes the company’s intellectual property rights in its products,
or any other right of the company therein.

Disposal

Product and packaging should be disposed o via standard refuse facilities at the
end of its useful life. Where ever possible packaging and components should be
recycled.

Technical Help

Tel:
Fax:
[e-mail]

Technical Help

Tel:
Fax:
[e-mail]

[phone]
[phone]

[phone]
[phone]

Customer Service

Tel:

[phone]

Fax: [phone]
Fax: [phone] (International)
[e-mail]

Customer Service

Tel:

[phone]

Fax: [phone]
Fax: [phone] (International)
[e-mail]

MK Electric

The Arnold Centre, Paycocke Road,
Basildon, Essex SS14 3EA. UK

www.mkelectric.com

All marks in this document identied with ® or ™
symbol adjacent to the mark are trademarks of MK Electric Ltd.
©Honeywell International Inc.

50081614-001 Rev.A

MK Electric

The Arnold Centre, Paycocke Road,
Basildon, Essex SS14 3EA. UK

www.mkelectric.com

All marks in this document identied with ® or ™
symbol adjacent to the mark are trademarks of MK Electric Ltd.
©Honeywell International Inc.

50081614-001 Rev.A

Load rating & type

Leading Edge Dimmers K34100

GLS/ Tungsten lament,
Mains Tungsten Halogen

40 - 500W

Mains dimmable LED lamp for
incandescent replacement

6 - 150W

Max.12 lamps

ELV Tungsten Halogen with
dimmable Ferro-magnetic transformer

35 - 400VA

K34101 & K34102 (Per gang)

40 – 300W

6 - 120W

Max. 12 lamps

35 - 240VA

Product specications

Nominal mains supply voltage 220 to 240V a.c.

Max. acceptable mains uctuation 198 to 264V a.c.

Mains frequency 50/60Hz ± 3Hz

Ambient temperature range 0°C to 45°C

Other information

Troubleshooting

Unable to t frontplates to module

Please check if you are tting the correct frontplate to the correct module. The
frontplate must match the module exactly, e.g. 1 Gang Electronic Dimmer Frontplate
will only t a 1 Gang Electronic Dimmer Module. Please refer to the instructions for
tting and removing frontplates on page-3.

Connected Lamp does not turn ON or DIM

Firstly check the lamps have not expired.
Check connections and wiring to the device to ensure it has been
installed correctly.
Check the circuit, by inspecting other devices on the same circuit, to
ensure there is power input to the device.

Ring indicator ashes once every 3 seconds

This is indication of an overload. The Electronic Dimmer will resume normal
operation once the overload is removed, by switching o and on.
If you are facing a problem not listed here, please contact the MK technical team.

(Contact details are listed on the last page)

Notes:

1. Do not use loads of dierent types on the same circuit.

2. Not suitable for use with any other load type.

3. *Neutral connection is required. It is recommended to connect neutral whenever possible to
extend the load handling capability of the dimmer.

12 13 14 15

(Not applicable to K34499)
