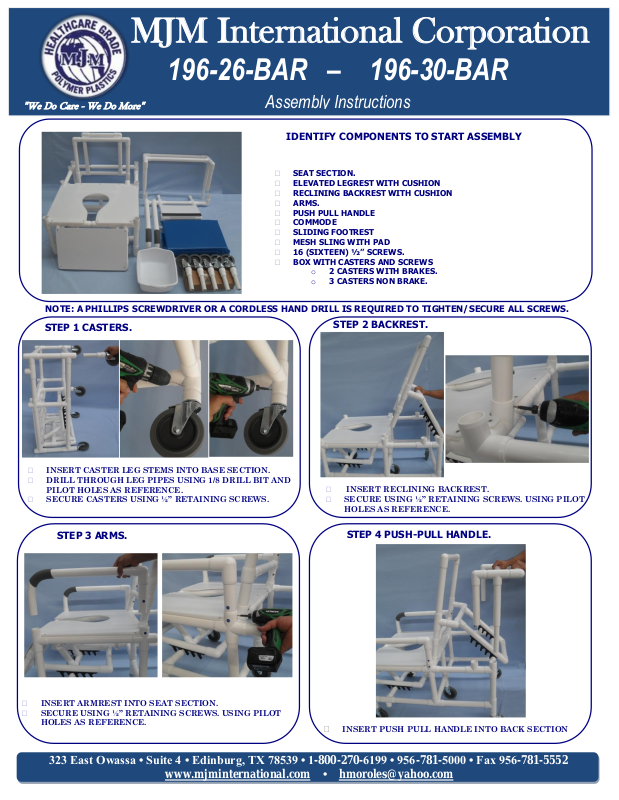

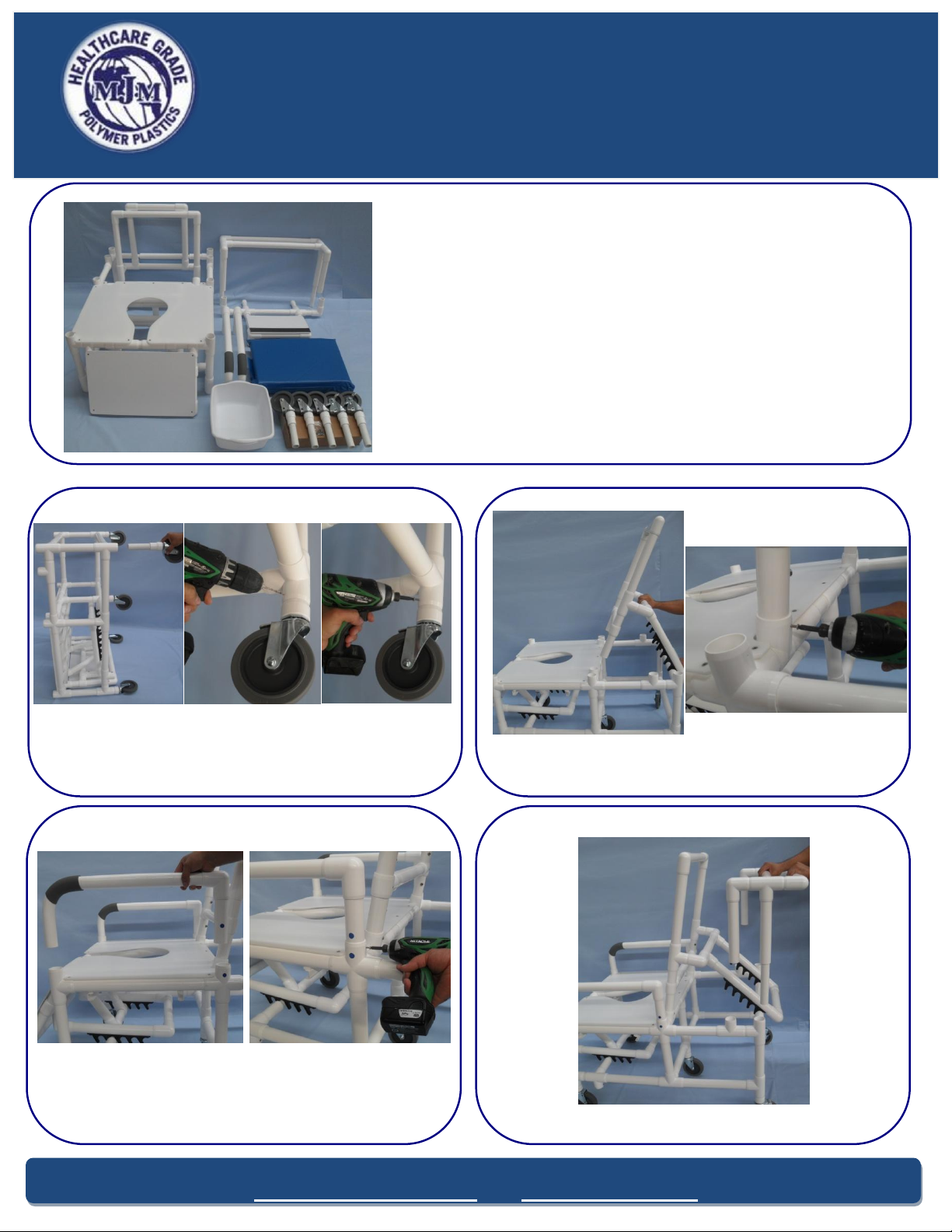

IDENTIFY COMPONENTS TO START ASSEMBLY
NOTE: A PHILLIPS SCREWDRIVER OR A CORDLESS HAND DRILL IS REQUIRED TO TIGHTEN/SECURE ALL SCREWS.
STEP 1 CASTERS.
STEP 2 BACKREST.
INSERT ARMREST INTO SEAT SECTION.
SECURE USING ½’’ RETAINING SCREWS. USING PILOT
HOLES AS REFERENCE.
STEP 3 ARMS.
INSERT RECLINING BACKREST.
SECURE USING ½’’ RETAINING SCREWS. USING PILOT
HOLES AS REFERENCE.
INSERT CASTER LEG STEMS INTO BASE SECTION.
DRILL THROUGH LEG PIPES USING 1/8 DRILL BIT AND
PILOT HOLES AS REFERENCE.
SECURE CASTERS USING ½’’ RETAINING SCREWS.
SEAT SECTION.
ELEVATED LEGREST WITH CUSHION
RECLINING BACKREST WITH CUSHION
ARMS.
PUSH PULL HANDLE
COMMODE
SLIDING FOOTREST
MESH SLING WITH PAD
16 (SIXTEEN) ½’’ SCREWS.
BOX WITH CASTERS AND SCREWS
o 2 CASTERS WITH BRAKES.
o 3 CASTERS NON BRAKE.
STEP 4 PUSH-PULL HANDLE.
INSERT PUSH PULL HANDLE INTO BACK SECTION
196-26-BAR – 196-30-BAR
Assembly Instructions
Page 2
MJM International Corporation
"We Do Care - We Do More"
323 East Owassa • Suite 4 • Edinburg, TX 78539 • 1-800-270-6199 • 956-781-5000 • Fax 956-781-5552
www.mjminternational.com • [email protected]

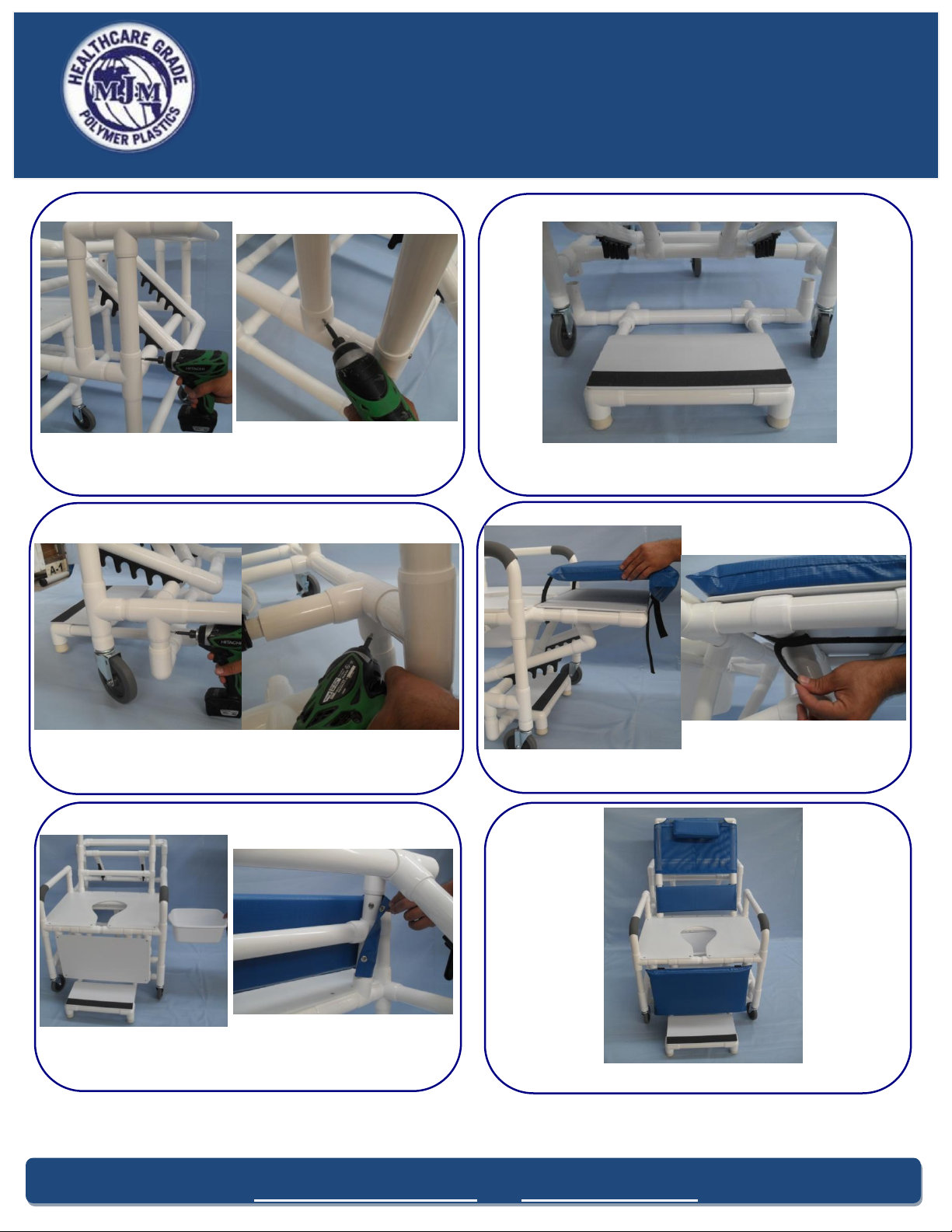

STEP 5 PUSH-PULL HANDLE
STEP 6 SLIDING FOOTREST.
STEP 7 SLIDING FOOTREST
STEP 8 LEGREST CUSHION.
STEP 9 LUMBAR CUSHION, COMMODE.
SECURE USING 1/2’’ RETAINING SCREWS AND PILOT
HOLES AS REFERENCE..
PLACE CUSHION ONTO LEG REST
SECURE WITH VELCRO
PRODUCT COMPLETLY ASSEMBLED
SECURE USING ½’’ RETAINING SCREWS. USING PILOT
HOLES AS REFERENCE.
STEP 10.
CENTER SLIDING FOOTREST UNDER FRAME AND
INSERT PVC PIPE INTO 4-WAY FITTINGS.
SNAP ON LUMBAR CUSHION ONTO RECLINING BACK.
INSERT COMMODE FROM EITHER SIDE ONTO RAILS
UNDER SEAT.
NOTE: CASTERS, RECLINING BACKREST, SLIDING FOOTREST, PUSH PULL HANDLE MUST BE CHECKED AND
SECURED PRIOR TO USING SHOWER CHAIR.
WARNING NOT SECURING ALL THE ABOVE CAN CREATE A SERIOUS SAFETY HAZARD.
Rev: 1.3
|
Page 3
MJM International Corporation
"We Do Care - We Do More"
323 East Owassa • Suite 4 • Edinburg, TX 78539 • 1-800-270-6199 • 956-781-5000 • Fax 956-781-5552
www.mjminternational.com • [email protected]
CARE INSTRUCTIONS
PVC PIPING AND CASTERS
Wipe down piping with non-abrasive cleanser. DO NOT use solvents. Restore luster with Johnson’s Pledge or similar spray
wax. If casters are used in wet environment, keep lubricated with white lithium paste or similar lubricant; remove hair and
mop- thread build up. Provide a weekly maintenance to avoid premature rusting. Rust Proof or Plastic caster need the same
care to get the maximum usage.
MESH FABRIC (SLING)
If laundering is required, use only COLD water in large machine, with regular detergent and one-cup bleach. Do not use
softeners or solvents. Spin-dry only; machine heat will shrink mesh fabric. Hang damp fabric on frame and allow to air dry,
returning to its original shape.
SOLID FABRIC (PRIVACY SKIRTS)
Wipe down panels with sponge using solution of mild detergent, one-cup bleach and three gallons water, DO NOT launder
in machine. To keep vinyl flexible, occasionally spray with furniture polish (e.g. Pledge) or vinyl formula (Armor All). This
will help drying out and cracking.
FOOTREST AND DROP ARMS
Remove soap build-up from sliding surface; with a soft bristle brush and soapy solution. Lubricate sliding mechanism with
furniture spray wax to restore ease in movement.
When lifting drop-arm, use two hands, one at each end of the section. Lifting only at hand grip will put undue pressure
against the sliding fitting.
SOFT SEAT
Wipe with non-abrasive disinfectant wash. Avoid contact with sharp or rough surfaces.
CAUTION: DO NOT use chair if casters are rusted and fail to move easily or if cracks occur in fittings.
