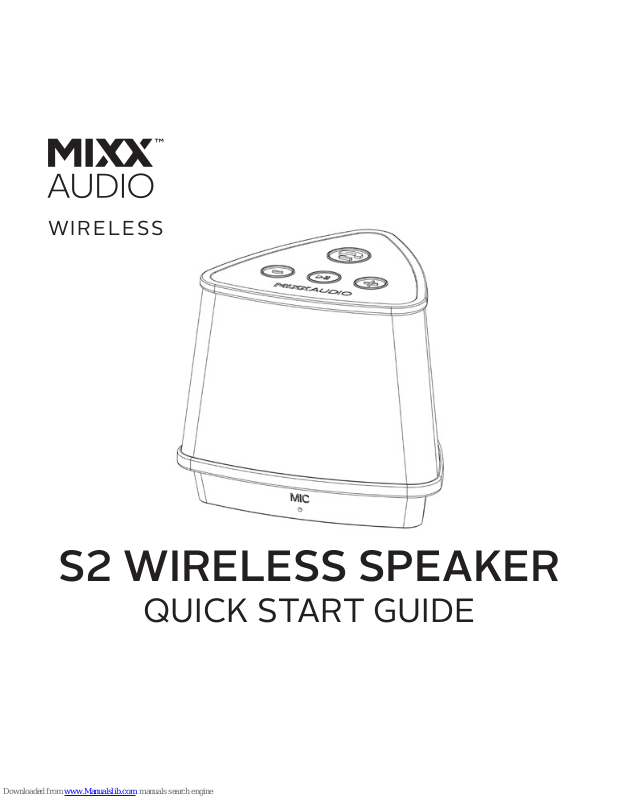

Page 1
S2 WIRELESS SPEAKER
QUICK START GUIDE
WIRELESS
Page 2
.
.
.
.mm Aux Input
Micro USB Power Port
On/O Switch
YOUR S2 SPEAKER
1
2
3
Page 3
.
.
.
.
.
.
Charge Indicator LED
Call Answer Button
Bluetooth Indicator LED
Volume Down
4
5
7 8
6
9
Play/Pause
Volume Up
Page 4
CHARGING YOUR S2
Using the included Micro USB Charging
Cable, connect the speaker to a suitable
USB power source, such as a computer
or mobile phone charger. The Charge
Indicator LED will turn on when charging.
When the Charge Indicator LED has
turned o, the speaker is fully charged.
Page 5
CONNECTING AND
PAIRING
First, use the on/o switch to turn the
speaker on.
Check to see if the Bluetooth Indicator
LED is ashing. If it is, the speaker is in
Pairing Mode and is ready to be paired
with.
If the Bluetooth Indicator LED is not
ashing, another device is already
connected to the speaker. Press and hold
Page 6
the Play/Pause button to put the speaker
in to Pairing Mode.
When the speaker is in Pairing Mode,
search for Bluetooth devices on your
phone and connect to the speaker. It will
appear as ‘Mixx S2’.
You will now be able to play music from
your phone on the speaker.
NOTE: If prompted for a passcode when
connecting, use either ‘0000’ or ‘1234’.
Page 7
ANSWERING PHONE
CALLS
If you receive a phone call while
connected to the speaker, press the Call
Answer button on the bottom of the
speaker to accept the call.
To end the call, press the Call Answer
button again. If you were playing music
before the call, the music will resume.
NOTE: Call quality may be lower or noisy
when the speaker’s battery is low.
Page 8
SAFE USAGE
INSTRUCTIONS
This speaker contains a Lithium battery. It
must be used and charged correctly.
Improper use of this speaker may cause
the battery to catch re or explode
resulting in serious or fatal injury.
The battery shall not be exposed to
excessive heat such as harsh sunlight or
re.
Do not disassemble or modify the speaker
Do not place the speaker in direct
sunlight, near res, stoves, or other high
Page 9
temperature conditions.
Do not expose the speaker to water, salt
water, or allow the speaker to get wet in
any way.
If you dispose of the speaker, remember
that it contains a Lithium battery and
recycle accordingly.
Page 10
For support please visit www.mixxaudio.com
Made in China
