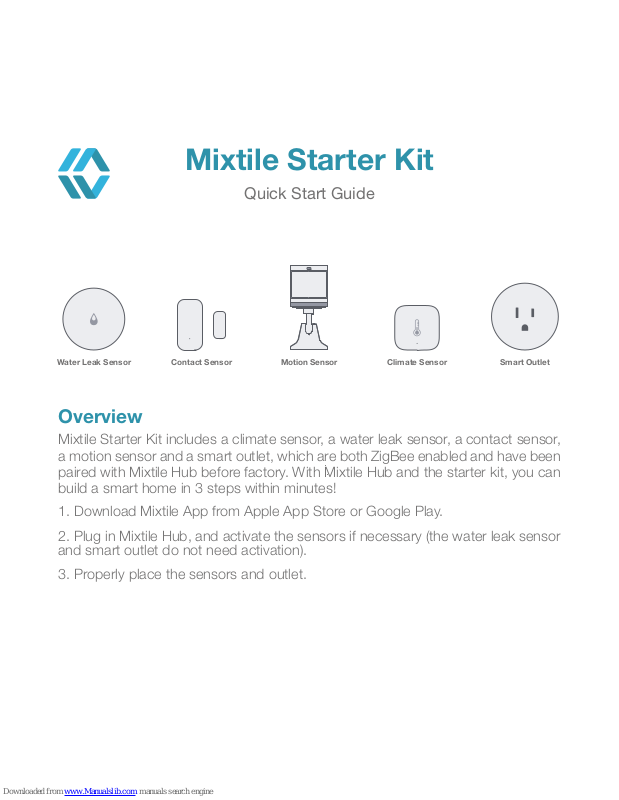

Mixtile Starter Kit Quick Start Manual

Overview

Mixtile Starter Kit includes a climate sensor, a water leak sensor, a contact sensor,
a motion sensor and a smart outlet, which are both ZigBee enabled and have been
paired with Mixtile Hub before factory. With Mixtile Hub and the starter kit, you can
build a smart home in 3 steps within minutes!

1. Download Mixtile App from Apple App Store or Google Play.

2. Plug in Mixtile Hub, and activate the sensors if necessary (the water leak sensor
and smart outlet do not need activation).

3. Properly place the sensors and outlet.

Mixtile Starter Kit

Quick Start Guide

Contact SensorWater Leak Sensor

Climate Sensor

Smart OutletMotion Sensor

Reset Button

Indicator

Short press the button to activate the sensor before use.
indicate the sensor status.

Reset Button
Indicator

Battery

Communication
Temperature Range
Humidity Range
Atmospheric Pressure Range

Dimension (L x W x H):

ZigBee
– 20°C - 60°C/-4°F– 140°F
0 -100%RH/(non-condensing), ±3%
30KPa -110KPa, ±120Pa
CR2032
36 x 36 x 9 mm/1.42 x 1.42 x 0.35 inches

Specifications

Climate Sensor

This climate sensor can accurately sense temperature, humidity and air pressure. You
can simply paste it on the wall.

Magnet
Reset Button
Indicator

Opening is detected by separating the sensor’s body and the magnet.
Short press the button to activate the sensor before use.
Indicate the sensor status.

Communication
Sensing Distance
Battery
Dimension (L x W x H)
Operating Temperature
Operating Humidity

MagnetSensor

Indicator

Reset Button

Less than 22mm

Contact Sensor

This contact sensor can sense the opening and closing of the doors or windows and
send notifications to you timely, enabling you to keep an eye on important areas of your
home. You can paste it on roof windows, main doors, garage doors, windows, safety
gates and the like.

Specifications

ZigBee
Max. 22 mm
CR1632
41 x 22 x 11 mm/ 1.61 x 0.87 x 0.43 inches

-10 °C ~ 50°C/14°F ~ 122°F
0-95% RH (non-condensing)

Probes
Indicator

Battery

Dimension (L x W x H)
Operating Temperature
Operating Humidity

Water Leak Sensor

This water leak sensor can detect water leaks or immersion, and send alert to you
instantly. You can place it on the floor of the laundry, bathroom, kitchen and other
places alike.

Specifications

ZigBee
CR2032
50 x 50 x 15 mm/1.97 x 1.97 x 0.59 inches

-10 °C– 55°C/14°F – 131°F
0-100% RH

Detecting water.
Indicate the sensor status.

Indicator Probes

Communication

Reset button

Indicator

Stand

Communication
Detection Distance
Detection Angle
Battery
Dimension (L x W x H)
Operating Temperature
Operating Humidity

Reset Button

Stand

Indicator

Short press the button to activate the sensor before use.

indicate the sensor status.

Hold the motion sensor.

Motion Sensor

This motion sensor can detect moving objects, particularly people and pets. It is
also integrated with a light sensor and is able to sense the luminance of the room.
You can place it on any surface or paste it on the wall.

Specifications

ZigBee
Max. 7m
170°
CR2450
30 x 30 x 33 mm/1.18 x 1.18 x 1.30 inches

-10 °C ~ 45°C/14°F ~ 113°F
0-95% RH (non-condensing)

On/Off Button

Note: The power socket is varied according to the destination country/area.

Communication
Rated Voltage
AC Frequency
Max. Power

Power Socket

On/Off Button

Smart Outlet

This smart outlet enables you to remotely turn on/turn off electrical devices. It may
be applied wherever you want to control electrical device.

Specifications

ZigBee
100-240V/ Rated Current:10A (Max.)
50-60Hz
2200W for 220V, 1100W for 110V

1. Turn on/off the outlet
