MIUFLY EH15 User Manual

1

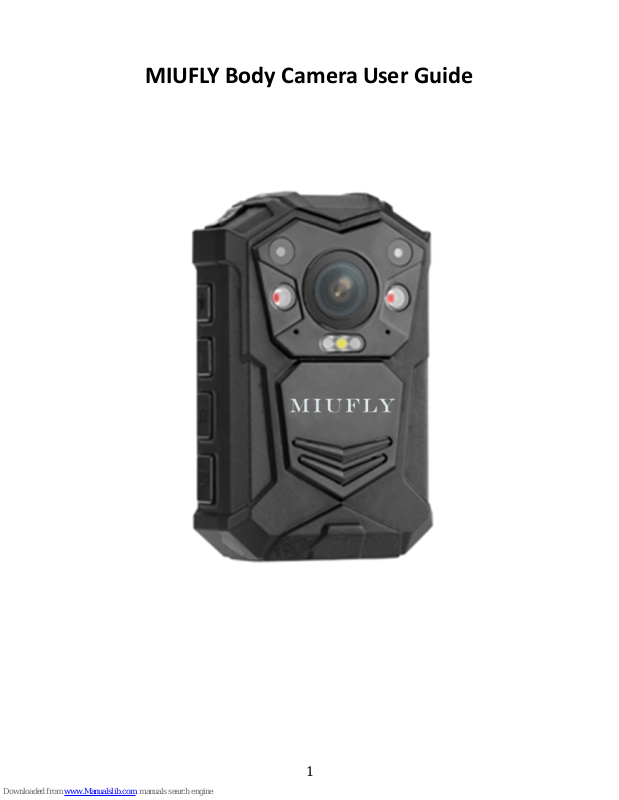

MIUFLY Body Camera User Guide

2

TABLE OF CONTENTS

1. Introduction

Product Overview
Box contents

2. Technical Specifications

3. Features

4. Main Manu Optional Detail

5. Operation

6. Troubleshooting

3

1. Introduction

Product Overview

MIUFLY EH15 Body Camera is ruggedly designed to provides law
enforcement, security and emergency personnel with super Full HD 1296p
video recording capabilities, and one-button recording and activation. When
worn on the front of clothing, an ultra-wide 140° field-of-view lens
captures what happens in the field as accurate information for further
analysis. Featuring a 32GB (64GB/128GB) internal memory, pre-record
buffering, importance tagging, and integrated Infrared LEDS for night vision,
EH15 is equipped to perform in any conditions.

With full featured and adaptable operation, EH15 can record video and
audio simultaneously, or audio only for suspect interrogations and
victim/witness statements. EH15 is fully configurable and offers multiple
recording quality, super full HD 1296p video down to 720x480 resolution,
giving users the options to adjust the recording quality according to their
storage capabilities.
EH15 can also take up to 20 high-resolution snapshots, which, together with
video, can be viewed on backlit, 2 inch LCD color screen or on an HDTV
screen using a HDMI connector. Security protocols of the device are secure
to prevent accidental deletion of evidence or modification of system settings.
Video footage is also digitally watermarked with the user ID, time and date,
ensuring the authenticity of collected video of the event. The internal GPS
receiver provides automatic location tagging of video- and still-captures,
offering irrefutable substantiation of where and when the audio and video
were recorded.

Box contents

z MIUFLY Body Camera
z Charging Dock
z USB Cable
z USB Adaptor

z 360 Degree Rotatable Clip
z User Manual
z Should Clip
z Car Charger

4

2. Technical Specifications

Camera

Sensor 5MP CMOS
Wide Angle 140 degree wide angle lens

Video

Video Resolution

2560X1080 30p/ 2304x1296 30p/ 1920x1080 30p /1280x720 60p

/1280x720 30p / 848x480 60p
Video
Compression

H.264/MPEG4

Audio High Quality Build-in Microphone
Audio Format WAV
Watermark User ID, Time and Date
Pre-record Support
Password
protection

Administrator password to prevent video deletion

Video Section 3min/5min/10min/15min/30min/45min

Snap Shot

Image Max 32 Megapixels
Image Format JPEG
Burst 2/3/5/10/15/20 Snap Shots

Video/Image Review

LCD Screen 2.0in TFT-LCD High-Resolution Color Display
Audio Playback Yes
Video Output Not support
Video Transfer USB 2.0

General

GPS location Support
IR LED 4
IR LED switch Auto/manual
IR Distance 10 Meters
One Button
Recording

Support One Button Record

Motion detection Auto/manual
Built-in Storage 32GB (64GB/128GB)
Working
Temperature

-40～60 degrees Celsius

Storage
temperature

-20～55 degrees Celsius

Dimension 3.54" x 2.17" x 1.10"
Weight 175g
Standard
Accessories

Charging dock, USB cable, Adapter, User Manual, Universal metal

360 Degree Rotatable Clip, Shoulder Clip

3. Features

5

6

7

Item Description

1.Camera Lens High Definition Camera

2. Power Button

a). Press to turn camera on; Hold for 3 seconds to
turn off camera
b). Press to enter or exit screen saver when camera
is on

3.IR/White
Light button

a). Press to turn IR light on/off;
b). Hold to turn on/off white light

4.Infrared LEDs

Records clear image in low light situation. Enable
Clear face view with up to 10 meters

5.Light Sensor

Detect changes in light and auto turn on IR for
low-light recording

7.Speaker Built-in speaker

8. Indicator LED

Blue: Charging Status
Green: camera is powered up and in standby mode

9.10.11. Status
Indicator LED

Green: camera is powered up and in standby mode,

not recording

Flashing Red: camera is recording video
Flashing Yellow: camera is recording audio only

PLAY & UP KEY

a). Press to scroll up in menu mode
b). In play mode, hold to zoom out the playing image
c). In play mode, press to rewind video

CONFIRM KEY

a). Press to make a selection in menu mode
b). In play mode, press to pause/resume video or
audio playback.
c). In standby mode, press to review files.

MEMU &
DOWN KEY

a). Press to enter into menu mode
b). Press to scroll down in menu mode
c). In play mode, hold to zoom out the playing image
d). In play mode, press to fast forward video

ADD
IMPORTANT FILE

Press to tag importance to audio/video file when
camera is on recording
