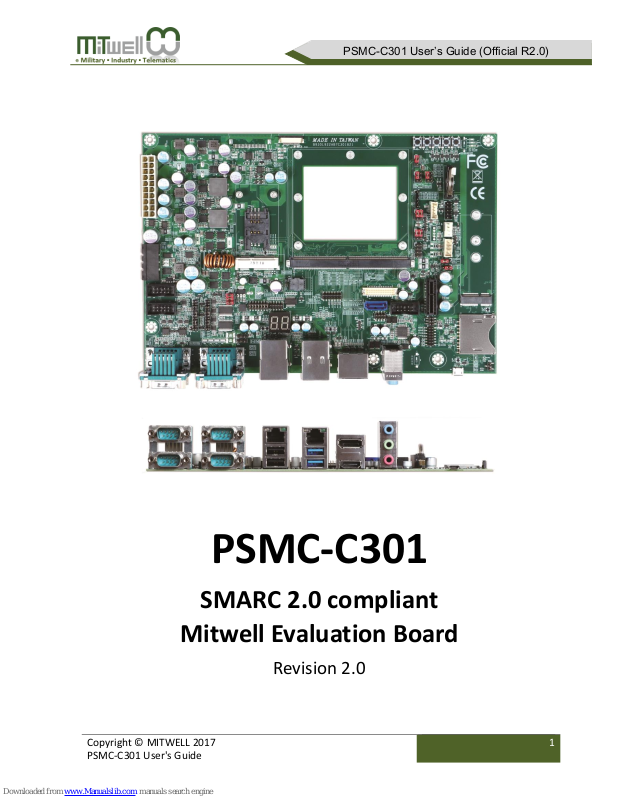

MiTWell PSMC-C301 User Manual

MITWELL PSMC-C301 User’s Guide (Official R2.0)

1

PSMC-C301

SMARC 2.0 compliant

Mitwell Evaluation Board

Revision 2.0

MITWELL PSMC-C301 User’s Guide (Official R2.0)

2

Revision History

Ver.

Description

Date

Approved

R1.0

Initial release

2017. 07. 26

Penny Chiang

R2.0

Design stepping from R0 to R1

2018. 01. 30

Penny Chiang

MITWELL PSMC-C301 User’s Guide (Official R2.0)

3

Table of Contents

Disclaimer ....................................................................................................................... 4

Lead-Free Designs (RoHS) ............................................................................................ 4

Certification..................................................................................................................... 4

Safety Instructions .......................................................................................................... 5

Technical Support ........................................................................................................... 5

1 Introduction ......................................................................................................................... 6

2 Product Overview ............................................................................................................... 7

2.1 Connector Layout ..................................................................................................... 7

3 Specifications.................................................................................................................... 10

3.1 Mechanical Dimensions .......................................................................................... 10

3.2 Power Supply ......................................................................................................... 10

3.2.1 ATX / AT Power supply mode ....................................................................... 11

3.2.2 Power Status LEDs – D30, D31, D32 ........................................................... 11

4 Connector Subsystem ...................................................................................................... 12

4.1 SMARC Edge Finger Pinout Circuit ........................................................................ 12

4.2 Communication Buses ............................................................................................ 14

4.2.1 CAN BUS ..................................................................................................... 14

4.2.2 Serial Ports ................................................................................................... 15

4.2.3 Gigabit Ethernet (GbE) and USB .................................................................. 17

4.2.4 Display Interfaces ......................................................................................... 20

4.2.5 SATA ............................................................................................................ 24

4.2.6 PCIe ............................................................................................................. 25

4.2.7 SD Card ........................................................................................................ 28

4.2.8 Audio Interfaces ............................................................................................ 28

4.2.9 MIPI-CSI ....................................................................................................... 29

4.2.10 Other Connectors ....................................................................................... 31

5 Jumper Settings ................................................................................................................ 33

6 Additional Features ........................................................................................................... 36

6.1 Power Button .......................................................................................................... 36

6.2 Reset Button ........................................................................................................... 36

6.3 Sleep Button ........................................................................................................... 36

6.4 Force Recovery Button ........................................................................................... 36

6.5 LID Button ............................................................................................................... 36

MITWELL PSMC-C301 User’s Guide (Official R2.0)

4

IMPORTANT INFORMATION

Disclaimer

Warranty

MITWELL tries to procure that this user manual and our product features are correct and reliable, but in any condition, MITWELL provides no express or implied warranty and guaranty regard to this user manual or any other product information.

MITWELL shall not be liable for loss of revenues or profits, inconveniences, expense for substitute equipment or service, storage charges, loss or corruption of data, or any other special, incidental or consequential damages caused by the use or misuse of or inability to use the MITWELL products, regardless of the legal theory on which the claim is based, and even if MITWELL has been advised of the possibility of such damages.

The information contained within this user manual, including but not limited to any other product specification, MITWELL reserves its right to modify them at any time without notice.

Trademarks

All product names, logos, brands, trademarks and registered trademarks in this user’s manual or the MITWELL website are the property of their respective owners.

Lead-Free Designs (RoHS)

All MITWELL designs are created from lead-free components and are completely RoHS compliant.

Certification

MITWELL is certified to ISO 9001:2008 standard under PORTWELL GROUP.

MITWELL PSMC-C301 User’s Guide (Official R2.0)

5

Safety Instructions

MITWELL products are electrostatic sensitive devices and are packaged accordingly. In order to avoid failure caused by improper using behavior, MITWELL strongly suggests users to open, handle, ship, and store MITWELL product under its original manufacturer’s packaging or under electrostatic-free / -protected environment or workstation. Additionally, for user safety, please read and comply with all Instructions, WARNINGs, CAUTIONs, and NOTEs marked in this manual.

 Read these safety instructions carefully.  Keep this manual for future reference.  Turn off power and unplug any power cords/cables when installing/mounting or un-installing/removing

equipment.

 Avoid electrical shock and/or damage to equipment:

 Keep the board away from water or liquid sources;  Keep the board away from high heat or high humidity;  Keep the board properly ventilated (do not block or cover ventilation openings);  Make sure to use recommended voltage and power source settings;  Secure the power cord (do not place any object on/over the power cord);  Install/attach and operate the board on stable workstations and/or recommended mountings; and,  If the board will not be used for long periods of time, turn off the power source and remove RTC

battery.

Technical Support

MITWELL technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented.

We request that you first visit our website at http://www.MITWELL.com.tw/support/ under Portwell Group for the latest documentation, utilities and drivers, which have been made available to assist you. If you still require assistance after visiting our website, you can contact your local sales and technical support team for further assistance.

MITWELL PSMC-C301 User’s Guide (Official R2.0)

6

1 Introduction

SMARC 2.0 Concept

The SMARC (“Smart Mobility ARChitecture”) is a versatile small form factor computer

Module definition targeting applications that require low power, low costs, and high performance. The Modules will typically use ARM SOCs similar or the same as those used in many familiar devices such as tablet computers and smart phones. Alternative low power SOCs and CPUs, such as tablet oriented X86 devices and other RISC CPUs may be used as well. The Module power envelope is typically under 6W although designs up to about 15W are possible. Two Module sizes are defined: 82mm x 50mm and 82mm x 80mm. The Module PCBs have 314 edge fingers that mate with a low profile 314 pin 0.5mm pitch right angle connector (the connector is sometimes identified as a 321 pin connector, but 7 pins are lost to the key).

The Modules are used as building blocks for portable and stationary embedded systems. The core CPU and support circuits, including DRAM, boot flash, power sequencing, CPU power supplies, GBE and dual channel LVDS display transmitter are concentrated on the Module. The Modules are used with application specific Carrier Boards that implement other features such as audio CODECs, touch controllers, wireless devices, etc. The modular approach allows scalability, fast time to market and upgradability while still maintaining low costs, low power and small physical size.

MITWELL PSMC-C301 User’s Guide (Official R2.0)

7

2 Product Overview

The primary purpose of this section is to present a general overview of MITWELL’s SMARC

2.0 compliant carrier board - PSMC-C301. By providing detail schematic and functional design information in this manual, the PSMC-C301 carrier board provides manufactures and developers with a platform to jump-start the development of systems and applications based on SMARC specification.

The PSMC-C301 supports both 82mm x 50mm and 82mm x 80mm SMARC modules.

2.1 Connector Layout

MITWELL PSMC-C301 User’s Guide (Official R2.0)

8

Connector:

J12 : SATA Connector J16 : Wafer 4Px1 P=2.5mm 4-Wall (SATA Power) JP20 : BH5Px1 (Back Light0 -- LVDS) JP23 : BH5Px1 (Back Light1 -- eDP) J55 : 3.5mm Triple HD Audio Jack Light Blue/Green/Pink (Audio) J58 : Box Header 5Px2 P=2.54mm (COM2) J59 : Box Header 5Px2 P=2.54mm (COM4) J60 : FAN 4PIN J61 : Box Header 5Px2 P=2.54mm (GPIO) J62 : Display port + HDMI 90D (DP+HDMI) J64 : Wafer 20Px2 P=1.25mm 180D 4-Wall (LVDS) J65 : M.2 KEY-E J67 : MiniPCI-Express J69 : FPC 24P P=1.0mm 90D (CSI1) J72 : SD Card H=2.75mm (SD Slot) J73 : Pin Header 7Px2 P=2.0mm 180D (ESPI) J78 : PCIe x1_36Pin J79 : RJ45+USB3.0x2 J81 : Pin Header 4Px2 P=2.0mm 180D (Audio) J82 : RJ45+USB2.0x2 J88 : HEADER 5PX2/2mm(TPM) J89 : Micro USB B Type J91 : I2S_Audio_Pin Header J92 : FPC 15P P=0.5mm Downside 90D (CSI0) SW1 : Power Button SW2 : Reset Button SW3 : Sleep# Button SW4 : Force Recovery Button SW5 : LID# Button U56 : SPI Flash Socket

Jumper:

J87 : HEADER 7PX2/2mm(On Board TPM 2.0) JP11 : PH5Px2(-10) (FRONT_SIDE) JP19 : PH3Px2 (LVDS0 Power Select) JP21 : PH3Px2 (LVDS0 Backlight Select) JP22 : PH3Px2 (LVDS1 Power Select)

MITWELL PSMC-C301 User’s Guide (Official R2.0)

9

JP24 : PH3Px2 (LVDS1 Backlight Select) JP36 : PH3Px1 (RTC Select) JP38 : HEADER3P/2mm (I2S_Audio Line_IN & Line_OUT & MIC_JD) JP39 : HEADER3P/2mm (M.2 & Micro USB Select) JP53 : PH3Px2 (Boot Select)

MITWELL PSMC-C301 User’s Guide (Official R2.0)

10

3 Specifications

This chapter gives the definitions and shows the positions of jumpers, headers and connector. All of the configuration jumpers on MITwell evaluative Carrier PSMC-C301 are in the proper position. The default settings shipped from factory are marked with a star (*).

3.1 Mechanical Dimensions

 250 mm x 170 mm

3.2 Power Supply

The PSMC-C301 carrier board supports standard 20-pin ATX power supply (J54) and 9V – 36V DC variable power supply via pheonix connector (J71).

JP54: Standard 20-pin ATX Connector (20P)

The PSMC-C301 used with standard ATX (Connector X20) power supplies. The -5V and

-12V power outputs of the ATX power supply are not used.

PIN No.

Signal Description

PIN No.

Signal Description

Figure

1

Power(VCC3)

11

Power(VCC3)

2

Power(VCC3)

12

NC 3 GND

13

GND

4

Power(VCC5)

14

PS_ON#

5

GND

15

GND

6

Power(VCC5)

16

GND

7

GND

17

GND

8

NC

18

NC 9 Power(5VSB)

19

Power(VCC5)

10

Power(VCC12)

20

Power(VCC5)

J71 : 3Px1 P=5.08mm.MSTB (Power IN)

PIN No.

Signal Description

Figure

1

GND 2

GND

3

Power(VIN)

MITWELL PSMC-C301 User’s Guide (Official R2.0)

11

3.2.1 ATX / AT Power supply mode

When using an ATX power supply, the SMARC module starts after you press the power-on button SW1. The ATX power supply can also be used in AT mode. In this case the module starts when you turn on the power supply. Configure the power supply to ATX or AT mode with Jumper (JP14).

JP14: Header3Px1/2.54mm (ATX/AT Mode Select)

Function

Signal Description

Figure

*1-2

ATX Mode (Default)

2-3

AT Mode

JP13: Header3Px1/2.54mm (Auto Power Button)

Function

Signal Description

Figure

1-2

Auto Power Button Enable

*2-3

Auto Power Button Disable (Default)

3.2.2 Power Status LEDs – D30, D31, D32

LEDs D30-D32 indicates the status of different power voltage input on PSMC-C301.

D32 – PS_ON D31 – VCC3_IN D39 – VCC5_ON

MITWELL PSMC-C301 User’s Guide (Official R2.0)

12

4 Connector Subsystem

4.1 SMARC Edge Finger Pinout Circuit

MITWELL PSMC-C301 User’s Guide (Official R2.0)

13

MITWELL PSMC-C301 User’s Guide (Official R2.0)

14

4.2 Communication Buses

4.2.1 CAN BUS

PSMC-C301 features two CAN BUS over DB9 connector type for product with CAN BUS features.

(CAN BUS is Not Supported by PSMC-M1011)

J56A : D-SUB 9Px2 (CAN0)

PIN No.

Signal Description

Figure

1

NC 2

CAN0L

3

GND

4

NC 5 NC 6 NC 7 CAN0H

8

NC 9 NC

J56B : D-SUB 9Px2 (CAN1)

PIN No.

Signal Description

Figure

1

NC 2

CAN1L

3

GND

4

NC 5 NC 6 NC

7

CAN1H

8

NC 9 NC

MITWELL PSMC-C301 User’s Guide (Official R2.0)

15

4.2.2 Serial Ports

The PSMC-C301 supports up to four serial ports:

 COM1 on D-SUB Connector (9Px2) at J57A  COM2 on Box Header (5Px2, P=2.54mm) at J58  COM3 on D-SUB Connector (9Px2) at J57B  COM4 on Box Header (5Px2, P=2.54mm) at J59

COM1 and COM3 port may be selected to support RS232/RS422/RS485 via different jumper setting.

J57A : D-SUB 9Px2 (COM1)

PIN No.

Signal Description

Figure

1

485D/422T-

2

RS232RX/DT+

3

RS232TX/422R+

4

422R-

5

GND

6

NC 7 RS232RTS

8

RS232CTS

9

Power(V_RI)

JP15: PH11Px2 (COM1 Function Select)

Function

Jumper Setting

Figure

RS-232

5-6, 10-12, 16-18, 21-22

RS-422

3-4, 8-10, 14-16, 21-22

RS-485

1-2, 8-10, 19-20

JP16: PH3Px1 (COM1 Power Select)

RI

Jumper Setting

Figure

5V

1-2

12V

2-3

MITWELL PSMC-C301 User’s Guide (Official R2.0)

16

J58 : Box Header 5Px2 P=2.54mm (COM2)

PIN No.

Signal Description

Figure

1

NC 2

COM_RX#2

3

COM_TX#2

4

NC 5 GND

6

NC 7 NC 8 NC 9 NC

10

NC

J57B : D-SUB 9Px2 (COM3)

PIN No.

Signal Description

Figure

1

485D/422T-1

2

RS232RX/DT+1

3

RS232TX/422R+1

4

422R-1

5

GND

6

NC 7 RS232RTS1

8

RS232CTS1

9

Power(V_RI1)

JP17: PH11Px2 (COM3 Function Select)

Function

Jumper Setting

Figure

RS-232

5-6, 10-12, 16-18, 21-22

RS-422

3-4, 8-10, 14-16, 21-22

RS-485

1-2, 8-10, 19-20

MITWELL PSMC-C301 User’s Guide (Official R2.0)

17

JP18: PH3Px1 (COM3 Power Select)

RI

Jumper Setting

Figure

5V

1-2

12V

2-3

J59 : Box Header 5Px2 P=2.54mm (COM4)

PIN No.

Signal Description

Figure

1

NC 2

COM_RX#21

3

COM_TX#21

4

NC 5 GND

6

NC 7 NC 8 NC 9 NC

10

NC

4.2.3 Gigabit Ethernet (GbE) and USB

PSMC-C301 provides two Gigabit Ethernet over RJ45 connectors with transformer and LEDs built in.

(GBE0 at J82, GBE1 at J79). Two USB2.0 type A connectors are under GBE0 and two USB3.0 type A

connectors are under GBE1 which supports USB2.0 as well.

USB connectors on PSMC-C301 are allocated as:

MITWELL PSMC-C301 User’s Guide (Official R2.0)

18

J82 : RJ45+USBx2

PIN No.

Signal Description

Figure

A1

Power(VBUS_5)

A2

USB5-_P

A3

USB5+_P

A4

GND

B1

Power(VBUS_1)

B2

USB1-_P

B3

USB1+_P

B4

GND

C1

Power(GBE0_CTREF)

C2

GBE0_MDI0+

C3

GBE0_MDI0-

C4

GBE0_MDI1+

C5

GBE0_MDI1-

C6

GBE0_MDI2+

C7

GBE0_MDI2-

C8

GBE0_MDI3+

C9

GBE0_MDI3-

C10

GND

C11

LAN_C11

C12

LAN_C12

C13

LAN_C10

C14

LAN_C9

CG1

GND

CG2

GND

CG3

GND

CG4

GND

CG5

GND

CG6

GND

CG7

GND

CG8

GND

MITWELL PSMC-C301 User’s Guide (Official R2.0)

19

J79 : RJ45+USB3.0x2

PIN No.

Signal Description

Figure

A1

Power(VBUS_2)

A2

USB2-_P

A3

USB2+_P

A4

GND

A5

USB2_SSRX-_P

A6

USB2_SSRX+_P

A7

GND

A8

USB2_SSTX-_P

A9

USB2_SSTX+_P

B1

Power (VBUS_3)

B2

USB3-_P

B3

USB3+_P

B4

GND

B5

USB3_SSRX-_P

B6

USB3_SSRX+_P

B7

GND

B8

USB3_SSTX-_P

B9

USB3_SSTX+_P

C1

VCT

C2

TX1+

C3

TX1-

C4

TX2+

C5

TX2-

C6

TX3+

C7

TX3-

C8

TX4+

C9

TX4-

C10

GND

L1

LAN1_C11

L2

LAN1_C12

L3

LAN1_C10

L4

LAN1_C9

CG1

GND

CG2

GND

MITWELL PSMC-C301 User’s Guide (Official R2.0)

20

CG3

GND

CG4

GND

CG5

GND

CG6

GND

CG7

GND

CG8

GND

J89 : Micro USB B Type

※ JP39 for USB0 select should be shorted at 1-2 when using micro USB port

PIN No.

Signal Description

Figure

1

Power(VBUS_0)

2

USB0-_P

3

USB0+_P

4

USB0_OTG_ID

5

GND

CG1

GND

CG2

GND

CG3

GND

JP39 : HEADER3P/2mm (M.2 & Micro USB Select)

PIN No.

Signal Description

Figure

1-2

Micro USB

*2-3

M.2 (Default)

4.2.4 Display Interfaces

PSMC-C301 provides the following display interfaces :

 DisplayPort(DP) on J62 (upper port)  HDMI on J62 (lower port)  eDP/LVDS/DSI on J64

MITWELL PSMC-C301 User’s Guide (Official R2.0)

21

J62 : Display port + HDMI 90D (DP+HDMI)

PIN No.

Signal Description

PIN No.

Signal Description

Figure

A1

HDMI_D2+_C

B6

DP0_LANE1-_C

A2

GND

B7

DP0_LANE2+_C

A3

HDMI_D2-_C

B8

GND

A4

HDMI_D1+_C

B9

DP0_LANE2-_C

A5

GND

B10

DP0_LANE3+_C

A6

HDMI_D1-_C

B11

GND

A7

HDMI_D0+_C

B12

DP0_LANE3-_C

A8

GND

B13

DP0_AUX_SEL_C

A9

HDMI_D0-_C

B14

GND

A10

HDMI_CK+_C

B15

DP0_AUX+_C

A11

GND

B16

GND

A12

HDMI_CK-_C

B17

DP0_AUX-_C

A13

NC

B18

DP0_HPD_C

A14

NC

B19

GND

A15

HDMI_CTRL_CK / DP1_AUX+_L

B20

Power(VCC3)

A16

HDMI_CTRL_DAT / DP1_AUX-_L

CG1

GND

A17

GND

CG2

GND

A18

Power(VCC5)

CG3

GND

A19

HDMI_HPD

CG4

GND

B1

DP0_LANE0+_C

CG5

GND

B2

GND

CG6

GND

B3

DP0_LANE0-_C

CG7

GND

B4

DP0_LANE1+_C

CG8

GND

B5

GND

J64 : Wafer 15Px2 P=1.25mm 180D 4-Wall (eDP/LVDS/DSI)

PIN No.

Signal Description

Figure

1

Power(VDD_LVDS0)

2

Power(VDD_LVDS1)

3

LVDS0_0+ / eDP0_TX0+ / DSI0_D0+_C

MITWELL PSMC-C301 User’s Guide (Official R2.0)

22

4

LVDS0_0- / eDP0_TX0- / DSI0_D0-_C

5

LVDS0_1+ / eDP0_TX1+ / DSI0_D1+_C

6

LVDS0_1- / eDP0_TX1- / DSI0_D1-_C

7

LVDS0_2+ / eDP0_TX2+ / DSI0_D2+_C

8

LVDS0_2- / eDP0_TX2- / DSI0_D2-_C

9

LVDS0_3+ / eDP0_TX3+ / DSI0_D3+_C

10

LVDS0_3- / eDP0_TX3- / DSI0_D3-_C

11

LVDS0_CK+ / eDP0_AUX+ / DSI0_CLK+_C

12

LVDS0_CK- / eDP0_AUX- / DSI0_CLK-_C

13

I2C_LCD_CK_L

14

I2C_LCD_DAT_L

15

GND

16

GND

17

LVDS1_0+ / eDP1_TX0+ / DSI1_D0+_C

18

LVDS1_0- / eDP1_TX0- / DSI1_D0-_C

19

LVDS1_1+ / eDP1_TX1+ / DSI1_D1+_C

20

LVDS1_1- / eDP1_TX1- / DSI1_D1-_C

21

LVDS1_2+ / eDP1_TX2+ / DSI1_D2+_C

22

LVDS1_2- / eDP1_TX2- / DSI1_D2-_C

23

LVDS1_3+ / eDP1_TX3+ / DSI1_D3+_C

24

LVDS1_3- / eDP1_TX3- / DSI1_D3-_C

25

LVDS1_CK+ / eDP1_AUX+ / DSI1_CLK+_C

26

LVDS1_CK- / eDP1_AUX- / DSI1_CLK-_C

27

eDP1_HPD_L

28

eDP0_HPD_L

29

GND

30

GND

MITWELL PSMC-C301 User’s Guide (Official R2.0)

23

JP19: PH3Px2 (LVDS0 Power Select)

Function

Signal Description

Figure

1-3

Power(VCC3)

4-3

Power(VCC12)

5-3

Power(VCC5)

JP22: PH3Px2 (LVDS1 Power Select)

Function

Signal Description

Figure

1-3

Power(VCC3)

4-3

Power(VCC12)

5-3

Power(VCC5)

JP21: PH3Px2 (LVDS0 Backlight Select)

Input select

Jumper Setting Table

Figure

5V, Active High

1-3, 2-4

12V, Active High

1-3, 4-6

5V, Active Low

3-5, 2-4

12V, Active Low

3-5, 4-6

JP24: PH3Px2 (LVDS1 Backlight Select)

Input select

Jumper Setting Table

Figure

5V, Active High

1-3, 2-4

12V, Active High

1-3, 4-6

5V, Active Low

3-5, 2-4

12V, Active Low

3-5, 4-6

MITWELL PSMC-C301 User’s Guide (Official R2.0)

24

4.2.5 SATA

PSMC-C301 supports one standard SATA connector at J12. The SATA LED (D22) lights up when an

activity occurs on SATA interface

J12 : SATA Connector

PIN No.

Signal Description

Figure

1

GND 2

SATA_TXP

3

SATA_TXN

4

GND

5

SATA_RXN

6

SATA_RXP

7

GND

8

GND

9

GND

J16 : Wafer 4Px1 P=2.5mm 4-Wall (SATA Power)

PIN No.

Signal Description

Figure

1

POWER(SATA_VCC12)

2

GND

3

GND

4

POWER(SATA_VCC5)

JP11: PH5Px2(-10) (FRONT_SIDE)

Function

Signal Description

Figure

1-3

SATA_ACT#

5-7

Power Reset

6-8

Power Button

D22 : SATA_ACT#

MITWELL PSMC-C301 User’s Guide (Official R2.0)

25

4.2.6 PCIe

PSMC-C301 provides four PCIe interfaces :

 PCIe x1 slot (PCIe LANE A) at J78  mini-PCIe slot (PCIe LANE B) at J67  M.2 slot (PCIe LANE C + LANE D)at J65

J78 : PCIe x1_36Pin

PIN No.

Signal Description

PIN No.

Signal Description

Figure

A1

GND

B1

Power(VCC12)

A2

Power(VCC12)

B2

Power(VCC12)

A3

Power(VCC12)

B3

Power(VCC12)

A4

GND

B4

GND

A5

J_TCK#

B5

SMB_CLK

A6

J_TDI

B6

SMB_DAT

A7

J_TDO

B7

GND

A8

J_TMS

B8

Power(VCC3)

A9

Power(VCC3)

B9

NC

A10

Power(VCC3)

B10

Power(3VDUAL)

A11

PCIE_A_RST#

B11

PCIE_WAKE#

A12

GND

B12

NC

A13

CLK_PCIE0+

B13

Power(VCC12)

A14

CLK_PCIE0-

B14

PCIE_A_TX+

A15

GND

B15

PCIE_A_TX-

A16

PCIE_A_RX+

B16

Power(VCC12)

A17

PCIE_A_RX-

B17

NC

A18

GND

B18

Power(VCC12)

J67 : MiniPCI-Express, H=9.0mm

※ A SIM card slot is connected to the USIM interface of the mPCIe slot

PIN No.

Signal Description

PIN No.

Signal Description

Figure

1

WAKE#

28

Power(+1.5V_PCIE)

2

Power(+3V_4G)

29

GND

3

Test Point

30

SMB_CLK

MITWELL PSMC-C301 User’s Guide (Official R2.0)

26

4

GND

31

PCIE_B_TX-

5

Test Point

32

SMB_DAT

6

Power(+1.5V_PCIE)

33

PCIE_B_TX+

7

CLKREQ#

34

GND

8

Power(USIM_PWR)

35

GND

9

GND

36

DF_USB_4N_C

10

USIM_DATA

37

GND

11

PCIE_B_REFCK-

38

DF_USB_4P_C

12

USIM_CLK

39

Power(+3V_4G)

13

PCIE_B_REFCK+

40

GND

14

USIM_RST

41

Power(+3V_4G)

15

GND

42

LED_WWAN#

16

USIM_VPP

43

GND

17

Test Point

44

LED_WLAN#

18

GND

45

Test Point

19

Test Point

46

LED_WPAN#

20

NC

47

Test Point

21

GND

48

Power(+1.5V_PCIE)

22

PCIE_B_RST#

49

Test Point

23

PCIE_B_RX-

50

GND

24

Power(+3V_4G)

51

Test Point

25

PCIE_B_RX+

52

Power(+3V_4G)

26

GND

CG1

GND

27

GND

CG2

GND

J65 : M.2 KEY-E, H=3.2mm

PIN No.

Signal Description

PIN No.

Signal Description

Figure

1

GND

41

PCIE_C_RX+

2

Power(+3V_M2SSD)

42

NC 3 USB0+_C2

43

PCIE_C_RX-

4

Power(+3V_M2SSD)

44

NC 5 USB0-_C2

45

GND

6

NC

46

NC 7 GND

47

CLK_PCIE1+

8

NC

48

NC

MITWELL PSMC-C301 User’s Guide (Official R2.0)

27

9

NC

49

CLK_PCIE1-

10

NC

50

NC

11

NC

51

GND

12

NC

52

PCIE_C_RST#

13

NC

53

NC

14

NC

54

Test Point

15

NC

55

PCIE_WAKE#

16

NC

56

Test Point

17

NC

57

GND

18

GND

58

SMB_DAT

19

NC

59

PCIE_D_TX+

20

NC

60

SMB_CLK

21

NC

61

PCIE_D_TX-

22

NC

62

NC

23

NC

63

GND

24

NC

64

NC

25

NC

65

PCIE_D_RX+

26

NC

66

NC

27

NC

67

PCIE_D_RX-

28

NC

68

NC

29

NC

69

GND

30

NC

70

NC

31

NC

71

NC

32

NC

72

Power(+3V_M2SSD)

33

GND

73

NC

34

NC

74

Power(+3V_M2SSD)

35

PCIE_C_TX+

75

GND

36

NC

CG1

GND

37

PCIE_C_TX-

CG2

GND

38

NC

CG3

GND

39

GND

CG4

GND

40

NC

CG5

GND

MITWELL PSMC-C301 User’s Guide (Official R2.0)

28

4.2.7 SD Card

PSMC-C301 features a full-size SD card slot at J72

J72 : SD Card H=2.75mm (SD Slot)

PIN No.

Signal Description

Figure

1

DAT3 2

CMD_RSP

3

GND2

4

Power(VCC)

5

CLK

6

GND1

7

DAT0

8

DAT1

9

DAT2

Sa

WP#

G

WP#_COM

Sc

CD#_COM

Sb

CD#

4.2.8 Audio Interfaces

PSMC-C301 features one audio codes via HDA interface (REALTAK_ALC886-GR) and keeps with

another I2S interface for ARM based product test purpose.

J55 : 3.5mm Triple HD Audio Jack Light Blue/Green/Pink (Audio)

PIN No.

Signal Description

Figure

1

Line In

2

Line OUT

3

MIC

MITWELL PSMC-C301 User’s Guide (Official R2.0)

29

J91 : I2S_Audio_Pin Header

PIN No.

Signal Description

Figure

1

I2S0_SDIN

2

Power(3.3V)

3

I2S0_SDOUT

4

LINE_IN2_JD_P

5

I2S0_LRCK

6

LINE_OUT2_JD_P

7

I2S0_CK

8

MIC2_JD_P

9

AUDIO_MCK

10

NC

11

SMB_DAT

12

GND

13

SMB_CLK

14

GND

JP38 : HEADER3P/2mm (I2S_Audio Line_IN & Line_OUT & MIC_JD)

4.2.9 MIPI-CSI

PSMC-C301 features with two MIPI-CSI flat foil connectors:

 CSI0 supports up to two differential data lanes J92  CSI1 supports up to four differential data lanes at J69

PIN No.

Signal Description

Figure

1-2

LINE_IN2_JD_P

2-3

LINE_OUT2_JD_P

5-6

MIC2_JD_P

MITWELL PSMC-C301 User’s Guide (Official R2.0)

30

J92 : FPC 24P P=0.5mm Downside 90D (CSI0)

PIN No.

Signal Description

PIN No.

Signal Description

Figure

1

GND

14

CSI0_TX+ / I2C_CAM_DAT_L

2

CSI0_D0-

15

Power(3.3V or 1.8V)

3

CSI0_D0+

16

NC 4 GND

17

NC 5 CSI0_D1-

18

GND

6

CSI0_D1+

19

NC 7 GND

20

NC 8 CSI0_CK-

21

Power(5V)

9

CSI0_CK+

22

CSI_GPIO1(3.3V)

10

GND

23

CSI_GPIO2(3.3V)

11

CSI0_RST#_L

24

GPIO0 / CAM0_PWR#_L(3.3V)

12

CAM_MCK_L

CG1

GND

13

CSI0_TX- / I2C_CAM_CK_L

CG2

GND

J69 : FPC 24P P=1.0mm 90D (CSI1)

PIN No.

Signal Description

PIN No.

Signal Description

Figure

1

GND

14

CSI1_CK-

2

CSI1_D0-

15

CSI1_CK+

3

CSI1_D0+

16

GND

4

GND

17

CSI1_RST#_L(1.8V or

3.3V)

5

CSI1_D1-

18

CAM_MCK_L_1(1.8V or 3.3V)

6

CSI1_D1+

19

GND

7

GND

20

CSI1_TX+ / I2C_CAM1_CK_L(1.8 V or 3.3V)

8

CSI1_D2-

21

CSI1_TX- / I2C_CAM1_DAT_L(1. 8V or 3.3V)

MITWELL PSMC-C301 User’s Guide (Official R2.0)

31

9

CSI1_D2+

22

GND

10

GND

23

Power(CSI1_3 or CSI1_1V8)

11

CSI1_D3-

24

GND

12

CSI1_D3+

CG1

GND

13

GND

CG2

GND

4.2.10 Other Connectors

J60 : FAN 4PIN

PIN No.

Signal Description

Figure

1

GND 2

Power(VCC12)

3

FAN_TACHIN(VCC5)

4

FAN_OUT(VCC5)

J61 : Box Header 5Px2 P=2.54mm (GPIO)

PIN No.

Signal Description

Figure

1

GPIO7 2

GPIO10

3

GPIO11

4

NC 5 NC 6 NC 7 NC 8 NC 9 GND

10

Power(VCC5)

MITWELL PSMC-C301 User’s Guide (Official R2.0)

32

J73 : Pin Header 7Px2 P=2.0mm 180D (ESPI)

PIN No.

Signal Description

Figure

1

ESPI_CS0#

2

ESPI_ALERT0#

3

ESPI_CS1#

4

ESPI_ALERT1#

5

ESPI_CK

6

ESPI_RESET#

7

ESPI_IO_0

8

Power(VCC1P8)

9

ESPI_IO_1

10

Power(VCC3)

11

ESPI_IO_2

12

NC

13

ESPI_IO_3

14

GND

U56 : SPI Flash Socket

※ Jumper shall be shorted at 3-4 on JP53 when using carrier SPI BIOS boot

PIN No.

Signal Description

Figure

1

SPI0_CS0#

2

SPI0_DIN

3

SPI0_WP#

4

GND

5

SPI0_DO

6

SPI0_CK

7

SPI0_HOLD#

8

Power(1.8V)

MITWELL PSMC-C301 User’s Guide (Official R2.0)

33

5 Jumper Settings

JP36: PH3Px1 (RTC Select)

PIN No.

Signal Description

Figure

*1-2

Power(RTC) (Default)

3-4

RTC Reset

JP39 : HEADER3P/2mm (M.2 & Micro USB Select)

PIN No.

Signal Description

Figure

1-2

Micro USB

*2-3

M.2 (Default)

J74 : PH4Px2 (Lid & Battery Dectect)

PIN No.

Signal Description

Figure

1-2

LID#(Enable)

3-4

CHARGING#(Enable)

5-6

CHARGER_PRSNT#(Enable)

7-8

BATLOW#(Enable)

MITWELL PSMC-C301 User’s Guide (Official R2.0)

34

JP53 : PH3Px2 (Boot Select)

PIN No.

Signal Description

Figure

1-2, 3-4,

5-6

Carrier SATA

3-4, 5-6

Carrier SD Card

1-2, 5-6

Carrier eSPI

5-6

Carrier SPI

1-2, 3-4

Module device(NAND, NOR)

3-4

Remote boot(GbE, serial)

1-2

Module eMMC Flash

All Float

Module SPI

J87 : HEADER 7PX2/2mm(On Board TPM 2.0)

PIN No.

Signal Description

Figure

1-2

SPI0_CK_R

3-4

SPI0_CS1#_R

5-6

SPI0_DIN_R

7-8

SPI0_DO_R

9-10

GPIO9_R

11-12

RESET_OUT#_R

13-14

GPIO8_R

J81 : Pin Header 4Px2 P=2.0mm 180D (Audio)

PIN No.

Signal Description

Figure

1

HDA_SDI / I2S2_SDIN

2

HDA_CK / I2S2_CK

3

HDA_RST#

4

HDA_SYNC / I2S2_LRCK

5

HDA_SDO / I2S2_SDOUT

6

Power(VCC1P8)

7

GND

8

Power(VCC3)

MITWELL PSMC-C301 User’s Guide (Official R2.0)

35

J88 : HEADER 5PX2/2mm(TPM)

PIN No.

Signal Description

Figure

1

SPI0_CK_R

2

RESET_OUT#_R

3

SPI0_CS1#_R

4

GPIO8_R

5

SPI0_DIN_R

6

Power(1.8VDUAL)

7

SPI0_DO_R

8

Power(3VDUAL)

9

GPIO9_R

10

GND

MITWELL PSMC-C301 User’s Guide (Official R2.0)

36

6 Additional Features

6.1 Power Button

The SMARC module performs a power up sequence when you press this button. The power button is connected to the SMARC module’s POWER_BTN# signal.

6.2 Reset Button

When you press this button, the SMARC module and all components connected on the SMARC will perform a hard reset. The reset button is connected to the SMARC module’s RESET_OUT# signal.

6.3 Sleep Button

The SMARC module enters a sleep state when you press this button. The sleep button is connected to the SMARC module’s SLEEP# signal.

6.4 Force Recovery Button

Low on this pin allows non-protected segments of Module boot device to be rewritten / restored from an external USB Host on Module USB0. The Module USB0 operates in Client Mode when Force Recovery function is invoked. Pull high on the Module for SOCs that do not implement a USB based Force Recovery functions, then a low on the Module FORCE_RECOV# pin may invoke the SOC native Force Recovery mode – such as over a Serial Port. For x86 systems this signal may be used to load BIOS defaults.

6.5 LID Button

Pressing the LID button creates a low active signal used by the ACPI operating system to detect a LID switch and to bring the system into either a sleep state or to wake it up again. The LID button is connected to the Qseven® module’s LID_BTN# signal.

--- The End of this Guide ---

MiTWell PSMC-C301 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
