INDOOR UNIT
SPLIT-TYPE, AIR CONDITIONERS
TM
SERVICE MANUAL
Wireless type
Models
No. TBH014
MS-GD08NDMS-GD10NDMS-GD12ND-
MS-GD08NDMS-GD10NDMS-GD12ND-
C1
C1
C1
C1
C1
C1
Outdoor unit service manual
MU-GD•ND Series (TBH016)
CONTENTS
1. TECHNICAL CHANGES ................................... 2
2. PART NAMES AND FUNCTIONS .....................
3. SPECIFICATION ................................................
4. OUTLINES AND DIMENSIONS ........................
5. WIRING DIAGRAM ............................................
6. REFRIGERANT SYSTEM DIAGRAM ...............
7. SERVICE FUNCTIONS .....................................
8. TROUBLESHOOTING .....................................
9. DISASSEMBLY INSTRUCTIONS ...................
3
4
5
6
7
8
10
19
NOTE:
• RoHS compliant products have <G> mark on the spec name plate.
PARTS CATALOG (TBB014)
1
1 TECHNICAL CHANGES
MS-A08ND- C1 ➔ MS-GD08NDMS-A12ND- C1 ➔ MS-GD12ND-
1. Indoor unit has been changed.
• Front panel has been changed. (Flat
2. Terminal block has been changed. 3P (L
MS-A10ND- C1 ➔ MS-GD10ND-
1. Indoor unit has been changed.
• Front panel has been changed. (Flat Flat Shining)
C1
C1
Flat Shining)
~, N~, 2~) 4P (L~, N~, 2~, Earth)
C1
2
2
Emergency operation switch
Fan
Air outlet
Vertical vanes
Air inlet
Remote control
receiving section
Display section
Air cleaning filter
(white bellows type)
Catechin air filter
(with deodorizing)
Front panel
Panel
Horizontal vane
Operation section
(When the front panel is opened)
Remote controller
Operation indicator lamp
Remote control
receiving section
PART NAMES AND FUNCTIONS
INDOOR UNIT
MS-GD08NDMS-GD10NDMS-GD12ND-
C1
C1
C1
ACCESSORIES
Installation plate 1
1
Installation plate fixing screw 4 x 25 mm 5
2
Remote controller holder 1
3
4 Fixing screw for 3 3.5 x 16 mm (Black)
Battery (AAA) for remote controller 2
5
Wireless remote controller 1
6
Felt tape (Used for left or left-rear piping) 1
7
Air cleaning filter 2
8
MS-GD08NDMS-GD10NDMS-GD12ND-
2
3
C1
C1
C1
REMOTE CONTROLLER
ON/OFF
RESET
TOO
WAR M
TOO
COO L
ECONO COOL
POWERFUL COOL
SELECT
FAN
VANE
TIME
MODE
I FEEL
COOL
DRY
FAN
h
Signal transmitting section
Operation display section
TEMPERATURE buttons
VANE CONTROL button
TIME SET button
RESET button
ECONO COOL button
POWERFUL COOL button
OPERATION SELECT button
TIMER MODE SELECT button
OPERATE/STOP (ON/OFF) button
FAN SPEED CONTROL button
Indication of remote controller
model is on back.
These buttons are able to store the light
from nature, fluorescent lamp, etc and
shine in the dark.
MS-GD08NDMS-GD10NDMS-GD12ND-
C1
C1
C1
3
SPECIFICATION
Indoor model
MS-GD08ND-
C1
MS-GD10ND-
C1
MS-GD12ND-
Function Cooling
Power supply Single phase 220-230V, 60Hz
Capacity Air flow (High/Med/Low) K/h 588/456/372 630/498/336 666/498/336
Power outlet A 10
Running current A 0.19
Power input W 40
Auxiliary heater A (kW) —
Power factor % 96-92
Electrical data
Fan motor current A 0.19
Model RC4N19-BA
Winding
Fan
motor
resistance (at 20ºC)
Dimensions W
oHoD
Weight
Remote controller model
NOTE: Test conditions are based on CNS 14464
Cooling : Indoor Dry-bulb temperature 27°C Wet-bulb temperature 19
Air direction 5
Sound level (High/Med/Low) dB 39/32/26 39/32/26 42/36/29
Fan speed (High/Med/Low) rpm 1030/800/650 960/800/650 1000/800/650
Fan speed regulator 3
Special
remarks
Thermistor RT11 (at 25
Thermistor RT12 (at 25
ºC) kΩ 10
ºC) kΩ 10
Outdoor Dry-bulb temperature 35°C Wet-bulb temperature 24
"
mm
kg 9 10
WHT-BLK 312
BLK-RED 255
815o278o244
MP2B
°C
°C
Refrigerant piping length (one way) 7.5 m
4
C1
[
9.52-0.43m
244
242 5
erom ro
7
90
110
0
3
149
606
8
7
2
60
815
783
Air out
Installation plat
e
Insulation
[28
Drain hose
[16
(Connected part O.D)
Liquid line
[
6.35-0.5m
Gas line
[9.52-0.43m
Insulation
[37 O.D
[21 I.D
{
Wireless remote controller
81.5
81.5
14
5
.
2
24
172
5.132
5.
4
81.5
133.
5
32632
6
Wall hole
[65
Indoor unit
Installation plate
57
04
1
17.5
Air in
244
242
5.812
8
5
2
81.581.5
14
24
5.2
5.71
161.5161.5
326326
5
erom ro 7
90
110
0
3
149
606
872
60
815
783
Air out
Indoor unit
Installation plate
Wall hole
[
65
Installation plat
e
Insulation
[28
Drain hose
[16
(Connected part O.D)
Air in
Liquid line [6.35-0.5m
Gas line
Insulatio
n[37 O.D
[
21 I.D
{
Wireless remote controller
57
041
17.5
OUTLINES AND DIMENSIONS4
MS-GD08ND-
C1
Unit : mm
INDOOR UNIT
MS-GD10NDMS-GD12ND-
INDOOR UNIT
C1
C1
5
6
MS-GD08ND-
C1
MS-GD12ND-
C1
WIRING DIAGRAM
5
INDOOR UNIT
MS-GD10ND-
C1
6
Room
temperature
thermistor
Indoor
heat
exchanger
RT11
Indoor coil
thermistor
RT12
Refrigerant pipe
(Option
){6.35
(with heat insulator)
Flared
connection
Flared
connection
Refrigerant pipe
(Option)
{12.7
(with heat insulator)
Refrigerant flow in cooling
Room
temperature
thermistor
Indoor
heat
exchanger
RT11
Indoor coil
thermistor
RT12
Refrigerant pipe
(Option){6.35
(with heat insulator)
Flared
connection
Flared
connection
Refrigerant pipe
(Option){9.52
(with heat insulator)
REFRIGERANT SYSTEM DIAGRAM
MS-GD08NDMS-GD10ND-
INDOOR UNIT
C1
C1
MS-GD12ND-
C1
INDOOR UNIT
7
7
SERVICE FUNCTIONS
MS-GD08NDMS-GD10NDMS-GD12ND-
C1
C1
C1
7-1. TIMER SHORT MODE
For service, set time can be shortened by short circuit of JPG and JPS the electronic control P.C. board.
The time will be shortened as follows. (Refer to 8-6.)
Set time : 1-minute
Set time : 3-minute
It takes 3 minutes for the compressor to start operation. However, the starting time is shortened by short
circuit of JPG and JPS.
1-second
3-second
7-2. P.C. BOARD MODIFICATION FOR INDIVIDUAL OPERATION
A maximum of 4 indoor units with wireless remote controllers can be used in a room.
In this case, to operate each indoor unit individually by each remote controller, P.C. boards of remote controller must be
modified according to the number of the indoor unit.
How to modify the remote controller P.C. board
Remove batteries before modification.
The board has a print as shown below :
Remote controller model : MP2B
J2
J1
NOTE : For remodelling, take out the bat-
teries and push the OPERATE/
STOP(ON/OFF)button twice or 3
times at first.
After finish remodelling, put back
the batteries then press the
RESET button.
The P.C. board has the print “J1” and “J2”. Solder “J1” and “J2” according to the number of indoor unit as shown in Table 1.
After modification, press the RESET button.
Table 1
1 unit operation 2 units operation 3 units operation 4 units operation
No. 1 unit No modification Same as at left Same as at left Same as at left
No. 2 unit
No. 3 unit
No. 4 unit
— Solder J1 Same as at left Same as at left
— — Solder J2 Same as at left
— — — Solder both J1 and J2
How to set the remote controller exclusively for particular indoor unit
After you turn the breaker ON, the first remote controller that sends the signal to the indoor unit will be regarded as the
remote controller for the indoor unit.
The indoor unit will only accepts the signal from the remote controller that has been assigned to the indoor unit once they
are set.
The setting will be cancelled if the breaker has turned off, or the power supply has shut down.
Please conduct the above setting once again after the power has restored.
8
7-3. AUTO RESTART FUNCTION
JR07
IC101
CN151
SW1
CN112
CN111
CN201
52C/X10
C1
1
CN21
1
CN1V1
CN1R1
CN121
When the indoor unit is controlled with the remote controller, the operation mode, set temperature, and the fan speed
are memorized by the indoor electronic control P.C.board. The “AUTO RESTART FUNCTION” sets to work the moment
power has restored after power failure. Then, the unit will restart automatically. However if the unit is operated in “I FEEL
CONTROL” mode before power failure, the operation is not memorized. In “I FEEL CONTROL” mode, the operation is
decided by the initial room temperature.
Operation
1 If the main power has been cut, the operation settings remain.
2 After the power is restored, the unit automatically resumes the same operation
as the memory has recorded.
However, it takes the compressor at least 3 minutes to get started.
How to release “AUTO RESTART FUNCTION”
1 Turn off the main power for the unit.
2 Pull out the indoor electronic control P.C. board and the power monitor, receiver
P.C. board. (Refer to 9-1.)
3 Solder the Jumper wire to the JR07 on the indoor electronic control P.C.board.
(Refer to 8-6.)
NOTE:
• The operation settings are memorized when 10 seconds have passed after the indoor unit was operated with the remote
controller.
• If the main power is turned off or a power failure occurs while AUTO START/STOP timer is active, the timer setting is
cancelled.
• If the unit has been off with the remote controller before power failure, the auto restart function does not work as the
power button of the remote controller is off.
• To prevent breaker off due to the rush of starting current, systematize other home appliances not to turn on at the same
time.
• When some air conditioners are connected to the same supply system, if they are operated before power failure, the
starting current of all the compressors may flow simultaneously at restart.
Therefore, the special counter-measures are required to prevent the main voltage-drop or the rush of the starting current
by adding to the system that allows the units to start one by one.
9
Lead wiring
Housing point
Insert the negative pole
of the batteries first.
Check if the polarity of
the batteries are correct.
RESET button
TROUBLESHOOTING8
MS-GD08NDMS-GD10NDMS-GD12ND-
C1
C1
C1
8-1. Cautions on troubleshooting
1. Before troubleshooting, check the following:
1) Check the power supply voltage.
2) Check the indoor/outdoor connecting wire for mis-wiring.
2. Take care the following during servicing.
1) Before servicing the air conditioner, be sure to turn off the main unit first with the remote controller, and then after
confirming the horizontal vane is closed, turn off the breaker and / or disconnect the power plug.
2) Be sure to turn OFF the power supply before removing the front panel, the cabinet, the top panel and the electronic
control P.C. board.
3) When removing the electronic control P.C. board, hold the edge of the board with care NOT to apply stress on the
components.
4) When connecting or disconnecting the connectors, hold the housing of the connector. DO NOT pull the lead wires.
3. Troubleshooting procedure
1) First, check if the OPERATION INDICATOR lamp on the indoor unit is flashing on and off to indicate an abnormality.
To make sure, check how many times the abnormality indication is flashing on and off before starting service work.
2) Before servicing that the connector and terminal are connected properly.
3) If the electronic control P.C. board is supposed to be defective, check the copper foil pattern for disconnection and the
components for bursting and discolouration.
4) When troubleshooting, refer to 8-2. and 8-3.
4. How to replace batteries
Weak batteries may cause the remote controller malfunction.
In this case, replace the batteries to operate the remote controller normally.
1 Remove the back lid and insert batteries.
Then reattach the back lid.
2
Press the RESET button with tip end of ball point
pen or the like, and then use the remote controller.
NOTE : 1. If the RESET button is not pressed, the remote controller may not operate correctly.
2. This remote controller has a circuit to automatically reset the microcomputer when batteries are replaced.
This function is equipped to prevent the microcomputer from malfunctioning due to the voltage drop caused by
the battery replacement.
10
5. How to install the horizontal vanes
Upper vane
Lower vane
The holes on the
insertion ends of
the upper and lower
horizontal vanes have
different shapes.
Insert this end first.
Upper right
Lower right
Insert this end first.
6
5 4
3
2 1
In procedure 2,3,5, and 6, lock the stoppers until they click into place.
Stopper
Lock.
Stopper
Lock.
Lock.
Lock.
In.
Insert.
Insert.
In.
If horizontal vanes are not installed correctly, both of the operation indicator lamps will flash.
In this case, install the horizontal vanes correctly by following the procedures
1 to 6.
NOTE: Before installation of the horizontal vanes, disconnect the power supply plug and/ or turn off the breaker.
5. How to install the horizontal vanes
If horizontal vanes are not installed correctly, both of the operation indicator lamps will flash.
In this case, install the horizontal vanes correctly by following the procedures
1 to 6.
NOTE: Before installation of the horizontal vanes, disconnect the power supply plug and/ or turn off the breaker.
11
8-2. Instruction of troubleshooting
Start
Indoor unit
operates.
Outdoor unit
doesn't
operate.
Indoor unit
doesn't receive
the signal from
remote controller.
OPERATION INDICATO
R
lamp on the indoor unit is
flashing on and off.
Outdoor unit
operates in
only Test run
operation.
Outdoor unit
doesn't
operate
even in
Test run
operation.
Indoor unit
operates, when
the EMERGENCY
OPERATION
switch is pressed.
Indoor unit
doesn't operate,
when the
EMERGENCY
OPERATION
switch is pressed.
Check room
temperature
thermistor.
Refer to 8-6.
"Test point
diagram and
voltage".
Refer to 8-5. B
"Check of
remote controller
and receiver
P.C. board".
Left lamp
2-time flash
Cause:
Indoor unit
• Trouble of room
temperature/
indoor coil
thermistor
Left lamp
3-time flash
Cause:
Indoor unit
• Trouble of
indoor fan
motor
Check room
temperature
thermistor and
indoor coil thermistor.
Refer to 8-6.
"Test point diagram
and voltage".
Refer to 8-5.
A
"Check of
indoor fan
motor".
1. Check indoor /
outdoor
connecting wire.
2. Refer to 8-5.
C
"Check of indoor
electronic control
P.C. board".
Check of
wiring
diagram
of outdoor
unit.
Left lamp
4-time flash
Cause:
Indoor unit
• Trouble of
indoor control
system
Replace the
indoor
electronic
control P.
C.
board.
As for outdoor unit,
refer to service
manual TBH016
Both lamps
(Left and right)
Flash on and off at
0.5
-
second intervals
Cause:
Indoor unit
• The horizontal vanes
are not installed
correctly.
Refer to 8-5. D
"Check of installation
of the horizontal vane".
12
8-3. Troubleshooting check table
flashing
Operation Indicator
No.
2
SymptomIndication
Detection method
Check point
Indoor coil
thermistor
3
Indoor fan
motor.
Abnormal
point
Room
temperature
thermistor
2-time flash
2.5-second OFF
Detect Indoor coil/room temperature
thermistor short or open circuit every 8
seconds during operation
.
• Refer to the characteristics of
indoor coil thermistor and
room temperature thermistor
shown in 8-6.
3-time flash
2.5-second OFF
Indoor fan
motor repeats
12 seconds
ON and 3
minutes OFF.
When the
indoor fan
motor breaks,
the fan keeps
stopping.
When rotational frequency feedback signal is
not emitting during 12-second indoor fan
operation.
• Refer to 8-5.
A "Check of
indoor fan motor"
.
Outdoor unit
does not
operate.
Left lamp flashes.
Left lamp flashes.
Indoor
control
system
4-time flash
2.5-second OFF
Left lamp flashes.
4
• Replace the indoor electronic
control P.C. board.
Outdoor unit
does not
operate.
When it cannot properly read data in the
nonvolatile memory of the indoor electronic
control P.C. board.
1
0.5-second ON
0.5-second OFF
When the electricity is not conducted to the
safety device (FAN) of the horizontal vane.
• Refer to 8-5. D "Check of
installation of the horizonta
l
vane".
Indoor unit
and outdoor
unit do not
operate
.
Attachment
of the
horizontal
vane
Both lamps flash at the same time.
• The following indication applies regardless of shape of the indicator.
· Flashing of the OPERATION INDICATOR lamp (on the left)
indicates possible abnormalities.
· The OPERATION INDICATOR lamp (on the left) is
lighting during normal operation.
Before taking measures, make sure that the symptom reappears for accurate troubleshooting.
Self check table
NOTE : When the indoor unit has started operation and the above detection method has detected an abnormality (the first
detection after the power ON), the indoor electronic control P.C. board turns OFF the indoor fan motor with the
OPERATION INDICATOR lamp flashing.
13

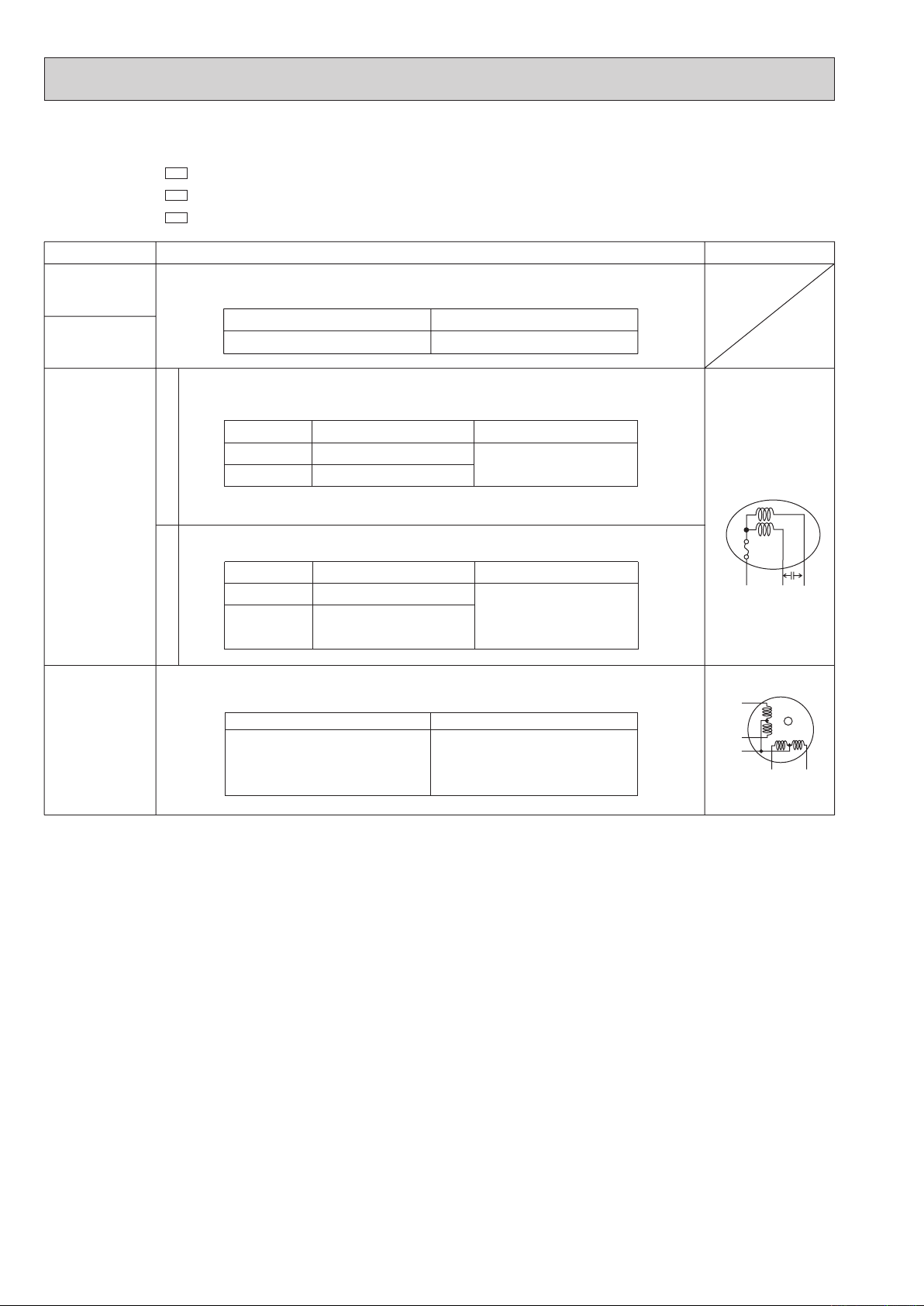

8-4. Trouble criterion of main parts
Vane motor
(MV)
Measure the resistance between the terminals with a tester.
(Part temperature10°C ~ 30°C)
RED
YLW
BRN
ORN
GRN
ROTOR
Normal Abnormal
Open or short-circuit
240 ~ 260"
Room
temperature
thermistor
(RT11)
Part name
Indoor coil
thermistor
(RT12)
Check method and criterion
Measure the resistance with a tester.
(Part temperature 10°C ~ 30°C)
Figure
Normal
8k" ~ 20k"
Abnorma
l
Open or short-circuit
Measure the resistance between the terminals with a tester.
(Coil wiring temperature10°C ~ 30°C)
Indoor fan
motor (MF)
INNER FUSE
145i 2: CUT OFF
tr
a
p
r
o
t
oM
tr
ap ros
n
eS
Measure the voltage Power ON.
MAIN
AUX.
BLK
RED WHT
FUSE
Normal
299~324"
WHT-BLK
BLK-RED
Color of lead wire
BRN-YLW
YLW-GRY
Normal
4.5 ~ 5.5V
Abnorma
l
Remain
0V or 5V
(When fan revolved one time)
0V
→ →
5V 0V
(Approx.)
244~265"
Abnormal
Open
or
short-circuit
Color of lead wire
MS-GD08NDMS-GD10NDMS-GD12ND-
C1
C1
C1
14
8-5. Troubleshooting flow
When left OPERATION INDICATOR lamp flashes 3-time.
Indoor fan motor doesn’t operate.
A Check of indoor fan motor
Turn OFF the power supply.
Check connector CN211 visually.
No
Reconnect the lead wires.
Disconnect lead wires from connector CN211 on the indoor electronic control P.C. board.
Measure resistance between lead wires: No.1 and No.5 and then No.3 and No.5.
Are lead wires connected?
Is resistance 0 (short circuit) or ∞ (open circuit)?
Yes
Yes ( 0 or ∞)
Repair the indoor fan motor.
Is soldering point of the connector
correctly soldered?
Yes
Insert screwdriver into air outlet to rotate indoor fan
motor slowly for 1 revolution or over, and measure
voltage No.2(+) and No.3(-) on CN121.
No
(others)
No
Does voltage repeat 0V DC and 5V DC?
Replace the indoor electronic control P.C. board.
No
Resolder it.
Yes
Indoor unit operates by pressing the EMERGENCY OPERATION switch, but doesn’t operate with the remote controller.
B Check of remote controller and receiver P.C. board
w Check if the remote controller is exclusive for this air conditioner.
Switch on the remote controller.
Is LCD display on the remote controller visible?
Yes
Remove batteries, then set them back and
press the RESET button.
Check if the unit operates with remote
controller.
Does the unit operate with remote
controller?
Yes
OK
Measure the voltage between receiver P.C. board connector CN302 No.3
when the remote controller button is pressed.
No
(not clear)
No
Replace the power monitor, receiver P.C.board.
Replace the batteries.
(Refer to 8-1.4.)
Turn on a radio to AM and press switch on
the remote controller.
Is noise heard from radio?
Yes
Are there any fluorescent lights of
inverter or rapid-start type within the
range of 1m?
No
Is the voltage approx. 4V DC?
No(5V or 0V DC)
No
Yes
(-)
Yes
Replace the remote controller.
● Reinstall the unit away from lights.
● Attach a filter on receiving part.
(+)
and No.5
Replace the indoor electronic control
P.C. board
15
The unit doesn’t operate with the remote controller.
CN201
L
N
13
Terminal
bloc
k
Check both “parts side” and “pattern
side” of the indoor electronic control P.C.
board visually.
Replace the fuse
.
Is fuse(F11) blown?
Be sure to check both fuse
and varistor in any case
.
Replace the fan
motor.
Replace the
indoor electronic
control P.C. board.
Is the winding
resistance of
fan motor 0 "?
Is the winding
resistance of
vane motor 0 "?
No
Ye
s
Replace the vane
motor.
No
Ye
s
Ye
s
Is varistor(NR11) burnt?
Replace the varistor
.
Ye
s
Turn OFF the power supply.
Remove indoor fan motor connector CN211 and
vane motor connector CN151 from the indoor electronic
control P.C. board and turn ON the power supply.
No
No
Does the unit operate with the remote controller?
Does the OPERATION INDICATOR lamp light up by
pressing the EMERGENCY OPERATION switch?
Ye
s
No
1.Pull out the power
supply cord
.
2.Measure the
resistance between
CN201
1 on
the indoor electronic
control P.C. board
and on the
terminal block with
a tester
.
Is there resistance
approx. 0
"?
Replace the fuse (F12).
CN201
1
2
L
N
F12
13
Terminal
block
Be sure to check both resistance.
Turn OFF the
power supply.
Turn OFF the
power supply.
Yes
No(∞)
MS-GD10ND MS-GD08/GD12ND
Also, the OPERATION INDICATOR lamp doesn’t light up by pressing the EMERGENCY OPERATION switch.
C Check of indoor electronic control P.C. board
16
Start
Replace the
indoor electronic
control P.C. board.
Replace the
safety device.
Is the stopper of the horizontal vane
locked to the indoor unit correctly?
Yes
No
Is there resistance 0 "?
Relock the stopper of the
horizontal vane to the indoor unit.
Refer to 8-1-5.
Ye
s
Is the OPERATION
INDICATOR lamp flashing?
Yes
No(∞)
No
OK
Turn ON the
power supply
.
To check the continuity of safety device,
measure the resistance of connector 1 - 3
connected to CN1R1 on the indoor
electronic control P.C. board.
Turn OFF the
power supply
.
Turn OFF the
power supply.
When both OPERATION INDICATOR lamps flash ON and OFF every 0.5-second.
Indoor unit and outdoor unit don’t operate.
D Check of installation of the horizontal vane
17
Indoor coil thermistor (RT12)
Room temperature thermistor (RT11)
Temperature (:)
Resistance (k")
8-6. Test point diagram and voltage
MS-GD08NDMS-GD10NDMS-GD12ND-
Indoor electronic control P.C. board
Varistor
(NR12)
Varistor
(NR11)
C1
C1
C1
Fuse 250V AC 3.15A
Power supply input
220 - 230V AC
}
Indoor fan motor
220 - 230V AC
}
Safety device of
fan by horizontal
vane CN1R1
Room temperature
thermistor (RT11)
Indoor coil
thermistor (RT12)
J12
12V
+
{
DC
–
J33
Power monitor, receiver P.C. board
CN302
}
J33
–
+
}
5V DC
J23
Timer short mode
point JPG, JPS
}
(Refer to 7-1.)
Emergency
operation switch
Release of Auto restart function
Solder the Jumper wire to the JR07.
(Refer to 7-3.)
18
DISASSEMBLY INSTRUCTIONS9
<”Terminal with locking mechanism” Detaching points>
The terminal which has the locking mechanism can be detached as shown below.
There are two types ( Refer to (1) and (2)) of the terminal with locking mechanism.
The terminal without locking mechanism can be detached by pulling it out.
Check the shape of the terminal before detaching.
(1) Slide the sleeve and check if there is a locking lever or not. (2) The terminal with this connector has the locking
Sleeve
mechanism.
1 Slide the sleeve.
Locking lever
9.1 MS-GD08ND-
C1
MS-GD10ND- C1 MS-GD12ND-
2 Pull the terminal
while pushing
the locking lever.
INDOOR UNIT
OPERATING PROCEDURE PHOTOS
1. Removing the panel
(1) Remove the screw caps of the panel.
Remove the screws.
(2) Pull the panel down to your side slightly and unhook the
catches at the top.
1 Hold the sleeve, and
pull out the terminal
slowly.
Connector
C1
Photo 1
Screws of the panel
2. Removing the electronic control P.C. board and the
power monitor, receiver P.C. board
NOTE : In case of removing only indoor electronic control
P.C. board work (3) is not necessary.
(1) Remove the panel. (Refer to 1.)
(2) Remove the power monitor, receiver P.C. board
holder from the bottom of electrical box.
(3) Open the power monitor, receiver P.C. board holder and
remove the power monitor, receiver P.C. board.
(4) Remove the screw of the electrical cover and the electrical
cover.
(5) Remove the screw of the V.A. clamp and the V.A. clamp.
(6) Remove the screw of the cord clamp and the cord clamp.
(7) Remove the screw of the terminal block.
(8) Remove the screw of the ground wire.
(9) Pull out indoor electronic control P.C. board slightly.
(10)
Disconnect all (except CN125, CN109) the connectors on
the electronic control P.C. board.
(11)
Remove the electronic control P.C. board.
(12)
Disconnect the connector of power monitor, receiver P.C.
board (CN 125, CN109) on the electronic control P.C.
board.
19
Photo 2
Screw of the
ground wire
Power monitor, receiver
P.C. board holder
Terminal block
fixing screw
Indoor electronic
control P.C. board
Screw of the V.A.
clamp
Screw of the
electrical cover
OPERATING PROCEDURE PHOTOS
3. Removing the electrical box
(1) Remove the panel. (Refer to 1.)
(2) Remove the electrical cover. (Refer to 2.)
(3) Remove the V.A. clamp. (Refer to 2.)
(4) Remove the cord clamp. (Refer to 2.)
(5) Remove the terminal block. (Refer to 2.)
(6) Remove the screw of ground wire. (Refer to 2.)
(7) Disconnect the connector of the indoor coil thermistor
(CN112), the fan motor connector (CN211 and CN121) and
the vane motor connector (CN151)on the electronic control
P.C. board.
(8) Remove the fan motor lead wire and indoor coil thermistor
from the electrical box.
Remove the lead wire of vane motor from the bottom of
(9)
electrical box.
Remove the screw fixing the electrical box, remove the
(10)
electrical box.
4. Removing the nozzle assembly and the vane motor
(1) Remove the panel. (Refer to 1.)
(2) Remove the electrical box. (Refer to 3.)
(3) Pull out the drain hose from the nozzle assembly, remove
the nozzle assembly.
(4) Remove the screws of the vane motor, disconnect the
vane motor connector.
(5) Remove the vane motor.
Photo 3
Photo 4
Indoor coil thermistor
connector
Fan motor connectors
Screws of the vane motor
Vane motor
connector
Screw of the
electrical box
5. Removing the indoor fan motor and the line flow fan
(1) Remove the panel. (Refer to 1.)
(2) Remove the electrical box. (Refer to 3.)
(3) Pull out the drain hose from the nozzle assembly, and
remove the nozzle assembly. (Refer to 4.)
(4) Remove the screw of the lead cover and lead cover.
(5) Release the hooks to open the motor band slightly.
(6) Loosen the hexagon socket set screw from the line flow
fan.
(7) Remove the screws fixing the motor bed, and remove the
fan motor with motor band and the motor bed.
(8) Remove the screws fixing the left side of the heat
exchanger.
(9) Lift the left side of the heat exchanger.
Remove the line flow fan.
(10)
Photo 6
Hexagon socket set screw
Drain hose
Photo 5
Screws of the
left side of the
heat exchanger
Photo 7
Screw of
the lead
cover
Hooks of the
motor band
Screws of
the motor
bed
20
HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
TM
MITSUBISHI ELECTRIC CONSUMER PRODUCTS (THAILAND) CO., LTD.
AMATA NAKORN INDUSTRIAL ESTATE
700/406 MOO 7, TAMBON DON HUA ROH,
AMPHUR MUANG, CHONBURI 20000 THAILAND
Made in Thailand
New publication, effective
Specifications subject to change without notice.
Feb. 2008
Loading...
