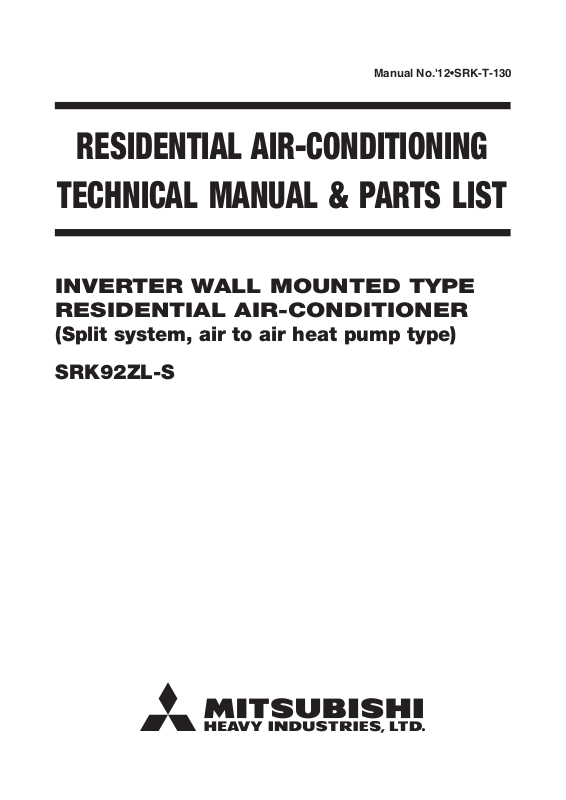

Mitsubishi SRC92ZL-S, SRK92ZL-S Technical Manual

RESIDENTIAL AIR-CONDITIONING

TECHNICAL MANUAL & PARTS LIST

INVERTER WALL MOUNTED TYPE RESIDENTIAL AIR-CONDITIONER (Split system, air to air heat pump type)

SRK92ZL-S

Manual No.'12•SRK-T-130

TECHNICAL MANUAL

'12 • SRK-T-130

'10 • SRK-T-105

CONTENTS

1. SPECIFICATION ........................................................................................ 3

(2) Outdoor unit ....................................................................................... 5

..................................................... 16

(3) Remote control

..................................................................................... 6

......................................................................... 4

(1) Indoor unit .......................................................................................... 4

2. EXTERIOR DIMENSIONS

3. ELECTRICAL WIRING .............................................................................. 8

(1) Indoor unit .......................................................................................... 8

4. NOISE LEVEL ............................................................................................ 10

(2) Outdoor unit ....................................................................................... 9

6. RANGE OF USAGE & LIMITATION

................................................................................... 18

7. CAPACITY TABLE

5. PIPING SYSTEM ...................................................................................... 15

.................................................................................. 19

8. APPLICATION DATA

9. OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER ............... 30

(7) Timer operation

.................................................................................. 33

....................................................... 31

(1) Operation control function by remote control

(6) Flap and louver control ........................................................................... 32

(5) Selection of the annual cooling function .............................................. 32

(4) Custom cord switching procedure

......................................................................... 31(3) Auto restart function

(2) Unit ON/OFF button

........................................................................... 31

...................................... 30

(8) Outline of heating operation ................................................................ 34

(10) Outline of automatic operation ........................................................... 35

(9) Outline of cooling operation ............................................................... 35

(11) Protective control function

................................................................... 36

..................... 44

............................................................................... 43

(4) Troubleshooting procedure (If the air conditioner runs)

(3) Troubleshooting procedure

(If the air conditioner does not run at all)

........ 43

(1) Cautions

............................................................................................. 43

(2) Items to check before troubleshooting ................................................. 43

(5) Self-diagnosis table ............................................................................. 45

(6) Service mode (Trouble mode access function) ................................... 46

(7) Inspection procedures corresponding to detail of trouble .................... 54

10. MAINTENANCE DATA

(1) Installation of indoor unit ...................................................................... 19

(2) Installation of outdoor unit .................................................................. 23

'10 • SRK-T-105

(10) How to make sure of wireless remote control ..................................... 60

(11) Outdoor unit inspection points .............................................................. 61

(8)

Phenomenon observed after shortcircuit, wire breakage on sensor

......... 58

(9) Checking the indoor electrical equipment

........................................... 59

■How to read the model name

Example: SRK 92 Z

Series code

Inveter type

Product capacity

Model name SRK : Wall mounted type

SRC : Outdoor unit

L-S

......................................................................................... 63

11. OPTION PARTS

.............................................................. 63

(1) Wired remote control (RC-E5)

..................................................................... 69

(2) Interface kit (SC-BIKN-E)

(3) Super link E board (SC-ADNA-E) ......................................................... 73

'12 • SRK-T-130

1. SPECIFICATION

Item

Power source 1 Phase, 220～240V, 50Hz

Nominal cooling capacity (range) kW 9.2 ( 2.4 (Min.) - 10.0 (Max.)) Nominal heating capacity (range) kW 10.0 ( 2.2 (Min.) - 11.2 (Max.)) Powe consumption Max power consumption 3.80 Running current

Operation data

Exterior dimensions (Height x Width x Depth) mm 318 x 1098 x 248 970 x 1300 x 370 Exterior appearance

( Munsell colour ) Net weight kg 15 91 Compressor type & Q'ty — RMT5126MCE1( Twin Rotary type ) x 1 Compressor motor (Starting method) kW — 4.0 ( Inverter driven ) Refrigerant oil (amount, type) — 0.90 ( DIAMOND FREEZE MA68 ) Refrigerant (Type, amount, pre-charge length) kg R410A 3.15 ( Pre-Charged up to the piping length of 15m ) Heat exchanger Louver ﬁns & inner grooved tubing M ﬁns & inner grooved tubing Refrigerant control Capillary tubes + Electronic expansion valve Fan type & Q'ty Tangential fan x 1 Propeller fan x 2 Fan motor (Starting method) W 56 x 1 ( Direct drive ) 86×2 ( Direct drive )

Air ﬂow

Available external static pressure Pa 0 0 Outside air intake Not possible — Air ﬁlter, Quality / Quantity Polypropylene net ( washable ) x 2 — Shock & vibration absorber Rubber sleeve ( for fan motor ) Electric heater — —

Operation control

Safety equipments

Installation data

Drain pump, max lift height mm — — Recommended breaker size A 20 L.R.A. (Locked rotor ampere) A 13.3 / 12.7 / 12.2 (220/ 230/ 240 V) Connection wiring Size x Core number 1.5mm2 x 4 cores ( Including earth cable ) / Terminal block ( Screw ﬁxing type ) IP number IPX0 IPX4 Standard accessories Option parts Interface kit ( SC-BIKN-E )

Inrush current, max current 13.3 / 12.7 / 12.2 (220/ 230/ 240 V)　　Max.　17.5

Power factor

EER Cooling 3.62 COP Heating 3.52

Sound power level

Sound pressure level

Silent mode sound pressure level — —

Remote control Wireless-Remote control Room temperature control Microcomputer thermostat Operation display RUN: Green , TIMER: Yellow , HI POWER: Green ,ECONO: Orange

Refrigerant piping size ( O.D ) mm Liquid line: φ6.35 ( 1/4" ) Gas line: φ15.88 ( 5/8" ) Connecting method Flare connection Flare connection Attached length of piping m Liquid line : 0.70 / Gas line : 0.63 — Insulation for piping Necessary ( Both sides ), independent Refrigerant line (one way) length m Max.30 Vertical height diff. between O.U. and I.U. Drain hose Hose connectable ( VP 16 ) Holes φ20 x 3 pcs

Notes (1) The data are measured at the following conditions. The pipe length is 7.5m.

Item

Indoor air temperature Outdoor air temperature

Operation

Cooling

Heating 20˚C

(2) This air-conditioner is manufactured and tested in conformity with the ISO. (3) Sound level indicates the value in an anechoic chamber. During operation these value are somewhat higher due to ambient conditions. (4) Select the breaker size according to the own national standard.

Cooling Heating 2.84 ( 0.43 ～ 3.76 )

Cooling Heating 13.3 / 12.7 / 12.2 (220/ 230/ 240 V)

Cooling Heating 97

Cooling Heating 64 67 Cooling Hi: 51 Me: 47 Lo: 41 Ulo: 26 53 Heating Hi: 49 Me: 46 Lo: 42 Ulo: 38 54

Cooling Heating Hi: 23.5 Me: 20.5 Lo: 17.0 Ulo: 15.0 100

DB WB DB WB

27˚C 19˚C 35˚C 24 ˚C

Model

dB(A)

m3/min

m Max.20 ( Outdoor unit is higher ) / Max.20 ( Outdoor unit is lower )

ー

Indoor unit SRK92ZL-S Outdoor unit SRC92ZL-S

11.9 / 11.4 / 10.9 (220/ 230/ 240 V)

65 67

Fine snow

( 8.0Y 9.3/0.1 ) near equivalent

Hi: 21.0 Me: 18.5 Lo: 15.0 Ulo: 8.0 105

Compressor overheat protection, Overcurrent protection,

Frost protection, Serial signal error protection, Indoor fan motor error protection,

Heating overload protection( High pressure control ), Cooling overload protection

Mounting kit, Clean ﬁlter ( Allergen clear ﬁlter x 1, Photocatalytic washable deodorizing ﬁlter x 1 )

7˚C 6˚C

SRK92ZL-S

2.54 ( 0.47 ～ 3.07 )

Rubber sleeve ( for fan motor & compressor )

Standards

ISO5151-T1

Adapted to RoHS directive

Stucco white

( 4.2Y 7.5/1.1 ) near equivalent

RWA000Z235

2. EXTERIOR DIMENSIONS

Outlet for down piping

（Refer to the above view）

Hole on wall for right rear piping

Hole on wall for left rear piping

Gas piping

Outlet for piping（on both side）

Drain hose

Outlet for wiring

Liquid piping

FGECD

Symbol

（φ65）

VP16

φ6.35（1／4"）（Flare）

Content

φ15.88（5／8"）（Flare）

（φ65）

Note（1）The model name label is attached

on the underside of the panel.

Wireless remote control

Wired Remote control

（Option）

Unit:mm

7753.5

633.5

703.5 792

7.7

44.5

301.8 8.5

5050

450349 299

106886106

100

49.5221.5

（Service space）

Unit

Installation plate

Space for installation and service when viewing from the front

6-5X17.5（Slot hole）

4－12X18（Slot hole）

（Service space）

244 610 244

225

1098

318

3248

410904

43.564

150

17.3

120

(1) Indoor unit

Model SRK92ZL-S

'12 • SRK-T-130

RKW000Z402

Intake

Outlet

space

Service

Minimum installation space

15.88（5／8"）（Flare）

Content

C Pipe／cable draw-out hole

E Anchor bolt hole

Drain discharge hole

Symbol

M10

4places

φ20×3places

Service valve connection（liquid side）

6.35（1／4"）（Flare）

Unit:mm

Service valve connection of the

attached connecting pipe（gas side）

103

262 325

103

200580190

40370

41020 20

300

100

250

Open

250

100

500

Open

250

150

250

Examples of

Dimensions

installation

The height of a wall is 1200mm or less

Terminal block

150

7050

195

11050

1300

970

195

11050

F Cable draw-out hole

φ30（front）

φ45（side）

φ50（back）

626

574

Ⅰ Ⅱ

Ⅲ

Notes

(1) It must not be surrounded by walls on the four sides.

(2) The unit must be fixed with anchor bolts. An anchor bolt must not

protrude more than 15mm.

(3) Where the unit is subject to strong winds, lay it in such

a direction that the blower outlet faces perpendicularly

to the dominant wind direction.

(4) Leave 1m or more space above the unit.

(5) A wall in front of the blower outlet must not exceed the units height.

(6) The model name label is attached on the rear panel.

(2) Outdoor unit

Model SRC92ZL-S

'12 • SRK-T-130

RCR0 00Z006

(3) Remote control

Unit: mm

17.3

150

(a) Wireless remote control

'12 • SRK-T-130

(b) Wired remote control (option parts)

TEMP ON/OFF

□120

L C D

Wall surface

Wiring

Electrical box

（Not included）

Wiring specifications

Exposed mounting

11.5 11

Remote control outline

120

83.5

120

Remote control installation dimensions

Wiring oulet

Installation hole

12×7 Slot hole

9.5×5 Slot hole （4places）

（1） Installation screw for remote control

M4 Screw (2 pieces)

(1) If the prolongation is over 100m, change to the size below. But, wiring in the remote control case should be under 0.5mm2. Change the wire size outside of the case according to wire connecting. Waterproof treatment is necessary at the wire connecting section. Be careful about contact failure.

Length Wiring thickness

100 to 200m

0.5mm2×2 cores

0.75mm2×2 cores

1.25mm2×2 cores

2.0mm2×2 cores

Under 300m Under 400m Under 600m

Upper part

Lower part

Lower case

Sheath

Upper cace

Board

Wiring

Upper

Lower

X Y

Sheath

Upper cace

Board

Wiring

Upper

Lower

Tighten the screws after cutting off the thin part of screw mounting part.

Embedded mounting

The peeling-off length of sheath

The peeling-off length

of sheath

In case of pulling out from

upper left

In case of pulling out from upper left

X wiring : 170mm Y wiring : 190mm

Pulling out from center

X wiring : 215mm Y wiring : 195mm

Pulling out from upper left

Exterior appearance (Munsell color)

Pearl White

(N8.5) near equivalent

In case of pulling out from center

Wiring outlet Cut off the upper thin part of remote control lower case with a nipper or knife, and grind burrs with a file etc.

0.3mm2×2 cores.

X, Y Terminal block Attach M3 screw

with washer

Unit:mm

Interface kit (SC-BIKN-E) is required to use the wired remote control.

'12 • SRK-T-130

PJZ0 00Z274

3. ELECTRICAL WIRING

250V

3.15A

S／N

CNU

CNS

INTERFACE KIT

SC-BIKN-E

CNG

CNE

DISPLAY

WIRELESS RECEIVER

CNF

HEAT

13456

BACK-UP SW

EXCHANGER

Th1

BOARD

CIRCUIT

PRINTED

CNX2

CNX1

WHBKBL

Y／G

Th21Th2

Th3

LM1

LM2

SM1

FMI

TO OUTDOOR UNIT

HEAT

EXCHANGER

2／N

POWER WIRES

SIGNAL WIRE

2／N

Power source

～220／230／240V 50Hz

Color Marks

Blue

BlackBK

Red

WhiteWH

Yellow／Green

Y／G

YellowY

ColorMark

Heat exch. sensor

Humidity sensor

Fan motor

Room temp. sensor

Flap motor

Th1

Th2

1,2

Th3

Diode stackDS

FuseF

Connector

CNE-CNX2

FMI

Terminal blockT

Louver motorLM

1,2

Description

Item

VaristorVa

(1) Indoor unit

Model SRK92ZL-S

'12 • SRK-T-130

RWA000Z402

'12 • SRK-T-130

Color

Mark

OrangeOR

Yellow／GreenY／G

BlackBK

BrownBR

YellowY

WhiteWH

Red

DescriptionItem

Connector

CN20S

Electric expansion valve（coil）

EEV

Fan motor 1

FMo1

ReactorLTerminal block

TB1,2

Compressor motor

Solenoid valve for 4 way valve

20S

Heat exchanger sensor（outdoor unit）

TH2

Outdoor air temp.sensor

TH3

TH4

Discharge pipe temp.sensor

CNTH

CNEEV

CNFAN1,2

Fan motor 2

FMo2

POWER

Model

Power cable, indoor-outdoor connecting wires

The specifications shown in the above table are for units without heaters. For units with heaters, refer

to the installation instructions or the construction instructions of the indoor unit.

Switchgear of Circuit breaker capacity which is calculated from MAX. over current should be chosen

along the regulations in each country.

The cable specifications are based on the assumption that a metal or plastic conduit is used with no

more than three cables contained in a conduit and a voltage drop is 2%. For an installation falling

outside of these conditions, please follow the internal cabling regulations. Adapt it to the regulation

in effect in each country.

17.5 2.5 30 1.5mm

x 4 1.592

～220／230／240V 50Hz

TO INDOOR UNIT

POWER WIRES

SIGNAL WIRE

（BK）

（WH）

（RD）

VWU

PWB ASSY（MAIN）PWB1

+ +

TRANSISTOR

POWER

CIRCUIT

SWITCHING

250V 3.15A

250V 20A

F3 250V 3.15A

CNTH

CNEEV

t゜

3～

ACTIVE

FILTER

UNIT

250V 20A

（OR）

（YE）

S-2

（BK）

（WH）

PWB ASSY（SUB）PWB2

S-1

CNSUB

CNMAIN

250V 1A

SINR

（BK）

（WH）

（Y／G）

250V 20A

FUSE

（Y／G）

CN20S

C-2

（RD）

20S

（RD）

TB1

TB2

TERMINAL

BLOCK

2 2

TH2 TH3 TH4

EEV

BLOCK

TERMINAL

t゜

POWER

C-1

（WH）

M M

250V 1A

CNFAN1 CNFAN2

（BK）

（WH）

（RD）

（WH）（WH）

CN20V

（WH）

CN20V

（WH）

CNFAN

CNFAN0

（WH）

（BK）

（WH）

CNA

（WH）

（Y／G）

（WH）

FMo1 FMo2

MAX running current

Power cable size

（mm

）

（A）

Power cable length

（m）

indoor-outdoor

wire size x number

Earth wire size

（mm

）

[ ]

(2) Outdoor unit

Model SRC92ZL-S

RWC0 00Z260

'12 • SRK-T-130

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

●

Mike position: at highest noise level in position as mentioned below

Distance from front side 1m

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

4. NOISE LEVEL

(1) Rated capacity value

(Indoor Unit) Model SRK92ZL-S

Noise

Level

Cooling 51 dB(A) Heating 48 dB(A)

Condition ISO-T1,JIS C9612

......

Cooling Heating

(Outdoor Unit) Model SRC92ZL-S

Noise

Level

Cooling 53 dB(A) Heating 54 dB(A)

......

Cooling Heating

ISC1 2092

'12 • SRK-T-130

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

●

Mike position: at highest noise level in position as mentioned below

Distance from front side 1m

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

(2) Max value in Hi MODE

(Indoor Unit)

Model SRK92ZL-S Noise

Level

Cooling 51 dB(A) Heating 49 dB(A)

Condition ISO-T1,JIS C9612

......

Cooling Heating

(Outdoor Unit)

Model SRC92ZL-S Noise

Level

Cooling 58 dB(A) Heating 60 dB(A)

......

Cooling Heating

ISC1 2092

'12 • SRK-T-130

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

●

Mike position: at highest noise level in position as mentioned below

Distance from front side 1m

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

(3) Max value in Me MODE

(Indoor Unit) Model SRK92ZL-S

Noise

Level

Cooling 47 dB(A) Heating 46 dB(A)

(Outdoor Unit) Model SRC92ZL-S

Noise

Level

Cooling 52 dB(A) Heating 60 dB(A)

Condition ISO-T1,JIS C9612

......

Cooling Heating

......

Cooling Heating

ISC1 2092

'12 • SRK-T-130

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

●

Mike position: at highest noise level in position as mentioned below

Distance from front side 1m

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

(4) Max value in Lo MODE

(Indoor Unit)

Model SRK92ZL-S Noise

Level

Cooling 41 dB(A) Heating 42 dB(A)

Condition ISO-T1,JIS C9612

......

Cooling Heating

(Outdoor Unit)

Model SRC92ZK-S Noise

Level

Cooling 50 dB(A) Heating 54 dB(A)

......

Cooling Heating

ISC1 2092

'12 • SRK-T-130

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

●

Mike position: at highest noise level in position as mentioned below

Distance from front side 1m

●

Mike position as below

0.8m

Unit

Mike position (Center & Low points)

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

  

 

   



/KF1EVCXG$CPFHTGSWGPE[*\















0

0

0

0

0

0















5QWPF2TGUUWTG.GXGNF$

UVCPFCTF



2C

(5) Max value in ULo MODE

(Indoor Unit) Model SRK92ZL-S

Noise

Level

Cooling 26 dB(A) Heating 38 dB(A)

Condition ISO-T1,JIS C9612

......

Cooling Heating

(Outdoor Unit) Model SRC92ZL-S

Noise

Level

Cooling 42 dB(A) Heating 51 dB(A)

......

Cooling Heating

ISC1 2092

5. PIPING SYSTEM

Model SRK92ZL-S

Indoor unit

Outdoor unit

Flare connection

Liquid pipe

Gas pipie

Service valve

Heat exchanger

Heat exchanger sensor

Electronic expansion valve

(Liquid)

Strainer

Receiver

Strainer

Capillary tube

Outdoor air temp. sensor

Muffler

Compressor

Discharge pipe temp. sensor

Cooling cycle

Heating cycle

Check joint

4way valve

Service valve

Heat exchanger sensor

(Th22)

(TH4)

Room temp. sensor

(Th1)

Humidity sensor

(Th3)

(Th21)

(

Gas

)

(TH3)

Heat exchanger sensor

(TH2)

(EEV)

Capillary tube

Heat exchanger

Accumlator

Model SRK92ZL-S

'12 • SRK-T-130

6. RANGE OF USAGE & LIMITATION

6. RANGE OF USAGE & LIMITATIONS

Indoor return air temperature (Upper, lower limits)

Refrigerant line (one way) length

Power source voltage Rating ±10%

Voltage at starting Min. 85% of rating

Frequency of ON-OFF cycle

Max. 6 times/h

(Inching prevention 6 minutes)

ON and OFF interval Min. 3 minutes

Outdoor air temperature (Upper, lower limits)

Vertical height difference between outdoor unit and indoor unit

Max. 30m

Max. 20m (Outdoor unit is higher)

Max. 20m (Outdoor unit is lower)

Item

Model

SRK92ZL-S

Cooling operation : Approximately 18 to 32℃ D.B. Heating operation : Approximately 15 to 30℃ D.B.

(Refer to the selection chart)

Cooling operation : Approximately -15 to 46℃ D.B.

Heating operation : Approximately -15 to 24℃ D.B. (Refer to the selection chart)

Selection chart

Correct the cooling and heating capacity in accordance with the conditions as follows. The net cooling and heating capacity can be obtained in the following way.

Net capacity = Capacity shown on specification ×Correction factors as follows.

(1) Coefficient of cooling and heating capacity in relation to temperatures

SRK25ZJP-S1,35ZJP-S1 SRK50ZJP-S1

Net capacity = Capacity shown on speciﬁcation Correction factors as follows.

(1) Coefﬁcient of cooling and heating capacity in relation to temperatures

0.6

0.7

0.8

0.9

1.0

1.2

1.1

1.3

-5

-10

-15

Outdoor air W.B. temperature °C W.B.

-10 -5 0 5 10 15

Cooling operation

Outdoor air D.B.

temperature

°C D. B.

Coefficient of cooling

Heating capacity in

relation to temperature

Heating operation

Indoor air D.B.

temperature

°C D. B.

ISO-T1 Standard Condition

Depends on installed situation

ISO-T1 Standard Condition

2220181614

Indoor air W.B. temperature °C W.B

Applicable range

Cooling

Heating

'12 • SRK-T-130

'09•SRK-DB-087D

(2) Correction of cooling and heating capacity in relation to one way length of refrigerant piping

(3) Correction relative to frosting on outdoor heat exchanger during heating

How to obtain the cooling and heating capacity

Piping length [m]

Cooling

Heating

1.0

0.99

1.0

0.975

1.0

0.965

1.0

0.95

1.0

0.935

1.0

Air inlet temperature of

outdoor unit in °C WB

Adjustment coefficient

-15

0.95 0.95 0.94 0.93 0.91 0.88 0.86 0.87 0.92 1.00

-10 -9 -7 -5 -3 -1 1 3

5 or more

SRK92ZL-S

9200

SRK92ZL-S

8970

'12 • SRK-T-130

7. CAPACITY TABLE

Model

SRK92ZL-S Cool Mode

Indoor air temp

21℃DB 23℃DB 26℃DB 27℃DB 28℃DB 31℃DB 33℃DB

Outdoor

Air ﬂow

air temp.

14℃WB 16℃WB 18℃WB 19℃WB 20℃WB 22℃WB 24℃WB

TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC

10.37

7.61

10.85

7.48

11.25

7.67

11.44

7.56

11.64

7.44

11.98

10.18

7.51

10.67

7.38

11.09

7.59

11.29

7.48

11.49

7.38

11.85

14 9.99 7.40

16 9.79 7.28

18 9.59 7.18

20 9.38 7.06 9.88 6.98

22 9.16 6.96 9.67 6.87

24 8.94 6.84 9.45 6.77

21.0

(m3/min)

26 8.72 6.72 9.22 6.65 9.82 6.98

28 8.49 6.59 8.99 6.54 9.62 6.90 9.91 6.86

30 8.25 6.48 8.76 6.42 9.41 6.80 9.71 6.78 9.93 6.71

32 8.01 6.35 8.51 6.31 9.20 6.71 9.51 6.69 9.73 6.62

34 7.77 6.23 8.27 6.19 8.98 6.61 9.31 6.59 9.52 6.53

35 7.64 6.17 8.14 6.13 8.86 6.56 9.20 6.55 9.42 6.49 9.99 6.78

36 7.51 6.11 8.01 6.07 8.75 6.50 9.09 6.51 9.31 6.45 9.89 6.75

38 7.26 5.97 7.75 5.94 8.52 6.41 8.88 6.41 9.09 6.35 9.69 6.68

39 7.12 5.91 7.62 5.88 8.40 6.35 8.77 6.37 8.98 6.31 9.59 6.63

Note (1) These data show average statuses.

Depending on the system control, there may be ranges where the operation is not conducted continuously.

These data show the case where the operation frequency of a compressor is xed.

(2) Capacities are based on the following conditions.

Corresponding refrigerant piping length : 7m.

Level difference of Zero.

(3) Symbols are as follows.

TC:Total cooling capatity

SHC:Sensible heat capacity

HC:Heating capacity

10.48

10.29

10.09

7.28

7.19

7.07

10.93

10.76

10.58

10.40

10.21

10.02

7.51

7.43

7.34

7.26

7.17

7.07

11.13

10.98

10.81

10.64

10.47

10.29

10.10

7.41

7.34

7.26

7.19

7.11

7.01

6.94

11.34

11.18

11.02

10.85

10.68

10.50

10.32

10.13

7.31

7.25

7.17

7.09

7.00

6.93

6.86

6.78

11.72

11.58

11.43

11.28

11.13

10.97

10.80

10.63

10.45

10.27

10.08

7.58

7.52

7.47

7.41

7.36

7.29

7.24

7.17

7.11

7.01

6.95

6.88

6.82

12.30

12.18

12.06

11.93

11.79

11.65

11.50

11.35

11.19

11.03

10.86

10.68

10.50

10.41

10.32

10.12

10.03

(kW)

7.31

7.27

7.23

7.18

7.13

7.07

7.02

6.97

6.89

6.83

6.78

6.72

6.66

6.63

6.60

6.53

6.50

'12 • SRK-T-130

Heat Mode(HC)

Outdoor

Air ﬂow

air temp.

-15℃WB 6.15 6.02 5.88 5.76 5.63

-10℃WB 6.96 6.84 6.75 6.58 6.44

23.5

(m3/min)

16℃DB 18℃DB 20℃DB 22℃DB 24℃DB

-5℃WB 7.54 7.43 7.28 7.20 7.08

0℃WB 7.91 7.79 7.65 7.56 7.45

5℃WB 10.07 9.95 9.90 9.70 9.57

6℃WB 10.23 10.11 10.00 9.87 9.75

10℃WB 10.87 10.77 10.70 10.56 10.45

15℃WB 11.84 11.73 11.65 11.52 11.41

20℃WB 12.72 12.62 12.56 12.41 12.31

Indoor air temp

(kW)

ISC1 2091

BEFORE INSTALLATION

○ Before installation check that the power supply matches the air conditioner.

SELECTION OF INSTALLATION LOCATION

Indoor unit

(Install at location that meets the following conditions, after getting approval from the customer)

○ Where there is no obstructions to the air flow and where the cooled and heated air can be evenly distributed.

○ A solid place where the unit or the wall will not vibrate.

○ A place where there will be enough space for servicing. (Where space mentioned below can be secured)

○ Where wiring and the piping work will be easy to conduct.

○ The place where receiving part is not exposed to the direct rays of the sun or the strong rays of the street lighting.

○ A place where it can be easily drained.

○ A place separated at least 1m away from the television or the radio. (To prevent interference to images and sounds.)

○ Places where this unit is not affected by the high frequency equipment or electric equipment.

○ Avoid installing this unit in place where there is much oil mist.

5 cm mini

from the w

all

inimum

from the

Installation board

6.5 cm minimum from the ceiling

R410A REFRIGERANT USED

WALL TYPE AIR CONDITIONER

INSTALLATION MANUAL FOR INDOOR UNIT

RKW012A400

Q’ty

Standard accessories (Installation kit)

Accessories for indoor unit

Installation board

(Attached to the rear of the indoor unit)

Wireless remote control

Remote control holder

SAFETY PRECAUTIONS

WARNING

• Read the “SAFETY PRECAUTIONS” carefully first of all and strictly follow it

during the installation work in order to protect yourself.

• The precautionary items mentioned below are distinguished into two levels,

and .

: Wrong installation would cause serious consequences such

as injuries or death.

: Wrong installation might cause serious consequences

depending on circumstances.

Both mentions the important items to protect your health and safety so strictly

follow them by any means.

• Be sure to confirm no anomaly on the equipment by commissioning after com-

pleted installation and explain the operating methods as well as the maintenance

methods of this equipment to the user according to the owner’s manual.

• Keep the installation manual together with owner’s manual at a place where

any user can read at any time. Moreover if necessary, ask to hand them to a

new user.

• For installing qualified personnel, take precautions in respect to themselves by

using suitable protective clothing, groves, etc., and then perform the

installation works.

• Please pay attention not to fall down the tools, etc. when installing the unit at

the high position.

• If unusual noise can be heard during operation, consult the dealer.

• The meanings of “Marks” used here are as shown on the right:

• This installation manual illustrates the method of installing an indoor

unit.

• For electrical wiring work, please see instructions set out on the

backside.

• For outdoor unit installation and refrigerant piping, please refer to the

installation manual that comes with your outdoor unit.

• A wired remote control unit is supplied separately as an optional part.

• When install the unit, be sure to check whether the selection of

installation place, power supply specifications, usage limitation (piping

length, height differences between indoor and outdoor units, power

supply voltage and etc.) and installation spaces.

Never do it under any

circumstances.

Always do it according to the

instruction.

CAUTIONWARNING

CAUTION

WARNING

• Installation must be carried out by the qualified installer.

If you install the system by yourself, it may cause serious trouble such as

water leaks, electric shocks, fire and personal injury, as a result of a

system malfunction.

• Install the system in full accordance with the installation manual.

Incorrect installation may cause bursts, personal injury, water leaks, electric

shocks and fire.

• Be sure to use only for household and residence.

If this appliance is installed in inferior environment such as machine shop

and etc., it can cause malfunction.

• Use the original accessories and the specified components for

installation.

If parts other than those prescribed by us are used, It may cause water

leaks, electric shocks, fire and personal injury.

• Install the unit in a location with good support.

Unsuitable installation locations can cause the unit to fall and cause

material damage and personal injury.

• Ventilate the working area well in the event of refrigerant leakage

during installation.

If the refrigerant comes into contact with naked flames, poisonous gas is

produced.

• When installing in small rooms, take prevention measures not to

exceed the density limit of refrigerant in the event of leakage,

referred by the formula (accordance with ISO5149).

If the density of refrigerant exceeds the limit, please consult the dealer and

install the ventilation system, otherwise lack of oxygen can occur, which

can cause serious accident.

• After completed installation, check that no refrigerant leaks from

the system.

If refrigerant leaks into the room and comes into contact with an oven or

other hot surface, poisonous gas is produced.

• Use the prescribed pipes, flare nuts and tools for R410A.

Using existing parts (for R22 or R407C) can cause the unit failure and

serious accidents due to burst of the refrigerant circuit.

• Tighten the flare nut by torque wrench with specified method.

If the flare nut were tightened with excess torque, this may cause burst and

refrigerant leakage after a long period.

• The electrical installation must be carried out by the qualified

electrician in accordance with “the norm for electrical work” and

“national wiring regulation”, and the system must be connected to

the dedicated circuit.

Power supply with insufficient capacity and incorrect function done by

improper work can cause electric shocks and fire.

• Be sure to shut off the power before starting electrical work.

Failure to shut off the power can cause electric shocks, unit failure or

incorrect function of equipment.

• Be sure to use the cables conformed to safety standard and cable

ampacity for power distribution work.

Unconformable cables can cause electric leak, anomalous heat production

or fire.

• This appliance must be connected to main power supply by means

of a circuit breaker or switch (fuse:20A) with a contact separation of

at least 3mm.

• When plugging this appliance, a plug conforming to the norm

IEC60884-1 must be used.

• Use the prescribed cables for electrical connection, tighten the

cables securely in terminal block and relieve the cables correctly to

prevent overloading the terminal blocks.

Loose connections or cable mountings can cause anomalous heat

production or fire.

• Arrange the wiring in the control box so that it cannot be pushed up

further into the box. Install the service panel correctly.

Incorrect installation may result in overheating and fire.

• Be sure to switch off the power supply in the event of installation,

inspection or servicing.

If the power supply is not shut off, there is a risk of electric shocks, unit

failure or personal injury due to the unexpected start of fan.

CAUTION

• Use the circuit breaker of correct capacity. Circuit breaker should

be the one that disconnect all poles under over current.

Using the incorrect one could cause the system failure and fire.

• Earth leakage breaker must be installed.

If the earth leakage breaker is not installed, it can cause electric shocks.

• Install isolator or disconnect switch on the power supply wiring in

accordance with the local codes and regulations.

• Be sure to install indoor unit properly according to the installation

manual in order to run off the drainage smoothly.

Improper installation of indoor unit can cause dropping water into the room

and damaging personal property.

• Install the drainage pipe to run off drainage securely according to

the installation manual.

Incorrect installation of the drainage pipe can cause dropping water into the

room and damaging personal property.

• Be sure to install the drainage pipe with descending slope of 1/100

or more, and not to make traps and air-bleedings.

Check if the drainage runs off securely during commissioning and ensure

the space for inspection and maintenance.

• Secure a space for installation, inspection and maintenance

specified in the manual.

Insufficient space can result in accident such as personal injury due to

falling from the installation place.

• For installation work, be careful not to get injured with the heat

exchanger, piping flare portion or screws etc.

• Be sure to insulate the refrigerant pipes so as not to condense the

ambient air moisture on them.

Insufficient insulation can cause condensation, which can lead to moisture

damage on the ceiling, floor, furniture and any other valuables.

• When perform the air conditioner operation (cooling or drying

operation) in which ventilator is installed in the room. In this case,

using the air conditioner in parallel with the ventilator, there is the

possibility that drain water may backflow in accordance with the

room lapse into the negative pressure status. Therefore, set up the

opening port such as incorporate the air into the room that may

appropriate to ventilation (For example; Open the door a little). In

addition, just as above, so set up the opening port if the room lapse

into negative pressure status due to register of the wind for the high

rise apartment etc.

• Be sure to perform air tightness test by pressurizing with nitrogen

gas after completed refrigerant piping work.

If the density of refrigerant exceeds the limit in the event of refrigerant

leakage in the small room, lack of oxygen can occur, which can cause

serious accidents.

• Do not install the unit in the locations listed below.

• Locations where carbon fiber, metal powder or any powder is floating.

• Locations where any substances that can affect the unit such as sulphide

gas, chloride gas, acid and alkaline can occur.

• Vehicles and ships.

• Locations where cosmetic or special sprays are often used.

• Locations with direct exposure of oil mist and steam such as kitchen and

machine plant.

• Locations where any machines which generate high frequency harmonics

are used.

• Locations with salty atmospheres such as coastlines.

• Locations with heavy snow (If installed, be sure to provide base flame and

snow hood mentioned in the manual).

• Locations where the unit is exposed to chimney smoke.

• Locations at high altitude (more than 1000m high).

• Locations with ammonic atmospheres.

• Locations where heat radiation from other heat source can affect the unit.

• Locations without good air circulation.

• Locations with any obstacles which can prevent inlet and outlet air of the unit.

• Locations where short circuit of air can occur (in case of multiple units

installation).

• Locations where strong air blows against the air outlet of outdoor unit.

It can cause remarkable decrease in performance, corrosion and damage

of components, malfunction and fire.

• Do not install the indoor unit in the locations listed below (Be sure

to install the indoor unit according to the installation manual for

each model because each indoor unit has each limitation).

• Locations with any obstacles which can prevent inlet and outlet air of the

unit.

• Locations where vibration can be amplified due to insufficient strength of

structure.

• Locations where the infrared receiver is exposed to the direct sunlight or

the strong light beam (in case of the infrared specification unit).

• Locations where an equipment affected by high harmonics is placed (TV

set or radio receiver is placed within 1m).

• Locations where drainage cannot run off safely.

It can affect performance or function and etc.

• Do not install the unit near the location where leakage of

combustible gases can occur.

If leaked gases accumulate around the unit, it can cause fire.

• Do not install the unit where corrosive gas (such as sulfurous acid

gas etc.) or combustible gas (such as thinner and petroleum gases)

can accumulate or collect, or where volatile combustible

substances are handled.

Corrosive gas can cause corrosion of heat exchanger, breakage of plastic

parts and etc. And combustible gas can cause fire.

• Do not use the indoor unit at the place where water splashes may

occur such as in laundries.

Since the indoor unit is not waterproof, it can cause electric shocks and fire.

• Do not install nor use the system close to the equipment that

generates electromagnetic fields or high frequency harmonics.

Equipment such as inverters, standby generators, medical high frequency

equipments and telecommunication equipments can affect the system, and

cause malfunctions and breakdowns. The system can also affect medical

equipment and telecommunication equipment, and obstruct its function or

cause jamming.

• Do not place any variables which will be damaged by getting wet

under the indoor unit.

When the relative humidity is higher than 80% or drainage pipe is clogged,

condensation or drainage water can drop and it can cause the damage of

valuables.

• Do not install the remote control at the direct sunlight.

It can cause malfunction or deformation of the remote control.

• Do not use the unit for special purposes such as storing foods,

cooling precision instruments and preservation of animals, plants or

art.

It can cause the damage of the items.

• Do not use any materials other than a fuse with the correct rating in

the location where fuses are to be used.

Connecting the circuit with copper wire or other metal thread can cause

unit failure and fire.

• Do not touch any buttons with wet hands.

It can cause electric shocks.

• Do not touch any refrigerant pipes with your hands when the

system is in operation.

During operation the refrigerant pipes become extremely hot or extremely

cold depending the operating condition, and it can cause burn injury or

frost injury.

• Carry out the electrical work for ground lead with care.

Do not connect the ground lead to the gas line, water line, lightning conductor or telephone line’s ground lead. Incorrect grounding can cause unit faults

such as electric shocks due to short-circuiting.

• Do not put the drainage pipe directly into drainage channels where

poisonous gases such as sulphide gas can occur.

Poisonous gases will flow into the room through drainage pipe and

seriously affect the user’s health and safety. This can also cause the

corrosion of the indoor unit and a resultant unit failure or refrigerant leak.

• Ensure that no air enters in the refrigerant circuit when the unit is

installed and removed.

If air enters in the refrigerant circuit, the pressure in the refrigerant circuit

becomes too high, which can cause burst and personal injury.

• Do not processing, splice the power cord, or share a socket with

other power plugs.

This may cause fire or electric shock due to defecting contact, defecting

insulation and over-current etc.

• Do not bundling, winding or processing for the power cord. Or, do

not deforming the power plug due to tread it.

This may cause fire or heating.

• Do not vent R410A into the atmosphere : R410A is a fluorinated

greenhouse gas, covered by the Kyoto Protocol with Groval

Warming Potential (GWP)=1975.

• Do not run the unit with removed panels or protections.

Touching rotating equipments, hot surfaces or high voltage parts can cause

personal injury due to entrapment, burn or electric shocks.

• Do not perform any change of protective device itself or its setup

condition.

The forced operation by short-circuiting protective device of pressure

switch and temperature controller or the use of non specified component

can cause fire or burst.

WARNING

'12 • SRK-T-130

Model SRK92ZL-S

8. APPLICATION DATA

(1) Installation of indoor unit

'12 • SRK-T-130

Necessary tools for the installation work

Q’ty

Option parts

Sealing plate

Sleeve

Inclination plate

Putty

Drain hose (extension hose)

Piping cover

(for insulation of connection piping)

Plus headed driver

Knife

Saw

Tape measure

Hammer

Spanner wrench

Torque wrench

Hole core drill (65mm in diameter)

Wrench key (Hexagon) [4m/m]

Flaring tool set

Gas leak detector

Pipe bender

Gauge for projection adjustment

Used when flare is made by using

conventional flare tool

( )

14.0 ~ 82.0N·m

(1.4 ~ 8.2kgf·m)

(

Designed specifically

for R410A

)

Piping in the left direction

Piping in the right rear directionPiping in the left rear direction

Piping in the right direction

INSTALLATION SPACE (INDOOR UNIT)

(FRONT VIEW)

Piping is possible in the rear, left, left rear, left downward, right or downward direction.

Right

Rear

Downward

Left

rear

Left downward

Left

Wireless remote control

Remote control holder

Wood screws

BEFORE INSTALLATION

○

Before installation check that the power supply matches the air conditioner.

SELECTION OF INSTALLATION LOCATION

INSTALLATION OF INDOOR UNIT

Indoor unit

Relation between setting plate and indoor unit

Installing the support of piping

(Install at location that meets the following conditions, after getting approval from the customer)

○

Where there is no obstructions to the air flow and where the cooled and heated air can be evenly distributed.

○

A solid place where the unit or the wall will not vibrate.

○ A place where there will be enough space for servicing. (Where space mentioned below can be secured)

○ Where wiring and the piping work will be easy to conduct.

○ The place where receiving part is not exposed to the direct rays of the sun or the strong rays of the street lighting.

○ A place where it can be easily drained.

○ A place separated at least 1m away from the television or the radio. (To prevent interference to images and sounds.)

○ Places where this unit is not affected by the high frequency equipment or electric equipment.

○ Avoid installing this unit in place where there is much oil mist.

○ Places where there is no electric equipment or household under the installing unit.

Wireless remote control

In case of piping in the right rear direction

○ A place where the air conditioner can be received the signal surely during operating the wireless remote control.

○ Places where there is no affected by the TV and radio etc.

○

Do not place where exposed to direct sunlight or near heat devices such as a stove.

Sufficient care must be taken not to damage

the panel when connecting pipes.

[Top view]

When drilling the wall that contains a metal lath, wire lath or metal plate, be sure to use pipe hole sleeve sold separately.

• Matters of special notice when piping from left or central/rear of the unit.

Left-hand-side piping Right-hand-side piping

Installation of Installation board

Drilling of holes and fixture of sleeve (Option parts)

Fixing on concrete wall

Use of nut anchor Use of bolt anchor

Shaping of pipings Taping of the exterior

Pipings

Drain hose

Top

Nut

(M6)

Mounting

board

Mounting

board

Max.10

Thickness of the wall + 1.5cm

ø65

Indoor side Outdoor sideIndoor side Outdoor side Installed state

Turn to

tighten

Bolt

(M6 12)

5 cm mini

from the w

all

inimum

from the

Installation board

Sleeve (sold separately)

6.5 cm minimum from the ceiling

○ In case of rear piping draw out, cut off the lower

and the right side portions of the sleeve collar.

○ Drill a hole with whole core drill.

○ Hold the bottom of the

piping and fix direction

before stretching it and

shaping it.

○ Tape only the portion

that goes through the

wall.

○ Always tape the wiring

with the piping.

[Drain hose changing procedures]

1. Remove the drain hose 2. Remove the drain cap.

○ Remove it with hand or pliers.○ Remove the screw and drain hose,

making it rotate.

3. Insert the drain cap. 4. Connect the drain hose.

○ Insert the drain cap which was removed

at procedure “2” securely using a

hexagonal wrench etc.

Note: Be careful that If it is not Inserted

securely, water leakage may occur.

○ Insert the drain hose securely, making

rotate. And install the screw.

Note: Be careful that If it is not Inserted

securely, water leakage may

occur.

○ Adjustment of the installation board in the horizontal direction is to

be conducted with eight screws in a temporary tightened state.

○

Adjust so the board will be

level by turning the board

with the standard hole as

the center.

Look for the inside wall structures (Intermediats support or pillar

and firmly install the unit after level surface has been checked.)

CAUTION

Completely seal the hole on

the wall with putty. Otherwise,

furniture, or other, may be

wetted by leaked water or

dewing.

putty

Q’ty

Standard accessories (Installation kit)

Accessories for indoor unit

Installation board

(Attached to the rear of the indoor unit)

Wireless remote control

Remote control holder

Battery [R03 (AAA, Micro) 1.5V]

Air-cleaning filters

Insulation (#486 50 x 100 t3)

Filter holders

(Attached to the front panel of indoor unit)

Tapping screws

(for installation board ø4 X 25mm)

Wood screws

(for remote control switch holder ø3.5 X 16mm)

( )

Designed specifically

for R410A

Indoor side Outdoor side

Standard

hole

610

450

Mating mark for

level surface

(Unit : mm)

Indoor unit

For bolt anchor

and nut anchor

Installation board

Space

for service

100

Space

for service

Piping hole (ø65)

50 50

349106

44.5

221.5

15 Space

for service

65 Space

for service

7.7 301.8 8.5

44.5

49.5

106

450

886

53.5 77

Piping for Gas 633.5

Piping for Liquid 703.5

Drain hose 772 (ø16)

Piping hole (ø65)

299

'12 • SRK-T-130

• Flaring work

Measurement B

Flaring

block

Copper pipe

Finishing work and fixing

Connection wiring,

Earth wiring

Outer tape

Refrigerant piping

Drain hose

Wood screw

Clamp

Cover the exterior portion with outer tape and

shape the piping so it will match the contours

of the route that the piping to take.

Also fix the wiring and pipings to the wall with

clamps.

Open/close and detachment/attachment of the air inlet panel

○ To open, pull the panel at both ends of lower part

and release latches, then pull up the panel until

you feel resistance.

(The panel stops at approx. 60° open position)

○ To close, hold the panel at both ends of lower

part to lower downward and push it slightly until

the latch works.

○ To remove, pull up the panel to the position

shown in right illustration and pull it toward you.

○ To install, insert the panel arm into the slot on the

front panel from the position shown in right

illustration, hold the panel at both ends of lower

part, lower it downward slowly, then push it

slightly until the latch works.

How to remove and install the front panel

Open the air inlet panel.

Remove the lid.

Remove the wiring clamp.

Connect the connecting wire securely to the terminal block.

1) Connect the connection wire securely to the terminal

block. If the wire is not affixed completely, contact will be

poor, and it is dangerous as the terminal block may heat

up and catch fire.

2) Take care not to confuse the terminal numbers for indoor

123

ELECTRICAL WIRING WORK

CAUTION

In case of faulty wiring connection, the indoor unit stops, and

then the run lamp turns on and the timer lamp blinks.

Use cables for interconnection wiring to avoid loosening of the

wires.

CENELEC code for cables Required field cables.

H05RNR4G1.5 (example) or 245IEC57

H Harmonized cable type

05 300/500 volts

R Natural-and/or synth, rubber wire insulation

N Polychloroprene rubber conductors insulation

Preparation of indoor unit

Mounting of connecting wires

○ Install the removed flared nuts to the pipes to be connected,

then flared the pipes.

○ Remove the flared nuts. (on both liquid and gas sides)

Keep the openings of the pipes covered with tapes etc. to prevent dust, sand, etc. from entering them.

CONNECTION OF REFRIGERANT PIPINGS

Preparation

(Do not turn)

Press

Remove

90 ± 0.5˚

Dimension A

Liquid side ø6.35 : 9.1 (mm)

Gas side ø9.52 : 13.2 (mm)

ø12.7 : 16.6 (mm)

ø15.88 : 19.7 (mm)

CAUTION

Do not apply refrigerating machine

oil to the flared surface.

Indoor

Copper pipe diameter

Use a flare tool designed for R410A or a conventional flare tool.

Please note that measurement B (protrusion from the flaring block) will vary depending on the

type of a flare tool in use.

If a conventional flare tool is used, please use a copper pipe gauge or a similar instrument to

check protrusion so that you can keep measurement B to a correct value.

Clutch type flare tool for

R410A

Conventional (R22) flare tool

ø6.35

ø9.52

ø15.88

0.0 - 0.5

1.0 - 1.5

1.5 - 2.0

2.0 - 2.5

ø12.7 0.0 - 0.5 1.0 - 1.5 2.0 - 2.5

Measurement B (mm)

Clutch type Wing nut type

CAUTION

Do not apply excess torque to the flared nuts.

Otherwise, the flared nuts may check depending.

○ Arrange the drain hose in a downward angle.

○ Avoid the following drain piping.

○ Pour water to the drain pan located under the heat exchanger, and ensure that the water is discharged outdoor.

○ When the extended drain hose is indoor, always use a shield pipe (to be arranged by the user) and ensure it is

thermally insulated.

CAUTION

Wall

Gutter

Pipe accommodating section

Since this air conditioner has been designed to collect dew drops on the rear

surface to the drain pan, do not attach the power cord above the gutter.

Drainage

Go through all installation steps and check if the

drainage is all right. Otherwise water leak may occur.

Higher than specified The drain hose

tip is in water.

Wavy The drain hose

tip is in the gutter.

The gap to the ground is

5 cm or less.

Odor from

the gutter

Shield pipe

Drain hose

Extended drain hose

When it is exposed indoor.

Installation Steps

Pass the pipe through

the hole in the wall,

and hook the upper

part of the indoor unit

to the installation board.

Gently push the lower

part to secure the unit.

• How to remove the indoor unit from the installation board

Fixing of indoor unit

Push up at the marked portion of the indoor unit base lower latch, and slightly

pull it toward you. (both right and left hand sides) (The indoor unit base lower

latch can be removed from the installation board)

Push up the indoor unit upward. So the indoor unit will be removed from the

installation board.

The marked portion of the indoor unit base lower latch.

Installation board

Indoor unit base latch

Wall

○ Connect the pipes on both liquid and gas sides.

○ Tighten the nuts to the following torque.

Liquid side (ø6.35) : 14.0 - 18.0 N·m (1.4 - 1.8 kgf·m)

Gas side (ø9.52) : 34.0 - 42.0 N·m (3.4 - 4.2 kgf·m)

(ø12.7) : 49.0 - 61.0 N·m (4.9 - 6.1 kgf·m)

(ø15.88) : 68.0 - 82.0 N·m (6.8 - 8.2 kgf·m)

Connection Insulation of the connection portion

Indoor

Liquid side

Gas side

(Do not turn)

• Cover the indoor unit s flare-connected joints, after they are checked for a gas leak,

with an indoor unit heat insulating material and then wrap them with a tape with an

attached insulation pad placed over the heat insulating material’s slit area.

Cover the coupling with insulator and then cover it with tapes.

Vinyl tape

Use an attached insulation pad for heat insulation.

Position it so that the slit area faces upward.

To remove / To install

Installing the air-cleaning filters

1. Open the air inlet panel and remove the air filters.

2. Install the filter holders, with the air-cleaning filters installed in the holders.

In the air conditioner.

• Each air-cleaning filter can be installed in the left or right filter holder.

3. Install the air filters and close the inlet panel.

Installation board

Indoor unit

Latch (2 locations)

○Removing

① Remove the air inlet panel.

② Remove the screw (A) 2pcs / screw

(B) 3pcs fixing to the front panel.

③ Remove the 3 latches in the upper

section of the front panel and then

remove the front panel from the unit.

○Installing

① Remove the air filter.

② Cover the unit with the front panel.

③ Tighten the screw (A) 2pcs / screw

(B) 3pcs to fix the front panel.

④ Install the air filter.

⑤ Install the air inlet panel.

Front panel

Air inlet panel

Air filter

Latch

Screw (A)

Screw (B)

Terminal block

1 3

2 N

Lid

Approx. 80°

'12 • SRK-T-130

○ Uncover the wireless remote control, and mount the batteries

[R03 (AAA, Micro), ×2 pieces] in the body regularly.

(Fit the poles with the indication marks, ＋ & − without fail)

○ Conventionally, operate the wireless remote control by holding

in your hand.

○ Avoid installing it on a clay wall etc.

Cover

CAUTION

Wood screws

ø3.5 X 16

Wireless remote control

Battery

INSTALLATION OF WIRELESS CONTROL

Mounting method of battery

Fixing to pillar or wall

Do not use new and

old batteries together.

Open the air inlet panel.

Remove the lid.

Remove the wiring clamp.

Connect the connecting wire securely to the terminal block.

1) Connect the connection wire securely to the terminal

block. If the wire is not affixed completely, contact will be

poor, and it is dangerous as the terminal block may heat

up and catch fire.

2) Take care not to confuse the terminal numbers for indoor

and outdoor connections.

Fix the connecting wire by wiring clamp.

Attach the lid.

Close the air inlet panel.

123

567

ELECTRICAL WIRING WORK

CAUTION

In case of faulty wiring connection, the indoor unit stops, and

then the run lamp turns on and the timer lamp blinks.

Use cables for interconnection wiring to avoid loosening of the

wires.

CENELEC code for cables Required field cables.

H05RNR4G1.5 (example) or 245IEC57

H Harmonized cable type

05 300/500 volts

R Natural-and/or synth, rubber wire insulation

N Polychloroprene rubber conductors insulation

R Stranded core

4or5 Number of conductors

G One conductor of the cable is the earth conductor

(yellow/green)

1.5 Section of copper wire (mm

)

Preparation of indoor unit

Mounting of connecting wires

• Forced cooling operation

Turn on a power supply again after a while after turn off a power supply.

Then press continually the ON/OFF button 5 seconds or more.

CONCERNING TERMINAL CONNECTION FOR AN INTERFACE

Remove the air inlet panel, lid and front panel.

Remove the control cover. (Remove the screw.)

There is a terminal (respectively marked with CNS) for the indoor control board.

In connecting an interface, connect to the respective terminal securely with the connection harness

supplied with an optional “Interface connection kit SC-BIKN-E ” and fasten the connection harness

onto the indoor control box with the clamp supplied with the kit.

For more details, please refer to the user’s manual of your “Interface connection kit SC-BIKN-E ”.

123

INSTALLATION TEST CHECK POINTS

After installation

The power supply voltage is correct as the rating.

No gas leaks from the joints of the operation valve.

Power cables and crossover wires are securely fixed to the terminal board.

Operation valve is fully open.

The pipe joints for indoor and outdoor pipes have been insulated.

Air conditioning operation is normal.

No abnormal noise.

Water drains smoothly.

Protective functions are not working.

The remote control is normal.

Operation of the unit has been explained to the customer.

(Three-minutes restart preventive timer)

When the air conditioner is restarted or when changing the operation, the unit

will not start operating for approximately 3 minutes.

This is to protect the unit and it is not a malfunction.

Test run

Check the following points again after completion of the installation, and before turning on the power. Conduct a test run again and ensure that the unit operates properly.

At the same time, explain to the customer how to use the unit and how to take care of the unit following the user’s manual.

Filter holder

Air-cleaning

filter

Installing the air-cleaning filters

1. Open the air inlet panel and remove the air filters.

2. Install the filter holders, with the air-cleaning filters installed in the holders.

In the air conditioner.

• Each air-cleaning filter can be installed in the left or right filter holder.

3. Install the air filters and close the inlet panel.

Connect charge hose to check joint of outdoor unit.

Liquid side : Close the liquid valve with hexagon wrench key.

Gas side : Fully open the gas valve.

Carry out cooling operation. (If indoor temperature is low, operate

forced cooling operation.)

After low pressure gauge become 0.01MPa, stop cooling operation

and close the gas valve.

○ In order to protect the environment, be sure to pump down (recovery of refrigerant).

○ Pump down is the method of recovering refrigerant from the indoor unit to the

outdoor unit when the pipes are removed from the unit.

HOW TO RELOCATE OR DISPOSE OF THE UNIT

Unit ON/OFF button

Indoor unit PCB

Screw

CNS terminal

Control cover

Terminal block

1 3

2 N

Lid

Wiring Clamp

INSTALLATION MANUAL FOR OUTDOOR UNIT

RCR012A101

R410A REFRIGERANT USED

1. HAULAGE AND INSTALLATION (Take particular care in carrying in or moving the unit, and always perform such an operation with two or more persons.)

CAUTION

When a unit is hoisted with slings for haulage, take into consideration the offset of its gravity center position.

If not properly balanced, the unit can be thrown off-balance and fall.

1) Delivery

2) Portage

3) Selecting the installation location

Wooden pallet

• Deliver the unit as close as possible to the installation site before removing it from

the packaging.

• When you have to unpack the unit for a compelling reason before you haul it to

the installation point, hoist the unit with nylon slings or ropes and protection pads

so that you may not damage the unit.

• The right hand side of the unit as viewed from the front (diffuser side) is heavier.

A person carrying the right hand side must take heed of this fact. A person

carrying the left hand side must hold with his right hand the handle provided on

the front panel of the unit and with his left hand the corner column section.

(1) If the unit is installed in the area where the snow will accumulate, following measures are required.

The bottom plate of unit and intake, outlet may be blocked by snow.

1 Install the unit on the base so that the bottom is

higher than snow cover surface.

Since drain water generated by defrost control may freeze, following measures are required.

• Do not execute drain piping work by using a drain elbow and drain grommets (optional parts).

[Refer to Drain piping work.]

2 Install the unit under eaves or provide the roof

on site.

Be careful of the following conditions and choose an installation place.

• Where air is not trapped.

• Where the installation fittings can be firmly installed.

• Where wind does not hinder the intake and outlet pipes.

• Out of the heat range of other heat sources.

• A place where stringent regulation of electric noises is applicable.

• Where it is safe for the drain water to be discharged.

• Where noise and hot air will not bother neighboring residents.

• Where snow will not accumulate.

• Where strong winds will not blow against the outlet pipe.

• A place where no TV set or radio receiver is placed within 1m.

(If electrical interference is caused, seek a place less likely to cause the problem)

• If a operation is conducted when the outdoor air temperature is –5°C lower, the outdoor unit should be

installed at a place where it is not influenced by natural wind.

• Where it is likely that the unit is subjected to strong winds, provide wind guards according to the

following guidelines. Strong winds can cause performance degradation, an accidental stop due to a rise of

high pressure and a broken fan.

4) Caution about selection of installation location

Notabilia as a unit designed for R410A

• Do not use any refrigerant other than R410A. R410A will rise to pressure about 1.6 times higher than that of a conventional refrigerant.

A cylinder containing R410A has a pink indication mark on the top.

• A unit designed for R410A has adopted a different size indoor unit operation valve charge port and a different size check joint provided in the unit to prevent the charging of a wrong refrigerant by mistake.

The processed dimension of the flared part of a refrigerant pipe and a flare nut’s parallel side measurement have also been altered to raise strength against pressure.

Accordingly, you are required to arrange dedicated R410A tools listed in the table on the left before installing or servicing this unit.

• Do not use a charge cylinder. The use of a charge cylinder will cause the refrigerant composition to change, which results in performance degradation.

• In charging refrigerant, always take it out from a cylinder in the liquid phase.

• All indoor units must be models designed exclusively for R410A. Check connectable indoor unit models in a catalog, etc. (A wrong indoor unit, if connected into the system, will impair proper system operation)

• Read the “SAFETY PRECAUTIONS” carefully first of all and strictly follow it during the installation work in order

to protect yourself.

• The precautionary items mentioned below are distinguished into two levels, and .

: Wrong installation would cause serious consequences such as injuries or death.

: Wrong installation might cause serious consequences depending on circumstances.

Both mentions the important items to protect your health and safety so strictly follow them by any means.

• Be sure to confirm no anomaly on the equipment by commissioning after completed installation and explain the

operating methods as well as the maintenance methods of this equipment to the user according to the owner’s

manual.

• Keep the installation manual together with owner’s manual at a place where any user can read at any time.

Moreover if necessary, ask to hand them to a new user.

• For installing qualified personnel, take precautions in respect to themselves by using suitable protective

clothing, groves, etc., and then perform the installation works.

• Please pay attention not to fall down the tools, etc. when installing the unit at the high position.

• If unusual noise can be heard during operation, consult the dealer.

• The meanings of “Marks” used here are shown as follows:

• This installation manual deals with outdoor units and general installation specifications only. For indoor units, refer to the respective installation manuals supplied with the units.

• When install the unit, be sure to check whether the selection of installation place, power supply specifications, usage limitation (piping length, height differences between indoor and outdoor units, power

supply voltage and etc.) and installation spaces.

SAFETY PRECAUTIONS

WARNING

Never do it under any circumstances. Always do it according to the instruction.

CAUTIONWARNING

CAUTION

WARNING

CAUTION

• Carry out the electrical work for ground lead with care.

Do not connect the ground lead to the gas line, water line, lightning conductor or telephone line’s ground lead. Incorrect grounding can cause unit faults such as electric shocks due to short-circuiting.

• Installation must be carried out by the qualified installer.

If you install the system by yourself, it may cause serious trouble such as water leaks,

electric shocks, fire and personal injury, as a result of a system malfunction. Do not

carry out the installation and maintenance work except the by qualified installer.

• Install the system in full accordance with the installation manual.

Incorrect installation may cause bursts, personal injury, water leaks, electric

shocks and fire.

• Be sure to use only for household and residence.

If this appliance is installed in inferior environment such as machine shop and etc.,

it can cause malfunction.

• When installing in small rooms, take prevention measures not to

exceed the density limit of refrigerant in the event of leakage, referred

by the formula (accordance with ISO5149).

If the density of refrigerant exceeds the limit, please consult the dealer and install

the ventilation system, otherwise lack of oxygen can occur, which can cause serious

accident.

• Use the original accessories and the specified components for

installation.

If parts other than those prescribed by us are used, It may cause water leaks,

electric shocks, fire and personal injury.

• Install the unit in a location with good support.

Unsuitable installation locations can cause the unit to fall and cause material

damage and personal injury.

• Ensure the unit is stable when installed, so that it can withstand

earthquakes and strong winds.

Unsuitable installation locations can cause the unit to fall and cause material

damage and personal injury.

• Ventilate the working area well in the event of refrigerant leakage during

installation.

If the refrigerant comes into contact with naked flames, poisonous gas is produced.

• Use the prescribed pipes, flare nuts and tools for R410A.

Using existing parts (for R22 or R407C) can cause the unit failure and serious

accidents due to burst of the refrigerant circuit.

• Tighten the flare nut by torque wrench with specified method.

If the flare nut were tightened with excess torque, this may cause burst and

refrigerant leakage after a long period.

• Do not open the operation valves for liquid line and gas line until

completed refrigerant piping work, air tightness test and evacuation.

If the compressor is operated in state of opening operation valves before

completed connection of refrigerant piping work, air can be sucked into refrigeran t

circuit, which can cause bust or personal injur y due to anomalously high pressure

in the refrigerant.

• The electrical installation must be carried out by the qualified electrician

in accordance with “the norm for electrical work” and “national wiring

regulation”, and the system must be connected to the dedicated circuit.

Power supply with insufficient capacity and incorrect function done by improper

work can cause electric shocks and fire.

• Be sure to shut off the power before starting electrical work.

Failure to shut off the power can cause electric shocks, unit failure or incorrect

function of equipment.

• Be sure to use the cables conformed to safety standard and cable

ampacity for power distribution work.

Unconformable cables can cause electric leak, anomalous heat production or fire.

• This appliance must be connected to main power supply by means of a

circuit breaker or switch (fuse:20A) with a contact separation of at least

3mm.

• Arrange the wiring in the control box so that it cannot be pushed up

further into the box. Install the service panel correctly.

Incorrect installation may result in overheating and fire.

• Use the prescribed cables for electrical connection, tighten the cables

securely in terminal block and relieve the cables correctly to prevent

overloading the terminal blocks.

Loose connections or cable mountings can cause anomalous heat production or fire.

• Be sure to fix up the service panels.

Incorrect fixing can cause electric shocks or fire due to intrusion of dust or water.

• Be sure to switch off the power supply in the event of installation,

inspection or servicing.

If the power supply is not shut off, there is a risk of electric shocks, unit failure or

personal injury due to the unexpected start of fan.

• Stop the compressor before removing the pipe after shutting the

service valve on pump down work.

If the pipe is removed when the compressor is in operation with the service valve

open, air would be mixed in the refrigeration circuit and it could cause explosion

and injuries due to abnormal high pressure in the cooling cycle.

• Only use prescribed optional parts. The installation must be carried out

by the qualified installer.

If you install the system by yourself, it can cause serious trouble such as water

leaks, electric shocks, fire.

• Be sure to wear protective goggles and gloves while at work.

• Earth leakage breaker must be installed.

If the earth leakage breaker is not installed, it can cause electric shocks.

• Ensure that no air enters in the refrigerant circuit when the unit is

installed and removed.

If air enters in the refrigerant circuit, the pressure in the refrigerant circuit

becomes too high, which can cause burst and personal injury.

•

Do not processing, splice the power cord, or share a socketwithother power plugs.

This may cause fire or electric shock due to defecting contact, defecting insulation

and over-current etc.

• Do not bundling, winding or processing for the power cord. Or, do not

deforming the power plug due to tread it.

This may cause fire or heating.

• Do not run the unit with removed panels or protections.

Touching rotating equipments, hot surfaces or high voltage parts can cause

personal injury due to entrapment, burn or electric shocks.

• Do not perform any change of protective device itself or its setup

condition.

The forced operation by short-circuiting protective device of pressure switch and

temperature controller or the use of non specified component can cause fire or

burst.

• Use the circuit breaker for all pole correct capacity. Circuit breaker

should be the one that disconnect all poles under over current.

Using the incorrect circuit breaker, it can cause the unit malfunction and fire.

• Install isolator or disconnect switch on the power supply wiring in

accordance with the local codes and regulations.

The isolator should be locked in OFF state in accordance with EN60204-1.

• After maintenance, all wiring, wiring ties and the like,shouldbe returned

to their original state and wiring route, and the necessary clearance from

all metal parts should be secured.

• Secure a space for installation, inspection and maintenance specified in

the manual.

Insufficient space can result in accident such as personal injury due to falling from

the installation place.

• Take care when carrying the unit by hand.

If the unit weights more than 20kg, it must be carried by two or more persons. Do

not carry by the plastic straps, always use the carry handle when carrying the unit

by hand. Use gloves to minimize the risk of cuts by the aluminum fins.

• Dispose of any packing materials correctly.

Any remaining packing materials can cause personal injury as it contains nails and

wood. And to avoid danger of suffocation, be sure to keep the plastic wrapper

away from children and to dispose after tear it up.

• Be sure to insulate the refrigerant pipes so as not to condense the

ambient air moisture on them.

Insufficient insulation can cause condensation, which can lead to moisture

damage on the ceiling, floor, furniture and any other valuables.

• When perform the air conditioner operation (cooling or drying operation)

in which ventilator is installed in the room. In this case, using the air

conditioner in parallel with the ventilator, there is the possibility that

drain water may backflow in accordance with the room lapse into the

negative pressure status. Therefore, set up the opening port such as

incorporate the air into the room that may appropriate to ventilation (For

example; Open the door a little). In addition, just as above, so set up the

opening port if the room lapse into negative pressure status due to

• Do not install the unit in the locations listed below.

•Locations where carbon fiber, metal powder or any powder is floating.

•Locations where any substances that can affect the unit such as sulphide gas,

chloride gas, acid and alkaline can occur.

•Vehicles and ships.

•Locations where cosmetic or special sprays are often used.

• Do not install the outdoor unit in the locations listed below.

• Locations where discharged hot air or operating sound of the outdoor unit can

bother neighborhood.

• Locations where outlet air of the outdoor unit blows directly to an animal or

plants. The outlet air can affect adversely to the plant etc.

• Locations where vibration can be amplified and transmitted due to insufficient

•Do not install the outdoor unit in a location where insects and small

animals can inhabit.

Insects and small animals can enter the electric parts and cause damage or fire.

Instruct the user to keep the surroundings clean .

•Do not use the base flame for outdoor unit which is corroded or damaged

due to long periods of operation.

'12 • SRK-T-130

Model SRC92ZL-S

(2) Installation of outdoor unit

Accessories for outdoor unit

• Model name and power source

• Refrigerant piping length

• Piping, wiring and miscellaneous small parts

• Indoor unit installation manual

Necessary tools for the installation work

Wrench key (Hexagon) [4m/m]

Vacuum pump

Vacuum pump adapter (Anti-reverse flow type)

(Designed specifically for R410A)

Gauge manifold (Designed specifically for R410A)

Charge hose (Designed specifically for R410A)

Flaring tool set (Designed specifically for R410A)

Gas leak detector (Designed specifically for R410A)

Gauge for projection adjustment

(Used when flare is made by using conventional flare tool)

1112131415

Plus headed driver

Knife

Saw

Tape measure

Hammer

Spanner wrench

Torque wrench [14.0

82.0N·m (1.4

8.2kgf·m)]

Hole core drill (65mm in diameter)

1234567

Grommet (Heat pump type only)

Drain elbow (Heat pump type only)

Edging

Q’ty

211

123

Option parts

Sealing plate

Sleeve

Inclination plate

Putty

Drain hose (extension hose)

Piping cover

(for insulation of connection piping)

Q’ty

11111

abcde

The bottom plate of unit and intake, outlet may be blocked by snow.

1 Install the unit on the base so that the bottom is

higher than snow cover surface.

Since drain water generated by defrost control may freeze, following measures are required.

• Do not execute drain piping work by using a drain elbow and drain grommets (optional parts).

[Refer to Drain piping work.]

Determine refrigerant pipe size pursuant to the following guidelines based

on the indoor unit specifications.

Without nitrogen gas, a large quantity of foreign matters

(oxidized film) are created, causing a critical failure from

capillary tube or expansion valve clogging.

2 Install the unit under eaves or provide the roof

on site.

2. REFRIGERANT PIPING WORK

1) Restrictions on unit installation and use

2) Determination of pipe size

The use restrictions appearing in the table above are applicable to the standard pipe size combinations shown in the table below.

Restrictions

Marks appearing in the

drawing on the right

Main pipe length

When the outdoor unit is positioned higher,

When the outdoor unit is positioned lower,

Elevation difference between

indoor and outdoor units

Brazing must be performed under a nitrogen gas flow.

About brazing

When pipe is brazing.

• Check the following points in light of the indoor unit specifications and the installation site.

• Observe the following restrictions on unit installation and use. Improper installation can result in a compressor failure or performance degradation.

30m or less

20m or less

Dimensional restrictions

ø15.88

Flare

ø15.88

Gas pipe

ø6.35

Flare

ø6.35

Liquid pipe

Outdoor unit connected

Refrigerant piping (branch pipe L)

Indoor unit connected

CAUTION

Check before installation work

CAUTION

• Carry out the electrical work for ground lead with care.

• Use the circuit breaker for all pole correct capacity. Circuit breaker

should be the one that disconnect all poles under over current.

Using the incorrect circuit breaker, it can cause the unit malfunction and fire.

• Install isolator or disconnect switch on the power supply wiring in

accordance with the local codes and regulations.

The isolator should be locked in OFF state in accordance with EN60204-1.

• After maintenance, all wiring, wiring ties and the like, should be returned
