RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEl...

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to

constitute a risk of electric shock.

The exclamation point within an equilaterali triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

"Warning: Don't leave stationary images, such as stock market reports, video

games, station logos, or the Projection T_rs displays, on-screen for more than 10 minutes. Still patterns such as these can scar the Projection TV, causing permanent damage to the picture tctbes.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLI._ICE TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK HAZARD, DO NOT USE THIS UNIT'S (POLARIZED)PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BIM_DES

CtLNTBE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

NOTE TO CATV SYSTEM INSTALLER:

THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR FROPER GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.

_ MITSUBISHI OWNER'S GUIDE

Table of Contents

Chapter 1: Getting to Know Your Projection TV .................................... 1

Overview of the Control Panel ................................................................ 2

Overview of the Remote Control .............................................................. 5

Getting ready to use the remote control ........................................... 5

Remote control buttons and functions ............................................... 7

Chapter 2: Operating Your Projection TV .............................................. 13

Getting Started ..................................................................................... 14

Using the remote control to operate VCRs, cable boxes

and other equipment .................................................................... 15

Turning the Projection TV on/off ..................................................... 20

Selecting the input source ................................................................ 21

Changing channels ........................................................................... 22

Understanding the ViewPoint III on-screen menus ....................... 25

Memorizing channels ....................................................................... 26

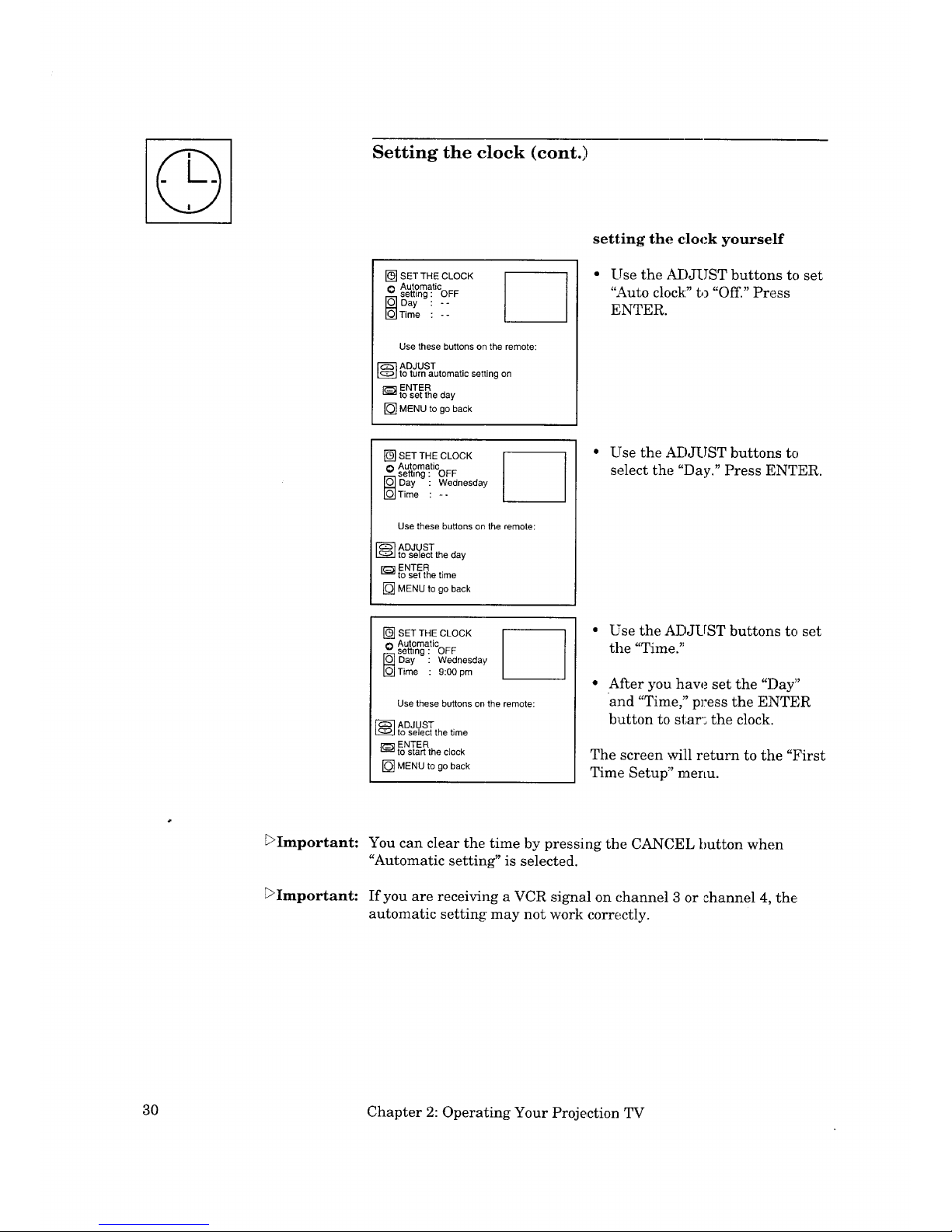

Setting the clock ............................................................................... 28

Adding and deleting channels ......................................................... 31

Setting the A/V Network .................................................................. 32

Adjusting the color alignment .......................................................... 34

Selecting the menu type ................................................................... 36

Renaming the inputs ........................................................................ 38

Naming the channels ....................................................................... 39

Locking A/V functions ...................................................................... 40

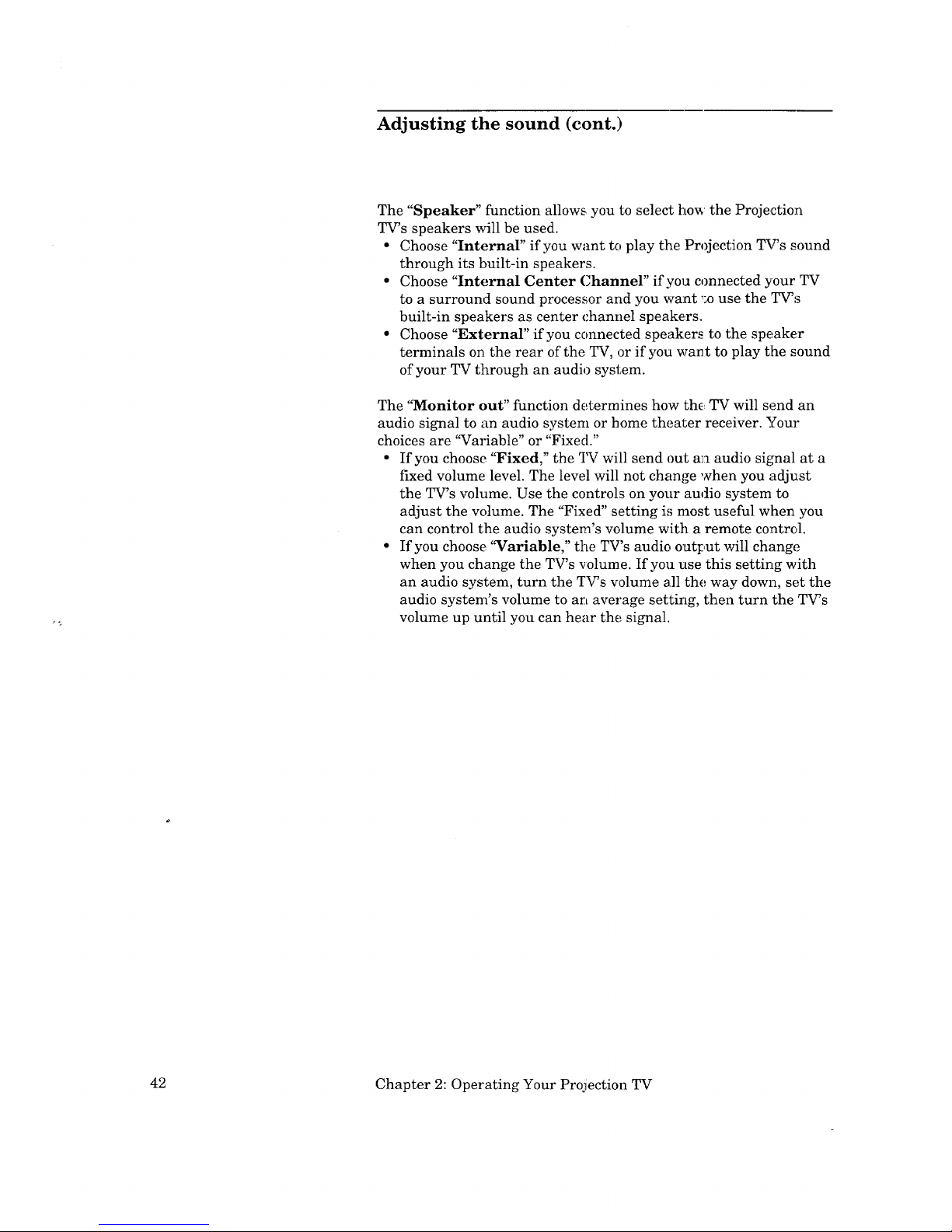

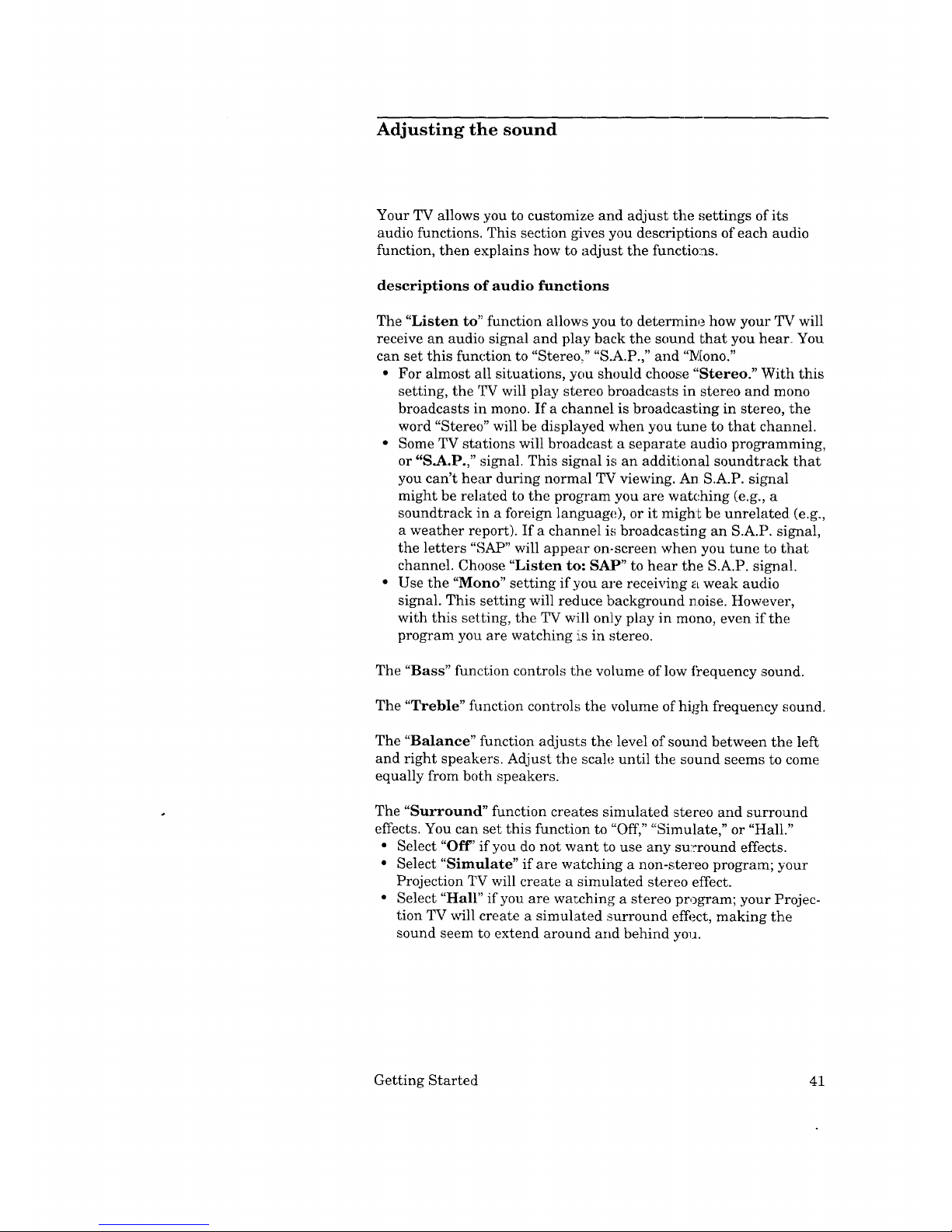

Adjusting the sound ......................................................................... 41

Adjusting the picture ....................................................................... 44

Using the closed caption decoder ....................................................... 46

Using the Advanced Features ................................................................ 48

Setting the timer .............................................................................. 49

Using the parental lock ..................................................................... 50

Using Super Quick View if you haven't subscribed to StarSight .. 54

Using Super Quick View if you've subscribed to StarSight .......... 56

Selecting an advanced PIP function ................................................ 58

Resetting the sound and the picture ............................................... 59

Table of Contents (cont.)

Chapter 3: Using the Special Features ..................................................... 61

Understanding the On-Screen Displays ............................................... 62

Using the Off-Timer ................................................................................ 63

Setting the off-timer .......................................................................... 64

Changing or canceling the off-timer ................................................ 65

Using the Advanced Picture-in-Picture (PIP) Modes ......................... 66

Activating the PIP image .................................................................. 67

Changing the picture in the PIP image .......................................... 68

Exchanging the picture and sound of the PIP image

and the main image .................................................................... 70

Moving the PIP image ....................................................................... 71

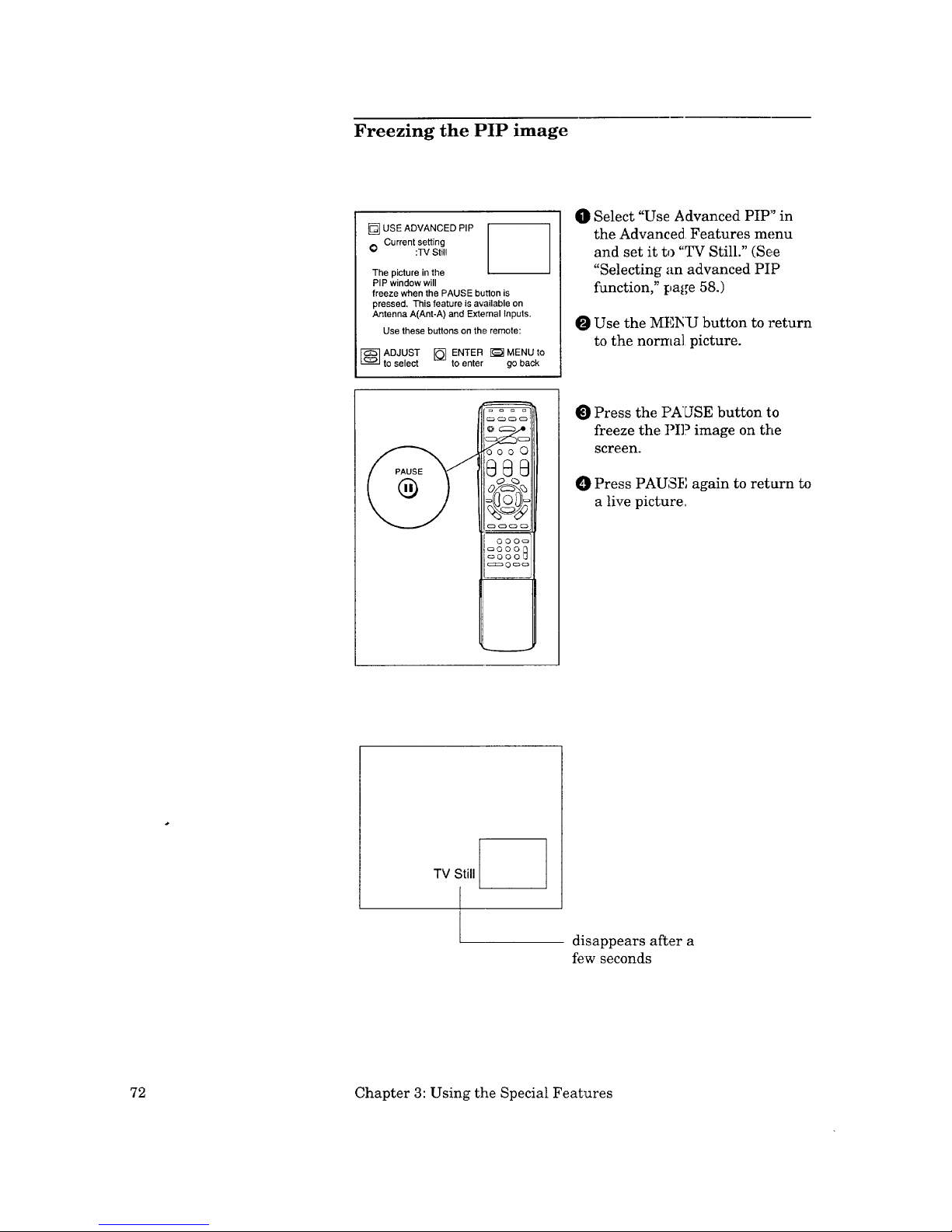

Freezing the PIP image .................................................................... 72

Using the Snap-shot feature ............................................................ 73

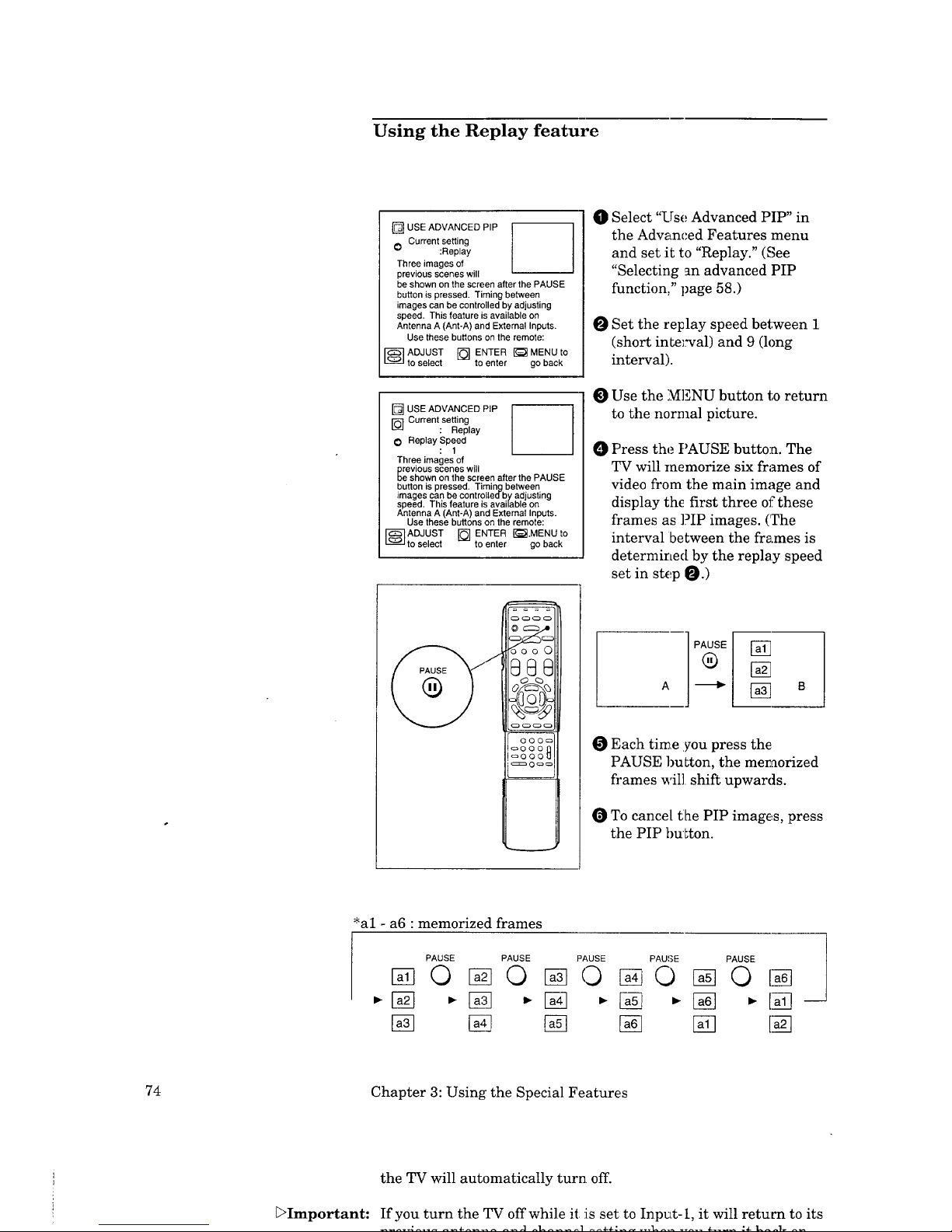

Using the Replay feature ................................................................. 74

Using the Active A/V Network Feature ................................................. 75

Chapter 4: Troubleshooting ........................................................................ 77

Cleaning .................................................................................................. 81

Caution and Care .................................................................................. 82

Calling for Service ................................................................................. 83

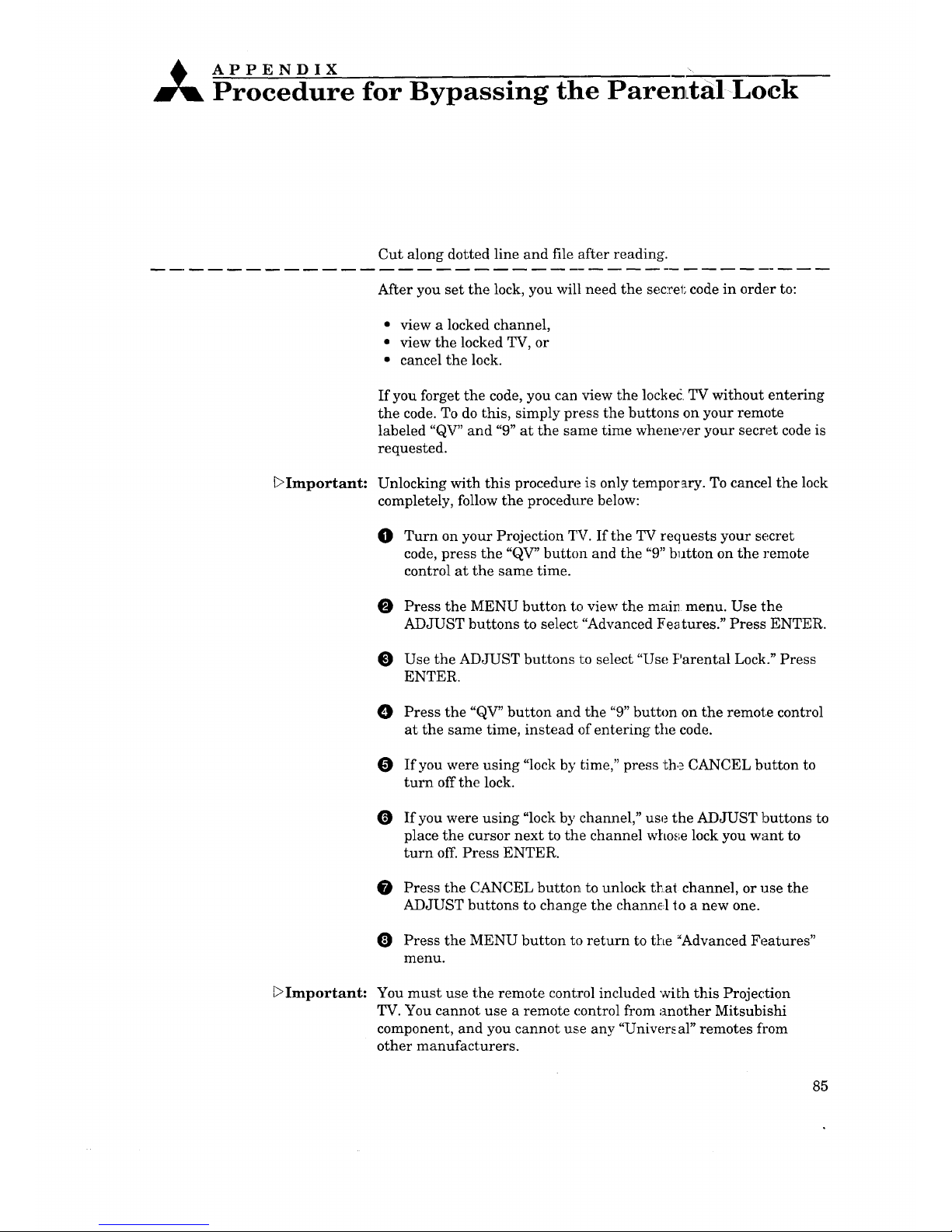

Appendix: Procedure for Bypassing the

Parental Lock ................................................................................................. 86

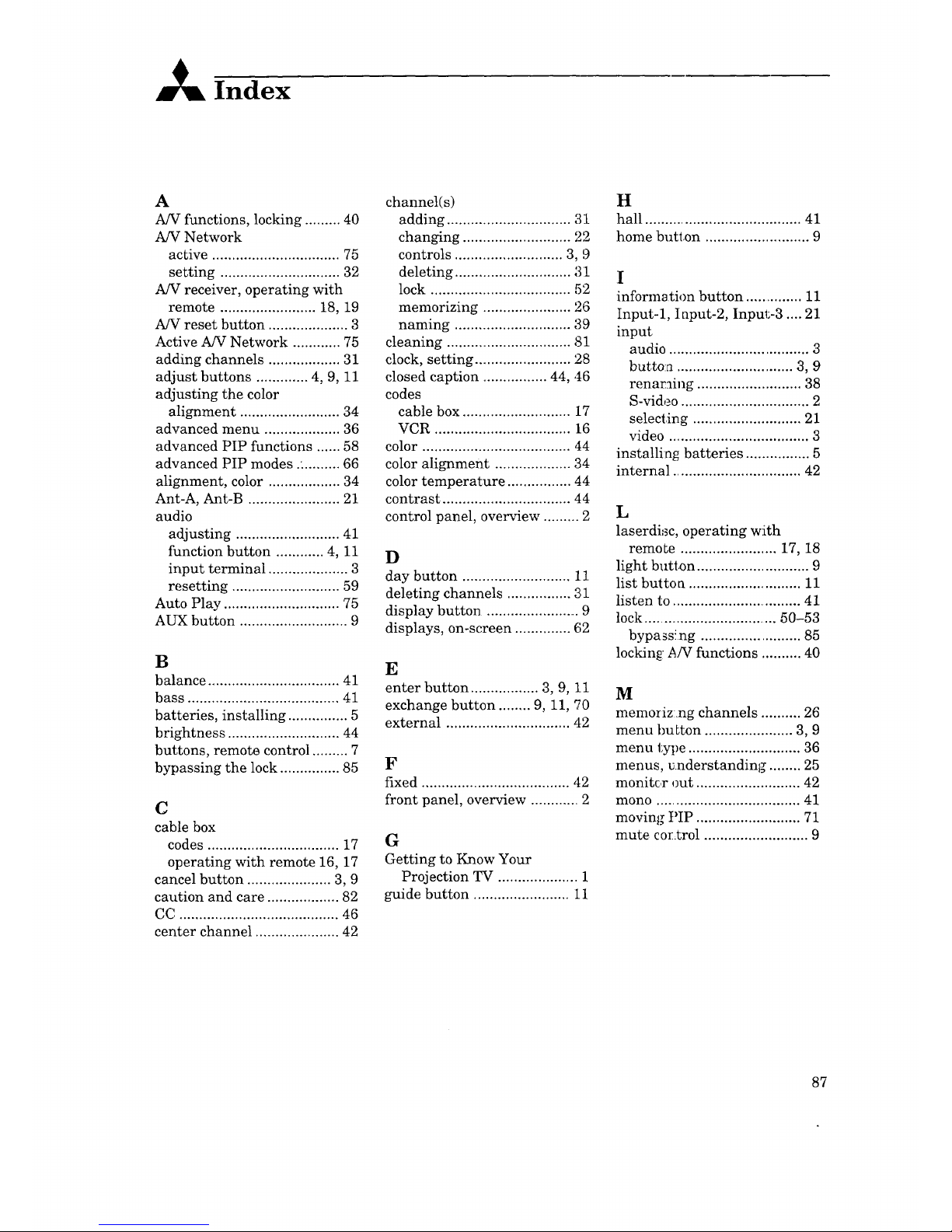

Index .................................................................................................................. 87

Warranty .......................................................................... Inside Back Cover

ii Table of Contents

_ CHAPTER ONE

Getting to Know Your Projection TV

_Important:

Now that you have connected your Projection TV and subscribed to the StarSight service*, it's time to understand 1;he exciting features your Mitsubishi Projection TV offers.

If you have not connected your Projection TV and subscribed to StarSight, please see Booklet #1, "Mitsubishi Installation and

Setup Guide" before reading this owner's guide.

This chapter will introduce you to the range of options available

when using the buttons on the remote control or on the control panel of"the Projection TV. You'll find information in these two

sections:

• Overview of the Control Panel

• Overview of the Remote Control

*"StarSight" is a subscription service offered by Star Sight Telecast, Inc.,

not a service of Mitsubishi Consumer Electronics Amer!Lca, Inc. You must obtain and maintain a subscription from StarSight Telecast to use the StarSight features of your Projection TV. You must be able to receive a local PBS station in order to receive the StarSight transmission, and your StarSight features will not work if StarSight Telecast is not transmitting a signal.

Overview of the Control Panel

S-VIDEO VIDEO L-AUDIO-R

TS-5087, TS-5089

VS-6085, VS-7085, VS-6087, VS-7087,

VS-8087

power/program timer indicator

This indicator lights up in green when you turn the

Projection TV on; it lights up in red when the timer is set and the Projection TV's power is off; it lights in orange if the timer

is set and the Projection TV's power is on.

power button (POWER) Use to turn the Projection _ on or off.

S-VIDEO input terminal

Use to connect the S-video output of a VCR, laserdisc player, or camcorder to the Projection TV. If you connect an S-video cable to this terminal, the video input next to it cannot be used.

2 Chapter 1: Getting to Know Your TV

video input terminal Use to connect the video output from a standard VCR or another component to the Projection TV.

audio input terminals Use to connect the audio output from a VCR or other equipment.

input button (INPUT) Use to select the input source you wish to watch:

• Antenna A,

• Antenna B, or

• Input 1, 2, or 3.

volume controls (VOLUME)

Press the • button to turn up the volume and the • button to

turn down the volume.

channel controls (CHANNEL) Use the • button to switch to a channel with a higher number and the • button to switch to a channel with a lower number.

A/V reset button (A/V RESET)

Press to reset all audio and video functions to their normal level or setting except for volume, the "Listen to:" function

(Stereo/SAP/Mono), speaker (Internal/Internal Center Channel! External), monitor out (variable/fixed), and closed captioning.

menu button (MENU) Use this button to display the on-screen menu system, which contains additional instructions for special functions.

cancel button (CANCEL) This button is used to cancel a channel nuraber, to clear a

channel programmed into super quick view memory, and to clear the settings of some on-screen menus

enter button (ENTER) Use this button after selecting a channel number or after selecting an item from the on-screen menu system. It is also

used with the PIP button.

Overview of the Control Panel 3

Overview of the Control Panel (cont,.)

_Important:

adjust buttons (ADJUST A T)

After selecting an audio or video function, use these buttons to adjust it. These buttons can be used to:

- increase or decrease the function (e.g., color),

- shift from one end of a scale to the other (e.g., balance), or

- change a setting (e.g., stereo).

Also use these buttons to select items from the on-screen menu.

These buttons cannot be used to adjust audio/video settings when you subscribe to StarSight. If you subscribe to StarSight, use the left/right buttons on the remote to adjust audioA_ideo settings.

@ audio and video controls (AUDIO, VIDEO)

Use these buttons to select audio and video ihnctions thai; you want to adjust. To select an audio or video function, repeatedly

press the AUDIO button or VIDEO button, lifter you have selected a function, use the ADJUST buttons tc adjust it.

audio function button (AUDIO "- ) .... Use to select one

of the following audio functions:

stereo/SAP/mono, bass, treble, balance,

surround off/simulate/hall,

speaker internal/internal center channel!external, or monitor out variable/fixed.

video function button (VIDEO -41) --- Use to select one of the following video functions:

tint, color, contrast, brightness,

sharpness,

color temperature high/middle/low, or

closed captioning.

@ timer reset button (TIMER RESET)

Use this button to reset the clock time and to erase any timer settings. The Projection TV will turn off when you press this button.

test buttons The ENTER, ADJUST, AUDIO, and VIDEO buttons can be used to test and adjust the alignment of you:r Projection TV's picture tubes. See page 34 for more information.

4 Chapter 1: Getting to Know Your TV

Overview of the Remote Control

Getting ready to use the remote control

installing the batteries

Take the box containing four AA size batteries from the packing bag.

Remove the back cover of the remote control by pushing the tab in the direction of the arrow and lifting off the cover.

Load the batteries as indicated in the illustration, making sure that they are positioned correctly (+ to +, and - to - ).

O Replace the back cover of the remote control.

@ @

For best results, use Duracell AA (MN1500) batteries.

Overview of the Remote Control 5

Getting ready to use the remote control (cont.)

some do's and don'ts

To ensure that your remote control wi]l continue working properly, follow these guidelines:

• Don't press two or more buttons at the same time, unless you are specifically instructed to do so in this owner's guide.

• Don't allow the remote control to get wet or become heated.

• Avoid dropping the remote control on a hard ,mrface.

• When cleaning the remote control, don't use any harsh chemicals. Use only a soft, slightly moistened cloth.

general instructions

When using the remote control to operate the Projection TV, VCR, or cable box, follow these procedures:

O Be within 20 feet of the desired equipment.

O Point the tip of the remote control toward the equipment.

Press the appropriate button or sequence of buttons.

guidelines for using batteries

• Don't use a new battery with an old one.

• Don't heat, take apart, or throw batteries into a fire.

6 Chapter 1: Getting to Know Your TV

Remote control buttons and. functions

This section provides you with an overview of tlhe remote control's buttons and the features that they control.

This section does not provide detailed explanations on the use of these buttons. To determine which buttons are used with a

particular feature, refer to the instructions for that feature.

The instructions for individual features are found in Chapter 2, "Operating Your Projection TV," and Chapter 3, "Using the Special

Features."

Overview of the Remote Control 7

Remote control buttons and functions (cont.)

@ ®

[Z_ L-2 iZ_ r-_

AUX VCR-A VCR÷B

(Z3 _ CD

• REC STOP PAUSE

©C2_®

REW PLAY FF

Q®®d5

CHANNE

o_©®®

INDEX SWAPJ _SOURCE

MITSUBISHI

8 Chapter 1: Getting to Know Your TV

(_)select buttons

Your remote control has four layers: the TV layer, the VCR-A layer, the VCR-B layer, and the AUX layer. You can set up each of these layers to operate a different piece of equipment. Use the four buttons across the top of the remote to select, the layer you want to set up or use. When you press a button on the remote, the lights above the select buttons will indicate the layer you are using.

@ VCR buttons

Use t:hese buttons to control most Mitsubishi VCRs, or set up the remote to

use them to control other brands of VCRs. The PLAY button is also used with the Active A/V Network Feature (page 75).

@ power button (POWER)

Use to turn the Projection TV on or off.

When you turn the Projection TV on, the

power indicator will light in green.

@ mute control (MUTE)

Use to turn the sound off completely or to restore it to its original volume.

@ super quick view button (SQV)

Press to view channels you have programmed into super quick view memory.

@ quick view button (QV)

Press this button to instantly switch to the channel that you designated as the "quick view" channel. If you are watching the

quick view channel, you will switch to the last channel viewed.

(_) light button

Use to light up the remote (for 3 seconds).

@ volume control (VOLUME)

Press the top part of the button to turn up the w_lume; press the bottom part of the

button to turn down the volume.

@ input button (INPUT')

Use to select the input source you wish to watch:

• Antenna A,

• Antenna B, or

• Input 1, 2, or 3.

(_) channel control (CHANNEL)

Press the top part of the button to change to a channel with a higher number; press the bottom part to change to a channel with a lower number.

@ enter button (ENTER / EXCH)

Use this button after selecting a channel number, after selecting an item from the on-screen menu system, or with the picture-in-picture mode.

@adjust buttons (A, T,4,, b )

After selecting an audio or video function, use these buttons to adjust it. Also use these with the picture-in-picture mode, and to select items in the menus

@ cancel button (CANCEL)

This button is used to cance] a channel number, to clear a channel programmed into super quick view memory, and to ,clear the settings of some on--screen menus.

@ menu button (MENU)

Use this button to display the on-screen menu system, which contains additional instructions for special functions.

(_)display button (DISPLAY)

Use to view an on-screen summary of the current settings for the Projection TV or cable functions and the diisp:[ay related to Extended Data Services (XI)S).

@home button (HOME)

Press to return to regular' TV viewing from the on-screen menus and to turn off

the on-screen displays.

Overview of the Remote Control 9

Remote control buttons and functions (cont.)

@ @

MITSUBISHI

10 Chapter 1: Getting to Know Your TV

(_)audio and video controls

Repeatedly press the AUDIO button or VIDEO button to select one of the

functions listed below. After you select the function, use the ADJUST buttons to adjust it.

• audio function button (AUDIO)

- stereo/SAP/mono

- bass

- treble

- balance

- surround off/simulate/hall

- speaker internal/internal center channel/external

- monitor out variable/fixed

• video function button (VIDEO)

- tint

- color

- contrast

- [)rightness

sharpness

- color temperature high/middle/low

- closed captioning

(_number buttons (0-9)

Use to select a channel number or to enter a parental lock code.

(_)off-timer button (OFF-T)

Use to program the Projection TV to turn off automatically at a later time.

picture-in-picture controls Use to control the special picture-in- picture (PIP) function. (See pages 66 - 74.)

• PIP button (PIP) -- Press to turn on

the reduced PIP image, to change its size, or to cancel it.

• channel button (CHANNEL) -- Press

to change the channel of the reduced PIP image.

• swap button (SWAP) -- Press to

exchange the sound between the main image and the reduced PIP image.

• source button (SOURCE) -- Press repeatedly to switch the source of the reduced PIP image between the TV and the external inputs.

• pause button (PAUSE) -- Press to freeze the reduced PIP image, to return to a "live" image, and to use the Snap-shot and Replay functions.

• enter button (ENTER / EXCH) -- Press to exchange the pictures of the PIP image and the main image.

• adjust buttons (A, V,4, • ) -- Press to move the PIP image on-screen.

(_ StarSight controls

Use to control the StarSight functions.

• guide button (GUIDE) -- Press to see the Grid Guide or Channel Guide.

• theme button (THEME) -- Press to see the Theme Guide.

• list button ILIST) ---Press to see a list of programs _o record.

• information button (INFO) -- Press to see informatmn about a selected pro- gram.

• day button (DAY) -- Press to mow_ forward one day or move back one day in the StarSight guides.

• page button (PAGE) -- Press to move forward or back one page in the StarSight guides.

• adjust buttons (A, •,4, • ) -- Press to move the cursor up, down, left, Or _[ght.

DImportant:

For information on how to subscribe to StarSight, please see Booklet #1,

"Mitsubishi Installation and Setup

Guide." To learn how to operate StarSight, please see Booklet #3,

"StarSight Operating Guide."

Overview of the Remote Control 11

_ CHAPTER TWO

Operating Your Projection TV

_>Important:

This chapter will explain how to operate your Projection TV:, first

focusing on functions that are basic and easy and then explaining some of the advanced features.

Please see Booklet #3, "StarSight Operating Guide" for

information on using the StarSight feature.

This chapter explains:

t Getting Started

€ Using the Advanced Features

Getting Started

,Warning:

This section is designed to get you started enjoying your new Projection TV. If you follow these procedures one by one, you will soon begin discovering everything your television can do.

You'll find information on:

• Using the remote control to operate VCRs, cable boxes, and other equipment,

• Turning the Projection TV on/off,

• Selecting the input source,

• Changing channels,

• Understanding the ViewPoint III on-screen menus,

• Memorizing channels,

• Setting the clock,

• Adding and deleting channels,

• Setting the A/V Network,

• Adjusting the color alignment,

• Selecting the menu type,

• Renaming the inputs,

• Naming the channels,

• Locking A/V functions,

• Adjusting the sound,

• Adjusting the picture, and

• Using the closed caption decoder.

Don't leave stationary images, such as stock market reports, video games, station logos, or the Projection TV's displays, on-screen for more than 10 minut:es. Still patterns such as these can scar the Projection TV, causing permanent damage to the picture tubes.

14 Chapter 2: Operating Your Projection TV

Using the remote" control to operate VCRs, (;able boxes, and other equipment

about your remote control

This Projection TV's remote control has four "layers": the _i_ layer, the VCR-A layer, the VCR-B layer, and the ALVXlayer. Each layer can be used to operate a different component iin your A/V system.

You select the layer you want to use by pressing one of the "select"

buttons across the top of the remote control.

When you first receive your remote control, the _.W layer is set up to operate your Mitsubishi Projection TV, the VCR-A and VCR-B layers are programmed to operate Mitsubishi VCRs, and the AUX layer is set to operate Mitsubishi audio components.

You can use the following buttons to operate your Projection TV.

power button

pause button mute control

super quick view button quick view button

volume control input button

channel control enter button audio and video controls

StarSight function buttons menu button cancel button

display button home button

off-timer button number buttons PIP controls PLAY button

If you have a cable box, a non-Mitsubishi VCR, a Mitsubishi laserdisc player, or a Mitsubishi A/V receiver, you can "set up" the layers in the remote control to operate these components.

The VCR-A layer can be set to operate a non-Mitsubishi VCR; the

VCR-B layer can be set to operate any VCR, any cable box,. or a

Mitsubishi laserdisc player; the AUK layer can be set up to operate a cable box, laserdisc player, or A/V receiver; and the TV layer can be set to operate an A/V receiver.

setting up the remote control to operate your VCR

1111Turn off your VCR.

Press one of the select buttons across the top of the remote to choose the layer you want to set. up: VCR-A or VCR-B.

O While holding in the POWER button on the :remote control,

enter the code number listed in the chart on the following page for your brand of VCR. Be sure to enter both digits of the ('.ode number. If more than one number is listed, try the first one.

Getting Started 15

Using the remote control to operate VCRs, cable boxes, and other equipment (cont.)

If your VCR

is this brand...

Mitsubishi (A) Mitsubishi (B)

Canon

Emerson Funai General Electric Goldstar Hitachi

JVC

...enterthis

code

01 O2 O3

04, 05

06 O3 07 O8 O9

Ifyour VCR

isthis brand...

Magnavox Multitech NEC

Panasonic Philco Philips Quasar RCA

Sanyo

...enterthis

code

03, 10, 11

03, 10

03, 10, 11

08, 13,20

If your VCR

is this brand... Scot Sharp Sony Sylvania Symphonic

Teknika Toshiba

Totevision Zenith

...enterthis

code

15 16

17.18

03, 10_11

04, 06

15 07 19

0 Release the POWER button.

O Press the POWER button again. Your VCR should turn on. If

the VCR turns on, your remote control is now set to operate your VCR.

If your VCR does not turn on, repeat the instruct:ions, trying each code number listed for your brand of VCR. If none of these code numbers work, try each number, 01 through 20.

using your remote control to operate your VCR

After you have set up your remote control for your particular brand

of VCR, you can use the remote to operate your VCP,.

O Use the select buttons across the top of the remote control to

choose the layer that you "set up" to operate your VCR: VCR-A or VCR-B.

Point the remote control at the VCR and press t:he desired buttons.

If you are using a Mitsubishi VCR, you will be able to use all of the buttons on the remote control to operate your VCR except for MUTE, VOLUME and the PIP function buttons, which will always operate the Projection TV itself.

If you are using another brand of VCR, you carl use the POWER, CHANNEL, REC, STOP, PAUSE',, REW, PLAY, FF and TV/VCR

buttons to operate your VCR.

setting up the remote control to operate your cable box

Turn on your cable box.

Press one of the select buttons across the top of the remote to

choose the layer you want to set up AUX or VCR-B.

16 Chapter 2: Operating Your Projection TV

Ifyourcablebox

isthis brand...

ABC Color Voice Comtronics Gemini General Electric General Instruments Hamlin HitacM Jerrold

Macom Magnavox

Memorex

...enterthis

code

57,59, 62, 67, 89

73, 74, 98

93 55 66

55, 56, 57

52, 53,69

54, 55, 56, 57, 58

59, 60,85, 87

71 94 51

O While holding in the POWER button on the remote control,

enter the code number listed in the chart bellow for your brand of cable box. Be sure to enter both digits of the code number. If more than one number is listed try the first one.

Ifyourcablebox

isthis brand...

Oak Panasonic

Paragon Philips

Pioneer Prime Star Pulsar RCA RCA DSS Regal Regency

...enterthis

code

61, 62, 82

63, 70

51 73,74, 75, 76, 77, 93 94,95, 96, 97, 98, 99

64, 65, 84

If your cablebo_

is this brand... Scientific Atlanl Samsunq____

Si_]nature

_ruoar

Starcom

Stargate Tocom Toshiba

Untied Artists

United Cable

Viewstar

Zenith

...enterthis

code

66, 86, 88, 89, 91, 92

65, 84

57 63

54, 55, 56, 87

67, 68, 72

51 62 54

93, 94

O Release the POWER button.

Press the POWER button again. Your cable box should turn off. If the cable box turns off, your remote control is now set I;o operate your cable box. If your cable box does not turn off, repeat the instructions above, trying each code number listed for your brand of cable box. If none of these numbers work, try each number, 51 through 99.

,%Important: After setting up your remote, be sure that your cable box can be

turned on with the POWER button. Some of the cable boxes can be turned on with the CHANNEL buttons or the number buttons.

using your remote control to operate your cable box

After you have set up your remote control for your particular brand

of cable box, you can use the remote to operate your cable box.

O Use the select buttons across the top of the remote control to

choose the layer that you "set; up" to operate, your cable box:

AUX or VCR-B.

Point the remote control at the cable box and press the desired buttons.

You can use the POWER, CHANNEL, numbers (0-9), and ENTLR

buttons to operate your cable box. If you are using an RCA DSS or Prime Star converter, you may be able to use additional buttons.

Getting Started 17

Using the remote control to operate VCRs, cable boxes, and other components (cont.)

setting up the remote control to operate your Mitsubishi audio component (laserdisc player or A/V receiver)

O Turn off your audio component.

O Press one of the select buttons across the top of 1;he remote to

choose the layer you want to set up. For a laserdisc player:, choose AUX or VCR-B. For an A/V receiver, Choose TV or AUX.

While holding in the POWER button on the remote control, enter one of these code numbers:

• For a Mitsubishi A/V receiver: 30 or 31

• For a Mitsubishi laserdisc player: 32 or 33

Be sure to enter both digits of the code number. If more than one number is listed, try the first one.

Release the POWER button.

O Press the POWER button again. Your audio component should

turn on. If it does, your remote control is now set to operate your cable box. If it does not turn on, repeat the instructions above, trying the other code number listed for your component.

using your remote control to operate your Mitsubishi laserdisc player

After you have set up your remote control for your laserdisc player, you can use the remote to operate the player.

Use the select buttons across the top of the remote control to choose the layer that you "set up" to operate your laserdisc player: AUX or VCR-B.

Point the remote control at the laserdisc player and press the desired buttons.

You can use the POWER, CHANNEL, numbers (0-9), DISPLAY,

MENU, CANCEL, STOP, PAUSE, REW, PLAY, ]NDEX, and FF buttons to operate your laserdisc player.

18 Chapter 2: Operating Your Projection TV

_Important:

using your remote control to operate your Mitsubishi A/V receiver

After you have set up your remote control for your A/V receiver, you can use the remote to operate it.

O Use the select buttons across the top of the remote control to

choose the layer that you "set; up" _o operate yeur AN receiver: TV or AUX.

O Point the remote control at the A/V receiver and press the

desired buttons.

If you are using a Mitsubishi HTS-100, you can use the POWER,

VOLUME, and MUTE buttons to operate the rece!ver.

If you are using a Mitsubishi HTS-300, you can use the POWER, CHANNEL, INPUT, VOLUME, ENTER, number (0-9), DISPLAY, MENU, CANCEL, AUDIO, VIDEO, ADJUST, and MUTE buttons to operate the receiver.

notes about your remote control

Sometimes manufacturers will change their products, or they may

use more than one code. If this is the case, your remote may not be

able to operate your VCR or cable box.

When you replace the batteries in your remote control, the remote will usually return to its initial setting. You may need to set up your remote again.

Getting Started 19

Turning the Projection TV on/off

_Important: Before using the remote control to operate the Projection TV, press

the "TV" select button at the top the remote control.

Use the POWER button on either the control panel or the remote control to turn the Projection TV on and off'. The power indicator will light up in green when you turn the Projection TV on.

_Important:

o zs--_y-O

_ 0 _

{,@,®®@

TS-5087, TS-5089

©©©@©@©o

@©©©©©

VS-6085, VS-7085, VS-6087, VS-7087, VS-8087

There is always a small amount of current flowing into the Projection TV, even when the power is turned off. This maintains any changes to the TV's settings and operates the built-in clock and timing functions. Unplugging the set will erase these settings, requiring you to set them again. Unplug the Projection TV only when it won't be used for a long time.

20 Chapter 2: Operating Your Projection TV

Selecting the input source

If you connected components such as VCRs, camcorders, or laserdisc

players to your Projection TV, you will need to change the input source to view the signals from these components.

To select an input source, press the input button (INPUT) on the control panel or on the remote control.

,-5---%----5 ----H_

C-_ C) (::::5

0 (3 0 0

k//_ _¢ xx._

TS-5087, TS-5089

VS-6085, VS-7085,

_ vs-6osT,v_,s-7o8Kvs_o!}j

(('_ / _------o_ o,o o o o •

00,©©©©© 7

You can choose between the following input sources:

• Ant-A or Ant-B (antennas or cable systems connected to the

antenna terminals),

• Input-1 or Input-2 (components connected to the terminals on the back of your television), or

• Input-3 (a component connected to the terminals on the front of the television).

The name of the input you have selected will be displayed briefly in the corner of the screen.

Getting Started 21

Changing channels

_Important:

Your Projection TV offers you four ways of changing channels once

their numbers have been programmed into channel memory:

• selecting channels one-by-one with the channel controls,

• directly accessing a channel by pressing t]he number buttons,

• using the special Quick View option to switch to a particular memorized channel, and

• using the Super Quick View function to alternate between channels on a user-chosen list.

To change channels faster, use either of the following procedures:

,i Enter three digits for every channel number: using zeros where

needed. (For example, enter "004" to view channel 4 and "028" to view channel 28.)

I Press the ENTER button after selecting the :number of' the

channel. (For example, press "4" and "ENTER" to view channel 4.)

Cable channel numbers 0 and greater than 126 are not used. TV stations 0, l, and 70 through 999 are not used. If you selec.t one of these channel numbers, your Projection 'IRr will not change channels.

22 Chapter 2: Operating Your Projection TV

ooo0

changing channels one-by-one

To change channels:

O Press one of the channel

controls (Ct_NNEL) on the control panel or on the remote control. The P:rojection [IV will mltomatically tune to the next

memorized channel.

TS-5087 TS-5089

fl_(_\ vs.6085

I CHA'_NNNEL) VS-70S5

\ / vs-6o87

_.Z_. VS-7087

__ _S-8087

©O©©_xQ O •

O©O©'I©O

.... __.f'-

E>Important: You cannot change channels one-by-one until available channels

have been programmed into memory. (See "Memorizing channels," page 26.)

.400_1

_oooQ'

_OOQUI

changing channels directly

To move directly to a particular channel without going th:rough the programmed channels in--between:

Use the number buttons on the remote control to select the

number of the channel, you want to view.

Press the ENTER button.

Getting Started 23

Changing channels (cont.)

_>Important:

using the Quick View o]?tion

Quick View' allows you to memorize a particular channel and switch to it quickly.

0 Tune to the channel you wish to

memorize.

O Press and hold the QV button

fbr about 2 seconds. When you

release the button, the ,channel

numbers will appear on the screen, indicating that you have

memorized that channel.

After changing to another channel, press the QV button to immediately return to the memorized channel.

0 Press the QV button again to

return to the last channel you were watching.

The memorized QV channel will remain the same until you memorize a new channel.

using Super Quick View option

@ c::_ o

_ c2_ c:3 _

To view channels programmed into Super Quick View memory:

O :Enter the desired channel into

Super Quick View memory. (See page 54 or 56,)

Press the SQV button repeatedly to view the SQV

channels in s;equence.

If you have subscribed to StarSight, you ,:an program the SQV button to cycle through channels with a particular theme. See Booklet #3, "StarSight Operating Guide."

24 Chapter 2: Operating Your Projection TV

Understanding the ViewPoint III on-screen menus

One of the distinctive features of this Projection TV is Mitsubisbi's

exclusive ViewPoint On-Screen Operating System. Unlike other television menus systems, ViewPoint includes a slcecial Picture-in- Picture screen to let you view the TV picture while you are using

the menu.

ViewPoint also provides step-by-step instructions for using some of the Projection T_s special capabilities.

When using the ViewPoint systera, please keep the following in mind:

•/ The selected menu item is indicated in white.

J The on-screen menus will turn off if no item is selected _4thin 5

minutes.

J Some menu items are available only when you subscribe to

StarSight. (Please see Booklet #3, "StarSight Operating Guide" for more information about the StarSight menus.)

€" Some on-screen menu items must be set before other items are

available. For example, "Set the timer" will only be available if "Set the clock" has been set.

€" You can exit the on-screen menus any time by pressing the

MENU button repeatedly. You will then return to regular TV viewing.

J You can also exit the on-screen menus by pressing the HOME

button on the remote control.

Getting Started 25

Memorizing channels

You can use the menus to automatically memorize the channels your Projection TV can receive. Once channels are memorized[, you can scan through them using the channel controls on the remote control and control panel.

[] MAIN MENU

Customize Display Advanced Features StarSight Setup

Use these buttons on the remote;

[]ADJUST ENTER _ MENU to[]

to select -- to enter go back

O Press the MENU button on the

remote control. The Main Menu

will appear on the screen.

O Use the ADJUST buttons to

select "First Time Setup." Press ENTER.

[] FIRST TIME SET UP

_ emorize Channels

Set the Clock Add/Delete Channel Set A/V Network

Set up Cable Box Align Colors

Use these buttons on the remote:

[]ADJUST [] ENTER _MENUto

to select to enter go back

O You will see the First Time Set

Up screen. Use the ADJUST buttons to sdect "Memorize Channels." Press ENTER.

[] MEMORIZE CHANNELS

Antenna A (Ant-A)

[] Antenna B (Ant-B)

Your TV has two antenna inputs called Antenna A (Ant-A) and Antenna B (Ant-B).

On whch inout would you like to memorize channels?

Use these buttons on the remote:

[_ADJUST [] ENTER _MENUto

to select to enter go back

Use the ADJUST buttons to select the terminal (Ant-A or Ant-B) to which you attached

an antenna or coaxial cable. Press ENTER. (If you made a

connection to each terminal, you should memorize the channels fbr one terminal now,

and for the other terminal later.)

26 Chapter 2: Operating Your Projection TV

[] MEMORIZE CHANNELS O Indoor/outdoor

antenna

[] Cable antenna

What kind of antenna is connected

toyour TV on Antenna A (Ant-A)?

Use these buttons on the remote:

[_ADJUST ENTER _ MENU to

to select [] to enter 9o back

_---q

If you select Antenna A

O Use the ADJUST buttons to

choose the type of antenna you connected: Indoor/outdoor antenna or Cable antenna. Press ENTER.

[] MEMORIZE CHANNELS

O Indoor/outdoor

antenna

] Cable antenna

without Cable Box

[] Cableantenna

with Cable Box What kind of antenna is connected to your TV on Antenna B (Ant-B)?

Use these buttons on the remote:

[]ADJUST ENTER [_ MENU to

to select [] to enter go back

If you select Antenna B

Use the ADJUST buttons to choose the tylce of antenna you connected: Indoor/outdoor antenna, cable antenna without cable box, or cable antenna with cable box. Press ENTER.

Important:

[] MEMORIZE CHANNELS

O Channel 015

In memory Now memorizing all

the channel you can

receive on Antenna A (Ant-A).

Please stand by.

Use this button on Ihe remote:

I_ CANCEL to stop memorization

You will see a message that channel memorization is in

progress. A channel being added to memory will be labeled "In memory." Channels not. being added will be labeled "Not in memory." You can stop channel memorization at any time by pressing CANCEL.

Channel controls will work only after channels have been memorized. After memorizing, use the channel controls (CHANNEL) to advance sequentially to the next memorized channel. Use the number buttons to select indivi dual channels.

When you select "Cable antenna with cable box," your Projection TV will memorize channels i through 99. If your cable box can receive channels 100 through 125, you will have to add them to your TV's memory with the procedure described in "Adding and deleting channels."

It can take up to 20 minutes for your Projection TV to memorize channels from a cable box.

Getting Started 27

Setting the clock

Your Projection TV contains an internal clock. If you can receive an XDS time signal from a broadcaster in your area, or if you subscribe to StarSight, then your TV can automatically set its. clock. Otherwise, you can set the clock yourself. (If you subscribe to StarSight, the "Set the Clock" menu is not available.)

[] FIRST TIME SET UP _ emorize Channels

Set the Clock _- Add/Delete Channel _L_ Set AN Network _L_ Set up Cable Box _,1 Align Colors

Use these buttons on the remote:

I-_ADJUST [] ENTER _MENUto

to select to enter go back

[] SET THE CLOCK

_, Automatic

Time : - -

Use these buttons on the remote:

[_ ADJUST

to turn automatic setting off

r-_ ENTER

for clock to set automatically

[] MENU to go back

O Press the MENU button on the

remote control. The Main Menu will appear on the screen.

O Use the ,_d:)JUST buttons to

select "First Time Setup." Press ENTER.

You will _,;eethe First 'rime Set Up screen. Use the

ADJUST buttons to select "Set

the clock." Press ENTER.

If you want :your TV to set. its clock automatically, use the

ADJUST buttons to set "Auto-

matic setting" to "On"; if you want to set the clock yourself, set "Automatic setting" to "Off," and see "set';ing the clock yourself," on page 30.

28 Chapter 2: Operating Your Projection TV

[] SET THE CLOCK

o Wh ch time zone are you in?

At ant e

[] Do you follow daylight saving time?

Current Time: Not set

Use these buttons on the remote:

ADJUST

to choose time zone

ENTER to enter

[] MENU to go back

[] SET THE CLOCK []Which time zone are you in?

Atlantic

O Do you tollow daylight saving time?

Yes Current Time: 5:30 pm

Use these buttons on the remote:

-_ ADJUST to select no

[_ ENTER to enter

[] MENU to go back

using aute,matic clock, setting

Use the ADJUST buttons to select the time zone you live in.

The availalcle time zones are: Atlantic, Eastern, Central,

Mountain, Pacific, Alaska and Hawaii.

• Press the ENTER button.

If you follow daylight savings time, use the ADJUST buttons to answer the question with "Yes." Othc,rwise, answer "No."

Press ENTER. The automatic clock set-up is completed. The

screen will return to the First Time Set Up menu.

_>Important:

The Projection TV's clock will not be set until you tune your Projection TV to a channel that is broadcasl_inl; the time via Extended Data Services (XDS). If your TV loses power, you will need to tune to that channel again to reset your clock.

If you set "Daylight savings" to "On," your TV will adjust the clock

by one hour when daylight savings begins and ends.

Getting Started 29

Setting the clock (cont.)

[] SET THE CLOCK 1_] Automatic

Time : - -

Use these buttons on the remote:

-_--] ADJUST to turn automatic setting on

i-_ ENTER

to set the day

[] MENU to go back

setting the clock yourself

• Use the ADJUST buttons to set

"Auto clock" to "Off." Press ENTER.

[] SET THE CLOCK @ Automatic

setting : OFF

Day : Wednesday

Time : - -

Use these buttons on the remote:

'-_ ADJUST

to select the day ENTER

to set the time

[] MENU to go back

• Use the ADJUST buttons to select the "Day." Press ENTER.

[] SET THE CLOCK _ utomatic

setting : OFF

Day : Wednesday

Time : 9:00pm

Use these buttons on the remote:

[_ ADJUST

to select the time

i_ ENTER

to start the clock

[] MENU to go back

• Use the ADJUST buttons to set the "Time."

• After you haw_ set the "Day"

and "Time," press the ENTER

button to star'; the clock.

The screen will return to the "First Time Setup" menu.

[_Important:

_Important:

You can clear the time by pressing the CANCEL button when

"Automatic setting" is selected.

If you are receiving a VCR signal on channel 3 or channel 4, the automatic setting may not work correctly.

30 Chapter 2: Operating Your Projection TV

_>Important:

Either "In memory" or

"Not in memory" will appear.

_>Important:

Adding and deleting channels

After all available channels have been memorized with the "Memorize channels" feature, channels with weaker signals, can be

added or deleted with the following procedure.

If you subscribe to StarSight, you can only addLand delete Channels on Antenna A with this menu. If you want to add and delete channels on Antenna B, use the StarSight menus. (Please see Booklet #3, "StarSight Operating Guide.")

[] FIRST TIME SETUP

_ emorize Channels

Set the Clock Add/Delete Channel Set AN Network Set up Cable Box Align Colors

Use these buttons on the remote:

[] ADJUST [] ENTER _ MENU to

to select to enter go back

[] ADD/DELETE CHANNEL_ I

Current settings: [ I Antenna : A |

Indoor/outdoor

,._ _:hannel : 0_3 I . . l

Not in memory Use these buttons on the remote:

]ADJUST

to select the channel

O----]ENTER

to add to memory

MENU to go back

Press the IvIENU button on the remote control. The Main Menu

will appear on the screen.

Use the ADJUST buttons to select "First Time Setup." Press

ENTER.

Use the ADJUST buttons to

" I

select Add/l: elete Channel." Press ENTER.

The Ad(VDelete Channel scxeen

will appear. Use the ADJUST buttons to select the channel

you would like to add or delete.

(You can also use the CHANNEL controls to change

channel s.)

[]ADD,OE TE I

Current settings: | [

Antenna : A I I

,, &%e11 8, ! I

v In memory

Use these buttons on the remote:

]ADJUST

te select the channel CANCEL

to delete from memory MENU to go back

If a channel is labeled "In

memory," use the CANCEL button _o remove it from

memory. If a channel is labeled "Not in memory," use the ENTER button to add it to memory.

When you are finished adding and deletins channels, press the HOME button to return to normal TV viewing.

Adding a channel to memory allows you to tune to the channel with

the channel controls. If a channel is not in memory, you can only

tune to it with the number buttons.

In this menu, you can use the CHANNEL buttons to change channels.

Getting Started 31

Setting the A/V Network

The A/V Network is a special system that Mitsubishi developed to make it easier to operate many products with one remote control. When the A/V Network is connected between two Mitsubishi products, you can point the remote control at one product and it will "pass" the remote control command to the other. To set up the A/V Network:

[] FIRSTTtME SET UP _ emorize Channels

Set the Clock Add!Delete Channet

Set AN Network Set up Cable Box Align Colors

Use these buttons on the remote:

--_ ADJUST [] ENTER _ MENU to to select to enter go back

[] SETAN NETWORK

O AN Network: Active

When AN Network is

set to "Active" or "Basic," your TV can perform automated

operations with other Mitsubishi products. Set to "OFF" if you do not have other Active AN Network products or are not using an AN Network control cable.

Use these buttons on the remote:

--_--] ADJUST [_ MENU to to select go back

Press the MENU button on the remote control. The Main Menu

will appear on the screen.

Use the ADJUST buttons to select "First Time Setup." Press

the ENTER button.

Use the ADJUST buttons to select "Set Arc" Network:." Press the ENTER button.

Use the ADJUST buttons to select "Active," "Basic," or "Off."

Check the rear terminals of your VCR, then use the chart

below to determine how you should set your Projection TV.

Press the ttOME button to return to normal TV viewing.

If your VCR has a rear ...and you have set your ...then set your terminal that reads: VCR to: TV to:

AN Network - Basic

Active A!V Network Off Basic

Active A!V Network Active Active

Does not have an A/V Network rear terminal - Off

If you are not sure how to set your VCR's A/V Ne;work setting, refer to your VCR's owner's guide.

32 Chapter 2: Operating Your Projection TV

WhenanA/VNetworkcableis connectedbetweer,theProjection TVandVCRandthefollowingconditionsaremet,yourProjection

TVhastwoadditionalfeatures.

If...

¢" You set up "StarSight," and

€" Your VCR is one of the following models: HS-U500, HS-U550,

HS-U650, HS-U770, HS-U510, HS-U560, or ES-U760, and

€" You have set "A/V Network" on your Projection TV and VCR to

"Active."

Then...

J The Projection TV will control your VCR to record current and

future programs.

€" You will not have to "set up" your VCR dining the StarSigbt

authorization procedure.

€"

An error message will be displayed when you record from the "StarSight" screen if the VCR is:

• currently recording;

• playing a tape;

• turned off; or

• if a tape is not inserted :into the VCR

_Important:

Important:

If connected, the A/V Network will still pass remote control signals, even when the Projection TV's A/V Network setting is "Off:"

If you have not connected the A/V Network, set "A/V Network" to

"Off," or there may be problems selecting channels on your TV.

If you are using a Mitsubishi VCR with A/V Network or Active A/V Network, you should have connected it to the II_ PUT-1 of your TV.

If you subscribe to StarSight, the A/V Network ':Quick Play" feature will not be available.

Getting Started 33

Adjusting the color alignment

Your Mitsubishi Projection TV has three picture tubes, which

are arranged in Line to project the light beams that create your television picture. These three rubes must be ali_,_ed to create the best color picture. If the tubes are not aligned correctly, the objects

on your screen will have "halos"' or discoloration around the edges.

You should check the color alignment when your Projection TV is first installed and any time you move your Projec,'tion TV.

The color alignment process has two parts: displaying the color alignment "test" screen and adjusting the align_.ent. You can use either the remote control buttons or the control panel buttons t;o perform this procedure.

[] FIRST TIME SET UP t

_ emorize Channels

Set the Clock Add/Delete Channel Set AN Network Set up Cable Box Align Colors

Use these buttons on the remote:

[] ADJUST [] ENTER I_ MENU to

to select to enter go back

[] ALIGN COLORS

Use these buttons on the remote:

[] ENTER to select Red or Blue

]ADJUST (Up/Down, Le_Righ0

until the crosshairs appear white

[_ MENU to go back

displaying the color alignment "test" screen with the remote control

O Press the MENU button on the

remote control. The Main Menu will appear on the screen.

Use the AiDJ[JST buttons to select "First Time Setup." Press ENTER.

You wilt see _he "First 'rime Setup" screen. Use the ADJUST buttons to seLect "Align colors." Press ENTER.

You will see _he Align Colors

screen. Press ENTER. The "test" screen (below lefl:) will

appear.

(---- Red ----)

displaying the color alignment "test" screen with the control

panel buttons

O At the same time, press

the ENTER button and the ADJUST down button. (These buttons are joined by a line

marked "test.") The "test"

screen will appear.

34 Chapter 2: Operating Your Projection TV

adjusting the alignment

If the test screen shows a single, solid white cross, the ]Projec- tion TV's tubes are aligned correctly. Skip to step O. If' you see three crosses, or if the sing]e cross has discoloration at its edges, go to step O.

O When you first display the "test" screen, the word "Red" ap-

pears at the top of the screen. This indicat;es that you will be

adjusting the red cross on the screen.

Adjust the position of the red cross until it is perfectly aligned

with the green cross at the center of the screen. To adjust the red cross, use the ADJUST buttons on the remote, or the

ADJUST, VIDEO, and AUDIO buttons on the control panel.

When you've finished adjusting the red cross, press ENTER. The word "Blue" will appear at the top of the screen.

O Adjust the position of the blue cross until it is perfectly aligned

with the green and red crosses at the center 9f the screen. You can use the ADJUST buttoas on the remote, or the ADJUST,

VIDEO, and AUDIO buttons on the control panel.

O When all three crosses are perfectly aligned, they should

appear as a single, solid white cross.

O To remove the "test" screen from the Projection TV, press the

ENTER button on the remote, or the ENTER and ADJUST- down buttons on the control panel.

• Warning: The "test" screen should not be left on the screer for a long periodof time. It could cause damage to the picture tubes.

_>Important: The alignment of the colors can change over time. If you notice a

change in the color quality of the Projection TV's picture, check the color alignment. You may need to adjust the colors periodically.

Getting Started 35

Selecting the menu type

You can display the on-screen menus in one of two ways. The Standard Menu, which is illustrated in this maaual, provides step-by-step instructions for all features. The Advanced Menu lets you select each feature directly by its name and icon.

Your TV's normal setting is the Standard menu. ]_o switch between the Standard and Advanced Menus:

[] MAIN MENU

_ irst Time Setup

Customize Display Advanced Features

StarSight Setup

Use these buttons on the remote:

[] ADJUST [] ENTER _ MENU to

to select to enter go back

O Press the MENU button on the

remote control. The Main Menu will appear on the scree, n.

O Use the ADJUST buttons to

select "Customize Display." Press ENTER.

[] CUSTOMIZE DISPLAY [] Select Menu Type

[] Rename the Input [] Name the Channels [] Lock AN Functions

Use these buttons on the remote:

-'_"IADJUST ENTER _ MENU to

to select [] to enter go back

O You will see the Customize

Display menu. Use the ADJUST buttons to select

"Select Menu Type." Press ENTER.

[] SELECT MENU TYPE

O Standard Menu

[] Advanced Menu

The Standard Menu lets you select features in a step-by-step method, and contains full descriptions of the features. The TV's picture will be reduced in size.

Use these buttons on the remote:

[_ ADJUST []ENTER I'_ MENU to

to select to enter go back

0 Use the ADJUST buttons to

select "Standard Menu" or "Advanced Menu."

Press the ENTER or MENU button.

36 Chapter 2: Operating Your Projection TV

If youselecttheStandardMenu,thescreenwir,returntothe CustomizeDisplaymenu.IfyouselectedtheAdvancedMenu,the

screenwill showtheAdvancedMenu(shownbelow.)

Select Menu Type First Time Setup Customize Display

Advanced Features

• Set the Timer

• Use Parental Lock

• Set SuperQuickView

• Use Adw_nced PIP

• Reset Audio/Video

The Advanced Menu

-[]N--

-[][]

N[] []

[] [] []

Menu display choices

- StarSight Program Guide

• StarSight Setup

• Theme Guide

• Recordings

• Program Guide

-The feature name of the

highlighted icon appears :here.

To use the Advanced Menu, use the ADJUST buttons to highlight the icon of the feature you want to use, then press ENTER. The name of the highlighted icon appears at the bottom of the screen.

You can use the following remote control buttons while viewing the

Advanced Menu:

• input button

• channel controls

• number buttons

• super quick view buttons

• quick view buttons

This menu disappears if you do not select an item within 1 minute.

Getting Started 37

Renaming the inputs

This feature allows you to rename the inputs so that you can keep

track of components you have connected to your TV. For example, you might name one input '_CR," and another one "DISC." After renaming, the new name will appear on the screen display. (The original names are "Input-l," "Input-2," and "Input-3.")

[] CUSTOMIZE DISPLAY [] Select Menu Type

[] Rename the Input [] Name the Channels [] Lock AN Functions

Use these buttons on the remote:

[]ADJUST ENTER r_ MENU toro]

to selec! -- to enter go back

[] RENAME THE INPLIT

Current settings:

O Input-1 .....

[] Input-2

Input-3 .....

Use these buttons on the remote:

[_ DJUST to _ CANCEL to cancel

select an input

[] ENTER to enter [_ MENU to go back

[] RENAME THE INPUT

Current settings:

O Input-1 ABCD-

[] Input-2 .....

Input-3 .....

Use these buttons on the remote:

-_-----] DJUST to r_ CANCEL to cancel select an input

[] ENTER to enter _ MENU to go back

O Press the MENU button on the

remote control. The Main Menu will appear on. the screen.

O Use the ADJUST buttons to

select "Customize Display." Press ENTER.

You will see the Custorn.ize

Display screen. Use the AD- JUST buttons to select "Re-

name the Input." Press ENTER.

Use the ADJUST buttons to select the input you want to rename (Input-I, Input-2, or Input-3). Press ENTER..

Use the ADJUST buttons and

the ENTER button to select each letter in the new name.

You can rename the inputs using letters (A- Z), numbers (0 - 9), or symbols (:/., ( ) _" #$%&'*+;<=>? blank - ).

If you press the CANCEL button while setting the name, you will mow_ one position to the left. You can clear the

entire name by pressing CANCEL when the left.-most

position is blinking.

When you are finished, press the MENU button; the screen

will return to the Customize Display menu.

38 Chapter 2: Operating Your Proiection TV

L>Important:

[:>Important:

Naming the channels

You can name the channels your Projection TV receives, helping

you keep track of the many channels available. After you enter a name, it will appear on-screen, next to the channel number.

[] CUSTOMIZE DISPLAY [] Select Menu Type

_ ename the Input

Name the Channels

[] Lock A/V Functions

Use these buttons on the remote:

[]ADJUST ENTER _ MENU to

to select [] to enter go back

[] NAME THE CHANNELS

Current settings:

,,_ Antenna : A

(Indoor/outdoor)

[(91Channel : 003 [] Name " - - - -

Use these buttons on the remote:

[_ DJUST to

select an antenna

[] ENTER to enter _ MENU to go back

[] NAME THE CHANNELS I I

Current settings:

Antenna A I (Indoor/outdoor)

O Channe : 003

_] Name : ....

Use these buttons on the remote:

[_ ADJUST to

select a channel

[] ENTER to enter _ MENU to go back

[] NAME THE CHANNELS

Current settings: I'_--IAntenna : A L_I (Indoor/outdoor) [] Channel: 003

O Name : ABC ..

Use these buttons on the remote:

I_ DJUST to _ CANCEL to cancel

change the letter

[] ENTER to enter F_ MENU to go back

Press the MENU button on the remote control. The Main Menu

will appear on the screen.

Use the ADJUST buttons to select "Customize Display." Press ENTER.

O You will ,;ee the Customize

Display screen. Use the AD-

JUST buttons to selecl: "Name

the Channels." Press ENTER.

0 Use the ADJUST buttons to

select an an_enna (A or B). (If you sut)scribed to StarSight, you can only select Antenna A).

Press ENTE,R.

Use the ADJUST buttons to

select the cl: annel you want to

name. Press ENTER.

Use the t_J)JUST buttons and

the ENTER button to select each letter in the new name.

You can use letters (A - Z),

numbers (0 - 9), or symbols (:/. ,()!"#$%&'*+;<=>?

blank- ). W:aen you are setting the name, y_u can clear it by pressing the CANCEL button.

When you are finished, press the HOME button to return to

normal viewing

The names you set will appear instead of the call letters being

supplied by Extended Data Services (XDS). ]ifyou subscribe to StarSight, that system will automatically name the channels.

You can name up to sixty channels. If you try to name more, the

message "Memory over!" will indicate that the memory is full.

Getting Started 39

Important:

Locking A/V functions

You can lock some of the audio and video functions (such as

"Treble" or "Contrast") to their c,urrent settings. Once you lock a particular function, it will not be displayed on-sczeen until you unlock it. This will prevent others from accidentlv changing the settings of these functions.

[] CUSTOMIZE DISPLAY [] Select Menu Type

[] Rename the Input [] Name the Channels [] Lock A/V Functions

Use these buttons on the remote:

[-_ADJUST ENTER _ MENU toDq

to select -- to enter go back

[] LOCK A/V FUNCTIONS

€} TV Listen to : Stereo

unlocked

You can lock some AN functions to their current settings, When you do this, the function will not be displayed until it is unlocked.

Use these buttons on the remote:

I_ AUDIO or VIDEO [_--] ADJUST to lock

to select a menu item

[_ MENU to go back

[] LOCK A/V FUNCTIONS

O TV Tint

unlocked

You can lock some A/V functions to their current settings. When you do

this, the function will not be displayed until it is unlocked.

Use these buttons on the remote: AUDIO or VIDEO [_-----_ADJUST to lock

to select

L.,..z_.,i

a menu item MENU fo go back

O Press the MENU button on the

remote control. The Main Menu

will appear on the screen.

O Use the ADJUST buttons to

select "Custoraize Display." Press ENTER.

You will see t:ae Customize

Display screen. Use the ADJUST buttons to select "Lock A/V Function,;." Press ENTER.

O To lock an audio function, press

the AUDIO button until the flmction you want to lock

appears. To lock a video flmction, press the VIDEO button until tile function you want to lock appears.

Use the ADJUST buttons to switch between "locked" and "unlocked."

When you are finished, press the MENU button; the screen will return to the "Customize Display" menu.

The speaker functions and closed captioning ( _-0]) cannot be locked. If you try to lock these flmctions, the disp] ay below appears:

[] LOCK AN FUNCTIONS

O TV Speaker : External

cannot be locked

You can lock some A!V functions to

their current settings. When you do this, the function wil_ not be

displayed until it is unlocked.

Use these buttons or" the remote: AUDIO or VIDEO

to select a menu item

[_ MENU to go back

40 Chapter 2: Operating Your Projection TV

Adjusting the sound

Your TV allows you to customize and adjust the ,_ettings of its

audio functions. This section gives you descriptions of each audio function, then explains how to adjust the functions.

descriptions of audio functions

The "Listen to" function allows you to determine how your TV will receive an audio signal and play back the sound that you hear. You can set this function to "Stereo:" "S.A.P.," and "N[ono."

• For almost all situations, you should choose "Stereo." With this setting, the TV will play stereo broadcasts in stereo and mono

broadcasts in mono. If a channel is broadcasting in stereo, the word "Stereo" will be displayed when you tune to that channel.

• Some TV stations will broadcast a separate audio programming, or "S.A.P.," signal. This signal is an additional soundtrack that

you can't hear during normal TV viewing. An S.A.P. si_mal might be related to the program you are watching (e.g., a soundtrack in a foreign language), or it might be unrelated (e.g.,

a weather report). If a channel is broadcasting an S.A.P. signal,

the letters "SAP" will appear on-screen when you tune to that channel. Choose "Listen to: SAP" to hear the S.A.P. signal.

• Use the "Mono" setting if you are receiving a weak audio

signal. This setting will reduce background _.oise. However, with this setting, the TV will only play in mono, even if the program you are watching _s in stereo.

The "Bass" function controls the volume of low tYequency sound.

The "Treble" function controls the volume of high frequency sound.

The "Balance" function adjusts the level of sound between the left and right speakers. Adjust the scale until the. sound seems to come equally from both speakers.

The "Surround" function creates simulated stereo and surround effects. You can set this function to "Off," "Simulate," or "Hall."

• Select "Off' if you do not want to use any surround effi_cts.

• Select "Simulate" if are watching a non-stereo program; your Projection TV will create a simulated stereo effect.

• Select "Hall" if you are watching a stereo program; your Projec- tion TV will create a simulated surround effect, making the sound seem to extend around and behind you.

Getting Started 41

Adjusting the sound (cont.)

The "Speaker" function allows you to select how the Projection TV's speakers will be used.

• Choose "Internal" if you want to play the Projection TV's sound through its built-in speakers.

• Choose "Internal Center Channel" if you connected your TV to a surround sound processor and you want _o use the TV's

built-in speakers as center channel speakers.

• Choose "External" if you connected speakers to the speaker

terminals on the rear of the TV, or if you wa_t to play tlhe sound

of your TV through an audio system.

The "Monitor out" function determines how thc_ TV will send an audio signal to an audio system or home theal_er receiver. Your

choices are "Variable" or "Fixed."

• If you choose "Fixed," the 2_ will send out al_ audio signal at a fixed volume level. The level will not change when you .'adjust

the TV's volume. Use the controls on your audio system to

adjust the volume. The "Fixed" setting is most useful wlhen you can control the audio system's volume with a remote control.

• If you choose '_V'ariable," the TV's audio output will change when you change the TV_s volume. If you use this setting with an audio system, turn the TV_s volume all the way down, set the audio system's volume to an average setting, then turn the TV_s

volume up until you can hear the signal.

42 Chapter 2: Operating Your Projection TV

TS-5087 _" TS-5089

ADJUST

VS-6085 VS-7085 _-- VS-6087 VS-7087 _ VS-8087

adjusting the audio functions

When adjusting the audio functions, you can use the buttons on the remote control or on the control panel.

Press the AUDIO button repeated][y until the function you want. to adjust appears on-screen. (The functions appear at the center of the

bottom of t_.e screen.)

While the hmction is still on the screen, use Lhe ADJUST

buttons to adjust its setting.

O The functio:_s will disappear

from the screen after a few seconds. (You cannot adjust a

function if it is not on the

screen.)

_>Important:

If you subscribe to StarSight, you can only use the "left]right" buttons on the remote control to adjust the audio functions. You cannot use the up!down buttons on the remote control or the ADJUST buttons on the front pane] of your projection TV.

Getting Started 43

Adjusting the picture

Your TV allows you to customize and adjust the settings of' its video functions. This section gives you descriptions of each video function, then explains how to adjust the functioas.

descriptions of video functions

The "Tint" function provides a scale that adjusts the proportion of

red to green in the picture. This determines tile delicate tones of color.

The "Color" function provides a scale that determines the :intensity of the color.

The "Contrast" function provides a scale that. controls the lew_l of white-to-black in the picture. When the contrast is low, you will be able to see the variety of shades in the darker images on the screen. When the contrast is high, the screen's dark: images will appear more uniformly black, but this will also make the colors on the screen seem more vibrant.

The "Brightness" function provides a scale that controls the overall brightness of the picture.

The "Sharpness" function provides a scale that adjusts the detail

and clarity of the picture.

The "Color temp" (Color temperature) function allows you to set how the TV will display white images. Your choic.es are "Low," "High," or "Middle."

• With the "Low" setting, white images on-screen will have a yellow cast to them.

• With the "High" setting, white images on-,_creen will have a blue cast to them.

• With the "Middle" setting, white images on-screen will be balanced between yellow and blue.

The "_" function is used to control the closed caption decoder. For details, see "Using the closed caption decoder," page 46.

44 Chapter 2: Operating Your Projection TV

@ cx:_ c

oooC

TS-5087,

VS-6085, VS-7085, VS-6087, VS-7087, VS-8087

adjusting the video filnctions

When adjustiag the video functions, you can use the buttons on the remotE, control or on the

control panel.

{[]_Press the _?IDEO button

repeatedly until the function you want to adjust appears

on-screen.

(The functions appear at the center of the bottom of the

screen.)

O While tlhe function i,; still on the

screen, use the ADJUST

buttons to adjust the function's

setting.

The functions will disappear from the screen after a ihw

seconds. (You cannot adjust a function if it is not on the

screen.)

_>Important: If you subscribe to StarSight, you can only use the "left/right"

buttons on the remote control to adjust the vi_eo functions. You cannot use the up/down buttons on the remote control or the ADJUST buttons on the front panel of your projection q_V.

Getting Started 45

Using the closed caption decoder

E>Important:

L>Important:

E>Important:

Many broadcasters now supply closed captioning information along with their regular broadcasts. Your TV can decode that information

and display it on the TV screen.

There are two types of captioning that broadcasters can send: "standard" and "text."

Standard captioning is related to the program that is being' shown. Standard captioning usually follows the dial ogue of the

characters on-screen.

Text captioning often contains information such as weather or news. Text captioning blocks out your view of the program you are watching.

Your TV can decode four different "standard captioning" signals and four different "text captioning" signals from ,each TV station. However, each station may be broadcasting only one or two captioning signals, or none at all.

When setting the decoder you can choose:

• to display one of four "standard captioning" signals ( _0] :1, D :2, [0_]:3, _ :4),

• to display one of four "text captioning" signals ( _ : Text 1, C_ :

Text 2, _¢7 : Text 3, _ : Text 4),

• to display captions when muting ( _ : When Muting),

• or to turn the captions off ( [] ::Off).

If you select "_-07: When Muting," the standard captioning signal ( [] :1) will appear whenever you use the MUTE button.

If you set the decoder to a "standard" caption setting and tune, to a broadcaster that is not sending a caption signal, :no captions will appear.

If you set the decoder to a "text" setting and tune to a broadcaster' that is not sending a text signal, a large black rectangle will block:

your screen.

The content of captions are determined by the broadcaster. If your captions show strange characters, misspellings, or odd grammar, it is not a malfunction of the Projection TV.

46 Chapter 2: Operating Your Projection TV

TS-5087

ADJUST

VS-6085, VS-7085, VS-6087, VS-7087_ VS-8087

adjusting the closed caption decoder

When adjustirg the closed caption

decoder, you can use the buttons on the remote control or on the

control panel. To use the closed caption decoder:

Press _he VIDEO button until the closed caption display appears on the screen.

O Press _he ADJUST buttons to

select the caption setting you want. (See ipage 46 fo:r an explanation of the settings.)

DImportant:

If you subscribe to StarSight, you can only use tihe "left/right"

buttons on the remote control to

adjust the caption functions. You cannot use the up/down buttons on

the remote control or the ADJUST buttons on the front panel of your

projection TV.

uses for closed captioning

Closed capl:ioning was i_itially designed so that those with hearing difiSculties could more

fillly enjoy viewing television.

However, closed captioning can also be used in other ways, such as:

• helping children learn to read,

• learning a foreign language, and

• using the television without disturbing others.

_Important: If you cannot display any captions on the screen, please keep in

mind that not all broadcasters, video tapes, or laserdiscs supply closed caption signals.

Additionally, captions might not appear:

• if you are playing a video tape that is worn or deteriorated, or

• if you are starting to play a laserdisc from still or search mode.

Getting Started 47

Using the Advanced Features

[_Important:

This section explains how to use the more advanced features of your Mitsubishi Projection TV.

For information on operating StarSight, please see Booklet #3, "StarSight Operation Guide."

In this chapter, you will learn about.

• Setting the timer,

• Using the parental lock,

• Using Super Quick View if you haven't subscribed to StarSight,

• Using Super Quick View if you've subscribed to StarSight,

• Selecting an advanced PIP function, and

• Resetting the sound and the picture.

48 Chapter 2: Operating Your Projection TV

_Important:

Setting the timer

This special feature allows you to program the Projection TV to turn on automatically at a time that you set. To set the timer:

[] MAIN MENU

_ irst Time Setup

Customize Display Advanced Features

StarSight Setup

Use these buttons on the remote:

E_]ADJUST [] ENTER I'_ MENU tO

tO select to enter go back

O Press the MENU button on the

remote control. The Main Menu will appear on the screen.

Use the ADJUST buttons to select "Advanced Featur_,s. Press ENTER.

[] ADVANCED FEATURES [] Set the Timer

[] Use Parental Lock [] Set SuperQuickView

[] Use Advanced PIP [] Reset Audio/Video

Use these buttons on the remote:

[_--]AOJUST_ ENTERr_ ME.Uto

to select to enter go back

]

You will see the Advanced Features screen. Use the ADJUST buttons to select "Set the ti:aer." Press ENTER.

[] SET THE TIMER

O Day : Sunday

_ tart time : -

Input : - -

IOI Channel : - _-

The TV will turn on at a day and time you select. It will then turn off in five minutes unless a button is pushed.

Use these buttons on the remote:

r_ ADJUST to select the day

[] ENTER to enter [_ MENU to go back

Use the ADJUST buttons and the ENTER button to set Day, Start time_ Input, and Channel.

After setting the timer, make sure

that the program timer indicator is lit. The iindicator will light in orange when the TV is turned on and light in red when the 7_ is turned off. The indicator will not light when. using the menus, or when a lock message is displayed.

If you press the CANCEL button while setting the timer, the arrow will move to the previous item. To clear the timer, press CANCEL with the arrow next to ':'Day."

When the timer turns the Projection TV on, the display will flash. If you do not press any function buttons for about 5 minutes, the Projection TV will automatically turn off. l='re,_sa function button (such as the display button) to keep the Projection TV on and turn off the flashing display.

Using the Advanced Features 49

Using the parental lock

This special feature allows you to lock the entire _V during a certain time period or to lock up to ten individual channels. (You cannot lock the TV and lock individual channels a_:the same time.)

When you turn on the lock, you enter a 4-digit secret code that will allow you to turn off the lock later.

If you try to turn on a locked TV, view a locked channel, or t:he locking "time period" begins, you will see a messa_:e asking you to enter the secret code. If you don't enter the code within five minutes, the TV will turn off or tune t;o an unlocked channel.

If you enter the secret code, the message will disappear and the lock will be turned off temporarily. However, the 3_V or channels will be locked again after you turn off the TV This will continue until you turn the lock off permanently. To turn the lock off permanently, follow the procedure later in this section.

using parental ]rock

[] A VANCEO I I

[] Set the Timer [] Use Parental Lock I

[] Set SuperQu ckView

[] Use Advanced PIP

[] Reset Audio/Video

Use these buttons on the remote:

[_]ADJUST ENTER r_ MENU toroq

to select -- to enter go back

0 Press the MENU button. The

Main Menu will appear.

Use the ADJUST buttons to select "Advanced _ "Features. Press ENTER.

Use the ADJUST buttons to select "Use Parental Lock." Press ENTER.

[] USE PARENTAL LOCK

O Lock the "IV

by time

ro] Lock the TV

by channel

Parental Lock allows you to block the viewing of the TV or the viewing of up to 10 channels.

Use these buttons on the remote:

[_ADJUST [] ENTER F_MENUto

to select to enter go back

0 Use the ADJUST buttons to

select "Lock the TV by time" or "Lock the TV by channel." Press ENTER.

If you selected "Lock the TV by time," see page 51.

If you selected "Lock the TV by channel," see 1cage 52.

50 Chapter 2: Operating Your Projection TV

[] USE PARENTAL LOCK

Lock the TV by time :OFF

O Secret code : ....

After you turn the TV OFF, you will not be

able to watch the TV without the code.

Use these buttons on the remote: [] NUMBER KEYS to enter a 4-digit code [] ENTER to enter _ MENU to go back

[] USE PARENTAL LOCK

Lock the TV by time :OFF

O Day :--

Lockat :--

1(31Unlock at: - -

Use these buttons on the remote:

-_ DJUST to _ CANCEL to cancel select the day

[] ENTER to enter r_ MENU to go back

locking the TV by time

• Enter a flint-digit secret code using t:he number buttons (0-9); press the ENTER button.

You can cancel the code if you press CANC, EL before you press ENTER.

Use the ADJUST buttons to select a day; press ENTER.

Use the ADJUST buttons to set the time at which you want to lock the Projection TV. Press

ENTER.

[] USE PARENTAL LOCK I

Lock the TV

bytime : ON

[]Day : Sunday

O Lock at :11:00pm

[] Unlock at: 12:00pm

Use these buttons on the remote:

[_ DJUST to _ CANCEL to cancel

select the time

[] ENTER to enter I_ MENU to go back

TV LOCKED BY TIME

Secret code : ....

Use the ,_DJUST buttons to set the time at which you. want to

unlock: the Projection TV. Press ENTER. If you want the lock to be in effect all the time, set the same "Lock at" time as you set

for the "Unlock at" time.

Press HOME to exit the menus.

When you turn on a locked TV, or if the lock's "time period" begins, you will be asked to enter your _our-digit secret code. Enter the code to tempo- rarily disable the lock. The lock will be enabled again when you

turn the TV off.

E>Important: If you lock the TV by _ime and the TV clock is :_eset due to a pro-

longed power failure, you will be asked to enter your secret code

before you can use the TV again. If the TV only loses power for a

short time, the TV clock will not be reset, and _he lock will operate normally.

Using the Advanced Features 51

[

Using the parental lock (cont.)

[] USE PARENTAL LOCK I

Lock the TV by channel

O Secret code : ....

After you turn the TV OFF, you will not be able to watch the TV without the code.

Use these buttons on the remote: [] NUMBER KEYS to enter a 4-digit code [] ENTER to enter _ MENU to go back

[] USE PARENTAL LOCK

Ant. Channel Ant. Channel

[] ........ [] ........

Use these buttons on the remote:

[_ DJUST to r_ CANCEL to cancel

select a position [] ENTER to enter [_ MENU to go back

[] USE PARENTAL LOCK

Ant. Channel Ant. Channel

O Ant-A 019 _O]

IOl-

[] ........ [] ........

Use these buttons on the remote:

'_---] DJUST to _ CANCEL to cancel

select a channel

[] ENTER to enter _ MENU to go back

TV LOCKED B_ CHANNEL

Secrtet code : ....

locking the TV by channel

• Eater a tim:r-digit secret code using the number buttons ((I-9); press ENTLR.

You can cancel the code :if you press CANCEL before you press

ENTER.

You will see the channel lock

set-up screen. Use the ADJUST

buttons to select a position.

Press ENTER.

Use the ADJUST buttons to select the antenna (Ant-A or Ant-B) that has the channel you

want to lock. Press ENTER.

Use the ADJUST buttons or CHANNEL, buttons to choose the channel you want to lock. Press ENTER.

Repeat the steps above to lock

additional channels. When you are finished, press the HOME

button to turn off the menus.

When you try to view a locked

channel, you will be asked to enter your four-digit secret code. Enter the code to

temporarily disable the :lock.

The lock will be enabled again when you turn the TV off.

52 Chapter 2: Operating Your Projection TV

You will see this

screen if you locked

the TV by time.

You will see this

screen if you locked

the TV by channel

_>Important:

canceling or changing

parental lock

O Press the _[ENU button. The

Main Menu will appear on the screen.

Select "Advanced Features" using the ADJUST buttons; press ENTER.

[] USE PARENTAL LOCK

Lock the TV bytime : ON

O Secret code : ....

After you turn the "IV OFF, you will not be

able to watch the TV without the code.

Use these buttons on the remote: [] NUMBER KEYS to enter a 4-digit code [] ENTER to enter I'_ MENU to go back

[] USE PARENTAL LOCK

Lock the TV

by channel :ON

O Secret code : ....

After you turn the TV OFF, you will not be able to watch the "iV without the code.

Use these buttons on the remote: [] NUMBER KEYS to enter a 4-digit code [] ENTER to enter 1"_ MENU to go back

O Select "Use Parental Lock"

using the ADJUST buttons; press ENTER.

Enter the four digits of your secret code using the number buttons (0-9); press ENTER.

If you wer_ locking the TV by time, use t]_e ADJUST buttons to select. "Lock at," then press

the CANCEL button to turn off the lock.

If you were locking the TV by channel, ul_e the ADJUST buttons to place the cursor next to the channel whose, lock you want to cancel. Press ENTER.

Press the CANCEL button to unlock that channel, or use the ADJUST buttons to change the

channel to a new one.

Press the MENU button to return to the Advanced Features menu.

If you forget your four-digit secret code, please see page 85.

Using the Advanced Features 53

Using Super Quick View if you haven't subscribed to StarSight

Super-Quick-View allows you to cycle through a list of up to ten numbers with the SQV button. You use the menu,; to add channels to the list or to remove channels from the list. You can also add channels to the list using only the remote control.

customizing the Super Quick

View list with tlhe menus

[] ADVANCED FEATURES I [] Set the Timer I

[] Use Parental Lock [] Set SuperQu ckView

[] Use Advanced PIP [] Reset Audio/Video

Use these buttons on the remote:

[-_ADJUST [] ENTER I_ MENU tO

to select to enter go back

O Press the MENU button on the

remote control. The Main Menu will appear on the screen.

O Use the ADJUST buttons to

select "Advanced Features."

Press ENTER.

Use the ADJUST buttons to select "Use SuperQuickView."

Press ENTER.

[] SET SUPERQUICKVIEW

The SuperQuickView button can be programed to scan through a custom

list of channels.

Press ENTER to edit list.

Use these buttons on the remote:

[] ENTER to continue I_ MENU to go back

A description cf Super Quick View will appear. Press

ENTER.

[] SET SUPERQUICKVIEW

Ant. Channel Ant. Channel

[] ........ [] ........

Use these buttons on the remote:

[_ DJUST to _ CANCEL to cancel

select a position

[] ENTER to enter _ MENU to go back

O Use the ADJUST buttons to

select a positio:a in the list; press ENTER.

54 Chapter 2: Operating Your Projection TV

[:>Important:

E>Important:

[] SET SUPERQLIICKVIEW

Ant. Channel Ant. Channel

[] ........ [] ........

Use these buttons on the remote:

-] DJUST to [_ CANCEL to cancel select an input

[] ENTER to enter _ MENU to go back

O Use the ADJUST buttons to

select an a:atenna (_at-A or

Ant-B). Press ENTER.

You can clear the antenna by pressing CANCEL.

[] SET SUPERQUICKVIEW

Ant. Channel Ant. Channel

O Ant-A 001 r_ ........

[] ........ [] ........

Use these buttons on the remote:

[_ DJUST to I-_ CANCEL to cancel

select a channel

[] ENTER to enter [_ MENU to go back

O Use the ADJUST buttons,

CHANNEL buttons or number

buttons to add a channel to the list; press ENTER. You can

clear a ch_.nnel by pressing the CANCEL button.

0 Repeat steps 0, 0, and 0 to

customi[ze the Super Quick View mere ory.

O Press the :MENU button to exit

this menu.

adding channels to the list with the remote control

O Use the channel controls or number buttons to tune the TV to

the channel you want to add to the list..

Press and hold the SQV button for aboat 2 seconds. When you release the button, the letters "SQV" will appear under the channel number, indicating that the channel has been added to Super Quick View memory.

If the Super Quick View memory is full, the letters "SQV" will flash when you release the SQV button.

Once you've added a channel to the SQV memory, the letters "SQV" appear under the channel number any time t:he channel number is displayed, even if you tune 1;othe channel in another manner.

Using the Advanced Features 55

Using Super Quick View if you've subscribed to

StarSight

When you subscribe to StarSight, you can use the SQV button to

cycle through a list of channels. You can create this list yourself, using the "Customize Channels" option in the menus, or you can use a "theme list" created by StarSight.

For more information about using Super Quick View with StarSight, please see Booklet #3, "StarSight Operating Guide."

selecting a Super Quick View choice

[] ADVANCED FEATURES [] Set the Timer [] Use Parenta! Lock

[] SuperQuickView

Choices

[] Use Advanced PIP [] Reset Audio/Video

Use these buttons on the remote:

_---]ADJUST ENTER _] MENU toroq

to select -- to enter go back

[] SUPERQUICKVIEW CHOICES

lCustomize Channels }

Select an SQV Theme

Channel SuperQuickView will scan through your list of up to 10 customized channels.

Use these buttons on the remote:

E_ADJUST [] ENTER _ MENU to

to select to enter go back

Press the MENU button on the remote control. The Main Menu

will appear on the screen.

Use the ADJUST buttons to select "Advanced Features." Press ENTER.

Use the ADJUST buttons to select "SuperQuickView

Choices." Press BNTER.

Use the ADJUST buttons to select the way you want to use Super Quick View: by customizing tile channel list or by selecting an S QV theme.

Press ENTER.

[] CUSTOMIZE CHANNELS

Ant Channel Ant. Channel

........

[] ........ [] ........

Use these buttons on the remote:

[_] DJUST to _ CANCEL to cancel

select a position

[] ENTER to enter F_ MENU to go back

customizing the Super Quick

View list

O Use the ADJUW[ buttons to

select a position in the list; press ENTER.

56 Chapter 2: Operating Your Projection TV

[] CUSTOMIZE CHANNELS

Ant. Channel Ant. Channel

0 Ant-A --- I'_

[] ........ [] ........

Use these buttons on the remote:

-_ DJUST to I_ CANCEL to cancel select an input

[] ENTER to enter r_ MENU to go back

[] CUSTOMIZE CHANNELS

Ant. Channel Ant. Channel

O Ant-A 001 _ ........

[] ........ [] ........

Use these buttons on the remote:

[_ DJUST to I_ CANCEL to cancel

select a channel

[] ENTER to enter _ MENU to go back

O Use the ADJUST buttons to

select an antenna (Ant-A or

Ant-B). Press ENTER.

You can clear the input by pressing CAiNCEL.

Use the ,aJ3JUST buttons,

CHANNEL buttons, or number

buttons to a,iid a channel to the list; press ENTER. You can clear a channel by pressing the

CANCEL button.

Repeat steps 0, O, and O to customize the Super Quick View rnemo::y.

O Press the HOME button to exit

this menu.

[] SUPEROUICKVlEW CHOICES I_ Customize Channels

I Select an SQV Theme[

Theme SuperQuickView will scan through channels which are currently displaying a selected topic (SQV Theme). Press SQV at the SQV Theme Screen to select a topic.

Use these buttons on the remote: ADJUST ENTER r_ MENU to

to select -- to enter go back

selecting an SQV theme

For more information about selecting a Super Quick "View

theme with StarSight, p]Lease see Booklet #3, "StarSiight Operating Guide."

Using the Advanced Features 57

!oi

Selecting an advanced PIP function

When you are using the PIP features, there are special functions you that can occur when you press the PAUSE button. Before using

these advanced functions, you need to choose one in the menu system. These advanced functions are:

• "TV Still," which allows you to switch the PIP image be-

tween still and moving;

• "Snap-shot," which allows you to view several frozen PIP images and one moving PIP image; and

• "Replay," which allows you memorize six PIP images and display three of them at a time.

For more information, see "Using the Advanced Picture-in-Picture (PIP) Modes," page 66.

[] ADVANCED FEATURES [] Set the Timer [] Use Parental Lock [] Set SuperQuickView [] Use Advanced PIP [] Reset Audio/Video

Use these buttons on the remote:

F_-]ADJUST [] ENTER F_IMENU tO

tO select to enter go back

[] USE ADVANCED PIP

Current setting

O :TV Still

The picture in the

PIP window will freeze when the PAUSE button is pressed. This feature is available on Antenna A(Ant-A) and External Inputs.

Use these buttons on the remote:

[_ADJUST [] ENTER I_MENUto

to select to enter go back

[] USE ADVANCED PIP [] Current setting

: Replay

O Replay Speed

: 1

Three images of

revious scenes will e shown on the screen after the PAUSE

button is pressed. Timing between

images can be controlledby adjusting

speed. This feature is available on Antenna A (Ant-A) and External inputs.

Use these buttons on the remote:

[_ADJUST [] ENTER I_MENU to

to select to enter go back

O Press the MENU button on the

remote control. The Main Menu will appear on the screen.

O Use the ADJUST buttons to

select "Advanced Features."

Press ENTER.

Use the ADJUST buttons to

select "Use Advanced PIP."

Press ENTER.

O Use the ADJUST buttons to

select the advanced function you would like to use: TV Still, Snap-shot, or Replay. Press

ENTER.

If you select "Replay," the next option will be "Replay speed." Use the ADJUST buttons to set the replay speed from i to 9. (1=short interval and 9=long interval.) Press ENTER. (See "Using the Replay feature:" on page 74 for more information..)

Press the MENU button to return to the Advanced Features menu.

58 Chapter 2: Operating Your Projection TV

Resett, soundandthepic uro

This feature allows you to reset all audio and video functions to their factory level or settings.

Certain settings will not reset, including volume, "Listen to:," speaker, monitor out, and closed captioning.

[] AOVANCEOFEATURESI I

[] Set the Timer [] Use Parental Lock I

[] Set SuperQuickV ew [] Use Advanced PIP [] Reset AudieNideo

Use these buttons on the remote:

-_--] DJUST [] ENTER F_ MENU to to select to enter go back

[] RESET AUDIO/VIDEO

This feature will reset all of the audio and video

functions to their

initial settings, It will also unlock any A/V functions

that you have leckedin that menu.

Use these buttons on the remote:

[] ENTER to reset

MENU to go back

O Press the MENU button on the

remote control. The Main Menu will appear on the screen.

O Use the ADJUST buttons to

select "Advanced Features."

Press ENTER.

Use the ADJUST buttons to select "Reset Audio/Video." Press ENTER.

O A message explaining this

feature will appear. If :you want to continue, press ENTER.

O The screen vrill return to the

Advanced Features menu, and the A/V fimctions will be reset.

_>Important:

DImportant:

This feature will also unlock any A/V functions that you have locked in the Lock A/V Functions menu.

You can also use the A/V reset button on the control pane]L to reset the A/V functions.

Using the Advanced Features 59

_l CHAPTER THREE

Using the Special Features

In addition to the basic and advanced features explained in the previous chapter, this Projection TV offers the user several special features not generally available on other brand Projection TVs. This chapter will explain how to use these diLstinctive features. It contains the following topics:

Understanding the On-Screen ]:Displays

Using the Off-Timer

Using the Advanced Picture-in-Picture

(PIP) Modes

Using the Active A/V Network Feature

Understanding the On-Screen Displays

The first time you press DISPLAY, you will see a display like this, if your

main source is an antenna:

The first time you press DISPLAY, you will see a display like this, if your main source is an input:

The second time you press DISPLAY, you will see a display like this:

The third time you press DISPLAY, you will see a display like

this:

Your Projection TV provides an on-screen summary of the current

settings for the TV or cable channels, as well as the information related to Extended Data Services (XDS). XDS allows broadcasters

to supply you with the current time, channel information (such as call letters and the network name), and program information (such as the program name and program description). To view this information, press the display button (DISPLAY) on the remote control to cycle through all the information.

a_Ant-A 023 ESPN

Stereo & SAP

Lov'LCU

Thursday 10:23 am

Input-1 S-VIDEO

Thursday 10:23 am

I network name I

I program name

O This setting shows:

• the sound is comin8 from the :main image,

• the antenna (A) and channel number (23),

• this channel's call1 letters or name,

• stereo and SAP are available,

• this channel is programmed into super quick view (SQV) memory and quick view (QV) memory,

• the day of the week and the time.

This setting shows:

• the input name (Input-i),

• at_ S-video cable was connected,

• the day of the week and time.

This shows where the network name and program name will appear if the broadcaster is supplying that information via

XDS.

This shows where the program description will appear if the broadcaster is supplying that

information via XDS.

program description

DImportant: If the broadcaster is not supplying information via XDS, then an

error message will appear ("No name available," "No description available"). Also, the "call letters" will not appear.

62 Chapter 3: Using the Special Features

t Using the Off-Timer

This special feature allows you to set the Projection TV to turn off automatically. You can set the TV to turn off aJ?ter a period of time ranging from 10 to 120 minutes, in ten minute intervals. In this section you will learn:

• Setting the off-timer, and

• Changing or canceling the off-timer,

Using the Oft;timer 63

Setting the off-timer

O Press the OFF-T button on the

remote control. The off-timer display will appear on the screen, showing 1;hat the timer is currently set fi)r 120 minutes.

[_Important:

TV Off timer 120 min.

0 Select how long you want the

Projection TV to stay on by repeatedly press:rig the OFF-T button. The time will decrease in 10 minute intervals each

time you press the button.

When you reach the time you want, stop pressing the button. The off-timer display will disappear after a few seconds.

To view the amount of time left in the off-timer, press

the OFF-T button once. The on-screen display shows the

amount of time remaining.

During the last minute before the Projection _r turns off, "Off-timer 1 min." will flash in red to remind you that the off-timer is set.

TV Off timer 1 min.

64 Chapter 3: Using the Special Features

Changing or canceling the off-timer

TV Off timer 10 min.

0 Press the OFF-T button on the

remote ccntrol. An on-screen display will indicate the amounl; of time remaining until

the Projection TV turns off.

O Repeatedly press the

OFF-T button to change the remaining time or to cancel the off-timer. The off-timer is canceled when "---" appears instead of the remaining time.

Using the Off-timer 65

Using the Advanced Picture-in-Picture (PIP) Modes

One of the special features of the TV is the adwmced picture-in-

picture (PIP) mode, which allows you to view two different pictures

at the same time. In this section you'll learn:

• Activating the PIP image,

• Changing the picture in the PIP image,

• Exchanging the picture and sound of the PIP image and the main image,

• Moving the PIP image,

• Freezing the PIP image,

• Using the Snap-shot feature, and

• Using the Replay feature.

,Warning:

If you are watching Antenna-B as the main image and Antenna-A as the PIP image, DO NOT exchange the images. You will not be able to exchange the images back See page 80 in the Troubleshooting section for more information.

66 Chapter 3: Using the Special Features

Activating the PIP image

000 0

SSS

_000_

_O00U

_0_

_Ant-A 023 ESPN

Stereo & SAP

PIP A023

O Select the number of the TV

channel you want to view with the channel control.

O Press the PIP button.

A PIP iraage will appear in the corner of the screen.

_Important:

_Ant-A 023 ESPN

Stereo & SAP

PIPA 023

Press P]:P again within 10 seconds:: the PIP image will reduce to a smaller size.

(If you wait longer than 10 seconds tLe PIP image will

disappear when you press the PIP button.)

Press tkLe PIP button once again to cancel the PIP image.

When the main image is black and white, the PIP image will also

appear in black and white.

If you move the PIP image and then turn it off, it will remain in its new position when you turn it, on again.

Do not press the PIP button while you are watching a channel that is not receiving broadcasts.

Using the Advanced Picture-in-Picture (PIP) :Modes 67

Changing the picture in the PIP image

When you first activate the PIP image, as described on the previous page, you will probably see the same picture in the small image as you do on the main image. This is because both images have the

same "source." A "source" is any signal that your TV is receiving through the antenna terminals or through the input terminals.

If you want to see a different picture in the PIP image, you need to change its channel or change its source.

changing the channels of the PIP image

Because your Projection TV offers "two-tuner" PIP, you do not need to change sources to view a differ- ent channel in the PIP image.

O Make sure Antenna A is the

source for ygur PIP image.

O Press the small PIP channel

button (CI-L_qNEL) on the lower half of your remote to change tl_e channel of the PIP image.

DImportant: To use the "two-tuner" PIP, you :must have made a connection to

the Antenna A terminal on your Projection TV.

68 Chapter 3: Using the Special Features

_Important:

changing the source of the PIP image

These instructions explain a common way to see a different source in the PIP image: using a VCR connected to Iaput-1 as a PIP source.

Turn your VCR on and select a channe:[ on the VCR that is

different 1:hun the channel you see on your WV screen.

Press the SOURCE button on the remoLe control repeatedly until the VCR picture appears in the PIP image

O If you want to select a source

other than the VCR, continue pressing Lhe SOURCE button. The source will change as follows:

LTV--,I nput-l--,Input-2---*ln put-3j

The name. oFthe source will

appear above the PIP image.

You cannot select Antenna B as a PIP source when watching

Antenna A.

To change the source of the main image while a PIP image is displayed, press the INPUT button on the control panel or on the

remote control.

Using the Advanced Picture-in-Picture (PIP) Modes 69

Exchanging the picture and sound of the PIP image and the main image

000_

_O00Q

I ,:::,0 0 O U

_=Ant-A 023 ESPN

Stereo & SAP

VCR-1

exchanging the picture

Press the ENTER/EXCH button to exchange the picture of the main

(background) image and the :PIP image.

i>Important

DO NOT exchange images when the main image is Antenna-B and the PIP image is Antenna-A. You will not be able to exchange the images back. See page 80 in the Troubleshooting section for more information.

I _ Input.1 VCR-1

000_

exchanging the sound

Press the SWAt' button to switch tlhe sound of the speakers bel;ween

tlhe main ima_._e and the PIP image. The "musical note" icon indicates the [m age from whJich sound is being played.

_Important: The sound from the PIP image will

not be in stereo.

d,i_Ant-A 023 ESPN

Stereo & SAP

Art-A 023 ESPN

Stereo & SAP

_PIP Input-1

70 Chapter 3: Using the Special Features

Moving the PIP image

Press and hohi down the ADJUST buttons to moce the PIP image.

DImportant: If you move the PIP image and then turn it off, it will remain in its

new position when you turn it on again.

Using the Advanced Picture-in-I icture (PIP) Modes 71

Freezing the PIP image

[] USE ADVANCED PIP

Current setting

0 :W Still

The picture in the PIP window will

freeze when the PAUSE button is pressed. This feature is available on Antenna A(Ant-A) and Extemal Inputs.

Use these buttons on the remote:

'_----1 DJUST [] ENTER _ MENU to

to select to enter go back

ill

Select "Use Advanced PIP" in the Advanced Features menu and set it to "TV Still." (See "Selecting an advanced PIP function," page 58.)

O Use the MEI_U button to return

to the normal picture.

= = = =

O0 0 Ld

000c=_ c::_O 0 O _000_

Press the PAUSE button to freeze the PI]? image on the

screen.

0 Press PAUSF, again to return to

a live picture.

TV Still

disappears after a few seconds

72 Chapter 3: Using the Special Features

Using the Snap-shot feature

PAUSE

[] USE ADVANCED PIP

Current setting

O :Snap-shot

A snapshot of the picture in the PiP

window will be recorded each time the PAUSE button is pressed. The screen will display the last two snapshots. This feature is available on Antenna A (Ant-A) and External Inputs.

Use these buttons on the remote:

[] ADJUST [] ENTER i_ MENU tO

to select to enter go back

%0o0

_$8

OOO_

_OO0

if the PIP image is off

[] []

PAUSE

0 Select "Use Advanced PIP" in

the Adwmced Features menu and set it to "Snap-shot." (See "Selecting an advanced PIP function." page 58.)

O Use the MENU button 1:oreturn

to the normal picture.

Press the PAUSE button once; a frozen PIP image and a moving PIP image will appear.

O Press the PAUSE button again;

a third I='IP image will appear, moving. TILe previous two PIP images will be frozen.

O Each time you press thE:

PAUSE button, the PIP images will shift; upwards one by one: the top image will be replaced by the second image, the second image will be replaced by the third, and a new moving image will appear in the third space.

To cancel the PIP image, press the PIP button.

E__O

E_O

PAJSE

<,,3

[] [] []

PAUSE

*A, B, C, D:

*a, b, c, d:

if the PIP image is on

[] []

PAUSE

[b3 _"D [__:3 c "

[] [] []

the moving images the frozen images of A, B, C, and D at the instant the PAUSE button is pressed.

Using the Advanced Picture-in-Picture (PIP) Modes 73

Using the Replay feature

[] USE ADVANCED PIP

O Current setting

:Replay

Three images of

previous scenes will be shown on the screen after the PAUSE

button is pressed. Timing between

images can be controlled by adjusting speed. This feature is available on Antenna A (Ant-A) and External Inputs.

Use these buttons on the remote:

I--_-IADJUST[] ENTER[_ MENUto

to select to enter go back

[] USE ADVANCED PIP [] Current setting

: Replay

O Replay Speed

• 1

Three images of

revious scenes will

e shown on the screen after the PAUSE button is pressed. Timing between images can be controlledby adjusting speed. This feature is available on

Antenna A (Ant-A) and External Inputs.

Use these buttons on the remote:

F-_--]ADJUST [] ENTER [_.MENUto

to select to enter go back

Select "Use Advanced PIP" in the Advanced Features menu

and set it to "Replay." (See "Selecting an advanced PIP function," page 58.)

Set the replay speed between 1 (short inte::val) and 9 (hmg

interval).

Use the MENU button to return to the normal picture.

Press the PAUSE button. The TV will memorize six frames of

video from the main image and display the first three of these frames as PIP images. (The interval between the frames is

determined by the replay speed set in step _.)

000_

o000 D

oO00U

_0o_

[] [] []

Each time you press the: PAUSE buLton, the mernorized frames will shift upwards.

To cancel the PIP images, press

the PIP button.

*al - a6 : memorized frames

PAUSE PAUSE

[] ,',.-I_] .,.-_ [] [] []

PAUSE PAUSE PAUSE

0 [] 0 [] O

[] [] [_

Chapter 3: Using the Special Features

_>Important:

the TV will automatically turn. off.

If you turn the TV off while it :is set to Input-1, it will return to its

€ Using the Active AN Network Feature

_>Important:

DImportant:

The A/V Network is a special feature that makes it easier to use your Projection TV and your other Mitsubi,_hi A/V components together. When you connect the A/V Network, you can point the remote control at the Projection TV, and it will "pass" the remote

control command to the other components.

Additionally, if you have a Mitsubishi VCR with Active APV"Net-

work, it is easier and faster VCR's play command (Auto Play).

The A/V Network is only available for select Mitsubishi components. If you subscribe to StarSight, ':'Auto Play" is not

available.

before you begin

You must have connected an A/V Network cable from the Active A/V Network terminal of your Projection l.W to the A/V Network

IN terminal of your VCR. See Booklet #1, "Mitsubishi

Installation and Setup Guide."

J You must have connected your VCR to Input 1 of your TV. J You must have set your Projection TV's "._JV Network" setting

to "Active" or "Basic." See "Setting the ._dV Network," page 32.

J Your VCR's remote control switch should 5e set to '_CR-A." J Your VCR's video mute setting should be _urned ON.

When using the Active A/V Network, you shoald always point your

remote control at your Projection TV.

Using Auto Play

When you press PLAY on the remote:

•/ Active A/V Network will turn your VCR on and begin playing the tape (if any).

J Active A/V Network will turn your TV on and switch it to

INPUT-1.

When you turn your Projection TV off:

€" If your TV has been set to "Active," your VCR will turn off,

unless it is playing or recording.

If you leave the Projection TV turned on and:

- it is set to Input-l, and

- it does not receive a signal for five minutes, and

- you do not use the menus for five minutes, then:

the TV will automatically turn off.

If you turn the TV off while it, is set to Input-1, it will return to its previous antenna and channel setting when you turn it back on.

Using the Active A/V Network Feature 75

A CHAPTER FOUR

Troubleshooting

Even though you're now familiar with the basi,_ and advanced operations of the Projection TV, you may run into trouble from time to time as you become accustomed to the Proje,_tion TV. This chapter offers solutions to some of the common problems you may encounter. We suggest that you consult this chart before contacting a Mitsubishi service representative.

Troubleshooting (cont.)

Problems Possible Solutions For More InformatJion

The remote control doesn't work.

Check that the batteries are installed correctly.

Check that the select button is set to "TV."

Be sure that you are pointing the tip of the remote control toward the

TV from a distance of no

more than 20 feet.

See "Getting ready to use

the remote control" in Chapter 1 for an explanation

of how to install batteries in the remote control.

See "Remote control buttons and functions" in Chapter 1,

which explains where :the

select buttons are located.

See "Gett:!ng ready to use the remote control" in

Chapte:r ], which contains pointers f_r using the _emote

control.

The TV takes several seconds to respond to button

commands.

• Use the ENTER button to avoid delays.

See "Changing channels" in Chapter 2, which explains

the function of the ENTER button.

You can't access a channel.

Be sure that the channel you want to view is programmed into memory.

Check that the TV is tuned to the correct input source

(antenna) for that channel.

See "Memorizing channels" in Chapter 2, which explains how to program channels into the _I"V'smemory.

See "Selecting the input source" it. Chapter 2, which explains how to change the input source.

You can't see a different channel in the reduced PIP image.

Use the SOURCE button to change the source of the PIP image.

Make sure you have a second source, such a VCR, turned on and connected to

your TV.

• See "Usir g the Advanced Picture-in-Picture (PIP)

Modes" on page 66.

78 Chapter 4: Troubleshooting

Problems

Possible Solutions

For More Information

On-screen displays appear each time you adjust a function.

• This is part of the normal operation of the TV.

See "Understanding the On- Screen Displays" in Chapter 3 fc,r a full explanation of the on-screen displays.

There's no sound even when the volume is turned up.

Check that the MUTE button isn't on.

The TV's "Listen to:" setting may be set to "separate audio program" (SAP) or' the "speaker" setting may be set to the wrong setting.

Se_ "Remote control buttons

and f_lnctions" in Chapter 1, wh:ich explains the use of the NIUTE button.

See: "Adjusting the, sound" in

Chapter 2, which explains how to adjust the "Listen to"

and "speaker" settings.

• You forget the code you used to set the parental lock.

• Use the alternate procedure

that doesn't require the use of the code.

• See, the Appendix, "Procedure for Bypassing

the Parental Lock."

You can't program the Projection TV to turn on automatically.

The Projection TV may be locked.

SeE, "Using the parental lock" under "Using the

Advanced Features" in

Chapter 2.

• The sound doesn't match the , image on screen.

The TV's "Listen to:" setting

may be set to "separate audio program" (S.A.P.).

You may have "swapped" the sound with the PIP

image.

See "Adjusting the sound" in Chapter 2, which explains how to adjust the "Listen to" set_Sr.g.

• See "Using the Advanced Picture-in-Picture (PIP) Modes" on page 66.

There is a large black rectangle on the screen.

The TV has been set to "text" mode, but there is no text information being

broadcast.

See "Using the clo:sed caption decoder" under "Getting started" in Chapter 2.

Troubleshooting 79

Troubleshooting (cont.)

Problems Possible Solutions

For More Information

You have problems when you "exchange" the picture of the PIP image and the main image.

You should not exchange the images when the main image is Antenna-B and the PIP image is Antenna A. If you do, you must press the

INPUT button to return to

viewing Antenna B.

• See "Using the Advanced Picture-in-Picture (PIP) Modes" ._n page 66.

• Antenna-B does not appear as a PIP source.

• Antenna B is not available as a PIP source when you

are watching Antenna A.

• See "Using the Advanced Picture-in-Picture (PIP) Modes" on page 66.

You cannot see a picture when you play a tape in the VCR.

If you connected your VCR with A/V cables, use the

INPUT button to select the input (Input 1, 2, or 3) that

the VCR is connected to.

• See "Selecting the input source" for an explanation about changing the input.

The colors in the Projection TV's picture are not aligned.

The colors in the Projection TV's picture tubes may have become misaligned. You will need to align the colors yourselfi

See "Adju,;ting the color alignment" in Chapter 2, which explains how to align

the colors.

It takes several seconds for the cable box to change

channels.

This is normal. It takes several seconds for the infra-

red (IR) emitter to pass the remote control signals to the

cable box.

80 Chapter 4: Troubleshooting

Cleaning

Normally, light dusting with a non-scratching duster will keep your TV clean.

If you want to wipe down your TV, turn it off"aad unplug it. Then, wipe it gently with a soft cloth slightly moistened with water.

You can add a few drops of miM liquid deterge_t to the water for

oily dirt on the cabinet ONLY.

When cleaning the screen, wipe up-and-down, going with the grain of the screen.

DO NOT allow liquid to enter the TV through the ventilation slots.

DO NOT use strong or abrasiw_ cleaners.

DO NOT use spray liquids or cleaners directly on the TV's surface.

DO NOT scrub or rub the TV harshly. Wipe gently.

DO NOT use cleaners or detergent on the Projection TV's screen.

Troubleshooting 81

Caution and care

,Warning: Don't leave stationary images on-screen for more than 10 minutes.

These images can scar the Projection TV, causing permanent damage to the picture tubes. Some examples of stationary images include the following:

• stock-market reports,

• station logos (especially bright ones),

• video game displays,

• shopping channel displays,

• the television's own on-screen displays.

_Important:

E>Important:

If you plan to place speakers next to the Projection TV, make

sure they are magnetically shielded. Ordinary speakers will

cause distortion in the picture due to their strong magnets. This

distortion, however, will not harm the picture tubes.

For maximum enjoyment and safe operation of your Mitsubishi

Color TV, please read the "IMPORTANT SAFEGUARDS" carefully and apply them properly. (Please see Booklet #1, "Mitsubishi

Installation and Setup Guide.")

When you are disconnecting AV cables from the front control panel, be careful not to hit or scratch the front of your Projection TV. (TS-

5087, TS-5089 only)

82 Chapter 4: Troubleshooting

Calling for service

If you are unable to correct a problem with yoar Projection TV, consult your Mitsubishi dealer or Mitsubishi Authorized Warranty Service Center.

Do not adjust any controls not described in Lhis owner's guide.

Do not remove the protective back cover of this unit.

If you see one of the following display on yo ar screen, you ,_hould not change any settings. These are special displays used by the factory.

FACTORY MENU

Inilial E2 Initial Hotel : OFF 3Dia : ON Power Restore : OFF Speaker Ext : ON

Antenna : 2 3D Y/C : ON

Input : 3 _ : ON

When muting : ON Auto clock : ON

Woofer : OFF SS ATTACH : ON

Firmware Version Number 1.04

OPTIOn1 MP'NU

Initial Hotel : OFF Power Res'ore : OFF

Antenna : 2

Input : 3 When muting : ON

If these displays appear, make sure that all of the on/off settings are the same as the illustrations above and then turn the

Projection TV off. If any of the settings are different from the illustrations above, turn the Projection TV off and consult your Mitsubishi dealer or Mitsubishi Authorized _Varranty Service

Center.

Troubleshooting 83

APPENDIX

Procedure for Bypassing the Paren-tal Lock

Cut along dotted line and file after reading.

After you set the lock, you will need the sec:cel; code in order to:

• view a locked channel,

• view the locked TV, or

• cancel the lock.

If you forget the code, you can view the locked. TV without entering the code. To do this, simply press the buttons on your remote labeled "QV" and "9" at the same time whenever your secret code is requested.

_>Important: Unlocking with this procedure is only temporary. To cancel the lock

completely, follow the procedure below:

O Turn on your Projection TV. If the TV requests your secret

code, press the "QV" button and the "9" button on the remote control at the same time.

O Press the MENU button to view the mai_ menu. Use the

ADJUST buttons to select "Advanced Feotures." Press ENTER.

Use the ADJUST buttons to select "Use Parental Lock." Press ENTER.

Press the "QV" button and the "9" button on the remote control at the same time, instead of entering the code.

If you were using "lock by time," press the CANCEL button to turn off the lock.

If you were using "lock by channel," use the ADJUST buttons to place the cursor next to the channel whose lock you want to

turn off. Press ENTER.

Press the CANCEL button to unlock that channel, or use the ADJUST buttons to change the channel to a new one.

Press the MENU button to return to the "Advanced Features"

menu.

_>Important: You must use the remote control included wiLh this Projection

TV. You cannot use a remote control from another Mitsubishi component, and you cannot use any "Univer_ al" remotes from

other manufacturers.

Index

A/V functions, locking ......... 40

A/V Network

active ................................ 75

setting .............................. 32

A/V receiver, operating with

remote ........................ 18, 19

A/V reset button .................... 3

Active A/V Network ............ 75

adding channels .................. 31

adjust buttons ............. 4, 9, 11

adjusting the color

alignment ......................... 34

advanced menu ................... 36

advanced PIP functions ...... 58

advanced PIP modes .. ......... 66

alignment, color .................. 34

Ant-A, Ant-B ....................... 21

audio

adjusting .......................... 41

function button ............ 4, 11

input terminal .................... 3

resetting ........................... 59

Auto Play ............................. 75

AUX button ........................... 9

balance ................................. 41

bass ...................................... 41

batteries, installing ............... 5

brightness ............................ 44

buttons, remote control ......... 7

bypassing the lock ............... 85

cable box

codes ................................. 17

operating with remote 16, 17

cancel button ..................... 3, 9

caution and care .................. 82

CC ........................................ 46

center channel ..................... 42

channel(s)

adding ............................... 3 ]

changing ........................... 2'.).

controls ........................... 3, 9

deleting ............................. "3:1

lock ................................... 52

memorizing ...................... 26

naming ............................. ;39

cleaning ............................... 81

clock, setting ........................ 28

closed caption ................ 44, 46

codes

cable box ........................... 17

VCR .................................. 16

color ..................................... 44

color alignment ................... 34

color temperature ................ 44

contrast ................................ 44

control panel, overview ......... 2

day button ........................... 11

deleting channels ................ 31

display button ......................... 9

displays, on-screen .............. 62

enter button ................. 3, 9, ii

exchange button ........ 9, II, 70

external ............................... 42

fixed ..................................... 42

front panel, overview ............. 2

Getting to Know Your

Projection TV .................... 1

guide button ........................ ll

hall ....................................... 41

home button .......................... 9

information button .............. 11

Input-l, Input-2, Input-3 .... 21

input

audio ................................... 3

button ............................. 3, 9

renar,_ing .......................... 38

S-video ................................ 2

selecting ........................... 21

video ................................... 3

installing batteries ................ 5

internal ................................ 42

laserdi_c, operating with

remote ........................ 17, 18

light button ............................ 9

list button ............................ 11

listen to ................................ 41

lock ................................. 50-53

bypass!rig ......................... 85

locking A!V functions .......... 40

memoriz:ng channels .......... 26

menu buLton ...................... 3, 9

menu type ............................ 36

menus, understanding ........ 25

monitc.r out .......................... 42

mono .................................... 41

moving PIP .......................... 71

mute cor_trol .......................... 9

naming the channels ........... 39

number buttons ................... 11

off-timer ............................... 63

off-timer button ................... 11

on-screen displays ............... 62

on/off, turning the TV ......... 20

Operating Your

Projection TV ................... 13

overview

control panel ...................... 2

remote control .................... 5

page button .......................... 11

parental lock ....................... 50

pause button ........................ 11


adjusting .......................... 44

resetting ........................... 59

PIP

activating ......................... 67

advanced functions .......... 58

advanced modes ............... 66

button ............................... 11

changing picture .............. 68

channel button ................. 11

exchanging

picture/sound ................ 70

freezing ............................. 72

moving .............................. 71

replay ............................... 74

snap-shot .......................... 73

power button ..................... 2, 9

power indicator ..................... 2

program timer indicator ....... 2

quick view

button ................................. 9

using ................................. 24

remote control

about ................................. 15

buttons ............................... 7

operating audio

component ............... 18, 19

operating cable box .... 16, 17

operating VCR ........... 15, 16

overview ............................. 5

renaming the inputs ........... 38

replay ............................. 58, 74

resetting sound and

picture .............................. 59

S-video input terminal .......... 2

SAP ...................................... 41

select buttons ........................ 9

service .................................. 83

setting the clock .................. 28

sharpness ............................ 44

simulate ............................... 41

snap-shot ....................... 58, 73

sound

adjusting .......................... 41

resetting ........................... 59

source button ................. 11, 69

speaker ................................ 42

standard menu .................... 36

StarSight

controls ............................. 11

Telecast, Inc ....................... 1

stereo ................................... 41

still ................................. 58, 72

super quick view

button ................................. 9

using ................................. 24

with StarSight ................. 56

without StarSight ............ 54

surround .............................. 41

swap button ................... 11, 70

test buttons .......................... 4

test screen ........................... 34

text ....................................... 46

theme buttorL ....................... 11

time

lock ................................... 51

setting .............................. 28

timer reset button ................. 4

timer, setting ....................... 49

tint ....................................... 44

treble ................................... 41

troubleshooting ................... 77

TV button .............................. 9

understanding on-screen

displays ............................ 62

understandirLg the menus... 25

variable ................................ 42

VCR-A, VC,R-B button .......... 9

VCR

codes ................................. 16

operating with

remote ..................... 15, 16

video

adjusting: .......................... 44

function button ............ 4, 11

input terminal .................... 3

resetting ........................... 59

ViewPoint IIJi ....................... 25

volume control ................... 3, 9

wake-up timer ..................... 49

88 Index

MITSUBISHI

PROJECTION TELEVISION

LIMITED WARRANTY

MITSUBISHI CONSUMER ELECTRONICS AMERICA, INC. ("MCEA") warrants to the original purchaser of this television that if purchased from an

authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of improper workmanship and/or materi_d:

a. Parts. The lenticular (i.e. front picture) screen is warranted against defects in materials and workmanship for a period of 30 days. All other parts are warranted for a period of one year from the date of the original purchase at retail We will repair or replace, at our option, any defective part without charge for the part. Parts used for replacement are warranted for the remainder of the original warranty period.

b. Labor. For 30 days after the original purchase at retail, we will repair or replace, at our option, the lenticular screen if it proves defective. For all other parts, we will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for oae ),ear from the date or original purchase at retail.

c. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within the applicable war:anty time period.

1. TO OBTAIN WARRANTY SERVICE: a. Contact your nearest authorized MITSUBISHI service center whose name and address can be obtained from your MITSUBISHI dealer or by writing or

calling MELA at the address and telephone number provided below.

b. Warranty service will be provided in your home or, if required, at an authorized service shop, provided that your lelevision is located within the

geographic territory customarily covered by an authorized MITSUBISHI service center. If not, you must either deliver 3'our television to an aathorized service location at your own expense, or pay for any travel and/or transportation costs the service center may charge to and tiom your home. Actual service labor will be provided without charge.

c. Proof ot' purchase date from an authorized MITSUBISHI dealer is required when requesting warranty service. Prese at your sales receipt or other

document which establishes proof and date of purchase. THE RETURN OF THE OWNER REGISTRATION CARD 1S N DT A CONDITION OF WAR- RANTY COVERAGE. However, please return the Owner Registration Card so that we can contact you should a question of safety arise which could affect you.

2. THIS WARRANTY DOES NOT COVER damage caused by: modification, alteration, repair or service of the prodact by anyone other than an authorized MITSUBISHI service center; physical abuse to, or misuse of, the product; operation in a manner contrary to the instrucdorts which accompar_y the product; freight damage; or any damage caused by acts of God such as lightning or fluctuation in electrical power. This warrant2€ ah;o excludes all cosls arising from installation, adjustment of user controls, external antenna systems, service of products purchased or serviced outside _he U S.A., initial technical adjustments (set-up) and user-required maintenance. Consult the operating instructions furnished with the product for infimnation regarding user controls

3. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROV [SION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAP,.

4. UNDER NO CIRCUMSTANCES SHALL MELA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CO NT RACT, OR OTHERWISE.

5. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental, special, or consequential damages, so the above limitations or exclusions may not apply to you.

6. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

7. BEFORE REQUESTING SERVICE, please review the instruction booklet to insure proper installation and correct customer control adjustment. If the problem persists, contact your nearest MITSUBISHI Dealer for name(s) of authorized MITSUBISHI Service Center(s). If you are unable to 3brain this information, please call 800-332-2119, or write us at the address below.

MITSU:BISHI CONSUMER ELECTRONICS AMERICA,INC.Norcross,POBox 5025GA30091-5025 A I BiSHI

RETAIN THIS PORTION FOR YOUR RECORDS I SERIAL NO.

CUSTOMER NAME STREET ADDRESS CITY PHONE ( )

STATE ZiP

PURCHASE DATE /

MO DAY

PLACE OF PURCHASE

MITSUBISHI

MITSUBISHI CONSUMER ELECTRONICS AMERICA, INC.

6100 Atlantic Blvd. Norcross, GA 30071-1305

Mitsubishi S6085, VS-8087, S5087, VS-7087, S6087 Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
