Mitsubishi PUY-P200YMF-C, PUY-P250YMF-C, PUHY-P200YMF-C, PUHY-P250YMF-C PARTS LIST

INDEX
PUY-P200YMF-C
PUY-P250YMF-C
PUHY-P200YMF-C
PUHY-P250YMF-C

SERVICE PARTS LIST FOR
MITSUBISHI ELECTRIC
PACKAGED AIR-CONDITIONERS

Series PUY-P-YMF-C

PUHY-P-YMF-C

Jan. 2001

ADVANCED AND EVER ADVANCING

MITSUBISHI ELECTRIC

For use with the R407C

PUY-P200,P250YMF-C
PUHY-P200,P250YMF-C
EXTERNAL PARTS

- 1 -

14

11

7

10

9

3.4

11

5.6

2

8

13

12

1

PUY-P200,P250YMF-C
PUHY-P200,P250YMF-C
EXTERNAL PARTS

- 2 -

1 R61 Y06 629 Partition board L ass'y W639800G01 1 1 1 1
2 R61 Y07 629 Partition board R ass'y W639809G01 1 1 1 1
3 R61 Y99 480 Heat exchanger B W268979G01 1 1
4 R61 L02 480 Heat exchanger B W126026G09 1 1
5 R61 Y43 480 Heat exchanger F W867011G09 1 1
6 R61 L02 481 Heat exchanger F W268980G01 1 1
7 R61 A42 638 Guard B ass'y W265789G01 1 1 1 1
8 R61 E66 611 Guard F ass'y W265788G01 1 1 1 1

9 R61 A52 118 Fan guard W123195G01 1 1 1 1
10 R61 A64 677 Panel B W615886G05 1 1 1 1
11 R61 E69 652 Panel FU W633746G01 2 2 2 2
12 R61 A42 651 Panel F ass'y W857425G17 1 1 1 1
13 R61 G03 662 Panel S ass'y(L) W625856G01 1 1 1 1
14 R61 G03 661 Panel S ass'y(R) W625856G02 1 1 1 1

No.

Part No. Part Name Dwg. No.

Q'ty / Set

Spec. Price

PUY

-P200

PUY

-P250

YMF-C

PUHY

-P200

YMF-C

PUHY

-P250

YMF-C

PUY-P200YMF-C
PUY-P250YMF-C

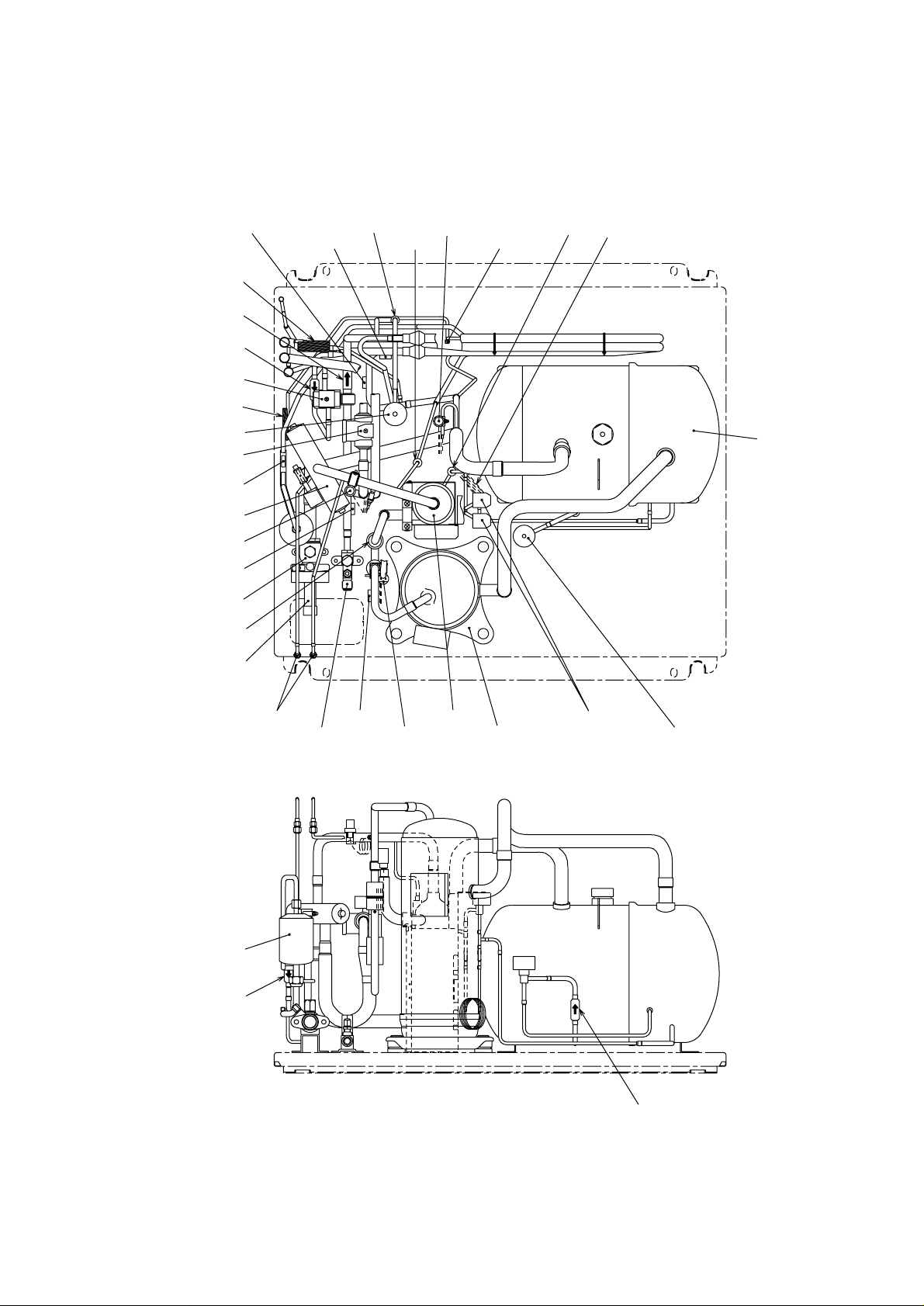

FUNCTIONAL PARTS

- 3 -

117.122
134

129.130
114

107.109

117.122
102

117.123
104

128

112.113.125

116

117.123

133

132

103

119.121

132

115

110

135

133
105

124

127

118

101

111

120.126

136.137.138

106.108

129.131

133

- 4 -

PUY-P200YMF-C
PUY-P250YMF-C
FUNCTIONAL PARTS

No.

Part No. Part Name Dwg. No.

Q'ty / Set

Spec. Price

PUY

-P200

YMF-C

PUY

-P250

YMF-C

101 R61 Y06 208 Pressure switch P426258X02 1 1 ACB-1TB 10W,<63H>
102 R61 331 288 Pressure sensor P419110X01 1 1 <63HS>
103 R61 G35 288 Pressure sensor P419129X01 1 1 <63LS>
104 R61 F14 418 Check valve P639130X01 1 1
105 R61 625 418 Check valve S639001H02 1 1
106 R61 435 232 Solenoid valve P631807X02 2 2 NEV-202DXF
107 R61 G57 232 Solenoid valve P631227X02 1 1 ST66PF
108 R61 Y04 243 Solenoid valve coil P631205X01 2 2 NEV,<SV1,2>
109 R61 Y08 243 Solenoid valve coil P631249X01 1 1 ST,<SV3>
110 R61 Y21 484 Accumulator ass'y W268910G01 1 1
111 R61 Y08 487 Oil separator ass'y W639814G02 1 1
112 R61 E90 494 Pipe ass'y W619465G04 1
113 R61 E91 494 Pipe ass'y W619465G05 1
114 R61 Y08 425 Capillary tube processing W883148G01 1 1 0.6X2.4-900
115 R61 Y07 425 Capillary tube ass'y W883531G01 1 1 1.2X3-2000
116 R61 H79 425 Capillary tube processing W869801G01 1 1 0.8X2.4-2000
117 R61 670 202 Thermistor P425496X01 5 5 NTH3A14,<TH5~9>
118 R61 671 202 Thermistor P425439X01 1 1 <TH1>
119 R61 F14 200 Thermistor P425565X01 1 1 <TH2>
120 R61 375 200 Thermistor P425438X01 1 1 <TH10>
121 R61 A42 287 Sensor cover P227170X01 1 1 EVA,6.35D
122 R61 A45 287 Sensor cover P227171X01 2 2 EVA,12.7D
123 R61 A43 287 Sensor cover P227172X01 2 2 EVA,16D
124 R61 F14 413 Check joint P639131X01 2 2
125 R61 H50 514 Packing W857909H02 1 1 T/# 1991-NF
126 R61 Y08 262 Belt heater P493642X02 1 1 240V 45W,<CH1>
127 R61 F14 410 Ball valve P636220X01 1 1 1/2
128 R61 F14 411 Ball valve P636219X01 1 1 1flange
129 R61 G48 401 Linear expansion valve P632342X01 2 2 DKV-24
130 R61 A45 401 Linear expansion valve coil P632299X01 1 1 <LEV1>
131 R61 A45 402 Linear expansion valve coil P632298X01 1 1 <SLEV>
132 R61 155 454 Strainer P643209X01 2 2 6.35D
133 R61 A42 454 Strainer P643210X01 3 3 9.52D
134 R61 Y02 454 Strainer W858399G01 1 1
135 R61 G03 405 Dryer P641080X01 1 1
136 R61 Y01 850 Insulator W628447H02 1 1
137 R61 Y02 850 Insulator W861746H02 1 1
138 R69 963 478 Scroll compressor EP10013G08 1 1 HEV92FA1-YB,<MC>

PUHY-P200YMF-C
PUHY-P250YMF-C
FUNCTIONAL PARTS

-5 -

220.225

219
237
236

209.212
217

232.233

208.211

220.225

205.206
202

220.226
231
204

215.216.228

220.226

236

235

203

222.224

235

218

213

238

236

227

230

221

201

214

223.229

239.240.241

207.210

232.234

236

-6 -

PUHY-P200YMF-C
PUHY-P250YMF-C

FUNCTIONAL PARTS

201 R61 Y06 208 Pressure switch P426258X02 1 1 ACB-1TB 10W,<63H>
202 R61 331 288 Pressure sensor P419110X01 1 1 <63HS>
203 R61 G35 288 Pressure sensor P419129X01 1 1 <63LS>
204 R61 F14 418 Check valve P639130X01 1 1
205 R61 G35 403 Four way valve P633107X01 1 1 VH6100F
206 R61 Y07 242 Four way valve coil P633106X01 1 1 <21S4>
207 R61 435 232 Solenoid valve P631807X02 2 2 NEV-202DXF
208 R61 G57 232 Solenoid valve P631227X02 1 1 ST66PF
209 R61 449 232 Solenoid valve P631818X03 1 1
210 R61 Y04 243 Solenoid valve coil P631205X01 2 2 NEV,<SV1,2>
211 R61 Y08 243 Solenoid valve coil P631249X01 1 1 ST,<SV3>
212 R61 Y03 232 Solenoid valve coil P631246X01 1 1 SB18,<SV4>
213 R61 Y21 484 Accumulator ass'y W268910G01 1 1
214 R61 Y08 487 Oil separator ass'y W639814G02 1 1
215 R61 E90 494 Pipe ass'y W619465G04 1
216 R61 E91 494 Pipe ass'y W619465G05 1
217 R61 Y08 425 Capillary tube processing W883148G01 1 1 0.6X2.4-900
218 R61 Y07 425 Capillary tube ass'y W883531G01 1 1 1.2X3-2000
219 R61 H79 425 Capillary tube processing W869801G01 1 1 0.8X2.4-2000
220 R61 670 202 Thermistor P425496X01 5 5 NTH3A14,<TH5~9>
221 R61 671 202 Thermistor P425439X01 1 1 <TH1>
222 R61 F14 200 Thermistor P425565X01 1 1 <TH2>
223 R61 375 200 Thermistor P425438X01 1 1 <TH10>
224 R61 A42 287 Sensor cover P227170X01 1 1 EVA,6.35D
225 R61 A45 287 Sensor cover P227171X01 2 2 EVA,12.7D
226 R61 A43 287 Sensor cover P227172X01 2 2 EVA,16D
227 R61 F14 413 Check joint P639131X01 2 2
228 R61 H50 514 Packing W857909H02 1 1 T/# 1991-NF
229 R61 Y08 262 Belt heater P493642X02 1 1 240V 45W,<CH1>
230 R61 F14 410 Ball valve P636220X01 1 1 1/2
231 R61 F14 411 Ball valve P636219X01 1 1 1flange
232 R61 G48 401 Linear expansion valve P632342X01 2 2 DKV-24
233 R61 A45 401 Linear expansion valve coil P632299X01 1 1 <LEV1>
234 R61 A45 402 Linear expansion valve coil P632298X01 1 1 <SLEV>
235 R61 155 454 Strainer P643209X01 2 2 6.35D
236 R61 A42 454 Strainer P643210X01 4 4 9.52D
237 R61 Y02 454 Strainer W858399G01 1 1
238 R61 G03 405 Dryer P641080X01 1 1
239 R61 Y01 850 Insulator W628447H02 1 1
240 R61 Y02 850 Insulator W861746H02 1 1
241 R69 963 478 Scroll compressor EP10013G08 1 1 HEV92FA1-YB,<MC>

No.

PartNo. PartName Dwg.No.

Q'ty/Set

Spec. Price

PUHY

-P200

YMF-C

PUHY

-P250

YMF-C

INV board

INV board

NF

G/A board

MF1

R7

R6

L2

T01

IPM

ACCT

DCL

R5

R1

TB1B

THHS

C2

R3

R2

C3

DS

52C

TB1A

TB7

TB3

FANCON board

MAIN board

MF1

302

311

318

306

317

320

305

315

319

304

316

312

321

313

307

314

308

309

310

303

301

PUY-P200,P250YMF-C
PUHY-P200,P250YMF-C
CONTROL BOX PARTS

- 7 -

- 8 -

PUY-P200,P250YMF-C
PUHY-P200,P250YMF-C
CONTROL BOX PARTS

301 R61 Y75 280 Main board W266235G11 1 1 1 1
302 R61 Y67 280 INV board W639915G01 1 1 1 1
303 R61 Y65 280 Fan controller board W639913G01 1 1 1 1
304 R61 Y66 280 G/A board W639914G01 1 1 1 1
305 R61 Y09 320 Diode S414032H06 1 1 1 1 DF60LB160
306 R61 Y03 249 IPM W848413G04 1 1 1 1 6MBP50RA120
307 R61 Y18 252 Capacitor P412265X01 2 2 2 2 400WV,4700 F<C2,3>
308 R61 Y01 259 Reactor P419149X01 1 1 1 1 1.92mH/34A<DCL>
309 R61 Y19 225 Magnet contactor S427017H31 1 1 1 1 S-N18,AC230V<52C>
310 R61 Y14 260 Transformer P715302X01 1 1 1 1 240V/40V<T1>
311 R61 670 234 Resistor P411113X01 1 1 1 1 30W,22Ω<R7>
312 R61 A42 234 Resistor W237975K23 1 1 1 1 40W,110Ω<R6>
313 R61 Y05 234 Resistor P411133X01 2 2 2 2 40W,5kΩ<R1,5>
314 R61 Y02 234 Resistor P411126X01 2 2 2 2

10W,33kΩ,pitch=32<R2,3>
315 R61 Y02 249 ACCT W639917G01 1 1 1 1 DJ-6
316 R61 Y15 118 Fan W639916G01 1 1 1 1 109S25UL
317 R61 375 201 Thermistor P414092X01 1 1 1 1 181-503-97134
318 R61 Y02 244 Choke coil P419121X01 1 1 1 1 1A,30mH
319 R61 Y12 252 ZNR+C P412226X01 1 1 1 1
320 R61 Y08 293 NF VF4030C-MX2 P419147X01 1 1 1 1
321 R61 Y08 305 Control box W266294G03 1 1 1 1

No.

Part No. Part Name Dwg. No.

Q'ty / Set

Spec. Price

PUY

-P200
YMF-C

PUY

-P250

YMF-C

PUHY

-P200

YMF-C

PUHY

-P250
YMF-C

- 9 -

401

402
403

404

406

405

401 R61 A42 140 Fan stand W856127G05 2 2 2 2
402 R61 A69 086 Cap P221056X01 1 1 1 1
403 R61 A42 122 Nut 16 P541016X01 1 1 1 1
404 R61 E66 115 Propeller fan W872619G01 1 1 1 1 750D
405 R61 Y33 221 Motor P714762X01 1 1 1 1 YD380VB<MF>
406 R61 E90 087 Screw P521020X01 4 4 4 4 6X14

No.

Part No. Part Name Dwg. No.

Q'ty / Set

PUY

-P200

YMF-C

PUY

-P250

YMF-C

PUHY

-P200

YMF-C

PUHY

-P250

Spec. Price

PUY-P200,P250YMF-C
PUHY-P200,P250YMF-C
BLOWER PARTS

MITSUBISHI ELECTRIC CORPORATION

WP-S-125(20010131)

HEAD OFFICE MITSUBISHI DENKI BLDG,MARUNOUCHI,TOKYO 100-0005, TELEX J24532 CABLE MELCO TOKYO
