TECHNICAL & SERVICE MANUAL

SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS

CONTENTS

1. TECHNICAL CHANGES

...................................

2. SAFETY PRECAUTION

....................................

3. OVERVIEW OF UNITS

......................................

4. SPECIFICATIONS

.............................................

5. DATA

.................................................................

6. OUTLINES AND DIMENSIONS

......................

7. WIRING DIAGRAM

.........................................

NECESSARY CONDITIONS FOR SYSTEM CONSTRUCTION

.....

9. TROUBLESHOOTING

....................................

10. ELECTRICAL WIRING

....................................

11. REFRIGERANT PIPING TASKS

.....................

12. DISASSEMBLY PROCEDURE

.......................

13. PARTS LIST

.....................................................

14. RoHS PARTS LIST

..........................................

15. OPTIONAL PARTS

..........................................

OUTDOOR UNIT

No. OC355

REVISED EDITION-D

[Service Ref.]

PUMY-P100YHM PUMY-P100YHM1 PUMY-P100YHMA PUMY-P125YHM PUMY-P125YHM1 PUMY-P125YHMA PUMY-P140YHM PUMY-P140YHM1 PUMY-P140YHMA PUMY-P100YHMA-BS PUMY-P125YHMA-BS PUMY-P140YHMA-BS

HFC

utilized

R410A

June 2008

NOTE :

· This service manual describes technical data of outdoor unit. As for indoor units, refer to its service manual.

· RoHS compliant products have <G> mark on spec name plate.

· For servicing of RoHS compliant products, refer to RoHS PARTS LIST.

[Model name] <Outdoor unit>

PUMY-P100YHM

PUMY-P100YHMA PUMY-P125YHM

PUMY-P125YHMA PUMY-P140YHM

PUMY-P140YHMA PUMY-P100YHMA-BS PUMY-P125YHMA-BS PUMY-P140YHMA-BS

• Please void OC355 REVISED EDITION-C.

Model name indication

Revision:

• PUMY-P100/125/140YHMA-BS

are added in

REVISED EDITION-D.

• Some descriptions have been modified.

2 SAFETY PRECAUTION

Cautions for units utilizing refrigerant R410A

2-1. CAUTIONS RELATED TO NEW REFRIGERANT

Use new refrigerant pipes.

Make sure that the inside and outside of refrigerant piping is clean and it has no contamination such as sulfur hazardous for use, oxides, dirt, shaving particles, etc. In addition, use pipes with specified thickness.

Store the piping to be used during installation indoors and keep both ends of the piping sealed until just before brazing. (Leave elbow joints, etc. in their packaging.)

Use ester oil, ether oil or alkylbenzene oil (small amount) as the refrigerant oil applied to flares and flange connections.

Avoid using thin pipes.

Charge refrigerant from liquid phase of gas cylinder.

If the refrigerant is charged from gas phase, composition change may occur in refrigerant and the efficiency will be lowered.

Do not use refrigerant other than R410A.

If other refrigerant (R22 etc.) is used, chlorine in refrigerant can cause deterioration of refrigerant oil etc.

Use a vacuum pump with a reverse flow check valve.

Vacuum pump oil may flow back into refrigerant cycle and that can cause deterioration of refrigerant oil etc.

Use the following tools specifically designed for use with R410A refrigerant.

The following tools are necessary to use R410A refrigerant.

Keep the tools with care.

If dirt, dust or moisture enters into refrigerant cycle, that can cause deterioration of refrigerant oil or malfunction of compressor.

Do not use a charging cylinder.

If a charging cylinder is used, the composition of refrigerant will change and the efficiency will be lowered.

Flare tool

Electronic refrigerant charging scale

Vacuum pump adaptor

Size adjustment gauge

Gauge manifold

Torque wrench

Gas leak detector

Charge hose

Tools for R410A

Contamination inside refrigerant piping can cause deterioration of refrigerant oil etc.

If dirt, dust or moisture enters into refrigerant cycle, that can cause deterioration of refrigerant oil or malfunction of compressor.

If large amount of mineral oil enters, that can cause deterioration of refrigerant oil etc.

Ventilate the room if refrigerant leaks during operation. If refrigerant comes into contact with a flame, poisonous gases will be released.

PUMY-P100YHM1 PUMY-P100YHMA PUMY-P125YHM

1 PUMY-P125YHMA

PUMY-P140YHM1 PUMY-P140YHMA

• Compressor and oil have been changed. ANB33FDEMT ANB33FDKMT Ester oil Ether oil

• Electrical parts below have been changed. 1Controller board (MULTI.B.) 2Noise filter (N.F.)

• PEFY-P15 can be connected.

1 TECHNICAL CHANGES

PUMY-P100YHM PUMY-P100YHM1 PUMY-P125YHM PUMY-P125YHM1 PUMY-P140YHM PUMY-P140YHM1

• The parts below have been changed.

14-way valve and coil (21S4) 2Fan motor (MF1,MF2) 3Noise filter circuit board (N.F.) 4Multi controller circuit board (MULTI.B.)

Gravimeter

Unit

[3] Service tools

Use the below service tools as exclusive tools for R410A refrigerant.

No. Tool name Specifications 1 Gauge manifold ·Only for R410A

·Use the existing fitting

specifications

. (UNF1/2)

·Use high-tension side pressure of 5.3MPa·G or over. 2 Charge hose ·Only for R410A

·Use pressure performance of 5.09MPa·G or over. 3 Electronic scale 4 Gas leak detector ·Use the detector for R134a, R407C or R410A. 5 Adaptor for reverse flow check ·Attach on vacuum pump. 6 Refrigerant charge base 7 Refrigerant cylinder ·Only for R410A ·Top of cylinder (Pink)

·Cylinder with syphon 8 Refrigerant recovery equipment

[1] Cautions for service

(1) Perform service after recovering the refrigerant left in unit completely. (2) Do not release refrigerant in the air. (3) After completing service, charge the cycle with specified amount of refrigerant. (4) When performing service, install a filter drier simultaneously. Be sure to use a filter drier for new refrigerant.

[2] Additional refrigerant charge

When charging directly from cylinder

· Check that cylinder for R410A on the market is syphon type.

· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)

Although "-BS" model has been designed to be resistant to salt damage, observe the following precautions to maintain the performance of the unit.

1. Avoid installing the uint in a location where it will be exposed directly to seawater or sea breeze.

2. If the cover panel may become covered with salt, be sure to install the unit in a location where the salt will be washed away by rainwater. (If a sunshade is installed, rainwater may not clean the panel.)

3. To ensure that water does not collect in the base of the outdoor unit, make sure that the base is level, not at angle. Water collecting in the base of the outdoor unit could cause rust.

4. If the unit is installed in a coastal area, clean the unit with water regularly to remove any salt build-up.

5. If the unit is damaged during installation or maintenance, be sure to repair it.

6. Be sure to check the condition of the unit regularly.

7. Be sure to install the unit in a location with good drainage.

2-2. PRECAUTIONS FOR SALT PROOF TYPE "-BS" MODEL

Cautions for refrigerant piping work

New refrigerant R410A is adopted for replacement inverter series. Although the refrigerant piping work for R410A is same as for R22, exclusive tools are necessary so as not to mix with different kind of refrigerant. Furthermore as the working pressure of R410A is 1.6 time higher than that of R22, their sizes of flared sections and flare nuts are different.

1Thickness of pipes Because the working pressure of R410A is higher compared to R22, be sure to use refrigerant piping with thickness shown below. (Never use pipes of 0.7mm or below.)

2Dimensions of flare cutting and flare nut The component molecules in HFC refrigerant are smaller compared to conventional refrigerants. In addition to that, R410A is a refrigerant, which has higher risk of leakage because its working pressure is higher than that of other refriger ants. Therefore, to enhance airtightness and intensity, flare cutting dimension of copper pipe for R410A have been speci fied separately from the dimensions for other refrigerants as shown below. The dimension B of flare nut for R410A also have partly been changed to increase intensity as shown below. Set copper pipe correctly referring to copper pipe flaring dimensions for R410A below. For 1/2 and 5/8 inch, the dimension B changes. Use torque wrench corresponding to each dimension.

3Tools for R410A (The following table shows whether conventional tools can be used or not.)

1/4 3/8 1/2 5/8 3/4

6.35

9.52

12.70

15.88

19.05

0.8

1.0

—

0.8

1.0

Nominal

dimensions(inch)

Diagram below: Piping diameter and thickness

Outside

diameter

(mm)

Thickness

(mm)

R410A R22

1/4 3/8 1/2 5/8 3/4

6.35

9.52

12.70

15.88

19.05

9.1

13.2

16.6

19.7

—

9.0

13.0

16.2

19.4

23.3

Nominal

dimensions(inch)

Flare cutting dimensions

Outside

diameter

Dimension A

( )

-0.4

(mm)

R410A R22

1/4 3/8 1/2 5/8 3/4

6.35

9.52

12.70

15.88

19.05

17.0

22.0

26.0

29.0

—

17.0

22.0

24.0

27.0

36.0

Nominal

dimensions(inch)

Flare nut dimensions

Outside

diameter

Dimension B

(mm)

R410A R22

Gauge manifold Charge hose Gas leak detector

Refrigerant recovery equipment Refrigerant cylinder Applied oil

Safety charger

Charge valve Vacuum pump

Flare tool

Bender Pipe cutter Welder and nitrogen gas cylinder Refrigerant charging scale Vacuum gauge or thermistor vacuum gauge and vacuum valve Charging cylinder

Air purge, refrigerant charge and operation check Gas leak check Refrigerant recovery Refrigerant charge Apply to flared section

Prevent compressor malfunction when charging refrigerant by

spraying liquid refrigerant Prevent gas from blowing out

when detaching charge hose Vacuum drying and air purge

Flaring work of piping

Bend the pipes Cut the pipes Weld the pipes Refrigerant charge Check the degree of vacuum. (Vacuum valve prevents back flow of oil and refrigerant to thermistor vacuum gauge) Refrigerant charge

Tool exclusive for R410A Tool exclusive for R410A Tool for HFC refrigerant Tool exclusive for R410A Tool exclusive for R410A Ester oil, ether oil and alkylbenzene oil (minimum amount) Tool exclusive for R410A

Tool exclusive for R410A Tools for other refrigerants can

be used if equipped with adopter for reverse flow check Tools for other refrigerants can be used by adjusting flaring dimension Tools for other refrigerants can be used Tools for other refrigerants can be used Tools for other refrigerants can be used Tools for other refrigerants can be used Tools for other refrigerants can be used

Tool exclusive for R410A

Tools and materials Use R410A tools Can R22 tools be used?

(Usable if equipped with adopter for rever se flow)

(Usable by adjusting flaring dimension)

Can R407C tools be used?

Ester oil, ether oil: Alkylbenzene oil: minimum amount

(Usable if equipped with adopter for rever se flow)

(Usable by adjusting flaring dimension)

: Prepare a new tool. (Use the new tool as the tool exclusive for R410A.) : Tools for other refrigerants can be used under certain conditions. : Tools for other refrigerants can be used.

Dimension A

Dimension B

OVERVIEW OF UNITS

3-1. UNIT CONSTRUCTION

15 20 25 32 40 50 63 71

80 100 125 140

– 20VCM-E 25VCM-E

32VCM-E/32VBM-E 40VCM-E/40VBM-E

50VBM-E 63VBM-E

– 80VBM-E

100VBM-E 125VBM-E

–

– 20VLMD-E 25VLMD-E 32VLMD-E 40VLMD-E 50VLMD-E 63VLMD-E

– 80VLMD-E

100VLMD-E 125VLMD-E

–

15VMS/(L)-E 20VML-E / VMM-E 25VML-E / VMM-E 32VML-E / VMM-E 40VMH-E / VMM-E 50VMH-E / VMM-E 63VMH-E / VMM-E 71VMH-E / VMM-E 80VMH-E / VMM-E

100VMH-E / VMM-E 125VMH-E / VMM-E

140VMM-E

– 20VM-E 25VM-E 32VM-E 40VM-E 50VM-E 63VM-E 71VM-E 80VM-E

100VM-E 125VM-E

–

– 20VBM-E 25VBM-E 32VGM-E 40VGM-E 50VGM-E

–

– 20VLEM-E 25VLEM-E 32VLEM-E 40VLEM-E 50VLEM-E 63VLEM-E

–

– 20VLRM-E 25VLRM-E 32VLRM-E 40VLRM-E 50VLRM-E 63VLRM-E

–

– – – –

40VGM-E

–

63VGM-E

–

– 100VGM-E 125VGM-E

–

PLFY-P PLFY-P PEFY-P PDFY-P PKFY-P PCFY-P PFFY-P PFFY-P

– – – – – – – –

80VMH-E-F

– –

140VMH-E-F

PEFY-P

Capacity

Model

Cassette Ceiling

4-way flow 2-way flow

– 20VBM-E 25VBM-E 32VBM-E 40VBM-E

–

PMFY-P

1-way flow

Ceiling

Concealed

Ceiling

mounted

built-in

Ceiling

Suspended

Ceiling

Concealed

(Fresh Air)

Wall

Mounted

Floor standing

Exposed Concealed

Remote

controller

Name

Model number

Functions

M-NET remote controller

PAR-F27MEA-E

• A handy remote controller for use in conjunction with the Melans centralized management system.

• Addresses must be set.

• Addresses setting is not necessary.

MA remote controller

PAR-21MAA

Outdoor unit

Capacity

Type 15(YHMA) / 20(YHM(1))~Type 125

1~ 6 unit

50% ~130% of outdoor unit capacity

Type 15(YHMA) / 20(YHM

(1))~Type 140

1~ 8 unit

Indoor unit that can be connected

Number of units Total system wide capacity

4HP 5HP 6HP

PUMY-P100YHM PUMY-P100YHM1

PUMY-P100YHMA (-BS)

PUMY-P125YHM PUMY-P125YHM1

PUMY-P125YHMA (-BS)

PUMY-P140YHM PUMY-P140YHM1

PUMY-P140YHMA (-BS)

Branching pipe components

Branch header (2 branches)

Branch header (4 branches)

Branch header (8 branches)

CMY-Y62-G-E CMY-Y64-G-E CMY-Y68-G-E

*1. PUMY-P·YHM1/YHMA can connect Fresh Air type indoor unit. (PUMY-P·YHM can NOT connect.) It is possible only by 1: 1 system. (1 indoor unit of Fresh Air type is connected with 1 outdoor unit.) Operating temperature range(outdoor temperature) for fresh air type indoor units differ from other indoor units. Refer to 3-2(3). *2. When the indoor unit of Fresh Air type is connected with the outdoor unit, the maximum connectable total indoor unit capacity is 110% (100% in case of heating below -5:[23˚F]).

Decorative panel

3-2. UNIT SPECIFICATIONS

(2) Method for identifying MULTI-S model

(1) Outdoor Unit

Indoor unit < When using Model 80 >

Outdoor unit <When using model 125 >

P L F Y - P 80 V AM - E PU M Y - P 125 Y H M A - BS

PAC type

AM BM CM KM M KM LMD

Frequency conversion controller

Refrigerant R407C/R22 R410A commonness

Refrigerant R410A

NEW frequency converter one-to-many air conditioners (flexible design type)

Indicates equivalent to Cooling capacity

Power supply V: Single phase 220-230-240V 50Hz 220V 60Hz

Power supply Y: 3-phase

380-400-415V 50Hz

L : Ceiling cassette K : Wall-mounted type E : Hidden skylight type C : Ceiling suspended type M : Ceiling cassette type F : Floor standing type

}

M-NET control

Outdoor unit model type

Sub-number

M-NET control

Sub-number

Frequency conversion controller

Outdoor unit

MULTI-S

(k cal / h)

Salt proof type

Service Ref.

PUMY-P100YHM PUMY-P100YHM

PUMY-P100YHMA(-BS)

Capacity

Cooling (kW) Heating (kW)

11.2

12.5

1.9

PUMY-P125YHM PUMY-P125YHM1

PUMY-P125YHMA (-BS)

14.0

16.0

2.4

PUMY-P140YHM PUMY-P140YHM1

PUMY-P140YHMA (-BS)

16.0

18.0

2.9Motor for compressor (kW)



Cooling / Heating capacity indicates the maximum value at operation under the following condition. w. Cooling Indoor : D.B. 27°C / W.B. 19.0°C

Outdoor : D.B. 35°C Heating Indoor : D.B. 20°C Outdoor : D.B. 7°C / W.B. 6°C

(3) Operating temperature range

Notes D.B. : Dry Bulb Temperature W.B. : Wet Bulb Temperature w1. 10~46°C DB : In case of connecting PKFY-P20/P25 type indoor unit.

Cooling

.B. 15~24C

D.B. -5~46C

Heating D.B. 15~27C W.B. -15~15C

Indoor-side intake air temperature Outdoor-side intake air temperature

■ In case of connecting fresh air type indoor unit (Only PUMY-P·YHM1/YHMA can connect Fresh air type indoor unit.)

air type indoor

Capacity of Fresh

Cooling

Heating

Indoor-side and Outdoor-side

P80

D.B.21~43

W.B.15.5~35

D.B.-10~20

intake air temperature

P140

D.B.21~43

W.B.15.5~35

D.B.-5~20

2.Thermo-off (FAN-mode) automatically starts if the outdoor temp. is lower than 21D.B..

3.Thermo-off (FAN-mode) automatically starts if the outdoor temp. is higher than 20D.B..

SPECIFICATIONS

PUMY-P100YHM

(1)

PUMY-P100YHMA

PUMY-P100YHMA-BS

PUMY-P125YHM

(1)

PUMY-P125YHMA

PUMY-P125YHMA-BS

PUMY-P140YHM

(1)

PUMY-P140YHMA

PUMY-P140YHMA-BS

Cooling Capacity

Service Ref.

kW 11.2 14.0 15.5 Heating Capacity kW 12.5 16.0 18.0 Input(Cool

)

kW 3.3 4.27 5.32 Input Current (Cool

)

A 5.28/5.02/4.84 6.83/6.49/6.26 8.51/8.09/7.80

Input(Heat

)

kW 3.63 4.29 5.32 Input Current (Heat

)

A 5.81/5.52/5.32 6.87/6.52/6.29 8.51/8.09/7.80

EER(Cool

)

3.39 3.28 2.91

COP (Heat

)

3.44 3.73 3.38

Connectable indoor units (Max.

)

688

Max. Connectable Capacity kW 14.5(130%

)

18.2(130%

)

20.2(130%

) Power Supply 3 phase ,50Hz,380/400/415V Breaker Size 16A 16A 16A Sound level (Cool/Heat

)

dB 49 / 51 50 / 52 51 / 53 External finish Munsell 3Y 7.8/1.1 Refrigerant control Linear Expansion Valve Compressor Hermetic

YHM

(1)

:ANB33FDEMT, YHMA:ANB33FDKMT

Model Motor output kW 1.9 2.4 2.9

Starting method Inverter Crankcase heater W — Heat exchanger Plate fin coil (Anti corrosion fin treatment

)

Fan Fan(drive

) %

No. Propeller fan % 2 Fa motor output kW 0.060 + 0.060 Airflow m

/min(CFM

)

100(3,530

)

Dimensions(HxWxD

)

Wmm

(

in.

)

950(37-3/8

)

Dmm

(

in.

)

330+30(13+1-3/16

)

Hmm

(

in.

)

1,350(53-1/8

)

Weight kg(lbs

)

140(309

)

Refrigerant R410A

Charge kg(lbs

)

8.5(18.7

)

Protection High pressure protection HP switch devices Compressor protection Discharge thermo,Over current detection

Fan motor protection Overheating/Voltage protection

Oil(Model

)

2.3(YHM

(1)

: MEL56, YHMA:FV50S

)

Total Piping length (Max.

)

120 Farthest m 80 Max. Height difference m 30 Chargeless length m 50

Piping diameter

Gas :mm(in.) 15.88(5/8

)

Liquid :mm(in.) 9.52(3/8

)

Guranteed operation range

(

cool

)

-5~ 46 DB

(

heat

)

-15~ 15 WB

+3 +3 +3 +3 +3 +3

Rating conditions (JIS B 8616) Cooling Indoor : D.B. 27: / W.B. 19: Outdoor : D.B. 35: / W.B. 20: Heating Indoor : D.B. 20: Outdoor : D.B. 7: / W.B. 6:

Note.w1. 20m : In case of installing outdoor unit lower than

indoor unit.

w2. 10~46:DB : In case of connecting PKFY-P20/P25 type

indoor unit.

w3. Electrical data is for only outdoor unit.

DATA

5-1. COOLING AND HEATING CAPACITY AND CHARACTERISTICS

5-1-1. Method for obtaining system cooling and heating capacity:

To obtain the system cooling and heating capacity and the electrical characteristics of the outdoor unit, first add up the rati ngs of all the indoor units connected to the outdoor unit (see table below), and then use this total to find the standard capacity with the help of the tables on 5-2.STANDARD CAPACITY DIAGRAM.

(1) Capacity of indoor unit

5-1-2. Method for obtaining the heating and cooling capacity of an indoor unit:

(1) The capacity of each indoor unit (kW) = the capacity A (or B)

(2) Sample calculation (using the system described above in 5-1-1. (2) ):

model capacity

total model capacity of all indoor units

During cooling: During heating:

• The total model capacity of the indoor unit is:

2.8 o 2 + 5.6 o 2=16.8kW Therefore, the capacity of PKFY-P25VAM-E and PLFY-P50VLMD-E will be calculated as follows by using the formula in 5-1-2. (1):

Model 25=14.6 o = 2.43kW

Model 50=14.6 o = 4.87kW

• The total model capacity of indoor unit is:

3.2 o 2 + 6.3 o 2=19.0 Therefore, the capacity of PKFY-P25VAM-E and PLFYP50VLMD-E will be calculated as follows by using the formula in 5-1-2. (1):

Model 25=16.33 o = 2.75kW

Model 50=16.33 o = 5.41kW

2.8

16.8

5.6

16.8

6.3

19.0

3.2

19.0

(2) Sample calculation

1System assembled from indoor and outdoor unit (in this example the total capacity of the indoor units is greater than that of

the outdoor unit)

• Outdoor unit PUMY-P125YHM PUMY-P125YHM

• Indoor unit PKFY-P25VAM-E o 2 , PLFY-P50VLMD-E o 2

2According to the conditions in 1, the total capacity of the indoor unit will be: 28 o 2 + 56 o 2 = 168 3The following figures are obtained from the 168 total capacity row of the standard capacity diagram (5-2.):

Model 20

Model Number for indoor unit

Model Capacity

Model 15

Model 2528Model 3236Model 4045Model 5056Model 6371Model 7180Model 8090Model 100

112

Model 125

140

Model 140

160

Cooling

A 14.60

Heating

6.01

Cooling

6.59

Heating

3.95

Cooling

4.34

Heating

B 16.33

Capacity (kW)

Outdoor unit power consumption (kW)

Outdoor unit current (A)/400V

Total capacity of

Capacity(kW)

Power Consumption(kW)

Current(A)/380V Current(A)/400V Current(A)/415V

indoor units

Cooling Heating Cooling Heating Cooling Heating Cooling Heating Cooling Heating 56 5.60 6.30 1.57 1.87 2.52 3.00 2.39 2.85 2.31 2.75 57 5.70 6.41 1.59 1.90 2.55 3.05 2.42 2.89 2.34 2.79 58 5.80 6.53 1.62 1.92 2.60 3.08 2.47 2.93 2.38 2.82 59 5.90 6.64 1.64 1.95 2.63 3.13 2.50 2.97 2.41 2.86 60 6.00 6.75 1.66 1.98 2.66 3.17 2.53 3.02 2.44 2.91 61 6.10 6.87 1.69 2.00 2.71 3.21 2.58 3.05 2.48 2.94 62 6.20 6.98 1.71 2.03 2.74 3.26 2.61 3.09 2.51 2.98 63 6.30 7.09 1.74 2.06 2.79 3.30 2.65 3.14 2.56 3.02 64 6.40 7.20 1.76 2.08 2.82 3.34 2.68 3.17 2.59 3.05 65 6.50 7.32 1.78 2.11 2.85 3.38 2.71 3.21 2.61 3.10 66 6.60 7.43 1.81 2.14 2.90 3.43 2.76 3.26 2.66 3.14 67 6.70 7.54 1.83 2.17 2.93 3.48 2.79 3.31 2.69 3.19 68 6.80 7.66 1.86 2.20 2.98 3.53 2.83 3.35 2.73 3.23 69 6.90 7.77 1.89 2.22 3.03 3.56 2.88 3.38 2.78 3.26 70 7.00 7.88 1.91 2.25 3.06 3.61 2.91 3.43 2.81 3.30 71 7.10 8.00 1.94 2.28 3.11 3.66 2.96 3.47 2.85 3.35 72 7.20 8.11 1.97 2.31 3.16 3.70 3.00 3.52 2.89 3.39 73 7.30 8.22 1.99 2.34 3.19 3.75 3.03 3.56 2.92 3.44 74 7.40 8.33 2.02 2.37 3.24 3.80 3.08 3.61 2.97 3.48 75 7.50 8.44 2.05 2.40 3.28 3.85 3.12 3.66 3.01 3.52 76 7.60 8.56 2.08 2.43 3.33 3.90 3.17 3.70 3.05 3.57 77 7.70 8.67 2.11 2.46 3.38 3.94 3.21 3.75 3.10 3.61 78 7.80 8.78 2.13 2.49 3.41 3.99 3.24 3.79 3.13 3.66 79 7.90 8.89 2.16 2.52 3.46 4.04 3.29 3.84 3.17 3.70 80 8.00 9.00 2.19 2.55 3.51 4.09 3.34 3.88 3.22 3.74 81 8.10 9.10 2.22 2.58 3.56 4.14 3.38 3.93 3.26 3.79 82 8.20 9.20 2.25 2.61 3.60 4.18 3.43 3.97 3.30 3.83 83 8.30 9.30 2.28 2.64 3.65 4.23 3.47 4.02 3.35 3.88 84 8.40 9.40 2.31 2.67 3.70 4.28 3.52 4.07 3.39 3.92 85 8.50 9.50 2.35 2.70 3.76 4.33 3.58 4.11 3.45 3.96 86 8.60 9.60 2.38 2.74 3.81 4.39 3.62 4.17 3.49 4.02 87 8.70 9.70 2.41 2.77 3.86 4.44 3.67 4.22 3.54 4.07 88 8.80 9.80 2.44 2.80 3.91 4.49 3.72 4.26 3.58 4.11 89 8.90 9.90 2.47 2.83 3.96 4.54 3.76 4.31 3.63 4.15 90 9.00 10.00 2.51 2.86 4.02 4.58 3.82 4.35 3.68 4.20 91 9.10 10.10 2.54 2.90 4.07 4.65 3.87 4.42 3.73 4.26 92 9.20 10.22 2.57 2.93 4.12 4.70 3.91 4.46 3.77 4.30 93 9.30 10.33 2.60 2.96 4.16 4.74 3.96 4.51 3.82 4.34 94 9.40 10.45 2.64 3.00 4.23 4.81 4.02 4.57 3.88 4.40 95 9.50 10.56 2.67 3.03 4.28 4.86 4.07 4.61 3.92 4.45 96 9.60 10.67 2.71 3.06 4.34 4.90 4.13 4.66 3.98 4.49 97 9.70 10.79 2.74 3.10 4.39 4.97 4.17 4.72 4.02 4.55 98 9.80 10.90 2.78 3.13 4.45 5.02 4.23 4.77 4.08 4.59 99 9.90 11.02 2.81 3.17 4.50 5.08 4.28 4.83 4.12 4.65

100 10.00 11.13 2.85 3.20 4.56 5.13 4.34 4.87 4.18 4.70 101 10.10 11.24 2.88 3.24 4.61 5.19 4.39 4.93 4.23 4.75 102 10.20 11.36 2.92 3.27 4.67 5.24 4.45 4.98 4.29 4.80 103 10.30 11.47 2.96 3.31 4.74 5.30 4.51 5.04 4.34 4.86 104 10.40 11.59 2.99 3.34 4.79 5.35 4.55 5.08 4.39 4.90 105 10.50 11.70 3.03 3.38 4.85 5.42 4.61 5.15 4.45 4.96 106 10.60 11.81 3.07 3.41 4.91 5.46 4.67 5.19 4.51 5.00 107 10.70 11.93 3.11 3.45 4.98 5.53 4.74 5.25 4.56 5.06 108 10.80 12.04 3.14 3.48 5.03 5.58 4.78 5.30 4.61 5.11 109 10.90 12.16 3.18 3.52 5.09 5.64 4.84 5.36 4.67 5.17 110 11.00 12.27 3.22 3.56 5.15 5.70 4.90 5.42 4.73 5.22 111 11.10 12.38 3.26 3.59 5.22 5.75 4.96 5.47 4.78 5.27 112 11.20 12.50 3.30 3.63 5.28 5.81 5.02 5.52 4.84 5.32 113 11.22 12.51 3.31 3.62 5.30 5.80 5.04 5.51 4.86 5.31 114 11.24 12.53 3.31 3.61 5.30 5.78 5.04 5.50 4.86 5.30 115 11.26 12.54 3.32 3.60 5.31 5.77 5.05 5.48 4.87 5.28 116 11.28 12.55 3.32 3.59 5.31 5.75 5.05 5.47 4.87 5.27 117 11.30 12.56 3.32 3.58 5.31 5.74 5.05 5.45 4.87 5.25 118 11.32 12.57 3.33 3.56 5.33 5.70 5.07 5.42 4.89 5.22 119 11.34 12.58 3.33 3.55 5.33 5.69 5.07 5.40 4.89 5.21 120 11.36 12.60 3.34 3.54 5.35 5.67 5.08 5.39 4.90 5.19

5-2. STANDARD CAPACITY DIAGRAM

5-2-1.PUMY-P100YHM PUMY-P100YHM1 PUMY-P100YHMA (-BS)

*Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the formula on 5-1-1.

Total capacity of Capacity(kW)

Power Consumption(kW)

Current(A)/380V Current(A)/400V Current(A)/415V

indoor units

Cooling Heating Cooling Heating Cooling Heating Cooling Heating Cooling Heating 121 11.38 12.61 3.34 3.53 5.35 5.66 5.08 5.37 4.90 5.18 122 11.40 12.62 3.34 3.52 5.35 5.64 5.08 5.36 4.90 5.17 123 11.42 12.63 3.35 3.51 5.36 5.62 5.10 5.34 4.92 5.15 124 11.44 12.64 3.35 3.50 5.36 5.61 5.10 5.33 4.92 5.14 125 11.47 12.66 3.36 3.48 5.38 5.58 5.12 5.30 4.93 5.11 126 11.49 12.67 3.36 3.47 5.38 5.56 5.12 5.28 4.93 5.09 127 11.51 12.68 3.36 3.46 5.38 5.54 5.12 5.27 4.93 5.08 128 11.53 12.69 3.37 3.45 5.39 5.53 5.13 5.25 4.95 5.06 129 11.55 12.70 3.37 3.44 5.39 5.51 5.13 5.24 4.95 5.05 130 11.57 12.71 3.38 3.43 5.41 5.50 5.15 5.22 4.96 5.03 131 11.59 12.73 3.38 3.41 5.41 5.46 5.15 5.19 4.96 5.00 132 11.61 12.74 3.38 3.40 5.41 5.45 5.15 5.18 4.96 4.99 133 11.63 12.75 3.39 3.39 5.43 5.43 5.16 5.16 4.97 4.97 134 11.65 12.76 3.39 3.38 5.43 5.42 5.16 5.15 4.97 4.96 135 11.67 12.77 3.40 3.37 5.44 5.40 5.18 5.13 4.99 4.95 136 11.69 12.78 3.40 3.36 5.44 5.38 5.18 5.12 4.99 4.93 137 11.71 12.80 3.40 3.34 5.44 5.35 5.18 5.08 4.99 4.90 138 11.73 12.81 3.41 3.33 5.46 5.34 5.19 5.07 5.00 4.89 139 11.75 12.82 3.41 3.32 5.46 5.32 5.19 5.05 5.00 4.87 140 11.77 12.83 3.42 3.31 5.47 5.30 5.21 5.04 5.02 4.86 141 11.79 12.84 3.42 3.30 5.47 5.29 5.21 5.02 5.02 4.84 142 11.82 12.86 3.42 3.29 5.47 5.27 5.21 5.01 5.02 4.83 143 11.84 12.87 3.43 3.27 5.49 5.24 5.22 4.98 5.03 4.80 144 11.86 12.88 3.43 3.26 5.49 5.22 5.22 4.96 5.03 4.78 145 11.88 12.89 3.44 3.25 5.51 5.21 5.24 4.95 5.05 4.77

Total capacity of

Capacity(kW)

Power Consumption(kW)

Current(A)/380V Current(A)/400V Current(A)/415V

indoor units

Cooling Heating Cooling Heating Cooling Heating Cooling Heating Cooling Heating 70 7.00 7.88 1.80 2.04 2.88 3.27 2.74 3.10 2.64 3.00 71 7.10 8.00 1.83 2.06 2.93 3.30 2.79 3.13 2.69 3.02 72 7.20 8.11 1.85 2.09 2.96 3.35 2.82 3.18 2.72 3.07 73 7.30 8.22 1.88 2.11 3.01 3.38 2.86 3.21 2.76 3.10 74 7.40 8.33 1.91 2.14 3.06 3.43 2.91 3.26 2.81 3.14 75 7.50 8.44 1.93 2.17 3.09 3.48 2.94 3.30 2.83 3.19 76 7.60 8.56 1.96 2.19 3.14 3.51 2.98 3.33 2.88 3.22 77 7.70 8.67 1.99 2.22 3.19 3.56 3.03 3.38 2.92 3.26 78 7.80 8.78 2.01 2.25 3.22 3.61 3.06 3.42 2.95 3.30 79 7.90 8.89 2.04 2.28 3.27 3.66 3.10 3.47 3.00 3.35 80 8.00 9.00 2.07 2.30 3.32 3.69 3.15 3.50 3.04 3.38 81 8.10 9.10 2.10 2.33 3.36 3.74 3.20 3.55 3.08 3.42 82 8.20 9.20 2.12 2.36 3.40 3.78 3.23 3.59 3.11 3.46 83 8.30 9.30 2.15 2.39 3.44 3.83 3.27 3.64 3.16 3.51 84 8.40 9.40 2.18 2.42 3.49 3.88 3.32 3.68 3.20 3.55 85 8.50 9.50 2.21 2.44 3.54 3.91 3.36 3.71 3.24 3.58 86 8.60 9.60 2.24 2.47 3.59 3.96 3.41 3.76 3.29 3.63 87 8.70 9.70 2.27 2.50 3.64 4.01 3.45 3.80 3.33 3.67 88 8.80 9.80 2.30 2.53 3.68 4.06 3.50 3.85 3.38 3.71 89 8.90 9.90 2.33 2.56 3.73 4.10 3.55 3.89 3.42 3.76 90 9.00 10.00 2.36 2.59 3.78 4.15 3.59 3.94 3.46 3.80 91 9.10 10.10 2.39 2.62 3.83 4.20 3.64 3.99 3.51 3.85 92 9.20 10.22 2.42 2.65 3.88 4.25 3.68 4.03 3.55 3.89 93 9.30 10.33 2.45 2.68 3.92 4.30 3.73 4.08 3.60 3.93 94 9.40 10.45 2.49 2.71 3.99 4.34 3.79 4.12 3.66 3.98 95 9.50 10.56 2.52 2.74 4.04 4.39 3.83 4.17 3.70 4.02 96 9.60 10.67 2.55 2.77 4.08 4.44 3.88 4.21 3.74 4.07 97 9.70 10.79 2.58 2.80 4.13 4.49 3.92 4.26 3.79 4.11 98 9.80 10.90 2.62 2.83 4.20 4.54 3.99 4.30 3.85 4.15 99 9.90 11.02 2.65 2.86 4.24 4.58 4.03 4.35 3.89 4.20

100 10.00 11.13 2.68 2.89 4.29 4.63 4.08 4.40 3.93 4.24 101 10.10 11.24 2.72 2.92 4.36 4.68 4.14 4.44 3.99 4.29 102 10.20 11.36 2.75 2.96 4.40 4.74 4.18 4.50 4.04 4.34 103 10.30 11.47 2.79 2.99 4.47 4.79 4.24 4.55 4.10 4.39 104 10.40 11.59 2.82 3.02 4.52 4.84 4.29 4.59 4.14 4.43 105 10.50 11.70 2.86 3.05 4.58 4.89 4.35 4.64 4.20 4.48 106 10.60 11.81 2.89 3.08 4.63 4.94 4.40 4.68 4.24 4.52 107 10.70 11.93 2.93 3.12 4.69 5.00 4.46 4.75 4.30 4.58 108 10.80 12.04 2.96 3.15 4.74 5.05 4.50 4.79 4.34 4.62 109 10.90 12.16 3.00 3.18 4.80 5.10 4.56 4.84 4.40 4.67 110 11.00 12.27 3.04 3.21 4.87 5.14 4.62 4.88 4.46 4.71 111 11.10 12.38 3.07 3.25 4.91 5.21 4.67 4.94 4.51 4.77 112 11.20 12.50 3.11 3.28 4.98 5.26 4.73 4.99 4.56 4.81 113 11.30 12.63 3.15 3.31 5.04 5.30 4.79 5.03 4.62 4.86 114 11.40 12.75 3.19 3.35 5.11 5.37 4.85 5.09 4.68 4.92 115 11.50 12.88 3.22 3.38 5.15 5.42 4.90 5.14 4.73 4.96 116 11.60 13.00 3.26 3.42 5.22 5.48 4.96 5.20 4.78 5.02 117 11.70 13.13 3.30 3.45 5.28 5.53 5.02 5.25 4.84 5.06 118 11.80 13.25 3.34 3.49 5.35 5.59 5.08 5.31 4.90 5.12 119 11.90 13.38 3.38 3.52 5.41 5.64 5.14 5.35 4.96 5.17 120 12.00 13.50 3.42 3.55 5.47 5.69 5.20 5.40 5.02 5.21 121 12.10 13.63 3.46 3.59 5.54 5.75 5.26 5.46 5.08 5.27 122 12.20 13.75 3.50 3.62 5.60 5.80 5.32 5.51 5.14 5.31 123 12.30 13.88 3.54 3.66 5.67 5.86 5.38 5.57 5.19 5.37 124 12.40 14.00 3.58 3.70 5.73 5.93 5.44 5.63 5.25 5.43 125 12.50 14.13 3.62 3.73 5.79 5.98 5.51 5.67 5.31 5.47 126 12.60 14.25 3.66 3.77 5.86 6.04 5.57 5.73 5.37 5.53 127 12.70 14.38 3.70 3.80 5.92 6.09 5.63 5.78 5.43 5.58 128 12.80 14.50 3.74 3.84 5.99 6.15 5.69 5.84 5.49 5.63 129 12.90 14.63 3.79 3.88 6.07 6.22 5.76 5.90 5.56 5.69 130 13.00 14.75 3.83 3.91 6.13 6.26 5.82 5.95 5.62 5.74

5-2-2.PUMY-P125YHM PUMY-P125YHM1 PUMY-P125YHMA (-BS)

*Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the formula on 5-1-1.

Total capacity of

Capacity(kW)

Power Consumption(kW)

Current(A)/380V Current(A)/400V Current(A)/415V

indoor units

Cooling Heating Cooling Heating Cooling Heating Cooling Heating Cooling Heating

131 13.10 14.88 3.87 3.95 6.19 6.33 5.88 6.01 5.68 5.80 132 13.20 15.00 3.91 3.99 6.26 6.39 5.95 6.07 5.74 5.85 133 13.30 15.13 3.96 4.02 6.34 6.44 6.02 6.11 5.81 5.90 134 13.40 15.25 4.00 4.06 6.40 6.51 6.08 6.17 5.87 5.96 135 13.50 15.38 4.04 4.10 6.47 6.57 6.14 6.23 5.93 6.02 136 13.60 15.50 4.09 4.14 6.55 6.63 6.22 6.30 6.00 6.07 137 13.70 15.63 4.13 4.17 6.61 6.68 6.28 6.34 6.06 6.12 138 13.80 15.75 4.18 4.21 6.69 6.75 6.36 6.40 6.13 6.18 139 13.90 15.88 4.22 4.25 6.75 6.81 6.42 6.46 6.19 6.24 140 14.00 16.00 4.27 4.29 6.83 6.87 6.49 6.52 6.26 6.29 141 14.02 16.01 4.28 4.28 6.84 6.86 6.50 6.51 6.27 6.28 142 14.04 16.02 4.28 4.27 6.85 6.84 6.50 6.49 6.28 6.26 143 14.06 16.03 4.28 4.26 6.85 6.82 6.51 6.47 6.28 6.24 144 14.08 16.04 4.28 4.24 6.85 6.80 6.51 6.45 6.28 6.23 145 14.10 16.06 4.28 4.23 6.86 6.78 6.51 6.43 6.29 6.21 146 14.12 16.07 4.29 4.22 6.86 6.76 6.52 6.42 6.29 6.19 147 14.15 16.08 4.29 4.21 6.86 6.74 6.52 6.40 6.29 6.17 148 14.17 16.09 4.29 4.19 6.87 6.72 6.52 6.38 6.29 6.15 149 14.19 16.10 4.29 4.18 6.87 6.70 6.53 6.36 6.30 6.14 150 14.21 16.12 4.30 4.17 6.87 6.68 6.53 6.34 6.30 6.12 151 14.23 16.13 4.30 4.16 6.88 6.66 6.53 6.32 6.30 6.10 152 14.25 16.14 4.30 4.15 6.88 6.64 6.54 6.31 6.31 6.08 153 14.27 16.15 4.30 4.13 6.88 6.62 6.54 6.29 6.31 6.07 154 14.30 16.16 4.30 4.12 6.89 6.61 6.54 6.27 6.31 6.05 155 14.32 16.17 4.31 4.11 6.89 6.59 6.55 6.25 6.32 6.03 156 14.34 16.19 4.31 4.10 6.90 6.57 6.55 6.23 6.32 6.01 157 14.36 16.20 4.31 4.09 6.90 6.55 6.55 6.21 6.32 6.00 158 14.38 16.21 4.31 4.07 6.90 6.53 6.56 6.20 6.33 5.98 159 14.40 16.22 4.32 4.06 6.91 6.51 6.56 6.18 6.33 5.96 160 14.42 16.23 4.32 4.05 6.91 6.49 6.56 6.16 6.33 5.94 161 14.45 16.25 4.32 4.04 6.91 6.47 6.57 6.14 6.34 5.92 162 14.47 16.26 4.32 4.03 6.92 6.45 6.57 6.12 6.34 5.91 163 14.49 16.27 4.32 4.01 6.92 6.43 6.57 6.10 6.34 5.89 164 14.51 16.28 4.33 4.00 6.92 6.41 6.58 6.09 6.35 5.87 165 14.53 16.29 4.33 3.99 6.93 6.39 6.58 6.07 6.35 5.85 166 14.55 16.31 4.33 3.98 6.93 6.37 6.58 6.05 6.35 5.84 167 14.57 16.32 4.33 3.97 6.93 6.35 6.59 6.03 6.36 5.82 168 14.60 16.33 4.34 3.95 6.94 6.33 6.59 6.01 6.36 5.80 169 14.62 16.34 4.34 3.94 6.94 6.32 6.59 5.99 6.36 5.78 170 14.64 16.35 4.34 3.93 6.95 6.30 6.60 5.98 6.37 5.77 171 14.66 16.36 4.34 3.92 6.95 6.28 6.60 5.96 6.37 5.75 172 14.68 16.38 4.34 3.91 6.95 6.26 6.61 5.94 6.37 5.73 173 14.70 16.39 4.35 3.89 6.96 6.24 6.61 5.92 6.38 5.71 174 14.72 16.40 4.35 3.88 6.96 6.22 6.61 5.90 6.38 5.69 175 14.75 16.41 4.35 3.87 6.96 6.20 6.62 5.88 6.38 5.68 176 14.77 16.42 4.35 3.86 6.97 6.18 6.62 5.87 6.39 5.66 177 14.79 16.44 4.36 3.84 6.97 6.16 6.62 5.85 6.39 5.64 178 14.81 16.45 4.36 3.83 6.97 6.14 6.63 5.83 6.39 5.62 179 14.83 16.46 4.36 3.82 6.98 6.12 6.63 5.81 6.40 5.61 180 14.85 16.47 4.36 3.81 6.98 6.10 6.63 5.79 6.40 5.59 181 14.87 16.48 4.36 3.80 6.98 6.08 6.64 5.77 6.40 5.57 182 14.89 16.50 4.37 3.78 6.99 6.06 6.64 5.76 6.41 5.55

Total capacity of

Capacity(kW)

Power Consumption(kW)

Current(A)/380V Current(A)/400V Current(A)/415V

indoor units

Cooling Heating Cooling Heating Cooling Heating Cooling Heating Cooling Heating 80 8.00 9.00 2.34 2.73 3.75 4.37 3.56 4.16 3.44 4.01 81 8.10 9.10 2.37 2.76 3.80 4.42 3.61 4.20 3.48 4.05 82 8.20 9.20 2.40 2.79 3.84 4.47 3.66 4.25 3.52 4.10 83 8.30 9.30 2.43 2.82 3.89 4.52 3.70 4.29 3.57 4.14 84 8.40 9.40 2.46 2.86 3.94 4.58 3.75 4.35 3.61 4.20 85 8.50 9.50 2.49 2.89 3.99 4.63 3.79 4.40 3.66 4.24 86 8.60 9.60 2.53 2.92 4.05 4.67 3.85 4.45 3.71 4.29 87 8.70 9.70 2.56 2.95 4.10 4.72 3.90 4.49 3.76 4.33 88 8.80 9.80 2.59 2.98 4.15 4.77 3.94 4.54 3.80 4.37 89 8.90 9.90 2.62 3.01 4.20 4.82 3.99 4.58 3.85 4.42 90 9.00 10.00 2.66 3.04 4.26 4.87 4.05 4.63 3.90 4.46 91 9.10 10.11 2.69 3.08 4.31 4.93 4.10 4.69 3.95 4.52 92 9.20 10.23 2.72 3.11 4.36 4.98 4.14 4.74 3.99 4.56 93 9.30 10.34 2.76 3.14 4.42 5.03 4.20 4.78 4.05 4.61 94 9.40 10.46 2.79 3.17 4.47 5.07 4.25 4.83 4.10 4.65 95 9.50 10.57 2.83 3.21 4.53 5.14 4.31 4.89 4.15 4.71 96 9.60 10.68 2.86 3.24 4.58 5.19 4.35 4.93 4.20 4.75 97 9.70 10.80 2.89 3.27 4.63 5.23 4.40 4.98 4.24 4.80 98 9.80 10.91 2.93 3.30 4.69 5.28 4.46 5.02 4.30 4.84 99 9.90 11.03 2.97 3.34 4.75 5.35 4.52 5.08 4.36 4.90

100 10.00 11.14 3.00 3.37 4.80 5.39 4.57 5.13 4.40 4.95 101 10.10 11.25 3.04 3.40 4.87 5.44 4.63 5.18 4.46 4.99 102 10.20 11.37 3.07 3.43 4.91 5.49 4.67 5.22 4.51 5.03 103 10.30 11.48 3.11 3.47 4.98 5.55 4.74 5.28 4.56 5.09 104 10.40 11.60 3.14 3.50 5.03 5.60 4.78 5.33 4.61 5.14 105 10.50 11.71 3.18 3.53 5.09 5.65 4.84 5.37 4.67 5.18 106 10.60 11.82 3.22 3.57 5.15 5.71 4.90 5.43 4.73 5.24 107 10.70 11.94 3.26 3.60 5.22 5.76 4.96 5.48 4.78 5.28 108 10.80 12.05 3.29 3.63 5.27 5.81 5.01 5.53 4.83 5.33 109 10.90 12.17 3.33 3.67 5.33 5.87 5.07 5.59 4.89 5.39

110 11.00 12.28 3.37 3.70 5.39 5.92 5.13 5.63 4.95 5.43 111 11.10 12.39 3.41 3.74 5.46 5.99 5.19 5.69 5.00 5.49 112 11.20 12.51 3.45 3.77 5.52 6.03 5.25 5.74 5.06 5.53 113 11.30 12.63 3.48 3.80 5.57 6.08 5.30 5.78 5.11 5.58 114 11.40 12.75 3.52 3.84 5.63 6.15 5.36 5.85 5.17 5.63 115 11.50 12.88 3.56 3.87 5.70 6.19 5.42 5.89 5.22 5.68 116 11.60 13.00 3.60 3.91 5.76 6.26 5.48 5.95 5.28 5.74 117 11.70 13.13 3.64 3.94 5.83 6.31 5.54 6.00 5.34 5.78 118 11.80 13.25 3.68 3.98 5.89 6.37 5.60 6.06 5.40 5.84

119 11.90 13.38 3.72 4.01 5.95 6.42 5.66 6.10 5.46 5.88 120 12.00 13.50 3.76 4.05 6.02 6.48 5.72 6.16 5.52 5.94 121 12.10 13.63 3.80 4.08 6.08 6.53 5.78 6.21 5.58 5.99 122 12.20 13.75 3.84 4.12 6.15 6.59 5.85 6.27 5.63 6.04 123 12.30 13.88 3.88 4.15 6.21 6.64 5.91 6.32 5.69 6.09 124 12.40 14.00 3.92 4.19 6.27 6.71 5.97 6.38 5.75 6.15 125 12.50 14.13 3.97 4.22 6.35 6.75 6.04 6.42 5.82 6.19 126 12.60 14.25 4.01 4.26 6.42 6.82 6.10 6.48 5.88 6.25 127 12.70 14.38 4.05 4.29 6.48 6.87 6.16 6.53 5.94 6.29 128 12.80 14.50 4.09 4.33 6.55 6.93 6.23 6.59 6.00 6.35 129 12.90 14.63 4.13 4.36 6.61 6.98 6.29 6.64 6.06 6.40 130 13.00 14.75 4.18 4.40 6.69 7.04 6.36 6.70 6.13 6.46 131 13.10 14.88 4.22 4.44 6.75 7.11 6.42 6.76 6.19 6.51 132 13.20 15.00 4.26 4.47 6.82 7.15 6.48 6.80 6.25 6.56 133 13.30 15.13 4.31 4.51 6.90 7.22 6.56 6.86 6.32 6.62 134 13.40 15.25 4.35 4.54 6.96 7.27 6.62 6.91 6.38 6.66 135 13.50 15.38 4.39 4.58 7.03 7.33 6.68 6.97 6.44 6.72 136 13.60 15.50 4.44 4.62 7.11 7.39 6.76 7.03 6.51 6.78 137 13.70 15.63 4.48 4.65 7.17 7.44 6.82 7.08 6.57 6.82 138 13.80 15.75 4.53 4.69 7.25 7.51 6.89 7.14 6.65 6.88 139 13.90 15.88 4.57 4.73 7.31 7.57 6.96 7.20 6.70 6.94 140 14.00 16.00 4.62 4.76 7.39 7.62 7.03 7.24 6.78 6.98 141 14.10 16.13 4.66 4.80 7.46 7.68 7.09 7.31 6.84 7.04 142 14.20 16.26 4.71 4.84 7.54 7.75 7.17 7.37 6.91 7.10 143 14.30 16.40 4.76 4.87 7.62 7.79 7.24 7.41 6.98 7.14

5-2-3.PUMY-P140YHM PUMY-P140YHM1 PUMY-P140YHMA (-BS)

*Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the formula on 5-1-1.

Total capacity of

Capacity(kW)

Power Consumption(kW)

Current(A)/380V Current(A)/400V Current(A)/415V

indoor units

Cooling Heating Cooling Heating Cooling Heating Cooling Heating Cooling Heating 144 14.40 16.53 4.80 4.91 7.68 7.86 7.31 7.47 7.04 7.20 145 14.50 16.66 4.85 4.95 7.76 7.92 7.38 7.53 7.11 7.26 146 14.60 16.80 4.89 4.99 7.83 7.99 7.44 7.59 7.17 7.32 147 14.70 16.93 4.94 5.02 7.91 8.03 7.52 7.64 7.25 7.36 148 14.80 17.06 4.99 5.06 7.99 8.10 7.59 7.70 7.32 7.42 149 14.90 17.20 5.04 5.10 8.07 8.16 7.67 7.76 7.39 7.48 150 15.00 17.33 5.08 5.14 8.13 8.23 7.73 7.82 7.45 7.54 151 15.10 17.46 5.13 5.17 8.21 8.27 7.81 7.87 7.53 7.58 152 15.20 17.60 5.18 5.21 8.29 8.34 7.88 7.93 7.60 7.64 153 15.30 17.73 5.23 5.25 8.37 8.40 7.96 7.99 7.67 7.70 154 15.40 17.86 5.28 5.29 8.45 8.47 8.04 8.05 7.75 7.76 155 15.50 18.00 5.32 5.32 8.51 8.51 8.09 8.09 7.80 7.80 156 15.51 18.01 5.32 5.31 8.52 8.49 8.10 8.08 7.81 7.79 157 15.52 18.02 5.32 5.29 8.52 8.47 8.10 8.06 7.81 7.77 158 15.54 18.04 5.33 5.28 8.52 8.45 8.11 8.04 7.81 7.74 159 15.55 18.05 5.33 5.27 8.53 8.43 8.11 8.01 7.82 7.72 160 15.57 18.06 5.33 5.25 8.53 8.40 8.12 7.99 7.82 7.70 161 15.58 18.07 5.34 5.24 8.54 8.38 8.12 7.97 7.83 7.68 162 15.60 18.09 5.34 5.22 8.54 8.36 8.12 7.95 7.83 7.66 163 15.61 18.10 5.34 5.21 8.55 8.34 8.13 7.93 7.83 7.64 164 15.62 18.11 5.34 5.20 8.55 8.32 8.13 7.91 7.84 7.62 165 15.64 18.12 5.35 5.18 8.56 8.29 8.14 7.89 7.84 7.60 166 15.65 18.14 5.35 5.17 8.56 8.27 8.14 7.87 7.85 7.58 167 15.67 18.15 5.35 5.16 8.56 8.25 8.14 7.85 7.85 7.56 168 15.68 18.16 5.35 5.14 8.57 8.23 8.15 7.83 7.85 7.54 169 15.70 18.17 5.36 5.13 8.57 8.21 8.15 7.80 7.86 7.52 170 15.71 18.19 5.36 5.11 8.58 8.18 8.16 7.78 7.86 7.50 171 15.73 18.20 5.36 5.10 8.58 8.16 8.16 7.76 7.87 7.48 172 15.74 18.21 5.37 5.09 8.59 8.14 8.17 7.74 7.87 7.46 173 15.76 18.22 5.37 5.07 8.59 8.12 8.17 7.72 7.87 7.44 174 15.77 18.24 5.37 5.06 8.59 8.10 8.17 7.70 7.88 7.42 175 15.79 18.25 5.37 5.05 8.60 8.07 8.18 7.68 7.88 7.40 176 15.80 18.26 5.38 5.03 8.60 8.05 8.18 7.66 7.89 7.38 177 15.81 18.27 5.38 5.02 8.61 8.03 8.19 7.64 7.89 7.36 178 15.83 18.29 5.38 5.00 8.61 8.01 8.19 7.62 7.89 7.34 179 15.84 18.30 5.38 4.99 8.62 7.99 8.19 7.59 7.90 7.32 180 15.86 18.31 5.39 4.98 8.62 7.96 8.20 7.57 7.90 7.30 181 15.87 18.32 5.39 4.96 8.63 7.94 8.20 7.55 7.91 7.28 182 15.89 18.34 5.39 4.95 8.63 7.92 8.21 7.53 7.91 7.26 183 15.90 18.35 5.40 4.94 8.63 7.90 8.21 7.51 7.91 7.24 184 15.92 18.36 5.40 4.92 8.64 7.88 8.22 7.49 7.92 7.22 185 15.93 18.37 5.40 4.91 8.64 7.85 8.22 7.47 7.92 7.20 186 15.95 18.39 5.40 4.89 8.65 7.83 8.22 7.45 7.93 7.18 187 15.96 18.40 5.41 4.88 8.65 7.81 8.23 7.43 7.93 7.16 188 15.97 18.41 5.41 4.87 8.66 7.79 8.23 7.41 7.93 7.14 189 15.99 18.42 5.41 4.85 8.66 7.77 8.24 7.39 7.94 7.12 190 16.00 18.44 5.41 4.84 8.66 7.74 8.24 7.36 7.94 7.10 191 16.02 18.45 5.42 4.82 8.67 7.72 8.24 7.34 7.95 7.08 192 16.03 18.46 5.42 4.81 8.67 7.70 8.25 7.32 7.95 7.06 193 16.05 18.47 5.42 4.80 8.68 7.68 8.25 7.30 7.95 7.04 194 16.06 18.49 5.43 4.78 8.68 7.66 8.26 7.28 7.96 7.02 195 16.08 18.50 5.43 4.77 8.69 7.63 8.26 7.26 7.96 7.00 196 16.09 18.51 5.43 4.76 8.69 7.61 8.27 7.24 7.97 6.98 197 16.11 18.52 5.43 4.74 8.70 7.59 8.27 7.22 7.97 6.96 198 16.12 18.54 5.44 4.73 8.70 7.57 8.27 7.20 7.97 6.94 199 16.14 18.55 5.44 4.71 8.70 7.54 8.28 7.18 7.98 6.92 200 16.15 18.56 5.44 4.70 8.71 7.52 8.28 7.15 7.98 6.90 201 16.16 18.57 5.44 4.69 8.71 7.50 8.29 7.13 7.99 6.88 202 16.18 18.59 5.45 4.67 8.72 7.48 8.29 7.11 7.99 6.86 203 16.19 18.60 5.45 4.66 8.72 7.46 8.29 7.09 7.99 6.84 204 16.21 18.61 5.45 4.65 8.73 7.43 8.30 7.07 8.00 6.82 205 16.22 18.62 5.46 4.63 8.73 7.41 8.30 7.05 8.00 6.79 206 16.24 18.64 5.46 4.62 8.73 7.39 8.31 7.03 8.01 6.77 207 16.25 18.65 5.46 4.60 8.74 7.37 8.31 7.01 8.01 6.75 208 16.27 18.66 5.46 4.59 8.74 7.35 8.31 6.99 8.01 6.73

5-3. CORRECTING COOLING AND HEATING CAPACITY

5-3-1. Correcting Changes in Air Conditions

(1)The performance curve charts (Figure 1, 2) show the change ratio of capacity and input (power consumption) according to the

indoor and outdoor temperature condition when defining the rated capacity (total capacity) and rated input under the standard condition in standard piping length (5m) as “1.0”.

• Standard conditions:

• Use the rated capacity and rated input given in “5-2.”.

• The input is the single value on the side of the outdoor unit; the input on the sides of each indoor unit must be added to obtain the total input. (2)The capacity of each indoor unit may be obtained by multiplying the total capacity obtained in (1) by the ratio between the individual capacity at the rated time and the total capacity at the rated time.

individual capacity at the rated time

Individual capacity under stated conditions = total capacity under the stated conditions o

total capacity at the rated time

Rated cooling capacity

Rated heating capacity

Indoor D.B. 27˚C / W.B. 19˚C Outdoor D.B. 35˚C

Indoor D.B. 20˚C Outdoor D.B. 7˚C / W.B. 6˚C

0.4

-5 0 10 20 30 40 46

0.6

0.8

1.0

1.2

1.4

0.6

0.8

1.0

1.2

1.4

22 20 18 16

Cooling performance curve

0.6

0.4

0.8

1.0

1.2

1.4

0.4

0.6

0.8

1.0

1.2

1.4

-10-15 -5 0 5 10 15

Heating performance curve

Cooling Capacity (ratio)

Cooling Power consumption (ratio)

Heating Power consumption (ratio)

Heating Capacity (ratio)

INDOOR <D.B. :>

INDOOR <W.B. :>

INDOOR <D.B. :>

Outdoor <D.B. :>

Outdoor <W.B. :>

Figure 2. PUMY-P100YHM PUMY-P100YHM1 PUMY-P100YHMA(-BS) PUMY-P125YHM PUMY-P125YHM

1 PUMY-P125YHMA(-BS)

PUMY-P140YHM PUMY-P140YHM

1 PUMY-P140YHMA(-BS)

(3)Capacity correction factor curve

Figure 1. PUMY-P100YHM PUMY-P100YHM1 PUMY-P100YHMA(-BS) PUMY-P125YHM PUMY-P125YHM

1 PUMY-P125YHMA(-BS)

PUMY-P140YHM PUMY-P140YHM

1 PUMY-P140YHMA(-BS)

5-3-2. Correcting Capacity for Changes in the Length of Refrigerant Piping

(1) During cooling, obtain the ratio (and the equivalent piping length) of the outdoor units rated capacity and the total in-use

indoor capacity, and find the capacity ratio corresponding to the standard piping length from Figure 3. Then multiply by the cooling capacity from Figure 1 to obtain the actual capacity.

(2) During heating, find the equivalent piping length, and find the capacity ratio corresponding to standard piping length from

Figure 3. Then multiply by the heating capacity from Figure 2 to obtain the actual capacity.

(2) Method for Obtaining the Equivalent Piping Length

Equivalent length for type P100·125·140 = (length of piping to farthest indoor unit) + (0.3 o number of bends in the piping) (m)

Length of piping to farthest indoor unit: type P100~P140.....80m

5-3-3. Correction of Heating Capacity for Frost and Defrosting

If heating capacity has been reduced due to frost formation or defrosting, multiply the capacity by the appropriate correction factor from the following table to obtain the actual heating capacity.

Correction factor diagram

1.0

-10

0.95

-8

0.95

-6

0.95

-4

0.9

-2

0.89

0.88

0.89

0.98

Outdoor Intake temperature (W.B.°C)

Correction factor

(1) Capacity CORRECTION CURVE (Figure.3)

Cooling Heating

100

5 101520253035404550556065707580

Cooling P100 model

Heating P100, 125, 140 models

Cooling P125 model

Cooling P140 model

Capacity ratio [%]

Corrected pipe length

[m]

1.5m

MICROPHONE

UNIT

GROUND

5-4.NOISE CRITERION CURVES

63 125 250 500 1000 2000 4000 8000

APPROXIMATE THRESHOLD OF HEARING FOR CONTINUOUS NOISE

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)

BAND CENTER FREQUENCIES, Hz

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

PUMY-P100YHM PUMY-P100YHM

PUMY-P100YHMA(-BS)

COOLING

MODE

HEATING

SPL(dB)

LINE

63 125 250 500 1000 2000 4000 8000

APPROXIMATE THRESHOLD OF HEARING FOR CONTINUOUS NOISE

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)

BAND CENTER FREQUENCIES, Hz

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

PUMY-P125YHM PUMY-P125YHM1 PUMY-P125YHMA(-BS)

COOLING

MODE

HEATING

SPL(dB)

LINE

63 125 250 500 1000 2000 4000 8000

APPROXIMATE THRESHOLD OF HEARING FOR CONTINUOUS NOISE

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)

BAND CENTER FREQUENCIES, Hz

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

PUMY-P140YHM PUMY-P140YHM

PUMY-P140YHMA(-BS)

COOLING

MODE

HEATING

SPL(dB)

LINE

OUTLINES AND DIMENSIONS

Handle for moving

Side Air Intake

Front piping cover

Rear piping cover

Air intake

Rear Air Intake

Handle for moving

Service panel

Handle for moving

Air Discharge

Rear Air Intake

Side Air Intake

14514522030 145

81 219

Bottom piping hole

(Knockout)

Drain hole

5-:33

600175 175

28 370

56 37

417

330

Installation Feet

2-12%36 Oval holes

(Foundation Bolt M10)

2-U Shaped notched holes

(Foundation Bolt M10)

920

322

635

371

950

1350

+1 423

+1 507

Handle for moving

( )

Left····· For the power supply

Center·····For the transmission line

Right····· For concentration control

Terminal connection

Ground for the transmission line

Ground for concentration control

Ground for the power supply

Over

Less than

Piping and wiring connections

can be made from 4 directions:

front, right, rear and below.

4 PIPING-WIRING DIRECTIONS

3 FOUNDATION BOLTS2 SERVICE SPACE

1 FREE SPACE (Around the unit)

Please secure the unit firmly

with 4 foundation (M10) bolts.

(Bolts and washers must be

purchased locally.)

Dimensions of space needed

for service access are

shown in the below diagram.

The diagram below shows a

basic example.

Explantion of particular details is

given in the installation manuals etc.

FREE

Over 10mm

Over 150mm

Over 1000mm

FOUNDATION

500

150

Service space

Piping Knockout Hole Details

Example of Notes



···

Refrigerant GAS pipe connction (FLARE):15.88 (5/8 inch)



···

Refrigerant LIQUID pipe connection (FLARE): 9.52 (3/8 inch)

···

Indication of STOP VALVE connection location.

637323

5527

4045

Power supply wiring hole

(2-:27Knockout)

Rear trunking hole

(Knockout)

Rear piping hole

(Knockout)

:92

922723

6373

4075

5519

Power supply wiring hole

(2-:27Knockout)

Right trunking hole

(Knockout)

Right piping hole

(Knockout)

:92

637323

5527

40 45

Power supply wiring hole

(2-:27Knockout)

Front trunking hole

(Knockout)

Front piping hole

(Knockout)

:92

PUMY-P100YHM PUMY-P100YHM1 PUMY-P125YHM PUMY-P125YHM1 PUMY-P140YHM PUMY-P140YHM1

Unit : mm

45 40

27 55

23 73 63

Rear piping hole

(Knockout)

Rear trunking hole

(Knockout)

Power supply wiring hole

(2-:27Knockout)

19 55

75 40

73 63 23 27

Right piping hole

(Knockout)

Right trunking hole

(Knockout)

Power supply wiring hole

(2-:27Knockout)

n92

4540

27 55

23 73 63

Front piping hole

(Knockout)

Front trunking hole

(Knockout)

Power supply wiring hole

(2-:27Knockout)

n92

14514522030 145

81 219

Bottom piping hole

(Knockout)

Drain hole

(5-:33)

600175 175

28 370

56 37

417

330

Installation Feet

2-12%36 Oval holes

(Foundation Bolt M10)

2-U Shaped notched holes

(Foundation Bolt M10)

1088

322

635371

950

1350

+1 423

+1 507

Handle for moving

Ground for the power supply

("GR"marking position)

Ground for the transmission line

Ground for concentration control

Terminal block

Left·········For the power supply

Center····For the transmission line

Right·······For concentration control

( )

Less than

Over

Handle for moving

Side Air Intake

Front piping cover

Rear piping cover

Air intake

Rear Air Intake

Handle for moving

Service panel

Handle for moving

The diagram below shows a

basic example.

Explantion of particular details is

given in the installation manuals etc.

Dimensions of space needed

for service access are

shown in the below diagram.

Please secure the unit

firmly with 4 foundation (M10)

bolts.(Bolts and washers must

be purchased locally.)

Air Discharge

Rear Air Intake

Side Air Intake

Refrigerant GAS pipe connction(FLARE):15.88(5/8 inch)

Refrigerant LIQUID pipe connection(FLARE): 9.52(3/8 inch)

+1·····Indication of STOP VALVE connection location.

Example of Notes

Piping Knockout Hole Details

1 FREE SPACE (Around the unit)

2 SERVICE SPACE 3 FOUNDATION BOLTS

4 PIPING-WIRING DIRECTIONS

Piping and wiring connections

can be made from 4 directions:

front, right, rear and below.

FOUNDATION

150

500

Service space

Over 10

FREE

Over 150Over 1000

PUMY-P100YHMA(-BS) PUMY-P125YHMA(-BS) PUMY-P140YHMA(-BS)

Unit : mm

WIRING DIAGRAM

12345678

[Example] When the compressor and SV1 are turned on during cooling operation.

Bit

Indication

Compressor operated

52C321S44SV15(SV2)6—

—

Always lit

During normal operation The LED indicates the drive state of the controller in the outdoor unit.

When fault requiring inspection has occurred, the LED alternately indicates the inspection code and the location of the unit in which the fault has occurred.

NOTES:

1. Refer to the wiring diagrams of the indoor units for details on wiring of each indoor unit. Self-diagnosis function The indoor and outdoor units can be diagnosed automatically using the self-diagnosis switch (SW1), LED1 and LED2 (LED indication) found on the multi-controller of the outdoor unit. LED indication : Set all contacts of SW1 to OFF.

Cautions when Servicing

WARNING: When the main supply is turned off, the voltage [540 V] in the main capacitor will drop to 20 V in approx. 5 minutes (input voltage: 380 V). When servicing, make sure that LED1 and LED2 on the outdoor circuit board goes out, and then wait for at least 5 minute. Components other than the outdoor board may be faulty: Check and take corrective action, referring to the service manual. Do not replace the outdoor board without checking.

MF1

4 5 6 7

CN2

(WHT)

CN4

(WHT)

CN51

(WHT)

MF2

4567

52C

(BLK)

X505

21S4 (GRN)

3 1

SV2

(BLU)

3 1

SV1

(WHT)

21 21

21S4

SV1

76543 2 1

54321

LED3

SW6

SW2SW8SW1

SW7SW3SW4

SW5

SWU2 SWU1

TRANS

LED2

LED1

12 1

2 1 234

CN3D (WHT)

123

CN3S (RED)

1 23

CN3N (BLU)

123

3 1

CNAC

(RED)

CNS1 (RED)

CNS2 (YLW)

TH7TH6 TH3 TH463HS 63H63L

F500

X504

X503

X502

X501

CN102

(WHT)

CN41 (WHT)

CN40

(WHT)

4 321

4 3 2 14321

M-P.B.

P.B .

CN2

(WHT)

CN1

(WHT)

TP1

1234

M1 M2

TB3

TO INDOOR UNIT

CONNECTING WIRES

DC 30V(Non-polar)

FOR CENTRALIZED

CONTROL

DC 30V(Non-polar)

M1 M2

TB7

TB-W

TB-V TB-U

TB-L3 TB-L2 TB-L1

(BLK) (WHT) (RED)

(BLK)

(BLK) (BLU)

(WHT)

(RED)

(BLK) (BLU)

(WHT)

(RED)

NO FUSE

BREAKER

POWER SUPPLY

3N~

AC380/400/415V 50Hz

L2 L3 N

3 1 1 3 3 1

1 31 2

ACL4

CN2

(WHT)

CN7

(WHT)

CN4

(WHT)

CN7

(WHT)

CN5

(RED)

7 654321321

2 121

3 12

ACL1 ACL2

ACL3

CONV.B.

MULTI. B.

N.F.

TB1

CNF1

(WHT)

TH7/6 (RED)

TH3

(WHT)

TH4

(WHT)

63HS

(WHT)

63H

(YLW)

63L

(RED)

CNDC (PNK)

CNF2

(WHT)

TB-P2

TB-C1

TB-N1

L1-IN

L1-A1

L3-OU

L3-A2

L2-OU

L1-OU

L2-A2

L1-A2

CK-OU

N-IN

CB1

CN5

(RED)

CNAC2

(RED)

CB2

LO1 LO2 LO3

LI1 LI2 LI3

GD1

GD2

CNAC1

(WHT)

CNDC (PNK)

CNL

(BLU)

(BRN)

(ORN)

+1 MODEL SELECT 1:ON 0:OFF

MODELS

PUMY-P100YHM PUMY-P125YHM PUMY-P140YHM

110010

123456

SW4

110001 110011

SYMBOL NAME SYMBOL NAME SYMBOL NAME

TB1 Terminal Block <Power Supply> TB3 Terminal Block <Transmission> TB7

Terminal Block <Centralized Control> MC Motor for Compressor MF1,MF2 Fan Motor 21S4 Solenoid Valve<Four way valve> SV1 Solenoid Valve<Bypass valve> TH3

Thermistor<Outdoor Pipe Temperature> TH4

Thermistor<Discharge Temperature> TH6

Thermistor<Low Pressure Saturated Temperature> TH7

Thermistor<Outdoor Temperature> 63HS

High Pressure Sensor<Discharge Pressure> 63H High Pressure Switch 63L Low Pressure Switch CB1,CB2 Main Smoothing Capacitor CK Capacitor RS Rush Current Protect Resistor

P.B Power Circuit Board

Connection Terminal<U/V/W -Phase>

ACL1~ACL4

TB-U/V/W

MULTI.B.

CONV.B.

Multi Controller Board

Fuse<6.3A>

F1,F2

Fuse<3A>

F500

Switch<Display Selection>

SW1

Switch<Function Selection>

SW2

Switch<Test Run>

SW3

Switch<Model Selection>

SW4

Switch<Function Selection>

SW5

Switch<Function Selection>

SW6

Switch<Function Selection>

SW7

Switch<Function Selection>

SW8

Switch<Unit Address Selection, 1st digit>

SWU1

Switch<Unit Address Selection, 2nd digit>

SWU2

Transformer

TRANS

Digital Indicator<Operation Inspection Display>

LED1,2

LED<Power Supply to Main Microcomputer>

LED3

Connector<Multi System>

CNS1

Connector<Centralized Cotrol>

CNS2

Connector<To Noise Filter Circuit Board>

CNAC

Connector<To Noise Filter Circuit>

CNDC

Connector<To Power Circuit Board>

CN2

Connector<To Power Circuit Board>

CN4

Connector<Centralized Cotrol Power Supply>

CN40

Connector<For shorting Jumper Connector>

CN41

Connector<Thermistor>

TH3

Connector<Thermistor>

TH4

Connector<Thermistor>

TH7/6

Connector<High Pressure Sensor>

63HS

Connector<High Pressure Switch>

63H

Connector<Low Pressure Switch>

63L

Connector<Fan Motor>

CNF1,CNF2

Connector<Four-way Valve>

21S4

Connector<Bypass Valve>

SV1

Connector<For Option>

CN3D

Connector<For Option>

CN3S

Connector<For Option>

CN3N

Connector<For Option>

Connection Terminal<L1-Power Supply>

CN51

Relay

X501~505

Converter Circuit Board

L1-A1,L1-IN

N.F.

Connection Terminal<L1/L2/L3/N-Power Supply>

Noise Filter Circuit Board

LI1/LI2/LI3/NI

M-P.B.

Connector<To Noise Filter Circuit Board>

Transmission Power Board

CN1

Connector<To Multi Controller Board>

CN2

Connector<To Transmission Power Board>

CNAC1

Connector<To Multi Controller Board>

CNAC2

Connector<To Power Circuit Board>

CNCT

Connector<To Reactor>

CNL

Fuse<6.3A>

FUSE

Connection Terminal<L1/L2/L3/N-Power Supply>

LO1/LO2/LO3/NO

Connection Terminal<L1-Power Supply>

L1-A2,L1-OU

Connection Terminal<L2-Power Supply>

L2-A2,L2-OU

Connection Terminal<L3-Power Supply>

L3-A2,L3-OU

Connection Terminal

N-IN

Connection Terminal

CK-OU

Connector<To Power Circuit Board>

CN7

Connection Terminal<L1/L2/L3-Power Supply>

TB-L1/L2/L3

Connection Terminal

TB-P2

Connection Terminal

TB-C1

Connection Terminal

TB-N1

Connection <To Multi Controller Board>

CN2

Connection <To Multi Controller Board>

CN4

Connection <To Noise Filter Circuit Board>

CN5

Connection <To Multi Controller Board>

CNDC

Reactor

PUMY-P100YHM PUMY-P100YHM1 PUMY-P125YHM PUMY-P125YHM1 PUMY-P140YHM PUMY-P140YHM1

12345678

[Example] When the compressor and SV1 are turned on during cooling operation.

Bit

Indication

Compressor operated

52C321S44SV15(SV2)6—

—

Always lit

• During normal operation The LED indicates the drive state of the controller in the outdoor unit.

• When fault requiring inspection has occurred, the LED alternately indicates the inspection code and the location of the unit in which the fault has occurred.

NOTES:

1.Refer to the wiring diagrams of the indoor units for details on wiring of each indoor unit. Self-diagnosis function The indoor and outdoor units can be diagnosed automatically using the self-diagnosis switch (SW1), LED1 and LED2 (LED indication) found on the multi-controller of the outdoor unit. LED indication : Set all contacts of SW1 to OFF.

SYMBOL NAME

TB1

Terminal Block <Power Supply>

TB3

Terminal Block <Comunication Line>

TB7

Terminal Block <Centralized Control Line> MC Motor For Compressor MF1,MF2 Fan Motor 21S4 Solenoid Valve<Four-Way Valve>

SV1 Solenoid Valve<Bypass Valve> TH3

Thermistor<Outdoor Pipe> TH4 Thermistor<Discharge> TH6 Thermistor<Low Pressure Saturated> TH7 Thermistor<Outdoor>

63HS

63H High Pressure Switch

High Pressure Sensor

63L Low Pressure Switch

CB1,CB2 Main Smoothing Capacitor CK Capacitor

RS Rush Current Protect Resistor

P.B. Power Circuit Board

C.B. Controller Circuit Board

Connection Terminal<U/V/W -Phase>

ACL1~ACL4

TB-U/V/W

CONV.B.

Fuse<T6.3AL250V>

F1,F2

Switch<Display Selection>

SW1

Switch<Function Selection>

SW2

Switch<Test Run>

SW3

Switch<Model Selection>

SW4

Switch<Function Selection>

SW5

Switch<Function Selection>

SW6

Switch<Function Selection>

SW7

Switch<Function Selection>

SW8

Switch<Unit Address Selection, 1st digit>

SWU1

Switch<Unit Address Selection, 2nd digit>

SWU2

LED<Operation Inspection Display>

LED1,LED2

LED<Power Supply to Main Microcomputer>

LED3

Connector<Connection For Option>

CN3D

Connector<Connection For Option>

CN3S

Connector<Connection For Option>

CN3N

Connector<Connection For Option>

Connection Terminal<L1-Power Supply>

CN51

Relay

X52A

Relay

X501~X505

Connection Terminal<Ground>

GD1,GD3

TP1

Converter Circuit Board

L1-A1/IN

N.F.

Connection Terminal<L1/L2/L3-Power Supply>

Noise Filter Circuit Board

LI1/LI2/LI3/NI

M-NET P.B.

M-NET Power Circuit Board

Connection Terminal<L1/L2/L3-Power Supply>

LO1/LO2/LO3/NO

Connection Terminal<L1-Power Supply>

L1-A2/OU

Connection Terminal<L2-Power Supply>

L2-A2/OU

Connection Terminal<L3-Power Supply>

L3-A2/OU

Connection Terminal

N-IN

Connection Terminal

CK-OU

Connection Terminal<L1/L2/L3-Power Supply>

TB-L1/L2/L3

Connection Terminal

TB-P2

Connection Terminal

TB-C1

Connection Terminal

TB-N1

Reactor

Cautions when Servicing

• WARNING: When the main supply is turned off, the voltage [570 V] in the main capacitor will drop to 20 V in approx. 5 minutes (input voltage: 400 V). When servicing, make sure that LED1 and LED2 on the outdoor circuit board goes out, and then wait for at least 5 minute.

• Components other than the outdoor board may be faulty: Check and take corrective action, referring to the service manual.

Do not replace the outdoor board without checking.

+1 MODEL SELECT 1:ON 0:OFF

MODELS

PUMY-P100YHMA PUMY-P125YHMA PUMY-P140YHMA

123456 110010 110001

110011

SW4

CN51

(WHT)

SW6

SW2SW8SW1

SW7SW3SW4

SW5

SWU2SWU1

TRANS

LED1

CN2

(WHT)

CN4

(WHT)

LED3

CN3D (WHT)

CN3S (RED)

CN3N (BLU)

CN2

(WHT)

CN1

(WHT)

TP1

BLK

TB3

TO INDOOR UNIT

CONNECTING WIRES

DC 30V(Non-polar)

FOR CENTRALIZED

CONTROL

DC 30V(Non-polar)

TB-W

TB-V

TB-U

TB-L3 TB-L2

TB-L1

BLK

WHT

RED

BLK

WHT

RED

ACL4

CN2

(WHT)

CN7

(WHT)

CN4

(WHT)

CN5

(RED)

RED

X52A

CNDC (PNK)

TB-P2

TB-C1

TB-N1

CB1

CNCT (RED)

CNAC2 (RED)

CNAC1

(WHT)

CNAC1

(WHT)

CB2

GD3GD1

BLK

WHT

CNDC (PNK)

CNL

(BLU)

t t t t MF1 MS

141

131313

113

13 13

2112

12 12

TH7 TH6 TH3 TH4

63HS

63H

63L

CNF1

(WHT)

MF2 MS

CNF2

(WHT)

TH7/6 (RED)

TH3

(WHT)

TH4

(WHT)

63HS

(WHT)

63H

(YLW)

63L

(RED)

C. B.

LED2

P. B.

N. F.

M-NET P.B.

52C

(BLK)

X505

21S4

(GRN)

SV1

(WHT)

SV2

(BLU)

(WHT)

21S4

SV1

CNAC (RED)

CNS1

(RED)

CNS2 (YLW)

X504

X503

X502

X501

CN102

(WHT)

CN40 (WHT)

CN41

(WHT)

MC MS

TB7

BLK

BLU

WHT

RED

BLK

BLU

WHT

RED

LI1

POWER SUPPLY 3N~ 400V 50Hz

LI2

LI3

TB1

BLK

ACL1

ACL2

ACL3

LO1

LO2

LO3

CN7

(WHT)

Conv.B.

L1-IN

L1-A1

L3-OU

L3-A2

L2-OU

L1-OU

L2-A2

L1-A2

CK-OU

N-IN

RED

YLW

GRN/YLW

RED

PUMY-P100YHMA(-BS) PUMY-P125YHMA(-BS) PUMY-P140YHMA(-BS)

NECESSARY CONDITIONS FOR SYSTEM CONSTRUCTION

8-1. TRANSMISSION SYSTEM SETUP

051

056

001

010

101

002

102 104 154

1111

009

008

003

007

006

004

005

 A transmission wire must be

connected to each refrigerant

system (outdoor and indoor).

 Set addresses:

Outdoor unit ..............051-100

Indoor unit .................001-050

Remote controller .....101-200

 PUMY has no 3rd digit switch.

The address automatically become

"100" if it is set as "01~50".

Remote

controller

Remote

controller

Remote

controller

Remote

controller

105

Remote

controller

157

Remote

controller

107

Remote

controller

For centralized

management

For remote

controller

Address SW Address SW Address SW Address SW Address SW

Piping

Outdoor unit

Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit

Indoor unitIndoor unitIndoor unitIndoor unitIndoor unit

Address SW Address SW Address SW Address SW Address SW

Address SWAddress SWAddress SWAddress SWAddress SW

Address SWAddress SW

For centralized

management

For remote

controller

Transmission wire





8-2. REFRIGERANT SYSTEM DIAGRAM Unit:mm<inch> PUMY-P100YHM PUMY-P100YHM1 PUMY-P100YHMA(-BS)

PUMY-P125YHM PUMY-P125YHM

1 PUMY-P125YHMA(-BS)

PUMY-P140YHM PUMY-P140YHM

1 PUMY-P140YHMA(-BS)

Refrigerant Gas pipe

<5/8>

Refrigerant Liquid pipe

<3/8>

Check valve<Low pressure>

Accumulator

Thermistor<Saturation temperature of suction pressure>(TH6)

Solenoid valve(SV1)

Capillary tube

Check valve <High pressure>

Pressure sensor (63HS)

High pressure switch(63H)

Low pressure switch(63L)

Thermistor(TH7) (Outdoor temperature)

(Pipe temperature)

Discharge thermistor(TH4)

Heatsink thermistor(TH8)

Thermistor(TH3)

Oil separator

Service port

4-way valve

Strainer

Stop valve

Distributor

Compressor

Strainer

Refrigerant flow in cooling Refrigerant flow in heating

Refrigerant pipng specifications <dimensions of flared connector>

Capillary tube for oil separator : :2.5 % :0.8 % L1000

Capacity

Item

Liquid piping Gas pipng

P15, P20, P25, P32, P40, P50 P63, P80, P100 P125, P140 P100, P125, P140

Indoor unit

Outdoor unit

:6.35<1/4>

:9.52<3/8>

:12.7<1/2>

:15.88<5/8>

8-3. SYSTEM CONTROL

8-3-1. Example for the System

• Example for wiring control cables, wiring method and address setting, permissible lengths, and the prohibited items are listed in the standard system with detailed explanation. The explanation for the system in this section : Use 1 single outdoor unit and multiple outdoor units for M-NET remote control

system.

Use 1 single outdoor unit and multiple indoor units in the multiple outdoor

units for the M-NET remote control system.

A. Example of a M-NET remote controller system (address setting is necessary.)

Example of wiring control cables Wiring Method and Address Setting

• 1 remote controller for each indoor unit.

• There is no need for setting the 100 position on the remote controller.

1. Standard operation

2. Operation using 2 remote controllers

• Using 2 remote controllers for each indoor unit.

M1M2

TB5

S12

TB15

101

M1M2

TB3

SAB

TB7

M1M2

TB5

S12

TB15

102

M1M2

TB5

S12

TB15

101

(Main)

151

M1M2

TB3

SAB

TB7

M1M2

TB5

S12

TB15

(Sub)

102

(Main)

152

(Sub)

AB AB AB AB

M1M2

TB5

S12

TB15

101

IC(Main)

M1M2

TB3

SAB

TB7

M1M2

TB5

S122

TB15

IC(Sub)

a. Use feed wiring to connect terminals M1 and M2 on transmission cable block (TB3) for the outdoor unit (OC) to terminals M1 and M2 on the transmission cable block (TB5) of each indoor unit (IC). Use non-polarized 2 wire. b. Connect terminals M1 and M2 on transmission cable terminal block (TB5) for each indoor unit with the terminal block (TB6) for the remote controller (RC). c. Set the address setting switch (on outdoor unit P.C.B) as shown below.

3. Group operation

• Multiple indoor units operated together by 1 remote controller

Unit

Indoor unit (IC)

Outdoor unit

(OC)

Remote

controller (RC)

Range

001 to 050 051 to 100 101 to 150

Setting Method

— Use the smallest address of all the indoor unit plus 50. Indoor unit address plus

100.

a. Same as above. b. Same as above. c. Set address switch (on outdoor unit P.C.B) as shown below.

Unit

Indoor Unit (IC)

Outdoor unit

(OC)

Range

001 to 050 051 to 100 101 to 150

151 to 200

Setting Method

— Use the smallest address of all the indoor units plus 50. Indoor unit address plus

100. Indoor unit address plus

150.

a. Same as above. b. Connect terminals M1 and M2 on transmission cable

terminal block (TB5) of the IC main unit with the most recent address within the same indoor unit (IC) group to terminal block (TB6) on the remote controller.

c. Set the address setting switch (on outdoor unit P.C.B)

as shown below.

Unit

IC (Main)

IC (Sub)

Outdoor Unit

Main Remote

Controller

Sub Remote

Controller

Range

001 to 050

051 to 100 101 to 150 151 to 200

Setting Method Use the smallest address within the same group of indoor units. Use an address, other than that of the IC (Main) from among the units within the same group of indoor units. This must be in sequence with the IC (Main). Use the smallest address of all the indoor units plus 50. Set at an IC (Main) address within the same group plus 100. Set at an IC (Main) address within the same group plus 150.

d. Use the indoor unit (IC) within the group with the most functions as the IC (Main) unit.

Combinations of 1through 3 above are possible.

Main Remote

Controller (RC)

Sub Remote

Controller (RC)

• Name, Symbol and the Maximum Remote controller Units for Connection Name

Outdoor unit

Indoor unit

Symbol

Maximum units for connection

Permissible Lengths Prohibited items

Longest transmission cable length (1.25 mm2 ) L

1 + L2, L2 + L3, L3 + L1 [ 200m

Remote controller cable length

1. If 0.5 to 1.25 mm

R1, R2 [10m

2. If the length exceeds 10 meters, the exceeding section should be 1.25 mm

and that section should be a value within the total extension length of the transmission cable and maximum transmission cable length. (L

Same as above

• Use the indoor unit(IC) address plus 150 as the sub remote controller address. In this case, it should be 152.

• 3 or more remote controller (RC) cannot be connected to 1 indoor unit.

• The remote controller address is the indoor unit main address plus

100. In this case, it should be 101.

M1M2

TB5

S12

TB15

102

IC(Main)

M1M2

TB3

SAB

TB7

M1M2

TB5

S122

TB15

IC(Sub)

M1M2

TB5

S12

TB15

101

(Main)

151

M1M2

TB3

SAB

TB7

M1M2

TB5

S12

TB15

(Sub)

102

(Main)

103

(Sub)

104

AB AB AB AB AB

1 OC unit can be connected to 1-8 IC units (P100 : 1-6 IC units) Maximum 2 RC for 1 indoor unit, Maximum 16 RC for 1 OC

M-NET remote

controller

M1M2

TB5

S12

TB15

101

M1M2

TB3

SAB

TB7

M1M2

TB5

S12

TB15

• M-NET remote controller(RC) and MA remote controller(MA) cannot be used together.

• Do not connect anything with TB15 of indoor unit(IC).

—

B. Example of a group operation system with 2 or more outdoor units and a M-NET remote controller. (Address settings are necessary.)

Examples of Transmission Cable Wiring











M1M2S

M1 M2 S

TB7

TB3

(51)

M1 M2 S

TB5

(01)

M1 M2 S

TB5

(03)

M1 M2 S

TB5

(02)

M1 M2 S

TB5

(04)

M1 M2 S

TB5

(05)

M1 M2 S

TB5

(07)

M1 M2 S

TB5

(06)

(101)

(105)

(104)

(155)

M1 M2 S

TB7

(53)

M1M2S

Power Supply

Unit

M1M2S

G-50A

L6L7

AB AB AB

M1M2 S

TB3

 : Group 1  : Group 3  : Group 5  : Shielded Wire  : Sub Remote Controller

( ): Address

Wiring Method Address Settings

a. Always use shielded wire when making connections between the outdoor unit (OC) and the indoor unit (IC), as well for all OC-OC, and IC-IC wiring intervals. b. Use feed wiring to connect terminals M1 and M2 and the ground terminal on the transmission cable terminal block (TB3) of each outdoor unit (OC) to terminals M1 and M2 on the terminal S on the transmission cable block of the indoor unit (IC). c. Connect terminals M1 and M2 on the transmission cable terminal block of the indoor unit (IC) that has the most recent address within the same group to the terminal block on the remote controller (RC). d. Connect together terminals M1, M2 and terminal S on the terminal block for central control (TB7) for the outdoor unit (OC). e. DO NOT change the jumper connector CN41 on MULTI controller board. f. The earth processing of S terminal for the centralized control terminal block(TB7) is unnecessary. Connect the terminal S on the power supply unit with the earth. g. Set the address setting switch as follows.

h. The group setting operations among the multiple indoor units is done by the remote controller (RC) after the electrical power has been turned on.

Unit

IC (Main)

IC (Sub)

Outdoor Unit

Main Remote Controller

Sub Remote Controller

MA Remote Controller

Range 01 to 00 01 to 50

51 to 100

101 to 150 151 to 200

—

Setting Method

Use the smallest address within the same group of indoor units. Use an address, other than the IC (Main) in the same group of indoor units. This must be in sequence with the IC (Main). Use the smallest address of all the indoor units plus 50. *The address automatically becomes “100” if it is set as “01 - 50”. Set at an IC (Main) address within the same group plus 100. Set at an IC (Main) address within the same group plus 150. Unnecessary address setting (Necessary main/ sub setting)

• Name, Symbol, and the Maximum Units for Connection

Permissible Length

Prohibited items

• Longest length via outdoor units : L1+L2+L3+L4, L1+L2+L3+L5, L1+L2+L6+L7 [ 500 meters (1.25mm2)

• Longest transmission cable length : L

1, L3+L4, L3+L5, L6, L2+L6, L7 [ 200 meters (1.25mm

)

• Remote controller cable length : R

1,R2, R2+R3, R4 [ 10 meters (0.5 to 1.25mm

)

If the length exceeds 10 meters, use a 1.25 mm

shielded wire. The length of this sec-

tion (L

8) should be included in the calculation of the maximum length and overall length.

• Never connect together the terminal blocks (TB5) for transmission wires for indoor units (IC) that have been connected to different outdoor units (OC).

• Set all addresses to ensure that they are not overlapped.

• M-NET remote controller and MA remote controller cannot be connected with the indoor unit of the same group wring together







M1M2S

M1 M2 S

TB7

TB3

(51)

M1 M2 S

TB5

(01)

M1 M2 S

TB5

(03)

M1 M2 S

TB5

(02)

M1 M2 S

TB5

(04)

M1 M2 S

TB5

(05)

M1 M2 S

TB5

(07)

M1 M2 S

TB5

(06)

(101)

(105)

(104)

(155)

M1 M2 S

TB7

(53)

M1M2S

Power Supply

Unit

M1M2S

G-50A

AB AB AB

M1M2 S

TB3

 : Group 1  : Group 3  : Group 5  : Shielded Wire  : Sub Remote Controller

( ): Address

C. Example of a MA remote controller system (address setting is not necessary.) NOTE : In the case of same group operation, need to set the address that is only main indoor unit.

Example of wiring control cables Wiring Method and Address Setting

• 1 remote controller for each indoor unit.

1. Standard operation

2. Operation using two remote controllers

• Using 2 remote controllers for each indoor unit.

M1M2

TB5

S12

TB15

M1M2

TB3

M1M2

TB7

1 L2

M1M2

TB5

S12

TB15

MAMA

M1M2

TB5

S12

TB15

M1M2

TB3

SM1M2

TB7

M1M2

TB5

S12

TB15

AB AB

MA MA

M1M2

TB5

S12

TB15

M1M2

TB3

M1M2

TB7

M1M2

TB5

S12

TB15

a. Use feed wiring to connect terminals M1 and M2 on transmission cable block (TB3) for the outdoor unit (OC) to terminals M1 and M2 on the transmission cable block (TB5) of each indoor unit (IC). Use non-polarized 2 wire. b. Connect terminals 1 and 2 on transmission cable terminal block (TB15) for each indoor unit with the terminal block for the MA remote controller (MA).

3. Group operation

• Multiple indoor units operated together by 1 remote controller

a. The same as above. b. The same as above. c. In the case of using 2 remote controllers, connect

terminals 1 and 2 on transmission cable terminal block (TB15) for each indoor unit with the terminal block for 2 remote controllers.

· Set the sub remote controller position for one of MA remote controller’s main switch.

Refer to the installation manual of MA remote con-

troller

a. The same as above. b. The same as above. c. Connect terminals 1 and 2 on transmission cable ter-

minal block (TB15) of each indoor unit, which is doing group operation with the terminal block the MA remote controller. Use non-polarized 2 wire.

d. In the case of same group operation, need to set the

address that is only main indoor unit. Please set the smallest address within number 01-50 of the indoor unit with the most functions in the same group.

Combinations of 1through 3 above are possible.

Permissible Lengths Prohibited items

Longest transmission cable length L

1 + L2 [ 200m (1.25 mm

)

MA remote controller cable length

1, R2 [ 200m (0.3 ~ 1.25 mm

)

M1M2

TB5

S12

TB15

M1M2

TB3

M1M2

TB7

M1M2

TB5

S12

TB15

M1M2

TB5

S12

TB15

M1M2

TB3

M1M2

TB7

M1M2

TB5

S12

TB15

AB AB

MA MAMA

AB AB

Longest transmission cable length The same as above. MA remote controller cable length

3 +R4, R5 +R6 [ 200m

(0.3 ~ 1.25 mm2)

Longest transmission cable length The same as above. MA remote controller cable length

7 +R8 [ 200m (0.3 ~ 1.25 mm

)

M1M2

TB5

S12

TB15

M1M2

TB3

M1M2

TB7

M1M2

TB5

S12

TB15

MAMA

The MA remote controller and the M-NET remote controller cannot be used together with the indoor unit of the same group.

3 MA remote controller or more cannot be connected with the indoor unit of the same group.

The second MA remote controller is connected with the terminal block(TB15) for the MA remote controller of the same indoor unit(IC) as the first remote control.

D. Example of a group operation with 2 or more outdoor units and a MA remote controller. (Address settings are necessary.)

Examples of Transmission Cable Wiring











M1 M2 S

TB7

(51)

M1 M2 1 2S

TB5 TB15

TB15

(01)

M1 M2 S

TB5

(03)

M1 M2 S

TB5

(02)

M1 M2 S

TB5

(04)

M1 M2 S

TB5

(05)

M1 M2 S

TB5

(07)

M1 M2 S

TB5

(06)

MAMAMA

M1 M2 S

TB7

(53)

Power Supply

Unit

G-50A

L6L7

ABABAB

M1M2

2 2

M1M2S

TB3

M1M2S

TB3

 : Group 1  : Group 3  : Group 5  : Shielded Wire  : Sub Remote Controller

( ): Address

Wiring Method Address Settings

h. The group setting operations among the multiple indoor units is done by the remote controller (RC) after the electrical power has been turned on.

Unit

IC (Main)

IC (Sub)

Outdoor Unit

Main Remote Controller

Sub Remote Controller

MA Remote Controller

Range

01 to 00 01 to 50

51 to 100

101 to 150 151 to 200

—

Setting Method

• Name, Symbol, and the Maximum Units for Connection

Permissible LengthProhibited items

• Never connect together the terminal blocks (TB5) for transmission wires for indoor units (IC) that have been connected to different outdoor units (OC).

• M-NET remote controller and MA remote controller cannot be connected with the indoor unit of the same group wring together.

 : Group 1  : Group 3  : Group 5  : Shielded Wire  : Sub Remote Controller

( ): Address











M1 M2 S

TB7

(51)

M1 M2 1 2S

TB5 TB15

TB15

(01)

M1 M2 S

TB5

(03)

M1 M2 S

TB5

(02)

M1 M2 S

TB5

(04)

M1 M2 S

TB5

(05)

M1 M2 S

TB5

(07)

M1 M2 S

TB5

(06)

MAMAMA

M1 M2 S

TB7

(53)

Power Supply

Unit

G-50A

ABABAB

M1M2

M1M2S

TB3

M1M2S

TB3

Longest length via outdoor unit (M-NET cable): L1+L2+L3+L4 and L1+L2+L6+L7  500 m (1.25 A or more) Longest transmission cable length (M-NET cable): L1 and L3+L4 and L6 and L2+L6 and L7 200 m (1.25 A or more) Remote controller cable length: m1 and m1+m2+m3 and m1+m2+m3+m4 200 m (0.3 to 1.25 A)

9 TROUBLESHOOTING

Operation procedure

1 Turn on the main power supply of all units at least 12 hours before test run. ”HO” appears on display panel for 3 min. 2 12 hours later, press TEST RUN button twice to perform test run. “TEST RUN “ appears on display panel. 3 Press OPERATION SWITCH button to make sure that air blows out. 4 Select Cooling (or Heating) by OPERATION SWITCH button to make sure that cool (or warm) air blows out. 5 Press Fan speed button to make sure that fan speed in changed by the button. 6 Press AIR DIRECTION button or LOUVER button to make sure that air direction is adjustable(horizontal, downward, upward, and each angle). 7 Check outdoor fans for normal operation. 8 Check interlocked devices (like ventilator) for normal operation, if any. This is the end of test run operation. 9 Press ON/OFF button to stop and cancel test run. NOTE 1 : If error code appears on remote controller or remote controller malfunctions, refer to “ 9-1-3 Countermeasures for Error During Run”. NOTE 2 :

During test run operation, 2-hour off timer activates automatically and remaining time is on remote controller and test run stops 2 hours later. NOTE 3 : During test run, the indoor liquid pipe temperature is displayed on remote controller instead of room temperature. NOTE 4 :

Depending on a model, “This function is not available” appears when air direction button is pressed. However, this is not malfunction

9-1. CHECK POINTS FOR TEST RUN

9-1-1. Procedures of test run

(1) Before test run, make sure that following work is completed.

• Installation related : Make sure that the panel of cassette type and electrical wiring are done. Otherwise electrical functions like auto vane will not operate normally.

• Piping related : Perform leakage test of refrigerant and drain piping. Make sure that all joints are perfectly insulated. Check stop valves on both liquid and gas side for full open.

• Electrical wiring related :

Check ground wire, transmission cable, remote controller cable, and power supply cable for secure connection. Make sure that all switch settings of address or adjustments for special specification systems are correctly settled.

(2) Safety check :

With the insulation tester of 500V, inspect the insulation resistance. Do not touch the transmission cable and remote controller cable with the tester. The resistance should be over 1.0 M". Do not proceed inspection if the resistance is under 1.0 M". Inspect between the outdoor unit power supply terminal block and ground first, metallic parts like refrigerant pipes or the electrical box next, then inspect all electrical wiring of outdoor unit, indoor unit, and all linked equipment .

(3) Before operation :

a) Turn the power supply switch of the outdoor unit to on for compressor protection. For a test run, wait at least 12 hours

from this point.

b) Register control systems into remote controller(s). Never touch the on/ off switch of the remote controller(s). Refer

to “ 9-1-2. Special Function Operation and Settings (for M-NET Remote Controller)” as for settings. In MA remote controller(s), this registration is unnecessary.

(4) More than 12 hours later from power supply to the outdoor unit, turn all power switch to on for test run. Perform test run

according to the “Operation procedure” table of the bottom of this page. While test running, make test run reports .

(5) When you deliver the unit after test run, instruct the end user for proper usage of the system using owners’ manual and

the test run report you made to certificate normal operation. If abnormalities are detected during test run, refer to “ 9-1-3 Countermeasures for Error During Test Run”. As for DIP switch setting of outdoor unit, refer to” 9-5. INTERNAL SWITCH FUNCTION TABLE”.

ON/OFF

TEST RUN

°C

1Hr.

FILTER

CHECK TEST

TEMP.

TIMER SET

Check code indicator (see NOTE 1) Test run remaining time indicator (see NOTE 3)

Display panel

(M-NET Remote controller)

ON/OFF button 

ON/OFF LED (Lights up in operation)

LOUVER button 

TEST RUN button 

AIR DIRECTION button 

FAN SPEED button 

TEST RUN indicator

Indoor unit liquid pipe temperature indicator

(see NOTE 4)

(Cooling/Heating) OPERATION SWITCH button ,

Control panel

9-1-2. Special Function Operation and Settings (for M-NET Remote Controller)

• It is necessary to perform “group settings” and “paired settings” at making group settings of different refrigerant systems (multiple outdoor unit). (A) Group settings: Enter the indoor unit controlled by the remote controller, check the content of entries, and clear entries, etc. (B) Paired settings: Used to set the linked operation of a Lossnay unit. (1) Entering address: Follow the steps below to enter the addresses of the indoor unit using the remote controller.

a) Group settings

• Turning off the remote controller: Press the ON/OFF button to stop operation (the indicator light will go off).

• Changing to indoor unit address display mode: If the FILTER and k buttons on the remote controller are pressed simultaneously and held for 2 seconds, the display shown in Figure 1 will appear.

• Changing address: Press the temperature adjustment

buttons to change the displayed address to the

address to be entered.

• Entering the displayed address: Press the TEST RUN button to enter the indoor unit with the displayed address. The type of the unit will be displayed as shown in Figure 2 if entry is completed normally. If a selected indoor unit does not exist, an error signal will be displayed as shown in Figure 3. When this happens, check whether the indoor unit actually exists and perform entry again.

• Returning to the normal mode after completing entry: Press the FILTER and k buttons simultaneously and hold for 2 seconds to return to the normal mode.

b) Paired Settings

• Turn off the remote controller: Press the remote controller’s ON/OFF button to turn it off (the indicator light will go off).

• Put in indoor unit address display mode: Press the FILTER and k buttons on the remote controller simultaneously and hold for 2 seconds.

*The above steps are the same as when making group settings (A).

• Changing to the linked operation unit address display state: The display shown in Figure 4 will appear when the

button on the remote control is pressed.

• Displaying the address of the Lossnay unit and linked indoor unit: In this situation, the indoor unit number will be the lowest address of the group. The Lossnay unit will not operate if this setting is incorrect.

*If the temperature adjustment buttons are pressed, the address may be changed to the indoor unit that are

to be linked.

*If the time setting buttons are pressed, the address of the linked units may be changed to the address where

it is desired to enter the Lossnay .

• Linking the Lossnay and the indoor unit: The display shown in Figure 5 will appear when the TEST RUN button is pressed. The indoor unit whose address is displayed and the Lossnay unit with a linked address will operate in a linked manner.

*If it is desired to display the address of the Lossnay in the indoor unit address, display the indoor

unit address in the linked unit address, and the above content will also be recorded.

* Apart from the indoor unit with the lowest address in the group, display and enter the addresses of the other indoor unit

that are to be linked with the Lossnay unit.

• Returning to the normal mode after completing entry: Press the FILTER and k buttons on the remote controller simultaneously and hold for 2 seconds to return to the normal mode.

Figure 1. (A) Group setting display

Figure 2. Normal completion of entry

Figure 3. Entry error signal

Figure 4. (B) Making paired settings

Figure 5. Completing normal entry

Flashing “88” indicates entry error.Type of unit is displayed.

The addresses of indoor unit and linked units are displayed simultaneously.

(alternating display)

These alternating IC or LC displays will appear when entry is completed normally.

A flashing “88” will appear if there is a problem with the entry (indicating that the unit does not exist).

(altenating display)

"--" will appear in the unit type display location when an address has been cleared normally.

"88" will appear in the unit type display location when an abnormality has occurred during clearing.

(2) Address check: Refer to section (1) regarding address entry.

a) In making group settings:

• Turn off the remote controller: Press the remote controller's ON/OFF button to stop operation (the indicator light will go off).

• Locate the indoor unit address display mode: Press the FILTER and k buttons on the remote controller simultaneously and hold for 2 seconds.

• Display indoor unit address: The entered indoor units address and type will be displayed each time the button is pressed.

* When 1 entry is made, only 1 address will be displayed no matter how many times the w button is pressed.

• Returning to the normal mode after completing check: Simultaneously press the FILTER and k buttons on the remote controller and hold for 2 seconds to return to the normal mode.

b) In making paired settings:

• Turn off the remote controller: Press the remote controller's ON/OFF button to stop operation (the indicator light will go off).

• Put in indoor unit address display mode: Press the FILTER and k buttons on the remote controller simultaneously and hold for 2 seconds.

• Changing to the linked operation unit address display state: Press the a button on the remote control.

• Displaying the address of the indoor unit to be checked: Change the address to that of the indoor unit to be checked by pressing the temperature adjustment buttons .

• Displaying the address of the linked Lossnay unit: Press the w button to display the addresses of the linked Lossnay and indoor unit in alternation.

• Displaying the addresses of other entered units: The addresses of the other entered units will be displayed in alternating fashion after resting the w button again.

• Returning to the normal mode after completing the check: Simultaneously press the FILTER and k buttons on the remote controller and hold for 2 seconds to return to the normal mode.

(3) Clearing an address: Refer to section (1) regarding the address entry and section (2) regarding checking addresses.

a) In making group settings:

• Turn off the remote controller: The procedure is same as a) in (2) Address check.

• Put in the indoor unit address display mode: The procedure is same as a) in (2) Address check.

• Displaying the indoor unit address to be cleared: The procedure is same as a) in (2) Address check.

• Clearing indoor unit address : ......Pressing the q button on the remote controller twice will clear the address entry of the

displayed indoor unit, resulting in the display shown in Figure 6. The display shown in Figure 7 will appear if an abnormality occurs and the entry is not cleared. Please repeat the clearing procedure.

• Returning to the normal mode after clearing an address: The procedure is same as a) in (2) Address check.

b) In making paired settings:

• Turn off the remote controller: The procedure is same as b) in (2) Address check.

• Put into the indoor unit address display mode: The procedure is same as b) in (2) Address check.

• Put into the linked unit address display mode: The procedure is same as b) in (2) Address check.

• Display the address of the Lossnay unit or the indoor unit to be cleared.

• Deleting the address of a linked indoor unit: Pressing the q button on the remote controller twice will clear the address entry of the displayed indoor unit, resulting in the display shown in Figure 8.

• Returning to the normal mode after clearing an address: The procedure is same as b) in (2) Address check.

Figure 7. Display when an abnormality has occurred during clearing

Figure 6. Display after address has been cleared normally

Figure 8. Display after address has been cleared normally

"88" will appear in the room temperature display location.

"--" will appear in the room temperature display location.

9-1-3. Countermeasures for Error During Test Run

• If a problems occurs during test run, a code number will appear in the temperature display area on the remote controller (or LED on the outdoor unit), and the air conditioning system will automatically cease operating. Determine the nature of the abnormality and apply corrective measures.

Check code

1102

1302 1500 1501 1505

2502 2503

4115 4220 4230 4250

5101

5102 5103

5105 5106 5110 5201

6600 6602

6603 6606

6607 6608

6831

6832 6833 6834 7100

7101 7102 7105 7111

Serial transmission trouble Discharge temperature trouble

Low Pressure trouble High pressure trouble Excessive refrigerant replenishment Insufficient refrigerant trouble Vacuum operation protection Water leakage Drain pump trouble Drain sensor trouble (THd) Overcurrent trouble (Overload, compressor lock) Power synchronization signal trouble Inverter trouble Overheat protection of radiator panel Power module trouble or Overcurrent trouble Fan controller trouble (Outdoor) Air inlet sensor trouble (TH21) or Discharge temperature sensor trouble (TH4) Liquid pipe temp.sensor trouble (TH22) or Low pressure saturated temp.sensor trouble (TH6) Gas pipe temperature sensor trouble (TH23) Piping temperature sensor trouble (TH3) Outdoor temperature sensor trouble (TH7) Heatsink temperature sensor trouble (TH8) Pressure sensor trouble (63HS) Curnent sensor trouble Contact failure of drain float switch Dupricated unit address setting Transmission error (Transmission processor hardware error) Transmission error (Transmission route BUSY) Transmission and reception error (Communication trouble with transmission processor) Transmission and reception error (No ACK error) Transmission and reception error (No responsive frame error) MA communication receive signal error (no receive signal) MA commnication send signal error (starting bit derection error) MA commnication send error (H/W error) MA commnication receive error (Synchronous recovery error) Total capacity error Capacity code error Connecting unit number error Address set error Remote controller sensor trouble

0403

1300

4100

4400

5300 5701

Trouble Remarks

Detected unit

Indoor Outdoor

Remote controller

2500

Outdoor unit Multi controller board ~ Power board communiation trouble Check delay code 1202 Check delay code 1400 Check delay code 1402 Check delay code 1600 Check delay code 1601

Check delay code 4350 Check delay code 4165 Check delay code 4320 Check delay code 4330 Check delay code 4350 Check delay code 4500

Check delay code 1202

Check delay code 1211

Check delay code 1205 Check delay code 1221 Check delay code 1214 Check delay code 1402 Check delay code 4310

Only M-NET Remote controller is detected. Only M-NET Remote controller is detected.

Only M-NET Remote controller is detected. + Only M-NET Remote controller is detected. +

Only MA Remote controller is detected.

Only MA Remote controller is detected. Only MA Remote controller is detected.

Only MA Remote controller is detected.

12345678

[Example] When the compressor and SV1 are turned during cooling operation.

Bit

Indication

Compressor operated

52C321S44SV15(SV2)

—

—8Always lit

Self-diagnosis function The indoor and outdoor units can be diagnosed automatically using the self-diagnosis switch (SW1) and LED1, LED2 (LED indication) found on the multi-controller of the outdoor unit. LED indication : Set all contacts of SW1 to OFF. During normal operation The LED indicates the drive state of the controller in the outdoor unit.

NOTE ) When the outdoor unit detects No ACK error/ No responsive frame error, an object indoor unit is treated as a stop, and not assumed to be abnormal.

Display

Abnormal point and detecting method

Causes

Check points

1102

1300

1302

1500

High discharging temperature

Abnormal if discharge temperature thermistor (TH4) exceeds 125 or 110 continuously for 5 minutes. Abnormal if pressure detected by high-pressure sensor and converted to saturation temperature exceeds 40 during defrosting and discharge temperature thermistor (TH4) exceeds 110.

Low pressure (63L worked)

Abnormal if 63L is worked (under- 0.03MPa)

during compressor operation.

63L: Low-pressure switch

(1) High pressure (High-pressure switch 63H worked)

Abnormal if high-pressure switch 63H worked ( + ) during compressor operation. + 4.15 MPa

63H: High-pressure switch

(2) High pressure

(High - pressure sensor 63HS detect) Abnormal if high-pressure sensor detects

4.31MPa or more (or over 4.15MPa for 3 minutes) during the compressor operation.

Superheat due to low discharge temperature

Abnormal if discharge superheat is continuously detected less than or equal to -15 even though linear expansion valve has

minimum open pulse after compressor starts

operating for 10 minutes.

 Over-heated compressor operation caused by shortage of refrigerant

 Defective operation of stop valve  Defective thermistor  Defective outdoor controller board  Defective action of linear expansion

valve

 Stop valve of outdoor unit is closed during operation.  Disconnection or loose connection of connector (63L) on outdoor controller board



Disconnection or loose connection of 63L

 Defective outdoor controller board  Leakage or shortage of refrigerant  Malfunction of linear expansion valve  Short cycle of indoor unit  Clogged filter of indoor unit  Decreased airflow caused by dirt of

indoor fan

 Dirt of indoor heat exchanger  Locked indoor fan motor  Malfunction of indoor fan motor  Defective operation of stop valve

(Not fully open)

 Clogged or broken pipe  Locked outdoor fan motor

 Malfunction of outdoor fan motor  Short cycle of outdoor unit  Dirt of outdoor heat exchanger  Decreased airflow caused by defective

inspection of outside temperature thermistor (It detects lower temperature than actual temperature.)  Disconnection or contact failure of connector (63H) on outdoor controller board  Disconnection or contact failure of 63H connection

 Defective outdoor controller board  Defective action of linear expansion

valve

 Malfunction of fan driving circuit  Solenoid valve (SV1) performance

failure (High-pressure pressure cannot be controlled by SV1.)  High-pressure sensor

defective  High-pressure sensor input circuit defective in multi controller board

 Disconnection or loose connection of discharge temperature thermistor (TH4)



Defective holder of discharge temperature

thermistor

 Check intake super heat. Check leakage of refrigerant. Charge additional refrigerant.

 Check if stop valve is full open. 

Turn the power off and check if 5101 is displayed when the power is put again. When 5101 is displayed, refer to “Check points” for 5101.

 Check linear expansion valve.  Check stop valve.

~

Check the connector (63L) on outdoor

controller board.

 Correct to proper amount of refrigerant.  Check linear expansion valve. ~ Check indoor unit and repair

defectives.

 Check if stop valve is fully open.  Check piping and repair defectives.

~ Check outdoor unit and repair

defectives.

 Check the inspected temperature of outside temperature thermistor on LED display.

~

Check the connector (63H) on outdoor

controller board.

 Check linear expansion valve.  Replace outdoor controller board.

 Check the solenoid valve performance.



Check the high-pressure sensor.



Check the high-pressure sensor.

 Check the installation conditions of discharge temperature thermistor (TH4).

Refrigerant shortage

When the conditions of below detecting mode  or  are satisfied during the

compressor operation.

<Detecting mode > When the below conditions are satisfied completely.

1. Compressor is operating in HEAT mode.

2. Discharge super heat is 80 or more.

3. Difference of outer temperature thermistor (TH7) and outdoor piping temp. thermistor (TH3) applies to the formula of (TH7-TH3)<5.

4. High-pressure sensor is below about

2.04MPa. <Detecting mode > When the below conditions are satisfied completely.

1. Compressor is operating.

2. When cooling, discharge superheat is 80 or more. When heating, discharge superheat is 90 or more. High pressure sensor is below about 2.32MPa.

 Gas leakage, Gas shortage  When heating operation, refrigerant

shortage feeling operation (When heating, airflow or thermo OFF are mixed-operation, it cause a refrigerant shortage operation.)  Ball valve performance failure (not fully opened.)  Error detection of discharge super heat

1) High-pressure sensor defective

2) Discharge temperature thermistor defective

3) Thermistor input circuit defective and high-pressure sensor defective in multi controller board

 Error detection of TH7/TH3

1) Thermistor defective

2) Thermistor input circuit defective in multi controller board

 Check the refrigerant amount.  Check the operation condition and

refrigerant amount.

 Check the ball valve is fully opened.



1) Check the ball valve is fully opened.

2) Check the resistance of discharge temperature thermistor.

3) According to “Outdoor unit functions”, set the SW2 and check the high pressure sensor level.

According to “Outdoor unit functions”, check the discharge temp. thermistor level. When the high-pressure pressure sensor and discharge temp. thermistor are normal, if the above mentioned detecting pressure level and temp. are very different from the actual pressure and temp., replace the multi controller board.



1) Check the resistance of thermistor.

2) According to “Outdoor unit functions”, check the outdoor pipe temp. thermistor level.

3) According to “Outdoor unit functions”, check the outer temp. thermistor level.

1501

Water leakage

1. Suspensive Abnormality when float switch detects to be in the water and drain pump

turns on and off except during cooling or dry

mode.

2. Abnormal when detecting that the drain pump turns on and off again within 1 hour after the detection of water leakage suspensive abnormality, and repeats the detection twice. <2500> is displayed.

3. The unit continues to detect abnormality while turned off.

4. To release water leakage suspensive abnormality

· When not detecting that the drain pump turns off and on within 1 hour after detecting suspensive abnormality.

· When turning to cooling operation or dry operation.

· Detected that [liquid pipe temperature – room temperature] -10deg[-18°F]

2500

(Float

switch

model)

 Check the drain function.

 Check moving part of float switch.

 Check the value of resistance with the

float switch ON/OFF.

 Defective drain Clogged drain pump Clogged drain pipe Adverse flow of drain in other units  Defective moving part of float switch Foreign matter on the moving part of float switch(ex. sludge etc.)  Defective float switch

Operation mode: When drain pump turns on as float switch detects to be in the water except during cooling/dry mode

Display

Abnormal point and detecting method

Causes

Check points

6 min.6 min.

15 sec.

In the water Water leakage suspensive abnormality

In the water Water leakage abnormality

In the air In the water In the air

15 sec.

Within 1 hour Within 1 hour

15 sec. 15 sec.

15 sec.

ON OFF

Drain pump

Float switch

ON OFF

Display

Abnormal point and detecting method

Causes

Check points

2502

(Drain

sensor

model)

Drain pump (DP)

 Let drain sensor self-heated, and if temperature rises slightly, as suspensive abnormality operation stops and changes to protect mode of restarting in 3 minutes.  Drain pump is abnormal if the condition above is detected during suspensive abnormality. <2502> is displayed.  Malfunction of drain pipe is constantly detected during drain pump operation.

 The unit enters to forced outdoor unit stop when following conditions, a) and b), are satisfied (while the above mentioned detection is performed). a) The drain sensor detects to be soaked in the water 10 times in a row. b) Detected that [liquid pipe temperature – room temperature] -10deg[-18°F] for 30 minutes constantly. When the drain sensor detects to be NOT soaked in the water, the

detection

record of a) and b) will be cleared.)

+ Drain pump abnormality (above ~) is

detected before it becomes an outdoor unit

forced stop condition.

 When indoor unit detects above  condition, outdoor unit in same refrigerant sytem stops. Also, indoor unit except for Fan or OFF mode unit stop. 2502 is displayed on stopped unit.  Detection timing of forced outdoor unit stop Constantly detected during unit operation and stop  Releasing of forced outdoor unit stop Reset power supply of both abnormal indoor unit and its outdoor unit in same refrigerant system. Forced outdoor unit stop cannot be released by remote controller OFF.

NOTE ) Above-mentioned ~ and ~ are detected independently.

 Malfunction of drain pump  Defective drain

Clogged drain pump Clogged drain pipe



Water drops on drain sensor

• Drops of drain trickles from lead wire.

• Clogged filter is causing wave of drain.

 Defective indoor controller board

 Both of above mentioned ~ and the

indoor linear expansion valve full-closed

failure (leakage) happens synchronistically.

(Note) Address/Attribute displayed on the remote controller shows the indoor unit which is cause of trouble.

 Check if drain-up machine works.  Check drain function.

 Check the setting of lead wire of drain

sensor and check clogs of the filter.  Replace indoor controller board when

there is no problem in the above mentioned ~.

Check whether the indoor linear expansion valve leaks or not.

( )

Display

Abnormal point and detecting method

Causes

Check points

2502

(Float switch model)

 Check if drain-up machine works.  Check drain function.

 Check moving part of float switch.

 Check the value of resistance with the

float switch ON/OFF.

 Change the indoor controller board.

 Malfunction of drain pump  Defective drain

Clogged drain pump Clogged drain pipe  Defective moving part of float switch Foreign matter on the moving part of float switch(ex. sludge etc.)

 Defective float switch  Defective indoor controller board

 Defective driving circuit of drain pump  Defective input circuit of float switch

 Check whether the indoor linear

expansion valve leaks or not.

 Both of above mentioned ~ and the indoor linear expansion valve full-closed failure (leakage) happens synchronistically.

(Note) Address/Attribute displayed on the remote controller shows the indoor unit which is cause of trouble.

Drain pump (DP)

 Judge whether the sensor is in the water or in the air by turning the float switch ON/OFF. In the water: Detected that the float switch is ON for 15 seconds. In the air:Detected that the float switch is OFF for 15 seconds.  When the float switch remains to be turned ON for 3 minutes after detected to be in the water, the drain pump is judged to be abnormal and <2502> will be displayed.

*It takes 3 minutes and 15 seconds to detect abnormality including the time to judge to be in the water.

 The unit continue to detect abnormality

while turned off.

 When the conditions below 1, 2 and Forced

outdoor unit stop condition are met

1. Detected that

[liquid pipe temperature –

room temperature] -10deg[-18°F] for

30 minutes constantly.

2. Float switch detects to be in the water

for 15 minutes constantly.

*Before Forced outdoor unit stop Condition

is met, the unit always detects - above.

 The indoor unit detecting above stops

due to detecting abnormality the outdoor

unit in same refrigerant system

(compressor is inhibited to operate). The

unit which stops due to detecting

abnormality displays <2502>.

 Detection timing of forced outdoor unit stop

Constantly detected during unit operation

and stop

 Releasing of forced outdoor unit stop

Reset power supply of both abnormal indoor unit and its outdoor unit in same

refrigerant system. Forced outdoor unit stop cannot be released by remote

controller OFF.

NOTE )

Above-mentioned ~ and ~ are

detected independently.

2503

4100

Check whether the indoor controller board connector (CN31) is disconnected or not.

Check whether the thermistor wiring is disconnected or not.

Check the resistance of thermistor. If abnormality is not found in the

method of the above-mentioned from  to , it is defective of the indoor controller board.









Drain sensor (THd, DS) abnormality

When the drain sensor detects short/open

while the operation.

Compressor overcurrent interruption (When

compressor locked)

Abnormal if overcurrent of DC bus or compressor is detected within 30 seconds after

compressor starts operating.

Over current level : 18.0A

 Open stop valve.  Check facility of power supply.  Correct the wiring (U·V·W phase) to

compressor.

 Check compressor.  Replace outdoor power circuit board.

 Connector (CN31) contact failure

(insertion failure)

 Thermistor wiring disconnection or half disconnection

 Thermistor defective  Indoor controller board (detecting

circuit) failure

 Stop valve is closed.  Decrease of power supply voltage  Looseness, disconnection or converse

of compressor wiring connection



Defective compressor

 Defective outdoor power board

Display

Abnormal point and detecting method

Causes

Check points

4230

4250

4220

Overvoltage or voltage shortage

Abnormal if any of followings are detected

during compressor operation;

• Decrease of DC bus voltage to 310V

• Instantaneous decrease of DC bus voltage to 350V.

• Increase of DC bus voltage to 760V.

• Decrease of input current of outdoor unit to

0.1A only if operation frequency is more than or equal to 40Hz or compressor current is more than or equal to 6A.

Temperature of heatsink

If heatsink thermistor(TH8) detects

temperature indicated below 95

NOTE) TH8 is internal thermistor of power module on power board.

(1) Power module

Check abnormality by driving power module in

case overcurrent is detected.

(2) Compressor overcurrent interruption

Abnormal if overcurrent DC bus or compressor is detected after compressor starts operating for 30 seconds.

Over current level : 18.0A

Outdoor fan motor

The outdoor fan motor is considered to be abnormal if the rotational frequency of fan motor is abnormal when detected during operation. Fan motor rotational frequency is abnormal if;

• 100 rpm or below detected continuously for 15 seconds at 20: or more outside air temperature

• 50 rpm or below or 1500 rpm or more detected continuously for 1 minute.

 Decrease of power supply voltage  Disconnection of compressor wiring

 Defective 52C  Defective outdoor converter circuit board  Disconnection or loose connection of

CN5 on the outdoor power circuit board  Defective 52C drive circuit of outdoor power circuit board  Disconnection or loose connection of CN2 on the outdoor power circuit board.

 The outdoor fan motor is locked.  Failure of outdoor fan motor  Airflow path is clogged.  Rise of ambient temperature

 Defective thermistor  Defective input circuit of outdoor power

circuit board

 Failure of outdoor fan drive circuit  Outdoor stop valve is closed.

 Decrease of power supply voltage  Looseness, disconnection or converse

of compressor wiring connection

 Defective compressor  Defective outdoor power circuit board

 Stop valve of outdoor unit is closed.  Decrease of power supply voltage  Looseness, disconnection or converse

of compressor wiring connection

 Defective fan of indoor/outdoor units  Short cycle of indoor/outdoor units  Defective input circuit of outdoor

controller board

 Defective compressor



Failure in the operation of the DC fan motor



Failure in the outdoor circuit controller board

 Check the facility of power supply.  Correct the wiring (U·V·W phase) to

compressor. (Outdoor power circuit board)

 Replace 52C.  Replace outdoor converter circuit board.  Check CN5 wiring on the outdoor power

circuit board.

 Replace outdoor power circuit board.  Check CN2 wiring on the outdoor power

circuit board.

 Check outdoor fan.  Check air flow path for cooling.

 Check if there is something which

causes temperature rise around outdoor unit. (

Upper limit of ambient temperature is 46.

) Turn off power, and on again to check if 4230 is displayed within 30 minutes.  Check thermistor <TH8> temperature by micro computer.

 Replace outdoor power circuit board.  Replace outdoor controller circuit board.  Open stop valve.

 Check facility of power supply.  Correct the wiring (U·V·W phase) to

compressor. (Outdoor power circuit board).

 Check compressor.  Replace outdoor power circuit board.

 Open stop valve.  Check facility of power supply.  Correct the wiring (U·V·W phase) to

compressor. (Outdoor power circuit board).

 Check indoor/outdoor fan.  Solve short cycle.  Replace outdoor controller circuit board.

 Check compressor.

 Before the replacement of the outdoor controller circuit board, disconnect the wiring to compressor from the outdoor power circuit board and check the output voltage among phases, U, V, W, during test run (SW7-1 ON). No defect on board if voltage among phases (U-V, V-W and W-U) is same. Make sure to perform the voltage check with same performing frequency.

 Check or replace the DC fan motor.

 Check the voltage of the outdoor circuit

controller board during operation.

 Replace the outdoor circuit controller board. (when the failure is still indicated

even after performing the remedy 1 above.)

4400

5101

Display

Abnormal point and detecting method

Causes

Check points

Room temperature thermistor (TH21)

When controller detects short (high temp.)/open (low temp.) in thermistor during the operation, the operation stops and the operation changes to protect mode of restarting in 3 minutes. If the thermistor does not recover in 3 minutes, the operation stops due to detecting abnormality. In this time, <5101> is displayed. Then, if the thermistor recover in 3 minutes, it operates normally.

 Connector (CN20) contact failure

Check whether the connector (CN20) in the indoor controller board is connected or not.

 Thermistor wiring disconnection or half disconnection

Check whether the thermistor wiring is disconnected or not.

Short: Detected 90 or more

 Thermistor failure

Check the resistance of thermistor;

Open: Detected –40 or less

0···15k 10···9.6k 20···6.3k 30···4.3k 40···3.0k

 Detecting circuit failure in the indoor controller board

When there is no problem in above mentioned , replace the indoor controller board.

Discharge temperature thermistor (TH4)

When controller detects short/open in thermistor during the operation, the outdoor unit stops once and restarts operation in 3 minutes. When the detected temperature is normal at just before of restarting, the outdoor unit restarts.

 Connector (TH4) contact failure

Check whether the connector (TH4) in the multi controller board is connected or not.

When controller detects short/open in thermistor at just before of restarting, the unit stops due to detecting abnormality. In this time, <5101> is displayed.

 Thermistor wiring disconnection or half disconnection

Check whether the thermistor wiring is disconnected or not.

 Thermistor failure

Check the resistance of thermistor; When the resistance is not below value, replace the thermistor. 0··· about 700k 10··· about 410k 20··· about 250k 30··· about 160k 40··· about 104k

For 10 minutes after starting compressor, for defrosting or for 3 minutes after recover of defrosting, above-mentioned short/open are not detected.

Short: 216or more (1k) Open: 0 or less (700k)

Note) When outer temperature thermistor (TH7) is 5 or less on cooling, open detecting is not determined as abnormality

 Multi controller board input circuit failure

Set the SW1 to When the temperature in multi

controller board is not an actual temperature, replace the multi controller board.

1.3: Open

219.4: Short























21345678

5102

Liquid pipe temperature thermistor (TH22)

When the thermistor detects short/open during the operation, the operation stops and the operation changes to protect mode of restarting in 3 minutes. If the thermistor does not recover in 3 minutes, the operation stops due to detecting abnormality. In this time, <5102> is displayed. Then, if the thermistor recovers in 3 minutes, it operates normally.

1) Connector (CN21) contact failure Check whether the connector (CN21) in the indoor controller board is connected or not.

2) Thermistor wiring disconnection or half disconnection

Check whether the thermistor wiring is disconnected or not.

Short: Detected 90 or more

3) Thermistor failure

Open: Detected -40 or less

Check the resistance of thermistor;

4) Detecting circuit failure in the indoor controller board

When there is no problem in above mentioned , replace the indoor controller board.

Low pressure saturation temperature thermistor (TH6)

1) Connector (TH6) contact failure Check whether the connector (TH6) in the multi controller board is connected or not.

When controller detects short/open in thermistor at just before of restarting, the unit stops due to detecting abnormality. In this time, <5102> is displayed.

2) Thermistor wiring disconnection or

half disconnection

Check whether the thermistor wiring is disconnected or not.

3) Thermistor failure Check the resistance of thermistor;

For 10 minutes after starting compressor, heating mode, above-mentioned short/open are not detected.

Short: 90 or more Open: -40 or less

4) Multi controller board input circuit

failure

Set the SW1 to When the temperature in multi

controller board is not an actual temperature, replace the multi controller board.

-42.5: Open

91.9: Short























0····15k 10···9.6k 20···6.3k 30···4.3k 40···3.0k

Display

Abnormal point and detecting method

Causes

Check points

21345678

5103

Gas pipe temperature thermistor (TH23)

When the thermistor detects short/open after 3 minutes-continuous thermo ON during cooling or dry operation, the operation stops and the operation changes to protect mode of restarting in 3 minutes. If the thermistor does not recover in 3 minutes, the operation stops due to detecting abnormality. In this time, <5103> is displayed. Then, if the thermistor recover in 3 minutes, it operates normally.

1) Connector (CN29) contact failure Check whether the connector (CN29) in the indoor controller board is connected or not.

2) Thermistor wiring disconnection or half disconnection

Check whether the thermistor wiring is disconnected or not.

Short: Detected 90 or more

3) Thermistor failure Check the resistance of thermistor;

Open: Detected -40 or less

0····15k 10···9.6k 20···6.3k 30···4.3k 40···3.0k

4) Detecting circuit failure in the indoor controller board

When there is no problem in above mentioned , replace the indoor controller board.

5105

Pipe temperature / judging defrost thermistor (TH3)

1) Connector (TH3) contact failure Check whether the connector (TH3) in the multi controller board is connected or not.

When controller detects short/open in thermistor at just before of restarting, the unit stops due to detecting abnormality. In this time, <5105> is displayed.

2) Thermistor wiring disconnection or

half disconnection

Check whether the thermistor wiring is disconnected or not.

3) Thermistor failure Check the resistance of thermistor; When the resistance is not below value, replace the thermistor.

0····15k

For 10 minutes after starting compressor, for defrosting or for 3 minutes after recover of defrosting, above-mentioned short/open are not detected.

10···9.6k 20···6.3k

Short: 88 or more (0.4k)

30···4.3k

Open: -39 or less (115k)

40···3.0k

4) Multi controller board input circuit

failure

Set the SW1 to

When the temperature in multi controller board is not an actual temperature, replace the multi controller board.

-42.5: Open

91.9: Short























Display

Abnormal point and detecting method

Causes

Check points

21345678

5106

Outdoor temperature thermistor (TH7)

Display

Abnormal point and detecting method

Causes

Check points

1) Connector (TH7) contact failure Check whether the connector (TH7) in the multi controller board is connected or not.

2) Thermistor wiring disconnection or

half disconnection

Check whether the thermistor wiring is disconnected or not.

When controller detects short/open in thermistor at just before of restarting, the unit stops due to detecting abnormality. In this time, <5106> is displayed.

3) Thermistor failure Check the resistance of thermistor; When the resistance is not below value, replace the thermistor.

For 10 minutes after starting compressor, for defrosting or for 3 minutes after recover of defrosting, above-mentioned short/open are not detected.

Short: 90 or more Open: -40 or less

0····15k 10···9.6k 20···6.3k 30···4.3k 40···3.0k

4) Multi controller board input circuit failure

Set the SW1 to When the temperature in multi

controller board is not an actual temperature, replace the multi controller board.

5110

Heatsink temperature thermistor (TH8)

(internal thermistor of power module)

When controller detects short/open in thermistor at just before of restarting, the unit stops due to detecting abnormality. In this time, <5110> is displayed.

For 10 minutes after starting compressor, for defrosting or for 3 minutes after recover of defrosting, above-mentioned short/open are not detected.

Short:170 or more Open: -35 or less





















-42.5: Open

91.9: Short

21345678

1) Connector (TH8) contact failure.

2) Thermistor wiring disconnection or half disconnection.

3) Thermistor failure

4) Power board input circuit failure

Set the SW1 to When the temperature in multi

controller board is not an actual temperature, replace the power board.

-81.0: Open

999.9: Short



Check whether the connector (TH8) in the power circuit board.

Check whether the thermistor wiring is disconnected or not.

Check the resistance of thermistor; When the resistance is not below value, replace the thermistor.

0 ·····180k 10 ·····105k 20 ·······63k 30 ·······39k 40 ·······25k







21345678

5201

Display

Abnormal point and detecting method

Causes

Check points

Pressure sensor (63HS)

When detected pressure in high-pressure sensor is 1 MPa or less during the operation, the compressor stops and restarts operation in 3 minutes.

1) High-pressure sensor failure Check the high-pressure sensor.

When the detected pressure is 1 MPa or less at just before of restarting, the compressor stops due to detecting abnormality. In this time, <5201> is displayed.

2) Internal pressure decrease by gas leakage

Check the internal pressure.

3) Connector contact failure, disconnection

Check the high-pressure sensor.

4) Multi controller board input circuit failure

Check the high-pressure sensor.

For 3 minutes after starting compressor, for defrosting or for 3 minutes after recover of defrosting, abnormality is not determined as abnormality.

6600

Duplex address error

Detected error when transmission of unit with the same address is confirmed,

1) There are 2 units or more with the same address among the outdoor unit or indoor unit or lossnay controller, remote controller.

Look for the unit, which is source of abnormality with the same address. When the same address is found, correct the address and turn off power supply of outdoor unit, indoor unit, and lossnay for 2 minutes or more as the same time. Then, turn on power supply.

Note) Address/Attribute displayed on the remote controller shows the controller detecting abnormality.

2) When noise has occurred in the transmission signal, and the signal has changed.

Check the transmitted wave and the noise on the transmission line.

6602

Transmission processor H/W error

'' 1 '' shows on the transmission line though the transmission processor transmitted '' 0''.

1) When the wiring for either of the indoor unit, the outdoor unit or lossnay transmission line is constructed or polarity is changed with the power supply turned on, the transmission waves change in case that the transmission data collides mutually. It causes to detect error.

When the transmission wire is constructed with the current flowed, turn off power supply of outdoor unit, indoor unit and lossnay for 2 minutes or more as the same time. Then, turn

on power supply.Note) Address/Attribute displayed on the remote controller shows the controller detecting abnormality.

2) Transmission processor circuit failure

Check the transmitted wave and the

noise on the transmission line.

3) When the transmission data has changed by the noise.

















5300







Current sensor error

Abnormal if current sensor detects –1.5A to

1.5A during compressor operation. (This error is ignored in case of SW7-1 ON.)

1) Disconnection of compressor wiring

2) Defective circuit of current sensor on outdoor power circuit board

 Correct the wiring (U·V·W phase) to compressor. (Outdoor power circuit board).  Replace outdoor power circuit board.

5701

Connection failure of float switch connector

Abnormal if detected that the float switch connector is disconnected(open) during operation

1) Connection failure of connecor(CN4F)  Check the connection failure of connector(CN4F) on the indoor controller board.

6603

Transmission bus busy error

Over error by collision 1) The transmission processor cannot

be transmitted since a short cycle voltage of the noise etc. mixes on the transmission line consecutively.

Check whether the transmission line of the indoor unit, fresh master, lossnay and remote controller is connected to the outdoor unit terminal board (TB7) for centralized controller or not.

Abnormality when the state, which cannot be transmitted by collision of transmission, is consecutive for 8 to 10minutes.

2) The transmission volume increases and cannot be transmitted since the wiring method is mistaken and the routing technique to the terminal board (TB3) for the transmission line of the outdoor unit and the terminal board (TB7) for centralized control cannot be transmitted.

Check whether the transmission line with the other refrigerant system of the indoor unit and lossnay is connected to the outdoor unit terminal board (TB3) for transmission or not.

The state that data cannot to be output to the transmission line by the noise happens for 8 to 10 minutes consecutively.

3) The share becomes high since the data exists together to other transmitted data by a defective repeater (function which connects and intercepts the transmission of controlling system and centralized control system), and it causes abnormal detection.

Check whether the outdoor unit

terminal board for transmission line

(TB3) and for centralized controller

(TB7) are connected or not.

Note) Address/Attribute displayed on the remote controller shows the controller detecting abnormality.

Check the transmitted wave and the

noise on the transmission line.

Signal communication error with transmission processor

6606

Signal communication error between unit processor and transmission processor

Note) Address/Attribute displayed on the remote controller shows the controller detecting abnormality.

2) The address transmission from the unit processor was not normally transmitted by the hardware of transmission processor defective.













1) The data of the unit/transmission processor was not normally transmitted due to accidental disturbance such as noise and lightening surge.

Turn off power supply of outdoor unit, indoor unit, and lossnay for 2minutes or more at the same time. Then, turn on power supply. It normally recovers from the malfunction that happens by chance. When same abnormality occurs again, it is defective of the controller.

Display

Abnormal point and detecting method

Causes

Check points

6607

No ACK (Acknowledgement)

Abnormality which controller of the sending side detects when there is no answer (ACK) from other side though data was transmitted once. It is detected 6 times every 30 seconds continuously.

Factor that does not related to origin

Turn off power supply of outdoor unit, indoor unit fresh master and lossnay for 2 minutes or more at the same time. Then, turn on power supply. It recovers normally from the malfunction that happens by chance.

Note) Address/Attribute displayed on the remote controller shows the controller, which did not send back replay (ACK).

1) Since the address switch was changed with the current passed, the unit in the last address does not exist.

Check the address switch of the address which causes abnormality.

2) Decline of transmission voltage and signal by transmission line tolerance over

Check whether the transmission line is connected / loosen or not at origin. (Terminal board or connector)

· The furthest point···200m

Check whether the transmission line tolerance is over or not.

· Remote controller line···(12m) (Refer to 8-3.)

Check whether the kind of transmission line is mistaken or not.

3) Decline of transmission line voltage and signal by unmatched kind of line.

When there is any trouble from above -, turn off power supply of outdoor unit, indoor unit and lossnay for 2 minutes or more at the same time. Then, turn on power supply.

· Shield line-CVVS,CPEVS

When there is not any trouble in single refrigerant system (1 outdoor unit) from above-, controller defective in displayed address and attribute. When there is not any trouble in different refrigerant system (2 outdoor unit or more) from above -, determine it after .

When the address which should not exist is an origin, since there is the indoor unit which memorizes the address data, cancel the unnecessary address data by the manual setting function of remote controller.

Line diameter···1.25 Aor more

However, they are limited to the system, which sets the group between different refrigerant systems, or which fresh master /lossnay are connected.

4) Decline of transmission line voltage and signal by a number of over-connected units.

When there is not any trouble from above -, replace the displayed address/attribute controller board.

5) Mis-operation of origin controller, which happens by chance.

In this time, when the error does not recover to normal, the outdoor unit multi controller board (repeater circuit) defective is expected.

6) Original controller defective

1) When the cause of displayed address and attribute is on the outdoor unit side

1) Contact failure of outdoor unit or indoor unit transmission line

(The indoor unit detects when there is no reply (ACK) on transmitting from the indoor unit to the outdoor unit.)

2) Indoor unit transmission connector (CN2M) disconnection

3) Sending/receiving signal circuit failure in the indoor/outdoor unit

2) When the cause of displayed address and attribute is on the indoor unit side

1) When operating with multi refrigerant system indoor units, the remote controller transmits the signal to the indoor unit after the other refrigerant system outdoor unit is turned off or turned on again in 2 minutes, and detects abnormality.

(The remote controller detects when there is no reply (ACK) on transmitting from the remote controller to the indoor unit.)

2) Contact failure of remote controller or indoor unit transmission line

3) Indoor unit transmission connector (CN2M) disconnection

Check the recovery by replacing the multi controller board one by one.

4) Sending/receiving signal circuit failure in the indoor unit or remote controller.













Display

Abnormal point and detecting method

Causes

Check points

Continued to the next page.

3) When the cause of displayed address and attribute is on the remote controller side

1) When operating with multi refrigerant system indoor units, the indoor units transmits the signal to the remote controller after the other refrigerant system outdoor unit is turned off or turned on again in 2 minutes, and detects abnormality.

(The indoor unit detects when there is no reply (ACK) on transmitting from the indoor unit to the remote controller unit.)

2) Contact failure of remote controller or indoor unit transmission line

3) Indoor unit transmission connector (CN2M) disconnection

4) Sending/receiving signal circuit failure in the indoor unit or remote controller

4) When the cause of displayed address and attribute is on the fresh master side

1) When synchronized operating with other refrigerant system fresh master, the indoor units transmits the signal to the fresh master after the fresh master and same refrigerant system outdoor unit is turned off or turned on again in 2 minutes, and detects abnormality.

(The indoor unit detects when there is no reply (ACK) on transmitting from the indoor unit to the fresh master.)

2) Contact failure of fresh master or indoor unit transmission line

3) Indoor unit or fresh master transmission connector (CN2M) disconnection

4) Sending/receiving signal circuit failure in the indoor unit or fresh master

5) When the cause of displayed address and attribute is on the lossnay side

1) When the lossnay power supply is Off, the indoor unit detects abnormality at signal transmitting to the lossnay.

(The indoor unit detects when there is no reply (ACK) on transmitting from the indoor unit to the lossnay.)

6607

Display

Abnormal point and detecting method

Causes

Check points

Continued to the next page.

From the previous page.

2) When synchronized operating with other refrigerant system lossnay, the indoor units transmits the signal to the lossnay after the lossnay and same refrigerant system outdoor unit is turned off or turned on again in 2 minutes, and detects abnormality

3) Contact failure of lossnay or indoor unit transmission line

4) Indoor unit transmission connector (CN2M) disconnection

5) Sending/receiving signal circuit failure in the indoor unit or lossnay

6) When the controller of displayed address and attribute is not recognized

1) Since the address switch was changed with the current passed, the unit in the last address does not exist.

2) Since the fresh master/lossnay address are changed after synchronized setting of fresh master / lossnay by the remote controller, abnormality is detected at transmitting from the indoor unit.

1) Transmission repeats the failure by the noise etc.

6608

6607

No response

2) Decline of transmission voltage and signal by transmission line tolerance over

Check the transmission wave and noise on the transmission line.

Though there was a replay (ACK) of having received signal from the other side, it is the abnormality when the response command does not return. The sending side detects the abnormality continuously six times every 30 seconds. Note) Address/Attribute displayed on the remote controller shows the controller, which did not response.

· The furthest point···200m

Turn off power supply of outdoor unit, indoor unit and lossnay for 2minutes or more at the same time. Then, turn on power supply again. It normally recovers fom the malfunction that happens by chance. When same abnormality occurs again, it is defective of displayed address and attribute.

· Remote controller line···(12m) (Refer to 8-3.)

3) Decline of transmission line voltage and signal by unmatched kind of line

· Shield wire-CVVS,CPEVS

Wire diameter···1.25Aor more

4) Mis-operation of origin controller, which happens by chance.





Display

Abnormal point and detecting method

Causes

Check points

From the previous page.

6831 6834

6832 6833

Signal reception(Remote controller)

Following symptoms are regarded as abnormality.

1) When the remote controller cannot receive the signal from indoor controller normally even once for 3 minutes

2) When the remote controller cannot receive the signal even once for 2 minutes

Signal transmission(Remote controller)

Following symptoms are regarded as abnormality.

1) When sub-remote controller cannot

transmit the signal to the transmission path for 6 minutes

2) When the remote controller cannot

finish transmitting the signal for 30 times on end

~

Check the remote controller. According to the results, perform the following disposals.

• When "RC OK" is displayed, the remote controller is normal. Turn off the power supply and turn it on again. If "HO" or "PLEASE WAIT" is displayed for 4 minutes or more, replace the indoor controller board.

• When "RC NG" is displayed, replace the remote controller.

• When "RC 6832 or 6833" or "ERC 00-66" is displayed, these displays may be due to noise, etc.

 Set one remote controller to main

remote controller and the other to sub-remote controller.

Defect of the transmission and reception circuit of the remote controller.

Defect of the transmission and reception circuit of the indoor controller board

Noise occurs on the transmission line of the remote controller

All remote controllers are set as sub-remote controller.









Defect of the transmission and reception circuit of the remote controller

Noise occurs on the transmission line of the remote controller

There are 2 main remote controllers.







Display

Abnormal point and detecting method

Causes

Check points





7100

1) Connecting total models of the indoor unit exceed the specified level.

Check the total models of connected indoor unit.

When connected total models of the indoor units exceed the specified level (130% of the outdoor unit models), error code <7100> is displayed.

Check the model code registration switch (indoor controller board SW2) of connected indoor unit.

2) There is a mistake in the registration of model name code of the outdoor unit.

· PUMY-P100 ( ~ code 26)

· PUMY-P125 ( ~ code 33)

· PUMY-P140 ( ~ code 38)

Check the model code registration switch (outdoor multi controller board SW4) of the outdoor unit.

7105

Address setting error

Address setting of the outdoor unit is wrong.

Addresses mis-setting of the outdoor unit

Check the address setting of the outdoor unit. The address should be set in 000 or 51-100.

The outdoor unit is not set in 000 or in the range of 51-100.

When the setting is out of the range, reset it, turn off power supply of the outdoor unit, indoor unit and lossnay for 2 minutes or more at the same time, and turn on power supply again.

7111 When an old type remote controller for

M-NET is used, and the remote controller sensor is specified (SW1-1 is ON).

Replace the remote controller to net work remote controller.

In the case of network remote controller, it is an abnormality when incapable response returns from the network remote controller during the operation.

Remote controller sensor

7102

Number of connecting unit over

When the connecting unit exceeds a number of limitations, error code <7102> is displayed.

Even if the indoor unit is not connected, <7102> is display.

Connecting unit exceeds a number of limitations. It is assumed abnormal excluding the following cases;

Check whether the connecting unit exceeds a number of limitations or not.

1) The indoor unit can be totally connected up to 6(P100)/8(P125, 140) units. The indoor unit can be connected up to 6(P100)/8(P125, 140) units

2) Ventilation unit connecting is only 1 unit.

7101

Capacity code error

When the connected indoor unit models cannot be connected, <7101> is displayed.

The indoor unit models is not possible to connect. [PUMY-100/125/140YHM(1)] The indoor unit of 20-140(code 4-28) is possible to connect. [PUMY-100/125/140YHMA(-BS)] The indoor unit of 15-40(Code 3-28) is possible to connect.

Check the model code registration switch (indoor controller board SW2) in the connected indoor unit.

The outdoor unit SW1 operation can check model code of the connected indoor units.

Code of indoor unit No.1

Code of indoor unit No.2

Code of indoor unit No.3

Code of indoor unit No.4

Code of indoor unit No.5

Code of indoor unit No.6

Code of indoor unit No.7

Code of indoor unit No.8





0403

Serial communication error

Abnormal if serial communication between outdoor multi board and outdoor power board is defective.

 Breaking of wire or contact failure of connector CN2  Breaking of wire or contact failure of connector CN4  Defective communication circuit of outdoor power board  Defective communication circuit of outdoor multi board for power board

 Check connection of each connector CN2, CN4.

 Replace outdoor power board.  Replace outdoor multi board.

Display

Abnormal point and detecting method

Causes

Check points

21345678

Transmission data from remote controller Transmission data on transmission path

When the number of data errors is "02":

· MA remote controller is equipped with the diagnosis function

If the air conditioner cannot be operated from the remote controller, diagnose the remote controller as explained below.



First, check that the power-on indicator is lit. If the correct voltage (DC12 V) is not supplied to the remote controller, the indicator will not light. If this occurs, check the remote controller's wiring and the indoor unit.



Switch to the remote controller self-diagnosis mode.

Press the

CHECK

button for 5 seconds or more. The display content will

change as shown below.

Press the

FILTER

button to start self-diagnosis.



Remote controller self-diagnosis result [When the remote controller is functioning correctly]

Check for other possible causes, as there is no problem with the remote controller.

[When the remote controller malfunctions] (Error display 1) "NG" flashes. → The remote controller's transmitting-receiv-

ing circuit is defective.

The remote controller must be replaced with a new one.

[Where the remote controller is not defective, but cannot be operated.] (Error display 2) [E3], [6833] or [6832] flashes.→ Transmission is not possible.

There might be noise or interference on the transmission path, or the indoor unit or other remote controllers are defective. Check the transmission path and other controllers.

(Error display 3)

"ERC" and the number of data errors are displayed. → Data error has occurred.

The number of data errors is the difference between the number of bits sent from the remote controller and the number actually transmitted through the transmission path. If such a problem is occurring, the transmitted data is affected by noise, etc. Check the transmission path.



To cancel remote controller diagnosis

Press the

CHECK

button for 5 seconds or more. Remote controller diagnosis will be cancelled, "PLEASE WAIT" and operation lamp will flash. After

approximately 30 seconds, the state in effect before the diagnosis will be restored.

Power on indicator

9-2. REMOTE CONTROLLER DIAGNOSIS

ON/OFF

CENTRALLY CONTROLLED

ERROR CODE

CLOCK

ON OFF

°C

CHECK

CHECK MODE

FILTER

TEST RUN FUNCTION

°C

1Hr.

NOT AVAILABLE

STAND BY DEFROST

FILTER

CHECK TEST

TEMP.

TIMER SET

“ ” Indicator: appears when current is carried.

(M-NET Remote controller)

(1) For M-NET remote controller systems

Symptom or inspection code Cause Inspection method and solution

Though the content of operation is displayed on the remote controller, some indoor units do not operate.

• The power supply of the indoor unit is not on.

•

The address of the indoor units in same group or the remote controller

is not set correctly.

•

The group setting between outdoor units is not registered to the remote

controller.

• The fuse on the indoor unit controller board is blown.

• Check the part where the abnormality occurs.

 The entire system  In the entire refrigerant system  In same group only  1 indoor unit only

•

Check the self-diagnosis LED

of the outdoor unit.

• Check the items shown in the left that are related to the outdoor unit.

• Check the items shown in the left that are related to the indoor unit.

Though the indoor unit operates, the display of the remote controller goes out soon.

• The power supply of the indoor unit is not on.

• The fuse on the indoor unit controller board is blown.

( ) is not displayed on the remote controller.

(M-NET remote controller

is not fed.)

• The power supply of the outdoor unit is not on.

• The connector of transmission outdoor power board is not connected.

•

The number of connected indoor unit in the refrigeration system is over

the limit or the number of connected remote controller is over the limit.

•

M-NET remote controller is connected to MA remote controller cable.

• The transmission line of the indoor/outdoor unit is shorted or down.

• M-NET remote controller cable is shorted or down.

• Transmission outdoor power board failure.

"HO" keeps being displayed or it is displayed periodically. ("HO" is usually displayed about 3 minutes after the power supply of the outdoor unit is on.)

• The power supply for the feeding expansion unit for the transmission line is not on.

• The address of the outdoor unit remains "00".

•

The address of the indoor unit or the remote controller is not set correctly.

• MA remote controller is connected to the transmission line of the indoor/outdoor unit.

The remote controller does not operate though ( ) is displayed.

• The transmission line of the indoor/outdoor unit is connected to TB15.

• The transmission line of the indoor/outdoor unit is shorted, down or badly contacted.

9-3. REMOTE CONTROLLER TROUBLE

Symptom or inspection code Cause Inspection method and solution

Though the content of operation is displayed on the remote controller, some indoor units do not operate.

( ) is not displayed on the remote controller. (MA remote controller is not fed.)

"PLEASE WAIT" keeps being displayed or it is displayed periodically. ("PLEASE WAIT" is usually displayed about 3 minutes after the power supply of the outdoor unit is on.)

The

remote controller does not

operate though ( ) is displayed.

• The power supply of the indoor unit is not on.

• Wiring between indoor units in same group is not finished.

• The indoor unit and Slim model are connected to same group.

• The fuse on the indoor unit controller board is blown.

• Check the part where the abnormality occurs.

 The entire system  In the entire refrigerant system  In same group only  1 indoor unit only

•

Check the self-diagnosis LED

of the outdoor unit.

• Check the items shown in the left that are related to the outdoor unit.

• Check the items shown in the left that are related to the indoor unit.

Though the indoor unit operates, the display of the remote controller goes out soon.

• The power supply of the indoor unit (Master) is not on.

• In case of connecting the system controller, the setting of the system controller does not correspond to that of MA remote controller.

• The fuse on the indoor unit (Master) controller board is blown. The remote controller is not fed until the power supply of both indoor unit

and outdoor unit is on and the start-up of both units is finished normally.

• The power supply of the indoor unit is not on.

• The power supply of the outdoor unit is not on.

• The number of connected remote controller is over the limit (Maximum: 2 units) or the number of connected indoor unit that is over the limit (Maximum: 16 units).

•

The address of the indoor unit is "00" and the address for the outdoor

unit is the one other than "00".

•

The transmission line of the indoor/outdoor unit is connected to TB15.

• MA remote controller is connected to the transmission line of the indoor/outdoor unit .

• The remote controller cable is shorted or down.

• The power supply cable or the transmission line is shorted or down.

• The fuse on the indoor unit controller board is blown.

• The power supply of the outdoor unit is not on.

• The power supply of the feeding expansion unit for the transmission line is not on.

• The setting of MA remote controller is not main remote controller, but sub-remote controller.

• MA remote controller is connected to the transmission line of the indoor/outdoor unit

• The power supply of the indoor unit (Master) is not on.

• The transmission line of the indoor/outdoor unit is connected to TB15.

• The transmission line of the indoor/outdoor unit is shorted, down or badly contacted.

•The fuse on the indoor unit controller board is blown.

(2) For MA remote controller systems

Even the cooling (heating) operation selection button is pressed, the indoor unit cannot be operated. The auto vane runs freely.

Fan setting changes during heating.

Fan stops during heating operation. Fan does not stop while operation has been stopped. No setting of fan while start SW has been turned on.

Indoor unit remote controller shows “HO” or “PLEASE WAIT ” indicator for about two minutes when turning ON power supply. Drain pump does not stop while unit has been stopped. Drain pump continues to operate while unit has been stopped.

"Cooling (Heating)" blinks

Normal display

"Defrost "

Light out

STAND BY

“HO” blinks “PLEASE WAIT” blinks

Light out

—

The indoor unit can not cool (heat) if other indoor units are heating (cooling).

Because of the control operation of auto vane, it may change over to horizontal blow automatically from the downward blow in cooling in cause the downward blow operation has been continued for 1 hour. At defrosting in heating, hot adjusting and thermostat OFF, it automatically changes over to horizontal blow. Ultra-low speed operation is commenced at thermostat OFF. Light air automatically change over to set value by time or piping temperature at thermostat ON. The fan is to stop during defrosting.

Fan is to run for 1 minute after stopping to exhaust residual heat (only in heating). Ultra-low speed operation for 5 minutes after SW ON or until piping temperature becomes 35C. There low speed operate for 2 minutes, and then set notch is commenced. (Hot adjust control) System is being driven. Operate remote controller again after “HO” or “PLEASE WAIT” disappears.

After a stop of cooling operation, unit continues to operate drain pump for 3 minutes and then stops it. Unit continues to operate drain pump if drainage is generated, even during a stop.

Symptom

Display of remote controller

CAUSE

9-4. THE FOLLOWING SYMPTOM DO NOT REPRESENT TROUBLE (EMERGENCY)

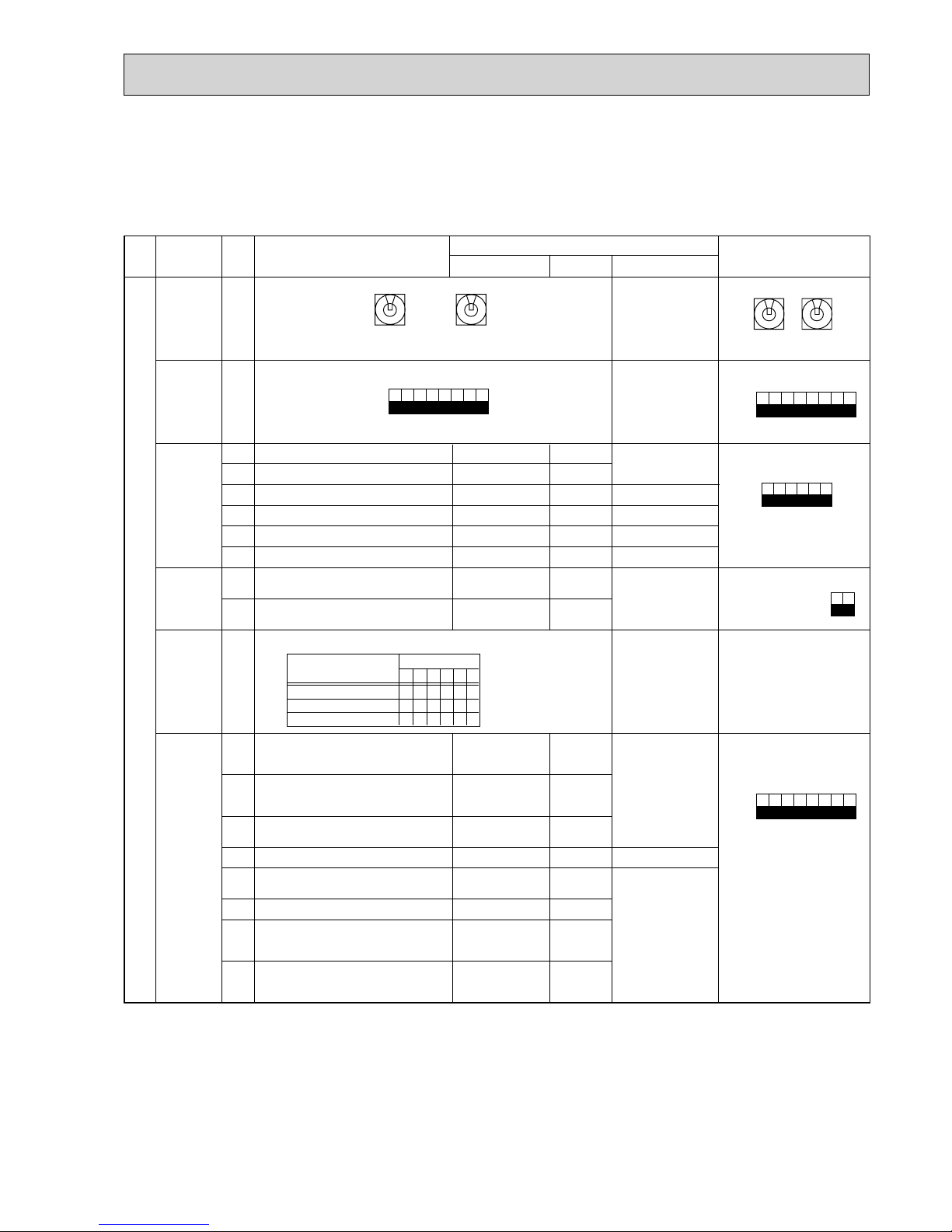

Outdoor unit

Switch

SW U1 1st digit

SW U2 2nd digit

SW1 Digital Display Switching

SW2 Function Switching

SW5 Function switching

SW3 Trial operation

SW4 Model Switching

Step

Operation in Each Switch Setting

ON OFF When to Set

Remarks

Before turning the power on

Before the power is turned on.

Rotary switch

1 2 3 4 5 6

3 4

6 7

Function

1~8

1~6

Can be set either during operation or not.

Before turning the power on

Any time after the power is turned on.

OFF to ON any time after the power is turned on.

During compressor running

Before turning the power on

OFF to ON during compressor running.

Enable

—

Disable

Enable

Active

Normal

Inactive

Heating

Enable

Cooling

OFF

——

Without centralized controller

With centralized controller

Clear

Do not clear Normal Normal

Normal

Fix Normal Fix Normal

Clear abnormal data Run adjustment mode

Selects operating system startup Connection Information Clear Switch Abnormal data clear switch input Pump down

Auto change over from Remote controller

—

Mode setting

ON/ OFF from outdoor unit

<Initial settings> Set for each capacity.

Pressure limitation value change

Change the indoor unit's LEV opening at start

Fixing the indoor units linear expansion valve opening Fix the operation frequency

Change the indoor unit's LEV opening at defrost

SWU2

(2nd digit)

SWU1

(1st digit)

SWU2

(2nd digit)

SWU1

(1st digit)

OFF

234567 8

OFF

234567 8

OFF

23456

OFF

Can be set when off or during operation

Can be set when off

or during operation Switching the target sub cool. During the FAN or COOL mode,and thermo-OFF

or OFF in heating operation, set the opening of linear expansion valve on indoor unit

During the FAN or COOL mode,and thermo-OFF in heating operation, set the opening of linear expansion valve on indoor unit

Active Inactive

+1 SW5-7 Refrigerant amount shortage measure during heating operation (Refrigerant piping is long etc.)

+2 SW5-8 Countermeasure against room temperature rise for indoor unit in FAN, COOL, and thermo-OFF (heating) mode.

+1 MODEL SELECT 1:ON 0:OFF

MODELS

PUMY-P100 PUMY-P125 PUMY-P140

110010

123456

SW4

110001 110011

OFF

234567 8

9-5. INTERNAL SWITCH FUNCTION TABLE PUMY-P100YHM PUMY-P125YHM PUMY-P140YHM PUMY-P100YHM1 PUMY-P125YHM1 PUMY-P140YHM1 PUMY-P100YHMA PUMY-P125YHMA PUMY-P140YHMA PUMY-P100YHMA-BS PUMY-P125YHMA-BS PUMY-P140YHMA-BS

OFF

234567 8

OFF

23456

OFF

Outdoor unit

Switch

SW6 function switching

SW7 function switching

SW8 function switching

Step

Operation in Each Switch Setting

ON OFF When to Set

Remarks

Before turning the power on.

During compressor running in heating mode.

Can be set when off or during operation

2 3 4 5

6 7 8

1 2

3 4

5 6

1 2

Function

—— —

—

—— —

—

Normal

Switch of current limitation reading in a different way

Enable

Normal

Ignore current sensor abnormality

Silent mode/ Demand Control Selection (see next page)

Change of defrosting control

Forced defrost Normal

Silent mode

Normal

Forced defrost

Enable

Normal

Restriction of maximum frequency

Enable

Normal

Ignore refrigerant filling abnormality

Enable

Normal

Enable

Normal

Switching the target discharge pressure (Pdm)

Enable

Normal

Switching (1) the target evaporation temperature (ETm)

Switching (2) the target evaporation temperature (ETm)

—

Demand Control

Enable (For high humidity)

CN51

5 4 3

 















1 : Error display lamp

2 : Compressor operation lamp

X, Y : Relay (Coil standard of 0.9W or less for DC 12V)



 











CN3N

SW1

SW2

1 2

X, Y : Relay (DC1mA)

SW1 SW2

Heating

Validity of SW1

OFF

Cooling

Invalidity of SW1

SW1 SW2

Heating

Validity of SW1

OFF

Cooling

Invalidity of SW1





 











CN3D

SW1

SW2

1 2

The silent mode and the demand control are selected by switching the Dip switch 8-1 on outdoor controller board. It is possible to set it to the following power sonsumption (compared with ratings) by setting SW1,2.

Silent mode

Silent mode operation

Outdoor controller board DIP SW8-1

SW1 SW2 Function

Demand control

OFF ON

ON OFF ON

— OFF OFF

ON OFFONON

100%

75% 50%

(Normal)

(Stop)

 Distant control board  Relay circuit  External output adapter (PAC-SA88HA-E)  Outdoor unit control board

 Remote control panel  Relay circuit  External input adapter (PAC-SC36NA)  Outdoor unit control board

 Relay power supply  Procure locally  Max. 10m

 Remote control panel  Relay circuit  External input adapter (PAC-SC36NA)  Outdoor unit control board

 Relay power supply  Procure locally  Max. 10m

 Lamp power supply  Procure locally  Max. 10m

L1 L2

9-6. OUTDOOR UNIT INPUT/OUTPUT CONNECTOR

State (CN51)

Auto change over (CN3N)

Silent Mode / Demand Control (CN3D)

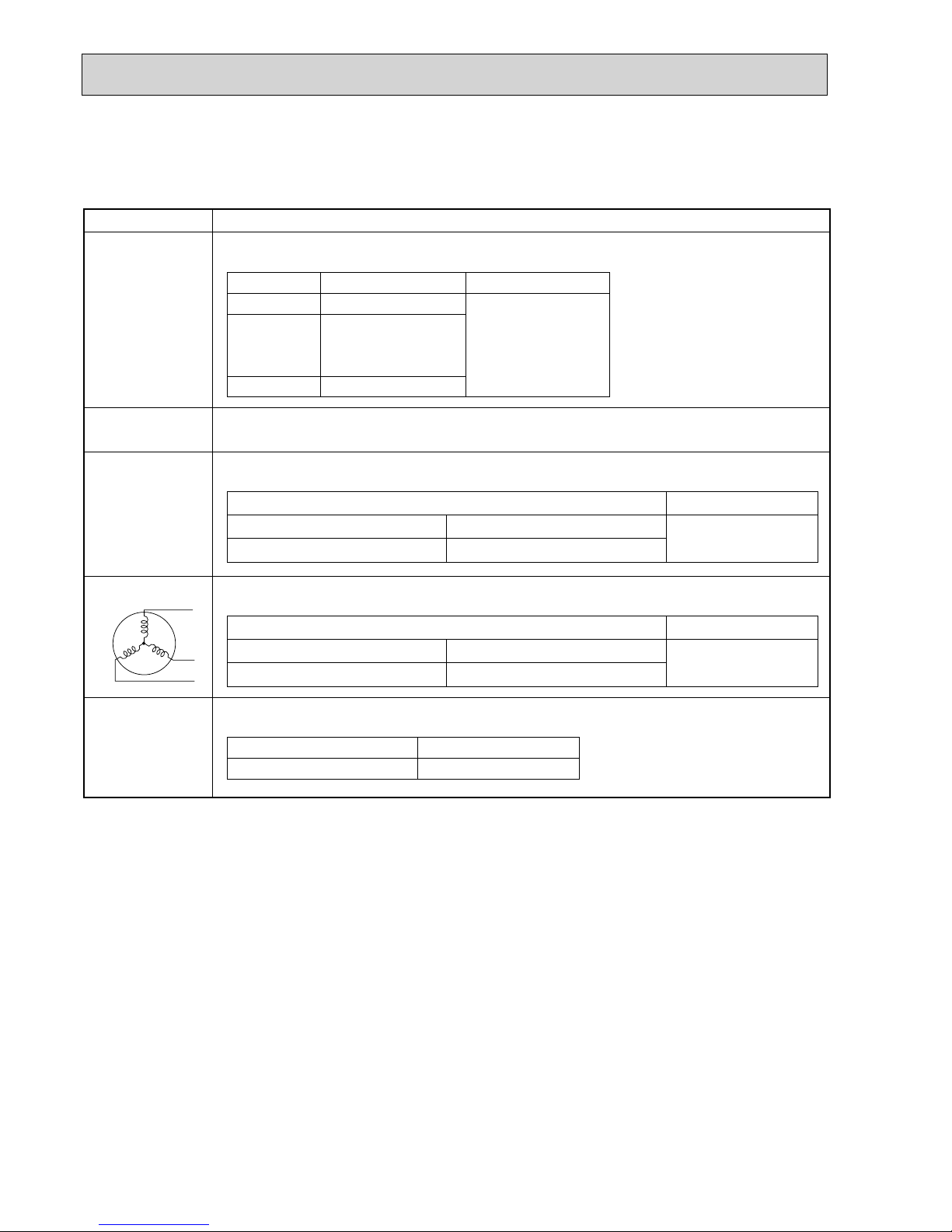

Parts name

Check points

Disconnect the connector then measure the resistance with a tester. (At the ambient temperature 10~30)

Thermistor (TH3) <Outdoor pipe>

Thermistor (TH4) <Discharge>

Thermistor (TH6) <

Low pressure saturated

temperature> Thermistor (TH7)

<Outdoor> Thermistor (TH8)

Normal

160k~410k

4.3k~9.6k

39k~105k

TH4 TH3 TH6 TH7

TH8 +1

Abnormal

Open or short

Measure the resistance between the terminals with a tester. (At the ambient temperature 20



)

Solenoid valve coil <Four-way valve> (21S4)

Motor for compressor (MC)

Normal

Abnormal

Open or short

Measure the resistance between the terminals with a tester. (At the ambient temperature 20)

Normal

1197±10

Abnormal

Open or short

Solenoid valve coil <Bypass valve> (SV1)

Refer to next page.

Fan motor(MF1,MF2)

1370 ±100

Measure the resistance between the terminals with a tester. (Winding temperature 20



)

Normal Abnormal

Open or short

+1 TH8 is internal thermistor of power module.

1435 ±150

0.302 0.330

P100, P125,P140YHM

P100,P125,P140YHM

1/YHMA

P100, P125,P140YHM

(1) P100,P125,P140YHMA

9-7. HOW TO CHECK THE PARTS PUMY-P100YHM PUMY-P100YHM

1 PUMY-P100YHMA PUMY-P100YHMA-BS

PUMY-P125YHM PUMY-P125YHM

1 PUMY-P125YHMA PUMY-P125YHMA-BS

PUMY-P140YHM PUMY-P140YHM

1 PUMY-P140YHMA PUMY-P140YHMA-BS

Notes

· High voltage is applied to the connecter (CNF1, 2) for the fan motor. Give attention to the service.

· Do not pull out the connector (CNF1, 2) for the motor with the power supply on. (It causes trouble of the outdoor controller circuit

board and fan motor.)

Self check Symptom : The outdoor fan cannot turn around.





Check method of DC fan motor (fan motor / outdoor controller circuit board)

Power supply check(Remove the connector (CNF1, 2))

Measure the voltage in the outdoor controller circuit

board.

TEST POINT  : VDC (between 1 (+) and 4 (-) of the fan connector):

VDC DC310-340V

TEST POINT  : VCC (between 5 (+) and 4 (-) of the fan connector): VCC DC15V

Wiring contact check

Contact of fan motor connector (CNF1, 2)

Fuse check

Check the fuse (F500) on outdoor controller board.

Recover wiring.

Replace outdoor controller board.

Replace the fan motor.

Replace outdoor controller board (MULTI.B.) (C.B) and fan motor (MF1, 2).

Replace outdoor

controller board.

Replace the fan motor.

Is the voltage normal?

Is there no contact failure?

Yes

Did the fuse blow?

Yes

Check the operation of fan. END

Yes

Check the operation. END

9-8. HOW TO CHECK THE COMPONENTS

Low temperature thermistors

• Thermistor <Outdoor pipe> (TH3)

• Thermistor <Low pressure saturated temperature> (TH6)

• Thermistor <Outdoor> (TH7)

0: 15k' 10: 9.6k' 20: 6.3k' 25: 5.2k'

30: 4.3k' 40: 3.0k'

Thermistor R0 = 15k' ± 3% B constant = 3480 ± 2%

t =15exp{3480(

273+t – 273

)}

Thermistor R120 = 7.465k' ± 2% B constant = 4057 ± 2%

t =7.465exp{4057(

273+t – 393

)}

20: 250k' 30: 160k' 40: 104k' 50: 70k' 60: 48k'

70: 34k' 80: 24k' 90: 17.5k' 100: 13.0k' 110: 9.8k'

High temperature thermistor

• Thermistor <Discharge> (TH4)

-20 -10 0 10 20 30 40 50 Temperature ()

Resistance (k)

500

400

300

200

100

50 75 100 120

Temperature ()

Resistance (k)

0.5

2.5 5

2.5

4.5

Vout (V)

PRESSURE (MPa)

3 2 1

WHT BLU BLK

SENSOR

5V DC

GND

63HS

Vout

MICRO COMPUTER

MULTI CONTROLLER BOARD

- : 5V (DC) - : Output Vout (DC)

9-9. TEST POINT DIAGRAM Outdoor multi controller board PUMY-P100YHM PUMY-P100YHM

1 PUMY-P100YHMA PUMY-P100YHMA-BS

PUMY-P125YHM PUMY-P125YHM

1 PUMY-P125YHMA PUMY-P125YHMA-BS

PUMY-P140YHM PUMY-P140YHM

1 PUMY-P140YHMA PUMY-P140YHMA-BS

SW2

Pump down

21S4

Four-way valve

SV1

Bypass valve

CNAC

Power supply for multi controller board 220-240VAC

CNS1

Indoor/ outdoor unit connecting wire

CN52

Transmission wire of centralized control

CN40,CN41

Centralized control power supply/ For storing jumper connector selection

CN102

Connect to the M-P.B (Transmission power board)

CN51

External signal output

SW4

Model select

SW7

Forced defrost

SW3

Test run

CN2

Connect to the outdoor power circuit board 1-5: Power circuit board → Transmitting signal to the multi controller board (0-5V DC) 2-5: Zero cross signal (0-5V DC)

3-4: Not used 6-5: 16V DC 7-5: 16V DC

CNDC

DC310V–340V (1(+)–3(-))

VCC (TEST POINT2)

(Voltage between pins of C82A) : DC15V (Same as CNF1,2 5(+)–4(-))

VSP

(Voltage between pins of C515 and C516) : DC0V (when stopped) DC1–6.5V (when operated) (Same as CNF1,2 6(+)–4(-))

CNF1, 2

Connect to fan motors

1–4 : DC310V-340V 5–4 : DC15V 6–4 : DC0–6.5V 7–4 : DC15V (when stopped)

DC0–15V pulse (when operated)

VDC (TEST POINT1)

(Voltage between pins of C510) : DC310V-DC340V (Same as CNF1,2 1(+)–4(-))

VFG (TEST POINT4)

(Voltage between left pins of PC511 and PC512, pin1 and pin2) : (Same as CNF1,2 7(+)–4(-))

TH4 Thermistor

TH7/ 6 Thermistor

63HS

High pressure sensor

63H

High pressure switch

TH3 Thermistor

CN3D

Input of demand control

63L

Low pressure switch

SW1

Display selection (Self diagnosis)

SWU2, SWU1

Address setting

SW8

Demand/ Silent selection

52C

52C relay signal

CN3N

Autochange over (external signal input)

CN2 Connect to the outdoor controller circuit board (CN2) 1-5: Power circuit board

→ Transmitting

signal to the controller board (0-5V DC)

2-5: Zero cross signal (0-5V DC) 3-4: Not used 6-5: 16V DC 7-5: 16V DC

[ 5 : – 1, 2, 6, 7 : + ]

Outdoor power circuit board PUMY-P100YHM PUMY-P100YHM

PUMY-P125YHM PUMY-P125YHM1 PUMY-P140YHM PUMY-P140YHM1 PUMY-P100YHMA(-BS) PUMY-P125YHMA(-BS) PUMY-P140YHMA(-BS)

CN5

Detection of primary current (Connect to the outdoor noise filter circuit board (CNCT))

CN4

Connect to the outdoor controller circuit board (CN4)

N2N1P2

P1 L1

TAB connecter on X52A Connect to the RS resistor

POWER MODULE

TB-C1

Connect to the smoothing capacitor CB1

– , CB2 +

TB-P2

Connect to the smoothing capacitor CB1

TB-U, TB-V, TB-W

Connect to the compressor (MC) Voltage among phases: 10V-400V AC

TB-L1, TB-L2, TB-L3

Connect to the outdoor converter circuit board (L1-OU, L2-OU, L3-OU) 380V-415V AC

TB-N1

Connect to the smoothing capacitor CB2

– and the CK

capacitor

CN7

Connect to the outdoor converter circuit board (CN7)

Brief check of POWER MODULE W Usually, each point is in a state of being short-circuited if they are broken. Measure the resistance in the following points (connectors, etc.). If they are short-circuited, it means that they are broken.

1. Check of POWER MODULE

1.Check of DIODE circuit L1 - P1 , L2 - P1 , L3 - P1 , L1 - N1 , L2 - N1 , L3 - N1

2.Check of IGBT circuit

P2 - U , P2 - V , P2 - W , N2 - U , N2 - V , N2 - W Note:The marks, L1 , L2 , L3 , N1 , N2 , P1 , P2 , U , V and W shown in the diagram are not actually printed on the board.

Outdoor converter circuit board PUMY-P100YHM PUMY-P100YHM

1 PUMY-P100YHMA PUMY-P100YHMA-BS

PUMY-P125YHM PUMY-P125YHM

1 PUMY-P125YHMA PUMY-P125YHMA-BS

PUMY-P140YHM PUMY-P140YHM

1 PUMY-P140YHMA PUMY-P140YHMA-BS

L1-A2, L2-A2, L3-A2

Connect to the ACL1, ACL2, ACL3

CN7

Connect to the outdoor power circuit board (CN7)

CK-OU

Connect to the CK capacitor

L1-IN, N-IN

Connect to the noise filter circuit board (LO1, No)

L1-A1

Connect to the ACL1

L1-OU, L2-OU, L3-OU

Connect to the outdoor power circuit board (TB-L1, L2, L3)

Outdoor noise filter circuit board PUMY-P100YHM PUMY-P100YHM

PUMY-P125YHM PUMY-P125YHM1 PUMY-P140YHM PUMY-P140YHM1

LI1, LI2, LI3, NI POWER SUPPLY

LI1-LI2/LI2-LI3/LI3-LI1 : AC380/400/415V input LI1-NI/LI2-NI/LI3-NI : AC220/230/240V input (Connect to the terminal block (TB1))

GD1

Connect to the earth

CNAC2 AC220/230/240V

(Connect to the outdoor controller circuit board (CNAC))

CNDC

(Connect to the outdoor controller circuit board (CNDC))

LO1, LO2, LO3 POWER SUPPLY

LO1-LO2/LO2-LO3/LO3-LO1 : AC380/400/415V OUTPUT (Connect to the outdoor converter circuit board and ACL(L1-IN, ACL2, ACL3))

CNCT Primary current

(Connect to the outdoor power circuit board (CN5))

NO Connect to the outdoor converter circuit board.(N-IN)

CNL Connect to the ACL4

CNAC1 AC220/230/240V

(Connect to the outdoor transmission power board(CN1))

Outdoor noise filter circuit board PUMY-P100YHMA PUMY-P100YHMA-BS PUMY-P125YHMA PUMY-P125YHMA-BS PUMY-P140YHMA PUMY-P140YHMA-BS

LI1, LI2, LI3, NI POWER SUPPLY

LI1-LI2/LI2-LI3/LI3-LI1 : AC380/400/415V input LI1-NI/LI2-NI/LI3-NI : AC220/230/240V input (Connect to the terminal block (TB1))

GD1

Connect to the earth

CNAC2 AC220/230/240V

(Connect to the outdoor controller circuit board (CNAC))

CNDC

(Connect to the outdoor controller circuit board (CNDC))

LO1, LO2, LO3 POWER SUPPLY

LO1-LO2/LO2-LO3/LO3-LO1 : AC380/400/415V OUTPUT (Connect to the outdoor converter circuit board and ACL(L1-IN, ACL2, ACL3))

CNCT Primary current

(Connect to the outdoor power circuit board (CN5))

NO Connect to the outdoor converter circuit board.(N-IN)

CNL Connect to the ACL4

CNAC1 AC220/230/240V

(Connect to the outdoor transmission power board(CN1))

GD3

Connect to the earth

w The noise filter circuit board of PUMY-P·YHMA

has been changed from support type to lead wire type(GD3).

This circuit board can be applied to PUMY-P·YHM(1))

(Convertible).

Transmission power board PUMY-P100YHM PUMY-P125YHM PUMY-P140YHM PUMY-P100YHM1 PUMY-P125YHM1 PUMY-P140YHM1 PUMY-P100YHMA PUMY-P125YHMA PUMY-P140YHMA PUMY-P100YHMA-BS PUMY-P125YHMA-BS PUMY-P140YHMA-BS

CN2

Connect to the outdoor multi controller board

1-2: 24–30V DC 3-4: 24–30V DC

CN1

Connect to the outdoor noise filter circuit board 1–3 : 220–240V AC

9-10. OUTDOOR UNIT FUNCTIONS

SW:setting

0....OFF

1....ON

101112131415161718192021222324252627282930

SW1 setting

12345678

00000000

10000000

01000000

11000000

00100000

10100000

01100000

11100000

00010000

10010000

01010000

11010000

00110000

10110000

01110000

11110000

00001000

10001000

01001000

11001000

00101000

10101000

01101000

11101000

00011000

10011000

01011000

11011000

00111000

10111000

01111000

Relay output display

Check display

Indoor unit check status

Protection input

Abnormality delay display 1

Abnormality delay display 2

Abnormality delay display 3

Abnormality delay history 1

Abnormality delay history 2

Abnormality delay history 3

Abnormality code history 2

Abnormality code history 3

Abnormality code history 4

Abnormality code history 5

Abnormality code history 6

Abnormality code history 7

Abnormality code history 8

Abnormality code history 9

Cumulative time

Outdoor unit operation display

Indoor unit operation mode

Indoor unit operation display

Capacity code (No. 1 indoor unit)

Capacity code (No. 2 indoor unit)

Capacity code (No. 3 indoor unit)

Capacity code (No. 4 indoor unit)

Capacity code (No. 5 indoor unit)

Compressor operation

No.1 unit check

52C

No.2 unit

check

21S4

No.3 unit check

SV1

No.4 unit check

Over capacity

No.7 unit check

(SV2)

No.5 unit check

No.6 unit check

TH6 abnormality delay

Lighting always

No.8 unit check

TH8 abnormality

ON: light on OFF: light off

•When abnormality occurs, check display.

Check: light on Normal: light off

Display input microprocessor

protection (abnormality)

Display all abnormalities

remaining in abnormality

delay

Display all abnormalities

remaining in abnormality

delay history

•Display abnormalities up to

present (including abnormality

terminals)

•History record in 1 is the

latest; records become older

in sequence; history record

in 10 is the oldest.

Display of cumulative

compressor operating time

Thermo ON : light on Thermo OFF : light off

•Display of indoor unit

capacity code

•The No. 1 unit will start from

the address with the lowest

number

Notes

Alternating display of addresses

0000-9999 and abnormality code

(including abnormality delay code)

0~9999(unit::1-hour)

0~9999(unit::10-hour)

0~255

Excitation Current

No.1 unit mode

No.1 unit operation

Restart after 3 minutes

No.2 unit mode

No.2 unit operation

Compressor operation

No.3 unit mode

No.3 unit operation

Abnormality(detection)

No.4 unit mode

No.4 unit operation

No.5 unit mode

No.5 unit operation

No.6 unit mode

No.6 unit operation

No.7 unit mode

No.7 unit operation

No.8 unit mode

No.8 unit operation

0000~9999 (Alternating display of addresses and error code)

Display mode

Display on the LED1, 2 (display data)

No.

Delay code

1202

1205

1211

1214

1221

Delay code

1402

1600

1601

4320

4330

4350

Abnormality delay

Discharge temperature abnormality

Discharge temperature sensor (TH4) abnormality

Outdoor pipe temperature sensor (TH3) abnormality

Heatsink thermistor (TH8) abnormality

Outside air temperature sensor (TH7) abnormality

Abnormality delay

High-pressure abnormality

Pressure sensor (63HS) abnormality

Over charge refrigerant abnormality

Insufficient refrigerant abnormality

Heatsink temperature abnormality

Power module abnormality

Abnormality in the

number of indoor units

High-pressure

abnormality delay

High-pressure

abnormality delay

High-pressure

abnormality

Address double

setting abnormality

TH4

abnormality

delay

TH4

abnormality delay

Current sensor

abnormality

TH3 abnormality

delay

Saturation temperature of suction pressure

sensor (TH6) abnormality

Frequency converter insufficient

wiring voltage abnormality

Cooling : light on Heating: light flashing

Stop fan: light off

Abnormality code history 10

(the oldest)

Abnormality code history 1

(the latest)

Indoor unit

address error

Outdoor unit

address error

Current sensor

abnormality delay

Current sensor

abnormality delay

Heatsink

overheating

Over current interception

TH4 abnormality

TH3 abnormality

Outdoor fan rotantial

frequency abnormality

TH7 abnormality

Heatsink

overheating delay

Heatsink

overheating delay

SHd(low discharge temperature)

abnormality

SHd(low discharge temperature)

abnormality delay

Over current interception

delay

Over current

interception delay

Discharge temperature

abnormality

Indoor unit

capacity error

Discharge temperature

abnormality delay

Voltage abnormality

delay

Discharge temperature

abnormality delay

Voltage abnormality

delay

Insufficient refrigerant

amount abnormality

Insufficient refrigerant

amount abnormality delay

Frozen protection delay

Insufficient refrigerant

amount abnormality delay

Frozen protection delay

TH3 abnormality

delay

Power module

abnormality delay

Power module

abnormally delay

Low-pressure

abnormality

Outdoor fan rotantial fre-

quency abnormality delay

Low-pressure

abnormality delay

TH6 abnormality

delay

Outdoor fan rotantial

frequency abnormality delay

Low-pressure

abnormality delay

63HS abnormality

Current sensor

open/short

TH7 abnormality

delay

63HS abnormality

delay

Current sensor

open/short delay

TH7 abnormality

delay

63HS abnormality

delay

Current sensor

open/short delay

start over current

interception abnormality

serial communication

abnormality

start over current inter-

ception abnormality delay

communication(POWER

BOARD)abnormality delay

start over current inter-

ception abnormality delay

communication(POWER

BOARD)abnormality delay

start over current inter-

ception abnormality delay

SHd(low discharge temperature)

abnormality delay

Voltage abnormality

start over current inter-

ception abnormality delay

3132333435

38394041424344

SW1 setting

12345678

11111000

00000100

10000100

01000100

11000100

00100100

10100100

01100100

11100100

00010100

10010100

01010100

11010100

00110100

10110100

01110100

11110100

00001100

IC1 operation mode

IC2 operation mode

IC3 operation mode

IC4 operation mode

IC5 operation mode

OC operation mode

External connection status

Communication demand capacity

Number of compressor ON/OFF

Compressor operating current

Input current of outdoor unit

Thermo ON operating time

Total capacity of thermo on

Number of indoor units

DC bus voltage

State of LEV control

State of compressor

frequency control 1

State of compressor

frequency control 2

•Display of indoor unit

operating mode

Light on/light off

Input: light off No input: light on

Display of communication demand capacity

Notes

0~255

0000~9999 (unit : o10)

0~999.9 (A)

0000~9999 (unit : o10)

0~255

0~255 (Max. 8 unit)

0~999.9 (V)

OFF

Td over heat

prevention

Discharge

pressure

control

Heatsink

over heat pre-

vention control

SHd declease

prevention

Discharge

temperature

control

Secondary

current control

Min.Sj

correction

depends on Td

LEV opening

correction

depends on Pd

Discharge

temp.(heating)

Backup

LEV opening

correction

depends on Td

Correction of

high compression

ratio prevention

Freeze

prevention

control

Fan

Cooling

thermo

Cooling

thermo

OFF

Heating

thermo

Heating

thermo

OFF

ON/OFF

Heating/Cooling

Abnormal/Normal

DEFROST/NO

Refrigerant pull back/no

Excitation current/no

P96:Autochange

over fixed mode

CN3N1-2 input

P95:Undefined

CN3S1-2 input

P94:Demand

CN3D1-3 input

P93:Silent

CN3D1-2 input

3-min.delay/no

P97:Autochange

over permission

CN3N1-3 input

Display mode

Display on the LED1, 2 (display data)

No.

10001100

01001100

11001100

Protection input

State of compressor frequency(Hz) control (Words)

Content

Discharge pressure control Hz control by pressure limitation

Discharge temperature control

Hz control by discharge temperature limitation

Max.Hz control

Max.Hz limitation when power supply on

Hz control by bypass valve

Abnormal rise of Pd control Control that restrains abnormal rise of discharge pressure

Heatsink over heat prevention control Heatsink over heat prevention control

Secondary current control

Input current control Input current control

Hz correction of receipt voltage decrease prevention

Max.Hz correction control due to voltage decrease

Hz restrain of receipt voltage change Max.Hz correction control due to receipt voltage change

The second current value when

micro computer of POWER

BOARD abnormality is detected

The radiator panel temperature

when microcomputer of POWER

BOARD abnormality is detected

0~999.9[Arms]

-99.9~999.9(Short/Open:-99.9 or 999.9)

Frozen protection

TH6 abnormality

Power module

abnormality

Discharge

pressure(heating)

Backup

SV control

Max. Hz

control

Input current

control

Frequency restrain

of receipt voltage

change

Max. Hz

control

697071727374757677788081828384858687888990919293949596

SW1 setting

12345678

00000010

10000010

01000010

10100010

01100010

11100010

00010010

10010010

01010010

11010010

00110010

10110010

01110010

00001010

10001010

01001010

11001010

00101010

10101010

01101010

11101010

00011010

10011010

01011010

11011010

00111010

10111010

01111010

11111010

00000110

Operational frequency

Target frequency

Outdoor fan control step number

IC1 LEV Opening pulse

IC2 LEV Opening pulse

IC3 LEV Opening pulse

IC4 LEV Opening pulse

IC5 LEV Opening pulse

High-pressure sensor (Pd) kgf/cm

TH4(Td) °C

TH6(ET) °C

TH7(Outdoor-temp.) °C

TH3(Outdoor pipe) °C

TH8(Power module) °C

IC1 TH23(Gas) °C

IC2 TH23(Gas) °C

IC3 TH23(Gas) °C

IC4 TH23(Gas) °C

IC5 TH23(Gas) °C

IC1 TH22(Liquid) °C

IC2 TH22(Liquid) °C

IC3 TH22(Liquid) °C

IC4 TH22 (Liquid) °C

IC5 TH22 (Liquid) °C

IC1 TH21(Intake) °C

IC2 TH21 (Intake) °C

IC3 TH21 (Intake) °C

IC4 TH21 (Intake) °C

IC5 TH21 (Intake) °C

Outdoor SC (cooling) °C

Display of actual operating frequency

Display of target frequency

Display of number of outdoor

fan control steps (target)

Display of opening pulse of

indoor LEV

Display of outdoor subcool

(SC) data and detection data

from high-pressure sensor and

each thermistor

Notes

0~FF(16 progressive)

0~255

0~15

0~2000

Display mode

Display on the LED1, 2 (display data)

-99.9 ~ 999.9

(When the indoor unit is not connected,it is displayed as"0".)

No.

Display of target

subcool

step data

Display of indoor SC/SH data

Display of discharge superheat data

Display of all control target data

Display of detection data from

high-pressure sensor and each

thermistor

Display of actual frequency at time of abnormality delay

Display of fan step number at time of abnormality delay

Display of opening pulse of indoor LEV

at time of abnormality delay

Display on the LED1, 2 (display data)

-99.9 ~ 999.9

during heating: subcool (SC)/during cooling: superheat (SH)

-2~4

-99.9~999.9

Pdm(0.0~30.0)

ETm(-2.0~23.0)

SCm(0.0~20.0)

SCm/SHm(0.0~20.0)

-99.9~999.9 [°F]

0.0~711.0 [PSIG]

-99.9~999.9 [°F]

0~FF(16 progressive)

0~15

0~2000

100

101

102

103

105

106

107

108

109

110

111

112

121

122

123

124

125

126

128

129

131

132

133

134

135

Target subcool step

IC1 SC/SH °C

IC2 SC/SH °C

IC3 SC/SH °C

IC4 SC/SH °C

IC5 SC/SH °C

Discharge superheat (SHd) °C

Target Pd display (heating) kgf/%

Target ET display (cooling) °C

Target outdoor SC (cooling) °C

Target indoor SC/SH (IC1) °C

Target indoor SC/SH (IC2) °C

Target indoor SC/SH (IC3) °C

Target indoor SC/SH (IC4) °C

Target indoor SC/SH (IC5) °C

TH4 (Td) °F

TH3 (Outdoor pipe) °F

TH6 (ET) °F

TH7 (Outdoor temp.) °F

High pressure sensor (Pd) PSIG

TH8 (Power module) °F

Actual frequency of abnormality delay

Fan step number at time of abnormality delay

IC1 LEV opening pulse abnormality delay

IC2 LEV opening pulse abnormality delay

IC3 LEV opening pulse abnormality delay

IC4 LEV opening pulse abnormality delay

IC5 LEV opening pulse abnormality delay

678

Display mode

No.

Notes

SW1 setting

12345678

10000110

01000110

11000110

00100110

10100110

01100110

11100110

10010110

01010110

11010110

00110110

10110110

01110110

11110110

00001110

10011110

01011110

11011110

00111110

10111110

01111110

00000001

10000001

11000001

00100001

10100001

01100001

11100001

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

SW1 setting

12345678

00010001

10010001

01010001

11010001

00110001

10110001

01110001

11110001

00001001

10001001

01001001

11001001

00101001

10101001

01101001

11101001

00011001

10011001

01011001

11011001

00111001

10111001

01111001

11111001

00000101

10000101

01000101

High-pressure sensor data at time of abnormality delay

kgf

TH4 sensor data at time of abnormality delay °C

TH6 sensor data at time of abnormality delay °C

TH3 sensor data at time of abnormality delay °C

TH8 sensor data at time of abnormality delay °C

OC SC (cooling) at time of abnormality delay °C

IC1 SC/SH at time of abnormality delay °C

IC2 SC/SH at time of abnormality delay °C

IC3 SC/SH at time of abnormality delay °C

IC4 SC/SH at time of abnormality delay °C

IC5 SC/SH at time of abnormality delay °C

IC1 TH21 Intake °F

IC2 TH21 Intake °F

IC3 TH21 Intake °F

IC4 TH21 Intake °F

IC5 TH21 Intake °F

IC6 TH21 Intake °F

IC7 TH21 Intake °F

IC8 TH21 Intake °F

IC1 TH23 Gas °F

IC2 TH23 Gas °F

IC3 TH23 Gas °F

IC4 TH23 Gas °F

IC5 TH23 Gas °F

IC6 TH23 Gas °F

IC7 TH23 Gas °F

IC8 TH23 Gas °F

2345 6

Display on the LED1, 2 (display data)

Display of data from high-pressure sensor,

all thermistors, and SC/SH at time of

abnormality delay

Display of detection data from each

indoor thermistor

-99.9 ~ 999.9

-99.9 ~ 999.9 [°F]

(When the indoor unit is not connected,it is displayed as"32".)

No.

Display mode Notes

170

171

172

173

174

175

176

177

178

179

180

189

192

193

195

196

197

198

199

200

201

202

203

204

206

207

208

209

210

SW1 setting

12345678

01010101

11010101

00110101

10110101

01110101

11110101

00001101

10001101

01001101

11001101

00101101

10111101

00000011

10000011

11000011

00100011

10100011

01100011

11100011

00010011

10010011

01010011

11010011

00110011

01110011

11110011

00001011

10001011

01001011

ROM version monitor

ROM type

Check Sum code

IC1 TH22 Liquid °F

IC2 TH22 Liquid °F

IC3 TH22 Liquid °F

IC4 TH22 Liquid °F

IC5 TH22 Liquid °F

IC6 TH22 Liquid °F

IC7 TH22 Liquid °F

IC8 TH22 Liquid °F

4220 Error history

Actual frequency at time of abnormality

Fan step number at time of abnormality

IC1 LEV opening pulse at time of abnormality

IC2 LEV opening pulse at time of abnormality

IC3 LEV opening pulse at time of abnormality

IC4 LEV opening pulse at time of abnormality

IC5 LEV opening pulse at time of abnormality

High-pressure sensor data at abnormality kgf/%

TH4 sensor data at time of abnormality °C

TH6 sensor data at time of abnormality °C

TH3 sensor data at time of abnormality °C

TH8 sensor data at time of abnormality °C

IC1 SC/SH at time of abnormality °C

IC2 SC/SH at time of abnormality °C

IC3 SC/SH at time of abnormality °C

IC4 SC/SH at time of abnormality °C

IC5 SC/SH at time of abnormality °C

23456

Display on the LED1, 2 (display data)

Display of version data of ROM

Display of ROM type

Display of check sum code of ROM

Display of detection data from each

indoor liquid pipe thermistor

Display of actual frequency at time of abnormality

Display of fan step number at time of abnormality

Display of opening pulse of indoor LEV

at time of abnormality

Display of data from high-pressure sensor

and all thermistors at time of abnormality

Display of data from SC/SH and all

thermistors at time of abnormality

-99.9 ~ 999.9 [°F]

(When the indoor unit is not connected,it is displayed as"32".)

0~FF(16progressive)

0~20

0~2000

-99.9 ~ 999.9

No.

Display mode Notes

CT sensor

disconn-

ection

Under

voltage

Over

Voltage

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

SW1 setting

12345678

11001011

00101011

10101011

01101011

11101011

00011011

10011011

01011011

11011011

00111011

10111011

01111011

11111011

00000111

10000111

01000111

11000111

00100111

10100111

01100111

11100111

00010111

10010111

01010111

11010111

00110111

10110111

01110111

11110111

00001111

10001111

01001111

11001111

00101111

10101111

01101111

IC6 Capacity code

IC7 Capacity code

IC8 Capacity code

IC6 operation mode

IC7 operation mode

IC8 operation mode

IC6 LEV opening pulse

IC7 LEV opening pulse

IC8 LEV opening pulse

IC6 TH23(Gas) °C

IC7 TH23(Gas) °C

IC8 TH23(Gas) °C

IC6 TH22(Liquid) °C

IC7 TH22(Liquid) °C

IC8 TH22(Liquid) °C

IC6 TH21(Intake) °C

IC7 TH21(Intake) °C

IC8 TH21(Intake) °C

IC6 SC/SH °C

IC7 SC/SH °C

IC8 SC/SH °C

IC6 target SC/SH °C

IC7 target SC/SH °C

IC8 target SC/SH °C

IC6 LEV opening pulse at abnormality delay

IC7 LEV opening pulse at abnormality delay

IC8 LEV opening pulse at abnormality delay

IC6 SC/SH at abnormality delay °C

IC7 SC/SH at abnormality delay °C

IC8 SC/SH at abnormality delay °C

IC6 LEV opening pulse at time of abnormality

IC7 LEV opening pulse at time of abnormality

IC8 LEV opening pulse at time of abnormality

IC6 SC/SH at abnormality °C

IC7 SC/SH at abnormality °C

IC8 SC/SH at abnormality °C

2345 6

Display on the LED1, 2 (display data)

Display of indoor unit capacity mode

Display of indoor unit operating mode

Display of opening pulse of indoor LEV

Display of data from high-pressure sensor,

all thermistors, and outdoor SC

Display of indoor SC/SH data

Display of all control target data

Display of opening pulse of indoor LEV

at time of abnormality

Display of SC/ SH data at time of

abnormality

Display of opening pulse of indoor LEV

at time of abnormality

Display of SC/ SH data at time of

abnormality

0~255

OFF Fan

Cooling

thermo

Cooling

thermo

OFF

Heating

thermo

Heating

thermo

OFF

No.

Display mode Notes

0~2000

-99.9 ~ 999.9

(When the indoor unit is not connected,it is displayed as"0".)

-99.9 ~ 999.9

SCm/SHm (0.0~14.0)

-99.9 ~ 999.9

during heating:subcool (SC)/during cooling:superheat (SH)

ELECTRICAL WIRING

10-1. OVERVIEW OF POWER WIRING

10-2. WIRE DIAMETER AND MAIN POWER SWITCH CAPACITY

10-2-1. Wiring diagram for main power supply

10-2-2. Power supply wire diameter and capacity

This chapter provides an introduction to electrical wiring for the CITY MULTI-S series, together with notes concerning power wiring, wiring for control (transmission wires and remote controller wires), and the frequency converter.

Outdoor unit

Indoor unit

Grounded

Pull box

Breaker for Wiring

and Current Leakage Power supply (3phase 380-400-415V, 50Hz)

Breaker for Wiring and Current Leakage

Power supply single phase 50Hz 220-230-240V

(1) Use a separate power supply for the outdoor unit and indoor unit. (2) Bear in mind ambient conditions (ambient temperature, direct sunlight, rain water,etc.) when proceeding with the wiring and connections. (3) The wire size is the minimum value for metal conduit wiring. The power cord size should be 1 rank thicker consideration of voltage drops.

Make sure the power-supply voltage does not drop more than 10 %.

(4) Specific wiring requirements should adhere to the wiring regulations of the region. (5) Power supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed flexible cord (design 60245 IEC57).

For example, use wiring such as YZW.

(6) Install an earth longer than other cables.

Warning:

· Be sure to use specified wires to connect so that no external force is imparted to terminal connections. If connections are not fixed firmly,

it may cause heating or fire.

· Be sure to use the appropriate type of overcurrent protection switch. Note that generated overcurrent may include some amount of direct

current. Caution:

· Some installation site may require attachment of an earth leakage breaker. If no earth leakage breaker is installed, it may cause an electric

shock.

· Do not use anything other than breaker and fuse with correct capacity. Using fuse and wire or copper wire with too large capacity may cause a

malfunction of unit or fire.

16 A 30 mA 0.1 sec. or less 15 A 30 mA 0.1 sec. or less

16 A 15 A

1.5

Indoor Unit

Main Cable

Minimum Wire Thickness (mm )

Branch

Breaker for Current

Leakage

Model Outdoor Unit

P100-140 –

1.5

Breaker for

Wiring*1

Ground

3N~ AC380/400/415V , 50Hz

~/NAC220/230/240V, 50Hz

Power Supply

*1. A breaker with at least 3.5mm contact separation in each pole shall be provided. Use earth leakage breaker (NV).

10-3. DESIGN FOR CONTROL WIRING

Please note that the types and numbers of control wires needed by the CITY MULTI-S series will depend on the remote controllers and whether they are linked with the system.

10-3-1. Selection number of control wires

10-3-3. M-NET Remote controller wiring

10-3-2. Control signal wires

Use

Remote controller → indoor unit Wires connecting → indoor units Wires connecting → indoor units with outdoor unit Wires connecting → outdoor units

2 wires (non-polar)

M-NET remote controller

Remote controller used in system control operations.

• Group operation involving different refrigerant systems.

• Linked operation with upper control system.

Transmission

wires

Transmission wires

• Types of transmission cables : Shielding wire CVVS or CPEVS.

• Cable diameter : More than 1.25E

• Maximum wiring length : Within 200 m

Kind of remote control cable

Cable diameter

Remarks

Shielding wire MVVS

0.5 to 1.25E When 10m is exceeded, use cable with the same specifications as 10-3-2. Control signal wires.

10-4. SYSTEM SWITCH SETTING

In order to identify the destinations of signals to the outdoor units, indoor units, and remote controller of the MULTI-S series, each microprocessor must be assigned an identification number (address). The addresses of outdoor units, indoor units, and remote controller must be set using their settings switches. Please consult the installation manual that comes with each unit for detailed information on setting procedures.

10-5. EXAMPLE EXTERNAL WIRING DIAGRAM FOR A BASIC SYSTEM

10-5-1. Example using a M-NET remote controller

Outdoor unit

Power supply 3 phase 4 wire. 50Hz 380-400-415V

Power supply Single phase. 50Hz 220-230-240V

Grounded

Group operation

Remote controller wire

Pull box

Indoor unit

Breaker for Wiring and Current Leakage

15A Breaker for Wiring and Current Leakage

:1.6mm × 2

0.5~1.25mm

× 2

1.25mm

× 2

10-3-4. MA Remote control cables

Kind of remote control cable Cable diameter

2-core cable (unshielded)

0.3 to 1.25 A

(3) Method of obtaining system power factor

Use the following formula and the total power and current obtained in parts 1 and 2 on the above tables to calculate the system power factor.

System power factor =

(Total system power consumption)

(Total system current x voltage)

o 100%

10-6-2. Applying to an electric power company for power and total current

Calculations should be performed separately for heating and cooling employing the same methods; use the largest resulting value in your application to the electric power company.

10-6. METHOD FOR OBTAINING ELECTRICAL CHARACTERISTICS WHEN A CAPACITY AGREEMENT IS TO BE SIGNED WITH AN ELECTRIC POWER COMPANY

The electrical characteristics of connected indoor unit system for air conditioning systems, including the MULTI-S series, will depend on the arrangement of the indoor and outdoor units. First read the data on the selected indoor and outdoor units and then use the following formulas to calculate the electrical characteristics before applying for a capacity agreement with the local electric power company.

10-6-1. Obtaining the electrical characteristics of a CITY MULTI-S series system

(1)Procedure for obtaining total power consumption

*1 Please note that the power consumption of the outdoor unit will vary depending on the total capacity of the selected

indoor units.

Total power consumption of each indoor unit

*1 Power consumption of outdoor unit

Total power consumption of system

See the technical manual of each indoor unit

Standard capacity table— Refer to 5-2.

See the technical manual of each indoor unit

1+2 <kW>

Page numbers in this technical manual

Power consumption

(2)Method of obtaining total current

*2 Please note that the current through the outdoor unit will vary depending on the total capacity of the selected indoor units.

Total current through each indoor unit

*2 Current through outdoor unit

Total current through system

See the technical manual of each indoor unit

Standard capacity table— Refer to 5-2.

See the technical manual of each indoor unit

1+2 <A>

Page numbers in this technical manual

Subtotal

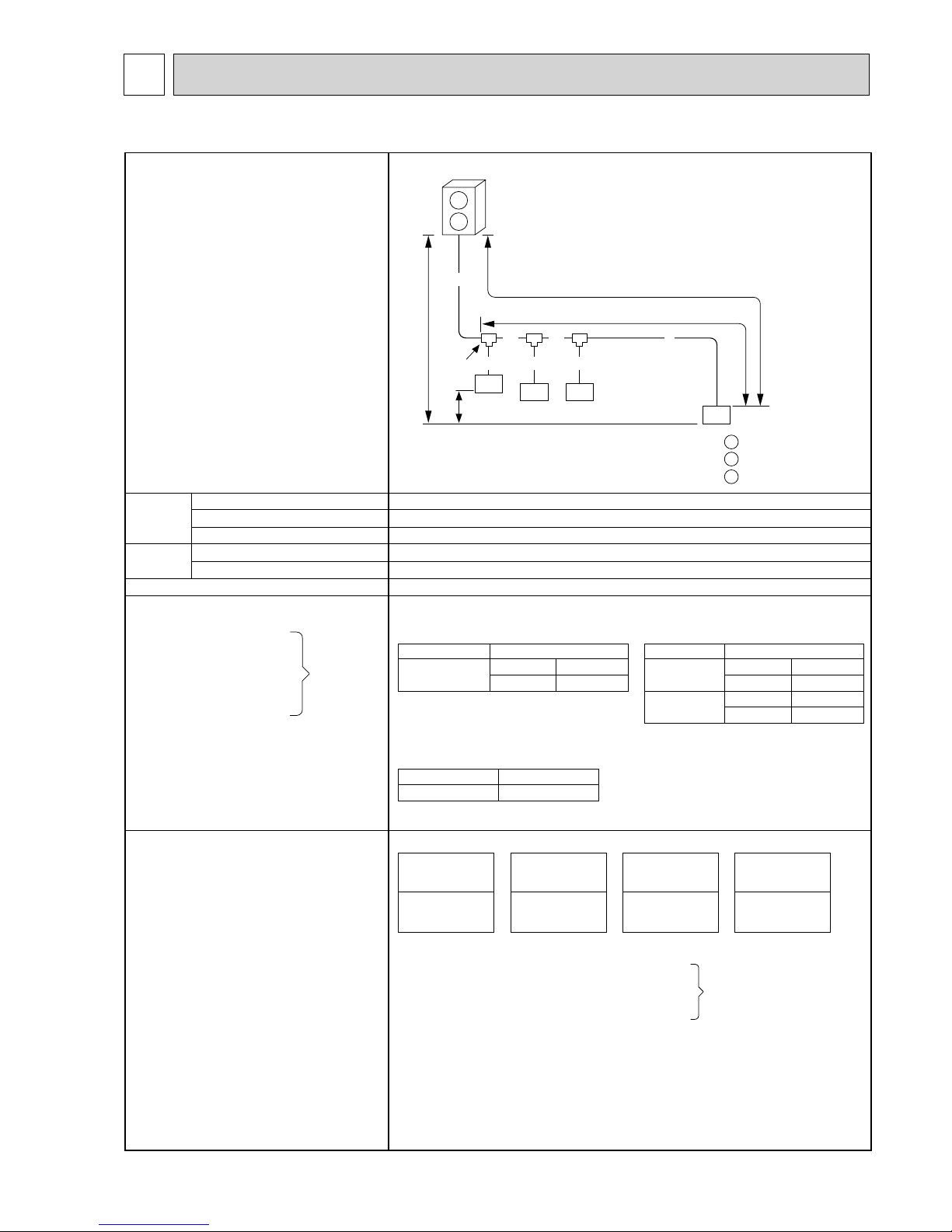

11 REFRIGERANT PIPING TASKS

Line-Branch Method

Connection Examples (Connecting to 4 Indoor Units)

Liquid Line

Gas Line

Piping Diameter (mm)Model

PUMY-P100~140

Liquid Line (mm) Gas Line (mm)

W15.88W9.52

Liquid Line

Gas Line

Liquid Line

Gas Line

Piping Diameter (mm)

Model number

50 or lower

63 to 140

W6.35 W12.7 W9.52 W15.88

Outdoor Unit First Branch Indoor unit

A B C

A+B+C+a+b+c+d  120m A+B+C+d  80m B+C+d  30m 30 meters or less (If the outdoor unit is lower, 20 meters or less) 12 meters or less Use an optional branch piping kit (CMY-Y62-G-E).

Total Piping Length Farthest Piping Length Farthest Piping Length After First Branch High/Low Difference in Indoor/Outdoor Section High/Low Difference in Indoor/Indoor Section

Permissible

Length

Permissible High/

Low Difference

(L)

(1)

(H)

(h)

■ Selecting the Refrigerant Branch Kit

■ Select Each Section of Refrigerant Piping

■ Additional refrigerant charge

Select the size from the table to the right.

(1) Refrigerant Piping Diameter In Section From Outdoor Unit to First Branch (Outdoor Unit Piping Diameter)

(1) Section From Outdoor Unit to First Branch (A) (2) Sections From Branch to Indoor Unit (a,b,c,d) (3) Section From Branch to Branch (B,C)

(3) Refrigerant Piping Diameter In Section From Branch to Branch

(2) Refrigerant Piping Diameter In Section From Branch to Indoor Unit (Indoor Unit Piping Diameter)

Each Section of Piping

• Refrigerant of 3kg equivalent to 50m total extended piping length is already included when the outdoor unit is shipped. Thus, if the total extended piping length is 50m or less, there is no need to charge with additional refrigerant.

• If the total extended piping length exceeds 50m, calculate the required additional refrigerant charge using the procedure shown on the right.

• If the calculated additional refrigerant charge is a negative amount, do not charge with any refrigerant.

<Example> Outdoor model : 125 Indoor 1 : 63 A : W9.52 10m a : W9.52 15m

2 : 40 B : W9.52 10m b : W6.35 10m 3 : 25 C : W9.52 10m c : W6.35 10m 4 : 20 d : W6.35 20m The total length of each liquid line is as follows;

W9.52 : A + B + C + a = 10 + 10 + 10 + 15 = 45m W6.35 : b + c + d = 10 +10 + 20 = 40m

<Calculation example> Additional refrigerant charge = 45

× 0.06 + 40 × 0.024 – 3.0 = 0.7kg (rounded up)

Additional refrigerant charge

(kg)

Liquid pipe size Total length of W9.52 × 0.06

(m) × 0.06 (kg/m)

Liquid pipe size Total length of W6.35 × 0.024

(m) × 0.024 (kg/m)

Refrigerant amount for outdoor unit

3.0kg

–

At the conditions below:

W9.52 W15.88





B C

b c





11-1. REFRIGERANT PIPING SYSTEM

Header-Branch Method

Connection Examples (Connecting to 4 Indoor Units)

Liquid Line

Gas Line

Piping Diameter (mm)Model

W9.52 W15.88

Liquid Line

Gas Line

Liquid Line

Gas Line

Piping Diameter (mm)Model number

50 or lower

63 to 140

W6.35 W12.7 W9.52 W15.88

Outdoor Unit First Branch Indoor unit

A B C

A+a+b+c+d  120m A+d  80m d is 30 meters or less 30 meters or less (If the outdoor unit is lower, 20 meters or less) 12 meters or less Please select branching kit, which is sold separately, from the table below.

(The kit comprises sets for use with liquid pipes and for use with gas pipes.)

Total Piping Length Farthest Piping Length Farthest Piping Length After First Branch High/Low Difference in Indoor/Outdoor Section High/Low Difference in Indoor/Indoor Section

Permissible

Length

Permissible High/

Low Difference

(L)

(1)

(H)

(h)

■ Select Each Section of Refrigerant Piping

■ Selecting the Refrigerant Branch Kit

■ Additional refrigerant charge

Select the size from the table to the right.

(1) Refrigerant Piping Diameter In Section From Outdoor Unit to First Branch (Out door Unit Piping Diameter)

(1) Section From Outdoor Unit to First Branch (A) (2) Sections From Branch to Indoor Unit (a,b,c,d)

(2) Refrigerant Piping Diameter In Section From Branch to Indoor Unit (Indoor Unit Piping Diameter)

Each Section of Piping

• If the total extended piping length exceeds 50m, calculate the required additional refrigerant charge using the procedure shown on the right.

• If the calculated additional refrigerant charge is a negative amount, do not charge with any refrigerant.

<Example> Outdoor : 125 Indoor 1 : 63 A : W9.52 30m a : W9.52 15m

2 : 40 b : W6.35 10m 3 : 25 c : W6.35 10m 4 : 20 d : W6.35 20m The total length of each liquid line is as follows;

W9.52 : A + a = 30 + 15 = 45m W6.35 : b + c + d = 10 + 10 + 20 = 40m

<Calculation example> Additional refrigerant charge = 45

× 0.06 + 40 × 0.024 – 3.0 = 0.7kg (rounded up)

Additional refrigerant charge

(kg)

Liquid pipe size Total length of W9.52 × 0.06

(m) × 0.06 (kg/m)

Liquid pipe size Total length of W6.35 × 0.024

(m) × 0.024 (kg/m)

Refrigerant amount for outdoor unit

3.0kg

–

At the conditions below:

Branch header (4 branches)

CMY-Y64-G-E

Branch header (8 branches)

CMY-Y68-G-E

PUMY-P100-140









Method of Combined Branching of Lines and Headers

Connection Examples (Connecting to 5 Indoor Units)

Outdoor unit First branching (branching

joint) Branching joint Indoor unit Branching header To downstream unit Blind caps

A B

C D E F G

A+B+C+a+b+c+d+e is 120 meters or less A+B+b is 80 meters or less B+b is 30 meters or less 30 meters or less (If the outdoor unit is lower, 20 meters or less) 12 meters or less Please select branching kit, which is sold separately, from the table below.

(The kit comprises sets for use with liquid pipes and for use with gas pipes.)

Total Piping Length Farthest Piping Length Farthest Piping Length After First Branch High/Low Difference in Indoor/Outdoor Section High/Low Difference in Indoor/Indoor Section

Permissible

Length

Permissible High/

Low Difference

(L)

(1)

(H)

(h)

■ Selecting the Refrigerant Branch Kit

■ Select Each Section of Refrigerant Piping

■ Additional refrigerant charge

Select the size from the table to the right.

(1) Refrigerant Piping Diameter In Section From Outdoor Unit to First Branch (Out door Unit Piping Diameter)

(1) Section From Outdoor Unit to First Branch (A) (2) Sections From Branch to Indoor Unit (a,b,c,d,e) (3) Section From Branch to Branch (B,C)

(3) Refrigerant Piping Diameter In Section From Branch to Branch

(2) Refrigerant Piping Diameter In Section From Branch to Indoor Unit (Indoor Unit Piping Diameter)

Each Section of Piping

• If the total extended piping length exceeds 50m, calculate the required additional refrigerant charge using the procedure shown on the right.

• If the calculated additional refrigerant charge is a negative amount, do not charge with any refrigerant.

<Example> Indoor 1 : 50 A : W9.52 10m a : W9.52 5m

2 : 40 B : W9.52 20m b : W6.35 10m 3 : 32 C : W9.52 10m c : W6.35 5m 4 : 20 d : W6.35 5m 5 : 20 e : W6.35 5m The total length of each liquid line is as follows;

W9.52 : A + B + C + a = 10 + 20 +10 + 5 = 45m W6.35 : b + c + d + e = 10 + 5 + 5 + 5 = 25m

<Calculation example> Additional refrigerant charge = 45

× 0.06 + 25 × 0.024 – 3.0 = 0.3kg (rounded up)

Additional refrigerant charge

(kg)

Liquid pipe size Total length of W9.52 × 0.06

(m) × 0.06 (kg/m)

Liquid pipe size Total length of W6.35 × 0.024

(m) × 0.024 (kg/m)

Refrigerant amount for outdoor unit

125: 3.0kg

–

At the conditions below:

Branch Joint

CMY-Y62-G-E

Branch Header (4 branches)

CMY-Y64-G-E

Branch Header (8 branches)

CMY-Y68-G-E

D D D

d e

Note: Pipe re-branching after the header branching is not possible.

Note: The total of downstream unit models in the table is the total of models as seen from point A in the figure above.

Liquid Line

Gas Line

Piping Diameter (mm)Model

PUMY-P100~140

Liquid Line (mm) Gas Line (mm)

W15.88W9.52

Liquid Line

Gas Line

Liquid Line

Gas Line

Piping Diameter (mm)

Model number

50 or lower

63 to 140

W6.35 W12.7 W9.52 W15.88

W9.52 W15.88

11-2. PRECAUTIONS AGAINST REFRIGERANT LEAKAGE

Indoor unit

The smallest room

The second smallest room

Outdoor unit

Ventilation apparatus

Branch box

Indoor unit

Branch box

Opening

Wall

Outdoor unit

(Situation in which there are no door openings or in which there are openings above and below doors that occupy at least 0.15% of the floor area)

Indoor unit

Branch box

Outdoor unit

11-2-1. Introduction

R410A refrigerant of this air conditioner is non-toxic and non-flammable but leaking of large amount from an indoor unit into the room where the unit is installed may be deleterious. To prevent possible injury, the rooms should be large enough to keep the R410A concentration specified by KHK: (a high pressure gas safety association) installation guidelines S0010 as follows.

Note: When single refrigeration system consists of several independent refrigeration circuit, figure out the total refrigerant amount by each independent refrigerant circuit.

Follow (1) to (3) to confirm the R410A concentration and take appropriate treatment, if necessary.

(1) Calculate total refrigerant amount by each refrig-

erant system.

Total refrigerant amount is precharged refrigerant

at ex-factory plus additional charged amount at field installation.

(2) Calculate room volumes (m

) and find the room

with the smallest volume

The part with represents the room with the smallest volume.

(a) Situation in which there are no partitions

(3) Use the results of calculations (1) and (2) to cal-

culate the refrigerant concentration:

If the calculation results do not exceed the maximum concen tration, perform the same calculations for the larger second and third room, etc., until it has been determined that nowhere the maximum concentration will be exceed.

Indoor unit

All refrigerant of this system will leak out to this room if there is leakage at this indoor unit.

Direction of refrigerant flow

Outdoor unit

Branch box

Maximum concentration Maximum refrigerant concentration of R410A of a room is 0.3 kg/K accordance with the installation guidelines. To facilitate calculation, the maximum concentration is expressed in units of O/K ( kg of R410A per K)

(KHK installation guidelines S0010)

Maximum concentration of R410A: 0.3O/K

11-2-2. Confirming procedure of R410A concentration

(b) There are partitions, but there are openings that allow

the effective mixing of air.

ratus that is linked to a household gas detection and alarm device, the calculations should be performed for the second smallest room.

Total refrigerant in the refrigerating unit (O) [ Maximum concentration(O/K) The smallest room in which an indoor unit has been installed (K) Maximum concentration of R410A:0.3O/K

12 DISASSEMBLY PROCEDURE

OPERATING PROCEDURE

PHOTOS & ILLUSTRATION

1. Removing the service panel and top panel (1) Remove 3 service panel fixing screws (5 × 10) and slide the hook on the right downward to remove the service panel. (2) Remove screws (3 for front, 3 for rear/5 × 10) of the top panel and remove it.

2. Removing the fan motor (MF1, MF2)

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Remove 5 fan grille fixing screws (5 × 10) to detach the fan grille. (See figure 1.) (4) Remove a nut (for right handed screw of M6) to detach the propeller. (See photo 1.) (5) Disconnect the connectors, CNF1 and CNF2 on Multi controller board in electrical parts box. (6) Remove 4 fan motor fixing screws (5 × 25) to detach the fan motor. (See photo 2.)

Photo 3

3. Removing the electrical parts box (1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Disconnect the connecting wire from terminal block. (4) Remove all the following connectors from Multi controller board; fan motor, thermistor <Outdoor pipe>, thermistor <Discharge>, thermistor <Low pressure saturated temp>, thermistor <Outdoor>, high pressure switch, high pressure sensor, low pressure switch, solenoid valve coil <Four-way valve> and solenoid valve coil <Bypass valve>. Then remove a screw (4 × 8) from the valve bed to remove the lead wire.

Pull out the disconnected wire from the electrical parts box.

• Fan motor (CNF1, CNF2)

• Thermistor <Outdoor pipe> (TH3)

• Thermistor <Discharge> (TH4)

• Thermistor <Low pressure saturated temp, Outdoor> (TH6/7)

• High pressure switch (63H)

• High pressure sensor (63HS)

• Low pressure switch (63L)

• Solenoid valve coil <Four-way valve> (21S4)

• Solenoid valve coil <Bypass valve> (SV1) (5) Remove the terminal cover and disconnect the

compressor lead wire.

Photo 1

Fan motor fixing screws

Fan motor

Fan motor fixing screws

Propeller

Front panel

Nut

Photo 2

Figure 1

Top panel fixing screws

Top panel

Service panel fixing screws

Service panel

Grille fixing screws

Fan grille

Grille fixing screws

Slide

OUTDOOR UNIT : PUMY-P100YHM PUMY-P125YHM PUMY-P140YHM PUMY-P100YHM

1 PUMY-P125YHM1 PUMY-P140YHM1

PUMY-P100YHMA(-BS)

PUMY-P125YHMA(-BS) PUMY-P140YHMA(-BS)

Electrical parts box

Noise filter circuit board (NF)

Terminal cover

Cover panel (Front)

Cover panel fixing screws

Compressor (MC)

Valve bed

Screw

Terminal block (TB1)

Multi controller board (MULTI.B)

Terminal block (TB3) (TB7)

Continued to the next page.

OPERATING PROCEDURE

PHOTOS & ILLUSTRATION

Photo 4

(6) Remove electrical parts box fixing screw (4 × 10) and detach the electrical parts box by pulling it upward. The electrical parts box is fixed with 2 hooks on the left and 1 hook on the right.

From the previous page.

Electrical parts box

Electrical parts box fixing screw

Photo 5

4. Removing the thermistor <Low pressure saturated temp.> (TH6)

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Disconnect the connectors, TH6 and TH7 (red), on the Multi controller board in the electrical parts box. (4) Loosen the wire clamps on top of the electrical parts box. (5) Pull out the thermistor <Low pressure saturated temp.> (TH6) from the sensor holder.

Note: In case of replacing thermistor <Low pressure saturated temp.> (TH6), replace it together with thermistor <Outdoor> (TH7) since they are combined together. Refer to No.5 below to remove thermistor <Outdoor>.

Thermistor <TH6>

Electrical parts box

5. Removing the thermistor <Outdoor> (TH7)

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Disconnect the connector TH7 (red) on the Multi controller board in the electrical parts box. (4) Loosen the wire clamps on top of the electrical parts box. (See photo 4.) (5) Pull out the thermistor <Outdoor> (TH7) from the sensor holder.

Note: In case of replacing thermistor <Outdoor> (TH7), replace it together with thermistor <Low pressure saturated temp> (TH6), since they are combined together. Refer to No.4 above to remove thermistor <Low pressure saturated temp>.

Photo 6

Lead wire of thermistor <Outdoor> (TH7)

Sensor holder

Lead wire of thermistor <Outdoor> (TH7)

Sensor holder

PUMY-P100/125/140YHM(1)

PUMY-P100/125/140YHMA(-BS)

4-way valve coil (21S4)

7. Removing the 4-way valve coil (21S4)

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.)

[Removing the 4-way valve coil] (3) Remove 4-way valve coil fixing screw (M5 × 6 for 100-140YHM, M4 × 6 for 100-140YHM1/YHMA(-BS)). (4) Remove the 4-way valve coil by sliding the coil toward you. (5) Disconnect the connector 21S4 (green) on the Multi controller board in the electrical parts box.

Photo 8

4-way valve

Thermistor <Low pressure saturated temp.> (TH6)

OPERATING PROCEDURE

PHOTOS

Photo 7

6. Removing the thermistor <Outdoor pipe> (TH3) and thermistor <Discharge> (TH4)

(1) Remove the service panel. (See figure 1.) (2) Disconnect the connectors, TH3 (white) and TH4 (white), on the Multi controller board in the electrical parts box. (3) Loosen the clamp for the lead wire in the rear of the electrical parts box. (4) Pull out the thermistor <Outdoor pipe> (TH3) and thermistor <Discharge> (TH4) from the sensor holder.

Thermistor <Discharge> (TH4)

Thermistor <Outdoor pipe>

(TH3)

Compressor (MC)

4-way valve coil fixing screw

8. Removing the 4-way valve

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Remove 3 valve bed fixing screws (4 × 10) and 4 ball valve and stop valve fixing screws (5 × 16) and then remove the valve bed. (4) Remove 4 right side panel fixing screws (5 × 10) in the rear of the unit and then remove the right side panel. (5) Remove the 4-way valve coil. (See photo 8.) (6) Recover refrigerant. (7) Remove the welded part of 4-way valve.

Note 1: Recover refrigerant without spreading it in the air. Note 2: The welded part can be removed easily by remov-

ing the right side panel.

Note 3: When installing the four-way valve, cover it with a

wet cloth to prevent it from heating (120°C or more),

then braze the pipes so that the inside of pipes

are not oxidized.

OPERATING PROCEDURE

PHOTOS

9. Removing bypass valve coil (SV1) and bypass valve

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Remove 3 right side panel fixing screws (5 × 10) in the rear of the unit and remove the right side panel. (4) Remove the bypass valve coil fixing screw (M4 × 6). (5) Remove the bypass valve coil by sliding the coil upward. (6) Disconnect the connector SV1 (white) on the Multi controller circuit board in the electrical parts box. (7) Recover refrigerant. (8) Remove the welded part of bypass valve.

Note 1: Recover refrigerant without spreading it in the air. Note 2: The welded part can be removed easily by removing the right side panel.

Photo 9

High pressure switch (63H)

High pressure sensor (63HS)

Solenoid valve coil fixing screw

Solenoid valve coil (SV1)

Bypass valve

10. Removing the high pressure switch (63H) and low pressure switch (63L)

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Remove the electrical parts box. (See photo 4.) (4) Remove 3 right side panel fixing screws (5 o 10) in the rear of the unit and remove the right side panel. (5) Pull out the lead wire of high pressure switch and low pressure switch. (6) Recover refrigerant. (7) Remove the welded part of high pressure switch and low pressure switch.

Note 1: Recover refrigerant without spreading it in the air. Note 2: The welded part can be removed easily by remov-

ing the right side panel.

Note 3: When installing the high pressure switch and low

pressure switch, cover them with a wet cloth to prevent them from heating (100°C or more), then braze the pipes so that the inside of pipes are not oxidized.

11. Removing the high pressure sensor (63HS)

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Remove the electrical parts box. (See photo 4.) (4) Remove 3 right side panel fixing screws (5 o 10) in the rear of the unit and remove the right side panel. (5) Pull out the lead wire of high pressure sensor. (6) Recover refrigerant. (7) Remove the welded part of high pressure sensor.

Note 1: Recover refrigerant without spreading it in the air. Note 2: The welded part can be removed easily by remov-

ing the right side panel.

Note 3: When installing the high pressure sensor, cover it

with a wet cloth to prevent it from heating (100°C or more), then braze the pipes so that the inside of pipes are not oxidized.

Photo 10

High pressure switch (63H)

High pressure sensor (63HS)

Low pressure switch (63L)

OPERATING PROCEDURE

PHOTOS

Photo 12

Reactors

Reactor box

Propeller

12. Removing the reactors (ACL1, ACL2, ACL3)

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Remove the 6 screws, screw 8 and 9 (5 × 10), that fix the front panel and remove the front panel. (See photo 3.) (4) Remove the 2 screws, screw 0 and 1 (both 4 × 10), that fix the separator, screw 0 from the valve bed and screw 1 from the bottom of the separator, and tilt the separator to the side of the fan motor slightly. (See photo 11.) (5) Disconnect the lead wires from the reactor and remove the 4 screws, screw 2, that fix the reactor to remove the reactor. (See photo 12 and 13.)

Note 1: The reactor is very heavy (4kg)! Be careful when handling it. Note 2: The reactor box is also removable.

Photo 11

Electrical parts box

Screw0

Valve bed

Screw1

Separator

Reactor box

Electrical parts box

4-way valve

Photo 13

Screw2

Reactor box

OPERATING PROCEDURE

PHOTOS

13. Removing the compressor (MC)

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Remove 2 front cover panel fixing screws (5 × 10) and remove the front cover panel. (See photo 3.) (4) Remove 2 back cover panel fixing screws (5 × 10) and remove the back cover panel. (5) Remove the electrical parts box. (See photo 3.) (6) Remove 3 valve bed fixing screws (4 × 10) and 4 ball valve and stop valve fixing screws (5 × 16) and then remove the valve bed. (7) Remove 3 right side panel fixing screws (5 × 10) in the rear of the unit and then remove the right side panel. (8) Remove 3 separator fixing screws (4 × 10) and remove the separator. (9) Recover refrigerant. (10) Remove the 3 points of the motor for compressor fixing nut using spanner or adjustable wrench. (11) Remove the welded pipe of motor for compressor inlet and outlet and then remove the compressor.

Note: Recover refrigerant without spreading it in the air.

Photo 14

14. Removing the accumulator

(1) Remove the service panel. (See figure 1.) (2) Remove the top panel. (See figure 1.) (3) Remove 2 front cover panel fixing screws (5 × 10) and remove the front cover panel. (See photo 3.) (4) Remove 2 back cover panel fixing screws (5 × 10) and remove the back cover panel. (5) Remove the electrical parts box. (See photo 3.) (6) Remove 3 valve bed fixing screws (4 × 10) and 4 ball valve and stop valve fixing screws (5 × 16) and then remove the valve bed. (7) Remove 3 right side panel fixing screws (5 × 10) in the rear of the unit and then remove the right side panel. (8) Recover refrigerant. (9) Remove 4 welded pipes of power receiver inlet and outlet. (10) Remove 2 receiver leg fixing screws (4 × 10). (See photo 16.)

Note: Recover refrigerant without spreading it in the air.

Accumulator

Photo 15

Inlet

Outlet

Compressor (MC)

Valve bed

Valve bed fixing screw

Separator fixing screw

Valve bed fixing screws

Compressor

fixing nut

Separator

Accumulator

Photo 16

Accumulator

Accumulator leg fixing screws

Accumulator leg

8787

13-1. STRUCTURAL PARTS PUMY-P100YHM PUMY-P125YHM PUMY-P140YHM

PUMY-P100YHM

1 PUMY-P125YHM1 PUMY-P140YHM1

4567

Part No.

Part Name

Specification

No.

Wiring

Diagram

Symbol

Recom-

mended

Q'ty

PUMY-P100/125/140

Remarks

(Drawing No.) 1

3 4 5 6 7 8 9

12 13 14 15 16 17

2 1 1 1 1 1 2 1

1 1 1 1 1 1

(DG12F536H10)

(BK00C409G05)

(BK00C142G15)

(DG79R130H01)

– R01 E02 662 T7W E02 662 T7W E02 691 T7W E02 667

– R01 E14 686 R01 E25 130

– R01 30L 655 R01 E00 658 R01 E13 658 R01 E01 658 R01 E11 658 R01 E24 661 T7W E04 668

– R01 E01 698 R01 E08 641 R01 E00 655

F.ST SCREW SIDE PANEL (L) SIDE PANEL (L) FAN GRILLE FRONT PANEL SEPARATOR BASE ASSY MOTOR SUPPORT VALVE BED ASSY HANDLE COVER PANEL (FRONT) COVER PANEL (FRONT) COVER PANEL (REAR) COVER PANEL (REAR) SIDE PANEL (R) SERVICE PANEL LABEL (MITSUBISHI) REAR GUARD TOP PANEL HANDLE

Q'ty/set

(5×10)

1 2 1 1 1 1 1 2

1 1 1 1 1 1 1

YHM

13 PARTS LIST (non-RoHS compliant)

32 31

2625

13-2. FUNCTIONAL PARTS PUMY-P100YHM PUMY-P100YHM

PUMY-P125YHM PUMY-P125YHM1 PUMY-P140YHM PUMY-P140YHM1

Part No.

Part Name

Specification

No.

Wiring

Diagram

Symbol

Recom-

mended

Q,ty

Remarks

(Drawing No.)

YHM

2 3 4 5

7 8

9 10 11 12 13 14 15 16

19 20 21

23 24 25 26 27 28 29

31 32 33 34 35

2 2 3 2

1 1 1 1 1 1 1 1 1 1 1

1 1 1 1

1 1 1 1 2 1 1 1

2 1 2 1 1 1

2 2 2 3 2

1 1 1 1 1 1 1 1 1 1

1 1 1 1

1 1 1 1 1 2 1 1

1 2 1 2 1 1

:2.5:0.81000

(BK00C410G06)

R01 E41 221 R01 E44 221 R01 E01 115 R01 E02 097 T7W E07 259 R01 E06 413

T97 410 747

R01 E09 410 R01 E09 411 R01 E03 450 R01 E35 440 R01 E09 490 R01 E22 425 T7W E04 208 R01 E09 428 R01 25T 209 T7W E08 242 T7W A01 242 T7W E28 242 R01 E24 403 R01 E26 403 T7W E43 202 R01 E04 208 T7W E26 408 T7W E08 346 T7W E14 346 T7W E39 310 T7W E26 313

— R01 E08 233 T7W E03 254 T7W E06 259 R01 E01 311 R01 H52 310 R01 H76 310 T7W E17 716 T7W E06 716 R01 E02 239 R01 E66 202 T7W E06 254 R01 17T 201 R01 44L 201

FAN MOTOR FAN MOTOR PROPELLER FAN NUT REACTOR CHARGE PLUG

COMPRESSOR

STOP VALVE BALL VALVE STRAINER ACCUMULATOR OIL SEPARATOR CAPILLARY TUBE H.P SENSOR BYPASS VALVE LOW PRESSURE SWITCH SOLENOID VALVE COIL <BYPASS VALVE>

SOLENOID COIL <FOUR-WAY VALVE>

FOUR-WAY VALVE

THERMISTOR HIGH PRESSURE SWITCH HEAT EXCHANGER

NOISE FILTER CIRCUIT BOARD

CONVERTER CIRCUIT BOARD POWER CIRCUIT BOARD ELECTRICAL PARTS BOX RESISTOR MAIN SMOOTHING CAPACITOR REACTOR TRANSMISSION POWER BOARD

MULTI CONTROLLER CIRCUIT BOARD

TERMINAL BLOCK TERMINAL BLOCK FUSE THERMISTOR (OUTDOOR PIPE) CAPACITOR

THERMISTOR (DISCHARGE)

PUMY-P100/125/140

MF1,2

ACL1,2,3

63HS

63L

SV1 21S4 21S4

TH6,7

63H

N.F.

CONV.B.

P.B.

CB1, CB2

ACL4

M-P.B. MULTI.B. MULTI.B. TB3, TB7

TB1

F1,2

TH3

CK TH4 TH4

ANB33FDEMT Including RUBBER MOUNT

3/8 5/8

3P (M1, M2, S) 5P (L1,L2,L3,N,) 250V 6.3A

YHM

MF1,2

Part numbers that are circled are not shown in the figure.

32 31

2625

14-1. FUNCTIONAL PARTS PUMY-P100YHM

1 PUMY-P125YHM1 PUMY-P140YHM1

PUMY-P100YHMA PUMY-P125YHMA PUMY-P140YHMA PUMY-P100YHMA-BS PUMY-P125YHMA-BS PUMY-P140YHMA-BS

RoHS PARTS LIST

9191

Part numbers that are circled are not shown in the figure.

No.

Part No. Part Name

Speciﬁ cation

Q'ty/set

Remarks

(Drawing No.)

Wiring

Diagram

Symbol

Recom-

mended

Q'ty

PUMY-P100/125/140

YHM

YHMA

YHMA-BS

G R01 E44 221 FAN MOTOR 2 MF1, 2

G T7W E27 763 FAN MOTOR 2 2 MF1, 2 2 G R01 E08 115 PROPELLER FAN 2 2 2 3 G R01 E09 097 NUT 2 2 2 4 G T7W E12 259 REACTOR 3 3 3

ACL1,2,3

5 G R01 E14 413 CHARGE PLUG 2 2 2 6

G T97 415 747 COMPRESSOR

ANB33FDEMT

Including RUBBER MOUNTS

G T97 415 754 COMPRESSOR

ANB33FDKMT

11 MC 7 G R01 E13 410 STOP VALVE 3/8 1 1 1 8 G R01 E11 411 BALL VALVE 5/8 1 1 1 9 G R01 E06 450 STRAINER 1 1 1

10 G R01 E44 440 ACCUMULATOR 1 1 1 11 G R01 E12 490 OIL SEPARATOR 1 1 1 12 G R01 E26 425 CAPILLARY TUBE 1 1 1

[

2.5×[0.8×1000 13 G R01 E07 208 H.P SENSOR 1 1 1 63HS 14 G R01 E14 428 BYPASS VALVE 1 1 1 15 G R01 E00 209

LOW PRESSURE SWITHCH

1 1 1 63L

G T7W E32 242

SOLENOID VALVE COIL(BYPASS VALVE)

1 SV1

G R01 E57 242

SOLENOID VALVE COIL(BYPASS VALVE)

1 SV1

G T7W E51 242

SOLENOID VALVE COIL(BYPASS VALVE

1 SV1

G T7W E28 242

SOLENOID COIL(FOUR-WAY VALVE)

1 21S4

G R01 E58 242

SOLENOID COIL(FOUR-WAY VALVE)

1 1 21S4

G R01 E26 403 FOUR-WAY VALVE 1

G R01 E32 403 FOUR-WAY VALVE 1 1 19 G R01 E94 202 THERMISTOR 1 1 1 TH6, 7 20 G R01 E06 208

HIGH PRESSURE SWITCH

1 1 1 63H 21 G T7W E39 408 HEAT EXCHANGER 1 1 1 22 G T7W E23 346

NOISE FILTER CIRCUIT BOARD

1 1 1 N.F. 23

G T7W E54 310

CONVERTER CIRCUIT BOARD

CONV.B.

G T7W E63 310

CONVERTER CIRCUIT BOARD

CONV.B.

G T7W E32 313

POWER CURCUIT BOARD

1 P.B.

G T7W E42 313

POWER CURCUIT BOAR

1 1 P.B.

25 G —

ELECTRICAL PARTS BOX

111

(BK00C410G08)

26 G R01 E10 233 RESISTOR 1 1 1 RS 27

G R01 E02 254

MAIN SMOOTHING CAPACITOR

CB1,CB2

G T7W E21 255

MAIN SMOOTHING CAPACITOR

CB1,CB2

G T7W E11 259 REACTOR 1 ACL4 G R01 E31 259 REACTOR 1 1 ACL4

29 G R01 E02 311

TRANSMISSION POWER BOARD

1 1 1 M-P.B. 30

G R01 H76 310

MULTI CONTROLLER CIRCUIT BOARD

MULTI.B.

G R01 N56 310

CONTROLLER CIRCUIT BOARD

1 1 C.B.

G T7W E31 716 TERMINAL BLOCK

3P (M1, M2, S)

TB3,TB7

G R01 E27 246 TERMINAL BLOCK

3P (M1, M2, S)

TB3,TB7

32 G T7W E30 716 TERMINAL BLOCK

5P (L1, L2, L3, N, ;)

1 1 1 TB1 33 G R01 E06 239 FUSE 250V 6.3A 2 2 2 F1, 2 34 G R01 H00 202

THERMISTOR (OUTDOOR PIPE)

1 1 1 TH3 35 G T7W E10 254 CAPACITOR 1 1 1 CK 36 G R01 E11 201

THERMISTOR (DISCHARGE)

1 1 1 TH4

RoHS

14-2. STRUCTURAL PARTS PUMY-P100YHM

1 PUMY-P125YHM1 PUMY-P140YHM1

PUMY-P100YHMA(-BS) PUMY-P125YHMA(-BS) PUMY-P140YHMA(-BS)

4567

No.

Part No. Part Name

Speciﬁ cation

Q'ty/set

Remarks

(Drawing No.)

Wiring

Diagram

Symbol

Recom-

mended

Q'ty

PUMY-P100/125/140

YMH1/YHMA YHMA-BS

1 G — F.ST SCREW (5×10) 38 38 (DG12F536H10) 2

G T7W E03 662 SIDE PANEL (L) 1

G T7W E06 662 SIDE PANEL (L) 1 3 G T7W E03 691 FAN GRILLE 2 2 4 G T7W E06 667 FRONT PANEL 1 1

G — SEPARATOR 1 (BK00C409G12)

G — SEPARATOR 1 (BK00C409G14) 6

G R01 E31 686 BASE ASSY 1

G R01 E26 686 BASE ASSY 1 7

G R01 E27 130 MOTOR SUPPORT 1

G R01 E19 130 MOTOR SUPPORT 1 8

G — VALVE BED ASSY 1 (BK00C142G27)

G — VALVE BED ASSY 1 (BK00C142G29) 9 G R01 E01 655 HANDLE 2 2

G R01 E13 658 COVER PANEL (FRONT) 1

G R01 E14 658 COVER PANEL (FRONT) 1

G R01 E11 658 COVER PANEL (REAR) 1

G R01 E24 658 COVER PANEL (REAR) 1

G R01 E32 661 SIDE PANEL (R) 1

G T7W E19 661 SIDE PANEL (R) 1

G T7W E09 668 SERVICE PANEL 1

G T7W E13 668 SERVICE PANEL 1

14 G — LABEL (MITSUBISHI) 1 1 (DG79R130H01) 15 G R01 E07 698 REAR GUARD 1 1

G R01 E15 641 TOP PANEL 1

G R01 E28 641 TOP PANEL 1

17 G R01 E02 655 HANDLE 1 1

RoHS

15 OPTIONAL PARTS

CMY-Y62-G-E CMY-Y64-G-E

NUMBER OF BRANCHING POINTS

2 4 8

CMY-Y68-G-E

BRANCH PIPE (Joint)

Part No.

DRAIN SOCKET

Part No. PAC-SG61DS-E

AIR OUTLET GUIDE

Part No. PAC-SG59SG-E

DRAIN PAN

Part No. PAC-SG64DP-E

w Need 2 pieces.

FILTER DRYER (For liquid line : [9.52)

Part No. PAC-SG82DR-E

w Only for R410A model (Don’t use for R22 model.)

AIR GUIDE

Part No. PAC-SH63AG-E

w Need 2 pieces.

cCopyright 2005 MITSUBISHI ELECTRIC ENGINEERING CO., LTD. Distributed in Jun. 2008 No.OC355 REVISED EDITION-D PDF 7 Distributed in Dec. 2007 No.OC355 REVISED EDITION-C PDF 8 Distributed in Aug. 2006 No.OC355 REVISED EDITION-B PDF 8 Distributed in Feb. 2006 No.OC355 REVISED EDITION-A PDF 9 Distributed in Sep. 2005 No.OC355 PDF 9 Made in Japan

New publication, effective Jun. 2008 Specifications subject to change without notice

HEAD OFFICE : TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO100-8310, JAPAN

Mitsubishi PUMY-P100YHM, PUMY-P140YHMA, PUMY-P100YHMA-BS, PUMY-P125YHMA-BS, PUMY-P140YHMA-BS Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
