PUHY-P400YGM-A(-BS)
PARTS LIST
19 pgs842.57 Kb0
PARTS LIST
37 pgs1.58 Mb0

Mitsubishi PU(H)Y-P200YGM-A(-BS), PU(H)Y-P250YGM-A(-BS), PU(H)Y-P300YGM-A(-BS), PU(H)Y-P350YGM-A(-BS), PUHY-P400YGM-A(-BS) PARTS LIST

...
Download
SERVICE PARTS LIST FOR MITSUBISHI ELECTRIC PACKAGED AIR-CONDITIONERS
Series : PU(H)Y-P•YGM-A(-BS)
INDEX
PU(H)Y-P200YGM-A(-BS) PU(H)Y-P250YGM-A(-BS) PU(H)Y-P300YGM-A(-BS) PU(H)Y-P350YGM-A(-BS) PUHY-P400YGM-A(-BS)
REVISED
June 2006
BWE0412A
PUHY-P450YGM-A(-BS) PUHY-P500YGM-A(-BS) PUHY-P550YGM-A(-BS) PUHY-P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
Please change the old catalog (issued Jun. 2004, No.BWE04120) to this new catalog. Content of revision : Some of parts are changed.
115
111.112
107.108
116.117
111.112
109.110
101
113.114
133~140
113.114
103.104
141~144
102
105.106
125
~132
118
123
119.120
124
122
121
PU(H)Y-P200, P250YGM-A(-BS) PU(H)Y-P300, P350YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (1)
1
PU(H)Y-P200, P250YGM-A(-BS) PU(H)Y-P300, P350YGM-A(-BS)
PU(H)Y-P300, P350YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (1)PU(H)Y-P200, P250YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (1)
RoHS Compliant : G
No.
101 R63 E66 611 G Guard F assy 1 1 1 1 A
102 R63 A42 638 G Gurard B assy 1 1 1 1 A
103 R63 R34 667 G Partition board L assy 1 1 1 1 A
104 R63 R35 667 G Partition board L assy A
105 R63 R37 668 G Partition board R assy 1 1 1 1 A
106 R63 R38 668 G Partition board R assy A
107 R63 R34 651 G Panel F 1 1 1 1 A
108 R63 R36 651 G Panel F A
109 R63 Y32 652 G Panel B 1 1 1 1 A
110 R63 R36 677 G Panel B A
111 R63 L78 653 G Panel FU 2 2 2 2 A
112 R63 R36 652 G Panel FU A
113 R63 N78 661 G Panel S 2 2 2 2 A
114 R63 R36 661 G Panel S A
115 R63 N78 118 G Fan guard 1 1 1 1 A
116 R63 A42 659 G Front panel 1 1 1 1 A
117 R63 A43 659 G Front panel A
118 R61 A69 086 G Cap 1 1 1 1 A
119 R63 A42 140 G Fan stand 2 2 2 2 A
120 R63 A43 140 G Fan stand A
121 R63 A42 122 G Nut 16 1 1 1 1 A
122 R63 N78 115 G Propeller fan 750D 1 1 1 1 A
123 R63 Y43 221 G Motor YC380IA 342V 33Hz 1 1 1 1 A
124 R63 E90 087 G Screw 6×14 4 4 4 4 A
125 R63 Y04 482 G Heat exchanger F 1 A
126 R63 R36 480 G Heat exchanger F A
127 R63 Y05 482 G Heat exchanger F 1 A
128 R63 R39 480 G Heat exchanger F A
129 R63 Y06 482 G Heat exchanger F 1 A
130 R63 R42 480 G Heat exchanger F A
131 R63 Y07 482 G Heat exchanger F 1 A
132 R63 R51 480 G Heat exchanger F A
133 R63 Y11 482 G Heat exchanger B 1 A
134 R63 R36 481 G Heat exchanger B A
135 R63 Y12 482 G Heat exchanger B 1 A
136 R63 R39 481 G Heat exchanger B A
137 R63 Y13 482 G Heat exchanger B 1 A
138 R63 R42 481 G Heat exchanger B A
139 R63 Y14 482 G Heat exchanger B 1 A
140 R63 R51 481 G Heat exchanger B A
141 R63 Y16 305 G Control box PUY-P200 1 A
142 R63 Y17 305 G Control box PUY-P250 1 1 1 A
143 R63 Y18 305 G Control box P200YGM A
144 R63 Y19 305 G Control box P250YGM A
Part No.
Part Name
Spec. Dwg. No. Price
PUY-P200YGM-A
PUY-P250YGM-A
PUY-P300YGM-A
PUY-P350YGM-A
Revision History
2
PU(H)Y-P200, P250YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (1)
PU(H)Y-P300, P350YGM-A(-BS)
RoHS Compliant : G
No.
101 R63 E66 611 G Guard F assy 1 1 1 1 A
102 R63 A42 638 G Gurard B assy 1 1 1 1 A
103 R63 R34 667 G Partition board L assy A
104 R63 R35 667 G Partition board L assy 1 1 1 1 A
105 R63 R37 668 G Partition board R assy A
106 R63 R38 668 G Partition board R assy 1 1 1 1 A
107 R63 R34 651 G Panel F A
108 R63 R36 651 G Panel F 1 1 1 1 A
109 R63 Y32 652 G Panel B A
110 R63 R36 677 G Panel B 1 1 1 1 A
111 R63 L78 653 G Panel FU A
112 R63 R36 652 G Panel FU 2 2 2 2 A
113 R63 N78 661 G Panel S A
114 R63 R36 661 G Panel S 2 2 2 2 A
115 R63 N78 118 G Fan guard 1 1 1 1 A
116 R63 A42 659 G Front panel A
117 R63 A43 659 G Front panel 1 1 1 1 A
118 R61 A69 086 G Cap 1 1 1 1 A
119 R63 A42 140 G Fan stand A
120 R63 A43 140 G Fan stand 2 2 2 2 A
121 R63 A42 122 G Nut 16 1 1 1 1 A
122 R63 N78 115 G Propeller fan 750D 1 1 1 1 A
123 R63 Y43 221 G Motor YC380IA 342V 33Hz 1 1 1 1 A
124 R63 E90 087 G Screw 6×14 4 4 4 4 A
125 R63 Y04 482 G Heat exchanger F A
126 R63 R36 480 G Heat exchanger F 1 A
127 R63 Y05 482 G Heat exchanger F A
128 R63 R39 480 G Heat exchanger F 1 A
129 R63 Y06 482 G Heat exchanger F A
130 R63 R42 480 G Heat exchanger F 1 A
131 R63 Y07 482 G Heat exchanger F A
132 R63 R51 480 G Heat exchanger F 1 A
133 R63 Y11 482 G Heat exchanger B A
134 R63 R36 481 G Heat exchanger B 1 A
135 R63 Y12 482 G Heat exchanger B A
136 R63 R39 481 G Heat exchanger B 1 A
137 R63 Y13 482 G Heat exchanger B A
138 R63 R42 481 G Heat exchanger B 1 A
139 R63 Y14 482 G Heat exchanger B A
140 R63 R51 481 G Heat exchanger B 1 A
141 R63 Y16 305 G Control box PUY-P200 1 A
142 R63 Y17 305 G Control box PUY-P250 1 1 1 A
143 R63 Y18 305 G Control box P200YGM A
144 R63 Y19 305 G Control box P250YGM A
Part No.
Part Name
Spec. Dwg. No. Price
PUY-P200YGM-A-BS
PUY-P250YGM-A-BS
PUY-P300YGM-A-BS
PUY-P350YGM-A-BS
Revision History
3
PU(H)Y-P200, P250YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (1)
PU(H)Y-P300, P350YGM-A(-BS)
RoHS Compliant : G
No.
101 R63 E66 611 G Guard F assy 1 1 1 1 A
102 R63 A42 638 G Gurard B assy 1 1 1 1 A
103 R63 R34 667 G Partition board L assy 1 1 1 1 A
104 R63 R35 667 G Partition board L assy A
105 R63 R37 668 G Partition board R assy 1 1 1 1 A
106 R63 R38 668 G Partition board R assy A
107 R63 R34 651 G Panel F 1 1 1 1 A
108 R63 R36 651 G Panel F A
109 R63 Y32 652 G Panel B 1 1 1 1 A
110 R63 R36 677 G Panel B A
111 R63 L78 653 G Panel FU 2 2 2 2 A
112 R63 R36 652 G Panel FU A
113 R63 N78 661 G Panel S 2 2 2 2 A
114 R63 R36 661 G Panel S A
115 R63 N78 118 G Fan guard 1 1 1 1 A
116 R63 A42 659 G Front panel 1 1 1 1 A
117 R63 A43 659 G Front panel A
118 R61 A69 086 G Cap 1 1 1 1 A
119 R63 A42 140 G Fan stand 2 2 2 2 A
120 R63 A43 140 G Fan stand A
121 R63 A42 122 G Nut 16 1 1 1 1 A
122 R63 N78 115 G Propeller fan 750D 1 1 1 1 A
123 R63 Y43 221 G Motor YC380IA 342V 33Hz 1 1 1 1 A
124 R63 E90 087 G Screw 6×14 4 4 4 4 A
125 R63 Y04 482 G Heat exchanger F 1 A
126 R63 R36 480 G Heat exchanger F A
127 R63 Y05 482 G Heat exchanger F 1 A
128 R63 R39 480 G Heat exchanger F A
129 R63 Y06 482 G Heat exchanger F 1 A
130 R63 R42 480 G Heat exchanger F A
131 R63 Y07 482 G Heat exchanger F 1 A
132 R63 R51 480 G Heat exchanger F A
133 R63 Y11 482 G Heat exchanger B 1 A
134 R63 R36 481 G Heat exchanger B A
135 R63 Y12 482 G Heat exchanger B 1 A
136 R63 R39 481 G Heat exchanger B A
137 R63 Y13 482 G Heat exchanger B 1 A
138 R63 R42 481 G Heat exchanger B A
139 R63 Y14 482 G Heat exchanger B 1 A
140 R63 R51 481 G Heat exchanger B A
141 R63 Y16 305 G Control box PUY-P200 A
142 R63 Y17 305 G Control box PUY-P250 A
143 R63 Y18 305 G Control box P200YGM 1 A
144 R63 Y19 305 G Control box P250YGM 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P200YGM-A
PUHY-P250YGM-A
PUHY-P300YGM-A
PUHY-P350YGM-A
Revision History
4
PU(H)Y-P200, P250YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (1)
PU(H)Y-P300, P350YGM-A(-BS)
RoHS Compliant : G
No.
101 R63 E66 611 G Guard F assy 1 1 1 1 A
102 R63 A42 638 G Gurard B assy 1 1 1 1 A
103 R63 R34 667 G Partition board L assy A
104 R63 R35 667 G Partition board L assy 1 1 1 1 A
105 R63 R37 668 G Partition board R assy A
106 R63 R38 668 G Partition board R assy 1 1 1 1 A
107 R63 R34 651 G Panel F A
108 R63 R36 651 G Panel F 1 1 1 1 A
109 R63 Y32 652 G Panel B A
110 R63 R36 677 G Panel B 1 1 1 1 A
111 R63 L78 653 G Panel FU A
112 R63 R36 652 G Panel FU 2 2 2 2 A
113 R63 N78 661 G Panel S A
114 R63 R36 661 G Panel S 2 2 2 2 A
115 R63 N78 118 G Fan guard 1 1 1 1 A
116 R63 A42 659 G Front panel A
117 R63 A43 659 G Front panel 1 1 1 1 A
118 R61 A69 086 G Cap 1 1 1 1 A
119 R63 A42 140 G Fan stand A
120 R63 A43 140 G Fan stand 2 2 2 2 A
121 R63 A42 122 G Nut 16 1 1 1 1 A
122 R63 N78 115 G Propeller fan 750D 1 1 1 1 A
123 R63 Y43 221 G Motor YC380IA 342V 33Hz 1 1 1 1 A
124 R63 E90 087 G Screw 6×14 4 4 4 4 A
125 R63 Y04 482 G Heat exchanger F A
126 R63 R36 480 G Heat exchanger F 1 A
127 R63 Y05 482 G Heat exchanger F A
128 R63 R39 480 G Heat exchanger F 1 A
129 R63 Y06 482 G Heat exchanger F A
130 R63 R42 480 G Heat exchanger F 1 A
131 R63 Y07 482 G Heat exchanger F A
132 R63 R51 480 G Heat exchanger F 1 A
133 R63 Y11 482 G Heat exchanger B A
134 R63 R36 481 G Heat exchanger B 1 A
135 R63 Y12 482 G Heat exchanger B A
136 R63 R39 481 G Heat exchanger B 1 A
137 R63 Y13 482 G Heat exchanger B A
138 R63 R42 481 G Heat exchanger B 1 A
139 R63 Y14 482 G Heat exchanger B A
140 R63 R51 481 G Heat exchanger B 1 A
141 R63 Y16 305 G Control box PUY-P200 A
142 R63 Y17 305 G Control box PUY-P250 A
143 R63 Y18 305 G Control box P200YGM 1 A
144 R63 Y19 305 G Control box P250YGM 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P200YGM-A-BS
PUHY-P250YGM-A-BS
PUHY-P300YGM-A-BS
PUHY-P350YGM-A-BS
Revision History
5
207.208
216.217
211.212
209.210
201
215 230.231
230.231
227.228
205.206
203.204
229
202
211.212
225.226
213.214
218
224
219.220
221
223
222
213.214
PUHY-P400YGM-A(-BS) EXTERNAL PARTS & BLOWER PARTS (2)
6
PUHY-P400YGM-A(-BS) EXTERNAL PARTS & BLOWER PARTS (2)
RoHS Compliant : G
No.
201 R63 A52 637 G Guard F assy 1 1 A
202 R63 A52 638 G Guard B assy 1 1 A
203 R63 Y28 629 G Partition board L assy 1 A
204 R63 Y29 629 G Partition board L assy 1 A
205 R63 R37 668 G Partition board R assy 1 A
206 R63 R38 668 G Partition board R assy 1 A
207 R63 R55 651 G Panel F 1 A
208 R63 R57 651 G Panel F 1 A
209 R63 Y33 629 G Panel B 1 A
210 R63 R57 677 G Panel B 1 A
211 R63 M23 651 G Panel FU 2 A
212 R63 R57 652 G Panel FU 2 A
213 R63 N78 661 G Panel S 2 A
214 R63 R36 661 G Panel S 2 A
215 R63 N78 118 G Fan guard 1 1 A
216 R63 A52 659 G Front panel 1 A
217 R63 A53 659 G Front panel 1 A
218 R61 A69 086 G Cap 1 1 A
219 R63 432 140 G Fan stand 2 A
220 R63 433 140 G Fan stand 2 A
221 R63 E90 087 G Screw 6×14 4 4 A
222 R63 A42 122 G Nut 16 1 1 A
223 R63 N78 115 G Propeller fan 750D 1 1 A
224 R63 Y44 221 G Motor EEOK-IOTV1 640W 342V 40.5Hz 1 1 A
225 R63 Y17 482 G Heat exchanger F 1 A
226 R63 Y18 482 G Heat exchanger F 1 A
227 R63 Y19 482 G Heat exchanger B 1 A
228 R63 Y20 482 G Heat exchanger B 1 A
229 R63 Y20 305 G Control box P400YGM 1 1 A
230 R63 P85 499 G Cover assy 2 A
231 R63 R57 667 G Cover assy 2 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P400YGM-A
PUHY-P400YGM-A-BS
Revision History
7
PUHY-P450, P500YGM-A(-BS)
311.312
309.310
313.314
307.308
311.312
303.304
322.323
322.323
317.318
301
301
305.306
331~340
331~340
315.316
315.316
315.316
315.316
303.304
351
309.310
313.314
317.318
302
302
341~350
341~350
319.320
321
321
329
325.326
325.326
330
328
324
329
330
328
327
324 327
PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (3)
8
PUHY-P450, P500YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (3) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
301 R63 E66 611 G Guard F assy 2 2 2 2 A
302 R63 A42 638 G Guard B assy 2 2 2 2 A
303 R63 R34 667 G Partition board L assy 2 2 2 2 A
304 R63 R35 667 G Partition board L assy A
305 R63 R43 668 G Partition board R assy 1 1 1 1 A
306 R63 R44 668 G Partition board R assy A
307 R63 R43 667 G Partition board R assy 1 1 1 1 A
308 R63 R44 667 G Partition board R assy A
309 R63 R43 626 G Stay M 2 2 2 2 A
310 R63 R44 626 G Stay M A
311 R63 R34 651 G Panel F 2 2 2 2 A
312 R63 R36 651 G Panel F A
313 R63 Y32 652 G Panel B 2 2 2 2 A
314 R63 R36 677 G Panel B A
315 R63 L78 653 G Panel FU 4 4 4 4 A
316 R63 R36 652 G Panel FU A
317 R63 N78 661 G Panel S 2 2 2 2 A
318 R63 R36 661 G Panel S A
319 R63 E66 125 G Beam M 1 1 1 1 A
320 R63 E67 125 G Beam M A
321 R63 N78 118 G Fan guard 2 2 2 2 A
322 R63 A42 659 G Front panel 2 2 2 2 A
323 R63 A43 659 G Front panel A
324 R61 A69 086 G Cap 2 2 2 2 A
325 R63 A42 140 G Fan stand 4 4 4 4 A
326 R63 A43 140 G Fan stand A
327 R63 A42 122 G Nut 16 2 2 2 2 A
328 R63 N78 115 G Propeller fan 750D 2 2 2 2 A
329 R63 Y43 221 G Motor YC380IA 342V 33Hz 2 2 2 2 A
330 R63 E90 087 G Screw 6×14 8 8 8 8 A
331 R63 Y08 482 G Heat exchanger F 2 A
332 R63 R54 480 G Heat exchanger F A
333 R63 Y09 482 G Heat exchanger F 2 A
334 R63 Y03 482 G Heat exchanger F A
335 R63 Y05 482 G Heat exchanger F 2 A
336 R63 R39 480 G Heat exchanger F A
337 R63 Y06 482 G Heat exchanger F 2 A
338 R63 R42 480 G Heat exchanger F A
339 R63 Y07 482 G Heat exchanger F A
340 R63 R51 480 G Heat exchanger F A
341 R63 Y15 482 G Heat exchanger B 2 A
342 R63 R54 481 G Heat exchanger B A
343 R63 Y16 482 G Heat exchanger B 2 A
344 R63 Y10 482 G Heat exchanger B A
345 R63 Y12 482 G Heat exchanger B 2 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P450YGM-A
PUHY-P500YGM-A
PUHY-P550YGM-A
PUHY-P600YGM-A
Revision History
9
PUHY-P450, P500YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (3) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
346 R63 R39 481 G Heat exchanger B A
347 R63 Y13 482 G Heat exchanger B 2 A
348 R63 R42 481 G Heat exchanger B A
349 R63 Y14 482 G Heat exchanger B A
350 R63 R51 481 G Heat exchanger B A
351 R63 Y21 305 G Control box P650YGM 1 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P450YGM-A
PUHY-P500YGM-A
PUHY-P550YGM-A
PUHY-P600YGM-A
Revision History
10
PUHY-P450, P500YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (3) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
301 R63 E66 611 G Guard F assy 2 2 2 2 A
302 R63 A42 638 G Guard B assy 2 2 2 2 A
303 R63 R34 667 G Partition board L assy 2 A
304 R63 R35 667 G Partition board L assy 2 2 2 A
305 R63 R43 668 G Partition board R assy 1 A
306 R63 R44 668 G Partition board R assy 1 1 1 A
307 R63 R43 667 G Partition board R assy 1 A
308 R63 R44 667 G Partition board R assy 1 1 1 A
309 R63 R43 626 G Stay M 2 A
310 R63 R44 626 G Stay M 2 2 2 A
311 R63 R34 651 G Panel F 2 A
312 R63 R36 651 G Panel F 2 2 2 A
313 R63 Y32 652 G Panel B 2 A
314 R63 R36 677 G Panel B 2 2 2 A
315 R63 L78 653 G Panel FU 4 A
316 R63 R36 652 G Panel FU 4 4 4 A
317 R63 N78 661 G Panel S 2 A
318 R63 R36 661 G Panel S 2 2 2 A
319 R63 E66 125 G Beam M 1 A
320 R63 E67 125 G Beam M 1 1 1 A
321 R63 N78 118 G Fan guard 2 2 2 2 A
322 R63 A42 659 G Front panel 2 A
323 R63 A43 659 G Front panel 2 2 2 A
324 R61 A69 086 G Cap 2 2 2 2 A
325 R63 A42 140 G Fan stand 4 A
326 R63 A43 140 G Fan stand 4 4 4 A
327 R63 A42 122 G Nut 16 2 2 2 2 A
328 R63 N78 115 G Propeller fan 750D 2 2 2 2 A
329 R63 Y43 221 G Motor YC380IA 342V 33Hz 2 2 2 2 A
330 R63 E90 087 G Screw 6×14 8 8 8 8 A
331 R63 Y08 482 G Heat exchanger F A
332 R63 R54 480 G Heat exchanger F 2 A
333 R63 Y09 482 G Heat exchanger F A
334 R63 Y03 482 G Heat exchanger F 2 A
335 R63 Y05 482 G Heat exchanger F A
336 R63 R39 480 G Heat exchanger F 2 A
337 R63 Y06 482 G Heat exchanger F A
338 R63 R42 480 G Heat exchanger F A
339 R63 Y07 482 G Heat exchanger F 2 A
340 R63 R51 480 G Heat exchanger F A
341 R63 Y15 482 G Heat exchanger B A
342 R63 R54 481 G Heat exchanger B 2 A
343 R63 Y16 482 G Heat exchanger B A
344 R63 Y10 482 G Heat exchanger B 2 A
345 R63 Y12 482 G Heat exchanger B A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P650YGM-A
PUHY-P450YGM-A-BS
PUHY-P500YGM-A-BS
PUHY-P550YGM-A-BS
Revision History
11
PUHY-P450, P500YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (3) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
346 R63 R39 481 G Heat exchanger B 2 A
347 R63 Y13 482 G Heat exchanger B A
348 R63 R42 481 G Heat exchanger B A
349 R63 Y14 482 G Heat exchanger B 2 A
350 R63 R51 481 G Heat exchanger B A
351 R63 Y21 305 G Control box P650YGM 1 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P650YGM-A
PUHY-P450YGM-A-BS
PUHY-P500YGM-A-BS
PUHY-P550YGM-A-BS
Revision History
12
EXTERNAL PARTS & BLOWER PARTS (3)PUHY-P450, P500YGM-A(-BS) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
301 R63 E66 611 G Guard F assy 2 2 A
302 R63 A42 638 G Guard B assy 2 2 A
303 R63 R34 667 G Partition board L assy A
304 R63 R35 667 G Partition board L assy 2 2 A
305 R63 R43 668 G Partition board R assy A
306 R63 R44 668 G Partition board R assy 1 1 A
307 R63 R43 667 G Partition board R assy A
308 R63 R44 667 G Partition board R assy 1 1 A
309 R63 R43 626 G Stay M A
310 R63 R44 626 G Stay M 2 2 A
311 R63 R34 651 G Panel F A
312 R63 R36 651 G Panel F 2 2 A
313 R63 Y32 652 G Panel B A
314 R63 R36 677 G Panel B 2 2 A
315 R63 L78 653 G Panel FU A
316 R63 R36 652 G Panel FU 4 4 A
317 R63 N78 661 G Panel S A
318 R63 R36 661 G Panel S 2 2 A
319 R63 E66 125 G Beam M A
320 R63 E67 125 G Beam M 1 1 A
321 R63 N78 118 G Fan guard 2 2 A
322 R63 A42 659 G Front panel A
323 R63 A43 659 G Front panel 2 2 A
324 R61 A69 086 G Cap 2 2 A
325 R63 A42 140 G Fan stand A
326 R63 A43 140 G Fan stand 4 4 A
327 R63 A42 122 G Nut 16 2 2 A
328 R63 N78 115 G Propeller fan 750D 2 2 A
329 R63 Y43 221 G Motor YC380IA 342V 33Hz 2 2 A
330 R63 E90 087 G Screw 6×14 8 8 A
331 R63 Y08 482 G Heat exchanger F A
332 R63 R54 480 G Heat exchanger F A
333 R63 Y09 482 G Heat exchanger F A
334 R63 Y03 482 G Heat exchanger F A
335 R63 Y05 482 G Heat exchanger F A
336 R63 R39 480 G Heat exchanger F A
337 R63 Y06 482 G Heat exchanger F A
338 R63 R42 480 G Heat exchanger F 2 A
339 R63 Y07 482 G Heat exchanger F A
340 R63 R51 480 G Heat exchanger F 2 A
341 R63 Y15 482 G Heat exchanger B A
342 R63 R54 481 G Heat exchanger B A
343 R63 Y16 482 G Heat exchanger B A
344 R63 Y10 482 G Heat exchanger B A
345 R63 Y12 482 G Heat exchanger B A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P600YGM-A-BS
PUHY-P650YGM-A-BS
Revision History
13
PUHY-P450, P500YGM-A(-BS)
EXTERNAL PARTS & BLOWER PARTS (3) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
346 R63 R39 481 G Heat exchanger B A
347 R63 Y13 482 G Heat exchanger B A
348 R63 R42 481 G Heat exchanger B 2 A
349 R63 Y14 482 G Heat exchanger B A
350 R63 R51 481 G Heat exchanger B 2 A
351 R63 Y21 305 G Control box P650YGM 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P600YGM-A-BS
PUHY-P650YGM-A-BS
Revision History
14

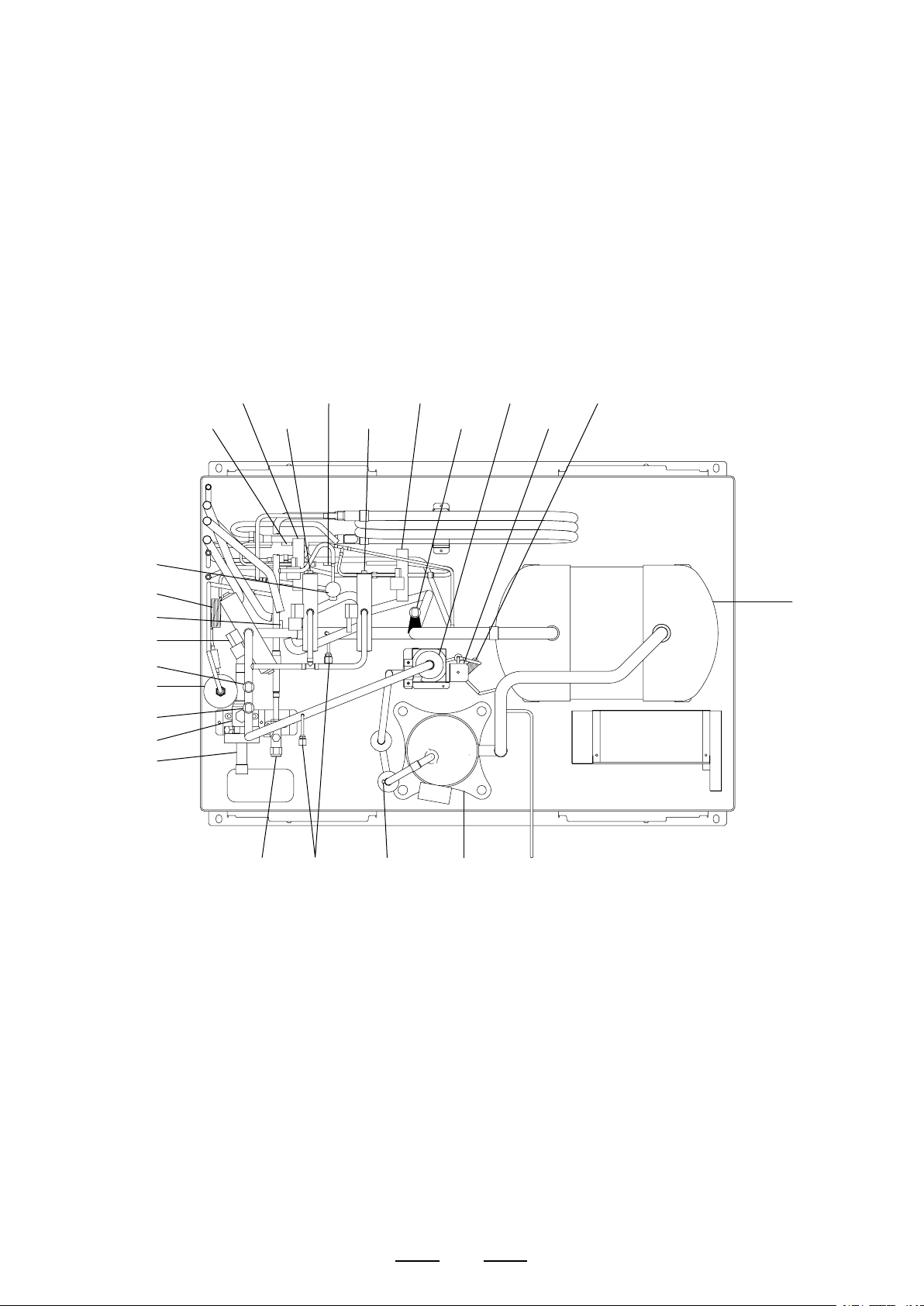

408.413 405 406
416.422 417.418
401
421.427.429.431415 407432.433
408.414
412.419
409.411
404 423
402
410.411
*
408.414
420
403
434.435
421.426.428.430
407
424.425.
436.437
PU(H)Y-P200
*
411 : PUHY only.
PU(H)Y-P200, P250YGM-A(-BS) PU(H)Y-P300, P350YGM-A(-BS)
FUNCTIONAL PARTS (1)
15
PU(H)Y-P200, P250YGM-A(-BS)
FUNCTIONAL PARTS (1) PU(H)Y-P300, P350YGM-A(-BS)
RoHS Compliant : G
No.
401 R63 Y53 484 G Accumulator assy 1 1 1 1 A
402 R63 Y11 208 G Pressure switch ACB1UB28W <63H> 1 1 1 1 A
403 R63 R34 288 G Pressure sensor R410A <63HS> 1 1 1 1 A
404 R63 R37 288 G Pressure sensor R410A <63LS> 1 1 1 1 A
405 R63 R34 487 G Oil separator assy 1 1 1 1 A
406 R63 R34 425 G Capillary tube assy 1 1 1 1 A
407 R63 911 202 G Thermistor <TH11> 1 1 1 1 A
408 R63 670 202 G Thermistor NTH3A14 <TH5~8> 4 4 4 4 A
409 R63 R55 154 G Four way valve STF-04 R410A 1 1 1 1 A
410 R63 Y05 154 G Four way valve STF-07 R410A 1 1 1 1 A
411 R63 Y16 243 G Solenoid valve coil STF DV <21S4a,21S4b> 1 1 1 1 A
412 R63 Y12 242 G Four way valve coil <SV5b> 1 1 1 1 A
413 R61 A45 287 G Sensor cover EVA(12.7D) 1 1 1 1 A
414 R61 A43 287 G Sensor cover EVA(16D) 2 2 2 2 A
415 R63 R34 413 G Check joint L R410A VCSH2S-LM 2 2 2 2 A
416 R63 R34 243 G Solenoid valve coil CAM 6P <LEV1> 1 1 1 1 A
417 R63 Y17 243 G Solenoid valve coil LD2 <SV1> 1 1 1 1 A
418 R63 R34 232 G Solenoid valve VD1 1 1 1 1 A
419 R63 R55 232 G Solenoid valve VR4 PPS 1 1 1 1 A
420 R63 M57 405 G Drier DML163/4 1 1 1 1 A
421 R61 Y08 262 G Belt heater <CH11> 1 1 1 1 A
422 R63 R34 401 G Linear expansion valve CAM35 R410A 1 1 1 1 A
423 R63 L85 425 G Capillary tube assy 1 1 1 1 A
424 R63 9F2 441 G Pipe assy ID22.2 1 1 A
425 R63 9F2 442 G Pipe assy ID28.6 1 A
426 R66 A23 478 G Compressor (ANV47FFBMT)<MC> 1 A
427 R66 A44 478 G Scroll compressor (HNB71FA-YBE)<MC> 1 1 1 A
428 R63 R34 580 G Insulation cover Body 1 A
429 R63 R37 580 G Insulation cover Body 1 1 1 A
430 R63 R40 580 G Insulation cover Head 1 A
431 R63 R55 580 G Insulation cover Head 1 1 1 A
432 R63 R37 410 G Ball valve VSBH-3 R410A 1 1 1 A
433 R63 R55 410 G Ball valve VSBH-4 R410A 1 A
434 R63 R34 410 G Ball valve VSBH-6 R410A 1 A
435 R63 R40 410 G Ball valve VSMBH-8 R410A 1 1 1 A
436 R61 F14 514 G Packing 1 1 1 A
437 R63 R34 494 G Pipe assy 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUY-P200YGM-A
PUY-P250YGM-A
PUY-P300YGM-A
PUY-P350YGM-A
Revision History
16
PU(H)Y-P200, P250YGM-A(-BS)
FUNCTIONAL PARTS (1) PU(H)Y-P300, P350YGM-A(-BS)
RoHS Compliant : G
No.
401 R63 Y53 484 G Accumulator assy 1 1 1 1 A
402 R63 Y11 208 G Pressure switch ACB1UB28W <63H> 1 1 1 1 A
403 R63 R34 288 G Pressure sensor R410A <63HS> 1 1 1 1 A
404 R63 R37 288 G Pressure sensor R410A <63LS> 1 1 1 1 A
405 R63 R34 487 G Oil separator assy 1 1 1 1 A
406 R63 R34 425 G Capillary tube assy 1 1 1 1 A
407 R63 911 202 G Thermistor <TH11> 1 1 1 1 A
408 R63 670 202 G Thermistor NTH3A14 <TH5~8> 4 4 4 4 A
409 R63 R55 154 G Four way valve STF-04 R410A 1 1 1 1 A
410 R63 Y05 154 G Four way valve STF-07 R410A 1 1 1 1 A
411 R63 Y16 243 G Solenoid valve coil STF DV <21S4a,21S4b> 1 1 1 1 A
412 R63 Y12 242 G Four way valve coil <SV5b> 1 1 1 1 A
413 R61 A45 287 G Sensor cover EVA(12.7D) 1 1 1 1 A
414 R61 A43 287 G Sensor cover EVA(16D) 2 2 2 2 A
415 R63 R34 413 G Check joint L R410A VCSH2S-LM 2 2 2 2 A
416 R63 R34 243 G Solenoid valve coil CAM 6P <LEV1> 1 1 1 1 A
417 R63 Y17 243 G Solenoid valve coil LD2 <SV1> 1 1 1 1 A
418 R63 R34 232 G Solenoid valve VD1 1 1 1 1 A
419 R63 R55 232 G Solenoid valve VR4 PPS 1 1 1 1 A
420 R63 M57 405 G Drier DML163/4 1 1 1 1 A
421 R61 Y08 262 G Belt heater <CH11> 1 1 1 1 A
422 R63 R34 401 G Linear expansion valve CAM35 R410A 1 1 1 1 A
423 R63 L85 425 G Capillary tube assy 1 1 1 1 A
424 R63 9F2 441 G Pipe assy ID22.2 1 1 A
425 R63 9F2 442 G Pipe assy ID28.6 1 A
426 R66 A23 478 G Compressor (ANV47FFBMT)<MC> 1 A
427 R66 A44 478 G Scroll compressor (HNB71FA-YBE)<MC> 1 1 1 A
428 R63 R34 580 G Insulation cover Body 1 A
429 R63 R37 580 G Insulation cover Body 1 1 1 A
430 R63 R40 580 G Insulation cover Head 1 A
431 R63 R55 580 G Insulation cover Head 1 1 1 A
432 R63 R37 410 G Ball valve VSBH-3 R410A 1 1 1 A
433 R63 R55 410 G Ball valve VSBH-4 R410A 1 A
434 R63 R34 410 G Ball valve VSBH-6 R410A 1 A
435 R63 R40 410 G Ball valve VSMBH-8 R410A 1 1 1 A
436 R61 F14 514 G Packing 1 1 1 A
437 R63 R34 494 G Pipe assy 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUY-P200YGM-A-BS
PUY-P250YGM-A-BS
PUY-P300YGM-A-BS
PUY-P350YGM-A-BS
Revision History
17
PU(H)Y-P200, P250YGM-A(-BS)
FUNCTIONAL PARTS (1) PU(H)Y-P300, P350YGM-A(-BS)
RoHS Compliant : G
No.
401 R63 Y53 484 G Accumulator assy 1 1 1 1 A
402 R63 Y11 208 G Pressure switch ACB1UB28W <63H> 1 1 1 1 A
403 R63 R34 288 G Pressure sensor R410A <63HS> 1 1 1 1 A
404 R63 R37 288 G Pressure sensor R410A <63LS> 1 1 1 1 A
405 R63 R34 487 G Oil separator assy 1 1 1 1 A
406 R63 R34 425 G Capillary tube assy 1 1 1 1 A
407 R63 911 202 G Thermistor <TH11> 1 1 1 1 A
408 R63 670 202 G Thermistor NTH3A14 <TH5~8> 4 4 4 4 A
409 R63 R55 154 G Four way valve STF-04 R410A 1 1 1 1 A
410 R63 Y05 154 G Four way valve STF-07 R410A 1 1 1 1 A
411 R63 Y16 243 G Solenoid valve coil STF DV <21S4a,21S4b> 2 2 2 2 A
412 R63 Y12 242 G Four way valve coil <SV5b> 1 1 1 1 A
413 R61 A45 287 G Sensor cover EVA(12.7D) 1 1 1 1 A
414 R61 A43 287 G Sensor cover EVA(16D) 2 2 2 2 A
415 R63 R34 413 G Check joint L R410A VCSH2S-LM 2 2 2 2 A
416 R63 R34 243 G Solenoid valve coil CAM 6P <LEV1> 1 1 1 1 A
417 R63 Y17 243 G Solenoid valve coil LD2 <SV1> 1 1 1 1 A
418 R63 R34 232 G Solenoid valve VD1 1 1 1 1 A
419 R63 R55 232 G Solenoid valve VR4 PPS 1 1 1 1 A
420 R63 M57 405 G Drier DML163/4 1 1 1 1 A
421 R61 Y08 262 G Belt heater <CH11> 1 1 1 1 A
422 R63 R34 401 G Linear expansion valve CAM35 R410A 1 1 1 1 A
423 R63 L85 425 G Capillary tube assy 1 1 1 1 A
424 R63 9F2 441 G Pipe assy ID22.2 1 1 A
425 R63 9F2 442 G Pipe assy ID28.6 1 A
426 R66 A23 478 G Compressor (ANV47FFBMT)<MC> 1 A
427 R66 A44 478 G Scroll compressor (HNB71FA-YBE)<MC> 1 1 1 A
428 R63 R34 580 G Insulation cover Body 1 A
429 R63 R37 580 G Insulation cover Body 1 1 1 A
430 R63 R40 580 G Insulation cover Head 1 A
431 R63 R55 580 G Insulation cover Head 1 1 1 A
432 R63 R37 410 G Ball valve VSBH-3 R410A 1 1 1 A
433 R63 R55 410 G Ball valve VSBH-4 R410A 1 A
434 R63 R34 410 G Ball valve VSBH-6 R410A 1 A
435 R63 R40 410 G Ball valve VSMBH-8 R410A 1 1 1 A
436 R61 F14 514 G Packing 1 1 1 A
437 R63 R34 494 G Pipe assy 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P200YGM-A
PUHY-P250YGM-A
PUHY-P300YGM-A
PUHY-P350YGM-A
Revision History
18
FUNCTIONAL PARTS (1)PU(H)Y-P200, P250YGM-A(-BS) PU(H)Y-P300, P350YGM-A(-BS)
RoHS Compliant : G
No.
401 R63 Y53 484 G Accumulator assy 1 1 1 1 A
402 R63 Y11 208 G Pressure switch ACB1UB28W <63H> 1 1 1 1 A
403 R63 R34 288 G Pressure sensor R410A <63HS> 1 1 1 1 A
404 R63 R37 288 G Pressure sensor R410A <63LS> 1 1 1 1 A
405 R63 R34 487 G Oil separator assy 1 1 1 1 A
406 R63 R34 425 G Capillary tube assy 1 1 1 1 A
407 R63 911 202 G Thermistor <TH11> 1 1 1 1 A
408 R63 670 202 G Thermistor NTH3A14 <TH5~8> 4 4 4 4 A
409 R63 R55 154 G Four way valve STF-04 R410A 1 1 1 1 A
410 R63 Y05 154 G Four way valve STF-07 R410A 1 1 1 1 A
411 R63 Y16 243 G Solenoid valve coil STF DV <21S4a,21S4b> 2 2 2 2 A
412 R63 Y12 242 G Four way valve coil <SV5b> 1 1 1 1 A
413 R61 A45 287 G Sensor cover EVA(12.7D) 1 1 1 1 A
414 R61 A43 287 G Sensor cover EVA(16D) 2 2 2 2 A
415 R63 R34 413 G Check joint L R410A VCSH2S-LM 2 2 2 2 A
416 R63 R34 243 G Solenoid valve coil CAM 6P <LEV1> 1 1 1 1 A
417 R63 Y17 243 G Solenoid valve coil LD2 <SV1> 1 1 1 1 A
418 R63 R34 232 G Solenoid valve VD1 1 1 1 1 A
419 R63 R55 232 G Solenoid valve VR4 PPS 1 1 1 1 A
420 R63 M57 405 G Drier DML163/4 1 1 1 1 A
421 R61 Y08 262 G Belt heater <CH11> 1 1 1 1 A
422 R63 R34 401 G Linear expansion valve CAM35 R410A 1 1 1 1 A
423 R63 L85 425 G Capillary tube assy 1 1 1 1 A
424 R63 9F2 441 G Pipe assy ID22.2 1 1 A
425 R63 9F2 442 G Pipe assy ID28.6 1 A
426 R66 A23 478 G Compressor (ANV47FFBMT)<MC> 1 A
427 R66 A44 478 G Scroll compressor (HNB71FA-YBE)<MC> 1 1 1 A
428 R63 R34 580 G Insulation cover Body 1 A
429 R63 R37 580 G Insulation cover Body 1 1 1 A
430 R63 R40 580 G Insulation cover Head 1 A
431 R63 R55 580 G Insulation cover Head 1 1 1 A
432 R63 R37 410 G Ball valve VSBH-3 R410A 1 1 1 A
433 R63 R55 410 G Ball valve VSBH-4 R410A 1 A
434 R63 R34 410 G Ball valve VSBH-6 R410A 1 A
435 R63 R40 410 G Ball valve VSMBH-8 R410A 1 1 1 A
436 R61 F14 514 G Packing 1 1 1 A
437 R63 R34 494 G Pipe assy 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P200YGM-A-BS
PUHY-P250YGM-A-BS
PUHY-P300YGM-A-BS
PUHY-P350YGM-A-BS
Revision History
19
PUHY-P400YGM-A(-BS) FUNCTIONAL PARTS (2)
501
521.525.
526.527
507528 514
524.530
515.522
508.513 510.517 510.517 516.518504
511.519 508.512 511.519 505 506
509.531
508.513
529
503
520
523
502
20
PUHY-P400YGM-A(-BS) FUNCTIONAL PARTS (2)
RoHS Compliant : G
No.
501 R63 Y54 484 G Accumulator assy 1 1 A
502 R63 Y11 208 G Pressure switch ACB1UB28W <63H1> 1 1 A
503 R63 R34 288 G Pressure sensor R410A <63HS> 1 1 A
504 R63 R37 288 G Pressure sensor R410A <63LS> 1 1 A
505 R63 R55 487 G Oil separator assy 1 1 A
506 R63 R55 425 G Capillary tube assy 1 1 A
507 R63 911 202 G Thermistor <TH11> 1 1 A
508 R63 670 202 G Thermistor NTH3A14 <TH5~8> 4 4 A
509 R63 Y05 154 G Four way valve STF-07 R410A 1 1 A
510 R63 R55 154 G Four way valve STF-04 R410A 2 2 A
511 R63 Y12 242 G Four way valve coil <SV5b,SV5c> 2 2 A
512 R61 A45 287 G Sensor cover EVA(12.7D) 1 1 A
513 R61 A43 287 G Sensor cover EVA(16D) 2 2 A
514 R63 R34 413 G Check joint L R410A VCSH2S-LM 2 2 A
515 R63 R34 243 G Solenoid valve coil CAM 6P <LEV1> 1 1 A
516 R63 Y17 243 G Solenoid valve coil LD 2 <SV1> 1 1 A
517 R63 Y16 243 G Solenoid valve coil VHV <21S4b,21S4c> 2 2 A
518 R63 R34 232 G Solenoid valve VD1 1 1 A
519 R63 R55 232 G Solenoid valve VR4 PPS 2 2 A
520 R63 M57 405 G Drier DML163/4 1 1 A
521 R61 Y08 262 G Belt heater <CH11> 1 1 A
522 R63 R34 401 G Linear expansion valve CAM35 R410A 1 1 A
523 R63 L85 425 G Capillary tube assy 1 1 A
524 R63 9F2 442 G Pipe assy ID28.6 1 1 A
525 R66 A44 478 G Scroll compressor (HNB71FA-YBE)<MC> 1 1 A
526 R63 R37 580 G Insulation cover Body 1 1 A
527 R63 R55 580 G Insulation cover Head 1 1 A
528 R63 R55 410 G Ball valve VSBH-4 R410A 1 1 A
529 R63 R40 410 G Ball valve VSMBH-8 R410A 1 1 A
530 R61 F14 514 G Packing 1 1 A
531 R63 Y07 242 G Four way valve coil <21S4a> 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P400YGM-A
PUHY-P400YGM-A-BS
Revision History
21
PUHY-P450, P500YGM-A(-BS)
617 606 602 609 626603619.625633
628.635
604 602 607 609624.630.
631.632
624.629.
631.632
617617610.616
634
623
627
611.636
610.615613.614 620.621618 608
612.622
605 608 618 601
PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
FUNCTIONAL PARTS (3)
22
PUHY-P450, P500YGM-A(-BS)
FUNCTIONAL PARTS (3) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
601 R63 Y05 110 G Accumulator assy 1 1 1 1 A
602 R63 Y11 208 G Pressure switch ACB1UB28W <63H1,2> 2 2 2 2 A
603 R63 R34 288 G Pressure sensor R410A <63HS> 1 1 1 1 A
604 R63 R37 288 G Pressure sensor R410A <63LS> 1 1 1 1 A
605 R63 Y03 530 G Oil tank 1 1 1 1 A
606 R63 R44 487 G Oil separator assy1 <O/S1> 1 1 1 1 A
607 R63 R43 487 G Oil separator assy2 <O/S2> 1 1 1 1 A
608 R63 R55 425 G Capillary tube assy 2 2 2 2 A
609 R63 911 202 G Thermistor <TH11,12> 2 2 2 2 A
610 R63 670 202 G Thermistor NTH3A14 <TH5~8> 4 4 4 4 A
611 R63 Y05 154 G Four way valve VT6100M R410A 2 2 2 2 A
612 R63 Y12 242 G Four way valve coil <SV5b,SV5c> 2 2 2 2 A
613 R63 R55 154 G Four way valve STF-04 R410A 1 1 1 1 A
614 R63 Y16 243 G Solenoid valve coil STF DV <21S4c> 1 1 1 1 A
615 R61 A45 287 G Sensor cover EVA(12.7D) 2 2 2 2 A
616 R61 A43 287 G Sensor cover EVA(16D) 1 1 1 1 A
617 R63 R34 413 G Check joint L R410A VCSH2S-LM 3 3 3 3 A
618 R63 R43 418 G Check valve BCV-1005DY R410A 4.15MPa CV3.5 2 2 2 2 A
619 R63 R34 243 G Solenoid valve coil CAM 6P<LEV1> 1 1 1 1 A
620 R63 Y17 243 G Solenoid valve coil LD 2 <SV1,3> 2 2 2 2 A
621 R63 R34 232 G Solenoid valve VD1 2 2 2 2 A
622 R63 R55 232 G Solenoid valve VR4 PPS 2 2 2 2 A
623 R63 N24 405 G Drier DML303/4 1 1 1 1 A
624 R63 Y07 237 G Belt heater <CH11,12> 2 2 2 2 A
625 R63 R34 401 G Linear expansion valve CAM35 R410A 1 1 1 1 A
626 R63 Y14 494 G Pipe assy 1 1 1 1 A
627 R63 L85 425 G Capillary tube assy 1 1 1 1 A
628 R63 9F2 442 G Pipe assy ID28.6 1 1 1 1 A
629 R66 A25 478 G Scroll compressor (HN71YA-J)<MC2> 1 1 1 1 A
630 R66 A26 478 G Scroll compressor (HNB71FA-YJ)<MC1> 1 1 1 1 A
631 R63 R37 580 G Insulation cover Body 2 2 2 2 A
632 R63 R55 580 G Insulation cover Head 2 2 2 2 A
633 R63 R43 410 G Ball valve VSBH-5 R410A 1 1 1 1 A
634 R63 R40 410 G Ball valve VSMBH-8 R410A 1 1 1 1 A
635 R61 F14 514 G Packing 1 1 1 1 A
636 R63 Y07 242 G Four way valve coil <21S4a,21S4b> 2 2 2 2 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P450YGM-A
PUHY-P500YGM-A
PUHY-P550YGM-A
PUHY-P600YGM-A
Revision History
23
PUHY-P450, P500YGM-A(-BS)
FUNCTIONAL PARTS (3) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
601 R63 Y05 110 G Accumulator assy 1 1 1 1 A
602 R63 Y11 208 G Pressure switch ACB1UB28W <63H1,2> 2 2 2 2 A
603 R63 R34 288 G Pressure sensor R410A <63HS> 1 1 1 1 A
604 R63 R37 288 G Pressure sensor R410A <63LS> 1 1 1 1 A
605 R63 Y03 530 G Oil tank 1 1 1 1 A
606 R63 R44 487 G Oil separator assy1 <O/S1> 1 1 1 1 A
607 R63 R43 487 G Oil separator assy2 <O/S2> 1 1 1 1 A
608 R63 R55 425 G Capillary tube assy 2 2 2 2 A
609 R63 911 202 G Thermistor <TH11,12> 2 2 2 2 A
610 R63 670 202 G Thermistor NTH3A14 <TH5~8> 4 4 4 4 A
611 R63 Y05 154 G Four way valve VT6100M R410A 2 2 2 2 A
612 R63 Y12 242 G Four way valve coil <SV5b,SV5c> 2 2 2 2 A
613 R63 R55 154 G Four way valve STF-04 R410A 1 1 1 1 A
614 R63 Y16 243 G Solenoid valve coil STF DV <21S4c> 1 1 1 1 A
615 R61 A45 287 G Sensor cover EVA(12.7D) 2 2 2 2 A
616 R61 A43 287 G Sensor cover EVA(16D) 1 1 1 1 A
617 R63 R34 413 G Check joint L R410A VCSH2S-LM 3 3 3 3 A
618 R63 R43 418 G Check valve BCV-1005DY R410A 4.15MPa CV3.5 2 2 2 2 A
619 R63 R34 243 G Solenoid valve coil CAM 6P<LEV1> 1 1 1 1 A
620 R63 Y17 243 G Solenoid valve coil LD 2 <SV1,3> 2 2 2 2 A
621 R63 R34 232 G Solenoid valve VD1 2 2 2 2 A
622 R63 R55 232 G Solenoid valve VR4 PPS 2 2 2 2 A
623 R63 N24 405 G Drier DML303/4 1 1 1 1 A
624 R63 Y07 237 G Belt heater <CH11,12> 2 2 2 2 A
625 R63 R34 401 G Linear expansion valve CAM35 R410A 1 1 1 1 A
626 R63 Y14 494 G Pipe assy 1 1 1 1 A
627 R63 L85 425 G Capillary tube assy 1 1 1 1 A
628 R63 9F2 442 G Pipe assy ID28.6 1 1 1 1 A
629 R66 A25 478 G Scroll compressor (HN71YA-J)<MC2> 1 1 1 1 A
630 R66 A26 478 G Scroll compressor (HNB71FA-YJ)<MC1> 1 1 1 1 A
631 R63 R37 580 G Insulation cover Body 2 2 2 2 A
632 R63 R55 580 G Insulation cover Head 2 2 2 2 A
633 R63 R43 410 G Ball valve VSBH-5 R410A 1 1 1 1 A
634 R63 R40 410 G Ball valve VSMBH-8 R410A 1 1 1 1 A
635 R61 F14 514 G Packing 1 1 1 1 A
636 R63 Y07 242 G Four way valve coil <21S4a,21S4b> 2 2 2 2 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P650YGM-A
PUHY-P450YGM-A-BS
PUHY-P500YGM-A-BS
PUHY-P550YGM-A-BS
Revision History
24
PUHY-P450, P500YGM-A(-BS)
FUNCTIONAL PARTS (3) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
601 R63 Y05 110 G Accumulator assy 1 1 A
602 R63 Y11 208 G Pressure switch ACB1UB28W <63H1,2> 2 2 A
603 R63 R34 288 G Pressure sensor R410A <63HS> 1 1 A
604 R63 R37 288 G Pressure sensor R410A <63LS> 1 1 A
605 R63 Y03 530 G Oil tank 1 1 A
606 R63 R44 487 G Oil separator assy1 <O/S1> 1 1 A
607 R63 R43 487 G Oil separator assy2 <O/S2> 1 1 A
608 R63 R55 425 G Capillary tube assy 2 2 A
609 R63 911 202 G Thermistor <TH11,12> 2 2 A
610 R63 670 202 G Thermistor NTH3A14 <TH5~8> 4 4 A
611 R63 Y05 154 G Four way valve VT6100M R410A 2 2 A
612 R63 Y12 242 G Four way valve coil <SV5b,SV5c> 2 2 A
613 R63 R55 154 G Four way valve STF-04 R410A 1 1 A
614 R63 Y16 243 G Solenoid valve coil STF DV <21S4c> 1 1 A
615 R61 A45 287 G Sensor cover EVA(12.7D) 2 2 A
616 R61 A43 287 G Sensor cover EVA(16D) 1 1 A
617 R63 R34 413 G Check joint L R410A VCSH2S-LM 3 3 A
618 R63 R43 418 G Check valve BCV-1005DY R410A 4.15MPa CV3.5 2 2 A
619 R63 R34 243 G Solenoid valve coil CAM 6P<LEV1> 1 1 A
620 R63 Y17 243 G Solenoid valve coil LD 2 <SV1,3> 2 2 A
621 R63 R34 232 G Solenoid valve VD1 2 2 A
622 R63 R55 232 G Solenoid valve VR4 PPS 2 2 A
623 R63 N24 405 G Drier DML303/4 1 1 A
624 R63 Y07 237 G Belt heater <CH11,12> 2 2 A
625 R63 R34 401 G Linear expansion valve CAM35 R410A 1 1 A
626 R63 Y14 494 G Pipe assy 1 1 A
627 R63 L85 425 G Capillary tube assy 1 1 A
628 R63 9F2 442 G Pipe assy ID28.6 1 1 A
629 R66 A25 478 G Scroll compressor (HN71YA-J)<MC2> 1 1 A
630 R66 A26 478 G Scroll compressor (HNB71FA-YJ)<MC1> 1 1 A
631 R63 R37 580 G Insulation cover Body 2 2 A
632 R63 R55 580 G Insulation cover Head 2 2 A
633 R63 R43 410 G Ball valve VSBH-5 R410A 1 1 A
634 R63 R40 410 G Ball valve VSMBH-8 R410A 1 1 A
635 R61 F14 514 G Packing 1 1 A
636 R63 Y07 242 G Four way valve coil <21S4a,21S4b> 2 2 A
Part No.
Part Name
Spec. Dwg. No. Price
PUHY-P600YGM-A-BS
PUHY-P650YGM-A-BS
Revision History
25
PU(H)Y-P200, P250YGM-A(-BS)
CNVCD
CNTR
CNRS2
CNTH2
CNINV
Fig.A
Fig.
A
703
719
704
705
706
710
711 712713.722
715
716
717
726
727
728
718.723.724
709
720
721
725
725
701.70
2
707
708
714
714
·
Production number 5ZW***** and before
·
Production number 51W***** and later
(RoHS-compliant outdoor unit)
PU(H)Y-P300, P350YGM-A(-BS) PUHY-P400YGM-A(-BS)
CONTROL BOX PARTS (1)
26
PU(H)Y-P200, P250YGM-A(-BS)
CONTROL BOX PARTS (1) PU(H)Y-P300, P350YGM-A(-BS) PUHY-P400YGM-A(-BS)
RoHS Compliant : G
No.
701 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 1 1 A
702 R63 Y43 280 G G/A board 1 1 1 1 A
703 R63 Y25 321 G INV board 1 1 1 1 A
704 R63 Y46 281 G Main board 1 1 1 1 A
705 R63 R34 252 G Capacitor
706 R63 L85 252 G Capacitor assy <ZNR14> 1 1 1 1 A
707 R63 F14 201 G Thermistor <THHS> 1 1 1 1 A
708 R63 Y02 287 G AC current sensor
709 R63 A42 289 G DC current sensor <DC-CT> 1 1 1 A
710 R63 Y12 320 G Diode DF60LB160 <DS1> 1 1 1 1 A
711 R63 435 246 G Terminal block <TB3> 1 1 1 1 A
712 R63 979 247 G Terminal block <TB7> 1 1 1 1 A
713 R63 Y05 246 G Terminal block <TB1> 1 1 1 1 A
714 R63 Y06 234 G Resistor 40W, 47Ω <R11,R12> 2 2 2 2 A
715 R63 Y25 260 G Transformer 230V/20.1V<T01> 1 1 1 1 A
716 R63 Y11 293 G Noise filter
717 R63 Y15 118 G Fan 109S025UL<MF1> 1 1 1 1 A
718 R63 Y02 259 G Reactor <DCL1> 1 A
719 R63 R40 259 G Choke coil 10mH 2A<L1,L2> 2 2 2 2 A
720 R63 Y28 225 G Magnet contactor
721 R63 Y26 321 G Filter board 1 1 1 1 A
722 R63 Y06 246 G Terminal block <TB1> A
723 R63 Y03 259 G Reactor <DCL1> 1 1 1 A
724 R63 Y04 259 G Reactor <DCL1> A
725 R63 Y04 234 G Resistor <R13,R14> 2 2 2 2 A
726 R63 Y24 321 G Fan INV board 1 1 1 1 A
*
727 R63 Y74 281 G Fan INV board-A 1 1 1 1 A
*
728 R63 R49 200 G Thermistor <THHS5> 1 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
400V 3300µF<C11,C12>
CHJ038CP2B <AC-CT>
CF4032C-MX2 <ACNF1>
PAK-21J,AC240V<52C1>
PUY-P200YGM-A
PUY-P250YGM-A
PUY-P300YGM-A
PUY-P350YGM-A
2 2 2 2 A
1 1 1 1 A
1 1 1 1 A
1 1 1 1 A
Revision History
RoHS-compliant outdoor units (production number 51W***** and later) use Fan INV board No. 727.
*
Fan INV boards No. 726 and No. 727 are not interchangeable.
If RoHS-compliance status information of a given unit (production number) is not available, procure Fan INV boards
No. 726 and No. 727.
27
PU(H)Y-P200, P250YGM-A(-BS)
CONTROL BOX PARTS (1) PU(H)Y-P300, P350YGM-A(-BS) PUHY-P400YGM-A(-BS)
RoHS Compliant : G
No.
701 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 1 1 A
702 R63 Y43 280 G G/A board 1 1 1 1 A
703 R63 Y25 321 G INV board 1 1 1 1 A
704 R63 Y46 281 G Main board 1 1 1 1 A
705 R63 R34 252 G Capacitor
706 R63 L85 252 G Capacitor assy <ZNR14> 1 1 1 1 A
707 R63 F14 201 G Thermistor <THHS> 1 1 1 1 A
708 R63 Y02 287 G AC current sensor
709 R63 A42 289 G DC current sensor <DC-CT> 1 1 1 A
710 R63 Y12 320 G Diode DF60LB160 <DS1> 1 1 1 1 A
711 R63 435 246 G Terminal block <TB3> 1 1 1 1 A
712 R63 979 247 G Terminal block <TB7> 1 1 1 1 A
713 R63 Y05 246 G Terminal block <TB1> 1 1 1 1 A
714 R63 Y06 234 G Resistor 40W, 47Ω <R11,R12> 2 2 2 2 A
715 R63 Y25 260 G Transformer 230V/20.1V<T01> 1 1 1 1 A
716 R63 Y11 293 G Noise filter
717 R63 Y15 118 G Fan 109S025UL<MF1> 1 1 1 1 A
718 R63 Y02 259 G Reactor <DCL1> 1 A
719 R63 R40 259 G Choke coil 10mH 2A<L1,L2> 2 2 2 2 A
720 R63 Y28 225 G Magnet contactor
721 R63 Y26 321 G Filter board 1 1 1 1 A
722 R63 Y06 246 G Terminal block <TB1> A
723 R63 Y03 259 G Reactor <DCL1> 1 1 1 A
724 R63 Y04 259 G Reactor <DCL1> A
725 R63 Y04 234 G Resistor <R13,R14> 2 2 2 2 A
726 R63 Y24 321 G Fan INV board 1 1 1 1 A
*
727 R63 Y74 281 G Fan INV board-A 1 1 1 1 A
*
728 R63 R49 200 G Thermistor <THHS5> 1 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
400V 3300µF<C11,C12>
CHJ038CP2B <AC-CT>
CF4032C-MX2 <ACNF1>
PAK-21J,AC240V<52C1>
PUY-P200YGM-A-BS
PUY-P250YGM-A-BS
PUY-P300YGM-A-BS
PUY-P350YGM-A-BS
2 2 2 2 A
1 1 1 1 A
1 1 1 1 A
1 1 1 1 A
Revision History
RoHS-compliant outdoor units (production number 51W***** and later) use Fan INV board No. 727.
*
Fan INV boards No. 726 and No. 727 are not interchangeable.
If RoHS-compliance status information of a given unit (production number) is not available, procure Fan INV boards
No. 726 and No. 727.
28
PU(H)Y-P200, P250YGM-A(-BS)
CONTROL BOX PARTS (1) PU(H)Y-P300, P350YGM-A(-BS) PUHY-P400YGM-A(-BS)
RoHS Compliant : G
No.
701 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 1 1 A
702 R63 Y43 280 G G/A board 1 1 1 1 A
703 R63 Y25 321 G INV board 1 1 1 1 A
704 R63 Y46 281 G Main board 1 1 1 1 A
705 R63 R34 252 G Capacitor
706 R63 L85 252 G Capacitor assy <ZNR14> 1 1 1 1 A
707 R63 F14 201 G Thermistor <THHS> 1 1 1 1 A
708 R63 Y02 287 G AC current sensor CHJ038CP2B <AC-CT> 1 1 1 1 A
709 R63 A42 289 G DC current sensor <DC-CT> 1 1 1 A
710 R63 Y12 320 G Diode DF60LB160 <DS1> 1 1 1 1 A
711 R63 435 246 G Terminal block <TB3> 1 1 1 1 A
712 R63 979 247 G Terminal block <TB7> 1 1 1 1 A
713 R63 Y05 246 G Terminal block <TB1> 1 1 1 1 A
714 R63 Y06 234 G Resistor 40W, 47Ω <R11,R12> 2 2 2 2 A
715 R63 Y25 260 G Transformer 230V/20.1V<T01> 1 1 1 1 A
716 R63 Y11 293 G Noise filter
717 R63 Y15 118 G Fan 109S025UL<MF1> 1 1 1 1 A
718 R63 Y02 259 G Reactor <DCL1> 1 A
719 R63 R40 259 G Choke coil 10mH 2A<L1,L2> 2 2 2 2 A
720 R63 Y28 225 G Magnet contactor
721 R63 Y26 321 G Filter board 1 1 1 1 A
722 R63 Y06 246 G Terminal block <TB1> A
723 R63 Y03 259 G Reactor <DCL1> 1 1 1 A
724 R63 Y04 259 G Reactor <DCL1> A
725 R63 Y04 234 G Resistor <R13,R14> 2 2 2 2 A
726 R63 Y24 321 G Fan INV board 1 1 1 1 A
*
727 R63 Y74 281 G Fan INV board-A 1 1 1 1 A
*
728 R63 R49 200 G Thermistor <THHS5> 1 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
400V 3300µF<C11,C12>
CF4032C-MX2 <ACNF1>
PAK-21J,AC240V<52C1>
PUHY-P200YGM-A
PUHY-P250YGM-A
PUHY-P300YGM-A
PUHY-P350YGM-A
2 2 2 2 A
1 1 1 1 A
1 1 1 1 A
Revision History
RoHS-compliant outdoor units (production number 51W***** and later) use Fan INV board No. 727.
*
Fan INV boards No. 726 and No. 727 are not interchangeable.
If RoHS-compliance status information of a given unit (production number) is not available, procure Fan INV boards
No. 726 and No. 727.
29
PU(H)Y-P200, P250YGM-A(-BS)
CONTROL BOX PARTS (1) PU(H)Y-P300, P350YGM-A(-BS) PUHY-P400YGM-A(-BS)
RoHS Compliant : G
No.
701 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 1 1 A
702 R63 Y43 280 G G/A board 1 1 1 1 A
703 R63 Y25 321 G INV board 1 1 1 1 A
704 R63 Y46 281 G Main board 1 1 1 1 A
705 R63 R34 252 G Capacitor
706 R63 L85 252 G Capacitor assy <ZNR14> 1 1 1 1 A
707 R63 F14 201 G Thermistor <THHS> 1 1 1 1 A
708 R63 Y02 287 G AC current sensor CHJ038CP2B <AC-CT> 1 1 1 1 A
709 R63 A42 289 G DC current sensor <DC-CT> 1 1 1 A
710 R63 Y12 320 G Diode DF60LB160 <DS1> 1 1 1 1 A
711 R63 435 246 G Terminal block <TB3> 1 1 1 1 A
712 R63 979 247 G Terminal block <TB7> 1 1 1 1 A
713 R63 Y05 246 G Terminal block <TB1> 1 1 1 1 A
714 R63 Y06 234 G Resistor 40W, 47Ω <R11,R12> 2 2 2 2 A
715 R63 Y25 260 G Transformer 230V/20.1V<T01> 1 1 1 1 A
716 R63 Y11 293 G Noise filter
717 R63 Y15 118 G Fan 109S025UL<MF1> 1 1 1 1 A
718 R63 Y02 259 G Reactor <DCL1> 1 A
719 R63 R40 259 G Choke coil 10mH 2A<L1,L2> 2 2 2 2 A
720 R63 Y28 225 G Magnet contactor
721 R63 Y26 321 G Filter board 1 1 1 1 A
722 R63 Y06 246 G Terminal block <TB1> A
723 R63 Y03 259 G Reactor <DCL1> 1 1 1 A
724 R63 Y04 259 G Reactor <DCL1> A
725 R63 Y04 234 G Resistor <R13,R14> 2 2 2 2 A
726 R63 Y24 321 G Fan INV board 1 1 1 1 A
*
727 R63 Y74 281 G Fan INV board-A 1 1 1 1 A
*
728 R63 R49 200 G Thermistor <THHS5> 1 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
400V 3300µF<C11,C12>
CF4032C-MX2 <ACNF1>
PAK-21J,AC240V<52C1>
PUHY-P200YGM-A-BS
PUHY-P250YGM-A-BS
PUHY-P300YGM-A-BS
PUHY-P350YGM-A-BS
2 2 2 2 A
1 1 1 1 A
1 1 1 1 A
Revision History
RoHS-compliant outdoor units (production number 51W***** and later) use Fan INV board No. 727.
*
Fan INV boards No. 726 and No. 727 are not interchangeable.
If RoHS-compliance status information of a given unit (production number) is not available, procure Fan INV boards
No. 726 and No. 727.
30
PU(H)Y-P200, P250YGM-A(-BS)
CONTROL BOX PARTS (1) PU(H)Y-P300, P350YGM-A(-BS) PUHY-P400YGM-A(-BS)
RoHS Compliant : G
No.
701 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 A
702 R63 Y43 280 G G/A board 1 1 A
703 R63 Y25 321 G INV board 1 1 A
704 R63 Y46 281 G Main board 1 1 A
705 R63 R34 252 G Capacitor
706 R63 L85 252 G Capacitor assy <ZNR14> 1 1 A
707 R63 F14 201 G Thermistor <THHS> 1 1 A
708 R63 Y02 287 G AC current sensor CHJ038CP2B <AC-CT> 1 1 A
709 R63 A42 289 G DC current sensor <DC-CT> 1 1 A
710 R63 Y12 320 G Diode DF60LB160 <DS1> 1 1 A
711 R63 435 246 G Terminal block <TB3> 1 1 A
712 R63 979 247 G Terminal block <TB7> 1 1 A
713 R63 Y05 246 G Terminal block <TB1> A
714 R63 Y06 234 G Resistor 40W, 47Ω <R11,R12> 2 2 A
715 R63 Y25 260 G Transformer 230V/20.1V<T01> 1 1 A
716 R63 Y11 293 G Noise filter
717 R63 Y15 118 G Fan 109S025UL<MF1> 1 1 A
718 R63 Y02 259 G Reactor <DCL1> A
719 R63 R40 259 G Choke coil 10mH 2A<L1,L2> 2 2 A
720 R63 Y28 225 G Magnet contactor
721 R63 Y26 321 G Filter board 1 1 A
722 R63 Y06 246 G Terminal block <TB1> 1 1 A
723 R63 Y03 259 G Reactor <DCL1> A
724 R63 Y04 259 G Reactor <DCL1> 1 1 A
725 R63 Y04 234 G Resistor <R13,R14> 2 2 A
726 R63 Y24 321 G Fan INV board 1 1 A
*
727 R63 Y74 281 G Fan INV board-A 1 1 A
*
728 R63 R49 200 G Thermistor <THHS5> 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
400V 3300µF<C11,C12>
CF4032C-MX2 <ACNF1>
PAK-21J,AC240V<52C1>
PUHY-P400YGM-A
PUHY-P400YGM-A-BS
2 2 A
1 1 A
1 1 A
Revision History
RoHS-compliant outdoor units (production number 51W***** and later) use Fan INV board No. 727.
*
Fan INV boards No. 726 and No. 727 are not interchangeable.
If RoHS-compliance status information of a given unit (production number) is not available, procure Fan INV boards
No. 726 and No. 727.
31
PUHY-P450, P500YGM-A(-BS)
CNVCD
CNTR
CNRS2
CNTH2
CNINV
Fig.B
827
828
829
·
Production number 5ZW***** and before
·
Production number 51W***** and later
(RoHS-compliant outdoor unit)
Fig.B
801.803
802
804
805
806
807
808 809810
813 814815
816
816
817
818
819
820
811
812
823
824
825
826
826
821
822
PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
CONTROL BOX PARTS (2)
32
PUHY-P450, P500YGM-A(-BS)
CONTROL BOX PARTS (2) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
801 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 1 1 A
802 R63 Y60 280 G Relay board 1 1 1 1 A
803 R63 Y43 280 G G/A board 1 1 1 1 A
804 R63 Y25 321 G INV board 1 1 1 1 A
805 R63 Y47 281 G Main board 1 1 1 1 A
806 R63 R34 252 G Capacitor
807 R63 L85 252 G Capacitor assy <ZNR14> 1 1 1 1 A
808 R63 Y36 225 G Magnetic starter
809 R63 F14 201 G Thermistor <THHS> 1 1 1 1 A
810 R63 Y02 287 G AC current sensor CHJ038CP2B <AC-CT> 1 1 1 1 A
811 R63 A42 289 G DC current sensor <DC-CT> 1 1 1 1 A
812 R63 Y12 320 G Diode DF60LB160<DS1> 1 1 1 1 A
813 R63 435 246 G Terminal block <TB3> 1 1 1 1 A
814 R63 979 247 G Terminal block <TB7> 1 1 1 1 A
815 R63 Y06 246 G Terminal block <TB1> 1 1 1 1 A
816 R63 Y06 234 G Resistor 40W, 47Ω<R11,R12> 2 2 2 2 A
817 R63 Y29 225 G Magnet contactor PAK-11J<52F> 1 1 1 1 A
818 R63 Y25 260 G Transformer 230V/20.1V<T01> 1 1 1 1 A
819 R63 Y11 293 G Noise filter
820 R63 Y09 241 G Fuse <F11,F12> 2 2 2 2 A
821 R63 Y15 118 G Fan 109S025UL<MF1> 1 1 1 1 A
822 R63 Y04 259 G Reactor <DCL1> 1 1 1 1 A
823 R63 R40 259 G Choke coil 10mH 2A<L1,L2> 2 2 2 2 A
824 R63 Y28 225 G Magnet contactor
825 R63 Y26 321 G Filter board 1 1 1 1 A
826 R63 Y04 234 G Resistor <R13,R14> 2 2 2 2 A
827 R63 Y24 321 G Fan INV board 1 1 1 1 A
*
828 R63 Y74 281 G Fan INV board-A 1 1 1 1 A
*
829 R63 R49 200 G Thermistor <THHS5> 1 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
400V 3300µF<C11,C12>
PAK-35JT-FC<51C2,52C2>
CF4032C-MX2 <ACNF1>
PAK-21J,AC240V<52C1>
2 2 2 2 A
1 1 1 1 A
1 1 1 1 A
1 1 1 1 A
PUHY-P450YGM-A
PUHY-P500YGM-A
PUHY-P550YGM-A
PUHY-P600YGM-A
Revision History
RoHS-compliant outdoor units (production number 51W***** and later) use Fan INV board No. 828.
*
Fan INV boards No. 827 and No. 828 are not interchangeable.
If RoHS-compliance status information of a given unit (production number) is not available, procure Fan INV boards
No. 827 and No. 828.
33
PUHY-P450, P500YGM-A(-BS)
CONTROL BOX PARTS (2) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
801 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 1 1 A
802 R63 Y60 280 G Relay board 1 1 1 1 A
803 R63 Y43 280 G G/A board 1 1 1 1 A
804 R63 Y25 321 G INV board 1 1 1 1 A
805 R63 Y47 281 G Main board 1 1 1 1 A
806 R63 R34 252 G Capacitor
807 R63 L85 252 G Capacitor assy <ZNR14> 1 1 1 1 A
808 R63 Y36 225 G Magnetic starter
809 R63 F14 201 G Thermistor <THHS> 1 1 1 1 A
810 R63 Y02 287 G AC current sensor CHJ038CP2B <AC-CT> 1 1 1 1 A
811 R63 A42 289 G DC current sensor <DC-CT> 1 1 1 1 A
812 R63 Y12 320 G Diode DF60LB160<DS1> 1 1 1 1 A
813 R63 435 246 G Terminal block <TB3> 1 1 1 1 A
814 R63 979 247 G Terminal block <TB7> 1 1 1 1 A
815 R63 Y06 246 G Terminal block <TB1> 1 1 1 1 A
816 R63 Y06 234 G Resistor 40W, 47Ω<R11,R12> 2 2 2 2 A
817 R63 Y29 225 G Magnet contactor PAK-11J<52F> 1 1 1 1 A
818 R63 Y25 260 G Transformer 230V/20.1V<T01> 1 1 1 1 A
819 R63 Y11 293 G Noise filter
820 R63 Y09 241 G Fuse <F11,F12> 2 2 2 2 A
821 R63 Y15 118 G Fan 109S025UL<MF1> 1 1 1 1 A
822 R63 Y04 259 G Reactor <DCL1> 1 1 1 1 A
823 R63 R40 259 G Choke coil 10mH 2A<L1,L2> 2 2 2 2 A
824 R63 Y28 225 G Magnet contactor
825 R63 Y26 321 G Filter board 1 1 1 1 A
826 R63 Y04 234 G Resistor <R13,R14> 2 2 2 2 A
827 R63 Y24 321 G Fan INV board 1 1 1 1 A
*
828 R63 Y74 281 G Fan INV board-A 1 1 1 1 A
*
829 R63 R49 200 G Thermistor <THHS5> 1 1 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
400V 3300µF<C11,C12>
PAK-35JT-FC<51C2,52C2>
CF4032C-MX2 <ACNF1>
PAK-21J,AC240V<52C1>
1 1 1 1 A
PUHY-P650YGM-A
PUHY-P450YGM-A-BS
PUHY-P500YGM-A-BS
PUHY-P550YGM-A-BS
2 2 2 2 A
1 1 1 1 A
1 1 1 1 A
Revision History
RoHS-compliant outdoor units (production number 51W***** and later) use Fan INV board No. 828.
*
Fan INV boards No. 827 and No. 828 are not interchangeable.
If RoHS-compliance status information of a given unit (production number) is not available, procure Fan INV boards
No. 827 and No. 828.
34
PUHY-P450, P500YGM-A(-BS)
CONTROL BOX PARTS (2) PUHY-P550, P600YGM-A(-BS) PUHY-P650YGM-A(-BS)
RoHS Compliant : G
No.
801 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 A
802 R63 Y60 280 G Relay board 1 1 A
803 R63 Y43 280 G G/A board 1 1 A
804 R63 Y25 321 G INV board 1 1 A
805 R63 Y47 281 G Main board 1 1 A
806 R63 R34 252 G Capacitor
807 R63 L85 252 G Capacitor assy <ZNR14> 1 1 A
808 R63 Y36 225 G Magnetic starter
809 R63 F14 201 G Thermistor <THHS> 1 1 A
810 R63 Y02 287 G AC current sensor CHJ038CP2B <AC-CT> 1 1 A
811 R63 A42 289 G DC current sensor <DC-CT> 1 1 A
812 R63 Y12 320 G Diode DF60LB160<DS1> 1 1 A
813 R63 435 246 G Terminal block <TB3> 1 1 A
814 R63 979 247 G Terminal block <TB7> 1 1 A
815 R63 Y06 246 G Terminal block <TB1> 1 1 A
816 R63 Y06 234 G Resistor 40W, 47Ω<R11,R12> 2 2 A
817 R63 Y29 225 G Magnet contactor PAK-11J<52F> 1 1 A
818 R63 Y25 260 G Transformer 230V/20.1V<T01> 1 1 A
819 R63 Y11 293 G Noise filter
820 R63 Y09 241 G Fuse <F11,F12> 2 2 A
821 R63 Y15 118 G Fan 109S025UL<MF1> 1 1 A
822 R63 Y04 259 G Reactor <DCL1> 1 1 A
823 R63 R40 259 G Choke coil 10mH 2A<L1,L2> 2 2 A
824 R63 Y28 225 G Magnet contactor
825 R63 Y26 321 G Filter board 1 1 A
826 R63 Y04 234 G Resistor <R13,R14> 2 2 A
827 R63 Y24 321 G Fan INV board 1 1 A
*
828 R63 Y74 281 G Fan INV board-A 1 1 A
*
829 R63 R49 200 G Thermistor <THHS5> 1 1 A
Part No.
Part Name
Spec. Dwg. No. Price
400V 3300µF<C11,C12>
PAK-35JT-FC<51C2,52C2>
CF4032C-MX2 <ACNF1>
PAK-21J,AC240V<52C1>
1 1 A
PUHY-P600YGM-A-BS
PUHY-P650YGM-A-BS
2 2 A
1 1 A
1 1 A
Revision History
RoHS-compliant outdoor units (production number 51W***** and later) use Fan INV board No. 828.
*
Fan INV boards No. 827 and No. 828 are not interchangeable.
If RoHS-compliance status information of a given unit (production number) is not available, procure Fan INV boards
No. 827 and No. 828.
35
BWE0412A (20060630)
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
