MITSUBISHI preface Datasets

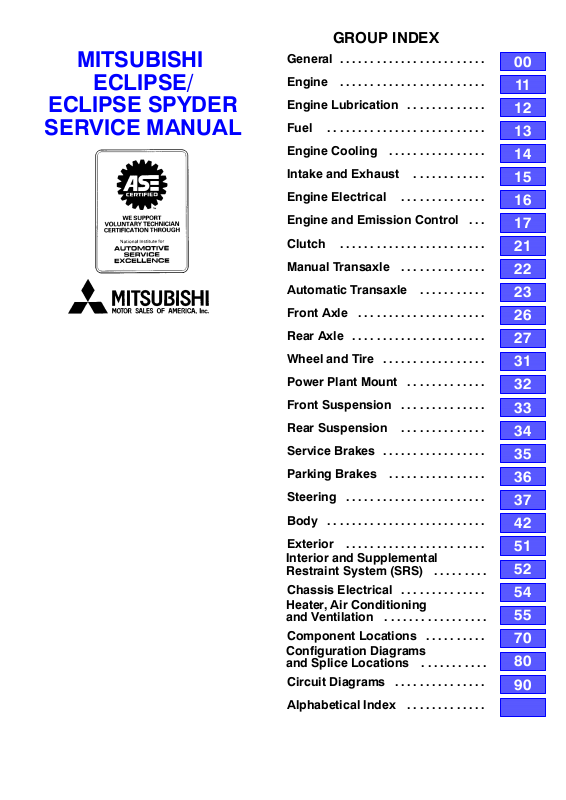

GROUP INDEX

MITSUBISHI

ECLIPSE/

ECLIPSESPYDER

SERVICEMANUAL

General ........................

Engine ........................

Engine Lubrication .............

Fuel ..........................

Engine Cooling ................

Intake and Exhaust ............

Engine Electrical ..............

Engine and Emission Control . . .

Clutch ........................

Manual Transaxle ..............

Automatic Transaxle ...........

Front Axle .....................

00

11

12

13

14

15

16

17

21

22

23

26

Rear Axle ......................

Wheel and Tire .................

Power Plant Mount .............

Front Suspension ..............

Rear Suspension ..............

Service Brakes .................

Parking Brakes ................

Steering .......................

Body ..........................

Exterior .......................

Interior and Supplemental

Restraint System (SRS) .........

Chassis Electrical ..............

Heater, Air Conditioning

and Ventilation .................

27

31

32

33

34

35

36

37

42

51

52

54

55

Component Locations ..........

Configuration Diagrams

and Splice Locations ...........

Circuit Diagrams ...............

Alphabetical Index .............

70

80

90

WARNING

Proper service methods and repair procedures are necessary for the safe, reliable operation of all motor vehicles as well as the personal safety of the person doing the repair. There are many types of procedures, techniques, tools, and parts for servicing vehicles, as well as differences in the skills of the people doing the work. This manual cannot give advice or precautions for every possible situation. Because of this, anyone who does not follow the instructions in this manual must first make sure that the choice of methods, tools, or parts will not cause damage to the vehicle or injury to the person doing the work. The following list contains general precautions that should always be followed while working on a vehicle.

• Always wear safety glasses for eye protection.

• Use safety stands whenever a procedure requires work under the

vehicle.

• Be sure the ignition switch is always "off" unless otherwise specified by

a procedure.

• Set the parking brake when working on a vehicle.

• Operate the engine only in a well-ventilated area.

• Keep clear of moving parts when the engine is running.

• To prevent serious burns, avoid contact with hot metal parts such as the

radiator, exhaust manifold, tail pipe, catalytic converter and muffler.

• Do not smoke while working on or near a vehicle.

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING

• Improper service or maintenance of any component of the SRS, or any SRS-related component,

can lead to personal injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and passenger (from rendering the SRS inoperative).

• If it is possible that the SRS components are subjected to heat over 93°C (200°F) in baking or in

drying after painting, remove the SRS components [air bag module (driver's side and front passenger's side), SRS-ECU, clock spring, side impact sensor, front seat assembly (side air bag module)] beforehand.

• Service or maintenance of any SRS component or SRS-related component must be performed

only at an authorized MITSUBISHI dealer.

• MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP

52B, Supplemental Restraint System (SRS), before beginning any service or maintenance of any component of the SRS or any SRS-related component.

NOTE Section titles with the asterisks (*) in the table of contents in each group indicate operations requiring warnings.
