SERVICE PARTS LIST FOR MITSUBISHI ELECTRIC PACKAGED AIR-CONDITIONERS
Series :
INDEX
P E F Y - P 1 5 V M S 1 - E R 1 . T H
P E F Y - P 2 0 V M S 1 - E R 1 . T H
P E F Y - P 2 5 V M S 1 - E R 1 . T H
P E F Y - P 3 2 V M S 1 - E R 1 . T H
P E F Y - P 4 0 V M S 1 - E R 1 . T H
P E F Y - P 1 5 V M S 1 - E R 1 . T H - T
P E F Y - P 2 0 V M S 1 - E R 1 . T H - T
P E F Y - P 2 5 V M S 1 - E R 1 . T H - T
P E F Y - P 3 2 V M S 1 - E R 1 . T H - T
P E F Y - P 4 0 V M S 1 - E R 1 . T H - T
Jan. 2009
BWE08200
P E F Y - P 5 0 V M S 1 - E R 1 . T H
P E F Y - P 6 3 V M S 1 - E R 1 . T H
P E F Y - P 5 0 V M S 1 - E R 1 . T H - T
P E F Y - P 6 3 V M S 1 - E R 1 . T H - T
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH
101.102.103
104.105
106
125
112.113.114
122.123.124
121
108
118.119.120115.116.117
129
101.102.103
104.105
107
128
126 127
129
131
130
111
110
109
132
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH-T

EXTERNAL PARTS

1
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH
EXTERNAL PARTS
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH-T
G :
RoHS Apply Only
W :
No. Part No.
101 E17 402 620 G HEAT EXCHANGER 1 KB00A079B01
102 E17 403 620 G HEAT EXCHANGER 1 1 KB00A082B01
103 E17 405 620 G HEAT EXCHANGER 1 KB00A080B01
104 E17 406 620 G HEAT EXCHANGER 1 1 KB00A081B01
105 E17 408 620 G HEAT EXCHANGER KB00A075B01
106 E17 409 640 G LINEAR EXPANSION VALVE EFM-40YGMD-1 1 1 1 1 1 1 KB50B472H01
107 E17 319 307 G THERMISTOR 1 1 1 1 1 1 RG71V202G01
108 E17 319 690 G COVER PIPE ASSY 1 1 1 1 1 1 KB00H214G02
109 E17 409 355 G PUMP PLD 1 1 1 1 1 1 KB56B515H02
110 E17 409 145 G FLOAT SWITCH 1 1 1 1 1 1 BH68C952H02
111 E17 409 704 G SOCKET ASSY 1 1 1 1 1 1 KB00G754G01
112 E17 319 700 G DRAIN PAN S ASSY 1 1 1 1 KB00G775G13
113 E17 320 700 G DRAIN PAN M ASSY 1 1 KB00G775G14
114 E17 326 700 G DRAIN PAN L ASSY KB00G775G15
115 E17 319 717 G PANEL UNDER 1 S ASSY 1 1 1 1 KB00G776G01
116 E17 320 717 G PANEL UNDER 1 M ASSY 1 1 KB00G776G02
117 E17 326 717 G PANEL UNDER 1 L ASSY KB00G776G03
118 E17 319 718 G PANEL UNDER 2 S 1 1 1 1 KB02B455G02
119 E17 320 718 G PANEL UNDER 2 M 1 1 KB02B457G01
120 E17 326 718 G PANEL UNDER 2 L KB02A071G02
121 E17 409 690 G COVER ASSY 1 1 1 1 1 1 KB00H222G03
122 E17 319 100 G FILTER 15 1 1 1 1 KB35B272G02
123 E17 320 100 G FILTER 40 1 1 KB35B207G02
124 E17 326 100 G FILTER 63 KB35B208G02
125 E17 414 524 G PLUG RUBBER 1 1 1 1 1 1 KB26H049H01
126 E17 407 204 G REDUCER 12.7-15.88 1 KB14H395G02
127 E17 414 204 G REDUCER 6.35-9.52 1 KB14H390G02
128 E17 319 702 G DRAIN HOSE 1 1 1 1 1 1 BC27R200K03
129 E17 319 250 G SCREW ASSY 3 3 3 3 4 4 KB12H389G01
130 E17 548 250 G SCREW SPECIAL M4×6 3 3 3 3 3 3 Z003Z333H05
DB26F013L01
131
132
KB00M769G01
RoHS Apply by Running Change
Part Name
G CUSHION 3 3 3 3 3 3 DB26F013L01
G ATTACHMENT PUMP 1 1 1 1 1 1 KB00M769G01
Spec. Dwg. No. Price
PEFY-P15VMS1-ER1.TH
PEFY-P20VMS1-ER1.TH
PEFY-P25VMS1-ER1.TH
PEFY-P32VMS1-ER1.TH
PEFY-P40VMS1-ER1.TH
PEFY-P50VMS1-ER1.TH
Revision History
2
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH
EXTERNAL PARTS
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH-T
G :
RoHS Apply Only
W :
No. Part No.
101 E17 402 620 G HEAT EXCHANGER 1 KB00A079B01
102 E17 403 620 G HEAT EXCHANGER 1 1 KB00A082B01
103 E17 405 620 G HEAT EXCHANGER 1 KB00A080B01
104 E17 406 620 G HEAT EXCHANGER 1 KB00A081B01
105 E17 408 620 G HEAT EXCHANGER 1 KB00A075B01
106 E17 409 640 G LINEAR EXPANSION VALVE EFM-40YGMD-1 1 1 1 1 1 1 KB50B472H01
107 E17 319 307 G THERMISTOR 1 1 1 1 1 1 RG71V202G01
108 E17 319 690 G COVER PIPE ASSY 1 1 1 1 1 1 KB00H214G02
109 E17 409 355 G PUMP PLD 1 1 1 1 1 1 KB56B515H02
110 E17 409 145 G FLOAT SWITCH 1 1 1 1 1 1 BH68C952H02
111 E17 409 704 G SOCKET ASSY 1 1 1 1 1 1 KB00G754G01
112 E17 319 700 G DRAIN PAN S ASSY 1 1 1 1 KB00G775G13
113 E17 320 700 G DRAIN PAN M ASSY 1 KB00G775G14
114 E17 326 700 G DRAIN PAN L ASSY 1 KB00G775G15
115 E17 319 717 G PANEL UNDER 1 S ASSY 1 1 1 1 KB00G776G01
116 E17 320 717 G PANEL UNDER 1 M ASSY 1 KB00G776G02
117 E17 326 717 G PANEL UNDER 1 L ASSY 1 KB00G776G03
118 E17 319 718 G PANEL UNDER 2 S 1 1 1 1 KB02B455G02
119 E17 320 718 G PANEL UNDER 2 M 1 KB02B457G01
120 E17 326 718 G PANEL UNDER 2 L 1 KB02A071G02
121 E17 409 690 G COVER ASSY 1 1 1 1 1 1 KB00H222G03
122 E17 319 100 G FILTER 15 1 1 1 1 KB35B272G02
123 E17 320 100 G FILTER 40 1 KB35B207G02
124 E17 326 100 G FILTER 63 2 KB35B208G02
125 E17 414 524 G PLUG RUBBER 1 1 1 1 1 1 KB26H049H01
126 E17 407 204 G REDUCER 12.7-15.88 KB14H395G02
127 E17 414 204 G REDUCER 6.35-9.52 KB14H390G02
128 E17 319 702 G DRAIN HOSE 1 1 1 1 1 1 BC27R200K03
129 E17 319 250 G SCREW ASSY 4 3 3 3 3 4 KB12H389G01
130 E17 548 250 G SCREW SPECIAL M4×6 3 3 3 3 3 3 Z003Z333H05
DB26F013L01
131
132
KB00M769G01
RoHS Apply by Running Change
Part Name
G CUSHION 3 3 3 3 3 3 DB26F013L01
G ATTACHMENT PUMP 1 1 1 1 1 1 KB00M769G01
Spec. Dwg. No. Price
PEFY-P63VMS1-ER1.TH
PEFY-P15VMS1-ER1.TH-T
PEFY-P20VMS1-ER1.TH-T
PEFY-P25VMS1-ER1.TH-T
PEFY-P32VMS1-ER1.TH-T
PEFY-P40VMS1-ER1.TH-T
Revision History
3
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH
EXTERNAL PARTS
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH-T
G :
RoHS Apply Only
W :
No. Part No.
101 E17 402 620 G HEAT EXCHANGER KB00A079B01
102 E17 403 620 G HEAT EXCHANGER KB00A082B01
103 E17 405 620 G HEAT EXCHANGER KB00A080B01
104 E17 406 620 G HEAT EXCHANGER 1 KB00A081B01
105 E17 408 620 G HEAT EXCHANGER 1 KB00A075B01
106 E17 409 640 G LINEAR EXPANSION VALVE EFM-40YGMD-1 1 1 KB50B472H01
107 E17 319 307 G THERMISTOR 1 1 RG71V202G01
108 E17 319 690 G COVER PIPE ASSY 1 1 KB00H214G02
109 E17 409 355 G PUMP PLD 1 1 KB56B515H02
110 E17 409 145 G FLOAT SWITCH 1 1 BH68C952H02
111 E17 409 704 G SOCKET ASSY 1 1 KB00G754G01
112 E17 319 700 G DRAIN PAN S ASSY KB00G775G13
113 E17 320 700 G DRAIN PAN M ASSY 1 KB00G775G14
114 E17 326 700 G DRAIN PAN L ASSY 1 KB00G775G15
115 E17 319 717 G PANEL UNDER 1 S ASSY KB00G776G01
116 E17 320 717 G PANEL UNDER 1 M ASSY 1 KB00G776G02
117 E17 326 717 G PANEL UNDER 1 L ASSY 1 KB00G776G03
118 E17 319 718 G PANEL UNDER 2 S KB02B455G02
119 E17 320 718 G PANEL UNDER 2 M 1 KB02B457G01
120 E17 326 718 G PANEL UNDER 2 L 1 KB02A071G02
121 E17 409 690 G COVER ASSY 1 1 KB00H222G03
122 E17 319 100 G FILTER 15 KB35B272G02
123 E17 320 100 G FILTER 40 1 KB35B207G02
124 E17 326 100 G FILTER 63 2 KB35B208G02
125 E17 414 524 G PLUG RUBBER 1 1 KB26H049H01
126 E17 407 204 G REDUCER 12.7-15.88 1 KB14H395G02
127 E17 414 204 G REDUCER 6.35-9.52 1 KB14H390G02
128 E17 319 702 G DRAIN HOSE 1 1 BC27R200K03
129 E17 319 250 G SCREW ASSY 4 4 KB12H389G01
130 E17 548 250 G SCREW SPECIAL M4×6 3 3 Z003Z333H05
DB26F013L01
131
132
KB00M769G01
RoHS Apply by Running Change
Part Name
G CUSHION 3 3 DB26F013L01
G ATTACHMENT PUMP 1 1 KB00M769G01
Spec. Dwg. No. Price
PEFY-P50VMS1-ER1.TH-T
PEFY-P63VMS1-ER1.TH-T
Revision History
4
PEFY-P15,P20,P25,P32VMS1-ER1.TH
201
202
203
205
204
207208
209
206
PEFY-P15,P20,P25,P32VMS1-ER1.TH-T
BLOWER PARTS (1)
G :
RoHS Apply Only
W :
No. Part No.
201 E17 319 128 G MOTOR BASE 1 1 1 1 1 1 KB02B464G02
202 E17 319 129 G FAN CASE A ASSY 2 2 2 2 2 2 KB00G773G03
203 E17 320 129 G FAN CASE B ASSY 2 2 2 2 2 2 KB00G774G03
204 E17 319 500 G SIROCCO FAN ASSY 2 2 2 2 2 2 KB00H341G01
205 E17 319 505 G RUBBER MOUNT L 1 1 1 1 1 1 KB31D833H03
206 E17 320 505 G RUBBER MOUNT R 1 1 1 1 1 1 KB31D833H04
207
KB02H047G02
208 E17 319 513 G MOTOR COVER ASSY 1 1 1 1 1 1 KB00H600G02
209 E17 319 300 G MOTOR 1 1 1 1 1 1 KB61B503H01
RoHS Apply by Running Change
Part Name
Spec. Dwg. No. Price
PEFY-P15VMS1-ER1.TH
PEFY-P20VMS1-ER1.TH
PEFY-P25VMS1-ER1.TH
PEFY-P32VMS1-ER1.TH
PEFY-P15VMS1-ER1.TH-T
PEFY-P20VMS1-ER1.TH-T
G ATTACHMENT 2 2 2 2 2 2 KB02H047G02
Revision History
5
PEFY-P15,P20,P25,P32VMS1-ER1.TH
201
202
203
205
204
207208
209
206
PEFY-P15,P20,P25,P32VMS1-ER1.TH-T
BLOWER PARTS (1)
G :
RoHS Apply Only
W :
No. Part No.
201 E17 319 128 G MOTOR BASE 1 1 KB02B464G02
202 E17 319 129 G FAN CASE A ASSY 2 2 KB00G773G03
203 E17 320 129 G FAN CASE B ASSY 2 2 KB00G774G03
204 E17 319 500 G SIROCCO FAN ASSY 2 2 KB00H341G01
205 E17 319 505 G RUBBER MOUNT L 1 1 KB31D833H03
206 E17 320 505 G RUBBER MOUNT R 1 1 KB31D833H04
207
KB02H047G02
208 E17 319 513 G MOTOR COVER ASSY 1 1 KB00H600G02
209 E17 319 300 G MOTOR 1 1 KB61B503H01
RoHS Apply by Running Change
Part Name
Spec. Dwg. No. Price
PEFY-P25VMS1-ER1.TH-T
PEFY-P32VMS1-ER1.TH-T
G ATTACHMENT 2 2 KB02H047G02
Revision History
6
PEFY-P40,P50,P63VMS1-ER1.TH
310302301
306 309 307 308 305 313
303
304
311.312
PEFY-P40,P50,P63VMS1-ER1.TH-T

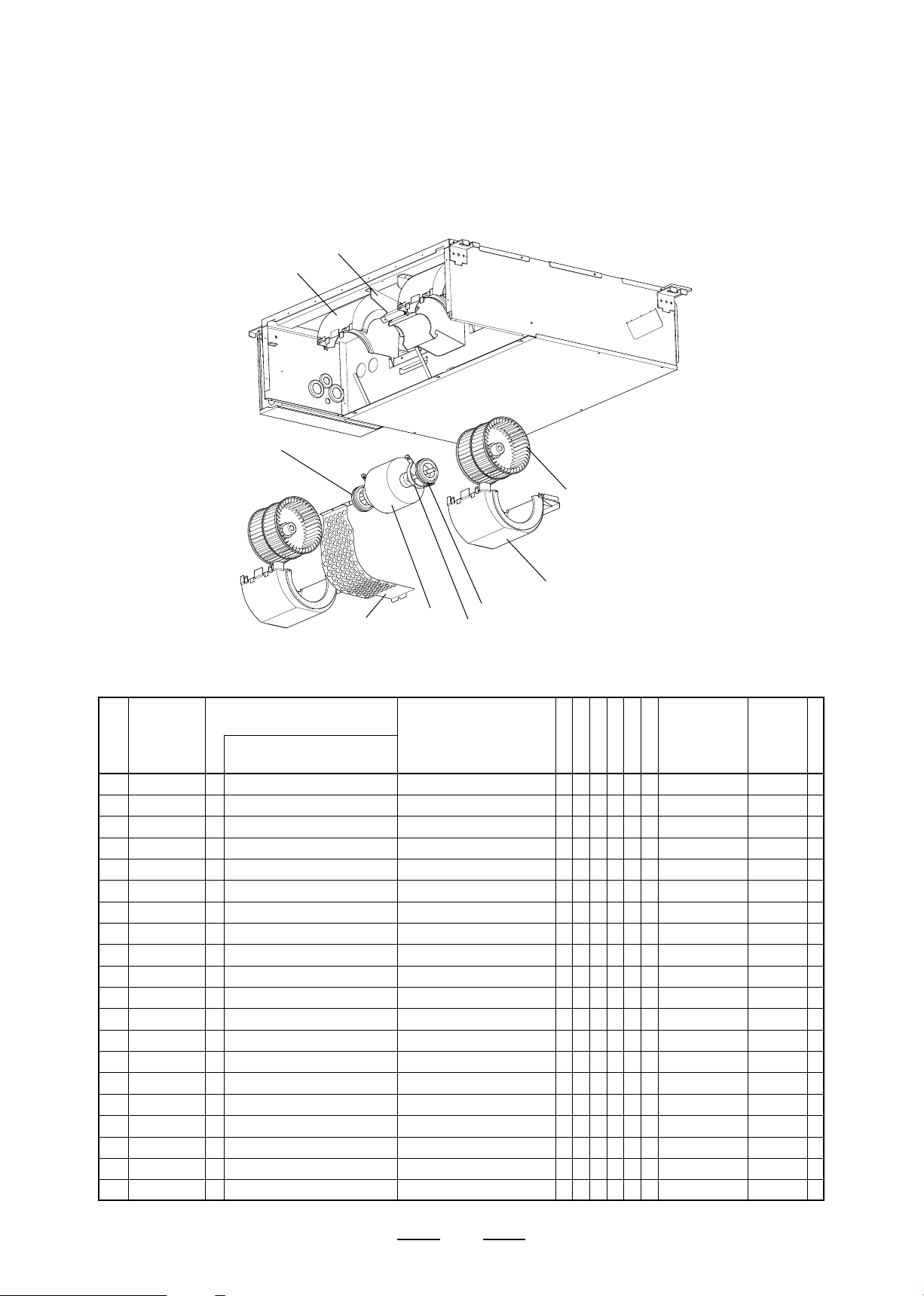

BLOWER PARTS (2)

G :
RoHS Apply Only
W :
No. Part No.
301 E17 319 128 G MOTOR BASE 1 1 1 1 1 1 KB02B464G02
302 E17 319 129 G FAN CASE A ASSY 3 3 4 3 3 4 KB00G773G03
303 E17 320 129 G FAN CASE B ASSY 3 3 4 3 3 4 KB00G774G03
304 E17 319 500 G SIROCCO FAN ASSY 3 3 4 3 3 4 KB00H341G01
305 E17 319 505 G RUBBER MOUNT L 1 1 1 1 1 1 KB31D833H03
306 E17 320 505 G RUBBER MOUNT R 1 1 1 1 1 1 KB31D833H04
307
KB02H047G02
308 E17 319 513 G MOTOR COVER ASSY 1 1 1 1 1 1 KB00H600G01
309 E17 321 300 G MOTOR 1 1 1 1 1 1 KB61B504H01
310 E17 321 509 G BEARING 1 1 1 1 1 1 KB58C793G01
311 E17 321 499 G SHAFT 3FAN 1 1 1 1 KB10B485H02
312 E17 326 499 G SHAFT 4FAN 1 1 KB10B486H02
313 E17 321 518 G FAN JOINT ASSY 1 1 1 1 1 1 BH00G422G04
RoHS Apply by Running Change
Part Name
Spec. Dwg. No. Price
PEFY-P40VMS1-ER1.TH
PEFY-P50VMS1-ER1.TH
PEFY-P63VMS1-ER1.TH
PEFY-P40VMS1-ER1.TH-T
PEFY-P50VMS1-ER1.TH-T
PEFY-P63VMS1-ER1.TH-T
G ATTACHMENT 2 2 2 2 2 2 KB02H047G02
Revision History
7
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH
407
401 406 408
403
402 404 405
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH-T

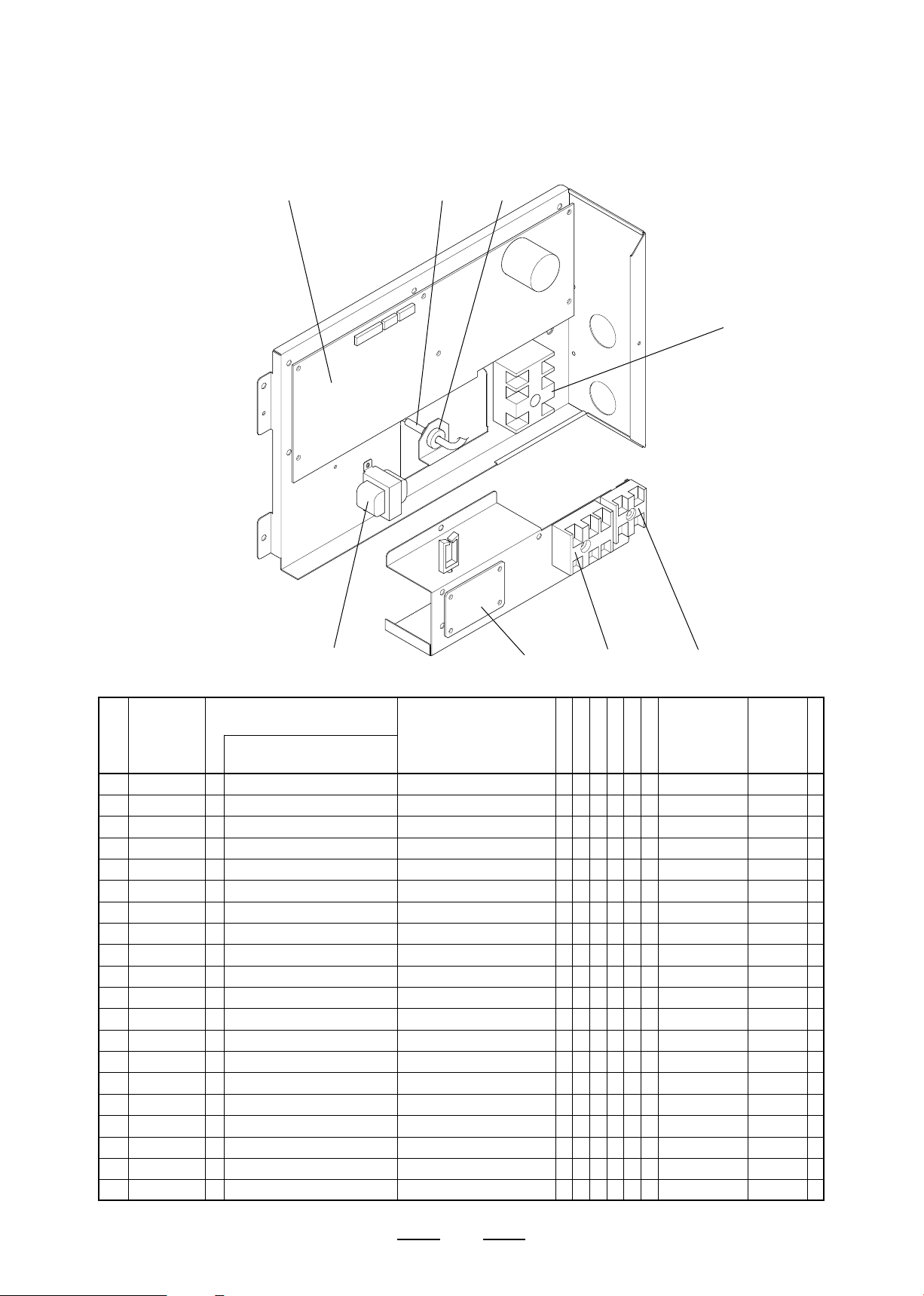

CONTROL BOX PARTS
G :
RoHS Apply Only
W :
No. Part No.
401 E17 402 447 G PRINTED CIRCUIT ASSEMBLY INDOOR 1 1 1 1 1 1 KE01D280B01
402 E17 402 456 G PRINTED CIRCUIT ASSEMBLY ADRESS BOARD 1 1 1 1 1 1 KE01D281B01
403 E17 155 375 G TERMINAL BLOCK ASSY 1 1 1 1 1 1 BG00R200G26
404 E17 154 375 G TERMINAL BLOCK ASSY 1 1 1 1 1 1 BH00C267G04
405 E17 156 375 G TERMINAL BLOCK ASSY 1 1 1 1 1 1 BG00R200G62
406 E17 319 308 G THERMISTOR S 250XAP 1 1 1 1 1 1 RG71J628H01
407 E17 408 337 G REACTOR CHM KE65D276H01
408 E17 319 013 G BUSH SRB-R-2 1 1 1 1 1 1 KB32K138H01
RoHS Apply by Running Change
Part Name
Spec. Dwg. No. Price
PEFY-P15VMS1-ER1.TH
PEFY-P20VMS1-ER1.TH
PEFY-P25VMS1-ER1.TH
PEFY-P32VMS1-ER1.TH
PEFY-P40VMS1-ER1.TH
PEFY-P50VMS1-ER1.TH
Revision History
8
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH
407
401 406 408
403
402 404 405
PEFY-P15,P20,P25,P32,P40,P50,P63VMS1-ER1.TH-T
CONTROL BOX PARTS
G :
RoHS Apply Only
W :
No. Part No.
401 E17 402 447 G PRINTED CIRCUIT ASSEMBLY INDOOR 1 1 1 1 1 1 KE01D280B01
402 E17 402 456 G PRINTED CIRCUIT ASSEMBLY ADRESS BOARD 1 1 1 1 1 1 KE01D281B01
403 E17 155 375 G TERMINAL BLOCK ASSY 1 1 1 1 1 1 BG00R200G26
404 E17 154 375 G TERMINAL BLOCK ASSY 1 1 1 1 1 1 BH00C267G04
405 E17 156 375 G TERMINAL BLOCK ASSY 1 1 1 1 1 1 BG00R200G62
406 E17 319 308 G THERMISTOR S 250XAP 1 1 1 1 1 1 RG71J628H01
407 E17 408 337 G REACTOR CHM 1 KE65D276H01
408 E17 319 013 G BUSH SRB-R-2 1 1 1 1 1 1 KB32K138H01
RoHS Apply by Running Change
Part Name
Spec. Dwg. No. Price
PEFY-P63VMS1-ER1.TH
PEFY-P15VMS1-ER1.TH-T
PEFY-P20VMS1-ER1.TH-T
PEFY-P25VMS1-ER1.TH-T
PEFY-P32VMS1-ER1.TH-T
PEFY-P40VMS1-ER1.TH-T
Revision History
9
PEFY-P15,P20,P25,P32VMS1-ER1.TH
407
401 406 408
403
402 404 405
PEFY-P15,P20,P25,P32VMS1-ER1.TH-T
CONTROL BOX PARTS
G :
RoHS Apply Only
W :
No. Part No.
401 E17 402 447 G PRINTED CIRCUIT ASSEMBLY INDOOR 1 1 KE01D280B01
402 E17 402 456 G PRINTED CIRCUIT ASSEMBLY ADRESS BOARD 1 1 KE01D281B01
403 E17 155 375 G TERMINAL BLOCK ASSY 1 1 BG00R200G26
404 E17 154 375 G TERMINAL BLOCK ASSY 1 1 BH00C267G04
405 E17 156 375 G TERMINAL BLOCK ASSY 1 1 BG00R200G62
406 E17 319 308 G THERMISTOR S 250XAP 1 1 RG71J628H01
407 E17 408 337 G REACTOR CHM 1 KE65D276H01
408 E17 319 013 G BUSH SRB-R-2 1 1 KB32K138H01
RoHS Apply by Running Change
Part Name
Spec. Dwg. No. Price
PEFY-P50VMS1-ER1.TH-T
PEFY-P63VMS1-ER1.TH-T
Revision History
10
BWE08200 (20090131)
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
