SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
ON/OFF
TEMP.
3 3 2 2 3
SPLIT-TYPE, AIR CONDITIONERS
SERVICE MANUAL
Indoor unit
[Model names] [Service Ref.]
PCA-A24GA
PCA-A30GA
PCA-A36GA
PCA-A42GA
PCA-A24GA
PCA-A24GA
PCA-A30GA
PCA-A30GA
PCA-A36GA
PCA-A36GA
PCA-A42GA
PCA-A42GA
June 2007
No. OC368
REVISED EDITION-B
Revision:
• WIRING DIAGRAM has been
changed in REVISED EDITION-B.
• Some descriptions have been
modified.
1
1
1
1
• Please void OC368 REVISED
EDITION-A.
NOTE:
• This manual describes only
service data of the indoor
units.
• RoHS compliant products have
<G> mark on the spec name
plate.
• For servicing RoHS compliant products, refer to the RoHS
PARTS LIST.
INDOOR UNIT
REMOTE CONTROLLER
Model name
indication
CONTENTS
1. TECHNICAL CHANGES ··································2
2. REFERENCE MANUAL······································2
3. SAFETY PRECAUTION···································3
4. PART NAMES AND FUNCTIONS ···················5
5. SPECIFICATIONS············································8
6. NOISE CRITERION CURVES··························9
7. OUTLINES AND DIMENSIONS·····················10
8.

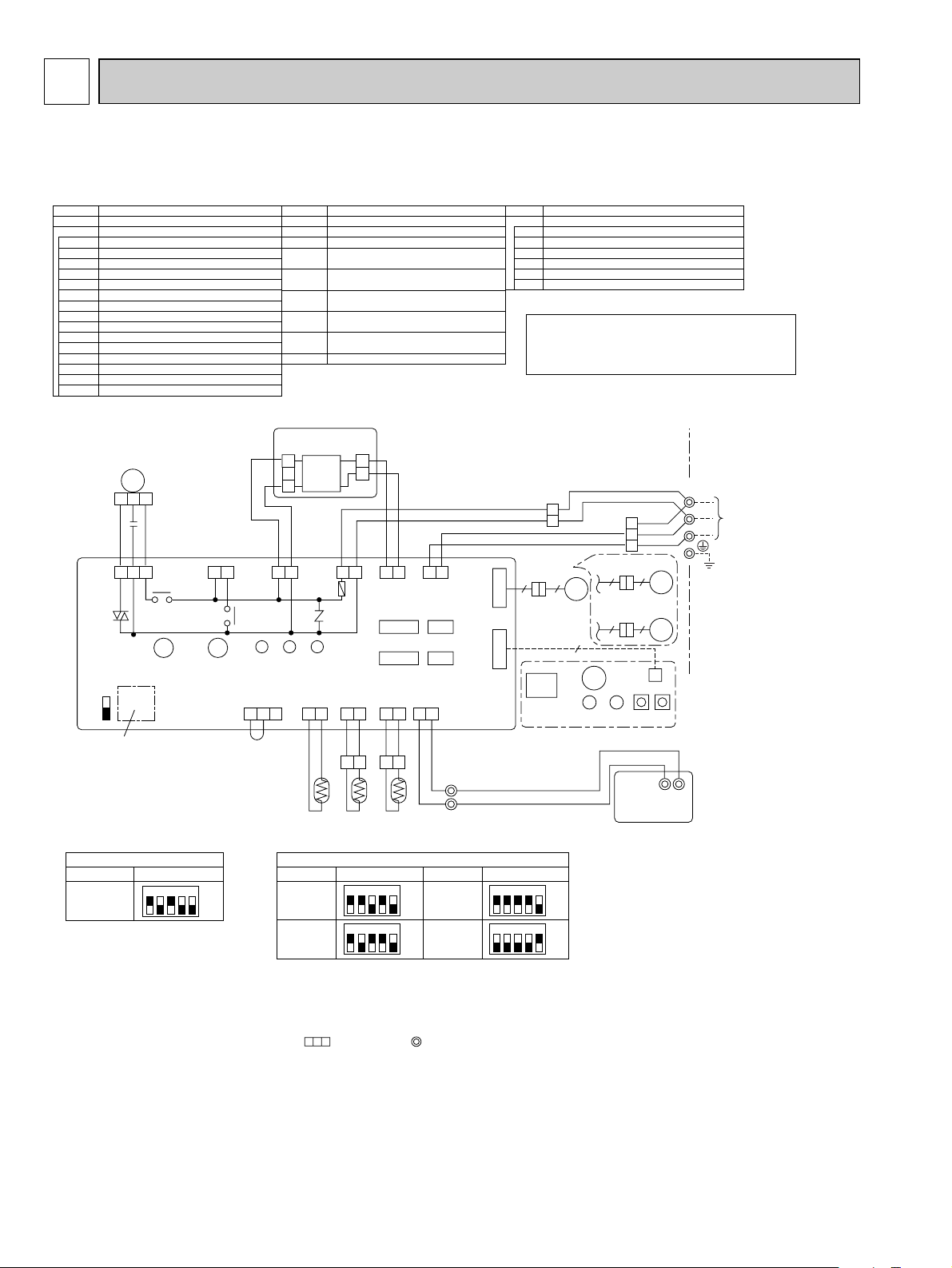

WIRING DIAGRAM
9.

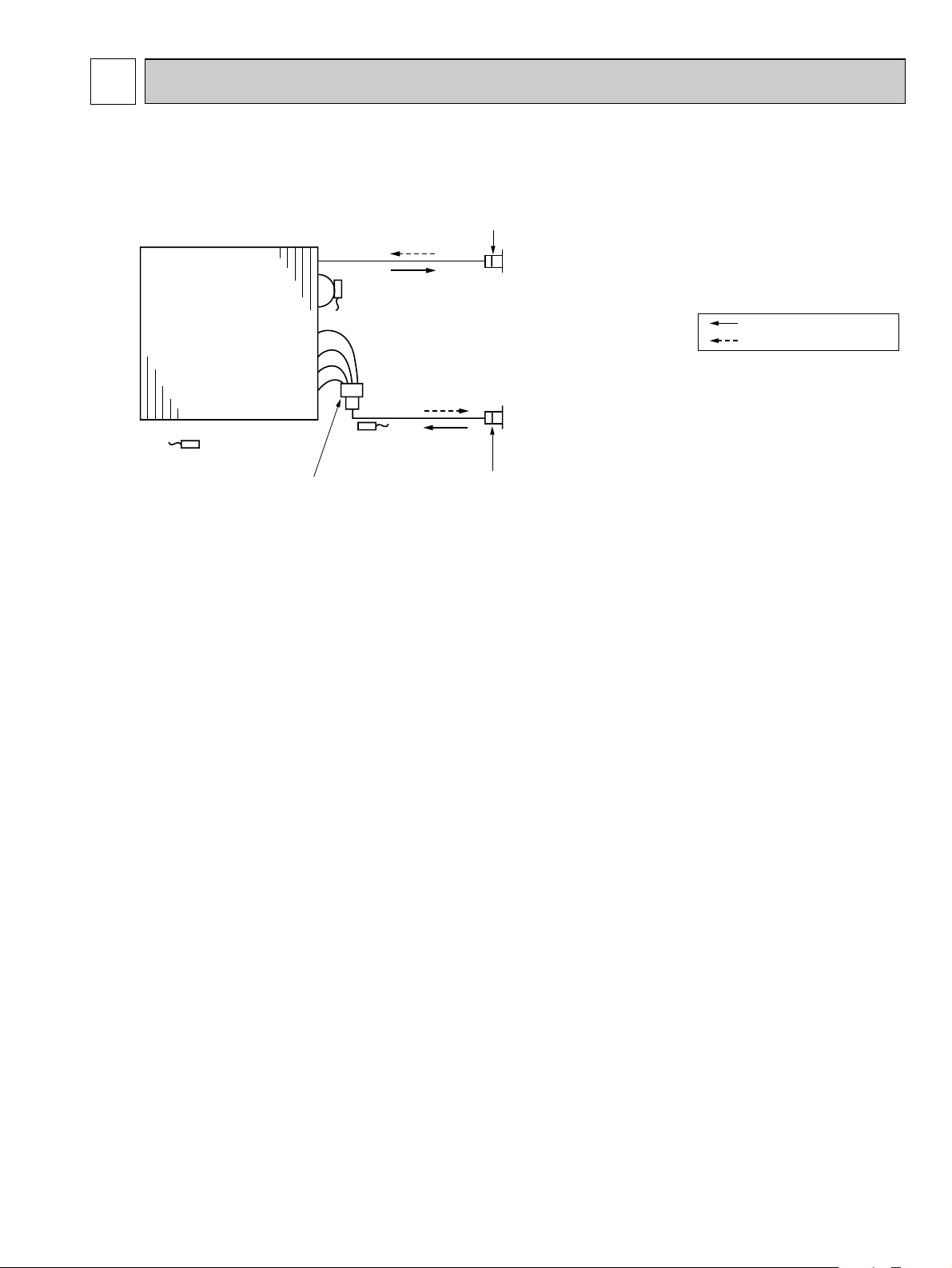

REFRIGERANT SYSTEM DIAGRAM
10. TROUBLESHOOTING ···································14
11. DISASSEMBLY PROCEDURE ·······················26

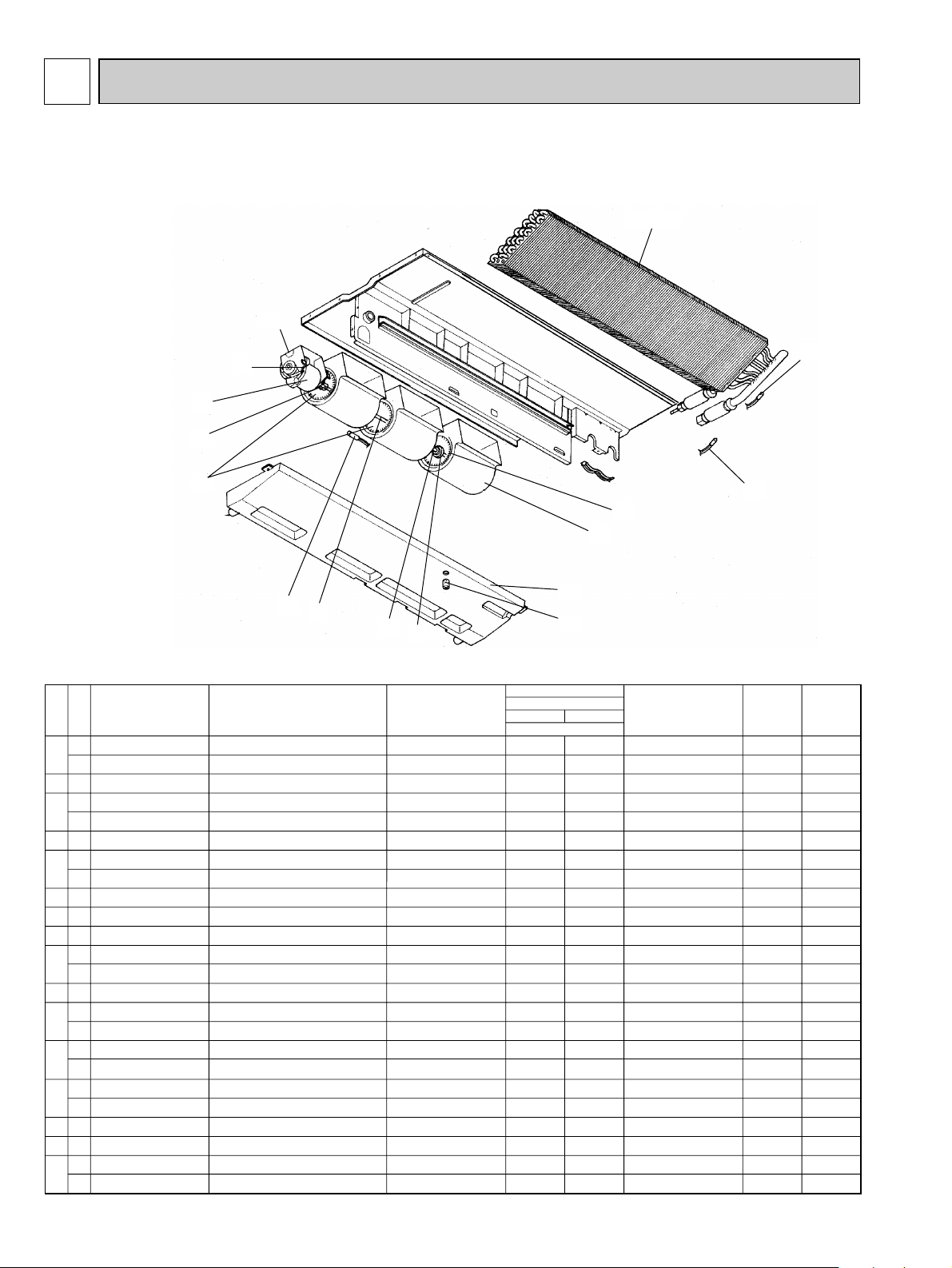

12. PARTS LIST···················································31
13. RoHS PARTS LIST ········································34
············································12
··················13
1
Series (Outdoor unit)
PUZ-A·NHA PUZ-A·NHA-BS
PUY-A·NHA PUY-A·NHA-BS
Manual No.
OCS04
TECHNICAL CHANGES
PCA-A24GA
PCA-A30GA ➔ PCA-A30GA1
PCA-A36GA ➔ PCA-A36GA1
PCA-A42GA ➔ PCA-A42GA1
• Indoor controller board has been changed.
2
2-1. OUTDOOR UNIT SERVICE MANUAL
Service Ref.
➔ PCA-A24GA1
REFERENCE MANUAL
Service Manual No.
PUZ-A18/24/30/36/42NHA
PUZ-A18/24/30/36/42NHA-BS
PUY-A12/18/24/30/36/42NHA(1)
PUY-A12/18/24/30/36/42NHA(1)-BS
2-2. TECHNICAL DATA BOOK
OC367
2
Use new refrigerant pipes.
Make sure that the inside and outside of refrigerant piping is clean and it has no contamination
such as sulfur hazardous for use, oxides, dirt,
shaving particles, etc.
In addition, use pipes with specified thickness.
Store the piping to be used during installation
indoors and keep both ends of the piping sealed
until just before brazing. (Leave elbow joints, etc.
in their packaging.)
Use ester oil, ether oil or alkylbenzene oil (small
amount) as the refrigerant oil applied to flares
and flange connections.
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrigerant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Keep the tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of the refrigerant oil or malfunction of
the compressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigerant will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
Contamination inside refrigerant piping can cause deterioration of refrigerant oil etc.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of compressor.
If large amount of mineral oil enters, that can cause deterioration of refrigerant oil etc.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
3
SAFETY PRECAUTION
3-1. ALWAYS OBSERVE FOR SAFETY
Before obtaining access to terminals, all supply
circuits must be disconnected.
3-2. CAUTIONS RELATED TO NEW REFRIGERANT
Cautions for units utilising refrigerant R410A
[1] Cautions for service
(1) Perform service after collecting the refrigerant left in a unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
3
Gravimeter
Unit
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
No. Specifications
1 Gauge manifold ·Only for R410A
·Use the existing fitting
·Use high-tension side pressure of 5.3MPa·G or over.
2 Charge hose ·Only for R410A
·Use pressure performance of 5.09MPa·G or over.
3 Electronic scale
4 Gas leak detector ·Use the detector for R134a, R407C or R410A.
5 Adaptor for reverse flow check ·Attach on vacuum pump.
6 Refrigerant charge base
7 Refrigerant cylinder ·Only for R410A Top of cylinder (Pink)
8 Refrigerant recovery equipment
specifications
Cylinder with syphon
. (UNF1/2)
4
4
Air outlet
Intake grille
Air intake
Left/right guide vanes
Change the direction of airflow
from the horizontal blower.
Long-life filter
Removes dust and foreign matter from air coming in
through the grille (Recommended cleaning interval :
Approx. every 2,500 operating hours)
Up/down guide vanes
Change the direction of airflow from the
vertical blower.
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
Temperature setting buttons
Down
Up
Timer Menu button
(Monitor/Set button)
Mode button (Return button)
Set Time buttons
Back
Ahead
Timer On/Off button
(Set Day button)
Opening the
lid
ON/OFF button
Fan Speed button
Filter button
(<Enter> button)
Test Run button
Check button (Clear button)
Airflow Up/Down button
Louver button
( Operation button)
T o return operation
number
Ventilation button
( Operation button)
To go to next operation
number
Built-in temperature sensor
PART NAMES AND FUNCTIONS
● Indoor Unit
● Wired remote controller
Once the controllers are set, the same operation mode can be repeated by simply pressing the ON/OFF button.
5
● Wired remote controller
●
●
˚F˚C
˚F˚C
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
Note:
“PLEASE WAIT” message
This message is displayed for approximately 3 minutes when power is supplied to the indoor unit or when the unit is recovering from a power failure.
“NOT A V AILABLE” message
This message is displayed if an invalid button is pressed (to operate a function that the indoor unit does not have).
If a single remote controller is used to operate multiple indoor units simultaneously that are different types, this message will not be displayed as
far as any of the indoor units is equipped with the function.
Display Section
For purposes of this explanation,
all parts of the display are shown
as lit. During actual operation, only
the relevant items will be lit.
Identifies the current operation
Shows the operating mode, etc.
*Multilanguage display is available.
“Centrally Controlled” indicator
Indicates that operation from the
remote controller has been prohibited by a master controller.
“Timer is Off” indicator
Indicates that the timer is off.
Temperature Setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto Off
timer is set.
If the simple or Auto Off timer is set, the time to be
switched off is shown.
“Sensor” indication
Displayed when the remote controller
sensor is used.
“Locked” indicator
Indicates that remote controller buttons have been locked.
“Clean The Filter” indicator
To be displayed on when it is time to
clean the filter.
Timer indicators
The indicator comes on if the corresponding timer is set.
Up/Down Air Direction indicator
Shows the direction of the
outcoming airflow.
“One Hour Only” indicator
Room Temperature display
Shows the room temperature. The room
temperature display range is 46–102°F.
The display blinks if the temperature
is less than 46
°
F
or 102°F
or more.
Louver display
Indicates the action of the swing louver.
Does not appear if the louver is not
running.
(Power On indicator)
Indicates that the power is on.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running in
Ventilation mode.
Displayed if the airflow is set to
Low or downward during COOL
or DRY mode. (Operation varies
according to model.)
The indicator goes off in one hour,
at which time the airflow direction
also changes.
6
ON/OFF TEMP
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
RESETSET CLOCK
MODEL
SELECT
NOT AVAILABLE
SWING
CHECK
FAN
TEST
RUN
˚F
˚C
AMPMSTOP
START
AMPM
COOL
DRY
AUTO
FAN
HEAT
VANE CONTROL button
Changes the air flow direction.
CLOCK button
RESET button
SET button
ON/OFF button
The unit is turned ON and OFF alternately
each time the button is pressed.
LOUVER button
Changes left / right airflow direction.
(Not available for this model.)
MODE SELECT button
Switches the operation mode between
COOLING/DRY/FAN/HEATING and AUTO
mode.
wIn case the outdoor unit is cooling only
type, the heating and auto mode are not
available.
CHECK-TEST RUN button
Performs an inspection check or test operation.
Do not use it for normal operation.
FAN SPEED SELECT button
Changes the fan speed.
TIMER display
Displays when in timer operation or when
setting timer.
button
Sets any desired room temperature.
CLOCK display
Displays the current time.
“ ” “ ” display
Displays the order of timer operation.
“ ” “ ” display
Displays whether timer is on or off.
Buttons used to set the “hour and minute” of
the current time and timer settings.
"h" and "min" buttons
Temperature setting display
indicates the desired temperature setting
which is set.
display
Displays selected fan speed.
display
The vertical direction of air flow is indicated.
display
Blinks when model is selected.
display
Lights up while the signal is transmitted to
the indoor unit when the button is pressed.
display
Indicate that the unit is being checked or
test-run.
OPERATION MODE display
OPERATION MODE display
Indicates which operation mode is in effect.
TIMER CONTROL buttons
AUTO STOP (OFF timer): when this switch
is set, the air conditioner will be automatically stopped at the preset time.
AUTO START (ON timer): when this switch
is set, the air conditioner will be automatically started at the preset time.
MODEL SELECT
CHECK
TEST RUN
● Wireless remote controller
7
5
A
A
kW
F.L.A
m3/min(CFM)
Pa(mmAq)
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
Service Ref.
Power supply(phase, cycle, voltage)
Max. Fuse Size
Min.Circuit Ampacity
External finish
Heat exchanger
Fan Fan(drive) o No.
Fan motor output
Fan motor
Airflow(Low-Medium2-Medium1-High)
External static pressure
Operation control & Thermostat
Noise level(Low-Medium2-Medium1-High)
Field drain pipe O.D.
Dimensions
Weight
W
D
H
INDOOR UNIT
PCA-A24GA, PCA-A24GA1
Single phase, 60Hz, 208/230V
15
1
Munsell 0.70Y 8.59/0.97
Plate fin coil
Sirocco fan (direct) o 3
0.070
0.53
Dry: 14-15-16-18(495-530-565-635)
Wet: 13-14-15-16(445-480-510-570)
0(direct blow)
Remote controller & built-in
37-39-41-43
26(1-1/32)
1,310(51-9/16)
680(26-25/32)
210(8-9/32)
34(75)
Single phase, 60Hz, 208/230V
15
1
Munsell 0.70Y 8.59/0.97
Plate fin coil
Sirocco fan (direct) o 3
0.090
0.69
Dry: 20-21-23-25(705-740-810-885)
Wet:18-19-21-22(635-670-730-790)
0(direct blow)
Remote controller & built-in
40-41-43-45
26(1-1/32)
1,310(51-9/16)
680(26-25/32)
270(10-5/8)
37(82)
A
A
kW
F.L.A
K/min(CFM)
Pa(mmAq)
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
Service Ref.
Power supply(phase, cycle, voltage)
Max. Fuse Size
Min.Circuit Ampacity
External finish
Heat exchanger
Fan Fan(drive) o No.
Fan motor output
Fan motor
Airflow(Low-Medium2-Medium1-High)
External static pressure
Operation control & Thermostat
Noise level(Low-Medium2-Medium1-High)
Field drain pipe O.D.
Dimensions
Weight
W
D
H
INDOOR UNIT
PCA-A36GA, PCA-A36GA1
Single phase, 60Hz, 208/230V
15
1
Munsell 0.70Y 8.59/0.97
Plate fin coil
Sirocco fan (direct) o 3
0.070
0.53
Dry: 14-15-16-18(495-530-565-635)
Wet:13-14-15-16(445-480-510-570)
0(direct blow)
Remote controller & built-in
37-39-41-43
26(1-1/32)
1,310(51-9/16)
680(26-25/32)
210(8-9/32)
34(75)
A
A
kW
F.L.A
K/min(CFM)
Pa(mmAq)
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
Service Ref.
Power supply(phase, cycle, voltage)
Max. Fuse Size
Min.Circuit Ampacity
External finish
Heat exchanger
Fan Fan(drive) o No.
Fan motor output
Fan motor
Airflow(Low-Medium2-Medium1-High)
External static pressure
Operation control & Thermostat
Noise level(Low-Medium2-Medium1-High)
Field drain pipe O.D.
Dimensions
Weight
W
D
H
PCA-A30GA, PCA-A30GA
1
INDOOR UNIT
SPECIFICATIONS
8
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
BAND CENTER FREQUENCIES, Hz
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
PCA-A24GA
PCA-A30GA
PCA-A24GA
1
PCA-A30GA1
NOTCH
High
Medium1
Medium2
Low
SPL(dB)
43
41
39
37
LINE
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
BAND CENTER FREQUENCIES, Hz
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
PCA-A36GA
PCA-A42GA
PCA-A36GA
1
PCA-A42GA1
NOTCH
High
Medium1
Medium2
Low
SPL(dB)
45
43
41
40
LINE
Service Ref.
Power supply(phase, cycle, voltage)
Max. Fuse Size
Min.Circuit Ampacity
External finish
Heat exchanger
Fan Fan(drive) o No.
Fan motor output
Fan motor
INDOOR UNIT
Airflow(Low-Medium2-Medium1-High)
External static pressure
Operation control & Thermostat
Noise level(Low-Medium2-Medium1-High)
Field drain pipe O.D.
Dimensions
W
D
H
Weight
NOISE CRITERION CURVES6
A
A
kW
F.L.A
K/min(CFM)
Pa(mmAq)
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
PCA-A42GA, PCA-A42GA
1
Single phase, 60Hz, 208/230V
15
1
Munsell 0.70Y 8.59/0.97
Plate fin coil
Sirocco fan (direct) o 3
0.090
0.69
Dry: 20-21-23-25(705-740-810-885)
Wet:18-19-21-22(635-670-730-790)
0(direct blow)
Remote controller & built-in
40-41-43-45
26(1-1/32)
1,310(51-9/16)
680(26-25/32)
270(10-5/8)
37(82)
3.3ft
MICROPHONE
3.3ft
about 4.62ft
ceiling
unit
9
7
9
11-13/16(300)
3-15/16(100)
2-1/8(54) 2-1/4(57)
7/16(11)
9 Knockout hole for fresh air intake
(6~7)
1/4~9/32
1-21/32(42) 7-1/16(179)
1-1/4(32)6-11/32(161)
20-21/32(525)
1-1/2(38)
3-1/8(79)
10-3/8(263)
6-3/4(171)
5-7/16(138)
3-3/8(86)
6-7/8
(175)
1-13/16(46)
5-5/32(131)
1/16(1)
1-1/2(38)
16-3/8(416)
48-5/8(1235)
8
5
1
4
Ceiling
Electrical box
[FRONT VIEW]
2
3
When electrical box
is pulled down
2
7
9-1/32(229)
2-3/4(70)
Electrical box
5 Refrigerant-pipe connection(liquid pipe side/flared connection)
6 Knockout hole for upper pipe arrangement
7 Knockout hole for left drain pipe arrangement
8 Knockout hole for wiring arrangement
1 Drainage pipe connection(1-1/32(26mm)I.D.)
2 Drainage pipe connection(for the left arrangement)
3 Knockout hole for left drain-piping arrangement
4 Refrigerant-pipe connection(gas pipe side/flared connection)
4
Gas pipe
5
Liquid pipe
MODEL 24/30
3/8F
5/8F
2-3/4(70)
23/32(18)
5-1/2(140)
(150)
5-29/32
12-5/8(320) 3-1/8(80)
48-13/16(1240)
50-13/16(1290)
47-13/16(1214)
51-9/16(1310)
7-3/32(180)
8-9/32(210)
2-3/16(81) 3-25/32(96)
26-25/32(680)
2-7/32(56)19-29/32(506)
10(254)
3-17/32(90)6-3/8(161)
48-3/8(1228) 11-13/16(300)51-9/16(1310)10-5/8(270)
or more
26-25/32(680)
Less than
3-7/16(87)
5/8(16)
6-3/16(157)
or more
Ceiling
Rear wall
Allowing clearances
NOTES:
Use M10 or W3/8 screw for anchor bolt.
(Suspension bolt pitch)
Air outlet
Air intake
gas
liquid
(Drainage)
7-3/16(182)
7/15/16(201)
9-1/2(241)
9-13/16(250)
19-11/16(500)
(Gap to ceiling)
or more
1/16(1)
Less than
6
OUTLINES AND DIMENSIONS
PCA-A24GA PCA-A24GA1
PCA-A30GA PCA-A30GA1
Unit : inch(mm)
10
PCA-A36GA PCA-A36GA1
4
Gas pipe
MODEL
3/8F
5/8F
5
Liquid pipe
36/42
7/16(11)
9
2-3/16(55)5-7/8(150)
13(330)
7-7/8(200)
9 Knockout hole for fresh air intake
(6~7)
7-2/32(289)
1-21/32(42)
Electrical box
(160)
1/4~9/32
3-21/32(93)
6-5/16
1-1/2(38)
1-1/2(38)
5-1/2(140)
(196)
1/16(1)
9-9/32(236)
7-9/16
1-25/32(45)
10-3/8(263)
6-3/4(171)
5-7/16(138)
3-3/8(86)
27-1/16(687)20-21/32(525)
48-5/8(1235)
2-3/4(70)
9-1/32(229)
(56)
10(254)
19-29/32(506)
2-7/32
26-25/32(680)
3-17/32(90)6-3/8(160)
48-3/8(1228)
3-3/16(81) 3-25/32(96)
8-5/32(207)
10-5/8(270)
47-13/16(1214)
51-9/16(1310)
50-13/16(1290)
48-13/16(1240)
23/32(18)5-29/32(150)
2-3/4(70)5-1/2(140)
12-5/8(320) 3-1/8(80)
5/8(16)
3-7/16(87)
8-17/32(217)
7-3/16(182)
7-13/16(198)
9-5/8(245)
Less than
26-25/32(680)
10-5/8(270)
(300)
11-13/16
51-9/16(1310)
19-11/16(500)
9-13/16(250)
1 Drainage pipe connection(1-1/32(26mm)I.D.)
2 Drainage pipe connection(for the left arrangement)
3 Knockout hole for left drain-piping arrangement
4 Refrigerant-pipe connection(gas pipe side/flared connection)
5 Refrigerant-pipe connection(liquid pipe side/flared connection)
6 Knockout hole for upper pipe arrangement
7 Knockout hole for left drain pipe arrangement
8 Knockout hole for wiring arrangement
Air intake
Air outlet
2
7
Electrical box
When electrical box
is pulled down
8
5
1
4
2
3
Less than
or more
or more
Ceiling
[FRONT VIEW]
(Suspension bolt pitch)
(Drainage)
gas
liquid
(Gap to ceiling)
Allowing clearances
Rear wall
Ceiling
1/16(1)
NOTES:
Use M10 or W3/8 screw for anchor bolt.
6
PCA-A42GA PCA-A42GA1
Unit : inch(mm)
11
[Emergency operation procedure]
When the wired remote control or the indoor unit microcomputer has failed, but all other
components work properly, if you set the switch (SWE) on the indoor control board ON, the indoor
unit will begin Emergency Operation.
When Emergency Operation is activated, indoor fan runs at high speed.
SWE
ON
OFF
SW2 SW1
Refer to tables 1 and 2
for service PCB.
D.SENSOR
CN31
(
WHT
)
1 2 3
INTAKE
CN20
(
RED
)
1 2
TH1
LIQUID
CN21
(
WHT
)
1 2
TH2
1 2
PIPE
CN29
(
BLK
)
1 2
TH5
1 2
BLK
BLK
BLK
BLK
BLU
BLU
REMOCON
CN22
(
BLU
)
1 2
2
1
TB5
TRANSMISSION WIRES DC12V
R.B
TB6
12
CN41 CN2L
CN51 CN32
WIRELESS
CN90
(
WHT
)
VANE
CN6V
(
GRN
)
24/30 TYPE
36/42 TYPE
MV
66
9
MV
66
MV
55
W.B
BZ
CNB
RECEIVER
RU
LED1 LED2 SW2SW1
1 3
BRN
ORN
A-CONTROL
CN3C(BLU)
1 2
BLK
WHT
POWER
CN2D(WHT)
LED3 LED2 LED1
X4 X1
1 31 31 3
ZNR
FUSE
WHT
RED
YLW
ORN
POWER
CNDK
(RED)
POWER
CND
(ORN)
D.U.M
CNP
(BLU)
X1
FAN
(
WHT
)
1 3 5
1 2 3
BLK
WHT
RED
C
MF
BCR
X4
I.B
1
2
1
2
3
P.B
CNDK
(RED)
DC13.1V
CN2S
(WHT)
TO OUTDOOR UNIT
TB4
S1
S2
S3
YLW
ORN
YLW
ORN
BRN
SW1
SW2

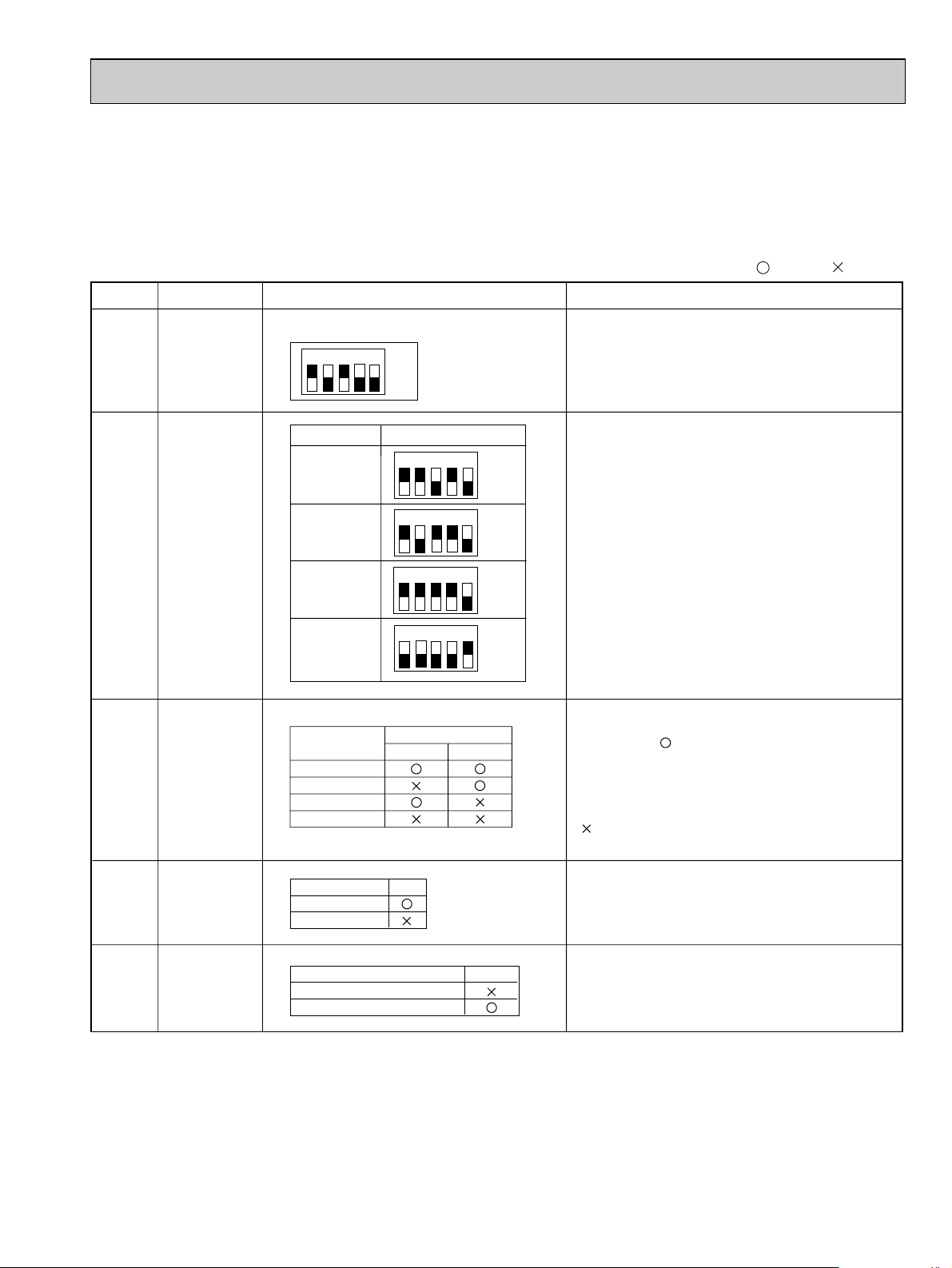

Table 1
Table 2
Service board
Service board
MODELS
PCA-A,GA
1 2 3 4 5
ON
OFF
1 2 3 4 5
ON
OFF
MODELS
PCA-A24GA
1 2 3 4 5
ON
OFF
PCA-A30GA
Service board
1 2 3 4 5
ON
OFF
MODELS
PCA-A36GA
1 2 3 4 5
ON
OFF
PCA-A42GA
Please set the voltage using the remote
controller.
For the setting method, please refer to
the indoor unit Installation Manual.
P.B
INDOOR POWER BOARD
SYMBOL NAME
[LEGEND]
I.B
INDOOR CONTROLLER BOARD
FUSE FUSE (6.3A/250V)
ZNR VARISTOR
CN2L CONNECTOR<LOSSNAY>
CN32 CONNECTOR<REMOTE SWITCH>
CN41 CONNECTOR<HA TERMINAL-A>
CN51 CONNECTOR<CENTRALLY CONTROL>
SW1 SWITCH <MODEL SELECTION>wSee Table 1.
SW2 SWITCH <CAPACITY CODE>wSee Table 2.
SWE
SWITCH<EMERGENCY OPERATION>
X4 RELAY<FAN MOTOR>
X1 RELAY<DRAIN PUMP>
BCR
POWER SUPPLY<R.B>
LED1 POWER SUPPLY<I.B>
LED2
TRANSMISSION<INDOOR-OUTDOOR>LED3
FAN CONTROL ELEMENT
C CAPACITOR<FAN MOTOR>
FAN MOTOR
VANE MOTOR
MF
MV
SYMBOL NAME
TB4
TERMINAL BLOCK<INDOOR/OUTDOOR
CONNECTING LINE>
TERMINAL BLOCK<REMOTE CONTROLLER
TRANSMISSION LINE >
ROOM TEMP.THERMISTOR
<32
°
F/15kΩ, 77°F/5.2kΩ DETECT>
PIPE TEMP.THERMISTOR/LIQUID
<32
°
F/15kΩ, 77°F/5.2kΩ DETECT>
COND./EVA.TEMP.THERMISTOR
<32
°
F/15kΩ, 77°F/5.2kΩ DETECT>
TB5,TB6
TH5
TH1
TH2
W.B
WIRELESS REMOTE CONTROLLER BOARD(OPTION)
RECEIVING UNIT
BUZZER
LED<RUN INDICATOR >
LED<HOT ADJUST>
SWITCH<HEATING ON/OFF>
SWITCH<COOLING ON/OFF>
WIRED REMOTE CONTROLLER BOARD
R.B
RU
BZ
LED1
LED2
SW1
SW2
NAMESYMBOL
NOTES:
1. Since the outdoor side electric wiring may change, be sure to check the outdoor unit
electric wiring for servicing.
2. Indoor and outdoor connecting wires have polarities, make sure to match terminal numbers (S1, S2, S3)
for correct wirings.
3. Symbols used in wiring diagram above are, : Connector, : Terminal (block).
4. This diagram shows the wiring of Indoor and Outdoor connecting wires (specification of 230V),
adopting superimposed system of power and signal.
w1.Use copper supply wires.
w1
8
WIRING DIAGRAM
PCA-A24GA PCA-A30GA PCA-A36GA PCA-A42GA
PCA-A24GA1 PCA-A30GA1 PCA-A36GA1 PCA-A42GA1
12
Pipe temperature
thermistor/liquid
(TH2)
Distributor
with strainer
#50
Condenser/evaporator
temperature thermistor
(TH5)
Room temperature
thermistor (TH1)
Refrigerant flow in cooling
Refrigerant flow in heating
Strainer
#50
Strainer
#50
Heat exchanger
Refrigerant GAS pipe connection
(Flare)
Refrigerant LIQUID pipe connection
(Flare)
9
REFRIGERANT SYSTEM DIAGRAM
PCA-A24GA PCA-A30GA PCA-A36GA PCA-A42GA
PCA-A24GA1 PCA-A30GA1 PCA-A36GA1 PCA-A42GA1
13
10 TROUBLESHOOTING
Unit conditions at service
Error code
Actions to be taken for service (summary)
The inferior phenomenon is
reoccurring.
Displayed
Not displayed
Judge what is wrong and take a corrective action
according to “SELF-DIAGNOSIS ACTION TABLE” (10-2).
Identify the cause of the inferior phenomenon and take
a corrective action according to “TROUBLESHOOTING
BY INFERIOR PHENOMENA ” (10-3).
The inferior phenomenon is
not reoccurring.
Logged
Not logged
1Consider the temporary defects such as the work of
protection devices in the refrigerant circuit including
compressor, poor connection of wiring, noise and etc.
Re-check the symptom, and check the installation
environment, refrigerant amount, weather when the
inferior phenomenon occurred, and wiring related.
2Reset error code logs and restart the unit after finishing
service.
3There is no abnormality in electrical components,
controller boards, and remote controller.
1Recheck the abnormal symptom.
2Identify the cause of the inferior phenomenon and take
a corrective action according to “TROUBLESHOOTING
BY INFERIOR PHENOMENA ” (10-3).
3Continue to operate unit for the time being if the cause
is not ascertained.
4There is no abnormality in electrical components,
controller boards, remote controller etc.
10-1. TROUBLESHOOTING
<Error code display by self-diagnosis and actions to be taken for service (summary)>
Present and past error codes are logged and displayed on the wired remote controller or controller board of outdoor unit.
Actions to be taken for service and the inferior phenomenon reoccurrence at field are summarized in the table below. Check
the contents below before investigating details.
14
10-2. SELF-DIAGNOSIS ACTION TABLE
Error Code
P1
P2
P4
P5
Abnormal
Room temperature thermistor (TH1)
1 The unit is in 3-minute resume preven-
tion mode if short/open of thermistor is
detected. Abnormal if the unit does not
reset normally after 3 minutes. (The
unit returns to normal operation, if it
has been reset normally.)
2 Constantly detected during cooling,
drying, and heating operation.
Short: 90:(194˚F) or more
Open: -40:(-40˚F) or less
Pipe temperature thermistor/Liquid
(TH2)
1 The unit is in 3-minute resume
prevention mode if short/open of
thermistor is detected. Abnormal if the
unit does not reset normally after 3 minutes. (The unit returns to normal operation, if it has been reset normally.)
2 Constantly detected during cooling,
drying, and heating (except defrosting)
operation.
Short: 90:(194˚F) or more
Open: -40:(-40˚F) or less
Drain sensor (DS)
1 Suspensive abnormality, if short/open of
thermistor is detected for 30 seconds
continuously.
Turn off compressor and indoor fan.
2
Short/open is detected for 30 seconds continuously during suspensive abnormality.
(The unit returns to normal operation, if
it has been reset normally.)
3 Detect the following condition.
• During cooling and drying operation
• In case that pipe <liquid> temperature
- room temperature <-10deg
(Except defrosting)
• When pipe <liquid> temperature or
room temperature is short/open temperature.
• During drain pump operation
Malfunction of drain pump (DP)
1 Suspensive abnormality, if thermistor
of drain sensor heats itself and
temperature rises slightly. Turn off
compressor and indoor fan.
2 Drain pump is abnormal if the condition
above is detected during suspensive
abnormality.
3 Constantly detected during drain pump
operation.
point and detection method
1 Defective thermistor
2 Contact failure of connector
3 Breaking of wire or contact
4 Defective indoor controller
1 Defective thermistor
2 Contact failure of connector
3 Breaking of wire or contact
4 Defective refrigerant circuit is
5 Defective indoor controller board
1 Defective thermistor
2 Contact failure of connector
3 Breaking of wire or contact
4 Defective indoor controller board
1 Malfunction of drain pump
2 Defective drain
3 Attached drop of water at the
4 Defective indoor controller board
Note: Refer to the manual of outdoor unit for the details of display
such as F, U, and other E.
Cause
characteristics
(CN20) on the indoor controller
board (Insert failure)
failure of thermistor wiring
board
characteristics
(CN21) on the indoor controller
board (Insert failure)
failure of thermistor wiring
causing thermistor temperature
of 90:(194˚F) or more or
-40:(-40˚F) or less.
characteristics
(CN31) on the indoor controller
board (Insert failure)
failure of drain sensor wiring
Clogged drain pump
Clogged drain pipe
drain sensor
• Drops of drain trickles from
lead wire.
• Clogged filter is causing
wave of drain.
Countermeasure
1–3 Check resistance value of thermistor.
0: (32˚F)
10:(50˚F)
20:(68˚F)
30:(86˚F)
40:(104˚F)
• • • • • • • • • • •
• • • • • • • • • • • • •
• • • • • • • • • • • • •
• • • • • • • • • • • • •
• • • • • • • • • • • •
15.0k"
9.6k"
6.3k"
4.3k"
3.0k"
If you put force on (draw or bend) the lead wire
with measuring resistance value of thermistor
breaking of wire or contact failure can be detected.
2 Check contact failure of connector (CN20) on
the indoor controller board. Refer to 10-6.
Turn the power on again and check restart
after inserting connector again.
4 Check room temperature display on remote
controller.
Replace indoor controller board if there is abnormal difference with actual room temperature.
Turn the power off, and on again to operate
after check.
1–3 Check resistance value of thermistor.
For characteristics, refer to (P1) above.
2 Check contact failure of connector (CN21) on
the indoor controller board. Refer to 10-6.
Turn the power on and check restart after
inserting connector again.
4 Check pipe <liquid> temperature with remote
controller in test run mode. If pipe <liquid>
temperature is extremely low (in cooling
mode) or high (in heating mode), refrigerant
circuit may have defect.
5 Check pipe <liquid> temperature with remote
controller in test run mode. If there is extreme
difference with actual pipe <liquid> temperature,
replace indoor controller board.
Turn the power off, and on again to operate
after check.
1–3 Check resistance value of thermistor.
0: (32˚F)
10:(50˚F)
20:(68˚F)
30:(86˚F)
40:(104˚F)
• • • • • • • • • • • •
• • • • • • • • • • • •
• • • • • • • • • • • •
• • • • • • • • • • • •
• • • • • • • • • •
6.0k"
3.9k"
2.6k"
1.8k"
1.3k"
2 Check contact failure of connector (CN31) on
the indoor controller board. Refer to 10-6.
Turn the power on again and check restart
after inserting connector again.
4 Replace indoor controller board if drain
pump operates with the line of drain sensor
connector CN31-1 and 2 is short-circuited,
and abnormality reappears.
Turn the power off, and on again to operate
after check.
1 Check if drain pump works.
2 Check drain function.
3 Check the setting of lead wire of drain sensor
and check clogs of the filter.
4 Replace indoor controller board if drain
pump operates with the line of drain sensor
connector CN31-1 and 2 is short-circuited
and abnormality reappears.
Refer to 10-6.
Turn the power off, and on again to operate
after check.
15
Error Code
Abnormal
Freezing/overheating protection is
working
1 Freezing protection (Cooling mode)
The unit is in 6-minute resume prevention
mode if pipe <liquid or condenser/evaporator> temperature stays under
-15:(5˚F) for 3 minutes, 3 minutes after
the compressor started. Abnormal if it
stays under -15:(5˚F) for 3 minutes
again within 16 minutes after 6-minute
resume prevention mode.
point and detection method
Cause
(Cooling or drying mode)
1 Clogged filter (reduced airflow)
2 Short cycle of air path
3 Low-load (low temperature)
operation out of the tolerance
range
4 Defective indoor fan motor
• Fan motor is defective.
• Indoor controller board is
defective.
5 Defective outdoor fan control
6 Overcharge of refrigerant
7 Defective refrigerant circuit
(clogs)
Countermeasure
(Cooling or drying mode)
1 Check clogs of the filter.
2 Remove shields.
4 Measure the resistance of fan motor's winding.
Measure the output voltage of fan's connector
(FAN) on the indoor controller board.
WThe indoor controller board should be
normal when voltage of AC 208/230V is
detected while fan motor is connected.
Refer to 10-6.
5 Check outdoor fan motor.
67 Check operating condition of refrigerant
circuit.
P6
P8
2 Overheating protection (Heating mode)
The units is in 6-minute resume
prevention mode if pipe <condenser /
evaporator> temperature is detected as
over 70:(158˚F) after the compressor
started. Abnormal if the temperature of
over 70:(158˚F) is detected again within 10 minutes after 6-minute resume
prevention mode.
Pipe temperature
<Cooling mode>
Detected as abnormal when the pipe temperature is not in the cooling range 3 minutes after compressor start and 6 minutes
after the liquid or condenser/evaporator pipe
is out of cooling range.
Note 1) It takes at least 9 minutes to
detect.
Note 2) Abnormality P8 is not detected in
drying mode.
Cooling range
TH: Lower temperature between liquid pipe
TH1: Intake temperature
<Heating mode>
When 10 seconds have passed after the
compressor starts operation and the hot
adjustment mode has finished, the unit is
detected as abnormal when
condenser/evaporator pipe temperature is
not in heating range within 20 minutes.
:-3 deg C[-5.4deg F]]
temperature (TH2) and
condenser/evaporator temperature
(TH5)
(TH-TH1)
(Heating mode)
1 Clogged filter (reduced airflow)
2 Short cycle of air path
3 Overload (high temperature)
operation beyond the tolerance
range
4 Defective indoor fan motor
• Fan motor is defective.
• Indoor controller board is
defective.
5 Defective outdoor fan control
6 Overcharge of refrigerant
7 Defective refrigerant circuit
(clogs)
8 Bypass circuit of outdoor unit
is defective.
1 Slight temperature difference
between indoor room
temperature and pipe <liquid
or condenser / evaporator>
temperature thermistor
• Shortage of refrigerant
• Disconnected holder of pipe
<liquid or condenser /
evaporator> thermistor
• Defective refrigerant circuit
2 Converse connection of
extension pipe (on plural units
connection)
3 Converse wiring of indoor/
outdoor unit connecting wire
(on plural units connection)
4 Defective detection of indoor
room temperature and pipe
<condenser / evaporator>
temperature thermistor
5 Stop valve is not opened
completely.
(Heating mode)
1 Check clogs of the filter.
2 Remove shields.
4
Measure the resistance of fan motor's winding.
Measure the output voltage of fan's connector
(FAN) on the indoor controller board.
WThe indoor controller board should be
normal when voltage of AC 208/230V is
detected while fan motor is connected.
Refer to 10-6.
5 Check outdoor fan motor.
6~8Check operating condition of refrigerant
circuit.
1~4 Check pipe <liquid or condenser /
evaporator> temperature with room
temperature display on remote controller
and outdoor controller circuit board.
Pipe <liquid or condenser / evaporator>
temperature display is indicated by setting
SW2 of outdoor controller circuit board as
follows.
Conduct temperature check with outdoor
controller circuit board after connecting
(
‘A-Control Service Tool(PAC-SK52ST)’.
23Check converse connection of extension
pipe or converse wiring of indoor/outdoor
unit connecting wire.
)
Note 3) It takes at least 27 minutes to
detect abnormality.
Note 4) It excludes the period of defrosting
(Detection restarts when defrosting
mode is over)
Heating range
:3 deg C[5.4deg F][
(TH5-TH1)
16
Error Code
P9
E0
or
E4
E3
or
E5
Abnormal point and detection method
Pipe temperature thermistor /
Condenser-Evaporator (TH5)
1 The unit is in 3-minute resume protec-
tion mode if short/open of thermistor is
detected. Abnormal if the unit does not
get back to normal within 3 minutes.
(The unit returns to normal operation, if
it has been reset normally.)
2 Constantly detected during cooling, dry-
ing, and heating operation (except
defrosting)
Short: 90:(194˚F) or more
Open: -40:(-40˚F) or less
Remote controller transmission
error(E0)/signal receiving error(E4)
1 Abnormal if main or sub remote con-
troller cannot receive any transmission
normally from indoor unit of refrigerant
address “0” for 3 minutes.
(Error code : E0)
2 Abnormal if sub-remote controller could
not receive for any signal for 2 minutes.
(Error code: E0)
1 Abnormal if indoor controller board can
not receive any data from remote controller board or normally from other
indoor controller board for 3 minutes.
(Error code: E4)
2 Indoor controller board cannot receive
any signal from remote controller for 2
minutes. (Error code: E4)
Remote controller transmission
error(E3)/signal receiving error(E5)
1 Abnormal if remote controller could not
find blank of transmission path for 6 seconds and could not transmit.
(Error code: E3)
2 Remote controller receives transmitted
data at the same time, compares the
data, and when detecting it, judges
different data to be abnormal 30
continuous times. (Error code: E3)
1 Abnormal if indoor controller board could
not find blank of transmission path.
(Error code: E5)
2 Indoor controller board receives trans-
mitted data at the same time, compares
the data,and when detecting it, judges
different data to be abnormal 30
continuous times. (Error code: E5)
Cause
1 Defective thermistor
characteristics
2 Contact failure of connector
(CN29) on the indoor controller
board (Insert failure)
3 Breaking of wire or contact
failure of thermistor wiring
4 Temperature of thermistor is
90:(194˚F) or more or -40:
(-40˚F) or less caused by
defective refrigerant circuit.
5 Defective indoor controller
board
1 Contact failure at transmission
wire of remote controller
2 All remote controllers are set
as “sub” remote controller. In
this case, E0 is displayed on
remote controller, and E4 is
displayed at LED (LED1, LED2)
on the outdoor controller circuit
board.
3 Miswiring of remote controller
4 Defective transmitting receiving
circuit of remote controller
5 Defective transmitting receiving
circuit of indoor controller board
of refrigerant address “0”
6 Noise has entered into the
transmission wire of remote
controller.
1 2 remote controller are set as
“main.” (In case of 2 remote
controllers)
2 Remote controller is connected
with 2 indoor units or more.
3 Repetition of refrigerant
address
4 Defective transmitting receiving
circuit of remote controller
5 Defective transmitting receiving
circuit of indoor controller board
6 Noise has entered into trans-
mission wire of remote controller.
Countermeasure
1–3 Check resistance value of thermistor.
For characteristics, refer to (P1) above.
2 Check contact failure of connector (CN29)
on the indoor controller board. Refer to 10-6.
Turn the power on and check restart after
inserting connector again.
4 Operate in test run mode and check pipe
<condenser / evaporator> temperature with
outdoor controller circuit board. If pipe
<condenser / evaporator> temperature is
extremely low (in cooling mode) or high (in
heating mode), refrigerant circuit may have
defect.
5 Operate in test run mode and check pipe
<condenser / evaporator> temperature with
outdoor control circuit board. If there is
exclusive difference with actual pipe
<condenser / evaporator> temperature
replace indoor controller board.
There is no abnormality if none of above
comes within the unit.
Turn the power off and on again to operate.
In case of checking pipe temperature
with outdoor controller circuit board,
be sure to connect A-control service
(
tool (PAC-SK52ST).
1 Check disconnection or looseness of indoor
unit or transmission wire of remote controller.
2 Set one of the remote controllers “main”
if there is no problem with the action above.
3 Check wiring of remote controller.
• Total wiring length: max. 500m
(Do not use cable o 3 or more)
• The number of connecting indoor units:
max. 16 units
• The number of connecting remote controller: max. 2 units
When the above-mentioned problem 1~3 are not seen.
4 Diagnose remote controllers.
a) When “RC OK” is displayed,
remote controllers have no problem.
Turn the power off, and on again to
check. If abnormality generates again,
replace indoor controller board.
b) When “RC NG” is displayed,
replace remote controller.
c) When “RC E3” is displayed,
d) When “ERC 00-06” is displayed,
[ c),d)→Noise may be causing abnormality. ]
∗ If the unit is not normal after replacing
indoor controller board in group control,
the indoor controller board of address
“0” may be abnormal.
1 Set a remote controller to main, and the
other to sub.
2 Remote controller is connected with only 1
indoor unit.
3 The address changes to a separate setting.
4~6 Diagnose remote controller.
a) When “RC OK” is displayed, remote con-
trollers have no problem.
Turn the power off, and on again to check.
When becoming abnormal again, replace
indoor controller board.
b)When “RC NG” is displayed, replace
remote controller.
c)When “RC E3” or “ERC 00-66” is displayed,
noise may be causing abnormality.
)
17
Error Code
E6
E7
Fb
E1
or
E2
Abnormal point and detection method
Indoor/outdoor unit communication
error (Signal receiving error)
1 Abnormal if indoor controller board
cannot receive any signal normally for 6
minutes after turning the power on.
2 Abnormal if indoor controller board
cannot receive any signal normally for 3
minutes.
3 Consider the unit as abnormal under the
following condition: When 2 or more
indoor units are connected to 1
outdoor unit, indoor controller board
cannot receive a signal for 3 minutes
from outdoor controller circuit board, a
signal which allows outdoor controller
circuit board to transmit signals.
Indoor/outdoor unit communication
error (Transmitting error)
Abnormal if “1” receiving is detected 30
times continuously though indoor controller
board has transmitted “0”.
Indoor controller board
Abnormal if data cannot be normally read
from the nonvolatile memory of the indoor
controller board.
Remote controller control board
1 Abnormal if data cannot be normally
read from the nonvolatile memory of the
remote controller control board.
(Error code: E1)
2 Abnormal if the clock function of remote
controller cannot be normally operated.
(Error code: E2)
Cause
1 Contact failure, short circuit or,
miswiring (converse wiring) of
indoor/outdoor unit connecting
wire
2 Defective transmitting receiving
circuit of indoor controller board
3 Defective transmitting receiving
circuit of indoor controller board
4 Noise has entered into indoor/
outdoor unit connecting wire.
1 Defective transmitting receiving
circuit of indoor controller board
2 Noise has entered into power
supply.
3 Noise has entered into outdoor
control wire.
1 Defective indoor controller
board
1 Defective remote controller 1 Replace remote controller.
∗ Check LED display on the outdoor control cir-
cuit board. (Connect A-control service tool,
PAC-SK52ST.)
Refer to EA-EC item if LED displays EA-EC.
1 Check disconnection or looseness of indoor/
outdoor unit connecting wire of indoor unit or
outdoor unit.
Check all the units in case of twin indoor
unit system.
2-4 Turn the power off, and on again to
check. If abnormality generates again,
replace indoor controller board or outdoor
controller circuit board.
∗ Other indoor controller board may have
defect in case of twin indoor unit system.
1-3 Turn the power off, and on again to
check. If abnormality generates again,
replace indoor controller board.
1 Replace indoor controller board.
Countermeasure
PA
(2502)
(2500)
Forced compressor stop
(due to water leakage abnormality)
When the intake temperature subtracted
1
with liquid pipe temperature is less than
-10:(14˚F), drain sensor detects
whether it is soaked in the water or not
at the interval of 90 seconds.
pump will start operating when the drain sensor detects to be soaked in the water.)
2 The unit has a water leakage abnormality
when the following conditions, a and b,
are satisfied while the above-mentioned
detection is performed.
a) The drain sensor detects to be
soaked in the water 10 times in a row.
b) The intake temperature subtracted
with liquid pipe temperature is detected to be less than -10:(14˚F) for a
total of 30 minutes. (When the drain
sensor detects to be NOT soaked in
the water, the detection record of a
and b will be cleared.)
3 The drain sensor detection is performed
in operations other than cooling. (When
the unit stops operating, during heating
or fan operation, when the unit stops
because of some abnormality)
*Once the water leakage abnormality is
detected, abnormality state will not be
released until the main power is reset.
(Drain
1 Drain pump trouble
2 Drain defective
· Drain pump clogging
· Drain pipe clogging
3 Open circuit of drain sensor
side heater
4 Contact failure of drain sensor
connector
5 Dew condensation on drain
sensor
· Drain water trickles along
lead wire.
· Drain water waving due to filter
clogging
6 Extension piping connection
difference at twin system
7 Miswiring of indoor/ outdoor
connecting at twin system
8 Room temperature thermistor /
liquid pipe temperature thermistor detection is defective.
1 Check the drain pump.
2 Please confirm whether water can be
drained.
3 Confirm the resistance of the drain sensor.
4 Check the connector contact failure.
5 Check the drain sensor leadwire mounted.
Check the filter clogging.
6 Check the piping connection.
7 Check the indoor/ outdoor connecting wires.
8 Check the room temperature display of
remote controller.
Check the indoor liquid pipe temperature
display of outdoor controller board.
18
10-3. TROUBLESHOOTING BY INFERIOR PHENOMENA
Note: Refer to the manual of outdoor unit for the detail of remote controller.
Phenomena
(1)LED2 on indoor controller board
is off.
• When LED1 on indoor controller board is also off.
1 Power supply of rated voltage is not supplied to out-
door unit.
2 Defective outdoor controller circuit board
3 Power supply of 208/230V is not supplied to indoor
unit.
4 Defective indoor power board
5 Defective indoor controller board
(For the separate indoor/outdoor unit power sup-
ply system)
1 Power supply of 208/230V AC is not supplied to
indoor unit.
2 The connectors of the optional replacement kit are
not used.
3 Defective indoor controller board
4 Defective indoor power board
Cause
Countermeasure
1 Check the voltage of outdoor power
supply terminal block (L1,L2).
• When AC 208/230V is not detected,
check the power wiring to outdoor unit
and the breaker.
• When AC 208/230V is detected,
check 2 (below).
2 Check the voltage between outdoor
terminal block S1 and S2.
• When AC 208/230V is not detected.
—Check the fuse on outdoor controller
circuit board.
—Check the wiring connection.
• When AC 208/230V is detected,
check 3 (below).
3 Check the voltage between indoor terminal
block S1 and S2.
• When AC 208/230V is not detected,
check indoor/outdoor unit connecting
wire for mis-wiring.
• When AC 208/230V is detected,
check 4 (below).
4 Check voltage output from CN2S on indoor
power board (DC13.1V). Refer to 10-6-1.
• When no voltage is output, check the
wiring connection.
• When output voltage is between
DC12.5V and DC13.7V, check 5
(below).
5 Check the wiring connection between
indoor controller board and indoor power
board. Check the fuse on indoor controller
board. If no problems are found, indoor
controller board is defective.
1 Check the voltage of indoor power supply
terminal block (L1,L2).
• When AC208/230V is not detected,
check the power supply wiring.
• When AC208/230V is detected, check
2 (below).
2 Check that there is no problem in the
method of connecting the connectors.
• When there are problems in the method
of connecting the connectors, connect
the connector correctly referring to installation manual of an optional kit.
• When there is no problem in the
method of connecting the connectors,
check 3 (below).
3 Check voltage output from CNDK on
indoor controller board.
• When AC208/230V is not detected.
—Check the fuse on indoor controller board.
—Check the wiring connection between
indoor power supply terminal block and
CND on indoor controller board.
• When AC208/230V is detected, check
4 (below).
4 Check voltage output from CN2S on
indoor power board.
• When no voltage output, check the
wiring connection between CNDK on
indoor controller board and CNSK on
indoor power board.
If no problem are found, indoor power
board is defective.
• When DC12.5~13.7V is detected,
check the wiring connection between
CN2S on indoor power board and
CN2D on indoor power board.
If no problem are found, indoor controller board is defective.
19
Phenomena
(1)LED2 on indoor controller board
is off.
Note: Refer to the manual of the outdoor unit for the detail of remote controller.
Cause
• When LED1 on indoor controller board is lit.
1 Mis-setting of refrigerant address for outdoor unit
(There is no unit corresponding to refrigerant
address “0”.)
Countermeasure
1 Reconfirm the setting of refrigerant
address for outdoor unit.
Set the refrigerant address to “0”.
(For grouping control system under
which 2 or more outdoor units are
connected, set one of the units to “0”.)
Set refrigerant address using SW1 (3-6)
on outdoor controller circuit board.
(2)LED2 on indoor controller board
is blinking.
(3)Upward/downward vane
performance failure
• When LED1 on indoor controller board is also blinking.
Connection failure of indoor/outdoor unit connecting
wire
• When LED1 is lit.
1 Miswiring of remote controller wires
Under indoor unit system, 2 indoor
together.
2 Refrigerant address for outdoor unit is wrong or not
set.
Under grouping control system, there are some units
whose refrigerant address is 0.
3 Shortcut of remote controller wires
4 Defective remote controller
1 The vane is not downward during defrosting and
heat preparation and when the thermostat is OFF in
HEAT mode. (Working of COOL protection function)
2 Vane motor does not rotate.
• Defective vane motor
• Breaking of wire or connection failure of connector
• Up/down vane setting is “No vanes”.
3 Upward/downward vane does not work.
• The vane is set to fixed position.
units are wired
Check indoor/outdoor unit connecting wire
for connection failure.
1 Check the connection of remote con-
troller wires in case of twin indoor unit
system. When 2 or more indoor units are
wired in one refrigerant system, connect
remote controller wires to one of those
units.
2 Check the setting of refrigerant address
in case of grouping control system.
If there are some units whose refrigerant
addresses are 0 in one group, set one of
the units to 0 using SW1 (3-6) on outdoor
controller circuit board
34 Remove remote controller wires and
check LED2 on indoor controller board.
• When LED2 is blinking, check the
shortcut of remote controller wires.
• When LED2 is lit, connect remote
controller wires again and:
if LED2 is blinking, remote controller
is defective; if LED2 is lit, connection
failure of remote controller terminal
block etc. has returned to normal.
1 Normal operation (The vane is set to hor-
izontal regardless of remote control.)
2 Check 2 (left).
• Check the vane motor. (Refer to “How
to check the parts”.)
• Check for breaking of wire or connection failure of connector.
• Check “Up/down vane setting”. (Unit
function selection by remote controller).
3 Normal operation (Each connector on
vane motor side is disconnected.)
.
(4)Receiver for wireless remote
controller
1 Weak batteries of wireless remote controller
2 Contact failure of connector (CNB) on wireless
remote controller board(Insert failure)
3 Contact failure of connector (CN90) on indoor con-
troller board(Insert failure)
4 Contact failure of connector between wireless
remote controller board and indoor controller board
20
1 Replace batteries of the wireless remote
controller.
2~4
Check contact failure of each connector.
If no problems are found in connector,
replace indoor controller board.
When the same trouble occurs even if
indoor controller board is replaced,
replace wireless remote controller
board.
10-4. WHEN WIRED REMOTE CONTROLLER OR INDOOR UNIT
MICROCOMPUTER TROUBLES
1. If there is not any other problem when trouble occurs, emergency operation starts as the indoor controller board switch
(SWE) is set to ON.
During the emergency operation the indoor unit operates with Indoor fan at high speed.
2. For emergency operation of cooling or heating
In emergency operation for COOL or HEAT, setting of the switch (SWE) in the indoor controller board and outdoor unit
emergency operation are necessary.
3. Before you activate emergency operation, check the following points:
(1) Emergency operation cannot be activated when:
· the outdoor unit malfunctions.
· the indoor fan malfunctions.
(2) Emergency operation becomes continuous only by switching the power source on / off. ON / OFF on the remote control
or temperature control etc. does not function.
(3) Avoid operating for a long time when the outdoor unit begins defrosting while emergency operation of the heating is acti-
vated, because it will start to blow cold air.
(4) Emergency cooling should be limited to 10 hours maximum. (The indoor unit heat exchanger may freeze.)
(5) After emergency operation has been deactivated, set the switches etc. to their original positions.
(6) Movement of the vanes does not work in emergency operation, therefore you have to slowly set them manually to the
appropriate position.
21
10-5. HOW TO CHECK THE PARTS
1
1
2
2
3
3
Red
White
Black
Relay connector
Protector
4
5
2
361
Orange
Red
Pink
Yellow Brown Blue
M
4
2
5
31
Pink
Orange
Red
Yellow Blue
M
OFF:130i 5:
ON :80i 20:
Parts name Check points
Disconnect the connector then measure the resistance using a tester.
(At the ambient temperature 10:(50˚F)~30:(86˚F))
(Refer to the next pege for a detail.)
Room temperature
thermistor (TH1)
Pipe temperature
thermistor (TH2)
Condenser/evaporator
temperature thermistor
(TH5)
Normal
4.3k"~9.6k"
Abnormal
Open or short
Measure the resistance between the terminals using a tester.
(Winding temperature 20:(68˚F))
Fan motor (MF)
Abnormal
Open or short
Motor terminal
or
Relay connector
60.8"
55.1"
41.1"
54.3"
Normal
Open or short
Abnormal
Connector
PCA-A24·30GA
(1)
140~160"
Normal
Open or short
Abnormal
Connector
PCA-A36·42GA
(1)
Normal
Vane motor (MV)
140~160"
Red–Yellow
Red–Blue
Red–Blue
Red–Pink
Brown–Yellow
Brown–Blue
Red–Orange
Red–Pink
Red–Black
White–Black
PCA-A24GA
(1)
PCA-A30GA(1)
PCA-A36GA(1)
PCA-A42GA(1)
PCA-A24GA PCA-A30GA PCA-A36GA PCA-A42GA
PCA-A24GA1 PCA-A30GA1 PCA-A36GA1 PCA-A42GA1
22
<Thermistor Characteristic graph>
Thermistor for
lower temperature
Room temperature thermistor(TH1)
Pipe temperature thermistor(TH2)
Condenser/evaporator temperature
thermistor(TH5)
< Thermistor for lower temperature >
50
40
Thermistor R0=15kΩ ±3%
Fixed number of B=3480 ± 2%
t(:):Rt=15exp { 3480( ) }
T(˚F):Rt=15exp { 3480( ) }
1
273+t
1
273+
T-32
1.8
1
273
1
273
30
Resistance (k")
20
10
0: (32˚F) 15kΩ
10: (50˚F) 9.6kΩ
20: (68˚F) 6.3kΩ
0
25: (77˚F) 5.4kΩ
30: (86˚F) 4.3kΩ
40:(104˚F) 3.0kΩ
10-6.TEST POINT DIAGRAM
10-6-1. Power board
PCA-A24GA PCA-A30GA PCA-A36GA PCA-A42GA
PCA-A24GA1 PCA-A30GA1 PCA-A36GA1 PCA-A42GA1
CN2S
Connect to the indoor controller board (CN2D)
Between 1 to 3 12.6-13.7V DC (Pin1 (+))
-20 -10 0 10 20 30 40 50
-4 -14 32 50 68 86
Temperature
104
122
:
˚F
23
CNSK
Connect to the indoor controller board
(CNDK)
Between 1 to 3 208/230V AC
10-6-2. Indoor controller board
PCA-A24GA PCA-A30GA PCA-A36GA PCA-A42GA
PCA-A24GA1 PCA-A30GA1 PCA-A36GA1 PCA-A42GA1
CN3C
Transmission
(Indoor/outdoor)
(0~24V DC)
CNDK
Connect to the indoor
power board (CNSK)
(208/230V AC)
FUSE
(6.3 A 250 V)
CND
Power supply input
(208/230V AC)
CNP
Drain-pump output
(DP)
(208/230V AC)
CN2D
Connect to the indoor
power board (CN2S)
(12.5~13.7V DC)
LED1
Power supply (I.B)
LED2
Power supply (R.B)
LED3
Transmission (Indoor/outdoor)
CN22
Connect to the terminal
block(TB5)
(Remote controller connecting
wire)
(10.4~14.6V DC)
CN20
Room temperature
thermistor (TH1)
CN21
Pipe temperature
thermistor/Liquid (TH2)
CN29
Condenser/evaporator
temperature thermistor (TH5)
CN31
Drain sensor (DS)
CN90
Connect to the wireless
remote controller board
(CNB)
CN6V
Vane motor output
(MV)
CN41
Connector (HA terminal-A)
SWE
Emergency operation
FAN
Fan motor output
Jumper wire J41, J42
Pair number setting with
wireless remote controller
24
SW2
Capacity setting
CN51
Centrally control
CN24
Heater output
(12V DC)
CN32
Remote switch
CN2L
Connector
(LOSSNAY)
SW1
Model setting
10-7. FUNCTIONS OF DIP SWITCH AND JUMPER WIRE
Each function is controlled by the dip switch and the jumper wire on control P.C. board.
SW1 and SW2 are equipped only for service parts.
Model setting and capacity setting are memorized in the nonvolatile memory of the control P.C. board of
the unit.
(Marks in the table below) Jumper wire ( : Short : Open)
Jumper wire
SW1
SW2
J41
J42
Functions
Model
settings
Capacity
settings
Pair number
setting with
wireless
remote
controller
Setting by the dip switch and jumper wire
For service board
1 2 3 4 5
ON
OFF
MODELS
PCA-A24GA
PCA-A24GA
PCA-A30GA
PCA-A30GA
PCA-A36GA
PCA-A36GA
PCA-A42GA
PCA-A42GA
Wireless remote
controller setting
0
1
2
3 ~ 9
Service board
1 2 3 4 5
1
1 2 3 4 5
1
1 2 3 4 5
1
1 2 3 4 5
1
Control PCB setting
J41 J42
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Remarks
<Initial setting>
Wireless remote controller: 0
Control PCB: (for both J41 and J42)
Four pair number settings are supported.
The pair number settings of the wireless remote
controller and indoor control PCB (J41/J42) are
given in the table on the left.
(' ' in the table indicates the jumper wire is disconnected.)
JP1
JP3
Unit type
setting
Indoor
controller
board type
setting
Model
Without TH5
With TH5
Indoor controller board type
For product
Service parts
JP1
There is no jumper (JP1) because these models
have the cond./eva. temperature thermistor (TH5).
JP3
25
11
slide
Intake grille
Intake grille
Holding knobs
Hinges
Pull out the intake grille
Electrical cover
Screw(electrical cover)
Screw(electrical box)
Slide to the left
Beam
Clamp
DISASSEMBLY PROCEDURE
PCA-A24GA PCA-A30GA PCA-A36GA PCA-A42GA
PCA-A24GA1 PCA-A30GA1 PCA-A36GA1 PCA-A42GA1
OPERATING PROCEDURE PHOTOS & ILLUSTRATIONS
1. Removing the air intake grille
(1) Slide the intake grille holding 2 knobs backward to open
the intake grille.
(2) When the intake grille left open, push the stoppers on the
rear 2 hinges to pull out the intake grille.
2. Removing the electrical box
(1) Remove the air intake grille. (See the figure 1)
(2) Remove the screw from the beam and remove the beam.
(3) Remove the screws from the electrical cover, and
remove the electrical cover.
(4) Disconnect CN6V, CN21 and CN29.
(5) Remove the screws from the electrical box and pull out
the electrical box.
Figure 1
Figure 2
<Electrical parts in the electrical box>
Terminal block (for indoor / outdoor connecting line)<TB4>
Terminal block (for power supply)<TB2>
Terminal block (for remote controller)<TB5>
Fan motor capacitor<C>
Indoor control board<I.B>
Power board<P.B>
(There might not be TB2 depending on the model.)
26
Photo 1
Power board
Indoor control
board
Fan motor
capacitor
Terminal block
(power supply)
Terminal block
(remote control)
Terminal block
(Indoor / outdoor
connecting wire)
OPERATING PROCEDURE PHOTOS & ILLUSTRATIONS
3. Removing the fan motor <MF>
(1) Remove the intake grille.
(2) Disconnect the fan motor connector.
(3) Remove the screw for removing the motor support at both
left and right side.
(4) Loosen the set screws at the fan motor side of the con-
necting joint.
(5) Slide the fan motor <MF> to the left side and pull it out.
4. Removing the sirocco fan
(1) Remove the air intake grille.
(2) Remove 1 beam.
(3) Remove the lower casing while pressing the stoppers at
upper side of the casing.
(4) Loosen the set screws at the connecting joint.
(5) Remove the sirocco fan and shaft together by sliding the
shaft to the left.
Photo 2
Screws
Photo 3
Motor
Motor support
Set screw
Motor set screws
connecting joint
Catch
Casing
(Note)
Make sure that the upper side casing is snapped to the fan
plate securely with catch.
5. Removing the side panel
(1) Remove the air intake grille.
(2) Remove the screw from the side panel, and remove the
side panel by sliding the panel to the front.
Connecting joint
Figure 3
Sirocco fan
screw
Shaft
Bearing
Screws
side panel
sliding the panel
to the front
27
OPERATING PROCEDURE PHOTOS
6. Removing the vane motor <MV>
(1) Remove the air intake grille. (See the figure 1)
(2) Remove the left side panel. (See the figure 3)
(3) Remove the relay connector of vane motor.
(4) Remove the electrical box.
(5) Remove the screws of vane motor, then remove vane
motor <MV>.
(Note)
Connect the lead wires and connectors properly and place
them in the proper position so that the wires are not pinched
by other parts.
7. Removing the Indoor coil thermistor <TH2/TH5>
(1) Remove the air intake grille. (See the figure 1)
(2) Remove the right side panel. (See the figure 3)
(3) Remove the relay connector of the pipe thermistor
<TH2/TH5>.
(4) Remove the screw, and remove the check panel.
(5) Extract the indoor coil thermistor <TH2/TH5> from the
holder.
<Caution for the installation>
There is a possibility for the short circuit when connector gets
wet by water through the thermistor lead wire.
Therefore, lead wire of the indoor coil thermistor <TH2/TH5>
should be tied as shown in the photo 6.
Photo 4
Relay connector of
the vane motor
Photo 5
Left side
panel
Photo 6
Screw
Check
panel
Screw
Vane motor
Relay connector of
the pipe thermistor
8. Removing the Under panel
(1) Remove the air intake grille. (See the figure 1)
(2) Remove the beam.
(3) Remove the side panel (right and left). (See the figure 3)
(4) Remove the 9 screws of the under panel, then remove
the under panel.
w Weight of the under panel : Approx. 2kg.
28
Hold Indoor coil thermistor Clamp
Photo 7
Screws
Under panel
OPERATING PROCEDURE PHOTOS
9. Removing the drain pan
(1) Remove the air intake grille. (See the figure 1)
(2) Remove the beam.
(3)
Remove the side panels of right and left. (See the figure 3)
(4) Remove the under panel. Remove the screws of the right
and left side drain pan.
(5) Remove the 2 insulations in centre of the drain pan, and
after removing the 2 screws, remove the drain pan.
(Note)
Please be aware that there might be drain left in the drain
pan when you remove the drain pump (option).
10. Removing the guide vane
(1) Remove the intake grille. (See the figure 1)
(2) Remove the beam.
Remove the side panels (right and left). (See the figure 3)
(3)
(4) Remove the under panel. (See the photo 7)
(5) Remove the drain pan. (See the photo 8)
(6) Remove the screw from the guide vane, then remove the
guide vane.
Photo 8
Screw
Photo 9
Drain pan
Screw
(Insulation)
Screw
11. Removing the Auto vane
(1) Remove the intake grille. (See the figure 1)
(2) Remove the left side panel. (See the figure 3)
(3) Remove the left side box.
(4) Remove the under panel.
(5) Remove the screw from the auto vane.
(6) Slide the auto vane to the right side and pull the auto
vane out.
29
Drain pan
Photo 10
Guide vane
Auto vane
Screw
Screw
OPERATING PROCEDURE PHOTOS
12. Removing the heat exchanger
(1) Remove the air intake grille. (See the figure 1)
(2) Remove the beam.
(3) Remove the side panel (right and left). (See the figure 3)
(4) Disconnect the relay connector of the pipe thermistor.
(5) Remove the under panel. (See the photo 7)
(6) Remove the drain pan. (See the photo 8)
(7) Unscrew the screw of the pipe cover, and remove the
pipe cover.
(8) Unscrew the screw of the pipe support, and remove the
pipe support.
(9) Unscrew the screw of the heat exchanger, and remove
the heat exchanger.
Remove the heat exchanger with care. Since this is quite
heavy, removing work should be done with more than 2
people.
wWeight of heat exchanger : Approx. 5.3kg
Photo 11
Pipe
support
Screws
Pipe cover
Screws
Heat
exchanger
30
12
No.
Parts No. Parts Name Specifications
Wiring
Diagram
Symbol
Recommended
Q'ty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
1
1
1
2
1
1
1
1
1
1
3
1
1
1
1
MF
MF
TH1
TH2
TH5
D09C4P70MS
D10C4P90MS
Remarks
(Drawing No.)
R01 29J 130
R01 35J 130
R01 43E 126
T7W 30J 762
T7W E14 762
R01 700 116
R01 E17 114
R01 E19 114
R01 E26 202
R01 29J 100
R01 E00 103
R01 29J 145
R01 35J 145
R01 17J 524
T7W E20 529
T7W E15 529
R01 17J 110
R01 35J 110
R01 E15 114
R01 E20 114
R01 E27 202
R01 17J 202
T7W H23 480
T7W H24 480
MOTOR LEG
MOTOR LEG
PIECE(MOTOR)
FAN MOTOR
FAN MOTOR
SHAFT JOINT
SIROCCO FAN
SIROCCO FAN
ROOM TEMPERATURE THERMISTOR
SHAFT
SLEEVE BEARING
BEARING SUPPORT
BEARING SUPPORT
DRAIN PLUG
DRAIN PAN ASSY
DRAIN PAN ASSY
CASING
CASING
SIROCCO FAN
SIROCCO FAN
LIQUID PIPE TEMPERATURE THERMISTOR
COND/EVA TEMPERATURE THERMISTOR
HEAT EXCHANGER
HEAT EXCHANGER
1
1
1
1
2
1
1
1
1
1
1
3
1
1
1
1
24/30
PCA-A
GA
36/42
Q'ty/set
PARTS LIST (non-RoHS compliant)
FAN AND FUNCTIONAL PARTS
PCA-A24GA PCA-A30GA
PCA-A36GA PCA-A42GA
1
16
2
3
4
5
6
7
15
14
13
12
11
8
9
31
10
STRUCTURAL PART
No. Parts No. Parts Name
Specifications
24/30
Wiring
Diagram
Symbol
Recom-
mended
Q'ty
PCA-A
GA
1
1
1
1
4
4
2
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
36/42
1
1
1
1
4
4
2
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
MV
MV
Remarks
(Drawing No.)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
R01 17J 662
R01 35J 662
R01 17J 809
T7W E01 666
T7W E00 666
T7W E05 676
T7W E00 676
R01 17J 061
R01 17J 054
R01 17J 691
R01 A14 500
R01 29J 669
T7W E01 070
T7W E01 665
T7W E00 665
R01 17J 661
R01 35J 661
R01 17J 808
T7W E05 668
T7W E01 668
R01 17J 067
R01 35J 067
T7W E05 651
T7W E00 651
R01 29J 002
R01 E03 002
R01 E00 033
R01 E01 033
R01 37J 085
R01 37J 087
R01 37J 086
T7W E01 501
T7W 051 501
R01 17J 068
R01 E00 068
R01 29J 223
R01 35J 223
R01 17J 523
T7W E00 072
LEFT SIDE PANEL
LEFT SIDE PANEL
LEFT LEG
S.PLATE-L
S.PLATE-L
REAR PANEL
REAR PANEL
GRILLE HINGE
GRILLE CATCH
GRILLE ASSY
L.L FILTER
UNDER PANEL
W.BOARD CASE
S.PLATE-R
S.PLATE-R
RIGHT SIDE PANEL
RIGHT SIDE PANEL
RIGHT LEG
SERVICE PANEL
SERVICE PANEL
RIGHT SIDE BOX
RIGHT SIDE BOX
FRONT PANEL
FRONT PANEL
AUTO VANE
AUTO VANE
VANE SUPPORT
VANE SUPPORT
G.V ASSY-6R
G.V ASSY-6C
G.V ASSY-6L
AIR FILTER
AIR FILTER
LEFT SIDE BOX
LEFT SIDE BOX
VANE MOTOR
VANE MOTOR
JOINT SOCKET
DRAIN HOSE COVER
Q'ty/set
PCA-A24GA
PCA-A30GA
PCA-A36GA
PCA-A42GA
1920212324 22
1
2
3
4
5
18
17
16
15
14
13
12
6
7
Part numbers that are circled are not shown in the figure.
8
32
9
11
10
T7W E18 255
T7W E19 255
T7W E56 310
T7W E41 716
R01 E18 246
R01 E21 246
T7W E35 313
T7W A01 305
T7W E14 713
CAPACITOR
CAPACITOR
INDOOR CONTROLLER BOARD
TERMINAL BLOCK
TERMINAL BLOCK
TERMINAL BLOCK
POWER BOARD
REMOTE CONTROLLER CORD
REMOTE CONTROLLER
4= 440V
5= 440V
3P(L1,L2,GR)
3P(S1,S2,S3)
2P(1,2)
PAR-21MAA
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C
C
I.B
TB2
TB4
TB5
P.B
R.B
Parts No. Parts Name Specifications
36/42
Wiring
Diagram
Symbol
Recom-
mended
Q'ty
PCA-A
GA
24/30
Remarks
(Drawing No.)
Q'ty/ set
1
2
3
4
5
6
7
8
No.
ELECTRICAL PARTS
ON/OFF
TEMP.
PCA-A24GA
PCA-A30GA
PCA-A36GA
PCA-A42GA
1
6
2
3
4
5
33
7
8
13
No.
Parts No.
Parts Name
Specifications
Wiring
Diagram
Symbol
Recom-
mended
Q'ty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
RoHS
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
1
1
1
1
2
1
1
1
1
1
1
3
1
1
1
1
MF
MF
TH1
TH2
TH5
D09C4P70MS
D10C4P90MS
Remarks
(Drawing No.)
R01 30J 130
R01 32J 130
R01 45E 126
T7W 40J 762
T7W E31 762
R01 800 116
R01 E17 114
R01 E19 114
R01 H08 202
R01 30J 100
R01 E02 103
R01 30J 145
R01 36J 145
R01 18J 524
T7W E30 529
T7W E31 529
R01 18J 110
R01 19J 110
R01 E15 114
R01 E20 114
R01 H10 202
R01 H09 202
T7W H23 480
T7W H24 480
MOTOR LEG
MOTOR LEG
PIECE(MOTOR)
FAN MOTOR
FAN MOTOR
SHAFT JOINT
SIROCCO FAN
SIROCCO FAN
ROOM TEMPERATURE THERMISTOR
SHAFT
SLEEVE BEARING
BEARING SUPPORT
BEARING SUPPORT
DRAIN PLUG
DRAIN PAN ASSY
DRAIN PAN ASSY
CASING
CASING
SIROCCO FAN
SIROCCO FAN
LIQUID PIPE TEMPERATURE THERMISTOR
COND/EVA TEMPERATURE THERMISTOR
HEAT EXCHANGER
HEAT EXCHANGER
GA1
1
1
1
1
2
1
1
1
1
1
1
3
1
1
1
1
24/30
PCA-A
36/42
Q'ty/set
RoHS PARTS LIST
FAN AND FUNCTIONAL PARTS
PCA-A24GA1 PCA-A30GA1
PCA-A36GA1 PCA-A42GA1
1
16
2
3
4
5
6
7
8
9
34
12
11
10
13
14
15
STRUCTURAL PART
No.
Parts No. Parts Name
Specifications
24/30
Wiring
Diagram
Symbol
Recommended
Q'ty
PCA-A
GA
1
1
1
1
1
4
4
2
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
36/42
1
1
1
1
4
4
2
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
Remarks
(Drawing No.)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
RoHS
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
R01 18J 662
R01 36J 662
R01 18J 809
T7W E02 666
T7W E03 666
T7W E07 676
T7W E08 676
R01 18J 061
R01 19J 054
R01 19J 691
R01 A29 500
R01 30J 669
T7W E02 070
T7W E03 665
T7W E04 665
R01 18J 661
R01 36J 661
R01 18J 808
T7W E10 668
T7W E11 668
R01 18J 067
R01 36J 067
T7W E08 651
T7W E09 651
R01 30J 002
R01 E14 002
R01 E02 033
R01 E03 033
R01 38J 085
R01 38J 087
R01 38J 086
T7W E03 501
T7W E04 501
R01 18J 068
R01 E01 068
R01 E10 223
R01 E12 223
R01 18J 523
T7W E01 072
LEFT SIDE PANEL
LEFT SIDE PANEL
LEFT LEG
S.PLATE-L
S.PLATE-L
REAR PANEL
REAR PANEL
GRILLE HINGE
GRILLE CATCH
GRILLE ASSY
L.L FILTER
UNDER PANEL
W.BOARD CASE
S.PLATE-R
S.PLATE-R
RIGHT SIDE PANEL
RIGHT SIDE PANEL
RIGHT LEG
SERVICE PANEL
SERVICE PANEL
RIGHT SIDE BOX
RIGHT SIDE BOX
FRONT PANEL
FRONT PANEL
AUTO VANE
AUTO VANE
VANE SUPPORT
VANE SUPPORT
G.V ASSY-6R
G.V ASSY-6C
G.V ASSY-6L
AIR FILTER
AIR FILTER
LEFT SIDE BOX
LEFT SIDE BOX
VANE MOTOR
VANE MOTOR
JOINT SOCKET
DRAIN HOSE COVER
Q'ty/set
MV
MV
PCA-A24GA1
PCA-A30GA1
PCA-A36GA1
PCA-A42GA1
1920212324 22
1
2
3
4
5
18
17
16
15
14
13
12
Part numbers that are circled are not shown in the figure.
6
7
8
35
11
10
9
T7W E18 255
T7W E19 255
T7W E56 310
T7W E41 716
R01 E18 246
R01 E21 246
T7W E35 313
T7W A01 305
T7W E14 713
CAPACITOR
CAPACITOR
INDOOR CONTROLLER BOARD
TERMINAL BLOCK
TERMINAL BLOCK
TERMINAL BLOCK
POWER BOARD
REMOTE CONTROLLER CORD
REMOTE CONTROLLER
4= 440V
5= 440V
3P(L1,L2,GR)
3P(S1,S2,S3)
2P(1,2)
PAR-21MAA
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C
C
I.B
TB2
TB4
TB5
P.B
R.B
Parts No. Parts Name Specifications
36/42
Wiring
Diagram
Symbol
Recom-
mended
Q'ty
PCA-A
GA
1
24/30
Remarks
(Drawing No.)
Q'ty/ set
1
2
3
4
5
6
7
8
No.
G
G
G
G
G
G
G
G
G
RoHS
ELECTRICAL PARTS
ON/OFF
TEMP.
PCA-A24GA1
PCA-A30GA1
PCA-A36GA1
PCA-A42GA1
1
6
2
3
4
5
CCopyright 2006 MITSUBISHI ELECTRIC ENGINEERING CO., LTD.
Distributed in Jun. 2007 No.OC368 REVISED EDITION-B PDF 9
Distributed in Aug. 2006 No.OC368 REVISED EDITION-APDF 9
Distributed in Feb. 2006 No.OC368 PDF 10
Made in Japan
HEAD OFFICE : TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
8
7
New publication, effective Jun. 2007
Specifications subject to change without notice.
Loading...
