Mitsubishi MFA-76CRN1, MTA-96CRN1, MFA-96CRN1, MTA-76CRN1, MTA-120CRN1 Technical Manual
...
R410A Tropical Split Type AC Technical Manual Content
Indoor Unit
1
Content
Part 1 General Information ............................................ 2
Part 2 Indoor Units ......................................................... 6
Part 3 Outdoor Units .................................................... 88
Part 4 Installation ....................................................... 120
Part 5 Control ............................................................. 154
General Information R410A Tropical Split Type AC Technical Manual
General Information
2
Part 1 General Information
1. Model Names of Indoor/Outdoor Units ............................. 3
2. External Appearance .......................................................... 4
3. Nomenclature ...................................................................... 5
R410A Tropical Split Type Technical Manual Model Names of Indoor / Outdoor Units
General Information
3
1. Model Names of Indoor/Outdoor Units
1.1 Model Names of Units with Cooling only:
Type
Indoor unit Outdoor unit Capacity
Model
Power
supply
Model
Power
supply
kW Btu/h
Floor-standing
type
MFA-76CRN1
220~240V-
1Ph-50Hz
MOV-76CN1-C
380~415V-
3N-50Hz
22 76
MFA-96CRN1 MOV-96CN1-C 28 96
Mid-static
pressure duct
type
MTA-76CRN1 MOV-76CN1-C 22 76
MTA-96CRN1 MOV-96CN1-C 28 96
MTA-120CRN1 MOV-120CN1-C
380~400V-
3N-50Hz
35 120
MTA-150CRN1 MOV-76CN1-C *2
380~415V-
3N-50Hz
44 150
High-static
pressure
duct type
MHB-76CRN1 MOV-76CN1-C 22 76
MHB-96CRN1 MOV-96CN1-C 28 96
1.2 Model Names of Units with Cooling and heating:
Type
Indoor unit Outdoor unit Capacity
Model
Power
supply
Model
Power
supply
kW Btu/h
Floor-standing
type
MFA-76HRN1
220~240V-
1Ph-50Hz
MOV-76HN1-C
380~415V-
3N-50Hz
22 76
MFA-96HRN1 MOV-96HN1-C 28 96
Mid-static
pressure duct
type
MTA-76HRN1 MOV-76HN1-C 22 76
MTA-96HRN1 MOV-96HN1-C 28 96
MTA-120HRN1 MOV-120HN1-C
380~400V-
3N-50Hz
35 120
MTA-150HRN1 MOV-76HN1-C *2
380~415V-
3N-50Hz
44 150
High-static
pressure duct
type
MHB-76HRN1 MOV-76HN1-C 22 76
MHB-96HRN1 MOV-96HN1-C 28 96
External Appearance R410A Tropical Split Type Technical Manual
General Information
4
2. External Appearance
2.1 Indoor Units
MTA-76C(H)RN1
MTA-96C(H)RN1
MFA-76C(H)RN1
MFA-96C(H)RN1
MTA-120CRN1＼MTA-120HRN1
MTA-150CRN1
2.2 Outdoor Unit
MOV-76C(H)N1-C
MOV-96C(H)N1-C
MOV-150C(H)N1-C (MOV-76C(H)N1-C*2)
MOV-120C(H)N1-C
R410A Tropical Split Type Technical Manual Nomenclature
General Information
5
3. Nomenclature
3.1 Indoor unit:
3.2 Outdoor unit:
M T A – 76 C R N1
None：R22；N1：R410a
R：Remote Controller
Function Code: C: Cooling
H: Cooling and Heating
Cooling Capacity (*76 kBtu/h)
Product Series
A: 1
st
time design
B: 2
nd
time design
Indoor Units
T: Duct type
F: Floor-standing type
H: High static pressure
Midea
Design times
None：R22；
N1：R410a
Function Code：
C: Cooling Only
H: Heat pump
Cooling Capacity (76 kBtu/h)
Universal Outdoor Unit
Outdoor Unit
Midea
M O V 76 C N1 - C
Indoor Units R410A Tropical Split Type Technical Manual
Indoor Units
6
Part 2 Indoor Units
Duct Type................................................................................. 7
Floor-standing Type ............................................................. 58
R410A Tropical Split Type Technical Manual Duct Type
Indoor Units
7
Duct Type
1. Features ............................................................................... 8
2. Specifications ..................................................................... 9
3. Dimensions ....................................................................... 12
4. Service Space ................................................................... 13
5. Piping Diagrams ............................................................... 15

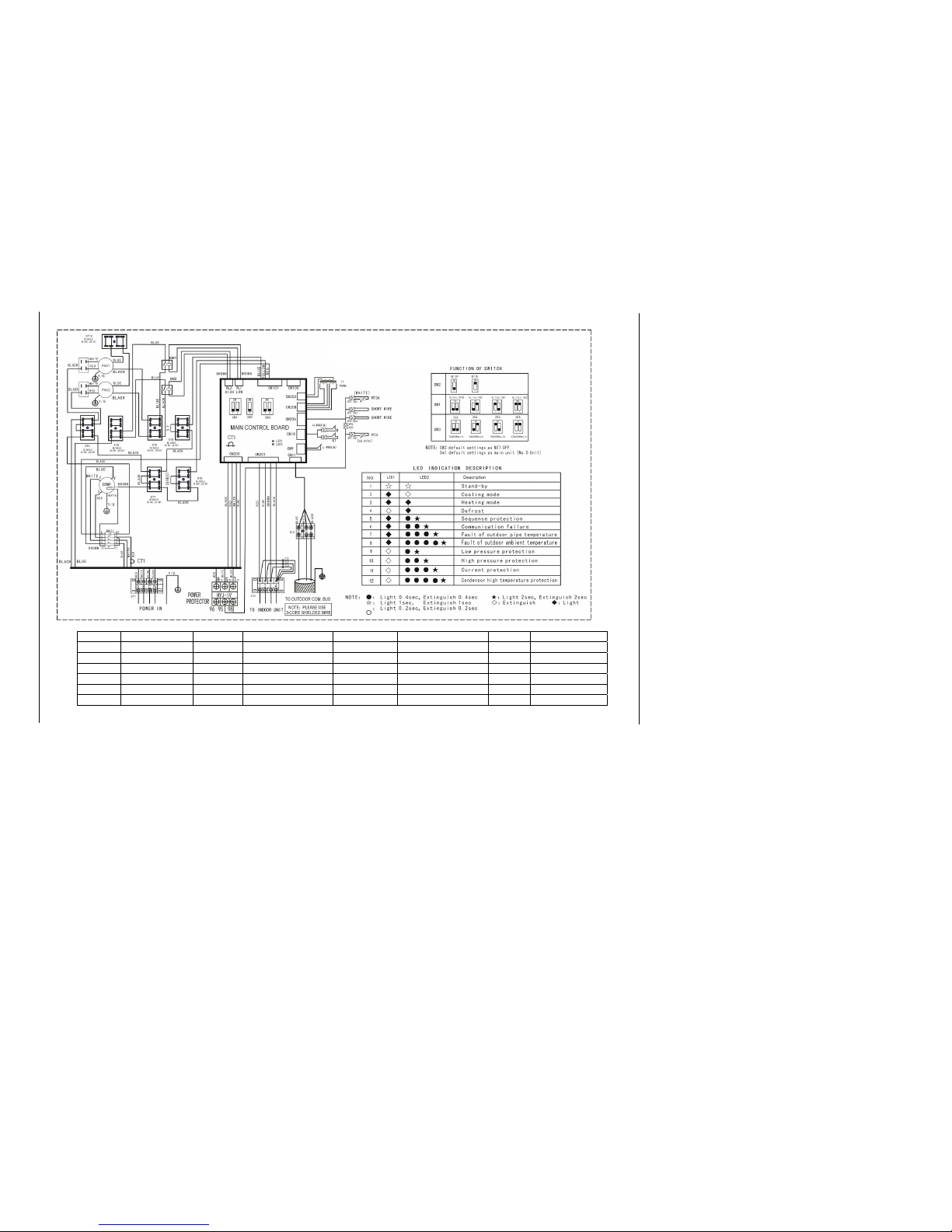

6. Wiring Diagrams ............................................................... 15
7.Capacity Table .................................................................... 20
8. Static Pressure .................................................................. 35
9. Electric Characteristics .................................................... 37
10. Sound Levels .................................................................. 38
11. Exploded View ................................................................. 39
12. Troubleshooting ............................................................. 50
13. Accessories ..................................................................... 57
Features R410A Tropical Split Type Technical Manual
Duct Type
8
1. Features
1. Nested in the ceiling, space-saving and noble.
2. High capacity of cooling/heating, efficient, and energy-saving.
3. The air outlet is laid out according to you desire.
4. Economic and convenient installation
1) Several diffusers branch off from an indoor unit, adjusting the room temperature, which makes many
rooms to be air-conditioned with only one indoor unit.
2) All models feature thin design making them applicable to ceiling pocket that tends to be shallow
5. Way of air intake and inserting air filter
6. It is suitable be used for office, hospital, commercial place and home, the air conditioner will create the
comfortable and elegance environment for you.
R410A Tropical Split Type Technical Manual Specifications
Duct Type
9
2. Specifications
Model MTA-76CRN1 MTA-76HRN1 MTA-96CRN1 MTA-96HRN1
Power supply - 220~240V-1Ph-50Hz 220~240V-1Ph-50Hz
Temp. setting range ℃ ≥17 ≤30 ≥17 ≤30
Rated input power W 11700 11700 14400 14400
Rated current A 19.3 19.3 23.7 23.7
Cooling
Capacity
Btu/h 76000 76000 96000 96000
W
22000 22000 28000 28000
Input W 7500 7500 9600 9600
EER W/W 2.93 2.93 2.92 2.92
Heating
Capacity
Btu/h / 78000 / 105000
W / 25000 / 31000
Input W / 8300 / 10300
COP W/W / 3.01 / 3.01
Indoor air flow m3/h 4250 4250 5100 5100
Indoor standard ESP Pa 100 100 100(98) 100(98)
Indoor noise level dB(A) 54 54 55 55
Refrigerant
Type - R410A R410A R410A R410A
Control - Capillary Capillary
Fan
Type - Centrifugal fan Centrifugal fan Centrifugal fan Centrifugal fan
Dimension mm Φ307 Φ307 Φ307 Φ307
Drive type/ Motor step - Direct/ Single Direct/ Single Direct/ Single Direct/ Single
Motor input* No. W 446*2 446*2 725*2 725*2
Motor speed rpm 877 877 1136 1136
Coil
Type - Copper tube and aluminum fin Copper tube and aluminum fin
Tube size mm Φ9.52 Φ9.52 Φ9.52 Φ9.52
No. of rows - 3 3 4 4
Fin per inch FPI 17 17 17 17
Length* height mm 1200*406.4 1200*406.4 1200*406 1200*406
Controller - Remote controller Remote controller
Drain pipe size mm 41 41 41 41
Dimension (W*H*D) mm 1350*760*450 1350*760*450 1350*760*450 1350*760*450
Packing (W*H*D) mm 1549*476*917 1549*476*917 1549*917*476 1549*917*476
Net/Gross weight kg 105/120 105/120 105/120 105/120
Shipping Qty.(20’/40’/40’HQ) pcs. 30/64/64 30/64/64 30/64/64 30/64/64
Notes:
1. ESP: external static pressure
2. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB, 24°CWB; Equivalent refrigerant piping: 7.5m (horizontal).
3. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB, 15°CWB; Outdoor temp: 7°CDB, 6°CWB; Equivalent refrigerant piping: 7.5m (horizontal).
Specifications R410A Tropical Split Type Technical Manual
Duct Type
10
Model MTA-120CRN1 MTA-120HRN1 MTA-150CRN1 MTA-150CRN1
Power supply -
220~240V-1Ph-50Hz
220~240V-1Ph-50Hz
Temp. setting range ℃ ≥17 ≤30 ≥17 ≤30
Rated input power W 17300 17300 21200 21200
Rated current A 28.6 28.6 35 35
Cooling
Capacity
Btu/h
120000 120000
150000 150000
W
35000 35000 44000 44000
Input W 12000 12000 15100 15100
EER W/W 2.92 2.92 2.91 2.91
Heating
Capacity
Btu/h
/ 120000
/ 160000
W
/ 38000
/ 47000
Input W / 12600 / 15700
COP W/W / 3.02 / 3
Indoor air flow m3/h
6375 6375
7650 7650
Indoor standard ESP Pa
150 150
150 150
Indoor noise level dB(A)
56 56
56 56
Refrigerant
Type - R410A R410A R410A R410A
Control - Capillary Capillary
Fan
Type - Centrifugal fan Centrifugal fan Centrifugal fan Centrifugal fan
Dimension mm Φ307 Φ307 Φ307 Φ307
Drive type/ Motor step - Direct/ Single Direct/ Single Direct/ Single Direct/ Single
Motor input * No. W
498*3 498*3
630*3 630*3
Motor speed rpm
860 860
1202 1202
Coil
Type - Copper tube and aluminum fin Copper tube and aluminum fin
Tube size mm Φ7 Φ7 Φ7 Φ7
No. of rows 4 4 4 4
Fin per inch FPI 17 17 17 17
Length* height mm
1602*588 1602*588
1602*588 1602*588
Controller - Remote controller Remote controller
Drain pipe size mm 41 41 41 41
Dimension (W*H*D) mm
1828*858*638 1828*858*638
1828*858*638 1828*858*638
Packing (W*H*D) mm
2095*929*689 2095*929*689
2095*929*689 2095*929*689
Net/Gross weight kg
188/220 188/220
188/200 188/200
Shipping Qty per (20'/40'/40'HD) pcs
19/42/46 19/42/46 19/42/46 19/42/46
Notes:
1. ESP: external static pressure
2. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB, 24°CWB; Equivalent refrigerant piping: 7.5m (horizontal).
3. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB, 15°CWB; Outdoor temp: 7°CDB, 6°CWB; Equivalent refrigerant piping: 7.5m (horizontal).
R410A Tropical Split Type Technical Manual Specifications
Duct Type
11
Model MHB-76CRN1 MHB-76HRN1 MHB-96CRN1 MHB-96HRN1
Power supply - 220~240V-1Ph-50Hz 220~240V-1Ph-50Hz
Temp. setting range ℃ ≥17 ≤30 ≥17 ≤30
Rated input power W 11700 11700 14400 14400
Rated current A 19.3 19.3 23.7 23.7
Cooling
Capacity
Btu/h 76000 76000 96000 96000
W 22000 22000 28000 28000
Input power W 7500 7500 9600 9600
EER W/W 2.93 2.93 2.92 2.92
Heating
Capacity
Btu/h / 78000 / 95500
w / 25000 / 31000
Input power W / 8300 / 10300
COP W/W / 3.01 / 3.01
Indoor air flow m3/h 4250 4250 5100 5100
Indoor standard ESP Pa 196 196 196 196
Indoor noise level dB(A) 58 58 60 60
Refrigerant
Type - R410A R410A R410A R410A
Control - Capillary Capillary
Fan
Type - Centrifugal fan Centrifugal fan Centrifugal fan Centrifugal fan
Dimension mm Φ307 Φ307 Φ307 Φ307
Drive type/ Motor step - Direct/ Single Direct/ Single Direct/ Single Direct/ Single
Motor input* No. W 663*2 663*2 788*2 788*2
Motor speed rpm 1022/871/758 1022/871/758 1135/983/845 1135/983/845
Coil
Type - Copper tube and aluminum fin Copper tube and aluminum fin
Tube size mm Φ9.52 Φ9.52 Φ9.52 Φ9.52
No. of rows - 3 3 4 4
Fin per inch FPI 17 17 17 17
Length*Height mm 1200*406.4 1200*406.4 1200*406 1200*406
Controller - Remote controller Remote controller
Drain pipe size mm 41 41 41 41
Dimension (W*H*D) mm 1350*760*450 1350*760*450 1350*760*450 1350*760*450
Packing (W*H*D) mm 1549*476*917 1549*476*917 1549*917*476 1549*917*476
Net/Gross weight kg 105/120 105/120 105/120 105/120
Shipping Qty per (20'/40'/40'HD) pcs 30/64/64 30/64/64 30/64/64 30/64/64
Notes:
1. ESP: external static pressure
2. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB, 24°CWB; Equivalent refrigerant piping: 7.5m (horizontal).
3. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB, 15°CWB; Outdoor temp: 7°CDB, 6°CWB; Equivalent refrigerant piping: 7.5m (horizontal).
Dimensions R410A Tropical Split Type Technical Manual
Duct Type
12
3. Dimensions
3.1 Duct type units with two air outlets：
Air inlet side
C
A
B
D
W
F
H
E
Model A (mm) B (mm) C(mm) E(mm) F(mm) W (mm) H (mm) D (mm)
MTA-76CRN1
840 800 1180 300 165 1350 450 760
MTA-76HRN1
MTA-96CRN1
840 800 1180 300 165 1350 450 760
MTA-96HRN1
MHB-76CRN1
840 800 1180 300 165 1350 450 760
MHB-76HRN1
MHB-96CRN1
840 800 1180 300 165 1350 450 760
MTA-96HRN1
R410A Tropical Split Type Technical Manual Dimensions
Duct Type
13
3.2 Duct type units with three air outlets：
Air inlet side
C
B
D
Model B (mm) C(mm) E(mm) F(mm) W (mm) H (mm) D (mm)
MTA-120CRN1
794.5 1895 330 180 1970 668 860
MTA-120HRN1
MTA-150CRN1 794.5 1895 330 180 1970 668 860
Dimensions R410A Tropical Split Type Technical Manual
Duct Type
14
4. Service Space
Electric control box
Inspection hole
≥
6
0
0
m
m
≥
5
0
0
m
m
Inspection hole
H
Top view Side view
Inspection
Canvas adapter
Muffle
ir outlet
Air inlet
Air filter
hole
Muffle
Air duct system
R410A Tropical Split Type Technical Manual Service Space
Duct Type
15
5. Refrigerant cycle diagram
5.1 Cooling only: MTA-76CRN1, MTA-96CRN1, MTA-120CR N1, MTA-150CR N1
MHB-76CRN1, MHB-96CRN1
Discharge temp. sensor
HP Switch
Compressor
Liquid-gas seperator
Outdoor heat-exchanger
Stop valve
Stop valve
Indoor unit
Check valve
LP Switch
T4
T2
T3
Cooling
Indoor
heat-exchanger
5.2 Cooling and heating: MTA-76HRN1, MTA-96HRN1, MTA-120HRN1
MHB-76HRN1, MHB-96HRN1
Discharge temp. sensor
HP Switch
Compressor
4-way valve
Liquid-gas seperator
Outdoor heat-exchanger
Stop valve
Stop valve
Indoor unit
Check valve
LP Switch
T4
T2
T3
Heating
Cooling
Indoor
heat-exchanger
Wiring Diagrams R410A Tropical Split Type Technical Manual
Duct Type
16
6. Wiring Diagrams
6.1 MTA-76CRN1, MTA-96CRN1, MHB-76CRN1, MHB-96CRN1
INDOOR PO WER
Y
E
L
L
O
W
G
R
E
E
N
B
R
O
W
N
B
L
U
E
R
E
D
B
L
U
E
R
E
D
W
H
I
T
E
RED RED
WHITE
SLOW
HIGH
LOW
BLUE
TO OUTDOO R
B
L
A
C
K
Y
E
L
L
O
W
R
E
D
WHITE
B
L
U
E
Y/G
B
L
A
C
K
R
E
D
WHITE
B
L
U
E
Y/G
MAIN CONTRO L BOARD
WHITE
(GRAY)
WHITE
(GRAY)
CN20 CN7 CN3 CN2 CN1
CN8
CN11 CN10 CN15
TO WI RE
CONTROLLER
RL1 RL2 RL3
BLUE
RED
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
Y
E
L
L
O
W
BLACK
B
L
A
C
K
R
E
D
B
L
U
E
Y
E
L
L
O
W
Y/G
RED
WHITE
B
L
U
E
B
L
U
E
N-LINE
R
E
D
BLACK
Item Name Item Name Item Name
CAP1-CAP2 Indoor fan cap
CN1-3,CN7,CN8, CN10,
CN11,CN15,CN20
PCB sockets T4 Transformer
FAN1-FAN2 Indoor fan RT1
Room temp.
sensor
RT2
Pipe temp.
sensor
XP1 Connector XS1 Connector XT1 7-way terminal
XT2,XT3 Mid terminal RL1,RL2,RL3 Relay - -
R410A Tropical Split Type Technical Manual Wiring Diagrams
Duct Type
17
MTA-120CRN1, MTA-150CRN1
INDOOR POWER
B
L
A
C
K
Y
E
L
L
O
W
Y
E
L
L
O
W
G
R
E
E
N
B
R
O
W
N
B
L
U
E
R
E
D
B
L
U
E
R
E
D
R
E
D
WHITE
RED RED
WHITE
WHITE
(GRAY)
WHITE
SLOW
HIGH
LOW
BLUE
BLUE
RED
TO OUTDOOR
Y/G
B
L
A
C
K
Y
E
L
L
O
W
R
E
D
WHITE
B
L
U
E
Y/G
B
L
A
C
K
R
E
D
WHITE
B
L
U
E
Y/G
MAIN CONTROL BOARD
WHITE
(GRAY)
WHITE
(GRAY)
CN20 CN7 CN3 CN2 CN1
CN8
CN11 CN10 CN15
TO WIRE
CONTROLLER
RL1 RL2 RL3
BLUE
RED
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
L
U
E
Y
E
L
L
O
W
B
L
A
C
K
B
L
A
C
K
R
E
D
R
E
D
B
L
U
E
B
L
U
E
Y
E
L
L
O
W
Y
E
L
L
O
W
Y/G
WHITE
R
E
D
BLACK
Item Name Item Name Item Name
CAP1-CAP3 Indoor fan cap
CN1-3,CN7,CN8,
CN10,CN11,CN15,CN20
PCB sockets T4 Transformer
FAN1-FAN3 Indoor fan RT1
Room temp.
sensor
RT2
Pipe temp.
sensor
XP1 Connector XS1 Connector XT1 7-way terminal
XT2,XT3 Mid terminal RL1,RL2,RL3 Relay - -
Wiring Diagrams R410A Tropical Split Type Technical Manual
Duct Type
18
6.2 MTA-76HRN1, MTA-96HRN1, MHB-76HRN1, MHB-96HRN1
INDOOR POWER
Y
E
L
L
O
W
G
R
E
E
N
B
R
O
W
N
B
L
U
E
R
E
D
B
L
U
E
R
E
D
WHITE
RED
RED
WHITE
SLOW
HIGH
LOW
R
E
D
TO OUTDOOR
B
L
A
C
K
Y
E
L
L
O
W
R
E
D
WHITE
B
L
U
E
Y/G
B
L
A
C
K
R
E
D
WHITE
B
L
U
E
Y/G
MAIN CONTROL BOARD
WHITE
(GRAY)
WHITE
(GRAY)
CN20 CN7 CN3 CN2 CN1
CN8
CN11 CN10 CN15
TO WIRE
CONTROLLER
RL1 RL2 RL3
BLUE
RED
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
Y
E
L
L
O
W
B
L
A
C
K
R
E
D
B
L
U
E
Y
E
L
L
O
W
Y/G
WHITE
RED
BLUE
B
L
U
E
B
L
U
E
N-LINE
BLACK
BLACK
YELLOW
BLACK
Item Name Item Name Item Name
CAP1-CAP2 Indoor fan cap
CN1-3,CN7,CN8,
CN10,CN11,CN15,CN20
PCB sockets T4 Transformer
FAN1-FAN2 Indoor fan RT1
Room temp.
sensor
RT2
Pipe temp.
sensor
XP1 Connector XS1 Connector XT1 7-way terminal
XT2,XT3 Mid terminal RL1,RL2,RL3 Relay - -
R410A Tropical Split Type Technical Manual Wiring Diagrams
Duct Type
19
MTA-120HRN1
INDOOR POWER
B
L
A
C
K
Y
E
L
L
O
W
Y
E
L
L
O
W
G
R
E
E
N
B
R
O
W
N
B
L
U
E
R
E
D
B
L
U
E
R
E
D
R
E
D
WHITE
RED RED
WHITE
WHITE
(GRAY)
WHITE
SLOW
HIGH
LOW
BLUE
BLUE
RED
TO OUTDOO R
Y/G
B
L
A
C
K
Y
E
L
L
O
W
R
E
D
WHITE
B
L
U
E
Y/G
B
L
A
C
K
R
E
D
WHITE
B
L
U
E
Y/G
MAIN CONTR OL BOARD
WHITE
(GRAY)
WHITE
(GRAY)
CN20 CN7 CN3 CN2 CN1
CN8
CN11 CN10 CN15
TO WIRE
CONTROLLER
RL1 RL2 RL3
BLUE
RED
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
R
O
W
N
B
L
U
E
Y
E
L
L
O
W
B
L
A
C
K
B
L
A
C
K
R
E
D
R
E
D
B
L
U
E
B
L
U
E
Y
E
L
L
O
W
Y
E
L
L
O
W
Y/G
WHITE
R
E
D
BLACK
Item Name Item Name Item Name
CAP1-CAP3 Indoor fan cap
CN1-3,CN7,CN8,
CN10,CN11,CN15,CN20
PCB sockets T4 Transformer
FAN1-FAN3 Indoor fan RT1
Room temp.
sensor
RT2
Pipe temp.
sensor
XP1 Connector XS1 Connector XT1 7-way terminal
XT2,XT3 Mid terminal RL1,RL2,RL3 Relay - -
20
7. Capacity Table
7.1 Cooling:
7.1.1 MTA-76CRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C) 29.40 35.00
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2000
23.9
19.5 15.2 6.56 21.9 12.4 6.76 23.3 5.4 6.89 18.7 15.3 6.99 20.8 11. 7 7.22 22.0 5.1 7.36
26.7 20.2 17.4 6.58 22.4 14.5 6.78 23.8 10.3 6.91 19.1 17.4 7.01 21.2 13.7 7.24 22.5 9.7 7.38
29.4 20.9 19.0 6.60 22.8 18.7 6.80 24.3 14.4 6.93 19.5 18.7 7.03 21.6 17.7 7.26 22.9 13.6 7.40
32.2 21.6 21.2 6.61 23.3 21.2 6.81 24.7 18.2 6.94 19.9 19.5 7.05 22.0 20.0 7.28 23.4 17.2 7.42
2300
23.9
20.6 16.5 6.76 22.5 13.0 6.96 23.9 5.6 7.09 19.7 16.6 7.19 21.4 12.4 7.42 22.6 5.3 7.56
26.7 21.3 18.5 6.78 23.0 16.3 6.98 24.4 10.7 7.11 20.1 18.6 7.21 21.8 15.5 7.44 23.1 10.1 7.58
29.4 22.0 20.4 6.80 23.5 19.7 7.00 24.9 15.2 7.13 20.5 20.1 7.23 22.2 18.7 7.46 23.6 14.4 7.60
32.2 22.8 21.7 6.81 23.9 22.2 7.01 25.4 18.9 7.15 20.9 20.9 7.25 22.7 21.0 7.47 24.0 17.9 7.62
2500
23.9
21.1 18.3 7.00 23.0 14.4 7.33 24.4 6.3 7.33 20.2 18.5 7.43 21.9 13.7 7.48 23.1 6.0 7.80
26.7 21.8 20.8 7.02 23.5 18.1 7.22 24.9 11. 9 7.35 20.6 20.6 7.45 22.0 17.2 7.50 23.6 11 . 3 7.82
29.4 22.6 21.9 7.04 24.0 22.0 7.24 25.4 16.8 7.37 21.0 21.0 7.47 22.7 20.9 7.70 24.1 15.9 7.84
32.2 23.4 22.9 7.06 24.4 22.2 7.26 25.9 21.1 7.39 21.4 21.4 7.49 23.2 21.1 7.72 24.6 20.0 7.86
2800
23.9
21.5 19.1 7.31 23.5 14.1 7.51 24.9 6.1 7.64 21.0 18.6 7.74 22.4 13.4 7.97 23.6 5.8 8.11
26.7 22.3 21.4 7.33 24.0 17.6 7.53 25.4 11. 5 7.66 21.4 20.6 7.76 22.8 16.8 7.99 24.1 11.0 8.13
29.4 23.1 22.4 7.35 24.5 21.3 7.55 25.9 16.4 7.68 21.8 21.8 7.78 23.3 20.2 8.01 24.6 15.6 8.15
32.2 23.9 23.4 7.37 25.0 24.0 7.57 26.4 20.5 7.70 22.3 22.3 7.80 23.7 22.8 8.03 25.1 19.4 8.17
R410A Tropical Split Type Technical Manual Capacity Table
Duct Type
21
Gross Cooling Capacity (kW)
Outdoor DB(°C)
40.60 46.10 51.70
Indoor WB(°C)
16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40
22.80
CFM DB(°C)
TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2000
23.9 17.3 14.2 7.94 18.9 10.7 8.18 20.1 4.6 8.33 15.8 13.0 8.13 17.3 9.8 8.39 18.5 4.3 8.64 15.5 12.7 8.51 16.8 9.5 8.87 17.9 4.1 9.12
26.7 17.6 16.0 7.96 19.2 12.5 8.20 20.5 8.8 8.35 16.1 14.7 8.15 17.6 11.4 8.41 18.8 8.1 8.66 15.8 14.4 8.53 17.1 11.1 8.89 18.2 7.9 9.14
29.4 18.0 17.3 7.98 19.6 16.1 8.22 20.9 12.5 8.37 16.5 15.8 8.17 18.0 14.7 8.43 19.2 11.4 8.68 16.2 15.5 8.55 17.5 14.3 8.91 18.6 11.1 9.16
32.2 18.3 18.0 8.00 20.0 18.2 8.24 21.4 15.7 8.39 16.8 16.5 8.19 18.3 16.7 8.45 19.6 14.4 8.70 16.5 16.2 8.57 17.8 16.2 8.93 19.0 14.0 9.19
2300
23.9 17.9 15.0 8.14 19.5 11.2 8.38 20.7 4.9 8.53 16.4 13.8 8.33 17.9 10.3 8.59 19.1 4.5 8.84 16.1 13.6 8.71 17.4 10.1 9.07 18.5 4.4 9.32
26.7 18.3 16.9 8.16 19.9 14.1 8.40 21.2 9.3 8.55 16.8 15.5 8.35 18.3 12.9 8.61 19.5 8.5 8.86 16.5 15.2 8.73 17.8 12.6 9.09 18.9 8.3 9.34
29.4 18.6 18.3 8.18 20.2 17.0 8.42 21.6 13.2 8.57 17.1 16.8 8.37 18.6 15.6 8.63 19.8 12.1 8.88 16.8 16.5 8.75 18.1 15.2 9.11 19.2 11.7 9.36
32.2 19.0 19.0 8.20 20.7 19.1 8.44 22.0 16.4 8.59 17.4 17.4 8.39 19.0 17.6 8.65 20.2 15.1 8.90 17.1 17.1 8.77 18.5 17.1 9.14 19.6 14.6 9.39
2500
23.9 18.4 16.9 7.84 20.0 12.5 8.23 21.2 5.5 8.23 16.9 15.5 8.57 18.4 11.5 8.83 19.6 5.1 9.08 16.6 15.3 8.95 17.9 11.2 9.31 19.0 4.9 9.56
26.7 18.8 18.8 7.86 20.4 15.7 8.10 21.7 10.4 8.25 17.3 17.3 8.59 18.8 14.4 8.85 20.0 9.5 9.10 17.0 17.0 8.97 18.3 14.0 9.33 19.4 9.3 9.58
29.4 19.1 19.1 7.88 20.8 19.0 8.12 22.1 14.6 8.27 17.6 17.6 8.61 19.1 17.5 8.87 20.3 13.5 9.12 17.3 17.3 8.99 18.6 17.1 9.35 19.7 13.1 9.60
32.2 19.5 19.5 7.90 21.2 19.2 8.14 22.5 18.3 8.29 17.9 17.9 8.63 19.5 17.7 8.89 20.8 16.9 9.15 17.6 17.6 9.01 19.0 17.3 9.38 20.1 16.4 9.63
2800
23.9 18.9 16.7 8.69 20.4 12.2 8.93 21.7 5.3 9.08 17.4 15.4 8.88 18.9 11.3 9.14 20.0 4.9 9.39 17.1 15.1 9.26 18.4 11.0 9.62 19.5 4.8 9.87
26.7 19.3 18.5 8.71 20.9 15.3 8.95 22.2 10.1 9.10 17.8 17.1 8.90 19.3 14.2 9.16 20.5 9.3 9.41 17.5 16.8 9.28 18.8 13.8 9.64 19.9 9.0 9.89
29.4 19.6 19.6 8.73 21.3 18.5 8.97 22.6 14.3 9.12 18.1 18.1 8.92 19.6 17.1 9.18 20.9 13.2 9.43 17.8 17.8 9.30 19.1 16.6 9.66 20.3 12.8 9.91
32.2 20.0 20.0 8.75 21.7 20.9 8.99 23.0 17.9 9.15 18.5 18.5 8.94 20.0 19.3 9.21 21.3 16.5 9.46 18.2 18.2 9.33 19.5 18.8 9.69 20.7 16.0 9.94
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
Duct Type
R410A Tropical Split Type Technical Manual Capacity Table
Duct Type
22
7.1.2 MTA-76HRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C) 29.40 35.00
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2000
23.9 19.2 15.0 6.38 21.6 12.2 6.58 23.0 5.3 6.71 18.4 15.1 6.81 20.5 11.6 7.04 21.7 5.0 7.18
26.7 19.9 17.2 6.40 22.1 14.3 6.60 23.5 10.1 6.73 18.8 17.1 6.83 20.9 13.5 7.06 22.2 9.6 7.20
29.4 20.6 18.7 6.42 22.5 18.5 6.62 23.9 14.3 6.75 19.2 18.4 6.85 21.3 17.5 7.08 22.6 13.5 7.22
32.2 21.3 20.9 6.43 23.0 20.9 6.63 24.4 18.0 6.76 19.6 19.2 6.86 21.7 19.7 7.10 23.1 17.0 7.24
2300
23.9 20.3 16.2 6.58 22.3 12.9 6.78 23.6 5.6 6.91 19.4 16.3 7.01 21.1 12.2 7.24 22.4 5.3 7.38
26.7 21.0 18.3 6.60 22.7 16.1 6.80 24.1 10.6 6.93 19.8 18.3 7.03 21.5 15.2 7.26 22.8 10.0 7.40
29.4 21.7 20.1 6.62 23.2 19.5 6.82 24.6 15.0 6.95 20.2 19.8 7.05 21.9 18.4 7.28 23.3 14.2 7.42
32.2 22.5 21.4 6.63 23.6 21.9 6.83 25.1 18.7 6.96 20.6 20.6 7.07 22.4 20.7 7.30 23.7 17.7 7.44
2500
23.9 20.8 18.1 6.82 22.7 14.2 7.15 24.1 6.2 7.15 19.9 18.3 7.25 21.6 13.5 7.48 22.8 5.9 7.62
26.7 21.5 20.5 6.84 23.2 17.8 7.04 24.6 11.8 7.17 20.3 20.3 7.27 22.0 16.9 7.50 23.3 11.1 7.64
29.4 22.3 21.6 6.86 23.7 21.7 7.06 25.1 16.6 7.19 20.7 20.7 7.29 22.4 20.6 7.52 23.8 15.7 7.66
32.2 23.0 22.6 6.87 24.1 21.9 7.08 25.6 20.8 7.21 21.1 21.1 7.31 22.9 20.8 7.54 24.2 19.7 7.68
2800
23.9 21.3 18.8 7.13 23.2 13.9 7.33 24.6 6.0 7.46 20.7 18.3 7.56 22.1 13.2 7.79 23.3 5.7 7.93
26.7 22.0 21.2 7.15 23.7 17.4 7.35 25.1 11.4 7.48 21.1 20.3 7.58 22.5 16.5 7.81 23.8 10.8 7.95
29.4 22.8 22.1 7.17 24.2 21.0 7.37 25.6 16.2 7.50 21.5 21.5 7.60 23.0 20.0 7.83 24.3 15.4 7.97
32.2 23.6 23.1 7.19 24.7 23.7 7.39 26.1 20.2 7.52 22.0 22.0 7.62 23.4 22.5 7.85 24.8 19.2 7.99
Capacity Table R410A Tropical Split Type Technical Manual
Duct Type
23
Gross Cooling Capacity (kW)
Outdoor DB(°C)
40.60 46.10 51.70
Indoor WB(°C)
16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40
22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2000
23.9 17.2 14.1 8.01 18.7 10.6 8.25 20.0 4.6 8.40 15.7 12.9 8.20 17.2 9.7 8.46 18.4 4.2 8.71 15.2 12.5 8.76 16.5 9.3 9.12 17.6 4.1 9.37
26.7 17.5 15.9 8.03 19.1 12.4 8.27 20.4 8.8 8.42 16.0 14.6 8.22 17.5 11.3 8.48 18.7 8.1 8.73 15.5 14.1 8.78 16.8 10.9 9.14 17.9 7.7 9.39
29.4 17.9 17.2 8.05 19.5 16.0 8.29 20.8 12.4 8.44 16.3 15.7 8.24 17.9 14.6 8.50 19.1 11.4 8.75 15.8 15.2 8.80 17.2 14.1 9.16 18.3 10.9 9.41
32.2 18.2 17.9 8.07 19.9 18.1 8.31 21.2 15.6 8.46 16.7 16.3 8.26 18.2 16.6 8.52 19.5 14.3 8.77 16.1 15.8 8.82 17.5 15.9 9.19 18.6 13.7 9.44
2300
23.9 17.8 14.9 8.21 19.4 11.2 8.45 20.6 4.9 8.60 16.3 13.7 8.40 17.8 10.3 8.66 19.0 4.5 8.91 15.8 13.3 8.96 17.1 9.9 9.32 18.2 4.3 9.57
26.7 18.1 16.8 8.23 19.7 14.0 8.47 21.0 9.2 8.62 16.6 15.4 8.42 18.1 12.9 8.68 19.3 8.5 8.93 16.1 14.9 8.98 17.4 12.4 9.34 18.5 8.1 9.59
29.4 18.5 18.1 8.25 20.1 16.9 8.49 21.5 13.1 8.64 17.0 16.6 8.44 18.5 15.5 8.70 19.7 12.0 8.95 16.5 16.1 9.00 17.8 14.9 9.36 18.9 11.5 9.61
32.2 18.9 18.9 8.27 20.5 19.0 8.51 21.9 16.3 8.66 17.3 17.3 8.46 18.9 17.5 8.72 20.1 15.0 8.97 16.8 16.8 9.02 18.1 16.8 9.39 19.3 14.4 9.64
2500
23.9 18.3 16.8 7.91 19.8 12.4 8.30 21.1 5.5 8.30 16.8 15.4 8.64 18.3 11.4 8.90 19.5 5.0 9.15 16.3 15.0 9.20 17.6 11.0 9.56 18.7 4.8 9.81
26.7 18.6 18.6 7.93 20.2 15.6 8.17 21.5 10.3 8.32 17.1 17.1 8.66 18.6 14.3 8.92 19.8 9.5 9.17 16.6 16.6 9.22 17.9 13.8 9.58 19.0 9.1 9.83
29.4 19.0 19.0 7.95 20.6 18.9 8.19 22.0 14.6 8.34 17.5 17.5 8.68 19.0 17.4 8.94 20.2 13.4 9.19 17.0 17.0 9.24 18.3 16.8 9.60 19.4 12.9 9.85
32.2 19.4 19.4 7.97 21.1 19.1 8.21 22.4 18.2 8.36 17.8 17.8 8.70 19.4 17.6 8.96 20.6 16.8 9.22 17.3 17.3 9.27 18.7 17.0 9.63 19.8 16.1 9.88
2800
23.9 18.8 16.6 8.76 20.3 12.2 9.00 21.6 5.3 9.15 17.3 15.3 8.95 18.8 11.2 9.21 19.9 4.9 9.46 16.8 14.9 9.51 18.1 10.8 9.87 19.2 4.7 10.11
26.7 19.1 18.4 8.78 20.7 15.3 9.02 22.0 10.0 9.17 17.6 17.0 8.97 19.1 14.1 9.23 20.3 9.2 9.48 17.1 16.5 9.53 18.4 13.6 9.89 19.5 8.9 10.14
29.4 19.5 19.5 8.80 21.2 18.4 9.04 22.5 14.2 9.19 18.0 18.0 8.99 19.5 17.0 9.25 20.7 13.1 9.50 17.5 17.5 9.55 18.8 16.4 9.91 19.9 12.6 10.17
32.2 19.9 19.9 8.82 21.6 20.7 9.07 22.9 17.8 9.22 18.4 18.4 9.01 19.9 19.1 9.28 21.2 16.4 9.53 17.8 17.8 9.58 19.2 18.4 9.94 20.3 15.8 10.19
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
R410A Tropical Split Type Technical Manual Capacity Table
Duct Type
24
7.1.3 MTA-96CRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C) 29.40 35.00
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2440
23.9 25.3 19.8 8.50 27.8 15.7 8.70 29.2 6.7 8.83 24.6 20.2 8.93 26.6 15.1 9.16 27.9 6.4 9.30
26.7 26.2 22.6 8.52 28.4 18.4 8.72 29.8 12.8 8.85 25.1 22.8 8.95 27.2 17.6 9.18 28.5 12.3 9.32
29.4 27.1 24.7 8.54 28.9 23.7 8.74 30.4 18.1 8.87 25.6 24.6 8.97 27.7 22.7 9.20 29.0 17.3 9.34
32.2 28.1 27.5 8.56 29.5 26.8 8.76 31.0 22.8 8.89 26.1 25.6 8.99 28.3 25.7 9.23 29.6 21.8 9.37
2740
23.9 26.4 21.1 8.70 28.4 16.4 8.90 29.8 7.0 9.03 25.6 21.5 9.13 27.3 15.8 9.36 28.5 6.7 9.50
26.7 27.3 23.7 8.72 29.0 20.6 8.92 30.4 13.3 9.05 26.1 24.2 9.15 27.8 19.7 9.38 29.1 12.8 9.52
29.4 28.3 26.2 8.74 29.6 24.9 8.94 31.0 18.9 9.07 26.6 26.1 9.17 28.4 23.8 9.40 29.7 18.1 9.54
32.2 29.2 27.9 8.76 30.2 27.9 8.96 31.6 23.6 9.10 27.2 27.2 9.20 28.9 26.8 9.43 30.3 22.6 9.57
3000
23.9 26.9 23.4 8.94 28.9 18.1 9.27 30.3 7.8 9.27 26.1 23.9 9.37 27.7 17.3 9.55 29.0 7.5 9.74
26.7 27.8 26.5 8.96 29.5 22.7 9.16 30.9 14.8 9.29 26.6 26.6 9.39 28.0 21.8 9.60 29.6 14.2 9.76
29.4 28.8 27.9 8.98 30.1 27.6 9.18 31.5 20.9 9.31 27.1 27.1 9.41 28.9 26.5 9.64 30.2 20.0 9.78
32.2 29.8 29.2 9.00 30.7 27.9 9.21 32.1 26.1 9.34 27.7 27.7 9.44 29.4 26.8 9.67 30.8 25.0 9.81
3240
23.9 27.3 24.2 9.25 29.4 17.6 9.45 30.8 7.5 9.58 26.9 23.8 9.68 28.2 16.9 9.91 29.5 7.2 10.04
26.7 28.3 27.2 9.27 30.0 22.1 9.47 31.4 14.3 9.60 27.4 26.3 9.70 28.8 21.2 9.93 30.1 13.7 10.07
29.4 29.3 28.4 9.29 30.6 26.6 9.49 32.0 20.3 9.62 27.9 27.9 9.72 29.4 25.5 9.95 30.7 19.4 10.10
32.2 30.3 29.7 9.32 31.2 30.0 9.52 32.7 25.3 9.65 28.5 28.5 9.75 30.0 28.8 9.98 31.3 24.3 10.12
Capacity Table R410A Tropical Split Type Technical Manual
Duct Type
25
Gross Cooling Capacity (kW)
Outdoor DB(°C)
40.60 46.10 51.70
Indoor WB(°C)
16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40
22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2440
23.9 22.0 18.0 10.63 23.6 13.3 10.87 24.8 5.7 11.02 20.5 16.8 10.82 22.0 12.4 11.08 23.2 5.4 11.33 20.0 16.4 11.42 21.3 12.0 11.78 22.4 5.2 12.03
26.7 22.4 20.4 10.66 24.0 15.6 10.90 25.3 10.9 11.05 20.9 19.0 10.85 22.4 14.5 11.11 23.6 10.2 11.36 20.4 18.6 11.45 21.7 14.1 11.81 22.8 9.8 12.06
29.4 22.9 22.0 10.69 24.5 20.1 10.93 25.8 15.4 11.08 21.3 20.5 10.88 22.9 18.8 11.14 24.1 14.3 11.39 20.8 20.0 11.48 22.2 18.2 11.84 23.3 13.9 12.09
32.2 23.3 22.9 10.71 25.0 22.7 10.95 26.4 19.4 11.11 21.8 21.3 10.90 23.3 21.2 11.17 24.6 18.1 11.42 21.3 20.8 11.51 22.6 20.6 11.87 23.8 17.5 12.12
2740
23.9 22.6 19.0 10.83 24.2 14.0 11.07 25.4 6.0 11.22 21.1 17.8 11.02 22.6 13.1 11.28 23.8 5.6 11.53 20.6 17.3 11.62 21.9 12.7 11.98 23.0 5.4 12.23
26.7 23.1 21.3 10.86 24.7 17.5 11.10 26.0 11.4 11.25 21.6 20.0 11.05 23.1 16.3 11.31 24.3 10.6 11.56 21.1 19.5 11.65 22.4 15.9 12.01 23.5 10.3 12.26
29.4 23.5 23.1 10.89 25.1 21.1 11.13 26.5 16.1 11.28 22.0 21.6 11.08 23.5 19.8 11.34 24.7 15.1 11.59 21.5 21.1 11.68 22.8 19.2 12.04 23.9 14.6 12.29
32.2 24.0 24.0 10.91 25.6 23.7 11.16 27.0 20.1 11.31 22.4 22.4 11.11 24.0 22.2 11.37 25.2 18.8 11.62 21.9 21.9 11.71 23.3 21.5 12.07 24.4 18.2 12.32
3000
23.9 23.1 21.2 11.07 24.7 15.4 11.46 25.9 6.7 11.46 21.6 19.8 11.26 23.1 14.4 11.52 24.3 6.3 11.77 21.1 19.4 11.86 22.4 14.0 12.22 23.5 6.1 12.47
26.7 23.6 23.6 11.10 25.2 19.3 11.34 26.5 12.7 11.49 22.1 22.1 11.29 23.6 18.1 11.55 24.8 11.8 11.80 21.6 21.6 11.89 22.9 17.6 12.25 24.0 11.5 12.50
29.4 24.0 24.0 11.13 25.7 23.5 11.37 27.0 17.9 11.52 22.5 22.5 11.32 24.0 22.0 11.58 25.2 16.7 11.83 22.0 22.0 11.92 23.3 21.4 12.28 24.4 16.2 12.53
32.2 24.5 24.5 11.16 26.2 23.8 11.40 27.5 22.4 11.55 22.9 22.9 11.35 24.5 22.3 11.61 25.7 20.9 11.86 22.4 22.4 11.95 23.8 21.6 12.31 24.9 20.3 12.56
3240
23.9 23.6 20.9 11.38 25.1 15.1 11.62 26.4 6.5 11.77 22.1 19.6 11.57 23.6 14.1 11.83 24.8 6.1 12.08 21.6 19.1 12.17 22.9 13.7 12.53 24.0 5.9 12.78
26.7 24.1 23.1 11.41 25.7 18.9 11.65 27.0 12.3 11.80 22.6 21.7 11.60 24.1 17.7 11.86 25.3 11.5 12.11 22.1 21.2 12.20 23.4 17.2 12.56 24.5 11.1 12.81
29.4 24.5 24.5 11.44 26.2 22.8 11.68 27.5 17.4 11.83 23.0 23.0 11.63 24.5 21.3 11.89 25.8 16.3 12.14 22.5 22.5 12.23 23.8 20.7 12.59 24.9 15.8 12.84
32.2 25.0 25.0 11.47 26.7 25.7 11.71 28.0 21.7 11.86 23.5 23.5 11.66 25.0 24.1 11.92 26.3 20.4 12.17 22.9 22.9 12.26 24.3 23.4 12.62 25.4 19.7 12.87
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
R410A Tropical Split Type Technical Manual Capacity Table
Duct Type
26
7.1.4 MTA-96HRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C) 29.40 35.00
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2440
23.9 24.9 19.4 8.47 27.4 15.5 8.67 28.8 6.6 8.80 24.2 19.8 8.90 26.2 14.8 9.13 27.5 6.3 9.27
26.7 25.8 22.2 8.49 27.9 18.1 8.69 29.3 12.6 8.82 24.7 22.4 8.92 26.7 17.3 9.15 28.0 12.1 9.29
29.4 26.7 24.2 8.51 28.5 23.4 8.71 29.9 17.8 8.84 25.1 24.2 8.94 27.3 22.3 9.17 28.6 17.0 9.31
32.2 27.6 27.0 8.53 29.1 26.4 8.73 30.5 22.4 8.86 25.6 25.1 8.96 27.8 25.3 9.20 29.2 21.4 9.34
2740
23.9 25.9 20.8 8.67 28.0 16.2 8.87 29.4 6.9 9.00 25.1 21.1 9.10 26.8 15.5 9.33 28.1 6.6 9.47
26.7 26.9 23.3 8.69 28.6 20.2 8.89 30.0 13.1 9.02 25.7 23.8 9.12 27.4 19.4 9.35 28.7 12.6 9.49
29.4 27.8 25.7 8.71 29.1 24.5 8.91 30.5 18.6 9.04 26.2 25.7 9.14 27.9 23.4 9.37 29.2 17.8 9.51
32.2 28.8 27.4 8.73 29.7 27.5 8.93 31.2 23.3 9.07 26.7 26.7 9.17 28.5 26.3 9.40 29.8 22.2 9.54
3000
23.9 26.4 23.0 8.91 28.5 17.8 9.24 29.9 7.7 9.24 25.6 23.5 9.34 27.3 17.1 9.57 28.6 7.4 9.71
26.7 27.4 26.0 8.93 29.1 22.3 9.13 30.5 14.6 9.26 26.2 26.2 9.36 28.0 21.4 9.60 29.2 13.9 9.73
29.4 28.3 27.5 8.95 29.6 27.2 9.15 31.1 20.6 9.28 26.7 26.7 9.38 28.4 26.1 9.61 29.7 19.7 9.75
32.2 29.3 28.7 8.97 30.2 27.5 9.18 31.7 25.8 9.31 27.2 27.2 9.41 29.0 26.3 9.64 30.3 24.7 9.78
3240
23.9 26.9 23.8 9.22 29.0 17.3 9.42 30.3 7.4 9.55 26.4 23.4 9.65 27.8 16.6 9.88 29.1 7.1 10.01
26.7 27.9 26.8 9.24 29.6 21.7 9.44 31.0 14.1 9.57 27.0 25.9 9.67 28.4 20.8 9.90 29.7 13.5 10.04
29.4 28.8 28.0 9.26 30.1 26.2 9.46 31.6 20.0 9.59 27.5 27.5 9.69 28.9 25.1 9.92 30.2 19.1 10.07
32.2 29.8 29.2 9.29 30.7 29.6 9.49 32.2 25.0 9.62 28.0 28.0 9.72 29.5 28.4 9.95 30.8 23.9 10.09
R410A Tropical Split Type Technical Manual Capacity Table
Duct Type
27
Gross Cooling Capacity (kW)
Outdoor DB(°C)
40.60 46.10 51.70
Indoor WB(°C)
16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40
22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2440
23.9 22.0 18.0 10.83 23.5 13.3 11.07 24.8 5.7 11.22 20.5 16.8 11.02 22.0 12.4 11.28 23.1 5.3 11.53 19.4 15.9 11.52 20.7 11.7 11.88 21.8 5.0 12.13
26.7 22.4 20.4 10.86 24.0 15.5 11.10 25.3 10.9 11.25 20.9 19.0 11.05 22.4 14.5 11.31 23.6 10.2 11.56 19.8 18.0 11.55 21.1 13.7 11.91 22.2 9.6 12.16
29.4 22.8 22.0 10.89 24.5 20.1 11.13 25.8 15.4 11.28 21.3 20.5 11.08 22.8 18.7 11.34 24.1 14.3 11.59 20.2 19.4 11.58 21.5 17.6 11.94 22.7 13.5 12.19
32.2 23.3 22.8 10.91 25.0 22.7 11.16 26.3 19.4 11.31 21.7 21.3 11.11 23.3 21.2 11.37 24.6 18.1 11.62 20.6 20.2 11.61 22.0 20.0 11.97 23.1 17.0 12.22
2740
23.9 22.6 19.0 11.03 24.1 14.0 11.27 25.4 6.0 11.42 21.1 17.7 11.22 22.6 13.0 11.48 23.7 5.6 11.73 20.0 16.8 11.72 21.3 12.3 12.08 22.4 5.3 12.33
26.7 23.0 21.3 11.06 24.6 17.5 11.30 25.9 11.4 11.45 21.5 19.9 11.25 23.0 16.3 11.51 24.2 10.6 11.76 20.4 18.9 11.75 21.7 15.4 12.11 22.8 10.0 12.36
29.4 23.5 23.0 11.09 25.1 21.1 11.33 26.4 16.1 11.48 22.0 21.5 11.28 23.5 19.7 11.54 24.7 15.1 11.79 20.8 20.4 11.78 22.2 18.6 12.14 23.3 14.2 12.39
32.2 24.0 24.0 11.12 25.6 23.7 11.36 27.0 20.1 11.51 22.4 22.4 11.31 24.0 22.2 11.57 25.2 18.8 11.82 21.3 21.3 11.81 22.6 20.9 12.17 23.8 17.7 12.42
3000
23.9 23.1 21.2 11.27 24.6 15.4 11.66 25.9 6.7 11.66 21.6 19.8 11.46 23.1 14.4 11.72 24.2 6.3 11.97 20.5 18.8 11.96 21.8 13.6 12.32 22.9 5.9 12.57
26.7 23.5 23.5 11.30 25.1 19.3 11.54 26.4 12.6 11.69 22.0 22.0 11.49 23.3 18.1 11.75 24.7 11.8 12.00 20.9 20.9 11.99 22.2 17.1 12.35 23.3 11.2 12.60
29.4 24.0 24.0 11.33 25.6 23.5 11.57 26.9 17.8 11.72 22.5 22.5 11.52 24.0 22.0 11.78 25.2 16.7 12.03 21.3 21.3 12.02 22.7 20.8 12.38 23.8 15.8 12.63
32.2 24.5 24.5 11.36 26.1 23.8 11.60 27.5 22.3 11.75 22.9 22.9 11.55 24.5 22.2 11.81 25.7 20.9 12.06 21.8 21.8 12.05 23.1 21.0 12.41 24.3 19.7 12.66
3240
23.9 23.5 20.8 11.58 25.1 15.0 11.82 26.4 6.5 11.97 22.1 19.5 11.77 23.5 14.1 12.03 24.7 6.1 12.28 21.0 18.6 12.27 22.3 13.3 12.63 23.4 5.7 12.88
26.7 24.0 23.1 11.61 25.6 18.8 11.85 26.9 12.2 12.00 22.5 21.7 11.80 24.0 17.7 12.06 25.2 11.5 12.31 21.4 20.6 12.30 22.7 16.7 12.66 23.8 10.8 12.91
29.4 24.5 24.5 11.64 26.1 22.7 11.88 27.5 17.4 12.03 23.0 23.0 11.83 24.5 21.3 12.09 25.7 16.3 12.34 21.9 21.9 12.33 23.2 20.2 12.69 24.3 15.4 12.94
32.2 25.0 25.0 11.67 26.7 25.6 11.91 28.0 21.7 12.06 23.4 23.4 11.86 25.0 24.0 12.12 26.2 20.3 12.37 22.3 22.3 12.36 23.6 22.7 12.72 24.8 19.2 12.97
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
Capacity Table R410A Tropical Split Type Technical Manual
Duct Type
28
7.1.5 MTA-120CRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C) 29.40 35.00
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
3200
23.9 32.0 25.0 10.99 34.6 19.5 11.19 36.0 8.3 11.32 31.4 25.7 11.42 33.4 18.9 11.65 34.7 8.0 11.79
26.7 33.1 28.5 11.02 35.3 22.8 11.22 36.7 15.8 11.35 32.0 29.1 11.45 34.1 22.1 11.68 35.4 15.3 11.82
29.4 34.3 31.1 11.05 36.0 29.5 11.25 37.4 22.3 11.38 32.6 31.4 11.48 34.8 28.5 11.71 36.1 21.5 11.85
32.2 35.5 34.8 11.08 36.7 33.4 11.28 38.2 28.1 11.41 33.3 32.6 11.51 35.5 32.2 11.74 36.8 27.1 11.88
3500
23.9 33.0 26.4 11.19 35.2 20.3 11.39 36.6 8.6 11.52 32.4 27.2 11.62 34.0 19.7 11.85 35.3 8.3 11.99
26.7 34.2 29.7 11.22 35.9 25.5 11.42 37.3 16.4 11.55 33.0 30.6 11.65 34.7 24.6 11.88 36.0 15.8 12.02
29.4 35.4 32.8 11.25 36.6 30.8 11.45 38.0 23.2 11.58 33.7 33.0 11.68 35.4 29.7 11.91 36.7 22.4 12.05
32.2 36.6 34.9 11.28 37.4 34.6 11.48 38.8 29.0 11.61 34.3 34.3 11.71 36.1 33.4 11.94 37.5 28.0 12.08
3750
23.9 33.5 29.2 11.43 35.7 22.3 11.76 37.1 9.6 11.76 32.8 30.1 11.86 34.5 21.6 11.98 35.8 9.3 12.23
26.7 34.7 33.0 11.46 36.4 28.0 11.66 37.8 18.1 11.79 33.5 33.5 11.89 35.0 27.1 12.00 36.5 17.5 12.26
29.4 35.9 34.9 11.49 37.1 34.1 11.69 38.6 25.5 11.82 34.2 34.2 11.92 35.9 32.9 12.15 37.2 24.7 12.29
32.2 37.2 36.4 11.52 37.9 34.4 11.72 39.3 32.0 11.85 34.9 34.9 11.95 36.6 33.3 12.18 38.0 30.9 12.32
4000
23.9 34.0 30.1 11.74 36.2 21.7 11.94 37.5 9.2 12.07 33.6 29.8 12.17 35.0 21.0 12.40 36.3 8.9 12.54
26.7 35.2 33.8 11.77 36.9 27.1 11.97 38.3 17.4 12.10 34.3 33.0 12.20 35.7 26.3 12.43 37.0 16.8 12.57
29.4 36.4 35.4 11.80 37.6 32.7 12.00 39.1 24.7 12.13 35.0 35.0 12.23 36.4 31.7 12.46 37.7 23.9 12.60
32.2 37.7 37.0 11.83 38.4 36.9 12.03 39.8 30.9 12.16 35.7 35.7 12.26 37.1 35.7 12.49 38.5 29.8 12.63
Capacity Table R410A Tropical Split Type Technical Manual
Duct Type
29
Gross Cooling Capacity (kW)
Outdoor DB(°C)
40.60 46.10 51.70
Indoor WB(°C)
16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40
22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
3200
23.9 23.9 28.3 23.2 12.33 29.9 16.9 12.57 31.1 7.2 12.72 26.8 22.0 12.52 28.3 16.0 12.78 29.5 6.8 13.03 26.5 21.8 14.01 27.8 15.7 14.37 28.9 6.7
26.7 26.7 28.9 26.2 12.36 30.5 19.7 12.60 31.8 13.7 12.75 27.4 24.9 12.55 28.9 18.7 12.81 30.1 13.0 13.06 27.1 24.6 14.05 28.4 18.4 14.41 29.5 12.7
29.4 29.4 29.4 28.3 12.39 31.1 25.5 12.63 32.4 19.3 12.78 27.9 26.8 12.58 29.4 24.1 12.84 30.7 18.3 13.09 27.6 26.6 14.09 28.9 23.7 14.45 30.1 17.9
32.2 32.2 30.0 29.4 12.42 31.7 28.8 12.66 33.0 24.3 12.81 28.5 27.9 12.61 30.0 27.3 12.87 31.3 23.0 13.13 28.2 27.6 14.12 29.5 26.8 14.48 30.7 22.6
3500
23.9 23.9 28.9 24.3 12.53 30.5 17.6 12.77 31.7 7.5 12.92 27.4 23.1 12.72 28.9 16.7 12.98 30.1 7.1 13.23 27.2 22.8 14.21 28.4 16.4 14.57 29.5 7.0
26.7 26.7 29.5 27.3 12.56 31.1 22.0 12.80 32.4 14.2 12.95 28.0 25.9 12.75 29.5 20.9 13.01 30.7 13.5 13.26 27.7 25.6 14.25 29.0 20.6 14.61 30.1 13.2
29.4 29.4 30.1 29.5 12.59 31.7 26.6 12.83 33.0 20.1 12.98 28.5 28.0 12.78 30.1 25.3 13.04 31.3 19.1 13.29 28.3 27.7 14.29 29.6 24.9 14.65 30.7 18.7
32.2 32.2 30.7 30.7 12.62 32.3 29.9 12.86 33.7 25.1 13.01 29.1 29.1 12.81 30.7 28.4 13.08 31.9 23.8 13.33 28.8 28.8 14.32 30.2 27.9 14.68 31.3 23.4
3750
23.9 23.9 29.4 27.0 12.23 31.0 19.4 12.62 32.2 8.4 12.62 27.9 25.6 12.96 29.4 18.4 13.22 30.6 7.9 13.47 27.6 25.4 14.45 28.9 18.1 14.81 30.0 7.8
26.7 26.7 30.0 30.0 12.26 31.6 24.3 12.50 32.9 15.7 12.65 28.5 28.5 12.99 30.0 23.1 13.25 31.2 14.9 13.50 28.2 28.2 14.49 29.5 22.7 14.85 30.6 14.6
29.4 29.4 30.6 30.6 12.29 32.2 29.6 12.53 33.5 22.2 12.68 29.0 29.0 13.02 30.6 28.1 13.28 31.8 21.1 13.53 28.8 28.8 14.53 30.1 27.6 14.89 31.2 20.7
32.2 32.2 31.2 31.2 12.32 32.9 29.9 12.56 34.2 27.8 12.71 29.6 29.6 13.06 31.2 28.4 13.32 32.4 26.4 13.57 29.3 29.3 14.56 30.7 27.9 14.92 31.8 25.9
4000
23.9 23.9 29.9 26.4 13.08 31.5 18.8 13.32 32.7 8.0 13.47 28.4 25.1 13.27 29.9 17.9 13.53 31.1 7.6 13.78 28.1 24.9 14.76 29.4 17.6 15.12 30.5 7.5
26.7 26.7 30.5 29.3 13.11 32.1 23.6 13.35 33.4 15.2 13.50 29.0 27.9 13.30 30.5 22.4 13.56 31.7 14.4 13.81 28.7 27.6 14.80 30.0 22.1 15.16 31.1 14.1
29.4 29.4 31.1 31.1 13.14 32.7 28.5 13.38 34.0 21.5 13.53 29.6 29.6 13.33 31.1 27.0 13.59 32.3 20.5 13.84 29.3 29.3 14.84 30.6 26.6 15.20 31.7 20.1
32.2 32.2 31.7 31.7 13.18 33.4 32.1 13.42 34.7 26.9 13.57 30.2 30.2 13.37 31.7 30.5 13.63 33.0 25.6 13.88 29.9 29.9 14.87 31.2 30.0 15.24 32.4 25.1
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
R410A Tropical Split Type Technical Manual Capacity Table
Duct Type
30
7.1.6 MTA-120HR
Gross Cooling Capacity (kW)
Outdoor DB(°C) 29.40 35.00
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
3200
23.9 31.8 24.8 10.87 34.4 19.4 11.07 35.8 8.3 11.20 31.2 25.6 11.30 33.2 18.8 11.53 34.5 8.0 11.67
26.7 32.9 28.4 10.90 35.1 22.7 11.10 36.5 15.7 11.23 31.8 28.9 11.33 33.9 21.9 11.56 35.2 15.2 11.70
29.4 34.1 31.0 10.93 35.8 29.3 11.13 37.2 22.1 11.26 32.4 31.2 11.36 34.6 28.3 11.59 35.9 21.4 11.73
32.2 35.2 34.6 10.95 36.5 33.2 11.16 38.0 27.9 11.29 33.1 32.4 11.39 35.2 32.0 11.62 36.6 26.9 11.76
3500
23.9 32.9 26.3 11.07 35.0 20.2 11.27 36.4 8.6 11.40 32.2 27.0 11.50 33.8 19.6 11.73 35.1 8.3 11.87
26.7 34.0 29.6 11.10 35.7 25.3 11.30 37.1 16.3 11.43 32.8 30.4 11.53 34.5 24.5 11.76 35.8 15.7 11.90
29.4 35.2 32.6 11.13 36.4 30.6 11.33 37.8 23.1 11.46 33.5 32.8 11.56 35.2 29.6 11.79 36.5 22.3 11.93
32.2 36.4 34.7 11.16 37.1 34.4 11.36 38.6 28.8 11.49 34.1 34.1 11.59 35.9 33.2 11.82 37.2 27.8 11.96
3750
23.9 33.3 29.0 11.31 35.5 22.2 11.64 36.9 9.5 11.64 32.6 30.0 11.74 34.3 21.4 11.97 35.6 9.2 12.11
26.7 34.5 32.9 11.34 36.2 27.8 11.54 37.6 18.0 11.67 33.3 33.3 11.77 35.0 26.9 12.00 36.3 17.4 12.14
29.4 35.7 34.7 11.37 36.9 33.9 11.57 38.4 25.4 11.70 34.0 34.0 11.80 35.7 32.8 12.03 37.0 24.5 12.17
32.2 37.0 36.2 11.40 37.7 34.2 11.60 39.1 31.8 11.73 34.6 34.6 11.83 36.4 33.1 12.06 37.8 30.7 12.20
4000
23.9 33.8 29.9 11.62 36.0 21.5 11.82 37.4 9.2 11.95 33.4 29.6 12.05 34.8 20.8 12.28 36.1 8.8 12.42
26.7 35.0 33.7 11.65 36.7 27.0 11.85 38.1 17.3 11.98 34.1 32.8 12.08 35.5 26.1 12.31 36.8 16.7 12.45
29.4 36.2 35.2 11.68 37.4 32.6 11.88 38.9 24.6 12.01 34.8 34.8 12.11 36.2 31.5 12.34 37.5 23.8 12.48
32.2 37.5 36.8 11.71 38.2 36.7 11.91 39.6 30.7 12.04 35.5 35.5 12.14 36.9 35.5 12.37 38.3 29.7 12.51
R410A Tropical Split Type Technical Manual Capacity Table
Duct Type
31
Gross Cooling Capacity (kW)
Outdoor DB(°C)
40.60 46.10 51.70
Indoor WB(°C)
16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40
22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
3200
23.9 23.9 28.0 22.9 12.73 29.5 16.7 12.97 30.8 7.1 13.12 26.5 21.7 12.92 28.0 15.8 13.18 29.2 6.7 13.43 26.2 21.4 14.72 27.4 15.5 15.08 28.5 6.6
26.7 26.7 28.5 25.9 12.76 30.1 19.5 13.00 31.4 13.6 13.15 27.0 24.6 12.95 28.5 18.5 13.21 29.7 12.8 13.46 26.7 24.3 14.76 28.0 18.1 15.12 29.1 12.5
29.4 29.4 29.1 28.0 12.79 30.7 25.2 13.03 32.1 19.1 13.18 27.6 26.5 12.98 29.1 23.9 13.24 30.3 18.1 13.49 27.2 26.2 14.80 28.5 23.4 15.16 29.7 17.7
32.2 32.2 29.7 29.1 12.82 31.4 28.5 13.07 32.7 24.1 13.22 28.1 27.6 13.01 29.7 27.0 13.28 30.9 22.8 13.53 27.8 27.2 14.83 29.1 26.5 15.20 30.3 22.3
3500
23.9 23.9 28.6 24.0 12.93 30.2 17.4 13.17 31.4 7.4 13.32 27.1 22.8 13.12 28.6 16.5 13.38 29.8 7.0 13.63 26.8 22.5 14.92 28.0 16.2 15.28 29.1 6.9
26.7 26.7 29.2 27.0 12.96 30.8 21.8 13.20 32.1 14.1 13.35 27.7 25.6 13.15 29.2 20.7 13.41 30.4 13.3 13.66 27.3 25.3 14.96 28.6 20.3 15.32 29.7 13.0
29.4 29.4 29.7 29.2 12.99 31.4 26.4 13.23 32.7 19.9 13.38 28.2 27.7 13.18 29.7 25.0 13.44 31.0 18.9 13.69 27.9 27.3 15.00 29.2 24.5 15.36 30.3 18.5
32.2 32.2 30.3 30.3 13.02 32.0 29.6 13.27 33.4 24.9 13.42 28.8 28.8 13.22 30.3 28.1 13.48 31.6 23.6 13.73 28.4 28.4 15.03 29.8 27.6 15.40 30.9 23.1
3750
23.9 23.9 29.1 26.7 12.63 30.6 19.2 13.02 31.9 8.3 13.02 27.6 25.3 13.36 29.1 18.2 13.62 30.3 7.8 13.87 27.3 25.0 15.16 28.5 17.8 15.52 29.6 7.7
26.7 26.7 29.7 29.7 12.66 31.3 24.0 12.90 32.6 15.6 13.05 28.2 28.2 13.39 29.7 22.8 13.65 30.9 14.8 13.90 27.8 27.8 15.20 29.1 22.4 15.56 30.2 14.5
29.4 29.4 30.3 30.3 12.69 31.9 29.3 12.93 33.2 22.0 13.08 28.7 28.7 13.42 30.3 27.8 13.68 31.5 20.8 13.93 28.4 28.4 15.24 29.7 27.2 15.60 30.8 20.4
32.2 32.2 30.9 30.9 12.72 32.5 29.6 12.96 33.9 27.5 13.12 29.3 29.3 13.46 30.9 28.1 13.72 32.1 26.1 13.97 28.9 28.9 15.28 30.3 27.5 15.64 31.4 25.6
4000
23.9 23.9 29.6 26.2 13.48 31.1 18.6 13.72 32.4 7.9 13.87 28.1 24.9 13.67 29.6 17.7 13.93 30.7 7.5 14.17 27.8 24.6 15.47 29.0 17.4 15.83 30.1 7.4
26.7 26.7 30.2 29.0 13.51 31.8 23.4 13.75 33.1 15.0 13.90 28.7 27.6 13.70 30.2 22.2 13.96 31.4 14.3 14.21 28.3 27.2 15.51 29.6 21.8 15.87 30.7 14.0
29.4 29.4 30.8 30.8 13.54 32.4 28.2 13.78 33.7 21.3 13.93 29.2 29.2 13.73 30.8 26.8 13.99 32.0 20.2 14.25 28.9 28.9 15.55 30.2 26.3 15.91 31.3 19.8
32.2 32.2 31.4 31.4 13.58 33.0 31.8 13.82 34.4 26.7 13.97 29.8 29.8 13.77 31.4 30.2 14.03 32.6 25.3 14.28 29.5 29.5 15.59 30.8 29.6 15.95 32.0 24.8
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
Capacity Table R410A Tropical Split Type Technical Manual
Duct Type
32
7.1.7 MTA-150CRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C) 29.40 35.00
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
4000
23.9 41.0 32.0 14.20 43.7 24.7 14.40 45.1 10.4 14.53 40.5 33.2 14.63 42.5 24.0 14.86 43.8 10.1 15.00
26.7 42.4 36.6 14.24 44.6 28.9 14.44 46.0 19.8 14.57 41.3 37.5 14.67 43.4 28.1 14.90 44.7 19.3 15.04
29.4 43.9 39.9 14.28 45.5 37.3 14.48 46.9 27.9 14.61 42.1 40.5 14.71 44.2 36.3 14.94 45.6 27.1 15.08
32.2 45.4 44.5 14.31 46.4 42.2 14.51 47.8 35.2 14.64 43.0 42.1 14.74 45.1 41.0 14.97 46.5 34.2 15.12
4300
23.9 42.0 33.6 14.40 44.3 25.6 14.60 45.7 10.8 14.73 41.5 34.8 14.83 43.1 24.9 14.99 44.4 10.5 15.20
26.7 43.5 37.8 14.44 45.2 32.1 14.64 46.6 20.4 14.77 42.3 39.2 14.87 44.0 31.2 15.01 45.3 19.9 15.24
29.4 45.0 41.7 14.48 46.1 38.7 14.68 47.5 29.0 14.81 43.1 42.3 14.91 44.9 37.7 15.03 46.2 28.2 15.28
32.2 46.6 44.4 14.51 47.0 43.5 14.71 48.5 36.2 14.84 44.0 44.0 14.94 45.8 42.4 15.05 47.1 35.2 15.32
4500
23.9 42.5 37.0 14.64 44.8 28.0 14.97 46.2 12.0 14.97 42.0 38.5 15.07 43.6 27.3 15.08 44.9 11.6 15.44
26.7 44.0 41.9 14.68 45.7 35.2 14.88 47.1 22.5 15.01 42.8 42.8 15.11 44.0 34.2 15.10 45.8 21.9 15.48
29.4 45.5 44.2 14.72 46.6 42.8 14.92 48.0 31.8 15.05 43.7 43.7 15.15 45.4 41.6 15.38 46.7 30.9 15.52
32.2 47.1 46.2 14.75 47.5 43.2 14.95 49.0 39.8 15.09 44.5 44.5 15.19 46.3 42.1 15.42 47.7 38.7 15.56
4800
23.9 43.0 38.0 14.95 45.3 27.1 15.15 46.7 11.4 15.28 42.7 37.8 15.38 44.1 26.4 15.61 45.4 11.1 15.75
26.7 44.5 42.8 14.99 46.2 34.0 15.19 47.6 21.6 15.32 43.6 41.9 15.42 45.0 33.1 15.65 46.3 21.0 15.79
29.4 46.1 44.7 15.03 47.1 41.0 15.23 48.6 30.7 15.36 44.5 44.5 15.46 45.9 39.9 15.69 47.2 29.9 15.83
32.2 47.7 46.7 15.07 48.1 46.2 15.27 49.5 38.4 15.40 45.4 45.4 15.50 46.8 45.0 15.73 48.2 37.3 15.87
Capacity Table R410A Tropical Split Type Technical Manual
Duct Type
33
Gross Cooling Capacity (kW)
Outdoor DB(°C)
40.60 46.10 51.70
Indoor WB(°C)
16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40
22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
4000
23.9 36.4 29.8 17.07 37.9 21.4 17.31 39.2 9.1 17.46 34.9 28.6 17.26 36.4 20.5 17.52 37.5 8.7 17.77 34.4 28.2 18.43 35.7 20.2 18.79 36.8 8.5 19.04
26.7 37.1 33.7 17.11 38.7 25.1 17.35 40.0 17.2 17.50 35.6 32.3 17.30 37.1 24.0 17.56 38.3 16.5 17.81 35.1 31.9 18.48 36.4 23.6 18.84 37.5 16.2 19.09
29.4 37.8 36.4 17.15 39.5 32.3 17.39 40.8 24.3 17.54 36.3 34.9 17.34 37.8 31.0 17.60 39.0 23.2 17.85 35.8 34.5 18.53 37.2 30.5 18.89 38.3 22.8 19.14
32.2 38.6 37.8 17.20 40.2 36.6 17.44 41.6 30.6 17.59 37.0 36.3 17.39 38.6 35.1 17.65 39.8 29.3 17.90 36.5 35.8 18.57 37.9 34.5 18.93 39.0 28.7 19.19
4300
23.9 37.0 31.1 17.27 38.5 22.3 17.51 39.8 9.4 17.66 35.5 29.8 17.46 37.0 21.4 17.72 38.1 9.0 17.97 35.0 29.5 18.63 36.3 21.0 18.99 37.4 8.8 19.24
26.7 37.7 34.9 17.31 39.3 27.9 17.55 40.6 17.8 17.70 36.2 33.5 17.50 37.7 26.7 17.76 38.9 17.1 18.01 35.8 33.1 18.68 37.1 26.3 19.04 38.2 16.7 19.29
29.4 38.5 37.7 17.35 40.1 33.7 17.59 41.4 25.3 17.74 36.9 36.2 17.54 38.5 32.3 17.80 39.7 24.2 18.06 36.5 35.8 18.73 37.8 31.8 19.09 38.9 23.7 19.34
32.2 39.2 39.2 17.40 40.9 37.9 17.64 42.2 31.5 17.79 37.7 37.7 17.59 39.2 36.3 17.85 40.5 30.2 18.10 37.2 37.2 18.77 38.5 35.7 19.14 39.7 29.6 19.39
4500
23.9 37.5 34.4 16.97 39.0 24.4 17.36 40.3 10.4 17.36 36.0 33.0 17.70 37.5 23.4 17.96 38.6 10.0 18.20 35.5 32.6 18.87 36.8 23.0 19.23 37.9 9.8 19.48
26.7 38.2 38.2 17.01 39.8 30.6 17.25 41.1 19.7 17.40 36.7 36.7 17.74 38.2 29.4 18.00 39.4 18.9 18.25 36.3 36.3 18.92 37.6 28.9 19.28 38.7 18.5 19.53
29.4 39.0 39.0 17.05 40.6 37.2 17.29 41.9 27.8 17.44 37.4 37.4 17.78 39.0 35.7 18.05 40.2 26.6 18.30 37.0 37.0 18.97 38.3 35.1 19.33 39.4 26.1 19.58
32.2 39.7 39.7 17.10 41.4 37.6 17.34 42.8 34.8 17.49 38.2 38.2 17.83 39.7 36.1 18.09 41.0 33.3 18.34 37.7 37.7 19.01 39.1 35.5 19.38 40.2 32.7 19.63
4800
23.9 37.9 33.6 17.82 39.5 23.7 18.05 40.8 10.0 18.20 36.5 32.3 18.00 37.9 22.7 18.26 39.1 9.6 18.51 36.0 31.9 19.18 37.3 22.3 19.54 38.4 9.4 19.79
26.7 38.7 37.2 17.86 40.3 29.6 18.10 41.6 18.9 18.25 37.2 35.8 18.05 38.7 28.5 18.31 39.9 18.1 18.56 36.8 35.3 19.23 38.1 28.0 19.59 39.2 17.8 19.84
29.4 39.5 39.5 17.90 41.1 35.7 18.15 42.4 26.9 18.30 37.9 37.9 18.10 39.5 34.3 18.36 40.7 25.8 18.61 37.5 37.5 19.28 38.8 33.7 19.64 39.9 25.3 19.89
32.2 40.3 40.3 17.95 41.9 40.3 18.19 43.3 33.6 18.34 38.7 38.7 18.14 40.3 38.7 18.40 41.5 32.2 18.65 38.2 38.2 19.33 39.6 38.1 19.69 40.7 31.6 19.94
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
R410A Tropical Split Type Technical Manual Capacity Table
Duct Type
34
R410A Tropical Split Type Technical Manual Static Pressure
Duct Type
35
8. Air flow rate- Static pressure curve
MTA-76（H）CRN1
MTA-96（H）CRN1
MTA-120（H）CRN1
Static Pressure Tropical Split Type Technical Manual
Duct Type
36
MTA-150（H）CRN1
MHB-76（H）CRN1
MHB-96（H）CRN1
R410A Tropical Split Type Technical Manual Electric Characteristics
Duct Type
37
9. Electric Characteristics
Model
Indoor Unit Power Supply IFM
Hz Voltage Min. Max. MCA MFA kW FLA
MTA-76CRN1 50 220-240 198 254 7.53 15 1.341 6.02
MTA-76HRN1 50 220-240 198 254 7.53 15 1.341 6.02
MTA-96CRN1 50 220-240 198 254 9.1 15 1.605 7.28
MTA-96HRN1 50 220-240 198 254 9.1 15 1.605 7.28
MTA-120CRN1 50 220-240 198 254 11.19 20 2.03 8.95
MTA-120HRN1 50 220-240 198 254 11.19 20 2.03 8.95
MTA-150CRN1 50 220-240 198 254 16.5 15 2.7 13.2
MTA-150HRN1 50 220-240 198 254 16.5 15 2.7 13.2
MHB-76CRN1 50 220-240 198 254 9.51 15 1.652 7.61
MHB-76HRN1 50 220-240 198 254 9.51 15 1.652 7.61
MHB-96CRN1 50 220-240 198 254 11.21 - 2.005 8.97
MHB-96HRN1 50 220-240 198 254 11.21 - 2.005 8.97
Note:
MCA: Min. Current Amps. (A)
MFA: Max. Fuse Amps. (A)
IFM: Indoor Fan Motor
kW: Fan Motor Rated Output (kW)
FLA: Full Load Amps. (A)
Model
Outdoor Unit Power Supply Compressor OFM
Hz Voltage Min. Max. MCA TOCA MFA MSC RLA KW FLA
MOV-76CN1-C 50 380-415 342 438 17.5 18 27 48* 2 6.3*2 0.573 2.613
MOV-76HN1-C 50 380-415 342 438 17.5 18 27 48* 2 6.3*2 0.573 2.613
MOV-96CN1-C 50 380-415 342 438 20 21 31.5 53*2 8*2 1.373 6.26
MOV-96HN1-C 50 380-415 342 438 20 21 31.5 53*2 8*2 1.373 6.26
MOV-120CN1-C 50 380-400 342 440 25 28.6 30 147 21.4 1.373 6.26
MOV-120HN1-C 50 380-400 342 440 25 28.6 30 147 21.4 1.373 6.26
Note:
MCA: Min. Current Amps. (A) TOCA: Total Over-current Amps. (A)
MFA: Max. Fuse Amps. (A) MSC: Max. Starting Amps. (A)
RLA: Rated Locked Amps. (A) OFM: Outdoor Fan Motor
KW: Rated Motor Output (KW) FLA: Full Load Amps. (A)
Sound Levels R410A Tropical Split Type Technical Manual
Duct Type
38
10. Sound Levels
Concealed Duct Type
Suction
Discharge
Microphone
1.4m
Duct
Unit Number Model Noise level under three speeds of fan (dB(A))
1
MTA-76C(H)RN1
54
2
MTA-96C(H)RN1
55
3
MTA-120C(H)RN1
56
4
MTA-150C(H)RN1
56
5
MHB-76C(H)RN1
54
6
MHB-96C(H)RN1
55
R410A Tropical Split Type Technical Manual Exploded View
Duct Type
39
11. Exploded View
11.1 MTA-76CRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator Sealed board 1 201286900317 13.4 Transformer 1 202300900093
2 Side board ass'y 1 201286900316 13.5 Wire joint, 7p 1 202301450056
3 Drainage pan ass'y 1 201285000677 13.6 Wire joint 2 202301450122
4 Asynchronous motor 2 202400400641 14
The left side plate
assembly
1 201270990012
5 Motor supporter ass'y 2 201285000683 15
Seal plate evaporator
components left
1 201270990009
6 Front panel ass'y 1 201285000668 16 Temp.sensor ass'y 1 202301300133
7 Air outlet ass'y 2 201285000612 17 Base ass'y 1 201285000667
8 Remote controller 1 203355090107 18 evaporator ass'y 1 201570990079
9 Display board ass'y 1 203342090051 18.1
evaporator inputing pipe
ass'y
1 201670990091
10 Compressor capacitor 2 202401010101
18.1.
1
One way valve 1 201600800166
11
Compressor capacitor
box
2 201226190015 18.2 evaporator 1 201570990080
12
Components of electronic
control box cover
1 201270600180 18.3
evaporator input pipe
ass'y
1 201670990087
13
Indoor electronic control
box components
1 203370990033 19 Room temp sensor ass'y 1 202301300214
13.1 E-part box 1 201285000350 20 Rear board ass'y 1 201286900313
13.2
Main control board
assembly
1 201370900071 21 Top cover ass'y 1 201286900314
13.3 Relay 3 202300800003 22 Volute shell ass'y 2 201200300201
Exploded View R410A Tropical Split Type Technical Manual
Duct Type
40
11.2 MTA-76HRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator Sealed board 1 201286900317 13.4 Transformer 1 202300900093
2 Side board ass'y 1 201286900316 13.5 Wire joint, 7p 1 202301450056
3 Drainage pan ass'y 1 201285000677 13.6 Wire joint 2 202301450122
4 Asynchronous motor 2 202400400641 14
The left side plate
assembly
1 201270990012
5 Motor supporter ass'y 2 201285000683 15
Seal plate evaporator
components left
1 201270990009
6 Front panel ass'y 1 201285000668 16 Temp.sensor ass'y 1 202301300133
7 Air outlet ass'y 2 201285000612 17 Base ass'y 1 201285000667
8 Remote controller 1 203355090100 18 evaporator ass'y 1 201570990079
9 Display board ass'y 1 203342090051 18.1
evaporator inputing pipe
ass'y
1 201670990091
10 Compressor capacitor 2 202401010101 18.1.1 One way valve 1 201600800166
11 Compressor capacitor box 2 201226190015 18.2 evaporator 1 201570990080
12
Components of electronic
control box cover
1 201270600180 18.3
evaporator input pipe
ass'y
1 201670990087
13
Indoor electronic control
box components
1 203370990033 19 Room temp sensor ass'y 1 202301300214
13.1 E-part box 1 201285000350 20 Rear board ass'y 1 201286900313
13.2
Main control board
assembly
1 201370900071 21 Top cover ass'y 1 201286900314
13.3 Relay 3 202300800003 22 Volute shell ass'y 2 201200300201
R410A Tropical Split Type Technical Manual Exploded View
Duct Type
41
11.3 MTA-96CRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator Sealed board 1 201286900317 13.4 Transformer 1 202300900093
2 Side board ass'y 1 201286900316 13.5 Wire joint, 7p 1 202301450056
3 Drainage pan ass'y 1 201285000677 13.6 Wire joint 2 202301450122
4 Motor 2 202400400071 14
The left side plate
assembly
1 201270990012
5 Motor supporter ass'y 2 201285000683 15
Seal plate evaporator
components left
1 201270990009
6 Front panel ass'y 1 201285000668 16 Temp.sensor ass'y 1 202301300133
7 Air outlet ass'y 2 201285000612 17 Base ass'y 1 201285000667
8 Remote controller 1 203355090107 18 Evaporator parts 1 201570990077
9 Display board ass'y 1 203342090051 18.1
Enter the evaporator tube
assembly
1 201670990082
10 Compressor capacitor 2 202401010101 18.1.1 One way valve 1 201600800166
11
Compressor capacitor
box
2 201226190015 18.2 Evaporator 1 201570990078
12
Components of electronic
control box cover
1 201270600180 18.3
Evaporator tube
assembly output
1 201670990080
13
Indoor electronic control
box components
1 203370990033 19 Room temp sensor ass'y 1 202301300214
13.1 E-part box 1 201285000350 20 Rear board ass'y 1 201286900313
13.2
Main control board
assembly
1 201370900071 21 Top cover ass'y 1 201286900314
13.3 Relay 3 202300800003 22 Volute shell ass'y 2 201200300201
Exploded View R410A Tropical Split Type Technical Manual
Duct Type
42
11.4 MTA-96HRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator Sealed board 1 201286900317 13.4 Transformer 1 202300900093
2 Side board ass'y 1 201286900316 13.5 Wire joint, 7p 1 202301450056
3 Drainage pan ass'y 1 201285000677 13.6 Wire joint 2 202301450122
4 Motor 2 202400400071 14
The left side plate
assembly
1 201270990012
5 Motor supporter ass'y 2 201285000683 15
Seal plate evaporator
components left
1 201270990009
6 Front panel ass'y 1 201285000668 16 Temp.sensor ass'y 1 202301300133
7 Air outlet ass'y 2 201285000612 17 Base ass'y 1 201285000667
8 Remote controller 1 203355090100 18 Evaporator parts 1 201570990077
9 Display board ass'y 1 203342090051 18.1
Enter the evaporator
tube assembly
1 201670990082
10 Compressor capacitor 2 202401010101 18.1.1 One way valve 1 201600800166
11 Compressor capacitor box 2 201226190015 18.2 Evaporator 1 201570990078
12
Components of electronic
control box cover
1 201270600180 18.3
Evaporator tube
assembly output
1 201670990080
13
Indoor electronic control
box components
1 203370990033 19 Room temp sensor ass'y 1 202301300214
13.1 E-part box 1 201285000350 20 Rear board ass'y 1 201286900313
13.2
Main control board
assembly
1 201370900071 21 Top cover ass'y 1 201286900314
13.3 Relay 3 202300800003 22 Volute shell ass'y 2 201200300201
R410A Tropical Split Type Technical Manual Exploded View
Duct Type
43
11.5 MTA-120CRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator ass'y 1 201570990082 8
Components of
electronic control box
cover
1 201270600180
1.1 Evaporator 1 201570990083 9 Front panel ass'y 1 201286910001
1.2
Inlet pipe ass'y of
evaporator
1 201670990108 10 Capacitor box 3 201286900512
1.3
Outlet pipe ass'y of
evaporator
1 201670990107 11 Air outlet ass'y 3 201285000612
2 Pipe clamp ass'y 1 201270990000 12 Top cover ass'y 1 201286900504
3 Pipe clamp ass'y 1 201270990001 13 Drainage pan ass'y 1 201252600013
4 Evaporator left clapboard 2 201252600012 14 Base ass'y 1 201286910002
5 Left clapboard ass'y 1 201270990002 15 Drainage pan ass'y 1 201252600023
6 Asynchronous motor 3 202400400641 16 Motor installation board 3 201286910000
7
Indoor electronic control
box components
1 203370990033 17 Display board ass'y 1 203342090051
7.1 E-part box 1 201285000350 18 Right cover ass'y 1 201286900503
7.2
Main control board
assembly
1 201370900071 19 Volute shell ass'y 3 201200300201
7.3 Relay 3 202300800003 20 compressor Capacitor 3 202401000065
7.4 Transformer 1 202300900093 22 Room temp sensor ass'y 1 202301300214
7.5 Wire joint, 7p 1 202301450056 23 Temp.sensor ass'y 1 202440500002
7.6 Wire joint 2 202301450122
Exploded View R410A Tropical Split Type Technical Manual
Duct Type
44
11.6 MTA-120HRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator ass'y 1 201570990082 8
Components of electronic
control box cover
1 201270600180
1.1 Evaporator 1 201570990083 9 Front panel ass'y 1 201286910001
1.2
Inlet pipe ass'y of
evaporator
1 201670990108 10 Capacitor box 3 201286900512
1.3
Outlet pipe ass'y of
evaporator
1 201670990107 11 Air outlet ass'y 3 201285000612
2 Pipe clamp ass'y 1 201270990000 12 Top cover ass'y 1 201286900504
3 Pipe clamp ass'y 1 201270990001 13 Drainage pan ass'y 1 201252600013
4 Evaporator left clapboard 2 201252600012 14 Base ass'y 1 201286910002
5 Left clapboard ass'y 1 201270990002 15 Drainage pan ass'y 1 201252600023
6 Asynchronous motor 3 202400400641 16 Motor installation board 3 201286910000
7
Indoor electronic control
box components
1 203370990033 17 Display board ass'y 1 203342090051
7.1 E-part box 1 201285000350 18 Right cover ass'y 1 201286900503
7.2
Main control board
assembly
1 201370900071 19 Volute shell ass'y 3 201200300201
7.3 Relay 3 202300800003 20 compressor Capacitor 3 202401000065
7.4 Transformer 1 202300900093 21 Remote controller 1 203355090100
7.5 Wire joint, 7p 1 202301450056 22 Room temp sensor ass'y 1 202301300214
7.6 Wire joint 2 202301450122 23 Temp.sensor ass'y 1 202440500002
R410A Tropical Split Type Technical Manual Exploded View
Duct Type
45
11.7 MTA-150CRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 evaportator ass'y 1 201570990081 8.5 Wire joint, 7p 1 202301450056
1.1 Evaporator 1 201586900502 8.6 Wire joint 2 202301450122
1.2 Evaporator 1 201586900504 9
Components of electronic
control box cover
1 201270600180
1.3 Evaporator 1 201586900505 10 Front panel ass'y 1 201286910001
1.4 Evaporator 1 201586900506 11 Capacitor box 1 201286900512
1.5
evaportaor input pipe
ass'y(II)
1 201670990106 12 Air outlet ass'y 3 201285000612
1.6
evaporator input pipe
ass'y(I)
1 201670990104 13 Top cover ass'y 1 201286900504
1.7 Output pipe ass'y 2 201686900500 14 Drainage pan ass'y 1 201252600013
2 Pipe clamp board ass'y 2 201286900505 15 Base ass'y 1 201286910002
3 Clamp board ass'y 2 201286900524 16 Drainage pan ass'y 1 201252600023
4 Evaporator left clapboard 2 201252600012 17 Motor installation board 3 201286910000
5 Left clapboard ass'y 1 201286900502 18 Remote controller 1 203355090107
6 Motor 3 202400400071 19 Right cover ass'y 1 201286900503
8
Indoor electronic control
box components
1 203370990033 20 Volute shell ass'y 3 201200300201
8.1 E-part box 1 201285000350 21 Room temp sensor ass'y 1 202301300214
8.2
Main control board
assembly
1 201370900071 22 Temp.sensor ass'y 1 202440500002
8.3 Relay 3 202300800003 23 Display board ass'y 1 203342090023
8.4 Transformer 1 202300900093
Exploded View R410A Tropical Split Type Technical Manual
Duct Type
46
11.8 MHB-76CRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator Sealed board 1 201286900317 13.4 Transformer 1 202300900093
2 Side board ass'y 1 201286900316 13.5 Wire joint, 7p 1 202301450056
3 Drainage pan ass'y 1 201285000677 13.6 Wire joint 2 202301450122
4 Motor 2 202400400071 14
The left side plate
assembly
1 201270990012
5 Motor supporter ass'y 2 201285000683 15
Seal plate evaporator
components left
1 201270990009
6 Front panel ass'y 1 201285000668 16 Temp.sensor ass'y 1 202301300133
7 Air outlet ass'y 2 201285000612 17 Base ass'y 1 201285000667
8 Remote controller 1 203355090107 18 evaporator ass'y 1 201570990079
9 Display board ass'y 1 203342090051 18.1
evaporator inputing pipe
ass'y
1 201670990091
10 Compressor capacitor 2 202401010101 18.1.1 One way valve 1 201600800166
11 Compressor capacitor box 2 201226190015 18.2 evaporator 1 201570990080
12
Components of electronic
control box cover
1 201270600180 18.3
evaporator input pipe
ass'y
1 201670990087
13
Indoor electronic control
box components
1 203370990033 19 Room temp sensor ass'y 1 202301300214
13.1 E-part box 1 201285000350 20 Rear board ass'y 1 201286900313
13.2
Main control board
assembly
1 201370900071 21 Top cover ass'y 1 201286900314
13.3 Relay 3 202300800003 22 Volute shell ass'y 2 201200300201
R410A Tropical Split Type Technical Manual Exploded View
Duct Type
47
11.9 MHB-76HRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator Sealed board 1 201286900317 13.4 Transformer 1 202300900093
2 Side board ass'y 1 201286900316 13.5 Wire joint, 7p 1 202301450056
3 Drainage pan ass'y 1 201285000677 13.6 Wire joint 2 202301450122
4 Motor 2 202400400071 14
The left side plate
assembly
1 201270990012
5 Motor supporter ass'y 2 201285000683 15
Seal plate evaporator
components left
1 201270990009
6 Front panel ass'y 1 201285000668 16 Temp.sensor ass'y 1 202301300133
7 Air outlet ass'y 2 201285000612 17 Base ass'y 1 201285000667
8 Remote controller 1 203355090100 18 evaporator ass'y 1 201570990079
9 Display board ass'y 1 203342090051 18.1
evaporator inputing pipe
ass'y
1 201670990091
10 Compressor capacitor 2 202401010101 18.1.1 One way valve 1 201600800166
11 Compressor capacitor box 2 201226190015 18.2 evaporator 1 201570990080
12
Components of electronic
control box cover
1 201270600180 18.3 evaporator input pipe ass'y 1 201670990087
13
Indoor electronic control
box components
1 203370990033 19 Room temp sensor ass'y 1 202301300214
13.1 E-part box 1 201285000350 20 Rear board ass'y 1 201286900313
13.2
Main control board
assembly
1 201370900071 21 Top cover ass'y 1 201286900314
13.3 Relay 3 202300800003 22 Volute shell ass'y 2 201200300201
Exploded View R410A Tropical Split Type Technical Manual
Duct Type
48
11.10 MHB-96CRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator Sealed board 1 201286900317 13.4 Transformer 1 202300900093
2 Side board ass'y 1 201286900316 13.5 Wire joint, 7p 1 202301450056
3 Drainage pan ass'y 1 201285000677 13.6 Wire joint 2 202301450122
4 Fan motor 2 202400410853 14
The left side plate
assembly
1 201270990012
5 Motor supporter ass'y 2 201285000683 15
Seal plate evaporator
components left
1 201270990009
6 Front panel ass'y 1 201285000668 16 Temp.sensor ass'y 1 202301300133
7 Air outlet ass'y 2 201285000612 17 Base ass'y 1 201285000667
8 Remote controller 1 203355090107 18 Evaporator parts 1 201570990077
9 Display board ass'y 1 203342090051 18.1
Enter the evaporator
tube assembly
1 201670990082
10 Compressor capacitor 2 202401010101 18.1.1 One way valve 1 201600800166
11 Compressor capacitor box 2 201226190015 18.2 Evaporator 1 201570990078
12
Components of electronic
control box cover
1 201270600180 18.3
Evaporator tube
assembly output
1 201670990080
13
Indoor electronic control
box components
1 203370990033 19 Room temp sensor ass'y 1 202301300214
13.1 E-part box 1 201285000350 20 Rear board ass'y 1 201286900313
13.2
Main control board
assembly
1 201370900071 21 Top cover ass'y 1 201286900314
13.3 Relay 3 202300800003 22 Volute shell ass'y 2 201200300201
R410A Tropical Split Type Technical Manual Exploded View
Duct Type
49
11.11 MHB-96HRN1
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Evaporator Sealed board 1 201286900317 13.4 Transformer 1 202300900093
2 Side board ass'y 1 201286900316 13.5 Wire joint, 7p 1 202301450056
3 Drainage pan ass'y 1 201285000677 13.6 Wire joint 2 202301450122
4 Fan motor 2 202400410853 14
The left side plate
assembly
1 201270990012
5 Motor supporter ass'y 2 201285000683 15
Seal plate evaporator
components left
1 201270990009
6 Front panel ass'y 1 201285000668 16 Temp.sensor ass'y 1 202301300133
7 Air outlet ass'y 2 201285000612 17 Base ass'y 1 201285000667
8 Remote controller 1 203355090100 18 Evaporator parts 1 201570990077
9 Display board ass'y 1 203342090051 18.1
Enter the evaporator
tube assembly
1 201670990082
10 Compressor capacitor 2 202401010101 18.1.1 One way valve 1 201600800166
11 Compressor capacitor box 2 201226190015 18.2 Evaporator 1 201570990078
12
Components of electronic
control box cover
1 201270600180 18.3
Evaporator tube
assembly output
1 201670990080
13
Indoor electronic control
box components
1 203370990033 19 Room temp sensor ass'y 1 202301300214
13.1 E-part box 1 201285000350 20 Rear board ass'y 1 201286900313
13.2
Main control board
assembly
1 201370900071 21 Top cover ass'y 1 201286900314
13.3 Relay 3 202300800003 22 Volute shell ass'y 2 201200300201
Troubleshooting R410A Tropical Split Type Technical Manual
Duct Type
50
12. Troubleshooting
PRE-DEF lamp(cooling and heating type)
or fan only lamp(cooling only type)
Infrared signal receiver
Operation lamp
Timer lamp
Alarm lamp
Manual Switch
Type OPT.
Light
TME.
Light
DEF.
Light
ALARM
Light
Remarks
Room temp. sensor error - - - Manual reset
Evaporator temp. sensor error - - - Manual reset
Condenser temp. sensor error - - - Manual reset
Water pump temp. sensor error - - Manual reset
The PRO terminal on PCB of
indoor unit without connected to
grounding wire
Manual reset
EEPROM error - - Manual reset
Condensing water level full error - - - Manual reset
Note:
OPT. Light: operation light; TME. Light: timer light;
DEF. Light: defrosting light; ☆: the light flashing.
13.1 Malfunctions of air conditioner
If any of the following malfunctions occur, stop operation of the air conditioner immediately. Turn off the power
switch, and contact the local after sales service center of manufacturer:
The RUN lamp flashes quickly (2 flash per second).
After turning off the power switch and then turning it on again, the RUN lamp still flashes quickly.
The receiving function of the remote controller fails, or the start/ shutdown operation is abnormal.
The fuse blows out frequently, or the circuit breaker protection occurs frequently.
Obstacles or water enter the air conditioner.
Condensing water leaks from indoor unit.
Other malfunctions occur.
R410A Tropical Split Type Technical Manual Troubleshooting
Duct Type
51
If the air conditioner fails and does not meet the above phenomena, check the system as the following table:
Symptoms Causes Handling methods
The unit does not
work
Power supply fails. Operate after power resumes.
Power switch is not connected. Connect the power supply properly.
Fuse blows out or circuit breaker snaps off.
Replace the fuse or check whether
electric leakage occurs.
The remote controller or the wire controller
fails.
Check the remote controller or wire
controller.
Air flowing
normally but
completely can’t
cooling
Temperature setting is improper.
Temperature setting is higher than the
room temperature in cooling mode. Or
temperature setting is lower than the
room temperature in heating mode.
3-minute protection of compressor. Waiting for 3 minutes.
The unit starts or
stops frequently
The system is lack of refrigerant. Or there is
too much refrigerant in the system.
Fix the leakage places, and charge the
proper quantity of refrigerant.
Air or non-condensable gas exists in the
refrigerant system.
Vacuum the system and charge
refrigerant again.
Compressor fails. Repair or replace the compressor.
The voltage is too high or too low. Install a voltage regulator.
The refrigerant pipe is obstructed. Locate and replace that part.
Poor cooling effect
The heat exchanger of outdoor unit or indoor
unit is too dirty.
Clean the heat exchanger.
The filter is too dirty. Clean the filter.
Air inlet or air outlet of the indoor/ outdoor
unit is blocked.
Remove obstacles to keep well
ventilating.
Doors or windows of the room are open. Close all the windows and doors.
Directly exposed to sunlight. Use curtain to obstruct sunlight.
Too many heat sources in the room. Reduce the heat sources.
The outdoor ambient temperature is too
high.
The cooling effect is poor but normal.
The system is lack of refrigerant.
Fix the leakage places, and charge the
proper quantity of refrigerant.
Poor heating
effect
The outdoor ambient temperature is lower
than -7.
Use an assistance heating device.
Doors or windows of the room are not closed
tightly.
Close the doors and windows properly.
The system is lack of refrigerant.
Fix the leakage places, and charge the
proper quantity of refrigerant.
Troubleshooting R410A Tropical Split Type Technical Manual
Duct Type
52
Symptoms Causes Handling methods
The fan speed
cannot be
changed
Check whether the mode marked on the
screen is “AUTO”.
When the “AUTO” mode is selected, the
unit will change the fan speed
automatically.
Check whether the mode marked on the
screen is “DEWET”.
When the “DEWET” mode is selected,
the unit will change the fan speed
automatically. The fan speed can be
selected in “COOLING”,”HEATING”
and ”SUPPLY AIR” mode.
The “ON/OFF”
button of remote
controller do not
work
Check whether the batteries of remote
controller are exhausted.
Replace the batteries.
The “ON/OFF”
lamp extinguishes
Check whether the time set on the timer has
expired.
Restart the unit.
The “TIMER ON”
lamp extinguishes
Check whether the time set on the timer has
expired.
It comes to the setting time and the unit
stat running automatically.
No receiving
sounds from the
indoor unit even
when the
“ON/OFF” button
is pressed
Check whether the signal transmitter of the
remote controller is properly directed to the
infrared signal receiver of the indoor unit
when the “ON/OFF” button is pressed.
Directly transmit the signal transmitter of
the remote controller to the infrared
signal receiver of the indoor unit, and
then push the “ON/OFF” button twice.
The buttons of the
remote controller
do not work
Check whether the settings are locked. Push the “LOCK” button again.
R410A Tropical Split Type Technical Manual Troubleshooting
Duct Type
53
Operation lamp flashes:
No
Yes
No
Yes
All lamps flashing at 5Hz
Judge 1: The PRO terminal on PCB of indoor unit without connecting to grounding wire
Validate: Check whether the PRO terminal on PCB of indoor
unit without connected to grounding wire.
Connect it to grounding wire.
Judge 2: Optical coupler on PCB malfunction
Validate: Check whether the Optical coupler is normal.
Replace optical coupler
Replace indoor PCB.
Troubleshooting R410A Tropical Split Type Technical Manual
Duct Type
54
Operation lamp flashes:
Timer lamp flashin
g
at 5Hz
Room temperature sensor malfunction
Judge 1: Check the room temperature sensor
Is break off.
Connects it well.
Judge 2: Check the room temperature sensor
is abnormal.
Validate: Check whether the resistance of the
temperature sensor is correct according to Annex 1.
Replace temperature sensor
Replace indoor PCB.
Yes
No
Yes
No
R410A Tropical Split Type Technical Manual Troubleshooting
Duct Type
55
Operation lamp flashes:
Yes
No
No
Yes
Replace temperature sensor
Operation lamp flashing at 5Hz
Evaporate temperature sensor is abnormal.
Judge 1: Check evaporate temperature sensor is break off.
Judge 2: Evaporate temperature sensor is abnormal.
Validate: Check whether the resistance of the room
temperature sensor is correct according to Annex 1.
Replace temperature sensor
Replace indoor PCB.
Troubleshooting R410A Tropical Split Type Technical Manual
Duct Type
56
Operation lamp flashes:
Defrosting lamp flashing at 5Hz
Condenser temperature sensor malfunction
Judge 1: Check condenser temperature sensor is break off.
Replace temperature sensor
Yes
Judge 2: Condenser temperature sensor is abnormal.
No
Validate: Check whether the resistance of the condenser
temperature sensor is correct according to Annex 1.
Replace temperature sensor
No
Yes
Replace indoor PCB.
R410A Tropical Split Type Technical Manual Accessories
Duct Type
57
13. Accessories
Name Qty. Shape Usage
Owner’s manual 1 ---
Installation manual 1 ---
Remote controller manual 1 ---
Water pipe 1 --- Connect to water drainage pipe
Display board subassembly 1 --- Connect to control signal
Protective sleeve for refrigerant inlet and
outlet pipes
2
---
Remote controller 1 ---
Remote controller mounting bracket 1 Placed the remote controller
AAA battery 2
---
Floor-standing Type R410A Tropical Split Type Technical Manual
Floor-standing Type
58
Floor-standing Type
1. Features ............................................................................. 59
2. Specifications ................................................................... 60
3. Dimensions ....................................................................... 61
4. Service Space ................................................................... 62
5. Refrigerant Cycle Diagram............................................... 63
6. Wiring Diagrams ............................................................... 64
7. Capacity Tables ................................................................. 66
8. Electric Characteristics .................................................... 75
9. Sound Levels .................................................................... 75
10. Exploded View ................................................................ 77
11. Troubleshooting .............................................................. 85
12. Accessories ..................................................................... 90
R410A Tropical Split Type Technical Manual Features
Floor-standing Type
59
1. Features
1. The appearance is novel, luxurious, refined.
2. High capacity of cooling/heating, efficient, and energy-saving.
3. Adopt advanced and high efficient scroll compressor, wide angle and long distance air supply.
4. Remote control standard, screen control optional.
5. Easy installation and maintenance.
6. Suit for hotel, meeting room, airport lounge, etc. public occasion use.
Specifications R410A Tropical Split Type Technical Manual
Floor-standing Type
60
2. Specifications
Model MFA-76CRN1 MFA-76HRN1 MFA-96CRN1 MFA-96HRN1
Power supply - 220~240V-1Ph-50Hz 220~240V-1Ph-50Hz
Temp. setting range ℃ ≥17 ≤30 ≥17 ≤30
Rated input power W 11700 11700 14400 14400
Rated current A 19.3 19.3 23.7 23.7
Cooling
Capacity
Btu/h 76000 76000 96000 96000
W 22000 22000 28000 28000
Input power W 7500 7500 9600 9600
EER W/W 2.93 2.93 2.92 2.92
Heating
Capacity
Btu/h / 78000 / 105000
W / 25000 / 31000
Input power W / 8300 / 10300
COP W/W / 3.01 / 3.01
Indoor air flow m3/h 4250 4250 5100 5100
Indoor noise level dB(A) 53 53 54 54
Refrigerant
Type - R410A R410A
Control - Capillary Capillary
Fan
Type - Centrifugal fan Centrifugal fan Centrifugal fan Centrifugal fan
Dimension mm Φ250 Φ250 Φ250 Φ250
Drive type/ Motor step - Direct/ Single Direct/ Single Direct/ Single Direct/ Single
Motor input * No. W 590 590 590 590
Motor speed rpm 870 870 870 870
Coil
Type - Copper tube and aluminum fin Copper tube and aluminum fin
Tube size mm Φ9.52 Φ9.52 Φ9.52 Φ9.52
No. of rows - 2 2 3 3
Fin per inch FPI 16 16 16 16
Length* height mm 982*715.5 982*715.5 983*715.5 983*715.5
Controller - Remote controller Remote controller
Drain pipe size mm 41 41 41 41
Dimension (W*H*D) mm 1200*1860*420 1200*1860*420 1200*1860*420 1200*1860*420
Packing (W*H*D) mm 1362*2023*582 1362*2023*582 1362*2023*582 1362*2023*582
Net/Gross weight kg 158/174 158/174 158/174 158/174
Shipping Qty per 20'/40'/40'HD pcs
15/32/32 15/32/32 15/32/32 15/32/32
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. piping: 7.5m (horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. piping: 7.5m (horizontal)
R410A Tropical Split Type Technical Manual Service Space
Floor-standing Type
61
3. Dimensions
A
B
Foot screw
W
D
H
Model A (mm) B (mm) W (mm) H (mm) D (mm)
MFA-76CRN1
960 216 1200 1860 420
MFA-76HRN1
MFA-96CRN1
960 216 1200 1860 420
MFA-96HRN1
Specifications R410A Tropical Split Type Technical Manual
Floor-standing Type
62
4. Service Space
Front view
1
0
c
m
1
0
c
m
Rear
30 cm
No obstacle in front of it
Top view
R410A Tropical Split Type Technical Manual Service Space
Floor-standing Type
63
5. Refrigerant cycle diagram
5.1 Cooling only: MFA-76CR, MFA-96CR
Discharge temp. sensor
HP Switch
Compressor
Liquid-gas seperator
Outdoor heat-exchanger
Stop valve
Stop valve
Indoor unit
Check valve
LP Switch
T4
T2
T3
Cooling
Indoor
heat-exchanger
5.2 Cooling and heating: MFA-76HR, MFA-96HR
Discharge temp. sensor
HP Switch
Compressor
4-way valve
Liquid-gas seperator
Outdoor heat-exchanger
Stop valve
Stop valve
Indoor unit
Check valve
LP Switch
T4
T2
T3
Heating
Cooling
Indoor
heat-exchanger
Wiring Diagrams R410A Tropical Split Type Technical Manual
Floor-standing Type
64
6. Wiring Diagrams
6.1 MFA-76CR, MFA-96CR
Item Name Item Name Item Name
CAP1 Fan capacitance RT1 Room temp. sensor XS1-3 Connector plugs
FAN Indoor fan RT2 Pipe temp. sensor SYN Swing motor
XT1-3 Connector JDQ Fan aided control board - T4 Transformer XP1-3 Connector plugs - -
R410A Tropical Split Type Technical Manual Wiring Diagrams
Floor-standing Type
65
6.2 MFA-76HR, MFA-96HR
Item Name Item Name Item Name
CAP1 Fan capacitance RT1 Room temp. sensor XS1-3 Connector plugs
FAN Indoor fan RT2 Pipe temp. sensor SYN Swing motor
XT1-3 Connector JDQ Fan aided control board - T4 Transformer XP1-3 Connector plugs - -
66
7. Capacity Tables
7.1 Cooling:
7.1.1 MFA-76CRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C) 29.40 35.00
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
1950
23.9
20.1 16.5 6.48 22.1 12.5 6.68 23.5 5.4 6.81 19.3 15.8 6.91 21.0 11.8 7.14 22.2 5.1 7.28
26.7
20.8 18.9 6.50 22.6 14.6 6.70 24.0 10.3 6.83 19.7 17.9 6.93 21.4 13.8 7.16 22.7 9.8 7.30
29.4
21.5 20.7 6.52 23.0 18.9 6.72 24.5 14.6 6.85 20.1 19.3 6.95 21.8 17.9 7.18 23.1 13.8 7.32
32.2
22.3 21.8 6.53 23.5 21.4 6.73 24.9 18.3 6.86 20.5 20.1 6.96 22.2 20.2 7.20 23.6 17.4 7.34
2130
23.9
20.7 17.4 6.68 22.7 13.1 6.88 24.1 5.7 7.01 19.9 16.7 7.11 21.6 12.5 7.34 22.8 5.4 7.48
26.7
21.4 19.8 6.70 23.2 16.5 6.90 24.6 10.8 7.03 20.3 18.8 7.13 22.0 15.6 7.36 23.3 10.2 7.50
29.4
22.1 21.7 6.72 23.7 19.9 6.92 25.1 15.3 7.05 20.7 20.3 7.15 22.4 18.9 7.38 23.8 14.5 7.52
32.2
22.9 22.9 6.73 24.1 22.3 6.93 25.6 19.1 7.07 21.1 21.1 7.17 22.9 21.2 7.40 24.2 18.1 7.54
2500
23.9
21.2 19.4 6.92 23.2 14.5 7.25 24.6 6.4 7.25 20.4 18.7 7.35 22.1 13.8 7.47 23.3 6.0 7.72
26.7
21.9 21.9 6.94 23.7 18.2 7.14 25.1 12.0 7.27 20.8 20.8 7.37 22.0 17.3 7.50 23.8 11.4 7.74
29.4
22.7 22.7 6.96 24.2 22.2 7.16 25.6 17.0 7.29 21.2 21.2 7.39 23.0 21.1 7.62 24.3 16.1 7.76
32.2
23.5 23.5 6.97 24.7 22.4 7.18 26.1 21.2 7.31 21.6 21.6 7.41 23.4 21.3 7.64 24.8 20.1 7.78
R410A Tropical Split Type Technical Manual Capacity Tables
Floor-standing Type
67
Gross Cooling Capacity (kW)
Outdoor DB(°C 40.60 46.10 51.70
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
TGC
SHC PI
1950
23.9 17.5 14.4 8.07 19.1 10.8 8.31 20.4 4.7 8.46 16.0 13.1 8.26 17.5 9.9 8.52 18.7 4.3 8.77 15.1 12.4 8.83 16.4 9.3 9.19 17.5 4.0 9.44
26.7 17.9 16.2 8.09 19.5 12.6 8.33 20.8 8.9 8.48 16.4 14.9 8.28 17.9 11.6 8.54 19.1 8.2 8.79 15.4 14.0 8.85 16.7 10.8 9.21 17.8 7.7 9.46
29.4 18.2 17.5 8.11 19.8 16.3 8.35 21.2 12.6 8.50 16.7 16.0 8.30 18.2 14.9 8.56 19.4 11.6 8.81 15.7 15.1 8.87 17.1 14.0 9.23 18.2 10.8 9.48
32.2 18.6 18.2 8.13 20.2 18.4 8.37 21.6 15.9 8.52 17.0 16.7 8.32 18.6 16.9 8.58 19.8 14.6 8.83 16.1 15.7 8.89 17.4 15.8 9.26 18.6 13.6 9.51
2130
23.9 18.1 15.2 8.27 19.7 11.4 8.51 21.0 4.9 8.66 16.6 14.0 8.46 18.1 10.5 8.72 19.3 4.6 8.97 15.7 13.2 9.03 17.0 9.8 9.39 18.1 4.3 9.64
26.7 18.5 17.1 8.29 20.1 14.2 8.53 21.4 9.4 8.68 17.0 15.7 8.48 18.5 13.1 8.74 19.7 8.6 8.99 16.1 14.9 9.05 17.4 12.3 9.41 18.5 8.1 9.66
29.4 18.8 18.5 8.31 20.5 17.2 8.55 21.8 13.3 8.70 17.3 17.0 8.50 18.8 15.8 8.76 20.1 12.2 9.01 16.4 16.1 9.07 17.7 14.9 9.43 18.8 11.5 9.68
32.2 19.2 19.2 8.33 20.9 19.3 8.57 22.2 16.6 8.72 17.7 17.7 8.52 19.2 17.8 8.78 20.5 15.3 9.04 16.7 16.7 9.10 18.1 16.7 9.46 19.2 14.3 9.71
2500
23.9 18.6 17.1 7.97 20.2 12.6 8.36 21.5 5.6 8.36 17.1 15.7 8.70 18.6 11.6 8.96 19.8 5.1 9.21 16.2 14.9 9.27 17.5 10.9 9.63 18.6 4.8 9.88
26.7 19.0 19.0 7.99 20.6 15.8 8.23 21.9 10.5 8.38 17.5 17.5 8.72 19.0 14.6 8.98 20.2 9.7 9.23 16.6 16.6 9.29 17.9 13.7 9.65 19.0 9.1 9.90
29.4 19.4 19.4 8.01 21.0 19.3 8.25 22.3 14.8 8.40 17.8 17.8 8.74 19.4 17.8 9.00 20.6 13.6 9.25 16.9 16.9 9.31 18.2 16.7 9.67 19.3 12.8 9.92
32.2 19.7 19.7 8.03 21.4 19.5 8.27 22.8 18.5 8.42 18.2 18.2 8.76 19.7 18.0 9.02 21.0 17.1 9.28 17.2 17.2 9.34 18.6 16.9 9.70 19.7 16.0 9.95
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
Capacity Tables R410A Tropical Split Type Technical Manual
Floor-standing Type
68
7.1.2 MFA-76HRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C)
29.40 35.00
Indoor WB(°C)
16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C)
TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
1920
23.9 19.6 16.1 6.38 21.6 12.2 6.58 23.0 5.3 6.71 18.8 15.4 6.81 20.5 11.6 7.04 21.7 5.0 7.18
26.7 20.3 18.4 6.40 22.1 14.3 6.60 23.5 10.1 6.73 19.2 17.4 6.83 20.9 13.5 7.06 22.2 9.6 7.20
29.4 21.0 20.2 6.42 22.5 18.5 6.62 23.9 14.3 6.75 19.6 18.8 6.85 21.3 17.5 7.08 22.6 13.5 7.22
32.2 21.7 21.3 6.43 23.0 20.9 6.63 24.4 18.0 6.76 20.0 19.6 6.86 21.7 19.7 7.10 23.1 17.0 7.24
2100
23.9 20.2 17.0 6.58 22.3 12.9 6.78 23.6 5.6 6.91 19.4 16.3 7.01 21.1 12.2 7.24 22.4 5.3 7.38
26.7 20.9 19.4 6.60 22.7 16.1 6.80 24.1 10.6 6.93 19.8 18.3 7.03 21.5 15.2 7.26 22.8 10.0 7.40
29.4 21.6 21.2 6.62 23.2 19.5 6.82 24.6 15.0 6.95 20.2 19.8 7.05 21.9 18.4 7.28 23.3 14.2 7.42
32.2 22.4 22.4 6.63 23.6 21.9 6.83 25.1 18.7 6.96 20.6 20.6 7.07 22.4 20.7 7.30 23.7 17.7 7.44
2500
23.9 20.7 19.0 6.82 22.7 14.2 7.15 24.1 6.2 7.15 19.9 18.3 7.25 21.6 13.5 7.48 22.8 5.9 7.62
26.7 21.4 21.4 6.84 23.2 17.8 7.04 24.6 11.8 7.17 20.3 20.3 7.27 22.0 16.9 7.50 23.3 11.1 7.64
29.4 22.1 22.1 6.86 23.7 21.7 7.06 25.1 16.6 7.19 20.7 20.7 7.29 22.4 20.6 7.52 23.8 15.7 7.66
32.2 22.9 22.9 6.87 24.1 21.9 7.08 25.6 20.8 7.21 21.1 21.1 7.31 22.9 20.8 7.54 24.2 19.7 7.68
R410A Tropical Split Type Technical Manual Capacity Tables
Floor-standing Type
69
Gross Cooling Capacity (kW)
Outdoor DB(°C) 40.60 46.10 51.70
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40
22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
TGC
SHC PI
1920
23.9 17.1 14.0 8.16 18.7 10.5 8.40 19.9 4.6 8.55 15.6 12.8 8.35 17.1 9.7 8.61 18.3 4.2 8.86 14.8 12.1 9.16 16.0 9.1 9.52 17.1 4.0 9.77
26.7 17.4 15.8 8.18 19.0 12.3 8.42 20.3 8.8 8.57 15.9 14.5 8.37 17.4 11.3 8.63 18.6 8.0 8.88 15.1 13.7 9.18 16.4 10.6 9.54 17.5 7.5 9.79
29.4 17.8 17.1 8.20 19.4 15.9 8.44 20.7 12.3 8.59 16.2 15.6 8.39 17.8 14.6 8.65 19.0 11.3 8.90 15.4 14.8 9.20 16.7 13.7 9.56 17.8 10.6 9.81
32.2 18.1 17.8 8.22 19.8 18.0 8.46 21.2 15.6 8.61 16.6 16.2 8.41 18.1 16.5 8.67 19.4 14.3 8.92 15.7 15.4 9.23 17.0 15.5 9.59 18.2 13.4 9.84
2100
23.9 17.7 14.9 8.36 19.3 11.1 8.60 20.5 4.8 8.75 16.2 13.6 8.55 17.7 10.2 8.81 18.9 4.5 9.06 15.4 12.9 9.36 16.6 9.6 9.72 17.7 4.2 9.97
26.7 18.1 16.7 8.38 19.7 13.9 8.62 21.0 9.2 8.77 16.6 15.3 8.57 18.1 12.8 8.83 19.3 8.4 9.08 15.7 14.5 9.38 17.0 12.0 9.74 18.1 7.9 9.99
29.4 18.4 18.1 8.40 20.0 16.8 8.64 21.4 13.0 8.79 16.9 16.6 8.59 18.4 15.5 8.85 19.6 12.0 9.10 16.0 15.7 9.40 17.3 14.6 9.76 18.4 11.2 10.01
32.2 18.8 18.8 8.42 20.4 18.9 8.66 21.8 16.3 8.81 17.2 17.2 8.61 18.8 17.4 8.87 20.0 14.9 9.13 16.3 16.3 9.43 17.7 16.4 9.79 18.8 14.0 10.04
2500
23.9 18.2 16.7 8.06 19.8 12.3 8.45 21.0 5.4 8.45 16.7 15.3 8.79 18.2 11.4 9.05 19.4 5.0 9.30 15.9 14.6 9.60 17.1 10.7 9.96 18.2 4.7 10.20
26.7 18.6 18.6 8.08 20.2 15.5 8.32 21.5 10.3 8.47 17.1 17.1 8.81 18.6 14.3 9.07 19.8 9.4 9.32 16.2 16.2 9.62 17.5 13.4 9.98 18.6 8.9 10.23
29.4 18.9 18.9 8.10 20.6 18.9 8.34 21.9 14.5 8.49 17.4 17.4 8.83 18.9 17.4 9.09 20.1 13.3 9.34 16.5 16.5 9.64 17.8 16.4 10.00 19.0 12.6 10.26
32.2 19.3 19.3 8.12 21.0 19.1 8.36 22.3 18.1 8.51 17.7 17.7 8.85 19.3 17.5 9.12 20.5 16.7 9.37 16.8 16.8 9.67 18.2 16.5 10.03 19.3 15.7 10.28
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
Capacity Tables R410A Tropical Split Type Technical Manual
Floor-standing Type
70
7.1.3 MFA-96CRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C)
29.40 35.00
Indoor WB(°C)
16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C)
TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2360
23.9 25.9 21.2 8.71 28.0 15.8 8.91 29.4 6.8 9.04 25.2 20.6 9.14 26.8 15.2 9.37 28.1 6.5 9.51
26.7 26.8 24.3 8.73 28.6 18.5 8.93 30.0 12.9 9.06 25.7 23.3 9.16 27.4 17.7 9.39 28.7 12.4 9.53
29.4 27.7 26.7 8.75 29.2 23.9 8.95 30.6 18.2 9.08 26.2 25.2 9.18 27.9 22.9 9.41 29.3 17.4 9.55
32.2 28.7 28.1 8.77 29.7 27.0 8.97 31.2 22.9 9.11 26.7 26.2 9.21 28.5 25.9 9.44 29.8 21.9 9.58
2600
23.9 26.5 22.2 8.91 28.6 16.5 9.11 30.0 7.1 9.24 25.8 21.7 9.34 27.5 15.9 9.48 28.7 6.8 9.71
26.7 27.4 25.4 8.93 29.2 20.7 9.13 30.6 13.4 9.26 26.3 24.4 9.36 28.0 19.9 9.51 29.3 12.9 9.73
29.4 28.4 27.8 8.95 29.8 25.0 9.15 31.2 19.0 9.28 26.8 26.3 9.38 28.6 24.0 9.53 29.9 18.2 9.75
32.2 29.4 29.4 8.97 30.4 28.1 9.18 31.8 23.8 9.31 27.4 27.4 9.41 29.1 27.0 9.55 30.5 22.7 9.78
3000
23.9 27.0 24.7 9.15 29.1 18.2 9.48 30.5 7.9 9.48 26.3 24.1 9.58 27.9 17.5 9.58 29.2 7.6 9.95
26.7 27.9 27.9 9.17 29.7 22.8 9.37 31.1 14.9 9.50 26.8 26.8 9.60 28.0 21.9 9.60 29.8 14.3 9.97
29.4 28.9 28.9 9.19 30.3 27.8 9.39 31.7 21.0 9.52 27.3 27.3 9.62 29.1 26.7 9.85 30.4 20.1 9.99
32.2 29.9 29.9 9.22 30.9 28.1 9.42 32.4 26.3 9.55 27.9 27.9 9.65 29.7 27.0 9.88 31.0 25.2 10.02
R410A Tropical Split Type Technical Manual Capacity Tables
Floor-standing Type
71
Capacity Tables R410A Tropical Split Type Technical Manual
Gross Cooling Capacity (kW)
Outdoor DB(°C) 40.60 46.10 51.70
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2360
23.9 22.3 18.3 10.40 23.9 13.5 10.64 25.1 5.8 10.79 20.8 17.1 10.59 22.3 12.6 10.85 23.5 5.4 11.10 20.5 16.8 11.62 21.8 12.3 11.98 22.9 5.3 12.23
26.7 22.7 20.7 10.43 24.3 15.8 10.67 25.6 11.0 10.82 21.2 19.3 10.62 22.7 14.7 10.88 23.9 10.3 11.13 20.9 19.0 11.65 22.2 14.4 12.01 23.3 10.1 12.26
29.4 23.2 22.3 10.46 24.8 20.3 10.70 26.1 15.6 10.85 21.7 20.8 10.65 23.2 19.0 10.91 24.4 14.5 11.16 21.3 20.5 11.68 22.7 18.6 12.04 23.8 14.2 12.29
32.2 23.6 23.2 10.48 25.3 23.0 10.72 26.7 19.6 10.87 22.1 21.7 10.67 23.6 21.5 10.93 24.9 18.3 11.19 21.8 21.3 11.71 23.1 21.0 12.07 24.3 17.8 12.32
2600
23.9 22.9 19.2 10.60 24.5 14.1 10.84 25.7 6.1 10.99 21.4 18.0 10.79 22.9 13.2 11.05 24.1 5.7 11.30 21.1 17.8 11.82 22.4 12.9 12.18 23.5 5.5 12.43
26.7 23.4 21.6 10.63 25.0 17.7 10.87 26.3 11.5 11.02 21.9 20.2 10.82 23.4 16.6 11.08 24.6 10.8 11.33 21.6 20.0 11.85 22.9 16.2 12.21 24.0 10.5 12.46
29.4 23.8 23.4 10.66 25.4 21.4 10.90 26.8 16.3 11.05 22.3 21.9 10.85 23.8 20.0 11.11 25.0 15.3 11.36 22.0 21.6 11.88 23.3 19.6 12.24 24.4 14.9 12.49
32.2 24.3 24.3 10.68 26.0 24.0 10.92 27.3 20.4 11.08 22.7 22.7 10.87 24.3 22.5 11.14 25.5 19.1 11.39 22.4 22.4 11.91 23.8 22.0 12.27 24.9 18.6 12.52
3000
23.9 23.4 21.5 10.84 25.0 15.6 11.23 26.2 6.8 11.23 21.9 20.1 11.03 23.4 14.6 11.29 24.6 6.4 11.54 21.6 19.8 12.06 22.9 14.3 12.42 24.0 6.2 12.67
26.7 23.9 23.9 10.87 25.5 19.6 11.11 26.8 12.8 11.26 22.4 22.4 11.06 23.9 18.3 11.32 25.1 12.0 11.57 22.1 22.1 12.09 23.4 18.0 12.45 24.5 11.7 12.70
29.4 24.3 24.3 10.90 26.0 23.8 11.14 27.3 18.1 11.29 22.8 22.8 11.09 24.3 22.3 11.35 25.6 16.9 11.60 22.5 22.5 12.12 23.8 21.9 12.48 24.9 16.5 12.73
32.2 24.8 24.8 10.92 26.5 24.1 11.17 27.8 22.6 11.32 23.3 23.3 11.12 24.8 22.6 11.38 26.1 21.2 11.63 22.9 22.9 12.15 24.3 22.1 12.51 25.4 20.7 12.76
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
Floor-standing Type
72
7.1.4 MFA-96HRN1
Gross Cooling Capacity (kW)
Outdoor DB(°C) 29.40 35.00
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2360
23.9 25.4 20.8 8.48 27.5 15.6 8.68 28.9 6.7 8.81 24.7 20.2 8.91 26.4 14.9 9.14 27.6 6.4 9.28
26.7 26.3 23.9 8.50 28.1 18.2 8.70 29.5 12.7 8.83 25.2 22.9 8.93 26.9 17.4 9.16 28.2 12.1 9.30
29.4 27.2 26.2 8.52 28.6 23.5 8.72 30.1 17.9 8.85 25.7 24.7 8.95 27.4 22.5 9.18 28.7 17.1 9.32
32.2 28.2 27.6 8.54 29.2 26.6 8.74 30.7 22.6 8.87 26.2 25.7 8.97 28.0 25.4 9.21 29.3 21.6 9.35
2600
23.9 26.0 21.8 8.68 28.1 16.3 8.88 29.5 7.0 9.01 25.3 21.3 9.11 27.0 15.6 9.34 28.2 6.7 9.48
26.7 26.9 24.9 8.70 28.7 20.4 8.90 30.1 13.2 9.03 25.8 23.9 9.13 27.5 19.5 9.36 28.8 12.6 9.50
29.4 27.8 27.3 8.72 29.3 24.6 8.92 30.7 18.7 9.05 26.3 25.8 9.15 28.1 23.6 9.38 29.4 17.9 9.52
32.2 28.8 28.8 8.74 29.9 27.6 8.94 31.3 23.4 9.08 26.8 26.8 9.18 28.6 26.5 9.41 30.0 22.4 9.55
3000
23.9 26.5 24.3 8.92 28.6 17.9 9.25 30.0 7.8 9.25 25.8 23.7 9.35 27.5 17.2 9.58 28.7 7.4 9.72
26.7 27.4 27.4 8.94 29.2 22.5 9.14 30.6 14.6 9.27 26.3 26.3 9.37 28.0 21.5 9.60 29.3 14.0 9.74
29.4 28.4 28.4 8.96 29.8 27.3 9.16 31.2 20.7 9.29 26.8 26.8 9.39 28.6 26.2 9.62 29.9 19.8 9.76
32.2 29.4 29.4 8.98 30.4 27.6 9.19 31.8 25.9 9.32 27.4 27.4 9.42 29.1 26.5 9.65 30.5 24.8 9.79
R410A Tropical Split Type Technical Manual Capacity Tables
Floor-standing Type
73
Gross Cooling Capacity (kW)
Outdoor DB(°C) 40.60 46.10 51.70
Indoor WB(°C) 16.10 19.40 22.80 16.10 19.40 22.80 16.10 19.40 22.80
CFM DB(°C) TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI TGC SHC PI
2360
23.9 21.7 17.8 10.56 23.3 13.1 10.80 24.5 5.7 10.95 20.2 16.6 10.75 21.7 12.3 11.01 22.9 5.3 11.26 20.2 16.6 11.83 21.5 12.2 12.19 22.6 5.2 12.44
26.7 22.1 20.1 10.59 23.7 15.4 10.83 25.0 10.8 10.98 20.6 18.7 10.78 22.1 14.3 11.04 23.3 10.1 11.29 20.6 18.8 11.86 21.9 14.2 12.22 23.0 9.9 12.47
29.4 22.6 21.7 10.62 24.2 19.8 10.86 25.5 15.2 11.01 21.0 20.2 10.81 22.6 18.5 11.07 23.8 14.2 11.32 21.1 20.2 11.89 22.4 18.3 12.25 23.5 14.0 12.50
32.2 23.0 22.6 10.64 24.7 22.4 10.88 26.0 19.1 11.03 21.5 21.0 10.83 23.0 20.9 11.10 24.3 17.8 11.35 21.5 21.1 11.92 22.8 20.8 12.28 24.0 17.6 12.53
2600
23.9 22.3 18.7 10.76 23.9 13.8 11.00 25.1 5.9 11.15 20.8 17.5 10.95 22.3 12.9 11.21 23.5 5.5 11.46 20.8 17.5 12.03 22.1 12.8 12.39 23.2 5.5 12.64
26.7 22.7 21.1 10.79 24.3 17.3 11.03 25.6 11.2 11.18 21.2 19.7 10.98 22.7 16.1 11.24 23.9 10.5 11.49 21.3 19.7 12.06 22.6 16.0 12.42 23.7 10.4 12.67
29.4 23.2 22.7 10.82 24.8 20.9 11.06 26.2 15.9 11.21 21.7 21.2 11.01 23.2 19.5 11.27 24.4 14.9 11.52 21.7 21.3 12.09 23.0 19.3 12.45 24.1 14.7 12.70
32.2 23.7 23.7 10.84 25.3 23.4 11.09 26.7 19.9 11.24 22.1 22.1 11.03 23.7 21.9 11.30 24.9 18.6 11.55 22.1 22.1 12.12 23.5 21.7 12.48 24.6 18.4 12.73
3000
23.9 22.8 20.9 11.00 24.4 15.2 11.39 25.6 6.6 11.39 21.3 19.6 11.19 22.8 14.2 11.45 24.0 6.2 11.70 21.3 19.6 12.27 22.6 14.1 12.63 23.7 6.1 12.88
26.7 23.2 23.2 11.03 24.8 19.1 11.27 26.1 12.5 11.42 21.7 21.7 11.22 23.2 17.9 11.48 24.4 11.7 11.73 21.8 21.8 12.30 23.1 17.7 12.66 24.2 11.6 12.91
29.4 23.7 23.7 11.06 25.3 23.2 11.30 26.7 17.7 11.45 22.2 22.2 11.25 23.7 21.7 11.51 24.9 16.5 11.76 22.2 22.2 12.33 23.5 21.6 12.69 24.6 16.3 12.94
32.2 24.2 24.2 11.09 25.8 23.5 11.33 27.2 22.1 11.48 22.6 22.6 11.28 24.2 22.0 11.54 25.4 20.7 11.79 22.6 22.6 12.36 24.0 21.8 12.72 25.1 20.4 12.97
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
4. TGC = Total Cooling Capacity (kW)
5. SHC = Sensible Heating Capacity (kW)
6. PI = Power Input (kW)
Capacity Tables R410A Tropical Split Type Technical Manual
Floor-standing Type
74
R410A Tropical Split Type Technical Manual Electric Characteristics
Floor-standing Type
75
8. Electric Characteristics
Model
Indoor Unit Power Supply IFM
Hz Voltage Min. Max. MCA MFA KW FLA
MFA-76CRN1 50 220-240 198 254 3.5 15 0.59 2.773
MFA-76HRN1 50 220-240 198 254 3.5 15 0.59 2.773
MFA-96CRN1 50 220-240 198 254 3.5 15 0.59 2.773
MFA-96HRN1 50 220-240 198 254 3.5 15 0.59 2.773
Note :
MCA: Min. Current Amps. (A)
MFA: Max. Fuse Amps. (A)
KW: Fan Motor Rated Output (KW)
FLA: Full Load Amps. (A)
IFM: Indoor Fan Motor
Model
Outdoor Unit Power Supply Compressor OFM
Hz Voltage Min. Max. MCA TOCA MFA MSC RLA KW FLA
MOV-76CN1-C 50 380-415 342 438 17.5 18 27 48* 2 6.3*2 0.573 2.613
MOV-76HN1-C 50 380-415 342 438 17.5 18 27 48* 2 6.3*2 0.573 2.613
MOV-96CN1-C 50 380-415 342 438 20 21 31.5 53*2 8*2 1.373 6.26
MOV-96HN1-C 50 380-415 342 438 20 21 31.5 53*2 8*2 1.373 6.26
MOV-120CN1-C 50 380-400 342 440 25 28.6 30 147 21.4 1.373 6.26
MOV-120HN1-C 50 380-400 342 440 25 28.6 30 147 21.4 1.373 6.26
Note:
MCA: Min. Current Amps. (A) TOCA: Total Over-current Amps. (A)
MFA: Max. Fuse Amps. (A) MSC: Max. Starting Amps. (A)
RLA: Rated Locked Amps. (A) OFM: Outdoor Fan Motor
KW: Rated Motor Output (KW) FLA: Full Load Amps. (A)
Sound Levels Tropical Split Type Technical Manual
Floor-standing Type
76
9. Sound Levels
1m
Microphone
1m
Unit Number Model Noise level under three speeds of fan (dB(A))
1 MFA-76C(H)RN1 55
2 MFA-96(H)RN1 56
R410A Tropical Split Type Technical Manual Exploded View
Floor-standing Type
77
10. Exploded View
10.1 MFA-76CRN1
Exploded View R410A Tropical Split Type Technical Manual
Floor-standing Type
78
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Partition board ass'y 1 201286900018 28.7 Wire joint 1 202301450133
2 Fixing board ass'y 1 201286900017 29 E-part box cover 1 201243900000
3 Volute shell ass'y 1 201286900019 30 Base ass'y 1 201243900005
4 Motor up cover 1 201286000007 31 Waterproof boad ass'y 1 201286900031
5 Motor below cover 1 201286000052 32 Drainage pan ass'y 1 201286900046
6 Board 1 201285000321 33 Filter 1 201186900001
7 Supporting board ass'y 2 201286900005 34 Control tablet support 1 201286900041
8 Left panel ass'y 1 201286900023 35 Supporting board ass'y 1 201286900013
9 Fixing board ass'y 4 201286900027 36 1 201543990006
10 Back-left shore ass'y 1 201286900014 36.1
Evaporator input pipe
ass'y
1 201643990020
11 Supporting board ass'y 1 201286900049 36.2 throttle ass'y 1 201643900073
12 Sealed board ass'y 1 201286900047 36.2.1 One way valve 1 201600800166
13 Front-left shore ass'y 1 201286900012 36.3
Evaporator input pipe
ass'y
1 201643990024
14 Pole ass'y 2 201286900006 36.4
Component I output tube
evaporator
1 201643990022
15 Supporting board ass'y 2 201286900003 36.5
Component II output
tube evaporator
1 201643990026
16 Louver ass'y 5 201286900029 37 Side boar d ass'y 1 201286900024
17 Sleeve 10 202786900002 38 Sealed board ass'y 1 201286900048
18 Grille 12 201140500027 39 Filter bar 2 201286900050
19 Link 1 201186900002 40 Pipe preforming 1 201286900040
20 Air outlet frame ass'y 1 201286900028 41 Pipe preforming 1 201286900039
21 Crank 1 201186900003 42 Pillar ass'y 1 201286900015
22 Motor 1 202400100019 43 Cover ass'y 1 201243900003
23 Panel ass'y 1 201286900032 44 Cover ass'y 1 201243900002
24 Capacitor fixing board 1 201286900010 45 Top cover ass'y 1 201243900001
25 Compressor capacitor 1 202401000410 46 Volute shell ass'y 1 201286900020
26 Capacitor clamp 1 201200100010 47 Motor below cover 1 201286000053
27 Compressor capacitor box 1 201226190015 48 Motor up cover 1 201286000008
28
Indoor electric control box
components
1 203343990001 49 Motor bracket 1 201285000306
28.1 Electrical box 1 201286900044 50 Motor 1 202400480012
28.2
Indoor control board
assembly
1 201343900012 51 room temp sensor ass'y 1 202301300197
28.3
Auxiliary fan control board
assembly
1 201386900011 52 Temp.sensor ass'y 1 202301300437
28.4 Transformer 1 202300900093 53 Remote controller 1 203355090107
28.5 Wire joint,5p 1 202301450085 54
Display and control box
components
1 2033439A0008
28.6 Wire joint 1 202301450122 55 Installati on bracket ass'y 1 201155000024
R410A Tropical Split Type Technical Manual Exploded View
Floor-standing Type
79
10.2 MFA-76HRN1
Exploded View R410A Tropical Split Type Technical Manual
Floor-standing Type
80
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Partition board ass'y 1 201286900018 28.7 Wire joint 1 202301450133
2 Fixing board ass'y 1 201286900017 29 E-part box cover 1 201243900000
3 Volute shell ass'y 1 201286900019 30 Base ass'y 1 201243900005
4 Motor up cover 1 201286000007 31 Waterproof boad ass'y 1 201286900031
5 Motor below cover 1 201286000052 32 Drainage pan ass'y 1 201286900046
6 Board 1 201285000321 33 Filter 1 201186900001
7 Supporting board ass'y 2 201286900005 34 Control tablet support 1 201286900041
8 Left panel ass'y 1 201286900023 35 Supporting board ass'y 1 201286900013
9 Fixing board ass'y 4 201286900027 36 1 201543990006
10 Back-left shore ass'y 1 201286900014 36.1
Evaporator input pipe
ass'y
1 201643990020
11 Supporting board ass'y 1 201286900049 36.2 throttle ass'y 1 201643900073
12 Sealed board ass'y 1 201286900047 36.2.1 One way valve 1 201600800166
13 Front-left shore ass'y 1 201286900012 36.3
Evaporator input pipe
ass'y
1 201643990024
14 Pole ass'y 2 201286900006 36.4
Component I output tube
evaporator
1 201643990022
15 Supporting board ass'y 2 201286900003 36.5
Component II output
tube evaporator
1 201643990026
16 Louver ass'y 5 201286900029 37 Side boar d ass'y 1 201286900024
17 Sleeve 10 202786900002 38 Sealed board ass'y 1 201286900048
18 Grille 12 201140500027 39 Filter bar 2 201286900050
19 Link 1 201186900002 40 Pipe preforming 1 201286900040
20 Air outlet frame ass'y 1 201286900028 41 Pipe preforming 1 201286900039
21 Crank 1 201186900003 42 Pillar ass'y 1 201286900015
22 Motor 1 202400100019 43 Cover ass'y 1 201243900003
23 Panel ass'y 1 201286900032 44 Cover ass'y 1 201243900002
24 Capacitor fixing board 1 201286900010 45 Top cover ass'y 1 201243900001
25 Compressor capacitor 1 202401000410 46 Volute shell ass'y 1 201286900020
26 Capacitor clamp 1 201200100010 47 Motor below cover 1 201286000053
27 Compressor capacitor box 1 201226190015 48 Motor up cover 1 201286000008
28
Indoor electric control box
components
1 203343900002 49 Motor bracket 1 201285000306
28.1 Electrical box 1 201286900044 50 Motor 1 202400480012
28.2
Indoor control board
assembly
1 201343900015 51 room temp sensor ass'y 1 202301300197
28.3
Auxiliary fan control board
assembly
1 201386900011 52 Temp.sensor ass'y 1 202301300437
28.4 Transformer 1 202300900093 53 Remote controller 1 203355090100
28.5 Wire joint,5p 1 202301450085 54
Display and control box
components
1 2033439A0008
28.6 Wire joint 1 202301450122 55 Installati on bracket ass'y 1 201155000024
R410A Tropical Split Type Technical Manual Exploded View
Floor-standing Type
81
10.3 MFA-96CRN1
Exploded View R410A Tropical Split Type Technical Manual
Floor-standing Type
82
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Partition board ass'y 1 201286900018 29 E-part box cover 1 201243900000
2 Fixing board ass'y 1 201286900017 30 Base ass'y 1 201243900005
3 Volute shell ass'y 1 201286900019 31 Waterproof boad ass'y 1 201286900031
4 Motor up cover 1 201286000007 32 Drainage pan ass'y 1 201286900046
5 Motor below cover 1 201286000052 33 Filter 1 201186900001
6 Board 1 201285000321 34 Control tablet support 1 201286900041
7 Supporting board ass'y 2 201286900005 35 Supporting board ass'y 1 201286900013
8 Left panel ass'y 1 201286900023 36 Evaporator parts 1 201543990005
9 Fixing board ass'y 4 201286900027 36.1
Evaporator input pipe
ass'y
1 201643990020
10 Back-left shore ass'y 1 201286900014 36.2 Throttle Components 1 201643990037
11 Supporting board ass'y 1 201286900049 36.2.1 Check Valves 1 201600801178
12 Sealed board ass'y 1 201286900047 36.3
Evaporator input pipe
ass'y
1 201643990024
13 Front-left shore ass'y 1 201286900012 36.4
Component I output
tube evaporator
1 201643990022
14 Pole ass'y 2 201286900006 36.5
Component II output
tube evaporator
1 201643990026
15 Supporting board ass'y 2 201286900003 37 Side board ass'y 1 201286900024
16 Louver ass'y 5 201286900029 38 Sealed board ass'y 1 201286900048
17 Sleeve 10 202786900002 39 Filter bar 2 201286900050
18 Grille 12 201140500027 40 Pipe preforming 1 201286900040
19 Link 1 201186900002 41 Pipe preforming 1 201286900039
20 Air outlet frame ass'y 1 201286900028 42 Pillar ass'y 1 201286900015
21 Crank 1 201186900003 43 Cover ass'y 1 201243900003
22 Motor 1 202400100019 44 Cover ass'y 1 201243900002
23 Panel ass'y 1 201286900032 45 Top cover ass'y 1 201243900001
24 Capacitor fixing board 1 201286900010 46 Volute shell ass'y 1 201286900020
25 Compressor capacitor 1 202401000410 47 Motor below cover 1 201286000053
26 Capacitor clamp 1 201200100010 48 Motor up cover 1 201286000008
27 Compressor capacitor box 1 201226190015 49 Motor bracket 1 201285000306
28
Indoor electric control box
components
1 203343990001 50 Motor 1 202400480012
28.1
Indoor control board
assembly
1 201343900012 51 room temp sensor ass'y 1 202301300197
28.2
Auxiliary fan control board
assembly
1 201386900011 52 Temp.sensor ass'y 1 202441200200
28.3 Transformer 1 202300900093 53 Remote controller 1 203355090107
28.4 Wire joint,5p 1 202301450085 54
Display and control box
components
1 2033439A0008
28.5 Wire joint 1 202301450122 55
Remote controller holder
ass'y
1 201131390022
28.6 Wire joint 1 202301450133
R410A Tropical Split Type Technical Manual Exploded View
Floor-standing Type
83
10.4 MFA-96HRN1
Exploded View R410A Tropical Split Type Technical Manual
Floor-standing Type
84
No. Part Name QTY BOM Code No. Part Name QTY BOM Code
1 Partition board ass'y 1 201286900018 29 E-part box cover 1 201243900000
2 Fixing board ass'y 1 201286900017 30 Base ass'y 1 201243900005
3 Volute shell ass'y 1 201286900019 31 Waterproof boad ass'y 1 201286900031
4 Motor up cover 1 201286000007 32 Drainage pan ass'y 1 201286900046
5 Motor below cover 1 201286000052 33 Filter 1 201186900001
6 Board 1 201285000321 34 Control tablet support 1 201286900041
7 Supporting board ass'y 2 201286900005 35 Supporting board ass'y 1 201286900013
8 Left panel ass'y 1 201286900023 36 Evaporator parts 1 201543990005
9 Fixing board ass'y 4 201286900027 36.1
Evaporator input pipe
ass'y
1 201643990020
10 Back-left shore ass'y 1 201286900014 36.2 Throttle Components 1 201643990037
11 Supporting board ass'y 1 201286900049 36.2.1 Check Valves 1 201600801178
12 Sealed board ass'y 1 201286900047 36.3
Evaporator input pipe
ass'y
1 201643990024
13 Front-left shore ass'y 1 201286900012 36.4
Component I output
tube evaporator
1 201643990022
14 Pole ass'y 2 201286900006 36.5
Component II output
tube evaporator
1 201643990026
15 Supporting board ass'y 2 201286900003 37 Side board ass'y 1 201286900024
16 Louver ass'y 5 201286900029 38 Sealed board ass'y 1 201286900048
17 Sleeve 10 202786900002 39 Filter bar 2 201286900050
18 Grille 12 201140500027 40 Pipe preforming 1 201286900040
19 Link 1 201186900002 41 Pipe preforming 1 201286900039
20 Air outlet frame ass'y 1 201286900028 42 Pillar ass'y 1 201286900015
21 Crank 1 201186900003 43 Cover ass'y 1 201243900003
22 Motor 1 202400100019 44 Cover ass'y 1 201243900002
23 Panel ass'y 1 201286900032 45 Top cover ass'y 1 201243900001
24 Capacitor fixing board 1 201286900010 46 Volute shell ass'y 1 201286900020
25 Compressor capacitor 1 202401000410 47 Motor below cover 1 201286000053
26 Capacitor clamp 1 201200100010 48 Motor up cover 1 201286000008
27 Compressor capacitor box 1 201226190015 49 Motor bracket 1 201285000306
28
Indoor electric control box
components
1 203343900002 50 Motor 1 202400480012
28.1
Indoor control board
assembly
1 201343900015 51 room temp sensor ass'y 1 202301300197
28.2
Auxiliary fan control board
assembly
1 201386900011 52 Temp.sensor ass'y 1 202301300437
28.3 Transformer 1 202300900093 53 Remote controller 1 203355090100
28.4 Wire joint,5p 1 202301450085 54
Display and control box
components
1 2033439A0008
28.5 Wire joint 1 202301450122 55
Remote controller holder
ass'y
1 201131390022
28.6 Wire joint 1 202301450133
R410A Tropical Split Type Technical Manual Troubleshooting
Floor-standing Type
85
11. Troubleshooting
Type Code Remarks
EEPROM error E0 Manual reset
Room temp. sensor error E1 Manual reset
Evaporator temp. sensor error E2 Manual reset
Evaporator temp. too low protection in cooling mode P1 Auto reset
Evaporator temp. too high protection in heating mode P2 Auto reset
Troubleshooting R410A Tropical Split Type Technical Manual
Floor-standing Type
86
11.1 E1 malfunction
LED indicate E1
Fault of indoor temperature sensor T1
Judge 1: Whether the indoor temperature
sensor T1 is break off.
Yes
Connects it well.
No
Judge 2: Whether the indoor temperature
sensor T1 is malfunction.
Validate: Check whether the resistance of
the temperature sensor is correct
according to Annex 1.
Replace it.
No
Yes
Judge 3: PCB is malfunction
Replace indoor PCB
R410A Tropical Split Type Technical Manual Troubleshooting
Floor-standing Type
87
11.2 E2 malfunction
Replace it.
LED indicate E2
Fault of indoor temperature sensor T2
Judge 1: Whether the indoor temperature
sensor T2 is break off.
Yes
Connects it well.
No
Judge 2: Whether the indoor temperature
sensor T2 is malfunction.
Validate: Check whether the resistance of
the temperature sensor is correct
according to Annex 1.
No
Yes
Judge 3: PCB is malfunction
Replace indoor PCB
Troubleshooting R410A Tropical Split Type Technical Manual
Floor-standing Type
88
11.3 P1 malfunction
LED indicate P1
Under heating mode, T2 is on high
temperature protection
Judge 1: Check whether the evaporator temperature
sensor T2 is break off.
Connect it well.
Yes
No
Judge 2: Whether the evaporator temperature sensor
is malfunction.
Validate: Check whether the resistance of the
temperature sensor is correct according to Annex 1.
Replace the temperature sensor
No
Yes
Judge 3: Check whether the outdoor ambient
temperature is too high (more than 24℃)
Stop the unit.
Yes
No
Replace indoor PCB
R410A Tropical Split Type Technical Manual Troubleshooting
Floor-standing Type
89
11.4 P2 malfunction
LED indicate P2
Under cooling mode, T2 is on low
temperature protection
Judge 1: Check whether the evaporator temperature
sensor T2 is break off.
Connects it well.
Yes
No
Judge 2: Whether the evaporator temperature sensor
is malfunction.
Validate: Check whether the resistance of the
temperature sensor is correct according to Annex 1.
Replace the temperature sensor
No
Yes
Judge 3: Check whether the outdoor ambient
temperature is too low (less than 17℃)
Stop the unit.
Yes
No
Replace indoor PCB
Troubleshooting R410A Tropical Split Type Technical Manual
Floor-standing Type
90
12. Accessories
Name Qty. Shape Usage
Owner’s manual 1 ---
Installation manual 1 ---
Remote controller manual 1 ---
Water pipe 1 --- Connect to water drainage pipe
Remote controller 1 ---
Remote controller mounting bracket 1 Placed the remote controller
AAA battery 2
---
Outdoor Units R410A Tropical Split Type Technical Manual
Outdoor Units
88
Part 3 Outdoor Units
1. Specifications ................................................................... 89
2. Dimension ......................................................................... 91
3. Service Space ................................................................... 92
4. Wiring Diagrams ............................................................... 94
5. Electric Characteristics .................................................... 97
6. Operation Limits ............................................................... 98
7. Sound Levels .................................................................... 99
8. Exploded View ................................................................ 104
9. Troubleshooting ............................................................. 116
R410A Tropical Split Type Technical Manual Specifications
Outdoor Units
89
1. Specifications
Model MOV-76CN1-C MOV-76HN1-C MOV-96CN1-C MOV-96HN1-C
Power supply - 380~415V-3N-50Hz 380~415V-3N-50Hz
Ambient temp range ℃ 17~52 -7～52 17~52 -7～52
Rated input W 11700 11700 14400 14400
Rated current A 19.3 19.3 23.7 23.7
Noise level dB(A) 65 65 67 67
Compressor
Type - scroll scroll scroll scroll
Qty. - 1 1 1 1
Capacity Btu/h 74500
74500
100000 100000
Input W 6950
6950
9110 9110
Rated current (RLA) A 12.3
12.3
16.6 16.6
Lo ck ed r ot or Am p ( LR A) A 11 0 11 0 11 0 110
Refrigerant
Type - R410A R410A R410A R410A
Charge g 5400 5400 6000 6000
Fan
Type - Axial fan Axial fan Axial fan Axial fan
Dimension mm Φ530 Φ530 Φ530 Φ530
Drive type/ motor step - Direct/ Single Direct/ Single Direct/ Single Direct/ Single
Motor input W 310+292 310+292 670+644 670+644
Motor speed rpm 928/942 928/942 1250/1220 1250/1220
Coil
Type - Copper tube and aluminum fin Copper tube and aluminum fin
Tube size mm Φ7.94 Φ7.94 Φ7 Φ7
No. of rows - 2 2 3 3
Fin per inch FPI 18 18 19 19
Length * height mm 2185*880 2185*880 2179*882 2179*882
Refrigerant
piping
Liquid side/ Gas side mm Φ9.52/Φ22 Φ9.52/Φ22 Φ9.52/Φ25 Φ9.52/Φ25
Max. pipe length m 50 50 50 50
Max. difference in level m 30 30 30 30
Connection
wiring
Power wiri ng mm2 5×6.0 5*6.0 5*6.0 5*6.0
Signal wiring mm2 2×1.0 4*1.0 2*1.0 4*1.0
Dimension (W*H*D) mm
1255*700*908 1255*700*908
1255*700*908 1255*700*908
Packing (W*H*D) mm
1320*730*1060 1320*730*1060
1320*730*1060 1320*730*1060
Net/ Gross weight kg
171/190 174/193 185/202 187/204
Shipping Qty per 20'/40'/40'HD pcs
24/54/54 24/54/54 24/54/54 24/54/54
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent refrigerant piping: 7.5m (horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. piping: 7.5m (horizontal)
Specifications R410A Tropical Split Type Technical Manual
Outdoor Units
90
Model MOV-120CN1-C MOV-120HN1-C
Power supply - 380~400V-3N-50Hz
Ambient temp range ℃ 17~52 -7～52
Rated input W 17300 17300
Rated current A 28.6 28.6
Noise level dB(A) 69 69
Compressor
Type - scroll scroll
Qty. - 1 1
Capacity Btu/h 118000 118000
Input W 10862 10862
Rated current (RLA) A 21.4 21.4
Locked rotor Amp (LRA) A 147 147
Refrigerant
Type - R410A R410A
Charge g 7200 7200
Fan
Type - Axial fan Axial fan
Dimension mm Φ530 Φ531
Drive type/ motor step - Direct/ Single Direct/ Single
Motor input W 621+587 621+587
Motor speed rpm 1230/1180 1230/1180
Coil
Type - Copper tube and aluminum fin
Tube size mm Φ7 Φ7
No. of rows 3 3
Fin per inch FPI 19 19
Length * height mm 1376*880 1376*880
Refrigerant
piping
Liquid side/ Gas side mm Φ12.7 / Φ28.6 Φ12.7 / Φ28.6
Max. pipe length m 50 50
Max. difference in level m 30 30
Connection
wiring
Power wiri ng mm
2
5*6.0 5*6.0
Signal wiring mm
2
2*1.0 4*1.0
Dimension (W*H*D) mm
1255*908*700 1255*908*700
Packing (W*H*D) mm
1295*1025*700 1295*1025*700
Net/ Gross weight kg
199/215 201/217
Shipping Qty per 20'/40'/40'HD pcs
24/54/54 24/54/54
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent refrigerant piping: 7.5m (horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. piping: 7.5m (horizontal)
R410A Tropical Split Type Technical Manual Dimensions
Outdoor Units
91
2. Dimension
2.1 MOV-76CN1-C, MOV-76HN1-C, MOV-96CN1-C, MOV- 96HN1-C
MOV-120HN1-C, MOV-120CN1-C
Unit: mm
Service Space R410A Tropical Split Type Technical Manual
Outdoor Units
92
3. Service Space
3.1 MOV-76CN1-C, MOV-76HN1-C, MOV-96CN1-C, MOV-96HN1-C
MOV-120HN1-C, MOV-120CN1-C
Air outlet
Air inlet
ir inlet
≥1000 mm
≥1000 mm
≥500 mm
≥1000 mm
≥1000 mm
Note:
1. In case any obstacles exist above the outdoor unit, such obstacles must be 2000mm above the outdoor unit.
2. If miscellaneous articles are piled around the outdoor unit, such articles must be 400mm below the top of the outdoor unit.
R410A Tropical Split Type Technical Manual Dimensions
Outdoor Units
93
Foundation of the outdoor unit
7
5
7
m
m
6
7
1
m
m
1
0
H
P
15×20 rectangular hole
≥500 mm
≥500 mm
M12 foundation bol
t
4 screws for 1 unit
94
4. Wiring Diagrams
4.1 MOV-76CN1-C, MOV-96CN1-C, MOV-120CN1-C
Item Name Item Name Item Name Item Name
COMP Compressor HEAT(A) Crank RT3A Pipe temp. sensor T1 Transformer
FAN1-2 Outdoor fan CT1 Current detector RT4 Room temp. sensor SW1-3 Switch
CAP1-2 Fan capacitance XT1-2 4-way terminal XS1-5, XP1-5 Connectors C1 Filter capacitor
S.V 4-way valve XT3 3-way termin al L-PRO(A) Low pressure switch KM1-2 Relay
KM(1) AC contactor H-PRO(A) High pressure switch K1 Temp. protect switch CN8-208 P.C. board socket
XT4-10 Middle wire joint - - - - - -
Wiring Diagrams
R410A
Tropical Split Type Technical Manual
Outdoor Units
95
4.2 MOV-76HN1-C, MOV-96HN1-C, MOV-120HN1-C
Item Name Item Name Item Name Item Name
COMP Compressor HEAT(A) Crank RT3A Pipe temp. sensor T1 Transformer
FAN1-2 Outdoor fan CT1 Current detector RT4 Room temp. sensor SW1-3 Switch
CAP1-2 Fan capacitance XT1-2 4-way terminal XS1-5, XP1-5 Connectors C1-3 Filter capacitor
S.V 4-way valve XT3 3-way termin al L-PRO(A) Low pressure switch KM1-2 Relay
KM(1) AC contactor H-PRO(A) High pressure switch K1 Temp. protect switch CN8-208 P.C. board socket
XT4-10 Middle wire joint - - - - - -
R410A
Tropical Split Type Technical Manual Wiring Diagrams
Outdoor Units
96
Loading...
