Mitsubishi Electric MR-G57N Operating Instructions Manual

MR-G57N

OPERATING INSTRUCTIONS

Non-Freon Refrigerators

This refrigerator uses non-Freon refrigerant (isobutane) and non-Freon foam insulation (cyclopentane). These materials are harmless to the environment, and do not affect the ozone layer and global warming.

Refrigerator-Freezer

User-friendly

Elevating Shelves

Cool from the front side

Shelves can be adjusted up or down shelf without having to remove already stored items. Storage capacity of the refrigerator compartment is maximized.

Surround Cooling System Cold air is directed into the refrigerator from the front, back and both sides of the compartment. This ensures uniform cooling throughout the compartment.

Pure clear ice

UV Catalyst and Lead reducing filter removes bacteria with the power of light and enhances the flavor of water. Enjoy Pure clear ice cubes using tap water or mineral water.

Vitamin Factory vegetable compartment

Not only keeps freshness but also enhances nutrition. Just by placing vegetables inside, vitamins and polyphenols can be enhanced by the power of light.

page

Refrigerator

Ice

Versa

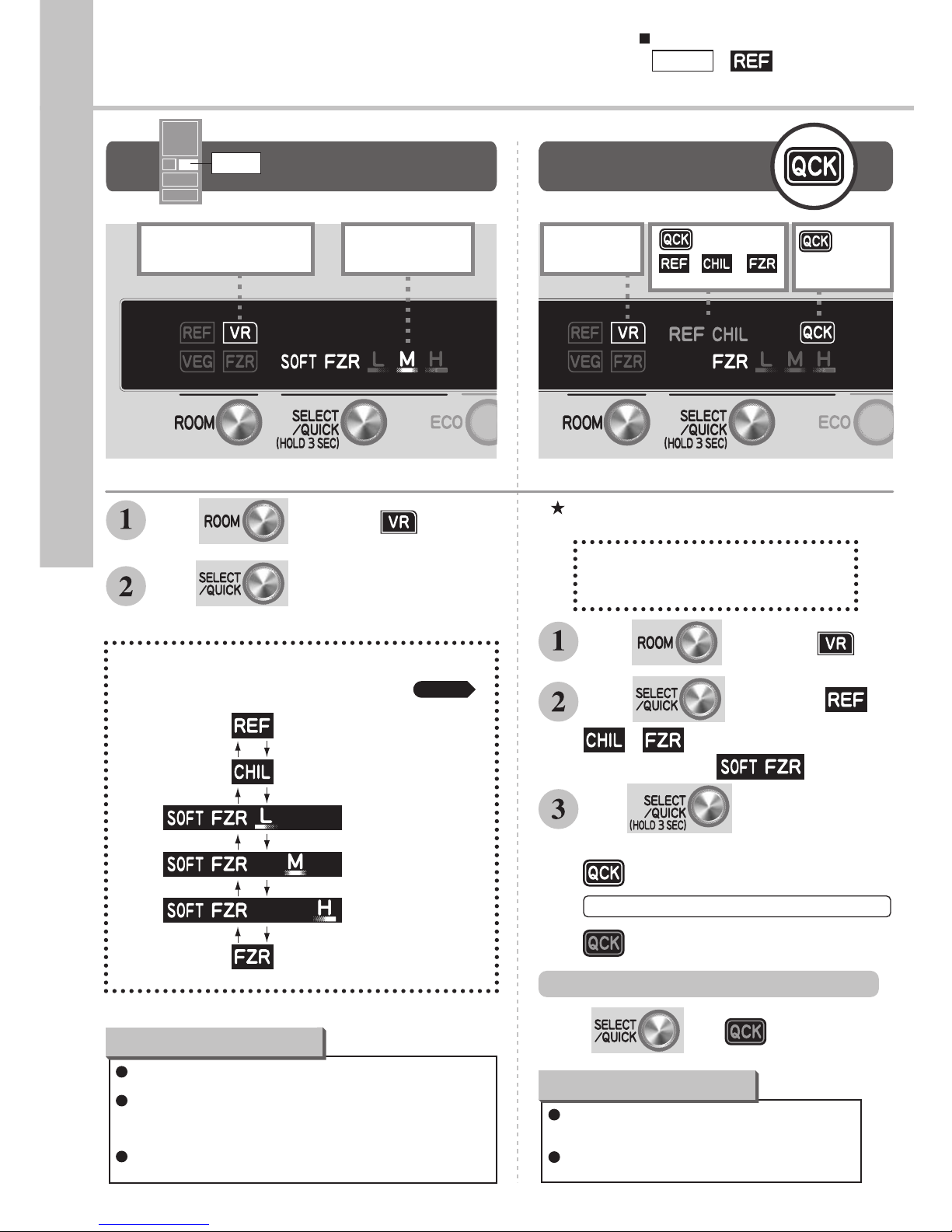

Soft freezing

Chilled

Refrigerator

Freezing

Vegetable

Freezer

Universal Design and Layout

Frequently used fridge sections are located at eye level for easy use. This feature-rich model offers many other conveniences.

Non-Freon Refrigerator

This refrigerator uses non-freon refrigerant and non-freon foam insulation material. Non-freon refrigerant (isobutane) and non-freon foam insulation material (cyclopentane) do not deplete the ozone layer and their contribution to global warming is extremely low, and are environmentally-friendly substances.

This refrigerator is manufactured for refrigerating and freezing foods in general households. For industrial use, please use a commercial refrigeratorfreezer. Key plastic parts of the refrigerator have the material name on them to facilitate recycling.

CONTENTS

Safety Precautions

From Installation to Operation

Smart Tips for Using the Refrigerator

Using Compartments

Maintenance

Troubleshooting

Soft-Freezing

Food can be stored in small pieces as they can be sliced in frozen state, requiring no thawing, reducing time needed for cooking.

page

12,18

Silent Design

Our new original technology has enabled low noise level of 17dB(A).

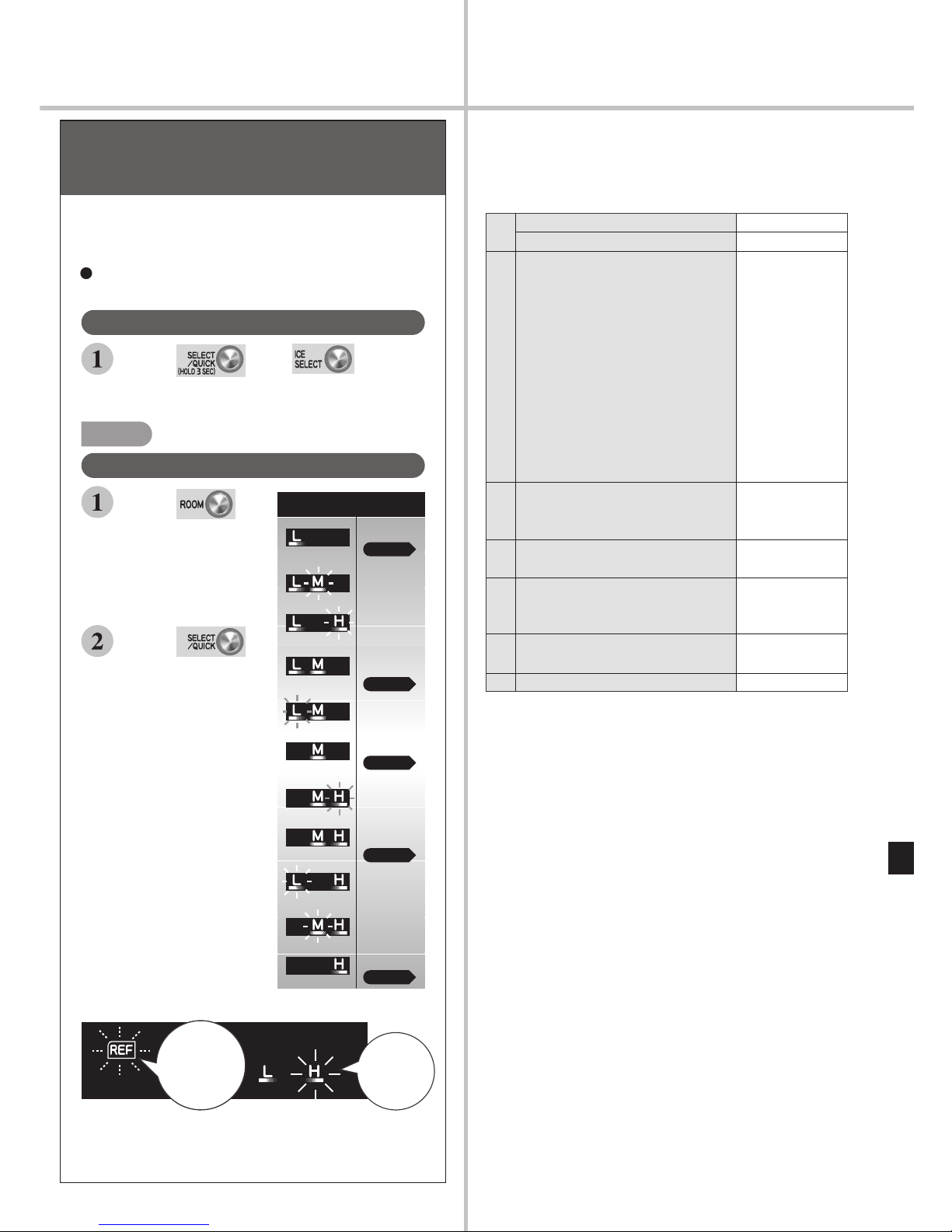

Meanings and Functions Setting the Refrigerator, Vegetable

and Freezer Compartments Setting the Ice Making Compartment Setting the Versa Compartment Other Settings

Refrigerator Compartment Vegetable and Freezer Compartments Versa Compartment Soft Freezing(Sliceable Frozen Food) Ice Making Compartment (Automatic Ice Maker)

Maintaining the Automatic Ice Maker Assembling Water Supply Pump and Pipe Removing and Maintaining the Accessories

What to do

(during blackout, during long periods

of non-use and during transport)

Specifications Troubleshooting

Safety Precautions

Warning

Installation and transportation

Caution

page

Unstable anchoring can cause the refrigerator to move and lead to injury.

Anchor the refrigerator to a strong and level floor by adjusting the adjustable supports

Holding other parts can cause injury.

Use transport hand-holds when transporting the refrigerator

Install level

Grip hand-holds

Power and power plug

Non-removal of plug can cause electric shock or injury.

Remove power plug before changing interior light bulb or maintenance

Can cause damage to the cord, electric shock or fire.

Do not pull on the power plug or cord to unplug it.

Can cause electric shock or fire.

Do not use damaged cords, plugs, or loose sockets

Dust can cause insulation failure, which may lead to fire.

Remove dust from power plug

Can cause electric shock.

Do not remove or insert power plug with wet hands.

Remove plug Prohibited

ProhibitedDo not use

Remove dust

Wet hands prohibited

Do not push the refrigerator on to or against the power cord. Do not damage power cord.

Placing heavy objects against or on, folding or bundling cord can cause electric shock or fire.

Meaning of symbols

Danger and the degree of danger caused by improper handling are categorized and described by the following indicators.

Improper handling can result in death, serious injury, etc.

Improper handling can result in personal injury or damage to house, household furnishings, etc.

Safety

Precautions

Caution

Warning

Never do

Never touch

Never attempt to dismantle, repair or alter

Never bring into contact or wet with water

Never touch when your hand is wet

Be sure to follow instructions for execution

Be sure to remove the power plug from the socket

In the case of malfunction or defect, immediately unplug the refrigerator and consult the retail store at which you purchased it or a Mitsubishi Electric Maintenance Service or Customer Service representative.

Leaking refrigerant can accumulate, then catch fire and explode.

Insulation failure can cause electric shock or fire.

Avoid installing the refrigerator in an easily wet or highly humid area

page

Leave space around the refrigerator

Leave space

Do not wet

Installation

The refrigerator can tip over and cause injury.

Anchor the refrigerator to a strong wall or posts to provide against damage during earthquakes

Insert prongs to the root of plug firmly otherwise it can cause heat build-up and fire.

Insert prongs to the root of plug

If the power cord is damaged, purchase a new cord from MITSUBISHI SERVICE CENTER. Make sure that the power cord is designed for this model.

If the power cord is damaged, call our MITSUBISHI SERVICE CENTER for the replacement.

page

Service Call

Tip-resistance

Using extension cords and plugging too many leads into a single socket can cause heat build-up or fire.

Use a dedicated outlet for the power supply that meets the rating specified on the rating label. (The rating label is located on the door-liner of the refrigerator compartment.)

page

Only use an outlet that meets the specified rating.

Warning

Use

Malfunction and long-term storage

Caution

Can cause food items to fall and injury.

Do not excessively pack with food items, or remove shelves or open doors with excessive force

Can cause injury if content of the bottle freezes, causing the bottle to shatter.

Do not place bottles in the freezer compartment

Can cause food poisoning or illness.

Do not eat smelly or discoloured food

Can cause frostbite.

Do not touch food items or containers in the freezer compartment with wet hands

Steel plates, etc. can cause injury.

Do not put your hands or feet underneath the refrigerator

Be careful not to catch fingers in the door when you hold it. Can cause injury.

Close the door using the door handles

Sparks from electrical contacts can cause explosion or fire.

If you notice gas leakage, do not touch the refrigerator. Open windows to ventilate.

The refrigerant is flammable, which can cause explosion or fire.

Do not damage the refrigerant circuit or the pipes nor mount anything with screw

Water and food liquids can cause electric shock or fire. Immediately wipe clean wet surfaces.

Do not wash with water or spill food liquids on the refrigerator

Sparks from electrical contacts can cause inflam-mation or fire.

Do not place combustible sprays near the refrigerator

The refrigerator may tip over and cause injury.

Do not hang on door or door handle; do not stand on compartment doors

Objects may fall when doors are opened and closed and cause injury.

Do not place objects on top of the refrigerator

Benzene, cosmetics and hair dressing products can catch fire or explode.

Do not place volatile inflammable objects inside the refrigerator

If the refrigerant leaks and contacts the electrical appliance, it can cause explosion or fire.

Do not use electrical appliances in the refrigerator

Items that require strict management should not be stored household refrigerators.

Do not store chemicals or scientific specimens in the refrigerator

Using non-designated bulbs can cause fire.

Use only interior bulbs with designated rating.

Wetting electrical parts can cause electric shock or fire.

Do not place containers with water on top of the refrigerator

Can cause injury when icemaker plate revolves.

Do not touch the machinery of the automatic icemaker (located above the ice storage bin)

Continued operation during malfunction can cause electric shock or fire.

In the event of malfunction (when you detect a burning odour or other abnormality), remove the power plug from the socket turn off the refrigerator

If the refrigerant circuit is damaged, consult the retail store.

If the refrigerant circuit is damaged, do not touch the refrigerator and avoid using flames nearby. Open windows to ventilate.

Can cause injury, electric shock or fire.

Do not attempt to dismantle, repair or alter

Children can be put in danger if they are trapped inside the refrigerator.

When refrigerator is not in use for a long period, remove the door seal

If not dried sufficiently, refrigerant (gas) can leak due to condenser corrosion and cause explosion or fire.

When the refrigerator is not in use for a long period, remove the power plug from the socket and open the door to dry the refrigerator

This refrigerator uses flammable refrigerant and foaming gas for insulation. Please deliver the unit to specialized industrial waste dealer when you wish to dispose of it. Please follow the rules in your country.

ProhibitedProhibited Do not store

Wet hands prohibited

Do not touch

Ventilate

Prohibited

Do not wet Do not use

Prohibited

Do not storeProhibited

Do not store

Designated products only

Do not wet

Do not touch

Remove plugVentilate

Do not dismantle

Remove seal Dry Dispose of properly

page

Hold door handle

Install the refrigerator.

Installation area

Use a dedicated outlet

Warning

At least 10cm

At least 2cm

Non-freon refrigerants are flammable gas. However, it is hermetically sealed, therefore, leaking is infrequent.

1. Do not use electric items or fire equipments near by.

2. Open the window and ventilate the room.

And then contact the retail store you have purchased from for further instructions.

Heat builds up in exterior walls of the refrigerator

When the refrigerator is first used and during the summer heat build-up can exceed 50-60˚C

to allow heat to escape from the ceiling and the sides of the refrigerator

Dedicated outlet that meets the specified rating.

Warning

Just in case of having damaged the refrigerant circuit.

Using outlets that do not meet the specified rating or plugging in too many leads into a single socket can cause heat build up or fire.

Do not close the ventilation hole of the refrigerator or the crack around the refrigerator. If the refrigerant leaks, ignition or explosion may be caused.

Connect the power supply.

*Connect power supply soon after installing the refrigerator.

Make sure this unit is properly grounded.

Use a dedicated outlet for the power supply that meets the rating specified on the rating label. (The rating label is located on the door-liner of the refrigerator compartment.)

Prevention of television noise or image disturbance.

A place away from other devices

The installation area should not be exposed to direct sunlight or hot air, and should be well-ventilated

to avoid diminished cooling power and to economise on the cost of electricity.

to prevent rusting

It should have little humidity

to prevent vibration and noise, half-shut doors, and tilted doors.

It should be strong and level

Install a strong plate or board under the refrigerator if the supports easily sink into the floor. (For prevention of deformation or discoloration due to heat or weight)

Electrical Connections

The unit should always be plugged into its own electrical outlet. This will provide the best performance and prevent electrical circuits from being overloaded and causing a fire. Make sure that the electrical outlet provides the proper voltage. Extension cords are not recommended.

The refrigerator will not be damaged even if the power is supplied soon after installation. It takes a while for the refrigerator to cool, therefore supply power as soon as possible.

Leave space for heat ventilation

Do not cause damage to refrigerant circuit (piping) / Do not attach screws.

Leave at least 2cm of space on the right and left and 10cm of space between the ceiling and the top of the refrigerator

From Installation to Operation

If your unit is installed in the high humidity location, not only ground connection but also installation of an earth leakage breaker is recommended.

If the power cord is damaged, purchase a new cord from MITSUBISHI SERVICE CENTER. Make sure that the power cord is designed for this model.

If the power cord is damaged, call our MITSUBISHI SERVICE CENTER for the replacement, in order to avoid a hazard.

adjustable support

caster Leg cover

Adjustment and Anchoring

Turn the adjustable supports until they touch the floor and the casters are raised from the floor

Leg Cover

Insert into the bottom space from the front side of the refrigerator.

(The leg cover is bundled in the refrigerator compartment before shipment from the plant.)

Adjusting tilted doors and an uneven refrigerator

If the installation area is not level or the refrigerator supports sink after a few days due to the weight of the food, the door will appear lower. (Depending on the quantity of food, the food weight can exceed 100 kg.) Turn the adjustable support in the direction given below for readjustment.

Thread strong belts through the 2 handy-grip recesses on the top-rear of the refrigerator and secure them to the wall, posts or another strong area

For example, if the refrigerator is installed in the corner of a room, one of the rear supports may sink into the floor. Use a caster stand (sold separately) or strong plate at the rear of the refrigerator. (In general, the plate should be 2-3 mm thick.) To obtain a caster stand, contact your retail store.

Make sure that leg cover surface is level

Prepare for earthquakes

to prevent vibration and noise, transmigration and half-shut doors

Insufficiently adjusted supports can cause injury due to migration of the refrigerator.

Turn each adjustable support in the arrow direction until they touch the floor.

Caution

Warning

Level the refrigerator left to right, with the front of the refrigerator raised slightly, so that the doors close easily and to prevent half-open doors.

The right door sags down

adjustable support

rear support

Strong belts

right left

The left door sags down

Handle hole

wipe wrap

Leg cover

Nail

Leg Handle

Your refrigerator tipping over can cause injury.

1Pull out the freezer

compartment door and take out the case.

2With the freezer door open,

insert the nail of leg cover into the handle hole in the length direction as far as possible.

3Push down until the leg cover is

almost level.

How to attach leg cover

page

The deodoriser cannot remove odour completely.

Foods that tend to spread odour

Be sure not to catch food items, plastic bags, power cords, etc. in the door when you close it.

Helpful storage hints

Leave space between items in the refrigerator.

Avoid opening and closing the door unnecessarily and leaving the door open for a long time.

Allow large quantities of food to cool before storing.

Use your refrigerator efficiently to save electricity

Securely pack foods with strong odours for storing.

Frost build-up can cause decline in cooling ability as a result of even the slightest door opening

Pickled scallions, dried fish, fermented soybeans (natto), miso, beef, pickled radish, sardine, hot Korean pickles, Chinese meat dumpling, etc.

Foods that tend to be affected by odour

Pudding, ice cream, potato salad, tofu, rice, bread, milk, cake, ice, etc.

Do not keep pressing (about 3 seconds) .

page

10,12

Illuminated during quick cooling.

The temperature control mode of the selected compartment is displayed.

The selected compartment is illuminated.

Temperature

control display

Compartment

display

QCK

display

Short note for users:

This control panel displays “What is selected for the ice making compartment” and “What is the set temperature” for the refrigerator, versa, vegetable and freezer compartments.

The product is set at “M” for refrigerator, vegetable and freezer compartments, “REF” for versa compartment and “REG” for the ice making compartment at the time of installation (purchase).

The display will turn off after 30 seconds if no button is pressed.

The display will come on if any button is pressed.

Press this button to select the temperature control mode.

Pressing this button for a long time will reset the control panel. Do not press for a long time except when you want to reset the panel.

The display changes each time is pressed.

Press this button to change the compartment displayed.

ROOM button

SELECT button

QUICK (HOLD 3 SEC) button

Fast cooling cannot be performed when the versa compartment is set at soft freezing mode.

Pressing “QUICK” will cause the buzzer to emit “peep, peep” tone.)

Freezer

Vegetable

VersaRefrigerator

Short note for users:

Smart Tips for Using the Refrigerator

The Display and

their Meanings

Display panel Selection buttons

Meanings and Functions

Press this button for fast cooling.

For refrigerator, vegetable and freezer compartments For versa compartment

page

Note

page

Illuminated during energy-saving mode.

Child safety lock

When this indicator is displayed, it rejects any mischievous tampering or unintentional pressing of control panel settings.

The selected ice making compartment mode is illuminated.

Ice making

compartment mode

ECO

display

Ex.: How to read indications when the versa drawer compartment is displayed

It indicates that the temperature control for the versa is set to “soft freezing/medium” level.

It indicates the versa compartment is selected now.

The ice making mode for the ice making compartment is set at “Regular”.

Press this button to select energy-saving mode.

Note

Press this button to change the icemaking mode or to stop ice making or to start fast cooling.

Press this button to clean the ice tray.

ECO button ICE SELECT button

ICE MAKER CLEANING (HOLD 5 SEC)

Refrigerator

Vegetable

Freezer

Ice making

Versa

If all indicators blink 3 times every 30 to 60 seconds or if the compartment display and temperature control display on the control panel repeatedly, it means that the refrigerator is in demonstration operation mode. The refrigerator suspends its cooling function during this mode. The demonstration operation mode must be cancelled manually.

Short note for users:

Do not press the button for a long time unless you want to select ice maker cleaning.

Otherwise, the ice tray will be cleaned (rinsed). Do not press and hold the button unless you want to clean (rinse) the ice tray.

page

Compartment display

to display the

compartment you want to cool fast.

The display will change at each press.

and hold for 3 seconds

(Until a “beep” sound is heard)

page

to display the compartment

you want to change the temperature control mode.

The display will change at each press.

control mode.

Press

to change the temperature

* The above illustration is an example.

Settings may be different according to the selected mode.

Display the compartment which you want to control the temperature.

Check here to control the temperature.

* The above shows only rough standard. The temperature may vary according to

the usage conditions, such as how foods are stored and opening/closing frequency of refrigerator door.

The temperature inside the refrigerator may temporarily increase or decrease before and after defrosting.

Short notes for users:

Temperature control

Freezer

Vegetable

Refrigerator

Setting at the time of installation (purchase)

Freezer

Vegetable

Refrigerator

indicator goes off.

The cooling is automatically completed after about 2 hours.

indicator comes on.

To stop the operation halfway through

Fast cooling

is displayed

during fast cooling.

Refrigerator Vegetable Freezer

Fast cooling of versa compartment

Slightly cool

Standard

Much cooler

Slightly cooler

2 to 3°C higher than “M” level

1 to 2°C higher than “M” level

1 to 2°C lower than “M” level

2 to 3°C lower than “M” level

Around 0 to 6°C

2 to 3°C higher than “M” level

1 to 2°C higher than “M” level

0 to 1°C lower than “M” level

1 to 2°C lower than “M” level

Around 3 to 9°C

2 to 3°C higher than “M” level

1 to 2°C higher than “M” level

1 to 2°C lower than “M” level

2 to 3°C lower than “M” level

Around

-16 to -22°C

Fast cooling is used for home freezing or cooling bulk purchased foods fast.

Temperature control mode for the versa compartment

Setting the Refrigerator, Vegetable and Freezer Compartments

The display will change at each press.

Temperature control

Too cool

During Fast cooling, the noise from the refrigerator will become higher due to high speed cooling.

Short note for users:

Display the compartment which you want to control the temperature.

Press

and

indicator comes off.

* The above illustration is an example.

Settings may be different according to the selected mode.

Smart Tips for Using the Refrigerator

repeatedly to make your

required ice maker setting blink.

The display will change at each press.

Press

page

Press

repeatedly

Press

to display .

Press

repeatedly and select “H” if you want to

make clearer ice cubes or “L” if you want to increase crystal ice making time. The selected mode will blink.

Select this mode when you want to make a large quantity of ice.

Select this mode when you want to make ice quickly.

Select this mode when you want to make crystal clear ice.

It will take more time compared to “REG” mode (about 5 to 8 hours).

Select this mode when you do not use ice such in winter time.

The compartment can be used for frozen food storage. Before using this compartment as a freezer, clean the water supply system.

Ice making mode can be selected from 4 types.

(Regular ice making)

(Crystal ice making)

(Quick ice making)

(Stop ice making)

Display the ice making compartment

Ends automatically

indicator goes off and then

indicator goes on.

It automatically completes after operating for about 9 hours, when the ice storage bin is full of ice (about 60 to 100 pieces) or when no water is left in the water tank.

Selecting ice making modes

Quick ice making mode

Ice making

, and

simultaneously and hold for about 3 seconds.

(Until a “beep” sound is heard)

Settings for crystal ice making time and clarity

Display

Ice making time

Faster than “M”

70 to 80% of ice

80 to 90% of ice

90% or more of ice

About 5 to 8 hours

Slower than “M”

Clarity (percentage

of clear area)

LMH

To improve clear ice

To increase crystal ice making time

indicator turns on and whichever applicable, will blink. Displays of other compartments will be extinguished

temporarily.

Blinking

Ice Making

Setting the Ice Making Compartment

Setting at the time of installation (purchase)

During “QCK” mode, the noise from the refrigerator will become higher due to high speed cooling.

Short notes for users:

The ice making time differs according to the ambient temperature and conditions of usage.

Immediately after installation, it may take more than 24 hours to make ice even if “QCK” mode is selected.

The display will turn off after 30 seconds if no button is pressed.

Short notes for users:

The display will come on if any button is pressed.

It is set at “M” at the time of installation (purchase)

Selecting “L,” “M” or “H” will light only .

After a while, a “beep” sound is heard and the blinking display is left and after 2 seconds, it will stay lit and the mode is set to the lighting display. Display of other compartments will be reset to the previous display.

* The above illustration is an example.

Settings may be different according to the selected mode.

Versa compartment can be selected from 6 choices.

* No Fast cooling for

Fast cooling is OK with food inside. After Fast cooling the temperature will

be reset to its previous set temperature.

Versa

Setting at the time of installation (purchase)

Temperature Control

Versa

* The above illustration is an example.

Settings may be different according to the selected mode.

Versa compartment is displayed.

Check here to control temperature mode.

and display .

your required temperature control mode.

Press

repeatedly and change to make

About -7°C (M)

About -17°C

About 0°C

About 3°C

page

The temperature inside may increase or decrease temporarily before and after defrosting.

If soft freezing is selected, freezing takes place at about -7°C and it may take about 24 hours until the food is completely frozen.

Short notes for users:

When the versa compartment is set at soft freezing mode, fast cooling will not take place. Press QCK until a “beep” sound is heard.

During fast cooling, the noise from the refrigerator will become higher due to high speed cooling.

Short notes for users:

illuminated during fast cooling.

Fast cooling is used for home freezing or cooling

bulk purchased foods fast.

Versa compartment is displayed.

is selected.

, or

is effective when

Fast cooling

and display .

Press

, whichever is applicable.

Press

and display ,

and hold for 3 seconds

(Until a “beep” sound is heard)

indicator goes off.

is displayed.

Press

and

indicator goes off.

The cooling is automatically completed after about 2 hours.

To stop the operation halfway through

* The above illustration is an example.

Settings may be different according to the selected mode.

Smart Tips for Using the Refrigerator

Setting the Versa Compartment

Press

Selected modes at the time of installation

on the panel lights.

Energy-saving Running

If rejects any mischievous tampering or unintentional pressings of control panel settings.

To reset “ROOM”, “SELECT”, “QUICK” and “ECO” to the mode they were set at the time of installation.

When there’s no opening or closing of door during night time or when you are not home.

The refrigerator automatically switches between Energy-Saving Operation Mode and Normal Operation Mode to minimize the energy consumption.

turns on.

* Even if child safety lock is on, compartment can

be selected

Child Safety Lock

If you want to reset

ROOM

SELECT

QUICK

•

ECO

Indicators go off

Press ECO button again.

To cancel

Temperature control of versa compartment will not change.

If the ice making compartment was set at ,

it will be .

It will be the same as when other settings were made.

lights on

The display will turn off after 30 seconds if no button is pressed.

Short notes for users:

The display will come on if any button is pressed.

at the same time and hold for 3 seconds.

(Until a “beep” sound is heard)

Follow the operation explained above.

To cancel

and hold for

about 3 seconds.

Press

(Until a “beep” sound is heard)

Freezer

Vegetable

Refrigerator

Other Settings

Move the lever on the front of the shelf left or right to adjust the shelf to the desired position.

The lever will be difficult to move when heavy items are placed on the shelf. When the Elevating Shelves are lowered, one of the shelf supports may come off if

the shelf contacts any foods under the shelf. To prevent from any damage of foods. If one of the supports comes off, push it back into position from above.

Move the lever to the right to raise the shelf. Move the lever to the left to lower the shelf.

How to remove the shelf

page

Short notes for users:

The interior light will turn off temporarily if it is lighted for 60 minutes continuously. Close the door thereafter and the interior light will turn on each time the door is opened.

Two-way Flexishelf

Elevating Shelves

As a wide shelf

Make the shelf to the half

size for taller foodstuffs

Change pocket (large)

Interior light

Lid of slide chilled case

Slide chilled case

Bottle pocket (large)

Free egg shelf

Elevating Shelves

Change pocket (small)

Elevating Shelves

Bottle pocket (small)

Rotating partition

Two-way Flexishelf

Door alarm

If one of the doors is left open for more than 1

minute, a “beep” sound is heard, notifying fridge

temperature and energy efficiency are affected.

(Refrigerator compartment, ice making

compartment and freezer compartment)

Prevents wasteful leakage of cool air and

reduces wasteful power consumption.

Small item case

The rotating partition may get damaged, when it is turned up

Using Compartments

Refrigerator Compartment

Do not leave food items hanging over the edge of the shelves. Do not place bottles that can not reach the bottom of the compartment in the front row of the bottle pocket.

Doing so can cause half-shut doors and broken bottles.

In the following cases, the items in the slide chilled case may be frozen. Please set the refrigerator compartment temperature to “M”, “LM” or “L”.

Do not close the door of the refrigerator with the items in front of the slide chilled case

Be sure to properly replace and cover the case with the lid

Do not set a commercial tube stand outside the door pocket

Set the large tubes at the back

When the temperature for the refrigerator is set to “H” When the ambient temperature becomes 5°C or less (in winter)

Failure to do so may prevent the door from closing properly, cause insufficient cooling, items to drop from shelves, injury and damage to the case or lid.

Not doing so can cause the tubes to fall out from its original position.

Change pocket

Each pocket at the right and left sides can be hung in two different positions.

How to remove the pockets

page

The case is automatically set to “CHIL”. The temperature cannot be adjusted using the control panel.

To store meat, fish, processed foods (such as fish paste, ham, etc.), yogurt, etc.

Lid of slide chilled case

Open the lid by pulling the case toward you.

The case is automatically set to “CHIL”.

Do not store food that freeze easily.

Small item case

The case can be used for storing various items including eggs and small articles according to your idea.

Note

Do not place food items over storage limit line in the lower freezing case.

Food storage limit line

Freezing case (top)

Door alarm

Freezing case (bottom)

For freezing only Freezable 500 mL PET bottles can be placed in upright.

Slide case

2L PET bottles can also be stored.

Lighting up vegetables to enhance vitamin and polyphenol

Vegetables are still alive even after they are harvested. Exposure to light can enhance nutritiousness of vegetables.

*Orange LEDs 3 locations

Those LEDs are always on.

*Purple LED 1 location *Blue LED 1 location

LEDs are controlled to illuminate for 160 minutes per day. They may be off when you open the door.

Do not disassemble or spray water on the LEDs.

Water penetration may cause malfunction.

As long-life LEDs are used, normally, no replacement is necessary.

Door could not be totally closed and could damage food items or the freezing case.

Do not place anything other than freezable PET bottle beverages. Frozen liquid may cause the bottle to break.

LEDs (Top of the compartment)

Asparagus and cucumbers can be stored upright.

Vegetable case

Vegetable pocket

Note

page

Short notes for users:

Do not place tall objects under the slide case

Tall objects may cause damage to food or the slide case. If the slide case was removed and not used, it may cause the vegetable compartment to get dry.

There are no such foods that cannot be stored under the LED light. Simply store them in the usual manner.

Even with poor light, vegetables increase nutrients. Then there is no need to unwrap the covers, unless they shut out the light.

Cover vegetables and fruit in plastic wrap to preserve freshness.

Vegetable nutrients will not continue to increase forever. The storage stability will depend on the freshness when bought. Please use the freshest vegetables available.

The vegetable compartment has high humidity, therefore the bottom of each case may become cloudy or condensation may form when a large amount of leafy vegetables is placed in the vegetable compartment. If condensation collects in the bottom of a case, it will cause the case to become dirty, therefore wipe the case with a dry cloth.

Note

Using Compartments

Vegetable and Freezer Compartments

If one of the doors is left open for more than 1 minute, a “beep” sound is heard,

notifying fridge temperature and energy

efficiency are affected.

(Refrigerator compartment, ice making compartment and freezer compartment) Prevents wasteful leakage of cool air and

reduces wasteful power consumption.

Food is cooled quickly due to pre-cooled aluminum.

You can select from 6 types

app. -7°C (medium)

app. -17°C

app. 0°C

app. 3°C

Aluminum tray

Versa case

Select the setting according to your dietary needs.

page

Soft freezing

Chilled

Refrigerator

Freezing

For cooling beverages If food cannot fit into the refrigerator compartment

For storing processed food, (such as fish paste, ham, etc.), yogurt, cheese etc. for about 1 week.

For storing meat or fish for about 2 to 3 weeks

If food gets too hard to cut through set at “L” and if food does not get frozen easily, set at “H”.

For storing frozen food, ice cream, etc. For storing meat, fish or other processed foods for about 1 to 3 months.

The temperatures given above represent the temperatures measured after reaching stabilization at the lower center part of the refrigerator when the ambient temperature is 30°C and the doors closed with nothing inside. The temperature may vary according to the usage such as storage condition of foods and door opening/closing frequency.

Short note for users:

If the setting for this compartment has been changed from refrigeration or chilled to freezing or soft freezing, do not place frozen food inside until an elapse of at least 30 minutes

Place the food items so that the cool airflow can flow above the items.

Soft freezing

Freezing

Note

Short term frozen food storage

( )

Versa compartment

Meat and Fish

Though your meat or fish may seem as frozen as if it were frozen normally, with soft freezing you need not separate food or wait for it to thaw because your meat or fish can be cut with a knife immediately after you remove them from the versa compartment, thereby shortening your cooking time!

Items that have been transferred from freezer to soft freezer or soft freezer to freezer should be used within 1-2 weeks.

Blocks of meat

Thinly sliced meat or bacon

Ground meat

Cutlets and cod roe

Items that are not suitable for soft freezing

Soft Freezing

Meat that has been stored in the freezer or was bought frozen can be transferred to the soft freezer, so you can divide up and remove only the amount that you want to use.

Depending on its size, your meat should be ready to cut within 2-5 hours after it is transferred to the soft freezer.

They may not be able to be separated immediately after they are removed from the soft freezer.

Thinly sliced meat or bacon can be cut immediately. They will thaw while cooking or dipped in basting, during which time you can easily separate them.

You can cut and remove the amount you want to use. Furthermore, if you cut them into small cubes, they will thaw enough in 15-30 minutes for you to loosen with your hands.

Cutlets can be cooked on a low flame without taking the time to thaw them. Cod roe and other highly salted foods do not freeze and can be used immediately.

Items that can not be frozen normally are not suitable for soft freezing either. Form and quality of such items after freezing are not guaranteed. Example: konyaku (nutrition yam paste), bean curd, milk, eggs, potatoes, etc.

The soft freezer cannot preserve commercial ice cream or frozen foods. Store these items in the freezer compartment.

Using Compartments

Soft Freezing (Sliceable frozen food)

When not frozen enough When frozen too much

Foods that do not freeze easily

Foods that freeze easily

Since food freezes takes place at approximately -7˚C with soft freezing, it may take up to 24 hours for food to freeze completely. Open and close compartment doors with as low frequency as possible when you add items to the soft freezer. The degree of freezing may vary depending on the type of item, cooking method, arrangement of item (folded and layered or location of item), amount, and period of storage. Items may not freeze or may freeze too much (for cutting with a knife) depending on content of sugar, salt and fat. Items that have frozen too much can be cut with a knife if they are left in room temperature for 5-15 minutes.

Adjust the temperature in accordance with degree of freezing.

Adjust soft freezing setting to “H”1-2˚C below “M”

Adjust soft freezing setting to “L”1-2˚C above “M”

Fruit Others

Blend soft-frozen fruit and yogurt and milk in a blender to make an easy healthy drink. Example: Cut half a peeled apple into bite-size pieces, and a peeled kiwi into 1-cm circular slices. Freeze fruit in the soft freezer. Then blend soft-frozen apple and kiwi, 250cc of milk and honey (if you like) in a mixer until it becomes smooth. (makes 2 servings)

Smoothie

Meat sauce

Boil spinach, place it in an airtight container and soft-freeze for later use in miso soup or butter saute.

Spinach

Fermented soybeans can be mixed immediately after removal from the versa compartment. Chilled fermented soybeans can be quite tasty. You can cut the amount of fried bean curd you want to use.

Fermented soybeans and fried bean curd

Make watermelon ice by cutting watermelon into bite-size pieces and freezing in the soft freezer.

Soft-freeze mikan oranges or pineapple in its syrup to make easy sherbet.

May not freeze depending on the sugar content of the syrup.

Watermelon

Canned fruit

Please pay attention to the following when using soft freezing

Food with high salt content, such as cod roe Food pre-seasoned with soy sauce or bean paste Food with high sugar content, such as stewed beans Food with high sugar content, such as bananas

The soft freezer is recommended for very sweet fruit. Try soft freezing with various fruit.

Eat fruit frozen without thawing. (these fruit will not be fresh again after thawing) The flavor of fruit kept in the soft freezer for more than 1 week may change. It is recommended to eat fruit within 2-3 days to best enjoy its new taste. Freezing time may vary depending on sugar content of the fruit, so allow 1 day for freezing.

Food with high water content, such as boiled vegetables Food with high water content, such as rice Large blocks of meat with low fat content, such as thigh meat

Store left over sauces in an airtight container. You can remove the sauce with a spoon and use it as a universal sauce with gratin or omelets.

Sauces with high liquid content may not be removable with a spoon. Line the inside of a storage container with plastic wrap, pour sauce into container, remove by holding the wrap and cut the amount you need with a knife.

page

Short notes for users:

Ice server

Door alarm

Door

Ice server

Ice level sensor lever (Detects the ice storage level)

Ice storage bin

Make the ice flat.

When storing food items in the ice storage bin, they must not be higher than the top of the bin. (This can cause a malfunction or prevent the door from closing.) The ice level sensor lever will detect the ice storage automatically, and will stop ice making when it reaches a certain amount. (app. 60 to 100pcs.) In order to detect the ice level correctly, please make the ice flat and put the ice server in the front of the ice storage bin. The automatic ice maker could be damaged if it contacts an object.

Your first batch of ice

Discard the first 2-3 batches of ice you make or ice that is made after more than 1 week of nonuse (about 20 cubes). This ice often has bad odour or dust on it.

Please do not put anything deep inside the ice storage bin.

Do not poor anything like sugar, juice, tea or soft drinks, in the water tank. (Heat resisting temperature, app. 60°C)

Placing liquid other than water may cause damage to the automatic ice maker or water supply pump.

Do not fill the water tank higher than the full-level mark.

Filling the water tank with a kettle while it is still in the tank holder, or filling it higher than the full-level mark may cause “connected” ice to form.

Bring light to light-type bacteria removing filter to prevent the bacteria from being bred in the water tank. (The automatic ice maker must be cleaned regularly. )

Can not be removed.

Ice storage box

Ice making

Water supply port cap

Water tank lid

Water tank (app. 1.2L)

Pipe

Pipe, water supply pump,

light-type bacteria removing filter

with Lead-removal function

V-LED lamp

Ice tray

Soundproof mat

The soundproof mat reduces the sound of ice dropping into the storage bin. Do not remove the mat.

page

Note

If one of the doors is left open for more than 1 minute, a “beep” sound is heard,

notifying fridge temperature and energy

efficiency are affected.

(Refrigerator compartment, ice making

compartment and freezer compartment)

Prevents wasteful leakage of cool air and

reduces wasteful power consumption.

Using Compartments

Ice Making Compartment

(Automatic Ice Maker)

Select , or

on the control panel.

Initial setting of the ice making compartment at

installation is .

Remove the water tank. Remove the water supply port cap and fill the tank with water.

Replace the water tank holding it level.

Check the amount of water remaining in the water tank.

Ice shapes

There may be white sediment (white crystal) or bubbles inside the ice cube.

In cases below, may cause clear ice into such white sediment ice.

• When the mode has been changed from “REG(Regular), “QCK

(Quick)”, “STOP(Stop)” to “CRL(Crystal)”.

(It is set at mode at the time of installation).

• Ice made of water containing much mineral. (This white sediment is a crystal of mineral ingredients)

• When surrounding temperature, status of use have changed.

• When pieces of ice are stored long time in the ice storage bin. (Frost will cover the ice. If it is put into water, the frost will dissolve.)

When you want to change the clarity of the ice or the ice making time operation

About Crystal Ice

Ice

making

time

60-90 minutes

Quick ice making mode

5-8 hours

Crystal ice making mode

100-120 minutes

Regular ice making mode

Approximate time for making one set of ice

Making Ice

The shape of ice is trapezoid but somewhat flat and uneven

The size of ice made for one time may vary with the water

amount in the water tank.

One batch of ice is 5-8 pieces.

If the water tank is filled above the full-level mark, the water

channels in the ice tray will freeze, causing 2-3 pieces of ice to

stick together and bumpy ice.

If some pieces of ice stored long time, they will be stuck or

become smaller. (This phenomenon is called “sublimation”.)

The quickly made ice may be cracked or split due to fast freezing.

Up to the full-level mark

Open the door to the refrigerator compartment and check the level from above the tank.

page

Tipping the tank will cause water spillage.

If the water tank does not fit properly in place, ice

will not be made.

In addition, it can cause the water tank to freeze.

Check that there is no foreign material in the tank

holder or water supply pipe.

One batch of ice: 5 to 8 pieces Clear ice is made slowly to increase the clarity of the ice cube. The time may vary according to the ambient temperature of the refrigerator or its usage condition and the type of water used. It may take longer time than given above. It is recommended not to open or close the ice making compartment door, when making clear ice.

Short notes for users:

Ice made of water containing much mineral such as mineral water might cause white sediment (white crystal). When the ice melts into water, it may appear fibrous. This white sediment is a crystal of mineral ingredients, which is not harmful

The V-LED lamp comes on in the following condition.

• When the door of the refrigerator compartment or ice

making compartment is kept open (However, the lamp goes out when the door is kept open for 5 minutes.)

• Before and after feeding water into the ice tray.

The time required for making ice might be longer according to the frequency of closing and opening the door, the temperature around the refrigerator, and the amount and temperature of the water added to the tank.

Water tank

Water supply pipe

Pipe junction

Pipe

Tank holder (on the refrigerator body)

Be careful not to pinch any foreign object.

While pushing the tab downward with your finger, pull the cover off.

Ta b

Pipe

Water supply pump

Impeller

Cap

Cover

Light-type bacteria removing filter

Cleaning once a week

Remove the lid and wash with water.

(the tank can withstand up to

approximately 60°C)

Pull out the pipe. Twist the pump to remove it.

Disassemble and wash the parts with water.

The impeller is magnetic. Wash carefully to remove all foreign objects. Normally the filter need not be replaced. However, replace it in the following conditions:

• When the filter is clogged by passing something other than water through the filter

• When the filter is broken

• When the filter is moldy

In such cases, contact the retail store at which you purchased this refrigerator.

Reverse the steps to replace the pump.

Water tank

Pipe

Improper reassembling might cause failed ice making or increased noise. Check the following.

Fit the filter cover’s tab (1) and hook (2) into the cap.

Align the marks on the pipe and the water tank.

Rotate the cap and catch the cap hook (1) onto the water supply pump tab (2).

Securely rotate the water supply pump into the water tank to install it.

Make sure that no foreign object is found between the water supply pipe and the pipe junction.

*Make sure that the impeller is in the pump.

Improper fitting or any foreign object will produce a clearance between the pipe and the pipe junction to cause freezing of the water tank.

Pipe

mark

Water tank

Light-type bacteria removing filter

Impeller

Rotate

Water tank

Reassembly points

Water tank Water supply pump / Light-type bacteria removing filter

Cleaning once a month

Pull out water supply pipe. Wipe the tank holder with clean cloth.

Separate pieces and wash with water.

Reverse steps to replace the pipe.

Side A

Side B

Water supply pipe

Aluminum pipe

Packing

Water supply pipe

Tank holder

Water supply pipe / Tank holder

Twist on the aluminum pipe to replace it.

*The water supply pipe may be

white due to minerals or chlorine, but this is not abnormal. Wash the pipe and continue using it.

Do not use kitchen detergent, benzene, bleach or other cleaning products to clean the light-type bacteria removing filter.

The products above give ice odours.

Be sure to read all instructions for detergents, bleach and other cleaning products you use to clean the water tank and lid.

Do not let water flow into the tank holder.

Replace the water supply pipe. Be sure that sides A and B fit flush against each other. Otherwise, the ice maker may malfunction if the pipe is not installed properly.

Insert horizontally

Note

Maintenance

Maintaining the Automatic Ice Maker

Put the water tank back to its original position.

Remove ice from the ice storage bin and close the ice making compartment door.

Remove the water tank and close the ice making compartment door.

Fill the water tank with water and set it in place.

Discard all the ice and water from the ice tray in the ice storage bin to empty the ice tray.

Remove the ice storage bin and discard the water and ice.

Do not discard the two-layer soundproof mat.

Remove the ice storage bin and discard the water and ice.

Do not discard the two-layer soundproof mat.

Set the ice making compartment to .

Wash the water tank (water pump, pipe, and light-type bacteria removing filter), water supply pipe, ice storage bin, and soundproof mat with water. Dry carefully and reinstall parts.

To restart the ice maker, switch the ice making setting.

Repeat step 2 to 3 times.

Press

The display ( , , , or )

of the ice making compartment will blink

(for ). (The ice tray will be cleaned by the water from the water tank.)

on the control panel and hold for about 5 seconds

(Until the buzzer emits “peep, peep” tone.).

about 1 minute

Cleaning the ice tray using water from the water tank

When the automatic ice maker will not be used for a long period of time When using the setting

Follow these instructions for transportation of the refrigerator as well.

Remove ice

Ice making compartment

Water tank

To clean (rinse) the ice tray

Regular cleaning produces clean and delicious ice. Regular cleaning prevents water stains, molding, etc.

Ice storage bin

Press

The display ( , , , or )

of the ice making compartment will blink

(for ). (The water and ice will empty from the ice tray.) After the blinking stops, the original display will return.

on the control panel and hold for about 5 seconds

(Until the buzzer emits “peep, peep” tone.).

page

about 1 minute

Disassembling or applying grease to the Elevating Shelves can cause it to malfunction.

After the 4 supports are released, pull out the shelf.

If the supports are not released easily, push the internal hooks inward.

Push up each support, one at a time, with a strong effort. (4 supports) (When the internal hooks are released from the refrigerator, a “click” sound will be heard.)

Move the lever completely to the right.

Make sure that the lever is moved completely to the right.

Make sure that the 4 metal stoppers are securely fitted into the refrigerator, then lightly set the shelf into the refrigerator and align the 4 supports with the 4 stoppers.

Push each of the 4 supports, one at a time, downward from above. (When the internal hooks catch onto the refrigerator, a “click” sound will be heard.)

Finally, move the lever to the left and right and check that the shelf moves up and down while remaining level. (If the shelf does not remain level, the 4 hooks are not securely caught onto the refrigerator. Remove the shelf and repeat steps

to 4.)

1Push up the nails at the back side

of tray (3 places) using fingers.

Lift up the back side of tray until the nails at the front (3 places) and nails on both sides (2 places) are removed. *Lift up the tray slowly, otherwise it may fall.

3Remove the tray with both hands.

Remove the power plug from the socket.

Wait at least 10 minutes before you replace the power plug. The refrigerator will not operate if the plug is replaced immediately after it is removed.

Wipe or remove and wash parts with water.

To remove oily deposits, wet a cloth with warm water or dishwashing detergent and wipe. (Be sure to wipe off all oily deposits. Oily deposits can cause plastic parts to break.)

Be sure to wipe off any detergent you used.

Be sure to read all instructions and heed precautions for chemically treated disposable cloths you use to clean parts.

Do not use alcohol, benzene, steel wool or alkaline-base detergents. They will cause damage to plastic parts (door handles, cap, cases, etc.) and coating.

Failure to remove the plug may result in electric shock.

Warning

Elevating Shelves

Before you start

Maintenance and Cleaning

Tray removalInstallation

Removal

Maintenance

Removing and Maintaining the Accessories

Drip Gutters

Reverse removal procedures to reinstall accessories.

Alternately lift up the left and right sides (the pockets are securely installed).

Pull towards you.

Slide chilled case

1Support the lid with a hand. 2

Lift up the case and pull it towards you.

The ceiling shelf at the upper side of slide chilled case cannot be removed. Do not try to remove this part even for cleaning.

Small item case

1Pull the case till it stops. 2

Lift up the case and pull it towards you.

Slide case, freezing case (top)

1Open the compartment

door till it stops.

2Lift out holding the area

closest to you.

Refrigerator compartment

1Remove the plug. 2Remove the AUTO-shelves (2) and two-way flexishelf. 3Press the tab upward as you pull the cover forward. 4Replace the interior light bulb

Please purchase a light bulb for the refrigerator (MR-G57N) from your retail store.

5To replace the cover, insert the

upper tabs and then the lower tabs.

Turn the adjustable supports to lift them off the floor and move the refrigerator.

Wipe away all soil from the rear of the refrigerator, the wall and the floor. Air circulation can cause dust to collect at the rear of and on the floor under the refrigerator, creating black soiled areas.

Vegetable Compartment (LED)

Please contact the retail store at which you purchased it

Vegetable case, freezing case (bottom)

Pull out the door by slightly holding it up and let it tilt.

4Lift out holding the area

closest to you.

1Open the compartment

door till it stops.

2Lift out holding the area

closest to you.

Inspect the power cord, plug and outlet

Is the power cord or plug damaged? Has dust collected on the power plug? Is there abnormal heat build-up in the power plug? Is the outlet coming loose? Have you properly reinserted the power plug?

Wipe away all soil or drippings.

Wipe with a soft dry cloth. *

Do not use alcohol, benzene, steel wool or alkaline-base detergents. They can cause the control panel to malfunction.

Do not put your hands underneath the refrigerator. Doing so can cause injury.

Damaged power cords or plugs, and dust collected on plugs can cause electric shock or fire.

Warning

Caution

Using non-designated interior light bulbs can cause fire. Non-removal of plug before changing interior light bulb can cause electric shock or injury. Just in case of refrigerant-leakage, explosion or fire can be caused.

Warning

Dirty seal is easily damaged and can cause refrigerated air to leak.

Door seal

Push the shelf inward, then lift and pull forward.

Two-way flexishelf

Control panel

Drip gutters

The rear of the refrigerator and the floor

Replacing the interior light bulb

Refrigerator compartment / Vegetable compartment (Tricolor LED)

Change pocket / Bottle pocket

Vegetable compartment / Freezer compartment

After Maintenance

Ice Making compartment / Versa compartment

Slide chilled case / Small item case

Change pocket Bottle pocket

Dust

Damaged

cord

Soot and dust

Discard the water and ice in the water tank and the ice tray.

Wear the protector such as work-gloves.

Remove the leg cover and lift up the adjustable support.

Lift adjustable supports

Move it in forward and backward directions

Dragging it in directions other than the longitudinal forward and backward directions may cause damage to the floor.

Make sure to place a cloth for floor protection underneath the caster and rear support before changing directions.

Pull out the power supply plug.

Gently transport the unit with 2 or more people, gripping the hand-holds on the lower-front interior and the upper-rear of the unit.

Front Lower interior

Do not lay the unit on its side (doing so can cause malfunction of the compressor).

*As it is heavy, the work must

be performed by two people.

*Small children or people

not confident about their physical strength should not try to participate and should ask a transportation company to do the work.

Upper part of back side

It uses flammable refrigerant, do not damage the refrigerant circuit. If the gas leaks, ignition or explosion may be caused.

Warning

Place towels beneath the exhaust port and at the corner beneath the back side of the refrigerator and then place a container or a tray about 3cm high to collect water. *Towels must be placed to prevent water

leakage and possible damage to the floor.

Slowly tilt by about 30 degrees towards the rear and drain water collected in the evaporating dish from the exhaust port located at the bottom of the rear side. (The evaporating dish is not visible from outside.)

Keep the refrigerator door open.

How to cancel demonstration operation

Electric power goes out

To move the refrigerator or to change the direction

If all indicators blink 3 times every 30 to 60 seconds even though no button has been pressed. Or, if the compartment display and temperature control display on the control panel blink in turn repeatedly. (Demonstration operation mode)

Transporting the unit

Contact the retail store at which you purchased it or the consumer service office.

If mark is blinking rapidly (about 5 times per second)

Or if the alarm cannot be turned off.

Clean the automatic ice maker.

Failure to sufficiently dry the interior of the unit can cause molding, odours, and refrigerant (gas) leakage due to corrosion of the condenser.

The unit will not be used for a long period of time

Refrain from frequently opening and closing the refrigerator doors, and avoid storing additional items.

Setting for modes other than temperature may change. Please check. (Child Lock, Energy-Saving, Fast Cooling, etc.)

Pressing “ICE SELECT” and holding for about 5 seconds will stop the alarm if it keeps sounding. However, as it is necessary to perform inspection, please contact the retail store at which you purchased it or a Customer Service representative.

After removing the power plug from the outlet, clean the interior of the unit. Leave the doors open for 2 to 3 days to sufficiently dry the interior of the unit.

The refrigerator suspends its cooling function during this mode. Please contact the retail store at which you purchased it or reset the demonstration operation by the following resetting method.

Press , and

simultaneously and hold for about 5 seconds.

(Until a “beep” sound is heard)

page

Troubleshooting

What to do when...

You can set fine adjustment mode for the refrigerator, freezer or versa (only when “FZR” is selected) compartments.

Selecting fine adjustment mode

Performing fine adjustment

Low mode

App. 0.3°C lower than “L”

App. 0.6°C lower than “L”

App. 0.3°C higher than “M”

App. 0.3°C lower than “M”

App. 0.6°C higher than “H”

App. 0.3°C higher than “H”

Medium mode

Selecting “L” and “M”

Selecting “M” and “H”

High mode

*The displays above are meant for explanatory purposes only. The

temperature may vary according to the usage conditions, such as how foods are stored and opening/closing frequency of the refrigerator door.

Ex.: When the refrigerator compartment is set 0.6ºC lower than “L”.

“REF” blinks

every 10

seconds.

“H”

blinks

If you want to select precisely

temperature control mode

(Fine adjustment mode)

During fine temperature control, the selected compartment blinks every 10 seconds.

Press and

simultaneously and hold for about 3 seconds.

(Until a “beep” sound is heard)

Follow the same procedure as above.

To reset

Press

Fine Temperature Control

page

Accessories

Model

Elevating Shelves

Two-way flexishelf

Slide chilled case

Lid of slide chilled case

Water tank (with light-type bacteria removing

filter with plumbum-removal function.)

Change pocket (large)

Change pocket (small)

Small item case

Free egg shelf

Bottle pocket (large)

Bottle pocket (small)

Ice storage bin

Soundproof mat

Ice server

Versa case

Aluminum tray

Vegetable case

Slide case

Vegetable pocket

Freezing case (top)

Freezing case (bottom)

Leg cover

Units

MR-G57N

This appliance is designed for use in New Zealand only and can not be used in any other country. No servicing is available outside of New Zealand.

Refrigerator Compartment

Freezer

Compartment

Vegetable

Compartment

Versa

Compartment

Ice Making

Compartment

to display the compartment you want to make fine adjustment.

repeatedly to make fine adjustment.

Specifications

Items in compartments other than the freezer compartment begin to freeze

Change setting to “M”. Keep in mind that temperature temporarily drops during “QUICK” mode.

Please place water-containing foods, such as tofu,

vegetables and fruits, and beverages at the front side.

Set refrigerator compartment and vegetable

compartment to “L” to prevent freezing.

See if “H” or “CHIL” is selected for the

temperature control mode.

Have you placed items with high water content in

the back of the unit?

Is surrounding air temperature less than 5ºC?

Items in the versa compartment begin to melt

Items will not freeze when the temperature setting is

set to “REF” or “CHIL”.

It takes some time for the unit to cool. Wait at least

30 minutes before placing frozen foods in the versa compartment or use fast cooling.

Place the food items so that the cool airflow can flow above the items.

Is the temperature setting set to “REF” or “CHIL”?

Has the temperature just been adjusted or have you

just begun using the unit?

Are the items on top packed too tightly?

Items in the versa compartment begin to freeze

“

SOFT FZR” or “FZR” is selected for the

temperature control mode, food will become frozen.

Is “SOFT FZR” or “FZR” selected for the

temperature control mode?

It sometimes takes 4-5 hours for unit to cool and up to 24 hours for ice to make in the summer.

In particular, check that the outlet of the pipe in the

tank is securely installed to the tank.

Check the installation.

Assume that there is sufficient ice in the storage bin.

Remove foods, etc. from the storage bin. Level out the ice evenly in the storage bin.

Select either “REG”, “QCK” or “CRL” mode.

“CRL” takes longer time to be made than usual ice.

(approx 5-8 hours)

Sometimes there are few pieces of ice in a batch.

Have you just begun using the unit?

Are the water supply pump and pipe set properly in

the water tank?

Is the water supply pipe set properly in the tank

holder?

Have you left food or the ice server laying in the

ice storage bin?

Is the ice making compartment set to “ STOP”?

Is the ice making compartment set to “CRL ”?

Is there enough water in the water tank? Is the

refrigerator tilted?

Unit does not cool at all

Check the power plug and the main power supply.

Under demonstration operation. Please reset the

demonstration operation mode.

Is the unit receiving power?

Compartments and temperature control modes on

the control panel blinks in turn.

Unit does not cool sufficiently; unit does not produce ice or ice melts

Change setting to “M” or “H”.

It sometimes takes 4-5 hours for unit to cool and up

to 24 hours for ice to make in the summer.

Check that installation was properly executed.

Check that the unit is not excessively packed with food items and that the doors are not ajar.

See if the selected temperature control mode for the compartment that is not cooling enough is “L”.

Have you just begun using the unit?

Have you impeded heat ventilation due to no space

around the refrigerator, placed it in direct sunlight, etc.?

Anything obstructing the cool air flow? Or is the

door being opened frequently or left ajar?

When Check the following Solutions and reasons

Temperature cannot be adjusted

Cancel the child lock setting.

Is displayed?

The display illumination will turn off after 30 seconds if no button is pressed for energy-saving purpose. Pushing any button, the display panel will go on.

Control panel is extinguished

page

Ice maker does not produce ice or produces very little ice.

Water level in tank does not decrease.

Making ice time is long

Troubleshooting

If situation does not change even after troubleshooting, immediately contact a representative of the retail store where purchase was made.

The anti-freeze heater is turned on. This is normal.

The water tank or the water supply pipe freezes

Improper installation or any foreign object might

produce a clearance. Then the cold air can flow backward to cause freezing.

The cold air flows backward to cause freezing.

Remove the dropped food or plastic.

Is the pipe securely attached to the water tank? Is

there any foreign object in the pipe or pipe joint?

Is any food or plastic dropped into the back side of

the case in the ice making or freezer compartment?

Ice is dented, comes out cloudy small melts

The water tank and water supply pipe become warm

Refer to page 21 regarding shape and clarity of the ice.

You are concerned by strong odours (from food or ice)

The deodoriser can not completely remove extremely strong

odours, so be sure to cover with plastic wrap.

Perform maintenance and clean regularly.

Have you placed items with strong odours inside

the unit without covering them with plastic wrap?

Is the water tank clean?

The door is easy to open

The door will not close

Be careful not to stick any stored foods out of the

shelves or cases.

Remove dropped items and items trapped between

the doors.

Lower the adjustable supports to raise the front of

the refrigerator slightly and make closing the door easier.

Does any food come in contact with the refrigerator

door? Are too many foods stored in the refrigerator?

Is any food dropped into the back side of the

sliding door, or is the power cable placed between the unit and the door?

Is the unit installed properly? Are the adjustable

supports right on the floor?

Dew drops get accumulated on the outside or inside the refrigerator.

Frost gets accumulated in the freezer compartment.

Water drips onto the floor.

When moisture in the air is cooled, frost or dew drops

are formed. Dewdrops or frost may accumulate even on a small space formed at the door. Such dewdrops may drip onto the floor.

Moisture may temporarily collect on the unit. Wipe

with a dry cloth. Frost can form easily in the freezer compartment. Try to reduce the time that the door is open.

Do you open the door frequently or is the door

ajar?

Is it a rainy or highly humid time of year?

Your television picks up noise

Relocate unit at a distance from televisions and other appliances.

Use a dedicated power source.

Is your television or other appliances located near the refrigerator?

Is the refrigerator’s power outlet close to the

antennae drop area?

The outer walls heat up; wind blows from the floor

It is because the refrigerator is attached with heat release / anti-condensation pipe on the sides and ceiling, anti-condensation heater in the partition between left and right refrigerator doors and also a heat release accelerating fan at the bottom. Immediately after installation or during summer time, the outside temperature may become high (app. 50 to 60ºC) or hot air may blow out from the bottom. These are necessary for cooling and are not considered as abnormal.

Noise is loud the unit makes

disturbing sounds

the following sounds are normal

The unit has switched to high-speed operation for powerful cooling

during first operation, when temperature is hot, when doors are opened and closed frequently, during “QUICK” mode, etc.

These are sounds made during automatic ice making. The unit’s

automatic ice maker and pump make a sound every 100 minutes or so, regardless of whether or not the tank is filled with water.

These are sounds made during automatic ice making

operation check. This sound is made even during “STOP” mode.

It is the sound of a fan motor starting to run.

It is the sound of refrigerant (gas) flowing.

This is a creaking sound made when warm air has

penetrated the unit, causing plastic parts to expand.

The sound is made when the air control damper operates.

This is the sound of the airflow from the cooling fan.

Sounds suddenly get louder or tone changes.

Rattling, squeaking sounds sometimes (every 1-2

hours).

After the power supply has been turned on, a

howling or creaking sound is heard during ice making “STOP” mode (every 1 to 2 hours).

Whistle sounds after closing doors, etc.

Hissing, bubbling sounds sometimes

When the door is opened a whipping sound or a sound like

water dripping is heard from the inside of refrigerator.

Sounds like buzzing mosquitoes.

Low whirring sound sometimes after opening the

freezer compartment door.

page

MEMO

■

The appliance is not intended for use by young children or inﬁ rm persons without supervision.

■

Young children should be supervised to ensure that they do not play with the appliance.

■

WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other

than those recommended by the manufacturer.

■

WARNING - Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

■

WARNING - Should the refrigerant circuit be damaged, do not use electric items or ﬁ re equipments near

by, and open the window to ventilate the room. And contact the retail store at which you purchased it or

the following MITSUBISHI SERVICE CENTER.

BLACK DIAMOND TECHNOLOGIES LTD.

Wellington Auckland Christchurch:

1 Parliament Street Unit 1, 4 Walls Road, Suite 2, Level 1 Lower Hutt Penrose 37 Mandeville street Wellington Auckland Christchurch Phone: (04) 560 9100 Phone: (09) 526 9340 Phone: (03) 341 7052

HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN

AE79Y158H01 Printed in Japan

Mitsubishi Electric MR-G57N Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
