Refrigerator-Freezers
SERIES MODEL
♽䎃ဳ⯳
MR-FV24EJ,
MR-FV28EJ, MR-FV32EJ
OPERATING INSTRUCTIONS
ᠲᜰᒁ
Non-Freon Refrigerators
This refrigerator uses non-Freon refrigerant (isobutane) and non-Freon foam insulation (cyclopentane).
These materials are harmless to the environment, which does not affect the ozone layer and global warming.
㕖↪ᣵ⊛㔐ᰃ
忁ᾳ暒㩫ἧ䓐朆㯇⇑㖪⅟⨺ĩ䔘ᶩ䂟Īġ朆㯇⇑㖪䘤㲉昼䅙㛸㕁炷䑘ㆲ䂟炸ˤ
忁ṃ䈑㕁ᶵ㚫⮵䑘⠫忈ㆸ䟜⢆炻ḇᶵ㚫䟜⢆冕㯏Ⰼẍ⍲ἧℐ䎫㘾⊾⓷柴ら⊾ˤ
Safety Precautions
The types of danger that
can result from improper
handling are explained in
the sections below.
Allow some space around the refrigerator.
If the refrigerant (gas)
leaks, it can remain in
Warning
Mishandling can lead to
serious injury or death.
Caution
Mishandling can lead to
bodily injury or loss of home
and household contents.
The symbols illustrated below
have the following meanings.
Do not do
Do not touch
Do not take apart,
repair or convert
Do not get wet
Do not touch with
wet hands
Always follow
instructions
Always connect
an earth wire
Always unplug
electrical plug
from socket
When something abnormal or
unusual occurs, turn off immediately
and consult with “the store where
you purchased the unit” or with a
“Mitsubishi Electric Service Centre.”
the area and there’s a
risk that it may cause
a fire or explosion.
Use a dedicated outlet for the power supply that meets the
rating specified on the rating label.(The rating label is located
on the door-liner of the refrigerator compartment.)
Using an extention cord or plugging
in too many power cords into the
outlet can cause heat
buildup or a fire.
Keep the electrical plug cord facing downwards
and insert the plug in fully.
If it is plugged with the cord
facing upward, extra pressure
gets exerted on it which can
cause it to heat up or ignite.
When replacing the interior refrigerator
light or when taking care of the unit, pull
out the electrical plug.
Not doing so can result
in an electric shock or
injury.
Do not use damaged cords or plugs
or loose outlets.
Using them can result
in an electric shock or
injury.
Remove dust from the electrical plug.
Not doing so can
cause a fire from
insulation failure.
Install on a strong level floor and adjust
the adjustable legs to fix firmly.
The refrigerator may
move and cause injury.
Warning
When installing your unit
Do not install in an outdoor area where water
can get on it or where there is a lot of moisture.
Due to insulation failure,
it may cause an electric
shock or fire.
Leave space around unit
Page 5
If the power cord is damaged.
If the power cord is damaged call
Mitsubishi Electric Service Centre
for a technician to replace power cord.
Page 5
Only use on outlet that meets
the specified rating.
Plug with cord downward
The power cord should be designed
for this model.
Page 5
About the electrical outlet and electrical plug
Do not push the electrical plug with the
back of the refrigerator. Do not damage
the electrical cord.
If the plug is pressed by the refrigerator,
or if the cord is bent, bundled, or a
Pull out the plug
Do not use
Remove dust
heavy object is placed on it, it can
cause an electric shock or a fire.
Do not remove the electrical plug by
pulling the cord.
The cord can become
damaged and can
cause an electric
shock or a fire.
Do not plug or unplug the electrical plug
with wet hands.
It can cause an
electric shock.
Caution
Installing and Transporting About Using
Do not force food items into the refrigerator.
Page 5
Make sure it’s level
Do not use force to pull out shelves.
Food items may
fall out, causing
injury.
Do not touch foods or containers in the
freezer compartment with wet hands.
Doing so can
cause freezer
burn.
Do not get wet
Service Call
Do not do
Do not do
Do not use wet hands
Do not do
Do not use wet hands
2
Do not put any vessels, jars, etc. that
contain water on top of the refrigerator.
If water gets onto
electrical parts, it
will cause an electric
shock or a fire.
Do not get wet
Do not place items on top of the refrigerator.
Items may drop from
opening and closing
the door and can
cause injury.
Do not do
When opening and closing the door,
be careful not to let it hit any
surrounding furniture.
There is a risk of injury and
the door or furniture is damaged.
Prohibited
Do not wash with water or spill liquid
food items on the unit.
If water and food liquids get
on the unit, it can cause an
electric shock or a fire. If that
happens, dry off immediately.
WARNING - Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING - Do not use electrical appliances
inside the food storage compartments of
the appliance, unless they are of the type
recommended by the manufacturer.
Do not get wet
Do not use electrical products inside
the refrigerator unit.
If the refrigerant (gas) is leaking
inside the unit, there is a risk that
a spark from the electrical product’s
contact can be a source for ignition or explosion.
Do not store pharmaceuticals or scientific
test material.
Anything that needs strict
supervision must not be
stored in a home-use
refrigerator.
Do not damage the refrigerant circuit (piping)
of the refrigerator; do not drive in screws.
Because a flammable
refrigerant (gas) is used,
there is the danger of
igniting or explosion.
Do not use flammable sprays nearby.
A spark from the
electrical contact
can ignite and
cause a fire.
Warning
About using your refrigerator
Do not store volatile products that
can easily ignite.
Benzine, cosmetics and
hair styling products can
be the cause for igniting
Do not do
Do not store
Do not do
Do not use
This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
fires and explosion.
Do not store
Do not hang on the door or door handle, and
do not get on compartment
drawer-type doors.
The refrigerator can
topple over causing injury.
Do not do
If you sense a gas leakage, do not touch
the refrigerator. Open the window and
ventilate the room.
A spark from the electrical
contact can cause an
explosion or a fire.
Ventilate the room
Do not use in a shed or a garage.
If small animals damage the
wiring, it can cause an electric
shock or a fire.
Do not use
About Malfunctions / Long Term Care
If the refrigerant circuit (piping) is damaged,
do not touch the refrigerator, open the window
and ventilate the room.
When the refrigerant circuit is
damaged, please consult the store
in which the unit was purchased.
Ventilate the room
If there is a possible danger of a child getting
trapped inside while the refrigerator is not in use,
please pull off the door seal.
It is dangerous if the
child gets shut inside.
Remove the door seal
If something abnormal occurs (such as a
burning smell), pull out the electrical plug
and stop the refrigerator from running.
If it continues to run in an
abnormal state, it can cause
an electrical shock or a fire.
If you will not be using the refrigerator for a long
period of time, after pulling out the electrical plug,
open the door and let the interior dry out.
If it is not dried adequately, the cooling unit may
corrode causing the refrigerant (gas) to leak which
can then cause the danger of ignition or explosion.
About Using Your Unit
Do not store bottles in the freezer
compartment.
If the center freezes
and bottles crack,
it will cause injury.
Do not store
Do not place your hands or feet
under the refrigerator.
You can get injured
from something such
as the steel plate.
Do not touch
Do not eat foods that have a bad smell
or are discolored.
Doing so may cause
food poisoning or
other illnesses.
Close the door by holding the handle.
Hold it in a way so that
you don’t get your fingers
caught in the door.
Not doing this may cause injury.
Pull out the plug
Dry properly
Caution
Do not do
Hold the handle
Do not take apart, repair or convert.
Do not continue to use with damaged parts.
This can cause injury,
an electric shock or
a fire.
Do not take apart
When disposing of the unit, transfer it to the
store that you purchased it or to the municipality.
If it is neglected and refrigerant (gas)
leaks, ignition or an explosion may be
caused due to heat from a fire.
Transfer it over
When opening and closing the door.
Do not open or close the door while
someone else is in the way.
Do not place your fingers at the top of
drawer-type doors when closing the door.
Do not close the lower drawers with
your foot (as it may get caught).
Do not open or close the door
forcefully (food items may
fall and cause injuries)
Do not do
3

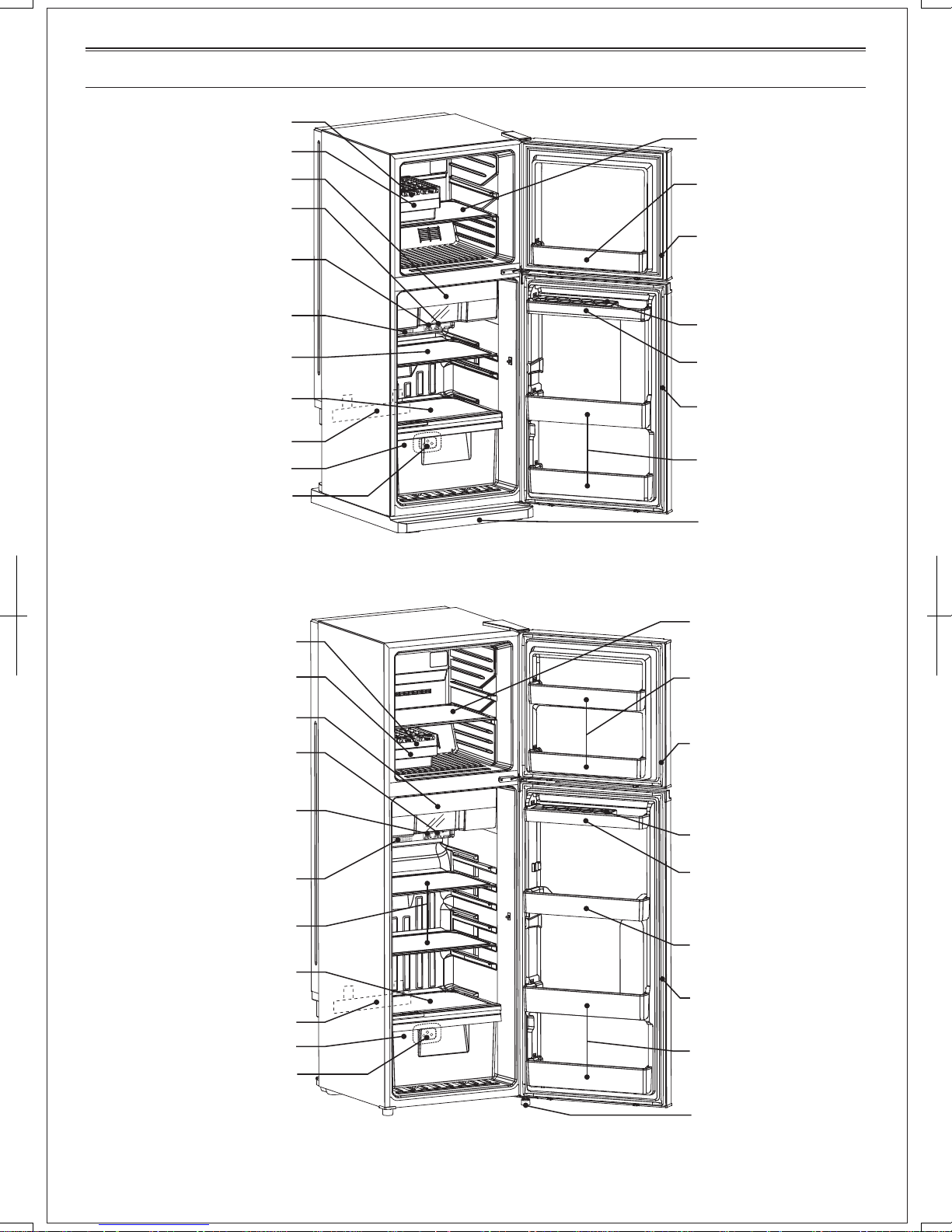

1. Components
Ice Tray
Ice Cube Box
Sliding Case
Temperature Control
(refrigerator compartment)
(see page 5)
Temperature Control
(freezer compartment)
(see page 5)
LED Light
(see page 8)
(refrigerator compartment)
(vegetable compartment)
Drain Pan
Vegetable Case
LED Light in the
Vegetable Case
(see page 8)
Shelf
Shelf
Shelf
(freezer compartment)
Freezer Pocket
Door Gaskets
Egg Rack
Free Pocket
Door Gaskets
Bottle Pocket
Stand
This illustration shows series models MR-FV24EJ
Ice Tray
Ice Cube Box
Sliding Case
Temperature Control
(refrigerator compartment)
(see page 5)
Temperature Control
(freezer compartment)
(see page 5)
LED Light
(see page 8)
Shelf
(refrigerator compartment)
Shelf
(vegetable compartment)
Drain Pan
Vegetable Case
LED Light in the
Vegetable Case
(see page 8)
Shelf
(freezer compartment)
Freezer Pocket
(MR-FV28EJ : 1 PC.
(MR-FV32EJ : 2 PCS.)
Door Gaskets
Egg Rack
Free Pocket
(MR-FV28EJ : 2 PCS.)
(MR-FV32EJ : 1 PC.
Adjustable Pocket
(MR-FV32EJ only)
Door Gaskets
Bottle Pocket
Levelling Leg
)
)
This illustration shows series models MR-FV28EJ, MR-FV32EJ
4
2. Installation
Install on a completely flat and rigid surface.
Level the refrigerator by rotating the levelling leg located in the front of the right corner.
The refrigerator is then solidly positioned.
Leave a 2-cm space between the sides of the refrigerator.
Leave a 10-cm space between the top of the refrigerator and the ceiling.
Leave a 5-cm space between the back of the refrigerator.
Choose a location which is not exposed to the sun, which is relatively free from dust, heat and humidity,
and which offers good ventilation. This is to guarantee that the heat radiation will not be impaired.
Use in hot spring areas
Corrosion control treatment may be required for the refrigerant circuit (pipe) due to generation of corrosive gases.
Contact the retail store where you purchased the refrigerator.
Warning
Do not obstruct the refrigerator vents or the space around the refrigerator.
If refrigerant leaks, it may accumulate and catch fire or explode.
Do not damage the refrigerant circuit (pipes) or drive screws into it.
Although R600a refrigerants are combustible, the refrigerant circuit is hermetically sealed and normally leaks will not occur.
Warning
Should the refrigerant circuit be damaged:
1. Do not use flames or electrical appliances nearby.
2. Open the windows to fully ventilate the room.
Then, contact the retail store where you purchased the refrigerator.
3. Electrical Connections
Important: For personal safety, this appliance must be properly grounded.
The refrigerator should always be plugged into its own individual electrical outlet.
This is recommended for best performance and also in order to prevent the overloading of household wiring
circuits, which may cause a fire hazard. Extension cords are not recommended.
Make sure that the outlet provides the correct voltage.
If your refrigerator has a grounding plug, use it correctly. The 3-pin plug must be inserted into a mating
3-pin grounded receptacle. If the installation location does not have a proper 3-pin grounding wall
receptacle, the proper type must be installed. The ground point should never be cut or removed.
If your refrigerator has an ungrounding plug, connect the ground wire to the ground connection screw
provided at the lower rear side of the refrigerator.
4. Operation
1. Temperature Control
Both the freezer compartment and the refrigerator
compartment have a temperature control.
“MID” is recommended for normal usage.
Turn the dial to “COLDER” when storing
a large quantity of frozen foods, ice cream etc.,
in the freezer compartment.
Turn the dial to “COLD” when only using
the freezer compartment to make ice.
“MID” is recommended for normal usage.
If you would like items in the refrigerator
compartment to be colder, turn the dial to “COLDER”.
If the items are too cold or freeze in the
refrigerator compartment, turn the dial to “COLD”.
Temperature Control of the
Freezer Compartment
Temperature Control of the
Refrigerator Compartment
5
2. Automatic Defrosting
Thanks to the built-in automatic defrosting timer and heater, this refrigerator performs defrosting automatically,
so there is no need to defrost it manually. Water produced during defrosting passes through the drainage
hose at the rear and collects in the drain pan in the lower rear part of the refrigerator.
Then, it automatically evaporates with heat from the radiator.

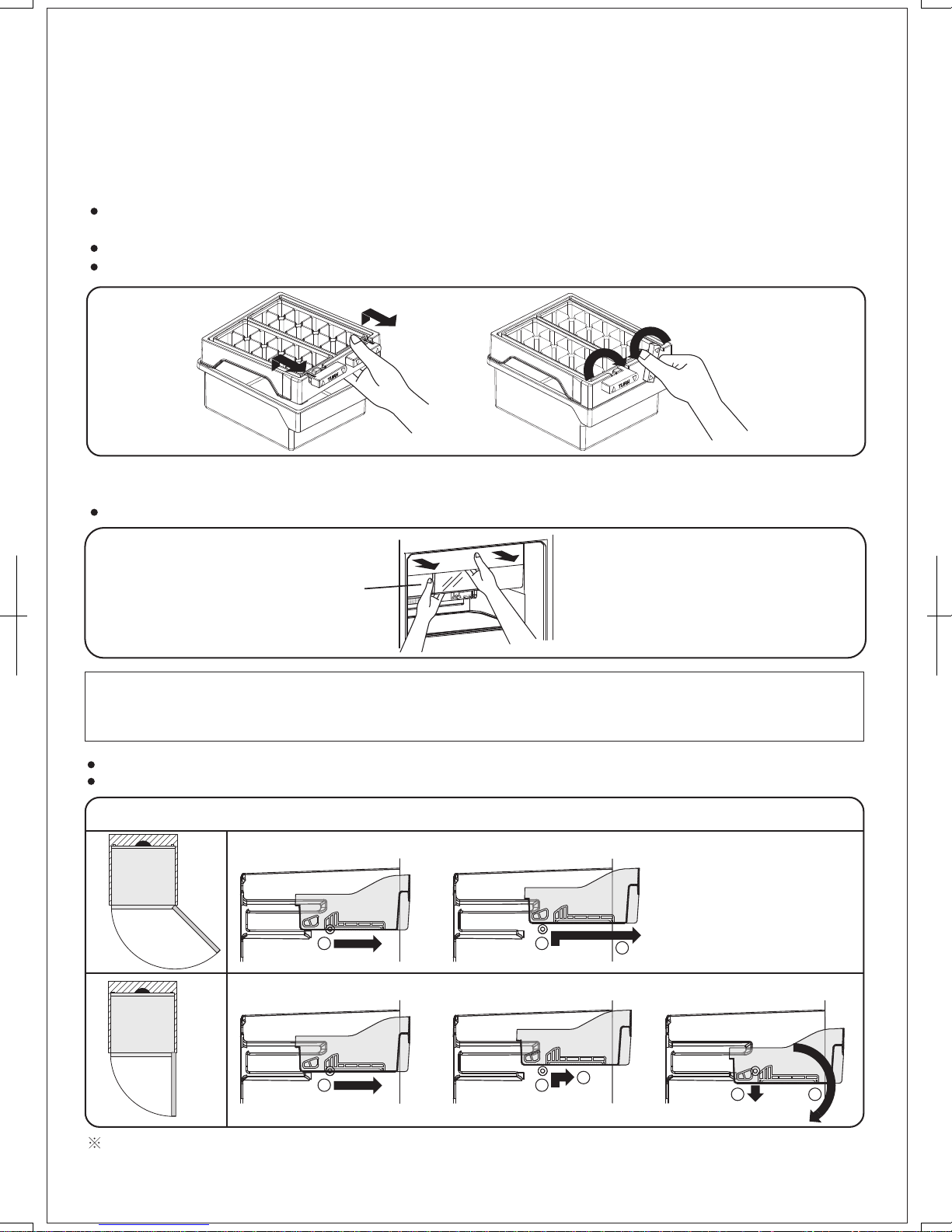

3. Ice-making
Pour water up to the water line in each of the ice tray sections. Insert the tray completely into the ice tray
holder. If too much water is added, the ice cubes cannot be easily separated from the ice tray.
Once the ice cubes have been made, turn the lever until they fall into the ice cube storage box.
If you attempt to make ice directly in the ice cube storage box, the box will break.
4. Sliding Case
This sliding case is cooled to a low temperature in order to preserve the freshness of foods stored for long periods.
Sliding case
CAUTION:
Before closing the refrigerator compartment door, make sure that the sliding case is pushed
all the way in (and the lid is closed correctly).
Remove sliding case as shown in the illustration and proceed with cleaning.
Pull the case out all the way. Pull out by holding and lifting the edge of the case upwards.
The way to remove sliding case depends how many degrees the door is opened.
135
Step. 1
O
1
Step. 1
Step. 2
Step. 2
2
3
Step. 3
O
90
Use reverse procedures to put accessories back in place.
1
3
2
4 5
6
5. Door Racks
The door racks may be used to store all those little items that seem to get in the way. If you put all the
small items in one place, you’ll find that there’s more space inside the refrigerator for larger items.
Free Pocket with Egg Tray
Many eggs may be stored in the free pocket (Fig.1).
You can even turn the whole egg tray over and store small items in the free pocket instead of eggs (Fig.2).
Fig. 1 Fig. 2
Bottle Pocket
Space for large bottles is provided on the right.
Bottles are stored at an angle for easy access.
For large bottles
For small bottles
Some types of commercial water cooler bottles may touch the shelf or foodstuffs when placed in the
door pocket, preventing the door from closing firmly.
Adjustable Pocket (MR-FV32EJ only)
The adjustable pocket may be adapted to the food stored in the pocket.
Large containers such as beer bottles may be accommodated in the upper bottle pocket if the
adjustable pocket is installed in the upper position.
Adjustable Pocket
6. How to Remove the Pockets
Remove the door racks as shown in the illustration in order to proceed with cleaning.
This pocket may be removed by pushing it gently upwards.
Free Pocket Adjustable Pocket Bottle Pocket
7
7. Vegetable Case
Humidity of vegetable compartment can be adjusted.
Lower
humidity
Higher
humidity
8. LED Light in the Vegetable Case
The LED light is installed inside the vegetable compartment. When exposed to visual light from the LED, vitamin C
levels in green vegetables will be increased and they will be kept fresh for a longer period by photosynthesis.
The orange light emitted by the LED is visible to the naked eye and capable of passing through transparent
boxes or plastic bags. The LED light will operate all the time regardless of whether the door is open or closed.
LED Light
Storage Advice
Wrap fruit and vegetables in foil or plastic before storage in the refrigerator in order to keep them fresh.
Preserve vegetables in transparent containers or wrap in transparent plastic. Place vegetables so that
they are directly exposed to the LED light.
Photosynthesis will occur and increase vitamin C levels as long as the vegetables are green (contain chlorophyll).
Results depend on the freshness and type of vegetable.
Caution
Using a sharp knife or screwdriver to pick or adjust the LED light may cause malfunction.
Avoid disassembling, repairing, altering or adjusting the LED light, as this may cause damage and malfunction.
In the event that the LED light is damaged or malfunctions, please refrain from adjusting or repairing
it by yourself. Please contact the service center instead.
5. Maintenance
When performing maintenance, make absolutely sure that the power plug is first disconnected from the power outlet.
Dip a soft cloth into cold or lukewarm water, wring it out well and wipe.
If you do not clean the door gasket (especially the lower part) when it is dirty, the gasket will easily become
damaged. Therefore, keep it clean at all times.
Do not clean with cleanser, acids, benzine, thinner, boiling water, soap powder, chemical cloths or neutral
detergent. These will damage the paint finish and external surfaces of your refrigerator.
CAUTION
Do not apply water directly onto the refrigerator.
This may result in malfunction, power leakage or fire.
How to Replace the LED Light
In the event that the LED light is damaged or malfunctions, please refrain from adjusting
or repairing it by yourself. Please contact the service center instead.
8
6. What to do in these situations
When there’s a power failure.
Minimize opening/closing of doors and avoid putting in more food.
When not in use for a long time.
Clean the Ice cube box and Ice tray, clean the interior after unplugging the refrigerator,
and keep the door open for 2 - 3 days to let it get dry.
If not allowed to dry properly, mold and odors can occur, or refrigerant (gas)
may leak due to corrosion of the cooling unit.
When transporting.
1. Discard the water/ice from the Ice cube box and the Ice tray.
2. Use protective gear (protective gloves).
3. Lay towels under the water discharge outlet and under the back corners of the refrigerator,
and place a container or tray on the floor that’s about 3 cms high to catch water.
Towels prevent water from spilling on the floor and damage to the floor.
4.
Slowly tilt the refrigerator back to an angle of over 30 degrees, discharge water
of the evaporator tray through the water discharge outlet.
Have 2 or more persons do this work because the unit is heavy.
Avoid having young children or those without confidence do this work.
Please seek advice from a moving company.
5. With more than 2 persons, calmly and slowly transport the unit by grasping the
front side’s lower section legs and the back side’s upper section outer shell.
Do not lay or load on its side (it will cause damage to the compressor.)
Warning
Do not damage the refrigerant circuit, do not drive in screws, etc.
The unit uses a flammable refrigerant, so if the gas leaks out, there is the risk of ignition or an explosion.
Page 4
Water discharge outlet
Front side - lower
section lags
Back side - upper
section outer shell
7. Troubleshooting
When the refrigerator fails to operate
Check for a power failure.
Check if the power cord is plugged into the power outlet.
Check that the fuse (or circuit-breaker) has not blown.
When the refrigerator is cooling excessively
The temperature control dial may be set too high.
If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily.
This does not indicate a malfunction.
When you hear a sound similar to flowing water
The sound of flowing water is the flow of refrigerant (cooling gas). This does not indicate a malfunction.
When noise is produced by the fan grill of the refrigerator
The noise produced by the fan grill will stop at a certain fixed temperature. The airflow cooling system
inside the refrigerator is powered by the operation of the fan motor and fan grill.
When noise is produced while the refrigerator door is open
When you open a door panel, plastic components switch swiftly between hot and cold, and this may
produce noise. When the door is closed, the noise will remain until the difference in temperature is
reduced.
9
When the refrigerator is not cooling sufficiently
The food may be packed too tightly together, which blocks the flow of cool air.
You may have put hot or too many items into the refrigerator.
The door may not have been closed properly.
The door gasket may be damaged.
The refrigerator may not be well-ventilated.
There may be insufficient clearance between the refrigerator and the surfaces immediately beside and above.
The temperature control dial may not be properly set.
When the front of the refrigerator cabinet heats up
In order to safeguard against condensation, there is an anti-condensation pipe which heats up the front of
the cabinet when actuated. When the front of the cabinet is warm, this does not indicate a malfunction.
The more often the door is opened and closed, the more often the anti-condensation pipe is actuated.
It is also actuated immediately after the refrigerator has been installed. In other words, the front of the
cabinet often heats up.
MR-FV24EJ,
MR-FV28EJ, MR-FV32EJ
When condensation forms on the exterior of the refrigerator
Condensation may form on the exterior when humidity is high, such as during the wet season.
This is comparable to condensation forming on the outside of a glass when chilled water is poured in;
therefore, it does not indicate a failure. Wipe dry with a dry cloth.
When the power plug is disconnected and reconnected, and the compressor ceases to rotate
When the power plug is disconnected from the power outlet and then immediately plugged in again, the
compressor may not restart. Therefore, when unplugging the refrigerator, always wait at least 5 minutes
before plugging it in again. If the compressor ceases to rotate completely, keep the refrigerator unplugged
and wait at least 5 minutes before plugging it in again.
When the side panel of the cabinet heats up
The side panel of the cabinet will heat up when the door is opened and closed frequently, when installing
the unit and when the unit operates in summer in high temperatures. In such cases, do not touch the panel.
This heat buildup is due to the dissipation of heat absorbed from inside the cabinet over the whole of the
side panel and does not indicate something wrong with the unit.
CAUTION
1. This appliance is designed for use in ambient temperature listed below.
MODEL NAME AMBIENT TEMPERATURE RANGE CLIMATIC CLASS
MR-FV24EJ, FV28EJ, FV32EJ-P 16
MR-FV24EJ, FV28EJ, FV32EJ-ML 16
MR-FV24EJ, FV28EJ, FV32EJ-H 16
The internal temperatures could be affected by such factors as the location of the refrigerating appliance, ambient
temperature and the frequency of door opening, and, if appropriate, a warning that the setting of any temperature
control device might have to be varied to allow for these factors.
2.
A rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
3. Food to be frozen is not to be placed in direct contact with food in storage and, if appropriate, that it could be
necessary to reduce the quantity to be frozen if freezing every day is anticipated.
4. The electrical power failure for 1-2 hour will only slightly effect the inside temperature. However, open & close of
the door results in the temperature loss. In case there is more than 24 hours electrical power failure, the food
should be taken out from the fridge.
5. In case you are leaving or there is no food in the fridge for more than 3 weeks, The fridge should be unplugged
and cleaned.
o
C ~ 43 oC T
o
C ~ 43 oC T
o
C ~ 38 oC ST
10
HEAD OFFICE : TOKYO BUILDING 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
PHONE: +81 (3) 3218-2111
http://Global.MitsubishiElectric.com
ᶱ厙暣㨇㟒⺷Ể䣦
䷥℔⎠烉˲IJııĮĹĴIJıġ㖍㛔㜙Ṕ悥⋫ẋ䓘⋨ℏijĮĸĮĴġĩ㜙Ṕ⣏Ī
暣娙烉ĬĹIJġĩĴĪġĴijIJĹĮijIJIJIJ
ũŵŵűĻİİňŭŰţŢŭįŎŪŵŴŶţŪŴũŪņŭŦŤŵųŪŤįŤŰŮ
SOLE AGENT in Hong Kong
MITSUBISHI ELECTRIC (HONG KONG) LIMITED
20/F., Cityplaza One, 1111 King's Road,
Taikoo Shing, Hong Kong
Tel. (852) 2510 0555 Fax: (852) 2234 5138
楁㷗䷥ẋ䎮
ᶱ厙暣㨇ġĩ楁㷗Īġ㚱旸℔⎠
楁㷗⣒⎌❶劙䘯忻IJIJIJIJ嘇ġ⣒⎌❶⽫ᶨ⹏ġijı㦻
暣娙ĻġĩĹĶijĪġijĶIJıġıĶĶĶġġġġġġġ⁛䛇ĻġĩĹĶijĪġijijĴĵġĶIJĴĹ
SOLE AGENT in Singapore
MITSUBISHI ELECTRIC ASIA PTE LTD
307, ALEXANDRA ROAD
# 05-01/02
MITSUBISHI ELECTRIC BUILDING
SINGAPORE 159943
Head Office: Tel. (65) 6473-2308
SOLE AGENT in Malaysia
MITSUBISHI ELECTRIC SALES MALAYSIA SDN. BHD. (CO.NO.:11098W)
LOT 11, JALAN 219,
PO BOX 1036,
46860, PETALING JAYA,
SELANGOR DARUL EHSAN,
MALAYSIA.
Head Office: Tel. (603) 7955-2088 (10 lines)
NZ79C597H01
Loading...
