Mitsubishi Electric MR-EX574X-N-A User Manual
Refrigerator-Freezer
MODEL
MR-EX574X
OPERATING INSTRUCTIONS
R600a
Function Overview
Complicated controls
become easy with a touch panel!
Operation panel
If you touch the operation panel,
icon will be displayed. You can
select the setting that you prefer.
Want to Rapid cool bulk
shopping
Want to Keep vegetables
moist
Want to Cool drinks
quickly
Power Saving
Want to make ice quickly
Want to stop making ice
Want to store
food with Soft-Freezing
Freeze to savory taste
(Supercool Freezing)
Check the powersaving condition
Contents
Page
Page 14
X
Page 15
X
Page 16
X
Safety Precautions
From Installation to Operation
Placing Food Inside
Refrigerator Compartment
Versa, Freezer, and Vegetable
Compartments
Ice Making Compartment
(Automatic Ice Maker)

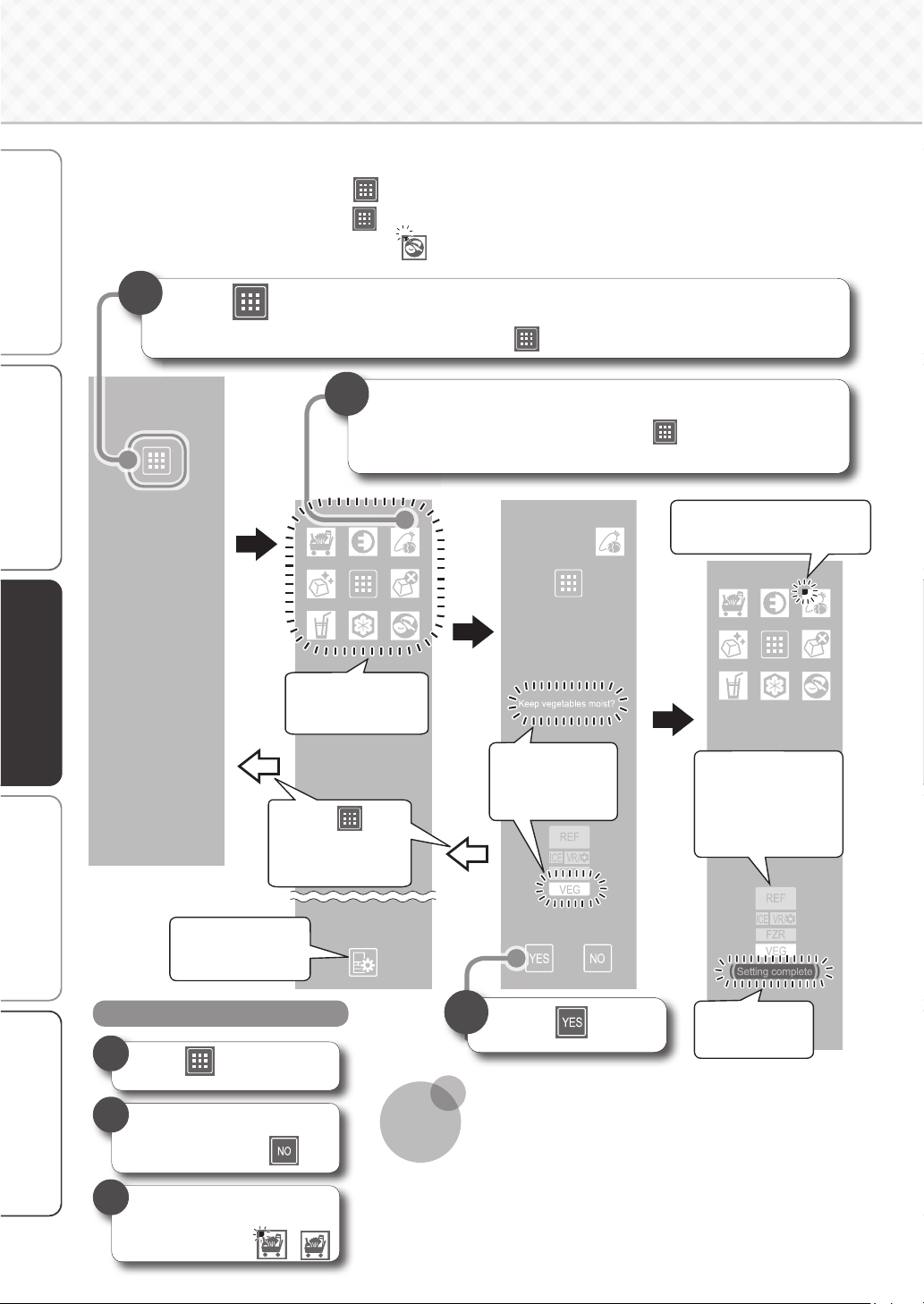

How to Use the Operation Panel
Rapid Cool Bulk Shopping, Keep
Vegetables Moist, Cool Drinks Quickly
Power Saving
Changing the Setting of the Ice
Making Compartment
Changing the Setting of the Versa
Compartment
Tips for
Setting the Details
Supercool Freezing
Soft-Freezing
The temperature setting change
( )
Power Save Mode
4-5
6-7
8-9
10
11
12-13
14
15
16
17
18-19
20-21
22-25
Before Use
Placing Food Inside
Page 17
X
Page 18
X
Page 19
X
Page 16
X

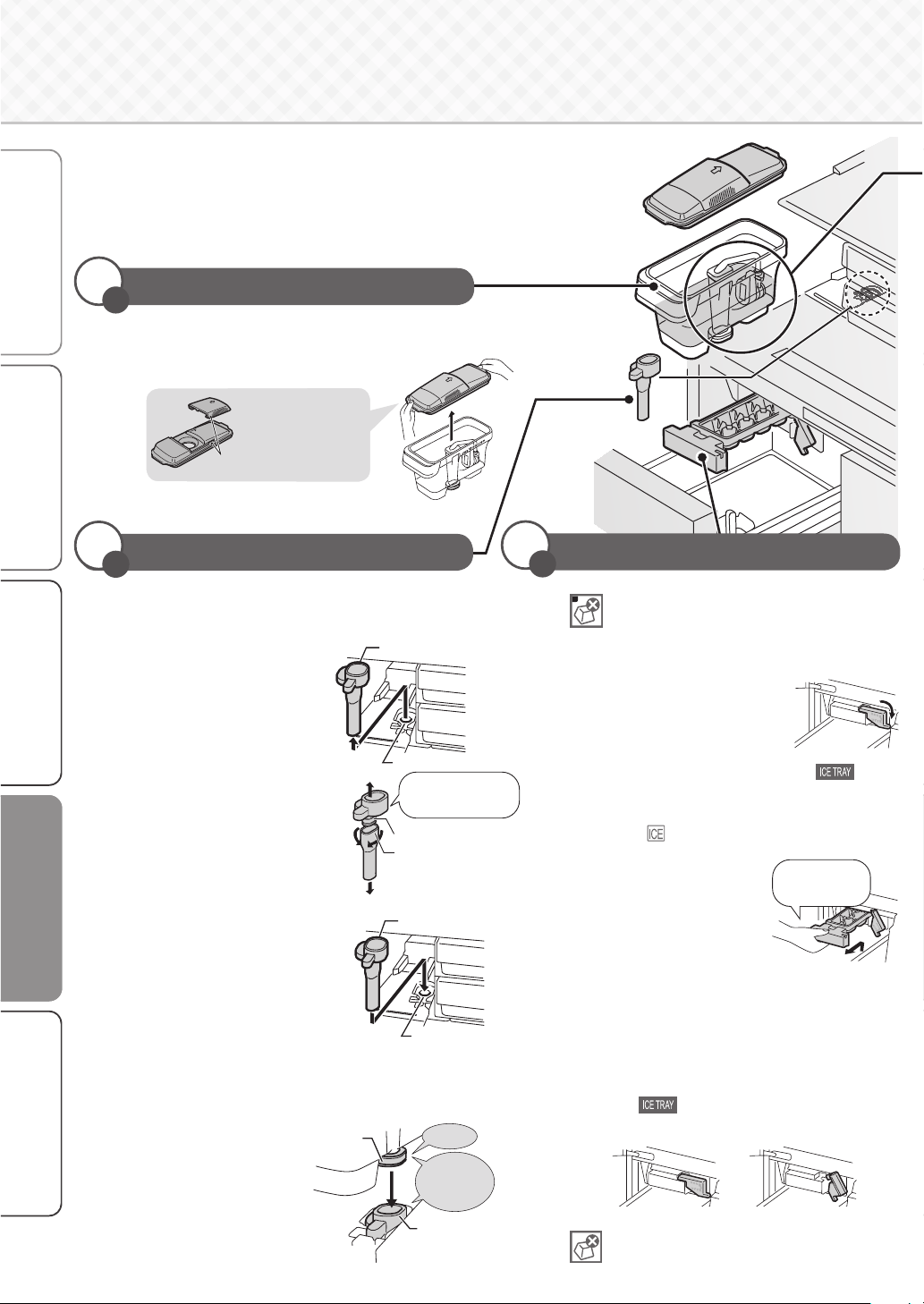

Cleaning the Automatic Ice Maker
Removing and Cleaning the Parts
Other Issues
Specifications
Troubleshooting
This refrigerator is manufactured for refrigerating and freezing
foods in general households. For industrial use, please use a
commercial refrigerator.
The material names are indicated on the main plastic parts to
facilitate recycling.
26-27
28-29
30-33
34
35-37
TroubleshootingCleaningOperation
Safety Precautions
The danger and degree of
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingBefore Use
danger caused by improper
handling are categorized
and described with the
following indicators.
Improper handling that can
result in death or serious
injury.
Improper handling that can
result in personal injury
or damage to your house,
household furnishings, etc.
Meaning of symbols.
Never do
Never touch
Never attempt to
disassemble, repair
or alter
Never expose to
water
Leave space around the refrigerator.
If refrigerant leaks, it
may accumulate and
catch fi re or explode.
Page 6
X
Do not install the refrigerator outdoors
or in places exposed to water or
excessive humidity.
Water may cause
insulation failure,
resulting in an electric
shock or fi re.
Page 6
X
If the power cord is damaged, call our MITSUBISHI
ELECTRIC SERVICE CENTRE for the replacement.
If the power cord is damaged, purchase a new cord from MITSUBISHI
ELECTRIC SERVICE CENTRE. Make sure that the
power cord is designed for this model. Power cords
should only be replaced by a qualifi ed person.
Page 6
X
Remove the power plug before
cleaning.
Otherwise an electric
shock or injury may
result.
Do not use damaged cords or plugs,
or loose sockets.
Doing so may cause an
electric shock or fi re.
Installation
Anchor the refrigerator to a strong wall
or post to protect against damage
during earthquakes.
The refrigerator may
tip over and cause injury.
Page 7
Leave space
prohibited
Service Call
X
Use a dedicated outlet for the power supply that
meets the rating specifi ed on the rating label.
(The rating label is located on the door-liner of
the refrigerator compartment.)
Using extension cords and
plugging too many leads into a
single socket can cause
heat build-up or fi re.
Water
Page 6
X
Insert the power plug with the cord
facing down, and fully insert the prongs
Inserting the plug upside-down
places stress on the cord and
may cause heat generation or
fi re.
Power and power plug
Do not crush the power plug with the rear of the
refrigerator.
Do not damage the power cord.
Pressing, folding, bundling
or placing heavy objects on
Remove plug
the power cord may cause an
electric shock or fi re.
Do not pull the cord when unplugging
the power plug.
The cord may be
damaged, resulting in an
Do not use
electric shock
Only use an outlet that meets the specifi ed rating.
or fi re.
Prevent tipping
Cord facing down
Prohibited
Prohibited
4
Never touch with
wet hands
Be sure to follow
the instructions
Be sure to remove
the power plug
from the socket
If an abnormality or
malfunction occurs,
stop operation
immediately and contact
the retail store where you
purchased the refrigerator
or a Mitsubishi Electric
Maintenance Service
or Customer Service
representative.
Remove dust periodically from the
power plug.
Dust may cause
insulation failure,
resulting in fi re.
Remove dust
Installation and transportation
Anchor the
refrigerator to a
strong and level
fl oor by adjusting the
adjustable supports.
Otherwise, the
refrigerator may move
and cause injury.
Pages 6 - 7
X
Install level
Use the
transportation
hand-holds when
transporting the
refrigerator.
Holding other parts may
result in injury.
X
Page 31
Use the hand-holds
Do not plug in or out the power plug
with wet hands.
Doing so may cause
an electric shock.
Be careful not to
damage the fl oor
or injure yourself
when moving the
refrigerator.
Lay a protective sheet on
the fl oor and move the
refrigerator slowly
.
Use protective
material
Do not pack in
excessive amounts of
food.
Do not pull the shelves
with excessive force.
Food may fall and
cause an injury
Wet hands
prohibited
Prohibited
Do not place water containers on top of the
refrigerator.
Exposing electrical parts
to water may cause an
electric shock or fi re.
Water
prohibited
Do not place objects on top of the
refrigerator.
Objects may fall when
the doors are opened or
closed and cause injury.
Do not touch the mechanical area of the
automatic ice maker
(area above the ice tray).
Doing so may result in
injury.
Do not wash with water or spill soup or
juice onto the refrigerator.
Water or other liquid may
cause an electric shock or
fire. Wipe off any liquid
immediately.
When the doors are opened or closed,
beware not to hit any furniture
The door or furniture
may be damaged and
cause any injury.
Prohibited
Do not touch
Water
prohibited
Prohibited
Operation
Do not use electrical appliances inside the
refrigerator.
The refrigerant gas leaking
into the compartment with
sparks from an electrical
contact may cause fi re and
explosion.
Do not store chemicals or scientifi c
specimens in the refrigerator.
Substances that require
strict control must not
be stored in household
refrigerators.
Do not damage or drive screws into the
refrigerator's refrigerant circuit (pipes).
Because combustible
refrigerant is used, this
may result in fire or an
explosion.
Do not use combustible sprays near the
refrigerator.
Sparks from an electrical
contact may cause an
ignition and fi re.
Prohibited
Do not store
Prohibited
Do not use
Do not place volatile, infl ammable objects
inside the refrigerator.
Benzene, cosmetics
and hair dressing
products may catch
fi re or explode.
Do not hang from the door or handle.
Do not climb on an open door.
Do not apply a heavy load.
The refrigerator may
tip over and cause
injury.
If you notice a gas leak, do not touch the
refrigerator. Open windows to ventilate.
Sparks from an electrical
contact may cause an
explosion or fi re.
Do not use in a shed or garage.
Small animals may damage the
electrical wiring and cause an electric
shock or fi re.
Do not store
Prohibited
Ventilate
Do not use
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingBefore Use
Malfunctions and long-term storage When Recycling
If the refrigerant circuit (pipe) is damaged,
do not touch the refrigerator and avoid
using fl ames. Open windows to ventilate.
If the refrigerant circuit
is damaged, contact the
retail store.
Ventilate
Do not disassemble, repair or alter. Do not
use while parts are damaged.
Doing so may cause
injury, electric shock or
fi re.
disassemble
Do not touch food
or containers in the
freezer compartment
with wet hands.
It may cause a cold
injury.
Wet hands
prohibited
Do not place glass
bottles in the freezer,
ice making and versa
compartments.
The bottle may break if
the liquid inside freezes,
causing an injury.
Do not store
Do not
If an abnormality occurs (such as a burning
odour), unplug the power plug and stop the
refrigerator operation.
Continuing to operate
with an abnormality
may cause an electric
shock or fi re.
When not using the refrigerator for a long
time, unplug the power plug and open the
doors to dry the refrigerator.
If the refrigerator is not dried suffi ciently,
refrigerant may leak due to condenser
corrosion and cause a fi re or explosion.
Remove plug
Dry
Operation
Do not put your
hands or feet under
the refrigerator.
The steel plates or other
parts may cause injury.
Do not touch
Do not eat food that
is discolored or has a
bad odour.
It may result in food
poisoning or illness.
Prohibited
For storage, make sure to pull out and
remove the door seal.
There is a possibility
of a child getting
trapped in the
refrigerator during
storage.
Contact the retail store or municipal
government for details about
correct refrigerator disposal.
Improper disposal may cause
refrigerant leaks, resulting in a fi re
or explosion if exposed to a fl ame.
Remove door seal
Dispose properly
Observe the following when opening and
closing the doors.
• Do not open or close the doors when another person
is touching the refrigerator.
• Do not put your fi ngers on the top edge of a drawertype door while closing it.
• Do not open or close the doors with excessive force.
(Food may fall out and cause injury.)
• Be careful not to trap your fi ngers or any other part of
your body.
• Be careful not hit a part of your body.
• Do not trap your feet with
the bottom drawer.
(Danger of your toes
caught by the drawer.)
Prohibited
5
From Installation to
Operation
Dedicated
Before Use
Space of
2.5 cm or more
Space of
0.5 cm or more
outlet that meets
the specifi ed rating.
Turn on the power of the
refrigerator as soon as
possible.
The refrigerator will not be
damaged even if you turn on
the power immediately after the
installation.
Placing Food Inside
1
Installation
Install the refrigerator at:
A place with good ventilation and not
exposed to direct sunlight or hot air
To keep good cooling performance and
reduce power costs.
A place with low humidity
Operation Cleaning TroubleshootingBefore Use
To prevent it from rusting, electric shock
and fi re.
A strong and level place
To prevent vibration, noise, and ajar or
tilting doors.
To prevent deformation or discoloration
of the fl oor materials due to the weight or
heat.
If the refrigerator supports may sink into the fl oor,
lay a strong plate or board underneath.
A
place
To prevent noise or video interference
with devices such as televisions.
There should be space of 0.5 cm
on the left and right of the
refrigerator, and 2.5 cm or more
from the ceiling.
To allow heat to dissipate from the top and
the sides of the refrigerator.
away from other devices
2
Connect the power supply
* Connect power supply soon after installing the refrigerator
Use a dedicated outlet
Use a dedicated outlet for the power supply that meets the rating specified on
the rating label. (The rating label is located on the door-liner of the refrigerator
compartment.)
Warning
Using outlets that do not meet the specifi ed rating or plugging in
too many leads into a single socket can cause heat buildup or fi re.
The refrigerator will not be damaged even if the power is supplied
soon after installation.
It takes a while for the refrigerator to cool, therefore supply power
as soon as possible.
Electrical Connections
Make sure this unit is properly grounded.
The refrigerator should always be plugged into its dedicated electrical
outlet.
This will provide the best performance and prevent electrical circuits
from being overloaded and causing a fi re.
Make sure that the electrical outlet provides the proper voltage.
Extension cords are not recommended.
If your refrigerator is installed in the high humidity location, not only
ground connection but also installation of the earth leakage breaker is
recommended.
If the power cord is damaged, purchase a new cord from MITSUBISHI
ELECTRIC SERVICE CENTRE. Make sure that the power cord is
designed for this model, in order to avoid a hazard.
Power cords should only be replaced by a qualified person.
6
Use in hot spring areas
Corrosion control treatment may be
required for the refrigerant circuit (pipe)
due to generation of corrosive gases.
Contact the retail store where you
purchased the refrigerator.
Warning
Do not obstruct the refrigerator vents
or the space around the refrigerator.
If refrigerant leaks, it may accumulate
and catch fi re or explode.
The outside of the refrigerator
and the rotating partition get hot.
•
Heat dissipation
causes the temperature
to rise to about 50 to
60°C or even higher
when operation is fi rst
started, and during the
summer.
•
The rotating partition
may get hot when
heated by the heater.
Rotating
partition
It takes time for cooling even
after turning on the refrigerator.
• Wait until the refrigerator has been
fully cooled before storing noncooled food or ice cream.
• Do not open the doors more than
necessary, and close them as soon as
possible.
When making ice for the fi rst time
When the weather is hot in summer, it
may take more than 24 hours.
Bottom front of refrigerator
Adjustment and anchoring
3
(To prevent vibration, noise, movement, and doors left ajar)
Turn and lower the adjustable supports until they touch the fl oor and
the front casters are raised from the fl oor to fi x the refrigerator.
Adjustable
support
Caster
Turn the adjustable
supports in the arrow
direction until they
touch the fl oor.
Caution
If the supports are not
adjusted properly,
the refrigerator may
move and cause
injury.
Adjustable support cover
Adjustable
4
support cover
The adjustable support cover
is stored inside the refrigerator
compartment at shipment.
Before Use
Placing Food Inside
Preventing doors
Adjusting a tilted door or unevenness
from being left ajar
Adjust the supports to
make the refrigerator
level.
If the front of the
refrigerator is slightly
raised, the doors are
easier to close.
If the door is still tilted after adjustment of the supports
When installing the refrigerator in
the corner of a room, one of the
rear supports may sink, causing the
refrigerator to tilt. If this happens,
use a caster support or strong board
for adjustment. (Normally, use a
board with a thickness of 2 to 3 mm.)
Adjust the adjustable supports as shown
in the fi gures below.
The right door tilts down
Rotate and lower the
right side
The left door tilts down
Right
Left
Rotate and lower the
left side
Do not damage the refrigerant
circuit (pipes) or drive screws into it.
Although fl ammable refrigerant is used, the refrigerant circuit
is hermetically sealed and normally leaks will not occur.
Warning
Should the refrigerant circuit be damaged:
1. Do not use fl ames or electrical appliances nearby.
2. Open the windows to fully ventilate the room.
Then, contact the retail store where you purchased the
refrigerator.
Installing the adjustable
support cover
If the installation
location is not level
or the supports sink
after a few days
of installation due
to the weight of
the food, the doors
may appear tilted.
Readjust the
supports.
* More than 100
kg of food can
be stored in the
refrigerator.
Fully insert the adjustable support
cover horizontally until it touches the
rear side
.
Adjustable
support
cover
Adjustable
support
Caster
The operation noise gets
louder immediately after
installation.
Immediately after instillation, when:
Rear support
Caster support
or strong board
the weather is hot, the doors are
frequently opened or closed, or
any similar situation; the operation
noise will get louder because the
refrigerator will switch to high-speed
operation to cool with high power.
Prepare for earthquakes
(for areas prone to earthquakes)
Pass 2 strong belts through the hand-holds on the top
rear of the refrigerator and anchor them to a strong
location, such as wall or post.
Warning
The refrigerator may tip over
and cause injury.
Strong belts
Operation Cleaning TroubleshootingBefore Use
7
Placing Food Inside
Before Use
You are now a skillful storage organizer
Get the most out of your refrigerator to make cooking
more fun and dishes tastier!
Operation panel
Placing Food Inside
Placing Food Inside
Operation Cleaning Troubleshooting
Ice making
compartment
Page 12
X
Page 14
X
Refrigerator
compartment
X
Page 10
Versa
compartment
Chilled
compartment
Page 10
X
Page 11
X
8
Ice is made automatically.
"Making ice"
Approximate temperature setting
Use the refrigerator, freezer, and vegetable compartments set to "M" usually.
Use the versa compartment in your preferred setting.
Initial settings (at time of purchase): refrigerator, freezer, and vegetable compartments "M", versa
compartment "Soft-Freezing, M"
Note
Page 13
X
•
The temperatures described here are measured in the lower centre of the refrigerator after the temperature has
stabilized when the surrounding temperature is 30°C and the doors are closed without any food inside. The
temperature fl uctuates with factors such as food storage conditions and how often the doors are opened and closed.
•
Plastic may have odours when you fi rst start using the refrigerator. Ventilate the room to prevent odours from
being contained, just in case. Odours will gradually disappear.
Freezer
compartment
Vegetable
compartment
Page 11
X
Page 11
X
Refrigerator
compartment
Food that are used daily
Keep eggs in the chilled egg
compartment
Food you do not want to freeze
Wrap foods that have strong odour thoroughly before storage
Food that transfers odours easily
Rakkyo, dried fi sh, natto,
miso, beef, takuan, sardines,
kimchi, jiaozi, etc.
Versa
compartment
About
0°C
Soft-Freezing:
to
6°C
Food to which odours may
easily be transferred
Puddings, rice, potato salad,
tofu, bread, milk, cake, etc.
About
-9°C
to
compartment
-5°C
Chilled
Dairy products: Yoghurt, cheese, etc.
Fish paste products: Steamed fish
paste, fi sh cake, etc.
Processed food: Ham, sausages, etc.
Fresh food: Meat, fi sh, shellfi sh, etc.
(Can be changed to freezing)
About
-3°C
to
3°C
Before Use
Placing Food Inside
Placing Food Inside
Cooked rice
Curry
Sauces
Freezer
compartment
Frozen food
Ice cream
Food frozen at home
Bread
Vegetable
compartment
Vegetables
Fruit
Drinks
About
About
-22°C
3°C
to
to
9°C
-16°C
Blocks of meat
Ground meat
Cutlets, cod roe
Tips for Supercool Freezing and Soft-Freezing
If you store the food that is Supercool
Freezing in the freezer compartment, it can be
stored for a long time without losing its taste
and texture.
The water that evaporates
from the food is kept
inside the compartment
to maintain the moisture.
Storing fruit and vegetables
in plastic wrap keeps them
even fresher.
Pages 20 - 21
X
Operation Cleaning Troubleshooting
Caution
Do not stack food higher than the case. The food will be caught at the rear of the case and may leave the door ajar.
9
Before Use
Refrigerator Compartment
Adjustable pocket:
Refrigerator compartment
• The lower (short) adjustable pockets (large and small) are 32 mm
smaller.
• The upper adjustable pockets (large and small) are non-adjustable.
Two-way flexishelf
If you take out the partitions, the
shelf will be wide. If you insert the
partitions, you can store high objects
in the lower shelf.
Placing Food Inside
Placing Food Inside
Adjustable
pocket (small)
Vertically adjustable
to 2 positions
AUTO Shelf
Move the lever to
the left or right to
adjust the space
between the
shelves.
Small item
holder
Operation Cleaning Troubleshooting
Bottle
pocket (small)
Rotating partition
Do not close the door while the
rotating partition is opened out
to the front.
If you open or close the doors with
force, the rotating partition may
open to the front. Open and close the
doors slowly. (Otherwise it may be
damaged.)
Do not leave food hanging over shelves or pockets.
Do not place glass bottles that cannot fi t all the way
to the bottom at the front of the bottle pocket.
Interior light
The interior light uses 10 LEDs.
If the interior light is damaged,
call our MITSUBISHI ELECTRIC
SERVICE CENTRE or its service
agent for the replacement, in order
to avoid a hazard.
Egg shelf
Small item case
(lower)
Small item case
(upper)
Air outlet
If food with a high water content is placed
near the air outlets, it may freeze.
Bottle pocket (large)
Chilled
Egg
compartment
Page 35
Adjustable pocket (large)
Vertically adjustable to 2 positions
Chilled (-3 to 3°C)
Slide chilled case
Store food such as meat, fi sh,
processed food (fi sh cake, ham, etc.)
and yoghurt.
10
Do not attach a case that you purchased
separately onto the outside of a pocket.
Do not close the door while food is in front of the
slide chilled case or the small item case.
Fully stow away the cases.
It may keep a door ajar and reduce the cooling performance, or food
may fall and cause an injury or damage to a case or lid.
• Cannot adjust the temperature.
• Do not store food that is easy to be frozen.
Auto closer
With the door of refrigerator room open at an angle of
about 20 degrees or less, the door closes automatically.
• The auto closer is not intended to automatically close doors
kept open slightly (doors left ajar). The door may stop before
closing completely if you swing close the door too softly.
• The amount of food inside the compartment may affect the
closing speed.
Versa
Freezer
Vegetable
Compartment
Versa compartment
Freezer compartment
Freezing
case (upper)
Compartment
Infrared sensor
The food temperature is detected with an infrared sensor.
Aluminum tray
The cold tray quickly cools the food.
Versa case
Do not stack food higher than the case.
Caution
• The door may not be closed.
• Food may be thawed.
• Food may be damaged.
Compartment
Before Use
Placing Food Inside
Placing Food Inside
Vegetable compartment
Vegetable case
Freezing
case (lower)
Slide
case
Caution
Caution
Do not place tall objects in the freezing case (lower).
• Food or the freezing case (upper)
may be damaged.
• The door may not be closed.
Do not put in plastic drink bottles other than those
meant for freezing. Do not place glass bottles in
freezer.
• The frozen contents may break the bottle.
Do not stack food higher than the case.
• Food or the slide case may be damaged.
• The door may not be closed.
Because the vegetable compartment has a high
humidity depending on the amount or types of
vegetables, frost or condensation may form on the roof
of the vegetable compartment or the surface of the
cases.
When condensation forms, wipe it off with a dry cloth.
Page 5
Operation Cleaning Troubleshooting
When a door is open, you will be informed with the door alarm, interior light, and compartment display area.
Page 32
11
Ice Making Compartment
(Automatic Ice Maker)
Ice making compartment
Before Use
Water tank cap
Water tank lid
The lid can be set on the
tank in both directions,
facing the front or rear.
Placing Food Inside
Placing Food Inside
Water tank
(about 1.2 L)
Tank
Pipe
Water supply pump
Optical catalyst and leadcleaning fi lter
Water tank setting position line
This is the guideline for
the water tank setting
position.
Push in the water tank
until it makes contact
with the inner side. Make
sure that the line can be
seen in front of the water
tank.
Water supply pipe
Ice tray
Operation Cleaning Troubleshooting
It can be removed
for cleaning.
Ice making
compartment
label
Ice server
Ice making precautions
Do not place objects at the rear of the ice storage
box.
Ice server
Ice storage box
Store food lower than the red line of the ice making compartment
•
label (because it may cause an ajar door, malfunction or damage).
Set the ice making compartment to "STOP" mode when storing food.
The level of the ice storage is checked automatically by the sensor
•
lever, and ice making is stopped when the ice reaches a certain level
(about 80 to 140 ice cubes). To detect the ice storage level correctly,
make sure that the ice is fl at and that the ice server is kept in its
storage position in the front right of the ice storage box.
Door
Ice tray
Lay fl at
Sensor lever
(Detects the ice
storage level)
Page 17
Ice tray lock lever
Soundproof mat
Reduces the sound of dropping ice.
Do not dispose of it.
Ice storage box
Clean the ice maker periodically to ensure
that the ice is pure and delicious.
Pages 26 - 27
•
Do not pour anything other than cold
water into the water tank, such as warm
water, juice, tea, soft drinks, or other
Caution
liquids (the tank can
resist heat up to 60°C).
Pouring anything other than
cold water into the tank may
cause damage.
•
Do not pour water directly into the ice
tray to make ice.
Unfrozen water in the ice tray may fall into the ice
storage box, and the ice may join not forming cubes.
•
When ice is made using water with a
high mineral content, such as mineral
water, white deposits (white crystals)
may form in the ice.
This is the crystallized mineral content and is
not harmful.
12
When a door is open, you will be informed with the door alarm and compartment display area
.
Page 32
Loading...
