Mitsubishi Electric MR-EX562W-N-A User Manual

Refrigerator-Freezer
MODEL
MR-EX655W-N-A (230-240V) MR-EX562W-N-A (230-240V)
OPERATING INSTRUCTIONS
R600a

Function Overview

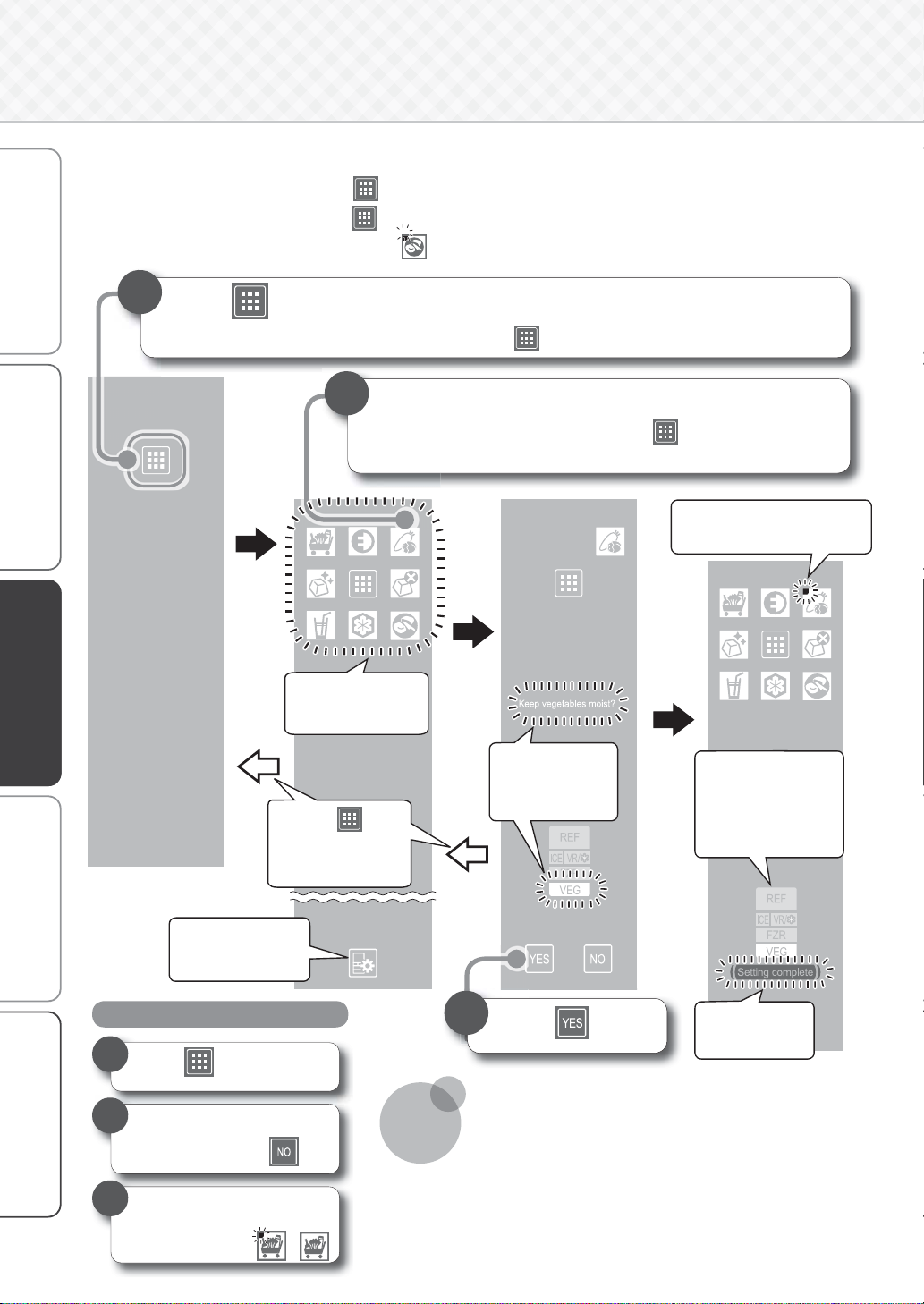

Complicated controls become easy with a touch panel!
If you touch the operation panel, icon will be displayed. You can select the setting that you prefer.
Want to Rapid cool bulk shopping
Want to Keep vegetables moist
Want to Cool drinks quickly
Power Saving
Want to make ice quickly
Want to stop making ice
Want to store food with Soft-Freezing
Freeze to savory taste (Supercool Freezing)
Check the power­saving condition
Contents
Page
Page 14
X
Page 15
X
Page 16
X
Safety Precautions
From Installation to Operation
Placing Food Inside
Refrigerator Compartment Versa, Freezer, and Vegetable
Compartments Ice Making Compartment
(Automatic Ice Maker) How to Use the Operation Panel Rapid Cool Bulk Shopping, Keep
Vegetables Moist, Cool Drinks Quickly Power Saving Changing the Setting of the Ice
Making Compartment Changing the Setting of the Versa
Compartment
Tips for
Setting the Details
Supercool Freezing Soft-Freezing
The temperature setting change
( )
Power Save Mode
4-5
6-7
8-9
10
11
12-13
14
15
16
17
18-19
20-21
22-25
Before Use
Placing Food Inside
Page 17
X
Page 18
X
Page 19
X
Page 16
X
Cleaning the Automatic Ice Maker
Removing and Cleaning the Parts
Other Issues
Specifications
Troubleshooting
This refrigerator is manufactured for refrigerating and freezing
foods in general households. For industrial use, please use a commercial refrigerator.
The material names are indicated on the main plastic parts to
facilitate recycling.
Illustrations for MR-EX655W are used in explanations.
26-27
28-29
30-33
34
35-37
TroubleshootingCleaningOperation

Safety Precautions

The danger and degree of
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingBefore Use
danger caused by improper handling are categorized and described with the following indicators.
Improper handling that can result in death or serious injury.
Improper handling that can result in personal injury or damage to your house, household furnishings, etc.
Meaning of symbols.
Never do
Never touch
Never attempt to disassemble, repair or alter
Never expose to water
Leave space around the refrigerator.
If refrigerant leaks, it may accumulate and catch fi re or explode.
Page 6
X
Do not install the refrigerator outdoors or in places exposed to water or excessive humidity.
Water may cause insulation failure, resulting in an electric shock or fi re.
Page 6
X
If the power cord is damaged, call our MITSUBISHI ELECTRIC SERVICE CENTRE for the replacement.
If the power cord is damaged, purchase a new cord from MITSUBISHI ELECTRIC SERVICE CENTRE. Make sure that the power cord is designed for this model. Power cords should only be replaced by a qualifi ed person.
Page 6
X
Remove the power plug before cleaning.
Otherwise an electric shock or injury may result.
Do not use damaged cords or plugs, or loose sockets.
Doing so may cause an electric shock or fi re.
Installation
Anchor the refrigerator to a strong wall or post to protect against damage during earthquakes.
The refrigerator may tip over and cause injury.
Page 7
Leave space
prohibited
Service Call
X
Use a dedicated outlet for the power supply that meets the rating specifi ed on the rating label. (The rating label is located on the door-liner of the refrigerator compartment.)
Using extension cords and plugging too many leads into a single socket can cause heat build-up or fi re.
Water
Page 6
X
Insert the power plug with the cord facing down, and fully insert the prongs
Inserting the plug upside-down places stress on the cord and may cause heat generation or fi re.
Power and power plug
Do not crush the power plug with the rear of the refrigerator. Do not damage the power cord.
Pressing, folding, bundling or placing heavy objects on
Remove plug
the power cord may cause an electric shock or fi re.
Do not pull the cord when unplugging the power plug.
The cord may be damaged, resulting in an
Do not use
electric shock
Only use an outlet that meets the specifi ed rating.
or fi re.
Prevent tipping
Cord facing down
Prohibited
Prohibited
4
Never touch with wet hands
Be sure to follow the instructions
Be sure to remove the power plug from the socket
If an abnormality or malfunction occurs,
stop operation immediately and contact the retail store where you purchased the refrigerator or a Mitsubishi Electric Maintenance Service or Customer Service representative.
Remove dust periodically from the power plug.
Dust may cause insulation failure, resulting in fi re.
Remove dust
Installation and transportation
Anchor the refrigerator to a strong and level fl oor by adjusting the adjustable supports.
Otherwise, the refrigerator may move and cause injury.
Pages 6 - 7
X
Install level
Use the transportation hand-holds when transporting the refrigerator.
Holding other parts may result in injury.
X
Page 31
Use the hand-holds
Do not plug in or out the power plug with wet hands.
Doing so may cause an electric shock.
Be careful not to damage the fl oor or injure yourself when moving the refrigerator.
Lay a protective sheet on the fl oor and move the refrigerator slowly
.
Use protective
material
Do not pack in excessive amounts of food. Do not pull the shelves with excessive force.
Food may fall and cause an injury
Wet hands
prohibited
Prohibited
Do not place water containers on top of the refrigerator.
Exposing electrical parts to water may cause an electric shock or fi re.
Water
prohibited
Do not place objects on top of the refrigerator.
Objects may fall when the doors are opened or closed and cause injury.
Do not touch the mechanical area of the automatic ice maker (area above the ice tray).
Doing so may result in injury.
Do not wash with water or spill soup or juice onto the refrigerator.
Water or other liquid may cause an electric shock or fire. Wipe off any liquid immediately.
When the doors are opened or closed, beware not to hit any furniture
The door or furniture may be damaged and cause any injury.
Prohibited
Do not touch
Water
prohibited
Prohibited
Operation
Do not use electrical appliances inside the refrigerator.
The refrigerant gas leaking into the compartment with sparks from an electrical contact may cause fi re and explosion.
Do not store chemicals or scientifi c specimens in the refrigerator.
Substances that require strict control must not be stored in household refrigerators.
Do not damage or drive screws into the refrigerator's refrigerant circuit (pipes).
Because combustible refrigerant is used, this may result in fire or an explosion.
Do not use combustible sprays near the refrigerator.
Sparks from an electrical contact may cause an ignition and fi re.
Prohibited
Do not store
Prohibited
Do not use
Do not place volatile, infl ammable objects inside the refrigerator.
Benzene, cosmetics and hair dressing products may catch fi re or explode.
Do not hang from the door or handle. Do not climb on an open door. Do not apply a heavy load.
The refrigerator may tip over and cause injury.
If you notice a gas leak, do not touch the refrigerator. Open windows to ventilate.
Sparks from an electrical contact may cause an explosion or fi re.
Do not use in a shed or garage.
Small animals may damage the electrical wiring and cause an electric shock or fi re.
Do not store
Prohibited
Ventilate
Do not use
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingBefore Use
Malfunctions and long-term storage When Recycling
If the refrigerant circuit (pipe) is damaged, do not touch the refrigerator and avoid using fl ames. Open windows to ventilate.
If the refrigerant circuit is damaged, contact the retail store.
Ventilate
Do not disassemble, repair or alter. Do not use while parts are damaged.
Doing so may cause injury, electric shock or fi re.
disassemble
Do not touch food or containers in the freezer compartment with wet hands.
It may cause a cold injury.
Wet hands
prohibited
Do not place glass
bottles in the freezer,
ice making and versa
compartments.
The bottle may break if
the liquid inside freezes,
causing an injury.
Do not store
Do not
If an abnormality occurs (such as a burning odour), unplug the power plug and stop the refrigerator operation.
Continuing to operate with an abnormality may cause an electric shock or fi re.
When not using the refrigerator for a long time, unplug the power plug and open the doors to dry the refrigerator.
If the refrigerator is not dried suffi ciently, refrigerant may leak due to condenser corrosion and cause a fi re or explosion.
Remove plug
Dry
Operation
Do not put your hands or feet under the refrigerator.
The steel plates or other parts may cause injury.
Do not touch
Do not eat food that is discolored or has a bad odour.
It may result in food poisoning or illness.
Prohibited
For storage, make sure to pull out and remove the door seal.
There is a possibility of a child getting trapped in the refrigerator during storage.
Contact the retail store or municipal government for details about correct refrigerator disposal.
Improper disposal may cause refrigerant leaks, resulting in a fi re or explosion if exposed to a fl ame.
Remove door seal
Dispose properly
Observe the following when opening and closing the doors.
• Do not open or close the doors when another person is touching the refrigerator.
• Do not put your fi ngers on the top edge of a drawer­type door while closing it.
• Do not open or close the doors with excessive force. (Food may fall out and cause injury.)
• Be careful not to trap your fi ngers or any other part of your body.
• Be careful not hit a part of your body.
• Do not trap your feet with the bottom drawer. (Danger of your toes caught by the drawer.)
Prohibited
5

From Installation to Operation

Before Use
Placing Food Inside
MR-EX655W: Space of 10 cm or more
MR-EX562W: Space of 3 cm or more
Space of
2 cm or more
Installation
1
Install the refrigerator at:
A place with good ventilation and not
exposed to direct sunlight or hot air
To keep good cooling performance and reduce power costs.
A place with low humidity
Operation Cleaning TroubleshootingBefore Use
To prevent it from rusting, electric shock and fi re.
A strong and level place
To prevent vibration, noise, and ajar or tilting doors. To prevent deformation or discoloration of the fl oor materials due to the weight or
heat. If the refrigerator supports may sink into the fl oor, lay a strong plate or board underneath.
A
place
To prevent noise or video interference
with devices such as televisions.
There should be space of 2 cm or
more on the left and right of the
refrigerator, and 10 cm or more
(MR-EX655W), or 3 cm or more
(MR-EX562W) from the ceiling.
To allow heat to dissipate from the top and
the sides of the refrigerator.
Use in hot spring areas
Corrosion control treatment may be required for the refrigerant circuit (pipe) due to generation of corrosive gases. Contact the retail store where you purchased the refrigerator.
Do not obstruct the refrigerator vents or the space around the refrigerator. If refrigerant leaks, it may accumulate and catch fi re or explode.
away from other devices
Warning
Dedicated outlet that meets the specifi ed rating.
Turn on the power of the refrigerator as soon as possible.
The refrigerator will not be damaged even if you turn on the power immediately after the installation.
2
Connect the power supply
* Connect power supply soon after installing the refrigerator
Use a dedicated outlet
Use a dedicated outlet for the power supply that meets the rating specified on the rating label. (The rating label is located on the door-liner of the refrigerator compartment.)
Warning
Using outlets that do not meet the specifi ed rating or plugging in too many leads into a single socket can cause heat buildup or fi re.
The refrigerator will not be damaged even if the power is supplied
soon after installation. It takes a while for the refrigerator to cool, therefore supply power as soon as possible.
Electrical Connections
Make sure this unit is properly grounded.
The refrigerator should always be plugged into its dedicated electrical
outlet.
This will provide the best performance and prevent electrical circuits from being overloaded and causing a fi re. Make sure that the electrical outlet provides the proper voltage. Extension cords are not recommended.
If your refrigerator is installed in the high humidity location, not only
ground connection but also installation of the earth leakage breaker is recommended.
If the power cord is damaged, purchase a new cord from MITSUBISHI
ELECTRIC SERVICE CENTRE. Make sure that the power cord is designed for this model, in order to avoid a hazard.
Power cords should only be replaced by a qualified person.
The outside of the refrigerator
and the rotating partition get hot.
Heat dissipation causes the temperature to rise to about 50 to 60°C or even higher when operation is fi rst started, and during the summer.
The rotating partition may get hot when heated by the heater.
Rotating partition
It takes time for cooling even
after turning on the refrigerator.
• Wait until the refrigerator has been fully cooled before storing non­cooled food or ice cream.
• Do not open the doors more than necessary, and close them as soon as possible.
When making ice for the fi rst time
When the weather is hot in summer, it may take more than 24 hours.
6
Bottom front of refrigerator
Adjustment and anchoring
3
(To prevent vibration, noise, movement, and doors left ajar)
Turn and lower the adjustable supports until they touch the fl oor and the front casters are raised from the fl oor to fi x the refrigerator.
Adjustable
support
Caster
Turn the adjustable supports in the arrow direction until they touch the fl oor.
Caution
If the supports are not adjusted properly, the refrigerator may move and cause injury.
Adjustable support cover
Adjustable
4
support cover
The adjustable support cover is stored inside the refrigerator compartment at shipment.
Before Use
Placing Food Inside
Preventing doors
Adjusting a tilted door or unevenness
from being left ajar
Adjust the supports to make the refrigerator level. If the front of the refrigerator is slightly raised, the doors are easier to close.
If the door is still tilted after adjustment of the supports
When installing the refrigerator in the corner of a room, one of the rear supports may sink, causing the refrigerator to tilt. If this happens, use a caster support or strong board for adjustment. (Normally, use a board with a thickness of 2 to 3 mm.)
Adjust the adjustable supports as shown in the fi gures below.
The right door tilts down
Rotate and lower the
right side
The left door tilts down
Right
Left
Rotate and lower the
left side
Do not damage the refrigerant
circuit (pipes) or drive screws into it.
Although fl ammable refrigerant is used, the refrigerant circuit is hermetically sealed and normally leaks will not occur.
Warning
Should the refrigerant circuit be damaged:
1. Do not use fl ames or electrical appliances nearby.
2. Open the windows to fully ventilate the room.
Then, contact the retail store where you purchased the refrigerator.
Installing the adjustable
support cover
If the installation location is not level or the supports sink after a few days of installation due to the weight of the food, the doors may appear tilted. Readjust the supports.
* More than 100
kg of food can be stored in the refrigerator.
Fully insert the adjustable support
cover horizontally until it touches the rear side
.
Adjustable
support
cover
Adjustable
support
Caster
The operation noise gets
louder immediately after
installation.
Immediately after instillation, when:
Rear support Caster support
or strong board
the weather is hot, the doors are frequently opened or closed, or any similar situation; the operation noise will get louder because the refrigerator will switch to high-speed operation to cool with high power.
Prepare for earthquakes
(for areas prone to earthquakes)
Pass 2 strong belts through the hand-holds on the top rear of the refrigerator and anchor them to a strong location, such as wall or post.
Warning
The refrigerator may tip over and cause injury.
Strong belts
Operation Cleaning TroubleshootingBefore Use
7

Placing Food Inside

Before Use
You are now a skillful storage organizer Get the most out of your refrigerator to make cooking more fun and dishes tastier!
Operation panel
Placing Food Inside
Placing Food Inside
Operation Cleaning Troubleshooting
Ice making
compartment
Page 12
X
Page 14
X
Refrigerator
compartment
X
Page 10
Versa
compartment
Chilled
compartment
Page 10
X
Page 11
X
Ice is made automatically.
"Making ice"
Page 13
X
Approximate temperature setting
Use the refrigerator, freezer, and vegetable compartments set to "M" usually. Use the versa compartment in your preferred setting.
Initial settings (at time of purchase): refrigerator, freezer, and vegetable compartments "M", versa
compartment "Soft-Freezing, M"
The temperatures described here are measured in the lower centre of the refrigerator after the temperature has stabilized when the surrounding temperature is 30°C and the doors are closed without any food inside. The
Note
*Illustrations for MR-EX655W are used in explanations. *The MR-EX562W has only a single two-way fl exishelf.
8
temperature fl uctuates with factors such as food storage conditions and how often the doors are opened and closed.
Plastic may have odours when you fi rst start using the refrigerator. Ventilate the room to prevent odours from
being contained, just in case. Odours will gradually disappear.
Page 10
X
Freezer
compartment
Vegetable
compartment
Page 11
X
Page 11
X
Refrigerator
compartment
Food that are used daily
Keep eggs in the chilled egg
compartment
Food you do not want to freeze
Wrap foods that have strong odour thoroughly before storage
Food that transfers odours easily
Rakkyo, dried fi sh, natto, miso, beef, takuan, sardines, kimchi, jiaozi, etc.
Versa
compartment
About
0°C
to
Soft-Freezing:
6°C
Food to which odours may
easily be transferred
Puddings, rice, potato salad, tofu, bread, milk, cake, etc.
About
-9°C
to
compartment
-5°C
Chilled
Dairy products: Yoghurt, cheese, etc.
Fish paste products: Steamed fish
paste, fi sh cake, etc.
Processed food: Ham, sausages, etc.
Fresh food: Meat, fi sh, shellfi sh, etc.
(Can be changed to freezing)
About
-3°C
to
3°C
Before Use
Placing Food Inside
Placing Food Inside
Cooked rice
Curry
Sauces
Freezer
compartment
Frozen food
Ice cream
Food frozen at home
Bread
Vegetable
compartment
Vegetables
Fruit
Drinks
About
About
-22°C
3°C
to
to
9°C
-16°C
Blocks of meat
Ground meat
Cutlets, cod roe
Tips for Supercool Freezing and Soft-Freezing
If you store the food that is Supercool Freezing in the freezer compartment, it can be stored for a long time without losing its taste and texture.
The water that evaporates from the food is kept inside the compartment to maintain the moisture. Storing fruit and vegetables in plastic wrap keeps them even fresher.
Pages 20 - 21
X
Operation Cleaning Troubleshooting
Caution
Do not stack food higher than the case. The food will be caught at the rear of the case and may leave the door ajar.
9
Before Use

Refrigerator Compartment

The MR-EX562W has different specifi cations:
Refrigerator compartment
• There is only a single two-way fl exishelf.
• The lower (short) adjustable pockets (large and small) are 32 mm smaller.
• The upper adjustable pockets (large and small) are non-adjustable.
Two-way flexishelf
If you take out the partitions, the shelf will be wide. If you insert the partitions, you can store high objects in the lower shelf.
Placing Food Inside
Placing Food Inside
Adjustable pocket (small)
Vertically adjustable to 2 positions
AUTO Shelf
Move the lever to the left or right to adjust the space between the shelves.
Small item
Operation Cleaning Troubleshooting
holder
Bottle pocket (small)
Rotating partition
Do not close the door while the rotating partition is opened out to the front.
If you open or close the doors with force, the rotating partition may open to the front. Open and close the doors slowly. (Otherwise it may be damaged.)
Do not leave food hanging over shelves or pockets. Do not place glass bottles that cannot fi t all the way to the bottom at the front of the bottle pocket.
Interior light
The interior light uses 10 LEDs.
Egg shelf
Small item case (lower)
Small item case (upper)
Air outlet
If food with a high water content is placed near the air outlets, it may freeze.
Bottle pocket (large)
Chilled Egg compartment
Page 35
Adjustable pocket (large)
Vertically adjustable to 2 positions
Chilled (-3 to 3°C)
Slide chilled case
Store food such as meat, fi sh, processed food (fi sh cake, ham, etc.) and yoghurt.
10
Do not attach a case that you purchased separately onto the outside of a pocket.
Do not close the door while food is in front of the slide chilled case or the small item case.
Fully stow away the cases.
It may keep a door ajar and reduce the cooling performance, or food may fall and cause an injury or damage to a case or lid.
• Cannot adjust the temperature.
• Do not store food that is easy to be frozen.
Auto closer
With the door of refrigerator room open at an angle of about 20 degrees or less, the door closes automatically.
• The auto closer is not intended to automatically close doors kept open slightly (doors left ajar). The door may stop before closing completely if you swing close the door too softly.
• The amount of food inside the compartment may affect the closing speed.
Versa
Freezer
Vegetable
Compartment

Versa compartment

Freezer compartment

Freezing case (upper)
Compartment
Infrared sensor
The food temperature is detected with an infrared sensor.
Aluminum tray
The cold tray quickly cools the food.
Versa case
Do not stack food higher than the case.
Caution
• The door may not be closed.
• Food may be thawed.
• Food may be damaged.
Do not place tall objects in the freezing case (lower).
• Food or the freezing case (upper) may be damaged.
• The door may not be closed.
Compartment
Before Use
Placing Food Inside
Placing Food Inside
Operation Cleaning Troubleshooting
Caution
Freezing case (lower)
Do not put in plastic drink bottles other than those meant for freezing. Do not place glass bottles in freezer.
• The frozen contents may break the bottle.
Page 5

Vegetable compartment

Slide case
Vegetable case
z
When a door is open, you will be informed with the door alarm, interior light, and compartment display area.
* Illustrations for MR-EX655W are used in explanations. Depending on the refrigerator model, the capacity, dimensions and
shape may differ, but usage is the same.
Bathed in light to increase the nutrients! Vitamins boosted up
The orange LED is always on.
Storing fruit and vegetables in plastic wrap keeps them even fresher.
Vegetables stay alive even after harvest. Being bathed in light, their nutrients are boosted up.
• There is almost no vegetable, fruit, drink or seasoning that cannot be preserved or stored being exposed to light.
• The vegetable nutrients are increased even with a weak light, so packaging does not need to be removed (except when the packaging completely blocks off the light).
The vegetable nutrients are not increased forever. The preservation also depends
on the freshness at the time of purchase. Eat vegetables when they are as fresh as possible.
Because the vegetable compartment has a high humidity, fogging or condensation may form on the roof of the vegetable compartment or the bottom of the cases. Condensation forming on the bottom may make the case dirty, so wipe it
The orange LED is equipped to the MR-EX655W only (not equipped to the MR-EX562W).
*
Do not stack food higher than the case.
• Food or the slide case may be damaged.
• The door may not be closed.
Caution
Because the vegetable compartment has a high humidity depending on the amount or types of vegetables, frost or condensation may form on the roof of the vegetable compartment or the surface of the cases. When condensation forms, wipe it off with a dry cloth.
off with a dry cloth.
Page 32
11
Ice Making Compartment
(Automatic Ice Maker)
Ice making compartment
Before Use
Water tank cap
Water tank lid
The lid can be set on the tank in both directions, facing the front or rear.
Placing Food Inside
Placing Food Inside
Water tank (about 1.2 L)
Tank Pipe Water supply pump Optical catalyst and lead­cleaning fi lter
Water tank setting position line
This is the guideline for the water tank setting position. Push in the water tank until it makes contact with the inner side. Make sure that the line can be seen in front of the water tank.
Water supply pipe
Ice tray
Operation Cleaning Troubleshooting
It can be removed for cleaning.
Ice making
compartment
label
Ice server
Ice making precautions
Do not place objects at the rear of the ice storage box.
Ice server
Ice storage box
Store food lower than the red line of the ice making compartment
label (because it may cause an ajar door, malfunction or damage).
Set the ice making compartment to "STOP" mode when storing food.
The level of the ice storage is checked automatically by the sensor
lever, and ice making is stopped when the ice reaches a certain level (about 80 to 140 ice cubes). To detect the ice storage level correctly, make sure that the ice is fl at and that the ice server is kept in its storage position in the front right of the ice storage box.
Door
Ice tray
Lay fl at
Sensor lever (Detects the ice
storage level)
Page 17
Ice tray lock lever
Soundproof mat
Reduces the sound of dropping ice. Do not dispose of it.
Ice storage box
Clean the ice maker periodically to ensure
that the ice is pure and delicious.
Pages 26 - 27
Do not pour anything other than cold water into the water tank, such as warm water, juice, tea, soft drinks, or other
Caution
liquids (the tank can resist heat up to 60°C).
Pouring anything other than cold water into the tank may cause damage.
Do not pour water directly into the ice tray to make ice.
Unfrozen water in the ice tray may fall into the ice storage box, and the ice may join not forming cubes.
When ice is made using water with a high mineral content, such as mineral water, white deposits (white crystals) may form in the ice.
This is the crystallized mineral content and is not harmful.
12
When a door is open, you will be informed with the door alarm and compartment display area
.
Page 32
1
Check that is not displayed.
Check this after touching to light up the display.
If the lamp is on, insert the ice tray and lock the ice tray lock lever. Inser ting ice tray X Page 26
Before Use
2
Hold the tank with both hands.
3
Slide the water tank cap and pour water into the water supply port up to the full position.
Water supply port
Full position
4
Carry the water tank with both hands and insert it horizontally until it makes contact with the rear side.
Remove the water tank from the refrigerator compartment.
Water tank
When using it for the fi rst time, or if you have not made ice for more than a week.
Wash the water tank, water supply pipe, and ice tray.
Odours or dust may be adhered to the parts. How to wash X Page 26
Do not pour water above the full position.
If water is fi lled beyond the full position, water may
spill when you carry or tilt the tank. Further, it may cause the water channels in the ice tray to freeze, and the ice to join together or form a protrusion.
WARNING-Fill with potable water only.
Close the water tank cap, return the water tank to its original position, and close the door of the refrigerator compartment.
Check that there are no foreign objects between
the tank holder and the water supply pipe area. It may cause freezing.
How to check X Page 26
Push in the water tank until it touches the rear
side. Setting the water tank incorrectly may prevent ice from for ming.
Placing Food Inside
Placing Food Inside
Operation Cleaning Troubleshooting
The ice making time for a single batch is about 2 hours.
When you want to make ice quickly X Page 17
About the ice
About 10 to 12 ice cubes can be made each time. The ice cube size and the
number of ice cubes in one batch depend on various factors, such as the amount of water in the water tank.
If the ice is stored in the ice storage box for a long
time, the ice cubes may join together or shrink (due to a phenomenon called sublimation).
If you try to crush ice that has joined together,
be careful not to injure your hands.
Caution
If of the compartment display blinks.
Ice tray is operating. Do not remove the ice tray while it is operating. Doing so may cause injury. If you release the ice tray lock lever while the ice tray is operating, you will be alerted by a repetitive buzzer.
13

How to Use the Operation Panel

The operation panel is a touch-style panel operated by touching the operation items with a finger.
Before Use
Placing Food Inside
To save power, all displays other than are usually turned off (It turns off if there is no operation for about 30 seconds).
To check the setting status, touch to light up the display.
The blue light at the top left corner of the "Soft-Freezing" icon lights up at the time of purchase.
1
Touch .
When you keep the door of the refrigerator open, touch for about 1 second (until the buzzer sounds once).
2
Touch the icon that you prefer from the icon list.
When you touch an icon by mistake, touch .
The display returns to the previous state.
The blue light at the top left corner of the icon that you are setting now lights up.
Operation Cleaning TroubleshootingOperation
1
2
3
14
Operable icons light up.
Touching returns the display to the previous state.
Detail setting
Pages 22 - 25
X
To cancel the setting
Touch .
After touching the icon that you want to cancel, touch
The blue light at the top left corner of the icon turns off.
Example:
.
Note
The setting and the compartment that you want to set lights up.
3
Touch .
Operate this operation panel with a fi nger.
In the following cases, it may not operate properly.
When the operation panel or fi ngers are wet or dirty
When operating with gloves or band-aid on
When using a sharp object to operate it
If the display does not change even though you are touching an item, touch
the item again after moving away your fi nger once. If the interval between each touch is too short, it may be misdetected (as a continuous touch). Detecting sensitivity does not change even if an item is touched hard.
The response may vary, depending on the surrounding temperature,
humidity, the health condition of the person who operates it, and the operating condition of neighboring electric appliances.
The compartment you want to set will light up brightly, and the compartments you do not want to set will light up dimly.
It lights up for 5 seconds after setting.

Rapid Cool Bulk Shopping

Keep Vegetables Moist

Cool Drinks Quickly

Rapid Cool Bulk Shopping
Automatically select the compartment whose door was opened and closed, and then cool it down quickly.
1
Touch .
2
Touch .
corner of the icon lights up, and then the setting is fi nished.
This stops automatically about 2 hours after setting.
will be displayed.
is displayed, the blue light at the top left
Usable in the refrigerator, freezer, and vegetable compartments.
Keep Vegetables Moist
The vegetables can be freshly kept for a long time in the temperature suitable for leaf vegetables.
1
Touch .
will be displayed.
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingOperation
2
Touch .
is displayed, the blue light at the top left
corner of the icon lights up, and then the setting is fi nished.
Cool Drinks Quickly
Quickly cool down drinks or food in the refrigerator compartment.
1
Touch .
2
Touch .
corner of the icon lights up, and then the setting is fi nished.
This stops automatically about 2 hours after setting.
Canceling the operation panel setting
is displayed, the blue light at the top left
will be displayed.
Page 14
X
Usable in the vegetable compartment.
Usable in the refrigerator compartment.
15

Power Saving

y,
ibl
tly
Before Use
An appropriate timing is selected for each compartment and the power-saving mode is performed automatically. With the power saving operation, the temperature of the compartment is set a little higher while compartment operations are performed.
Power-saving is canceled for compartments with doors that are frequently opened and closed, as well as the compartments on the fast cooling setting,
1
Touch .
Placing Food Inside
Operation Cleaning TroubleshootingOperation
2
Touch .
corner of the icon lights up, and then the setting is fi nished.
As for the compartment in power saving mode,
If 30 seconds pass without any operations, the display turns off.
Check the power-saving condition.
When checking the power saving conditions of each compartment, touch compartment and you can check the compartment in power-saving mode by the
Example:
Display example
When the freezer compartment and the refrigerator compartment are in power-saving mode (ECO level 2)
Compartment
display
Set Energy Saving Mode (ECO MODE)
will be displayed.
is displayed, the blue light at the top left
lights up.
X
Usable in all compartments.
to switch the display area by
display.
lights up to indicate the compartment in power­saving mode.
16
ECO GUIDE
The ECO Level of the previous 24 hours is determined by factors such as the temperature settings of the compartments and the frequency of opening and closing the doors, and is indicated by the number of  marks.
represents a blinking display (such
ECO level Level 0 Level 1 Level 2 Level 3
ECO GUIDE
The ECO Level is indicated in 4 levels from 0 to 3. (Eco-friendly use can save power and increase the ECO level.)
The ECO Level is updated about once every hour. (If there is no change in the ECO Level, the number of the
At the time of purchase, level 1 is displayed.
The ECO GUIDE is displayed even when Energy Saving Mode is not set.
After a door is closed, the ECO GUIDE and the
When Energy Saving Mode is set, the compartment in power saving mode will light up.
Even though Energy Saving Mode is set, the display does not light up if the compartment is not on the power-saving mode.
*
display light up for about 30 seconds (then they go off).
*
as when the doors are opened and closed frequently or the surrounding temperature of the refrigerator is hot).
mark does not change.)
How can I increase the ECO level?
Set Energy Saving Mode
When the temperature inside the refrigerator is stable, the power-saving operation is performed automatically. This is not set initially.
Set Power Save Mode
Performs the power-saving operation by reducing refrigerating capacity. This mode can be set for the ice making and versa compartments.
Set the temperature relatively high
By setting the temperature of each compartment relatively high,
Pages 24 - 25
X
power consumption can be reduced. We also recommend setting the versa compartment to Soft-Freezing.
Do not open the doors more than necessary, and close them as soon as possible
If doors are opened frequently or are kept open for a long time, cold air escapes from the refrigerator and more power is consumed.
Even when a door is open only slightly,
it can cause frost or condensation, reduce the cooling performance, or generate water drips.
ss
ed.
e
,
n,

Changing the Setting of the Ice Making Compartment

When the blue light does not light up on either icon, the compartment is in the regular ice making mode.
Regular ice making is set at the time of purchase.
Making ice quickly (quick ice making)
The ice making time for a single batch is 60 to 80 minutes.
1
Touch .
2
Touch .
the top left corner of the icon lights up, and then the setting is fi nished.
Setting the compartment to "quick ice making" cancels "stop ice
making."
will be displayed.
is displayed, the blue light at
About quick ice making
In the following cases, quick ice making is stopped automatically.
When the ice storage box is full (about 80 to 140 ice cubes)
When there is no water in the water tank
When about 10 hours have passed in quick ice making mode
The blue light at the top left corner of the icon turns off.
Example:
The sound of the refrigerator running gets louder during fast cooling,
because it is operating at high speed. It may take more than 24 hours to make ice immediately after
installation, even in quick ice making mode. When quick ice making is performed, the ice may split or crack
because the freezing is performed quickly.
Approximate ice making time
Quick ice making: 60 to 80 minutes Regular ice making: about 2 hours
The ice making time is the approximate time for a single batch (10 to 12 ice cubes).
In addition to the surrounding temperature, water type, and water volume and temperature in the water tank, ice making times may vary with
the following conditions, and be longer than those described above.
In winter or at other times when the surrounding temperature is low
set to "L"
When
When setting to Energy Saving Mode
is displayed, ice cannot be made. Cancel the setting.
Page 16
X
When the doors are frequently opened and closed
When the ice tray is pulled out and reinserted during ice making
Page 24
X
Makes ice quickly.
When the freezer compartment is
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingOperation
Stopping ice making (stop ice making)
Select this setting when not making ice for a long time or cleaning the ice making compartment.
1
Touch .
2
Touch .
the icon lights up, and then the setting is fi nished.
Setting the compartment to "stop ice making" cancels "quick ice making."
1
*
is displayed, the blue light at the top left corner of
When you want to make ice again
Touch
The blue light at the top left corner of the icon turns off and the
compartment is set to the regular ice making mode.
and in order.
will be displayed.
Stops making ice.
*1: For short term storage of frozen
food. Not to be used for long term storage of frozen food or ice cream.
17

Changing the Setting of the Versa Compartment

Before Use
When the blue light at the top left corner of the icon is not on, the versa compartment is set to freezing.
When the blue light at the top left corner of the icon lights up, the versa compartment is set to Soft-Freezing.
Soft-Freezing is set at the time of purchase.
"Tips for Supercool Freezing and Soft-Freezing"
Placing Food Inside
When the versa compartment is set to freezing
1
Touch
Operation Cleaning TroubleshootingOperation
2
Touch .
corner of the icon lights up, and then Soft-Freezing is set.
Pages 20 - 21
X
Setting Soft-Freezing
.
and
is displayed, the blue light at the top left
are displayed in order.
The setting can be switched between Soft-Freezing and freezing.
18
Soft-Freezing
Touching sets the compartment to freezing.
is the initial setting.
Page 23
X
Setting Freezing
When the versa compartment is set to Soft-Freezing
1
Touch .
and
order.
2
Touch .
is displayed, the blue light at the top left
corner of the icon lights up, and then it will be set to freezing.
Freezing
Touching set the compartment to Soft-Freezing.
is the initial setting.
Page 23
X
are displayed in
Setting Supercool Freezing
Food can be frozen without losing its taste and texture by using the "Supercool Freezing" mode. After supercool freezing, store the meat and fish with Soft-Freezing so that you can easily cut them.
Before Use
"Tips for Supercool Freezing and Soft-Freezing"
1
Check if the blue light at the top left corner of
Pages 20 - 21
X
is on.
Supercool freezing cannot be performed during the freezing setting. Switch the
versa compartment setting to Soft-Freezing.
Touch
wait until the temperature stabilizes (after about 2 hours) before performing operation.
2
Store food in the versa compartment and touch .
3
Touch .
of the icon lights up, and then the setting is fi nished.
If
to light up the blue light at the top left corner of the icon, and then
is displayed, the blue light at the top left corner
is touched, the setting is canceled.
X
Page 18
Placing Food Inside
Usable in the versa compartment.
2
Operation Cleaning TroubleshootingOperation
Supercool freezing fi nishes automatically after about 3 to 12 hours.
temperature and type of food.) After supercool freezing fi nishes, the food is stored with Soft-Freezing. (Meat, fi sh, etc. can be stored for 2 to 3 weeks.)
If you want to store the food for a long time, move it to the freezer compartment after supercool freezing has fi nished. (Meat,
fi sh, etc. can be stored for about 1 month.)
turns off during supercool freezing, lights up.
Pages 22 - 23
X
Note
When a display other than
The door of the versa compartment can be opened and closed even during supercool freezing.
You can use supercool freezing even when other foods are still inside.
Supercool freezing cannot be performed during Power Save Mode or the freezing setting.
Even after supercool freezing has fi nished, the food may not be completely frozen. (With supercool freezing and Soft-
Freezing, food is frozen at about -7°C, so it takes about 24 hours for the food to freeze completely.) When adding foods to be stored, refrain from opening the doors often.
Supercool freezing may not be possible or the degree of freezing or freezer burn may vary depending on the food type,
cooking method, storage arrangement (stacking, storage location), the amount of food, and the storage time. Depending on how much sugar, salt, moisture, or fat the food contains, freezing may not be possible or the food may
harden when frozen (cannot be cut immediately with a kitchen knife). If the food has frozen too hard, leave it for about 5 to 15 minutes at room temperature and you should be able to cut it
with a kitchen knife. Adjust the temperature according to how the food is frozen.
(The time varies depending on the amount,
19
Tips for
Supercool Freezing Soft-Freezing
Before Use
Thinly sliced meat
Bacon
Without
thawing
Placing Food Inside
You can easily separate them one by one and slice them fi nely. They will thaw while basting.
Supercool freeze to savory taste
Take it out and cook immediately
Operation Cleaning TroubleshootingOperation
Freshly cooked
rice
keep
savory
taste
You can easily slice them.
Glutinous texture
!
Ground meat
It can be cut with a kitchen knife easily. You can cut out the necessary amount. It can be cut into cubes for thawing.
Only the necessary amount
!
Steak meat Blocks of meat
Prevents meat drip
Cutlets
You can easily separate them.
You can easily separate them. No need for dividing them by the amount per serving and wrapping them. Bake them at low heat without thawing.
Potatoes Broccoli
Removes heat
20
Divide it by the amount per serving, wrap them while still warm, and then supercool freeze them. Use Soft-Freezing when the time to preserve is about 2 weeks.
Cut into 100 to 400 grams and supercool freeze them. Keep taste and nutrients of food.
Easy dessert recipe using fruits
Sweet fruits
Frozen fruits
Easy
preparation
Cut fruits into bite-size pieces and Supercool Freezing them.
are recommended.
Frozen yogurt
Sweetened yoghurt can be supercool frozen while still in its cup. It becomes a fi ne and smooth, ice cream-like texture.
Boiled vegetables for use in croquettes or salads can also be supercool frozen. The texture is kept frozen.
!
Jam
Put strawberries and kiwis into a container and mash them thoroughly. Mix in sugar and supercool freeze the mixture.
No need for cooking
Meat sauce
You only have to scoop out the necessary amount.
Supercool freeze in storage containers. Scoop out only the necessary amount and dress the pasta with it to make a meat sauce pasta.
Curry Simmered meat and potatoes
You can batch cook
Tips for Supercool Freezing
Put foods at the same time.
We recommend that hot food be separated from the frozen food and placed at the front.
The hot food
may touch and thaw the frozen food. If hot food and food below room
If more food is added afterward, the supercool freezing may not work.
Lay the food out fl at on top in the versa
compartment.
temperature are placed inside at the same time, priority is given to cooling the hot food.
The infrared sensor measures the temperature of food from the top of the versa compartment. Arrange the food in a way that makes it easy for the sensor to measure the temperature.
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingOperation
Leftover curry and simmered meat and potatoes in storage containers can be supercool frozen while still hot. Even food containing potatoes can be stored without losing its taste.
Smoothie
Cut apple into large bite-size pieces, and kiwi into circular slices. Supercool freeze them. Put the supercool frozen apple and kiwi into a blender with milk and some honey.
Food not suitable for Supercool Freezing
Food that has already thawed once
The texture and quality cannot be guaranteed.
Food that cannot be frozen
(Konjac (devil's tongue), tofu, milk, raw eggs, etc.)
Preservation of the pre-freezing texture and
quality cannot be guaranteed.
For preserving groceries like frozen
foods and ice cream.
Store them in the freezer compartment.
Do not store food that is hotter than 80°C.
!
Caution
If food is too hot, it may deform nearby containers. Also, when food is too hot to hold with your bare hands, be very careful not to burn yourself. (Freshly cooked rice is about 70°C.)
When Soft-Freezing after freezing, or freezing after Soft-Freezing, use
the food within a short period of time (about 1 to 2 weeks).
After supercool freezing has fi nished, if you want to store the food for
Note
a long time, move it to the freezer compartment quickly.
When fruit is thawed it does not return to its original condition. Eat
frozen fruit without thawing it.
If fruit is stored for more than a week with Soft-Freezing, its taste may
change. To enjoy the fresh texture, we recommend eating within 2 to 3 days.
It can be cut 2 to 5 hours after transferring from freezing to Soft-
Freezing.
Avoid using aluminum foil or paper wrapping, because it interferes
with accurate measurement of the food temperature.
Storage
containers
When storing food in sealed containers, fi ll food tightly as much as possible until the container is completely full.
Do not store in a glass container. It may break down.
21

Setting the Details

Before Use
Change the temperature of each compartment
The temperature of each compartment can be adjusted according to the conditions of use.
Touch
Initial condition (at the time of purchase) : refrigerator, freezer, and vegetable compartments … "M,"
Placing Food Inside
This is displayed when setting the temperature of the versa compartment.
to light up .
Operation Cleaning TroubleshootingOperation
The set temperature lights up.
versa compartment … "Soft-Freezing/M"
1
Touch .
2
Touch to light up the compartment display that you want to set the temperature for.
The compartment display changes each time the button is touched.
is displayed at the time of purchase.
In addition to the compartment display, the temperature settings of the compartments
are displayed.
22
2
1
*
This is a display example when the versa compartment is set to "Soft-Freezing
Note
".
The temperatures described here are measured in the lower centre of the refrigerator after the temperature has
stabilized when the surrounding temperature is 30°C and the doors are closed without any food inside. The temperature fluctuates with factors such as food storage conditions and how often the doors are opened and closed.
Before and after defrosting, the temperature inside the refrigerator may drop or rise temporarily.
If food in the refrigerator compartment freezes in the following kinds of situations, set the refrigerator
compartment temperature on
When the temperature setting of the compartments is
In winter or at other times when the surrounding temperature is 5°C or less
3
3
Repeatedly touch to set the temperature.
The temperature setting of each compartment
to .
X Page 23
The temperature settings for the refrigerator, freezer, and vegetable compartments
The display changes each time the icon is touched and temperature can be set to 5 different levels.
Ice making compartment settings
The display changes each time the icon is touched.
Before Use
Temperature
setting
* The freezer compartment temperature is different from the freezing temperature of the versa compartment.
To control the temperature more precisely
The temperature setting of the versa compartment
The display changes each time the button is touched and temperature can be set to 6 different levels.
Temperature setting
Refrigerator
compartment
About 6°C About -16°C About 9°C
About 5°C About -17°C About 8°C
About 3°C About -19°C About 6°C
About 1°C About -21°C About 5°C
About 0°C About -22°C About 3°C
Freezer
compartment
Vegetable
compartment
X Page 33
Versa
compartment
For frozen food that is too hard to cut
About -5°C
Store food with a high moisture content on
• Boiled vegetables
• Large blocks of low-fat meat
Higher
temp.
Medium
temp.
Lower
temp.
Ice making
setting
*
Quick ice making cannot be set in the detail setting.
Application
.
Application
When you want to make ice
When not in use for a
long time
For cleaning
When you want to use as a
freezer compartment
Page 17
X
Placing Food Inside
Operation Cleaning TroubleshootingOperation
The optimum temperature for Supercool Freezing
About -7°C
About -9°C
About -12°C
About -15°C
About -18°C
* The freezer compartment temperature is different from the freezing temperature of the versa compartment. *
After changing from freezing to Soft-Freezing, it takes some time for the temperature inside the refrigerator to stabilize (about 2 hours).
* If you touch , the setting will be changed to either Soft-Freezing or freezing .
To control the temperature more precisely X Page 33
The food is easy to cut even when frozen. Can be frozen in its package.
For food that is diffi cult to freeze
Store food that has a high salt or sugar content on
• Food pickled in soy sauce or miso
• Cod roe
For preserving food containing a lot of salt or sugar
Enjoy the texture of the food.
Ice cream or frozen food that was purchased cannot be stored in modes
For preserving food that was frozen at home
For preserving frozen food and ice cream that were
purchased
Preserves ice cream at the optimum hardness so that it is easy to eat.
or .
X
.
Page 18
23
Setting the Details
(Continued)
Before Use
This function reduces freezing capability of the set compartment for the purpose of power saving.
Can be set for the ice making compartment and the versa compartment.
If the ice making compartment is set to Power Save Mode, it is automatically set to "stop ice making." (Ice
cannot be stored.) Empty the water from the water tank as well as the water and ice from the ice tray and the ice storage box, and then select Power Save Mode (the operation in "When not in use for a long time"
- 5
Page 30
X
to light up .
2
Placing Food Inside
Touch
This will be displayed during Power Save Mode.
Operation Cleaning TroubleshootingOperation
Set Power Save Mode
).
1
Touch .
2
Touch
3
Touch to light up the compartment display that you want to set.
The lit compartment is set to Power Save Mode. The display changes each time the button is touched.
for about 3 seconds (until the buzzer sounds twice).
24
2 3
1
*
This is a display example
4
represents a blinking display. This is the condition where Power Save
Mode was canceled. Power Save Mode is canceled at the time of purchase.
4
If is touched, is changed from b linking to sta ying lit, and then the setting is fi nished
If the ice making compartment is set to Power Save Mode, is displayed.
If 30 seconds pass without any operation panel operations, all displays turn off
without being set.
To cancel the setting
1
Select the versa compartment or ice making compartment, and then touch
goes off when the setting is canceled.
If the temperature setting of the compartment is adjusted, the setting will be
canceled. The cancellation can also be performed if
and 2 of the setting procedure.
.
(the buzzer sounds twice).
is selected after steps 1
Food that can be stored in Power Save Mode
(Dry foods) Seaweeds, seasoning powder, coffee beans, nuts, dry noodles, (pasta, vermicellifi ne noodles, etc.) etc. (Seasonings) Salt, sugar, spice powder, etc. (Grains) Rice, wheat, potato starch, etc. (Sweets) Dry confectioneries, chocolates, cookies, etc.
In Power Save Mode, the freezing temperature is set to between about -10°C and 0°C.
It is not suitable for storing ice, fresh food, frozen food, ice cream, and food frozen at home. Move food from the versa compartment to the freezer compartment in advance.
Check the items in the compartment before setting.
Temperature may be lower when the ambient temperature is low, such as during winter, or when the freezer compartment is set to high.
Do not store food higher than the ice storage box into the ice making compartment (because it may cause an ajar door, malfunction or damage).
The operation panel display during Power Save Mode setting
When Power Save Mode is set, there are icons that do not light up on the operation panel. When an icon turns off, that means it is not operable. Cancel Power Save Mode before setting.
X Page 24
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingOperation
When the versa compartment is set to Power Save Mode
When the ice making compartment is set to Power Save Mode
When the versa compartment and the ice making compartment are set to Power Save Mode
25

Cleaning the Automatic Ice Maker

Clean the ice maker periodically to ensure that the ice is pure and delicious.
Before Use
Prevents formation of water scale and mold.
* Do not use a dishwashing machine, because it may deform the parts.
once a
week
Remove the lid and wash it.
Placing Food Inside
Operation Cleaning TroubleshootingCleaning
1
once a
1
2
3
4
* If mold forms easily in the certain types of water,
clean about 2 or 3 times a week.
Mark
When using bleach to clean the water tank and lid, follow the product instructions.
Water supply pipe and tank holder
month
Pull out the water supply pipe and wipe the tank holder with a clean cloth.
Do not pour water into the tank
holder. Doing so may cause a malfunction.
Disassemble and wash the parts.
Rotate and remove the
aluminum pipe.
* White minerals or chlorine
accumulation may be adhered to the parts, this is not abnormal. Wash off such substances and reuse the parts.
Follow the procedure in
reverse to return the parts to their original positions.
Push in the water supply pipe fi rmly
so that there is no unevenness. Using the water supply pipe while it is unevenly set may cause a malfunction.
If the water supply pipe is not
installed, the food inside the refrigerator compartment may freeze.
Check that there are no foreign objects between the water supply pipe and the tank packing or tank holder.
If the parts are not inserted
firmly or there are gaps due to foreign objects, it may cause abnormal noise or prevent ice from forming. It may also cause the water in the water tank or food in the refrigerator compartment to freeze.
26
Water tank
Align the mark on the water tank cap with the mark on the lid, and remove it.
Tank packing
(Upper temperature limit about 60°C)
1~2 times
a
year
1
Water supply pipe
2
Tank holder
Easier to disassemble/ assemble when wetted
Packing Aluminum Pipe
Water supply pipe
3 4
Tank holder
5
Horizontally
Not to let
foreign objects
in
Water supply pipe
6
Ice tray
Set to "STOP" ice making mode.
Check that the blue light at the top left corner of the icon is
on.
Open the door of the ice making compartment and unlock the ice tray lock lever.
When the ice tray lock lever is unlocked the display
turns on. If the alarm sounds continuously when unlocking the
ice tray lock lever, lock the lever, close the door, wait for the blinking
Pull the ice tray towards the front and then remove it.
There is a risk of the water spilling.
Pull out the tray slowly.
Empty the ice tray and wash it.
After washing the tray, dry off any moisture.
Push in the ice tray until it makes a
clicking sound, and then lock the ice tray lock lever.
Check that is off.
If the lamp is on, check the setting status such as the position of the ice tray lock lever and the up and down orientation of the ice try.
Ice tray lock lever is locked Ice tray lock lever is released
Cancel "STOP" ice making mode.
to turn off, and then perform operation 2.
Lift slowly to
Page 17
X
remove it
Page 17
X
Do not use the following for cleaning.
Items such as sponges or scrubbers that may damage surfaces, or cleaners such as alkaline detergents, scouring powder, boiling water, petroleum or acid
once a
1 2
3
4
Tank pipe, water supply pump, optical catalyst and lead-cleaning fi lter
week
Pull out the tank packing () from the water tank.
Water
supply
pump
Pull out the tank pipe (), and rotate and remove the water
Tank
supply pump ().
Disassemble the parts
Packing
Tank pipe
and wash them.
The impeller is made from a magnet. Wash it thoroughly to remove any foreign objects.
Water supply pump
Impeller
Cap
Return the water supply pump, tank pipe, tank packing to their original positions.
Procedures for returning the water supply pump and tank pipe to their original positions
Assembling the water supply pump Installing the tank pipe
Tank
Pipe
Optical catalyst and lead­cleaning fi lter
Lid
Incorrect assembly may prevent ice from forming, or increase the operation noise.
When setting, align the triangle mark on the tank with the triangle mark on the packing and fully put them together.
Do not use cleaners such as kitchen detergents (neutral), benzene or bleach to clean the optical catalyst and lead-cleaning fi lter.
Doing so may result in odours of the ice.
Remove the cap while opening the tab with your fi nger.
Tank Packing
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingCleaning
Fit the fi lter
1
into the cap.
Completed
view
Fit the lid onto the cap.
2
Completed
view
Attach the impeller onto
3
the water supply pump.
Completed
view
If the tank packing is not installed, it may cause the water in the water tank or food in the refrigerator compartment to freeze.
• Replacement is not usually required for the optical catalyst and lead-cleaning filter. However, it may require
Note
replacement in the following cases.
• When it clogs because something other than water was put in the tank
• When it is damaged • When mold has formed To purchase a new fi lter, contact the retail store where you purchased the refrigerator. * If mold forms easily in the certain types of water, clean about 2 or 3 times a week.
Rotate and fi x the tab () of the
4
cap into the projection () on the water supply pump.
Make sure that the impeller is
*
inside.
Rotate
Rotate and set the water supply
5
Completed
pump onto the water tank.
* Align the triangle
mark on the bottom of the water tank with the triangle mark on the fi lter and push in while making sure that there is no gap.
Rotate
view
Insert the tank pipe into the water tank.
1
Tank pipe
Water supply pump
Caution
Do not let foreign objects block the hole.
Connect the tank pipe to the water
2
supply pump.
* Check that there are
no foreign objects between the tank pipe and the water supply pump.
Water supply pump
Tank Pipe
27

Removing and Cleaning the Parts

Step
Before Use
Remove the power plug.
Placing Food Inside
1
Wait at least 10 minutes before reinserting the power plug into the socket. If you insert the plug immediately, the mechanism will not function.
AUTO Shelf
Tray removal
Push up the tray while pulling the 3
white tabs on the rear of the tray to the front with your fi nger.
Operation Cleaning TroubleshootingCleaning
Lift up the rear of the tray until
the 3 front tabs and the 2 side tabs disengage. * There is a risk of the tray falling.
Move it slowly.
Pull out with both hands.
Step
Warning
Otherwise an electric shock or injury may be caused.
(Do not disassemble the AUTO Shelf, or use chemicals such as grease to clean it. Doing so may cause a malfunction.)
2
How to cleanBefore cleaning
Wipe with a soft cloth soaked in warm water, or remove and rinse with water.
When cleaning the operation panel, set it to the Child Safety Lock.
(Wipe the operation panel with a soft, dry cloth.)
For stubborn dirt, wipe using water mixed with a weak concentration of kitchen
In particular, be sure to wipe off oily dirt because leaving it may damage
Do not use insecticide spray, alkaline or low alkaline kitchen powdered soap, alcohol, benzene, thinner, oil, acid, scrubbers,
Doing so may cause the plastic parts (such as the door split, or damage or rust the doors or painted surfaces.
Page 31
X
Shelf removal Shelf installation
Remove the tray before performing this.
Move the lever to the right end.
Strongly push up each
support, one by one. (4 locations.) (A clicking sound is made when the support disengages.)
If the supports are firmly set and difficult to disengage, tilt the inner tabs to the inner side.
Remove from the refrigerator.
Remove the tray before performing this.
Make sure that the lever is on the right
side.
Make sure that the 4 metal stoppers are
fi tted, and place the shelf lightly so that the 4 supports are aligned with the 4 metal stoppers.
Push in each of the 4 supports in turn
from above. (A clicking sound is made.)
Move the lever to the left and right
and check that the AUTO Shelf is kept level when moved up and down. (If the shelf is not kept level, remove the AUTO Shelf and repeat steps
to .)
28
Two-way fl exishelf Slide chilled case and small item case
Fully pull out the case.
Push in and lift up.
Lift out to the front.
c
d
d
c
For installation, follow the procedure in reverse to the removing methods.
detergent (neutral). the plastic parts.
detergents, scouring powder, boiling water, or similar substances.
handles, caps and cases) to
Step 3
After cleaning and periodically
Check the power plug and cord
For safety, clean periodically.
Unplug the power plug from the socket and check it.
Check for damage or abnormal heating on the power plug and cord.
Remove any dust from the power plug and surrounding area,
and then wipe with a dry cloth.
Firmly insert the power plug into the socket.
Adjustable pockets and bottle pockets
d
c
Lift up the left and right of the pocket alternately.
(The pockets are fi rmly installed.) Pull out to the front.
Shelf installation
Make sure that the pockets are securely set.
(Incorrect setting may cause a pocket to disengage and fall out, causing an injury.)
Ice making and versa
compartments
Fully pull out.
Lift out to the front.
d
c
Damaged
cord
Before Use
Dust
Warning
If the power plug or cord is damaged or dust accumulates, it may cause an electric shock or a fi re.
Placing Food Inside
d
c
Operation Cleaning TroubleshootingCleaning
Recessed portion of
the drip gutters
Wipe off any dirt, dripping or condensation.
Drip gutters
Refrigerator rear side and fl oor
Remove the adjustable support cover.
Turn the adjustable supports to raise them from the fl oor,
and pull out the refrigerator. (We recommend laying out protective material on the fl oor to prevent the fl oor from being damaged. Also, be careful not to injure yourself.)
Remove the dust from the rear panels, walls and
fl oor, and wipe off any dirt.
(These areas are prone to buildup of dust and black
dirt due to air convection. Periodical cleaning will also improve power effi ciency.) Check for water dripping on the
fl oor.
Caution
Do not put your hands under the refrigerator. It may cause injury.
Grime and dust
* The illustration represents the
versa compartment.
The ice making compartment is the same.
Freezer and vegetable compartments
Fully pull out the door.
Lift the upper case out to the front.
*
The illustration represents the freezer compartment.
The vegetable compartment is the same.
Pull out while slightly lifting up the door,
and then tilt. Lift the lower case out to the front.
d
c
f
e
Adjustable support cover
Push the left and right sides of the
support covers inward alternately, and pull the support covers to the front to remove them.
c
c
29

Other Issues

Before Use
A power outage occurred
Minimize the frequency of opening the doors, and avoid adding more food.
Operation panel settings other than the temperature settings may change. Check the settings. (Child Saf ety Loc k, etc.)
To move the refrigerator or change its orientation
1
Placing Food Inside
Remove the adjustable support cover, and then rotate and raise the adjustable supports. X Page 7
2
Lay protective material under the casters and rear supports.
3
Move the refrigerator in the forw ard and bac kward directions .
* Dragging in any direction other than forward and bac kw ard ma y damage the fl oor.
When not using the refrigerator for a long time
Set to the "ST OP" ice making mode. X Page 17
1
Check that the blue light at the top left corner of the icon is on.
2
Operation Cleaning TroubleshootingTroubleshooting
Remove the water tank and empty the water.
3
Remove the ice tra y and empty the water and ice .
For details on removal, see the page that describes the cleaning methods. X Page 26
4
Remove the ice storage bo x and empty the water and ice .
Do not dispose of the soundproof mat.
Water tank
Ice storage box
30
5
Wash the water tank (water supply pump, tank pipe, optical catalyst and lead-cleaning fi lter), water supply pipe, ice storage box, soundproof mat, ice tray and ice server, dry them completely, and then return them to their original positions.
If the water tank is not returned to its original position, the food inside the refrigerator compartment may freeze.
6
Unplug the power plug, clean the interior of the refrigerator, and open the doors for 2 to 3 da ys to dry the inside. *
If the refrigerator is not dried suffi ciently, it ma y cause mold, odours , or refrigerant (gas) leaks due to condenser corrosion.
Wash the water tank, water supply pipe and ice tray before making ice for the fi rst time, or if you have not made ice for
Note
more than a week. Odours or dust may be adhered to the parts.
X Pages 26 - 27
Return the water tank to its original position
To transport the refrigerator
1
Empty any water or ice from the water tank and ice tray. XPages 26 and 30
2
Wear protective gear (gloves).
3
Remove the adjustable support cover, and then rotate and raise the adjustable supports.
4
Remove the power plug
5
Lay towels under the drainage port and the lower rear edge of the
refrigerator, and position a container or tray with a height of about 3 cm on the towels to collect the water.
* The towels prevent fl oor damage, and water from being spilled on the fl oor.
6
Tilt the refrigerator slowly to the rear by about 30 degrees, and drain the
water from the evaporation tray via the drainage port on the lower rear side. (The evaporation tray is not visible from the outside.)
* Because the refrigerator is heavy, the work must be performed by at
least 2 people.
* The work must not be performed by small children or people who are not
capable of doing heavy work. Ask a specialist transportation company.
7
2 or more people should hold the hand-holds on the lower inside of the
front and the upper side of the rear, and carry the refrigerator slowly.
Do not lay down the refrigerator on its side. (The compressor may be
damaged.)
When the transportation time is long, for example when moving house
Frost from the condenser inside the freezer compartment will melt, and may spill water when the refrigerator is transported.
It may take 1 day to defrost after unplugging the power plug.
Drainage port
X Page 7
Front lower inside
Rear upper side
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingTroubleshooting
Warning
Do not damage the refrigerant circuit, because it contains a combustible refrigerant. If refrigerant leaks, it may accumulate and catch fi re or explode.
To prevent accidental button operation (Child Safety Lock)
Locks the operation panel to prevent accidental icon operation by children.
T ouch for about fi ve seconds or more when the door is closed (until the buzzer sounds twice).
1
lights up when the setting is fi nished.
Setting cannot be changed during Child Safety Lock.
To cancel
Again, touch for about fi ve seconds when the door is closed (until the buzzer sounds twice).
1
goes off when the setting is canceled.
When the mark blinks rapidly (about 5 times per second)
An inspection is required. Contact the retail store where you purchased the refrigerator.
31
Other Issues
(Continued)
Before Use
Placing Food Inside
To reset settings
To return each setting to their initial conditions (at the time of purchase), for example if you have forgotten the settings.
T ouch to light up an icon.
1
T ouch for about 10 seconds (until the buzzer sounds twice).
2
The following settings will be canceled.
• Cool drinks quickly
• Rapid cool bulk shopping The temperature setting of the v ersa compartment (freezing and Soft-Freezing) does not change .
The setting for "stop ice making" will not be canceled.
When the door alarm sounds and the interior light of the refrigerator compartment blinks
The door alarm sounds when either door is open for 1 minute or longer. When a door is open for 4 minutes or longer, the interior light of the refrigerator compartment blinks. The number of times the door alarm sounds and the action of the interior light are as follows depending on how long the door has been left open.
Time for which
the door left open
Operation Cleaning TroubleshootingTroubleshooting
Alarm
Interior light
Compartment
display area
1 minute 2 minutes 3 minutes 4 minutes
2 beeps
The display for the compartment whose door is open blinks in time with the door
• Quick ice making
• Supercool Freezing
5 minutes
or longer
3 beeps
On Blinks twice per minute Off
4 beeps
Continuous
long beeps
alarm sound.
Continuous short beeps
• Energy Saving Mode
• Power Save Mode
60 minutes
or longer
Example: When the doors of refrigerator compartment and ice making compartment are open
Blinks in time
with the door
alarm sound
Compartment display area
Check that the doors are not left ajar or do not have any food trapped (the packing, the back of the drawer cases). (Check
at least once a month.) All doors have an opening and closing sensor.
If the door is kept open for 60 minutes, the interior light turns off.
When the alarm cannot be turned off
Press for about 5 seconds to stop the alarm. Check if the doors are closed. An inspection is required when there is no error state. Contact the retail store where you purchased the refrigerator.
When this icon lights up
When lights up, the refrigerator is in demonstration mode. The refrigerator does not cool in this mode. Contact the retail store where you purchased the refrigerator, or cancel the demonstration operation by the following methods.
To cancel the demonstration mode
T ouch to light up an icon.
1
2
Keep the doors of the versa compartment open. Press , , and at the same time for about fi ve seconds
3
(until the buzzer sounds twice).
Check that is turned off.
4
The demonstration mode was not canceled if it lights up.
3
32
To control the temperature more precisely
(temperature fi ne adjustment mode)
Before Use
The temperature can be set to 19 different lev els for the refrigerator compartment, freezer compartment, or versa compartment (with freezing setting), while it can be set to 5 different lev els f or versa compartment (Soft-Freezing).
When temperature fi ne adjustment mode is set, the compartment display
blinks about every 10 seconds.
Setting the temperature fi ne adjustment mode
Touch .
1
Touch for about 3 seconds or more
2
(until the buzzer sounds twice).
To cancel
If the setting is reset, it will be canceled.
Performing the temperature fi ne adjustment
The same operation as above.
Example: To set the refrigerator compartment lower by 1.2°C than the
low setting (when the setting is refrigerator compartment 5)
Touch to select the compartment
1
to perform temperature fi ne adjustment.
Repeatedly touch to perform
2
temperature fi ne adjustment.
* The values on the right are approximate. The
temperature may differ from the values on the right, depending on factors such as food storage conditions and how often the doors are opened.
represents a blinking display.
Temperature
setting
1
2
3
4
5
Versa compartment
(Soft-Freezing setting)
About -5°C
About -6°C
About -7°C
About -8°C
About -9°C
1 2
"Refrigerator"
blinks about
every 10 seconds
"H"
blinks
Temperature setting
1
2
3
4
2 3 4 5
5
6
7
8
9
7 8 9
10
11
12
13
11 12 13
14
15
16
17
15 16 17 18
18
19
Refrigerator/freezer
compartments
Low setting
X Page 23
About 0.3°C
lower
than “L”
About 0.6°C
lower
than “L”
About 0.9°C
lower
than “L”
About 1.2°C
lower
than “L”
Low medium
setting
X Page 23
About 0.9°C
higher
than “M”
About 0.6°C
higher
than “M”
About 0.3°C
higher
than “M”
Medium setting
X Page 23
About 0.3°C
lower
than “M”
About 0.6°C
lower
than “M”
About 0.9°C
lower
than “M”
Medium high
setting
X Page 23
About 1.2°C
higher
than “H”
About 0.9°C
higher
than “H”
About 0.6°C
higher
than “H”
About 0.3°C
higher
than “H”
High setting
X Page 23
Versa compartment
(Freezing setting)
About -12°C
X Page 23
About 2.4°C
higher
than “M”
About 2.1°C
higher
than “M”
About 1.8°C
higher
than “M”
About 1.5°C
higher
than “M”
About 1.2°C
higher
than “M”
About 0.9°C
higher
than “M”
About 0.6°C
higher
than “M”
About 0.3°C
higher
than “M”
About -15°C
X Page 23
About 0.3°C
lower
than “M”
About 0.6°C
lower
than “M”
About 0.9°C
lower
than “M”
About 1.2°C
lower
than “M”
About 1.5°C
lower
than “M”
About 1.8°C
lower
than “M”
About 2.1°C
lower
than “M”
About 2.4°C
lower
than “M”
About -18°C
X Page 23
Placing Food Inside
Operation Cleaning TroubleshootingTroubleshooting
33
Specifi cations
MR-EX655W-N-A and MR-EX562W-N-A are designed for use in Australia and New
Before Use
Zealand only and cannot be used in any other country. No servicing is available outside of Australia and New Zealand.
Placing Food Inside
Operation Cleaning TroubleshootingTroubleshooting
Model
MR-EX655W MR-EX562W
Food storage
compartment type
Fresh food 327 296 253 228
Refrigerator
compartment
Short term
frozen food
Ice making
compartment
Short term
frozen food
Versa
compartment
Freezer
Vegetable
Refrigerator compartment
Ice making
Freezer 131 78 118 59
compartment
Special (unfrozen
food)
compartment
Total volume 655 474 562 378
Parts Quantity
Model MR-EX655W MR-EX562W
AUTO shelf
Two-way fl exishelf
Slide chilled case
Water tank
(with optical catalyst and lead-
cleaning fi lter)
Adjustable pocket (large)
Adjustable pocket (short, large)
Adjustable pocket (small)
Adjustable pocket (short, small)
Small item case (upper) Small item case (lower)
Egg shelf Bottle pocket (large) Bottle pocket (small)
Small item holder
Ice tray Ice storage box Soundproof mat
compartment
Ice server
Gross volume
(litres)
116 72 118 70
Storage volume
(litres)
26 5 27 4
55 23 46 17
1 2 1
1
2
2
1 1 1 1 1 2
1 1 1 1
Gross volume
1 1 1
1
1 1 1 1 1 1 1 1 1 2
1 1 1 1
(litres)
Storage volume
(litres)
34
Versa case
versa
Vegetable
Freezer
Aluminum tray
compartment
Vegetable case
compartment
Freezing case (upper) Freezing case (lower)
compartment
Adjustable support cover
Slide case
1 1
1 1
1 1
11
1 1
1 1
1 1

Troubleshooting

First, check the items described in this section. If the problem persists, contact the retail store where you purchased the refrigerator as soon as possible.
Frequently asked questions in the initial period and in summer
Questions about operation and handling
Before Use
The refrigerator does not cool at all!
The refrigerator takes time to cool when you fi rst start
using it. In summer, it may take up to 24 hours for the inside to be fully cooled.
Has on the operation panel turned on?
Demonstration operation:
Is the power plug disconnected or has the circuit breaker
tripped?
Page 32
X
The outer walls heat up!
The outer walls heat up signifi cantly (to about 50 to 60°C)
immediately after installation and in summer. This is because the heat discharging and condensation prevention pipes are located on the sides and the top of the refrigerator. They are required for cooling and the heat is not an abnormality. The refrigerator compartment rotating partition also has a
condensation prevention heater that heats up. A heat discharging fan is located under the refrigerator.
Warm air may be discharged from here.
Cooling performance
Problem Check Explanation and action
Food freezes in the refrigerator and vegetable compartments
Food in the versa compartment melts
Does not cool well
Not much ice is made
Ice melts
Page 6
X
1
Is the temperature on the operation
panel set to “H”?
2
Is food with a lot of moisture stored at
the rear of the shelf?
3
Is the surrounding temperature 5°C or
less?
4
Is the water supply pipe installed
correctly?
1
Has enough time passed after
temperature adjustment or installation?
2
Is food stuck up in the upper area?
3
Did the hot food make contact with other foods?
4
Did you set the supercool freezing
after placing hot food inside?
5
Was ice cream or frozen food stored
with the “FZR” “L” or “FZR” “M” setting?
6
Is the versa compartment set to
Power Save Mode?
1
Is “L” set as the temperature for the
compartment?
2
Has enough time passed after
installation?
3
Is heat discharging being blocked? Check if there is gap around the refrigerator and the refrigerator is not exposed to direct sunlight.
4
Is the fl ow of cold air being blocked? Are the doors being opened frequently, or left ajar?
5
Is the ice making compartment or
versa compartment set to Power Save Mode?
The operation panel turns off automatically!
If 30 seconds pass without any
operation panel button operations, displays turn off.
Page 14
X
Smells the strong odour on the food or ice!
Do you clean the water tank and the
water supply pump once a week?
Pages 26 - 27
Have you placed food with strong
odour inside the refrigerator without sealing in a container?
Set the temperature to “M”. The temperature drops temporarily depending on the setting.
Place drinks and food containing a lot of water, such as tofu, vegetables and fruit, at the front.
Freezing is likely to be prevented when the temperature settings of the refrigerator compartment and vegetable compartment are set to “L”.
When the installation is incorrect or a gap is caused by a foreign object, the cold air may fl ow in reverse and cause food in the refrigerator compartment to freeze.
The refrigerator takes time to cool completely. Wait at least 30 minutes before placing food inside.
Leave a gap in the upper area so that the cold air can fl ow. Frozen food may thaw if it makes contact with hot food. set the supercool freezing after placing hot food inside. The
food temperature will drop quickly. Set to “FZR” “H”.
Cancel Power Save Mode.
Set the temperature to “M” or “H”.
It takes 4 to 5 hours for the refrigerator to cool, and 24 hours or more in summer to fully cool.
Check that the refrigerator is installed correctly.
Check the quantity of food inside and ajar door.
Cancel Power Save Mode.
X
Page 9
X
Pages 22 - 23
X
Pages 22 - 23
X
Pages 22 - 23
X
Page 24
X
Pages 22 - 23
X
X
Page 24
X
Page 6
Placing Food Inside
Operation Cleaning TroubleshootingTroubleshooting
35
Troubleshooting
(Continued)
Ice making
Before Use
Problem Check Explanation and action
Cannot make ice Water in the tank
stays at the same level
Placing Food Inside
Ice is small or joined together
Operation Cleaning TroubleshootingTroubleshooting
Supercool
freezing
Door and operation panel
Supercool frozen food does not taste good
Doors open easily
Doors do not close
Door alarm sounds
Interior light turns off
Compartment display on the operation panel blinks
The operation panel does not respond
1
Has enough time passed after
installation?
2
Is the ice tray installed correctly?
3
Are the water supply pump and tank
pipe installed correctly onto the water tank?
4
Is the water supply pipe installed
correctly in the tank holder area?
5
Has food, the ice server, or other
object been left in the ice storage box?
6
Is the ice making setting for the ice
making compartment set to “STOP”?
7
Is the ice making compartment set to
Power Save Mode?
8
Is there enough water in the water
tank? Is the refrigerator tilted?
1
Has ice been stored inside the ice
storage box for a long time?
2
Is the ice making compartment set to
Power Save Mode?
1
Did you set the Supercool Freezing?
2
Is the food that you want to supercool
freeze placed in the top of the versa compartment, and not being overlapped by other food?
3
Has enough time passed after
changing the versa compartment to "Soft-Freezing"?
1
Is a door making contact with food or a
case? Is too much food packed inside?
2
Has food fallen behind a case in a
drawer door, or is the power cord or another object trapped between the refrigerator and a door?
3
Is the refrigerator installed stably? Are the adjustable supports making contact with the fl oor?
1
Are any of the doors open?
2
Is the rotating partition of the
refrigerator compartment open to the front?
1
Is lit?
2
Are the user's fi ngers or the operation
panel wet or dirty?
3
Are you wearing a band-aid on your
fi nger or gloves during operation?
It takes 4 to 5 hours after first starting operation for the refrigerator to cool, and 24 hours or more in summer to make ice.
Set the ice tray lock lever to the correct position and check the installation status of the ice tray.
Install them correctly onto the water tank. (In particular, ensure that the opening of the tank pipe inside the tank is installed fi rmly to the tank.)
When the installation is incorrect or a gap is caused by a foreign object, the cold air may fl ow in reverse and prevent ice from forming.
The ice storage box is judged to be full of ice. Remove food or other objects from the ice storage box. Also, spread the ice out fl at all the way to the front.
Cancel the "STOP" ice making mode.
Cancel Power Save Mode and then set the ice making compartment to “REG” or “QCK”.
The number of ice cubes in one batch may be reduced. Pour water into the water tank.
If the ice is stored inside the ice storage box for a long time, ice cubes may join together or shrink (due to a phenomenon called sublimation).
Cancel Power Save Mode.
Set the Supercool Freezing.
The food temperature is measured with the infrared sensor. Lay out the food for supercool freezing fl at and on top in the versa compartment.
Set to Soft-Freezing, and when the temperature has stabilized (after about 2 hours), perform supercool freezing.
Page 19
X
Store food so that the door does not make contact with objects when closed.
Remove any objects. Make sure that the door does not trap objects such as food, power cords or plastic bags.
Lower the adjustable supports to raise the front side slightly and make the doors easier to close.
Close the door. The alarm sounds at every minute after the door is opened, and after 4 minutes it sounds continuously. If the alarm sounds even after closing the door, press the button for 5 seconds or more to stop it. An inspection is required. Contact the retail store where you purchased the refrigerator.
Check the position of the rotating partition while the doors are open.
Cancel the Child Safety Lock. Wipe off the moisture and dirt on the operation panel and
fi ngers. Touch the operation panel with your fi nger directly.
Page 26
X
Page 27
X
Page 26
X
Page 17
X
Page 24
X
Page 13
X
Page 24
X
Page 19
X
Page 21
X
X
Page 32
X
Page 31
X
Page 7
36
Door and
operation panel
Problem Check Explanation and action
The operation panel does not respond (continued)
Reacts without a touch
Some icons do not light up
Sound Others
Loud noises Annoying noise
(These noises are normal)
Condensation forms on the outer walls and inside the refrigerator
Frost forms in the freezer compartment
Water drips onto the fl oor Frost and
condensation forms in the vegetable compartment
Water tank or water supply pipe freezes
Water tank or water supply pipe is warm
Noise interferes with televisions or other devices
4
Are you trying to operate the operation panel with the tip of your fi ngernail or a sharp object?
5
Are you touching out of position?
6
Are seals and tapes put on the operation panel?
1
Are there any towels, plastic bags,
papers, etc. over the operation panel?
1
Is the compartment set to Power
Save Mode?
1
The noise gets louder suddenly or the
tone changes.
2
A rattling or squeaking sound is made
sometimes (every 1 to 2 hours).
3
After turning on the power, a thumping or creaking sound may be heard in the ice making "STOP" mode (every 1 to 2 hours).
4
A whistling sound is made after closing a door.
5
A hissing, bubbling, or running water
sound is made sometimes.
6
A whipping or dripping sound is
sometimes heard from inside the refrigerator after a door is opened.
7
A buzzing sound is made sometimes.
8
A low whirring sound is made after opening the freezer compartment door.
1
Are the doors being opened
frequently, or left ajar?
2
Is the humidity high, for example is it
raining?
Depending on the amount and type of vegetables, the moisture from the vegetables may cause frost or condensation on the roof or the surface of the cases. When condensation forms, wipe it off with a dry cloth. If you care that, store vegetables in plastic wrap.
1
Are the water supply pipe and tank
pipe installed fi rmly in the water tank? Is there a foreign object between the water tank and the water supply pipe?
2
Has food, a plastic bag, or another object fallen behind the case in the ice making compartment or freezer compartment?
This is because of the anti-freeze heater. It is not an abnormality.
1
Is the refrigerator installed near to an
electronic device such as a television?
2
Is the power to the refrigerator supplied from a socket near the entry hole of the antenna cable?
Touch the operation panel with your fi nger directly.
Touch the centre of the icon. Remove the seals and tapes. Remove the towel, plastic bag, paper, etc.
The icons that cannot be set during Power Save Mode are off.
Immediately after installation, when the weather is hot, when the doors are frequently opened and closed, during the operation of Rapid cool bulk shopping, and in similar situations, the refrigerator switches to high-speed operation and cools with high power.
This is the sound of the automatic ice maker. Even when there is no water in the water tank, the automatic ice maker and pump make a sound about every 100 minutes.
This is the sound of the automatic ice maker's operation check. The check is performed even in the "STOP" ice making mode.
This is the sound of the fan motor starting. This is the sound of the refrigerant (gas) fl owing.
This is the creaking sound as warm air enters and expands the plastic.
This is the operating sound of the damper as it adjusts the air fl ow. This is the sound of air blowing through the cooling fan.
When moisture in the air cools, it forms frost or condensation. Even when a door is open only slightly, it can cause frost or condensation, or dripping onto the fl oor.
Condensation may form temporarily. Wipe off with a dry cloth. Condensation may cause frost to form in Freezer compartment, please minimise the time that doors are kept open.
When the installation is incorrect or a gap is caused by a foreign object, the cold air may fl ow in reverse and cause freezing.
The cold air may fl ow in reverse and cause freezing. Remove any objects.
Install the refrigerator away from electronic devices such as televisions.
We recommend using a separate power supply. When there is no grounded terminal on the plug, connect the grounding wire.
Page 25
X
Page 26
X
Before Use
Placing Food Inside
Operation Cleaning TroubleshootingTroubleshooting
37
Memo
Memo
This refrigerator uses fl ammable foaming gas for
insulation. Please deliver the unit to specialized industrial waste dealer when you do away it. Please follow the rules in your country.
WARNING - Do not use mechanical devices
or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING - Do not use electrical appliances
inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING - Just in case of having damaged the
refrigerant circuit, do not use electric items or fi re equipments near by, and open the window to ventilate the room. And contact the retail
The refrigerator contains fl ammable refrigerant
(R600a: iso-butane).
The refrigeration system behind and inside the
refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.
Do not block the openings on the circumstances
of the refrigerator.
The user manual should be handed over to any
person who would use or handle the refrigerator whenever the refrigerator would be transferred to another location and delivered to a recycling plant.
The appliance is not intended for use by young
children or infi rm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance. store at which you purchased it or the following MITSUBISHI ELECTRIC SERVICE CENTRE.
R600a Refrigerant Warning
• This appliance contains a small quantity of R600a refrigerant which is fl ammable.
• During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fi res and any device which creates a spark. Disconnect the appliance from the mains power.
• Thoroughly ventilate the room in which the appliance is located for several minutes.
• Notify Mitsubishi Electric Australia Pty Ltd. for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is noted on the Rating Plate of the appliance.
• If your Mitsubishi Electric Refrigerator should require service, please contact Mitsubishi Electric Australia Pty Ltd see back page of this user manual for contact details.
NOTE: MITSUBISHI ELECTRIC AUSTRALIA PTY LTD. DO NOT ALLOW SERVICE TO THE REFRIGERATION CIRCUIT OF THIS APPLIANCE.
SOLE AGENT in Australia MITSUBISHI ELECTRIC AUSTRALIA PTY LTD.
(Incorporated in New South Wales) ABN 58 001 215 792
New South Wales:
348 Victoria Road, Rydalmere NSW 2116 Ph: (02) 9684 7777, Fax: (02) 9898 0484
Queensland:
Da Vinci Business Park, Building 101, 2A Boronia Road, Brisbane Airport QLD 4008 Ph: (07) 3623 2000, Fax: (07) 3860 6761
South Australia / Northern Territory:
Suite 1, 224 Glen Osmond Road, FULLARTON SA 5063 Ph: (08) 8338 1001, Fax: (08) 8338 0501
Western Australia:
Unit 5, 329 Collier Road, Bassendean WA 6054 Ph: (08) 9377 3400, Fax: (08) 9377 3499
Victoria / T asmania:
Suite 2, 10 Compark Circuit, Mulgrave VIC 3170 Ph: (03) 9535 7800, Fax: (03) 9535 7801
SOLE AGENT in New Zealand BLACK DIAMOND TECHNOLOGIES LIMITED (BDT) Wellington Offi ce (Head Offi ce)
1 Parliament Street, Lower Hutt, PO Box 30772, Lower Hutt 5040 Ph: (04) 560 9147, Fax: (04) 560 9133
Auckland Offi ce
Unit 1, 4 Walls Road, Penrose, PO Box 12726, Penrose, Auckland 1061 Ph: (09) 526 9347, Fax: (09) 526 9348
Christchurch Offi ce
44 Halwyn Drive, Hornby, PO Box 16904, Hornby, Christchurch 8441 Ph: (03) 341 2837, Fax: (03) 341 2838
AZ79L197H02 Printed in Japan
Loading...
