Mitsubishi Electric MR-CGX492EP-GWH-A2, MR-CX492EP-BST-A2, MR-CX492EP-ST-A2 User Manual

Contents

Page

2 - 3

4 - 5

6 - 8

1 0 - 1 1

1 2 - 1 3

1 4

1 5 - 1 6

1 6 - 1 8

1 9

For your safety, please be sure to follow these instructions

From installing to running your refrigerator

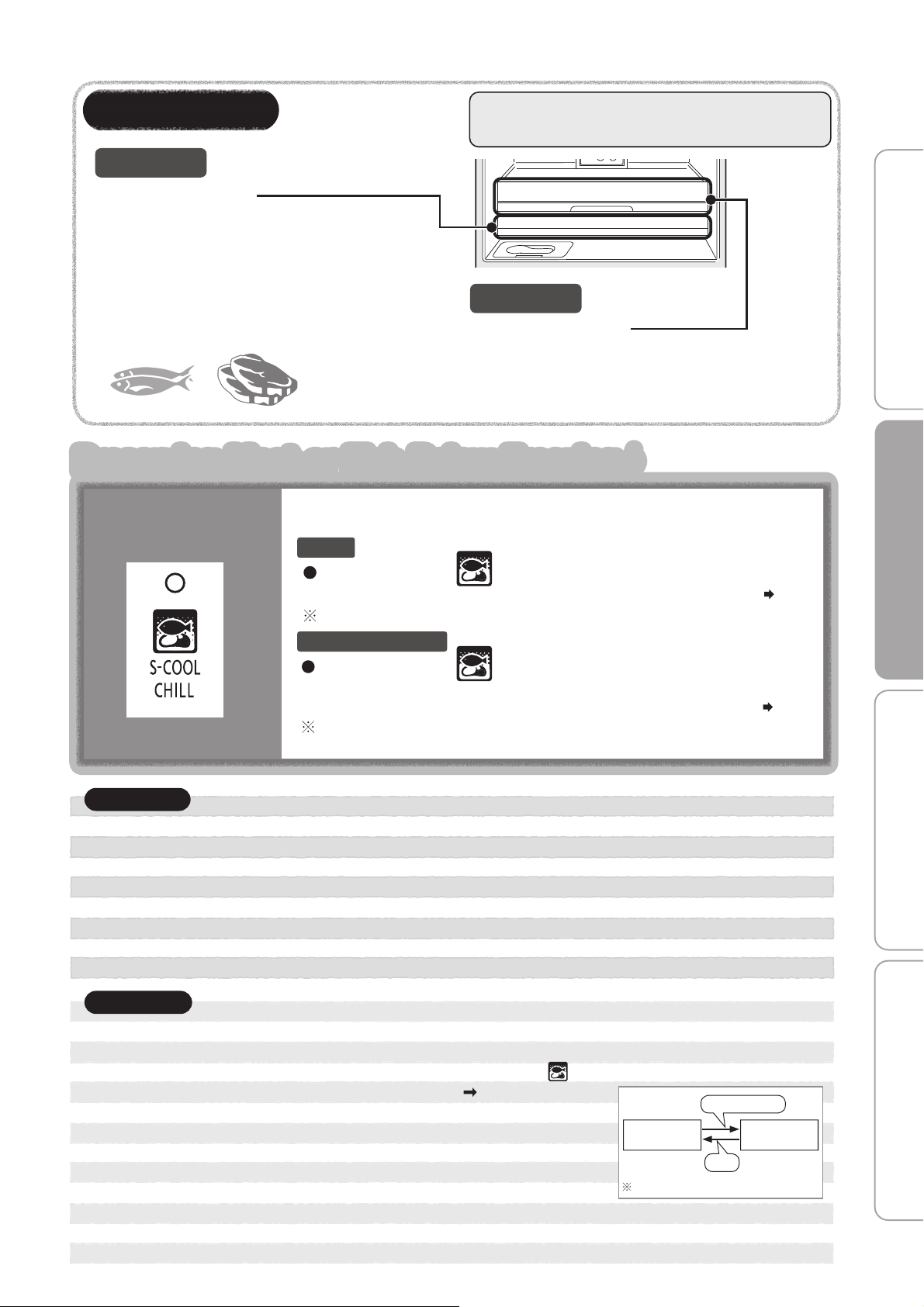

Using each compartment

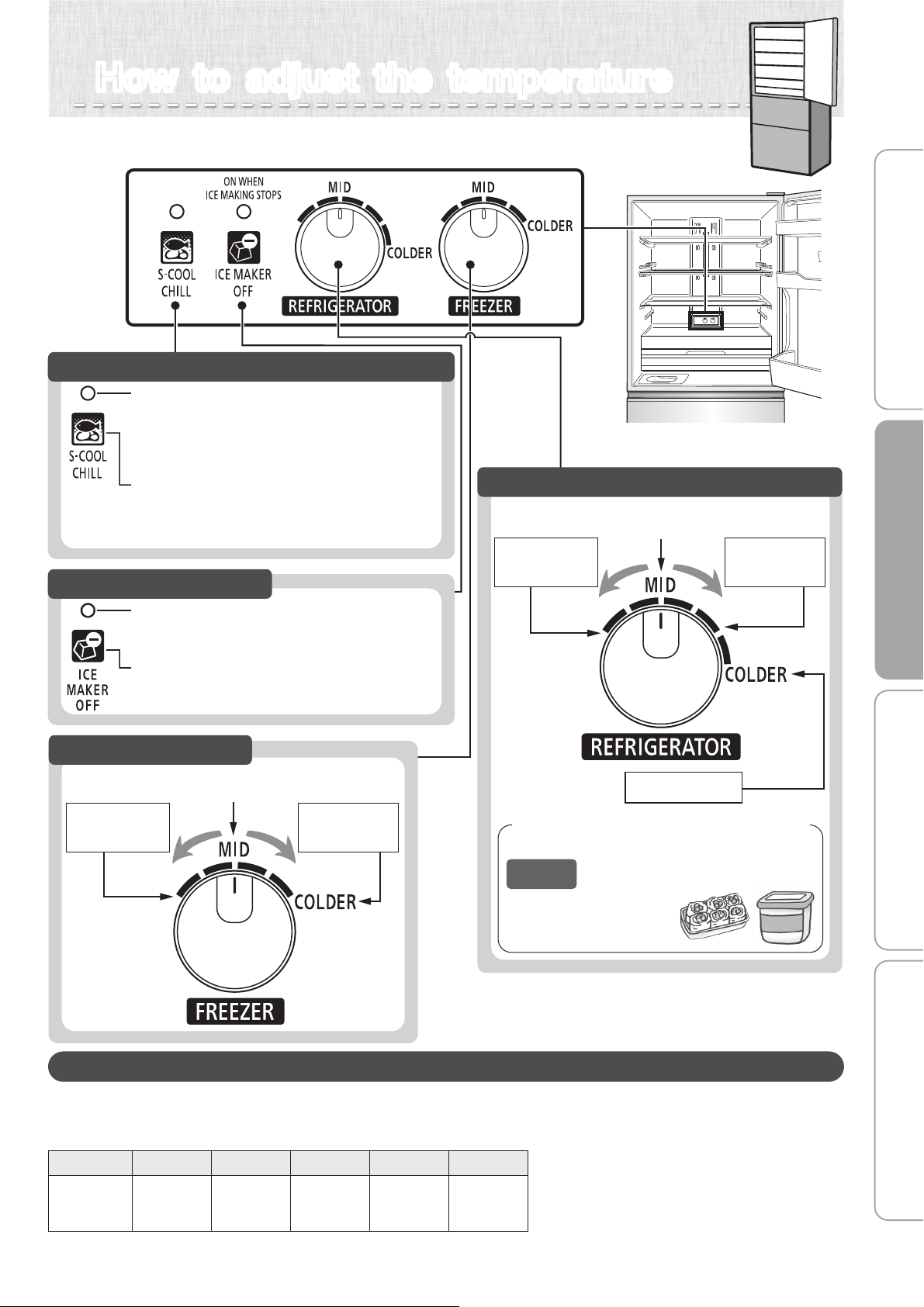

How to adjust the temperature

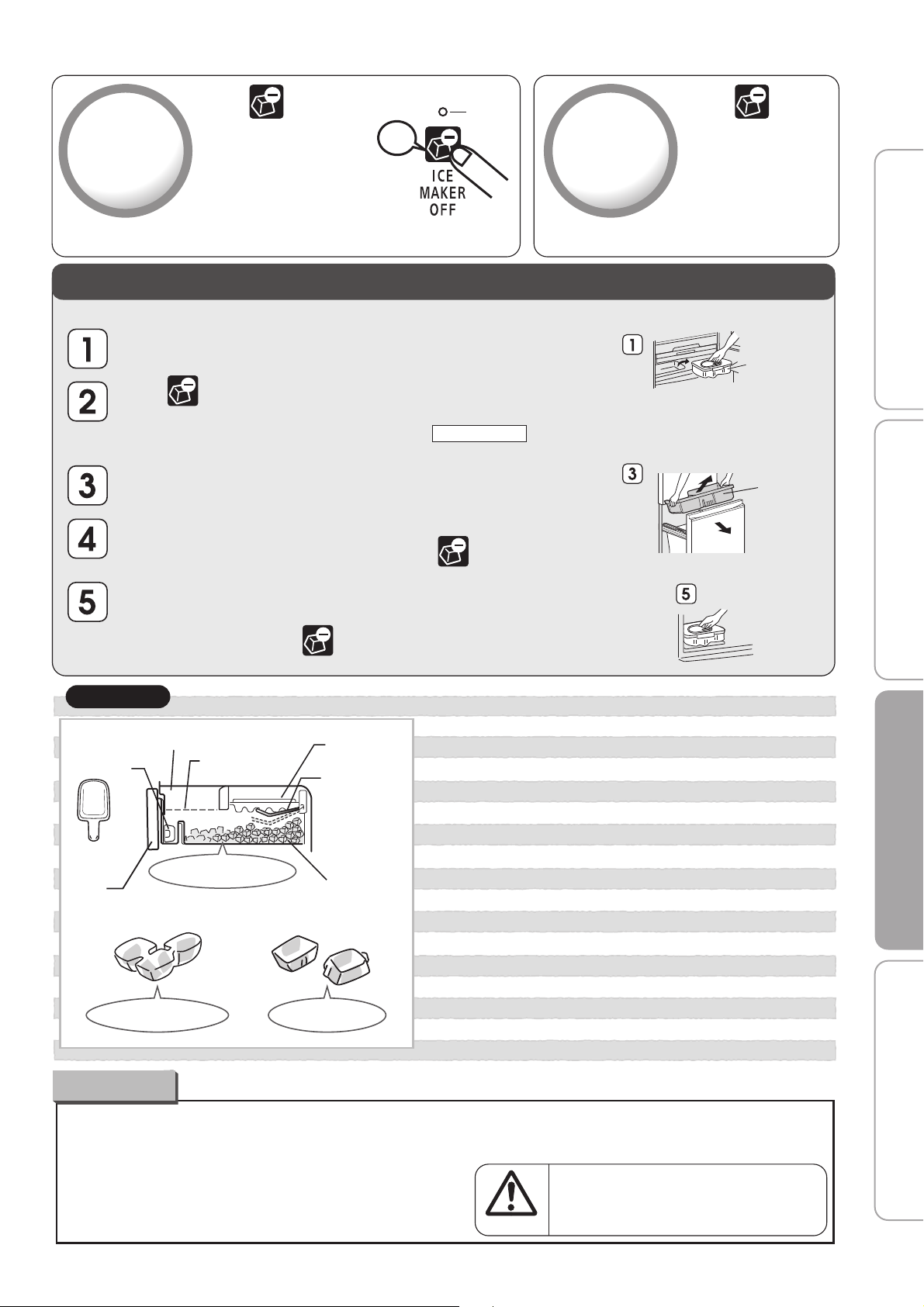

Automatic Ice-Maker

How to remove and clean accessories

How to maintain your automatic ice-maker

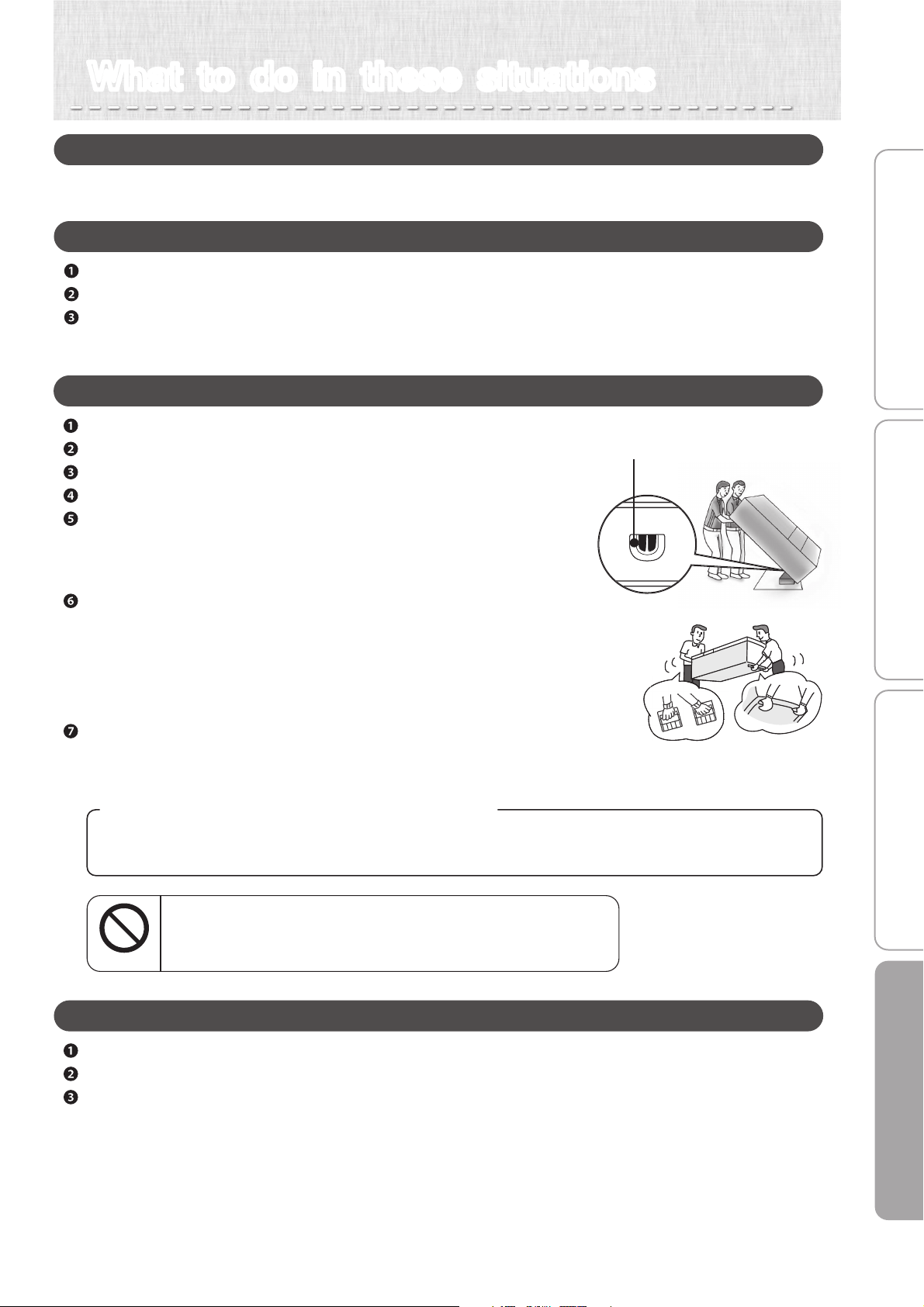

What to do in these situations

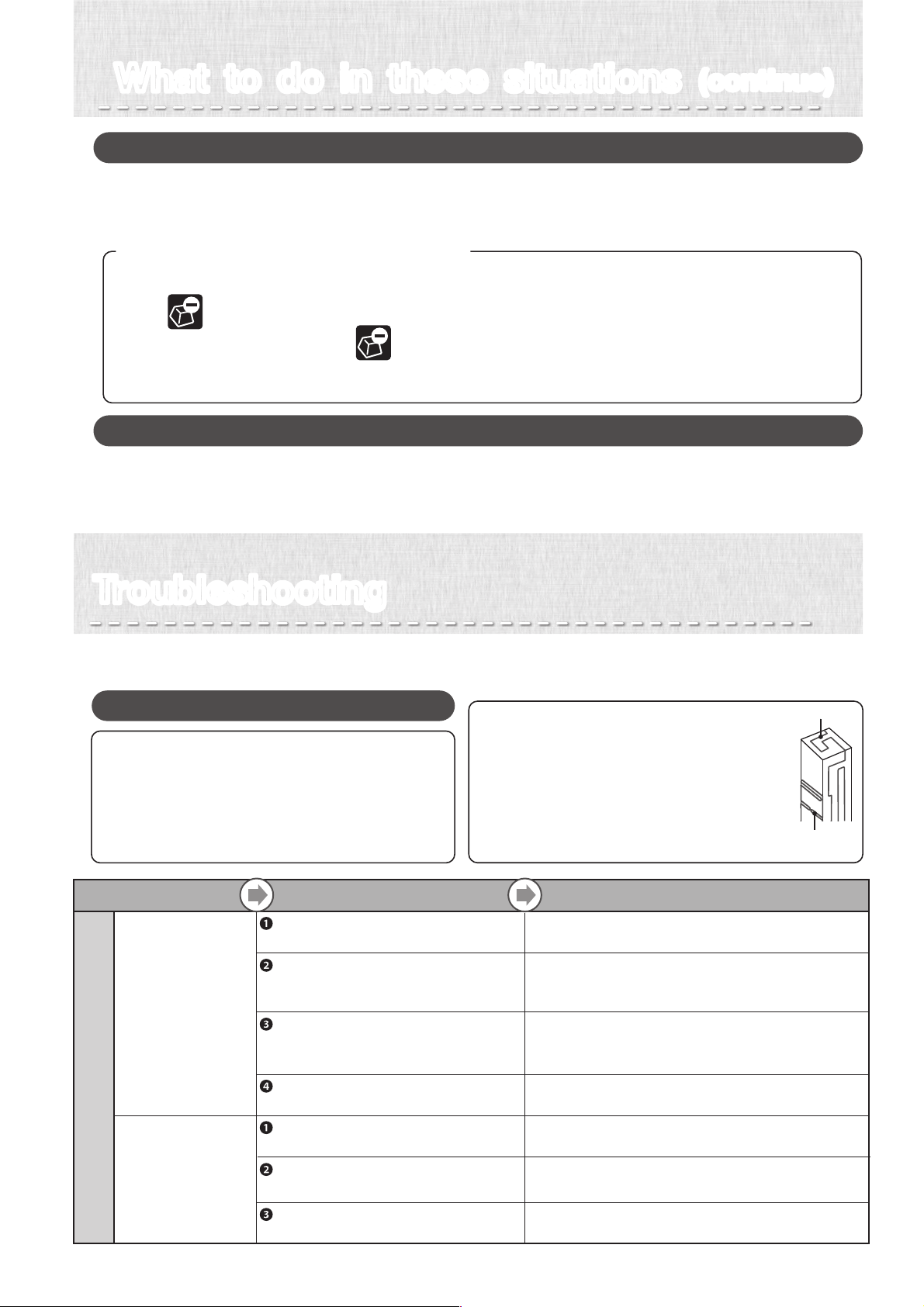

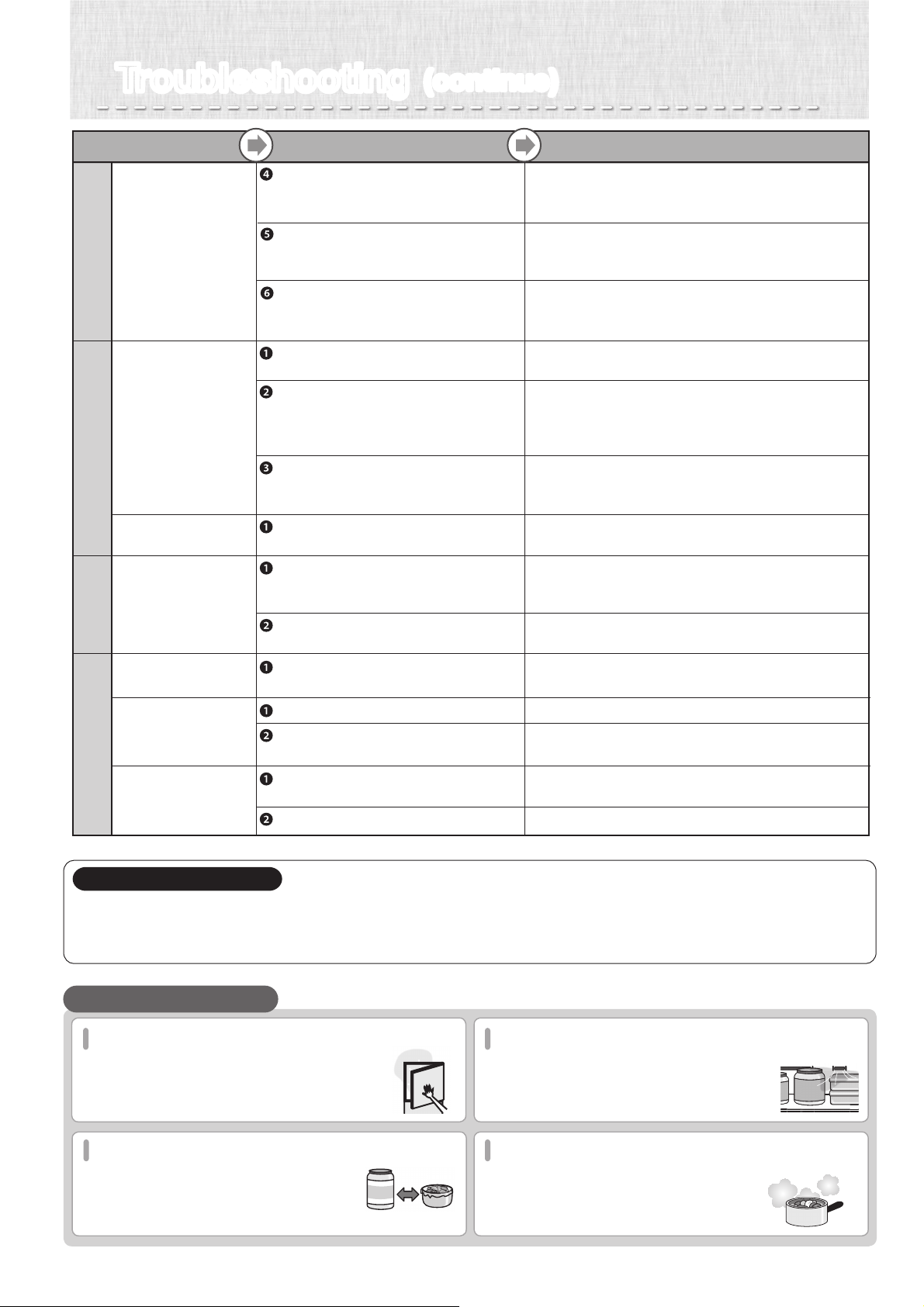

Troubleshooting

Accessories

Refrigerator / Sliding case / Vegetable and Freezer Compartments

Before useOperationCleaning

When in trouble

SERIES MODEL

MR-CX492EP MR-CGX492EP

Refrigerator-Freezer

OPERATING INSTRUCTIONS

Non-Freon Refrigerators

This refrigerator uses non-Freon refrigerant (isobutane) and non-Freon foam insulation (cyclopentane). These materials are harmless to the environment and do not affect the ozone layer and global warming.

Please read this manual carefully and follow the information contained within. In particular, be sure to read the safety precautions before using this refrigerator. Be sure to receive your copy of the warranty from the retailer and confirm that the purchase date and retailer name are written on the warranty. Store this operating instruction manual and the warranty in a safe place.

This refrigerator was manufactured for refrigerating and freezing of foods in domestic households. For commercial use, please use a commercial refrigerator-freezer. The principal plastic components indicate the material name to facilitate recycling.

It is strongly recommended to use only lukewarm water and a soft cloth when cleaning. Cleaning agents can cause cracking to the plastic components of your refrigerator.

Cleaning Instruction - Important!

The types of danger that can result from improper handling are explained in the sections below.

The symbols illustrated below have the following meanings.

Mishandling can lead to serious injury or death.

Mishandling can lead to bodily injury or loss of home and household contents.

Do not do

Do not get wet

CAUTION

Always connect an earth wire

Always unplug electrical plug from socket

Always follow instructions

Do not install in an outdoor area where water can get on it or where there is a lot of moisture.

➡ Page 4

Due to insulation failure, it may cause an electric shock or fire.

Remove dust from the electrical plug.

Not doing so can cause a fire from insulation failure.

Allow some space around the refrigerator.

If the refrigerant (gas) leaks, it can remain in the area and there’s a risk that it may cause a fire or explosion.

➡ Page 4

Attach ground wire and earth leakage breakers when used in a humid or moist place.

It may cause electric shock with electric leakage. And the following ground connection may cause electric shock, explosion and fire.

・

Water pipe/gas pipe. Telephone ground lines and lightning rod.

(Please consult with the shop).

➡ Page 4

When installing your unit

About the electrical outlet and electrical plug

Do not push the electrical plug with the back of the refrigerator. Do not damage the electrical cord.

If the plug is pressed by the refrigerator, or if the cord is bent, bundled, or a heavy object is placed on it, it can cause an electric shock or a fire.

Using them can result in an electric shock or injury.

Do not use damaged cords or plugs or loose outlets.

Do not remove the electrical plug by pulling the cord.

The cord can become damaged and can cause an electric shock or a fire.

Do not plug or unplug the electrical plug with wet hands.

It can cause an electric shock.

Using an extension cord or plugging in too many power cords into the outlet can cause heat buildup or a fire.

➡ Page 4

Use a dedicated outlet for the power supply that meets the rating specified on the rating label. (The rating label is located on the door-liner of the refrigerator compartment.)

If it is plugged with the cord facing upward, extra pressure gets exerted on it which can cause it to heat up or ignite.

Keep the electrical plug cord facing downwards and insert the plug in fully.

If the power cord is damaged call Mitsubishi Electric Service Centre for a technician to replace power cord. The power cord should be designed for this model.

If the power cord is damaged.

WARNING

When replacing the interior refrigerator light or when taking care of the unit, pull out the electrical plug.

Not doing so can result in an electric shock or injury.

For your safety, please be sure to follow these instructions

About using your refrigerator

Do not damage the refrigerant circuit (piping) of the refrigerator; do not drive in screws.

Because a flammable refrigerant (gas) is used, there is the danger of igniting or explosion.

Do not use electrical products inside the refrigerator unit.

If the refrigerant (gas) is leaking inside the unit, there is a risk that a spark from the electrical product’s contact can be a source for ignition or explosion.

Do not store volatile products that can easily ignite.

Benzine, cosmetics and hair styling products can be the cause for igniting fires and explosion.

Do not store pharmaceuticals or scientific test material.

Anything that needs strict supervision must not be stored in a home-use refrigerator.

Do not place items on top of the refrigerator.

Items may drop from opening and closing the door and can cause injury.

Do not hang on the door or door handle, and do not get on compartment drawer-type doors.

The refrigerator can topple over causing injury.

Do not use excessive force on glass shelf and glass door.

The glass may break and it may cause injury.

Do not put your hands in the mechanical part of the automatic ice-maker (the upper part of the ice storage box).

Doing so will cause injury.

Do not use flammable sprays nearby.

A spark from the electrical contact can ignite and cause a fire.

Do not do

Always follow instructions

Do not get wet

Always connect an earth wire

Do not do

Always follow instructions

WARNING CAUTION

Water to use for your automatic ice-maker WARNING: fill with potable water only. This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Always unplug electrical plug from socket

➡ Page 10

Before use Operation Cleaning When in trouble

CAUTION

WARNING

When something abnormal or unusual occurs, turn off immediately and consult with “the store where you purchased the unit” or with a “Mitsubishi Electric repair counter.”

Do not use in a shed or a garage.

If small animals damage the wiring, it can cause an electric shock or a fire.

Do not put any vessels, jars, etc. that contain water on top of the refrigerator.

If water gets onto electrical parts, it will cause an electric shock or a fire.

If you sense a gas leakage, do not touch the refrigerator. Open the window and ventilate the room.

About using your refrigerator

About Malfunctions / Long Term Care

Do not take apart, repair or convert. Do not continue to use with damaged parts.

This can cause injury, an electric shock or a fire.

If the refrigerant circuit (piping) is damaged, do not touch the refrigerator, open the window and ventilate the room.

If you will not be using the refrigerator for a long period of time, after pulling out the electrical plug, open the door and let the interior dry out.

If it is not dried adequately, the cooling unit may corrode causing the refrigerant (gas) to leak which can then cause the danger of ignition or explosion.

If it continues to run in an abnormal state, it can cause an electrical shock or a fire.

If something abnormal occurs (such as a burning smell), pull out the electrical plug and stop the refrigerator from running.

It is dangerous if the child gets shut inside.

If there is a possible danger of a child getting trapped inside while the refrigerator is not in use, please pull off the door seal.

Always follow instructions

Do not do

Install on a strong level floor and adjust the adjustable legs to fix firmly.

The refrigerator may move and cause injury.

➡ Page 4〜5

When carrying, use the handles made for carrying.

If other parts are held while carrying, it can cause injury.

Be careful not to damage the floor or injure yourself when moving the refrigerator.

Lay a protective sheet on the floor and move the refrigerator slowly.

➡ Page 15

Installing and Transporting

About using your refrigerator

If insufficiently attached, it may fall out and may cause injury.

Make sure that glass shelves or pockets are attached properly.

Always follow instructions

Do not do

Do not encapsulate refrigerant other than our specification.

It may cause rupture, explosion, fire, etc. when using, repairing, disposal, etc.

Do not do

Do not get wet

Do not wash with water or spill liquid food items on the unit.

If water and food liquids get on the unit, it can cause an electric shock or a fire. If that happens, dry off immediately.

A spark from the electrical contact can cause an explosion or a fire.

The door or furniture may be damaged and cause any injury.

When the doors are opened or closed, beware not to hit any furniture.

When the refrigerant circuit is damaged, please consult the store in which the unit was purchased.

Always follow instructions

Always unplug electrical plug from socket

When Recycling

Do not force food items into the refrigerator. Do not use force to pull out shelves.

Food items may fall out, causing injury.

Do not store bottles in the freezer compartment.

If the center freezes and bottles crack, it will cause injury.

Do not place your hands or feet under the refrigerator.

You can get injured from something such as the steel plate.

Do not eat foods that have a bad smell or are discolored.

Doing so may cause food poisoning or other illnesses.

Observe the following when opening and closing the doors.

!"#$"%$&"$'(%"$)"*+$,("&-(".$$),"/-(%

another person is touching the refrigerator.

!"#$"%$&"'0&"1$0)"23%4(),"$%"&-("&$'"(.4(

of a drawer type door while closing it.

Do not open or close the doors with excessive

force. (Food may fall out and cause injury.)

!"5("*6)(20+"%$&"&$"&)6'"1$0)"23%4(),"$)

any other part of your body.

!"5("*6)(20+"%$&"-3&"6"'6)&"$2"1$0)"7$.18 !"#$"%$&"&)6'"1$0)"2((&"/3&-"&-(

bottom drawer. (Danger of your

toes getting caught by the drawer.)

Not doing this may cause injury.

Do not touch foods or containers in the freezer compartment with wet hands.

Doing so can cause freezer burn.

503+&90'"2)$,&":61"*60,("3%;0)1"/-(%")(:$<3%48

Please take care when removing ice from the ice box.

CAUTION

Always follow instructions

From installing to running your refrigeratorFrom installing to running your refrigerator

Where to install your fridge

●

Install in a place where there is no direct sunlight or heat, and with good ventilation.

This protects against a decrease in cooling power and saves on electricity bills.

●Install in a place with low humidity.

This prevents rust, electric shock or fires from occurring.

●Install on a solid and level floor.

This prevents vibrations, noise, and partially open doors or doors left ajar.

Prevent changes or discoloring by its mass or heat.

※If the refrigerator adjustment feet sink easily

into the flooring material, please lay a strong board on top of the flooring.

●Install away from other appliances.

This prevents noise or image disturbances to the television, etc.

●Leave a space of more than 2 cm to

the left and right, and more than 10 cm from the ceiling, and more than 5 cm from the back.

This is to allow heat to escape from the top, the back and sides.

※If refrigerator is too close to the wall,

it will cause an increase in sound levels. Please care to remove the dust within the gap.

Installation

Do not install in an outdoor area where water can get on it or where there is a lot of moisture.

Due to insulation failure, it may cause an electric shock or fire.

Do not get wet

Allow some space around the refrigerator.

If the refrigerant (gas) leaks, it can remain in the area and there’s a risk that it may cause a fire or explosion.

Always follow instructions

Turning on the power

●

Turn on the power of the refrigerator as soon as possible.

The refrigerator will not be damaged even if you turn on the power immediately after the installation.

Use a dedicated outlet for the power supply that meets the rating specified on the rating label.

To get the refrigerator cooled down faster, plug it in right after installing.

Lower back section

2 cm. or more

10 cm. or more

Earth screw connection

5 cm. or more

Remove the energy label carefully. A glue residue may remain, particularly if the label has been in place for a long period of time. Apply either Eucalyptus or Tea Tree oil directly on any residue. Do not allow the oil to run or drip onto plastic parts as it may cause the plastic to degrade and potentially crack over time. Allow the oil to sit for approximately 1-2 minutes, or until the glue residue has softened. Wipe off with a damp cloth. If any residue remains, repeat the above process. Rinse with clear water. Dry thoroughly.

●

How to remove the energy label

Before use Operation Cleaning When in trouble

Adjustment and affixing

●Please fix the tilt by adjusting the legs.

Please adjust the adjustable leg as the following picture to level the refrigerator.

Fix firmly by adjustable legs on a level and strong floor.

The refrigerator may move and cause injury.

Refrigerator/front lower

If the left side of the door is sagging

If the right side of the door is sagging

Raise the right side Raise the left side

Right

Left

Keep the front at a slightly higher angle. This makes closing the door easier and prevents the door from partially opening.

※After several days from installing, it may sink to the floor by weight.

Please re-adjust the adjustable legs again.

When the tilt cannot be corrected with the adjustable legs.

If installed in a corner of a room, there are times when one side of the back legs sinks into the floor. When that happens, please make adjustments in the rear with caster support (separately sold) or a strong board underneath (normally, the thickness of the board should be 2 – 3 mm.)

For the caster support, please contact the shop where you purchased.

Model No.: MRPR-03CS

Rear support

Caster support or strong board

●After adjusting please insert the toe grille.

(toe grille included in the refrigerator)

Toe grille

Please insert in parallel until the cover hit in depth.

Adjustable leg

Caster

Start using

●

It takes time to cool down.

tPut in warm food items or ice

cream after the refrigerator has been adequately cooled down.

tKeep opening and closing of

the door to a minimum, and open in a short time.

tIn the summer, it will take

approx. 24 hours to make the first batch of ice.

●It may smell of plastic.

The smell will gradually disappear. Please ensure room is adequately ventilated to remove odors.

●

When the refrigerator is in cooling mode the following may occur (also occurs during summer).

The side will be hot allowing the outside of the refrigerator to cool.

tOperating noise will be loud

due to the compressor being in high-speed operation.

Because a flammable refrigerant (gas) is used, there is the danger of igniting or explosion.

Do not damage the refrigerant circuit (piping) of the refrigerator; do not drive in screws.

Do not do

Use in hot spring areas

Corrosion control treatment must be applied for the refrigerant circuit (pipe) due to generation of corrosive gases. Contact the retail store where you purchased the refrigerator.

(to prevent half-opened door/noise/move/vibrate)

Always follow

instructions

※Before adjusting, please pull the toe grille to the front and remove it.

Turn the adjustable legs to get them to touch the floor, then affix.

Turn in the direction of the arrows and lower the adjustable legs to place on the floor.

Caster

Adjustable leg

Bottle stopper

Refrigerator / Sliding caseRefrigerator / Sliding case

One-two shelf

The layout of shelves can be rearranged.

The shelf can be added by setting to the lower level. Install a space to accommodate tall stuffs in front.

It makes a large space when set up by overlapping the back of the shelf.

To prevent odors?

We recommend you wrap or store the foods in airtight containers.

Kimchi, dumplings, sardine (seafood), beef, etc.

Foods with strong odor

Rice, potato salad, etc.

Foods that easy to absorb odor

Door alarm will inform when the door is left open.

➡Page 9

Air blowing outlet

Food items with a lot of moisture may freeze if put near air blowing outlet.

(Especially canned beer or carbonated drink, there is a risk of rupture when freezing.)

Refrigerator

Insert drinks or immediately used foods in refrigerator compartment. Sliding case can store meats, fish, dairy products, processed foods, etc. at a lower temperature than the refrigerator compartment.

Using each compartment

Sliding case

compartment

Sliding case

compartment

Free pocket (large)

Adjustable shelf

LED light

Air blowing outlet

One-two shelf

Bottle pocket

Small-Items pocket

It’s an egg case and a small items tray. By turning the egg case upside-down, it converts into a small items tray.

Free egg tray

Free pocket (small)

How to remove shelf, pocket, case

➡Page 13

Air blowing outlet

Sliding case (upper)

Sliding case (lower)

Illustration of MR-CGX492EP※

+ 14 hidden pages
