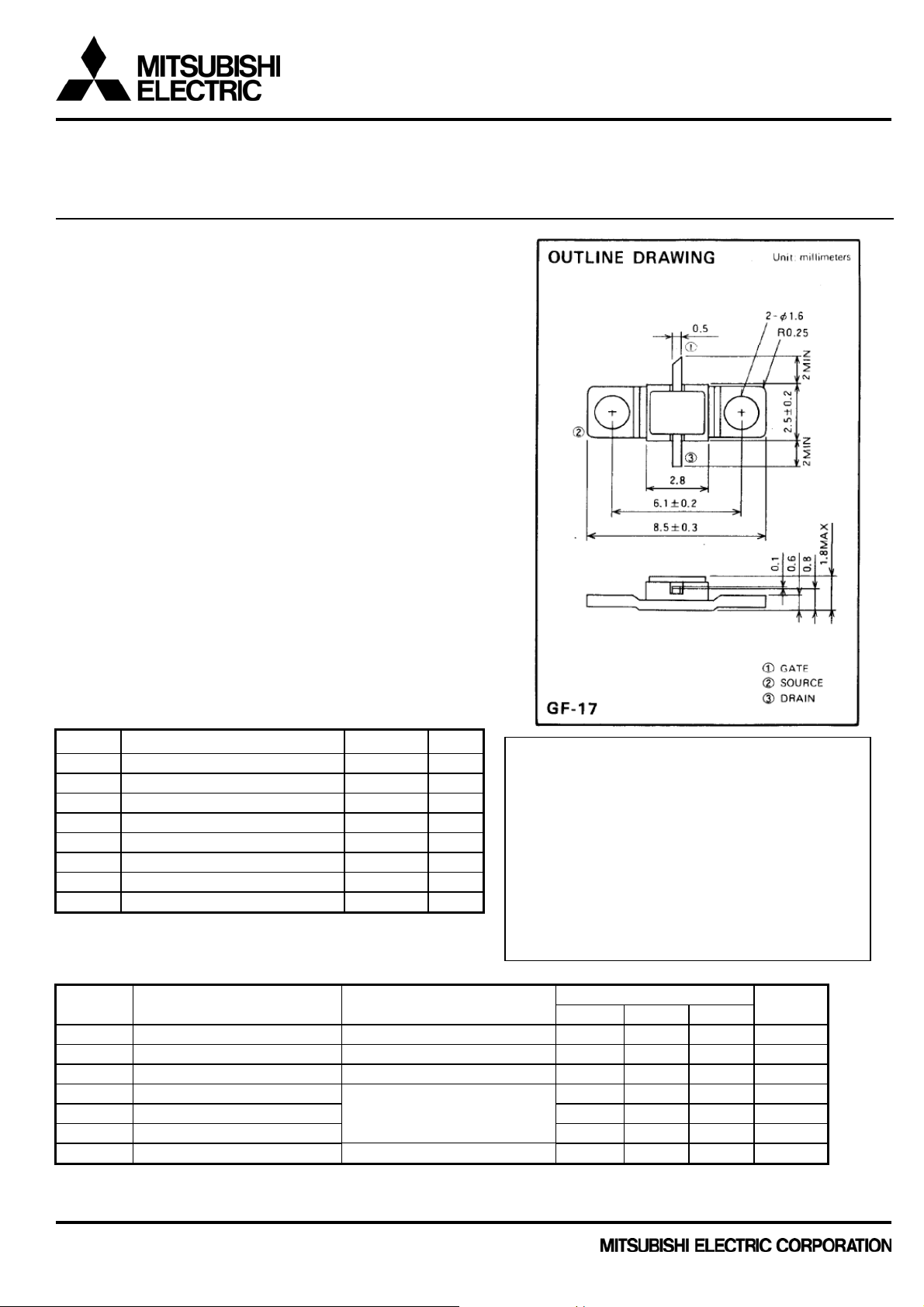

< High-power GaAs FET (small signal gain stage) >
MGF2430A
S to Ku BAND / 1.1W
non - matched
DESCRIPTION
The MGF2430A, power GaAs FET with an N-channel schottky
gate, is designed for use in S to Ku band amplifiers.
FEATURES
High output power
Po=30.5dBm(TYP.) @f=14.5GHz
High linear power gain
GLP=6.5dB(TYP.) @f=14.5GHz
High power added efficiency
P.A.E.=27%(TYP.) @f=14.5GHz,P1dB
APPLICATION
S to Ku Band power amplifiers
QUALITY
IG
RECOMMENDED BIAS CONDITIONS
Vds=10V Ids=300mA Refer to Bias Procedure
Absolute maximum ratings (Ta=25C)
Symbol Parameter Ratings Unit
VGDO Gate to drain voltage -15 V
VGSO
ID Drain current 800 mA
IGR Reverse gate current -2.4 mA
IGF Forward gate current 10 mA
PT*1 Total power dissipation 5 W
Tch Cannel temperature 175 C
Tstg Storage temperature -65 to +175 C
*1:Tc=25C
Gate to source
Electrical characteristics
Symbol Parameter Test conditions Limits Unit
IDSS
gm
VGS(off)
P1dB Output power
GLP Linear power gain 5.5 6.5 - dB
P.A.E. Power added efficiency
Rth(ch-c) *2
*2 :Channel-case
Saturated drain current VDS=3V,VGS=0V 400 600
Transconductance VDS=3V,ID=300mA 200 260
Gate to source cut-off voltage VDS=3V,ID=2mA -1 -2.5 -4 V
Thermal resistance
voltage
(Ta=25C)
Keep Safety first in your circuit designs!
-15 V
Mitsubishi Electric Corporation puts the maximum
effort into making semiconductor products better
and more reliable , but there is always the
possibility that trouble may occur with them.
Trouble with semiconductors may lead to personal
injury , fire or property damage. Remember to give
due consideration to safety when making your
circuit designs , with appropriate measure such
as (I) placement of substitutive , auxiliary circuits ,
(ii) use of non-flammable material or (iii) prevention
against any malfunction or mishap.
VDS=10V,ID(RF off)=300mA
f=14.5GHz
Vf method - - 30
Δ
Min. Typ. Max.
29 30.5 - dBm
- 27 - %
800 mA
- mS
C/W
Publication Date : Apr., 2011
1
Page 2
< High-power GaAs FET (small signal gain stage) >
MGF2430A
S to Ku BAND / 1.1W
non - matched

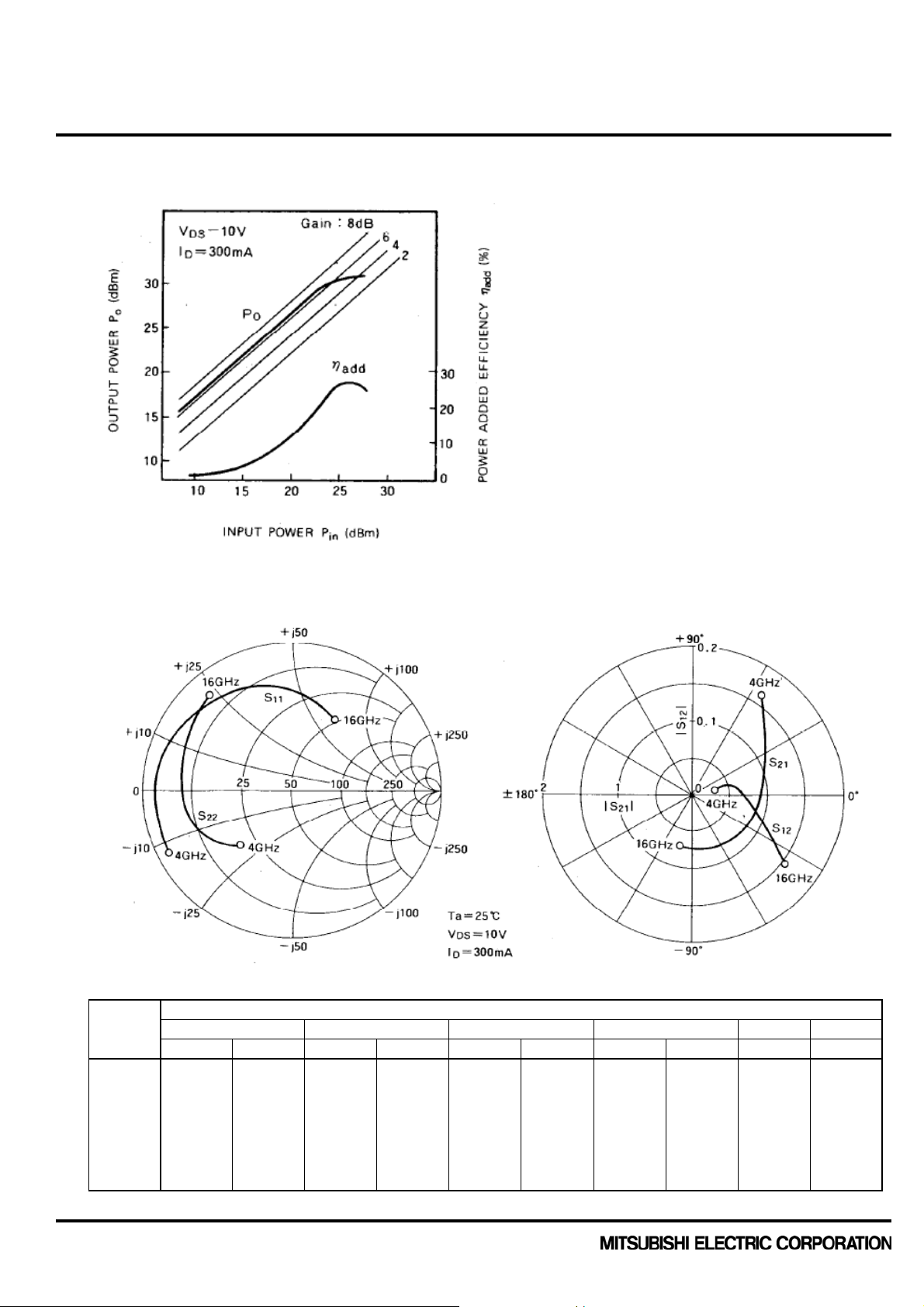

MGF2430A TYPICAL CHARACTERISTICS( Ta=25deg.C )
