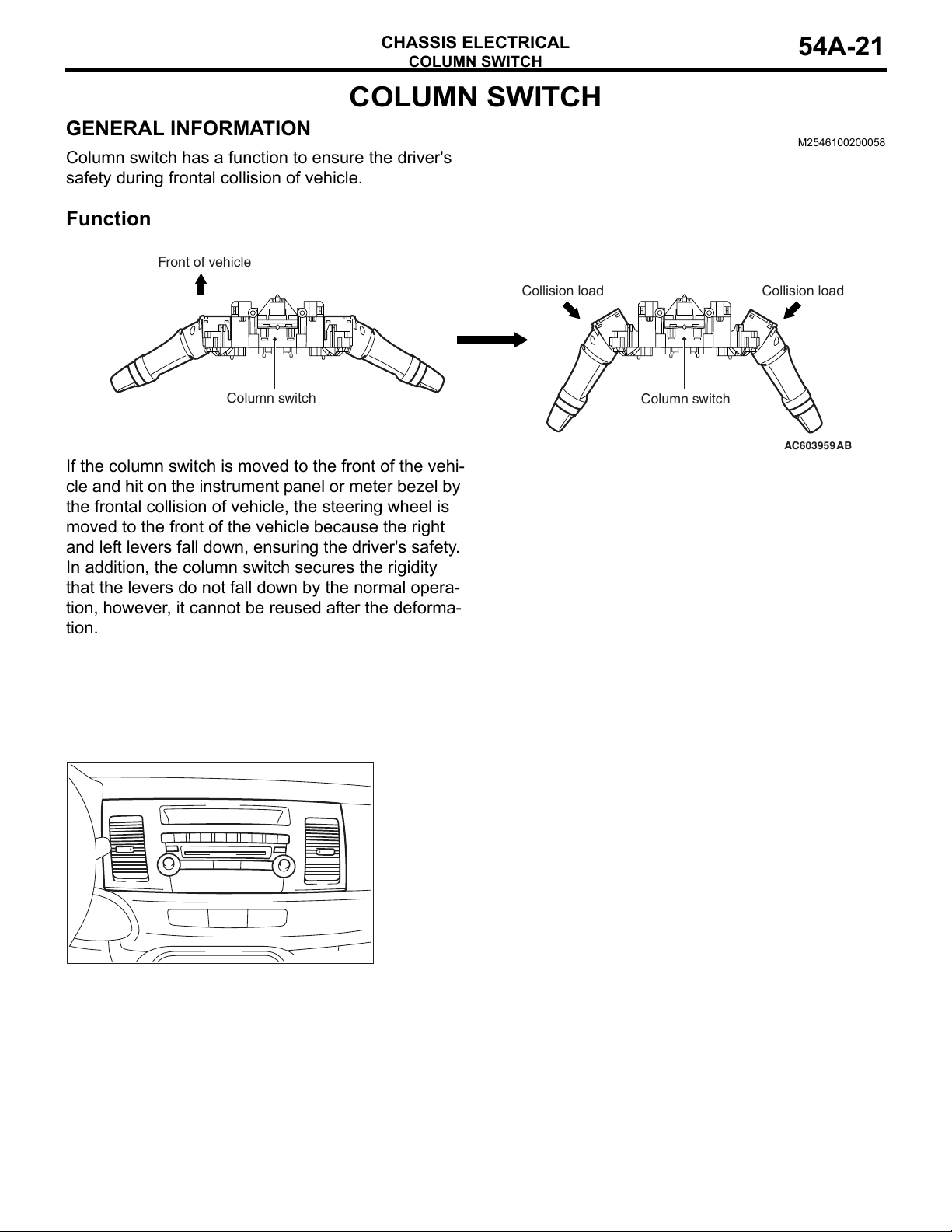

CHASSIS ELECTRICAL
COLUMN SWITCH
COLUMN SWITCH
54A-21
GENERAL INFORMATION
Column switch has a function to ensure the driver's
safety during frontal collision of vehicle.
Function
Front of vehicle
Column switch
If the column switch is moved to the front of the vehi-
cle and hit on the instrument panel or meter bezel by
the frontal collision of vehicle, the steering wheel is
moved to the front of the vehicle because the right
and left levers fall down, ensuring the driver's safety.
In addition, the column switch secures the rigidity
that the levers do not fall down by the normal opera
tion, however, it cannot be reused after the deforma-
tion.
.
Collision load Collision load
Column switch
M2546100200058
AC603959
AB
-
GENERAL INFORMATION

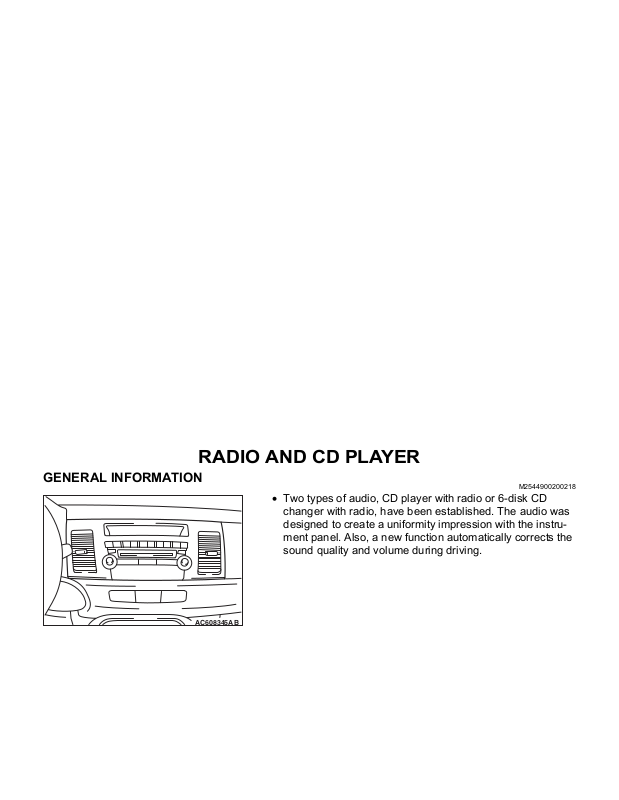

RADIO AND CD PLAYER
• Two types of audio, CD player with radio or 6-disk CD
changer with radio, have been established. The audio was
designed to create a uniformity impression with the instru
ment panel. Also, a new function automatically corrects the
sound quality and volume during driving.
AC608345
AB
M2544900200218
-
Page 2
54A-22
CHASSIS ELECTRICAL
RADIO AND CD PLAYER
• For the vehicles with Rockford Fosgate ® premium sound
system, the 8-ch high-power audio amplifier with integrated
DSP (total maximum output of 650 W) has been established
under the driver's seat. The clear treble without distortion is
available.
Audio amplifier
Rear seat
Driver's seat
AC608321
AB

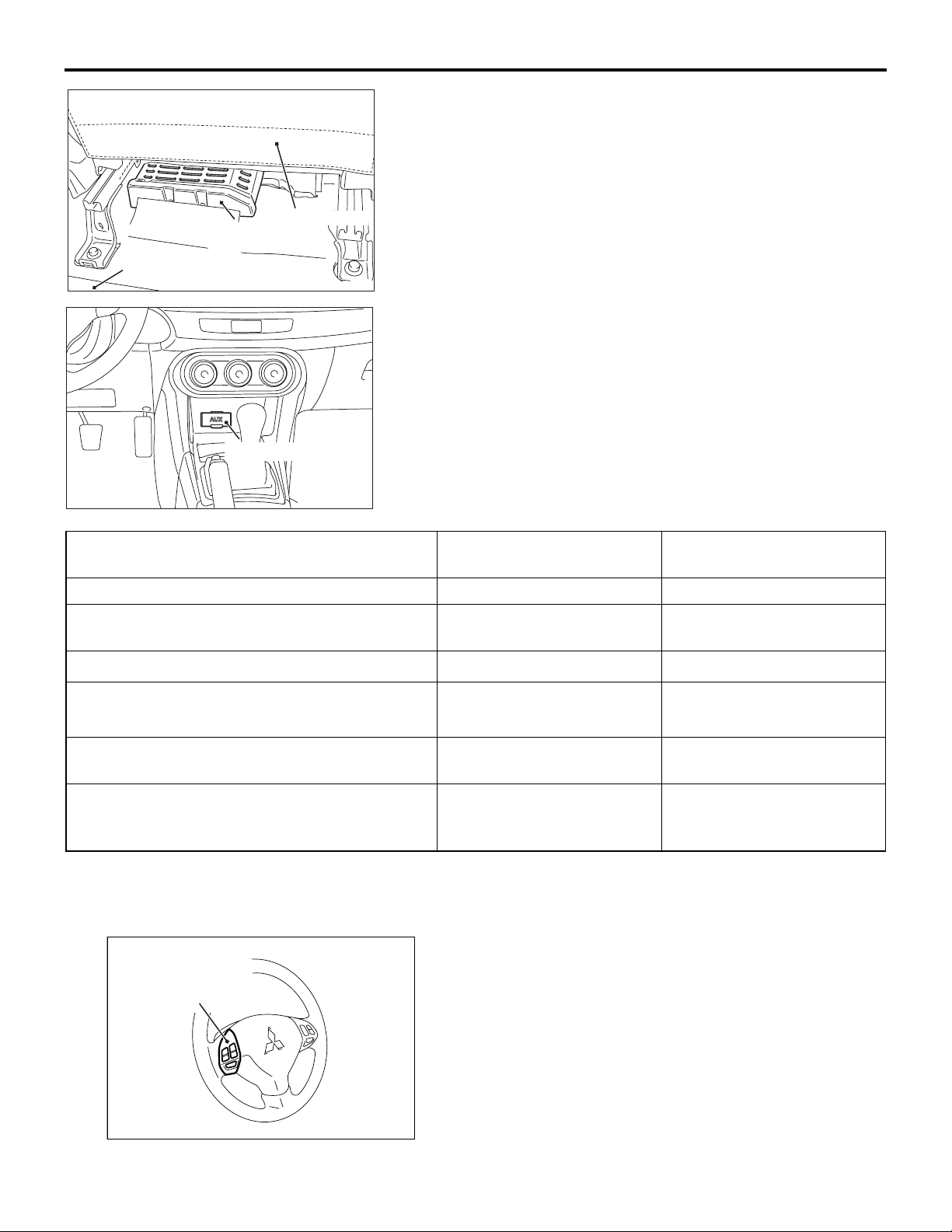

• For the vehicles with Rockford Fosgate ® premium sound
system, the audio adapter has been established onto the
center tray. With this modification, portable music player
can be connected. <Vehicles without MMCS>
Audio adapter
AC608417
AB
Item CD player with radio 6-disk CD changer with
radio <Option>
Electronic tuning radio Equipped Equipped
SIRIUS satellite radio <Option: ES, GTS>
−
Equipped (Only the vehicles
with the satellite radio tuner)
CD player*1 (compatible with MP3*2)
6-disk CD autochanger*1 (compatible with
*2
MP3
)
Audio integrated 4-ch power amplifier <vehicles
Equipped Equipped
−
Equipped
General 140 W General 140 W
with 4 speakers, 6 speakers>
Audio amplifier-integrated 8-ch power amplifier
−
General 650 W (maximum)
and digital signal processor (DSP) <Rockford
Fosgate
® premium sound system>
NOTE: .
*1
•
: CD-R/CD-RW may not be played.
*2
•
: Some may not be played.
STEERING WHEEL AUDIO REMOTE CONTROL SWITCH
The concentrated switch has been established onto
Steering wheel
audio remote control
switch
AC606795
AF
the steering wheel spoke for allowing the remote
control of audio. <ES, GTS>
Page 3
CHASSIS ELECTRICAL
RADIO AND CD PLAYER
54A-23
AUDIO OPERATION TONE ALARM
To prevent an audio operational error, the audio
operation tone alarm confirms the audio operation
which sounds a tone alarm in the combination meter
when the audio is operated. The details are as
described in the following table:
Usage category Confirmation tone alarm sounding condition (with conditions below, tone alarm
sounds for 0.08 seconds)
Radio use Press and hold "1", "2", "3", "4", "5" or "6" button.
Press and hold "SCAN" button.
CD use Press and hold the "LOAD" button.
Press and hold the "DISC" button.
Press and hold the "RPT" button.
Press and hold the "RDM" button.
Press and hold the CD eject button
Audio adjustment With "BASS", "MID", "TREBLE", "BALANCE", or "FADER" selected, adjust the
adjustment level to zero.
Select "NORMAL" of "SOUND FIELD".
Select "NORMAL" of "MUSIC TYPE".
Others Press and hold the "TUNE" knob.
Press and hold the "MODE" switch of steering remote control switch.
Page 4
54A-24
CHASSIS ELECTRICAL
SPEAKER
SPEAKER
GENERAL INFORMATION

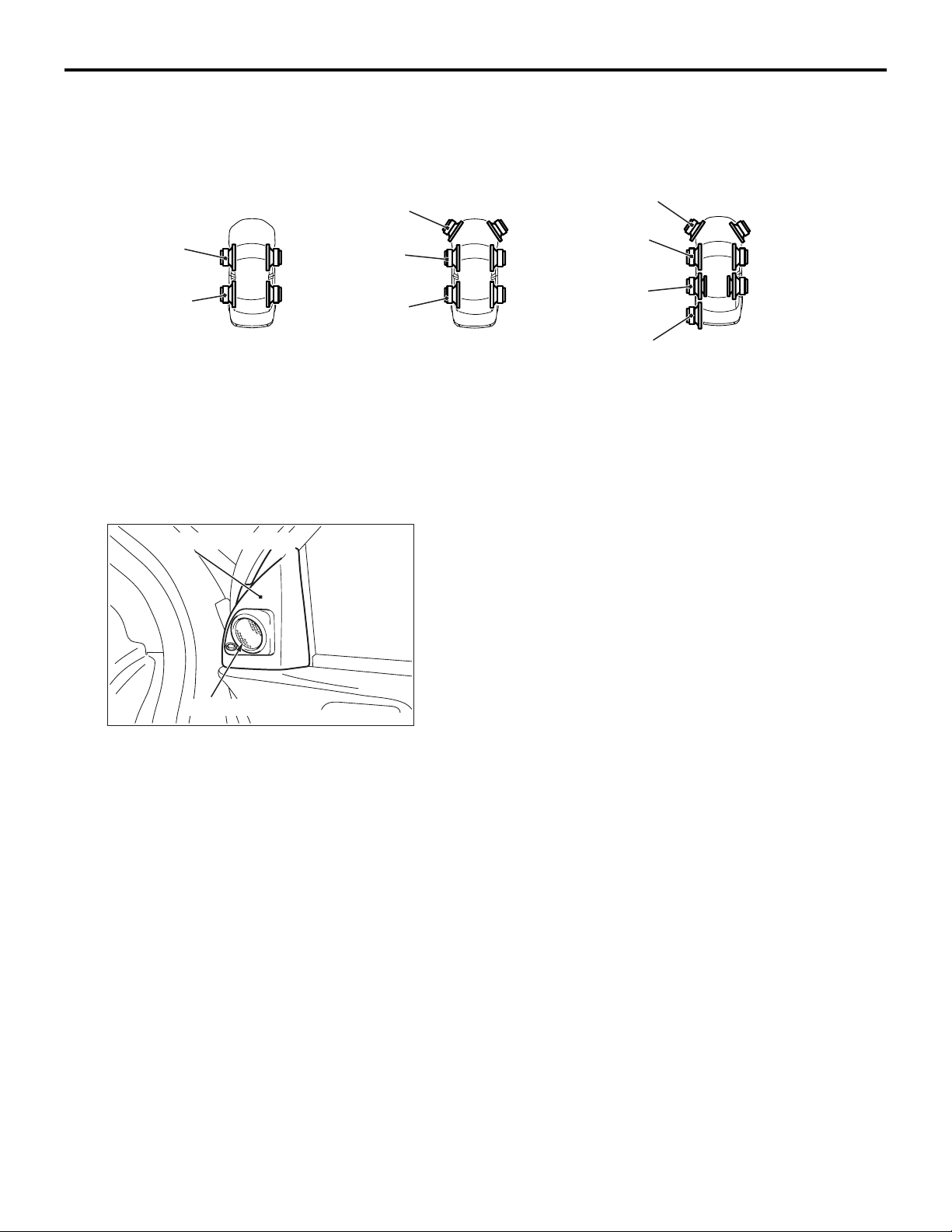

<4 speakers> <6 speakers> <9 speakers>
Tweeter
Front door
speaker
Rear door
speaker
Front door
speaker
Rear door
speaker
The following three types of speakers are available.
• 4 speakers (Front door: 16 cm, rear door: 16 cm)
• 6 speakers (tweeter: 3.5 cm, front door: 16 cm,
rear door: 16 cm)
TWEETER
Front door sash trim
Tweeter
AC608346
AB
M2545000200177
Tweeter
Front door
speaker
Rear door
speaker
Subwoofer
AC608693
AB
• 9 speakers (tweeter: 3.5 cm, front door: 16 cm,
rear door: 2-way coaxial 16 cm, subwoofer: 25
cm) <Rockford Fosgate
® premium sound sys-
tem>
For the front door sash trim, two types of tweeters,
the balance dome tweeter <Vehicles with 6 speak
ers> and soft dome tweeter <Vehicles with 9 speakers (Rockford Fosgate ® premium sound system)>,
have been established. The soft dome tweeter can
play clearer treble with less distortion compared to
the balance dome tweeter. For the better treble, two
types of front sash garnish, resin type <Vehicles with
6 speakers> and punching metal type <Rockford
Fosgate
® premium sound system>, has been
established. With the punching metal type, the metal
has been adopted for the punching part to enlarge
the punching opening, enabling the playback of
cleaner treble.
Page 5

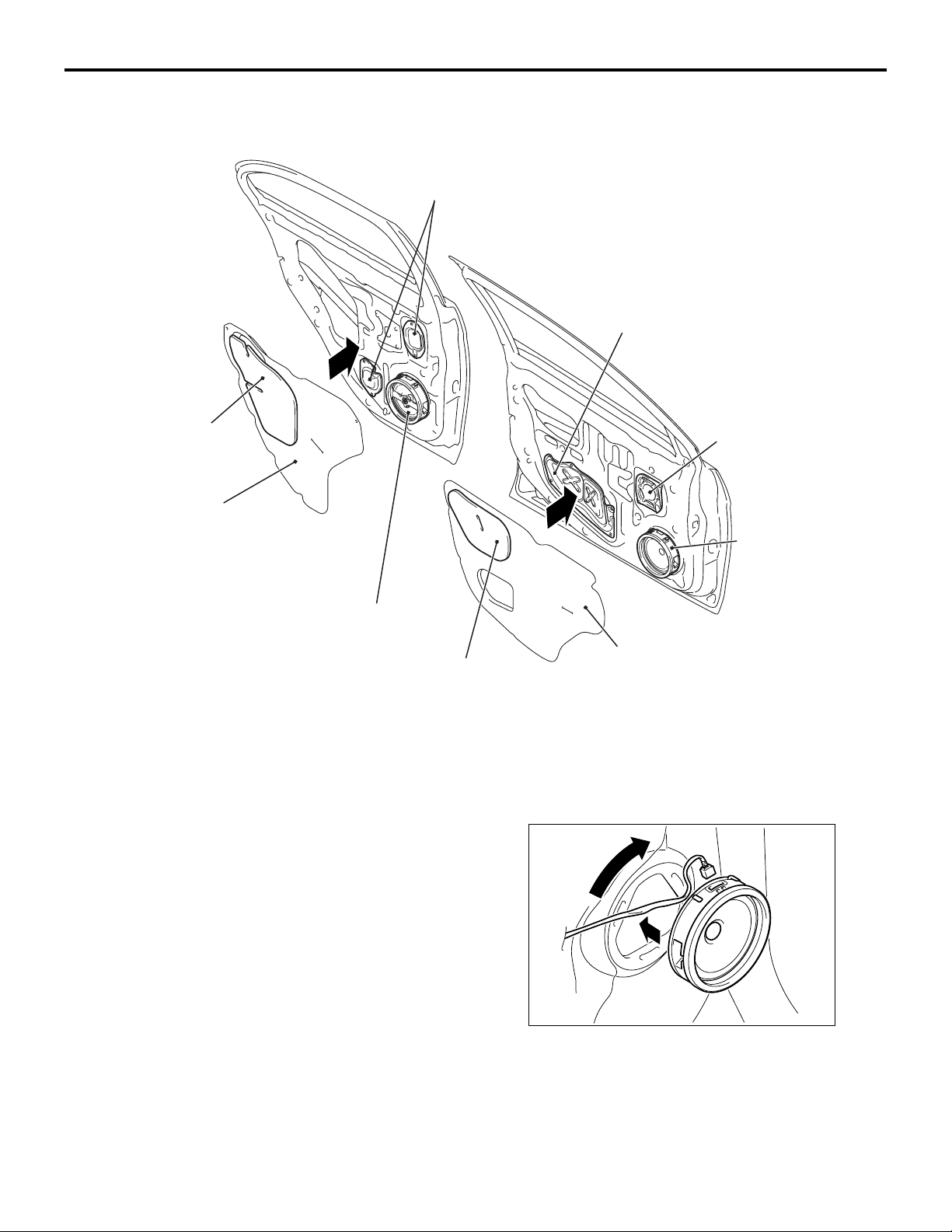

DOOR SPEAKER
CHASSIS ELECTRICAL
SPEAKER
Resin cover*
54A-25
Sheet metal
cover*
Urethane integrated
resin sheet*
Rear door water
proof film
Rear door speaker
Urethane integrated
resin sheet*
NOTE: The parts with "*" are installed exclusively to
the vehicles with Rockford Fosgate
®
premium sound
system.
For the front door speaker, two types of speakers, 16
cm paper cone speaker <vehicles with 4 speakers, 6
speakers> and PP (polypropylene) cone speaker
<Rockford Fosgate
® premium sound system>, are
available. For the rear door speaker, two types of
speakers, 16 cm paper cone speaker <Vehicles with
4 speakers, 6 speakers> and PP (polypropylene)
cone 2-way coaxial speaker <Vehicles with 9 speak
ers (Rockford Fosgate® premium sound system)>,
are available. Compared to the paper cone speakers,
the PP (polypropylene) cone speakers can playback
crisper bass. The door opening of the vehicles with 9
speaker (Rockford Fosgate
® premium sound system) is blocked by using the sheet metal cover and
the urethane integrated resin sheet (resin cover and
water proof film) to make the door into a speaker
box, thus improving the sound quality. As an advan
-
Resin cover*
Front door speaker
Front door water
proof film
AC608347
tage of the sheet metal cover, the rigidity of the areas
around the speaker has been increased, and the
higher sound pressure, suppression of high har
monic, and suppression of dumping are achieved to
improve sound quality.
-
AC507245
The one-touch installable speaker (with 3 tabs, fixed
by rotating) has been adopted to improve service
ability.
AB
-
AB
-
Page 6
54A-26
Trunk room
CHASSIS ELECTRICAL
ANTENNA

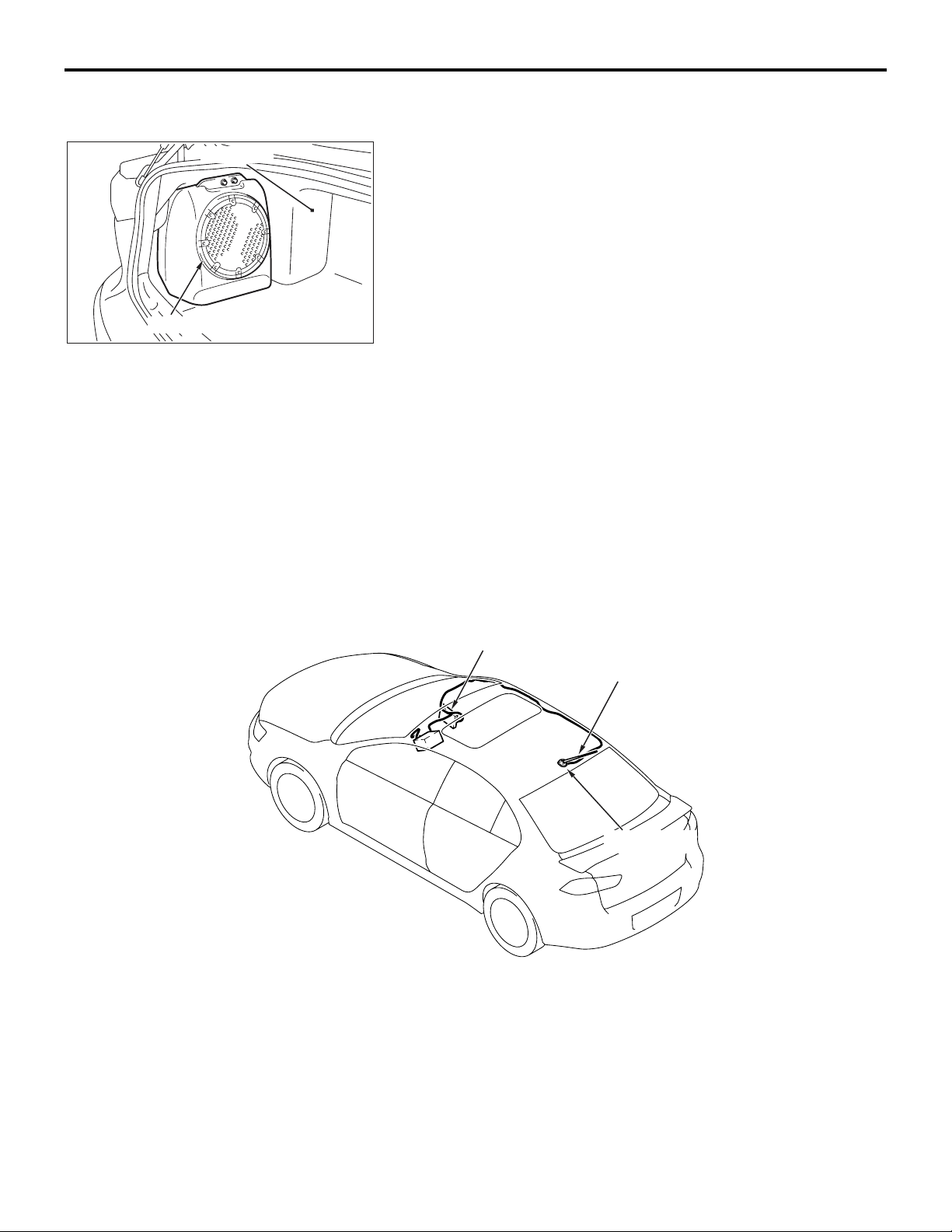

SUBWOOFER <VEHICLES WITH Rockford
Fosgate
The 25 cm dual voice coil subwoofer has been installed to the
trunk room, enabling the playback of dynamic deep bass.
® PREMIUM SOUND SYSTEM>
Subwoofer
AC608344
AB
ANTENNA
GENERAL INFORMATION
The pole antenna has been adopted for the radio.
The antenna base incorporates the radio amplifier.
When the satellite radio tuner is installed, the
antenna base that also corresponds to the satellite
radio is installed.
CONSTRUCTION DIAGRAM
M2545100200163
Satellite radio tuner (Vehicles with satellite radio)
Pole antenna (for radio)
Antenna base
AC608360
AB
Page 7
CHASSIS ELECTRICAL
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
54A-27
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
GENERAL INFORMATION
Audio visual navigation unit
AC608322
Audio and video adapter
AC608418
M2544800200084
Mitsubishi multi-communication system (audio visual navigation unit) with built-in hard disk drive (30 gigabyte) has been
installed. Also, a 7-inch liquid crystal display of wide 2 DIN size
has been adopted. <Option>
AB
The audio and video adapter has been established to the center tray in order to connect visual equipment such as game
machine and video player. <Vehicles with MMCS>
AB
Operation part
MODE
AUDIO
VOL
PWR
SET
OPEN
Mitsubishi Multi Communication System
Display (function) Contents
Navigation screen Displays the navigation functions including the map display, search, guidance,
information search.
Vehicle position information
screen
Displays the position information of current location. (Longitude and latitude,
altitude, GPS reception status)
CD screen Plays back the disc inserted to the CD drive (CD-R/CD-RW).
MP3/WMA screen Plays back the MP3/WMA.
DVD screen Plays back the disc inserted to the DVD drive.
INFO
NAVI
SCALE
MENU
ENT
AC505475
AB
Music server function Plays back the music data on hard disk drive, and records the music CD.
Radio screen Displays the receiving station information. Also, the operation of receiving
channel can be performed.
Page 8
54A-28
CHASSIS ELECTRICAL
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
Navigation function
The storage of very large map data is now possible,
and the following contents have been adopted.
• Map type navigation
• NAVTEQ map database
• Map data stored in hard disc drive
• U.S. English, French, and Spanish are available
to select.
Audio and visual function
The following functions are in addition to the navigation function:
• Music server function
• DVD drive unit
• FM/AM radio
• MP3/WMA playback function

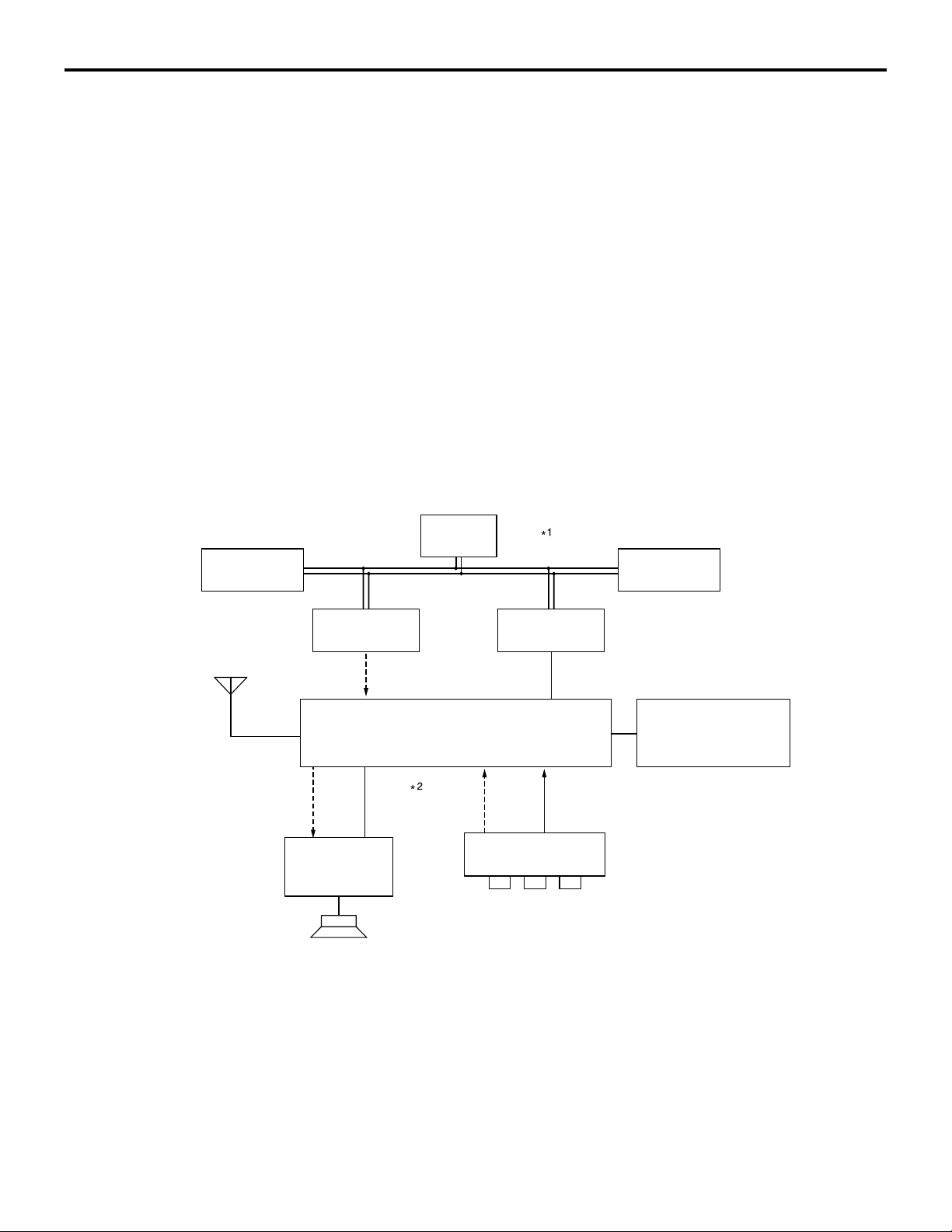

SYSTEM BLOCK DIAGRAM
A/C-ECU
Combination
meter
• Control by steering wheel audio remote comtrol
switch
• Integrated 4-ch power amplifier (MAX: 180 W)
• Correspond to Rockford Fosgate® premium
sound system
• Output of DVD video 5.1 channel data
• Connect with satellite radio tuner
Other function
The following functions are in addition to the navigation, audio and visual function:
• Clock display
• Connect with hands free unit
• A/C information display
• Outside temperature display
• Trip information display (Average fuel consump-
tion etc.)
• Function customize
ZC3050180000
CAN
communication
n
ETACS-ECU
AC505476
Antenna
Hands-free
module
Sound
Audio amplifier
Speaker
CAN box unit
Voice Sound
Audio visual navigation unit
UART
communication
Sound
Audio and video
adopter
Note:
*1: Controller Area Network
*2: Universal Asynchronous Receiver Transmitter
Steering wheel
audio remote control
switch
AC608750
AB
Page 9
90-168

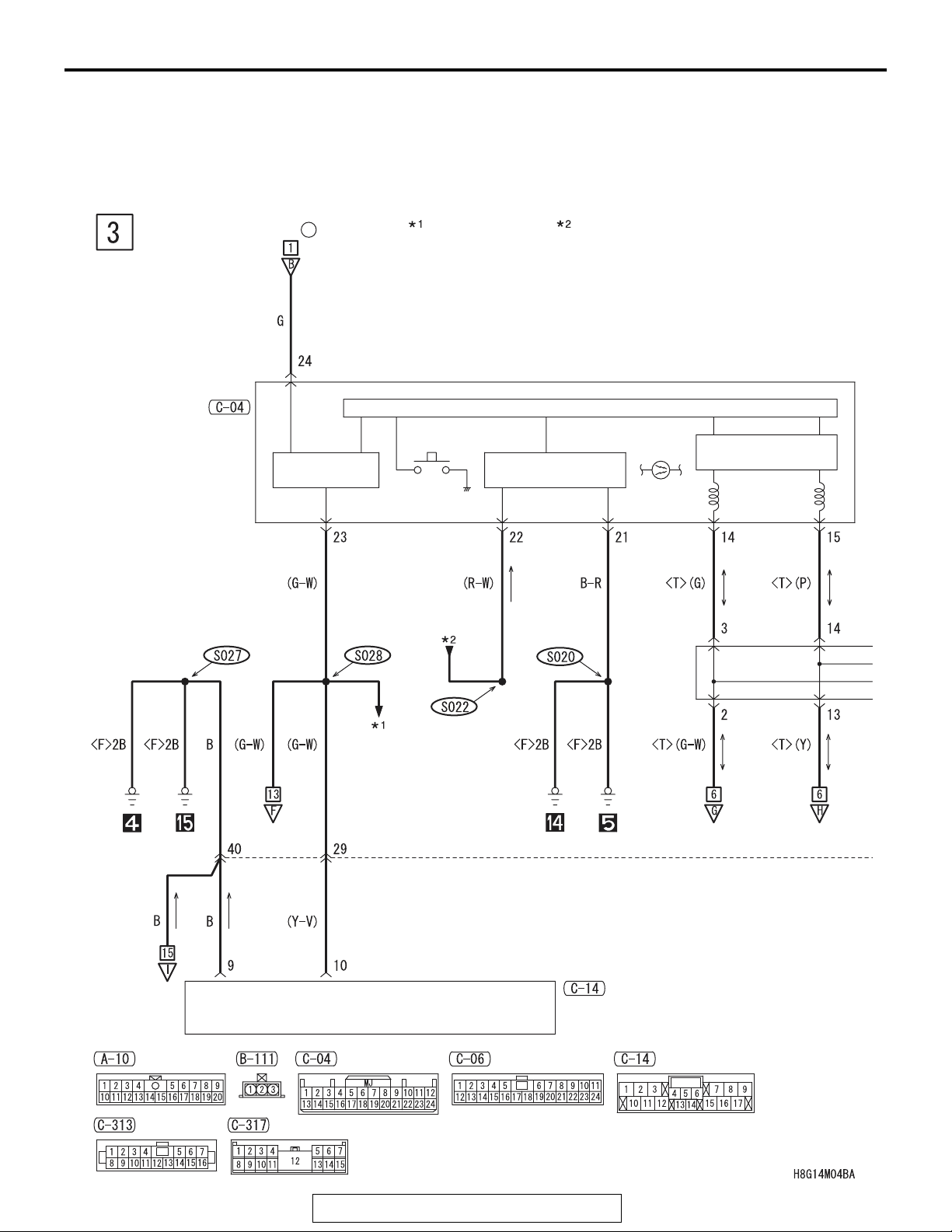

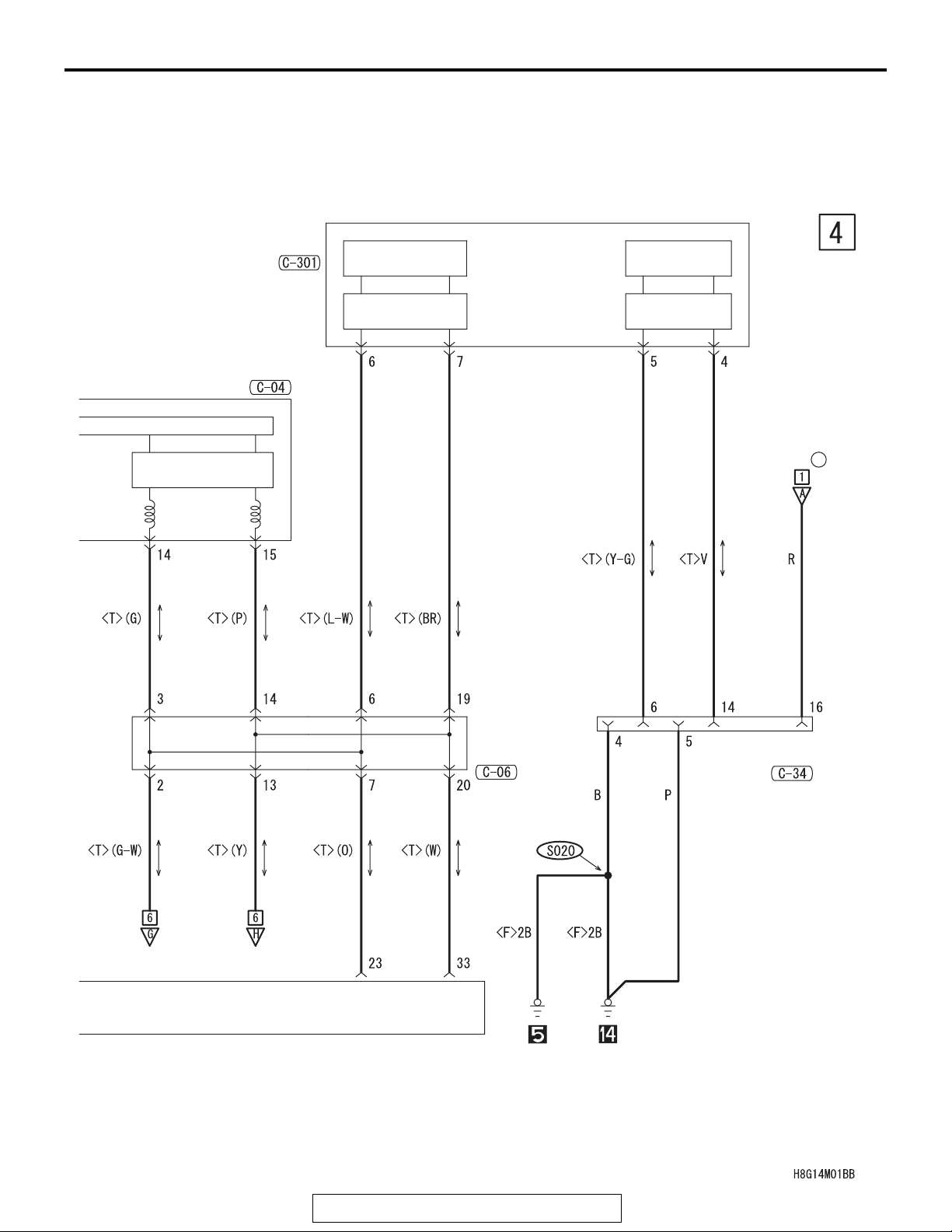

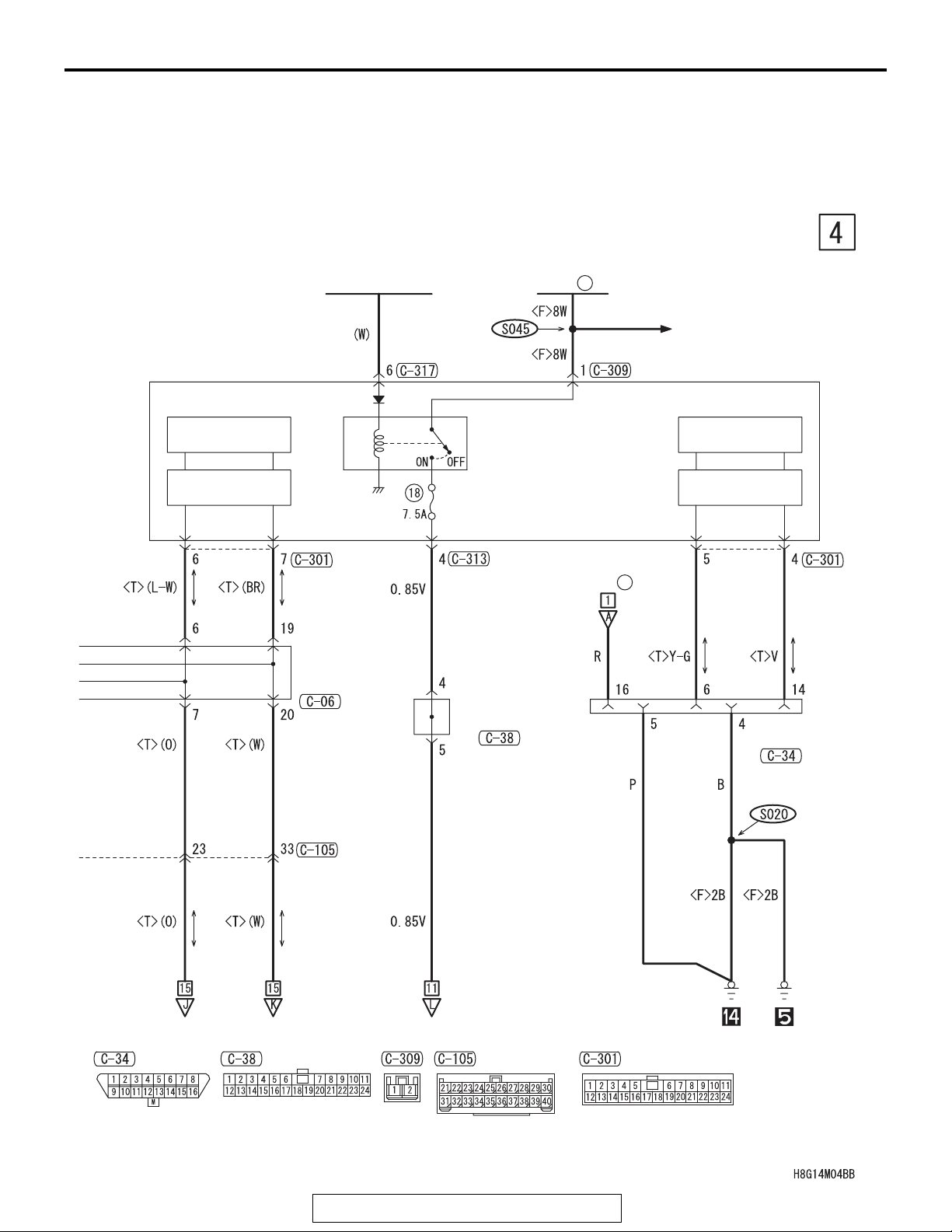

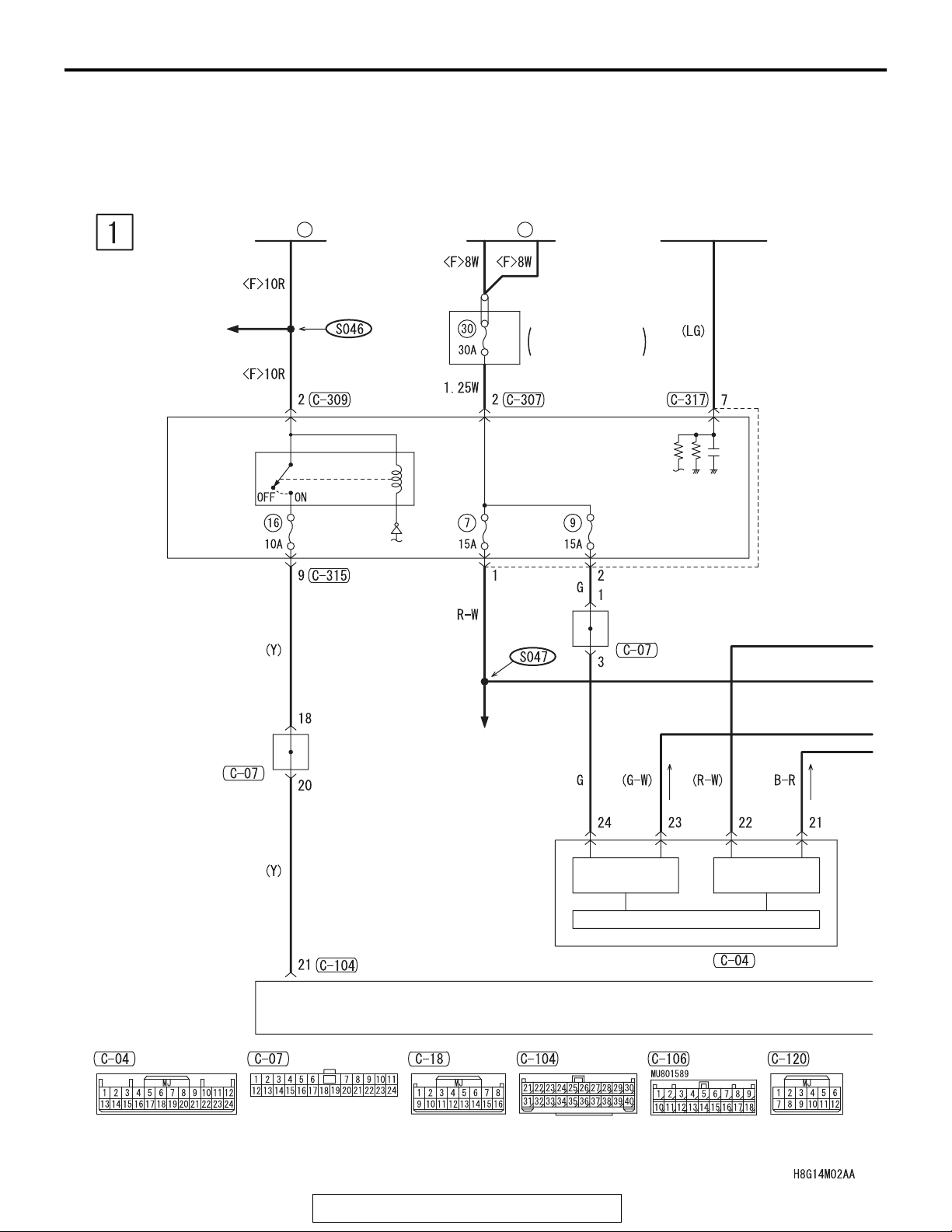

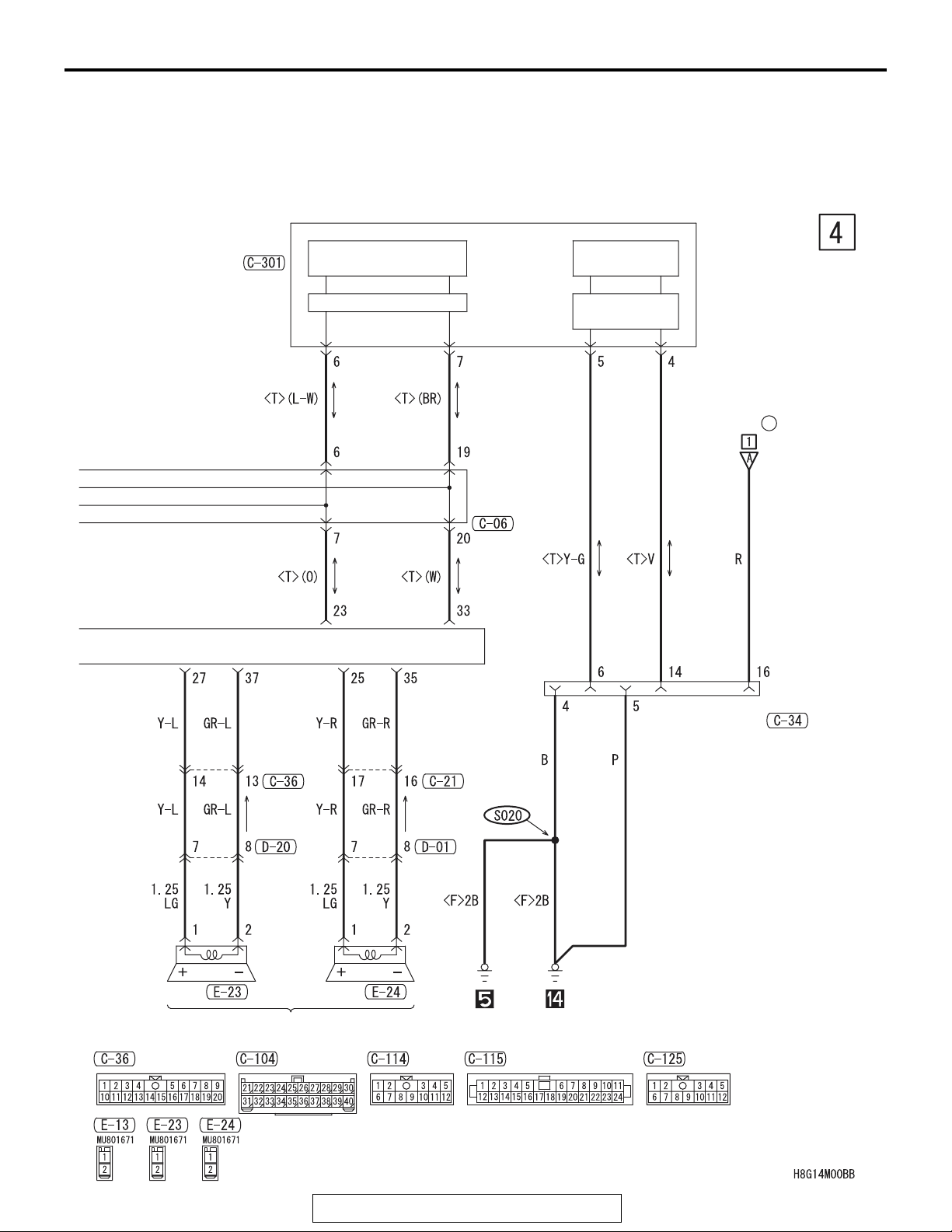

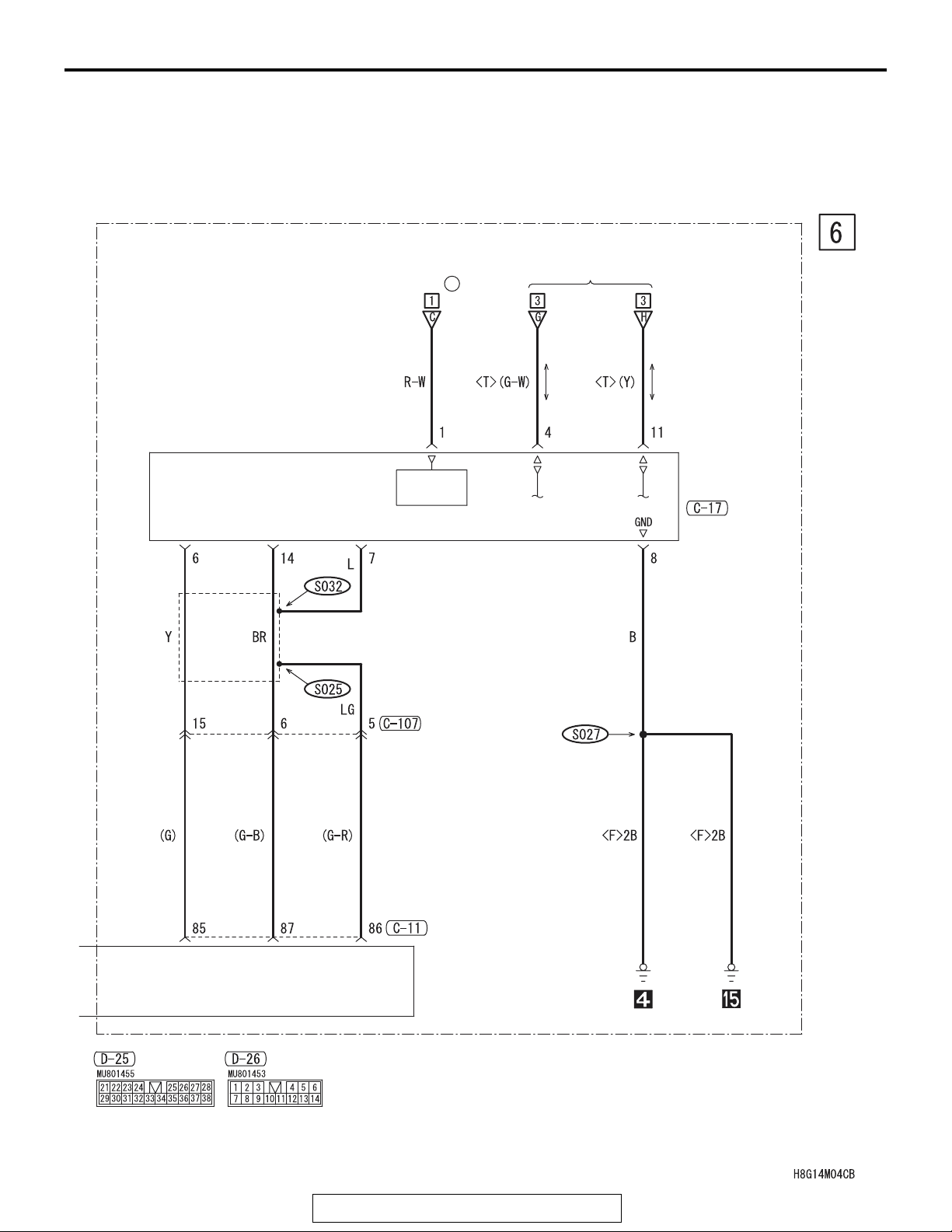

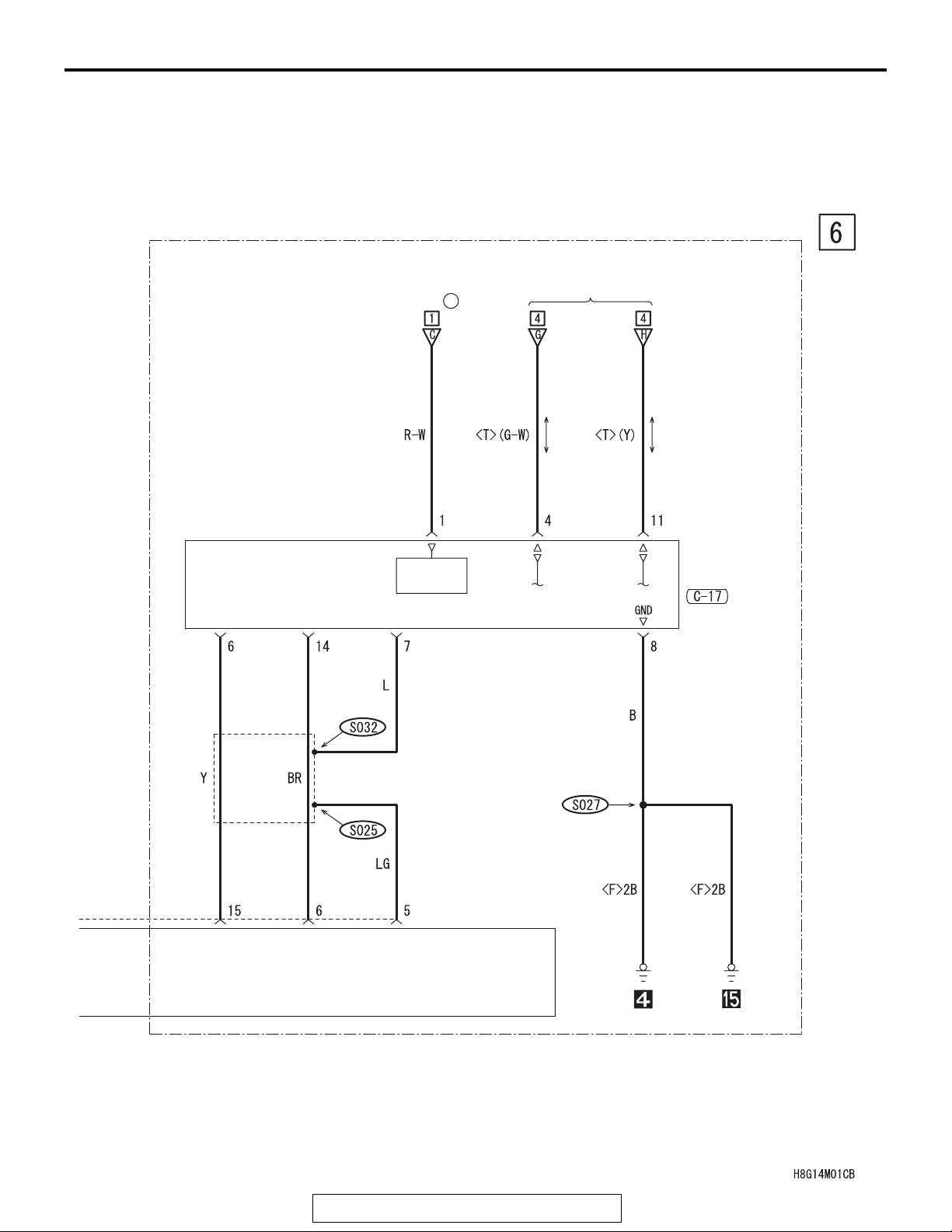

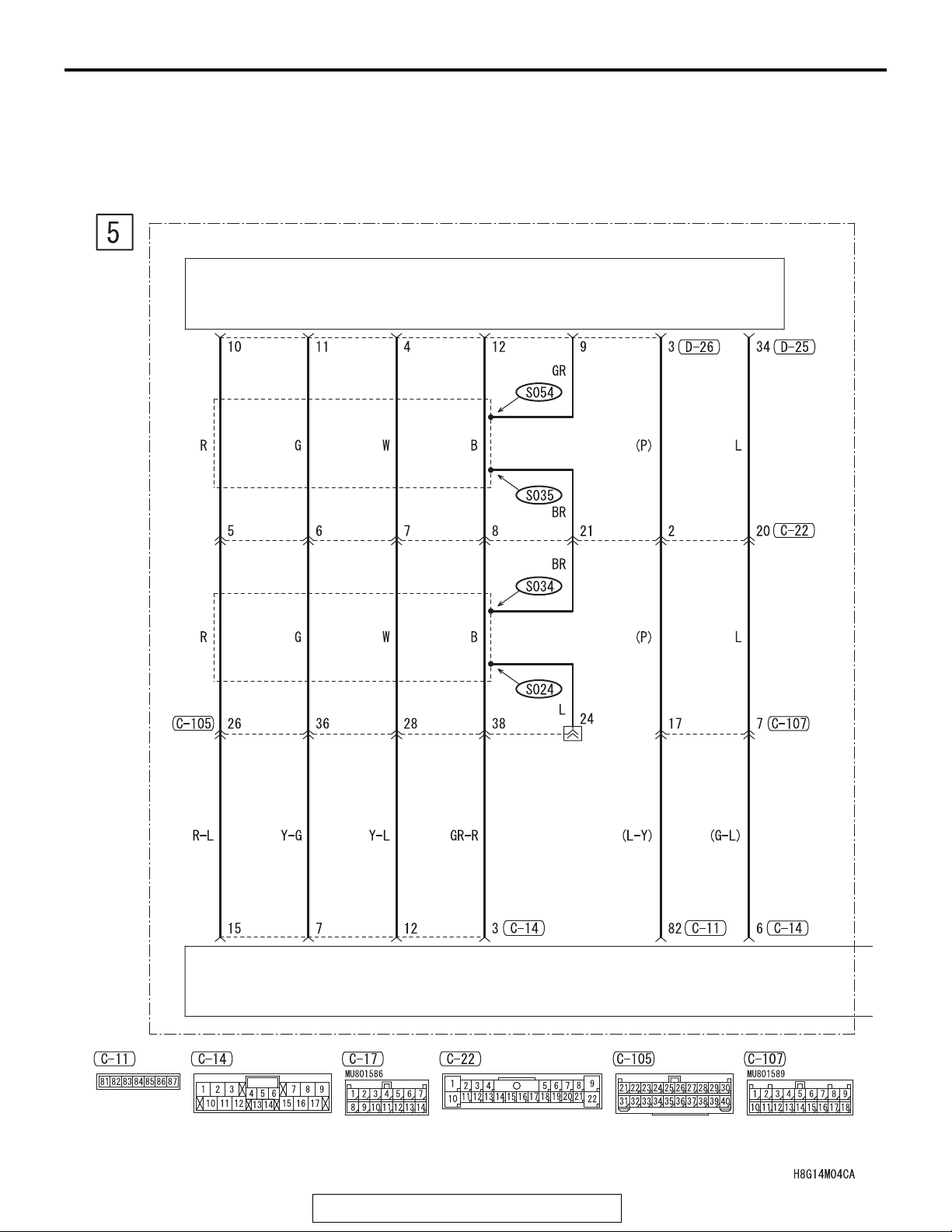

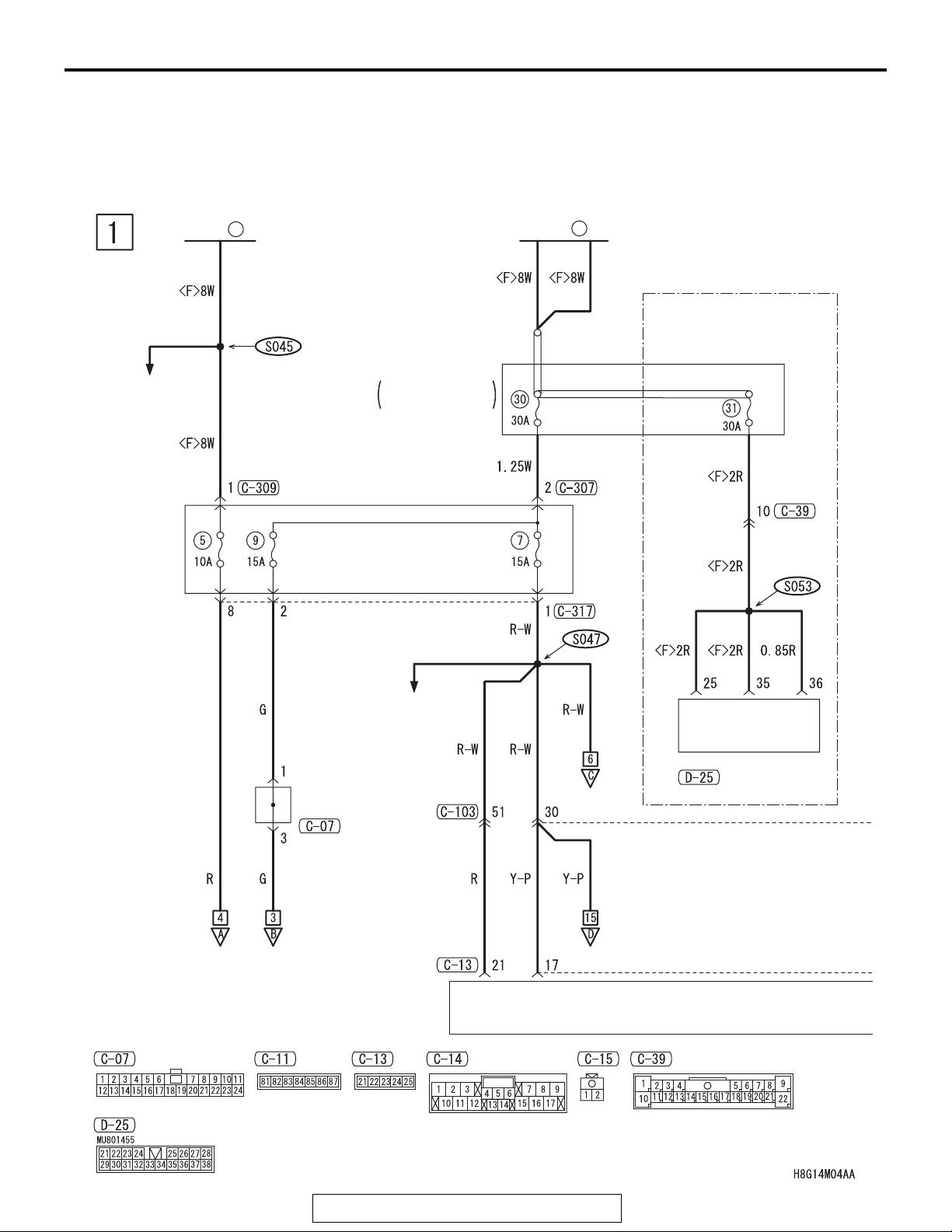

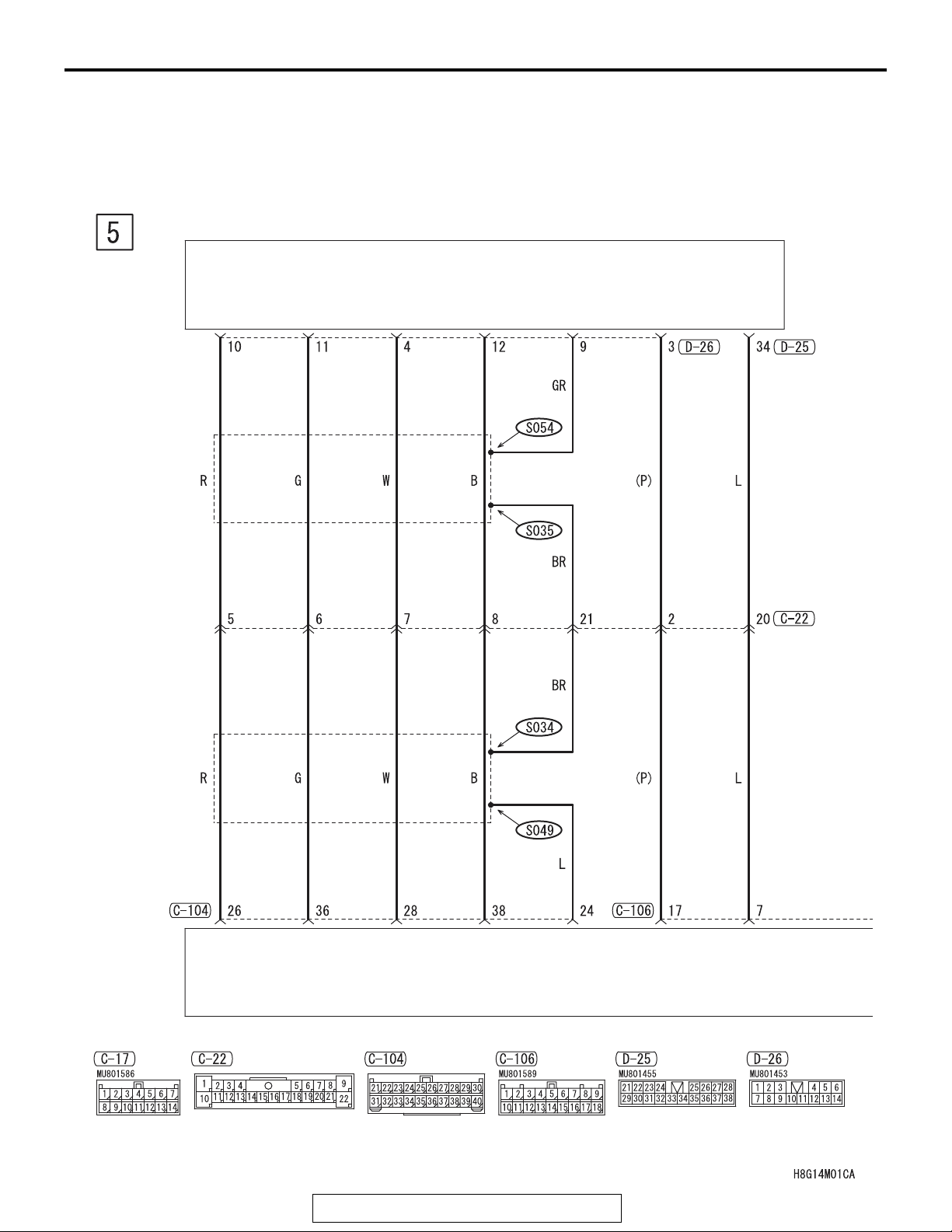

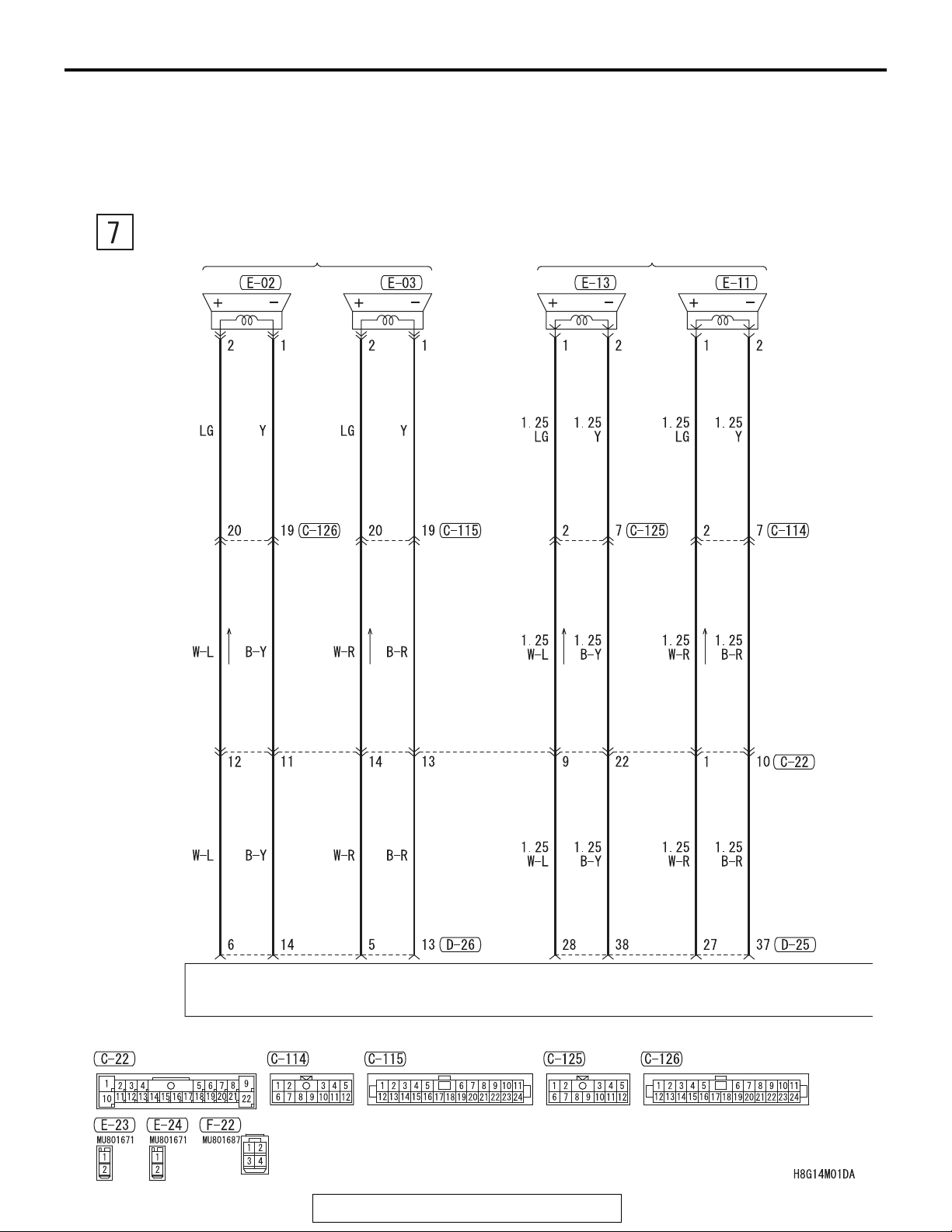

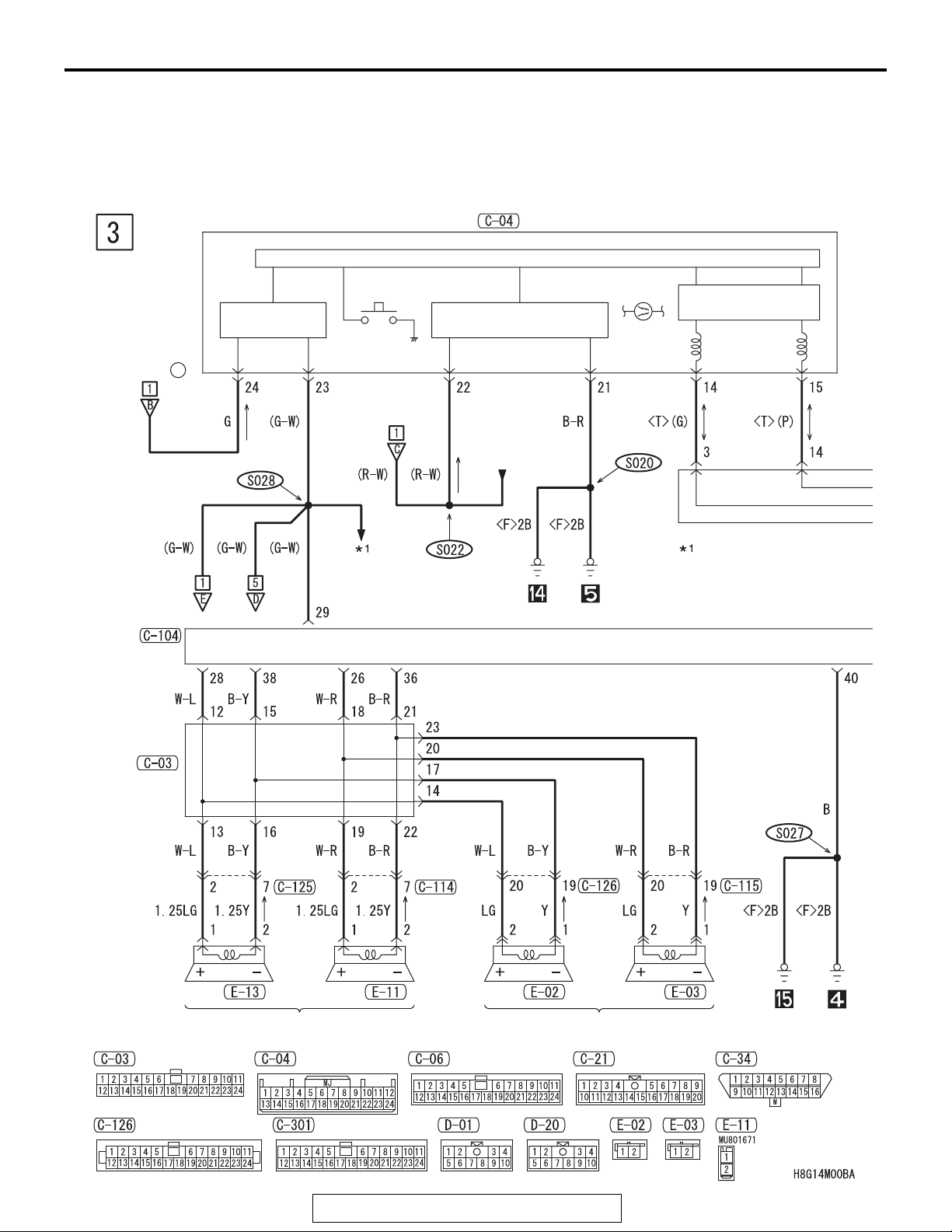

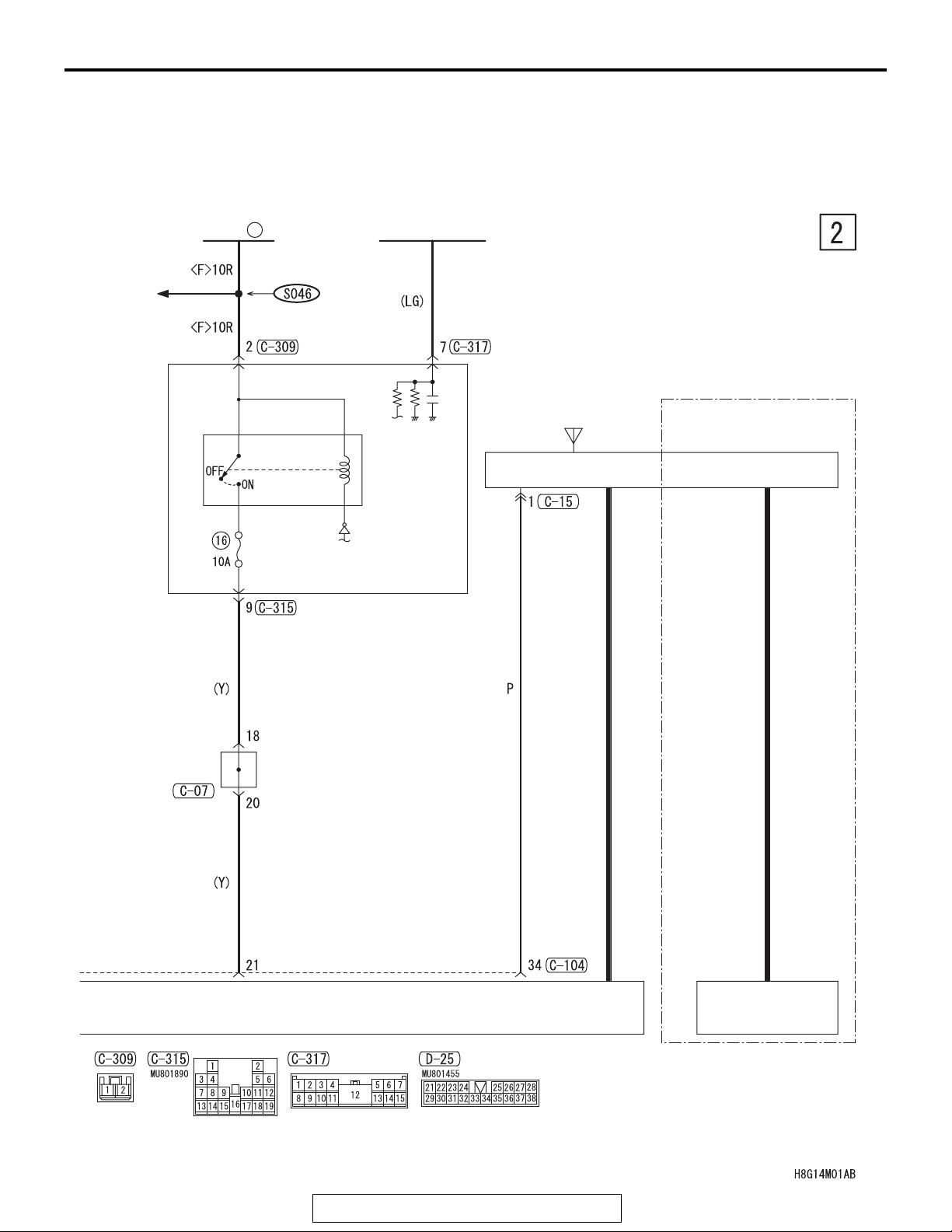

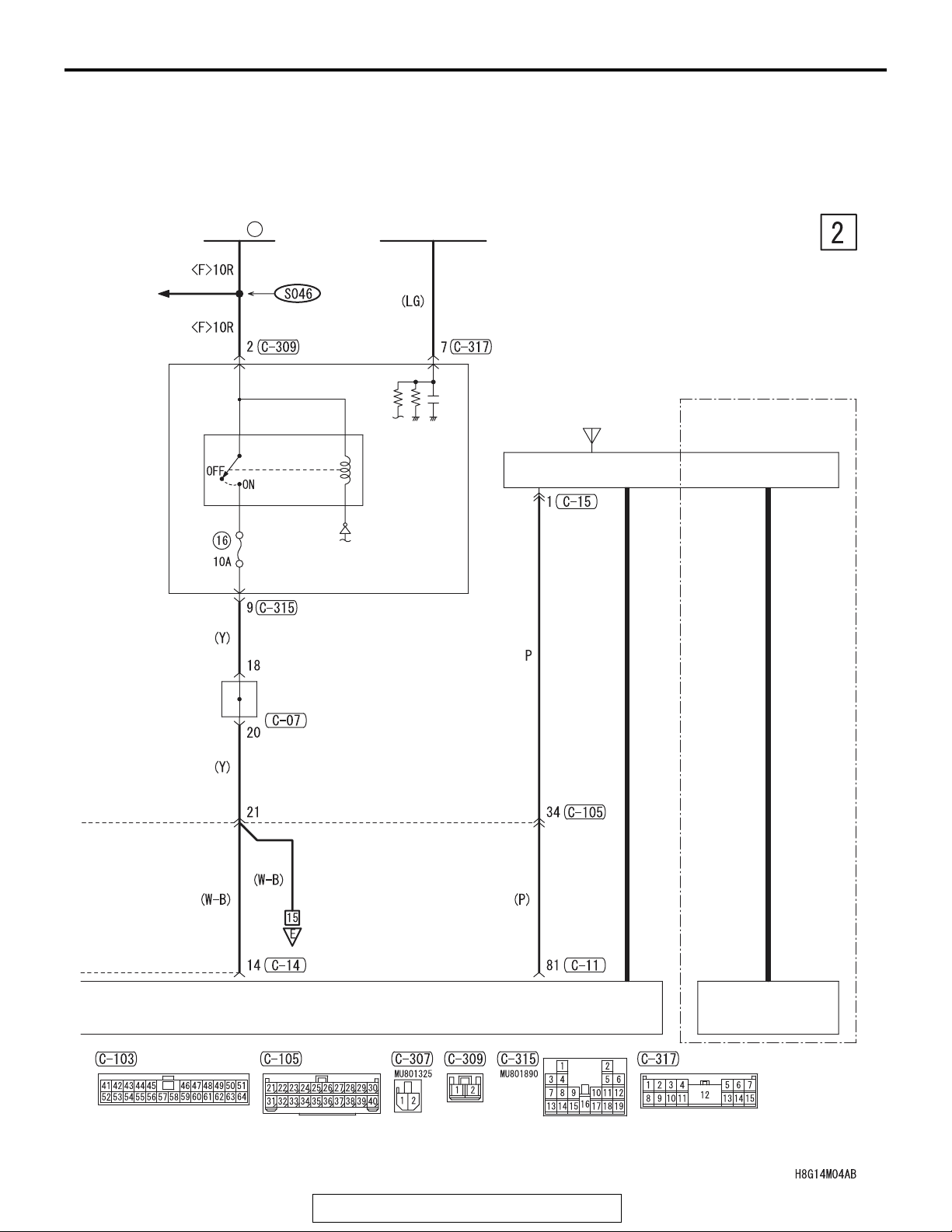

AUDIO SYSTEM <VEHICLES WITHOUT AUDIO AMPLIFIER>
CIRCUIT DIAGRAMS

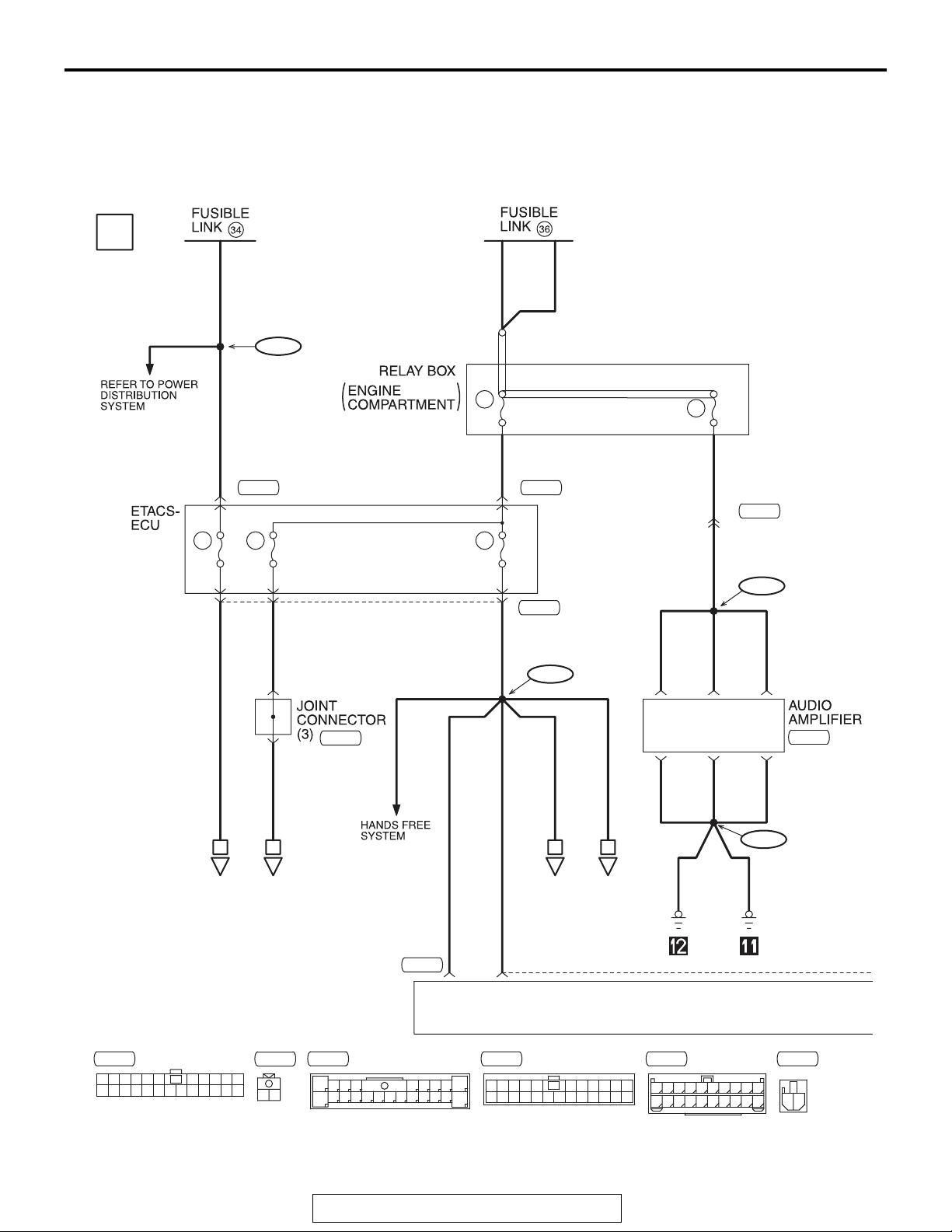

AUDIO SYSTEM <VEHICLES WITHOUT AUDIO
REFER TO
POWER
DISTRIBUTION
SYSTEM
ETACSECU
FUSIBLE
34
LINK
AMPLIFIER>
FUSIBLE
36
LINK
RELAY BOX
ENGINE
COMPARTMENT
CENTER PANEL UNIT
M1901015602949
LCD PANEL (AUDIO)
AUDIO SWITCH PANEL
JOINT
CONNECTOR
(3)
HANDS FREE
SYSTEM
RADIO AND CD PLAYER OR CD CHANGER
TSB Revision
Page 10
AUDIO SYSTEM <VEHICLES WITHOUT AUDIO AMPLIFIER>
CIRCUIT DIAGRAMS
90-169
COMBINATION METER
A/C
CONTROL
PANEL
FUSIBLE
37
LINK
REFER TO
POWER
DISTRIBUTION
SYSTEM
ACC
RELAY 2
IGNITION
SWITCH (ACC)
ROOF ANTENNA
ANTENNA
AMPLIFIER
ETACS-ECU
JOINT
CONNECTOR
(3)
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
ANTENNA FEEDER CABLE
Page 11
90-170
AUDIO SYSTEM <VEHICLES WITHOUT AUDIO AMPLIFIER>
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITHOUT AUDIO AMPLIFIER> (CONTINUED)
COMBINATION METER
CPU
JOINT
CONNECTOR
(3)
(FUSE )
9
INTERFACE
CIRCUIT
RHEOSTAT
A/C
CONTROL
PANEL
INTERFACE
CIRCUIT
INVECS-III CVT
TONE
ALARM
CAN TRANSCEIVER
CIRCUIT
JOINT
CONNECTOR
(1)
NOTE
:
·AUTO-CRUISE CONTROL
SYSTEM
·HANDS FREE SYSTEM
·INVECS-III CVT
·MITSUBISHI
MULTI-COMMUNICATION
SYSTEM (MMCS)
RADIO AND CD PLAYER OR CD CHANGER
(LH) (RH) (LH) (RH)
FRONT DOOR SPEAKER TWEETER
TSB Revision
FRONT SIDE
Page 12
ETACSECU
AUDIO SYSTEM <VEHICLES WITHOUT AUDIO AMPLIFIER>
CIRCUIT DIAGRAMS
CAN DRIVE
CIRCUIT
CAN DRIVE
CIRCUIT
90-171
INTERFACE CIRCUIT
JOINT
CONNECTOR
(CAN1)
INTERFACE
CIRCUIT
ETACS-ECU
(FUSE )
DATA LINK CONNECTOR
5
(LH) (RH)
REAR DOOR SPEAKER
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE
BR :BROWN O : ORANGE GR : GRAY R : RED W : WHITE
SB : SKY BLUE P : PINK Y : YELLOW V : VIOLET P : PURPLE
TSB Revision
Page 13
90-172

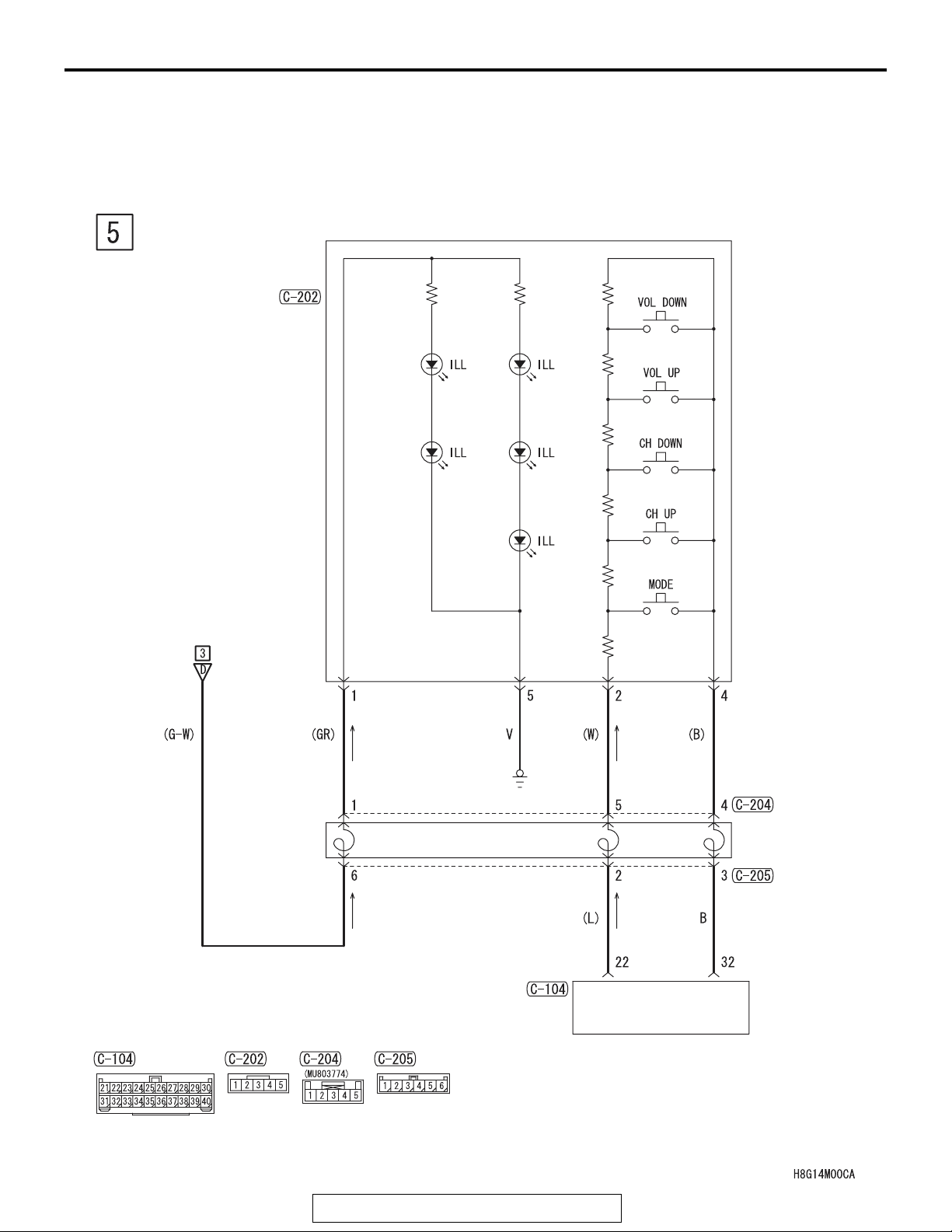

AUDIO SYSTEM <VEHICLES WITHOUT AUDIO AMPLIFIER>

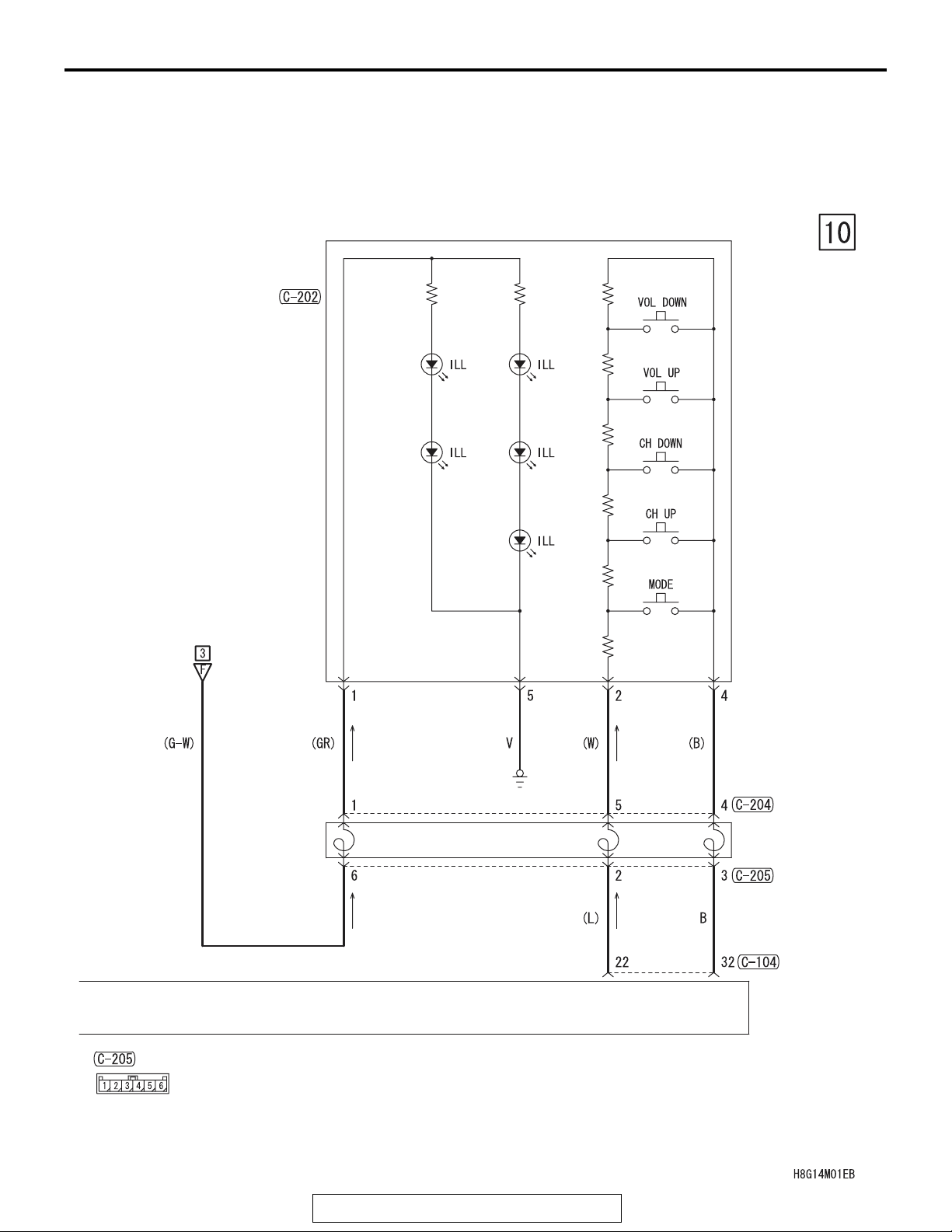

CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITHOUT AUDIO AMPLIFIER> (CONTINUED)
STEERING WHEEL
AUDIO REMOTE
CONTROL SWITCH
COMBINATION
METER
CLOCK
SPRING
RADIO AND CD PLAYER
OR CD CHANGER
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
Page 14
NOTES
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITHOUT AUDIO AMPLIFIER>
90-173
TSB Revision
Page 15
90-174

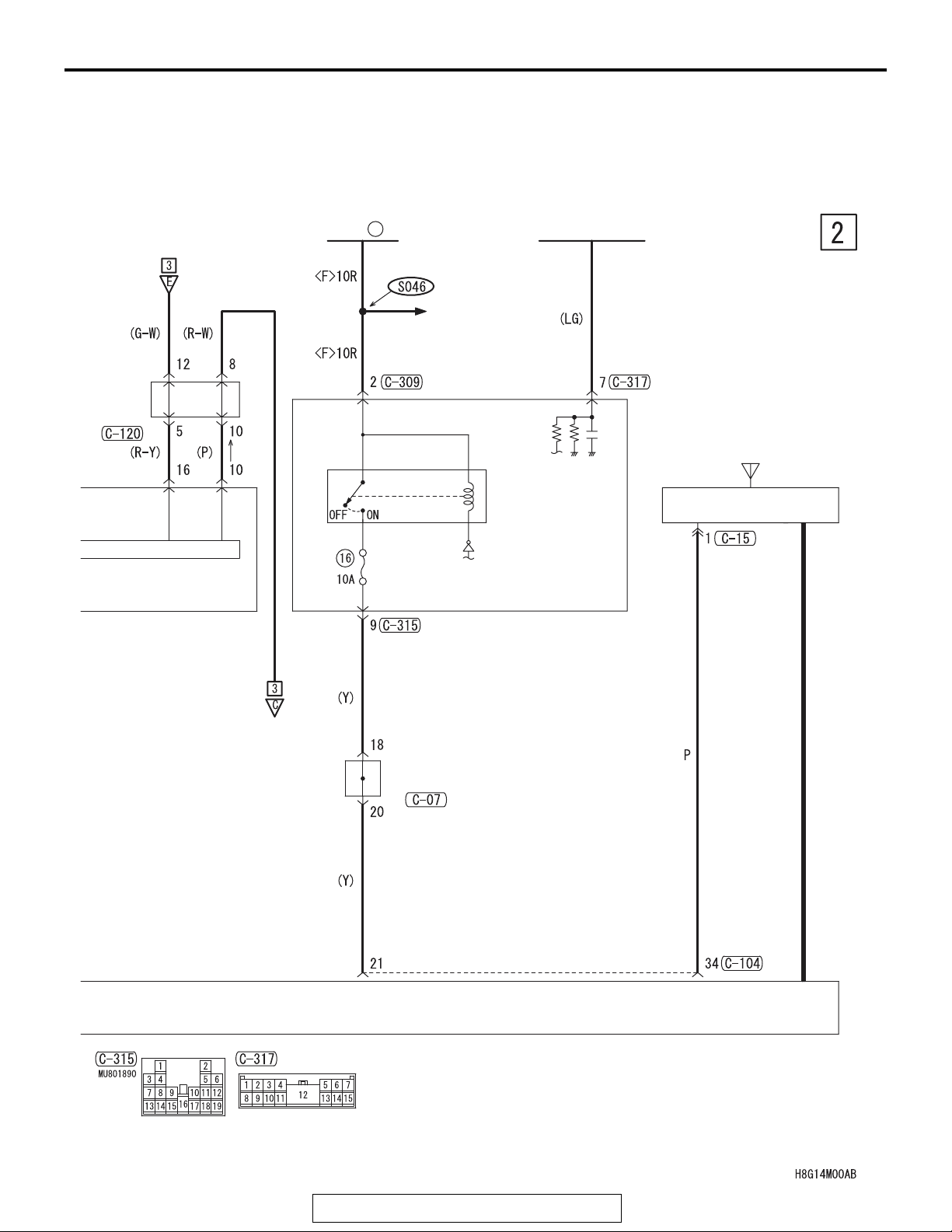

CIRCUIT DIAGRAMS

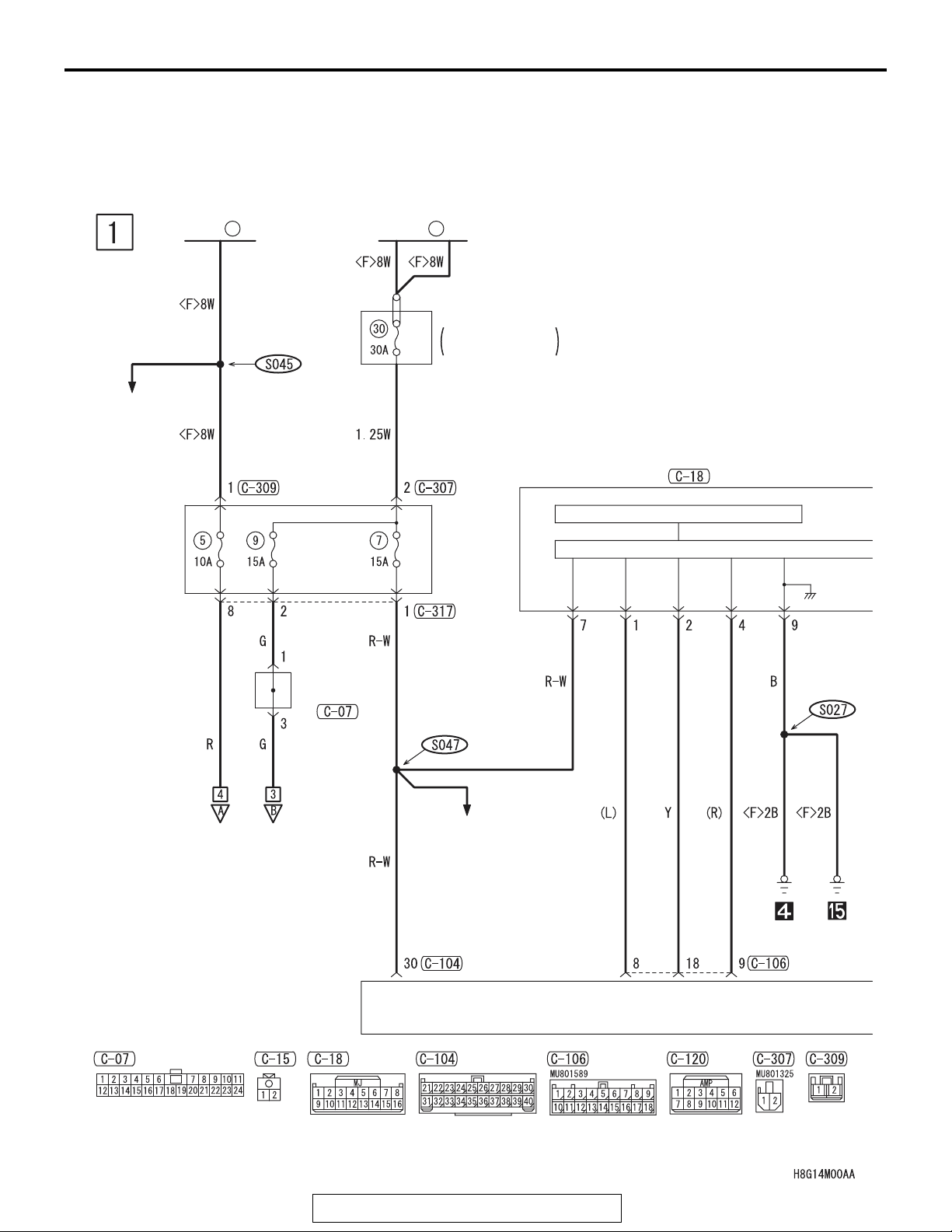

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

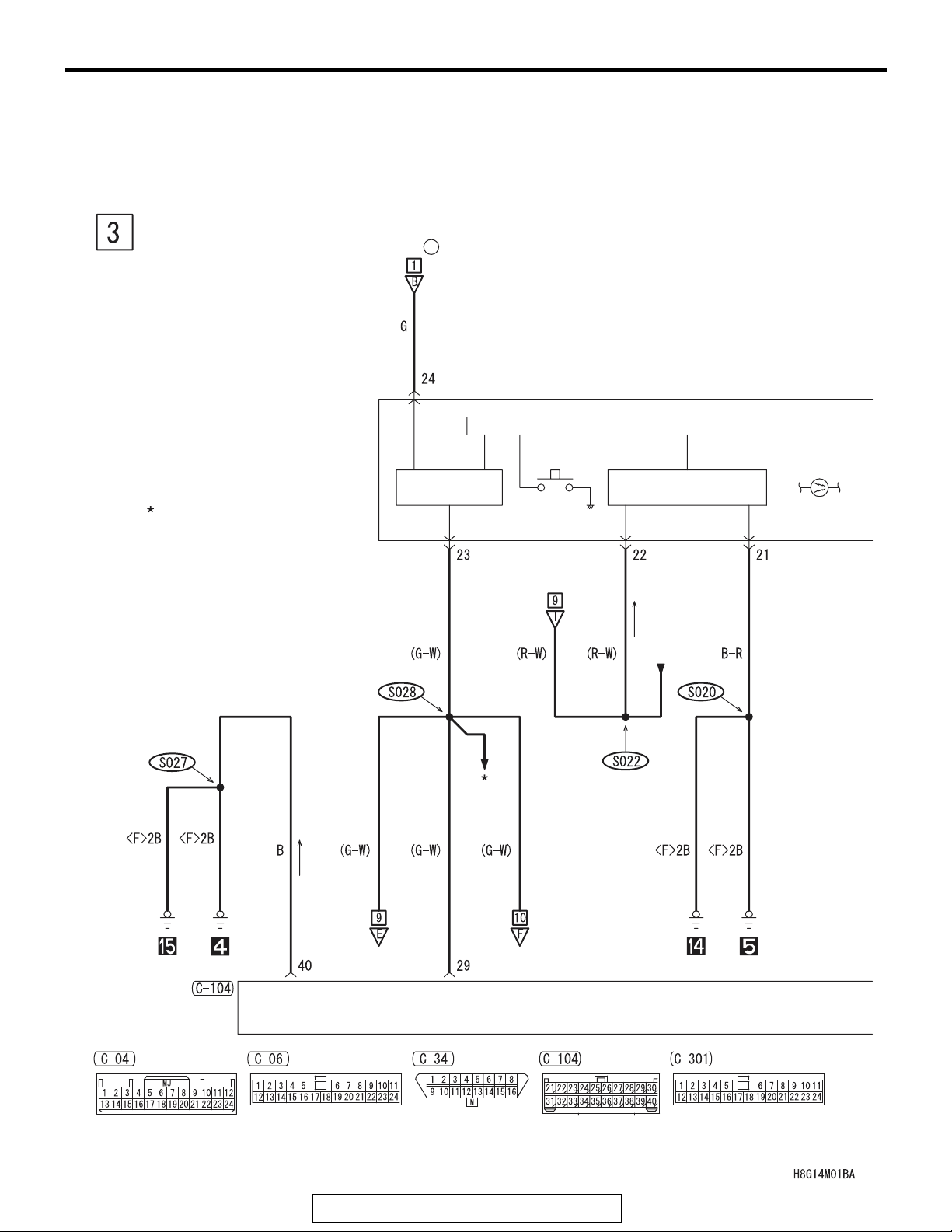

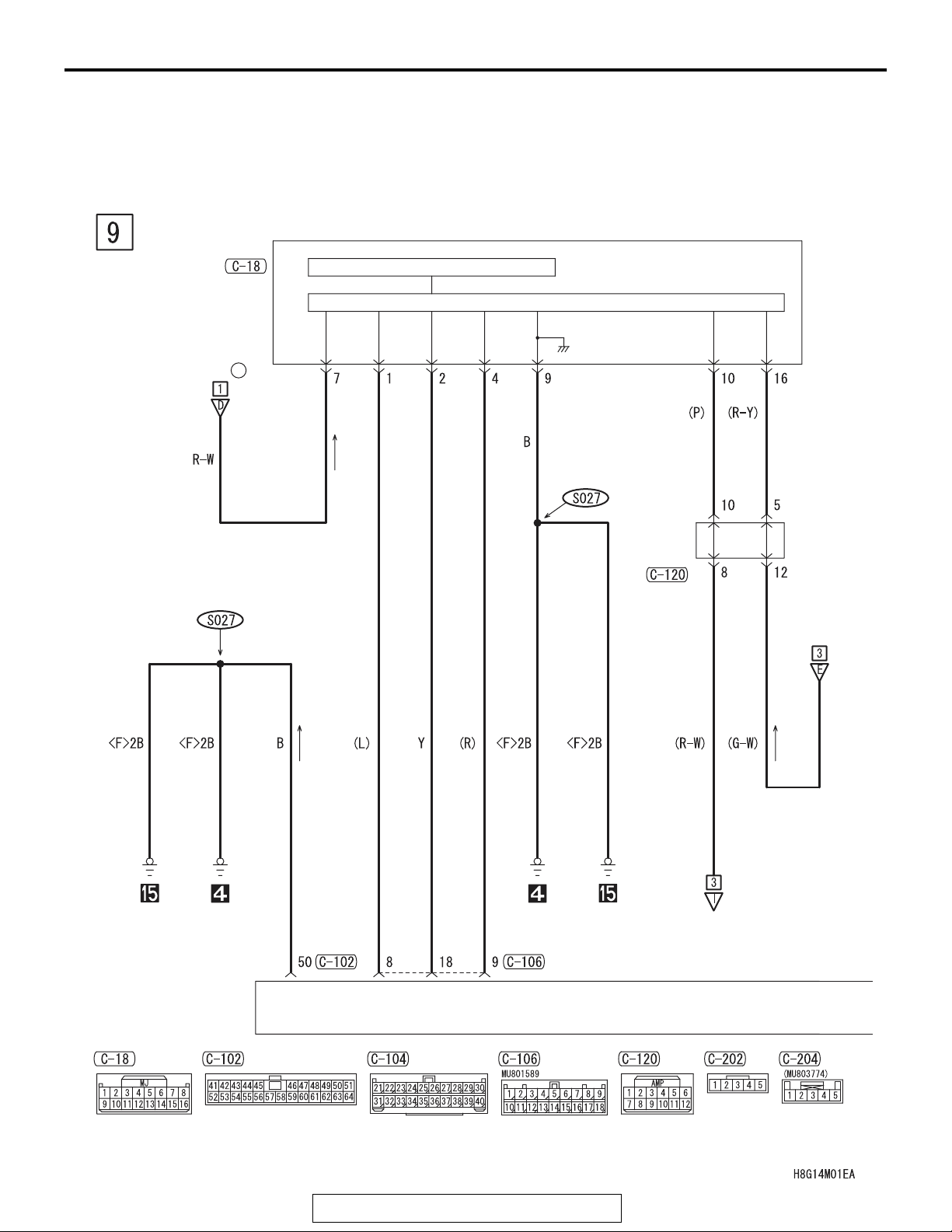

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
M1901015602950
1
<F>8W
<F>8W
5 9
10A
1
C-309
8
S045
15A
2
<F>8W <F>8W
30
30A
1.25W
2
C-307
7
15A
1
C-317
31
30A
<F>2R
<F>2R
10
C-39
S053
G
RG
43
AB
C-07 C-39C-15
312
14
18
171516
13
12
9854 67
20
19 2122 2423
1011
21
R-W
1
C-07
3
S047
R-W R-W R-W R-W
<F>2R
<F>2B
96
0.85R<F>2R
3525 36
24 31
0.85B
0.85B
D-25
32
S043
CD
<F>2B <F>2B
C-102
1
3
2
4 51
1718
15
16
121011
1314
65 7
19
20
51 30
C-102
9
8
21
22
41
52
42
4344
53
45 48
4746
585455
5756
C-104 C-307
4950
64
616059
6362
22
31213233
24
23
2827
34
362635253837
MU801325
30
29
1 2
39
40
TSB Revision
H8G14M01AA
Page 16
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
90-175
REFER TO
POWER
DISTRIBUTION
SYSTEM
ETACSECU
FUSIBLE
LINK
37
IGNITION
SWITCH (ACC)
ACC
RELAY 2
ROOF ANTENNA
ANTENNA AMPLIFIER
<VEHICLES WITH
SATELLITE RADIO TUNER>
JOINT
CONNECTOR
(1)
ANTENNA FEEDER CABLE
RADIO AND CD PLAYER OR CD CHANGER
ANTENNA FEEDER CABLE
SATELLITE
RADIO TUNER
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
Page 17
90-176
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)
JOINT CONNECTOR (3)
(FUSE )
9
CPU
NOTE
:
·AUTO-CRUISE
CONTROL SYSTEM
·HANDS FREE
SYSTEM
·INVECS-III CVT
·MITSUBISHI
MULTI-COMMUNICATION
SYSTEM (MMCS)
INTERFACE
CIRCUIT
RHEOSTAT
A/C
CONTROL
PANEL
INTERFACE
CIRCUIT
INVECS-III
CVT
TONE
ALARM
TSB Revision
RADIO AND CD PLAYER OR CD CHANGER
FRONT SIDE
Page 18
ETACSECU
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
CAN DRIVE
CIRCUIT
90-177
CAN DRIVE
CIRCUIT
COMBINATION METER
CAN TRANSCEIVER
CIRCUIT
INTERFACE
CIRCUIT
JOINT
CONNECTOR
(CAN1)
INTERFACE
CIRCUIT
ETACS-ECU
(FUSE )
DATA LINK
CONNECTOR
5
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
Page 19
90-178
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)
AUDIO AMPLIFIER
TSB Revision
RADIO AND CD PLAYER OR CD CHANGER
Page 20
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
<VEHICLES WITH SATELLITE RADIO TUNER>
ETACS-ECU
(FUSE )
90-179
JOINT CONNECTOR
(CAN1)
7
POWER
SUPPLY
SATELLITE
RADIO
TUNER
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
Page 21
90-180
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)

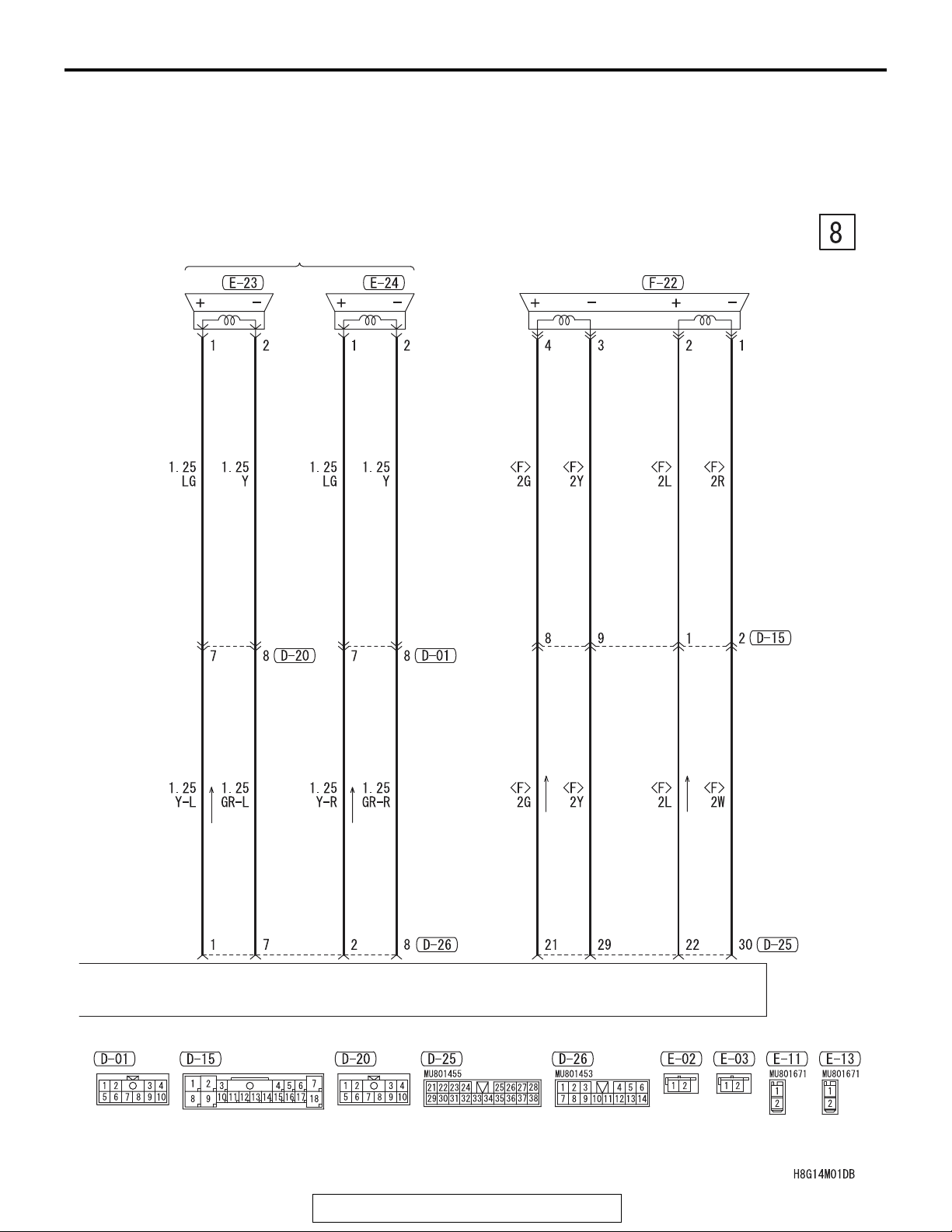

TWEETER
(LH) (LH)
(RH)
FRONT DOOR SPEAKER
(RH)
TSB Revision
AUDIO AMPLIFIER
Page 22
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
REAR DOOR SPEAKER
CIRCUIT DIAGRAMS
90-181
(LH) (RH)
SUB WOOFER
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
Page 23
90-182
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)
CENTER PANEL
UNIT
LCD PANEL (AUDIO)
AUDIO SWITCH PANEL
ETACS-ECU
(FUSE )
7
A/C
CONTROL
PANEL
COMBINATION
METER
TSB Revision
Page 24
STEERING WHEEL
AUDIO REMOTE
CONTROL SWITCH
CIRCUIT DIAGRAMS
AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>
90-183
COMBINATION
METER
RADIO AND CD PLAYER OR CD CHANGER
CLOCK
SPRING
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
Page 25
90-184
CIRCUIT DIAGRAMS
CLOCK
REFER TO
POWER
DISTRIBUTION
SYSTEM
ETACSECU
ACC
RELAY 2
FUSIBLE
LINK
37
CLOCK
FUSIBLE
LINK
36
RELAY BOX
ENGINE
COMPARTMENT
M1901007701669
IGNITION
SWITCH (ACC)
JOINT
CONNECTOR (3)
·AUDIO SYSTEM
·CONTROLLER
AREA NETWORK (CAN)
·HANDS FREE SYSTEM
·MITSUBISHI
MULTI-COMMUNICATION
SYSTEM (MMCS)
JOINT
CONNECTOR (3)
INTERFACE
CIRCUIT
INTERFACE
CIRCUIT
CPU
COMBINATION METER
RADIO AND CD PLAYER OR CD CHANGER
TSB Revision
Page 26
90-186
CIRCUIT DIAGRAMS
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
M1901007500123
FUSIBLE
LINK
36
<VEHICLES WITH
AUDIO AMPLIFIER>
REFER TO POWER
DISTRIBUTION
SYSTEM
ETACSECU
FUSIBLE
LINK
34
RELAY BOX
ENGINE
COMPARTMENT
HANDS FREE
SYSTEM
JOINT
CONNECTOR (3)
AUDIO AMPLIFIER
AUDIO VISUAL NAVIGATION UNIT
TSB Revision
Page 27
CIRCUIT DIAGRAMS
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
90-187
REFER TO
POWER
DISTRIBUTION
SYSTEM
ETACSECU
FUSIBLE
LINK
37
IGNITION
SWITCH (ACC)
ACC
RELAY 2
ROOF ANTENNA
ANTENNA AMPLIFIER
<VEHICLES WITH
SATELLITE RADIO
TUNER>
JOINT
CONNECTOR (3)
ANTENNA FEEDER CABLE
ANTENNA FEEDER CABLE
SATELLITE
RADIO TUNER
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
Page 28
90-188
CIRCUIT DIAGRAMS
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS) (CONTINUED)
JOINT CONNECTOR (3)
COMBINATION
METER
(FUSE )
9
INTERFACE
CIRCUIT
NOTE
:
·AIR CONDITIONING
SYSTEM
·AUTO-CRUISE
CONTROL SYSTEM
·CLOCK
·HANDS FREE
SYSTEM
·INVECS-III CVT
·TURN-SIGNAL
LIGHT AND
HAZARD WARNING
LIGHT
RHEOSTAT
:
CPU
INTERFACE
CIRCUIT
·AIR CONDITIONING
SYSTEM
·INVECS-III CVT
·TURN-SIGNAL
LIGHT AND
HAZARD WARNING
LIGHT
TONE
ALARM
CAN TRANSCEIVER
CIRCUIT
AUDIO VISUAL NAVIGATION UNIT
TSB Revision
Page 29
CIRCUIT DIAGRAMS
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
90-189
ETACS-ECU
CAN DRIVE
CIRCUIT
INTERFACE
CIRCUIT
IGNITION
SWITCH (IG1)
JOINT
CONNECTOR
(CAN1)
IG1
RELAY
JOINT
CONNECTOR
(4)
FUSIBLE
34
LINK
ETACS-ECU
(FUSE )
REFER TO
POWER
DISTRIBUTION
SYSTEM
CAN DRIVE
CIRCUIT
INTERFACE
CIRCUIT
5
DATA LINK
CONNECTOR
FRONT SIDE
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
Page 30
90-190
CIRCUIT DIAGRAMS
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS) (CONTINUED)
<VEHICLES WITH AUDIO AMPLIFIER>
AUDIO AMPLIFIER
TSB Revision
AUDIO VISUAL NAVIGATION UNIT
Page 31
CIRCUIT DIAGRAMS
MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)
<VEHICLES WITH SATELLITE RADIO TUNER>
ETACS-ECU
(FUSE )
7
POWER
SUPPLY
90-191
JOINT
CONNECTOR (CAN1)
SATELLITE
RADIO
TUNER
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
TSB Revision
Loading...
