Mitsubishi Electronics DV301B User Manual

DV300/DV301B

30" Multimedia Information Display

translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission.

DV300/DV301B 30" Multimedia Information Display

Table of Contents

1. Safety and Installation 4

2. About this Manual 5

3. Product Information 6

4. Accessory Pack 7

5. Installing your LCD Monitor 8

6. Setting up your TFT Monitor 13

7. On Screen Display 21

8. Remote Control 45

9. Troubleshooting 48

10. FAQ’s 54

11. Technical Specifications 58

12. Service Contacts 62

DV300/DV301B 30" Multimedia Information Display

1. Safety and Installation

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your monitor:

• Unplug the monitor if you are not going to use it for an extensive period of time.

• Unplug the monitor if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids.

• Consult a service technician if the monitor does not operate normally when you have followed the instructions in this manual.

• Only qualified service personnel should open the casing cover.

• Keep the monitor out of direct sunlight and away from stoves or any other heat source.

• Remove any object that could fall into the vents or prevent proper cooling of the monitor’s electronics.

• Do not block the ventilation holes on the cabinet.

• Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.

• If turning off the monitor by detaching power cable or DC power cord, wait for 6 seconds before reattaching the power cable or DC power cord for normal operation.

• To avoid the risk of shock or permanent damage to the monitor do not expose the monitor to rain or excessive moisture.

• When positioning the monitor, make sure the power plug and outlet are easily accessible.

• IMPORTANT: Always have a screen saver program installed on your computer. If a still image in high contrast remains on the screen for an extended period of time, it may leave an ‘after-image’ or ‘ghost image’ on the front of the screen. This is a well-known phenomenon that is caused by the shortcomings inherent in the LCD technology . In most cases the after-image will disappear gradually over a period of time after the power has been switched off. Be aware that the after-image symptom cannot be repaired and is not covered under warranty.

Consult a service technician if the monitor does not operate normally when the operating instructions given in this manual have been followed.

Installation Locations

• Avoid exposure to heat and extreme cold

• Do not store or use the product in locations exposed to heat, direct sunlight or extreme cold.

• Avoid moving the product between locations with large temperature differences. Choose a site that falls within the following temperature and humidity ranges.

• Temperature: 0-35°C 32-95°F

• Humidity: 20-80% RH

• Do not subject the product to severe vibration or high impact conditions. Do not place the product inside a car boot.

• Take care not to mishandle this product by either knocking or dropping during operation or transportation.

• Do not store or use the product in locations where there is a high level of humidity or in dusty envir onments. Do not allow water or other liquids to spill on or into the product.

Disclaimer

Mitsubishi Electric Australia Pty. Ltd. makes no r epresentations or warranties, either expr essed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, Mitsubishi Electric Australia reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Diamond Digital is a registered trademark of Mitsubishi Electric Australia Pty. Ltd.Microsoft and Windows are registered trademarks of Microsoft Corporation. All other trademarks remain the property of their respective owners.

Reference Information

For future reference, write the following information about your monitor in the space below. The serial number is found on the back of the product.

Monitor Information Product Name: Diamond Digital DV300/DV301B Serial Number: Date of Purchase:

Dealer Information Dealer: Telephone Number: Address:

DV300/DV301B 30" Multimedia Information Display

3. Product Information

Product Features

DV300/DV301B

• 29.5-inch WXGA (1280x768 resolution, 176 degree viewing angle) LCD all-in-one Monitor with excellent display performance

• Multiple video input allowing display of PC, TV, HDTV, VCD, DVD, Progressive DVD and Camcorder

• Network controllability via RS232 interface for managing the performances, setting, etc.

• Digital High Definition Picture (1080i, 720p, 576p, 576i, 480p, 480i)

• DCDi™ de-interlacing technology for superior depiction of motion

• Picture-in-Picture (PIP) function in PC VGA mode

• Light sensor to adjust brightness automatically

• Digital Nicam/2CS stereo (available only in Asia Pacific and Western Europe)

• Component Video Input (YPbPr/YCbCr) for DVD/HDTV

• Euro connector (SCART) (available in Western Europe)

• MultiSystem TV tuner-PAL (available in DV300 model only)

2. About this Manual

About This Guide

This user’s guide is intended for anyone who uses the Diamond Digital LCD Information Display. It describes the features, setup, operation and other important information.

It includes the following sections:

• Safety and Troubleshooting Information provides tips and solutions for common problems as well as other related information you may need.

• About This Manual gives an overview of information included, along with notation icon descriptions and other documentation for your reference.

• Product Information gives an overview of the monitor’s features

• Installing Y our Monitor describes the initial setup pr ocess and gives an overview of how to use the monitor.

• On-Screen Display provides information on adjusting the settings on your monitor.

• Remote Control provides information on adjusting the settings for your TV function.

• Service Contacts contains a list of national Diamond Digital service locations along with support phone numbers/web address and information on the warranty applicable to your product.

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

Throughout this guide blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows:

NOTE: This icon indicates important information and tips that help you make better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the relevant regulatory authority mandates the specific presentation of the warning.

DV300/DV301B 30" Multimedia Information Display

4. Accessory Pack

Unpack all the parts.

Power cable Remote control & batteries

DVI-D cable VGA signal cable

Instruction Manual S-video cable (DV300 only)

Base 2x 5W Detachable Speakers (DV300 only)

5. Installing your LCD Monitor

Product Description Side View (Left)

1 INPUT INPUT Selecting input source

2 Increase or decrease the channel number

or moving up or down to highlight the function in OSD

3 Increase or decrease the level of audio volume

or moving left or right to highlight the sub-menu in the selected function of OSD

MENU MENU Open the OSD or confirm the selected function

5 DC power switch On/Off

▼

▲

▲▼

AA type x2

•

1 2

3 4 5

DV300/DV301B 30" Multimedia Information Display

Rear View DV300

1 AC IN AC power in 2 AC Power AC power switch 3 D-Sub PC analog D-Sub input 4 PC - Audio PC Stereo input 5 DVI-D PC digital input 6 RS232 RS232 network connection 7 External/EURO-AV SCART connection (for Europe only) 8 Composite Video Output Composite Video CVBS output 9 Audio (L) Output Audio (L) output

Audio (R) Output Audio (R) output

10 Audio (L) Output Audio (L) output for the detachable speaker (L)

Audio (R) Output Audio (R) output for the detachable speaker (R)

11 Line out Audio output for external speakers

DV301B

1 AC IN AC power in 2 AC Power AC power switch 3 D-Sub PC analog D-Sub input 4 PC - Audio PC Stereo input 5 DVI-D PC digital input 6 RS232 RS232 network connection 7 External/EURO-AV SCART connection (for Europe only) 8 Audio (L) Output Audio (L) output for the detachable speaker (L)

Audio (R) Output Audio (R) output for the detachable speaker (R)

9 Line out Audio output for external speakers

•

8 9

•

•••

•

10 11

1 2 3 4 5 6 7

•

•••

•

8 9

1 2 3 4 5 6 7

DV300/DV301B 30" Multimedia Information Display

Side View (Right) DV300

1 Audio (L) Audio (L) for component video 2 Audio (R) Audio (R) for component video 3 Component Video Component video Y/Pb/Pr input 4 Composite Video Composite video CVBS input 5 Audio (L) Audio (L) for CVBS and S-Video 6 Audio (R) Audio (R) for CVBS and S-Video 7 S-Video S-Video input 8 RF 75Ω TV Antenna or CATV cable in

DV301B

Optimising Performance

• For best performance, ensure that your display settings are set at 1280x768, 60Hz.

Note: You can check the current display settings by pressing the ‘MENU’ button once.

•

7 6 5 4 2

•

7 6 5 4 2 4 2

DV300/DV301B 30" Multimedia Information Display

6. Setting up your TFT Monitor

Connecting the monitor/TV

• Connect the cables to the rear of your monitor/TV according to the numbers:

DV300

DV301B

AC IN DC-SUB PC AUDIO IN DVI-D RS232 SCART

• •

7 8

•

7 8

•

7 8

• •• • • •

1 2 3 4 5 6

• ••• • •

1 2 3 4 5 6

EXTERNAL SPEAKERS

• • • • • •

1 2 3 3 4 5 6

•

EXTERNAL SPEAKERS

•

AC IN DC-SUB PC AUDIO IN DVI-D RS232 SCART

1 2 3 3 4 5 6

(Optional)

DV300/DV301B 30" Multimedia Information Display

Connect to PC

• Connect the cables to the back of your computer by following step 1~3.

• If your monitor displays the computer image the installation has been completed successfully.

• If installation was not successful, see the Troubleshooting section.

Connect to DVD/VCD/VCR Connect to DVD/VCR/VCD through S-VIDEO

• Connect to DVD/VCR/VCD through S-VIDEO

Connect to DVD/VCR /VCD through SCART (for Europe only)

Connect to DVD/VCR /VCD through composite video (CVBS)

•

COMPONENT VIDEO

(DVD/HD IN)

G/Y B/Cb/Pb R/Cr/Pr

COMPONENT VIDEO

(DVD/HD IN)

CVBS L R S-VIDEO

AUDIO

COMPONENT VIDEO

(DVD/HD IN)

G/Y B/Cb/Pb R/Cr/Pr

AUDIO

COMPONENT VIDEO

(DVD/HD IN)

G/Y B/Cb/Pb R/Cr/Pr

AUDIO

CVBS L R S-VIDEO

AUDIO

CVBS L R S-VIDEO

DV300/DV301B 30" Multimedia Information Display

Connect to DVD/VCR /VCD through component video (YPbPr)

Connecting to Cable TV

Antenna

COMPONENT VIDEO

(DVD/HD IN)

G/Y B/Cb/Pb R/Cr/Pr

AUDIO

COMPONENT VIDEO

(DVD/HD IN)

CVBS L R S-VIDEO

Cable TV

Cable TV Signal Input

Back of Monitor TV

Round Cable

75Ω (ohm)

Cable TV Converter

Box Connection

300(ohm) to

75Ω (ohm) Adapter

Back of Monitor TV

Twin-Lead Wire

Round Cable 75Ω (ohm)

Combination

VHF/UHF

Antenna

(Outdoor

or Indoor)

U/V Combiner

300- to 75-ohm Adapter

DV300/DV301B 30" Multimedia Information Display

Progressive video and HDTV connections for digital high-definition picture

COMPONENT VIDEO

(DVD/HD IN)

G/Y B/Cb/Pb R/Cr/Pr

CVBS L R S-VIDEO

AUDIO

L R

COMPONENT VIDEO

(DVD/HD IN)

G/Y B/Cb/Pb R/Cr/Pr

CVBS L R S-VIDEO

AUDIO

L R

COMPONENT VIDEO

(DVD/HD IN)

G/Y B/Cb/Pb R/Cr/Pr

CVBS L R S-VIDEO

AUDIO

L R

Progressive DVD player/

Set Top Box

Progressive DVD player/

Set Top Box

Progressive DVD player/

Set Top Box

DV300/DV301B 30" Multimedia Information Display

7. On Screen Display

On Screen Display Controls

An overall view of the On-Screen Display (OSD) structure is shown below. You can use it as a reference for further adjusting your Monitor/TV.

There are three different modes of OSD available for different models:

• PC Mode

• Audio/Video Mode

• TV Mode

PC Mode

Main Menu B Sub-Menu name C Menu icon

1. W ith the menu off, push the MENU button to enter OSD system and display the main menu.

2. Push the and buttons to move between the function icons. As you move from one icon to another, the function name will be highlighted.

3. Push the MENU button once to activate the highlighted function. Push or to select the preferred parameter, push the button to enter the selected one, then use the and buttons making your changes.

4. Push the MENU button to return the main menu or select another function.

▼

▲

▲ ▼

▲

▼

Icon Menu Name and Sub-menus Description

EXIT This is used to exit out of the Main menu.

Select video source for main display:

• PC ANALOG: PC VGA input

• PC DIGITAL: PC DIGITAL input

• TV TUNER: Antenna or cable TV input (For DV300 only)

• EXT: Scart input (Europe Only)

• COMPOSITE: Composite video input

• S-VIDEO: S-video input

• COMPONENT: Component video input

INPUT SELECT

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

Select your preferred function.

EXIT: Exit this menu TREBLE: Adjustable from 0 to 100 BASS: Adjustable from 0 to 100 BALANCE: Adjustable from 0 to 100 VOLUME: Adjustable from 0 to 100 SURROUND: ON/OFF MUTE: ON/OFF AUDIO SOURCE: Only in PC TV/VIDEO mode POWER SAVING: ON/OFF

AUDIO

Icon Menu Name and Sub-menus Description

The Brightness function:

Push the button to increase luminance; push the button to decrease luminance (min 0 ~ max. 100).

The Contrast function:

Push the button to increase the contrast; push the button to decrease the contrast (min 0 ~ max. 100).

The Light Sensor function:

Push the buttons to toggle Light Sensor function. This function automatically fine tunes the brightness of the monitor according to the environment.

BRIGHTNESS/CONTRAST

▲

▼

▲

▼

▲

▼

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

To adjust the image settings.

EXIT: Exit this menu AUTO ADJUST: Press to select automatic adjustment. PHASE: Use the and buttons to adjust

from 0 to 100.

PIXEL CLOCK: Use the and buttons to adjust

from 0 to 100.

IMAGING SETTINGS

Note: Operating in DVI mode, the Pixel Clock and

Phase adjustments are not available.

Icon Menu Name and Sub-menus Description

Positioning moves the viewing area around on the monitor screen.

EXIT: Exit this menu H.POSITION /V.POSITION: When making changes

to either the ‘Horizontal’ or ‘Vertical’ settings, the image will simply be shifted in response to your selection/change. Minimum is ‘0’ ( ). Maximum is ‘100’ ( ).

4:3 ASPECT RATIO: Select 4:3 image display FULL SCREEN: Select full screen (16:9) image display

SIZE & POSITION

NOTE:

1. When operating in DVI mode, the positioning adjustments are not available.

2. The 4:3 Aspect Ratio and Full Screen items are not available in WXGA 1280x768 modes.

▼

▲

▼

▲

▼

▲

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

Each time the OSD opens, it displays in the same location on the screen. ‘OSD Settings’ (horizontal/vertical) provides control over this location.

EXIT: Exit this menu HORIZONTAL: Adjustable from 0 to 100. VERTICAL: Adjustable from 0 to 100.

OSD HOLD TIME: The OSD stays active for as long as it is

in use. The range of time setting is from 5 to 60 seconds.

OSD LOCK: Controls user access to adjustments.

Show key icon after selecting lock.

OSD SETTINGS

Note: When the OSD is locked, pressing the menu button

again and it will take user to OSD LOCK menu. Press (+) to unlock and allow user access to all applicable settings.

Icon Menu Name and Sub-menus Description

Colour Settings adjusts the colour temperature.

EXIT: Exit this menu NATURE COLOUR: Equivalent to original panel colour. NORMAL COLOUR: 6500K (Same as sRGB)

default from FACTORY

BLUE PRESET: Equivalent to 9300K RED PRESET: Equivalent to 5700K USER PRESET: Adjust red, green, blue three colours

from 0 to 100.

COLOUR SETTINGS

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

Adjust picture in picture preferences. SIZE: Turn off and set the size of PIP. Users can chose your

preferred size.

• OFF

• SMALL

• MEDIUM

• LARGE

H POSITION: Adjust the Horizontal position of PIP. V POSITION: Adjust the Vertical position of PIP. VIDEO SOURCE: Select video source of PIP:

• EXIT

• TV TUNER (For DV300 only)

• EXT

• COMPOSITE VIDEO

• S-VIDEO

• COMPONENT VIDEO

PICTURE IN PICTURE

Icon Menu Name and Sub-menus Description

LANGUAGE Language sets the OSD to display in one of the five or six languages provided. That is, English, Spanish, French, German, Italian and simplified Chinese (China model only)

LANGUAGE

Reset the settings to the factory default values.

EXIT: Exit this menu POSITION SETTINGS ONLY: Resume position setting to

factory default.

COLOUR SETTINGS ONLY: Resume colour setting to

factory default.

ALL SETTINGS: Load all factory default

settings.

FACTORY RESET

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

Adjust picture characteristics to suit personal preference.

EXIT: Exit from this menu BRIGHTNESS: Adjustable from 0 to 100 CONTRAST: Adjustable from 0 to 100 COLOUR: Adjustable from 0 to 100 SHARPNESS: Adjustable from 0 to 100 TINT: Available in overseas models only.

Adjustable from 0 to 100

HORIZONTAL SHIFT: Adjustable from 0 to 100 COLOUR TEMP: Select from Normal, Cool or Warm

by “-” and “+” buttons.


NOTE:

1. “TINT” is not available in component input in all models.

2. “TINT” is available in NAFTA model only.

3. “HOR SHIFT” only function in component input.

Audio/Video Mode

Icon Menu Name and Sub-menus Description

Exit from this menu

EXIT

Use up and down arrow button to highlight the “INPUT SELECT”. Select video source for main display:

• PC ANALOG: PC VGA input

• PC DIGITAL: PC DIGITAL input

• TV TUNER: Antenna or cable TV input (For DV300 only)

• EXT: Scart input (Europe Only)

• COMPOSITE: Composite video input

• S-VIDEO: S-video input

• COMPONENT: Component video input

INPUT SELECT

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

Activate special control features:

EXIT: Exit from this menu. SLEEP TIMER: Slide bar to select

off/15/30/60/90/120/150/180.

OSD LOCK: Show key icon after selecting lock. LIGHT SENSOR: Push the buttons to toggle

Light Sensor function.

VIDEO MODE: Set the screen scaling mode to suit

personal preference:

FOR DV301B

• STANDARD MODE • 4:3

• FULL SCREEN • NONLINEAR SCALING

SPECIAL FEATURES

FOR DV300

• AUTOMATIC • 16:9

• 4:3 • FULL SCREEN

• NONLINEAR SCALING

Icon Menu Name and Sub-menus Description

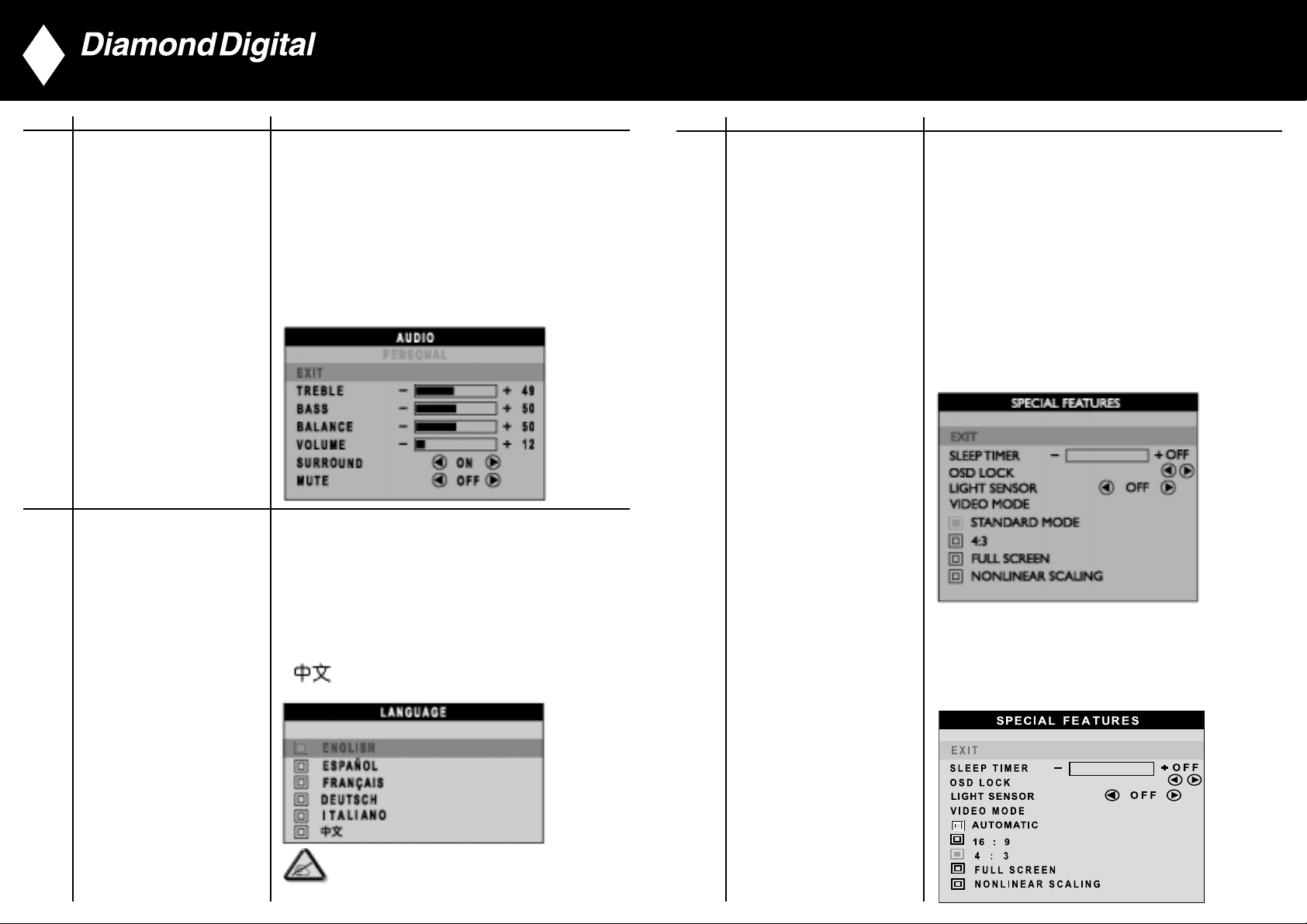

AUDIO Adjust audio characteristics to suit personal preference.

EXIT: Exit from this menu. TREBLE: Adjustable from 0 to 100 BASS: Adjustable from 0 to 100 BALANCE: Adjustable from 0 to 100 VOLUME: Adjustable from 0 to 100 SURROUND: Switch Surround Sound On/ Off MUTE: Switch Mute On/ Off

Set language for OSD. There are 6 languages of OSD display.

• ENGLISH

LANGUAGE • ESPANOL

• FRANCAIS

• DEUTSCH

• ITALIANO

•

NOTE: In AP/China models, Simplified Chinese is supported.

▼

▲

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

Reset the setting to default values.

NO: Keep the setting as current. YES: Load factory setting

FACTORY RESET

Exit from this menu

EXIT

Icon Menu Name and Sub-menus Description

1) When users first enter the PARENTAL CONTROLS, the screen will show the window asking user key in the code.

2) Users will see the window “Access code” when they enter this function.

• EXIT

• LOCK

• CHANGE CODE

• CLEAR ALL

PARENTAL CONTROLS

3) Enter Master code “0711” twice or the code entered in step 1.

TV Mode (DV300 Only)

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

PICTURE Adjust picture characteristics to suit personal preference.

EXIT: Exit from this menu BRIGHTNESS: Adjustable from 0 to 100 CONTRAST: Adjustable from 0 to 100 COLOUR: Adjustable from 0 to 100 SHARPNESS: Adjustable from 0 to 100 TINT: Not available in component input.

Adjustable from 0 to 100

COLOUR TEMP: Select from Normal, Cool or Warm

by “-” and “+” buttons.

NOTE:

1. “TINT” is not available in component input in all models.

2. “TINT” is available in overseas model only.

Icon Menu Name and Sub-menus Description

INPUT SELECT Select video source for main display:

• PC ANALOG: PC VGA input

• PC DIGITAL: PC DIGITAL input

• TV TUNER: Antenna or cable TV input

• EXT: Scart input (Europe only)

• COMPOSITE: Composite video input

• S-VIDEO: S-video input

• COMPONENT: Component video input

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

LANGUAGE Set language for OSD.

There are 6 languages of OSD display.

• ENGLISH

• ESPANOL

• FRANCAIS

• DEUTSCH

• ITALIANO *

NOTE: In AP/China models, Simplified Chinese is supported.

Icon Menu Name and Sub-menus Description

AUDIO Adjust audio characteristics to suit personal preference.

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

1) When users first enter the PARENTAL CONTROL, the screen will show the window asking user key in the code.

PARENTAL CONTROLS 2) Users will see the window” Access code” when they

enter this foundation.

• EXIT

• LOCK

• CHANGE CODE

• CLEAR ALL

3) Enter Master code “0711” twice or the code entered in step 1.

Icon Menu Name and Sub-menus Description

Activate special control features:

EXIT: Exit from this menu. SLEEP TIMER: Slide bar to select

off/15/30/60/90/120/150/180.

OSD LOCK: Show key icon after selecting lock. LIGHT SENSOR: Push the buttons to toggle

Light Sensor function.

VIDEO MODE: Set the screen scaling mode to suit

personal preference:

• AUTOMATIC • 16:9

• 4:3 • FULL SCREEN

• NONLINEAR SCALING

SPECIAL FEATURES

▼

▲

DV300/DV301B 30" Multimedia Information Display

Icon Menu Name and Sub-menus Description

MANUAL STORE:

CHANNEL SKIP:

CHANNEL SWAP:

FACTORY RESET Reset the setting to default values.

NO: Keep the setting as current. YES: Load factory setting

Icon Menu Name and Sub-menus Description

SETUP

SYSTEM:

NOTE: The SYSTEM item is only available in

Western Europe model.

CHANNEL SEARCH:

DV300/DV301B 30" Multimedia Information Display

1 PIP On/Off, Size To activate or close the ‘Picture in Picture’ function in PC

mode and to enlarge or reduce the PIP window size using the same button.

2 PIP Shift To change ‘Picture in Picture’ window position in PC mode 3 AV source To select TV/Video sources in PIP mode and TV mode

If using TV ‘STANDBY’, press this button to return to ‘ON’

4 Smart sound controls To access a series of settings: VOICE, MUSIC, THEATRE and

PERSONAL

5 Menu To tur n on or off the OSD (On-Screen Display).

To select function in OSD.

6 Cursor To move the cursor up /down/right/left to scroll through a list

of options

Cursor right

To access the sub-menus and adjust the settings with cursor left

Cursor down

To select the next item on the menu, and return to the last item with cursor up

7 Volume To adjust the sound level 8 Mute To disable sound. To restore sound, press button again. 9 Teletext features Works only in areas where the Teletext service is available 10 Sound mode To switch from STEREO to MONO or to choose between

Dual I and Dual II for bilingual transmissions. For TV sets fitted with NICAM reception, depending on the transmission, you can switch from NICAM STEREO to MONO or choose between NICAM DUAL I, NICAM DUAL II and MONO.

If using Teletext, press this button to display dual pages on screen.

11 Previous program To access the last program viewed. 12 Screen information To display the program number, the video mode and the

sound mode.

13 Selecting TV programs To move up or down a program.

The number and the sound mode are displayed for a few seconds.

14 PC/TV mode selection To select PC or TV mode. 15 Smart picture controls To select your desired picture setting from 5 settings:

MOVIES, SPORTS, WEAK SIGNAL, MULTIMEDIA and PERSONAL.

8. Remote Control

Remote Control Diagram

•

3 1 2 8

7 5 6 4

•

20 10

19 17

14 15

DV300/DV301B 30" Multimedia Information Display

9. Troubleshooting

This page deals with problems that can be corrected by the user. If the problem still persists after you have tried these solutions, contact your nearest Diamond Digital dealer.

Common Problems

Symptoms Having this problem? Check these items

No Video/ Power LED off No picture, the LCD • Check connection integrity at both ends of the video

Monitor TV is dead cable and/or power cord.

• Electric outlet verification

• Ensure AC power at the rear of the monitor is switched on.

No Video/ Power LED on No picture or brightness • Increase brightness and contrast controls.

• Perform the LCD Monitor TV self-test feature check.

• Check for bent or broken pins in video cable connector.

Poor Focus Picture is fuzzy, blurry • Auto adjust image through Menu -> Image Setting

or ghosting -> AutoAdjust.

• Adjust Phase and Clock controls via OSD.

• Eliminate video extension cables.

• Perform the LCD Monitor TV factory reset (via Menu -> Factory Reset -> All Settings).

• Lower video resolution or increase font size.

Shaky/Jittery Video Wavy picture or • Auto adjust image through Menu -> Image Setting

fine movement -> Auto Adjust

• Adjust Phase and Clock controls via OSD

• Perform the LCD Monitor TV factory reset (via Menu -> Factory Reset -> All Settings)

• Check environmental factors

• Relocate and test in other room

Missing Pixels LCD screen has spots • Cycle power on-off

• These are pixels that are permanently off and is a natural defect that occurs in LCD technology

Stuck-on Pixels LCD screen has • Cycle power on-off

bright spots

• These are pixels that are permanently on and is a natural defect that occurs in LCD technology

16 Numerical keys For direct access to programs.

For a 2-digit program number, the 2nd digit must be entered before the dash disappears.

If using TV ‘STANDBY’, press any of number keys to return to ‘ON’

17 OSD To show OSD status. 18 Standby To set the TV temporarily to standby mode. To switch on the

TV set, press Program button (p -, +), any digit between 0 and 9 or AV source button (The amber light indicates when set is in standby mode)

19 Sleep timer To select the period of time after which the set

will switch automatically to standby mode (up to 180 minutes)

20 Mode Switch among available video modes 21 Surround Toggle surround sound on/off

DV300/DV301B 30" Multimedia Information Display

Symptoms Having this problem? Check these items

LCD Scratched Screen has scratches • Turn the LCD Monitor off and clean

or smudges the screen

Safety Related Issues Visible signs of • Do not perform any troubleshooting steps

smoke or sparks

• The LCD Monitor needs to be repaired

Intermittent Problems The LCD Monitor • Ensure the LCD Monitor is in proper video mode

malfunctions on & off

• Ensure video cable connection between computer and the LCD monitor is secured

• Perform the LCD Monitor factory reset (via Menu -> Factory Reset -> All Settings)

• Perform the LCD Monitor self-test feature check to determine if the intermittent problem occurs in self-test mode

TV and Audio Problems

Poor TV signal reception Abnormal picture • The proximity of mountains or high

seen from the screen buildings may be responsible for ghost pictures, echoing

or shadows. In this case, try manually adjusting your pictures: see ‘fine tuning’ or adjust the direction of the outside aerial. For Asia users in non-NTSC area: Does your antenna enable you to receive broadcasts in this frequency range (UHF or VHF band)? In the event of difficult reception (snowy pictures) switch the NR on the PICTURE menu to ON.

No TV picture No picture when • Have you connected the aerial socket properly?

TV input was selected • Have you chosen the right system? Poorly connected

SCART cables or aerial sockets are often the cause of picture or sound problems (sometimes the connectors can become half disconnected if the LCD Monitor TV set is moved or turned). Check all connections.

No sound No sound output • Ensure that the audio cables are firmly connected to

when a program both the audio input connectors on your the LCD with sound was playing Monitor TV and audio output connectors on your PC

or Video player.

• If on certain TV channels you receive a picture but no sound, this means that you do not have the correct TV system. Modify the SYSTEM setting.

Video Problems

No Video No signal indicator is . • Check Video Input Selection

displayed

• Composite: Yellow coloured RCA jack

• S-Video: Typically a round 4 pin jack

• Component: Typically 3 RCA jacks of Green, Red and Blue.

Symptoms Having this problem? Check these items

Brightness Problems Picture too dim • Perform the LCD Monitor TV factory reset (via

or too bright Menu -> Factory Reset -> All Settings)

• Auto adjust image through Menu -> Image Setting

-> Auto Adjust

• Adjust brightness & contrast controls

Note: When operating in DVI mode, the contrast

adjustment is not available.

Geometric Distortion Screen not centered • Perform the LCD Monitor TV reset on “Position

correctly Settings Only”

• Auto adjust image through Menu -> Image Setting

-> Auto Adjust

• Adjust the centering controls

• Ensure the LCD Monitor TV is in proper video mode

Note: When operating in DVI mode, the positioning

adjustments are not available.

Horizontal/Vertical Lines Screen has one • Perform the LCD Monitor TV reset

or more lines

• Auto adjust image through Menu -> Image Setting

-> Auto Adjust

• Adjust Phase and Clock controls via OSD

• Perform the LCD Monitor TV self-test feature check and determine if these lines are also in self-test mode

• Check for bent or broken pins in the video cable connector

Note: When operating in DVI mode, the Pixel Clock

and Phase adjustments are not available.

Sync Problems Screen is scrambled • Perform the LCD Monitor TV reset

or appears torn

• Push Auto Adjust button

• Adjust Phase and Clock controls via OSD

• Perform the LCD Monitor TV self-test feature check to determine if scrambled screen appears in self-test mode

• Check for bent or broken pins

• Boot up in the “safe mode”

DV300/DV301B 30" Multimedia Information Display

OSD Warning Messages

A warning message may appear on the screen indicating the LCD Monitor current status.

When user sees this warning message, it means that the LCD Monitor is in adjustment process.

A warning message may appear on the screen indicating that the LCD Monitor is out of sync range.

See Specifications for the Horizontal and Vertical frequency ranges addressable by this the LCD Monitor. Recommended mode is 1280x 768 @ 60Hz.

This message means that there is no video input signal.

The LCD Monitor is in a power saving mode (in PC mode).

The main OSD menu is unlocked.

The main OSD menu is locked.

Symptoms Having this problem? Check these items

Cont. • Make sure you did not plug the video cable to video

output port behind the LCD monitor TV.

Low Quality Picture not crisp and • Check DVD connection DVD connection some colour distortion • Composite gives good picture

• S-Video gives better picture

• Component gives best picture

No sound See video but no audio • Check if the LCD Monitor volume is turned off or muted.

• Connect the audio cable securely.

• Audio cable is connected incorrectly.

• Verify that the audio source is selected correctly in the OSD.

Remote Control Problems

Remote control does No response from the • Point the remote control directly at the remote sensor on not work properly LCD Monitor TV the LCD Monitor.

when remote is pressed • Replace both batteries with new ones.

• Make sure the remote control is not disabled (for disable/enable the remote control, please refer to the section of Remote Control).

Product Specific Problems

Screen image is too small Image is centred • Perform the LCD Monitor factory reset (via Menu

on screen, but does -> Factory Reset -> All Settings). not fill entire viewing area

Cannot adjust the LCD OSD does not appear on • Turn the LCD Monitor off and unplug the power cord and Monitor with the buttons the screen then plug back and power on at the side of the unit .

For further assistance, refer to the Service Contacts list and contact your local Diamond Digital distributor.

DV300/DV301B 30" Multimedia Information Display

10. FAQ’s

General FAQ’s

Q: When I install my monitor what should I do if the screen shows ‘Cannot display this video mode’?

A: Recommended video mode is 1280x768 @60Hz.

1. Unplug all cables, then connect your PC to the monitor you used previously, which displayed correctly .

2. In the Windows Start Menu, select Settings/Control Panel. In the Control Panel Window, select the Display icon. Inside the Display Control Panel, select the ‘Settings’ tab. Under the settings tab, in a box labelled ‘desktop area’, move the slide bar to 1280x768 pixels.

3. Open ‘Advanced Properties’ and set the Refresh Rate to 60Hz, then click OK.

4. Restart your computer and repeat steps 2 and 3 to verify that your PC is set at 1280x768@60Hz.

5. Shut down your computer , disconnect your old monitor and r econnect your Diamond Digital LCD monitor.

6. Turn on your monitor and then turn on your PC.

Q: How do I adjust the resolution?

A: Your video card/graphic driver and monitor together determine the available resolutions. You can select

the desired resolution under the Control Panel of Windows® 95/98, Me, 2000 or XP, and with the ‘Display properties/Settings’.

Q: What if I get lost while I am making monitor adjustments?

A: Simply press the MENU button, then select ‘Factory Reset/All Settings’ to recall all of the original factory

settings.

Q: My Monitor has no power (Power LED does not light up). What should I do?

A: Make sure the power cord is connected to the Monitor. Also, be sure the AC power switch at the rear of

the monitor is at ‘ON’ position.

Q: Will the product accept an Interlaced signal?

A: No. If an Interlaced signal is used, the screen displays both odd and even horizontal scanning lines at

the same time, thus distorting the picture.

Q. What does the Refresh Rate mean for LCD?

A: Unlike CRT display technology, in which the speed at which the electron beam is swept from the top to

the bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology.

Q: Will the LCD screen be resistant to scratches?

A: A protective coating is applied to the surface of the LCD, which is durable to a certain extent (up to 3H

in this Diamond Digital 30” LCD monitor). In general, it is recommended that the panel surface is not subjected to any excessive shocks or scratches.

Q: How should I clean the LCD surface?

A: For normal cleaning use a clean, soft cloth. For extensive cleaning, please use isopropyl alcohol. Do not

use other solvents such as ethyl alcohol, ethanol, acetone, hexane, etc.

Self-Test Feature Check (STFC)

Your the LCD Monitor when used as a computer display through DVI and/or VGA connection provides a self-test feature that allows you to check whether your LCD Monitor TV is functioning properly. If your LCD Monitor and computer are properly connected but the LCD Monitor screen remains dark, run the LCD Monitor self-test by performing the following steps:

1. Turn off both your computer and the LCD Monitor.

2. Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove both Digital (white connector) and the Analogue (blue connector) cables from the back of computer.

3. Turn on the LCD Monitor.

The floating ‘Self-test Feature Check’ dialog box should appear on-screen (against a black background) if the LCD Monitor cannot sense a video signal and is working correctly. While in self-test mode, the power LED remains green and the self-test pattern will scroll through the screen continually.

DV300/DV301B 30" Multimedia Information Display

LCD Panel Technology

Q: What is a Liquid Crystal Display?

A: A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters

and images on digital items such as watches, calculators, portable game consoles, etc. LCD is the technology used for displays in notebooks and other small computers. Like light-emitting diode and gas-plasma technologies, LCD allows displays to be much thinner than cathode ray tube (CRT) technology. LCD consumes much less power than LED and gas-display displays because it works on the principle of blocking light rather than emitting it.

Q: How are LCDs made?

A: LCDs are created from two glass plates separated from each other at a distance of a few microns.

The plates are filled with liquid crystal and then sealed together. The top plate is coloured with an RGB pattern to make the colour filter. Polarizers are then glued to both plates. This combination is sometimes called ‘glass’ or ‘cell.’ The LCD cell is assembled into a ‘module’ by adding the backlight, driver electronics and frame.

Q: What is polarization?

A: Polarization is basically directing light to shine in one direction. Light is electromagnetic waves.

Electric and magnetic fields oscillate in a direction perpendicular to the propagation of the light beam. The direction of these fields is called the ‘polarization direction’. Normal or non-polarized light has fields in several directions; polarized light has a field in only one direction.

Q: What differentiates passive matrix LCDs from active matrix LCDs?

A: An LCD is made with either a passive matrix or an active matrix display grid. An active matrix has a

transistor located at each pixel intersection, requiring less current to control the luminance of a pixel. For this reason, the current in an active matrix display can be switched on and off more frequently, improving the screen refresh time (your mouse pointer will appear to move more smoothly across the screen, for example). The passive matrix LCD has a grid of conductors with pixels located at each intersection in the grid.

Q: How does a TFT LCD Panel work?

A: On each column and row of the TFT LCD panel a data source drive and a gate drive are attached

respectively. The TFT drain of each cell is connected to the electrode. The molecular arrangement of liquid crystal elements differs acceding to whether it is impressed with voltage or not. It varies the direction of polarized light and the amount of light by letting it through different arrays of liquid crystal elements. When two polarized filters are arranged vertically on a polarized light pole, the light that passes through the upper polarized panel is turned 90 degrees along with the spiral structure of the liquid crystal molecules and goes through the polarized filter at the bottom. When impressed with voltage, liquid crystal molecules are arranged vertically from the original spiral structure and the direction of the light is not turned through 90 degrees. In this case, light that comes through the top polarized panel may not go through the polarized panel at the bottom.

Q: Can the Diamond Digital LCD Monitor be mounted on the wall or used as a touch panel?

A: Yes, Diamond Digital LCD monitors have this optional feature. The standard VESA mount holes on the

back cover allow the user to mount the Diamond Digital monitor on any VESA standard ARM or accessories. Touch panels are being developed for future applications. Check with your Diamond Digital sales representative for more information.

Screen Adjustments

Q: When I install my monitor, how do I get the best performance from the monitor?

A: For best performance, make sure your display settings are set at 1280x768@60Hz. Note: You can check

the current display settings by pressing the OSD OK button once. The current display mode is shown in the product information in the OSD main controls.

Q: How do LCDs compare with CRTs in terms of radiation?

A: Unlike CRT, the LCDs do not use an electron gun, so they do not generate the same amount of radiation

at the screen surface.

Compatibility with other Peripherals

Q: Can I connect my LCD monitor to any PC, workstation or Mac?

A: Yes, all Diamond Digital LCD monitors are fully compatible with standard PCs, Macs and workstations.

You may need a cable adapter to connect the monitor to your Mac system. Please contact your dealer/retailer for more information.

Q: Are Diamond Digital LCD monitors Plug-and-Play?

A: Yes, the monitors are Plug-and-Play compatible with Windows® 95, 98, 2000, XP platforms.

Q: What is a TV System?

A: Television pictures are not broadcast in the same way in all countries. There are different standards: BG,

DK, I and L L’. The SYSTEM setting is used to select these different standards. This is not to be confused with PAL or SECAM colour coding. PAL is used in Australia and the majority of European countries, Secam in France, the CIS and the majority of African countries. The United States and Japan use a different system called NTSC.

Q: What is SCART?

A: The SCART is a 20-pin rectangular connector fitted to the vast majority of PAL market TV receivers. It

provides composite video inputs and outputs, stereo audio in and out, and RGB input. It is also known as Euro connector and PERI-tel.

Q: What are S-VIDEO Signals?

A: These are 2 separate Y/C video signals from the S-VIDEO and Hi-8 recording standards. The luminance

signals Y (black and white) and chrominance signals C (colour) are recorded separately on the tape. This provides a better picture quality than is achieved with standard video (VHS and 8mm) where the Y/C signals are combined to provide only one video signal.

DV300/DV301B 30" Multimedia Information Display

11. Technical Specifications

LCD PANEL

• Type TFT LCD

• Screen size 29.5 inch

• Pixel Pitch 0.5025 x 0.1675 mm x RGB

• LCD Panel type 1280 x 768 pixels R.G.B. vertical stripe Hard coating surface, anti-glare polarizer

• Effective viewing area (H) 643.2 x (V) 385.92mm

• Display Colours 8 bits interface (16.7M colours)

PC SCANNING

• Vertical refresh rate 56Hz-61Hz

• Horizontal frequency 31kHz-63kHz

PC VIDEO

• Video dot rate < 80 MHz

• Input impedance

- Video 75 ohm

- Sync 2.2K ohm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync

• Sync polarities Positive and negative

• Input Frequency WXGA Hsync 48 kHz, Vsync 60 Hz (N.I.) SVGA Hsync 38 kHz, Vsync 60 Hz (N.I.) VGA Hsync 31 kHz, Vsync 60 Hz (N.I.)

• Video interface D-sub, S-Video, TV-RF, SCART (Europe) or composite and components video (others)

AUDIO

• Input level for PC/SVHS/SCART 500 mV nominal

• Loudspeaker 5W Stereo Audio (2.5W/channel RMS x2, 200Hz~10kHz, 4 ohm, 10% THD)

Q: What are the advantages of TFT LCD compared with CRT?

A: In a CRT monitor, a gun shoots electrons and general light by colliding polarized electrons on

fluorescent glass. Therefore, CRT monitors basically operate with an analogue RGB signal. A TFT LCD monitor is a device that displays an input image by operating a liquid crystal panel. The TFT has a fundamentally different structure than a CRT: Each cell has an active matrix structure and independent active elements. A TFT LCD has two glass panels and the space between them is filled in with liquid crystal. When each cell is connected with electrodes and impressed with voltage, the molecular structure of the liquid crystal is altered and controls the amount of inlet lighting to display images. A TFT LCD has several advantages over a CRT, since it can be very thin and no flickering occurs because it does not use the scanning method.

Q: Why is a vertical frequency of 60Hz optimal for an LCD monitor?

A: Unlike a CRT monitor, the TFT LCD panel has a fixed resolution. For example, an XGA monitor has

1024x3 (R, G, B) x 768 pixels and a higher resolution may not be available without additional software processing. The panel is designed to optimise the display for a 65MHz dot clock, one of the standards for XGA displays. Since the vertical/horizontal frequency for this dot clock is 60Hz/48kHz, the optimum frequency for this monitor is 60Hz.

Q: What kind of wide-angle technology is available? How does it work?

A: The TFT LCD panel is an element that controls/displays the inlet of a backlight using the dual refraction

of a liquid crystal. Using the property that the projection of inlet light refracts toward the major axis of the liquid element, it controls the direction of inlet light and displays it. Since the refraction ratio of inlet light on liquid crystal varies with the inlet angle of the light, the viewing angle of a TFT is much narrower than that of a CRT. Usually, the viewing angle refers to the point where the contrast ratio is 10. Many ways to widen the viewing angle are currently being developed and the most common approach is to use a wide viewing angle film, which widens the viewing angle by varying the refraction ratio. IPS (In Plane Switching) or MVA (Multi Vertical Aligned) is also used to give a wider viewing angle.

Q: Why is there no flicker on an LCD Monitor?

A: Technically speaking, LCDs do flicker, but the cause of the phenomenon is different from that of CRT

monitor — and it has no impact of the ease of viewing. Flickering in an LCD monitor relates to usually undetectable luminance caused by the difference between positive and negative voltage. On the other hand, CRT flickering that can irritate the human eye occurs when the on/off action of the fluorescent object becomes visible. Since the reaction speed of liquid crystal in an LCD panel is much slower, this troublesome form of flickering is not present in an LCD display.

Q: Why is an LCD monitor virtually free of Electro Magnetic Interference?

A: Unlike a CRT, an LCD monitor does not have key parts that generate Electro Magnetic Interference,

especially magnetic fields. Also, since an LCD display utilizes relatively low power, its power supply is extremely quiet.

DV300/DV301B 30" Multimedia Information Display

Resolution & Preset Modes

• Recommended 1280 x 768 at 60Hz

10 factory preset modes:

Resolution Mode H. freq (kHz) V. freq (Hz)

640x480 VGA VESA 60 31.469 59.940

800x600 SVGA VESA 60 37.879 60.317 1024x768 XGA VESA 60 48.363 60.004 1280x768 GTF 60 47.700 60.000

Video

EDTV 480P 31.470 60.000 SDTV 480i 15.734 59.940 EDTV 576P 31.250 50.000 SDTV 576i 15.625 50.000 HDTV 1080i 33.750 60.000 HDTV 720P 45.000 60.000

OPTICAL CHARACTERISTICS

• Contrast ratio 500:1 (typ.)

• Brightness 500 cd/m2(typ.)

• White Chromaticity x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) x: 0.328 y: 0.344 (at 5700°K)

• Viewing Angle (C/R >5) Upper >88° (typ.) Lower >88° (typ.) Left >88° (typ.) Right >88° (typ.)

• Response time <=16ms (typ.)

sRGB

sRGB is a standard for ensuring correct exchange of colours between different devices (e.g. digital cameras, monitors, printers, projectors, scanners, etc.).

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Diamond Digital monitor. In that way, the colours are calibrated and you can rely on the correctness of the colours shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the colour gamut. Therefore it is important to select the sRGB setting in the monitor’s OSD.

To do so, at PC mode, open the OSD by pressing the MENU button of your monitor. Use the down button to go to COLOR SETTINGS and press MENU again. Then move the down button to go to NORMAL COLOR and press MENU again.

For more information on sRGB, please visit: www.srgb.com

* This data is subject to change without notice.

DV300/DV301B 30" Multimedia Information Display

12. Service Contacts

If problems remain after checking this manual, please contact your place of purchase, visit the Customer Support section of Mitsubishi Electric Australia’s web site at www.MitsubishiElectric.com.au for details of your nearest Mitsubishi Electric Authorised Service Centre, or contact the Service Department for your state:

New South Wales and Australian Capital Territory

348 Victoria Road Rydalmere NSW 2116 Telephone: (02) 1300 651-808 Fax: (02) 9684-7684

Queensland

1 / 104 Newmarket Road Windsor QLD 4030 Telephone: (07) 3357-8877 Fax: (07) 3357-8488

South Australia and Northern Territory

77 Port Road Hindmarsh SA 5007 Telephone: (08) 8340-0444 Fax: (08) 8340-0555

Victoria and Tasmania

4 / 303 Burwood Hwy East Burwood VIC 3151 Telephone: (03) 9262-9899 Fax: (03) 9262-9850

Western Australia

5 / 329 Collier Road Bassendean WA 6054 Telephone: (08) 9377-3411 Fax: (08) 9377-3499

Automatic Power Saving

If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will then ‘wake up’ automatically. The following table shows the power consumption and signaling of this automatic power saving feature:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED colour

ON Active Pulse Pulse 130W (typ.) Blue

OFF Blanked No No < 5W Amber

AC OFF Blanked No No < 2W Off

Physical Specifications

• Dimension (WxHxD) * 867.7mm x 505mm x 183mm (incl. Pedestal, Speakers)

726.7mm x 469.3mm x 115mm (w/o Pedestal, Speakers)

• Weight 16.0 kg (incl. Pedestal, Speakers)

14.0 kg (w/o Pedestal, Speakers)

• Power supply 90 — 264 VAC, 50/60 Hz

• Power consumption PC Mode: 130 W (typ.)

TV Mode: 150 W (typ.)

• Temperature (operating) 0° C to 35° C

• Relative humidity 20% to 80%

• System MTBF 50K hrs (excluding CCFL 40Khrs)

* This data is subject to change without notice.

Mitsubishi Electronics DV301B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
