Mitsubishi CS-27309, CS-27209 Owner’s Manual

Download

=_ MITSUBISHI

Television

Owner' s

Guide

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF EL.ECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsu]ated "dangerous voltage" within the product's enclosure that may be of sufficient magnil;ude to

constitute a risk of electric shock.

The exclamation point within an equilate:ral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

• Warning: Don't leave stationary images, such as stock market reports, video

games, station logos, or the _57's displays, on-screen for more than

10 minutes. Still patterns such as these can scar the picture tube,

causing permanent damage to the TV.

"WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPL[ANCE TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK HAZARD, DO NOT USE THIS UNIT'S (POLARIZED) PLUG

WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES (JAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE

NOTE TO CATV SYSTEM INSTALLER:

THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR PROPER

GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE (]ABLE GROUND SH_LL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS (',LOSE TO THE

POINT OF CABLE ENTRY AS PRACTICAL.

_ MITSUBISHI OWNER'S GUIDE

Table of Contents

Important Safeguards ................................................................................... 3

Preface: Welcome to Mitsubishi .................................................................. 5

Summary of Special Features ................................................................ 6

Unpacking Your TV ................................................................................ 7

What's in Each Chapter ......................................................................... 8

Some Conventions Used in this Guide .................................................. 9

Chapter 1: Getting to Know Your TV ....................................................... 11

Overview of the Front Panel ................................................................ 12

Overview of the Remote Control .......................................................... 13

Getting ready to use the remote control ......................................... 13

Remote control buttons and functions ............................................ 15

Chapter 2: Connecting Your TV ............................................................... 19

Overview of the Back Panel .................................................................. 20

Basic Connections ................................................................................... 21

TV + antenna or cable without a cable box ................................... 22

TV + cable with a cable box ............................................................. 23

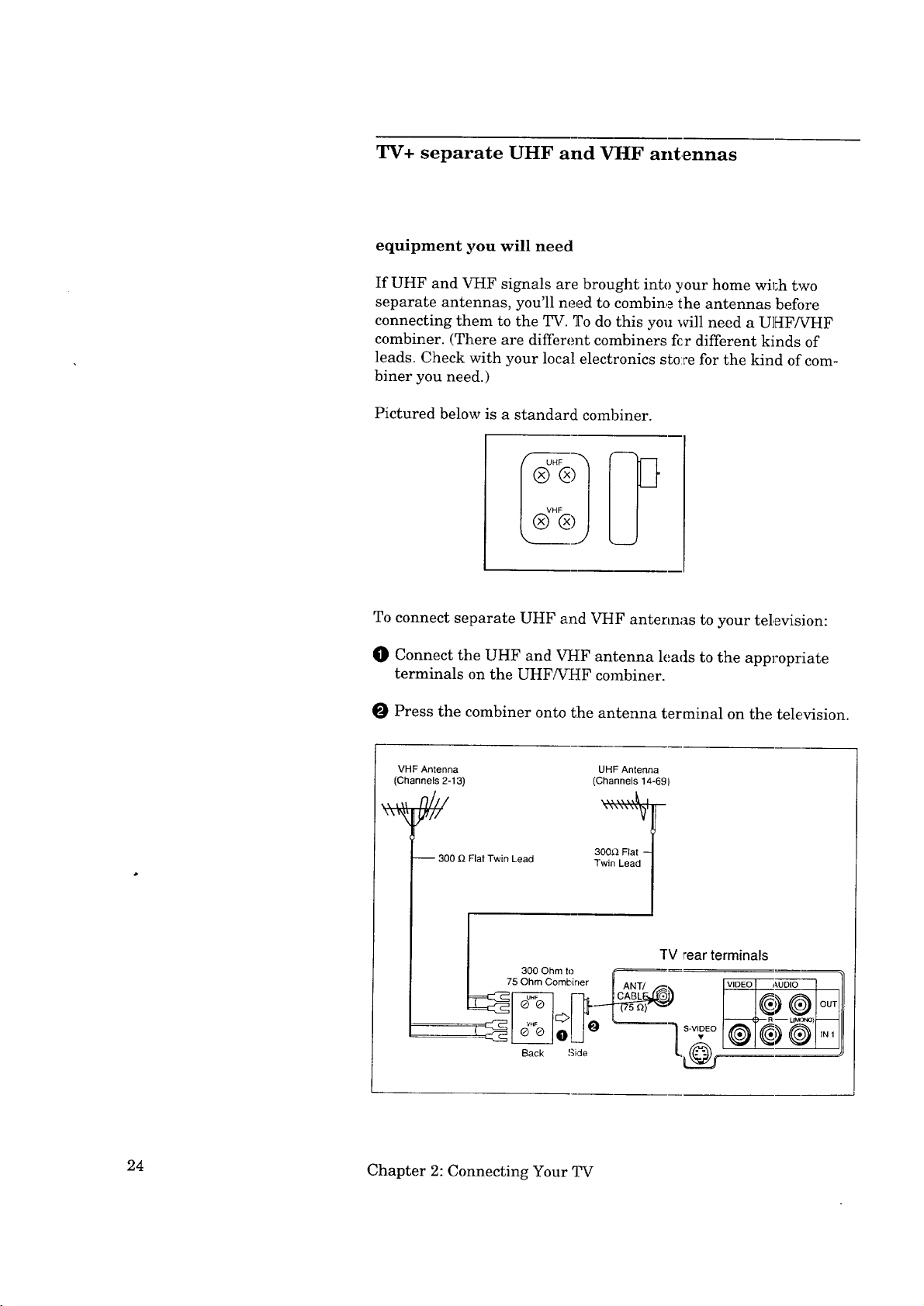

TV + separate UHF and VHF antennas ........................................ 24

TV + VCR + antenna or cable without a cable box ....................... 25

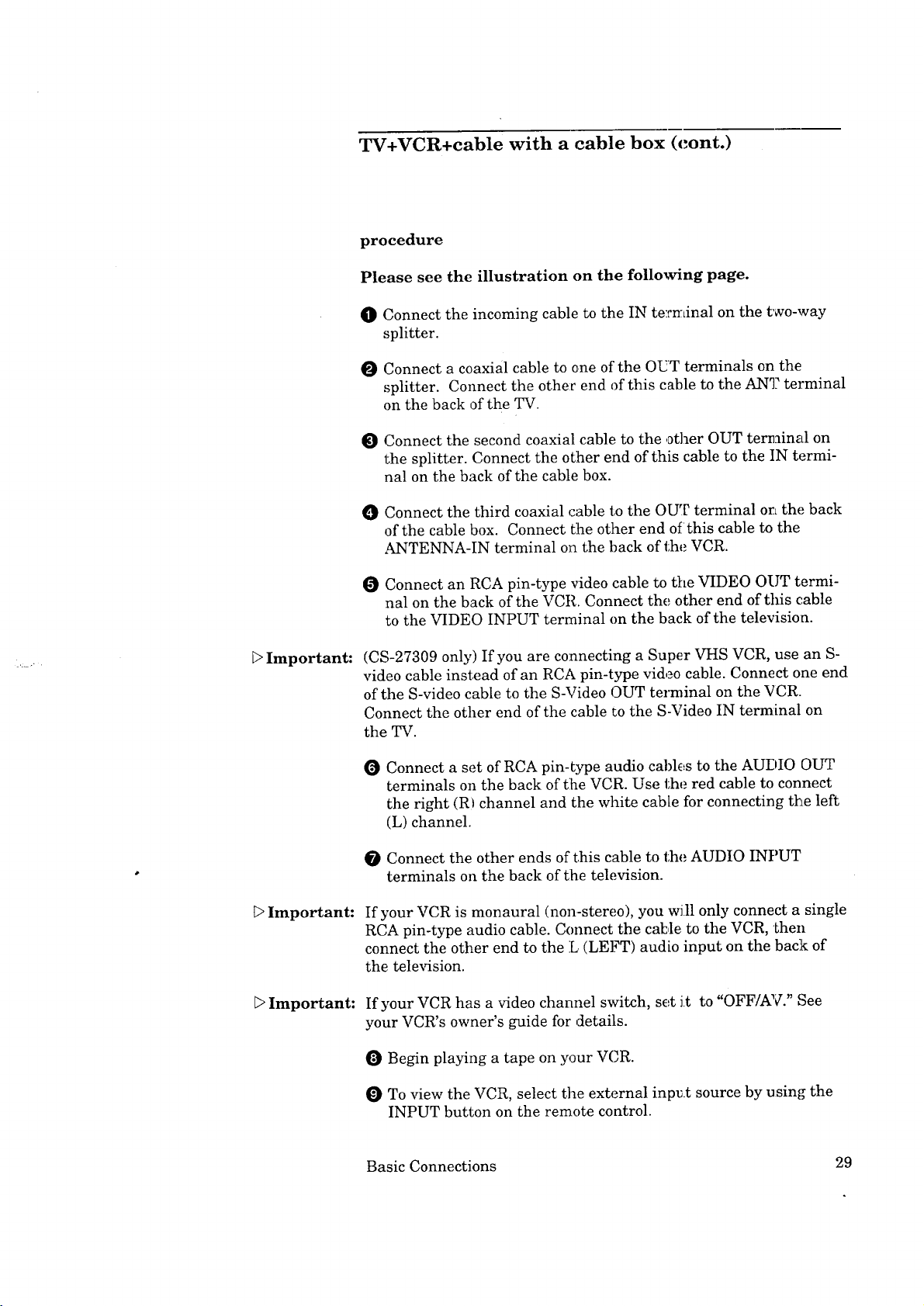

TV + VCR + cable with a cable box ................................................. 28

TV + stereo audio system ................................................................ 31

Chapter 3: Operating Your TV ..................................................................... 33

Getting Started ..................................................................................... 34

Using the remote control to operate VCRs, cable boxes

and other equipment .................................................................... 35

Turning the TV on!off ........................................................................ 40

Selecting the input source ................................................................. 41

Changing channels ............................................................................ 42

Understanding the on-screen menus ............................................... 45

Using the menus ............................................................................... 45

Selecting the menu language ........................................................... 46

Memorizing channels ....................................................................... 46

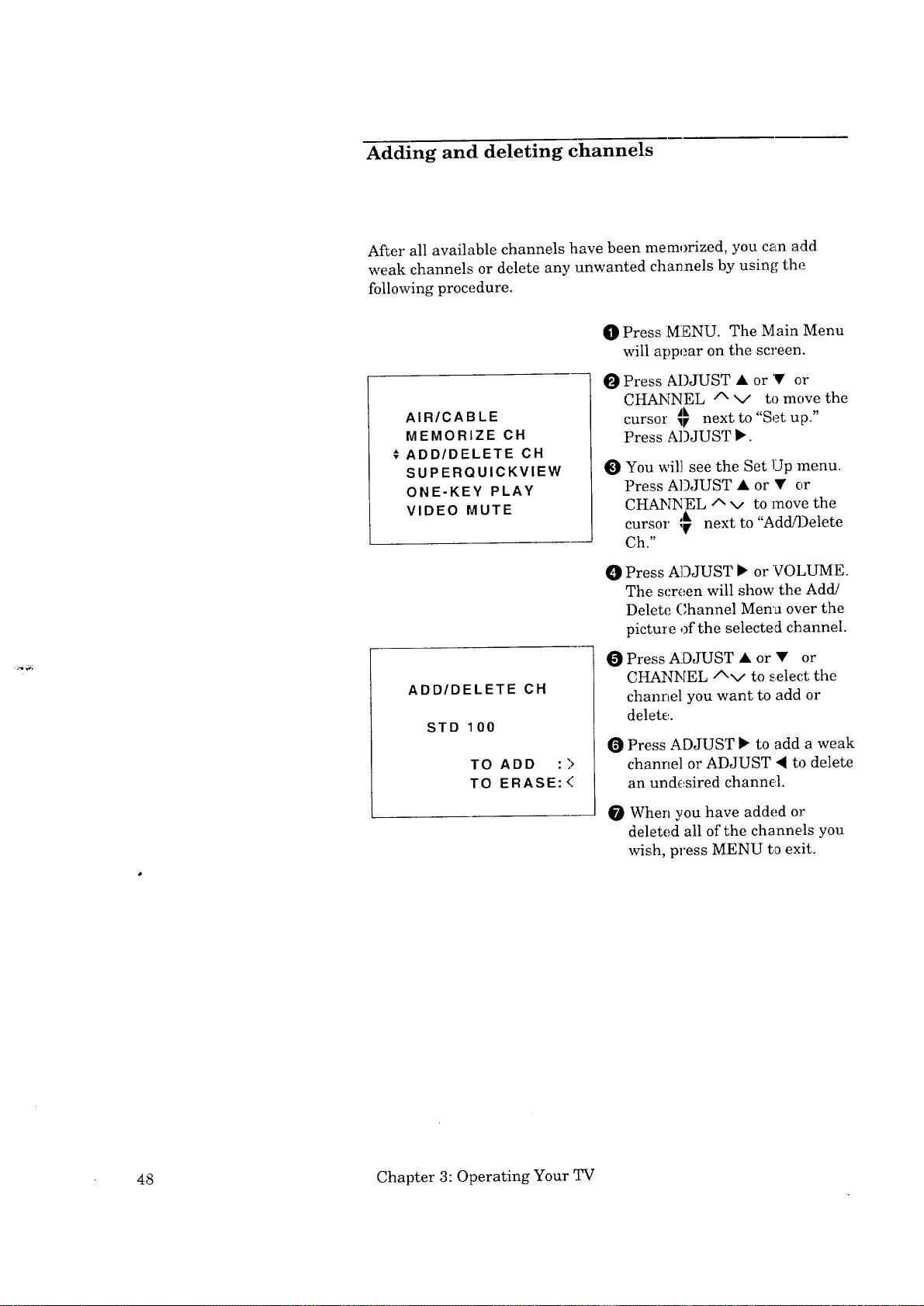

Adding and deleting channels .......................................................... 48

Adjusting the picture ....................................................................... 49

Selecting the sound .......................................................................... 51

Using the closed caption decoder .................................................... 52

Understanding the on-screen displays ........................................... 55

Table of Contents (cont.)

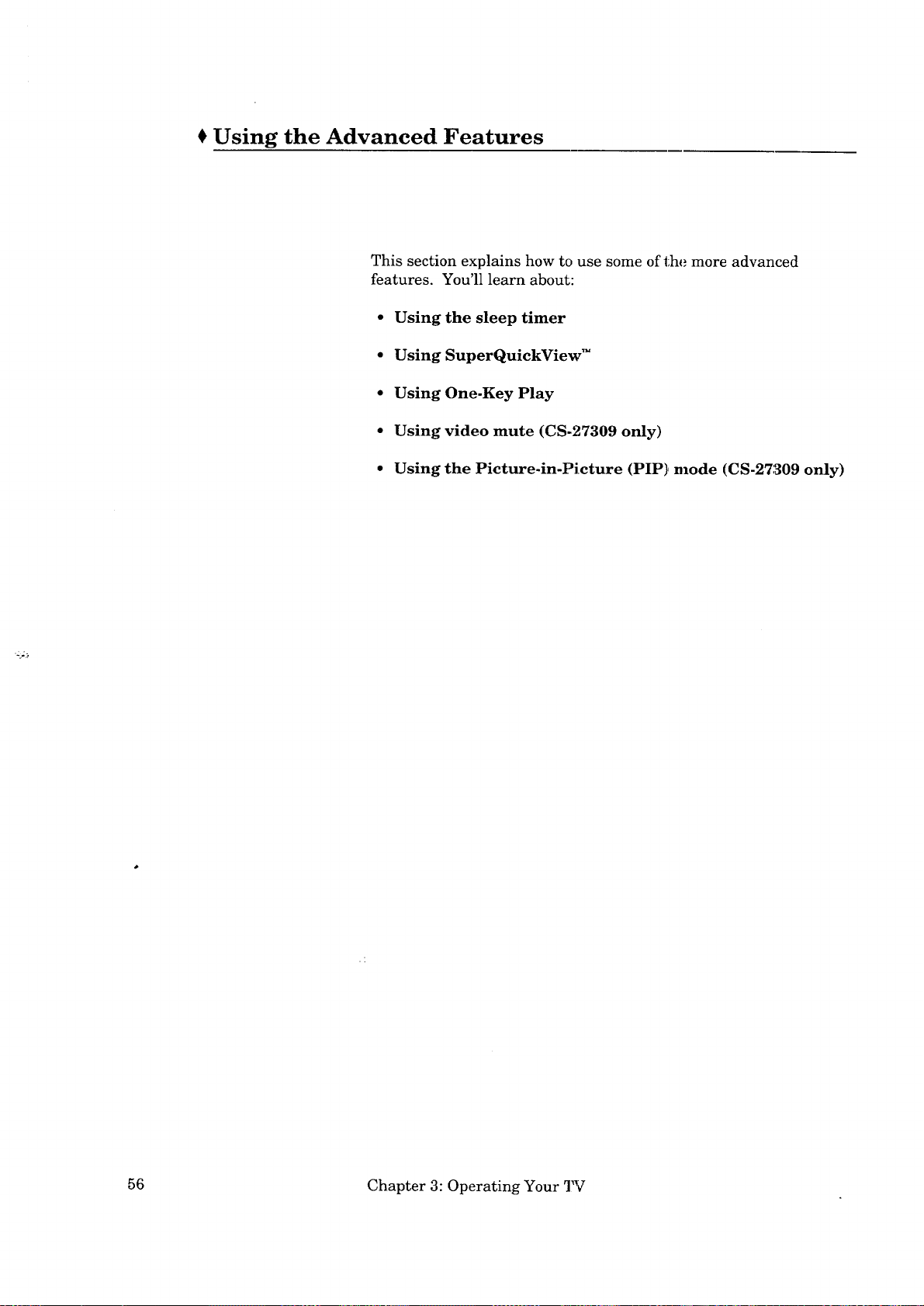

Using the Advanced Features .............................................................. 56

Using the sleep timer ...................................................................... 57

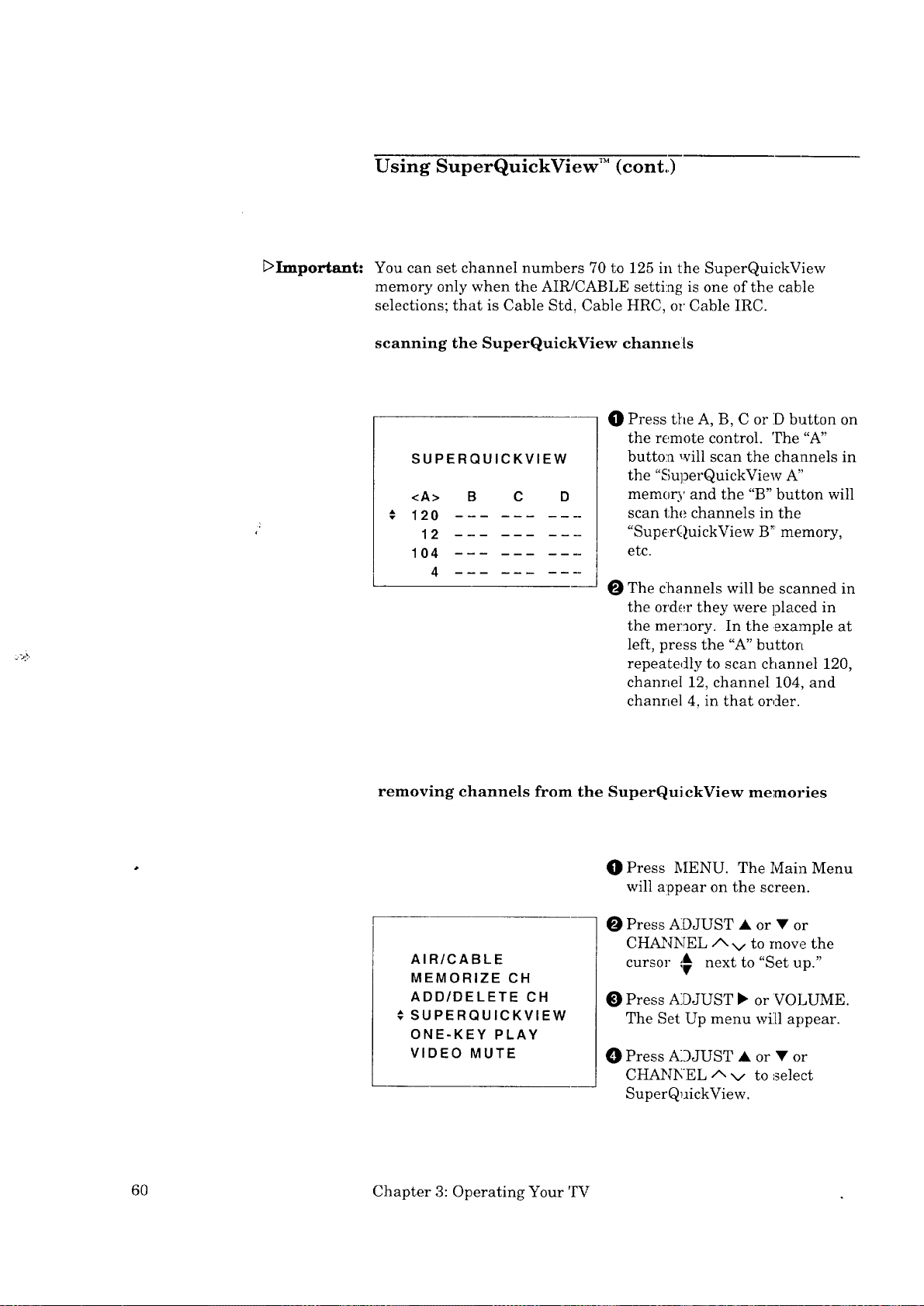

Using SuperQuickView TM ................................................................... 58

Using One-Key Play .......................................................................... 61

Using video mute (CS-27309 only) ................................................. 63

Using the Picture-in-Picture (PIP) mode (CS-27309 only) ............ 64

Activating the PIP image ........................................................... 65

Selecting the input for the PIP image ....................................... 65

Exchanging the PIP image and the main image ...................... 66

Changing channels in the PIP image or main image ............... 67

Moving the PIP image ................................................................ 67

Freezing the PIP image .............................................................. 67

Chapter 4: Troubleshooting ......................................................................... 69

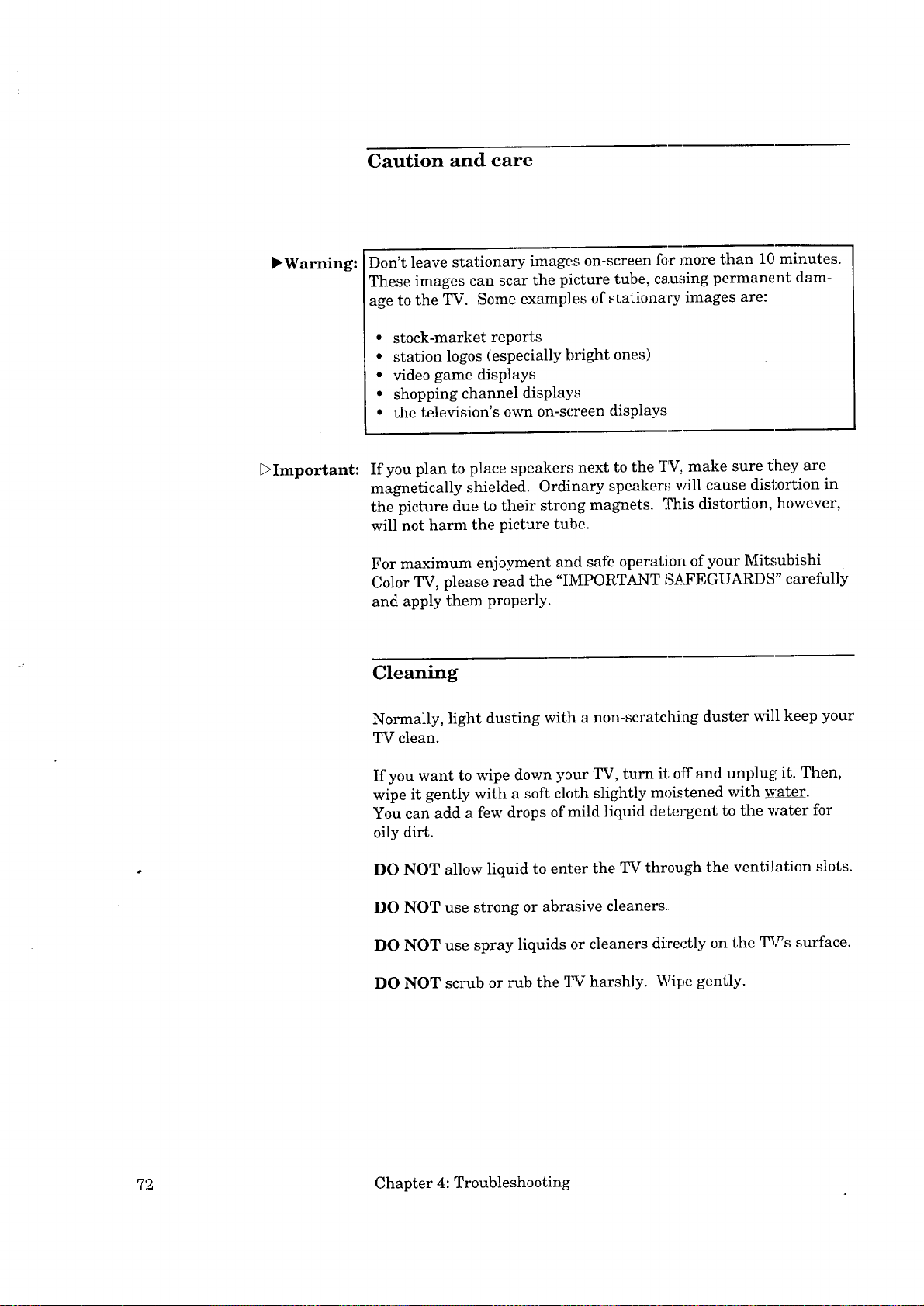

Caution and Care .................................................................................... 72

Cleaning ................................................................................................. 72

Calling for Service ................................................................................. 73

Index ............................................................................................................... 74

Warranty .......................................................................... Inside Back Cover

2 Table of Contents

IMPORTANT SAFEGUARDS

PLEASE READ ALL THESE INSTRUCTIONS REGARDING YOUR TELEVISION SET AND

RETAIN FOR FUTURE REFERENCE. FOLLOW ALL WARI_INGS AND I[NSTRUCTIONS

MARKED ON THE TV RECEIVER.

Read Instructions Read all safety and operating instructions before

operating the appliance.

Retain Instructions

Retrain the safety and operating instructions for future reference.

Heed Warnings Adhere to all warnings on the appliance and in the operating instructions.

Follow Instructions Follow all operating and use instructions.

Warning:

Cleaning

Unplug this TV receiver from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Cleaners can permanently damage the cabinet or screen. Use a damp cloth for cleaning.

Attachments and Equipment Never add any attachments and/or equipment

without approval of the manufacturer as such additions may result in the risk of fire, electric shock

or other personal injury.

7°

Water and Moisture Do not use this TV receiver where contact with or immersion in water is possible. Do not use near bath

tubs, wash bowls, kitchen sinks, laundry tubs, swimming pools, etc.

Accessories

Do not place this TV receiver on an unstable cart, stand, tripod, bracket, or table. The TV receiver may fall, causing serious injury to a child or adult, and

"serious damage to the appliance. Use only with a

cart, stand, tripod, bracket, or table recommended by tile manufacturer, or sold with the TV receiver. Any mounting of the appliance should follow the manu-

facturer's instructions, and should use a mounting accessory recommended by the manufacturer,

Axl appliance and cart combination should be

moved with care. Quick stops, excessive force,

and uneven surfaces may

cause the appliance and cart combination to

overturn.

9o Ventilation

Slots and openings in the cabinet are provided fbr ventilation aIl d to ensure reliable operation of the TV receiw_r and to protect it from overheating. Do nc,t block these openings or allow them to be blocked by placing the TV receiver on a bed, sofa, J,_g, or other simiilar surface. Nor should it be Flaced over a radiator or heat register. If the ]_ receiver is to be placed in a rack or bookcase, ensure thai; there is adequate ventilation and that the

manufacturer's instructions have been adhered to.

10. Power Sources

This TV receiver should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your hcme, consult your appliance dealer or local power company.

11. Grounding or Polarization

This TV receiver is equipped with a polarized alternating current line plug having one blade

wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully in:_o _he outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet:. Do not defeat the safety purpose of the polarized plug.

12. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched

by items placed upon or against them, )paying particular attention to cc,rds at plugs, conve- nience receptacles, and the point where they exit from the appliance.

13. Lightning

For added protection for this TV receiver during

a lightning storm, or when it is left unattended and unused fer long periods of time, unplug it

from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the

TV receiver due to lightning and powel:-line surges.

Important Safeguards (cont.)

14. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

15. Overloading Do not overload wall outlets and extension cords

as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this TV receiver through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock Never spill liquid of any kind on the TV receiver.

17. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the TV receiver, be sure the antenna or cable

system is grounded so as to provide some protec- tion against voltage surges and built-up static charges.

Section 810 of the National Electrical Code, ANSI! NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna dis- charge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING

18. Servicing

Do not attempt to service this TV receiver yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

19.

Damage Requiring Service Unplug this TV receiver from the wall outlet

and refer servicing to qualified service personnel under the following conditiLons:

(a) When the power-supply cord or plug is

damaged.

(b) If liquid has been spilled, or objects have

fallen into the TV receiver.

or' 'water.

(d) If the TV receiver does not operate normally

by following the operating instructions.

Adjust only those controls that are covered

by the operating in 3tructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the

TV receiver to it,_ normal operation.

(e) If the TV receiver [Las been dropped or the

cabinet has been damaged.

(f) When the TV receiver exhibits a distinct

change in perform_mce -- this indicates a need for service.

20. Replacement Parts

When replacement parts are required, be sure the service technician ihas used replacement parts ,;pecified by the manufacturer or have the same characteristics as the original part. Unauthorized subst!itutions may result in fire,

electric shock or other hazards.

LEAD IN WIRE

DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS

-(NECSECTION810-21)

ELECTRODE SYSTEM

NEC -- NATIONAL ELECTRICAL CODE (NEC ART 250, PART H)

21. Safety Check Upon completion of any service or repair,_ to this TV receiver, ask the service technician to perform satiety checks Lodetermine t:hat the TV

receiw_r is in safe operating condition.

bWarning:

Do not leave stationary images, such as stock market reports, video games, station logos, or the TV's displays, on-screen for more than 10 minutes. Still patterns such as these can scar the picture tube, causi:ag permanent damage to

the TV.

PREFACE

Welcome to Mitsubishi

Congratulations on your purchase of this Mitsubishi TV. Your TV is designed for superb viewing pleasure as well as continued

reliability.

To familiarize you with your TV and owner's [N:ide, we suggest tlhat you read through the preface, which provides the following impor-

tant information:

Summary of Special Features

Unpacking Your TV

What's in Each Chapter

Some Conventions Used in this Guide

Mitsubishi has strived to create your TV so that it will bring you. years of viewing enjoyment. Similarly, your owner's guide is

designed with a "user friendly" philosophy that will help you take advantage of all of your equipment's features.

Once again, thank you for selecting our product and welcome to Mitsubishi!

Summary of Special Features

Your top rated Mitsubishi TV delivers:

• 181-Channel Capacity --- programs up Lo181 channels.

• Two-Speaker Sound System --- a special speaker system that

produces clear stereo sound.

• Expanded Sound Capability --- allows you to connect

the TV to an external audio system for enhanced listening pleasure.

In addition to the standard features found on most advanced TVs, Mitsubishi is proud to offer the following dis:inctive features:

Remote Control with TViVCR/DVD!AUDIO Function ---

uses a single remote control transmitter 1;ooperate the TV,

certain Mitsubishi VCRs, DVD player, arA audio components, as well as some VCRs, cab][e boxes, and DSS satellite receivers

from other manufacturers.

• SuperQuickView TM choices --- allows you to view up to 4 sets

of frequently watched channels at the tou.ch of one button.

• On-Screen Displays --- appear whenew_r you adjust your TV,

showing you the status of its various func, tions.

• On-Screen Operating System --- simplifies the TV',; features

with easy-to-use menus.

• Closed Caption Decoder --- decodes ihidden text information

included with TV programs and displays the text on-screen.

• Picture-in-Picture Mode (model CS-27309 only) --- allows

you to view two different live pictures at the same time.

Each of these features will be explained in more detail in

Chapter 3, "Operating Your TV."

6 Preface: Welcome to Mitsubishi

€ Unpacking Your TV

What you will find

As you unpack your new TV, please check to be sure that the following items are included:

• an owner's guide containing a warranty

• a registration card

• a remote control transmitter

• a set of two AAA size batterie,'_ for the remo_e control

A few suggestions

Before you hook up your new TV, please take a Jew minutes to:

Complete the registration card. The registration card asks for the TWs serial number, which you will find on the back of the

unit.

Keep the box and packing materials for future use.

File your sales receipt.

Place the TV on a stable surface with sufficient lighting to do the hook-up.

Unpacking Your TV 7

I What's in Each Chapter

Here's what you will find in this owner's guide:

Chapter 1, "Getting to Know Your TV," introduces you Lothe location and functions of the, buttons and controls of your TV.

Chapter 2, "Connecting Your TV," explains how to connect a VCR, antenna, cable box and other equipment to your TV.

Chapter 3, "Operating Your TV," provides the step-by-step instructions you need in order to use your _gV.

Chapter 4, "Troubleshooting," summarizes the problem,_ you may have along with suggestions for remedying these

problems.

You will also find a detailed index at the back of the boc,k.

8 Preface: Welcome to Mitsubishi

€ Some Conventions Used in this Guide

Mitsubishi has gone to great effort to provide you with an easy-to- follow, useful owner's guide. You will find that different types of information are treated in different ways.

You should read information labeled Important arid information that is boxed and labeled Warning The owner's gu.ide uses thence terms sparingly, and you should carefully read all information highlighted in this manner.

Imain topic or task I

list of related topics or tasks [ related topics or tasks J

.... i

I_>Important:

This cue indicates information

critical to the operation of

your new TV.

I O,O, etc,

This cue alerts you to information describing dangerous situations that could ruin your equipment or

cause electrical shock.

Some Conventions Used in this Guide 9

The step-by-_;tep instructions

on how to accomplish a

particular task are signaled by white nurabers on a black

background.

CHAPTER 1

Getting Know Your TV

Now that you've unpacked your TV, read through the safety information, and glanced at the overview explaining how this owner's guide is organized, it's time to become familiar with the buttons and controls you'll be using when you _perate the TV. This chapter will introduce the range of options available when using the buttons on the remote control or on the front panel of the TV. It also offers some general guidelines for using the

remote control.

Most functions can be controlled by using either the front panel or the remote control, but certain ,_pecialized functions require the

use of one or the other. This chapter, which will familiarize you with the full range of button functions, contairLs the following

sections:

0 Overview of the Front Panel

Overview of the Remote Control

Overview of the Front Panel

i_ MITSUBISHI

POWER V VOLUMEA

@ power button (POWER)

Use this button to turn the TV on or off.

volume controls (VOLUNIE)

Press the A button to turn up the volume and the vbutton to

turn down the volume.

channel controls (CHANNEL)

Use the A button to switch to a channel with a higher number

and the v button to switdh to a channel with a lower number.

_/CHANNEL A

'_ IDEO L(_o',io)- A UDIO- R

video input terminal

Use to connect the video output from a standard VCR or another component to the TV.

audio input terminals

Use to connect the audio output from a VCR or other equip- ment to the TV.

remote control sensor

Point your remote control to this area of the TV.

12 Chapter 1: Getting to Know Your 'IV

Overview of the Remote Control

Getting ready to use the remote control

installing the batteries

O Take the two AAA size batteries from the packing bag.

O Remove the back cover of the remote control by pushing in

the direction of the arrow.

O Load the batteries as indicated in the illust:cation, making sure

that they are positioned correctly (+ to +, and - to -).

Replace the back cover of the remote control.

For best results, use alkaline AAA batteries.

size AAA

batteries

-7_ 0o

Overview of the Remote Control 13

Getting ready to use the remote control (cont.)

some do's and don'ts

To ensure that your remote control will continue working properly, follow these guidelines:

• Don't press two or more buttons at the same time, unle_,;s you are specifically instructed to do so in thi_ owner's guide

• Don't allow the remote control to get wet or become heated.

• Avoid dropping the remote control on a hard surface.

• When cleaning the remote control, don't u_e any harsh chemi- cals. Use only a soft, slightly moistened cloth.

general instructions

When using the remote control to operate the TV, VCR or ,cable box, follow these procedures:

O Be within 20 feet of the desired equipment.

O Point the tip of the remote control toward the equipment.

Press the appropriate button or sequence ,_fbuttons.

guidelines for using batteries

• Don't use a new battery with an old one.

• Don't heat, take apart, or throw batteries into a fire.

14 Chapter 1: Getting to Know Your TV

Remote control buttons and functions

MENU O

REC STOP PAUSE

REW/REV FF_D

_= MITSUBISHI

This illustration shows the CS-27309 remote control. The CS-27209 remote control includes the VCR-CH button but does

not include the PIP controls (number 17 above).

PLAY

Overview of the Remote Control 15

Remote control buttons and functions (cont.)

This section provides you with an overview of the remote control's buttons and the features that they control.

This section does not provide detailed explanations on the use of these buttons. To determine which buttons ace used with a particu-

lar feature, refer to the instructions for that feature.

The instructions for individual features are found in Chapter 3, "Operating Your TV."

select switch

Your remote control has four control layers: the TV layer, the VCR layer, the DVD layer, and the AUE,IO layer. You can set

up each of these layers to ,operate a different piece of equipment. Use this switch to select the layer you want to set up or use.

power button (POWER) Use to turn the TV on or off. (The select switch must be set to the TV layer.)

® number buttons (0-9)

Use to select a channel number.

channel control (CHANNEL)

Press the top part of the button to change to a channel with a higher number; press the bottom part to change to a channel

with a lower number.

volume control (VOLUME)

Press the top part of the button to turn up the volume; press the bottom part to turn down the volume.

100 button (100)

Use with number buttons when selecting cable channels 100 or greater.

QuickView TM button (QV)

Use this button to recall the last channel viewed. See "Chang- ing channels" in Chapter 31.

input button (INPUT)

Use to select the input source you wish tc, watch; TV c:hannels, or the component connected to Input 1 (rear) or Input 2 (fi:ont).

mute control (MUTE)

Use to turn off the sound completely and to restore it to oI_ginal

volume.

16 Chapter 1: Getting to Know Your TV

Remote control buttons; and functJions (cont.)

enter button (ENTER) Use for some functions of VCRs and other equipment. Not used

for TV control.

(_) adjust buttons (A, V, ,, • )

Use to select items in the menus. Also use these buttons to adjust audio and video settings.

(_ SuperQuickView TM buttons (A, B, C, D)

Press to view channels you have programmed into the SuperQuickView memories. ,See "Using SuperQuickView" in

Chapter 3.

menu button (MENU) Use this button to display the on-screen menu system.

@ display button (DISPLAY)

Use this button to view an on-screen summary of the current TV channel and audio selections.

VCR channel button (VCR-CH) Use to change channels up and down on the VCR regardless of the

position of the select switch "(_".

@ audio and VCR buttons

Use these buttons to control VCRs, cassette decks, CD players, etc. These are pre-programmed to operate select Mitsubishi components.

(_) picture-in-picture controls (CS-27309 only)

Use to control the special picture-in-picture (PIP) function. See "Using the Picture-in-Picture (PIP) modes" in Chapter 3.

• PIP button (PIP) -- Press to turn on the PIP image and to

cancel it.

• PIP input button (PIP INPUT) -- Press; repeatedly to switch the source of"the PIP image between the TV and the external

inputs.

• freeze button (FREEZE) -- Press to freeze the PIP image, and to return to a "live" moving image.

• exchange button (EXCHANGE) -- Press to exchange the pictures of the PIP image and the main image.

• position button (POSITION) -- Press t(: move the position of

the PIP image on-screen.

Overview of the Remote Control 17

_ CHAPTER 2

Connecting Your TV

This chapter offers step-by-step instructions fi)r completin_i the most common hook-ups. It contains the follow:[ng sections:

Overview of the Back Panel

Basic Connections

€ Overview of the Back Panel

ANT/

CABLE

(75D)

CS-27309 only

VIDEO

_,._ @ OUT!

) - R -- L(MONO) _----

_1S-VIDEO_;> __.(__-,)_(_,_1_ _ IN1

F>Important:

(_) antenna terminal

Use to connect cable or VHF/UHF antennas.

@ audio output terminals

Use to connect the audio of the TV to an audio system.

@ audio input terminals

Use to connect the audio output from a VCR or other equipment.

video input terminal

Use to connect the video output from a standard V,CR or another component to the TV.

(_) S-video input terminal (CS-27309 ,only)

Use to connect the video output from a Super-VHS (S-VHS)

VCR to the TV.

If you connect a S-video cable to the S-video input ((_) above), you cannot use the video input ((_) above).

20 Chapter 2: Connecting Your TV

Basic Connections

This section describes the equipment and p_'ocedures needed for basic hook-ups. For more complex hook-ups, contact your dealer or

local cable company. The connections explained in this section are:

• TV+antenna or cable without a cable box

• TV+cable with a cable box

• TV+separate UHF and VHF antennas

• TV+VCR+antenna or' cable without a cable box

• TV+VCR+cable with a cable box

• TV+stereo audio system

_>Important: You must connect a VCR to your TV to see two separate pictures

when using the Picture-in-Picture (PIP) fi,_al;ure.

IYou should unplug your and any other components before

,Warning:. Iconnecting them. TV

Basic Connections 21

TV+antenna or cable without a cable box

equipment you will need

If you have a standard 75-ohm coaxial cable, you will not need additional equipment. If your antenna has Lwo leads (called fiat twin leads), you will need:

one 75-300 ohm transformer

75 Ohm

"IV rear terminals

cANT/ VIDEO AUDIO

"_ P-- R- LO_ONO)--

---7 s-v Eo@O 0 '"'

o°l

Optional 300 C_m to 75 Ohm

connecting a cable

0 Push or screw the end of the cable onto the antenna terminal on

the television.

connecting an antenna with fiat twin leads

0 Use a screwdriver to connect the leads to the transformer.

Matching Transformer

O Push or screw the transibrmer onto the ,_ntenna terminal on the

television.

22 Chapter 2: Connecting Your TV

TV+cable with a cable box

equipment you will need

Use this hook-up if you need a cable box to descramble cable sig- nals. After you complete this hook-up, you should set up your

remote control to operate your cable box. See "Using the reraote

control" in Chapter 3.

To complete the hook-up, you'll need:

one 75-ohm coaxial cable

{_23=,

procedure

O Connect the incoming cable to the IN terminal on the cable

box.

O Connect a coaxial cable to the OUT terminai on the cable box;

connect the other end of this cable to the antenna terminal on the back of the TV.

Incoming Cable

ii ii ii ii ii

Cable Box

Rear Terminals

O I°_T 1

75 Ohm

Coaxial Cable

IV Rear Terminals

ANT//_ I_01 *_0'0 ]

I-1® ®I°u':

(75 _) __" _--'_R--L_)[ --'-'--j

[_ ' ,N,

Basic Connections 23

TV+ separate UHF and VHF antennas

equipment you will need

If UHF and VHF signals are brought into your home wil;h two separate antennas, you'll need to combine the antennas before connecting them to the TV. To do this you will need a UHF/VtIF

combiner. (There are different combiners fcr different kinds of leads. Check with your local electronics sto:re for the kind of' com- biner you need.)

Pictured below is a standard combiner.

) )

To connect separate UHF and VHF antennas to your tel,evision:

O Connect the UHF and VHF antenna leads to the appropriate

terminals on the UHF/VHF combiner.

O Press the combiner onto tlhe antenna terminal on the television.

VHF Antenna

(Channels 2-13)

-- 300 _ Flat Twin Lead

_7 "fV rearterminals

300 Ohm to _ _

5 Ohm Combiner _ ANT/ VIDEO AUDIO

UHF Antenna

(Channels 14-69)

300_ Flat -

Twin Lead

;F_t s-v,oEO

Back ,_i,3e L_@

24 Chapter 2: Connecting Your TV

TV+VCR+antenna or cable without a cable box

equipment you will need

You may want to connect a VCR along with your antennas or cable. To complete this hook-up, you may need the folLowing equipment.

one 75-ohm coaxial cable

• one set of RCA pin-type audio cables

• one RCA pin-type video cable

one S-video cable

CS-27309 only (If you are hooking up a

S-VHS VCR)

Basic Connections 25

TV+VCR+antenna or cable without a cable box

(cont.)

procedure

O Connect the incoming cable or antenna t(_ the ANTENNA IN

terminal on the VCR.

Connect one end of a coaxial cable to the ,_qTENNA OUT terminal on the VCR.

Connect the other end of the comxial cable to the antenna termi- nal on the TV.

0 Connect an RCA pin-type video cable to tSe VIDEO OUT termi-

nal on the back of the VCR. Connect the other end of tlhis cable to the VIDEO INPUT terminal on the back of the TV.

DImportant: (CS-27309 only) If you are co:nnecting a Super VHS VCR, use an

S-video cable instead of an RCA pin-type video cable. Connect one end of the S-video cable to the S-Video OUT terminal on the VCR.

Connect the other end of the ('.able to the S-Video IN terminal on the TV.

Connect a set of RCA pin-type audio cables to the AUDIO OUT

terminals on the back of the VCR. Use the red cable to connect the right (R) channel and the white cable for connecting tile left

(L) channel.

O Connect the other ends of this cable to 1;he AUDIO INPUT

terminals on the back of the television.

_>Important: If your VCR is monaural (non-stereo), you w:ll only connect a single

RCA pin-type audio cable. Connect the cable to the VCR, then connect the other end to the L (LEFT) audio input on the back of

the television.

Important: If your VCR has a video channel switch, set it to "OFF/AV." See

your VCR's owner's guide for details.

Begin playing a tape on the VCR.

O To view the VCR, select the external input source by using the

INPUT button on the front control or on the remote control.

26 Chapter 2: Connecting Your TV

Incoming Cable

Coaxial Cable

TV+VCR+antenna or cable without a cable box

(cont.)

75 Ohm

Antenna

°!

VCR Rear Terminals

AUDIO OUT VIDEO OUT

Lead

AUDIO 1

CABLE

ANT/ =l

(75 D.)

TV Rear Terminals / S-Vl_EO

(S-video available

only on CS-27309)

Red Lead __ White Lead

Basic Connections 27

TV+VCR+cable with a cable box

equipment you will need

This hook-up will allow you to record scrambled channels and to view scrambled channels when the VCR is turned on. This connec-

tion will also allow you to view different channels when you use PIP.

To complete the hook-up, you will

need:

• three 75-ohm coaxial cables

one set of RCA pin-type audio cables

• one RCA pin-type video cable

one S-video cable CS-27309 only

(If you are hooking up a S-VHS VCR)

one two-way splitter

28 Chapter 2: Connecting Your q_V

OUT OUT

TV+VCR+cable with a cable box (cont.)

procedure

Please see the illustration on the following page.

O Connect the incoming cable to the IN terminal on the two-way

splitter.

O Connect a coaxial cable to one of the OUT terminals on the

splitter. Connect the other end of this cable to the ANT terminal on the back of the TV.

Connect the second coaxial cable to the other OUT terminal on the splitter. Connect the other end of this cable to the IN termi-

hal on the back of the cable box.

O Connect the third coaxial cable to the OUT terminal on the back

of the cable box. Connect the other end of this cable to the ANTENNA-IN terminal on the back of the VCR.

Connect an RCA pin-type video cable to the VIDEO OUT termi- hal on the back of the VCR. Connect the other end of this cable

to the VIDEO INPUT terminal on the back of the television.

_>Important:

(CS-27309 only) If you are connecting a Super VHS VCR, use an S- video cable instead of an RCA pin-type video cable. Connect one end

of the S-video cable to the S-Video OUT terminal on the VCR. Connect the other end of the cable to the S-Video IN terminal on

the TV.

O Connect a set of RCA pin-type audio cables to the AUDIO OUT

terminals on the back of the VCR. Use the red cable to connect the right (RI channel and tlhe white cable for connecting the left

(L) channel.

Connect the other ends of this cable to the AUDIO INPUT terminals on the back of the television.

If your VCR is monaural (non-stereo), you will only connect a single RCA pin-type audio cable. Connect the cable to the VCR, then

connect the other end to the L (LEFT) audio input on the back of the television.

If your VCR has a video channel switch, set it to "OFF/AV." See your VCR's owner's guide for details.

O Begin playing a tape on your VCR.

To view the VCR, select the external input source by using the

INPUT button on the remote control.

Basic Connections 29

TV+VCR or cable with a cable box (cont.)

_ Cable From Outside

OUT

VCFI Rear Terminals

OUT _'

O TV Rear Terminals

ANT/ _ VIDEO AUDIO

;77._@ ® ® OU"

(S.video availableL=_ I t I

hrte Lead

°nly°nCS-27309) tO _ t j_w @

Red Lead

R?L ! _W ' O

ead hile Lead

30 Chapter 2: Connecting Your TV

TV+stereo audio system

You may want to hear the sound from your TV and/or VCR through your home audio system. To do this, comp]ete the necessary con- nections shown on previous pages of this chapter, then follow the

procedure on this page.

equipment you will need

• 1 set of RCA pin-type audio cables

procedure

0 Connect one end of RCA pin-type audio cables to the AUDIO

OUTPUT terminals on the back of the 'television. Use the red

cable to connect the right (R) channel and the white cable to connect the left (L) channel

Connect the other ends of this cable to the AUX IN terminals on

the back of the audio system.

Turn offthe television's speakers. To do this, turn on the TV. Press the MENU button on the remote control. The Main Menu

will appear on the screen. Press ADJUST • to move the menu cursor next. to "Audio Select." Press ADJUST • and the Audio

Select menu will appear. Press ADJUST • to move the raenu cursor next to "Speaker." Press ADJUST • to select °OFF." Press MENU to return to normal TV viewing.

t>Important:

O Set the audio system's input to the AUX position. See your

audio system's owner's guide.

For proper tone and volume balance, turn off the TV speakers when using an external audio system.

Audio system rear terminals

TV rear terminals a_l levi white k(_ad

CAgLE£_ our

Basic Connections 31

CHAPTER 3

Operating Your TV

Now that your TV is connected to the cable, anLennas, or external components, it's time to enjoy your equipment. This chapter will

explain how to operate the TV, first focusing oil functions that are

basic and easy and then explaining some advanced features.

This chapter explains:

Getting Started

Using the Advanced Features

€ Getting Started

This section is designed to get you started enjoying your new TV. If you follow these procedures one by one, you will soon have a picture

and can begin discovering everything you_r television can do_

You'll find information on:

• Setting up and using the remote control

• Turning the TV on/off

• Selecting the input source

• Changing channels

• Understanding the on-screen menus

• Using the menus

• Selecting the menu language

• Memorizing channels

• Adding / deleting channels

• Adjusting the picture

• Selecting the sound

• Using the closed caption decoder

• Understanding the on-screen displays

• Using the sleep timer

• Using SuperQuickView TM

• Using One-Key Play

• Using video mute (CS-27309 only)

• Using the Picture-in-Picture (PIP) mode (CS-27309 only)

34 Chapter 3: Operating Your TV

Using the remote control to operalLe VCRs, cable

boxes and other equipment

about your remote control

This TV's remote control has fi)ur "layers": the TV layer, the VCR layer, the DVD layer, and the AUDIO layer. Each layer can be

used to operate a different component in your AN system. You.

choose the layer you want to use by setting the "select" switch across the top of the remote control.

When you first receive your remote control, _;he TV layer is set up to operate your Mitsubishi TV and VCR. The VCR layer is set to operate your Mitsubishi VCR. The DVD layer is programmed to operate your Mitsubishi DVD player. The AUDIO layer is pro-

grammed for your Mitsubishi AFV receiver. You can use the following to operate your TV:

• power button • SuperQuickView TM buttons

• channel control (A, B, C, and D buttons)

• volume control • input button

• mute button • display bul;tcn

• number buttons • playbutton

• menubutton o' adjust buttons

• QuickView TM button • PIP controls (CS-27309 only) If you have a cable box (including a digital satellite box), a non-

Mitsubishi VCR, a Mitsubishi laserdisc player, a Mitsubishi A/V receiver, or a compact disc player, you can set up the layers in the

remote control to operate these components.

The VCR'layer can be set up to operate a non-Mitsubishi VCR. The DVD layer can be set up to operate a VCR, cable box, digital[

satellite box, or a Mitsubishi laserdisc player. The AUDIO layer can be set up to operate a cable box, a digital satellite box, a

Mitsubishi laserdisc player, or a Mitsubishi _[ receiver. The TV

layer can be set up to operate the volume control of a Mitsubishi

A/V receiver.

setting up the remote control to operate your VCR

Turn offyour VCR.

Set the select switch on the remote to choose the layer you

want to set up: VCR or DVD.

_While holding in the POWER button on the: remote control, enter the code number listed in the chart on the next page for your brand of VCR. Be sure to enter both digits of the code number. If more than one number is listed, begin with the iirst

code listed.

Getting Started 35

Using the remote control to operate VCRs, cable boxes and other components (cont.)

If your VCR

is this brand...

Mitsubishi (A) Mitsubishi (B)

Canon

Emerson

Funai General Electric

Goldstar Hitachi

JVC

...enterthis

code

01 02

04, 05

06 O3

07 O8

Ifyour VCR

is this brand...

Magnavox Multitech

NEC Panasonic Philco

Philips Quasar

RCA Sanyo

...enterthis

code

03, 10, 11

12 03, 21 03, 10

03, 10, 11

08, 13,20

Ifyour VCR

is this b Scot Sharp

Sony Sylvania

Symphor '

Teknika Toshiba

Totevisio

Zenith

...enterthis

code

15 16

1/, 18

03, 10, 1 1

0,10_O66

15 O7

O Release the POWER button.

Press the POWER button again. Your VCR should turn on.

If the VCR turns on, your remote control is ready to operate

your VCR. (See "Using Your Remote Control to Operate Your VCR" next ibr remote control VCR functions.)

If your VCR does not turn on, repeat the instructions, trying each code number listed for your braind of VCR. If none of these code numbers work, try each number (01 through 21) individualLly.

using your remote control to operate yo_r VCR

After you have set up your remote control fi)r your particu]Lar brand

of VCR, you can use the remote to operate your VCR.

O Set the select switch on the remote control to the layer that you

set up to operate your VCR: VCR or DVD.

Point the remote control at the VCR and press the desired

buttons.

If you are using a Mitsubishi VCR, you will be able to use all of the buttons on the remote control to operate your VCR except for MUTE, VOLUME and the PIP function buttons, which will always operate

the TV itself.

If you are using another brand of VCR, you can use the POWER, CHANNEL, REC, STOP, PAUSE, REW, PLAY, and FF buttons to operate your VCR.

36 Chapter 3: Operating Your TV

Using the remote control to operate VCRs, cable boxes and other components (cont.)

setting up the remote control to operate your cable box or digital satellite box

O Turn on your cable box or digital satellite box.

Set the select switch on the top of the remote to choose the layer you want to set up: AUDIO or DVD.

O While holding in the POWER button on the remote control,

enter the code number listect in the chart below for your brand of cable or satellite box. Be sure to enter both digits of the code number. If more than one number is listecL, begin with the first

code listed.

O Release the POWER button. (See "Using Your Remote Control

to Operate Your Cable or Satellite Box" next for remote control functions.)

Ifyourcable/satellitebox

isthis brand...

ABC Color Voice

Comtronics Gemini General Electric General Instruments Hamlin Hitachi

Jerrold

Macom Magnavox

Memorex

...enterthis

code

57, 59, 62, 67, 89

73, 74,98

93 55

66 55, 56, 57 52, 53, 69

54, 55,56_57, 58

59,60, 85, 87

7! 94

_Impo_tant:

Ifyourcable/satellitebox

isthisbrand...

Oak

Panasonic Paracjo_0_

Philips

Pioneer

Prime Star Pulsar RCA RCA DSS

Regal Regency Samsung

...enterthis

code

61, 62, 82

63, 70

73, 74, 75, 76, 77

93, 94, 98, 99

64 65 84 ___

48 51 63 49

53 79

65, 84

If your cable/_

isthis1;

Scientific / Si£nature

_S_#rucar

Starcom

__ate

Tocom Toshiba

Untied Arli

United Cable Viewstar Zenith

_X ...ente_rthis

code

66, 88, 89, 91, 92

5_55,56,87

67, 68, 72

51 62 54

93, 94

Press the POWER button again. Your cable or satellite box should turn off. If the cable or satellite box turns off, your

remote control is now set up to operate it. If your cable or satellite box does not turn off, repeat the :Lnstructions above,

trying each code number listed for your b:_and of cable or

satellite box. If none of these numbers work, try each number, 51 through 99.

Some of the cable boxes can be turned on with the CHANNEL buttons or the number buttons. If your box is this type, use tlhe

CHANNEL or number buttons to turn on yo_xr box.

Getting Started

Using the remote control to operate VCRs, cable boxes and other components (cont.)

using your remote control to operate your cable box or satellite box

After you have set up your remote control for your particular brand of cable or satellite box, you can use the remote to operate it.

O Use the select switch on the remote control to choose the layer

that you set up to operate your cable o:: satellite box: AUDIO

or DVD.

O Point the remote control[ at the cable o:_satellite box and press

the desired buttons.

You can use the POWER, CHANNEL, nambers (0-9), and :ENTER

buttons to operate your cable box. If you are using an RCA DSS or PRIMESTAR ® receiver, you. may be able to use additional buttons.

Refer to the instructions for these device,s.

setting up the remote control to operate your Mitsubishi disc player or AN receiver

q[]} Turn off your audio component.

Set the select switch on the top of the remote to choose the layer you want to set up. For a laserdisc player, choose DVD or

AUDIO. For an A/V receiver, choose AUDIO or TV.

While holding in the POWER button on the remote control, enter one of these code numbers:

For a

Mitsubishi A/V receiver and compact disc player: 30, 31,

35 or

For a

Mitsubishi and some Pioneer laserdisc players: 3:2 or 33

For a

Yamaha A/V receiver and compact disc player: 36 or 37

For a

Mitsubishi DVD player: 34

Be sure to enter both digits of the code number. Start ,_th the first code listed.

O Release the POWER button.

O Press the POWER button again. Your disc player or audio

component should turn on. If it doe,;, your remote c,ontrol is now set up to operate your audio component. If it does not turn on, repeat the instructions above, trying the next code number listed for your component.

See the next page for information on using the remote to operate your A/V components.

38 Chapter 3: Operating Your TV

Using the remote control to operate VCRs, cable boxes and other components (cont.)

notes about your remote control

_Important:

Important:

Sometimes manufacturers will: change their products, or t]_ey may use more than one code. If this is the case, your remote may not be able to operate your VCR or cable box.

When you replace the batteries in your remote control, the remote will usually return to its initial setting. You may need to set up

your remote again.

using your remote to operate your Mitsubishi laserdisc player

After you have set up your remote control for your laserdisc or DVD player, you can use the remote to operate it.

O Use the select switch on the remote control to choose t:he

layer that you set up to operate your laserdisc player, DVD or AUDIO.

O Point the remote control at the laserdisc player and press

the desired buttons.

You can use the POWER, numbers (0-9), INFO, MENU, CANCEL,

STOP, PAUSE, REW, PLAY, ADJUST, and FF buttons to operate

your disc player.

using your remote to operate your Mitsubishi A/V receiver

After you have set up your remote control for your A/V receiver, you

can use the remote to operate it.

O Use the select switch on the remote control to choose the

layer that you set up to operate your receiver: AUDIO or TV. Point the remote control at the A/V receiver and press the

desired buttons.

If you are using a Mitsubishi HTS-100 receiver; the POWER, VOLUME, and MUTE buttons will operate :it.

If you are using a Mitsubishi HTS-300 receiver; the POWER, CIZ_NNEL, INPUT, VOLUME, ENTER, number (0-9), INFO, MENU, CANCEL, AUDIO, VIDEO, ADJUST, and MUTE buttons will operate it.

If you are using a Mitsubishi M-VR400, M-_rR600, M-VR800 or M-VR1000; the POWER, VOLUME, numbe:_ (0-9), and MUTE

buttons will operate the receiver. The ADJUST buttons will

operate the M-VR800 and M-VR1000 menu,s. If you are using a Mitsubishi M-CD500 CD player; the PLAY,

PAUSE, STOP, FF, and REW buttons will operate it.

Getting Started 39

Turning the TV on/off

_Important:

Before using the remote control to operate the TV, set the select

switch on the top of the remote control to TV.

Use the POWER button on either the com:rol panel or the remote

control to turn the TV on and. off.

There is always a small amount of current flowing into the TV, even when the power is turned off. This maintains any changes to the TV's settings. Unplugging the set will erase these settings, requiring you to set them again. Unplug the TV only when it won't be used for a long time.

®®®'_ ® ® Q '-',

40 Chapter 3: Operating Your TV

VIDEO L(_ONOhAU[)IO-R

FRONr INPUT 2

Selecting the input source to watch your VCR or other equipment

If you connected components such as VCRs, camcorders, or laser- disc players to your TV, you will need to charLge the input source to view the signals from these components.

To select an input source, press the input button (INPUT) on the remote control.

®®® @®® ®®®

You can choose between the following input sources:

• ANT (antennas or cable systems connected to the antenna terminals)

• INPUT1 (components connected to the terminals on the back of your TV)

• INPUT2 (a component connected to the te:rminals on the front panel of your TV)

When selected, the name of the input will dL,olay briefly in the

upper right corner of the screen.

You may also use the CHANNEL/x v button to reach INPUT1 and

INPUT2. These will be found in the cycle of memorized dhannels

between the highest and lowest channel numbers.

Getting Started 41

Changing channels

Your TV offers you four ways of changing channels once their

numbers have been programmed :into channel memory:

• selecting channels one-by-one with the channel up/% and

channel down v controls

• directly accessing a channel by pressing the number buttons

• using the QuickView TM option to recall the last channel

• using the SuperQuickView TM fimction to alternate between channels on a user-chosen list

[_Important:

To change channels faster, enter two digits for every channel

number, using zeros where needed. For example, enter 0 4 to view channel 4 and 2 8 to view channel 28.

If you memorized channels using the AIR option, your TV can

receive antenna channels 2-13 (¥HF) and 14-69 (UHF). If you memorized channels using one of the CABLE options, your _I_ can receive cable channels 1-125. C_.J3LE STD option does not provide

channel 1. If you select a ehann el outside of th_, memorized range, your TV will not change channels.

42 Chapter 3: Operating Your TV

Changing channels (cont.)

changing channels one-by-one

To change channels:

Press one of the channel but- tons (CHANNEL) on the control panel or on the remote control.

The TV will automatically tune to the _aext memori_:ed channel.

_ _ _ _,.

/6 _' dl/

changing channels directly

To move directly to a particular channel wi thout going through the

memorized channels in-between:

• For single digit eham_els, press 0 and the channel number.

= For two digit channels, press

the two numbers in sequence.

For cable channels with three digits, press the 100 key, then

press the next two numbers.

For exam ple, to select channel

120, press the 100 key, then 2 and 0. The TV must be in a

cable mode. See "Selecting Air/

Cable" :in this chapter.

Getting Started 43 -

Changing channels (cont.)

using the QuickView TM option

To alte:rnate between the ,current channel ,_nd the last one viewed:

$ G _t v_

,.t _ 2>

O Press the QV button on the

remc,te control to switch to the last channel viewed.

O Press the QV button again to

return to the original channel.

using the SuperQuickView TM option

This featur_ can memor:[ze 4 frequently used channels in 4

different memories (A, 13,C, and DI. For ins_;ance, the channels

could be th_me based or family member based. To view selected

channels programmed into SuperQuickView memories:

44 Chapter 3: Operating Your TV

O Enter the desired channels into

a SuperQuickView memory. See "Using SuperQuickView" later in tt:.is chapter.

Press the A button repeatedly

to view Lh_ channels in the A memory. To view channels in

the B memory, press the B button repeatedly. Button,_ C

and D will select the channels you progxammed into the C and

D memories.

Understanding the on-screen menus

One of the distinctive features of this TV is an on-screen menu system to use some of the TV's special capabi[ities.

When using any of the on-screen menus, please keep the following in mind:

• The on-screen menus will clear if the menus are left on too long before an item is selected.

• You can exit the on-screen menus any tim.e by pressing the MENU button. You will then return to ret_lar TV viewing.

When making selections, both the ADJUST • or • and

CHANNEL A V buttons will move the cursor • on the TV screen up and down. Both the ADJUST • or • and VOL-

UME A x/ buttons will move the cursor _ on the screen right and left, or adjust or set the selected feature.

• •

Using the menus

Press MENU on the remote

control. You will see the ';Main Menu" shown below.

O Press ADJUST • or V, or

CHANNEL AV to move the

next to the featurecursor

you wish to use or change.

Press ADJUST • or •, or

VOLUME A x/to select the feature. _2he menu will change

€ SLEEP TIMER

VIDEO ADJUST AUDIO SELECT CLOSED CAPTION

LANGUAGE

SET UP

to the m_,nu for that feature.

When :you are finished using

the menus, press MENU to return to normal TV viewing.

Getting Started 45

Selecting the menu language

O Press MENU. You will see the

SLEEP TIMER VIDEO ADJUST AUDIO SELECT CLOSED CAPTION

€ LANGUAGE

SET UP

O Press ADJUST • or a or

"Main N[enu."

Press ADJUST • or • or

CHANNEL A v to move the cursor _ on the screen

]._ext to

"Language."

VOLUI_IE to go to the language menu.

LANGUAGE

O Press ADJUST • or • or

CHANNEL ^ v to move the

¢ENGLISH

ESPANOL

cursor V

you want the on-screen menus

• next to the language

to use, English or Spanish. That language is now selected.

Press I_.[ENU to exit.

Memorizing channels

Your TV can automatically memorize the channels it can receive. Once channels are memorized, you can scan through them using the channel buttons on the remote control and front panel.

Selecting an antenna setting

O Press MENU. The Main Menu

will appear.

SLEEP TIMER VIDEO ADJUST AUDIO SELECT CLOSED CAPTION LANGUAGE SET UP

Press ADJUST • or • or

CHANNEL ^ x/to move the cursor

_'_ next to S,_t Up."

Press ADJUST •.

You will see the Set Up Menu.

Select "Air/Cable" and press ADJUST •.

46 Chapter 3: Operating Your TV

Memorizing channels (cont.)

O You will see the Air/Cable Menu.

€ AIR/CABLE

MEMORIZE CH

ADD/DELETE CH

SUPERQUICKVIEW

ONE-KEY PLAY VIDEO MUTE

AIR/CABLE

•f AIR

CABLE STD CABLE HRC CABLE IRC

Memorizing channels

AIR/CABLE

# MEMORIZE CH

ADD/DELETE CH SUPERQUICKVIEW ONE-KEY PLAY VIDEO MUTE

If you ]have connected a UHF/VHF anterma, press ADJUST '_' to

select "Air."

If you ]have connected a cable antenna, press ADJUST W to select "Cable Std," "Cable HRC," or "Cable, IRC," depending on what

type of' cable system you have.

Contact your cable company if you don't know what type of cable you

have.

O Press M]_NU to exit.

O Press MENU to see the Main

Menu.

Press ADJUST • or T or

CHANNF, L ^ v to move the cursor _ next to "Set Up." Press

ADJUS1 _b.

You will see the Set Up Menu.

Select "N.[emorize Ch" and press

ADJUST b.

You will see the Memorize Chan-

nel Men_L. Press ADJUST • to

begin memorizing channels. You will see each channel number

MEMORIZE CH

AIR 1 0

display automatically

If you wish to stop the procedure,

press ADJUST 4.

START: > STOP : <

To resume memorizing channels,

press _.J)JUST • or VOLUME. The memorization will start over

at the beginning.

When finished, press MENU.

Getting Started 47

Adding and deleting channels

After all available channels have been memorized, you can add weak channels or delete any unwanted channels by using the

following procedure.

0 Press MENU. The Main Menu

will appear on the screen. Press ADJUST • or '• or

AIR/CABLE

MEMORIZE CH

€ ADD/DELETE CH

SUPERQUICKVIEW

ONE-KEY PLAY VIDEO MUTE

CHANNEL /x v to move the cursor _} next to "Set up."

Press ADJUST •.

O You will see the Set Up menu.

Press ADJUST • or • or CHANNEL/x x/ to move the cursor I_ next to

Ch."

0 Press ADJUST • or VOLUME.

The screen will show the Add/ Delete Channel Men'a over the

picture of the selected channel.

"Add/Delete

ADD/DELETE CH

STD 100

TO ADD : ) TO ERASE: <

0 Press ADJUST • or • or

CHANNEL/xv to select the channel you want to add or

delete.

Press ADJUST • to add a weak channel or ADJUST • to delete an und_sired channd.

0 When you have added or

deleted all of the channels you wish, press MENU to exit.

48 Chapter 3: Operating Your TV

Adjusting the picture

You can adjust all of your television's picture functions by using

the menu feature called "Video Adjust." Each individual adjust- ment display will show over the picture of 1;hecurrently selected

channel so you can see how your adjustment_; will change the picture.

descriptions of video settings

COLOR provides a scale that determines the intensity of the color.

TINT provides a scale that adjusts the proportion of red to green

in the picture. This determines the delicate tones of the color.

CONTRAST provides a scale that control_; the level of white-to-

black in the picture. When the contrast is low, you will be able to

see the variety of shades in the darker images on the screen.

When the contrast is high, the screen's dark images will appear

more uniformly black, but this will also make the colors o_athe screen seem more vibrant.

BRIGHTNESS provides a scale that controls the overall bright- ness of the picture.

SHARPNESS provides a scale that adjusts the detail and clarity of the picture.

COLOR TEMP allows you to set how the TV will display white images. Your choices are "Low," "High," or "Medium."

With the "LOW" setting, white images on-screen will :have a warm cast to them.

With the "HIGH" setting, white images on-screen will have a cool cast to them. This setting may be the most realistic picture under bright lighting.

With the "MEDIUM" setting, white images on-screen will be balanced between the above warm and cool settings.

A/V RESET will return all of the picture adjustments to the original factory settings.

Getting Started 49

Adjusting the picture (cont.)

{[]PPress MENU. The Main Menu

SLEEP TIMER VIDEO ADJUST AUDIO SELECT CLOSED CAPTION LANGUAGE SET UP

CONTRAST 50

-llllllllllllll+

O Press ADJUST • or V or

will appear on the screen.

CHANNI_IL/x v to move the cursor _ next to

"Video

Adjust."

Press .td3JUST • or VOLUME.

The screen will return to the picture of the currently se-

lected channel with CON- TRAST display shown at 1;he

bottom.

While the display is still

showing, press ADJU,_T • or

• or CI-LMNNEL A v to select

the video setting you would like to adjust.

Important:

[_ Important:

OPress,_)JUST • or_ or

VOLUME/x v to adjust the selected video setting.

Press MENU to return to

COLOR TEMP.

MEDIUM

normal qW viewing.

The video setting menu cycle is:

Contrast

A!V reset.

Color temperature Sharpne,;s

Brightness

Color

Tint

BRIGHTNESS 25

-IIIIIII ' ' ' ' ' ' '+

While the video adjustment setting display_ are showing on-

screen, the CHANNEL and VOLUME buttons will not operate the

normal channel or volume functions.

If no video adjustment is made within a few seconds, the: TV will return to normal TV viewing automatically

50 Chapter 3: Operating Your TV

Selecting the sound

You can select the sound and the speakers you will hear by using the menu feature called "Audio Select." The audio selectio_ will be

displayed over the picture each time you select a new channel or use the display button.

your audio selections are:

MTS: (multi-channel television sound)

STEREO This setting allows you to receive stereo broadcasts auto-

matically if the TV broadcaster is sending stereo sound. If the TV broadcaster is not sending stereo sound, the TV will

automatically select the mono sound. SAP (separate audio program) This setting allows you to hear a different sound if the TV

broadcaster is sending a secondary form of sound. Examples of the use of SAP are a foreign language sound track of the main program or news or weather reports from a local radio station. If the TV broadcaster is not sending SAP sound, the TV will automatically select the mono _;ound.

MONO This setting allows you to listen only to the mono sound sent

by the TV broadcaster even if the broadcaster is also sending stereo or SAP sound. Use this setting _hen there is; un- wanted background noise from a weak station.

SPEAKER:

ON You will hear the sound through the TY's built-in speakers.

OFF When you have connected your TV to an audio system and

wish to hear the sound through the ,;peakers of the audio system.

Important: To avoid a volume mis-match between the T_i's built-in speakers

and the speakers of your audio system, you should turn offthe TV's speakers when listening to the sound througi_ your audio system.

Getting Started 51

Selecting the sound (cont.)

SLEEP TIMER VIDEO ADJUST

€AUDIO SELECT

CLOSED CAPTION LANGUAGE

SET UP

O Press N:ENU. The Main Menu

will aplc.ear on the screen.

O Press ADJUST • or • or

CHANNEL A V button to move the _-Ludio

ccLrsor _ next to

Select."

O Press ADJUST • or VOLUME

The screen will show the Audio Selectio:n menu.

Important:

AUDIO SELECT

O Press M)JUST • or • or

CHANNEL A V to ,;elect the

CMTS :STEREO

SPEAKER :ON

audio setting you would ].ike to adjust (MTS or SPEAKER).

O Press ADJUST • or _ or

VOLUME A V to adjust the selected audio setting;.

O Press MENU to return to

normal 87Vviewing.

The audio output of this TV will change when you adjust the Thrs volume. When you use the TV with an audio system, turn the TV's

volume all the way down, set the audio sy,_tem's volume to an average setting and then increase the TV',; volume until you can

hear the sound at a normal level.

Using the closed caption decoder

Many broadcasters now supply closed captioning information along with their regular broadcasts. Your TV can decode that information and display it on the TV screen.

Closed captioning was initially designed sc that those wiLh hearing difficulties could more fully enjoy viewing television. However,

closed captioning can also be used in other ways, such as:

• helping children learn to read

• learning a foreign language

• using the television without, disturbing otl:ers

52 Chapter 3: Operating Your TV

Using the closed caption decoder (cont.)

There are two types (modes) of captioning that broadcasters can send:

Captions: standard captioning which is related to the program that is being shown. Standard captioning usually follows the dialog of the characters on-screen and only display,; when the broadcaster is sending the closed captioning.

Text: text captioning can contain information such as weather or news that is not related to the program that is being shown. Text

captioning blocks out your view of the program you are watching.

Your TV can decode two different types of sil,mals, or data channels,

for each type of captions (Captions CH 1 or CH 2 or Te_:t CH 1 or CH 2). However, each station may be broad:asting only one signal,

or none at all.

adjusting the closed caption decoder

You can turn on or offthe closed caption decoder by using the menu

feature called "Closed Caption."

In) Press MENU. The Main Menu

will appear on the screen.

SLEEP TIMER

VIDEO ADJUST

AUDIO SELECT

CLOSED CAPTION LANGUAGE

SET UP

Use ADJUST • or • or

CHANNEL/xv to move the

cursor

_; next to"Closed

C aptio n."

Press ADJUST • or VOLUME. The screen will show 1;he Closed

Caption menu.

CLOSED CAPTION

-* MODE :OFF DATA :CH 1

Press ADJUST • or 4! or VOLUME/x v to select one of

the caption modes; "Off," "Captions," or "Text," thai; you

would ]ike to view.

Press ADJUST • or CHAN- NEL v to move the cursor

next to "Data."

Getting Started 53

Using the closed caption decoder (cont.)

O Press ABJUST • or • or

VOLUME/x v to select which

CLOSED CAPTION

MODE :OFF DATA :CH 1

Dlmportant: If you have selected "Captions" and "CH 1" or "CH 2," and tune to

a broadcaster that is not sending a caption signal, no captions will appear.

type of signal (data channel 1 or 2) you would like tc, view.

O Press MFNU to return to

normal _[V viewing.

[_Important:

The contents of captions are determined bigthe broadcaster. If your captions show strange characters, misspellings or odd gcam-

mar, it is not a malfunction of the TV.

[_Important: If you have selected "Text" and "CH 1" or "C[-I 2," a large black box

will appear over the lower portion of the picture. The text informa- tion will appear in this box; however, even if the broadcaster is not sending any text information, the black box will still block the lower portion of the picture.

Closed captions when muting

Your TV will automatically turn on "Captions CH 1" when you turn off the sound by pressing the MUTE button on the remote

control. The captions will show only if the broadcaster is sending

the closed caption signal. "Captions CH 1" will be turned, off

automatically when you restore the sound using the MUTE button again or if you turn off the TV.

54 Chapter 3: Operating Your TV

Select a channel, or press DISPLAY once

Understanding the on-screen displays

Your TV provides an on-screen summary of the current settings for TV or cable channels or the external inputs. This summary will

also provide information about the type of socnd that is being sent

by the broadcaster and the type of sound you have set the TV to "listen to." In addition, the display system will provide information

concerning the source of the nmin and sub PI]? pictures, and the amount of time remaining on tlhe sleep timer. This information is

displayed automatically when you make a change such as selecting a new channel or activate the PIP. It can also be recalled by

pressing DISPLAY on the remote control.

• Selected Channel is 8.

• Stereo signal is "on air" or being

sent by the broadcaster.

• SAP or Secondary Aud:[o Program sound is "on air" or

being sent by the broadcaster.

• The TV's current audio select is stereo sound, indicated by the

arrow _.

SAP

,STEREO

MONO

SUB: INPUT1

Select an input, or press DISPLAY once

If the Sleep timer is set, press DISPLAY

twice.

INPUT1

SLEEP TIMER

30 REMAIN

SUB: 08

• The "SUB" PIP image is coming

from Inputl.

INPUT] i,_the seledted input fbr viewings, such as a VCR or DVD player connected to audio and video inputs on the back of

the TV.

The "SUB" PIP image is coming from channel 8, directly from

the antenna or cable connected to the AN_.?/CABLE jack.

The Sleep timer has been set and 30 minutes remain before

the TV will turn off.

Getting Started 55

€ Using the Advanced Features

This section explains how to use some of the more advanced

features. You'll learn about:

• Using the sleep timer

• Using SuperQuickView TM

• Using One-Key Play

• Using video mute (CS-27309 only)

• Using the Picture-in-Picture (PIP) mode (CS-27309 only)

56 Chapter 3: Operating Your 2W

Using the sleep timer

This advanced feature allows :you to set the qTv_to turn off automati- cally. You can set the TV to turn off after 'a period of time ranging

from 30 minutes to 120 minutes, in 30 minute intervals.

Setting the sleep timer

q[]}Press MENU. The Main Menu

SLEEP TIMER

VIDEO ADJUST AUDIO SELECT

CLOSED CAPTION

LANGUAGE SET UP

will appear on the screen.

O Press ADJUST • or V or

CHANNEL/x v to move the cursor 4; next to"Sleep

Timer."

O Press ADJUST • or VOI,UME.

The screen will show the :Sleep Timer M,_nu.

Press ADJUST • or • or

SLEEP TIMER

--- REMAIN

VOLUME /x V to set the "Remain!rig time." ADJUST •

or VOLUME /x will increase

the "Re_ aining time" and ADJUST • or VOLUME v

will decrease the "Reraaining

time." The remaining time will change in 30 minute intervals.

Press MENU to return to normal[ _I_ viewing and start the Sleep Timer countdown.

You can verify the amount of remaining time later by pressing the DISPLAY button twice. The sleep timer remaining time will be shown in the upper right hand corner of the picture for 5 seconds.

Your TV will provide a warning display of % remaining" before turning off.

Using the Advanced Features 57

Using the sleep timer (cont.)

Changing or canceling the sleep timer

I[_ Press MENU. The Main Menu

will appear on the screen.

; SLEEP TIMER

VIDEO ADJUST

AUDIO SELECT CLOSED CAPTION

LANGUAGE SET UP

SLEEP TIMER

REMAIN

O Press ,_)JUST • or 'V or

CHANNEL ^ v to move the

cursor

Timer"

O Press M)JUST • or VOLUME.

The Sleep Timer Menu will

appear.

O Press ADJUST _ or VOLUME ^

to increase the "Remaining time" or ADJUST • or VOL-

UME x_ to decrease the "Remaining time." The remain- ing tirae will change !in 30

minute intervals. When the "Remairing time" display shows

"- - -", the sleep timer is can- celed.

I_ next to"Sleep

Using SuperQuickView TM

SuperQuickView allows you to set up four different channel memo- ries (A, B, C and D) and to cycle through these channels by press- ing the SuperQuickView button for that raemory.

The use of these memories is flexible and can be used in different ways, for example:

Theme based -- program a memory for sporl;s channels, mo_fie channels, news channels or educational clhannels.

Family member based -- program a special :memory of four favorite channels, one memory for each of four different family members.

58 Chapter 3: Operating Your TV

Press MENU to retu:m to

normal 'Vg viewing.

Using SuperQuickView TM (cont.)

customizing the SuperQuickView memor!ies:

O Press MENU. The Main Menu

will appear on the screen.

SLEEP TIMER VIDEO ADJUST AUDIO SELECT

CLOSED CAPTION LANGUAGE

€ SET UP

O Press ADJUST • or • or

CHANNEL/x x/ to move the cursor __, next to "Set up."

Press ADJUST _ or VOLUME. The Set Up menu will appear.

O Press ADJUST • or • or

CHANNEL/x x/ to select SuperQuickView.

AIR/CABLE

MEMORIZE CH

ADD/DELETE CH

€ SUPERQUICKVIEW

ONE-KEY PLAY VIDEO MUTE

SUPERQUlCKVIEW

<A> 120

104

B C D

Press ADJUST • or VOLUME. The screer will show the

SuperQuickView menu

Press ADJUST• or • or

VOLUME ^ v to select one of

the four memory columns titled

A B, C or D. The selected

memory will be indicated by "< >" bracketing the title letter at the top _f the column.

Press ADJUST • or • or CHANNEL A x/to select a

channel position in the memory column.

Use the number buttons to

select a channel number for the channel position.

For single digit channel num- hers press "0" first and then the

channel n_lmber.

For two digit channel numbers, press the 3mmber buttons in

sequence, such as "2" and then "5" for channel 25.

For cable channels 100 and higher, press the "100" button

first and then press the other

two numbers in sequence.

Press MENU to return to normal TV viewing.

Using the Advanced Features 59.

Using SuperQuickView TM (cont.,)

_>Important: You can set channel numbers 70 to 125 in the SuperQuickView

memory only when the AIR/CABLE setting is one of the cable selections; that is Cable Std, Cable HRC, or Cable IRC.

scanning the SuperQuickView channels

O Press the A, B, C or D button on

the remote control. The "A"

SUPERQUICKVIEW

<A>

120

104

B C

button will scan the channels in the "SuperQuickView A"

memory and the "B" button will scan the channels in the

"Supc,rQuickView B" memory, etc.

O The clhannels will be scanned in

the order they were placed in the memory. In the example at left, press the "A" button repeatedly to scan channel 120, channel 12, channel 104, and channel 4, in that order.

removing channels from the SuperQuickView memories

AIR/CABLE MEMORIZE CH

ADD/DELETE CH

€ SUPERQUICKVIEW

ONE-KEY PLAY VIDEO MUTE

60 Chapter 3: Operating Your TV

O Press MENU. The Main Menu

will appear on the screen.

Press ADJUST • or • or

CHANNEL A v to move the cursor _ next to"Set up."

Press ADJUST b or VOLUME. The Set Up menu will1 appear.

Press ADJUST • or • or

CHANNEL A V to select SuperQuickView.

Using SuperQuickView TM (cont.)

O Press ADi'TJST • or VOLUME.

SUPERQUICKVIEW

The screen will show the SuperQuickView menu.

<A>

120

104

B C D

O Use ADJUST • • and • <

to select the memory column and channel position of' the channel you wish to remove.

O Use the number buttons to

enter "0 0", this will remove the selected channel from the

SuperQuickView memory.

Press MENU to return to normal 'l%rviewing.

Using One-Key Play

One-Key Play is a special feature that makes !it easier to use your television with a Mitsubishi VC,R. When yoa press the PI_z\Y button on the remote control, the TV will automatically switch to the input or channel you use to watch the playback of a video tape.

before you begin

You must have a Mitsubishi VCR. If this VCR has VCR A and VCR B remote control codes, the VCR must be set to VCR A. See your VCR's owner's guide for instructions on setting the VCR to

VCR A.

If you have not reprogrammed the remote control and the remote is able to operate your VCR, then your VCR is already set to VCR A.

The remote control that came with the TV was programmed at the factory to operate Mitsubishi VCRs set to VCR A remote codes.

You need to know which Input (INPUT1 or INPUT2) or channel (3 or 4) you use to watch a video tape.

Using the Advanced Features 61 •

Using One-Key Play (cont.)

setting the One-Key Play input or channel

0 Press MENU. The Main Menu

will appear on the screen.

SLEEP TIMER VIDEO ADJUST AUDIO SELECT CLOSED CAPTION LANGUAGE

€ SET UP

ONE-KEY PLAY

0 Use P.J)JTJST • or • or

CHANNEL/x v to move the cursor € next to "Set up".

Press ADJUST • or VOLUME. The Set Up menu will appear.

O Use !LDJUST • or • or

CHA2qNEL A -4 to move the cursor :_ next to "One-Key

Play".

Press ADJUST • or VOLUME.

The screen will show the One-

Key Play menu.

Important:

E>Important:

€CH3

CH4 INPUT1

INPUT2 OFF

O Press ADJUST • or • or

CHANNEL Av to move the

cursor :_ next to the input (INPUT'I or INPUT 2) or

channel number (CH 3 or CH 4) you use to watch a video tape.

If you do not have a Mitsubishi VCR, make sure the cur,;or • is next to "Off."

Press MENU to retu:cn to normal rV viewing.

operating One-Key Play

Make sure there is a tape in your VC]_L Turn on your TV and press PLAY. The TV will automatically

switch to the input or channel you use to watch a video tape and the VCR will begin playing the tape.

If there is no tape in your Mitsubishi VCR, the TV will still ,;witch to the input or channel when you press P:[__Y, however this input or channel may remain blank.

One-Key Play will turn on selected models of Mitsubishi VCRs, but only if a tape is in the VCR. One-Key Play _ill not turn on the TV.

62 Chapter 3: Operating Your TV

Using video mute (CS-27309 only')

When you use the video mute function, your TV will display a blue

screen when it is receiving a very weak cha:anel or is tuned to a channel that is not broadcastiag in your area.

If you wish to watch a weak channel, you should have the video mute set to off.

Press MENU. The Main Menu

SLEEP TIMER VIDEO ADJUST AUDIO SELECT CLOSED CAPTION LANGUAGE

.* SET UP

will appear on the screen.

Press ADJUST • or • or

CHANNEL A x/to move the

next to "Set

Press ADJUST • or VOLUME.

The Set Up menu will appear.

Up."cursor

AIR/CABLE MEMORIZE CH

ADD/DELETE CH

SUPERQUICKVIEW

ONE-KEY PLAY VIDEO MUTE

VIDEO MUTE

:OFF

Press ADJUST • or • or

CHANNELAv to move the cursor

Press ADJUST • or VOLUME.

The scree_ will show the Video

•Mute Mer_u.

Press ADJUST • or VOLUME

to turn _n or off the Video Mute.

Press MENU to return to

normal TV viewing.

next to 'Wideo Mute."

Using the Advanced Features 63.

Using the Picture-in-Picture (PIP) mode (CS-27309 only)

One of the special features of this TV is the Picture-in-Picture (PIP)

mode, which allows you to view two different sources at the same

time. In this section you'll learn:

• Activating the PIP image

• Selecting the input for the PIP iraage

• Exchanging the PIP image and the main image

• Changing the channel in the PIP image or main image

• Moving the PIP image

• Freezing the PIP image

DImportant: You must have a VCR connected to the TV 1;osee two different live

action pictures when using PIP.

Chapter 3: Operating Your TV

Activating the PIP image

INPUT1

SUB: 08

O Select tile number of tb:e TV

channel you want to view.

Press the PIP button, tlhe small PIP image will appear on the screen. Tile display SUB: and a channel number, or INPUT1,

or INPUT2 will indicate which source the PIP picture is using

(either the same channel as the main pict_:re, or Input 1, or

Input 2).

O Press PIP once again to cancel

the PIP ir_.age.

[:>Important:

[_Important:

When the main image is black and white, the PIP image may also

appear in black and white.

If you move the PIP image and then turn it of]', it will appear in

the new position the next time :you activate the PIP image.

Selecting the input for the PIP image

By itself, your TV can show only the same picture in the PIP iraage

as it is showing tbr the main picture. In order to see a different

channel or picture in the PIP image, you will need to use your VCR

(or other equipment) that is connected to either one of the inputs

(INPUT1 or INPUT2). You must also select this input with the remote control.

ii¸ _ -..._ .._

I;¸_- _ _i

p;p \,

O Select the :first channel on the

TV.

O Turn on your VCR and select

the second channel.

Activate the PIP image by

pressing tk..e PIP button.

Using the Advanced Features 65

Selecting the input for the PIP image (cont.)

O Press tile PIP INPUT button to

change the PIP image to the input that shows your VCR's picture, INPUT1 or INPUT2. The display will show SIYB: and

the sdected input to confirm

your setting.

DImportant- If you select a new PIP input and then turn offthe PIP image, the

new input will show the next time you activate PIP.

Exchanging the PIP image and the main image

When the PIP image is coming from your VCR and the main image is the channel you selected on the TV, you raay wish to exchange or

swap these images.

-Kzzzzy

O Press the EXCHANGE button

on the r,_mote control

O Press the EXCHANGE button

a second[ time to return the original main image.

SUB: INPUT1

INPUT1

SUB: 08

66 Chapter 3: Operating Your TV

Chan .ging the channel in the PIP image or' the

mare _mage

O Use the VCR CH button to

change the channel of the image provided by the VCR.

Use the CHANNEL buttons to

change the TV's channel.

Moving the PIP image

The PIP image can appear in any of the four corners of the

[

screen. T_ move the PIP :image, press the POSITION

button repeatedly. The PIP image wiK move from corner to

corner in a counter clockwise order•

[:>Important: If you move the PIP image and then turn it off, it will appear in the

new position the next time you activate the :PIP image.

Freezing the PIP image

0 When the PIP image has been

activated, press the FREEZE button to show a frozen picture

in the PIP box.

Press the FREEZE button

again to return the image to a "live" pictuIe.

Using the Advanced Features 67 .

CHAPTER 4

Troubleshooting

Even though you're now familiar with the basic and advanced operations of the TV, you may run into trouble from time to time as

you become accustomed to the TV. This chapter offers solutions to

some of the common problems you may encourZer. We suggest that

you consult this chart before contacting a Mitsubishi service

representative.

Troubleshooting (cont.)

Problems

The remote control doesn't

work.

• You can't access a channel or adjust the volume.

Possible Solutions

• Check that the batteries are fresh and installed correctly.

Check that the select switch is set to "TV."

Be sure that you are pointing the tip of the remote

control toward the TV from a distance of no more than 20 feet.

If a menu or video adjust- ment display is showing, press MENU or wait to

return to normal TV viewing.

For More Information

See "Getting ready to use

the remote control" in

Chapter I for an explanation

of how to install batteries in the remote control.

Sec_"Remote control buttons and fanctions" in Chapter 1,

which explains where the

select switch is located.

See "Getting ready to use

the remote control" in

Chapter 1, which contains pointers for using the remote

control.

The CHANNEL i"v and VOLUME/xv fu.nctions are

no1; available while the menu

or video adjustment displays

are showing.

You can't see a different

channel in the reduced PIP image. (CS-27309 only)

You cannot see a picture when you play a tape iriithe

VCR.

70 Chapter 4: Troubleshooting

Use the PIP INPUT button

to change the source of the PIP image.

Make sure you have a second

source, such as a VCR,

turned on and connected to your TV.

If you connected your VCR with A/V cables, use the

INPUT button to select the input source that the VCR is

connected to.

• See ":Using the Picture-in- Picture (PIP) modes" in

Chapter 3.

• See "Selecting the input source" for an explanation

about changing the input.

Troubleshooting (cont.)

Problems

On-screen displays appear each time you adjust a

function.

There's no sound even when the volume is turned

up.

• The sound doesn't match the image on screen.

Possible Solutions

This is part of the normal operation of the TV.

Check that MUTE isn't on.

The TV may be set to "second audio program"

(S.A.P.).

• Check that "Speaker" function is set to "On."

• The TV may be set to "second audio program" (S.A.P.).

For More Information

See "Understanding the On- Screen Displays" in Chapter 3 for a full explanation of the on-screen displays.

See "Remote control bur_tons and functions" in Chapter 1, whiclh explains the location

and thnction of the MUTE button.

• See "Selecting the sound" in Chapter 3.

• See °Selecting the sound" in Chapter 3.

There is a large black rectangle on the screen.

The TV has been set to "text" mode, but there is no

text information being broadcast.

• See "Using the closed caption decoder" in Chapter 3.

Troubleshooting 71

Caution and care

,Warning:

L>Important:

Don't leave stationary images on-screen for more than 10 minutes.

[_hese images can scar the picture tube, causing permanent dam- tge to the TV. Some examples of stationary images are:

• stock-market reports

• station logos (especially bright ones)

• video game displays

• shopping channel displays ° the television's own on-screen displays

If you plan to place speakers next to the _[_, make sure they are magnetically shielded. Ordinary speaker,_ vrill cause distortion in the picture due to their strong magnets. _._his distortion, however,

will not harm the picture tube.

For maximum enjoyment and safe operation of your Mitsubishi Color TV, please read the "IMPORTANT S_.FEGUARDS" carefully

and apply them properly.

Cleaning

Normally, light dusting with a non-scratching duster will keep your TV clean.

If you want to wipe down your TV, turn it off and unplu£; it. Then, wipe it gently with a soft cloth slightly moistened with water. You can add a few drops of mild liquid detergent to the water for

oily dirt.

DO NOT allow liquid to enter the TV through the ventilation slots.

DO NOT use strong or abrasive cleaners

DO NOT use spray liquids or cleaners directly on the TV's surface.

DO NOT scrub or rub the qW"harshly. Wipe gently.

72 Chapter 4: Troubleshooting

Calling for service

If you have a problem with your TV that you cannot correct, consult

your Mitsubishi dealer or Mitsubishi Authorize d Warranty Service Center.

DO NOT adjust any controls not described in this owner's gTaide.

DO NOT remove the protective back cover of this unit.

If you see one of the following displays on youx _,_creen, you should not change any settings. These are special displays used by the

factory.

S02 45 46

P06 09 46

If one of these displays appear, turn the TV off and then on again. If the display appears again when you turn oa l:he TV, consult your Mitsubishi dealer or Mitsubishi .Authorized Warranty Service

Center.

Troubleshooting 73

Index

A button ................... 15, 17, 44

A/V Receiver,

operating with remote 38, 39

A/V reset ........................ 49, 50

adding channels .................. 48

adjust buttons ......... 15, 17, 45

adjusting the picture .......... 49

advanced features ............... 56

antenna

connecting ............ 22, 24, 25

terminal ............................ 20

audio

adjusting .......................... 51

buttons ............................. 17

connecting system ............ 31

in/output terminals .... 12, 20

layer .................................. 35

select ................................. 51

B button ................... 15, 17, 44

back panel ........................... 20

batteries, installing ............ 13

brightness ...................... 49, 50

buttons, remote control ...... 15

C button ................... 15, 17, 44

cable box

codes ................................. 37

connecting .................. 23, 28

operating with remote ..... 37

•calling for service ................ 73

CC (closed caption) ......... 6, 52

changing channels .............. 42

channels

adding ............................... 48

changing ........................... 42

controls ................. 12, 15, 16

deleting ............................ 48

memorizing ...................... 46

c].eaning TV ......................... 72

closed captions ................ 6, 52

color ............................... 49, 50

color temp ...................... 49, 50

compact disc player

operating with remote 38, 39

connecting your TV ............. 21

connections

antenna ................ 22, 24, 25

audio system .................... 31

basic ................................. 21

cable ............... 22, 23, 25, 28

cable box ..................... 23, 28

UHF/VHF ......................... 24

VCR ............................ 25, 28

contrast ......................... 49, 50

D button .................. 15, 17, 44

deleting channels ................ 48

display button ......... 15, 17, 55

displays, on-screen .............. 55

DVD layer ........................... 35

DVD player

operating with remote ..... 35

enter button .................. 15, 17

espafiol ................................ 46

exchange button ............ 15, 17

features ........................... 6, 56

freeze button ................. 15, 17

front panel ........................... 12

important safeguards ........... 3

input

button ................... 15, 16, 41

selecting ........................... 41

Inputl, Input2 .............. 41, 55

installing batteries ............. 13

language, selecting .............. 46

laserdisc player

operating with remote 38, 39

memorizing channels .......... 46

menu button ............ 15, 17, 45

menus .................................. 45

mono .................................... 51

mute button ................... 15, 16

mute, _4deo .......................... 63

number buttons ...... 15, 16, 43

on-screen displays ............... 55

on-screen menus ................. 45

on/off .................................... 40

one hu:._dred (100) button

........................... 15, 16, 43, 59

one-key play ........................ 61

operating your TV ............... 33

ovemdew

back panel ........................ 20

front panel ........................ 12

remote control .................. 13

panel, 1.¥ont........................... 12

pause button ................. 15, 17

picture, adjusting ................. 49

picture-in-picture (PIP)

actiw_ting .......................... 65

buttons ................. 15, 17, 65

changing channel,_ ............ 67

exc:hanging ........................ 66

freez!ing .............................. 67

movilag ............................... 67

selecting input .................. 65

position button ............... 15, 17

power lmtton ............ 12. 15, 16

probleras (troubleshooting) 69

progn'amming channels ........ 46

QuickView TM

button .................... 15: 16, 44

usi:ag .................................. 44

74 Index

rear panel ............................ 20

record button ................. 15, 17

remote control

buttons ................. 15, 16, 17

codes ........................... 36, 37

sensor ............................... 12

setting up ......................... 35

using ..................... 13, 15, 35

safeguards, important .......... 3

satellite box

codes ................................. 37

operating with remote ..... 37

SAP ................................ 51, 55

select switch ............ 15, 16, 35

service, calling for ............... 73

sharpness ...................... 49, 50

sleep timer ........................... 57

sound, selecting ................... 51

speaker .......................... 51, 72

stereo ............................. 51, 55

SUB display .................. 55, 65

SuperQuickView TM

buttons ....................... 15, 17

using ........................... 44, 58

S-video input terminal ....... 20

UHF/VHF

antenna ............................ 47

connecting ........................ 24

unpacking 'IW ........................ 7

VCR

button,_ ............................. 17

codes ................................. 36

layer ................................. 35

operating with remote ..... 35

VCR-CH button ............. 15, 17

video adjust ......................... 49

video input terminals ... 12, 20

video mute ........................... 63

video settings ...................... 49

volume controls ....... 12, 15, 16

timer, sleep .......................... 57

tint ................................. 49, 50

troubleshooting ................... 69

connecting ........................ 19

layer ................................. 35

operating .......................... 33

turning on/off ................... 40

unpacking .......................... 7

TV/VCIUDVD/AUDIO switch

................................. 15, 16, 35

MITSUBISHI COLOR TELEVISION OR COLOR MONITOI_',

LIMITED WARRANTY

MITSUBISHI CONSUMER ELECTRONICS AMERICA, INC. ("MCEA") warrants to the original purchaser of this television or monitor if purchased from

an authorized MITSUBISHI Audio/Video Dealer that, should it prove defective by reason of improper workmanship and/or material:

a. Picture Tube. For two years from the date of purchase at retail, we will repair or replace, at our option, any defective picture tube without charge for the tube.

b. Other Parts. For one year from the date of original purchase at retail, we will repair or replace, at our option, any detective part without charge for the part.

c. All parts used for replacement are warranted for the remainder of the original warranty period.

d. Labor. For one year from the date of original purchase at retail, we will provide the labor for a warranty repair by a n a_athorized MITSUE;ISHI service center

without charge.

e. Notice. To obtain warranty service, you must notify an authorized M1TSUBISHI service cenler of any defect within the applicable wa_anty time period.

1. TO OBTAIN WARRANTY SERVICE DURING THE FIRST YEAR:

a. Contact your nearest authorized MITSUBISHI service center, whose name and address can be obtained from your MITSUBISHI dealer or by writing or calling

MCEA at the address and telephone number provided below.

b. Warranty service will be provided in your home or, if required, at an authorized service shop, provided that your television is located within the geographic

territory customarily covered by an authorized MITSUBISHI service center. If not, you must either deliver your television t,) an authorized service location at your

own expense, or pay for any travel and/or transportation costs the service center may charge to and from your home. Actual service labor will be provided without charge.

c. Proof of purchase date from an authorized MITSUBISHI Dealer is required when requesting warranty service. Prese at your sales receipt or other document which establishes proof and date of purchase. THE RETURN OF THE OWNER REGISTRATION CARD IS NOG" A CONDITION OF WARRANTY COVERAGE. However, please return the Owner Registration Card so that we can contact you should a question of safety arise which coulcl affect you.

2. AFTER THE FIRST YEAR, to obtain warranty service for a defective picture tube, you are responsible for delivering the television or monit°r t° an auth°rized MITSUBISHI service center at your own expense.

3. THIS WARRANTY DOES NOT COVER damage caused by: modification, alteration, repair or service of this prodt:ct by anyone othe:r than. an authorized MITSUBISItl service center; physical abuse to, or misuse of, the product; operation in a manner contrary to the instruction,,; which accompany the product; freight

damage; or any damage caused by acts of God such as lightning or fluctuation in electrical power. This warranty also excludes all costs arising from installation, adjustment of user controls, external antenna systems, service of products purchased or serviced outside the U.S.A., initial technical adjustments (set-up) and user- required maintenance. Consult the operating instructions furnished with the product for information regarding user controls.

4. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY

IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE; IMPLIED WARRAN'FIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAR.

5. UNDER NO CIRCUMSTANCES SHALL MCEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTI_.ACT, OR OTHERWISE.

6. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental, special, or consequential damages, s° the above limitations or exclusions may not apply to you.

7. This warranty gives you specific legal rights and you may also have other rights which vary from state io state.

8. BEFORE REQUESTING SERVICE, please review the instruction booklet to insure proper installation and correct c astomer control adjustment. Ifthe pr°blem persists, contact your nearest MITSUBISHI Dealer for name(s) of authorized MITSUB1SHI Service Center(s). If you are unable to obtain this information, please call 1-800-332-2119, or write us at the address below.

P.o.MTrSUBISI-II CONSUMER ELECTI_ONICS A.MEPdCA,INC.Norcross,Box:5025GA30091-5025 MIITSUBISHI

RETAIN THIS PORTION FOR YOUR RECORDS

SERIAL. NO.

CUSTOMER NAME STREET ADDRESS CITY

PHONE ( )

STATE

ZIP

PURCHASE DATE

/ t¢

MO DAY YR

PLACE OF PURCHASE

_L MITSUBISHI

MITSUBISHI CONSUMER ELECTRONICS AMERICA, INC.

6100 Atlantic Blvd. Norcross, GA 30071-1305

TINS-6188MEZZ

Mitsubishi CS-27309, CS-27209 Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
