MITSUBISHI ELECTRIC AUTOMATION, INC.
UNINTERRUPTIBLE POWER SUPPLY SYSTEM
2033D SERIES
OWNERS / TECHNICAL MANUAL
Revision 1.3: December 18, 2003
MITSUBISHI ELECTRIC 2033D SERIES UPS
ALN-H0963
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
i
Preface
23D_00s.doc MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
TABLE OF CONTENTS
LIST OF TABLES ............................................................................................... iii
LIST OF FIGURES ............................................................................................ iv
HOW TO USE THIS MANUAL ........................................................................... v
1.0 INTRODUCTION ....................................................................................... 1-1
1.1 GENERAL ................................................................................................. 1-3
1.2 DEFINITIONS ............................................................................................ 1-4
1.3 OVERVIEW ............................................................................................... 1-5
1.4 SPECIFICATIONS .................................................................................... 1-11
2.0 OPERATOR CONTROLS AND INDICATORS ......................................... 2-1
2.1 LED DISPLAY ........................................................................................... 2-2
2.2 MBP LAMP....................................................................................................2-2
2.3 EPO BUTTON ........................................................................................... 2-2
ii
2.4 LIQUID CRYSTAL DISPLAY ..................................................................... 2-3
2.5 EXTERNAL SIGNAL TERMINAL BLOCK ................................................. 2-8
2.6 EXTERNAL COMMUNCATION CONNECTOR .......................................... 2-13
3.0 INSTALLATION AND OPERATION ......................................................... 3-1
3.1 TRANSPORTATION AND INSTALLATION .............................................. 3-1
3.2 INSTALLATION PROCEDURE ................................................................. 3-1
3.3 PROCEDURE FOR CABLE CONNECTIONS ........................................... 3-3
3.4 OPERATING PROCEDURES ................................................................... 3-12
3.5 MAINTENANCE BYPASS SET-UP PROCEDURES ....................................3-13
4.0 RESPONSE TO UPS FAILURE ................................................................ 4-1
5.0 PARTS REPLACEMENT .......................................................................... 5-1
6.0 FAULT CODES ......................................................................................... 6-1
7.0 WARRANTY & OUT OF WARRANTY SERVICE ..................................... 7-1
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
List of Tables
Table 1.1 Power Specifications ................................................................... 1-11
Table 1.2 UPS Module Information.............................................................. 1-11
Table 1.3 Detail of Specifications ................................................................ 1-12
Table 1.4 Rating of Contactor and Fuses .................................................... 1-13
Table 3.1 How to Transport and Install the System..................................... 3-1
Table 3.2 List of UPS Weights (lb.).............................................................. 3-1
Table 3.3 Type and number of Battery ........................................................ 3-2
Table 3.4 Maximum Permitted Fault Current............................................... 3-3
Table 3.5 Recommended Cable Size and Torque Requirements ............... 3-5
Table 3.6 Crimp Type Compression Lug ..................................................... 3-6
Table 6.1 Fault Code ................................................................................... 6-2
iii
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
iv
List of Figures
Figure 1.1 Single Line Diagram-Normal Operation .................................................... 1-5
Figure 1.2 Single Line Diagram-Bypass Operation.................................................... 1-6
Figure 1.3 Single Line Diagram-Battery Operation .................................................... 1-7
Figure 1.4 UPS Parts Location .................................................................................. 1-8
Figure 1.5 UPS Parts Location (Continued)............................................................... 1-9
Figure 1.6 External I/F circuit PCB IOAU-05.............................................................. 1-9
Figure 2.1 Operation/Display Panel ........................................................................... 2-1
Figure 2.2 Main Screen ............................................................................................. 2-3
Figure 2.3 Start/Stop Screen ..................................................................................... 2-4
Figure 2.4 PIN Protection Screen .............................................................................. 2-4
Figure 2.5 Bypass Voltage Abnormal Message Screen............................................. 2-4
Figure 2.6 Measurement Screen ............................................................................... 2-4
Figure 2.7 Setup Screen............................................................................................ 2-5
Figure 2.8 Log Select Screen .................................................................................... 2-5
Figure 2.9 Event Log Screen ..................................................................................... 2-5
Figure 2.10 Battery Log Screen ................................................................................. 2-6
Figure 2.11 Main Screen (Battery Operation) ............................................................ 2-6
Figure 2.12 Measurement Screen (Battery Operation) ................................................ 2-6
Figure 2.13 Main Screen (Fault Indication) ................................................................ 2-7
Figure 2.14 Message Screen ..................................................................................... 2-7
Figure 2.15 External Signal Terminal Block................................................................. 2-8

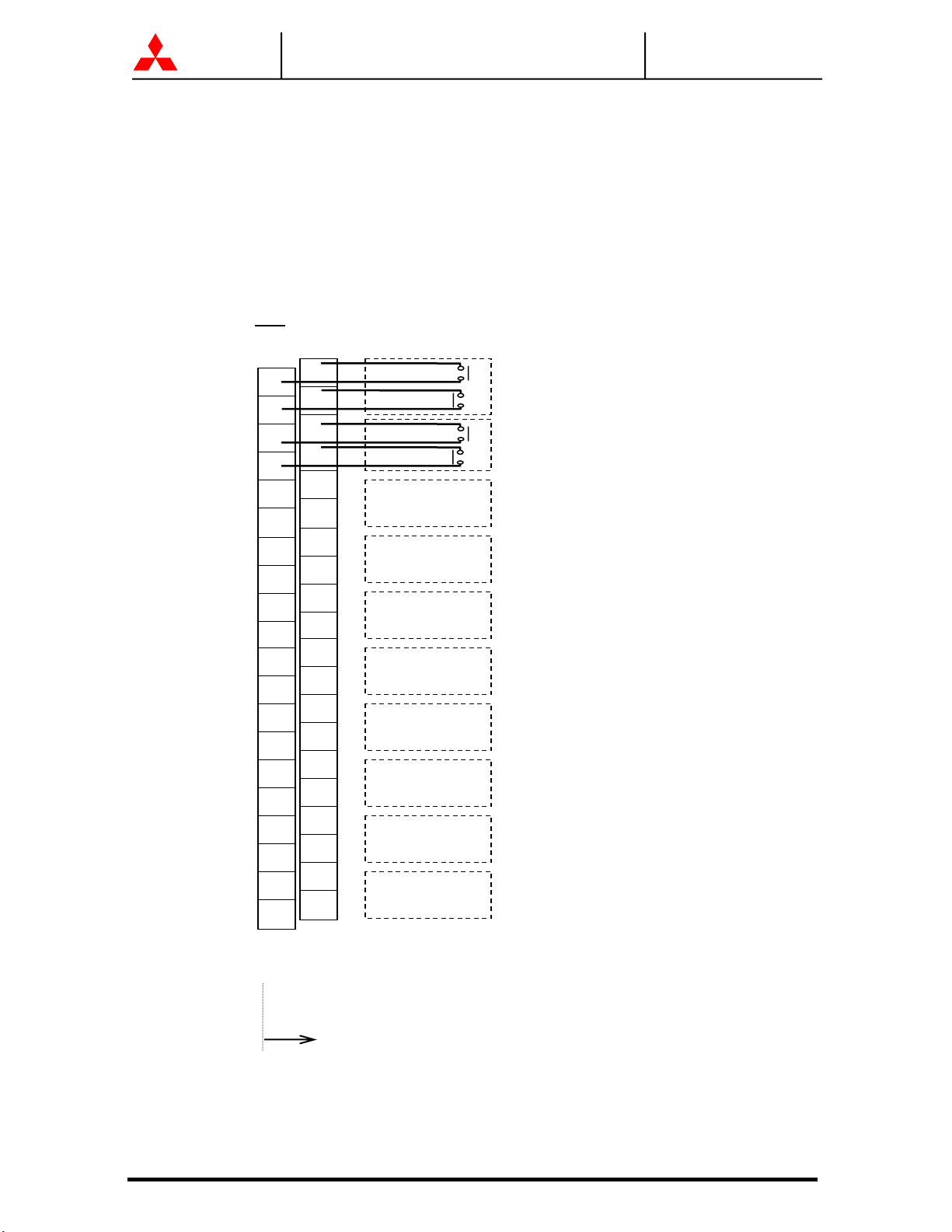

Figure 2.16 Control Wiring for External Contacts ........................................................ 2-10
Figure 2.17 Remote "Start" Contact Connections........................................................ 2-11
Figure 2.18 External communication connector........................................................... 2-13
Figure 3.1 UPS Terminal Designation ...................................................................... 3-7
Figure 3.2 Diagram of input/output bus bars and terminal blocks ............................ 3-8
Figure 3.3 Diagram of Power Wire Connect (Parallel Connection) .......................... 3-10

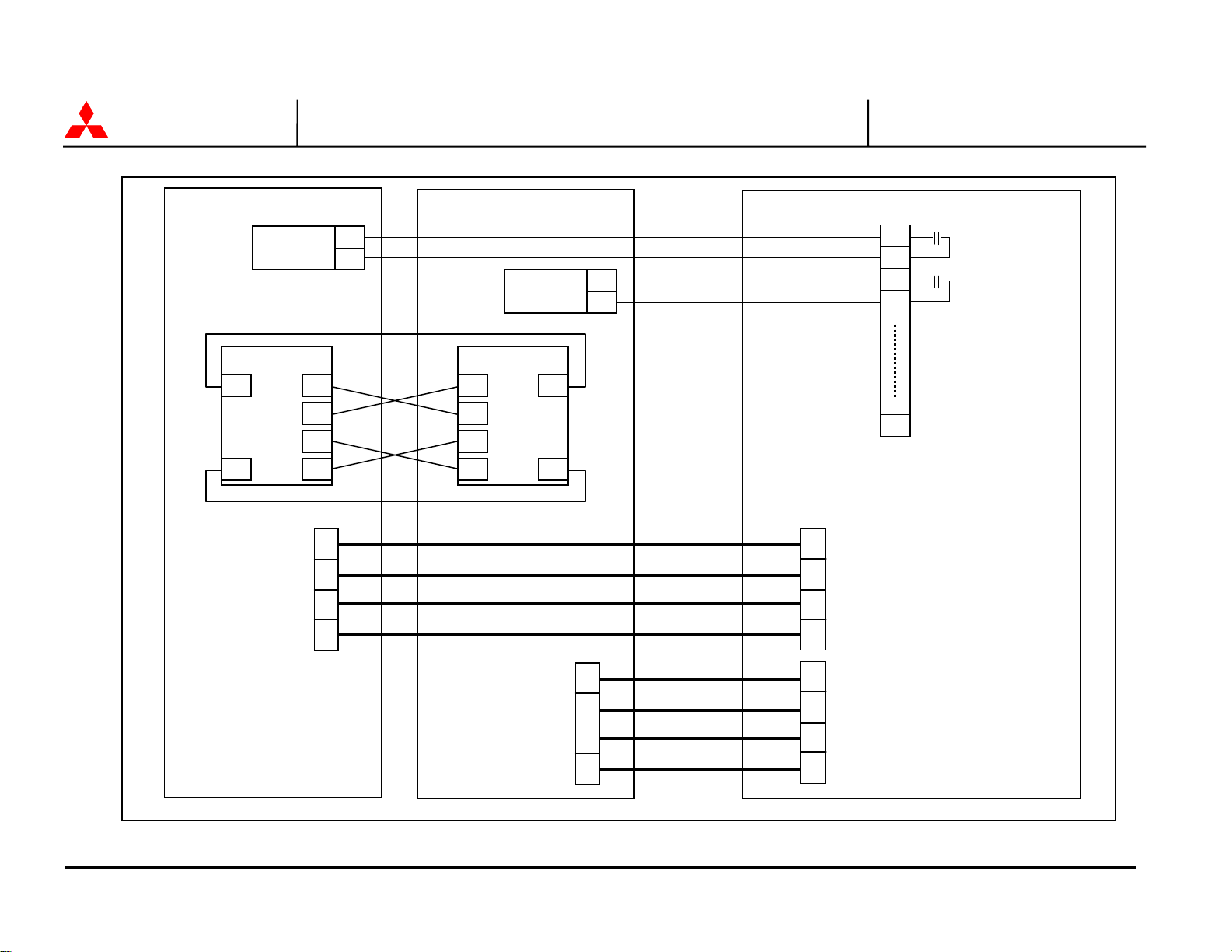

Figure 3.4 Diagram of Power Wire & Control Wire Connect (Parallel Connection ) . 3-11
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
v
How to use this Manual
This manual is designed for ease of use, giving the user easy and quick reference to
information.
This manual uses notice icons to draw attention to the user important information regarding the
safe operation and installation of the UPS. The notice icons used in this manual are explained
below, and should be taken into account and adhered to whenever they appear in the text of
this manual.
Warning: A warning notice icon conveys information provided to protect
the user and service personnel against hazards and/or possible equipment
damage.
Caution: A caution notice icon conveys information provided to protect
the user and service personnel against possible equipment damage.
Note: A Note notice icon indicates when the user should make a reference of
information regarding the UPS operation, load status and display status.
Such information is essential if Mitsubishi field service group assistance and
correspondence is required.
Safety Recommendations: If any problems are encountered while following this manual,
Mitsubishi field service group assistance and correspondence is recommended.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-1
1.0 INTRODUCTION
Your Mitsubishi Uninterruptible Power Supply System (UPS) is designed to provide many
years of reliable protection from power failure, brown-outs, line noise, and voltage transients.
To ensure optimum performance of the equipment, follow the manufacturer's instructions. This
manual contains descriptions required to operate the UPS. Please read this manual carefully
and retain it for future reference.
IMPORTANT SAFETY INSTRUCTIONS
RETAIN THESE INSTRUCTIONS
This manual contains important instructions for the 2033D Series Uninterruptible Power Supply
System that should be followed during installation and maintenance of the UPS and batteries.
WARNING 1
Lethal voltages exist within the equipment during operation. Observe all
warning and cautions in this manual. Failure to comply may result in
serious injury or death. Obtain qualified service for this equipment as
instructed.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-2
WARNING 2
This UPS does not include a Bypass input circuit breaker (MCCB) to protect bypass
circuit. Bypass input circuit breaker (MCCB) are to be field supplied and installed.
Recommended Breaker (MCCB)'s Specifications are as follows:
Recommended
Capacity (kVA) Bypass Voltage (Vac) Bypass Rating (Aac)
Breaker (Aac)
30 480 36 45
50 480 60 80
80 480 96 125
AC input and AC output over current protection and disconnect devices shall be field
supplied and installed. DC output over current protection and disconnect device shall
be field supplied and installed. The over current protection device shall be rated as
indicated in TABLE 1.4.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-3
1.1 GENERAL
The Mitsubishi 2033D Series UPS is designed to provide continuous and clean electrical
power to a critical load. Additionally the UPS monitors power conditions affecting the load.
In the event of an input power failure, the UPS will supply power to the critical load for the
specified battery time.
If the input power is not restored promptly, back up power from the UPS battery permits
the orderly shutdown of equipment supported by the UPS. The UPS is simple to start-up,
operate and maintain.
The 2033D Series UPS is available in three (3) kVA sizes-30, 50 and 80kVA, and also in
two (2) output voltages - 208V and 480V. Specifications for each kVA and voltage model
appear in Section 1.4. 30kVA model have batteries included in the UPS module cabinet.
50 and 80kVA models have external batteries. The principles of operation described herein
are applicable to all models.
This manual provides an overview of the 2033D Series components and their functions.
The appearance and purpose of operator controls and indicators is described with
procedures for operation, start-up, shutdown and basic maintenance included.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-4
1.2 Definitions
UNINTERRUPTIBLE POWER SUPPLY SYSTEM (UPS) - All components within the UPS
Module Cabinet and associated batteries that function as a system to provide continuous,
conditioned AC power to a load. This is sometimes referred to as the "System".
UPS MODULE CABINET - The metal enclosure which contains the Converter, the Inverter,
the Chopper, the Static Transfer Switch, the Internal Bypass line, the operator controls,
and the internal control system required to provide specified AC power to a load.
UPS MODULE - The Converter and Inverter assemblies which, under the direction of the
internal control system and operator controls, provide specified AC power to a load.
CONVERTER/BOOSTER - The UPS components which contain the equipment and
controls necessary to convert input AC power to regulated DC power required for battery
charging and for supplying power to the Inverter.
INVERTER - The UPS components which contain the equipment and controls necessary
to convert DC power from the Converter, or the battery, to AC power required by the
critical load.
CHOPPER - The UPS components which contain the equipment and controls necessary
to charge the battery and supply power to the Inverter from battery.
STATIC TRANSFER SWITCH - The device which connects the critical load to the bypass
line when the UPS module cannot supply continuous power.
BYPASS LINE - The line which conducts electricity directly from the input power source to the
critical load during Maintenance or whenever the UPS is not completely operational.
INPUT POWER - Power provided by the electrical utility company, or auxiliary generator,
which is connected to the UPS for supplying the critical load.
BATTERY - The rechargeable battery strings which supply DC power to the inverter to
maintain continuous AC power to the load during AC input power failure conditions
MITSUBISHI ELECTRIC 2033D SERIES UPS
pp
put
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-5
1.3 Overview
The UPS provides two power paths between the utility source and the critical load.
Figure 1.1 shows the path for normal operation, with the load powered from the inverter.
Figure 1.2 shows the path for bypass operation, with the load supplied through the static
bypass line.
Figure 1.3 shows the path for battery operation, with the load supplied from the inverter.
A) Normal Operation.
FIGURE 1.1 Single Line Diagram - Normal Operation. Load powered by inverter
User
su
CB
CB
lied
52RC
FI
52RS
CONVERTER
Static Transfer
Switch
INVERTER
FB
FO
52C
52CS
AC Bypass
In
AC input
BATTERY
72B
50kVA, 80kVA:
External Battery
Power Flow
Not in Use
UPS Module
Maintenance
Bypass
Switch
Output
During normal operation, the path through the inverter is used to power the load.
Referring to Figure 1.1: Input AC power is converted to DC by the Converter. DC power is
utilized to charge the UPS battery and to provide power to the Inverter. The Inverter
converts the DC power to clean AC power to supply the critical load.
The conversion - inversion process eliminates any voltage transients or fluctuations
existing in the input power before it reaches the critical load.
* The AC Bypass Input circuit breaker (MCCB) for protection of the UPS and cables are field
supplied and field installed. (See WARNING 2 on page 1-2)
MITSUBISHI ELECTRIC 2033D SERIES UPS
pp
put
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-6
B) Internal Static Bypass Line
FIGURE 1.2 Single Line Diagram- Bypass Operation. Load fed through static bypass line.
AC Bypass
In
CB
Static Transfer
Switch
52RS
AC input
User
su
CB
lied
52RC
CONVERTER
FI
INVERTER
FB
72B
FO
52C
BATTERY
50kVA, 80kVA:
External Battery
Maintenance
Bypass
Switch
Output
52CS
Power Flow
Not in Use
UPS Module
Referring to Figure 1.2, the Internal Static Bypass line is a Hard wired line through Static
Transfer Switch which supplies the critical load with unconditioned input power. The
purpose of this line is to route power to the critical load while the UPS module is
de-energized during Start-up before the system is fully operational.
The internal control system determines the operation of the two paths, with the load
powered from the inverter being the normal operation.
MITSUBISHI ELECTRIC 2033D SERIES UPS
pp
put
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-7
C) Inverter supply at battery operation
FIGURE 1.3 Single Line Diagram - Battery Operation
User
su
CB
CB
lied
52RC
FI
52RS
CONVERTER
Static Transfer
Switch
INVERTER
FB
FO
52C
AC Bypass
In
AC input
BATTERY
72B
50kVA, 80kVA:
External Battery
Referring to Figure 1.3: In the event of AC input source failure or interruption, the
converter will de-energize and the battery will immediately discharge and supply DC
Maintenance
Bypass
Switch
Output
52CS
Power Flow
Not in Use
UPS Module
power to the inverter to maintain continuous AC power to the load. This operation will
continue until:
a) The battery capacity expires and the inverter turns off, or
b) Input power is restored after which the converter will power the inverter and critical
load and simultaneously recharge the batteries.
A fully charged battery will provide power for the specified time at the rated load, or longer,
at a reduced load.
When power is restored after a low battery shutdown, the converter automatically restarts
operation, recharges the batteries and the Inverter is automatically restarted without
operator intervention. Load is automatically assumed by the inverter without operator
intervention.
The power drawn by the load is equally shared between all system UPS during battery
operation.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
FIGURE 1.4-a UPS Parts Location (30kVA)
UPS module
FRONT VIEW
Converter Unit
Chopper Unit
52RS
52RC
72B
1. External I/F
Circuit PCB
IOAU-05
Parallel
I/F PCB
GND GND ELEC
TERM
FIGURE 1.4-b UPS Parts Location (50kVA, 80kVA)
Page Number:
1-8
Inverter
unit
DC
Capacitor
52CS
52C
2. Grounding Bar
Converter
Chopper Unit
52RS
52RC
1. External I/F
Circuit PCB
IOAU-05
UPS module
FRONT VIEW
GND
Inverter
unit
52C
52CS
72B
Parallel
I/F PCB
2. Grounding Bar
GND ELEC TERM
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
FIGURE 1.5 UPS Parts Location (Continued)
UPS module
BACKSIDE OF FRONT DOOR(Right side)
5
INVERTER
START
|
Page Number:
SYNC.LED
INVERTER
STOP
1-9
6
|
FIGURE 1.6 External I/F PCB IOAU-05
4. RS232C D-sub Connector
|
FAULT
RESET
7
|
MAINTENANCE
BUTTON
8
|
TEST
SWITCH
9
3. External Contact Signal Terminal
IOAU-05
|
BOOT
SWITCH
10
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-10
Description of Figures 1.4, 1.5, and 1.6:
1. External I/F Board (IOAU-05) : FOR SERVICE PERSONNEL ONLY (FIGURE 1.6):
- (3) External contact signal terminal
- (4) RS232C communication connector
2. Grounding Bar (E)
3. External Contact Signal Terminal Block - Terminal block to connect contact signal
input/output lines to and from the external devices. Refer to Figure 2.15 section 2.5 for
details.
4. RS232C Communication Connector - Refer to Figure 2.18 section 2.6 for details.
5. “INVERTER” START Switch - This switch is used to transfer the UPS from static bypass
to inverter during maintenance purposes. Transfers will lock-out if the bypass voltage is
more than +10%,-10% of nominal.
* Uninterrupted switching is made at the time of synchronous operation. Switching is impossible at
the time of asynchronous operation.
6. “INVERTER STOP” Switch - This switch is used to transfer the UPS from inverter to static
bypass during maintenance purposes. Do not operate it under normal operation. Transfers
will lock-out if the bypass voltage is more than +10%,-10% of nominal.
* Uninterrupted switching is made at the time of synchronous operation. Switching is impossible at
the time of asynchronous operation.
7. “FAULT RESET” Switch (FOR SERVICE PERSONNEL ONLY) - This switch resets
errors resulting from alarm conditions. (Do not operate this switch while inverter and
converter are in operation.)
8. Maintenance (Set) Button (FOR SERVICE PERSONNEL ONLY) - This switch sets the
UPS menu parameters.
9. “Test mode” Switch (FOR SERVICE PERSONNEL ONLY) - This switch changes system
operation to the test-mode. (This switch should not be operated by personnel other than
an Authorized Service Engineer).
10. “BOOT” Switch (FOR SERVICE PERSONNEL ONLY) - This switch boots the processor
in the main control circuit resulting from alarm conditions. (Do not operate this switch
while inverter and converter are in operation).
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-11
1.4 Specifications
The UPS name plate displays the rated kVA as well as nominal voltages and currents. The
name plate is located on the inside of the UPS front door.
TABLE 1.1 Power Specifications
Rated output
Power
30kVA / 24kW
50kVA / 40kW
80kVA / 64kW
Input voltage
3 phase / 3 wire
480V
480V
480V
Bypass input voltage
3 phase / 3 wire
480V
480V
480V
Output voltage
3 phase / 3 or 4 wire
208V or 480V
208V or 480V
208V or 480V
TABLE 1.2 UPS Module Information
UPS
[kVA]
CABLE
ENTRY
WIDTH
[in / mm]
DEPTH
[in / mm]
HEIGHT
[in / mm]
WEIGHT
[lb./ kg]
HEATING
[kBTU/h]
30 BOTTOM 33.9 / 860 31.5 / 800 70.9 / 1800 2060 / 930 9.1
50 BOTTOM 33.9 / 860 31.5 / 800 70.9 / 1800 1810 / 820 13.5
80 BOTTOM 33.9 / 860 31.5 / 800 70.9 / 1800 1990 / 900 21.6
MITSUBISHI ELECTRIC 2033D SERIES UPS
TABLE 1.3 Detail of Specifications
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
1-12
Rated Output kVA 30 50 80
Rated Output kW 24 40 64
AC INPUT
Configuration 3 phase, 3 wire
Voltage 480 V +15% to -15% (-30% can be operated)
Frequency 60 Hz (45.4Hz to 65Hz)
Reflected Current THD 4% typ. at 100% load; 7% typ. at 50% load
STATIC BYPASS INPUT
Configuration 3 phase, 3 wire
Voltage 480 V +/-10%
Frequency 60 Hz
BATTERY
Type Lead Acid
Ride Through Application Specific
Nominal Voltage 480 Vdc
Minimum Voltage 401 Vdc
Number of Cells 240
AC OUTPUT
Configuration 3 phase, 4 wire
Voltage 120/208 V, 277/480 V
Voltage Stability +/-1%
Frequency 60 Hz
Frequency Stability +/-0.05% in free running mode
Power Factor 0.8 nominal
Power Factor range 0.8 - 1.0 lagging (within output kW rating)
Voltage THD 2% typical THD at 100% Linear Load
5% typical THD at 100% non-linear load
Transient Response +/-3% at 100% load step
+/-1% at loss/return of AC power
+/-3% at load transfer to/from static bypass
Transient Recovery 16.6ms
Inverter Overload 125% for 10 minutes, 150% for 1 minute
System Overload 1000% for 1 cycle (with bypass available)
Bypass Overload 150% for 1 minutes
ENVIRONMENTAL
Cooling Forced Air
Operating Temperature
32ﾟF ~ 104ﾟF (0ﾟC - 40ﾟC)
Recommended 68ﾟF - 86ﾟF (20ﾟC - 30ﾟC)
Relative Humidity 5% ~ 95% Non Condensing
Altitude 0 ~ 9000 feet No Derating
Location Indoor (free from corrosive gases and dust)
(PCB conformally coated for use in industrial environment)
Paint Color Munsell 5Y7/1 (Beige)
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
TABLE 1.4 Rating of Contactors and Fuses
NUMBER APPLICATION
30VA 50kVA 50kVA 80kVA
208V 480V 208V 480V 208V 480V 208V 480V
Page Number:
1-13
OUTPUT CAPACITY OF EQUIPMENT
2033D-B 2033D-A 2033D-B
C
O
N
T
A
C
T
O
R
F
U
S
E
52RC AC Input
52C AC Output
52RS Bypass Contactor 60A 100A
72B Battery Disconnect
88RC Control circuit
FIU, FIV, FIW Inverter
Output Fuse
FOU, FOV, FOW Inverter
Output Fuse
FUA, FUB, FUC Control
Power Fuse
FSU, FSV, FSW
(Option)
FBP, FBN DC Input
FZS1, 2, 3 Bypass Input
FBS1, 2 Control
Power Fuse
FUF1, 2 Control
Power Fuse
FZR1, 2, 3 AC Input
Contactor
Contactor
Contactor
Contactor
Bypass
Input Fuse
Fuse
ZNR Fuse
ZNR Fuse
60A 100A
60A 100A
80A 135A 200A
90A
80A/660V 140A/660V
80A/660V 140A/660V
30A/600V
140A/660V 280A/660V
125A/1250V 200A/1250V 350A/1250V
16A/500V
10A/600V
10A/600V
16A/500V
MITSUBISHI ELECTRIC 2033D SERIES UPS
V
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
2.0 OPERATOR CONTROLS AND INDICATORS
The 2033D Series operator controls and indicators are located as follows:
Circuit breakers and contactors: Inside the module
UPS status indicators: Outside of front door
FIGURE 2.1 Operation/Display Panel (Front panel)
3
2
1
LOAD ON
INVERTER
BATTERY
OP.
LOAD ON
BYPASS
LCD
FAULT
UPS
FAULT
Page Number:
2-1
4
5
6
8
EMERG.STOP
540
52RC 52C
72B
9
48A
STS
MBP
7
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
2.1 LED Display
1) Load on inverter [ LOAD ON INVERTER ](green)
Illuminates when power is supplied from inverter to the critical load.
(Indicates the state of inverter transfer switch "52C".)
2) Battery operation [ BATTERY OP. ](yellow)
Illuminates when power is supplied from batteries following a power failure.
3) Load on bypass [ LOAD ON BYPASS ](green)
Illuminates when power is supplied to load devices by static bypass.
4) Overload [ OVERLOAD ](red)
Illuminates in overload condition.
5) LCD fault [ LCD FAULT ](red)
Illuminates when an error occurs.
6) UPS fault [ UPS FAULT ](red) [Annunciater: intermittent or constant tones]
Illuminates when an error occurs in the system. In this case, the details of the error are
indicated on the display panel.
2-2
2.2 MBP Lamp (Maintenance Bypass Pilot Lamp) (7)
When operated in maintenance bypass mode, this lamp will be illuminated.
2.3 EPO button (Emergency Power Off button) (8)
When activated, the Emergency Power Off (EPO) function shuts down the UPS module.
The critical load will lose power and also shutdown. The EPO function can be performed
both locally or remotely.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
2-3
2.4 Liquid Crystal Display (9)
The Liquid Crystal Display (LCD) panel indicates power flow, measured values,
operational guidance, data records and error messages. The LCD panel has a back-light
which facilitates viewing in different ambient lighting conditions. The LCD will automatically
clear and turn off, if the screen is not activated within 3 minute period. The LCD is turned
back on when it is touched again. The ERROR indicator is cleared after 24 hours and can
be reproduced by pressing any key on the panel.
2.4.1 Menus
A) MAIN MENU (FIGURE 2.2)
The LCD panel indicates power flow and measured values, while also operating the
start/stop function. The LCD panel also allows the user to verify the status and operation
of the UPS Module.
FIGURE 2.2 Main screen
540V
52RC
48A
STS
52C
72B
The following will be displayed when the START/STOP key on the LCD panel is
pressed:
1.) Start/Stop screen (FIGURE 2.3)
The display indicates the start and stop operations for the UPS system. If this
operation is PIN protected, the user is required to enter the security PIN before the
screen can be accessed. Refer to (FIGURE 2.4).
When in remote mode, the message “REMOTE operating mode !” will appear on this
Screen. The user cannot operate the start and stop functions without changing the
setup from remote mode to local mode.
When bypass voltage is abnormal, the message “Bypass voltage abnormal” will appear.
-Start: When the bypass voltage is abnormal, the LCD asks the operator if an
interrupted transfer is acceptable (Load may be lost). (FIGURE 2.5)
-Stop: When the bypass voltage is abnormal, the user cannot transfer from inverter
to bypass line.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
2-4
FIGURE 2.3 Start/Stop screen
52RC
72B
STS
52C
FIGURE 2.4 PIN protection screen FIGURE 2.5 Bypass voltage abnormal
message screen
f
B) MEASUREMENT MENU (FIGURE 2.6)
This screen shows details of measured values. Bypass voltage, input voltage, output
line to line voltage and output frequency are displayed. Output currents are displayed as
RMS values.
FIGURE 2.6 Measurement screen
540V
32kW
STS
52RC
72B
52C
48A
48A
48A
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
2-5
C) SETUP MENU (FIGURE 2.7)
This screen prompts the user to select: (a) whether the start & stop operation will be
performed by local, remote or both operations; (b) date & time setup; (c) battery
equalizing charge. The battery equalizing charge operation key will appear when battery
equalizing charge is set up (Setup is based on battery type).
FIGURE 2.7 Setup screen
DATE & TIME SETUP
(H) : (M) (M)-(D) ‘(Y)
15 : 24 01 - 12 ‘99
BOTH
D) LOG MENU (FIGURE 2.8)
This menu shows operation / failure and battery discharge records.
FIGURE 2.8 Log select screen
1.) Event log (FIGURE 2.9)
Operation and failure records are indicated. Maximum of 50 events are displayed.
FIGURE 2.9 Event log screen
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
2.) Battery log (FIGURE 2.10)
This screen displays the cumulative battery discharging record.
FIGURE 2.10 Battery log screen
2033D SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
2-6
36A
2.4.2 INPUT POWER FAILURE
During an Input Power Failure, the UPS inverter will be powered by the UPS batteries.
The following will be displayed on the main and measurement screen (Indication of
battery remaining capacity).
FIGURE 2.11 Main screen FIGURE 2.12 Measurement screen
(Battery operation) (Battery operation)
72B
48A
STS
52C
480V
32kW
48A
480V
52RC
48A
48A
48A
The LCD will display a battery low voltage message when the battery capacity is near
depletion. The End of Battery Discharge announcement is displayed when the battery
end voltage is reached. At this time, the inverter will perform an electronic shutdown to
prevent battery loss of life typical from extreme deep discharge conditions. When the
input power is restored, the inverter will automatically restart to power the load, and
the batteries will be simultaneously recharged. The End of Battery announcement is
shown at the bottom of the screen.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
2.4.3 FAULT INDICATION (FIGURE 2.13)
“MESSAGE” and “SILENCE ALARM” buttons will appear on the main menu when
UPS failure condition has occurred.

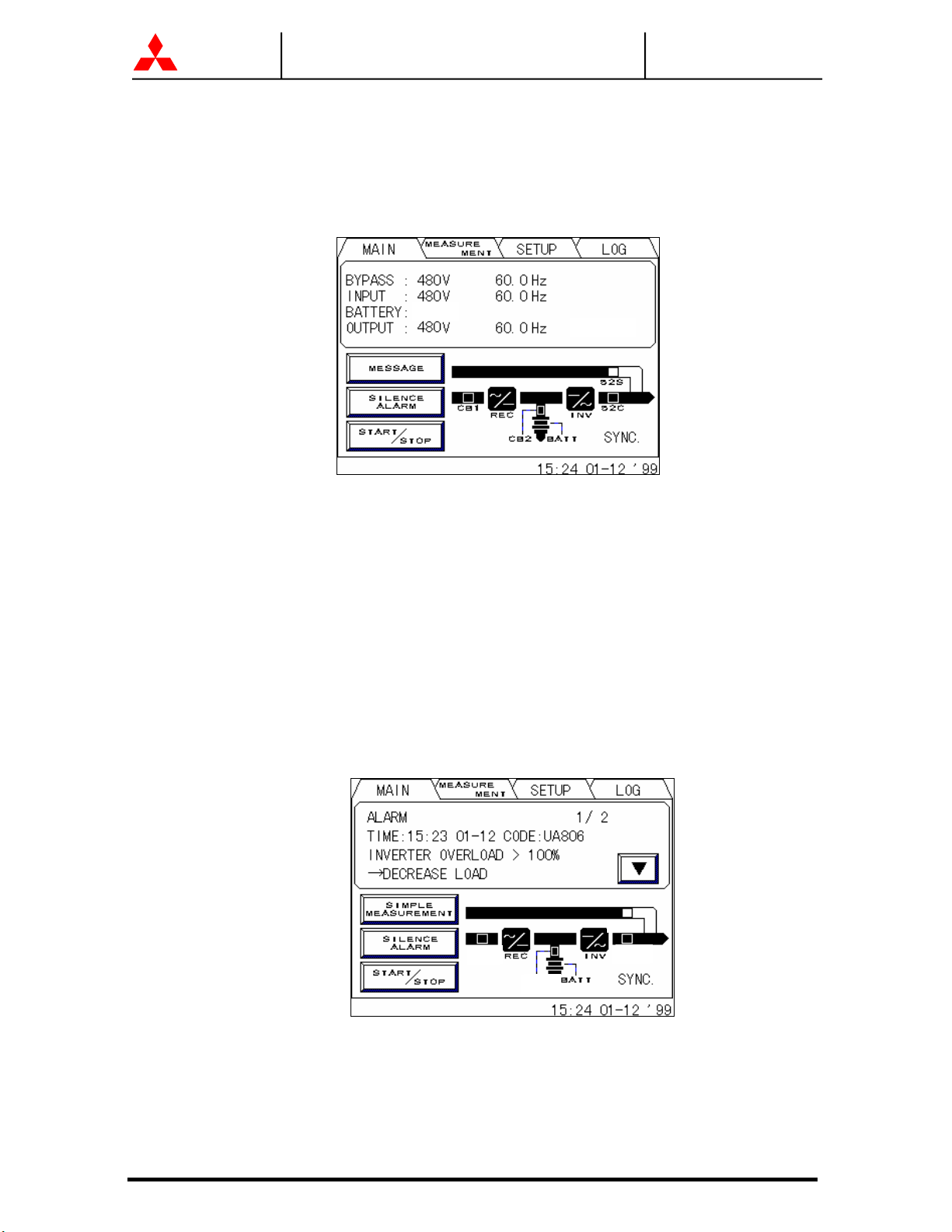

FIGURE 2.13 Main screen (Fault indication)
Page Number:
2-7
48A
The following will be displayed when the message key on the LCD panel is pressed.
1)
Message (FIGURE 2.14)
The display shows a fault code, the description of the fault and a guidance of what
action is to be taken by the user. A maximum of 10 faults is displayed at one time. If
an input power failure occurs during a fault condition, the fault indication and input
power failure announcement are alternatively displayed at 5 second intervals.
FIGURE 2.14 Message screen
52RC
52RC
72B
72B
STS
52C
STS
52C
2) Silence alarm
This key will appear when a failure occurs. The audible alarm (announcing the failure)
can be silenced by pressing this key.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
2-8
2.5 External Signal Terminal Block
The UPS is equipped with a series of input/output terminals for external annunciation of
alarms and for remote access of certain UPS functions. The layout of terminals is shown in
Figure 2.15-1, -2 with a functional description of the input/output port presented. OUT1 to
OUT9 are user programmable, but factory default setting are shown in Figure 2.15.
FIGURE 2.15-1 External Signal Terminal Block (NEC Class2)
TN1
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
2
4
6
8
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
FAULT
OUT1: LOAD ON BYPASS
OUT2: LOAD ON INVERTER
OUT3: BATTERY OPERATION
OUT4: CONVERTER OPERATION
OUT5: BATTERY LOW VOLTAGE
OUT6: OVERLOAD
OUT7: BYPASS SYNC.
OUT8: MINOR FAULT
OUT9: TOTAL ALARM
UPS
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
2-9
FIGURE 2.15-2 External Signal Terminal Block (NEC Class2)
TN2
10
12
14
16
18
20
22
24
26
28
30
2
4
6
8
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
IN1: REMOTE INVERTER START
IN2: REMOTE INVERTER STOP
IN3: BATTERY TEMP. HIGH
IN4: POWER DEMAND
IN5: ANOTHER UPS
RECTIER OPERATION
IN6: ASYNCHRONOUS
IN7: CHARGE IL.
IN8: CHARGE RATE2
IN9: EQUALIZING
REMOTE EPO
52L AX
52C AX
(User supplied dry
contact)
(User supplied sensor
and dry contact)
(User supplied dry
contact)
(User supplied dry
contact)
UPS
MITSUBISHI ELECTRIC 2033D SERIES UPS
N
MITSUBISHI
ELECTRIC
A) Output Contacts (for external alarm annunciation)
Output contacts consist of form “A” dry type contacts. Rated capacity of all output
contacts is NEC Class2 (30Vdc/1Adc). All dry contacts should be operated at their
rated values or lower. Figure 2.16 illustrates a typical installation. The external relay
can also be a lamp, LED, computer, etc.

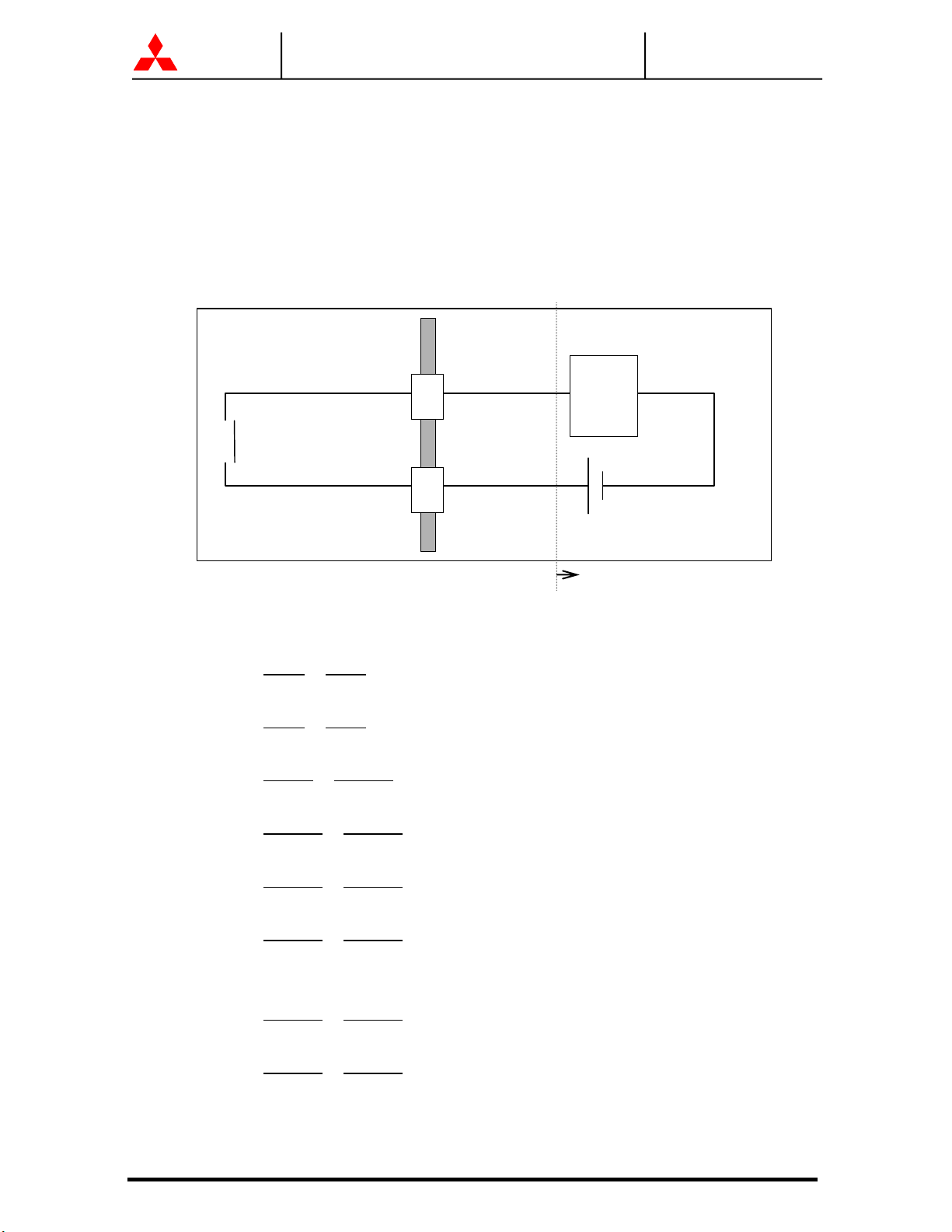

FIGURE 2.16 Control Wiring for External Contacts
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
2-10
UPS Cabinet External to UPS
Relay
Contact
Cabinet
Termina l
Termina l
Relay
Coil
EC Class 2
Power Source
Details of output alarm contacts : TN1
Terminals 1 to 2
Terminals 5 to 6
, 3 to 4 "UPS failure" contact
Activated when a major fault has occurred to the system.
, 7 to 8 "Load on Bypass" contact (OUT1)
Activated when the power is supplied from the static bypass input.
User supplied
Terminals 9 to 10
Activated when the power is supplied by the inverter.
Terminals 13 to 14
Activated when the battery is operating following an AC power failure.
Terminals 17 to 18
Activated when the converter is operating.
Terminals 21 to 22
Activated when the battery voltage drops below discharge end voltage level
during inverter operation (i.e. During AC fail condition).
Terminals 25 to 26
Activated when an overload has occurred to the system.
Terminals 29 to 30
Activated when the system is in sync. Mode.
, 11 to 12 "Load on Inverter" contact (OUT2)
, 15 to 16 "Battery Operation" contact (OUT3)
, 19 to 20 "Converter Operation" contact (OUT4)
, 23 to 24 "Battery Low Voltage" contact (OUT5)
, 27 to 28 "Overload" contact (OUT6)
, 31 to 32 "Bypass Sync.” contact (OUT7)
MITSUBISHI ELECTRIC 2033D SERIES UPS
t
y
y
t
t
y
t
MITSUBISHI
ELECTRIC
Terminals 33 to 34, 35 to 36 "Minor Fault” contact (OUT8)
Activated when a minor fault has occurred to the system.
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
2-11
Terminals 37 to 38
Activated when an alarm, a minor fault, or a major fault has occurred to the
system.
NOTE: The UPS is equipped with a selectable output contact feature. The above
, 39 to 40 "Total Alarm” contact (OUT9)
alarms are the default settings. Contact MITSUBISHI ELECTRIC
AUTOMATION, INC. for setup information.
B) Input Contacts (for remote access of UPS)
External contacts are provided by the user of the UPS system. Terminal voltage at the
UPS is 24Vdc. Provide external dry contact accordingly.
NOTE: Do not apply voltages to remote access input terminals. Damage to UPS
may result.
Refer to Figure 2.17 for a typical wiring configuration. Although this figure applies to
the remote start/stop terminals, the same wiring arrangement is used for emergency
stop; battery liquid low; and battery temperature high.

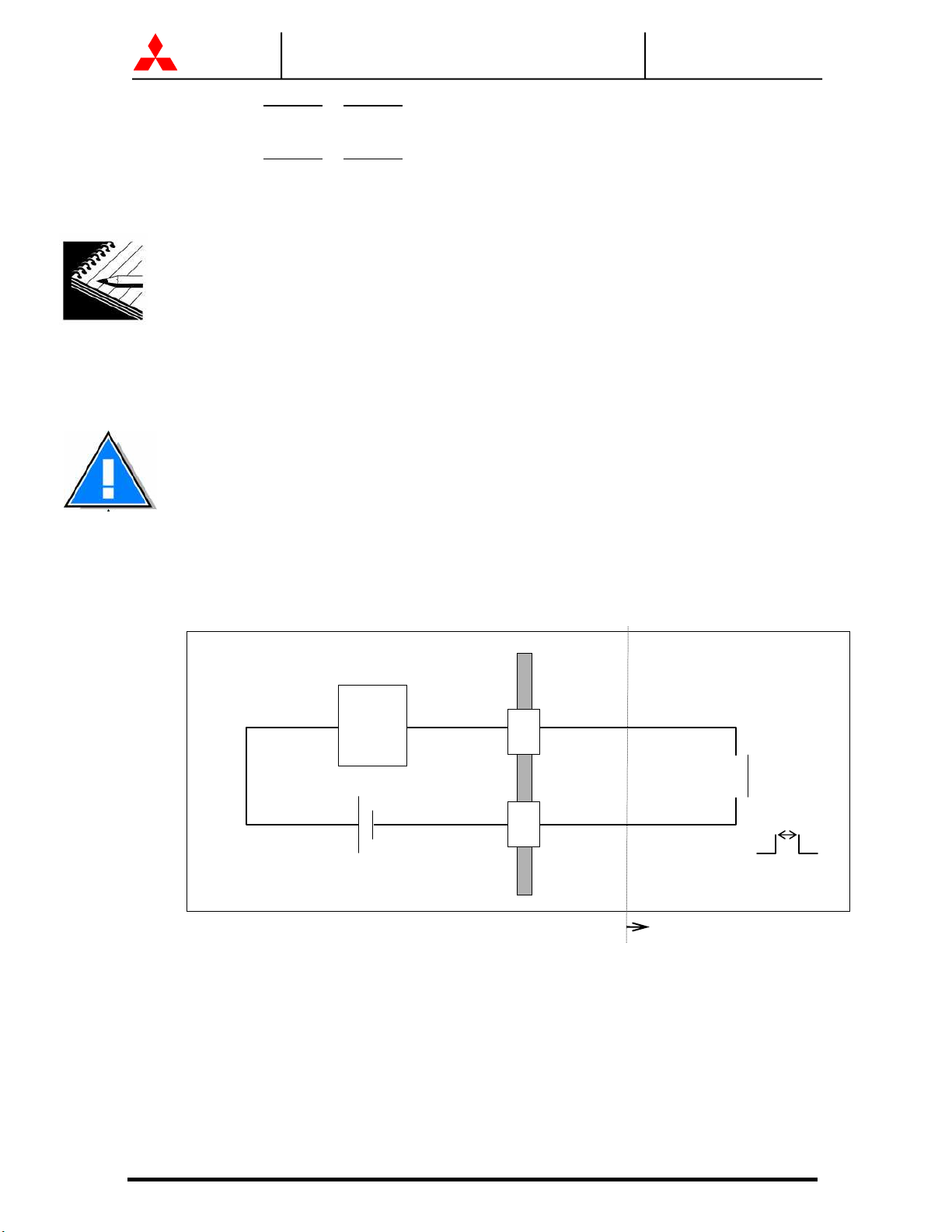

FIGURE 2.17 Remote "Start" Contact Connections
UPS Cabine
Rela
Star
Coil
Common
24 VDC
Relay Coil current : 8.3mA
Details of input contacts for remote access : TN2
Terminals 1 to 2 Remote "Inverter Start" input terminal (IN1)
Used to start inverter from a remote location. UPS must be programmed for
remote operation. Refer to Operations Menu for procedure.
Terminals 3 to 4 Remote "Inverter Stop" input terminal (IN2)
Use Momentar
User supplied
External to UPS
Cabine
Star
Switch
0.5S - 4S
ON
OFF
Switches Onl
Used to stop inverter from a remote location. UPS must be programmed for
remote operation. Refer to Operations Menu for procedure.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
2-12
Terminals 5 to 6 "Battery Temp. High" contact input (IN3)
Input fed by a thermostat that monitors battery temperature. The converter
float voltage level is reduced for battery over-temperature conditions.
External thermocouple is user supplied
Terminals 7 to 8 "Power Demand Command" contact input (IN4)
This contact is used to control the input power. Power demand is turned ON
when the contact is closed, and power demand is turned OFF when the
contact is open.
Terminals 9 to 10 "Another UPS Converter Operation" contact input (IN5)
Used for MMS mode, this contact is used to see if other UPS’ are in
converter operation or not. When the contact is closed, then at least one of
the other UPS’ converter is operating. When the contact is open, then all the
other UPS’ converters are not operating.
Terminals 11 to 12 " Asynchronous " contact input (IN6)
This contact is used to control sync. mode. The system is in asynchronous
mode when the contact is closed, and is in synchronous mode when the
contact is open.
Terminals 13 to 14 " Charger IL. " contact input (IN7)
This contact is used to control charging of the batteries. When the contact is
closed, UPS will stop charging batteries. When the contact is open, UPS will
start charging the batteries.
Terminals 15 to 16 " Charge Rate 2" contact input (IN8)
This contact is used to change the battery charge rate setting. Charge rate 2
is used when the contact is closed, and charge rate 1 is used when the
contact is open.
Terminals 17 to 18 " Equalizing " contact input (IN9)
This contact is used to control equalizing of the batteries. Equalizing is
turned ON when the contact is closed, and is turned OFF when the contact
is open.
Terminals 19 to 20 "Remote EPO" contact input
Used to perform a remote UPS Emergency Power Off (EPO).
The load will be dropped.
NOTE:
The UPS is equipped with a selectable output contact item. The above
items are the default settings. Contact MITSUBISHI ELECTRIC
AUTOMATION, INC. for setup information
NOTE :
In all cases, a switch having a protective cover is recommended in order to
.
reduce the possibility of accidental operation.
MITSUBISHI ELECTRIC 2033D SERIES UPS
)
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
2.6 External communication connector
This is an RS232C port for “DiamondLink”* monitoring software.
The layout of connector is shown in Figure 2.18.
FIGURE 2.18 External communication connector (NEC Class2)
Pin 1. : Not used
Pin 2. RXD : Receive data
Page Number:
2-13
D-SUB 9Pin (male
Pin 3. TXD : Transmit data
Pin 4. : Not used
Pin 5. GND : Signal ground
6
7
8
9
1
2
3
4
Pin 6. : Not used
Pin 7. : Not used
Pin 8. : Not used
Pin 9. : Not used
PCB IOAU-05
* Consult MITSUBISHI ELECTRIC AUTOMATION, INC. for details on
monitoring software and its capabilities.
“
DiamondLink”
MITSUBISHI ELECTRIC 2033D SERIES UPS
3
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
3.0 INSTALLATION AND OPERATION
3.1 Transportation and Installation
TABLE 3.1 How to transport and install the system
Transportation Installation
Page Number:
-1
Transport unit with forklift.
Carry with overhead crane using
eyebolts provided.
Note :
Do not transport in a horizontal position. Cabinets must be maintained
upright within +/- 15° of the vertical during handling
3.2 Installation Procedure
A) Note the load tolerance of the floor
Refer to Table 3.2 for list of UPS weights.
TABLE 3.2 List of UPS weights
UPS Capacity (kVA) 30 50 80
Weight (lb) 2060 1810 1990
B) Minimum clearance required for ventilation
Right side 1.0" (25 mm) (not required when sidecars are used)
Left side
1.0" (25 mm) (not required when sidecars are used)
Using the pre drilled holes (4 - 24) in the
UPS channel base, anchor the unit using
appropriate hardware. (Not provided)
.
Back side
Top side
0.0" (0.0 mm)
23.6" (600 mm) (for air flow)
C) Space requirement for routine maintenance
Allow for the following space at the time of installation.
Front
Sides
Rear
39.4" (1000 mm)
0.0" (0.0 mm)
0.0" (0.0 mm)
MITSUBISHI ELECTRIC 2033D SERIES UPS
3
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
D) Battery
Please refer to the following when installing and maintaining batteries:
1. Servicing of batteries should be performed or supervised by personnel
knowledgeable of batteries and the required precautions. Keep unauthorized
personnel away from batteries.
2. When installing or replacing batteries, install or replace with the same number
and type per Table 3.3
TABLE 3.3 Type and number of battery
Type Manufacturer Number
30kVA NPX-80 Yuasa Corp. 40
50kVA, 80kVA
Page Number:
-2
Note: 50kVA and 80kVA UPS batteries are external to module cabinet.
Please refer to the remote battery supply installation manual.
3. CAUTION - Do not dispose of battery or batteries in a fire. The battery may
explode.
4. CAUTION - Do not open or mutilate the battery or batteries. Released
electrolyte is harmful to the skin and eyes and may be toxic.
5. CAUTION - A battery can present a risk of electrical shock and high short
circuit current. The following precautions should be observed when working
on batteries:
(1) Remove watches, rings, or other metal objects.
(2) Use tools with insulated handles.
(3) Wear rubber gloves and boots.
(4) Do not lay tools or metal parts on top of batteries.
(5) Disconnect charging source prior to connecting or disconnecting battery
terminals.
MITSUBISHI ELECTRIC 2033D SERIES UPS
3-3
MITSUBISHI
ELECTRIC
E) External Battery Supply
Please refer to the following when installing and maintaining batteries:
1. The customer shall refer to the battery manufacturer's installation manual for
battery installation and maintenance instructions.
2. The maximum permitted fault current from the remote battery supply, and the
DC voltage rating of the battery supply over-current protective device are
shown in Table 3.4.
TABLE 3.4 Maximum Permitted Fault Current
2033D SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
UPS CAPACITY
(kVA)
DC VOLTAGE
RATING (V)
MAXIMUM PERMITTED
FAULT CURRENT (A)
30 480 25000
50 480 25000
80 480 25000
3.3 Procedure for Cable Connections *
i. Confirm the capacity of the UPS being installed. Identify the input/output power
terminal blocks as shown in the appropriate Figures 3.1-a, b through 3.2-a, b.
ii. Connect the grounding conductor from the input service entrance to the UPS ground bar.
*Wire per local and/or national code.
iii. Two (2) sources feeding the UPS
:
(1) Connect the converter input power cables from the input service entrance to the
converter input power terminals, identified as A, B, C in Figures 3.2-a, b. Input
cables must be sized for an ampere rating larger than the maximum input drawn
by the converter. (Refer to equipment nameplate for current ratings.) Refer to
Table 3.5 for recommended cable sizes.
(2) Confirm that an external bypass input circuit breaker (MCCB) is installed (refer to
WARNING 2, page 1-2). Connect the bypass input power cables from the input
service entrance to the bypass input power terminals, identified as A40, B40, and
C40 in Figures 3.2-a, b. Bypass input cables must be sized for an ampere rating
larger than the maximum output current capacity of the UPS. Refer to Table 3.5
for recommended cable sizes.
(3) Referring to Figures 3.2-a, b, connect UPS load terminals A50, B50, C50 and N50
to the load distribution panel. Refer to Table 3.5 for cable sizes.
(4) Connect the external signal terminal block as desired. Refer to section 2.5 and Figure
2.15 for functional description. 12 AWG, or less, shielded conductor is recommended.
MITSUBISHI ELECTRIC 2033D SERIES UPS
3
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
iv. One (1) source feeding the UPS
(1) Confirm that an external input circuit breaker sized to protect both the converter
input and the bypass line is installed. (Refer to equipment nameplate for current
ratings.) Connect the bypass input power cables from the input service entrance to
the bypass input power terminals, identified as A40, B40, and C40 in Figures 3.2-a,
b. Input cables must be sized for an ampere rating larger than the maximum current
capacity of the UPS. Refer to Table 3.5 for recommended cable sizes.
(2) Using adequately sized conductors per Table 3.5 and referring to the appropriate
figure identified in Figures 3.2-a, b, connect jumper bypass terminals A40, B40,
C40 to converter input power terminals A, B, C as identified in Figures 3.2-a, b.
(3) Referring to Figures 3.2-a, b, connect UPS load terminals A50, B50, C50 and N50
to the load distribution panel. Refer to Table 3.5 for cable sizes.
(4) Connect the external signal terminal block as desired. Refer to section 2.5 and Figure
2.15 for functional description. 12 AWG, or less, shielded conductor is recommended.
NOTES:
1. Confirm that all UPS internal contactors (breakers) "52RC "72B",”52RS”,
2033D SERIES UPS
:
Page Number:
-4
and "52C" are open before energizing UPS.
2. UPS power terminals are supplied with stud type fittings. It is recommended
that compression lugs be used to fasten all input/output power cables. Refer to
Table 3.6 for recommended compression lugs and appropriate crimping tool.
MITSUBISHI ELECTRIC 2033D SERIES UPS
3-5
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
TABLE 3.5 Recommended cable size and torque requirements
Page Number:
kVA
Capacity
30kVA
50kVA
80kVA
*1 – The cables must be selected to be equal to or larger than the sizes listed in the table.
*2 - Voltage drop across power cables not to exceed 2% of nominal source voltage -
Input
Voltage
480V 480V 6 AWG
480V 208V 6 AWG
480V 480V 3 AWG
480V 208V 3 AWG
480V 480V 1/0 AWG
480V 208V 1/0 AWG
Output
Voltage
Input Side * 1, 2 Output Side * 1, 2 Bypass Side * 1, 2 DC Input Side * 1, 2
Cable
Size
or larger
or larger
or larger
or larger
or larger
or larger
Torque
in. lbs
42-56
in. lbs
42-56
in. lbs
200 - 269
in. lbs
200 - 269
in. lbs
200-269
in. lbs
200-269
in. lbs
Cable
Size
6 AWG
or larger
1 AWG
or larger
4 AWG
or larger
3/0 AWG
or larger
1/0 AWG
or larger
2x2/0 AWG
or larger
Torque
in. lbs
42-56
in. lbs
200-269
in. lbs
100-135
in. lbs
347-469
in. lbs
200-269
in. lbs
347 - 469
in. lbs
Cable
Size
6 AWG
or larger
6 AWG
or larger
3 AWG
or larger
3 AWG
or larger
1/0 AWG
or larger
1/0 AWG
or larger
Torque
in. lbs
42-56
in. lbs
42-56
in. lbs
200 - 269
in. lbs
200 - 269
in. lbs
200-269
in. lbs
200-269
in. lbs
Cable
Size
4 AWG
or larger
4 AWG
or larger
1 AWG
or larger
1 AWG
or larger
4/0 AWG
or larger
4/0 AWG
or larger
Torque
in. lbs
100-135
in. lbs
100-135
in. lbs
200-269
in. lbs
200-269
in. lbs
347-469
in. lbs
347-469
in. lbs
*3 - Allowable ampere rating based on 75 C insulation at ambient temperature of 40 C
No more than 3 conductors in a raceway without de-rating.
Note : Copper conductors are assumed.
MITSUBISHI ELECTRIC 2033D SERIES UPS
3-6
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
TABLE 3.6 Crimp Type Compression Lug
Page Number:
WIRE
SIZE
(CODE) CLASS VENDOR CAT. NO. COLOR KEY DIE INDEX
6 B
4 B
3 B
1 B
1/0 B
WIRE
STRAND
B/I
I
B/I
I
B
I
B
I
B
I
RECOMMENDATION CRIMP TOOL REQUIRED
BURNDY TYPE Y35 OR Y46
BURNDY
ILSCO
BURNDY
BURNDY
ILSCO
BURNDY
BURNDY
ILSCO
BURNDY
BURNDY
ILSCO
BURNDY
BURNDY
ILSCO
BURNDY
YA6C
CRB-6L
YA5C-LB
YA4C
CRB-4L
YA3C-LB
YA3C
CRA-3L
YA2C-LB
YA1C
CRA-1L
YA25-LB
YA25
CRA-1/OL
YA26-LB
BLUE
BLUE
--------
GRAY
GRAY
--------
WHITE
WHITE
--------
GREEN
GREEN
--------
PINK
PINK
--------
7 / 374
7 / 374
1014
8 / 346
8 / 346
1016
9
9
1017
11 / 375
11 / 375
1019
12 / 348
12 / 348
1020
2/0 B
B
I
3/0 B
B
I
4/0 B
B
I
NOTE: When using crimp type lugs, the lugs should be crimped to the specifications given in the
manufacturer's instructions for both crimp tool and lug.
BURNDY
ILSCO
BURNDY
BURNDY
ILSCO
BURNDY
BURNDY
ILSCO
BURNDY
YA26
CRA-2/OL
YA27-LB
YA27
CRB-3/OL
YA28-LB
YA28
CRB-4/OL
YA29-LB
BLACK
BLACK
--------
ORANGE
ORANGE
--------
PURPLE
PURPLE
--------
13
13
1021
14 / 101
14 / 101
1022
15
15
1023
MITSUBISHI ELECTRIC 2033D SERIES UPS
3
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
FIGURE 3.1-a UPS Terminal Designation (30kVA UPS)
AC Bypass
Terminals:
A40,B40,C40
Input
AC input
Terminals:
A, B, C
Static Transfer
Switch
FI
52RS
CONVERTER
INVERTER
FO
FB
72B
52RC
BATTERY
52C
Page Number:
Maintenance
Bypass Switch
UPS Module
-7
Terminals:
A50,B50,C50,
N50
Output
FIGURE 3.1-b UPS Terminal Designation (50kVA, 80kVA UPS)
AC Bypass
Input
Terminals:
A40,B40,C40
AC input
Terminals:
A, B, C
52RC
52RS
CONVERTER
FI
Static Transfer
Switch
INVERTER
FB
72B
FO
52C
DC input
Terminals: BP, BN
Battery
Cabinet
Maintenance
Bypass Switch
UPS Module
Terminals:
A50,B50,C50,
N50
Output
MITSUBISHI ELECTRIC 2033D SERIES UPS
3-8
External
wiring block
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
FIGURE 3.2-a Diagram of input/output bus bars and terminal blocks (30kVA UPS)
Location of bus bars and terminal blocks Detailed Terminals
H=70.9” (1800mm)
D=31.5” (800mm)
W=33.9” (860mm)
AC input and Bypass input Terminals use 1/4” (7mm) Diameter bolts.
AC output and N50 Terminals use 5/16” (9mm) Diameter bolts.
UPS module
UPS module
AC
Input
Bypass Input
A40,B40,C40
A,B,C
Page Number:
N50
Battery
Input
BN,BP
AC Output
A50,B50,C50
DC Input
BN BP
AC Input
A B C
Bypass Input
A40 B40 C40
AC Output
A50 B50 C50
N50
MITSUBISHI ELECTRIC 2033D SERIES UPS
3-9
External
wiring block
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
FIGURE 3.2-b Diagram of input/output bus bars and terminal blocks (50kVA, 80kVA UPS)
Location of bus bars and terminal blocks Detailed Terminals
H=70.9” (1800mm)
D=31.5” (800mm)
AC input, Bypass input, AC output, N50, and DC input Terminals use
7/16” (11mm) Diameter bolts.
W=33.9” (860mm)
UPS module
Bypass Input
A40,B40,C40
Page Number:
UPS module
N50
DC Input
BN BP
AC Input
A,B,C
AC Output
A50,B50,C50
Battery
Input
BN,BP
AC Input
A B C
Bypass Input
A40 B40 C40
AC Output
A50 B50 C50
N50
MITSUBISHI ELECTRIC 2033D SERIES UPS
3-10
MITSUBISHI
ELECTRIC
2033D SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
FIGURE 3.3 Diagram of Power Wire Connect (Parallel Connection)
No.1 UPS Module
AC Input
AC Bypass Input
52L1
AC input
Battery cabinet
AC Output
AC Bypass Input
52L2
AC input
Battery cabinet
MITSUBISHI ELECTRIC 2033D SERIES UPS
Parallel Cabinet
No.2 UPS Module
3
MITSUBISHI
ELECTRIC
2033D SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
-11
FIGURE 3.4 Diagram of Power Wire & Control Wire Connect ( Parallel connection )
UPS-1
IOAU-05
TN2
UPS-2
IOAU-05
TN2
Critical Load Cabinet
1
2
3
4
52L1-AX
52L2-AX
IFAU-01
In In
In
Out
Out Out
IFAU-01
Out Out
Out
In
In In
TB1
AC Output
N40/N50
A50
B50
C50
AC Output
A
B
UPS-1
C
N
AC Output
A50
B50
C50
N40/N50
A
B
C
N
UPS-2
MITSUBISHI ELECTRIC 2033D SERIES UPS
3
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
-12
3.4 Operating Procedures
A) UPS Start-up Procedure
1. Close External Input Circuit Breaker(User supplied. Refer to warning 2).
2. The “LOAD ON BYPASS.” LED turns on and power is supplied to the critical load
from the static bypass line automatically.
3. Within ten (10) seconds, the “INV.OP.” LED flashes and the Inverter starts. The UPS
will automatically transfer the load from the static bypass line to the inverter and the
“INV.OP.” light turns on.
B) UPS Shutdown Procedure
1. If a total UPS shutdown is required, press the "STOP" button on the front panel. With
in 3 seconds the “BYP.OP.” LED will turn on and the UPS will transfer the load to the
static bypass line.
WARNING
: Verify the load is OFF if the next step is to be performed.
NOTE : Power to the critical load is supplied through the static bypass line.
Power to the critical load will be lost after execution of the next step.
The load will drop.
2. If turning off all power to the critical load is desired, open the AC Input Circuit Breaker
(User supplied.).
WARNING :
In the bypass mode, all UPS power terminals are still live.
Lethal voltages are present. De-energize all external
sources of AC and DC power before handling UPS
C) EPO (Emergency Power Off) Procedure
If all power supply shutdown is required in emergency, press the "EOP" button on the
front panel. The UPS would be shutdown and the load will not be supplied.
WARNING
: When remote EPO, it is necessary to open the input circuit
.
breaker, which is user supplied.
MITSUBISHI ELECTRIC 2033D SERIES UPS
3-13
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
3.5 Maintenance bypass set-up procedures
CAUTION: 1. The following instructions are for single operation ONLY.
2. To avoid parallel operation between a bypass source of one module and an
inverter source of another module, which may result large cross current
between the two modules,
DO NOT OPERATE THE MAINTENANCE
BYPASS SWITCH UNDER PARALLEL OPERATION (Must be kept
in NORMAL position).
Page Number:
A) Transfer of load from inverter to maintenance bypass
1. Stop the inverter by pressing the START/STOP key on the LCD’s Main Menu (see
Figure 2.3). Simultaneously press the two (2) STOP keys per the instructions. (Note :
inverter STOP function inhibited if bypass and inverter are out of sync.)
2. Confirm via the flow diagram on the LCD that the load is fed from the UPS’ static
bypass line. Also confirm that the “BYP.OP.” LED is on (No.3 LED on Figure 2.1)
3. After confirming Step2, rotate MBS (52CS) clockwise to the “TRANSFER” position
(see figure 1.4 for the location of 52CS). The MBP Lamp (No.7 Lamp on Figure 2.1)
will be illuminated. (Do not rotate MBS (52CS) if the load is NOT
fed by bypass
source).
4. After 3 seconds, rotate 52CS clockwise to the “BYPASS” position.
5. UPS can now be powered down.
6. Transfer complete. Load is fed from the external source (Utility or generator).
B) Transfer of load from maintenance bypass to inverter
1. Confirm that the Static Bypass line is on and energized.
2. Rotate 52CS counterclockwise from the “BYPASS” position to the “TRANSFER”
position, wait 5 seconds.
3. On the UPS, confirm the “BYP.OP.” LED is on. If not, press the “STOP” button.
4. Rotate 52CS counterclockwise to the “NORMAL” position.
5. Close the external input breaker. Confirm that the converter operates and DC
contactor 72B closes.
6. Press “START” button on the LCD panel to transfer the load to inverter source. The
“INV.OP.” LED will be illuminated.
7. Transfer complete. Load now powered by the inverter.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
4.0 RESPONSE TO UPS FAILURE
UPS FAULT
Annunciator Silence
Recording of Fault
Primary Action
Page Number:
4-1
Depress “SILENCE ALARM” key on MAIN menu.
Refer to the list of fault codes in section 6.0 for error
description.
Take necessary action according to display guidance.
Information to Service Center
Note
The error code indicated on the LCD display panel at the time of
a UPS alarm condition is very important.
In order to reduce repair time, please include this information,
along with the operation status and load status for all
correspondence with Mitsubishi’s field service group.
When a faults occur, contact the Authorized Mitsubishi
Service Representative or call Mitsubishi at
1-800-887-7830.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
5-1
5.0 PARTS REPLACEMENT
Contact Mitsubishi or its Authorized Service Center on all issues regarding the replacement
of parts.
A) Battery
Battery lifetime may vary according to the frequency of use and the average ambient
operating temperature. The end of battery life is defined as the state of charge resulting in
an ampere-hour capacity less than, or equal to, 80% of nominal capacity. Replace battery
if its capacity is within this percentage.
B) UPS Component Parts
Contact Mitsubishi or its Authorized Service Center for a complete parts replacement
schedule. Recommended replacement time interval varies with operating environment.
Contact Mitsubishi or its Authorized Service Center for application specific
recommendations.
MITSUBISHI ELECTRIC 2033D SERIES UPS
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
6.0 FAULT CODES
This section covers fault codes, their description and required action.
At time of error :
A) Verify and record the occurrence of the alarm. Note details of alarm message
displayed on the LCD display panel.
Contact Mitsubishi Electric Automation, Inc. at 1-800-887-7830.
B) If a circuit breaker (MCCB) has tripped, depress the toggle to reset the breaker
before closing it again.
Page Number:
6-1
MITSUBISHI ELECTRIC 2033D SERIES UPS
6
MITSUBISHI
ELECTRIC
2033D SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
-2
Failure
Code List
(Note 9)
Code
indication
UF003
UF006
UF055
UF056
UF102 DC OVERVOLTAGE Over voltage of DC voltage
UF103 DC UNDERVOLTAGE Low voltage of DC voltage
UF108
UF151
UF152
UF156
UF157
Table 6.1 Fault Code
Status message
CONVERTER
ABNORMAL
CONVERTER
ABNORMAL
CONVERTER
ABNORMAL
CONVERTER
OVERCURRENT
CHOPPER
OVERCURRENT
DC VOLTAGE
ABNORMAL
DC VOLTAGE
ABNORMAL
72B TRIPPED
(BATTERY OVERTEMP.)
BATTERY
OVERTEMPERATURE
Contents
Preliminary charge impossible
Mixed operation (2 minutes)
Mixed operation (1 minute)
IROC (C.F. 2.5) occurred 4 times in
one minute
Chopper output overcurrent
Continuous +/-2% deviation of float
voltage under charging mode for 36 hrs
Does not return to equalizing voltage
after power supply is resumed
Battery temperature abnormality
(UF157) lasted a long time (Note 5)
Battery temperature abnormality
Guidance
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CHECK
BATTERY
CHECK
BATTERY
(Note 1)
Buzzer
(Note 2)
External
send-out
contact
[1] Major Lit on
[1] Major Lit on
[2] Minor Flicker
[2] Minor Flicker
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
[2] Minor Flicker
[2] Minor Flicker
[2] Minor Flicker
[2]
Minor
(Note 4)
(Note 3)
Failure
lamp
Flicker
UF161
UF162 BATTERY ABNORMAL
UF163
UF201
UF202
UF203
UF209 52C ABNORMAL 52C not turned ON
UF210 52C ABNORMAL 52C not turned OFF
72B TRIPPED
(DC VOLT. ABNORMAL)
BATTERY VOLTAGE
ABNORMAL
INVERTER
OVERVOLTAGE
INVERTER
UNDERVOLTAGE
INVERTER
OVERCURRENT
Continuous condition of UF151 for
more than 12 hrs.
Battery abnormal detected by battery
self test.
Battery voltage abnormality
Output overvoltage during inverter
power supply (+ 15%)
Output low voltage during inverter
supply (-15%)
Inverter output overcurrent
MITSUBISHI ELECTRIC 2033D SERIES UPS
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
[2] Minor Flicker
[2] Minor Flicker
[2] Minor Flicker
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
6-3
MITSUBISHI
ELECTRIC
2033D SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
(Note 9)
Code
indication
UF213
UF214
UF255 52C ABNORMAL
UF256
UF258 LOAD ABNORMAL
UF259
UF301
UF302
UF303
UF305
UF306
UF309
UF310
UF349
UF371
UF372
UF373
INV. OR CONV.
OVERTEMPERATURE
COOLING FAN
ABNORMAL
OUTPUT VOLTAGE
ABNORMAL
ANOTHER UPS
ABNORMAL
UPS CONTROL CIRCUIT
ERROR
UPS CONTROL CIRCUIT
ERROR
UPS CONTROL CIRCUIT
ERROR
UPS CONTROL CIRCUIT
ERROR
UPS CONTROL CIRCUIT
ERROR
INVERTER VOLTAGE
ABNORMAL
UPS CONTROL CIRCUIT
ERROR
UPS CONTROL CIRCUIT
ERROR
UPS CONTROL CIRCUIT
ERROR
UPS CONTROL CIRCUIT
ERROR
UPS CONTROL CIRCUIT
ERROR
Status message
Contents
Overheating of main circuit parts
Abnormality of cooling fan inside panel
52C turned OFF during inverter power
supply
Inverter output voltage fell out of +/- 5%
More than 4 overcurrent transfers in 5
minutes
Inverter output voltage bus
abnormality
Control microcomputer abnormality
Control microcomputer abnormality
Control microcomputer abnormality
Control clock abnormality
Control power source circuit
abnormality
Inverter output voltage abnormality
before inverter power supply
Control microcomputer abnormality
Control microcomputer abnormality
Control microcomputer abnormality
Control microcomputer abnormality
Control microcomputer abnormality
Guidance
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
CALL SERVICE
ENGINEER
(Note 1)
Buzzer
(Note 2)
External
send-out
contact
[1] Major Lit on
[1] Major Lit on
[2] Minor Flicker
[2] Minor Flicker
[2] Minor Flicker
[2] Minor Flicker
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
[1] Major Lit on
[2] Minor Flicker
[2] Minor Flicker
[2] Minor Flicker
(Note 3)
Failure
lamp
UF453 52L OPERATION ERROR 52L operated abnormally CHECK 52L [2] Minor Flicker
CHECK INPUT
POWER
SOURCE
CHECK INPUT
POWER
SOURCE
[2] Alarm -
[2] Alarm -
UA801
UA803
AC INPUT VOLTAGE OUT
OF RANGE
INPUT PHASE
ROTATION ERROR
MITSUBISHI ELECTRIC 2033D SERIES UPS
AC input voltage deviates from +17%
to –32% range
Input phase abnormal
6
MITSUBISHI
ELECTRIC
2033D SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
-4
(Note 9)
Code
indication
UA806
UA809
UA810 INVERTER OVERLOAD
UA812
UA813
UA814
UA817
UA832
INVERTER OVERLOAD
> 100%
INVERTER OVERLOAD
> 150%
BYPASS VOLTAGE OUT
OF RANGE
BYPASS PHASE
ROTATION ERROR
BYPASS FREQUENCY
OUT OF RANGE
EMERGENCY STOP
ACTIVATED
ASYNCHRONOUS
TRANSFER
Status message
Contents
WARNING:
Overload exceeded 105% (Note 7)
Overload exceeded 150% (Note 7)
Instantaneous overload. (Output
voltage -30% for 2ms)
Bypass voltage fell out of +/- 12%
range
Phase rotation is inverted when bypass
voltage is normal
Bypass frequency fell out of inverter
synchronization follow-up range
Emergency stop applied - - Alarm -
Asynchronous transfer occurred - [2] Alarm -
DECREASE
LOAD
WARNING:
DECREASE
LOAD
WARNING:
DECREASE
LOAD
CHECK BYPASS
INPUT
CHECK BYPASS
INPUT
CHECK BYPASS
INPUT
Guidance
(Note 1)
Buzzer
(Note 2)
External
send-out
contact
[2] Alarm -
[2] Alarm -
[2] Alarm -
[3] Alarm -
[2] Alarm -
[3] Alarm -
(Note 3)
Failure
lamp
UA834
UA835
UA852 INVERTER OVERLOAD
UA853
BATTERY DEPLETED
AC OUT STOPPED
BATTERY DEPLETED
AND RESTART
RETRY START
OPERATION
DC voltage dropped below discharge
end during inverter operation
Restart after battery depleted - - Alarm -
Total of more than 110% load during
MMS operation.
Continuous bypass voltage abnormal,
inverter stop, and 72B closed for 1 min.
will stop the UPS. (Fan stop)
- - Alarm -
WARNING:
DECEASE
LOAD
[2] Alarm -
[2] Alarm -
MITSUBISHI ELECTRIC 2033D SERIES UPS
6-5
MITSUBISHI
ELECTRIC
(Note 1)
(Note 2)
(Note 3)
(Note 4)
(Note 5)
(Note 6)
(Note 7)
(Note 8)
(Note 9)
2033D SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
Audible annunciator: [1] continuous sound, [2] intermittent sound
[3] intermittent sound (May be canceled by option settings)
(a) "Major" is defined as major failure. Inverter transferred to the static bypass line
(b) "Minor" is defined as a minor failure. UPS continues to operate normally, but cause of
alarm must be identified
Indicates one of two possible LED illumination patterns - continuously on (lit) or
intermittent (flicker).
External send-out possible by option setting.
Trips the battery breaker 72B.
For other than sealed-type battery.
If the specified time elapses, will transfer to the bypass power supply.
Shows only when corresponding option settings are made.
Code indication means:
UA+++----------------------- Alarm
UF+++----------------------- Failure
U%0++ ---------------------- Converter circuit failure
U%1++ ---------------------- DC circuit failure
U%2++ ---------------------- Inverter circuit failure
U%3++ ---------------------- Control circuit failure
U%4++ ---------------------- Bypass system failure
U%8++ ---------------------- Alarm
U%+00 - U%+49 -------- Major failure
U%+50 - U%+99 -------- Minor failure
*) “+” denotes any numeral from 0 to 9
*) “%” denotes either “A” or “F”
MITSUBISHI ELECTRIC 2033D SERIES UPS
7.0 Warranty & Out of warranty Service
MITSUBISHI
ELECTRIC
OWNERS / TECHNICAL MANUAL
2033D SERIES UPS
Page Number:
7-1
The Mitsubishi Electric UPS Systems Group Service Department has many Authorized Service
Centers place strategically throughout the US, Canada and Latin America. For both in warranty and
out of warranty service, please contact Mitsubishi Electric Automation, Inc. at (847) 478-2500. To
register your UPS for warranty purposes, please complete the warranty registration form and fax it to
the Mitsubishi Electric UPS Systems Group, Service Department fax line shown on the registration
form. (Next page)
For warranty purposes, it is essential that any and all service work that may be required on your
Mitsubishi brand UPS equipment is performed by a Mitsubishi Electric Authorized Service Center.
The use of non-authorized service providers may void your warranty.
Mitsubishi Electric Automation Inc,
UPS Systems Group Service Department
500 Corporate Woods Parkway,
Vernon Hills, Illinois 60061, USA
Phone: (847) 478-2500
Fax: (847) 478-2290
MITSUBISHI ELECTRIC 2033D SERIES UPS
ELECTRIC
OWNERS / TECHNICAL MANUAL
MITSUBISHI
2033D SERIES UPS
Page Number:
7-2
Mitsubishi Electric Automation, Inc.
UNINTERRUPTIBLE POWER SUPPLIES
500 Corporate Woods Parkway, Vernon Hills, IL 60061 Phone: (847) 478-2643, Fax: (847) 478-2290
UPS Warranty Registration
__ Register UPS for Warranty __ Address Change
To validate the Warranty on your UPS this form must be filled out completely by
Customer and returned.
CUSTOMER INFORMATION
Your Name:
Company Name:
Division / Department:
Address:
City:
Country: Province:
State: Zip Code:
Job Title:
Business Phone: Ext: Fax:
E-Mail:
@
UPS Model #: Capacity (kVA): UPS Serial #:
Start-Up Date:
/ /
Signature:
Which ONE of These Best Describes Your Organization’s Number of Employees at This Location is:
Primary Business Classification?
{Energy Producer} __ Education/Univ. Service __ 1 – 19 __ 100 - 249 __1000 or more
__ Utility {Service} __ 20 – 49 __ 250 - 499
__ Alternate Energy __ Consulting __ 50 – 99 __ 500 - 999
{Manufacturing Co.} __ Engineering
__ OEM __ Outsourcing Overall how was Start-Up performed:
__ Process __ Financial/Legal/Insurance __Unsatisfactory __ Satisfactory __ Exceeded
__ Consumer Goods {Government}
__ Electronics __ Military Would you like to receive future product updates and
__ Power Quality Equipment __ Municipals news?
__ Commercial Business __ Federal/State/Local __Yes __ No
__ Electrical Contractor __ Communications
__ Healthcare __ Distributors/Reps
__ Internet __ Other __________________
{Expectations}
Authorized Mitsubishi Service Company (if known):
Internet Address:
Date:
/ /
After Start-Up has been done Fax completed Form to:
(847) 478-2290
MITSUBISHI ELECTRIC 2033D SERIES UPS
Loading...
