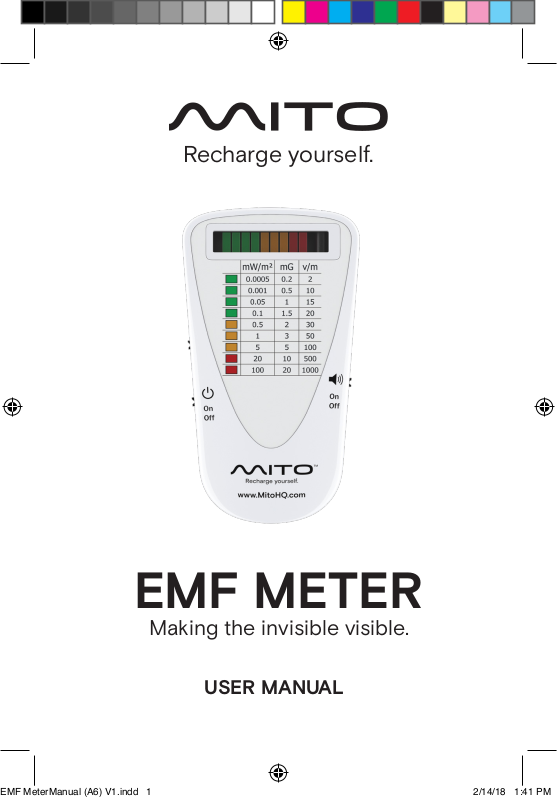

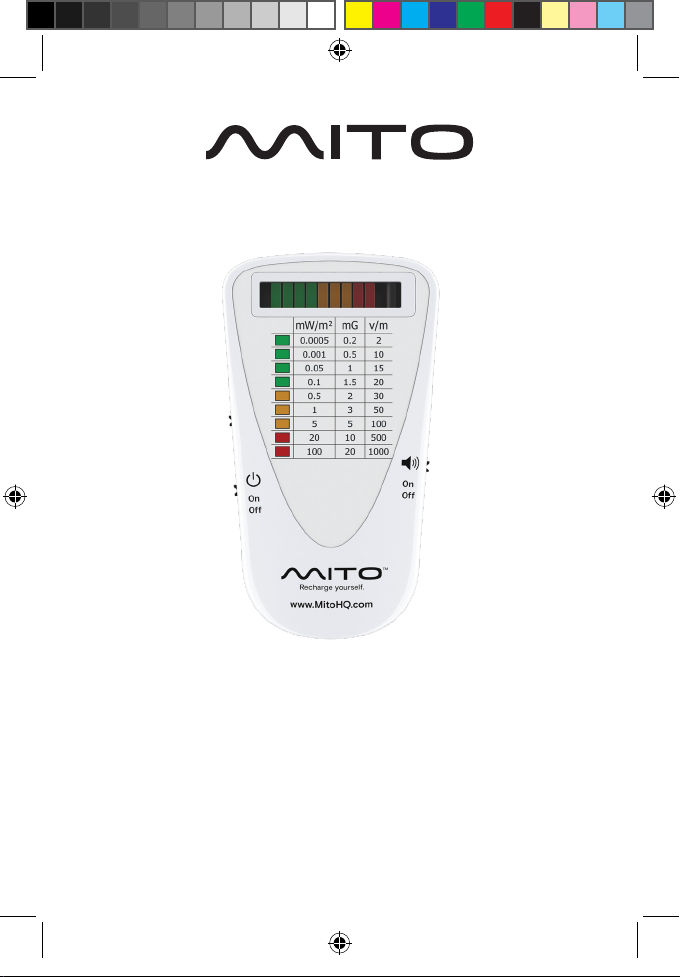

EMF METER
Making the invisible visible.
USER MANUAL
Page 2
Introduction
The Mito Meter is a compact, simple to use, but sophisticated, general purpose EMF (Electromagnetic Field) meter that can measure EMF intensity from: cell towers, mobile phones, smart meters, Wi-Fi routers, various cordless devices, magnetic and electric fields from power lines, fuse boxes, home appliances and more.
The Mito Meter can also detect spy cameras, wireless bugs, and other such devices across a very wide frequency range (see details below). It was designed, with great care, to assist EMF sensitive people; allowing them to monitor their environment during daily activities with a simple device that may be carried in a pocket or purse. (Weighing less than 2 ounces, or 50 grams). The Mito Meter may also be connected to a computer, making it an invaluable tool in research and tech environments.
EMF MeterManual (A6) V1.indd 2 2/14/18 1:41 PM
Page 3
IMPORTANT NOTICE

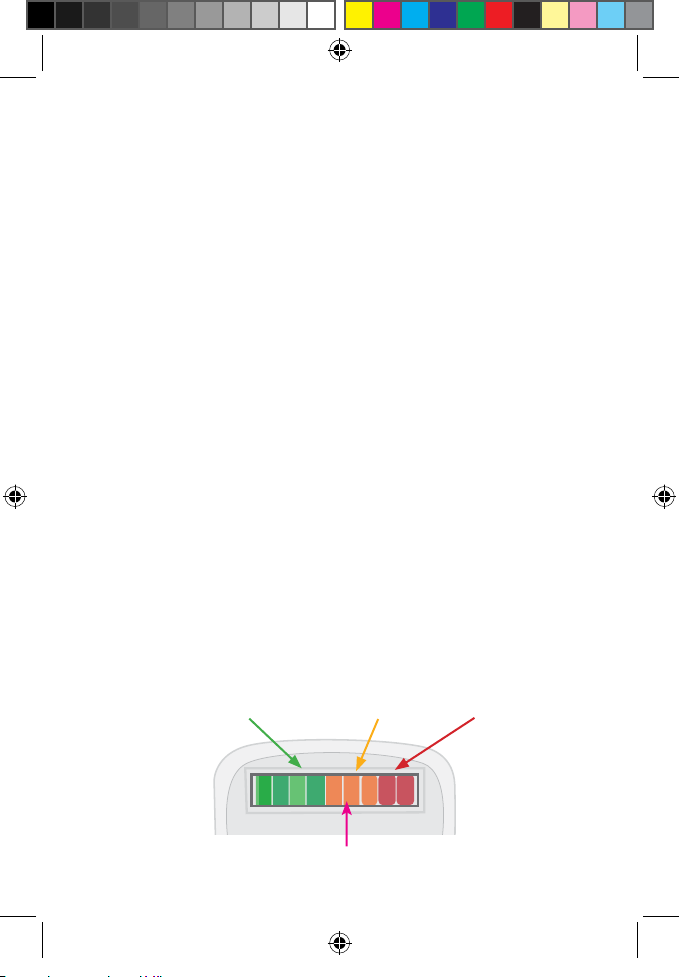

This detector shows the intensity of measurements using 9 LEDs: Green,Yellow and Red. (Green = low, Red = high) These colors are intended as a visual guide , and not to indicate safe or unsafe readings. Furthermore, this device is intended to allow non-professionals to measure EMF levels with a simple, intuitive interface. Measurements taken for legal or professional use require special equipment, and trained operators.
EMF MeterManual (A6) V1.indd 3 2/14/18 1:41 PM
Page 4
EMF MeterManual (A6) V1.indd 4 2/14/18 1:41 PM

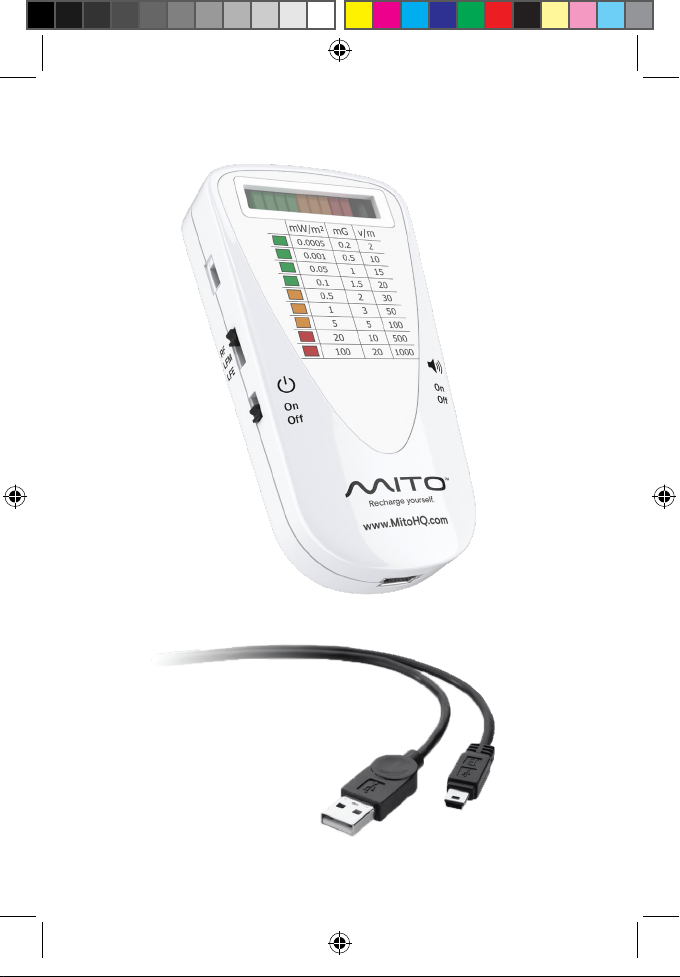

Package Contents
Mito Meter including: 1x LiPo rechargeable
•
battery (installed).
• Mini-USB (1 Meter) cable for charging and
data transfer. Note: This is a non-standard cable designed especially for use with this product.
• USB Adaptor (Female) to USB C (Male).
Note: Proprietary software, for use with this product, is available at:
www.mitometer.com/software
Drivers available at:
www.mitometer.com/software
Page 5
EMF MeterManual (A6) V1.indd 5 2/14/18 1:41 PM
Page 6
Operation
The Mito Meter is a 3-mode detector, these modes are:
• RF - Radio Frequency
• LFM - Low Frequency Magnetic
• LFE - Low Frequency Electric
It is recommended to fully charge the device before using it for the first time. To do so, use the supplied mini-USB cable to connect to a USB charger or computer. During charging, the LED will show RED – when fully charged the LED will be off. A full charge should give 8-10 hours of operation.
Note: On activation the meter will perform a quick (3 second) self-test before full operation. This includes:
• Cycling through the LEDs from left to right,
accompanied by a tone. (If the sound is turned ON).
• The device will then check the battery status and
show the charge:
100% 90% 80% 70% 60% 50% 40% 30% 20%
Battery level indicators
(During self-test)
EMF MeterManual (A6) V1.indd 6 2/14/18 1:41 PM
Page 7
EMF MeterManual (A6) V1.indd 7 2/14/18 1:41 PM

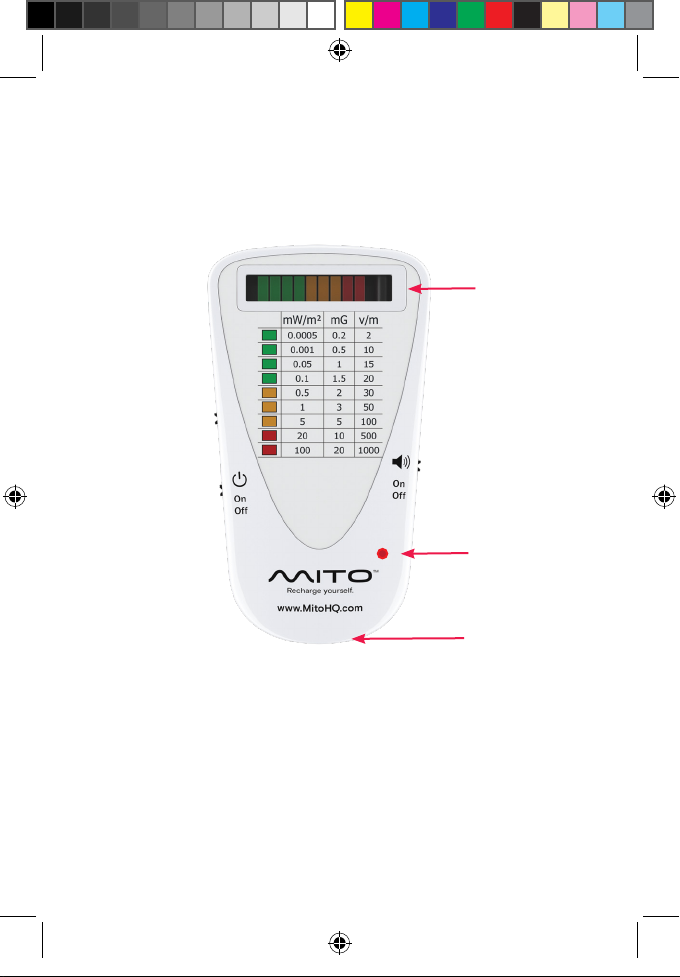

EMF Levels
Charging
(Hidden when not active)
USB Connection
Page 8
Turn the meter on with the Power ON/OFF switch. Use the Mode Switch to select a detection mode:
• RF Mode – the detectors measures radio
frequencies in the defined range. (See specifications.)
• LF-M Mode – the detector measures low
frequency magnetic fields
• LF-E Mode – the detector measures low
frequency electric fields.
Readings in the Yellow or Red zone, will be accompanied by a tone; this feature may be disabled by using the sound on/off switch.
This detector is a peak level detector, which means that on every update it shows the maximum, or peak level, detected since the last update. Updates are recorded approximately 5 times a second for the LEDs, and twice a second by the PC software.
Note: The Mito Meter is a broadband detector, meaning it captures all signals from all sources within the selected mode frequency range at a particular location. For example: in RF mode, if both a Wi-Fi router and cell phone transmit at the same time, the meter will capture both signals and give a combined result.
EMF MeterManual (A6) V1.indd 8 2/14/18 1:41 PM
Page 9
RF
EMF MeterManual (A6) V1.indd 9 2/14/18 1:41 PM
LFM LFE

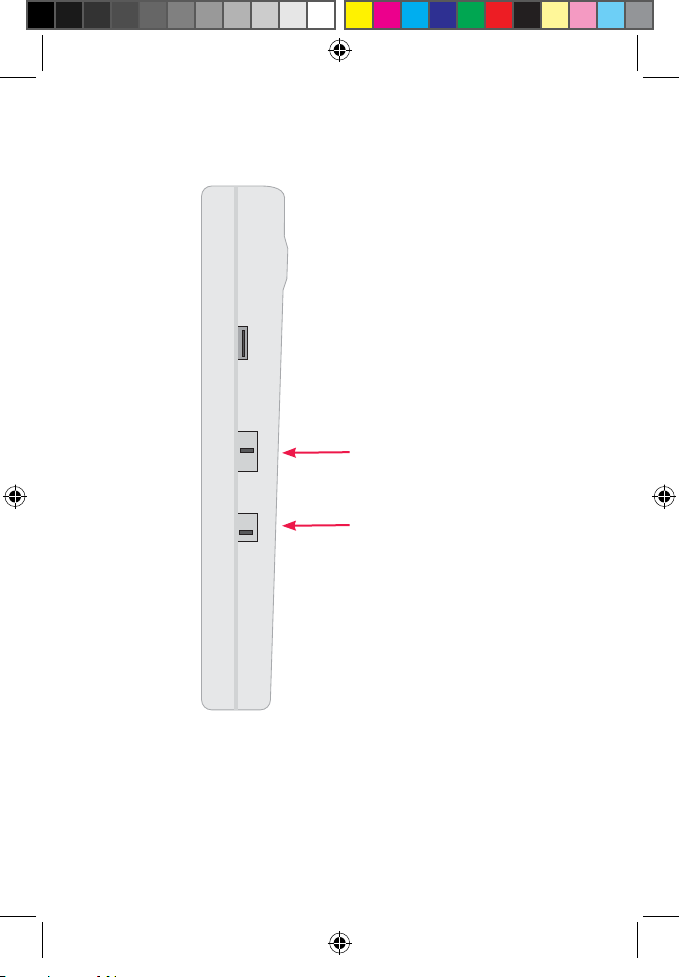

Mode Switch
Power ON/OFF
Page 10
EMF MeterManual (A6) V1.indd 10 2/14/18 1:41 PM
Performing Measurements

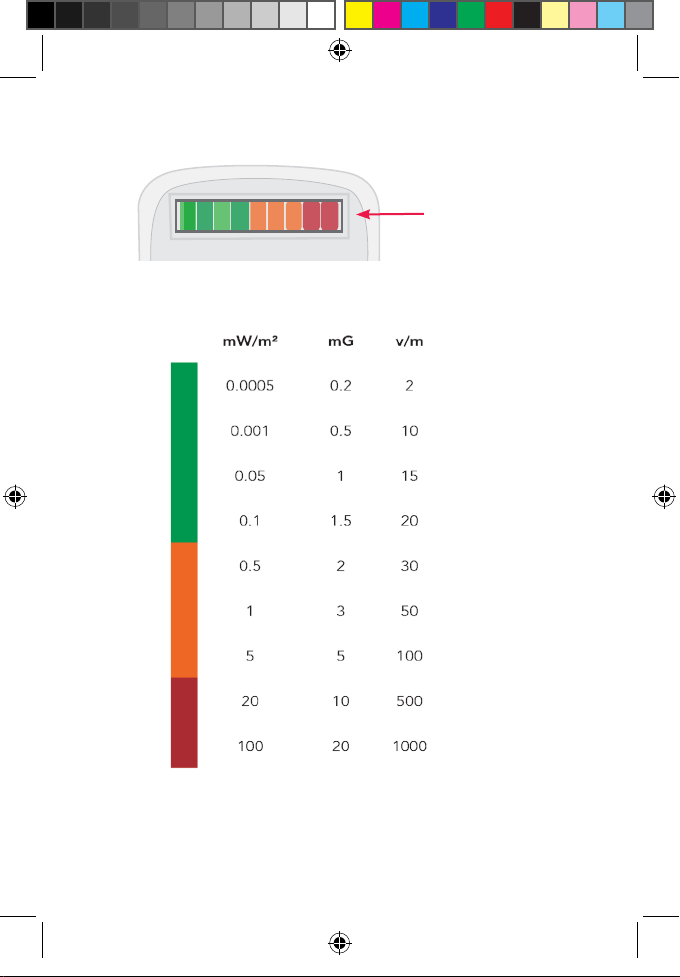

Switch on the device and select a measurement mode: There are 9 levels of intensity shown by 9 LEDs: from
GREEN through YELLOW to RED. By matching the LED
reading with the appropriate numbers on the chart, numerical values can be noted.
The device uses directional antennas for the measurements, thus it is necessary to carefully rotate the device in all directions at any location a measurement is performed. The readings may change as the device is rotated – the highest reading found is the correct one.
The RF and LFE antennas are located on the left side of the device – blocking them with your grip may reduce the reading. When performing RF and LFE measurements, the device should be held using the right hand on the right side of the Meter.
Page 11
EMF MeterManual (A6) V1.indd 11 2/14/18 1:41 PM
EMF Levels
Page 12
Understanding the Readings
mW/m² = Milliwatts per square meter
Used to measure the power density of an RF (Radio Frequency) source. Use this value when measuring EMF from: cell towers, smart meters, Wi-Fi, Bluetooth, cordless phones and microwave ovens.
mG = Milligauss
Used to measure AC (Alternating Current) magnetic field intensity, such as from AC power lines, fuse boxes, and home appliances.
Note: This meter cannot detect DC (Direct Current) magnetic fields, such as those from magnets.
V/m = Volts per meter
This is used to measure the intensity of an electric field near voltage sources such as power outlets and power lines.
EMF MeterManual (A6) V1.indd 12 2/14/18 1:41 PM
Page 13
EMF MeterManual (A6) V1.indd 13 2/14/18 1:41 PM
Notes on Signal Sources
•
Be aware that some EMF sources in the home, such
as cell phones, smart meters, and Wi-Fi emitters (RF signals), change levels very rapidly due to protocol definitions.
• Cell phones will adjust their levels based on the
signal strength from the cell tower and any intervening obstacles to that signal.
• Smart-meters often send very fast signal bursts
every few seconds. And Wi-Fi routers adjust signal strength based on the transfer load.
• LFM and LFE sources are usually more consistent,
but, as with RF signals, the device must be rotated to all directions to find the highest, and most accurate, reading.
• Also, Users should be aware that measuring too
close to a transmitter will reduce the accuracy of the measurement considerably. (Further reading on
the topic of near and far fields is advisable, and not covered here.)
Page 14
EMF MeterManual (A6) V1.indd 14 2/14/18 1:41 PM
Using and Installing the Software
The Mito Meter software (which is a download) can be
used to record and view readings from the Meter once
it is connected to a PC using the supplied mini-USB
cable.
Files are saved in CSV format, and can be imported into
Microsoft Excel or other similar software.
Before connecting the device to your PC and using the
software, it will be necessary to download and install the
correct drivers for this device.
Download these drivers at:
www.mitometer.com/software
Download the latest version of the Mito Meter software
here:
www.mitometer.com/software
Page 15
The software downloads as a zip file – Unzip the file
and run the “Monitoring.exe” file. No installation is
required.
Supported OS: Windows 7, Windows 8, Windows 8.1
and Windows 10.
EMF MeterManual (A6) V1.indd 15 2/14/18 1:41 PM
Page 16
Driver Installation
Download the drivers from:
www.mitometer.com/software

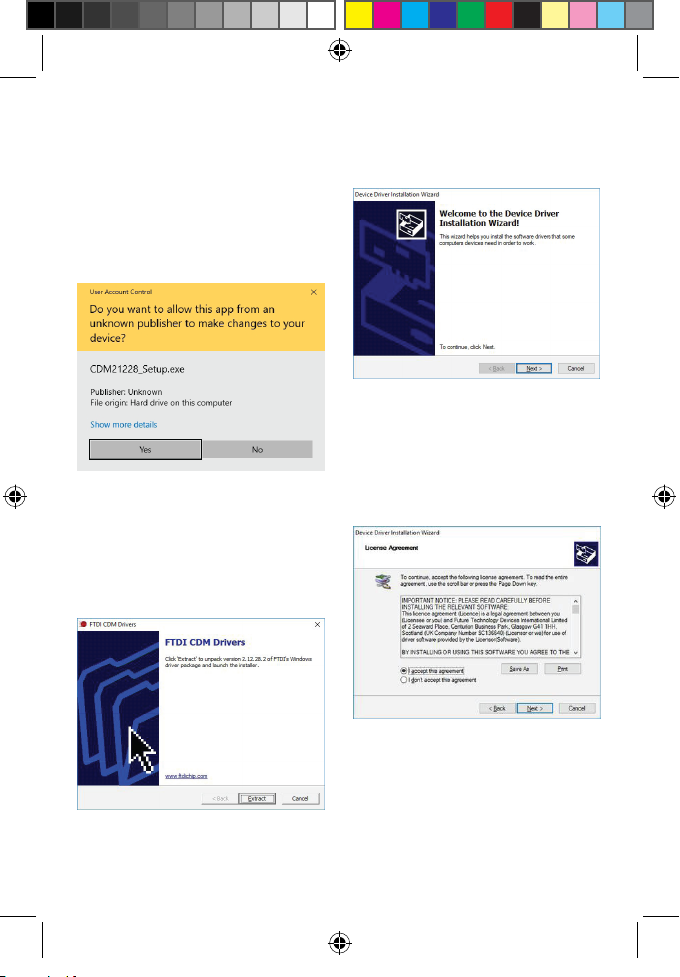

Open the download and start the installation by following the on-screen instructions. (See graphic) Once installed, no further action is required.
EMF MeterManual (A6) V1.indd 16 2/14/18 1:41 PM
Page 17
DOWNLOAD AND OPEN
EMF MeterManual (A6) V1.indd 17 2/14/18 1:41 PM
FILE:
1.
Accept by clicking ‘Yes’.
2.
3.
Follow instructions to install the Driver.
4.
Accept and install.
Firmware Installation
Page 18
Using the Software
Connect the meter to a PC using the special mini-USB
cable supplied, and power ON.

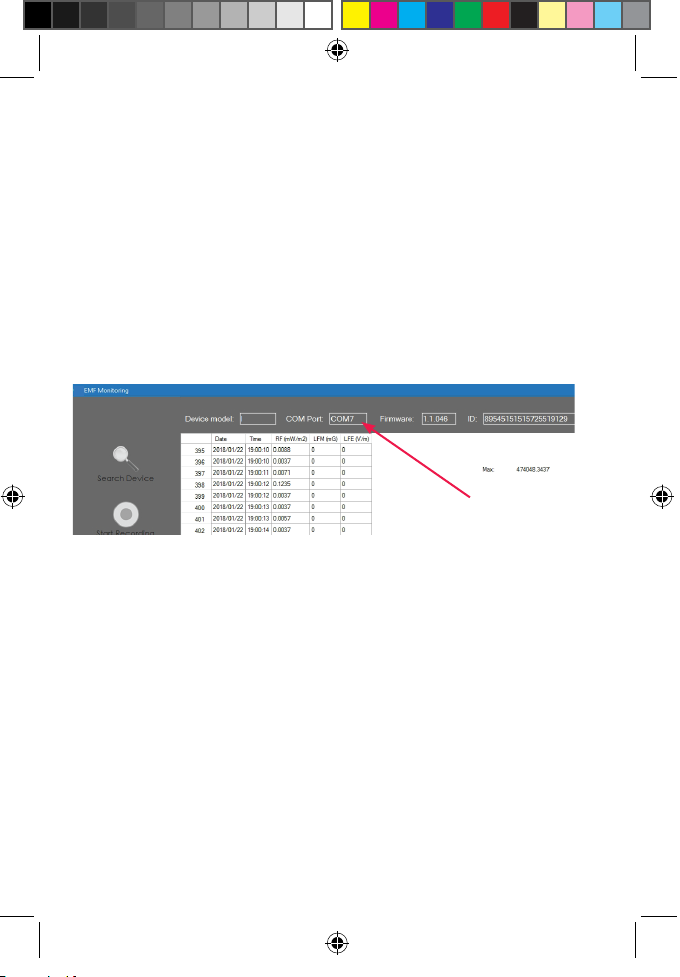

• On your PC: Open the Mito Meter application. Make
sure the Meter is turned on, and that it is connected to the PC via the supplied USB cable. Now ‘click’ the “Search device” button. The software will locate the device, and, once found, will show the device, along with the model name and firmware version at the top of the application window. Once connected, it is possible to start capturing data.

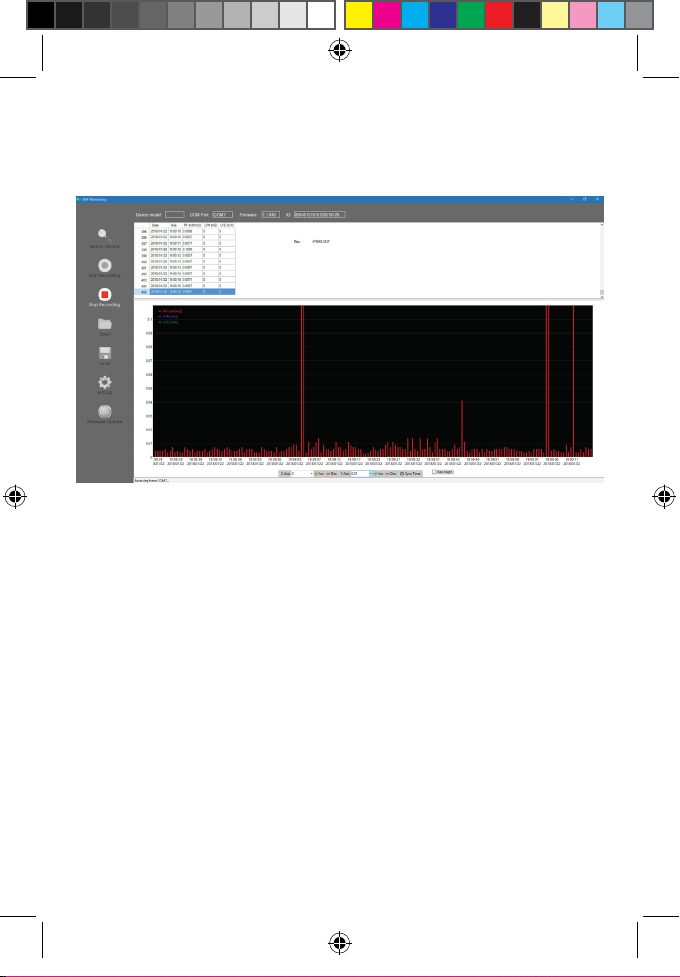

• Press the “Start Recording” button to capture
real-time data from the device. The device updates readings twice a second, using the peak value for that time segment.
• To stop the capture, press the “Stop Recording”
button.
• Data may be saved to a file by pressing the “Save”
button; choose a location on your hard drive and press Save.
• Recorded data may be viewed by either: Pressing the
“Open” button and navigating to a saved file, or by
left-clicking in the graph area on the screen.
EMF MeterManual (A6) V1.indd 18 2/14/18 1:41 PM
Page 19
compatible device via the COM port on your computer.
Starts data collection from the device.
(This button will only work if a compatible device is connected.)
Stops data collection from the device.
Save collected data to file.
Save collected data to file.Search for and connect to a
Enter software settings.
Updates the firmware on the device.

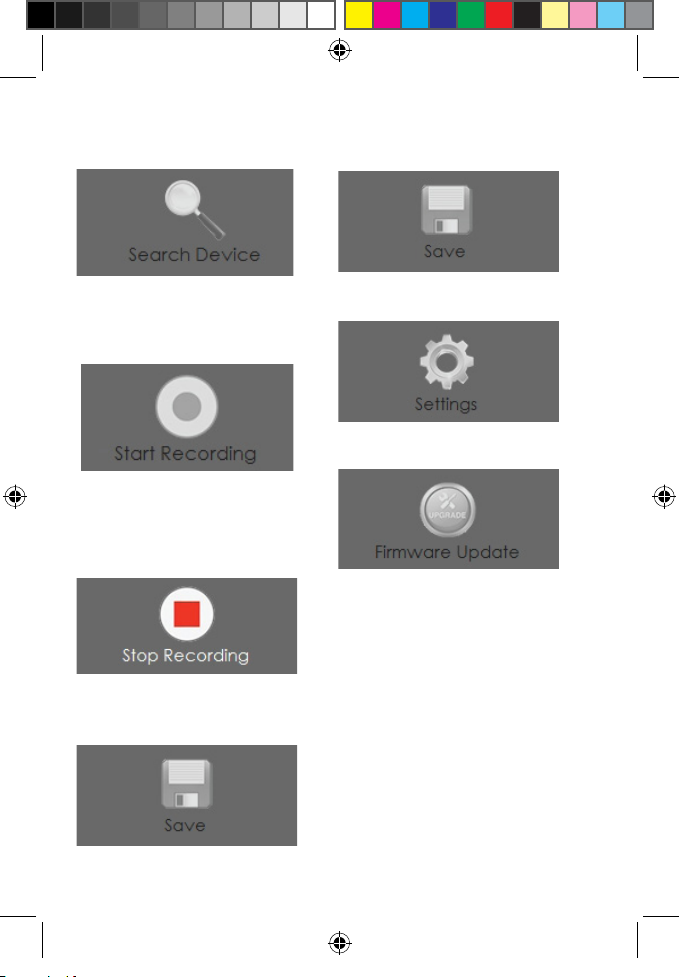

Application Window Features and Controls
EMF MeterManual (A6) V1.indd 19 2/14/18 1:41 PM
Page 20
Firmware Updates
Firmware, is software installed on the Meter. It is
important to check that the version on the Meter is
up to date.
The current firmware on the device will be shown at
the top of the application window once the device is
connected:
Firmware Version
Go to our website to check for the latest release at:
www.mitometer.com/software
If there is a later version available download it to your
computer.

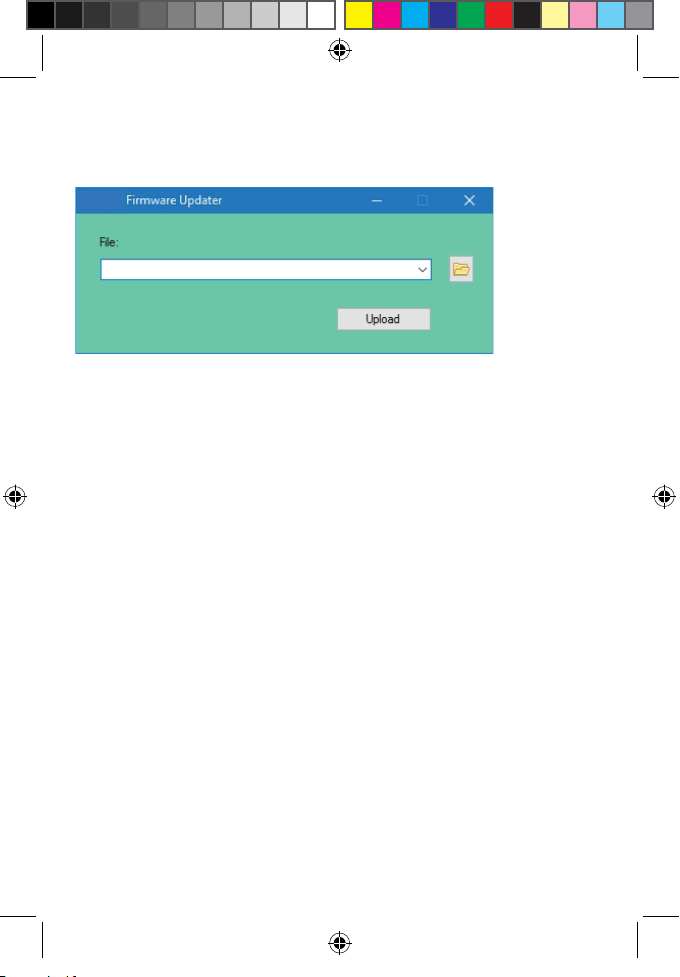

Once you have the file on your local drive: Click the
“Firmware Update” button – you will be prompted to
locate the file you have downloaded.
Page 21
Enter the location, on your hard drive, of the file
that you have downloaded, and click “Upload.” The
firmware on your device will be updated.
Note: The Meter must be connected to the computer
via the USB cable.
EMF MeterManual (A6) V1.indd 21 2/14/18 1:41 PM
Page 22
Troubleshooting
Question: Answer:
Mito Meter
The device does not turn on when not connected to the USB.
•
The battery is not charged. Connect the device to a power source with the USB cable, and allow to charge for several hours.
Mito Meter
Soft­ware
EMF MeterManual (A6) V1.indd 22 2/14/18 1:41 PM
No tones from meter
The software cannot find the device.
•
Make sure the sound switch is in the ON position.
•
Note: Tones only sound for measurements high enough to activate the Yellow or Red LEDs.
•
Make sure the device is turned on.
•
Make sure to use the correct USB cable.
(The cable supplied is of special design – regular mini-USB cables will not function correctly).
Page 23
EMF MeterManual (A6) V1.indd 23 2/14/18 1:41 PM
Maintenance
Always keep the device away from excessive heat or humidity. Note: Please remember to follow local ordinances regarding disposal of electronic equipment.
Warranty
The Mito Meter comes with a 1 year limited warranty. For more information, or to contact us, please email to: [email protected]
Page 24
Technical Specifications
RF Frequency range: 100MHz to 8GHz
RF measuring range: -60dBm to +5dBm
RF Typical accuracy: ±6 dB
LFM (magnetic field) Frequency range:
LFM measuring range: 0mG to 50mG with 0.1mG
LFM accuracy: 20%
LFE (electric field) Frequency range:
LFE measuring range: 2v/m to 1000v/m
LFE accuracy: 25%
Display: Sampling rate:
50Hz to 10KHz
resolution
50Hz-50KHz
EMF MeterManual (A6) V1.indd 24 2/14/18 1:41 PM
Sampling rate:
20,000/sec (updates 5 times a second on the LEDs / 2
times a second for USB data)
