Pressure Washers
HSP Series
Pump:
– Stainless-steel and brass unloader valve, preset
– Forged brass manifold
– Thermal relief valve
– Low pressure detergent injector (Available as
an option on HSP-2503 models)
Frame:
– Flat-free tires
Components:
– No. 1 or No. 2 diesel or kerosene fired burner
(Not approved for bio-fuel)
– Top-fired powder coated heat exchanger
Miscellaneous:
– Temperature rise 150°F/66°C above ambient,
maximum outlet temperature is 200°F
Unit Includes:
– Quick connect nozzles - 0°, 15°, 25° and 40°
– 50-foot x 3⁄8-inch steel wire-braided high
pressure hose with quick connects
– Insulated trigger gun with safety lock-off
– Adjustable pressure insulated dual lance
Limited Warranties:
– 3 year coil
– 3 year Honda and Kohler engines
– 7 year pump
Certifications:
– CSA Certified - US and Canada

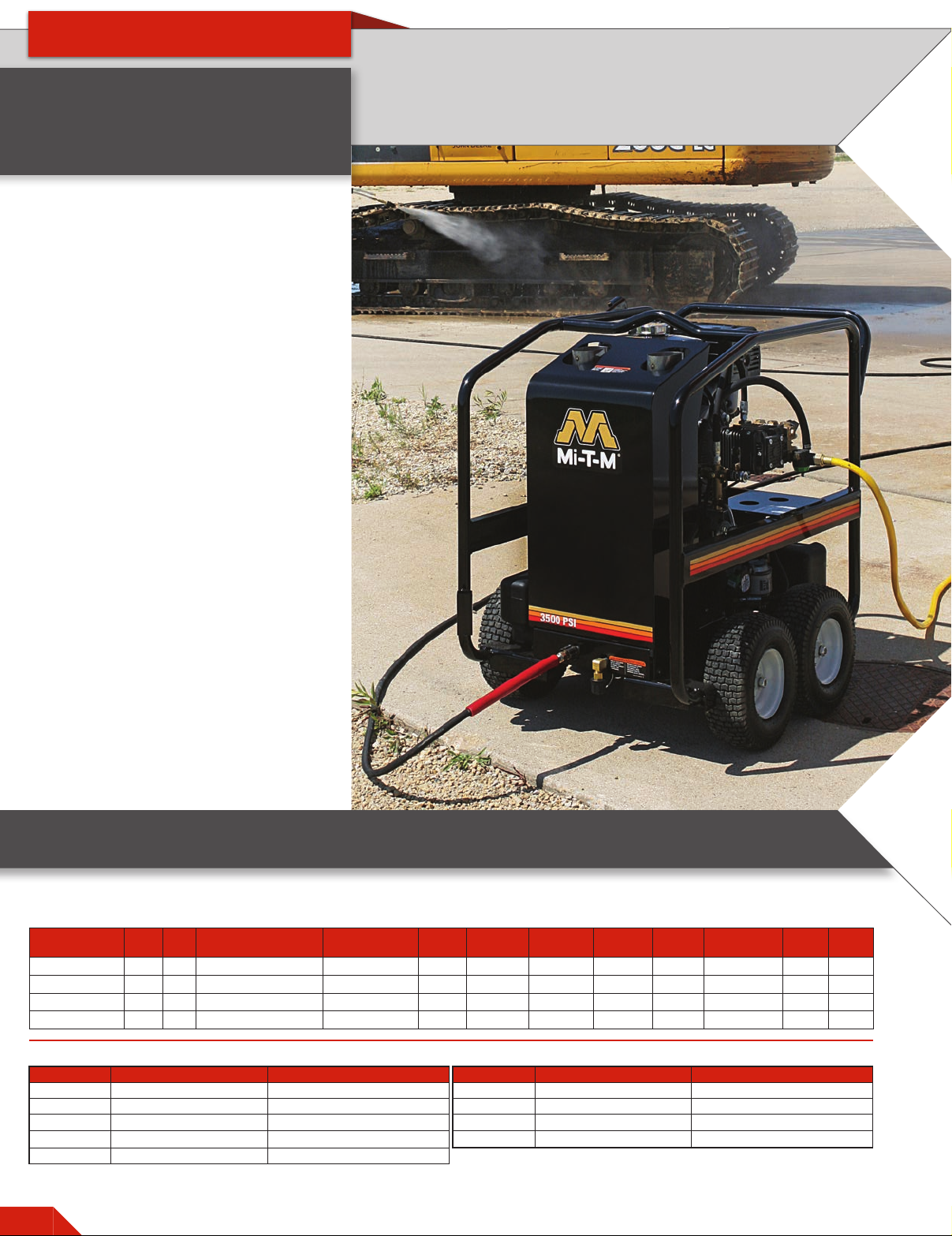

The HSP Series features a reinforced powder coated steel tube
frame with center balanced lift. The patented Electro Magnetic
Firing (EMF) system eliminates the need for a 12V battery to
operate the burner, making this one of our most popular hot
water units on the market today.
HSP-3504-3MGH
Hot Water – Gasoline – Direct Drive
MODEL NUMBER PSI GPM DISPLACEMENT/ENGINE PUMP
HSP-2503-0MMH 2500 2.6 196cc Honda GX200 OHV Mi-T-M 3-0417 0.95 gallon 4.0 gallons 1.53 gph 210,000 43x29.5x36.5in. 411 lb. 295 lb.
HSP-3003-3MGH 3000 2.9 270cc Honda GX270 OHV AR, external bypass 3-0241 1.59 gallons 5.5 gallons 1.84 gph 253,000 43x30x41in. 530 lb. 407 lb.
HSP-3504-3MGH 3500 3.3 389cc Honda GX390 OHV AR, external bypass 3-0194 1.70 gallons 5.5 gallons 2.14 gph 294,000 43x30x41in. 551 lb. 428 lb.
HSP-3504-3MGK 3500 3.3 429cc Kohler CH440 OHV AR, external bypass 3-0194 1.70 gallons 5.5 gallons 2.14 gph 294,000 43x30x41in. 551 lb. 428 lb.
Mi-T-M
NO.
Accessories & Options:
PART NUMBER DESCRIPTION FITS MODELS
20-0464A52 Rain cap 3000 to 3500-PSI models
50-0161 High pressure detergent injector All models
850-0433 50-ft. x
851-0262 50-ft. x
HX-0098 Electric start - battery included HSP-3504-3MGH
16
3
⁄8
-in. high pressure hose 3500-PSI models
3
⁄8
-in. high pressure hose 2500 to 3000-PSI models
FUEL TANK
CAPACITY
PART NUMBER DESCRIPTION FITS MODELS
HX-0233 Adjustable thermostat HSP-2503-0MMH
HX-0234 Low pressure detergent injector HSP-2503-0MMH
HX-0236 Hour meter HSP-2503-0MMH
HX-0250 Adjustable thermostat 3000 to 3500-PSI models
BURNER FUEL
TANK CAP.
BURNER
FUEL CONS.
BTU PER
HOUR
DIMENSIONS
(LxWxH) SHIP WT. NET WT.
Page 2
Pressure Washers
HSP Series Hot
Water Designs

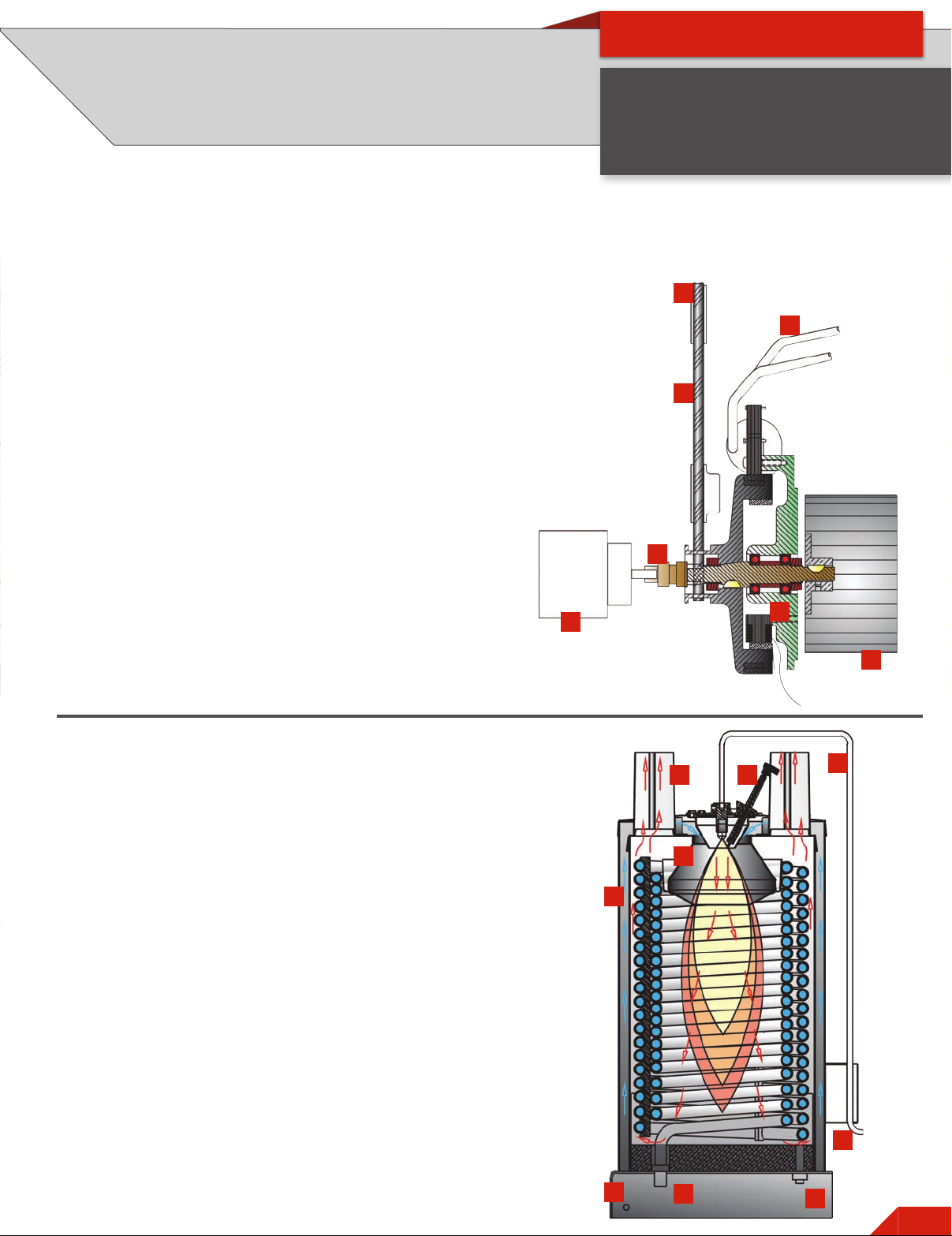

HSP Series Patented EMF System
In 1999, Mi-T-M Corporation received the patent for a unique ignition/ring system, called the Electro Magnetic Firing (EMF)
System, which produces enough voltage for operation and proper burning of the HSP Series hot water pressure washers.
This system is designed with two sets of magnets that are used to produce electricity. The rst set of magnets produces
a low voltage of about 12 to 14-volts when passed by a coil known as a stator. This voltage is required for operation of
the on/off switch, pressure and high limit switches and the fuel solenoid.
The second set of magnets passes by an ignition coil which
produces a high voltage in the tens of thousands of volts.
The spark is generated across the electrode gap and is
enough to create proper ignition of either No. 1 diesel,
No. 2 diesel or kerosene.
1. Engine sheave, dual set screw mount, maintains proper
alignment of pump shaft key.
2. The belt tension sheave creates proper belt tension so fuel
pump discharges fuel upon demand.
3. The long lasting, non-corrosive exible drive coupler
protects EMF system if fuel pump locks up.
4. Fuel pump is a durable high quality pump that will deliver
No. 1 or No. 2 diesel fuel or kerosene.
5. Stator coil/magnets are a low maintenance system that
provides solenoid control voltage.
6. Fan provides burner air for proper combustion and clean
exhaust smoke. It has an easily accessible air ow control.
7. Ignition coil provides voltage to electrodes for proper spark
voltage, allowing accurate ignition of fuel every time the
trigger is pulled. The ignition coil has a long life, is easily
replaced and has a proven track record in the industry.
EMF System eliminates
the need for a 12V battery.
4
1
7
2
3
5
6
HSP Series Burner Design
1. Large capacity exhaust tubes allow for proper exhausting of
combustion gases.
2. When troubleshooting a burner problem, the spark can easily be
checked within seconds through the convenient sight glass.
3. Continuous wrap tubing coil eliminates butt welds that can cause leaks.
The coil is lightweight and designed for easy replacement and durability.
4. The insulation pad is designed for easy replacement and durability.
5. Coil inlet/outlet connections and convenient coil drain allow for easy
draining of all water in coil to prevent freezing.
6. The combustion chamber drain allows for easy draining of water and
fuel build-up.
7. With Mi-T-M’s triple air ow design, the temperatures on the outer wrap
are kept low enough to eliminate the need for coil insulation. This also
increases the efciencies of the fuel being burned by the ignition on the
down-ow and the exhaust on the up-ow of the burner chamber.
8. Single wire-braided fuel hose prevents leakage, protects the system
and won’t crack or kink.
9. Electrodes and nozzle assembly are at top of burner for easy
maintenance and troubleshooting.
3
4
1
9
8
2
7
5
6
17
