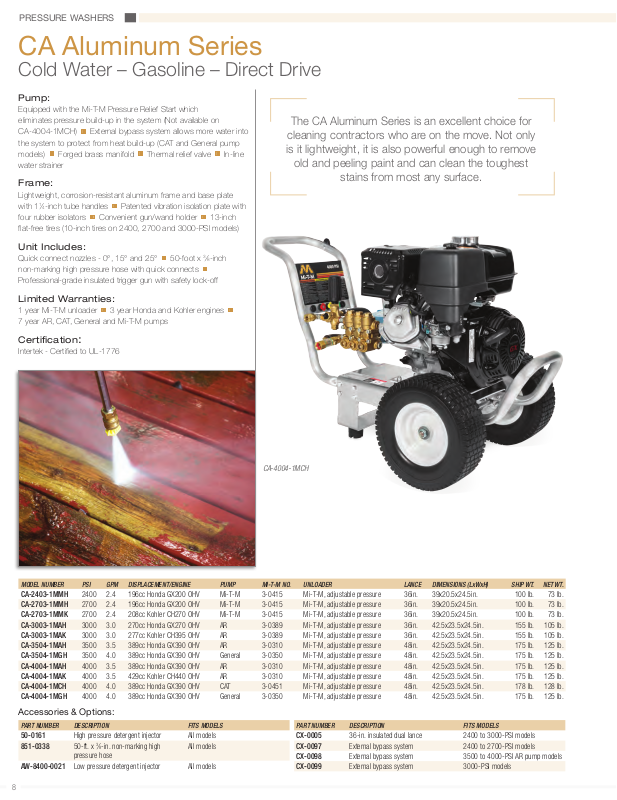

PRESSURE WASHERS
CA Aluminum Series
Cold Water – Gasoline – Direct Drive
Pump:
Equipped with the Mi-T-M Pressure Relief Start which
eliminates pressure build-up in the system (Not available on
CA-4004-1MCH)
the system to protect from heat build-up (CAT and General pump
models)
water strainer
n
n
External bypass system allows more water into
Forged brass manifold
n
Thermal relief valve
n
In-line
Frame:
Lightweight, corrosion-resistant aluminum frame and base plate
with 11⁄4-inch tube handles
four rubber isolators
flat-free tires (10-inch tires on 2400, 2700 and 3000-PSI models)
n
Patented vibration isolation plate with
n
Convenient gun/wand holder
n
13-inch
The CA Aluminum Series is an excellent choice for
cleaning contractors who are on the move. Not only
is it lightweight, it is also powerful enough to remove
old and peeling paint and can clean the toughest
stains from most any surface.
Unit Includes:
n
Quick connect nozzles - 0°, 15° and 25°
non-marking high pressure hose with quick connects
Professional-grade insulated trigger gun with safety lock-off
50-foot x
3
⁄8-inch
n
Limited Warranties:
n
1 year Mi-T-M unloader
7 year AR, CAT, General and Mi-T-M pumps
3 year Honda and Kohler engines
Certification:
Intertek - Certified to UL-1776
n
CA-4004-1MCH
MODEL NUMBER PSI GPM DISPLACEMENT/ENGINE PUMP Mi-T-M NO. UNLOADER LANCE DIMENSIONS (LxWxH) SHIP WT. NET WT.
CA-2403-1MMH 2400 2.4 196cc Honda GX200 OHV Mi-T-M 3-0415 Mi-T-M, adjustable pressure 36in. 39x20.5x24.5in. 100 lb. 73 lb.
CA-2703-1MMH 2700 2.4 196cc Honda GX200 OHV Mi-T-M 3-0415 Mi-T-M, adjustable pressure 36in. 39x20.5x24.5in. 100 lb. 73 lb.
CA-2703-1MMK 2700 2.4 208cc Kohler CH270 OHV Mi-T-M 3-0415 Mi-T-M, adjustable pressure 36in. 39x20.5x24.5in. 100 lb. 73 lb.
CA-3003-1MAH 3000 3.0 270cc Honda GX270 OHV AR 3-0389 Mi-T-M, adjustable pressure 36in. 42.5x23.5x24.5in. 155 lb. 105 lb.
CA-3003-1MAK 3000 3.0 277cc Kohler CH395 OHV AR 3-0389 Mi-T-M, adjustable pressure 36in. 42.5x23.5x24.5in. 155 lb. 105 lb.
CA-3504-1MAH 3500 3.5 389cc Honda GX390 OHV AR 3-0310 Mi-T-M, adjustable pressure 48in. 42.5x23.5x24.5in. 175 lb. 125 lb.
CA-3504-1MGH 3500 4.0 389cc Honda GX390 OHV General 3-0350 Mi-T-M, adjustable pressure 48in. 42.5x23.5x24.5in. 175 lb. 125 lb.
CA-4004-1MAH 4000 3.5 389cc Honda GX390 OHV AR 3-0310 Mi-T-M, adjustable pressure 48in. 42.5x23.5x24.5in. 175 lb. 125 lb.
CA-4004-1MAK 4000 3.5 429cc Kohler CH440 OHV AR 3-0310 Mi-T-M, adjustable pressure 48in. 42.5x23.5x24.5in. 175 lb. 125 lb.
CA-4004-1MCH 4000 4.0 389cc Honda GX390 OHV CAT 3-0451 Mi-T-M, adjustable pressure 48in. 42.5x23.5x24.5in. 178 lb. 128 lb.
CA-4004-1MGH 4000 4.0 389cc Honda GX390 OHV General 3-0350 Mi-T-M, adjustable pressure 48in. 42.5x23.5x24.5in. 175 lb. 125 lb.
Accessories & Options:
PART NUMBER DESCRIPTION FITS MODELS
50-0161 High pressure detergent injector All models
851-0338 50-ft. x
AW-8400-0021 Low pressure detergent injector All models
8
3
⁄8
-in. non-marking high
pressure hose
All models
PART NUMBER DESCRIPTION FITS MODELS
CX-0005 36-in. insulated dual lance 2400 to 3000-PSI models
CX-0097 External bypass system 2400 to 2700-PSI models
CX-0098 External bypass system 3500 to 4000-PSI AR pump models
CX-0099 External bypass system 3000-PSI models
