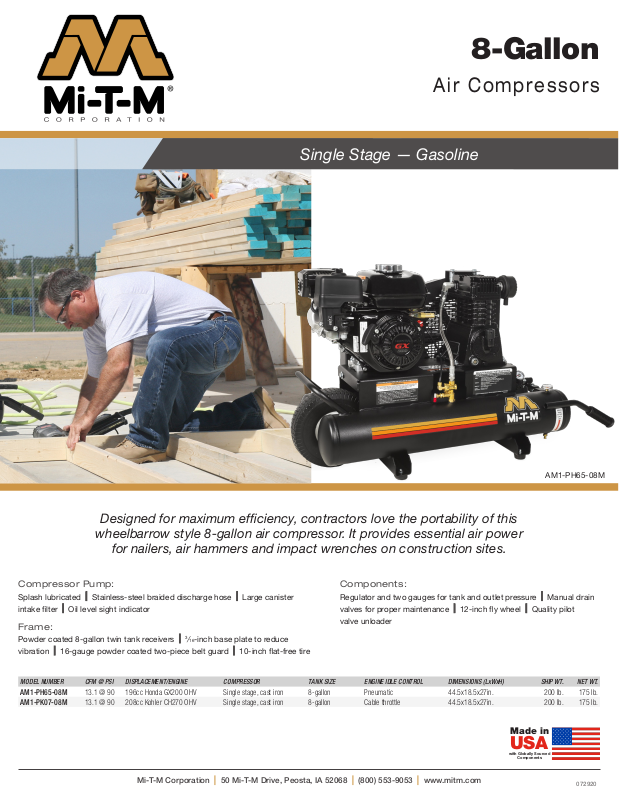

Page 1
Air Compressors
Single Stage — Gasoline
8-Gallon
AM1-PH65-08M
Designed for maximum efficiency, contractors love the portability of this
wheelbarrow style 8-gallon air compressor. It provides essential air power
for nailers, air hammers and impact wrenches on construction sites.
Compressor Pump:
Splash lubricated
intake lter
Frame:
Powder coated 8-gallon twin tank receivers
vibration xx 16-gauge powder coated two-piece belt guard xx 10-inch at-free tire
MODEL NUMBER CFM @ PSI DISPLACEMENT/ENGINE COMPRESSOR TANK SIZE ENGINE IDLE CONTROL DIMENSIONS (LxWxH) SHIP WT. NET WT.
AM1-PH65-08M 13.1 @ 90 196cc Honda GX200 OHV Single stage, cast iron 8-gallon Pneumatic 44.5x18.5x27in. 200 lb. 175 lb.
AM1-PK07-08M 13.1 @ 90 208cc Kohler CH270 OHV Single stage, cast iron 8-gallon Cable throttle 44.5x18.5x27in. 200 lb. 175 lb.
Stainless-steel braided discharge hose
xx
Oil level sight indicator
xx
3⁄16-inch base plate to reduce
xx
Large canister
xx
Components:
Regulator and two gauges for tank and outlet pressure
valves for proper maintenance
valve unloader
12-inch y wheel
xx
Quality pilot
xx
Made in
USA
with Globally Sourced
Components
Manual drain
xx
Mi-T-M Corporation | 50 Mi-T-M Drive, Peosta, IA 52068 | (800) 553-9053 | www.mitm.com
072920
Page 2
8-Gallon
Air Compressors – Single Stage – Gasoline
Options:
PART NUMBER DESCRIPTION FITS MODELS
AX-0003 Manual drain/regulator/metal bowl - Drains moisture
from air system
AX-0078 Stationary option - Converts the portable model to a
stationary model, removes the wheel and handles
Accessories:
PART NUMBER DESCRIPTION FITS MODELS
70-0357 Engine oil drain extension - 14-inch flexible drain hose
makes oil changes clean and easy
854-0093 Service truck mount kit - Recommended for models that
are mounted in service truck applications. Includes four
rubber isolators to reduce wear. You will also need to order
stationary option, AX-0078
AW-6000-1002 Equipment cover - Keeps your equipment clean, dry and
looking like new
All models
All models
All models
All models
All models
AM1-PK07-08M
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Mi-T-M Corporation | 50 Mi-T-M Drive, Peosta, IA 52068 | (800) 553-9053 | www.mitm.com
072920
