Page 1
1 Mitek Plaza
Winslow, IL 61089
Phone (877)DCM-LOUD
Visit our Internet web site at: www.dcmspeakers.com
DCM is a registered trademark of Mitek Corporation.
Due to our policy of continuous improvement, specifications are subject to change without notice.
21A6506

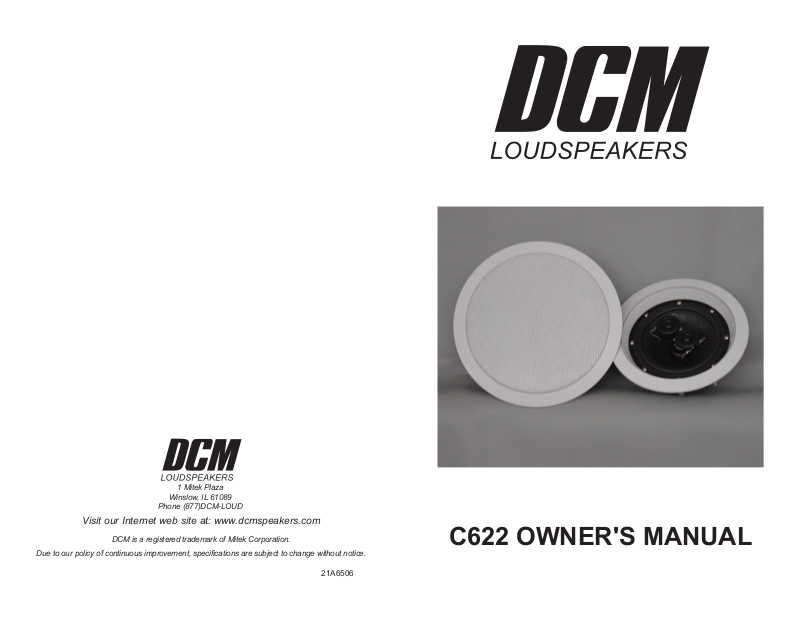

C622 OWNER'S MANUAL
Page 2
CONGRATULATIONS
We appreciate your choice of DCM In-Ceiling Speakers. Properly installed and
operated, DCM In-Ceiling Speakers should provide years of worry-free listening
pleasure. It’s important that you follow each step in this guide carefully to insure
proper installation.
SPECIFICATIONS C622
Frequency Response 64Hz-20kHz
±3dB
Impedance 8 ohms nominal
Power Handling 35 Watts RMS
70 Watts Peak
Music
Sensitivity (1W/1m) 84dB
Woofer Diameter 6-1/2”
Tweeter (2) 1/2" Balanced
Dome
DCM WARRANTY INFORMATION
All DCM In-Ceiling Speakers purchased in the United States from an authorized DCM
dealer are guaranteed against defects in material and workmanship for a period ten
years from the date purchased by the end user, and limited to the original retail purchaser of the product.
DCM disclaims any liability for other incurred damages resulting from product defects.
Any expenses incurred in the removal and reinstallation of product is not covered by
this warranty. DCM's total liability will not exceed the purchase price of the product.
This warranty is valid in the United States only.
Proof of purchase is required when requesting service, so please retain your sales
receipt and take a moment to register your warranty on line at www.dcm.com.
Mounting Depth 3-5/16"
Baffle Diameter 9"
PAINTING YOUR DCM IN-CEILING SPEAKERS
DCM In-Ceiling Speakers are designed to accept all types of interior and exterior
paints. Spray or roller application should provide excellent results. A paint shield
is included with all DCM In-Ceiling Speakers to protect the speakers during the
painting process.
Page 3
R+
R-
L-
L+
OTHER PRODUCTS FROM DCM
FEATURES
In-Wall Loudspeakers
W625
6-1/2" Two-Way In-Wall Speaker
25mm Soft Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 85dB
55W RMS/110W Peak Music
Frequency Response: 55Hz-20kHz
12 1/16"H x 8 9/16"W x 2 7/8"D
Home Loudspeakers
FT6
6-1/2” Two-Way Home Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 89dB
100W RMS/200W Peak Music
Frequency Response: 55Hz-20kHz
12 3/4”H x 7 1/2”W x 8 1/2”D
FT10
10” Three-Way Home Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 92dB
200W RMS/400W Peak Music
Frequency Response: 30Hz-20kHz
31 7/16”H x 11 1/8”W x 14 5/16”D
W825
8" Two-Way In-Wall Speaker
25mm Soft Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 86dB
60W RMS/120W Peak Music
Frequency Response: 36Hz-20kHz
14 1/16"H x 10 1/16"W x 3 1/2"D
FT6C
6-1/2” Center Channel Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 92dB
100W RMS/150W Peak Music
Frequency Response: 60Hz-20kHz
7 1/2”H x 17 5/8”W x 8”D
FT12
12” Three-Way Home Loudspeaker
19mm Dome Tweeter
Impedance:8 ohms nominal
Sensitivity: 94dB
250W RMS/500W Peak Music
Frequency Response: 25Hz-20kHz
35”H x 13 1/8”W x 16 1/16”D
The C622 In-Ceiling Speakers are designed for use in small rooms or anywhere
that both channels of a stereo signal need to be reproduced while taking up a
minimum amount of space.
It utilizes a unique dual voice coil woofer design that allows both channels of a
stereo system to drive one cone. This feature coupled with a dual tweeter system
allow this unit to operate as two speakers in one.
This unit is of a water resistant design and therefore can be used in high humidity
areas such as a bathroom or laundry room.
TECHNICAL ASSISTANCE
For additional technical assistance you can visit our web site at
www.dcmspeakers.com. Otherwise, our technical service representatives can be
reached by phone: 1-877-DCM-LOUD or by email: technical@dcmspeakers.com.
Page 4
STEP 1
Using a stud finder (available at low cost at most hardware stores) or other accurate method, locate center point between two joists and mark. Using template
provided, trace hole pattern on surface of ceiling
STEP 2
Using a sabre saw, keyhole saw or very sharp utility knife, cut hole in wall, following traced pattern.
STEP 4
Attach loudspeaker wires to speaker terminals, observing correct polarity, and
position speaker frame up into cutout. Be careful not to pinch wires in the process.
STEP 5
Carefully tighten the four mounting screws. This will cause the mounting wings to
rotate out behind the mounting surface and secure the speaker in place.
STEP 3
Run loudspeaker wires to sound source location. There are several methods you
can use to accomplish wiring, depending on the construction characteristics of the
room or house. You can add a professional touch to your installation by using a
speaker terminal plate at the source location. Leave sufficient amount of wire at
speaker location (8 to 10 inches) to complete connection.
STEP 6
After the speaker panel is secured tightly, test for sound. When you are satisfied
the speaker is operational, affix grill. As grill is designed for a snug fit, you’ll need
to position one edge into slot first, and press or squeeze around perimeter of grill,
while pushing leading edges into grill slot.
