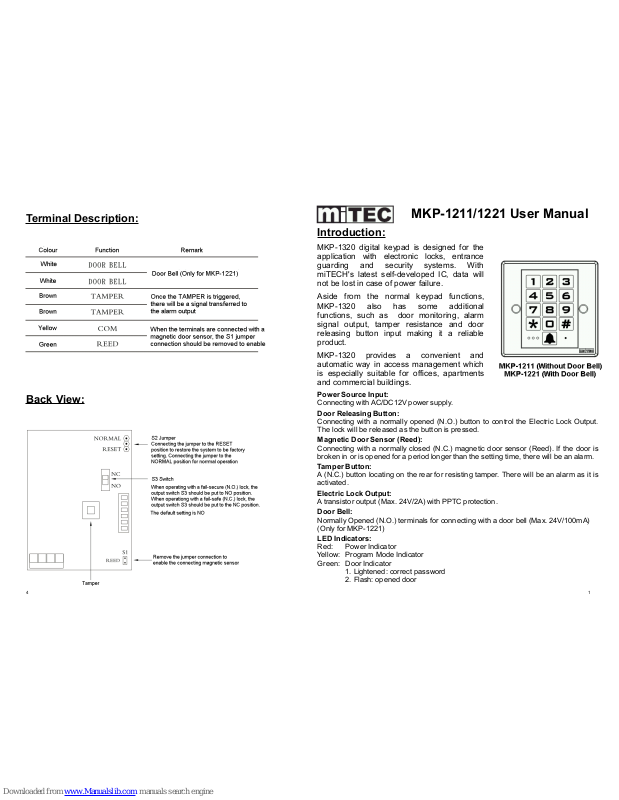

MKP-1211/1221 User Manual

Introduction:

MKP-1320 digital keypad is designed for the
application with electronic locks, entrance
guarding and security systems. With
miTECH's latest self-developed IC, data will
not be lost in case of power failure.

Aside from the normal keypad functions,
MKP-1320 also has some additional
functions, such as door monitoring, alarm
signal output, tamper resistance and door
releasing button input making it a reliable
product.

MKP-1320 provides a convenient and
automatic way in access management which
is especially suitable for offices, apartments
and commercial buildings.

Power Source Input:

Connecting with AC/DC12V power supply.

Door Releasing Button:

Connecting with a normally opened (N.O.) button to control the Electric Lock Output.
The lock will be released as the button is pressed.

Magnetic Door Sensor (Reed):

Connecting with a normally closed (N.C.) magnetic door sensor (Reed). If the door is
broken in or is opened for a period longer than the setting time, there will be an alarm.

Tamper Button:

A (N.C.) button locating on the rear for resisting tamper. There will be an alarm as it is
activated.

Electric Lock Output:

A transistor output (Max. 24V/2A) with PPTC protection.

Door Bell:

Normally Opened (N.O.) terminals for connecting with a door bell (Max. 24V/100mA)
(Only for MKP-1221)

LED Indicators:

Red: Power Indicator
Yellow: Program Mode Indicator
Green: Door Indicator

1. Lightened: correct password

2. Flash: opened door

Back View:

Terminal Description:

14

Wiring Diagram:

(1) Connection with a Electric-Lock Power Supply:

* For the above connection, the switch S3 should be put to the NO position

(2) Connection with a Electric Lock :

* For connecting with a fail-secure lock, the switch S3 should be put to the NO position
For connecting with a fail-safe lock, the switch S3 s hould be put to the NC position
