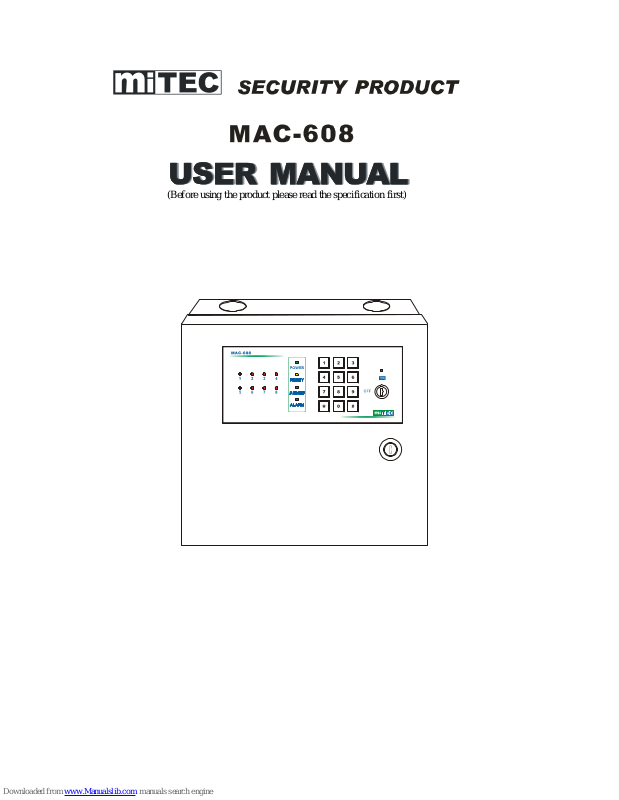

(Before using the product please read the specification first)
FEATURES
POWER SOURCE : AC100-240V 50/60Hz
CHARGE : DC14.5V/150mA
FUSE : T2.0A/250V
CURRENT : 200mA
DC OUTPUT : DC12V/1A(Max.)
ALARM OUTPUT DELAY : 12A/14V DC or 7A/120V AC
INDICATOR OUTPUT : THREE GROUPS DC 12V/40mA(Max.)
DIMENSIONS : 284(W)X284(H)X86(D)mm
WORK TEMPERATURE : -20°C-50°C
WEIGHT : 4.0KG
NOTICE
1. Don’t place this product under the rain and in wet conditions.
2. To prevent electric shock, make sure the circuit was cut off and connect AC power
correctly before inst
alling.
3. Before switch on power, Make sure all cable was correct connection.
4. Please entrust inst
alling and testing to the technical personal who is qualified for the
anti-theft system engineering
5. Be sure to read this manual thoroughly Before using the product, so that grasp the way
of use
6. Please keep this manual for future reference
FUNCTION SPECIFICATION
> Fixed defence zone function
8 zone have the defence function was define before factory ,don’t to program yourself.
> Hierarchical control switch function
1. Keyboard and Remote key are used only for control [Z1 Z6] normal Armed /Disarmed
(must work in the panel ON / OFF key) ,keyboard and Remote key will lost the
function of Armed/Disarmed when an alarm is triggered, it must to use the ON / OFF
key to Disarmed.
2. The panel ON / OFF key are master switch of product. OFF position indicate the
product is in the state of Disarmed completely ,it is no alarm when trigger any defence
zone. ON position indicate the product is in the state of Armed completely. It will output
normal alarm when trigger [Z7 or Z8],and [Z1~Z6] ,it can output alarm when start
Armed by keypad or Remote key.
Two groups alarm output...
1. Output1: Lock delay output, no time limit, the alarm output until the system Remote.
2. Output2: timing delay output, can set the time of alarm by self(5 seconds to 15
minutes)...
Three groups indicator output
1. Ready: In the standby mode, it is a signal output when all the defence zone in the
state of NC.(long bright)
2. ARMED: It is a signal output when start keypad or Remote key(first flash then long
bright)
3. ALARM: It is a signal output when an alarm is triggered (long bri ght until the system
Disarmed)...
Output OF Buzzer indication
It will be a different indicate sound output when operate system.
DEFINE THE DEFENCE ZONE
【Z1】
EXIT/ Entry delay alarm circuit
1. EXIT delay: When start the keyboard or Remote Key Armed, the defence zone will
Armed in normal state after EXIT delay of [T1} ,must be leave during the EXIT delay of
[T1] and make [Z1]to be NC state ,other or ,it will trigger alarm.
2. ENTRY delay: when the system is armed, enter by this defence zone must start
keyboard or Remote key to Disarmed during [T2] delay ,other or it will trigger alarm.
【Z2】
EXIT delay alarm circuit
When start keyboard or Remote Key armed, this defence zone will enter armed state
after [T1] EXIT delay ,must be leave during EXIT delay of [T1] and make [Z2] to be
normal NC mode, other or it will trigger an alarm
[Z3~Z6] Instant alarm circuit
The defence zone will be armed mode When start the keyboard or Remote Key
armed, it will be a alarm output immediately if defence zone is triggered.
[Z7] 24HR instant alarm circuit
The defence zone will be armed mode When start the keyboard or Remote Key
armed When turn the panel ON / OFF KEY is ON position, it will be a alarm output
immediately if defence zone is triggered
[Z8] 24-hour silent alarm circuit
The defence zone will be armed mode When start the keyboard or Remote Key
armed , it will be a alarm output immediately if defence zone is triggered
[Z1~Z7] Alarm is triggered the Output 1 & Output 2 sent a signal
[Z8] Alarm is triggered, the Output 1 sent a si
Panel specification
ON/OFF Key
Switch
1. When Key is in the ON position , start [Z7 ~ Z8 ] Armed
*
To start [Z1 ~Z6] alarm by keyboard or Remote Key.
2. System is Disarmed completely w
hen Key is in the OFF position ,defence zone of
[Z1~Z8] fail.
*Must use the key OFF to Disarmed switch system when trigger alarm
Digital Keypad
Enter correct p
assword to start [Z1~Z6] normal armed and Disarmed. It can’t Disarmed
when trigger alarm, and must use the panel key OFF to Disarmed.
*Keys in the OFF position, keyboard and Remote Key function is fail
Function indicator
[ON] 1.
System switch indicates the KEY-Switch is ON position, LED long bright.
KEY
Switch is OFF position when the lights go out
2. Password programming instructions - flash slowly when the system is
programmed state
[POWER] Po
wer LED, long bright is power supply normally
[READY]
System ready LED, it is bright means all defence zone are
normal (all
zones are the NC state)
[ALARM] system Alarm LED, it is bright when the defence zone that is armed
was
triggered unnormal
[ARMED] system armed LED ,it will flash and then long bright when start the keyboard
or st
art armed of Remote Key.
LED of defence zone【Z1~Z8】
1.
Went out : The defence zone is in the NC state when Disarmed (circuit normal)
2. Light
on: The defence zone is in
the NC state when Disarmed (circuit unnormal)
3. Fast Flash: In the armed state, when any zone is triggered, the zone indicator will
become fast flash
4.
Slow flash: When the defence zone is triggered the LED fast fla
sh ,then turn the
panel key to OFF position, LED slow flash.
PCB SPECIFICATION
NO CO M NC NO CO M NC Ke y Co m + 1 2 V RE - AL - AR - Z8 CO M Z 7 Z 6 CO M Z 5 Z4 CO M Z3 Z2 CO M Z 1
DC12V
DC12V O ut put Out put 1 Out put 2
Remote
Lamp Output Input 1-8
FUSE
2A
1 2 3 4 1 2 3
NO NO
SW1 T1 T2 T3
1 1 2 2 3 3
NO NO
N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C.L
+
-
LL
+-+
-
DC 12V LA MP
ON
OFF
機械式鎖匙開關
(OFF / O N, SPST )
警報
HORN
SIR-001閃燈
TK-30
Zone connections
> Input
1~8[Z1~Z8] is N, C circuit, make it shock circuit with
cable when the defence
zone don’t use .
> Lamp Output (Max.40Ma)
[RE-] READY LED Negative output, can connect a DC 12V LED to +12 V position
[AL-]
ALARM LED Negative output, can connect a DC 12V LED to +12 V position
[AR-]
ARMED LED Negative output, can connect a DC 12V LED to +12 V position
> ALARM Outputs (2 groups NO/NC electric delay)
【Output1】Lock output ,can connect to the Strobe or Auto Dialer.
【
Output2
】
Timer output ,can connect to the bell box or Siren Horn
> DV 12V Output(Max.1A)
Two groups DV12V output can supply power to the infrared detector / Strobe / Bell
box / Auto dialer, etc.
* In excess of 1A load current plus power supply
Time settings
【T1】
EXIT delay: Can set time of 15 seconds to 4 minutes, this delay time is valid for the
Z1 & Z2 only
【T2】
ENTRY delay: Can set the time of 15 seconds to 4 minutes, this delay time is valid for
Z1 only
【T3】
Alarm output: Can set the time of 5 seconds to 15 minutes,
this time is valid for Z1 &
Z7... only
Password Settings
SW1】It is appropriated for setting password, Can apply this function to set a password
dedicated
EXIT Setting Delay time (T1)
ALAR M output time (T3)setting
ENTRY delay time (T2)setting
password keyboard setting(sw1)
DIP SW IT CH
POSITION
O F F O F F O F F 1 5
O F F O F F O N 3 0
O F F O N O F F 4 5
O F F O N O N 6 0
O N O F F O F F 9 0
O N O F F O N 2
O N O N O F F 3
O N O N O N 4
seconds
seconds
econds
econds
econds
inutes
inutes
inutes
s
s
s
m
m
m
TIME
DIP SW ITCH POSITION
O F F O F F O F F
O F F O F F O N
O F F O N O F F
O F F O N O N 3
O N O F F O F F 5
O N O F F O N 8
O N O N O F F 1 2
O N O N O N 1 5
5 30seconds
seconds
2 m i n u t e s
m
m
m
m
m
inutes
inutes
inutes
inutes
inutes
TIME
DIP SW ITCH POSITION
O F F O F F O F F 1 5
O F F O F F O N 3 0
O F F O N O F F 4 5
O F F O N O N 6 0
O N O F F O F F 9 0
O N O F F O N 2
O N O N O F F 3
O N O N O N 4
seconds
seconds
seconds
ec onds
ec onds
inutes
inutes
inutes
s
s
m
m
m
TIME
program
DIP SWITCH POSITION
<1> ON OFF OFF OFF
<2> p
<3> OFF OFF OFF OFF
re ss * 5 1 2 3 4 0 U U U U #
* U U U U = new password
Time and password setting
password setting
