Mitcorp MX500 User Manual

MX500

VIDEOSCOPE SYSTEM

TABLE OF CONTENTS

Product Outlook4
6
7

8

9

10

11

12
13
14
15
16

17

18

19 Specications
20 MX500 Accessories

Getting Started With Touch Panel

Function Menu

Wite Balance - default

Wite Balance

SD Card Status

Settings Menu

USB Menu

AV Output Menu


Video Play

Album Play

Function Keys

Maintenance

Upgrading Firmware

WEEE Notice

FCC Notice

ROHS Notice
Legal and Other Notices
Chemical Compatibility

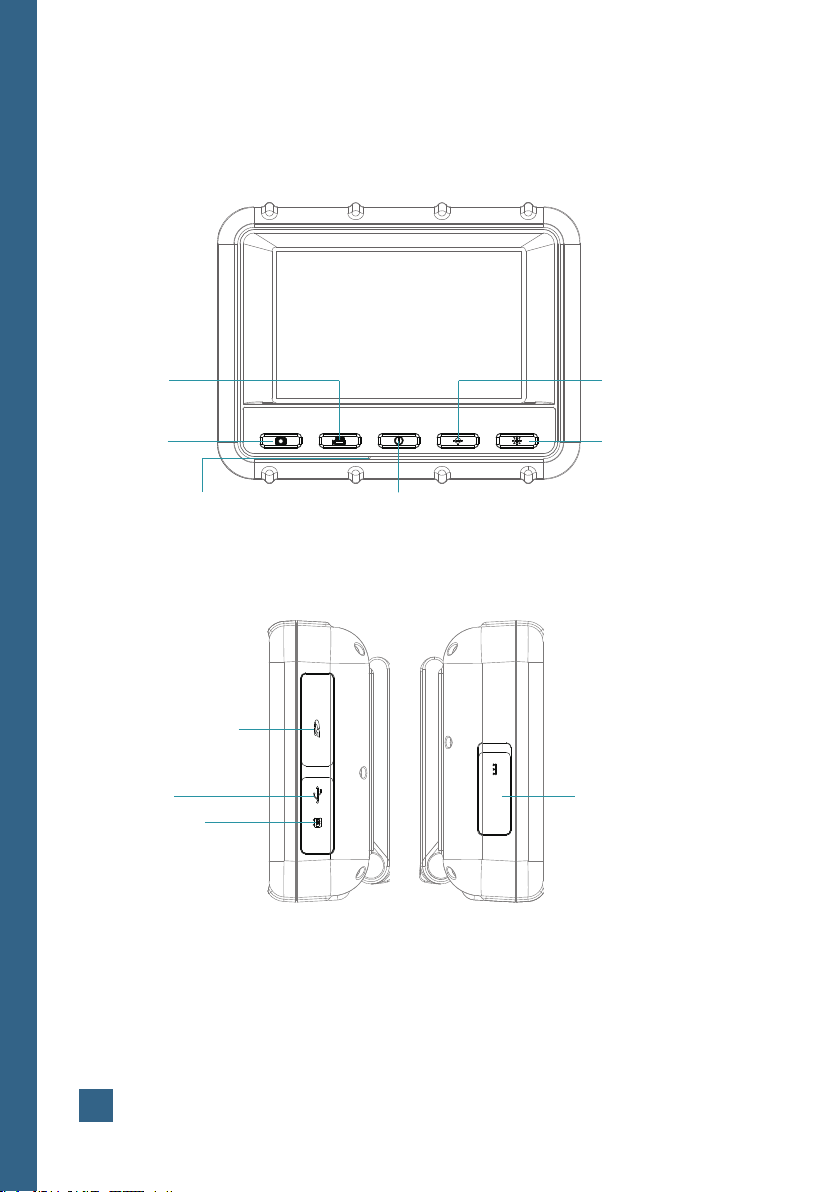

Product Outlook

RECORD

SNAP

BUILT - IN MICROPHONE

SD CARD SLOT

SNAP

USB

DECREASE BRIGHTNESS

INCREASE BRIGHTNESS

POWER BUTTON

CHARGING SOCKET

4

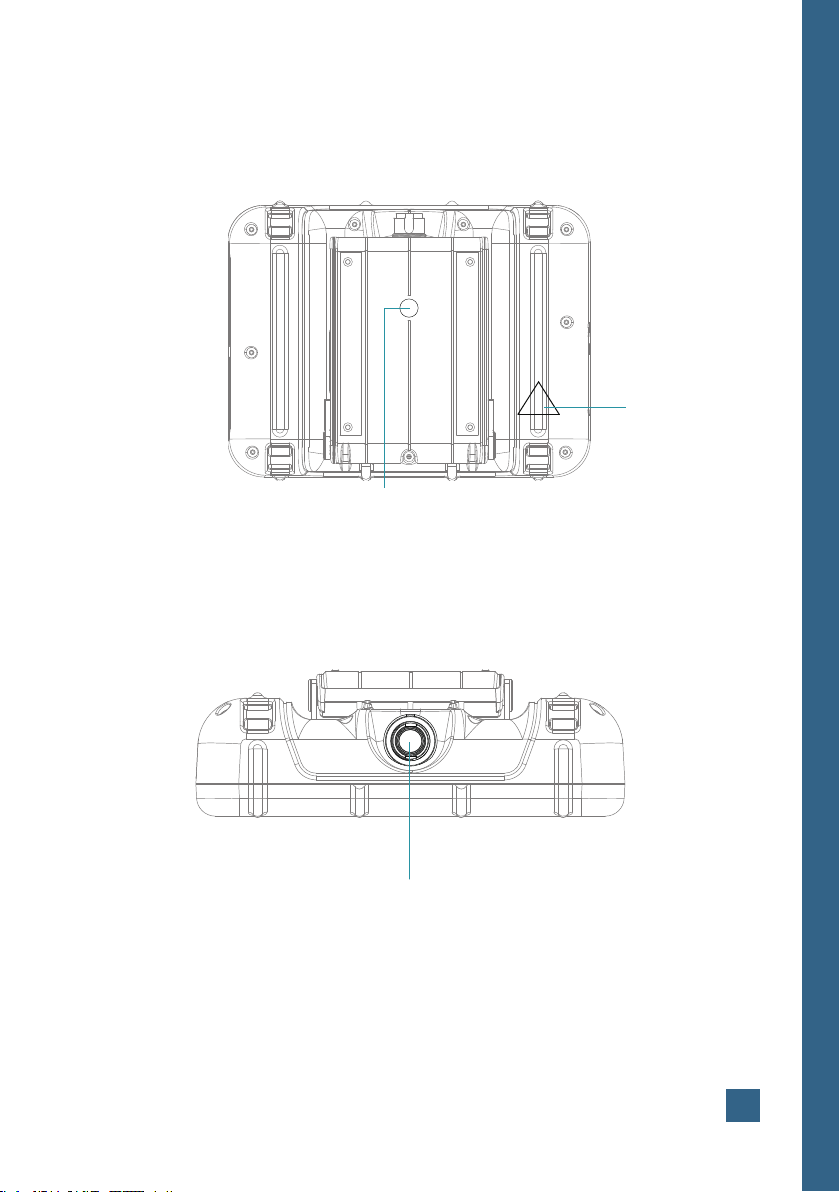

THREADED HOLE FOR TRIPOD MOUNT

INSERT TUBE CONNECTOR

！

RECHARGEABLE
LI BATTERY
INSIDE

5

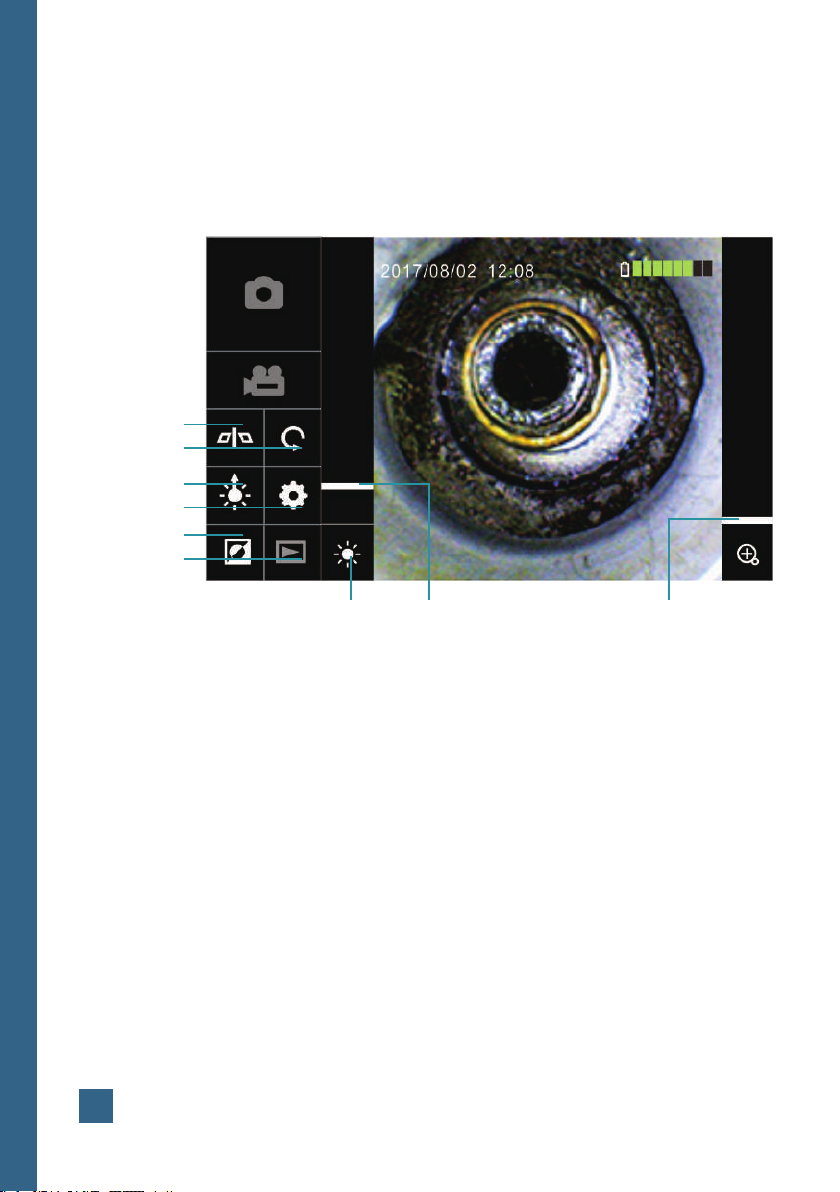

Getting Started With Touch Panel

When system turns on (with insert tube connected ), it’s ready to start the inspection

Time stamp Battery capacity

Snapshot

Video Recording

Mirror

Rotation

Particle Free

Menu

Image contrast

Preview

Brightness adjustment

Brightness

Zoom in

.

6

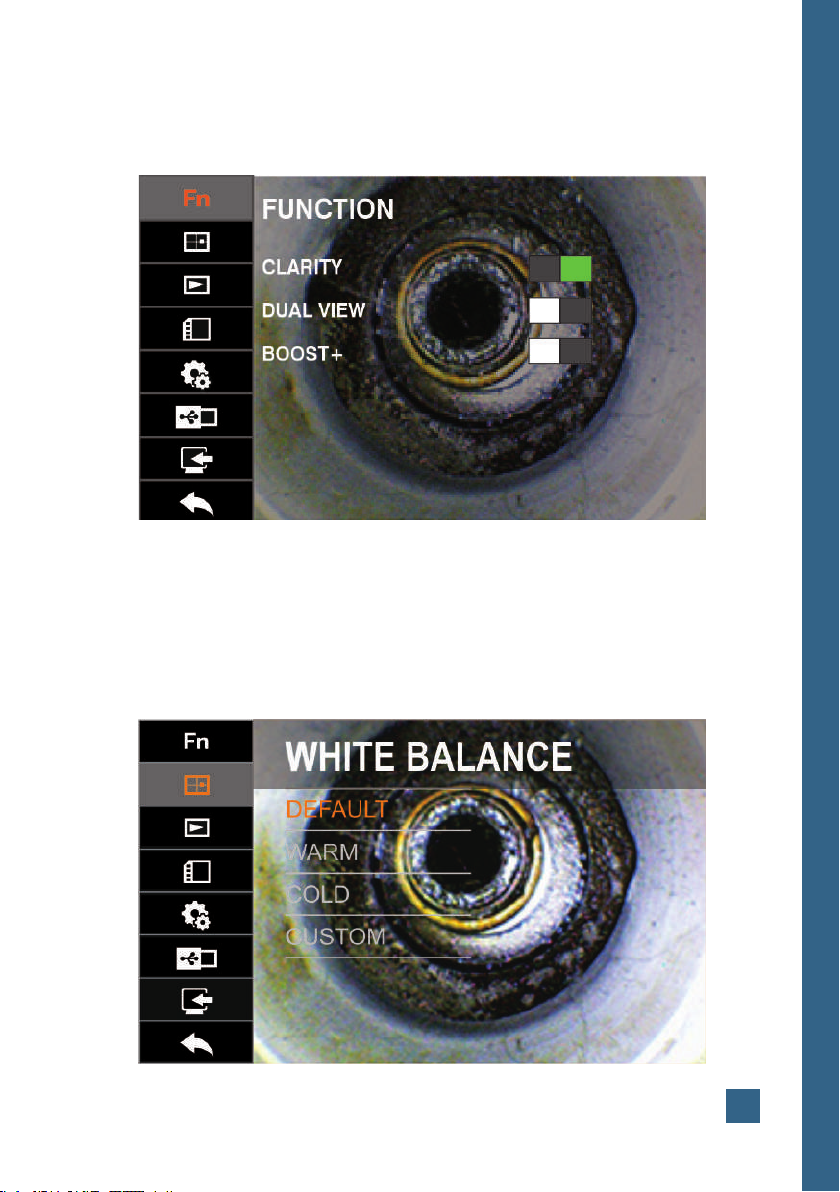

Function Menu

Menu Submenu

CLARITY : To enhance image edge.
DUAL VIEW :

BOOST+ : Light enhanced Mode.

Front view / side view inspection simultaneously

White Balance

DEFAULT

-

(mirror needed).

Menu Submenu

7

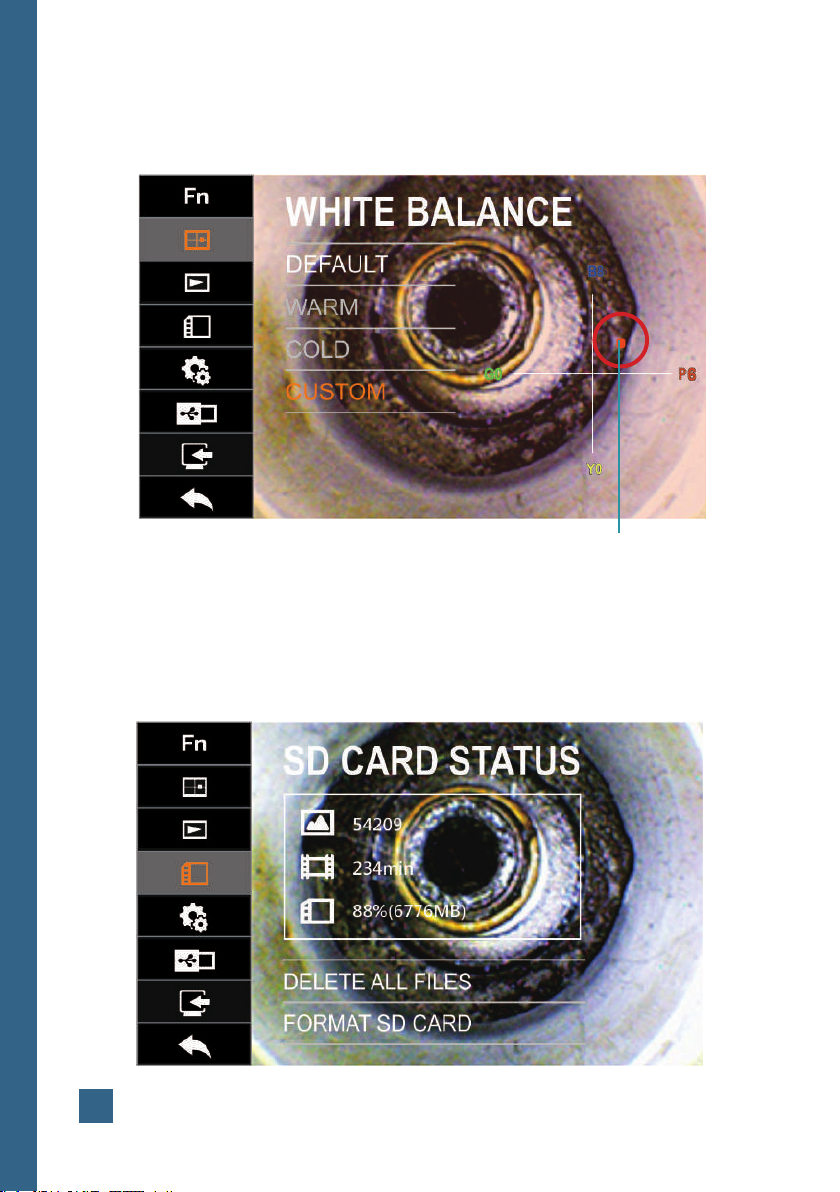

White Balance

Menu Submenu

SD Card Status

Hue adjustment

Menu Submenu

8

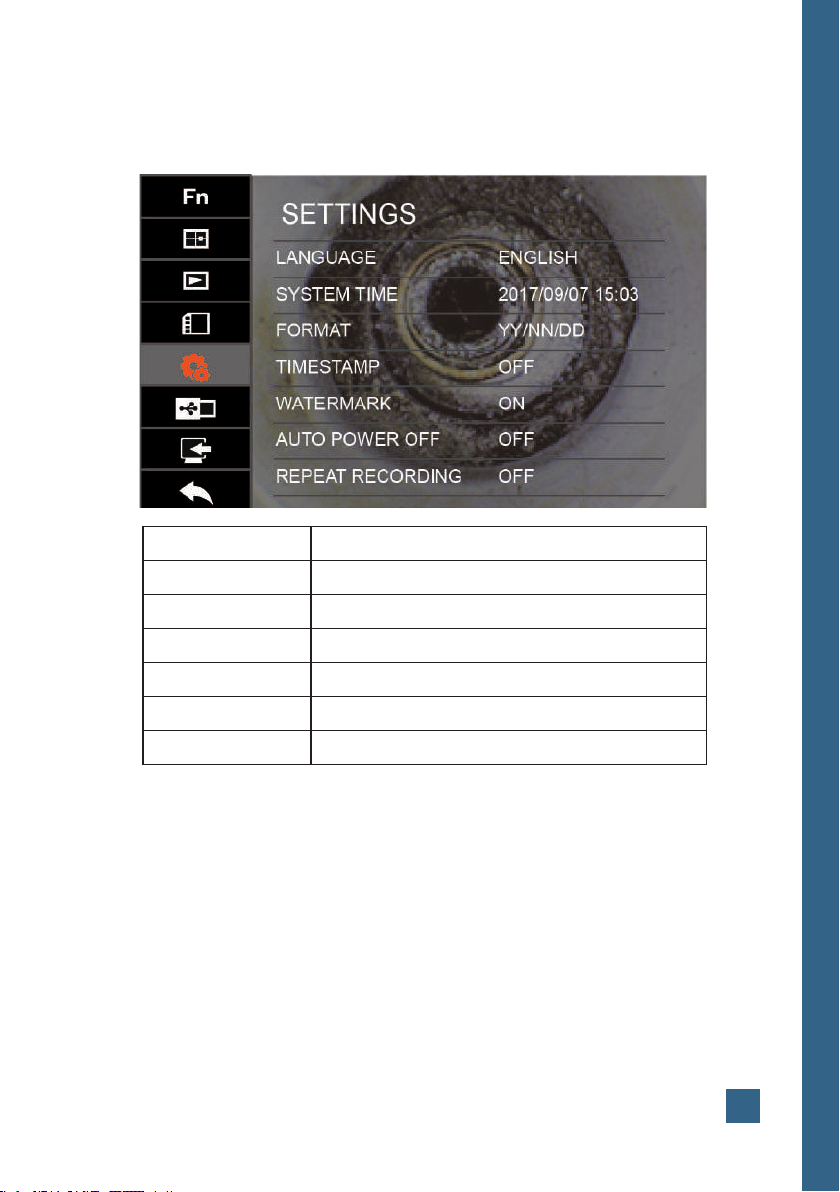

Settings Menu

Menu Submenu

LANGUAGE

SYSTEM TIME set up system time

FORMAT

TIMESTAMP set up time stamp

WATERMARK on for Mitcorp watermark on pics

AUTO POWER OFF

REPEAT RECORDING set up record restart time : OFF /5/10/20/30(minutes)

set up operation language

display form at YY/MM/DD, DD/MM/YY, MM/DD/YY

set up system off time : OFF/5/10/20/30(minutes)

9

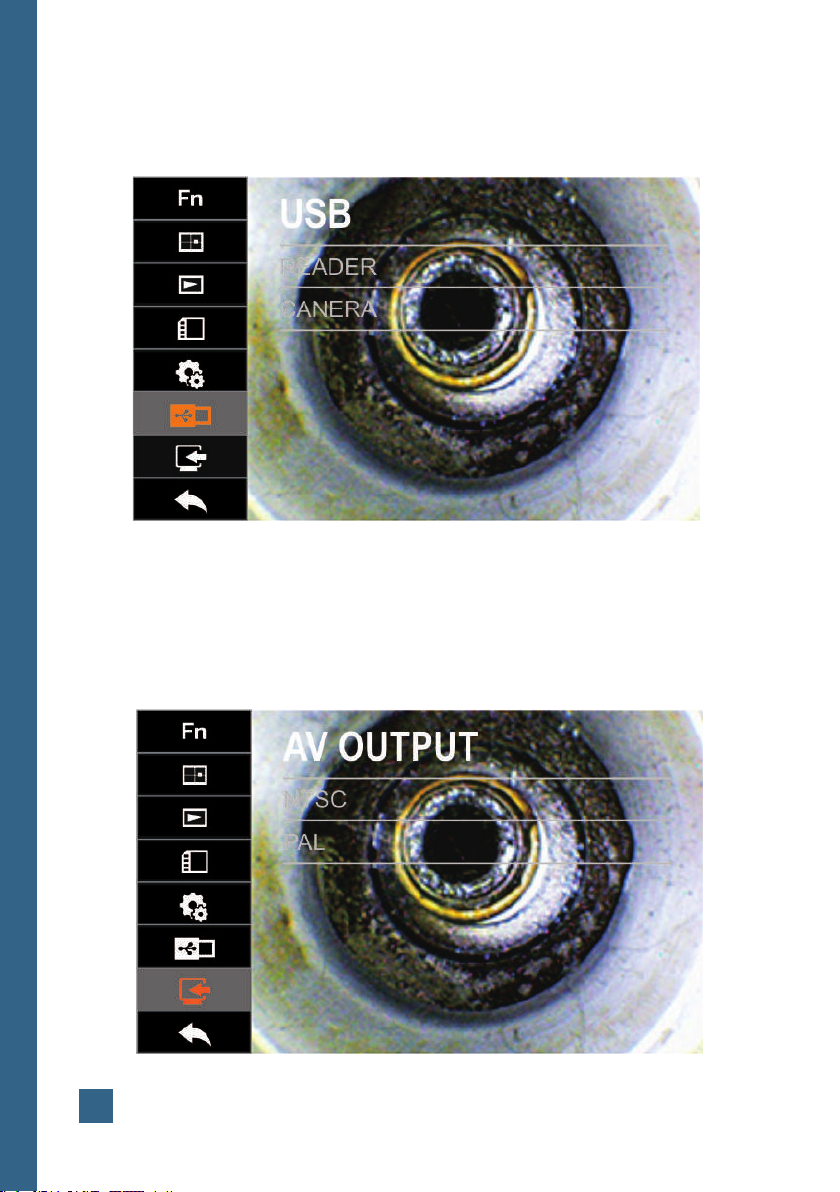

USB Menu

Menu Submenu

Reader:
Camera: Connect PC to

AV Output Menu

Menu Submenu

Connect the MX500 system to TV ( NTSC or PAL )

10

Connect PC to read the data stored in the SD card

share real-time inspection status


Previous le

Next le

Album display

Delete le

Back

File saved time In chronological order

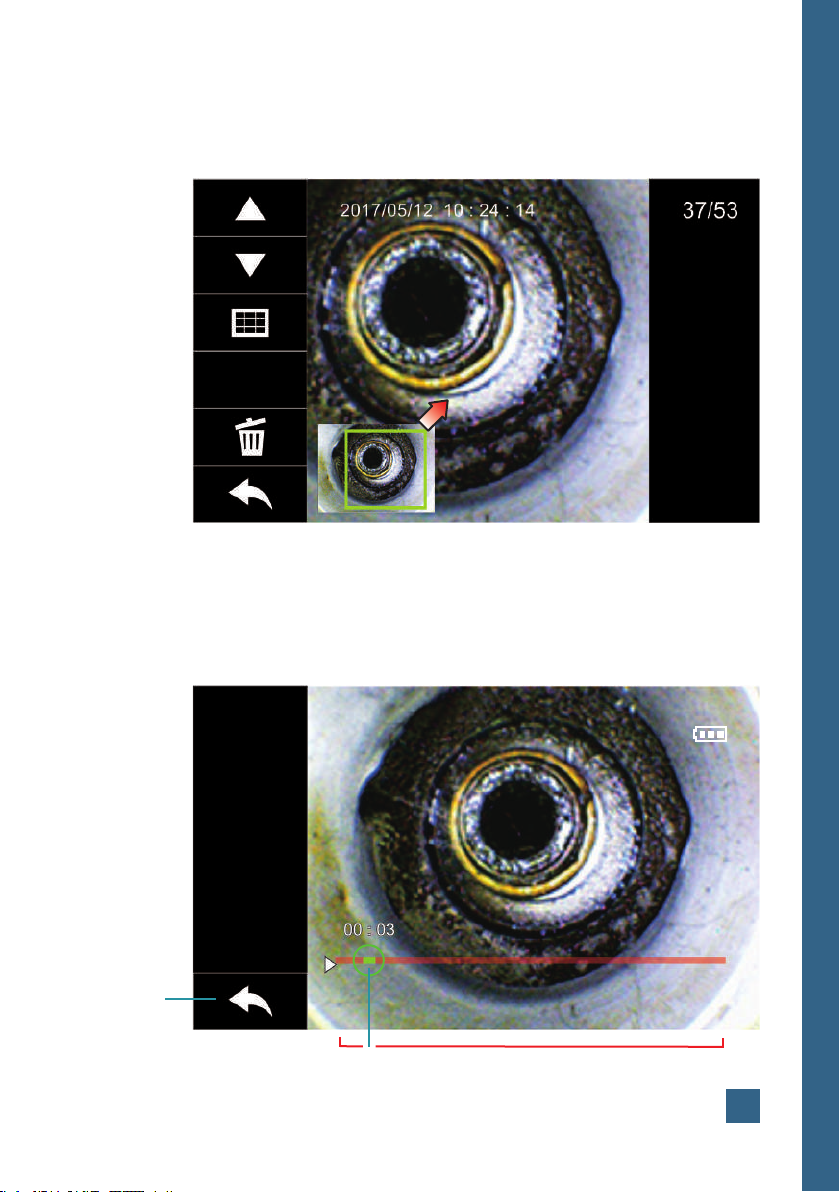

Video Play

Play/Pause

Image enlargement
You can move the image to view picture details in green box

You can drag the green dot backward/forward.

:

11

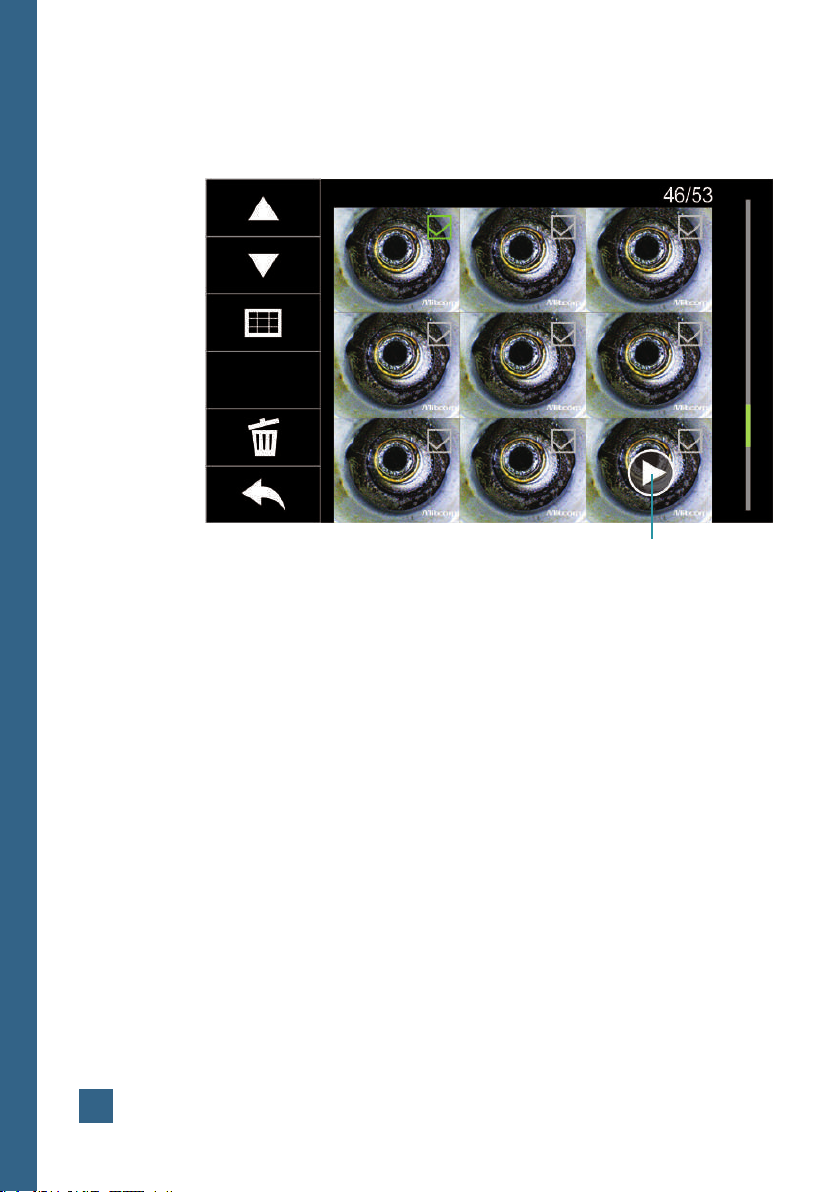

Album play

Previous le

Next le

Single pic display

Delete le

Back

Video le (Click to play)

To view certain file, check and click; to delete files, check and put them in the trash can.

12

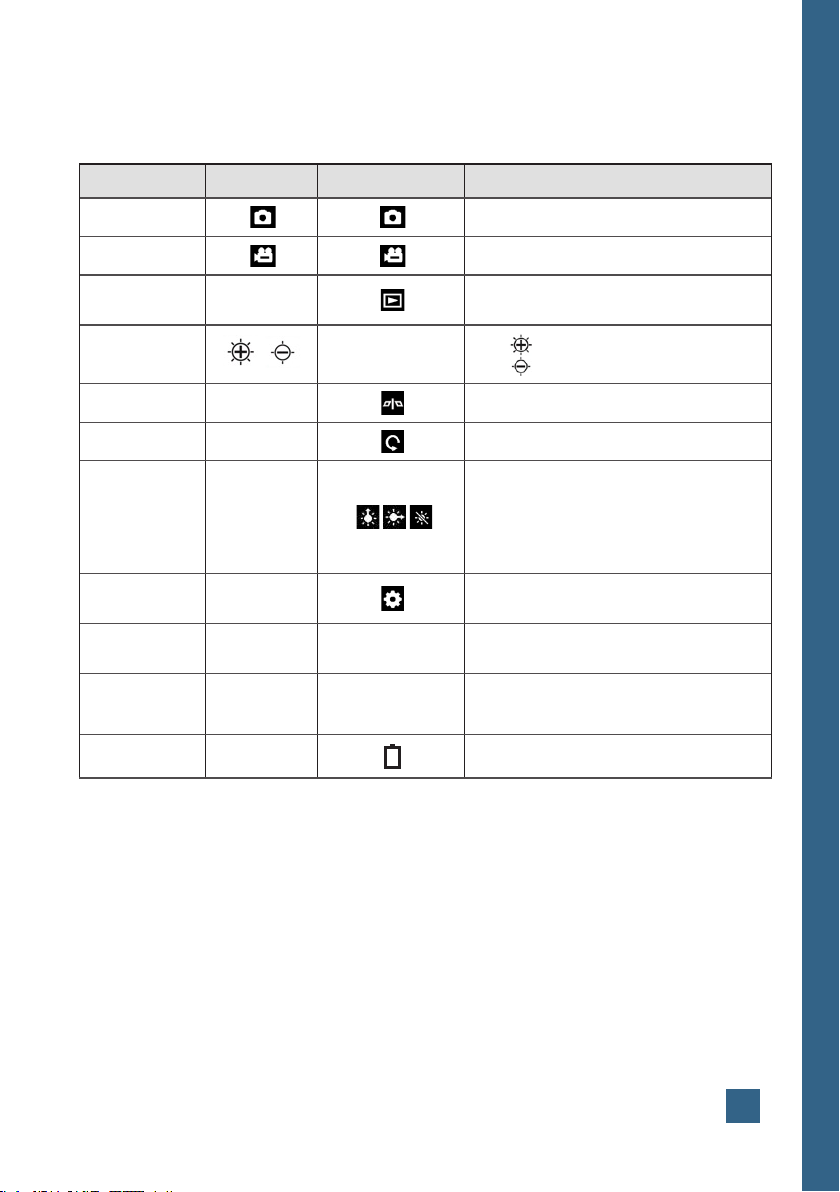

Function Keys

Functions Button Touch Screen icon Note

Snapshot Take picture

Recording

Preview Power button

Brightness / N/A

Image Mirror N/A Horizontal ip

Image Rotaion N/A

Particle-Free N/A

Menu

Full screen
operation

enlargement

Battery capacity N/A

N/A

N/A

N/A

Use ngers to

enlarge and reduce
images

Video record

To enter preview mode and check

les

Press to
Press to decrease brightness

90° counter clockwise rotation

1.To eliminate reection or

dust (while work with side view mirror)

2.You can also turn off the LED
if it’s bright enough

languages, date/time …
basic operation settings

Touch the screen twice to enter full screen
(won't keep in proportion)

To enlarge the image (Zoom in)

Touch screen and battery capacity will show
up

photo/video

increase brightness

13

Maintenance

CHANGING PROBE AND CALIBRATION

In case of probe is malfunctioned and need to be replaced with a new one, follow below
procedure to calibrate the probe to reach it’s fully function.

Change the probe:

• Turn off the system.

• Screw loose the sealing nut, remove the malfunctioned probe from system.

• Connect the new probe , insure the indication point on both connector is matched,

screw tight the sealing nut.

Calibration:

• Turn off the system

• Press and hold both

• Select <Calibration>, press

• Follow the screen instrution, restart the MX500 system.

Calibration needs to be done every time when :

*

1. change a different probe

2. firmware upgrade.

and simultaneously to enter factory mode.

.

14

UPGRADING FIRMWARE

There might be addition and/or modication of functions after initial release. We will release
updated version rmware for system upgrade.

To check the current rmware version:

• Turn off the system

• Press and hold both

• Select <SW version>

• The rmware information will be displayed.

To update rmware:

• Turn off the system.

• Copy the rmware le to a SD card, then put inside the system.

• Press and hold both

updating procedure automatically.

• When rmware update is done, the MX500 videoscope system will power off

automatically.

**Please "always" have insert tube plugged in when you execute calibration or firmware

upgrade.

and simultaneously to enter factory mode.

and simultaneously to power on and the system will start

15

WEEE Notice

• The cross-out wheeled bin symbol indicates that according to the European
Directive 2002/96/EC on Waste Electrical and Electronic Equipment, this product
must be collected in a separated way instead of being disposed of as unsorted
municipal waste.

• Contact your local dealer for procedures of recycling this equipment.

FCC Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that

may cause undesired operation.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.

16

RoHS Notice

The X500 Videoscope System is in conformance with the requirements of the European law on
the Restriction of Hazardous Substances (RoHS) directive. This means that our product is both
lead-free and without the hazardous substances either in the manufacturing process or in the

nal product.

Legal and Other Notices

This Mitcorp product is warranted to be free from defects in material and
workman shop for 1 year from the date of purchase. Mitcorp agrees to repair
or replace the product, at its own option and at no charge. This warranty
shall not apply to any product, which has been subject to connect to a faulty
accessories, alteration, negligence, accident or to any product which has been
installed other than in accordance with these instructions.

Warranty is subject to void under unauthorized attempt to disassemble the

system unit, insert tubes or modication of any kinds, even attempted only, of

the system. Mitcorp will not be responsible for damages caused by following
situations:

• Defaced, modied or removed serial number label or warranty seal

• Modications of components without Mitcorp’s authorization

• Damages caused by natural phenomena or uncontrollable forces, such

as lightning, ooding, re, earthquake…etc.

17

Chemical Compatibility

All insertion tubes made by Mitcorp had passed following liquid immersion test:

• Water

• Engine oil

• Brake uid oil

• Gasoline

• Diesel Fuel

• Transmission oil

Cautions for Use

- This product is designed for industrial use only. Do not use the
system for human or biological inspection.

- Do not use the product in medical facilities, airplanes or
environment with explosive atmosphere like fuel tank or other
dangerous environment such as a gasoline or alcohol storage tank.

- Do not use any corrosive liquid for cleaning, such as alcohol.

- Do not try to disassemble this product, it might cause damage or
electric shock .

- Please use only recommended components or accessories.
Unapproved accessories and components may cause damages.

- If the equipment is used in a manner not specified by the
manufacturer , the protection provided by the equipment may be
impaired.

- Never replace the battery by yourself. RISK OF EXPLOSION IF
BATTERY IS REPLACED BY AN INCORRECT TYPE.

18

Specications

MX500 system

Features Description

Display 5" LCD ( 640x480 )

Snapshot 400 x 400, .jpg

Recording 400 x 400, .avi

Dimensions

Weight 1.3kg ( 2.86lb )

Waterproof IP54

Drop resistence 1m

Battery Rechargeable Li battery, 5V, 3A

Working temperature

Storage temperature -10ºC~60ºC

Relative humidity Max 95%, non condensing

Storage SD card, up to 32G

Audio input Built-in microphone

Video output NTSC & PAL

LED indicator

160mm x 120mm x 55mm

0ºC~45ºC (with battery)
0ºC~40ºC (with adaptor)

Green LED: Power on
Red LED: Charging system

19

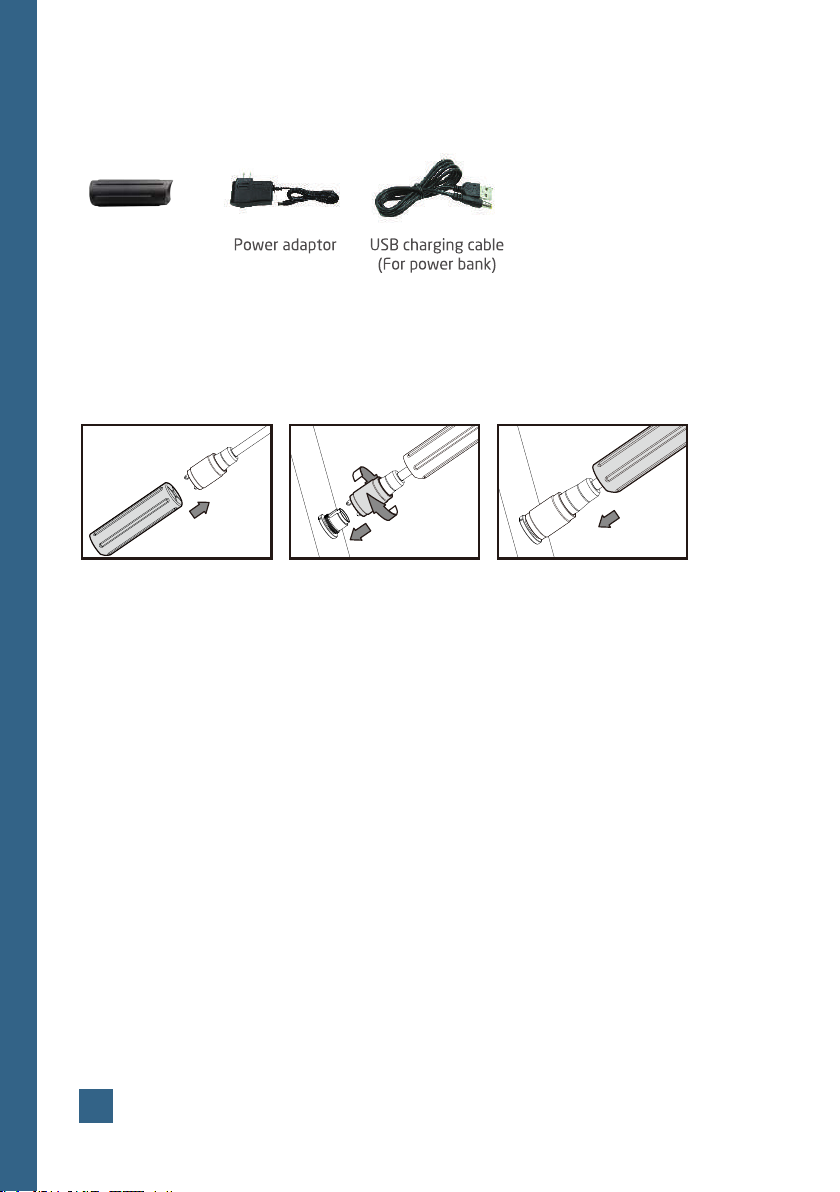

MX500 ACCESSORIES

Insulation cap

Also include : USB cable, AV cable, clean set, SD card, user manual.

INSULATION CAP

20
