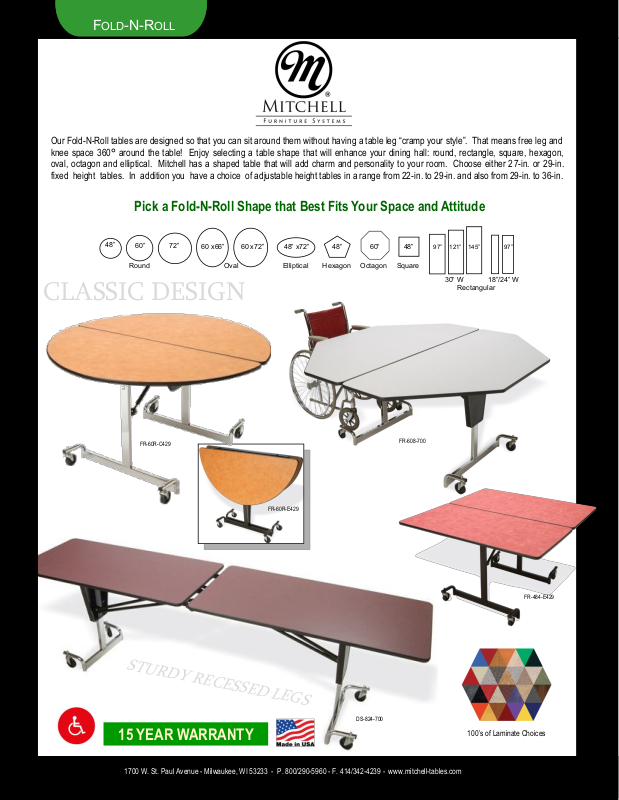

FOLD-N-ROLL
Our Fold-N-Roll tables are designed so that you can sit around them without having a table leg “cramp your style”. That means free leg and
knee space 360° around the table! Enjoy selecting a table shape that will enhance your dining hall: round, rectangle, square, hexagon,
oval, octagon and elliptical. Mitchell has a shaped table that will add charm and personality to your room. Choose either 27-in. or 29-in.
fixed height tables. In addition you have a choice of adjustable height tables in a range from 22-in. to 29-in. and also from 29-in. to 36-in.
Pick a Fold-N-Roll Shape that Best Fits Your Space and Attitude
48”
60”
72”
60 x66”
60 x72”
48” x72”
48”
60”
48”
97”
121”
145”
97”
Round
Oval
CLASSIC DESIGN
FR-60R-C429
Elliptical
FR-60R-E429
Hexagon
Octagon
Square
FR-608-700
30” W
Rectangular
18”/24” W
STURDY RECESSED LEGS
DS-824-700
15 YEAR WARRANTY
1700 W. St. Paul Avenue - Milwaukee, WI 53233 - P. 800/290-5960 - F. 414/342-4239 - www.mitchell-tables.com
FR-484-E429
100’s of Laminate Choices
Page 2
SPECIFICAT I O N S
MODEL SIZE SEATS STORAGE MODEL SIZE SEATS STORAGE
FR-48R-700 48" Round 6 - 8 48 x 13.75 x 40 FR-48R-C429 48" Round 6 - 8 48 x 13.75 x 40
FR-486-700 48" Hexagon 6 48 x 13.75 x 40 FR-486-C429 48" Hexagon 6 48 x 13.75 x 40
FR-484-700 48" Square 4 - 8 48 x 13.75 x 40 FR-484-C429 48" Square 4 - 8 48 x 13.75 x 40
FR-60R-700 60" Round 8 - 10 60 x 13.75 x 45 FR-4872-C429 48" Elliptical 6 - 8 48 x 13.75 x 45
FR-608-700 60" Octagon 8 60 x 13.75 x 45 FR-60R-C429 60" Round 8 -10 60 x 13.75 x 45
DS-818-700 18" W x 96" L 4 18 x 13.75 x 57 FR-608-C429 60" Octagon 8 60 x 13.75 x 45
DS-824-700 24" W x 96" L 4 - 8 24 x 13.75 x 57 FR-6066-C429 60 x 66" Oval 8 -10 60 x 13.75 x 45
FR-6072-C429 60 x 72" Oval 10 -12 60 x 13.75 x 45
FR-72R-C429 72" Round 10 -12 72 x 13.75 x 45
DS-818-400 18" W x 96" L 4 18 x 13.75 x 57
DS-824-400 24" W x 96" L 4 - 8 24 x 13.75 x 57
DUN8 29 97" L x 30" W 8 - 10 30 x 29 x 64.5
DUN10 29 121" L x 30" W 10 -14 30 x 29 x 73.5
DUN12 29 145" L x 30" W 12 -16 30 x 29 x 79.5
SPECIFICAT I O N S
Table Top Supports
1-3/4” D x 16-gauge cold rolled steel apron channels with rounded edges and
dressed off end fittings for safety.
End Legs
“T” shaped pedestal base, 1” x 2” heavy, rectangular steel tube. These sturdy
legs are recessed providing ample knee clearance. Available in nickel chromium plated or black powder coat finish.
Casters
Four, 3” diameter, swivel, ball baring type, nan-marring casters.
Table Tops & Edge
Table tops are made with 45lb. density particleboard core with high pressure
laminated top, balanced with durable Gator™ black backer. Tops are edged
with Mitchell custom DuraEdge™ a heavy polyvinyl, extended bullnose for
maximum bump protection and moisture barrier, or Lotz ArmorEdge™ the
original Polyurea black moisture retardant edge (MDF core. )
Fasteners
Tops are attached with full threaded, hex head screws with a minimum holding
power of 300lbs. Each fastener is machine driven and seated. The hex head
permits normal maintenance of units if required.
Safety Locking Mechanism
Steel lock rod automatically engages with the hinge when table is unfolded,
making the possibility of a jackknife impossible while engaged. Side release
handles enable movement up to folded position. A built-in safety stops the
table just before reaching user position, easily freed by releasing side handles.
Lift-Off Feature
In the open position the table rests on four lift-off support pads, firmly holding
the table in a stabilized and stationary position. Time to fold and move the
table? Its four casters take over, ready to move the table to a desired location.
Height Variety
Fixed height tables in 29” or 27”. Adjustable height tables from 22” to 29” and
also from 29” to 36”. These adjust in 1” increments and securely lock in place.
Choice of Laminate
100’s of laminate choices including a variety of wood grains, solid colors and
many other patterns. Mitchell works with several leading laminate providers.
Environment
Mitchell’s laminate, backer, adhesive and board are certified, GREENGUARD
table components, for safe and clean indoor air.
FOLD--NN--
FOLD
Folds easily for transporting purposes with
Mitchell’s sets of torsion bars.
Available in 8’-1”, 10’-1” & 12’-1” L x 30” W and either 27” or 29” H.
Mitchell offers a choice of Nickel Chromium or Black Powder Coated
end legs. UniTables have automatic steel locks when the table is in
the user position and steel uplocks when transporting.
ROLL U N ITABLES
ROLL U N ITABLES
DUN8 29
DUN12 29
WO10 29
DUN12 29
LIFT-OFF DEVICE
Mitchell Fold-N-Roll tables have a LiftOff feature, as shown here.. When
tables are in the open position, four
supports automatically take over,
firmly holding the table in a stationary
position. When transporting the table,
the four casters take over.
72” ROUND TABLE
The 72” Round has (4) center leg
supports at the widest part of the
table. This unique feature offers two
pairs of 1’ x 1” box steel legs on
each side of the table; each pair is
recessed for comfortable seating.
ADJUSTABLE TABLES
27” & 29” FIXED HEIGHT TABLES
Chrome or Black Legs
Tables adjust from 22” to 29” H or 29” to 36” H
Chrome legs w/black powder coat undercarriage
1” Height incremental adjustment
Each 1” setting locks firmly in place
In user mode tables sit on pads, not their casters
1700 W. St. Paul Avenue - Milwaukee, WI 53233 - P. 800/290-5960 - F. 414/342-4239 - W. www.mitchell-tables.com
