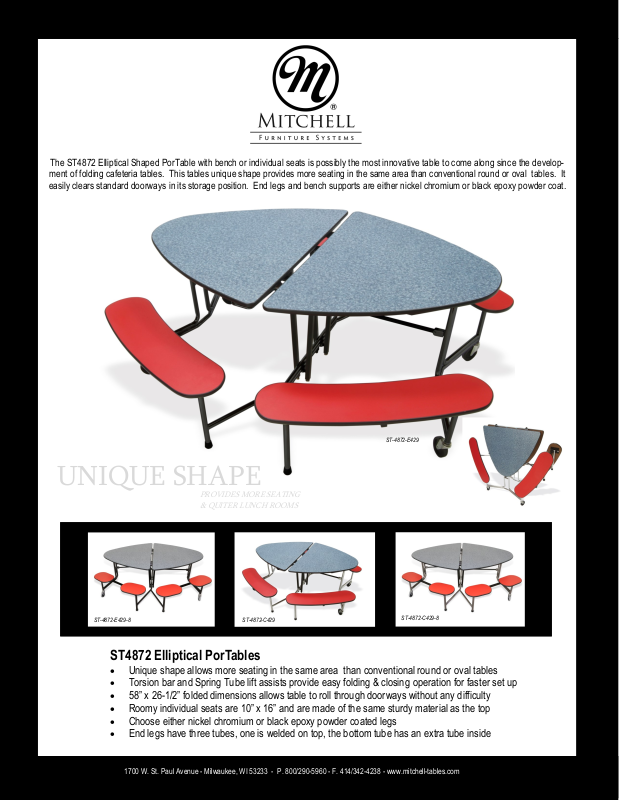

The ST4872 Elliptical Shaped PorTable with bench or individual seats is possibly the most innovative table to come along since the develop-
ment of folding cafeteria tables. This tables unique shape provides more seating in the same area than conventional round or oval tables. It
easily clears standard doorways in its storage position. End legs and bench supports are either nickel chromium or black epoxy powder coat.
ST-4872-E429
UNIQUE SHAPE
PROVIDES MORE SEATING
& QUITER LUNCH ROOMS
ST-4872-C429 ST-4872-E429-8
ST4872 Elliptical PorTables
Unique shape allows more seating in the same area than conventional round or oval tables
Torsion bar and Spring Tube lift assists provide easy folding & closing operation for faster set up
58” x 26-1/2” folded dimensions allows table to roll through doorways without any difficulty
Roomy individual seats are 10” x 16” and are made of the same sturdy material as the top
Choose either nickel chromium or black epoxy powder coated legs
End legs have three tubes, one is welded on top, the bottom tube has an extra tube inside
1700 W. St. Paul Avenue - Milwaukee, WI 53233 - P. 800/290-5960 - F. 414/342-4238 - www.mitchell-tables.com
ST-4872-C429-8
Page 2
SP EC IF IC ATIONS
SP EC IF IC ATIONS
Table Top Supports
Two full length, 1-3/4” D x 16-gauge cold rolled steel apron channels with
rounded edges and dressed off end fittings for safety.
Twin Dual Center Legs
1” x 1” 16-gauge box tubing at the center of the table provides positive, direct
support for each half of the table top.
End Legs
Consists of three tubes for rigid, long lasting strength. One is welded on top,
the bottom tube has an extra tube inside. Outer tubes have minimum wall
thickness of .072”.
Seating
Benches are 10” x 40” and individual seats are 10” x 16”. Positioned at 17” H,
each provide proper knee clearance from understructure.
Table & Seat Tops
Table tops, benches & seats are made with 45lbs density particleboard core
with high pressure laminated top, balanced with durable Gator™ black backer.
Tops are edged with Mitchell custom DuraEdge™ a heavy polyvinyl, extend-
ed bullnose for maximum bump protection and moisture barrier, or Lotz ArmorEdge™ the original Polyurea black moisture retardant edge (MDF core. )
Fasteners
Tops are attached with full threaded, hex head screws with a minimum holding
power of 300lbs. Each fastener is machine driven and seated. The hex head
permits normal maintenance of units if required.
Locks
Automatically engage when folded and when in-use. Locks are easily accessible from both sides of the table.
Unitized Construction
Welded steel brackets and fittings solidly join and position legs to channel
support aprons and anchor the torsion bar lift assists.
Lift Assists
Industry best dual lift assists, both concealed torsion bars and extension
springs for easy operation throughout the use of the table.
Finish
End legs are available in either Black Epoxy Powder Coat or Nickel
Chromium. The understructure is black powder coat.
Dimensions
Space Saving Comparison
Long Lasting Quality
MODEL # ST-4872-C429 ST-4872-E429 ST-4872-C429-8 ST-4872-E429-8
Seating Capacity 8-10 8-10 8 8
Bench/Seat Size 10” x 40” 10” x 40” 10” x 16” 10” x 16”
Leg Finish Chrome Black Powder Coat Chrome Black Powder Coat
Table Height Choices 27”- 29” 27”- 29” 27”- 29” 27”- 29”
Automatic Downlock
1700 W. St. Paul Avenue - Milwaukee, WI 53233 - P. 800/290-5960 - F. 414/342-4238 - www.mitchell-tables.com
No-Pinch Gap
Dual Lift Assists for Easy Folding
