Mita-Kyocera SRDF-1 PARTS LIST

R

SRDF-1

PARTS LIST

Published in Dec.’98

843AL120

NOTE

1. Indicate parts number and machine model when placing an order.

eg. Parts Number Parts Name Machine Model Cycle Quantity

3AL04040 LEFT COVER SRDF-1 50Hz 1

2. Service calls and freight will be charged separately.

3. Symbols in the "Parts Number" column.

• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

eg. Parts Number Parts Name Parts Number Parts Name

3AL27020 WIRE,PAPER FEED •J0149300 CASE,3-175133-0(AMP)

4. See the last page of this parts list for the classification of the screws in the illustrations.

Parts List

SRDF-1

CONTENTS

FIG. 1 EXTERIOR COVERS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2

FIG. 2 FRAMES · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4

FIG. 3 TABLE SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6

FIG. 4 PAPER FEED SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 8

FIG. 5 REVERSING SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 10

FIG. 6 CONVEYING SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 12

FIG. 7 DRIVING SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 14

FIG. 8 ELECTRICAL SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 16

•INDEX · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 18

– 1 –

FIG. 1 EXTERIOR COVERS

A

BCDEFGH I J

3AL

3AL-1

BBA

BBA

24

4

HCA

25

18

14

HCA

HCA

15

17

1

20

2

BAL

3

2

4

5

19

BBE

13

9

8

BHN

E05

5

26

1

10

BHN

E05

7

6

BHN

BAL

23

8

BHN

BBA

12

3

5

7

BBE

19

27

BBA

22

11

HCA

21

18

6

HCA

7

16

1

2

3

4

HCA

5

6

7

A BCDEFGH I J

– 2 –

FIG. 1 EXTERIOR COVERS 3AL-1

Ref.

Part. No. Description

No.

1 3AL04040 LEFT COVER 1 1
2 3AL05090 LABEL,JAM REMOVEMENT 1 1
3 3AL07260 FRONT HOOK,LEFT COVER 1 1
4 3AL07270 REAR HOOK,LEFT COVER 1 1
5 3AL08140 UPPER PULLEY,CONVEYING 2 2
6 3AL08180 UPPER SHAFT,CONVEYING PULLEY 1 1
7 3AL08220 UPPER PLATE SPRING,CONVEYING PULLEY 2 2
8 3AL08270 PLATE SPRING,RESISTANCE GUIDE 2 2
9 3AL08360 STOPPER,LEFT COVER FRONT 1 1

10 3AL08370 STOPPER,LEFT COVER REAR 1 1

11 3AL04051 COVER,PAPER FEED 1 1

12 3AL05080 LABEL,ORIGINAL SET 1 1
13 3AL04010 FRONT COVER 1 1
14 3AL04020 REAR COVER 1 1
15 3AL04030 RIGHT COVER 1 1
16 3AL04060 MAT,ORIGINAL HOLDER 1 1
17 3AL04070 STOPPER,EJECT ORIGINAL 1 1
18 3AL04080 FILM,ORIGINAL HOLDER 2 2
19 63202120 SUPPORT PLATE,COVER 2 2
20 3AL05100 LABEL,ORIGINAL INDICATION(EUR) 1 1
21 3AL05110 LABEL,OPERATION 1 1
22 3AL07280 HANDLE,HOOK 1 1
23 3AL07290 SHAFT,HOOK 1 1
24 72118141 SPRING,CLEANING BLADE 1 1
25 29407610 SPONGE,MOTOR PF 1 1

26 3AL10241 FRONT SHEET,TURN OVER PAPER EJECT 1 1
27 3AL10251 REAR SHEET,TURN OVER PAPER EJECT 1 1

Quantity

230V 240V

Ref.

Part. No. Description

No.

3AL

Quantity

230V 240V

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

– 3 –

FIG. 2 FRAMES

A

3AL

BCDEFGH I J

1

19

2

10

3

12

15

9

4

5

12

20

6

3

7

20

12

13

BBB

BBD

1

5

BBB

8

7

BBD

14

BBE

BBU

6

18

BBD

BBE

10

9

11

10

17

9

BBD

BBA

11

10

BBA

4

2

16

1

2

3

BBB

4

5

6

7

A BCDEFGH I J

– 4 –

FIG. 2 FRAMES

Ref.

Part. No. Description

No.

1 3AL03011 LEFT HINGE 1 1
2 3AL03021 RIGHT HINGE 1 1
3 3AL02200 SPACER,SRDF 1 1
4 3AL02050 MOUNT,RELEASE SWITCH 1 1
5 36827140 SWITCH A,INTERLOCK 1 1
6 3AL02080 HOLDER,SPRING 1 1
7 3AL02070 STOPPER,ORIGINAL DETECTION SWITCH 1 1
8 35911731 SPRING,EJECT PULLEY ADF 1 1

9 M2104200 EDGING EDS-1 3 3
10 M2109260 WIRE SADDLE,YMC-05-H-0(KITAGAWA) 4 4
11 3AL02060 MOUNT,DF PCB 2 2
12 M1203200 OPEN BUSHING,OCB-375 3 3
13 63212160 SPRING PLATE,EJECT RELEASE 1 1
14 3AL02040 STOPPER,RELEASE SWITCH 1 1
15 3AL03031 LEFT STAY,HINGE 1 1
16 3AL03041 RIGHT STAY,HINGE 1 1
17 3AL02100 GUIDE,INTERFACE WIRE 1 1
18 M2109230 WIRE SADDLE,LWS-3S(KITAGAWA) 1 1
19 29802390 PIN,TORSION BAR HOLDER 2 2
20 23227350 SHIELD B,GASKET 2 2

230V 240V

Quantity

Ref.

Part. No. Description

No.

3AL

Quantity

230V 240V

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

– 5 –

FIG. 3 TABLE SECTION

A

3AL

3AL-1

BCDEFGH I J

1

4

2

6

13

3

4

BBE

19

5

6

19

BBE

7

11

HAO

14

HAO

16

8

HAO

HAO

7

13

3

12

17

HAO

TO Fig.8

5

1

HAO

2

HAO

8

HAO

9

BAP

15

18

10

HAO

1

2

3

4

5

6

7

A BCDEFGH I J

– 6 –

FIG. 3 TABLE SECTION

Ref.

Part. No. Description

No.

1 M2105000 NYLON CLAMP 2N,NK-2N 1 1
2 18327100 SWITCH,SIZE DETECTION 1 1
3 3AL05040 LABEL,ORIGINAL SIZE(METRIC) 1 1
4 3AL05060 LABEL,ORIGINAL CURSOR(METRIC) 1 1
5 3AL06011 TABLE,ORIGINAL 1 1
6 3AL06020 FRONT GUIDE,ORIGINAL 1 1
7 3AL06030 REAR GUIDE,ORIGINAL 1 1
8 3AL06040 RACK,TABLE 2 2
9 3AL06051 COVER,TABLE 1 1

10 3AL06060 MOUNT,SIZE DETECTION 1 1

11 3AL06072 FRONT SUPPORT PLATE,TABLE 1 1
12 3AL06082 REAR SUPPORT PLATE,TABLE 1 1

13 3AL06090 CUSHION,ORIGINAL GUIDE 2 2
14 3AL06111 COVER,ORIGINAL GUIDE 1 1
15 3AL27030 WIRE,TABLE 1 1
16 65907210 GEAR 20,CASSETTE 1 1
17 78706241 FILTER CF SENSOR 1 1
18 78727110 JAM DETECTION SWITCH 1 1

19 3AL06102 FULCRUM PIN,TABLE 2 2

230V 240V

Quantity

Ref.

Part. No. Description

No.

3AL

3AL-1

Quantity

230V 240V

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

– 7 –

FIG. 4 PAPER FEED SECTION

A

BCDEFGH I J

1

2

3

4

5

6

7

A BCDEFGH I J

KAM

3AL

3AL-1

23

E05

24

25

12

1

HBA

41

21

48

BMF

HBA

39

35

26

WAE

17

44

42

BAA

9

19

47

40

BBC

26

26

43

18

14

20

23

13

2

HBA

7

9

E03

HBA

BBC

33

34

31

BAA

4

1

27

31

BAL

E04

45

23

20

6

29

KFO

BAL

26

28

16

8

BBA

3

20

5

32

E05

34

KAM

11

KAL

E05

23

10

46

22

15

1

2

3

4

5

6

7

30

– 8 –

FIG. 4 PAPER FEED SECTION

Ref.

Part. No. Description

No.

Quantity

230V 240V

Ref.

Part. No. Description

No.

3AL

3AL-1

Quantity

230V 240V

1 M2104350 EDGING,EDS-0607M(KITAGAWA) 2 2
2 M2109330 WIRE SADDLE,YMC-10-0(KITAGAWA) 1 1
3 18312100 PULLEY 28,EJECT DRIVE 1 1
4 29812050 SPRING,WIRE ROPE 1 1
5 3AL07010 PULLEY,LEADING FEED 1 1
6 3AL07020 PULLEY,PAPER FEED 1 1
7 3AL07040 UPPER GUIDE,PAPER FEED 1 1
8 3AL07060 ARM,LEADING FEED 1 1

9 3AL07070 STOPPER,ORIGINAL 2 2
10 3AL07100 SHAFT,LEADING FEED 1 1
11 3AL07110 FRONT SHAFT,PAPER FEED 1 1
12 3AL07120 REAR SHAFT,PAPER FEED 1 1
13 3AL07160 LEVER,LIFT 1 1
14 3AL07180 JOINT,LIFT SOLENOID 1 1
15 3AL07210 BELT 134,LEADING FEED 1 1
16 3AL07220 STOPPER,ORIGINAL STOPPER 1 1
17 3AL27060 SWITCH,FEED 1 1
18 3AL27070 SOLENOID,LEADING FEED 1 1
19 3AL28020 SET LED PCB 1 1
20 34806150 STOPPER 5 5 5
21 36827140 SWITCH A,INTERLOCK 1 1
22 65722250 PULLEY 20,EJECT 1 1
23 73210450 BUSH, 6 5 5
24 73818100 SPRING, BLADE THRUST 1 1
25 74306520 JOINT,PULLEY DRIVE SHAFT 1 1
26 M2109260 WIRE SADDLE,YMC-05-H-0(KITAGAWA) 4 4
27 3AL07031 PULLEY,SEPARATION 1 1
28 3AL07080 MOUNT,SEPARATION PULLEY 1 1
29 3AL07130 SHAFT,SEPARATION 1 1
30 3AL27050 SWITCH,ORIGINAL SET 1 1
31 34806150 STOPPER 5 2 2
32 65011360 BUSHING 6,LOOP 1 1
33 72107160 BUSHING 6,LOWER REGISTRATION ROLLER 1 1
34 3AL07320 SPRING,SEPARATION 2 2
35 63212210 STATIC ELIMINATOR,EJECT 1 1

39 3AL07050 LOWER GUIDE,PAPER FEED 1 1
40 78707580 FELT ORIGINAL FEED 2 2

41 3AL07240 FRONT STATIC ELIMINATOR,PAPER FEED 1 1
42 3AL07250 REAR STATIC ELIMINATOR,PAPER FEED 1 1
43 73210450 BUSH, 6 1 1
44 M2107120 BINDING BAND SG-130 2 2
45 3AL93010 PARTS,CLUTCH PAPER FEED,SP 1 1
46 3AL07300 WEIGHT,LEADING FEED 1 1
47 3AL07310 FILM,SEPARATION 1 1
48 60907910 PAD,BYPASS 2 2

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

– 9 –

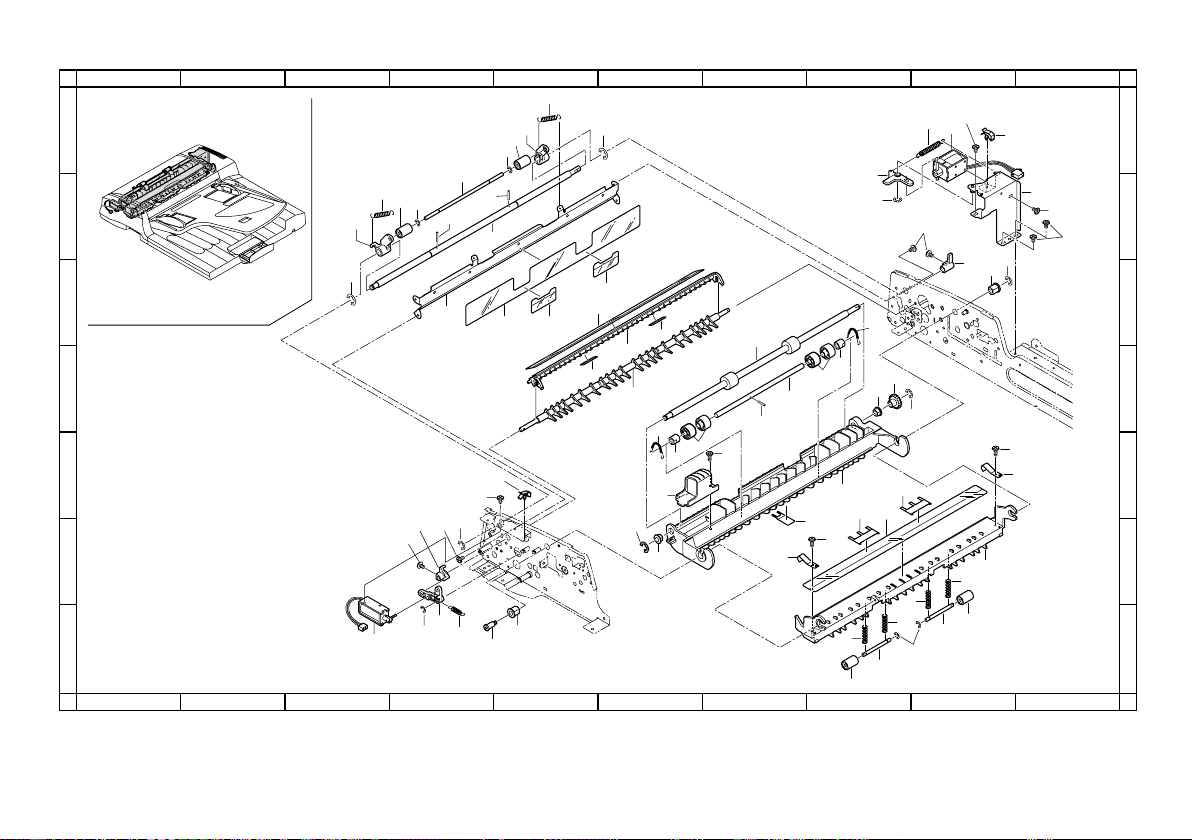

FIG. 5 REVERSING SECTION

A

BCDEFGH I J

1

2

3

4

5

6

7

A BCDEFGH I J

3AL

40

24

20

E03

BBB

22

BBB

33

KFB

25

KFB

21

26 27

39

BBA

E05

35

38

36

E03

32

E03

40

20

23

E07

37

E07

28

E04

27

18

19

17

19

16

9

8

4

E05

1

6

5

KAL

3

BHN

41

13

9

8

3

BHN

7

1

2

42

42

14

15

15

12

11

BBA

31

BBB

30

39

29

BAA

E05

34

35

1

2

BBA

3

4

E05

BHN

13

10

15

15

11

12

E03

5

6

7

– 10 –

FIG. 5 REVERSING SECTION

Ref.

Part. No. Description

No.

Quantity

230V 240V

Ref.

Part. No. Description

No.

3AL

Quantity

230V 240V

1 29806560 BUSHING 6 2 2
2 3AL08051 GUIDE,RESISTANCE 1 1
3 3AL08500 PULLEY,RESISTANCE 4 4
4 3AL08380 HANDLE,RESISTANCE GUIDE 1 1
5 3AL08470 SHAFT,RESISTANCE PULLEY 1 1
6 3AL10020 ROLLER,LOOP 1 1
7 33918100 GEAR 18,FUR BRUSH 1 1
8 72107160 BUSHING 6,LOWER REGISTRATION ROLLER 2 2

9 77706461 PRESSING SPRING 2 2
10 3AL08060 GUIDE,EJECT 1 1
11 3AL08170 PULLEY,EJECT 2 2
12 3AL08210 SHAFT,EJECT PULLEY 2 2
13 3AL08260 PLATE SPRING,EJECT GUIDE 2 2
14 3AL08410 SHEET,GUIDE EJECT 1 1
15 3AL08560 SPRING,EJECT PULLEY 4 4
16 3AL10031 GUIDE,LOOP FEED SHIFT 1 1
17 3AL10161 LEFT GUIDE,LOOP 1 1
18 3AL10181 LEFT SHEET,GUIDE LOOP 1 1
19 3AL10221 UPPER SHEET,CONVEYING PULLEY 2 2
20 3AL08170 PULLEY,EJECT 2 2
21 3AL10040 SHAFT,FULCRUM PULLEY 1 1
22 3AL10060 SHAFT,LOOP PULLEY 1 1
23 3AL10120 FRONT HOLDER,LOOP PULLEY 1 1
24 3AL10200 REAR HOLDER,LOOP PULLEY 1 1
25 3AL10010 GUIDE,LOOP 1 1
26 3AL10170 SHEET,GUIDE LOOP 1 1
27 3AL10210 SHEET,LOOP PULLEY 2 2
28 3AL10090 LEVER,LOOP PULLEY SOLENOID 1 1
29 3AL10141 MOUNT,LOOP PULLEY SOLENOID 1 1
30 3AL27111 SOLENOID,LOOP PULLEY 1 1
31 3AL10230 SPRING,LOOP PULLEY SOLENOID 1 1
32 3AL10080 LEVER,LOOP FEED SHIFT 1 1
33 3AL10110 LEVER,LOOP FEED SHIFT SOLENOID 1 1
34 3AL10100 LEVER,LOOP PULLEY 1 1
35 60606101 BUSHING FEED BACK ROLLER 2 2
36 3AL07230 PIN,PAPER FEED 1 1
37 3AL27080 SOLENOID,FEED SHIFT 1 1
38 3AL08490 SPRING,EJECT FEED SHIFT 1 1
39 M2109260 WIRE SADDLE,YMC-05-H-0(KITAGAWA) 2 2
40 63526080 SPRING,SAFETY SWITCH LEVER 2 2

41 3AL08510 SHEET,GUIDE RESISTANCE 1 1
42 3AL08520 SHEET,RESISTANCE 2 2

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

– 11 –

FIG. 6 CONVEYING SECTION

A

BCDEFGH I J

3AL

3AL-1

1

4

2

2

7

3

BBB

BHN

7

5

3

BAL

E05

KAL

4

E05

49

48

5

HBA

47

HBA

16

E05

38

BBD

41

E05

BBB

40

25

E05

6

E05

33

34

WAE

39

E05

E05

37

E05

E04

7

5

57

6

45

BBB

1

3

58

31

KAM

44

46

36

BBB

35

E04

14

16

30

32

9

43

BBB

KAM

E04

43

44

18

10

20

24

19

11

E03

21

12

22

BBB

BBB

29

26

17

54

8

23

BBB

51

BBB

42

27

28

55

52

53

BBB

E05

25

BBB

56

BBB

BBB

52

51

BBB

50

13

BBA

A BCDEFGH I J

– 12 –

1

2

E05

15

3

4

5

6

7

FIG. 6 CONVEYING SECTION

Ref.

Part. No. Description

No.

Quantity

230V 240V

Ref.

Part. No. Description

No.

3AL

3AL-1

Quantity

230V 240V

1 3AL08032 GUIDE,CONVEYING 1 1

2 3AL08190 LOWER SHAFT,CONVEYING PULLEY 1 1
3 3AL08240 LOWER PLATE SPRING,CONVEYING PULLEY 2 2
4 3AL08301 COVER,CONVEYING PULLEY 1 1
5 3AL08420 OUTER SHEET,GUIDE CONVEYING 2 2
6 3AL08430 INNER SHEET,GUIDE CONVEYING 1 1
7 3AL08480 FRONT PULLEY,READING 2 2
8 3AL08450 SHEET,GUIDE PLATE EJECT 1 1

9 3AL08071 GUIDE,READING 1 1
10 3AL08401 SHEET,ORIGINAL HOLDER 1 1
11 3AL10071 LIGHT SHIELD,LOOP 1 1
12 3AL10131 MOUNT,LIGHT SHIELD 1 1
13 3AL08310 MOUNT,EJECT SOLENOID 1 1
14 3AL27080 SOLENOID,FEED SHIFT 1 1
15 63806290 BUSHING,6 1 1
16 73210450 BUSH, 6 3 3
17 3AL08021 RIGHT GUIDE,RESISTANCE 1 1
18 3AL08091 ROLLER,RESISTANCE 1 1

19 3AL08121 INNER ROLLER,CONVEYING 1 1

20 3AL10151 MOUNT,LOOP SWITCH 1 1
21 3AL10190 SPRING,LIGHT SHIELD 1 1
22 63527240 PI,GP1A71A 1 1
23 3AL08291 MOUNT,TIMING SWITCH 1 1
24 3AL27120 SWITCH,TIMING 1 1
25 74808080 BEARING,686ZZNR 4 4
26 3AL08080 GUIDE,EJECT FEED SHIFT 1 1
27 3AL08330 LEVER,EJECT 1 1
28 3AL08340 LEVER,EJECT SOLENOID 1 1
29 M0207000 BINDING BAND,KB-100-1 3 3
30 3AL08160 UPPER ROLLER,CONVEYING 1 1
31 3AL02150 GEAR 24,JAM REMOVEMENT 1 1

32 3AL08111 LOWER ROLLER,CONVEYING 1 1

33 18307370 PULLEY 25/18P2M,PAPER FEED 1 1
34 3AL22040 GEAR Z18/T25P2M 1 1
35 65722080 BELT 100,ORIGINAL FEED 1 1
36 75714210 COLLAR DEVELOPING UNIT 1 1
37 33918100 GEAR 18,FUR BRUSH 1 1
38 18307550 PULLEY 18P2M,LEADING FEED 2 2
39 3AL22070 BELT 140,MIDDLE ROLLER 1 1
40 3AL22080 TENSION PLATE,MIDDLE ROLLER BELT 1 1

41 48928800 PULLEY,TIMING BELT 1 1
42 63814260 SPRING,DEV. SHUTTER 1 1
43 72418480 SPRING, SPIRAL ROLLER 2 2
44 3AL07230 PIN,PAPER FEED 2 2
45 3AL08011 LEFT GUIDE,RESISTANCE 1 1
46 3AL02160 GEAR 14,JAM REMOVEMENT 1 1
47 3AL02120 MOUNT,JAM REMOVEMENT DIAL 1 1
48 3AL02110 DIAL,JAM REMOVEMENT 1 1
49 3AL02170 GEAR 14,JOINT 1 1
50 3AL08280 MOUNT,CONVEYING PULLEY 1 1
51 3AL08250 INNER PLATE SPRING,CONVEYING PULLEY 2 2
52 3AL08100 INNER PULLEY,CONVEYING 2 2
53 3AL08200 INNER SHAFT,CONVEYING PULLEY 1 1
54 3AL08130 ROLLER,EJECT 1 1
55 M2109260 WIRE SADDLE,YMC-05-H-0(KITAGAWA) 1 1
56 29806560 BUSHING 6 2 2
57 3AL08530 INNER SHEET,GUIDE CONVEYING LARGE 1 1
58 3AL08570 GUIDE,TIMING SWITCH 1 1

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

– 13 –

FIG. 7 DRIVING SECTION

A

BCDEFGH I J

3AL

1

BBE

11

BAL

5

10

DJU

2

BAL

3

4

E05

17

18

16

5

E05

7

DJU

8

22

E05

BBB

E04

3

E04

BBD

1

E05

2

12

21

13

E05

BBA

9

20

15

14

19

BAL

E05

14

BBD

6

4

BAL

5

DJU

DJU

7

6

7

A BCDEFGH I J

– 14 –

1

2

3

4

5

6

7

FIG. 7 DRIVING SECTION

Ref.

Part. No. Description

No.

1 3AL22090 MOUNT,IDLE GEAR 1 1
2 63814100 IDLE GEAR 15,AGITATION 1 1
3 65011310 GEAR 20,IDLE 1 1
4 3AL22100 MOUNT,PAPER FEED MOTOR 1 1
5 3AL27010 MOTOR,PAPER FEED 2 2
6 34920190 GROUND PLATE,FIXING UNIT 1 1
7 78722151 PULLEY 20 2 2
8 3AL22110 MOUNT,CONVEYING MOTOR 1 1

9 3AL02190 GUIDE B,WIRE PAPER FEED MOTOR 1 1
10 34920190 GROUND PLATE,FIXING UNIT 1 1
11 M2109260 WIRE SADDLE,YMC-05-H-0(KITAGAWA) 1 1
12 66018180 GEAR 26,SPIRAL ROLLER 1 1
13 3AL22010 PULLEY T35/T22/Z22 1 1
14 71602201 SPACER,SHIFT LEVER 2 2
15 65907300 PULLEY,CASSETTE 1 1
16 76221040 GEAR 28 FD 1 1
17 3AL22030 GEAR Z22/T35P2M 1 1
18 3AL22020 PULLEY T28/Z18 1 1
19 3AL22050 BELT 190,PAPER FEED MOTOR 1 1
20 3AL22060 BELT 112,RESISTANCE ROLLER 1 1
21 75714210 COLLAR DEVELOPING UNIT 1 1
22 65722080 BELT 100,ORIGINAL FEED 1 1

230V 240V

Quantity

Ref.

Part. No. Description

No.

3AL

Quantity

230V 240V

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

– 15 –

FIG. 8 ELECTRICAL SECTION

A

BCDEFGH I J

3AL

1

SBPSOL

2

3

OCM

18

OSBSW

OFSW

4

DFSSW2

20.21

FESSOL

12.13

OSLEDSOL

23

22

DFTSW

5

SBFSSOL

6

20.21

18

OSSW

24.25

23

18.19

14.15

OFSOL

23

18.19

18.19

OFCL

23

OFM

5

20.21

14.15

GEF

26

23

23

BBE

2

4

27

26

16.17

TO TABLE

6.7

8.9

10.11
3

DFDPCB

BBE

23

1

1

DFSSW1

23

12.13

7

A BCDEFGH I J

– 16 –

1

2

3

4

5

6

7

FIG. 8 ELECTRICAL SECTION

Ref.

Part. No. Description

No.

1 M2108900 SPACER,KGPS-16S(KITAGAWA) 2 2
2 M2105040 NYLON CLAMP 6N,NK-6N 1 1
3 3AL93020 PARTS,DRIVER PCB,SP 1 1
4 3AL27040 WIRE,INTERFACE 1 1
5 3AL27020 WIRE,PAPER FEED 1 1
6 •J0149300 CASE,3-175133-0(AMP) 1 1
7 •J0140150 RECEPTACLE,1-173977-5(AMP) 2 2
8 •J0149260 CASE,2-175133-6(AMP) 1 1

9 •J0140130 RECEPTACLE,1-173977-3(AMP) 2 2
10 •J0301040 RECEPTACLE 4P,5196-04 1 1
11 •J0300900 SOCKET,5194TL 4 4
12 •J0070030 POSITIVE CONNECTOR HOUSING 3P,#187,172075-1 2 2
13 •J0070900 POSITIVE CONTACTOR,#187,170330-1 6 6
14 •J0140060 RECEPTACLE MT 6P,173977-6 2 2
15 •J0144060 CASE,175694-6(AMP) 2 2
16 •J0141060 RECEPTACLE,2-173977-6(AMP) 1 1
17 •J0143060 CASE,2-175694-6(AMP) 1 1
18 •J0140030 RECEPTACLE,173977-3(AMP) 5 5
19 •J0144030 CASE,175694-3(AMP) 3 3
20 •J0144030 CASE,175694-3(AMP) 3 3
21 •J0144020 CASE,175694-2(AMP) 3 3
22 •J0145030 RECEPTACLE,6-173977-3(AMP) 1 1
23 •M0207000 BINDING BAND,KB-100-1 9 9
24 •J0141030 RECEPTACLE,2-173977-3(AMP) 1 1
25 •J0143030 CASE,2-175694-3(AMP) 1 1
26 65027470 CORE,7-15X18 3 3
27 65027480 CORE,9-20X32 1 1

230V 240V

Quantity

Ref.

Part. No. Description

No.

3AL

Quantity

230V 240V

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

– 17 –

INDEX

Part. No. Description Fig. No.

18307370 PULLEY 25/18P2M,PAPER FEED 1 1 6
18307550 PULLEY 18P2M,LEADING FEED 2 2 6
18312100 PULLEY 28,EJECT DRIVE 1 1 4
18327100 SWITCH,SIZE DETECTION 1 1 3
23227350 SHIELD B,GASKET 2 2 2
29407610 SPONGE,MOTOR PF 1 1 1
29802390 PIN,TORSION BAR HOLDER 2 2 2
29806560 BUSHING 6 4 4 5, 6

29812050 SPRING,WIRE ROPE 1 1 4
3AL02040 STOPPER,RELEASE SWITCH 1 1 2
3AL02050 MOUNT,RELEASE SWITCH 1 1 2
3AL02060 MOUNT,DF PCB 2 2 2
3AL02070 STOPPER,ORIGINAL DETECTION SWITCH 1 1 2
3AL02080 HOLDER,SPRING 1 1 2
3AL02100 GUIDE,INTERFACE WIRE 1 1 2

3AL02110 DIAL,JAM REMOVEMENT 1 1 6
3AL02120 MOUNT,JAM REMOVEMENT DIAL 1 1 6
3AL02150 GEAR 24,JAM REMOVEMENT 1 1 6
3AL02160 GEAR 14,JAM REMOVEMENT 1 1 6
3AL02170 GEAR 14,JOINT 1 1 6
3AL02190 GUIDE B,WIRE PAPER FEED MOTOR 1 1 7
3AL02200 SPACER,SRDF 1 1 2

3AL03011 LEFT HINGE 1 1 2
3AL03021 RIGHT HINGE 1 1 2
3AL03031 LEFT STAY,HINGE 1 1 2
3AL03041 RIGHT STAY,HINGE 1 1 2
3AL04010 FRONT COVER 1 1 1
3AL04020 REAR COVER 1 1 1
3AL04030 RIGHT COVER 1 1 1
3AL04040 LEFT COVER 1 1 1

3AL04051 COVER,PAPER FEED 1 1 1

3AL04060 MAT,ORIGINAL HOLDER 1 1 1
3AL04070 STOPPER,EJECT ORIGINAL 1 1 1
3AL04080 FILM,ORIGINAL HOLDER 2 2 1
3AL05040 LABEL,ORIGINAL SIZE(METRIC) 1 1 3
3AL05060 LABEL,ORIGINAL CURSOR(METRIC) 1 1 3
3AL05080 LABEL,ORIGINAL SET 1 1 1
3AL05090 LABEL,JAM REMOVEMENT 1 1 1
3AL05100 LABEL,ORIGINAL INDICATION(EUR) 1 1 1

3AL05110 LABEL,OPERATION 1 1 1

Quantity

230V 240V

Part. No. Description Fig. No.

3AL06011 TABLE,ORIGINAL 1 1 3
3AL06020 FRONT GUIDE,ORIGINAL 1 1 3
3AL06030 REAR GUIDE,ORIGINAL 1 1 3
3AL06040 RACK,TABLE 2 2 3
3AL06051 COVER,TABLE 1 1 3
3AL06060 MOUNT,SIZE DETECTION 1 1 3

3AL06072 FRONT SUPPORT PLATE,TABLE 1 1 3
3AL06082 REAR SUPPORT PLATE,TABLE 1 1 3

3AL06090 CUSHION,ORIGINAL GUIDE 2 2 3

3AL06102 FULCRUM PIN,TABLE 2 2 3

3AL06111 COVER,ORIGINAL GUIDE 1 1 3
3AL07010 PULLEY,LEADING FEED 1 1 4
3AL07020 PULLEY,PAPER FEED 1 1 4
3AL07031 PULLEY,SEPARATION 1 1 4
3AL07040 UPPER GUIDE,PAPER FEED 1 1 4
3AL07050 LOWER GUIDE,PAPER FEED 1 1 4
3AL07060 ARM,LEADING FEED 1 1 4
3AL07070 STOPPER,ORIGINAL 2 2 4
3AL07080 MOUNT,SEPARATION PULLEY 1 1 4
3AL07100 SHAFT,LEADING FEED 1 1 4

3AL07110 FRONT SHAFT,PAPER FEED 1 1 4
3AL07120 REAR SHAFT,PAPER FEED 1 1 4
3AL07130 SHAFT,SEPARATION 1 1 4

3AL07160 LEVER,LIFT 1 1 4
3AL07180 JOINT,LIFT SOLENOID 1 1 4
3AL07210 BELT 134,LEADING FEED 1 1 4
3AL07220 STOPPER,ORIGINAL STOPPER 1 1 4
3AL07230 PIN,PAPER FEED 3 3 5, 6
3AL07240 FRONT STATIC ELIMINATOR,PAPER FEED 1 1 4
3AL07250 REAR STATIC ELIMINATOR,PAPER FEED 1 1 4
3AL07260 FRONT HOOK,LEFT COVER 1 1 1
3AL07270 REAR HOOK,LEFT COVER 1 1 1
3AL07280 HANDLE,HOOK 1 1 1
3AL07290 SHAFT,HOOK 1 1 1
3AL07300 WEIGHT,LEADING FEED 1 1 4
3AL07310 FILM,SEPARATION 1 1 4
3AL07320 SPRING,SEPARATION 2 2 4

3AL08011 LEFT GUIDE,RESISTANCE 1 1 6
3AL08021 RIGHT GUIDE,RESISTANCE 1 1 6

Quantity

230V 240V

3AL-1

3AL

– 18 –

Part. No. Description Fig. No.

3AL08032 GUIDE,CONVEYING 1 1 6

3AL08051 GUIDE,RESISTANCE 1 1 5
3AL08060 GUIDE,EJECT 1 1 5
3AL08071 GUIDE,READING 1 1 6
3AL08080 GUIDE,EJECT FEED SHIFT 1 1 6
3AL08091 ROLLER,RESISTANCE 1 1 6
3AL08100 INNER PULLEY,CONVEYING 2 2 6

3AL08111 LOWER ROLLER,CONVEYING 1 1 6

3AL08121 INNER ROLLER,CONVEYING 1 1 6

3AL08130 ROLLER,EJECT 1 1 6
3AL08140 UPPER PULLEY,CONVEYING 2 2 1
3AL08160 UPPER ROLLER,CONVEYING 1 1 6
3AL08170 PULLEY,EJECT 4 4 5
3AL08180 UPPER SHAFT,CONVEYING PULLEY 1 1 1
3AL08190 LOWER SHAFT,CONVEYING PULLEY 1 1 6
3AL08200 INNER SHAFT,CONVEYING PULLEY 1 1 6
3AL08210 SHAFT,EJECT PULLEY 2 2 5
3AL08220 UPPER PLATE SPRING,CONVEYING PULLEY 2 2 1
3AL08240 LOWER PLATE SPRING,CONVEYING PULLEY 2 2 6
3AL08250 INNER PLATE SPRING,CONVEYING PULLEY 2 2 6
3AL08260 PLATE SPRING,EJECT GUIDE 2 2 5
3AL08270 PLATE SPRING,RESISTANCE GUIDE 2 2 1
3AL08280 MOUNT,CONVEYING PULLEY 1 1 6
3AL08291 MOUNT,TIMING SWITCH 1 1 6
3AL08301 COVER,CONVEYING PULLEY 1 1 6
3AL08310 MOUNT,EJECT SOLENOID 1 1 6
3AL08330 LEVER,EJECT 1 1 6
3AL08340 LEVER,EJECT SOLENOID 1 1 6
3AL08360 STOPPER,LEFT COVER FRONT 1 1 1
3AL08370 STOPPER,LEFT COVER REAR 1 1 1
3AL08380 HANDLE,RESISTANCE GUIDE 1 1 5
3AL08401 SHEET,ORIGINAL HOLDER 1 1 6
3AL08410 SHEET,GUIDE EJECT 1 1 5
3AL08420 OUTER SHEET,GUIDE CONVEYING 2 2 6
3AL08430 INNER SHEET,GUIDE CONVEYING 1 1 6
3AL08450 SHEET,GUIDE PLATE EJECT 1 1 6
3AL08470 SHAFT,RESISTANCE PULLEY 1 1 5
3AL08480 FRONT PULLEY,READING 2 2 6
3AL08490 SPRING,EJECT FEED SHIFT 1 1 5
3AL08500 PULLEY,RESISTANCE 4 4 5

Quantity

230V 240V

Part. No. Description Fig. No.

3AL08510 SHEET,GUIDE RESISTANCE 1 1 5
3AL08520 SHEET,RESISTANCE 2 2 5
3AL08530 INNER SHEET,GUIDE CONVEYING LARGE 1 1 6

3AL08560 SPRING,EJECT PULLEY 4 4 5
3AL08570 GUIDE,TIMING SWITCH 1 1 6
3AL10010 GUIDE,LOOP 1 1 5
3AL10020 ROLLER,LOOP 1 1 5
3AL10031 GUIDE,LOOP FEED SHIFT 1 1 5
3AL10040 SHAFT,FULCRUM PULLEY 1 1 5
3AL10060 SHAFT,LOOP PULLEY 1 1 5
3AL10071 LIGHT SHIELD,LOOP 1 1 6
3AL10080 LEVER,LOOP FEED SHIFT 1 1 5
3AL10090 LEVER,LOOP PULLEY SOLENOID 1 1 5
3AL10100 LEVER,LOOP PULLEY 1 1 5

3AL10110 LEVER,LOOP FEED SHIFT SOLENOID 1 1 5
3AL10120 FRONT HOLDER,LOOP PULLEY 1 1 5
3AL10131 MOUNT,LIGHT SHIELD 1 1 6
3AL10141 MOUNT,LOOP PULLEY SOLENOID 1 1 5
3AL10151 MOUNT,LOOP SWITCH 1 1 6
3AL10161 LEFT GUIDE,LOOP 1 1 5
3AL10170 SHEET,GUIDE LOOP 1 1 5
3AL10181 LEFT SHEET,GUIDE LOOP 1 1 5
3AL10190 SPRING,LIGHT SHIELD 1 1 6
3AL10200 REAR HOLDER,LOOP PULLEY 1 1 5
3AL10210 SHEET,LOOP PULLEY 2 2 5
3AL10221 UPPER SHEET,CONVEYING PULLEY 2 2 5
3AL10230 SPRING,LOOP PULLEY SOLENOID 1 1 5

3AL10241 FRONT SHEET,TURN OVER PAPER EJECT 1 1 1
3AL10251 REAR SHEET,TURN OVER PAPER EJECT 1 1 1

3AL22010 PULLEY T35/T22/Z22 1 1 7
3AL22020 PULLEY T28/Z18 1 1 7
3AL22030 GEAR Z22/T35P2M 1 1 7
3AL22040 GEAR Z18/T25P2M 1 1 6
3AL22050 BELT 190,PAPER FEED MOTOR 1 1 7
3AL22060 BELT 112,RESISTANCE ROLLER 1 1 7
3AL22070 BELT 140,MIDDLE ROLLER 1 1 6
3AL22080 TENSION PLATE,MIDDLE ROLLER BELT 1 1 6
3AL22090 MOUNT,IDLE GEAR 1 1 7
3AL22100 MOUNT,PAPER FEED MOTOR 1 1 7

3AL22110 MOUNT,CONVEYING MOTOR 1 1 7

Quantity

230V 240V

3AL-1

3AL

– 19 –

Part. No. Description Fig. No.

3AL27010 MOTOR,PAPER FEED 2 2 7
3AL27020 WIRE,PAPER FEED 1 1 8
3AL27030 WIRE,TABLE 1 1 3
3AL27040 WIRE,INTERFACE 1 1 8
3AL27050 SWITCH,ORIGINAL SET 1 1 4
3AL27060 SWITCH,FEED 1 1 4
3AL27070 SOLENOID,LEADING FEED 1 1 4
3AL27080 SOLENOID,FEED SHIFT 2 2 5, 6

3AL27111 SOLENOID,LOOP PULLEY 1 1 5
3AL27120 SWITCH,TIMING 1 1 6
3AL28020 SET LED PCB 1 1 4
3AL93010 PARTS,CLUTCH PAPER FEED,SP 1 1 4
3AL93020 PARTS,DRIVER PCB,SP 1 1 8

33918100 GEAR 18,FUR BRUSH 2 2 5, 6

34806150 STOPPER 5 7 7 4

34920190 GROUND PLATE,FIXING UNIT 2 2 7

35911731 SPRING,EJECT PULLEY ADF 1 1 2

36827140 SWITCH A,INTERLOCK 2 2 2, 4

48928800 PULLEY,TIMING BELT 1 1 6

60606101 BUSHING FEED BACK ROLLER 2 2 5

60907910 PAD,BYPASS 2 2 4

63202120 SUPPORT PLATE,COVER 2 2 1

63212160 SPRING PLATE,EJECT RELEASE 1 1 2

63212210 STATIC ELIMINATOR,EJECT 1 1 4

63526080 SPRING,SAFETY SWITCH LEVER 2 2 5

63527240 PI,GP1A71A 1 1 6

63806290 BUSHING,6 1 1 6

63814100 IDLE GEAR 15,AGITATION 1 1 7

63814260 SPRING,DEV. SHUTTER 1 1 6

65011310 GEAR 20,IDLE 1 1 7

65011360 BUSHING 6,LOOP 1 1 4

65027470 CORE,7-15X18 3 3 8

65027480 CORE,9-20X32 1 1 8

65722080 BELT 100,ORIGINAL FEED 2 2 6, 7

65722250 PULLEY 20,EJECT 1 1 4

65907210 GEAR 20,CASSETTE 1 1 3

65907300 PULLEY,CASSETTE 1 1 7

66018180 GEAR 26,SPIRAL ROLLER 1 1 7

71602201 SPACER,SHIFT LEVER 2 2 7

Quantity

230V 240V

Part. No. Description Fig. No.

72107160 BUSHING 6,LOWER REGISTRATION ROLLER 3 3 4, 5
72118141 SPRING,CLEANING BLADE 1 1 1
72418480 SPRING, SPIRAL ROLLER 2 2 6

73210450 BUSH, 6 9 9 4, 6
73818100 SPRING, BLADE THRUST 1 1 4
74306520 JOINT,PULLEY DRIVE SHAFT 1 1 4
74808080 BEARING,686ZZNR 4 4 6
75714210 COLLAR DEVELOPING UNIT 2 2 6, 7
76221040 GEAR 28 FD 1 1 7
77706461 PRESSING SPRING 2 2 5
78706241 FILTER CF SENSOR 1 1 3
78707580 FELT ORIGINAL FEED 2 2 4
78722151 PULLEY 20 2 2 7
78727110 JAM DETECTION SWITCH 1 1 3
J0070030 POSITIVE CONNECTOR HOUSING 3P,#187,172075-1 2 2 8
J0070900 POSITIVE CONTACTOR,#187,170330-1 6 6 8
J0140030 RECEPTACLE,173977-3(AMP) 5 5 8
J0140060 RECEPTACLE MT 6P,173977-6 2 2 8
J0140130 RECEPTACLE,1-173977-3(AMP) 2 2 8
J0140150 RECEPTACLE,1-173977-5(AMP) 2 2 8
J0141030 RECEPTACLE,2-173977-3(AMP) 1 1 8
J0141060 RECEPTACLE,2-173977-6(AMP) 1 1 8
J0143030 CASE,2-175694-3(AMP) 1 1 8
J0143060 CASE,2-175694-6(AMP) 1 1 8
J0144020 CASE,175694-2(AMP) 3 3 8
J0144030 CASE,175694-3(AMP) 6 6 8
J0144060 CASE,175694-6(AMP) 2 2 8
J0145030 RECEPTACLE,6-173977-3(AMP) 1 1 8
J0149260 CASE,2-175133-6(AMP) 1 1 8
J0149300 CASE,3-175133-0(AMP) 1 1 8
J0300900 SOCKET,5194TL 4 4 8

J0301040 RECEPTACLE 4P,5196-04 1 1 8
M0207000 BINDING BAND,KB-100-1 12 12 6, 8
M1203200 OPEN BUSHING,OCB-375 3 3 2
M2104200 EDGING EDS-1 3 3 2
M2104350 EDGING,EDS-0607M(KITAGAWA) 2 2 4
M2105000 NYLON CLAMP 2N,NK-2N 1 1 3
M2105040 NYLON CLAMP 6N,NK-6N 1 1 8
M2107120 BINDING BAND SG-130 2 2 4

Quantity

230V 240V

3AL-1

3AL

– 20 –

Part. No. Description Fig. No.

M2108900 SPACER,KGPS-16S(KITAGAWA) 2 2 8
M2109230 WIRE SADDLE,LWS-3S(KITAGAWA) 1 1 2
M2109260 WIRE SADDLE,YMC-05-H-0(KITAGAWA) 12 12 2, 4, 5, 6, 7
M2109330 WIRE SADDLE,YMC-10-0(KITAGAWA) 1 1 4

Quantity

230V 240V

Part. No. Description Fig. No.

Quantity

230V 240V

3AL

– 21 –

NOTE

1. Indicate parts number and machine model when placing an order.

eg. Parts Number Parts Name Machine Model Cycle Quantity

3AL04040 LEFT COVER SRDF-1 50Hz 1

2. Service calls and freight will be charged separately.

3. Symbols in the "Parts Number" column.

• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.

eg. Parts Number Parts Name Parts Number Parts Name

3AL27020 WIRE,PAPER FEED •J0149300 CASE,3-175133-0(AMP)

4. See the last page of this parts list for the classification of the screws in the illustrations.

CLASSIFICATION OF THE SCREWS IN ILLUSTRATION

REF. ITEM # DESCRIPTION

BAA B1003040 BINDING SCREW,CVM3X4
BAL B1003050 BINDING SCREW CVM3X5
BAP B1003100 BINDING SCREW CVM3X10
BBA B1303040 BINDING SCREW BVM3X4 (BLACK)
BBB B1303050 BINDING SCREW BVM3X5 (BLACK)
BBC B1303100 BINDING SCREW BVM3X10 (BLACK)
BBD B1304040 BINDING SCREW BVM4X4 (BLACK)
BBE B1304060 BINDING SCREW BVM4X6 (BLACK)
BBU B1303140 BINDING SCREW BVM3X14 (BLACK)
BHN B8013080 BINDING TAP-TIGHT SCREW M3X08
BMF B1003140 BINDING SCREW CVM3X14
DJU B5394040 W-POINT SET SCREW M4X4
E03 D1000300 STOP RING (E-3)
E04 D1000400 STOP RING (E-4)
E05 D1000500 STOP RING (E-5)
E07 D1000700 STOP RING (E-7)
GEF B9604060 GROUNDING SCREW M4X6 (BRASS,N;)
HAO B4043080 TRIPLE TAP-TITE P SCREW M3X08
HBA B4303050 TRIPLE SCREW M3X5 (BLACK)
HCA B4104060 TRIPLE SCREW M4X6(CHROMIUM)
KAL E0020100 SPRING PIN 2X10
KAM E0020120 SPRING PIN 2X12
KFB E5120120 SPRING PIN H7A 2X12 SUS
KFO E5120100 SPRING PIN H7A 2X10 SUS
WAE C2006130 PLAIN WASHER PWM6

688

MITA EUROPE B.V.

©

g

Hoeksteen 40, 2132 MS Hoofddorp,
The Netherlands
Phone: [phone]
Home page: http://www.mita.nl,
Email: info@mita. nl

MITA NEDERLAND B.V.

Gyroscoopweg 122, 1042 AZ Amsterdam,
The Netherlands
Phone: [phone]

MITA COPYSTAR (U.K.) LTD.

Mita House, Hamm Moor Lane,
Addlestone, Weybridge,
Surrey KT15 2SB, U.K.
Phone: [phone]

MITA ITALIA S.P.A.

Via Marconi 8, 20041 Agrate Brianza,
Milano,Italy
Phone: [phone]

S.A. MITA BELGIUM N.V.

Hermesstraat 8A, 1930 Zaventem, Belgium
Phone: [phone]

MITA FRANCE S.A.R.L.

1 Rue Pelloutier,
77183 Croissy Beaubourg, France
Phone: [phone]

MITA ESPAÑA S.A.

Edificio Mita, Avda. De Manacor Nº 2,
Urb. Parque Rozas, Apartado De Correos 76,
28230 Las Rozas, Madrid, Spain
Phone: [phone]

MITA FINLAND OY

Kirvesmiehenkatu 4, 00810 Helsinki,
Finland
Phone: [phone]

1998 MITA INDUSTRIAL CO., LTD.

MITA and are re

istered trademarks of MITA INDUSTRIAL CO., LTD.

MITA (SCHWEIZ) AG

Hölzliwisen Industriestrasse 28,
8604 Volketswil, Switzerland
Phone: [phone]

MITA DEUTSCHLAND GMBH

Industriestrasse 17, D-61449 Steinbach/TS,
Germany
Phone: [phone]

MITA GMBH AUSTRIA

Altmannsdorfer Straße 144-146,
1232 Wien, Austria
Phone: [phone]

MITA SVENSKA AB

Siktgatan 2
162 50 Vällingby, Sweden
Phone: [phone]

MITA DANMARK A/S

Industrivej 11, DK-4632 Bjæverskov,
Denmark
Phone: [phone]

MITA PORTUGAL LDA.

CASCAISTOCK-Armazem nº8,
Rua das Fisgas, Alcoitão,
2765 Estoril, Portugal
Phone: [phone]

MITA COPYSTAR
AMERICA, INC.

Headquarters:

225 Sand Road, P.O. Box 40008
Fairfield, New Jersey 07004-0008
U.S.A.
Phone: [phone]

MITA ASIA PACIFIC

Head office:

2-28, 1-chome, Tamatsukuri, Chuo-ku,
Osaka 540-8585, Japan
Phone: [phone]

MITA COPIERS AUSTRALIA PTY. LTD.

P.O. Box 211, Regents Park Estate Unit 2, Block V
391 Park Road, Regents Park N.S.W. 2143,Australia
Phone: [phone]
Fax: [phone]

MITA NEW ZEALAND LTD.

1-3 Parkhead Place, Albany
P.O. Box 364,New Zealand
Auckland, New Zealand
Phone: [phone]

MITA (THAILAND) CORPORATION LTD.

9/209 Ratchada-Prachacheun Road,
Bang Sue, Bangkok 10800, Thailand
Phone: [phone]

MITA COPYSTAR SINGAPORE PTE LTD.

121 Genting Lane, 3rd. Level,
Singapore 349572
Phone: [phone]

MITA COPYSTAR HONG KONG LIMITED.

11/F., Mita Centre,
552-566 Castle Peak Road,
Tsuen Wan, New Territories,
Hong Kong
Phone: [phone]

MITA INDUSTRIAL CO.,
LTD.

2-28, 1-chome, Tamatsukuri, Chuo-ku,
Osaka 540-8585, Japan
Phone: [phone]
Fax: [phone]

Printed in Holland
