Mita-Kyocera PS-N INSTRUCTION HANDBOOK
Operation Guide
Introduction
Printer-related operation
■ 1. Features of this Printer
■ 2. Printer Settings
P
■ 3. Paper size setting for manual feed
(for printer use)
■ 4. e-MPS Functions
■ 5. Hard Disk/ RAM Disk
■ 6. Memory Card
■ 7. Printer Control Commands
■ 8. Troubleshooting
Software-related operation

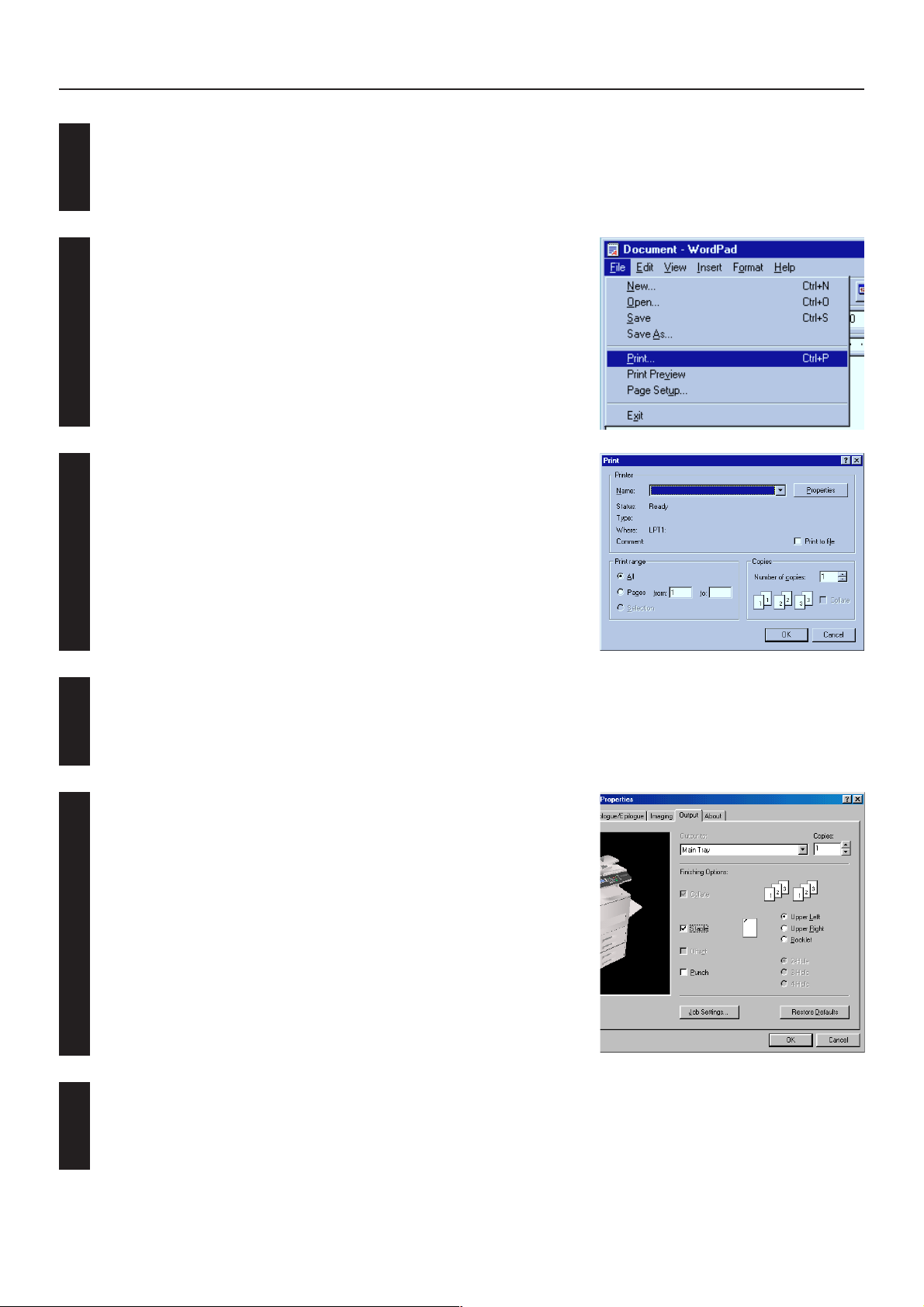

■ 9. Procedure for Installing and Printing
with a Printer Driver

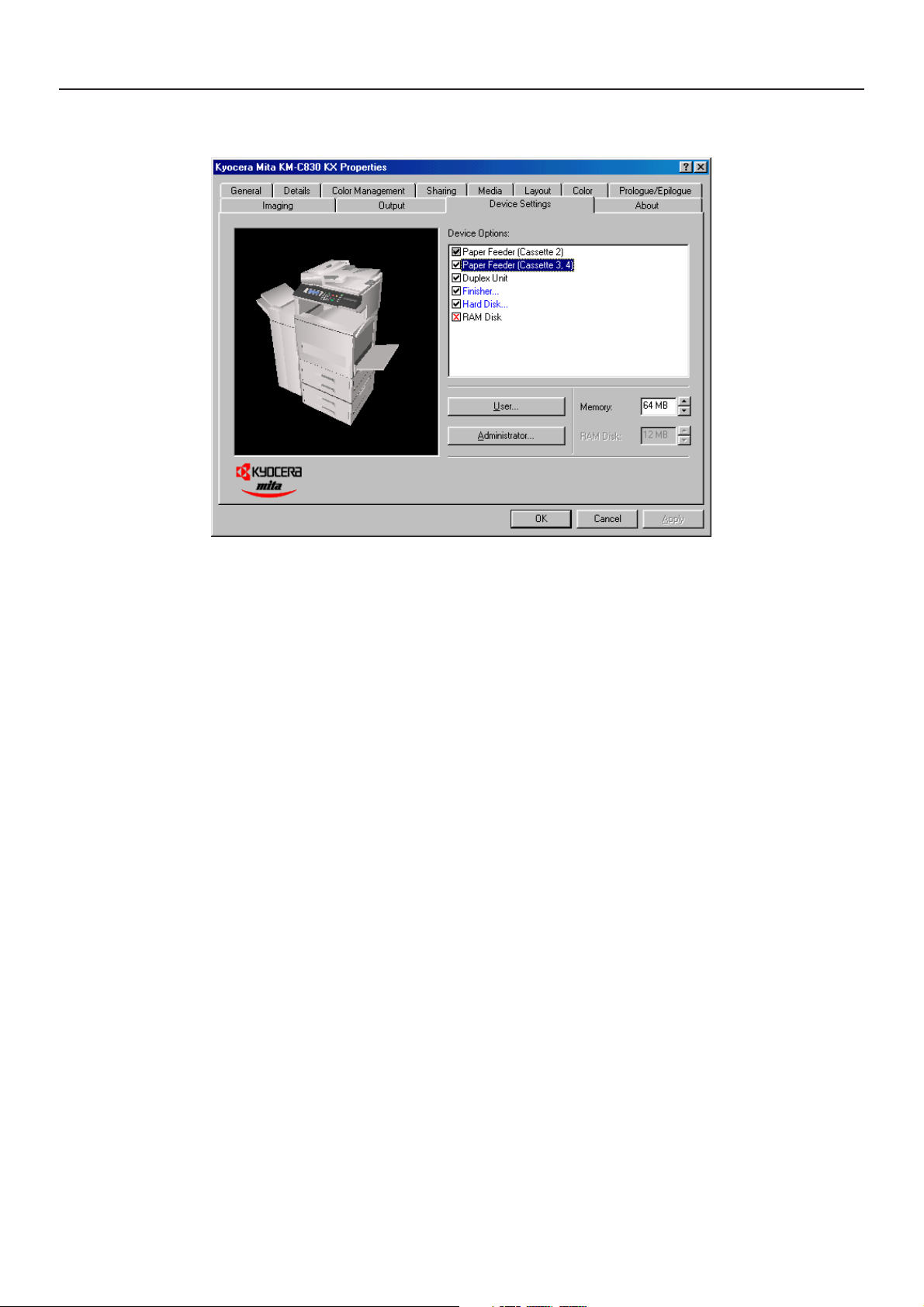

■ 10. Windows KX Driver
■ 11. Printer Driver for Macintosh
Introduction
About this Operation Guide
This Operation Guide is included with your Printing System (P) and should be read in combination with the Operation Guide <Set-Up
Edition> for that product.
This Operation Guide contains information on making settings in your printer, as well as on installing and setting the printing properties for the corresponding Printer Drivers.
The explanations in this Operation Guide were written with the assumption that the user has a basic understanding of how to work in
Microsoft Windows. For further information on using Windows, refer to your Microsoft Windows manual.
NOTE:
This Operation Guide contains information that corresponds to using both the inch and metric versions of this printer. When the difference in a
message is only one of upper- and lower-case spelling, we have listed the information as it specifically pertains to the inch version of this machine.
When there is even a slight difference in the message, we have listed the information for the inch version followed, in brackets, by the corresponding
information for the metric version.
Trademark Information
• PRESCRIBE and ECOSYS are registered trademarks of Kyocera Corporation.
• KPDL and KIR are trademarks of Kyocera Corporation.
• Microsoft, MS-DOS, Windows and WindowsNT are registered trademarks of Microsoft Corporation of America and other countries.
• WINDOWS ME is a trademark of Microsoft Corporation.
• PCL and PJL are registered trademarks of Hewlett-Packard Company.
• PostScript is a registered trademark of Adobe Systems Incorporated.
• Ethernet is a registered trademark of Xerox Corporation.
• Novell and NetWare are registered trademarks of Novell, Inc.
• Centronics is a trademark of Centronics Data Computer Corporation.
• IBM and IBM PC-AT are trademarks of International Business Machines Corporation.
• PowerPC and Microdrive are trademarks of International Business Machines Corporation of America and other corporations.
• TrueType and Macintosh are registered trademarks of Apple Computer, Inc.
• AppleTalk is a trademark of Apple Computer, Inc.
• CompactFlash and CF are trademarks of SanDisk Corporation of America.
• This product was developed using Tornado, the real-time operating system (ROTS) general development environment from Wind River Systems, Inc.
• This printer uses PeerlessPrintXL, a PCL compatibility system developed by Peerless Group, to emulate the HP LaserJet Printer Control Language
(PCL6). PeerlessPrintXL is a trademark of Peerless Group (Redondo Beach, CA 90278, U.S.A.).
• Contains UFSTTM and MicroType® from Agfa Corporation.
All other company and product names contained in this Operation Guide are trademarks or registered trademarks of their respective companies. The
designations ™ and ® will not be used in this Operation Guide.
All rights reserved. No part of this material may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying, recording or by any information storage and retrieval system, without permission in
writing from the Publisher.
Legal Restriction On Copying
• It may be prohibited to copy copyrighted material without permission of the copyright owner.
• It is prohibited under any circumstances to copy domestic or foreign currencies.
• Copying other items may be prohibited.
i
IBM PROGRAM LICENSE AGREEMENT
THE DEVICE YOU HAVE PURCHASED CONTAINS ONE OR MORE SOFTWARE PROGRAMS (“PROGRAMS”) WHICH BELONG
TO INTERNATIONAL BUSINESS MACHINES CORPORATION (“IBM”). THIS DOCUMENT DEFINES THE TERMS AND CONDITIONS
UNDER WHICH THE SOFTWARE IS BEING LICENSED TO YOU BY IBM. IF YOU DO NOT AGREE WITH THE TERMS AND
CONDITIONS OF THIS LICENSE, THEN WITHIN 14 DAYS AFTER YOUR ACQUISITION OF THE DEVICE YOU MAY RETURN THE
DEVICE FOR A FULL REFUND. IF YOU DO NOT SO RETURN THE DEVICE WITHIN THE 14 DAYS, THEN YOU WILL BE ASSUMED
TO HAVE AGREED TO THESE TERMS AND CONDITIONS.
The Programs are licensed not sold. IBM, or the applicable IBM country organization, grants you a license for the Programs only in
the country where you acquired the Programs. You obtain no rights other than those granted you under this license.
The term “Programs” means the original and all whole or partial copies of it, including modified copies or portions merged into other
programs. IBM retains title to the Programs. IBM owns, or has licensed from the owner, copyrights in the Programs.
1. License
Under this license, you may use the Programs only with the device on which they are installed and transfer possession of the
Programs and the device to another party. If you transfer the Programs, you must transfer a copy of this license and any other
documentation to the other party. Your license is then terminated. The other party agrees to these terms and conditions by its first use
of the Program.
You may not:
1) use, copy, modify, merge, or transfer copies of the Program except as provided in this license;
2) reverse assemble or reverse compile the Program; or
3) sublicense, rent, lease, or assign the Program.
2. Limited Warranty
The Programs are provided “AS IS.”
THERE ARE NO OTHER WARRANTIES COVERING THE PROGRAMS (OR CONDITIONS), EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some jurisdictions do not allow the exclusion of implied warranties, so the above exclusion may not apply to you.
SUPPLEMENT TO AGREEMENT FOR SOFTWARE BUNDLING AND DISTRIBUTION FOR ALDC
3. Limitation of Remedies
IBM’s entire liability under this license is the following;
1) For any claim (including fundamental breach), in any form, related in any way to this license, IBM’s liability will be for
actual damages only and will be limited to the greater of ;
a) the equivalent of U.S.$25,000 in your local currency; or
b) IBM’s then generally available license fee for the Program
This limitation will not apply to claims for bodily injury or damages to real or tangible personal property for which IBM is legally liable.
IBM will not be liable for any lost profits, lost savings, or any incidental damages or other economic consequential damages, even if
IBM, or its authorized supplier, has been advised of the possibility of such damages. IBM will not be liable for any damages claimed
by you based on any third party claim. This limitation of remedies also applies to any developer of Programs supplied to IBM. IBM's
and the developer’s limitations of remedies are not cumulative. Such developer is an intended beneficiary of this Section. Some
jurisdictions do not allow these limitations or exclusions, so they may not apply to you.
4. General
You may terminate your license at any time. IBM may terminate your license if you fail to comply with the terms and conditions of this
license. In either event, you must destroy all your copies of the Program. You are responsible for payment of any taxes, including
personal property taxes, resulting from this license. Neither party may bring an action, regardless of form, more than two years after
the cause of action arose. If you acquired the Program in the United States, this license is governed by the laws of the State of New
York. If you acquired the Program in Canada, this license is governed by the laws of the Province of Ontario. Otherwise, this license
is governed by the laws of the country in which you acquired the Program.
ii
Typeface Trademark Acknowledgement
All resident fonts in this printer are licensed from Agfa Corporation.
Helvetica, Palatino and Times are registered trademarks of Linotype-Hell AG.
ITC Avant Garde Gothic, ITC Bookman, ITC ZapfChancery and ITC Zapf Dingbats are registered trademarks of International
Typeface
Corporation.
Agfa Japan License Agreement
1. “Software” shall mean the digitally encoded, machine readable, scalable outline data as encoded in a special format as well as
the UFST Software.
2. You agree to accept a non-exclusive license to use the Software to reproduce and display weights, styles and versions of
letters, numerals, characters and symbols (“Typefaces”) solely for your own customary business. Agfa Japan retains all rights,
title and interest to the Software and Typefaces and no rights are granted to you other than a License to use the Software on
the terms expressly set forth in this Agreement.
3. To protect proprietary rights of Agfa Japan, you agree to maintain the Software and other proprietary information concerning
the Typefaces in strict confidence and to establish reasonable procedures regulating access to and use of the Software and
Typefaces.
4. You agree not to duplicate or copy the Software or Typefaces, except that you may make one backup copy.
5. This License shall continue until the last use of the Software and Typefaces, unless sooner terminated. This License may be
terminated by Agfa Japan if you fail to comply with the terms of this License and such failure is not remedied within thirty (30)
days after notice from Agfa Japan. When this License expires or is terminated, you shall either return to Agfa Japan or destroy
all copies of the Software and Typefaces and documentation as requested.
6. You agree that you will not modify, alter, disassemble, decrypt, reverse engineer or decompile the Software.
7. Agfa Japan warrants that for ninety (90) days after delivery, the Software will perform in accordance with Agfa Japan-published
specifications. Agfa Japan does not warrant that the Software is free from all bugs, errors and omissions. THE PARTIES
AGREE THAT ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF FITNESS FOR A
PARTICULAR PURPOSE AND MERCHANTABILITY, ARE EXCLUDED.
8. Your exclusive remedy and the sole liability of Agfa Japan in connection with the Software and Typefaces is repair or
replacement of defective parts, upon their return to Agfa Japan. IN NO EVENT WILL AGFA JAPAN BE LIABLE FOR LOST
PROFITS, LOST DATA, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES CAUSED BY
ABUSE OR MISAPPLICATION OF THE SOFTWARE AND TYPEFACES.
9. New York, U.S.A. law governs this Agreement.
10. You shall not sublicense, sell, lease, or otherwise transfer the Software and/or Typefaces without the prior written consent of
Agfa Japan.
11. Use, duplication or disclosure by the Government is subject to restrictions as set forth in the Rights in Technical Data and
Computer Software clause at FAR 252-227-7013, subdivision (b)(3)(ii) or subparagraph (c)(1)(ii), as appropriate. Further use,
duplication or disclosure is subject to restrictions applicable to restricted rights software as set forth in FAR 52.227-19 (c)(2).
12. YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT, AND AGREE TO BE BOUND BY ITS
TERMS AND CONDITIONS. NEITHER PARTY SHALL BE BOUND BY ANY STATEMENT OR REPRESENTATION NOT
CONTAINED IN THIS AGREEMENT. NO CHANGE IN THIS AGREEMENT IS EFFECTIVE UNLESS WRITTEN AND SIGNED
BY PROPERLY AUTHORIZED REPRESENTATIVES OF EACH PARTY.
iii
1. Features of the Printer
1. Printer Settings (15 ppm copier)
This printer comes equipped with the following features.
KIR (Kyocera Image Refinement)
A smoothing function exclusive to Kyocera. This function uses software to increase the resolution of the printer and ensure high-quality printing. The
factory default setting for this function is “ON”. (This function is available for black and white printing only.)
High-Speed Printing
The printing speed can reach up to 30 pages per minute (11" x 8 1/2" [A4]) for black and white printing and up to 8 pages per minute (11" x 8 1/2" [A4])
for full color printing. (These speeds are applicable when making multiple copies of the same document. Actual printing speed will differ depending
upon the content of the print job.)
Media type selection
If different types of copying media (standard copy paper, OHP transparency film, label sheets, etc.) are set in the various locations for paper feed, the
printer will automatically select the type of paper that was designated for that particular print job.
EcoPrint
This printer comes equipped with an EcoPrint function that enables the reduction of toner consumption. By using the EcoPrint function, the same
quantity of toner will last longer. (This function is available for black and white printing only.)
Two-Way Parallel Interface
Data transfer from your computer to the printer is accomplished using an IEEE 1284 parallel interface.
Printer Control Commands
This printer has built-in Printer Control Commands (PRESCRIBE) with improved graphic functionality. A simple command will enable you to change
the margin setting, the character- or line-spacing, to rotate or fill in outlined fonts and graphics, and much more.
e-MPS Functions
This printer comes equipped with e-MPS (enhanced-Multiple Printing System) functions. With these functions, document data can be stored on the
Hard Disk (option) that is installed in the printer and printed out afterwards using the printer's operation panel. Available e-MPS functions include Quick
Copy, Proof and Hold, Private Print, Stored Job Printing (Job Storage), Virtual Mailbox (VMB), Temporary/Permanent Code Job and Electronic
Sorting.
Hard Disk
The optional Hard Disk can be installed in the printer. By installing the optional Hard Disk in your printer, you will be able to use the available e-MPS
functions as well as increase the efficiency of your printer with electronic sorting.
Memory (Compact Flash) Card Slot
The optional Memory Card can be installed in the printer. By installing the optional Memory Card in your printer, you will be able to use the optional
fonts, macro, and form functions, etc.
1-1
2. Printer Settings
2. Printer Settings
2-1 Procedure for making settings

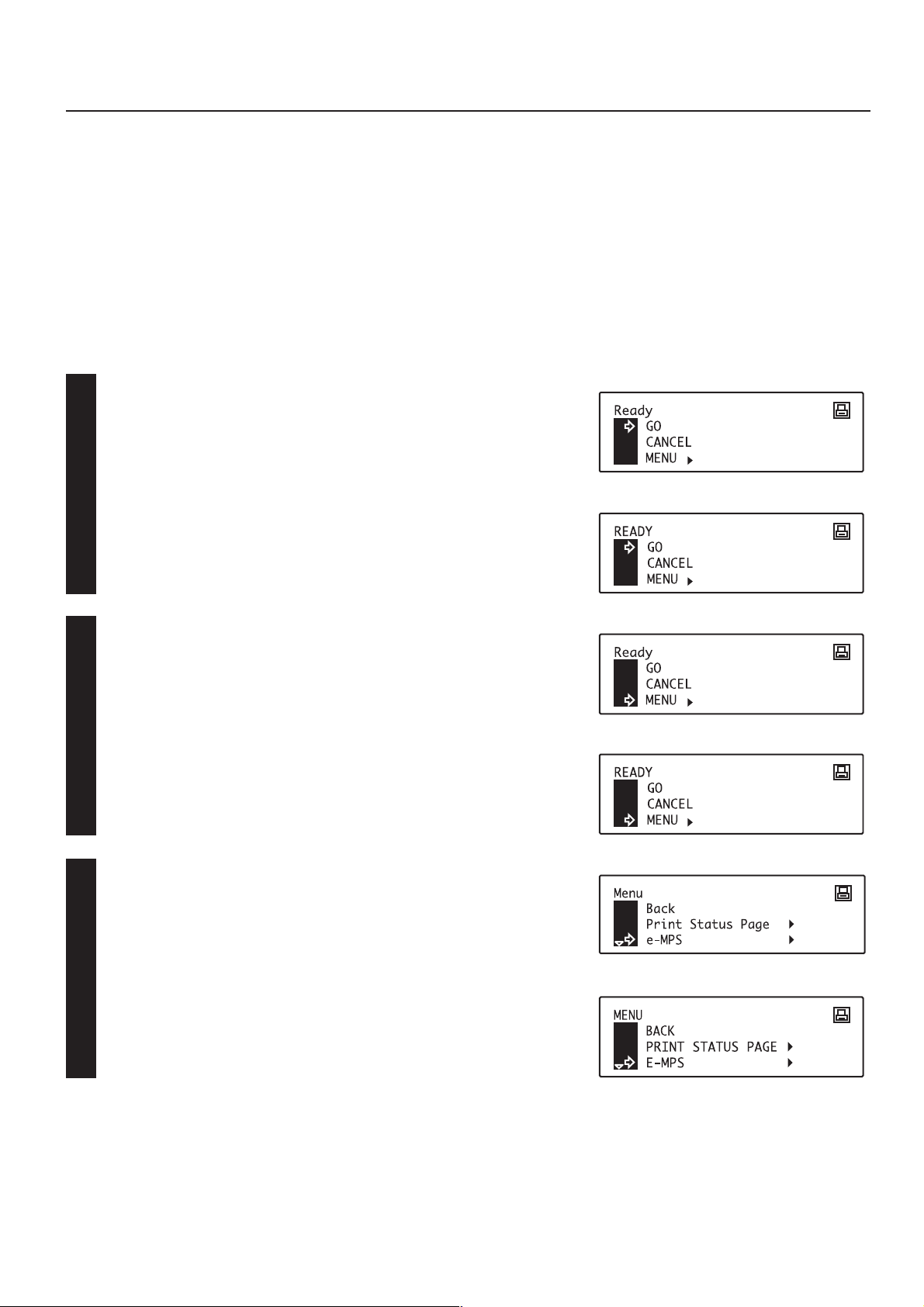

Press the Printer key. The machine will switch to the printer mode.
1
Inch specification
Metric specification
Use the “M” and “N” cursor keys to select “MENU” and then press the Enter key.
2
Select the desired setting.
(Refer to “2-2 Menu flow chart” on page 2-3 for a list of the various possible settings.)
3
Note
Settings are categorized into a hierarchy under the “MENU” command. Use the “M”
and “N” cursor keys to select “MENU” and then press the Enter key to access the
menu of available setting items. Once the desired setting is selected, press the Enter
key once again.
Inch specification
Metric specification
Inch specification
Metric specification
Change the desired setting.
(Refer to “2-3 List of settings” on page 2-7 for information regarding each item and its
4
possible settings.)
Note
Settings are normally changed (turned ON and OFF, etc.) by using the “M” and “N”
cursor keys to move the selection cursor (e) and select the desired setting, and then
pressing the Enter key.
When it is necessary to type in a value or number directly (such as with a network
address or the time, etc.), use the numeric keys to enter the desired information and
the cursor left and right keys to change the location of the cursor. Once entry is
complete, press the Enter key.
Press the Copier key to switch back to the copier mode.
5
2-1
Inch specification
Metric specification
2. Printer Settings
■ Operation keys
<Inch version>
<Metric version>
2-2
2. Printer Settings
2-2 Menu flow chart
MENU Printer Status Page print out ....................................................................................................................
e-MPS functions
Quick Copy Job print out ...................................................................................................
Private Print / Stored Job print out ....................................................................................
Virtual Mailbox data print out .............................................................................................
Virtual Mailbox List print out ..............................................................................................
Code Job List print out ......................................................................................................
e-MPS settings
Maximum number of jobs stored for Quick Copy ........................................
Temporary code job partition ......................................................................
Permanent code job partition ......................................................................
Virtual Mailbox partition ..............................................................................
Interface selection ....................................................................................................................................
Parallel setting
Parallel TX/RX mode...................................................................................
1
2
3
4
5
6
7
8
9
10
11
12
Serial settings
Baud rate ....................................................................................................
Data bits......................................................................................................
Stop bit........................................................................................................
Parity ...........................................................................................................
Protocol.......................................................................................................
Barcode mode ............................................................................................
Option 1 (Network Card) settings
NetWare ON/OFF .......................................................................................
NetWare frame type .............................................................
TCP/IP ON/OFF..........................................................................................
DHCP ON/OFF ....................................................................
IP address ............................................................................
Subnet Mask ........................................................................
Gateway address .................................................................
13
14
15
16
17
18
19
20
21
22
23
24
25
EtherTalk ON/OFF ......................................................................................
Network Card Status Page print out ON/OFF.............................................
2-3
26
27
2. Printer Settings
Emulation protocol ...................................................................................................................................
PCL 5c
Code set selection ......................................................................................
KC-GL
Pen (1 - 8) settings......................................................................................
Pen thickness .......................................................................
Pen color ..............................................................................
Page set......................................................................................................
KPDL
KPDL Error Report print out ON/OFF .........................................................
KPDL(AUTO)
Auto emulation switching ............................................................................
KPDL Error Report print out ON/OFF .........................................................
Font settings
Internal
28
29
30
31
32
33
34
35
34
Option
Printing environment settings
Number of copies ..............................................................................................................
Printing orientation ............................................................................................................
Page Protect ......................................................................................................................
Line Feed (LF) handling ....................................................................................................
Carriage Return (CR) handling .........................................................................................
Printing resolution settings
Smoothing ON/OFF ..........................................................................................................
Font selection .............................................................................................
Courier font .................................................................................................
Letter Gothic font ........................................................................................
Font List print out ........................................................................................
Font selection .............................................................................................
Font List print out ........................................................................................
36
37
38
39
36
39
40
41
42
43
44
45
EcoPrint ON/OFF ..............................................................................................................
Tone ...................................................................................................................................
Gloss mode .......................................................................................................................
2-4
46
47
48
2. Printer Settings
Hard Disk settings
Reading data .....................................................................................................................
Reading program data .......................................................................................................
Writing data .......................................................................................................................
Deleting data .....................................................................................................................
Deleting font data ..............................................................................................................
Deleting program data .......................................................................................................
Deleting macro data ..........................................................................................................
Formatting Hard Disk ........................................................................................................
Partition List print out .........................................................................................................
RAM disk ON/OFF ...................................................................................................................................
RAM disk size ....................................................................................................................
Reading data .....................................................................................................................
Reading program data .......................................................................................................
Writing data .......................................................................................................................
Deleting data .....................................................................................................................
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
Deleting font data ..............................................................................................................
Deleting program data .......................................................................................................
Deleting macro data ..........................................................................................................
Partition List print out .........................................................................................................
Memory Card settings
Reading fonts ....................................................................................................................
Reading macro data ..........................................................................................................
Reading data .....................................................................................................................
Reading program data .......................................................................................................
Writing data .......................................................................................................................
Deleting data .....................................................................................................................
Deleting font data ..............................................................................................................
Deleting program data .......................................................................................................
Deleting macro data ..........................................................................................................
Formatting the Memory Card ............................................................................................
64
65
66
67
68
69
70
71
72
73
74
75
76
77
Partition List print out .........................................................................................................
2-5
78
2. Printer Settings
Paper handling settings
Bypass mode .....................................................................................................................
Bypass paper type .............................................................................................................
Paper source selection ......................................................................................................
Duplex mode .....................................................................................................................
Eject location selection ......................................................................................................
A4 & Letter usage ON/OFF ...............................................................................................
Custom paper type
Custom type (1 - 8) .....................................................................................
Paper thickness....................................................................
Fuser temperature control ....................................................
Duplex printing ON/OFF.......................................................
Reset custom paper type settings .....................................................................................
Color mode selection (color / black and white print out) ..........................................................................
Color matching
RGB simulation ...........................................................................................
79
80
81
82
83
84
85
86
87
88
89
90
91
Other settings
Ink simulation ..............................................................................................
Form feed time-out ............................................................................................................
Receive dump mode .........................................................................................................
Printer reset .......................................................................................................................
Resource protect mode .....................................................................................................
Auto Continue ON/OFF .....................................................................................................
Recovery time for Auto Continue ................................................................
Service
Service Rep Status Page print out..............................................................
Color test page 1 print out ..........................................................................
Color test page 2 print out ..........................................................................
92
93
94
95
96
97
98
99
100
101
2-6
2. Printer Settings
2-3 List of settings
Item No.
1
2
3
4
5
Item
Printer Status Page print out
Prints out a list of such items as printer
default settings and memory volume, etc.
Quick Copy Job print out
Use this menu to print out Quick Copy jobs
or Proof and Hold jobs.For more information,
refer to “4-2 Quick Copy” on page 4-2.
Private Print / Stored Job print out
Use this menu to print out Private Print jobs
or Stored Job jobs. For more information,
refer to “4-4 Private Print / Stored Job
Printing” on page 4-5.
Virtual Mailbox data print out
Prints out the document data that is stored
in the Virtual Mailboxes. For more
information, refer to “4-5 Virtual Mailbox
(VMB)” on page 4-8.
Virtual Mailbox List print out
Prints out a list of the Virtual Mailboxes.
Display message
Print Status Page
Quick Copy
Private/Stored
Print Virtual MailBox
Data
(PRINT VMB DATA)
Virtual MailBox List
(LIST OF VMB)
Available settings
No, Print
---
---
---
No, Print
Remarks
Displayed only when the optional
Hard Disk is installed.
Displayed only when the optional
Hard Disk is installed.
Displayed only when the optional
Hard Disk is installed.
Displayed only when the optional
Hard Disk is installed.
10
Code Job List print out
6
Prints out a list of the documents stored as
permanent code jobs.
Maximum number of jobs stored for
7
Quick Copy
Sets the maximum number of documents
that can be stored for Quick Copy.
Temporary code job partition
8
Sets the maximum size of the Hard Disk
partition that can be used for temporary
code jobs.
Permanent code job partition
9
Sets the maximum size of the Hard Disk
partition that can be used for permanent
code jobs.
Virtual Mailbox partition
Sets the maximum size of the Hard Disk
partition that can be used for virtual
mailboxes.
Job Code List
(LIST OF CODE
JOB)
Quick Copy
Temp Code JOB
Size
(TEMPORARY
CODE JOB SIZE)
Perm Code JOB
Size
(PERMANENT
CODE JOB SIZE)
VMB Size
No, Print
0 - 50
0 - 9999 MB
0 - 9999 MB
0 - 9999 MB
Displayed only when the optional
Hard Disk is installed.
Displayed only when the optional
Hard Disk is installed.
When the actual free space on the
Hard Disk is smaller than the
amount of free space specified,
only the amount of free space
actually on the Hard Disk can be
used.
When the actual free space on the
Hard Disk is smaller than the
amount of free space specified,
only the amount of free space
actually on the Hard Disk can be
used.
When the actual free space on the
Hard Disk is smaller than the
amount of free space specified,
only the amount of free space
actually on the Hard Disk can be
used.
2-7
2. Printer Settings
Item No.
11
12
13
14
15
Item
Interface selection
Displays the interface that is currently
selected. The arrow (>) will indicate the
currently selected interface. The printer will
automatically switch to the appropriate
interface for printing.
Parallel TX/RX mode
Sets the transmission and reception mode
when the printer is connected to your
computer with a parallel interface.
Baud rate
Sets the baud rate for the serial interface.
Data bits
Sets the data bits for the serial interface.
Stop bit
Sets the stop bit for the serial interface.
Display message
Interface
Parallel
Baud Rate
Data Bits
Stop Bits
Available settings
Parallel, Serial,
Option 1
Auto, Normal,
High Speed,
Nibble (high)
1200, 2400, 4800,
9600, 19200, 38400,
57600, 115200
7, 8
1, 2
Remarks
“Option 1” is displayed only when
the Network Card is installed.
16
17
18
Parity
Sets the parity for the serial interface.
Protocol
Sets the protocol for the serial interface.
Barcode mode
Set to “ON” when the optional Barcode
Reader is installed.
Parity
Protocol
Barcode Mode
None, Odd, Even,
Ignore
DTR(positive)&XON/
XOFF,
DTR(positive),
DTR(negative),
XON/XOFF, ETX/
ACK
On, Off
Displayed only when the optional
Barcode Reader is installed.
2-8
2. Printer Settings
Item No.
19
20
21
22
23
24
Item
NetWare ON/OFF
NetWare frame type
Sets the NetWare frame type.
TCP/IP ON/OFF
DHCP ON/OFF
IP address
Subnet Mask
Display message
NetWare
NetWare Frame
TCP/IP
DHCP
IP Address
Subnet Mask
Available settings
On, Off
Auto, 802.3,
Ethernet II, 802.2,
802.3 SNAP
On, Off
On, Off
Enter the address.
Enter the address.
Remarks
Displayed only when the NetWare
setting is turned “On”.
Refer to “2-4 Network (TCP/IP)
settings” on page 2-19 for the
procedure on setting the network
addresses.
25
26
27
Gateway address
EtherTalk ON/OFF
Network Card Status Page print out ON/
OFF
Sets whether a Status Page regarding
conditions in the Network Card will be
printed out as well when the standard Status
Page for the printer (item No.: 1) or that for
use by your service representative (item No.:
99) are printed out. A more detailed Status
Page is printed out together with the
“Service Rep Status Page print out” setting
(item No.: 99).
Gateway
EtherTalk
Opt. StatusPage
Enter the address.
On, Off
On, Off
2-9
2. Printer Settings
Item No.
28
29
30
31
Item
Emulation protocol
Sets the emulation protocol that will be used.
Code set selection
When PCL-5c is selected as the emulation
protocol, you can select the code set that
you want to be used.
Pen (1 - 8) settings
When KC-GL is selected, you can set the
parameters of pens (1) - (8). The thickness
and the color of the pens are selectable.
Pen thickness
Sets the thickness of the pen that was
selected under the “Pen (1 - 8)” setting (Item
No.: 30).
Display message
Emulation
PCL 5c : Code Set
KC-GL Pen Adjust
Pen Width
Available settings
PCL 5c, KC-GL,
KPDL, KPDL
(AUTO)
---
Pen (1) - (8)
1 - 99 dot (s)
Remarks
Allows you to set a different
emulation protocol for each
interface. Select the desired
interface under the “Interface
selection” setting (Item No.: 11).
32
33
34
35
Pen color
Sets the color of the pen that was selected
under the “Pen (1 - 8)” setting (Item No.: 30).
Page set
Specifies the original size for the data. The
printer will automatically enlarge/reduce the
data based on the original size that is
specified here and the copy paper size. If
“SPSZ” is selected, the original size that was
designated in the application will be used.
KPDL Error Report print out ON/OFF
Sets whether an Error Report will be
automatically printed out whenever a KPDL
error occurs.
Auto emulation switching
Sets the back-up emulation that, depending
upon the type of data received, may be
switched to for printing out when
“KPDL(AUTO)” is selected under the
“Emulation protocol” setting (item No.: 28).
Pen Color
(PEN COLOUR)
KC-GL Page set
Print KPDL Errs
Alt. emulation
Black, Red, Green,
Yellow, Blue,
Magenta, Cyan,
White
A2, A1, A0, B3, B2,
B1, B0, SPSZ
On, Off
PCL 5c, KC-GL
2-10
2. Printer Settings
Item No.
36
37
38
39
Item
Font selection
Selects the font that will be used for printing.
This setting is made by entering the ID of the
desired font. To select an font that is already
installed in the printer, enter “I###” (with the
corresponding font ID entered in place of the
###). To verify font IDs, print out a Font List
by carrying out the “Font List print out”
setting (item No.: 39). It is possible to select
a font other than those already installed,
such as those in the optional Memory Card.
Courier font
Allows you to select between “Regular” and
“Dark”.
Letter Gothic font
Allows you to select between “Regular” and
“Dark”.
Font List print out
Prints out a list of KPDL fonts when the
emulation protocol has been set to “KPDL”
or “KPDL(AUTO)”.
Display message
Font ID
Courier
Letter Gothic
List of Fonts
Available settings
---
Regular
Dark
Regular
Dark
No, Print
Remarks
To select an installed font, select
the “Internal” menu. To select a font
other than those already installed,
select the “Option” menu.
Displayed only when the “Internal”
menu is selected.
Displayed only when the “Internal”
menu is selected.
40
41
42
43
Number of copies
Printing orientation
Page Protect
If “AUTO” is selected here, the machine will
monitor the data and, if necessary, will
automatically turn Page Protect ON. If a
“Print overrun” error does happen to occur
even then, the machine will automatically
change the Page Protect setting to “ON”.
Line Feed (LF) handling
Copies
Orientation
Page Protect
LF Action
001 - 999
Portrait, Landscape
Auto, On
LF only,
CR and LF,
Ignore LF
A different setting can be selected
for each interface. Select the
desired interface under the
“Interface selection” setting (Item
No.: 11).
A different setting can be selected
for each interface. Select the
desired interface under the
“Interface selection” setting (Item
No.: 11).
44
Carriage Return (CR) handling
CR Action
2-11
CR only,
CR and LF,
Ignore CR
A different setting can be selected
for each interface. Select the
desired interface under the
“Interface selection” setting (Item
No.: 11).
2. Printer Settings
Item No.
45
46
47
48
49
Item
Smoothing ON/OFF
Allows you to have the jaggies that appear
around the edge of text or graphics to be
evened out through a smoothing process.
EcoPrint ON/OFF
Allows printing in a toner-saving mode. This
mode is especially suited for test pages, etc.,
where high printing quality is not required.
Tone
Selects between “Normal” and “Fine”.
Gloss mode
When “High” is selected, enables print out
with a glossy finish.
Reading data
Reads the selected data on the Hard disk.
Display message
KIR Mode
Ecoprint Mode
Tone
Gloss Mode
Read Data
Available settings
On, Off
On, Off
Normal, Fine
Low, High
Select the name of
the partition which
holds the data from
among those
displayed.
Remarks
For black and white print out only.
For black and white print out only.
If “Low” is selected here, the print
speed will be higher than when
“High” is selected.
Displayed only when there is
appropriate data on the Hard Disk.
50
51
52
Reading program data
Reads the selected program data on the
Hard disk.
Writing data
If “OK” is selected here, the machine will
enter a “waiting for data” state until data is
sent from the host computer. To exit this
state, select the “GO” command in the
printer mode and then press the Enter key.
Deleting data
Deletes the selected data from the Hard
disk.
Read Program
Write Data
Delete Data
Select the name of
the partition which
holds the program
from among those
displayed.
OK
Select the name of
the partition which
holds the data from
among those
displayed.
Displayed only when there is
appropriate program data on the
Hard Disk.
Only when the optional Hard Disk
is installed.
Displayed only when there is
appropriate data on the Hard Disk.
2-12
2. Printer Settings
Item No.
53
54
55
56
57
Item
Deleting font data
Deletes the selected font data from the Hard
disk.
Deleting program data
Deletes the selected program data from the
Hard disk.
Deleting macro data
Deletes the selected macro data from the
Hard disk.
Formatting Hard Disk
If “OK” is selected here, the machine will
start formatting the Hard Disk.
Partition List print out
Display message
Delete Font
Delete Program
Delete Macro
Format
List of Partitions
Available settings
Select the name of
the font from among
those displayed.
Select the name of
the partition which
holds the program
from among those
displayed.
Select the name of
the partition which
holds the macro
from among those
displayed.
No, OK
No, Print
Remarks
Displayed only when there is
appropriate font data on the Hard
Disk.
Displayed only when there is
appropriate program data on the
Hard Disk.
Displayed only when there is
appropriate macro data on the
Hard Disk.
Displayed only when formatting of
the Hard Disk is required.
Only when the optional Hard Disk
is installed.
58
59
60
61
62
RAM disk ON/OFF
RAM disk size
Sets the amount of memory that will be used
as a RAM disk. The maximum size that can
be selected is the total amount of memory
installed minus the amount used by the
system (48 MB).
Reading data
Reads the selected data on the RAM disk.
Reading program data
Reads the selected program data on the
RAM disk.
Writing data
If “OK” is selected here, the machine will
enter a “waiting for data” state until data is
sent from the host computer. To exit this
state, select the “GO” command in the
printer mode and then press the Enter key.
RAM DISK Mode
RAM DISK Size
Read Data
Read Program
Write Data
On, Off
01 - 1024 (MBytes)
Select the name of
the partition which
holds the data from
among those
displayed.
Select the name of
the partition which
holds the program
from among those
displayed.
OK
Displayed only when “On” is
selected under the “RAM disk ON/
OFF” setting (item No.: 58).
Displayed only when there is
appropriate data in the RAM disk.
Displayed only when there is
appropriate program data in the
RAM disk.
Displayed only when “On” is
selected under the “RAM disk ON/
OFF” setting (item No.: 58).
2-13
2. Printer Settings
Item No.
63
64
65
66
67
Item
Deleting data
Deletes the selected data from the RAM
disk.
Deleting font data
Deletes the selected font data from the RAM
disk.
Deleting program data
Deletes the selected program data from the
RAM disk.
Deleting macro data
Deletes the selected macro data from the
RAM disk.
Partition List print out
Display message
Delete Data
Delete Font
Delete Program
Delete Macro
List of Partitions
Available settings
Select the name of
the partition which
holds the data from
among those
displayed.
Select the name of
the font from among
those displayed.
Select the name of
the partition which
holds the program
from among those
displayed.
Select the name of
the partition which
holds the macro
from among those
displayed.
No, Print
Remarks
Displayed only when there is
appropriate data in the RAM disk.
Displayed only when there is
appropriate font data in the RAM
disk.
Displayed only when there is
appropriate program data in the
RAM disk.
Displayed only when there is
appropriate macro data in the RAM
disk.
Displayed only when “On” is
selected under the “RAM disk ON/
OFF” setting (item No.: 58).
68
69
70
71
72
Reading fonts
If “OK” is selected here, the font data in the
Memory Card will be read all at once.
Reading macro data
If “OK” is selected here, the macro data in
the Memory Card will be read all at once.
Reading data
Reads the selected data in the Memory
Card.
Reading program data
Reads the selected program data in the
Memory Card.
Writing data
If “OK” is selected here, the machine will
enter a “waiting for data” state until data is
sent from the host computer. To exit this
state, select the “GO” command in the
printer mode and then press the Enter key.
Read Fonts
Read Macro
Read Data
Read Program
Write Data
OK
OK
Select the name of
the partition which
holds the data from
among those
displayed.
Select the name of
the partition which
holds the program
from among those
displayed.
OK
Displayed only when there is
appropriate font data in the
Memory Card.
Displayed only when there is
appropriate macro data in the
Memory Card.
Displayed only when there is
appropriate data in the Memory
Card.
Displayed only when there is
appropriate program data in the
Memory Card.
Displayed only when the Memory
Card is installed.
73
Deleting data
Deletes the selected data from the Memory
Card.
Delete Data
2-14
Select the name of
the partition which
holds the data from
among those
displayed.
Displayed only when there is
appropriate data in the Memory
Card.
2. Printer Settings
Item No.
74
75
76
77
78
79
Item
Deleting font data
Deletes the selected font data from the
Memory Card.
Deleting program data
Deletes the selected program data from the
Memory Card.
Deleting macro data
Deletes the selected macro data from the
Memory Card.

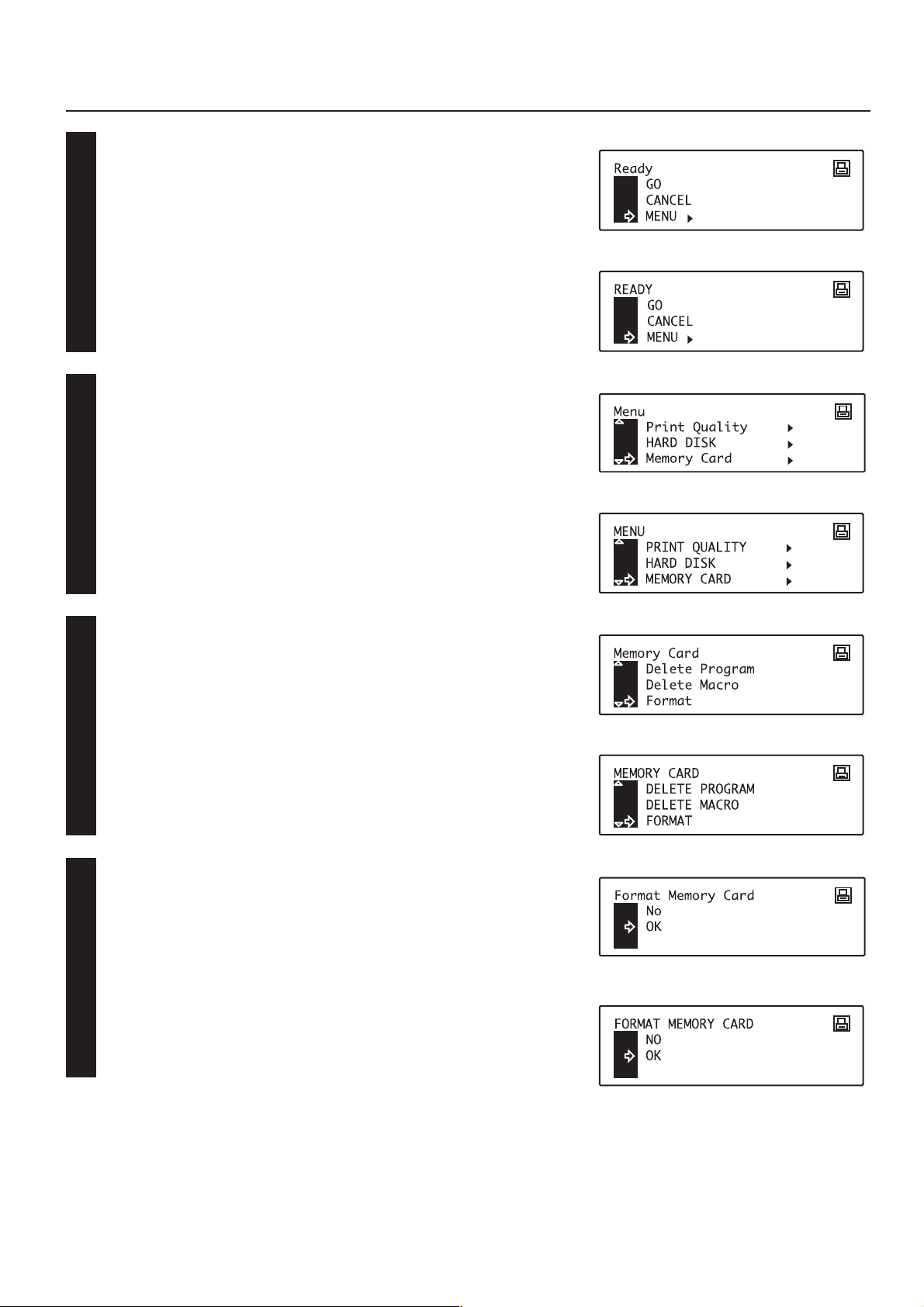

Formatting the Memory Card
If “OK” is selected here, formatting of the
Memory Card will begin.
Partition List print out
Bypass mode
If “First” is selected here and there is paper
set in the Multi-Bypass, paper feed will be
accomplished from the Multi-Bypass.
Display message
Delete Font
Delete Program
Delete Macro
Format
List of Partitions
Bypass Mode
Available settings
Select the name of
the font from among
those displayed.
Select the name of
the partition which
holds the program
from among those
displayed.
Select the name of
the partition which
holds the macro
from among those
displayed.
No, OK
No, Print
Cassette, First
Remarks
Displayed only when there is
appropriate font data in the
Memory Card.
Displayed only when there is
appropriate program data in the
Memory Card.
Displayed only when there is
appropriate macro data in the
Memory Card.
Displayed only when the Memory
Card is installed.
Displayed only when the Memory
Card is installed.
80
81
82
83
Bypass paper type
Selects the type of the paper set in the MultiBypass.
Paper source selection
Duplex mode
Eject location selection
Bypass Media Type
Sel Paper Feed
Drawer
(FEED SELECT)
Duplex Mode
Stack Select
Plain, Transparency,
Pre-printed, Labels,
Bond, Recycled,
Vellum, Rough,
Letterhead,
Color(COLOUR),
Pre-punched,
Envelope,
Cardstock, Coated,
Custom 1 - 8
Bypass, Cassette 1,
Cassette 2,
Cassette 3,
Cassette 4
None,
Short edge bind,
Long edge bind
Inner Tray, Side
Output Tray, Finisher
Main Tray, Finisher
Sub Tray
Displayed only when the optional
Cassette 3 and Cassette 4 are
installed.
Displayed only in duplex copiers.
“Finisher main tray, Finisher sub
tray” is displayed only when the
optional Finisher is installed. “Side
output tray” will not be displayed if
the optional Finisher is installed.
84
A4 & Letter usage ON/OFF
Allows both A4 and letter size paper to be
utilized as though they are the same size.
Override A4/LT
2-15
On, Off
2. Printer Settings
Item No.
85
86
87
88
89
Item
Custom type (1 - 8)
Sets the paper thickness, fuser temperature
control and duplex print out for the custom
types 1 - 8 selected under the “Bypass
paper type” setting (Item No.: 80).
Paper weight
Sets the paper weight (thickness) for custom
types 1 - 8.
Fuser temperature control
Sets the fuser temperature control for
custom types 1 - 8.
Duplex printing ON/OFF
Sets whether to use duplex print out or not
for custom types 1 - 8.
Reset custom paper type settings
Resets the items set under the “Custom
types (1 - 8)” setting (Item No.: 85) to their
factory default settings.
Display message
Select Paper Type
(TYPE ADJUST)
Paper Weight
Fuser Mode
Duplex Path
Default Paper Type
(REST TYPE
ADJUST)
Available settings
Custom 1- 8
Normal,
Heavy (Thick),
Extra heavy
Low, Middle
Enable, Disable
OK
Remarks
90
91
92
Color mode selection (color/black and
white print out)
Allows you to select whether printing will be
carried out in black and white or in color.
RGB simulation
If “sRGB” is selected here, printing will be
accomplished in colors relatively close to the
colors that are shown on the computer
monitor.
Ink (CMYK) simulation
This setting is only valid when “KPDL” or
“KPDL (Auto)” is selected as the emulation
protocol.
Color Mode
(COLOUR MODE)
RGB Simulation
Ink Simulation
Monochrome(B/W),
Color(COLOUR)
None, sRGB
None, SWOP, Euro
scale
2-16
2. Printer Settings
Item No.
93
94
95
Item
Form feed time-out
If “000” seconds is selected here, successive
pages will not be printed until they are
manually force-printed (by selecting the “GO”
command in the printer mode and then
pressing the Enter key).
Receive dump mode
The data that the printer receives for
debugging programs and files is turned into
hexadecimal code and printed out. If “OK” is
selected here, this receive dump mode will
be activated. The receive dump mode will be
canceled under the following circumstances:
• Form feed is initiated (by selecting the
“GO” command in the printer mode and
then pressing the Enter key).
• A force-print time-out occurs.
Printer reset
Resets the Printer Board only even without
turning the power to the machine OFF.
Display message
Form Feed Time out
Print HEX-DUMP
Printer Reset
Available settings
000 - 495 (sec.)
OK
OK
Remarks
96
97
98
Resource protect mode
Protects the resource data of fonts and
macros downloaded through PCL 5c and,
even if the emulation protocol is switched,
the PCL resource will be saved in the
printer’s memory. If “Permanent” is selected
here, temporary resources will not be saved.
If, however, “Per/Temp” is selected,
temporary resources will also be saved.
Auto Continue ON/OFF
If one of the following error messages
appears and “On” has been selected here,
the error state will be released and the
printing operation will be restarted
automatically after a specified amount of
time.
“Memory overflow”
“Print overrun”
“KPDL error”
“File not found”
“Option ROM error”
“RAM Disk error”
Recovery time for Auto Continue
Sets the amount of time before Auto
Continue engages when “On” is selected
under the “Auto Continue ON/OFF” setting
(item No.: 97). If “000” seconds is selected
here, Auto Continue will engage immediately
after the error.
Resource Prot.
Auto Continue
Change #
Off, Permanent,
Perm/Temp
On, Off
000 - 495 (sec.)
Displayed only when “On” is
selected under the “Auto Continue
ON/OFF” setting (item No.: 97).
2-17
2. Printer Settings
Item No.
99
100
101
Item
Service Rep Status Page print out
Prints out a Status Page for use by your
service representative.
Color test page 1 print out
A test print for black, yellow, magenta and
cyan is carried out, in that order, starting
from the front edge of a single sheet of
paper.
Color test page 2 print out
A test print for black, yellow, magenta and
cyan is carried out respectively on separate
sheets of paper.
Display message
Print Status page
Print Test Page 1
Print Test Page 2
Available settings
No, Print
No, Print
No, Print
Remarks
2-18
2. Printer Settings
2-4 Network (TCP/IP) settings
When this machine is to be used as a network printer, it is necessary to set the corresponding IP address for the printer.
Notes
• The IP address that should be registered here will differ depending upon your network environment. Check with your network administrator
BEFORE performing this setting.
• If you are using a DHCP server to automatically configure the IP address, this setting will not be necessary because DHCP server configuration is already enabled as the factory default setting.
Press the Printer key. The machine will switch to the printer mode.
1
Use the “M” and “N” cursor keys to select “MENU” and then press the Enter key.
2
Inch specification
Metric specification
Inch specification
Metric specification
Use the “M” and “N” cursor keys to select “Interface” and then press the Enter key.
Inch specification
3
Metric specification
Use the “M” and “N” cursor keys to select “Option 1” and then press the Enter key. Inch specification
4
Metric specification
2-19
2. Printer Settings
Use the “M” and “N” cursor keys to select “TCP/IP” and then press the Enter key.
5
Use the “M” and “N” cursor keys to select “On” and then press the Enter key.
6
Inch specification
Metric specification
Inch specification
Metric specification
Use the “M” and “N” cursor keys to select “Change #” and then press the Enter key.
7
Use the “M” and “N” cursor keys to select “DHCP” and then press the Enter key.
8
Inch specification
Metric specification
Inch specification
Metric specification
2-20
2. Printer Settings
Use the “M” and “N” cursor keys to select “Off” and then press the Enter key.
9
Use the “M” and “N” cursor keys to select “IP Address” and then press the Enter key.
10
Inch specification
Metric specification
Inch specification
Metric specification
The numeric keys will be used to enter the IP address:
First, enter the first 3 digits of the IP address.
11
* The numbers you enter will be input into the currently highlighted area of the dis-
play.
Press the P cursor key and then enter the next 3 digits of the IP address into the next
highlighted block.
12
Inch specification
Metric specification
Inch specification
Metric specification
2-21
2. Printer Settings
Continue the same procedure for the other 2 blocks and, once the IP address has
been entered, press the Enter key.
13
Use the “M” and “N” cursor keys to select “Subnet Mask” and then press the Enter
key.
14
Inch specification
Metric specification
Inch specification
Metric specification
Repeat steps 11 - 13 in order to enter the Subnet Mask using the same procedure
that you did for entering the IP address.
15
Use the “M” and “N” cursor keys to select “Gateway” and then press the Enter key.
16
Inch specification
Metric specification
Inch specification
Metric specification
2-22
Loading...
