Page 1
PARTS LIST
Published in Sep.’01
842A6120
Page 2
NOTE
1.Indicate parts number and machine model when placing an order.
eg. Parts Number Parts Name Machine Model Cycle Quantity
2A604120 POCKET,DATA KM-C830 50Hz 1
2A604120 POCKET,DATA KM-C830D 50Hz 1
2.Service calls and freight will be charged separately.
3.Symbols in the "Parts Number" column.
• Parts with "'" indicates the service parts and the parts without "'" can not be supplied.
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
eg. Parts Number Parts Name Parts Number Parts Name
2BM00030 COVER RIGHT ASSY •2BM04150 COVER RIGHT
•2BM04290 PLATE EARTH RC
• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.
eg. Parts Number Parts Name Parts Number Parts Name
•2BM68090 FEED TONER ASSY ••2BM15970 SEAL FEED TK C
••2BM15910 CASE FEED TK
4.See the last page of this parts list for the classification of the screws in the illustrations.
5.Items indicated by shaded areas ( ) are supply parts and should be ordered through your Regional Office.
Page 3
Parts List
Page 4
CONTENTS
FIG. 1 COVERS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
FIG. 2 FRAME UNIT I· · · · · · · · · · · · · · · · · · · · · · · · · · · · 4
FIG. 3 FRAME UNIT II · · · · · · · · · · · · · · · · · · · · · · · · · · · 8
FIG. 4 FRAME PROCESS UNIT · · · · · · · · · · · · · · · · · · · 10
FIG. 5 DRIVE UNIT I · · · · · · · · · · · · · · · · · · · · · · · · · · · · 12
FIG. 6 DRIVE UNIT II · · · · · · · · · · · · · · · · · · · · · · · · · · · · 14
FIG. 7 CONTROLLER BOX · · · · · · · · · · · · · · · · · · · · · · · 16
FIG. 8 FEED UNIT · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 18
FIG. 9 FUSER UNIT · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 22
FIG. 10 DRUM UNIT· · · · · · · · · · · · · · · · · · · · · · · · · · · · · 26
FIG. 11 SCANNER UNIT · · · · · · · · · · · · · · · · · · · · · · · · · 28
FIG. 12 DEVELOPER D1 UNIT · · · · · · · · · · · · · · · · · · · · 30
FIG. 13 DEVELOPER D2 UNIT · · · · · · · · · · · · · · · · · · · · 34
FIG. 14 DEVELOPER D3 UNIT · · · · · · · · · · · · · · · · · · · · 38
FIG. 15 DEVELOPER D4 UNIT · · · · · · · · · · · · · · · · · · · · 42
FIG. 16 FACE DOWN UNIT · · · · · · · · · · · · · · · · · · · · · · · 46
FIG. 17 BYPASS TRAY · · · · · · · · · · · · · · · · · · · · · · · · · · 50
FIG. 18 PRIMARY TRANSFER · · · · · · · · · · · · · · · · · · · · 52
FIG. 19 ELECTRICAL PARTS I · · · · · · · · · · · · · · · · · · · · 56
FIG. 20 ELECTRICAL PARTS II · · · · · · · · · · · · · · · · · · · · 58
FIG. 21 ELECTRICAL PARTS III · · · · · · · · · · · · · · · · · · · 60
FIG. 22 OPTION I (Original Tray) · · · · · · · · · · · · · · · · · · · 62
FIG. 23 OPTION II · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 64

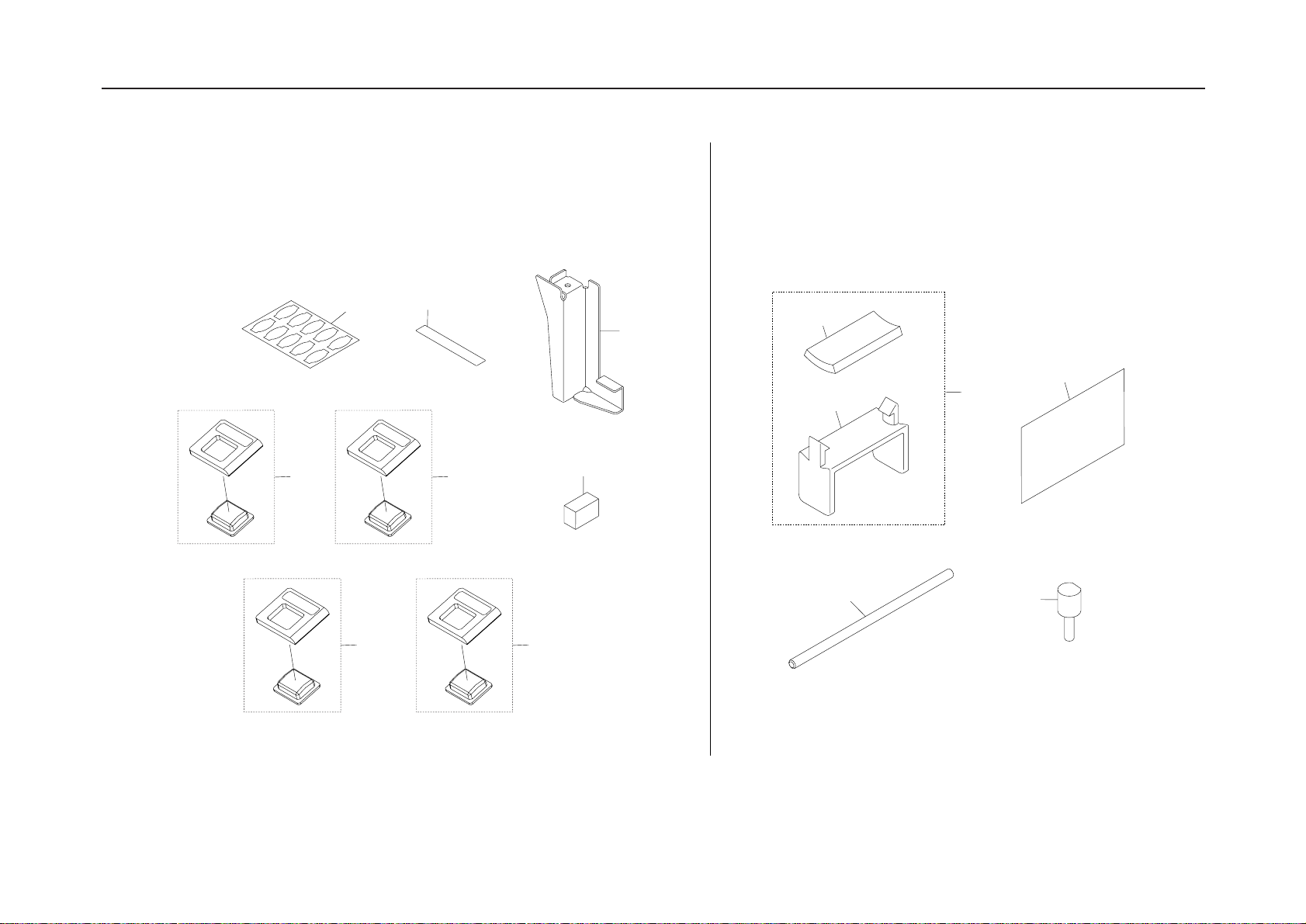

FIG. 24 ACCESSORY & TOOL· · · · · · · · · · · · · · · · · · · · · 66
• INDEX· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 68
– 1 –
Page 5
FIG. 1 COVERS
BVV
2A6
8
BHH
11
HCN
BVV
BHH
BHH
BHA
29
28
15
9
10
11
HCN
30
HCN
12
BHD
6
BHH
20
21
BHH
HCM
18
BHH
A
11
HCN
BVJ
HCM
17
14
13
BHH
BHH
5
B
19
25
26
A
22
23
34
34
34
HCN
33
36
BHH
31
27
B
24
BHH
3
7
16
HCM
HCM
17
BHH
18
35
4
2
BUD
BHB
BUD
1
7
BHH
32
BHH
– 2 –
Page 6
FIG. 1 COVERS
Ref.
SP Part. No. Description
No.
1 2BM00030 COVER RIGHT ASSY 1 1 1
' 2 •2BM04150 COVER RIGHT 1 1 1
3 •2BM04290 PLATE EARTH RC 1 1 1
4 •2BM04160 SUPPORT COVER ASSY 1 1 1
' 5 2BM04170 COVER LEFT 1 1 1
' 6 2A604120 POCKET,DATA 1 1 1
' 7 36504400 COVER,COUNTER 4 4 4
' 8 2A693040 PARTS,OPERATION UNIT(USA)SP 1
' 8 2A693050 PARTS,OPERATION UNIT(EUR)SP 1 1
9 2A624060 PROTECTION SHEET,OPERATION UNIT 1 1 1
10 2A624050 GROUND PLATE,OPERATION UNIT 1 1 1
11 2A624040 MOUNT,OPERATION UNIT 3 3 3
12 2A624070 SUPPORT PLATE,OPERATION UNIT 1 1 1
13 2A627390 JUNCTION WIRING,OPERATION UNIT KEYBOARD 1 1 1
14 2A627400 JUNCTION WIRING,OPERATION UNIT LED 1 1 1
15 2A627410 JUNCTION WIRING,LCD 1 1 1
' 16 2A604020 FRONT COVER (KM-C830) 1 1 1
' 16 2A604510 FRONT COVER B (KM-C830D) 1 1 1
17 2BM04100 PLATE MAGCHATCH 2 2 2
' 18 2BM04280 BAND COVER 2 2 2
' 19 2A605020 INNER LABEL,OPERATION 1 1 1
' 20 2A604010 UPPER COVER,PRINTER 1 1 1
21 2BM04030 SP PRESS2 DLP 1 1 1
' 22 2A604050 INNER LEFT COVER 1 1 1
' 23 2A604070 REAR COVER,SCANNER 1 1 1
' 24 2A604030 UPPER RIGHT COVER 1 1 1
' 25 2A604040 UPPER LEFT COVER 1 1 1
26 2A604200 LEFT PROTECTING PLATE,COVER 1 1 1
' 27 2A604090 LOWER REAR COVER 1 1 1
' 28 2A604060 UPPER REAR COVER 1 1 1
29 2A626120 LID,NIC 1 1 1
' 30 2A604080 LOWER COVER,OPERATION UNIT 1 1 1
' 31 2BM04270 PROTECTOR OZONE 1 1 1
' 32 2A604100 LOWER REAR RIGHT COVER 1 1 1
33 2A612420 REAR SHIELD,SCANNER 2 2 2
34 2A612430 REAR GROUND PLATE,SCANNER 4 4 4
' 35 2A605030 FRONT LABEL,COVER 1 1 1
36 2A626140 PROTECTING PLATE,DF CONNECTOR 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 3 –
Page 7
FIG. 2 FRAME UNIT I
BHH
130
BHH
135
HCM
111
131
BHH
BHC
ANF
HCR
129
128
110
HCM
114
115
113
1
BHH
BHC
HCM
129
12
BHH
2A6
142
136
BHH
82
109
112
BHH
13
11
BHH
11
8
10
BHH
A
2
BHH
BHH
HCY
137
138
BHC
BHH
107
116
80
76
81
77
78
BHC
79
73
56
80
BHH
55
BUD
BHC
BHH
9
7
68
71
12
BHH
BHC
70
132
BHH
3
72
20
BHH
108
ANI
105
106
103
102
104
101
89
90
88
73
56
57
BUD
BAD
BUD
51
73
73
54
56
53
BUD
BHC
BHH
19
BHB
42
86
141
140
BHH
18
17
BHH
BUD
BUD
100
84
97
87
98
91
96
92
88
85
133
83
95
94
93
HCR
99
134
BHH
25
29
27
28
BUD
14
26
BUD
HCY
24
36
BHH
75
37
52
BAD
56
73
57
48
47
49
50
46
BUD
74
41
39
38
42
BUD
44
45
41
42
41
42
43
62
65
37
40
66
BHH
BHC
61
BUD
59
69
64
BHH
BHH
BHC
22
BHH
18
17
BHB
23
119
15
16
BHH
30
139
35
BHC
BUD
34
HCY
BUD
31
32
33
60
59
60
63
67
118
121
120
122
123
BHB
117
ANH
126
125
127
HCN
58
ABZ
BHH
6
BHH
21
5
72
A
4
124
– 4 –
Page 8
FIG. 2 FRAME UNIT I
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
1 2BM00920 STAY BASE L UNIT 1 1 1
2 •2BM02870 STAY BASE L 1 1 1
' 3 •2BM42290 FOOT R 1 1 1
4 2BM00930 STAY BASE R UNIT 1 1 1
5 •2BM02860 STAY BASE R 1 1 1
' 6 •2BM42290 FOOT R 1 1 1
7 2BM00110 FRAME FRONT ASSY 1 1 1
8 •2BM02010 FRAME FRONT 1 1 1
9 •2BM02030 STAY RAIL FRONT 1 1 1
10 •2BM02020 CHANNEL BOTTOM 1 1 1
11 •2BM02040 PILOT PIN 2 2 2
' 12 •2BM42300 FOOT F 2 2 2
13 •2BM42210 SHEET INNER FRONT 1 1 1
14 2BM42530 PLATE EARTH MAIN B 1 1 1
15 2BM00140 FRAME BASE ASSY 1 1 1
16 •2BM02510 FRAME BASE 1 1 1
17 •2BM02530 BASE PULLEY FEED 4 4 4
' 18 •2BM02540 PULLEY FEED 4 4 4
19 •2BM02520 LOCK PIN 1 1 1
20 •2BM02580 DUCT BASE LOW 1 1 1
21 •2BM42070 SHEET DUCT A 1 1 1
22 •2BM02550 PLATE EARTH LOWER 1 1 1
23 •2BM42740 SHIELD REG SENSOR B 1 1 1
24 2BM02480 HOLDER HARNESS 1 1 1
25 2BM02390 PLATE EARTH MAIN 1 1 1
' 26 2BM28240 PWB HV MAIN 1 1 1
27 2BM02900 SPRING SW DU 1 1 1
' 28 2BM02910 SWITCH DU 1 1 1
' 29 2BM27240 PT.SENSOR GP1S74P 1 1 1
30 2BM02400 PLATE EARTH DC 1 1 1
' 31 2BM28260 PWB HV TC 1 1 1
' 32 2BM01200 P.W.BOARD KP-830 ASSY 1 1 1
33 2BM02410 PLATE EARTH TC 1 1 1
34 2BM02420 PLATE EARTH OP 1 1 1
35 2BM42520 PLATE EARTH DRV FUS 1 1 1
36 2BM02070 FRAME REAR 1 1 1
' 37 2BM02440 BUSH PIN OVAL 2 2 2
' 38 2BM02430 BUSH PIN 1 1 1
39 2BM02150 PLATE HV IM 1 1 1
40 2BM02140 COVER HV IMAGE 1 1 1
41 2BM02160 SPRING HV S 3 3 3
42 2BM02110 PIN CONTACT HV 5 5 5
43 2BM02170 COVER HV FEED 1 1 1
44 2BM02190 PLATE HV DC 1 1 1
45 2BM02180 PLATE HV TC 1 1 1
' 46 2BM68100 TONER SENSOR ASSY 1 1 1
47 •2BM01230 P.W.BOARD KP-849 ASSY 1 1 1
48 •2BM28780 CONN.CORD T.SENSOR ASSY 1 1 1
49 •2BM18510 BRACKET SENSOR WASTE 1 1 1
50 •2BM18520 SEAL SENSOR WASTE 1 1 1
51 2BM02090 PLATE HV D1 1 1 1
52 2BM02100 PLATE HV D2 1 1 1
53 2BM42030 BRACKET CONN DRUM 1 1 1
54 2BM42440 SPRING CONN DRUM 2 2 2
55 2BM02200 BRACKET CONN D12 1 1 1
56 2BM02220 SPRING CONNECTOR 8 8 8
57 2BM02230 BRACKET CONN D34 2 2 2
' 58 2BM28270 PWD HV DLP 1 1 1
59 2BM42450 STUD SCREW 485 4 4 4
60 2BM42010 SPRING CONN FEED 4 4 4
61 2BM02490 PLATE ANKER A 1 1 1
62 2BM41080 STUD SCREW 465 2 2 2
63 2BM00160 RAIL LOW R ASSY 1 1 1
64 •2BM02640 STAY RAIL LOW R B 1 1 1
65 •2BM42730 SHIELD REG SENSOR A 1 1 1
66 •2BM02670 SLIDE RAIL LOW 1 1 1
67 •2BM02630 STAY RAIL LOW R A 1 1 1
68 2BM00170 RAIL LOW L ASSY 1 1 1
69 •2BM02650 STAY RAIL LOW L A 1 1 1
70 •2BM02670 SLIDE RAIL LOW 1 1 1
71 •2BM02660 STAY RAIL LOW L B 1 1 1
72 2BM02930 HOLDER FRONT 2 2 2
73 2BM02210 SCREW CONNECTOR 10 10 10
' 74 2BM00950 DUCT WASTE TONER UNIT 1 1 1
' 75 2BM68120 HOLDER SW OIL ASSY 1 1 1
76 2BM00190 RAIL PRO L ASSY 1 1 1
77 •2BM02750 STAY RAIL PRO L A 1 1 1
78 •2BM02700 SLIDE RAIL PRO 1 1 1
79 •2BM02760 STAY RAIL PRO L B 1 1 1
80 •2BM42630 SEAL RAIL PRO B 2 2 2
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 5 –
Page 9
FIG. 2 FRAME UNIT I
BHH
130
BHH
135
HCM
111
131
BHH
BHC
ANF
HCR
129
128
110
HCM
114
115
113
1
BHH
BHC
HCM
129
12
BHH
2A6
142
136
BHH
82
109
112
BHH
13
11
BHH
11
8
10
BHH
A
2
BHH
BHH
HCY
137
138
BHC
BHH
107
116
80
76
81
77
78
BHC
79
73
56
80
55
BHC
BHH
BUD
BHH
9
7
68
71
12
BHH
BHC
70
132
BHH
3
72
20
BHH
108
ANI
105
106
103
102
104
101
89
90
88
73
56
57
BUD
BAD
BUD
51
73
73
54
56
53
BUD
BHC
BHH
19
BHB
42
86
141
140
BHH
18
17
BHH
BUD
BUD
100
84
97
87
98
91
96
92
88
85
133
83
95
94
93
HCR
99
134
BHH
25
29
27
28
BUD
14
26
BUD
HCY
24
36
BHH
75
37
52
BAD
56
73
57
48
47
49
50
46
BUD
74
41
39
38
42
BUD
44
45
41
42
41
42
43
62
65
37
40
66
BHH
BHC
61
BUD
59
69
64
BHH
BHH
BHC
22
BHH
18
17
BHB
23
119
15
16
BHH
30
139
35
BHC
BUD
34
HCY
BUD
31
32
33
60
59
60
63
67
118
121
120
122
123
BHB
117
ANH
126
125
127
HCN
58
ABZ
BHH
6
BHH
21
5
72
A
4
124
– 6 –
Page 10
FIG. 2 FRAME UNIT I
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
81 •2BM42620 SEAL STAY PRO A 1 1 1
82 2BM02850 PLATE SCANNER BASE 1 1 1
83 2BM00790 FEED TONER D4 ASSY 1 1 1
' 84 •2BM68090 FEED TONER ASSY 1 1 1
85 ••2BM15970 SEAL FEED TK C 1 1 1
86 ••2BM15910 CASE FEED TK 1 1 1
87 ••2BM15930 SCREW FEED TK 1 1 1
88 ••2BM15960 SEAL FEED TK B 2 2 2
89 ••2BM15920 BUSH FEED TK 1 1 1
90 ••2BM42280 CUT WASHER 1 1 1
91 ••2BM42240 BKT SEAL OIL 1 1 1
92 ••2BM14390 OIL SEAL 1 1 1
93 ••2BM42220 BUSH SCREW TK F 1 1 1
94 ••2BM42250 GEAR FEED TK Z23 1 1 1
95 ••2BM40060 CUT WASHER 1 1 1
96 ••2BM15950 SEAL FEED TK A 1 1 1
97 ••2BM15940 PLATE FEED TK 1 1 1
98 ••2BM42310 SEAL FEED TK D 1 1 1
99 ••2BM14640 GUIDE SCREW D14 1 1 1
100 ••2BM14200 GUIDE SHUTTER D1234 1 1 1
101 ••2BM14260 SEAL GUIDE T D1234 1 1 1
102 ••2BM14250 SEAL SHUTTER D1234 1 1 1
103 ••2BM14240 SHUTTER D1234 1 1 1
104 ••2BM14230 SPRING SHUTTER D1234 2 2 2
105 •2BM00150 STAY MIDDLE ASSY 1 1 1
' 106 •2BM14120 LOCK SHUTTER D1234 1 1 1
107 •2BM42600 SEAL FEED TONER 1 1 1
108 •2BM42480 SEAL FEED TK E 1 1 1
109 2BM00180 RAIL PRO R ASSY 1 1 1
110 •2BM02690 STAY RAIL PRO R B 1 1 1
111 •2BM02700 SLIDE RAIL PRO 1 1 1
112 •2BM02680 STAY PRO R ASSY 1 1 1
113 •2BM02730 SUPPORT PULLEY TRANS 1 1 1
114 •2BM02720 BKT PULLEY IMAGE 1 1 1
115 •2BM02740 PULLEY IMAGE L 1 1 1
116 •2BM02710 GUIDE CONTAINER D4 1 1 1
117 2BM00200 RAIL IMAGE R ASSY 1 1 1
118 •2BM02780 RAIL IMAGE R 1 1 1
119 •2BM42040 STOPPER IMAGE 1 1 1
' 120 •2BM02790 BRACKET LOCK IMAGE 1 1 1
' 121 •2BM02810 PULLEY IMAGE 1 1 1
' 122 •2BM02800 LEVER LOCK IMAGE 1 1 1
123 •2BM02820 SPRING LOCK IMAGE 1 1 1
124 2BM02560 GUIDE PAPER IN 1 1 1
' 125 2BM01270 P.W.BOARD KP-896 ASSY 1 1 1
126 2BM42260 BKT SENSOR LOW D4 1 1 1
127 2BM02890 COVER HV DLP 1 1 1
128 2BM04310 INNER FRONT COVER 1 1 1
129 60804120 MAGNET CATCH 2 2 2
130 2BM02060 LEVER INTER LOCK 1 1 1
' 131 2BM26130 INTERLOCK SWITCH 1 1 1
132 2BM02570 GUIDE PAPER OUT 1 1 1
133 2BM42560 PLATE EARTH L 1 1 1
134 2BM42570 PLATE EARTH FG 1 1 1
' 135
' 137 2BM01260 P.W.BOARD KP-895 ASSY 1 1 1
' 139 2BM28250 PWB HV DC 1 1 1
5PLPXBEAPKX
136 2BM42270 BKT SENSOR UP D4 1 1 1
138 2BM42540 PLATE EARTH DRV TK A 1 1 1
140 2BM02080 COVER HV DRUM 1 1 1
141 2BM02120 SPRING HV L 2 2 2
142 2A614010 DETECTION PLATE D14,DEVELOPING(F) 1
142 2A614020 DETECTION PLATE D14,DEVELOPING(G) 1 1
LK-800 SCANNER UNIT 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 7 –
Page 11
FIG. 3 FRAME UNIT II
2A6
BHA
BUD
25
C
BHA
25
4
BHH
BAD
BHH
BKF
12
BKD
BKD
BUD
BKF
2
3
23
13
B
4
A
BHA
BHA
BKD
25
BHA
25
BHH
4
BHD
BHD
BHD
BHD
1
10
25
10
25
BHA
5
25
C
6
BHA
BHH
BHA
11
BHH
BKC
7
BHH
9
22
17
19
22
16
20
26
BKC
8
4
BKD
21
15
14
18
17
B
EFE
A
– 8 –
EFE
24
BUD
Page 12
FIG. 3 FRAME UNIT II
Ref.
SP Part. No. Description
No.
1 2A602110 LEFT FRONT HOLDER,HANDLE 1 1 1
2 2A602120 LEFT REAR HOLDER,HANDLE 1 1 1
3 2A602160 LEFT REAR MOUNT,HOLDER 1 1 1
42AV02170 SHAFT,HANDLE 4 4 4
5 2A602010 LEFT STAY 1 1 1
' 6 66321360 STATIC ELIMINATOR,EJECT 1 1 1
7 2A602020 LOWER RIGHT STAY 1 1 1
8 2A602150 RIGHT REAR MOUNT,HOLDER 1 1 1
9 2A602040 REAR STAY 1 1 1
10 2A612360 PIN,SCANNER POSITIONING 2 2 2
11 2A602030 UPPER RIGHT STAY 1 1 1
' 12 2BM27890 HUMIDITY SENSOR 1 1 1
13 2A627840 WIRE,MACHINE INSIDE SENSOR 1 1 1
14 2BM00900 FAN UNIT 1 1 1
15 •2BM68220 COVER OZONE ASSY 1 1 1
16 ••2BM42050 SEAL OZON A 2 2 2
17 ••2BM42060 SEAL OZON B 2 2 2
18 ••2BM02470 COVER OZON 1 1 1
19 •2BM02460 LUTCH 1 1 1
' 20 •2BM42200 FAN MOTOR 1 1 1
' 21 •2BM42790 FILTER KIT 1 1 1
22 •2BM02450 HOLDER OF 1 1 1
23 2BM23010 DACT FAN 1 1 1
' 24 2BM00940 TUBE TONER D4 ASS'Y 1 1 1
25 2A626150 LOWER GRAND PLATE,SCANNER 7 7 7
26 2BM17960 SCREW FAN BELT 2 2 2
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 9 –
Page 13
FIG. 4 FRAME PROCESS UNIT
2A6
BKD
4
20
18
19
HCT
18
19
1
9
BUD
11
13
BHH
12
10
BHH
7
11
3
BUD
8
11
14
17
2
15
BHH
6
15
16
BHH
5
BHH
18
19
18
19
– 10 –
16
Page 14
FIG. 4 FRAME PROCESS UNIT
Ref.
SP Part. No. Description
No.
1 2BM00210 FRAME PROCESS ASSY 1 1 1
2 •2BM08530 STAY PROCESS BASE 1 1 1
3 •2BM08510 FRAME FRONT PROCESS 1 1 1
4 •2BM08520 FRAME REAR PROCESS 1 1 1
5 •2BM08560 PIN REAR PROCESS 1 1 1
6 •2BM08540 STAY ACCURIDE PRO R 1 1 1
7 •2BM05220 LABEL CLEANER 1 1 1
8 •2BM02980 PLATE LOCK L 1 1 1
9 •2BM02990 PLATE LOCK R 1 1 1
10 •2BM08570 LOCK MCH 1 1 1
' 11 •
' 13 •2BM08590 LOCK PROCESS 1 1 1
' 14 •2BM42430 LOCK PROCESS R 1 1 1
5MMT273SZ004
12 •2BM08580 SPRING LOCK MCH 1 1 1
15 •2BM08610 PRESS ARM D4 2 2 2
16 •2BM08620 SPRING D4 PROCESS 2 2 2
17 •2BM08550 COVER BOTTOM PROCESS 1 1 1
18 2BM02840 SCREW PROCESS 4 4 4
19 2BM42660 SPRING FRAME PRO 4 4 4
20 2BM02830 COVER LEFT PROCESS 1 1 1
TP SCREW 3 3 3
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 11 –
Page 15
FIG. 5 DRIVE UNIT I
61
64
60
62
66
KKK
69
KAO
70
69
AND
BHA
64
63
BHA
65
62
61
64
BHA
64
63
62
KAM
E06
71
73
BHA
BHA
KAM
KAO
70
64
AND
73
2A6
50
A
BHA
BHA
8
BUD
68
B
61
AND
8
E
61
28
E06
KAM
43
AND
64
64
63
BHA
62
69
KAO
E06
72
29
E06
71
BHA
73
38
38
41
42
BHA
C
KAM
73
70
30
E06
72
37
36
E04
BHA
44
64
63
KKK
67
E06
72
BHA
71
BHA
BHA
69
KAO
70
39
E04
40
E04
52
53
53
52
57
52
58
D
59
72
E06
E06
BHA
71
27
BHA
31
BHA
BHA
BHA
33
34
BHA
32
35
53
F
BHA
26
53
52
ANE
56
54
ANE
I
KFH
51
BHB
ANE
WPK
F
26
55
BHA
25
E
25
WPK
21
25
25
H
BUD
49
47
48
E07
BHA
WPK
15
WPK
15
20
G
20
21
11
21
22
16
B
11
BHB
BUD
BHA
J
24
18
17
18
19
20
18
WPJ
46
11
20
21
11
23
BHA
K
5
5
14
13
WPK
9
H
WPK
4
2
K
J
12
10
3
11
7
E07
D
1
BHA
C
BHB
8
6
A
G
I
ANE
45
– 12 –
Page 16
FIG. 5 DRIVE UNIT I
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
' 2BM93040 DR-800A(DRIVE UNIT A) 1 1 1
' 1 •2BM27690 MOTOR MAIN 1 1 1
2 •2BM22200 HOLDER ASSY B 1 1 1
3 •2BM22020 PLATE DRIVE MAIN B 1 1 1
' 4 •2BM22050 GEAR Z144H 1 1 1
' 5 •2BM27700 MOTOR DLP 2 2 2
' 6 •2BM22060 GEAR Z36H Z117H 1 1 1
' 7 •2BM22360 BUSH 6-9-4 1 1 1
8 •M2104260 EDGING,EDS-0607U(KITAGAWA) 3 3 3
' 9 •2BM22070 GEAR Z30 Z58H ASSY 1 1 1
' 10 •2BM22090 GEAR Z25 Z29 1 1 1
' 11 •2BM22170 GEAR Z23 IDLE 6 6 6
' 12 •2BM22100 GEAR Z29 IDLE 1 1 1
' 13 •2BM22160 GEAR Z14 Z29 1 1 1
' 14 •2BM22140 GEAR Z43H 1 1 1
' 15 •2BM22080 GEAR Z30 Z57H ASSY 2 2 2
' 16 •2BM23760 GEAR Z53 1 1 1
17 •2BM22030 PLATE DEIVE MAIN C 1 1 1
' 18 •2BM22110 GEAR Z26 IDLE 3 3 3
' 19 •2BM23750 GEAR Z34 1 1 1
20 •34922480 BEARING,REGISTRATION FULCRUM 4 4 4
' 21 •2BM22130 GEAR Z30 JOINT MIX 4 4 4
' 22 •2BM23800 BUSH MAIN C 1 1 1
' 23 •2BM22150 GEAR Z21H Z26 1 1 1
' 24 •2BM22180 GEAR Z28 1 1 1
' 25 •2BM23720 CLUTCH ASSY 2 4 4 4
26 •2BM23780 SPRING HV 5 5 5
27 •2BM22220 HOLDER ASSY CHY 1 1 1
28 •2BM22230 HOLDER ASSY CHM 1 1 1
29 •2BM22240 HOLDER ASSY CHC 1 1 1
30 •2BM22250 HOLDER ASSY CHK 1 1 1
31 •2BM22010 PLATE DRIVE MAIN A 1 1 1
' 32 •2BM22270 BUSH CL CAM 1 1 1
33 •2BM22420 SHAFT JOINT CAM 1 1 1
' 34 •2BM22280 CLUTCH ASSY CAM 1 1 1
35 •2BM22430 SHAFT JOINT SCREW 1 1 1
' 36 •2BM27630 CLUTCH 26-C 1 1 1
37 •2BM22260 HOUSING CL CAM 1 1 1
38 •2BM22460 SPRING JOINT CAM 2 2 2
' 39 •2BM22330 JOINT CAM 1 1 1
' 40 •2BM22320 JOINT ROLL SCREW 1 1 1
' 41 •2BM22350 ACUTUATER CAM 1 1 1
42 •2BM22470 SPRING ACUTUATOR 1 1 1
' 43 •2BM27240 PT.SENSOR GP1S74P 1 1 1
' 44 •2BM27640 SOLENOID CAM 1 1 1
45 •2BM22380 PLATE SENSOR 1 1 1
46 •2BM22400 SHAFT JOINT DRUM 1 1 1
47 •2BM22190 HOLDER ASSY A 1 1 1
48 •2BM22450 SPRING JOINT DRUM 1 1 1
49 •2BM23830 JOINT DRUM 1 1 1
' 50 •2BM01170 P.W.BOARD KP-824 ASSY 1 1 1
51 •2BM22500 LID HV UNIT 1 1 1
52 •2BM22510 EARTH DLP 4 4 4
53 •2BM22530 PLATE HV JOINT 4 4 4
54 •2BM22520 EARTH DRUM 1 1 1
55 •2BM22540 PLATE HV DRUM 1 1 1
56 •2BM23810 EARTH DRUM T1 1 1 1
' 57 •
' 60 •2BM27650 SOLENOID Y 1 1 1
' 65 •2BM27660 SOLENOID M 1 1 1
' 66 •2BM27670 SOLENOID C 1 1 1
' 67 •2BM27680 SOLENOID K 1 1 1
5MMM176C003
58 •2BM22490 CASE HV JOINT DLP 1 1 1
59 •2BM23730 HOLDER HARNESS D 1 1 1
61 •2BM22370 PLATE SOLENOID 4 4 4
62 •2BM22340 LEVER SOLENOID 4 4 4
63 •2BM22440 SPRING LEVER 4 4 4
64 •2BM22480 SEAL SOLENOID 8 8 8
68 •2BM22040 PLATE DRIVE MAIN D 1 1 1
69 •2BM68230 SHAFT JOINT MIX ASSY 4 4 4
70 ••2BM23820 JOINT MIX 4 4 4
71 ••2BM23660 SPRING JOINT MIX 4 4 4
72 ••2BM23770 HOUSING JOINT ASSY 4 4 4
73 ••2BM22410 SHAFT JOINT MIX 4 4 4
METAL BUSH KD 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 13 –
Page 17
FIG. 6 DRIVE UNIT II
2A6
47
48
E05
47
39
38
50
42
51
40
KFB
52
41
46
37
46
44
43
13
E05
BHA
BAW
74
49
53
51
54
55
59
60
61
56
BHB
61
62
63
E2E
65
E03
64
71
67
BUD
57
58
66
BAW
69
73
E07
70
72
KFN
KFN
68
45
12
10
BUD
36
BUD
BUD
35
11
7
2
BHA
BUD
9
5
18
17
16
23
22
33
34
24
21
11
E04
26
BHA
E04
14
BHA
19
18
BHA
20
21
11
8
4
3
BUD
6
15
BHB
25
27
31
32
E04
BHA
30
29
31
32
BHA
28
1
– 14 –
Page 18
FIG. 6 DRIVE UNIT II
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
' 1 2BM93050 DR-800B(DRIVE UNIT B) 1 1 1
2 •2BM22570 PLATE DRIVE FEED C 1 1 1
3 •M2104260 EDGING,EDS-0607U(KITAGAWA) 1 1 1
' 4 •2BM22640 GEAR Z23 JO 1 1 1
' 5 •2BM22620 GEAR Z26 1 1 1
' 6 •2BM22650 GEAR Z33 Z23 1 1 1
' 7 •2BM22690 GEAR Z21 1 1 1
' 8 •2BM22630 GEAR Z14 Z30 1 1 1
9 •2BM22850 SPRING JOINT LOW 1 1 1
' 10 •2BM22660 GEAR Z25 JOINT 1 1 1
' 11 •2BM07330 BUSH METAL 3 3 3
' 12 •2BM22670 GEAR Z22 JOINT BE 1 1 1
13 •2BM22830 SHAFT JOINT BEVEL 1 1 1
14 •2BM22560 PLATE DRIVE FEED B 1 1 1
' 15 •2BM27690 MOTOR MAIN 1 1 1
' 16 •2BM22760 BUSH SHAFT 6 1 1 1
' 17 •2BM22700 GEAR Z14 Z36 1 1 1
' 18 •2BM22580 GEAR Z30 Z66H 2 2 2
' 19 •2BM22610 GEAR Z36 1 1 1
' 20 •2BM22590 GEAR Z33 Z47H 1 1 1
' 21 •2BM22600 GEAR Z24 2 2 2
' 22 •2BM22740 GEAR Z29 JO 1 1 1
' 23 •2BM22680 GEAR BEVEL Z20 1 1 1
' 24 •2BM27750 CLUTCH REGIST 1 1 1
25 •2BM22820 SHAFT JOINT REGIST 1 1 1
' 26 •2BM27760 CLUTCH 26-A 1 1 1
27 •2BM22810 SHAFT JOINT MID 1 1 1
28 •2BM22550 PLATE DRIVE FEED A 1 1 1
' 29 •2BM14060 BUSH CLUTCH D1234 1 1 1
30 •2BM22750 HOUSING CL REGIST 1 1 1
31 •2BM22840 SPRING JOINT REGIST 2 2 2
' 32 •2BM22790 JOINT ROLL REGIST 2 2 2
' 33 •2BM22710 GEAR Z27 Z40 1 1 1
' 34 •2BM40060 CUT WASHER 1 1 1
' 35 •2BM01160 P.W.BOARD KP-822 ASSY 1 1 1
' 36 2A600220 TONER CONT. DRIVE ASS'Y 1 1 1
37 •2BM22860 PLATE DRIVE TK 1 1 1
38 •M2104260 EDGING,EDS-0607U(KITAGAWA) 1 1 1
' 39 •2BM22770 BUSH POM MID 1 1 1
' 40 •2BM23690 GEAR Z23 TK1 1 1 1
' 41 •2BM22920 GEAR Z21 Z36 1 1 1
' 42 •2BM22950 GEAR Z24 L 1 1 1
' 43 •2BM23710 GEAR Z37 BEVEL Z25 1 1 1
' 44 •2BM22930 GEAR Z14 Z40 1 1 1
' 45 •2BM22940 GEAR Z41 1 1 1
' 46 •2BM22910 GEAR Z23 Z33 2 2 2
47 •2BM22990 SPRING JOINT TK 2 2 2
48 •2A622010 JOINT SCRAPER CI 1 1 1
' 49 •2BM22880 JOINT TK FEED 1 1 1
' 50 •2BM23700 GEAR Z23 TK2 1 1 1
' 51 •2BM07330 BUSH METAL 2 2 2
52 •2BM22980 SHAFT JOINT TK 1 1 1
' 53 •2BM22970 GEAR Z30 CL TK 1 1 1
' 54 •2BM27950 CLUTCH 26-G 1 1 1
55 •2BM22870 HOLDER CL TK 1 1 1
' 56 2BM68110 DRIVE ASSY C 1 1 1
57 •2BM23610 HOLDER STMOTOR 1 1 1
58 •2BM23510 PLATE DRIVE FUSER A 1 1 1
' 59 •2BM23570 GEAR Z40 JO 1 1 1
' 60 •2BM22740 GEAR Z29 JO 1 1 1
' 61 •2BM23560 GEAR Z51 2 2 2
62 •2BM22440 SPRING LEVER 1 1 1
63 •2BM23530 PLATE PULLEY 1 1 1
' 64 •2BM23580 PULLEY BELT 1 1 1
' 65 •2BM23540 GEAR P50 Z23 1 1 1
' 66 •2BM23630 BELT S2M138 1 1 1
' 67 •
' 68 •2BM23550 GEAR Z46 JOINT FUSER 1 1 1
' 69 •
' 72 •2BM23590 JOINT FUSER 1 1 1
' 74 •2BM27790 MOTOR STEP 1 1 1
5MMM176CJ005
5MVM170XN002
70 •2BM23520 HOLDER SHAFT FUSER 1 1 1
71 •2BM23600 SHAFT JOINT FUSER 1 1 1
73 •2BM23620 SPRING JOINT FUSER 1 1 1
BUSHING SBK 1 1 1
BUSH MAG 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 15 –
Page 19
FIG. 7 CONTROLLER BOX
2A6
BHH
24
27
BHA
16
11
4
6
7
8
BHA
12
BHA
A
15
5
BHA
BHA
BUD
2
9
10
16
A
14
13
BUD
3
1
20
BHA
B
18
BHA
29
BMJ
19
B
26
17
23
25
28
30
25
22
21
– 16 –
Page 20
FIG. 7 CONTROLLER BOX
Ref.
SP Part. No. Description
No.
1 2BM01020 CONT BOX 1 1 1
2 •2BM00960 BOX CONTROLLER ASSY 1 1 1
' 3 •2BM01070 P.W.BOARD KP-802 ASSY 1 1 1
4 2A601090 POWER SOURCE ASS'Y(100) 1
4 2A601103 POWER SOURCE ASS'Y(200) 1
4 2A601150 POWER SOURCE ASS'Y(200 EXP) 1
5 •M2104220 EDGING,EDS-1717U 1 1 1
6 •M2105740 MINIATURE CLAMP,UAMS-05S-2 1 1 1
7 •2A626090 MOUNT,POWER SOURCE 1 1 1
8 •2A626130 MOUNT FAN 1 1 1
9 •2A627470 WIRE,PRIMARY 1 1 1
10 •2A627680 WIRE,ENGINE MAIN PCB POWER SOURCE 1 1 1
' 11 •34927070 FAN,COOLING 1 1 1
' 12 •2A628060 POWER SOURCE PCB(100) 1
' 12 •2A628070 POWER SOURCE PCB(200) 1 1
' 13 ••M5561000 FUSE,CES6-N1(SOC) 1
' 13 ••M1656050 FUSE,21506.3(LITTEL-FUSE) 1 1
' 14 ••M5560020 FUSE,CES6-N1-10A(SOC) 1
15 •2BM27860 CONN.CORD PS1 ASSY 1 1 1
16 •2A627930 CORE 11-25X14 3
17 2A601110 ENGINE MAIN PCB MOUNT ASS'Y 1 1 1
18 •2A626220 MOUNT,MAIN PCB 1 1 1
' 19 •2BM27970 FAN MOTOR 1 1 1
20 •M2104220 EDGING,EDS-1717U 4 4 4
21 2A627650 JUNCTION WIRING,INTERFACE CONTROL 1 1 1
22 2A627660 JUNCTION WIRING,INTERFACE DATA 1 1 1
23 2A627170 WIRE,ENGINE MAIN PCB 1 1 1
24 2A627510 WIRE,FACE DOWN 1 1 1
25 M2108000 SPACER,KGLS-3S 3 3 3
26 M2108600 SPACER,PHD-08(KITAGAWA) 1 1 1
27 2BM42510 PLATE CONTROLLER A 1 1 1
28 2A627800 WIRE,POWER SOURCE DETECTION 1 1 1
' 29 2A601060 ENGINE MAIN PCB ASS'Y 1 1 1
' 30 2A693010 PARTS,PCB ENGINE INTERFACE(SP) 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 17 –
Page 21
FIG. 8 FEED UNIT
2A6
108
85
92
85
83
82
81
92
83
87
E07
75
82
E07
75
76
90
91
76
74
79
E07
76
E07
E07
HCX
51
56
50
57
86
E07
89
88
55
AND
52
RBS
48
47
64
53
54
60
59
HCY
61
HCX
62
88
58
49
48
46
E07
41
45
44
63
114
114
111
A
30
67
HCY
65
15
66
69
E07
71
68
A
73
93
71
HCY
108
70
72
E06
78
79
E07
77
80
1
106
104
103
4
84
107
6
E04
3
2
5
9
EFE
39
38
34
40
42
BHA
33
27
35
HCY
HCY
37
HCY
31
BHK
E06
8
12
32
43
36
114
113
HCX
11
10
E04
2
7
BHA
97
8
HCY
94
13
102
100
96
95
99
105
101
98
112
HCY
110
HCY
28
27
26
29
21
25
23
22
24
2
E05
4
18
E05
8
19
E05
2
20
17
E07
14
109
16
– 18 –
Page 22
FIG. 8 FEED UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
1 2A600230 CONVEYING UNIT ASS'Y 1 1 1
' 2 •2BM17330 BUSH REGIST UP 4 4 4
' 3 •2BM17950 GEAR REGIST Z24 1 1 1
' 4 •2BM17350 SPRING MIDDLE F 2 2 2
' 5 •2BM17420 SPRING REGIST F 1 1 1
' 6 •2A606010 LOWER ROLLER,REGISTRATION 1 1 1
' 7 •2BM17390 JOINT ROLL TRANS 1 1 1
' 8 •2BM21210 BUSH DRUM 3 3 3
' 9 •2BM17380 GEAR REGIST Z32 1 1 1
' 10 •2BM44070 PT.SENSOR KR1207-KM 1 1 1
11 •2BM43250 PLATE REG SENSOR 1 1 1
12 •2BM43010 SLOPE IMAGE UNIT 1 1 1
' 13 •2BM17440 PAD REG SENSOR 1 1 1
' 14 •2BM17930 LATCH JOINT 1 1 1
15 •2BM17100 PLATE EARTH CASE 1 1 1
' 16 •2BM17280 ROLLER MIDDLE 1 1 1
17 •2BM17300 SHAFT PULLEY MIDDLE 1 1 1
' 18 •2BM17310 PULLEY MIDDLE 4 4 4
' 19 •2BM17360 SPRING MIDDLE R 1 1 1
' 20 •2BM17340 SPRING GUIDE MIDDLE 1 1 1
21 •2BM17290 GUIDE MIDDLE 1 1 1
22 •2BM17320 LEVER GUDIE MIDDLE 1 1 1
23 •2BM17500 SHEET REGIST B 1 1 1
24 •2BM17490 SHEET REGIST A 1 1 1
25 •2BM17460 PLATE EARTH REG A 1 1 1
26 •2BM43260 GUIDE PAPER REGIST 1 1 1
' 27 •2BM17480 HIGH-MEG R ASSY 2 2 2
28 •2BM17120 PLATE RELEASE 1 1 1
29 •2BM17130 SPRING RELEASE 1 1 1
30 •2BM17010 CASE LOW 1 1 1
31 •2BM17970 PLATE EARTH FEED 1 1 1
' 32 •2BM17260 GEAR JOINT Z22S 1 1 1
' 33 •2BM17270 GEAR Z22S-Z14S 1 1 1
34 •2BM17250 PLATE GEAR TC 1 1 1
35 •2BM17090 PLATE CONTACT TRANS 1 1 1
36 •2BM43130 PLATE CONTACT CHARGE 1 1 1
37 •2BM44040 CONN CORD FEED DC ASSY 1 1 1
38 •2BM17110 SEAL MASK PLATE 1 1 1
' 39 •2BM17890 LEVER LOCK TB 1 1 1
40 •2BM17900 HOLDER LOCK TB 1 1 1
41 •2BM17910 SPRING LOCK TB 1 1 1
' 42 •2A601130 CONVEYING UNIT JUNCTION PCB ASS'Y 1 1 1
' 43 •2BM27260 CONN CORD FEED2 ASSY 1 1 1
' 44 •2BM17240 GEAR IDLE Z24S 1 1 1
45 •2BM17230 PLATE GEAR FUSER 1 1 1
' 46 •2BM27230 FAN BELT 2 2 2
' 47 •2BM17510 DUCT FEED UP 1 1 1
' 48 •2BM17520 SEAL BELT LOW 4 4 4
49 •2BM17960 SCREW FAN BELT 4 4 4
' 50 •2BM68160 GUIDE LEFT ASSY 1 1 1
51 ••2BM17150 GUIDE CHANGE DU 1 1 1
52 ••2BM17180 PLATE LEVER SOL 1 1 1
53 ••2BM17170 HOOK LOCK FUSER 1 1 1
' 54 ••2BM27160 SOLENOID FEED 1 1 1
' 55 ••2BM17190 ANGLE SOLENOID 1 1 1
56 ••2BM43100 PLATE DU SENSOR 1 1 1
57 ••2BM17140 GUIDE CASE LOW LEFT 1 1 1
' 58 ••2BM27170 PT.SENSOR GP2S30 1 1 1
59 ••2BM17160 LEVER LOCK CASE LOW 1 1 1
60 ••2BM17200 COVER GUIDE DU 1 1 1
61 ••2BM43120 REFLECTOR DU SENSOR 1 1 1
62 ••2BM44030 CONN.CORD FEED_EARTH ASSY 1 1 1
63 ••2BM17210 SPRING LOCK FUSER 2 2 2
64 ••2BM17220 SPRING SOLENOID 1 1 1
' 65 •2BM27240 PT.SENSOR GP1S74P 1 1 1
66 •2BM43060 PLATE SUPPORT FEED 1 1 1
67 •2BM17020 PLATE BOTTOM FEED 1 1 1
68 •2BM17030 PLATE FRONT LEVER 1 1 1
' 69 •2BM17060 HOOK LEVER FRONT 1 1 1
70 •2BM43070 PLATE EARTH BOTTOM 1 1 1
' 71 •2BM17070 SPRING FRONT LEVER 2 2 2
72 •2BM17680 COVER CL FEED 1 1 1
' 73 •2BM17050 LEVER FEED FRONT 1 1 1
74 •2BM68170 BELT ASSY 1 1 1
' 75 ••
' 76 ••
' 77 ••2BM27210 CLUTCH SP CAM 1 1 1
' 78 ••2BM17620 GEAR Z42S 1 1 1
' 79 ••2BM17610 CAM TRANS 2 2 2
' 80 ••2BM17600 BUSH TRANS UNIT 1 1 1
5MVM122DB003
5MMM176CJ003
BUSH POM 3 3 3
METAL BUSH KD 3 3 3
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 19 –
Page 23
FIG. 8 FEED UNIT
2A6
108
85
92
85
83
82
81
92
83
87
E07
75
82
E07
75
76
90
91
76
74
79
E07
76
E07
E07
HCX
51
56
50
57
86
E07
89
88
55
AND
52
RBS
48
47
64
53
54
60
59
HCY
61
HCX
62
88
58
49
48
46
E07
41
45
44
63
114
114
111
A
30
67
HCY
65
15
66
69
E07
71
68
A
73
93
71
HCY
108
70
72
E06
78
79
E07
77
80
1
106
104
103
4
84
107
6
E04
3
2
5
9
EFE
39
38
34
40
42
BHA
33
27
35
HCY
HCY
37
HCY
31
BHK
E06
8
12
32
43
36
114
113
HCX
11
10
E04
2
7
BHA
97
8
HCY
94
13
102
100
96
95
99
105
101
98
112
HCY
110
HCY
28
27
26
29
21
25
23
22
24
2
E05
4
18
E05
8
19
E05
2
20
17
E07
14
109
16
– 20 –
Page 24
FIG. 8 FEED UNIT
Ref.
SP Part. No. Description
No.
81 ••2BM17590 SHAFT BELT R 1 1 1
82 ••2BM17650 RIB BELT 6 6 6
83 ••2BM43200 SEAL PLATE BELT 2 2 2
84 ••2BM17980 SEAL MASK BELT 2 2 2
' 85 ••2BM17550 PULLEY BELT 4 4 4
86 ••2BM17530 PLATE BELT 1 1 1
' 87 ••2BM17570 GEAR Z22S 1 1 1
' 88 ••2BM17630 PULLEY TENSION BELT 4 4 4
89 ••2BM17640 SHAFT TENSION BELT 2 2 2
90 ••2BM43080 METAL BUSH TRANS 1 1 1
91 ••2BM17560 SHAFT BELT L 1 1 1
' 92 ••2BM17540 BELT TRANS 2 2 2
93 •2BM17040 SHAFT FRONT LEVER 1 1 1
' 94 •
' 98 ••2BM17700 ROLLER TRANSFER 1 1 1
' 105 ••2BM17790 SPRING TC 2 2 2
' 106 ••
' 106 ••
' 107 •2BM17400 ROLLER REGIST UP 1 1 1
' 108 •
' 109 •
' 112 2A617010 MOUNT, CONVEYING HEATER 1 1 1
' 113 2A627850 HEATER,CONVEYING 1 1 1
5PLPXATAPKX
95 ••2BM17750 PLATE EARTH WIRE F 1 1 1
96 ••2BM43090 WIRE EARTH GUIDE 1 1 1
97 ••2BM17720 LEVER TRANS F 1 1 1
99 ••2BM17690 CASE TRANS 1 1 1
100 ••2BM43230 SPRING CASE UP 1 1 1
101 ••2BM17780 PLATE CONTACT TC 1 1 1
102 ••2BM17710 GUIDE CHUTE LOW 1 1 1
103 ••2BM17740 LEVER TRANS B 1 1 1
104 ••2BM17730 LEVER TRANS R 1 1 1
5PLPXBRAPKX
5PLPXBHAPKX
5MVM122DB003
5MMM176CJ003
110 2AB05070 LABEL,HIGH TEMPERATURE CAUTION(EXP) 1 1 1
111 68305100 CAUTION LABEL,HIGH TEMPERATURE(JPN) 1 1 1
114 2BM02920 SCREW FEED UNIT 3 3 3
TR-800S SEC TRANSFER UNIT 1 1 1
MK-800D (SC-800 SEPARATE CHARGER) 1
SC-800 SEPARATE CHARGER 1 1
BUSH POM 2 2 2
METAL BUSH KD 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 21 –
Page 25
FIG. 9 FUSER UNIT
2A6
BHA
70
71
E04
72
HCX
E04
71
89
HCX
BHA
91
HCX
88
90
85
86
87
C
92
BAB
50
51
52
53
49
RKE
BHA
HCH
12
BHH
42
19
20
48
47
46
HCX
16
15
E04
44
76
69
84
82
65
64
80
83
81
54
55
59
RKE
12
E05
41
94
75
73
77
74
78
78
79
79
80
81
58
56
57
HCN
HCX
B
93
39
40
HCS
BHA
34
36
43
HCX
69
56
61
60
21
HCN
A
93
35
BHA
63
67
68
66
HCX
1
64
BKE
65
RKE
25
6
7
E03
89
B
A
4
3
HCX
2
5
10
11
BHA
BHA
HCN
29
30
BHA
BHA
31
BHA
BHA
HCX
62
15
16
BHA
E04
14
HCH
94
22
23
BHA
19
12
RKE
18
E05
20
32
C
33
12
13
BHH
17
24
26
BHA
BHA
HCN
ANJ
28
BHA
27
26
29
25
HCN
BHA
37
38
45
– 22 –
Page 26
FIG. 9 FUSER UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
' 2A693170 PARTS,FIXING UNIT 120 1
' 2A693180 PARTS,FIXING UNIT 230 1 1
' 1 •2BM20500 HANDLE GEAR 1 1 1
2 •2BM20380 COVER REAR FUSER 1 1 1
3 •2A627640 WIRE,FIXING 1 1 1
4 •2BM41080 STUD SCREW 465 2 2 2
5 •2BM20430 SPRING CONNECTOR 2 2 2
6 •2BM20540 LOCK PLATE PUSH 1 1 1
7 •2BM20530 PLATE LOCK GEAR 1 1 1
' 8 •2BM20510 GEAR LOCK Z10 1 1 1
' 9 •2BM20550 SPRING LOCK GEAR 1 1 1
10 •2BM20410 BKT LAMP REAR 1 1 1
' 11 •2BM20030 GEAR FUSER Z43 1 1 1
' 12 •2BM20040 BEARING FUSER 4 4 4
' 13 •2BM20450 GEAR INPUT Z30 1 1 1
' 14 •2BM20460 GEAR IDLE Z24 2 2 2
' 15 •2BM20520 GEAR EXIT ROLL Z18 2 2 2
' 16 •2BM21210 BUSH DRUM 2 2 2
17 •2BM20150 FRAME REAR FUSER 1 1 1
18 •2BM20160 PLATE PRESS REAR 1 1 1
19 •2BM41010 PLATE PIN PRESSURE 2 2 2
' 20 •2BM20170 PIN PRESSURE 2 2 2
' 21 •2BM20560 ROLLER EXIT 1 1 1
' 22 •2BM20010 ROLLER FIX 1 1 1
' 23 •2BM20020 ROLLER PRESS 1 1 1
24 •2BM20270 FRAME TOP FUSER 1 1 1
25 •2BM20310 BKT THERMOSTAT 2 2 2
26 •
5MMT163SN006
27 •2BM20290 BKT THERMISTER UP 1 1 1
' 28 •2BM20830 THERMISTOR UP 1 1 1
' 29 •2BM20850 THERMOSTAT 2 2 2
30 •2BM20280 HOLDER HERNESS TOP R 1 1 1
31 •2BM20340 GUIDE ENTRANCE UP 1 1 1
32 •2BM20330 GUIDE ENTRANCE LOW 1 1 1
33 •2BM20070 HOLDER HARNESS RR 1 1 1
34 •2BM20060 HOLDER HARNESS R.F 1 1 1
' 35 •2BM20840 THERMISTOR LOW 1 1 1
36 •2BM20050 FRAME BOTTOM 1 1 1
37 •2BM20360 COVER BOTTOM FUSER 1 1 1
38 •2BM20080 HOLDER HARNESS LOWER 1 1 1
NUT FUSER A 4 4 4
' 39 •2BM20860 LAMP HEATER UPPER 240 1 1
' 39 •2BM20880 LAMP HEATER UPPER 120 1
' 40 •2BM20870 LAMP HEATER LOW 240 1 1
' 40 •2BM20890 LAMP HEATER LOW 120 1
41 •2BM20140 PLATE PRESS FRONT 1 1 1
42 •2BM20090 FRAME FRONT FUSER 1 1 1
43 •2BM20400 BKT LAMP FRONT 1 1 1
44 •2BM01100 P.W.BOARD KP-811 ASSY 1 1 1
45 •2BM20370 COVER FRONT FUSER 1 1 1
' 46 •2BM20480 GEAR IDLE Z24Z16 1 1 1
' 47 •2BM20490 GEAR IDLE Z30 1 1 1
' 48 •2BM20470 GEAR IDLE Z32Z14 1 1 1
' 49 •2BM27740 SOLENOID FUSER 1 1 1
50 •2BM20100 CASE SOLENOID 1 1 1
' 51 •2BM20120 ACTUATOR CLUTCH 1 1 1
' 52 •2BM20110 PIN ACTUATOR CLUTCH 1 1 1
' 53 •2BM20130 SPRING SOL 1 1 1
54 •2BM42710 LABEL CAUTION S 1 1 1
55 •2BM20220 BKT SEPARATOR UP 1 1 1
' 56 •2BM20260 SPRING SEPARETOR 12 12 12
' 57 •2BM20240 SEPARATOR UP 6 6 6
58 •2BM20230 STAY SEPARATOR UP 1 1 1
59 •2BM20250 SHEET PROTECT STAY 1 1 1
60 •2BM20190 BKT SEPARETOR LOW 1 1 1
' 61 •2BM20210 SEPARETOR LOW 6 6 6
62 •2BM20200 STAY SEPARATOR LOW 1 1 1
63 •2BM20680 BKT COVER TOP R 1 1 1
' 64 •2BM20800 SPRING OIL UNIT 2 2 2
65 •2BM20690 LOCK OIL UNIT 2 2 2
' 66 •2BM20820 SPRING LOCK R 1 1 1
67 •2BM20710 LOCK COVER TOP R 1 1 1
' 68 •2BM20740 LEVER OIL R 1 1 1
69 •2BM20660 PIN ACTUATOR OIL 2 2 2
70 •2BM41090 BUSH OIL SHAFT 1 1 1
' 71 •2BM20630 CAM ROLLER OIL 2 2 2
72 •2BM20750 COVER SHAFT OIL 1 1 1
73 •2BM20620 SHAFT MECH CLUTCH 1 1 1
74 •2BM42680 SEAL FUSER UP 1 1 1
75 •2BM05090 LABEL CAUTION FUSER 1 1 1
76 •2BM05080 LABEL FUSER 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 23 –
Page 27
FIG. 9 FUSER UNIT
2A6
BHA
70
71
E04
72
HCX
E04
71
89
HCX
BHA
91
HCX
88
90
85
86
87
C
92
BAB
50
51
52
53
49
RKE
BHA
HCH
12
BHH
42
19
20
48
47
46
HCX
16
15
E04
44
76
69
84
82
65
64
80
83
81
54
55
59
RKE
12
E05
41
94
75
73
77
74
78
78
79
79
80
81
58
56
57
HCN
HCX
B
93
39
40
HCS
BHA
34
36
43
HCX
69
56
61
60
21
HCN
A
93
35
BHA
63
67
68
66
HCX
1
64
BKE
65
RKE
25
6
7
E03
89
B
A
4
3
HCX
2
5
10
11
BHA
BHA
HCN
29
30
BHA
BHA
31
BHA
BHA
HCX
62
15
16
BHA
E04
14
HCH
94
22
23
BHA
19
12
RKE
18
E05
20
32
C
33
12
13
BHH
17
24
26
BHA
BHA
HCN
ANJ
28
BHA
27
26
29
25
HCN
BHA
37
38
45
– 24 –
Page 28
FIG. 9 FUSER UNIT
Ref.
SP Part. No. Description
No.
77 •2BM20580 COVER TOP FUSER 1 1 1
' 78 •2BM20790 SPRING EXIT 4 4 4
79 •2BM20610 BUSH SP 4 4 4
80 •
' 81 •
' 83 •2BM20780 SPRING LOCK OIL 2 2 2
' 84 •2BM20730 LEVER OIL F 1 1 1
' 86 •2BM20810 SPRING LOCK F 1 1 1
' 89 •2BM20650 MECH CLUTCH OIL 1 1 1
' 94 •2BM20180 SPRING PRESSURE 2 2 2
5MMT622SN003
5MVM176DB018
82 •2BM20720 PUSH OIL 2 2 2
85 •2BM20700 LOCK COVER TOP F 1 1 1
87 •2BM20670 BKT COVER TOP F 1 1 1
88 •
5MVM176DB006
90 •
5MVM166DN004
91 •2BM20390 COVER EXIT FUSER 1 1 1
92 •2BM20350 GUIDE EXIT LOW 1 1 1
93 •
5MMK116SZ001
SHAFT EXIT 2 2 2
PULLEY EXIT 4 4 4
BUSHING POM 1 1 1
BUSH MIXER GEAR 1 1 1
NUT FUSER 2 2 2
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 25 –
Page 29
FIG. 10 DRUM UNIT
2A6
46
46
44
A
45
BHA
37
26
25
26
25
A
29
42
40
39
27
28
38
41
36
1
47
BHA
43
BHA
10
11
15
17
2
26
25
26
25
23
HCX
8
9
14
16
34
7
12
13
18
3
4
6
HCN
5
HCN
30
14
33
34
31
32
35
22
20
24
19
20
21
– 26 –
Page 30
FIG. 10 DRUM UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
' 1 2A693080 PARTS,DRUM UNIT 1 1 1
' 2 •2BM18360 SEAL SHUTTER DRUM 1 1 1
3 •2BM18440 SPRING CONTACT GRID 1 1 1
' 4 •2BM18290 SPRING CONTACT MCH 1 1 1
5 •2BM18040 COVER DRUM R 1 1 1
6 •2BM18190 PLATE CONTACT MCH 1 1 1
7 •2BM27290 CONN.CORD OD SENSOR ASSY 1 1 1
8 •2A627770 WIRE,DRUM UNIT 1 1 1
9 •2BM26120 OD SENSOR 1 1 1
' 10 •2BM19010 GEAR Z14HZ28H DRUM 1 1 1
11 •2BM18180 SHAFT DRUM IDLE 1 1 1
' 12 •2BM18380 GEAR Z17HZ22H IDLE 1 1 1
' 13 •2BM18080 GEAR Z17H CLN 1 1 1
14 •2BM19100 ARM ROLL CLN 2 2 2
15 •2BM18120 SHAFT ROLL CLN R 1 1 1
16 •2BM18210 SHUTTER DRUM 1 1 1
' 17 •2BM18240 SPRING SHUTTER 1 1 1
18 •2BM18170 PLATE MCH U 1 1 1
19 •2BM18340 COVER DRUM PWB 1 1 1
20 •2BM18090 BUSH ROLL CLN 2 2 2
21 •2BM18060 ROLL CLN 1 1 1
' 22 •2BM00980 BRAKE DRUM ASSY 1 1 1
23 •2BM18070 SCREW DRUM 1 1 1
' 24 •2BM18460 SEAL SCREW DRUM 1 1 1
25 •2BM18330 SEPARATOR DRUM 4 4 4
26 •2BM18320 HOLDER SEPARATOR 4 4 4
' 27 •2BM27300 LED ASSY 1 1 1
28 •2BM18010 FRAME DRUM 1 1 1
29 •2BM18110 SHAFT ROLL CLN F 1 1 1
' 30 •2BM18140 GEAR Z16S CLN 1 1 1
31 •2BM18150 BUSH SCREW 1 1 1
' 32 •2BM18130 GEAR Z18S SCREW 1 1 1
33 •2BM19110 SPACER DRUM SHAFT 1 1 1
34 •G3169010 BEARING 6901ZZNR 2 2 2
35 •2BM18030 COVER DRUM F 1 1 1
36 •2BM19120 SEAL PROTECT MCH 1 1 1
37 •2BM18200 STAY DRUM FRAME 1 1 1
38 •2BM18280 PLATE UNIT MOUNT 1 1 1
39 •2BM19020 BKT CONT MCH 1 1 1
40 •2BM19040 PLATE CONT MCH L 1 1 1
41 •2BM19030 PLATE CONT MCH R 1 1 1
42 •2BM19050 SPRING CONT MCH 1 1 1
43 •2BM18050 COVER DRUM UP 1 1 1
44 •2BM18470 HANDLE 1 1 1
' 45 •2BM68260 BLADE ASSY 1 1 1
46 2BM42640 STUD SCREW 2 2 2
' 47
5PLPXAQAPKX
MC-800 MAIN CHARGER ASSY 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 27 –
Page 31
FIG. 11 SCANNER UNIT
2A6
RDE
27
BAL
66
63
68
25
4
64
65
69
BAN
6
3
5
BHA
67
62
31
BHA
BAL
55
32
BAL
BAL
30
36
59
36
26
22
29
28
23
29
BKB
21
RDE
22
24
22
27
RDE
22
34
33
HAY
62
11
52
41
56
10
9
24
RDE
BKB
9
RDE
BKB
20
35
E07
BKB
22
19
23
24
56
61
11
HAY
41
E07
52
9
10
10
9
52
BHA
52
52
14
60
71
4
BAN
51
70
BHA
10
HCX
3
38
37
12
52
BHD
BHC
39
13
15
18
10
17
BAL
8
52
32
9
9
HBO
40
BHA
HDA
BHD
46
16
BHD
42
BHA
1
45
47
BHA
48
49
50
54
53
BHK
72
73
7
6
44
43
32
57
2
58
BHA
– 28 –
Page 32
FIG. 11 SCANNER UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
1 2A600161 SCANNER UNIT ASS'Y 1 1 1
2 •2A600010 SCANNER FRAME ASS'Y 1 1 1
3 •2A612380 PULLEY,SCANNER DRUM 2 2 2
' 4 •2A693070 PARTS,WIRE SCANNER(SP) 2 2 2
5 •2A612090 SHAFT,WIRE DRUM 1 1 1
6 •28107400 BEARING,688ZZNR 2 2 2
' 7 •33973300 STOPPER 7,CARTRIDGE 1 1 1
' 8 •2A612310 SCANNER DRIVE PULLEY 1 1 1
9 •35912040 PULLEY A,SCANNER WIRE 8 8 8
' 10 •34806150 STOPPER 5 7 7 7
11 •2A012130 MOUNT,SCANNER PULLEY 2 2 2
12 •2A612290 ADJUSTING PLATE,PULLEY 1 1 1
' 13 •2A612280 PULLEY 16/64 1 1 1
14 •2A612490 FRONT SHIELD,SCANNER 1 1 1
' 15 •2A612320 BELT B,SCANNER 1 1 1
' 16 •2A612270 MOTOR,SCANNER 1 1 1
17 •2A612160 MOUNT,SCANNER MOTOR 1 1 1
' 18 •2A612300 BELT A,SCANNER 1 1 1
19 •2A612130 MIRROR FRAME,SCANNER 1 1 1
20 •35912360 GUIDE FFC2 1 1 1
21 •2A612250 ADJUSTING PLATE,MIRROR FRAME PULLEY 1 1 1
' 22 •18512090 SLIDER,SCANNER 8 8 8
' 23 •2A612140 MIRROR B,SCANNER 2 2 2
24 •75712080 MIRROR HOLDER 4 4 4
' 25 •2A612400 SPRING,SCANNER 1 1 1
' 26 •2A612120 MIRROR A,SCANNER 1 1 1
27 •35912210 SPRING,MIRROR HOLDER 2 2 2
' 28 •2A693060 PARTS,PCB INVERTER(SP) 1 1 1
29 •2A612260 SPACER,INVERTER PCB 2 2 2
30 •2A612110 MOUNT BASE,LAMP 1 1 1
' 31 •2A693020 PARTS,LAMP SCANNER(SP) 1 1 1
32 •M2105740 MINIATURE CLAMP,UAMS-05S-2 7 7 7
' 33 •2A627380 WIRE,LAMP INVERTER 1 1 1
34 •2AV12080 GUIDE FFC1 1 1 1
35 •2A612330 UPPER GUIDE FILM FFC 1 1 1
36 •35912140 RETAINER,WIRE 2 2 2
37 •2A612180 FEED GUIDE,SCANNER WIRE 1 1 1
' 38 •35927290 SENSOR,ORIGINAL DETECTION 1 1 1
39 •2A627710 WIRE,SCANNER UNIT 1 1 1
40 •2A626150 LOWER GRAND PLATE,SCANNER 1 1 1
41 •2A612480 PULLEY SCANNER WIRE 1 1 1
42 •2A612220 REINFORCEMENT,ORIGINAL HOLDER 2 2 2
43 •2A612170 MOUNT,SCANNER PI 1 1 1
' 44 •35327400 SWITCH,FEED 1 1 1
45 •2AC00580 RELEASE SWITCH ASS'Y 1 1 1
46 ••2AC12230 MOUNT,RELEASE SWITCH 1 1 1
47 ••2AC12360 GUIDE,RELEASE SWITCH 1 1 1
48 ••2AC12370 SWITCH,RELEASE DETECTION 1 1 1
' 49 ••2AC12380 SPRING,RELEASE SWITCH 1 1 1
' 50 ••35327400 SWITCH,FEED 1 1 1
51 •2A612340 COVER,SCANNER DRIVE 1 1 1
52 •29812291 CUSHION,CONTACT GLASS 9 9 9
53 •2A612240 COVER,ISU 1 1 1
54 •2A105180 LABEL,CAUTION CONTACT GLASS 1 1 1
55 •2A612410 REFLECTOR,SCANNER 1 1 1
' 56 •2A612450 VIBRATION INSULATOR,MIRROR 2 2 2
57 •2A626120 LID,NIC 1 1 1
58 •33921200 HOLDER,JOINT 2 2 2
59 •2A612460 SHEET B,INVERTER PCB 1 1 1
60 2A612370 PIN,TENSHION(M4) 4 4 4
' 61 2A612440 CONTACT GLASS,ADF 1 1 1
62 2AV12300 HOLDER,ADF CONTACT GLASS 2 2 2
' 63 35912531 SPONGE,ORIGINAL SIZE INDICATOR 1 1 1
' 64 2A612200 LEFT ORIGINAL SIZE INDICATOR 1 1 1
' 65 2A612210 STANDARD PLATE,SHADING 1 1 1
' 66 2AV12481 LABEL,ORIGINAL SIZE INDICATOR(METRIC) 1 1
' 66 2AV12491 LABEL,ORIGINAL SIZE INDICATOR(INCH) 1
' 67 35912010 CONTACT GLASS 1 1 1
' 68 2AV12460 REAR ORIGINAL SIZE INDICATOR(METRIC) 1 1
' 68 2AV12470 REAR ORIGINAL SIZE INDICATOR(INCH) 1
' 69 2A612350 FRONT SEAL,CONTACT GLASS 1 1 1
70 2A612230 AUXILIARY PLATE,ORIGINAL HOLDER 2 2 2
71 2A612470 UPPER SHIELD,SCANNER 4 4 4
' 72 2BL27480 SWITCH INTERLOCK 1 1 1
73 2A627790 WIRE FAX,INTERLOCK 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 29 –
Page 33
FIG. 12 DEVELOPER D1 UNIT
2A6
HCN
HCN
HCN
33
28
15
103
104
HCN
HCN
106
26
98
78
20
102
21
8
22
8
19
8
23
8
8
30
32
6
12
11
52
55
54
17
56
HCN
10
12
16
HCN
9
11
84
53
49
50
48
8
68
24
13
3
31
30
29
6
1
38
14
12
11
25
12
11
9
27
4
5
18
12
11
9
10
7
RDB
68
RDB
71
70
HCN
66
67
37
E04
46
62
65
45
39
36
27
7
4
5
2
61
72
71
60
64
65
63
54
59
58
108
HCN
69
47
40
35
34
HCN
HCN
75
107
57
79
105
97
73
41
HCN
82
101
100
77
99
ANG
76
74
96
95
BAA
94
ANJ
83
93
BHB
81
80
87
85
HCN
E04
88
89
E2E
44
43
42
91
90
HCN
86
E2E
92
51
57
35
– 30 –
Page 34
FIG. 12 DEVELOPER D1 UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
' 2A693090 PARTS,DEVELOPING UNIT (Y),(USA) 1
' 2A693100 PARTS,DEVELOPING UNIT (Y),(J/E) 1 1
1 •2BM14660 CASE DLP D1 1 1 1
' 2 •2BM27330 TONER SENSOR ASSY 1 1 1
3 •2BM14310 SENSOR FACE D1234 1 1 1
4 •2BM40570 SEAL SIDE D24 2 2 2
5 •2BM40560 MAGNET SEAL D1234 2 2 2
6 •2BM14800 SEAL CASE A D1 2 2 2
7 •2BM14300 SCRAPER PULLEY D1234 2 2 2
8 •2BM14180 MAGNET MIXER D1234 6 6 6
9 •2BM40190 SEAL BUSH D1234 3 3 3
10 •2BM40200 SPACER D1234 2 2 2
' 11 •2BM14390 OIL SEAL 5 5 5
12 •2BM14330 BUSH D1234 5 5 5
13 •2BM14580 SHAFT T BRAKE D12 1 1 1
' 14 •2BM14210 GEAR Z28-5 D1234 1 1 1
15 •2BM00860 SHAFT CROSS D1 ASSY 1 1 1
16 •2BM40230 SHAFT GEAR MIX 1 1 1 1
' 17 •2BM40220 GEAR Z28-5 MIX2 1 1 1
' 18 •2BM14410 GEAR MIXER 1 D123 1 1 1
19 •2BM14130 TUBE MIXER D1234 1 1 1
20 •2BM14150 FLANGE MIXER L D1234 1 1 1
21 •2BM14160 SCREW MIXER D1234 1 1 1
22 •2BM40100 SHAFT MIXER D123 1 1 1
23 •2BM14170 FLANGE MIXER R D1234 1 1 1
24 •2BM40580 SCRAPER MIXER D1234 1 1 1
' 25 •2BM14420 GEAR MIXER 2 D123 1 1 1
26 •2BM14670 STAY D1 1 1 1
27 •2BM14630 SEAL CASE D134 2 2 2
' 28 •2BM14320 SEAL BLADE D1234 1 1 1
29 •2BM40120 SEAL CASE D D1 1 1 1
30 •2BM14610 SEAL CASE D12 2 2 2
31 •2BM14810 SEAL CASE B D1 1 1 1
32 •2BM14820 SEAL CASE C D1 1 1 1
33 •2BM14500 SEAL CASE D123 1 1 1
34 •2BM14620 ROLLER MAGNET D4 1 1 1
35 •2BM14010 PULLY D1234 2 2 2
' 36 •2BM40460 GAER MG H D1234 1 1 1
37 •2BM14680 FLANGE R D1 1 1 1
' 38 •2BM14590 GEAR Z30-Z16 D12 1 1 1
' 39 •2A806250 RING STOPPER 1 1 1
40 •2BM14030 ROLLER BLADE D1234 1 1 1
41 •2BM14040 SHAFT MG BLADE D1234 1 1 1
' 42 •2BM14220 BUSH BIAS D1234 1 1 1
43 •2BM14290 SP MG BLADE D1234 1 1 1
' 44 •2BM14050 JOINT MG D1234 1 1 1
' 45 •2BM40420 GAER Z20H D12 1 1 1
' 46 •2BM40430 GAER Z20H R D12 1 1 1
47 •2BM14690 PITCH PIECE R D1 1 1 1
48 •2BM14720 PITCH PIECE F D1 1 1 1
49 •2BM14400 BIAS JOINT D123 1 1 1
50 •2BM14440 PLATE ANGLE D123 1 1 1
51 •2BM40040 PRESS D CUT D1234 1 1 1
52 •2BM14850 PLATE IDLE D1 1 1 1
' 53 •2BM14110 GEAR Z20-5 D1234 1 1 1
' 54 •2BM40060 CUT WASHER 2 2 2
' 55 •2BM14840 GEAR Z30-5 D1 1 1 1
56 •2BM14780 COVER F D1 1 1 1
57 •2BM40300 SEAL MG D1234 2 2 2
58 •2BM14700 BKT CLUTCH D1 1 1 1
' 59 •2BM40640 GEAR Z30H-Z22H D12 1 1 1
' 60 •2BM27350 CLUTCH 26-D 1 1 1
61 •2BM40150 SEAL CLUTH D1234 1 1 1
62 •2BM14070 SHAFT CLUTCH D1234 1 1 1
' 63 •2BM14090 JOINT D1234 1 1 1
64 •2BM40500 POLY WASHER 16 1 1 1
' 65 •2BM40310 BALL BEARING D1234 2 2 2
66 •2BM40510 POLY WASHER 14 1 1 1
' 67 •2BM40360 GEAR Z14D-8 D1234 1 1 1
' 68 •2BM40370 GEAR Z15-8 D123 2 2 2
' 69 •2BM40590 GEAR Z14-Z12 D123 1 1 1
70 •2BM14570 SHAFT GEAR D12 1 1 1
71 •2BM14530 BUSH 2 2 2
' 72 •2BM14560 GEAR Z14-8 JOINT D12 1 1 1
73 •2BM14710 GUIDE TCNT D1 1 1 1
74 •2BM14200 GUIDE SHUTTER D1234 1 1 1
' 75 •2BM14260 SEAL GUIDE T D1234 1 1 1
' 76 •2BM14250 SEAL SHUTTER D1234 1 1 1
' 77 •2BM14240 SHUTTER D1234 1 1 1
' 78 •2BM14230 SPRING SHUTTER D1234 2 2 2
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 31 –
Page 35
FIG. 12 DEVELOPER D1 UNIT
2A6
HCN
HCN
HCN
33
28
15
103
104
HCN
HCN
106
26
98
78
20
102
21
8
22
8
19
8
23
8
8
30
32
6
12
11
52
55
54
17
56
HCN
10
12
16
HCN
9
11
84
53
49
50
48
8
68
24
13
3
31
30
29
6
1
38
14
12
11
25
12
11
9
27
4
5
18
12
11
9
10
7
RDB
68
RDB
71
70
HCN
66
67
37
E04
46
62
65
45
39
36
27
7
4
5
2
61
72
71
60
64
65
63
54
59
58
108
HCN
69
47
40
35
34
HCN
HCN
75
107
57
79
105
97
73
41
HCN
82
101
100
77
99
ANG
76
74
96
95
BAA
94
ANJ
83
93
BHB
81
80
87
85
HCN
E04
88
89
E2E
44
43
42
91
90
HCN
86
E2E
92
51
57
35
– 32 –
Page 36
FIG. 12 DEVELOPER D1 UNIT
Ref.
SP Part. No. Description
No.
' 79 •2BM14120 LOCK SHUTTER D1234 1 1 1
' 80 •2BM01140 P.W.BOARD KP-819 ASSY 1 1 1
81 •2BM27370 CONN.CORD LED D1 ASSY 1 1 1
82 •2BM14640 GUIDE SCREW D14 1 1 1
83 •2A627600 WIRE Y,DEVELOPING 1 1 1
84 •2BM40710 SIMM D1 1 1 1
' 85 •2BM14600 GEAR Z20-8 D12 1 1 1
86 •2BM14730 PLATE MOTOR TONER D1 1 1 1
' 87 •2BM14460 GEAR Z31-Z15-8 D123 1 1 1
88 •2BM14830 SP JOINT T SRP D1 1 1 1
89 •2A614070 JOINT SCRAPER CI D 1 1 1
' 90 •2BM27340 DC MOTOR 1 1 1
' 91 •2BM14540 GEAR WORM 1 1 1
92 •2BM27390 CONN.CORD TM D1 ASSY 1 1 1
' 93 •2BM14470 JOINT FEED T D123 1 1 1
94 •2BM14190 SP JOINT T SW D1234 1 1 1
95 •2BM14740 BKT JOINT TCNT D1 1 1 1
' 96 •2BM14480 WORM WHEEL D123 1 1 1
97 •2BM05180 LABEL POSITION Y 1 1 1
98 •2BM14760 COVER TCNT R D1 1 1 1
' 99 •2BM01150 P.W.BOARD KP-820 ASSY 1 1 1
100 •2BM27380 CONN.CORD PTR D1 ASSY 1 1 1
101 •2A614010 DETECTION PLATE D14,DEVELOPING(F) 1
101 •2A614020 DETECTION PLATE D14,DEVELOPING(G) 1 1
102 •2BM14750 COVER R D1 1 1 1
103 •2BM14770 COVER MAG D1 1 1 1
104 •2BM14860 SHEET COVER MAG D1 1 1 1
' 105 •2BM14270 SEAL LID DEVE D1234 1 1 1
106 •2BM14790 COVER TCNT F D1 1 1 1
107 •2BM40140 SHEET PWB D1234 1 1 1
108 •2BM40700 SIMM D1234 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 33 –
Page 37
FIG. 13 DEVELOPER D2 UNIT
2A6
HCN
97
100
HCN
99
98
77
ANG
75
73
79
74
78
HCN
72
HCN
96
HCN
HCN
76
HCN
81
ANJ
82
80
E2E
106
26
91
83
89
86
87
85
88
109
107
108
8
19
28
24
15
32
8
2
8
23
8
31
12
11
13
6
30
29
6
31
1
11
12
22
51
54
53
48
HCN
49
HCN
50
56
55
102
17
52
47
16
110
103
9
4
10
5
11
12
104
27
7
101
37
14
25
12
11
9
5
4
3
109
12
11
10
9
27
7
40
34
105
HCN
HCN
84
90
93
92
56
94
95
20
8
8
60
59
61
21
71
70
69
67
53
67
64
65
6653
E04
36
HCN
38
45
18
HCN
46
102
44
34
68
39
35
62
63
70
HCN
57
64
53
58
E2E
43
42
41
E04
33
– 34 –
Page 38
FIG. 13 DEVELOPER D2 UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
' 2A693110 PARTS,DEVELOPING UNIT (M),(USA) 1
' 2A693120 PARTS,DEVELOPING UNIT (M),(J/E) 1 1
1 •2BM14950 CASE DLP D2 1 1 1
' 2 •2BM27330 TONER SENSOR ASSY 1 1 1
3 •2BM14310 SENSOR FACE D1234 1 1 1
4 •2BM40570 SEAL SIDE D24 2 2 2
5 •2BM40560 MAGNET SEAL D1234 2 2 2
6 •2BM15070 SEAL CASE D D2 2 2 2
7 •2BM14300 SCRAPER PULLEY D1234 2 2 2
8 •2BM14180 MAGNET MIXER D1234 6 6 6
9 •2BM40190 SEAL BUSH D1234 3 3 3
10 •2BM40200 SPACER D1234 2 2 2
' 11 •2BM14390 OIL SEAL 5 5 5
12 •2BM14330 BUSH D1234 5 5 5
13 •2BM14580 SHAFT T BRAKE D12 1 1 1
' 14 •2BM14210 GEAR Z28-5 D1234 1 1 1
15 •2BM00780 SHAFT CROSS D2 ASSY 1 1 1
16 •2BM40230 SHAFT GEAR MIX 1 1 1 1
' 17 •2BM40220 GEAR Z28-5 MIX2 1 1 1
' 18 •2BM14410 GEAR MIXER 1 D123 1 1 1
19 •2BM14130 TUBE MIXER D1234 1 1 1
20 •2BM14150 FLANGE MIXER L D1234 1 1 1
21 •2BM14160 SCREW MIXER D1234 1 1 1
22 •2BM40100 SHAFT MIXER D123 1 1 1
23 •2BM14170 FLANGE MIXER R D1234 1 1 1
24 •2BM40580 SCRAPER MIXER D1234 1 1 1
' 25 •2BM14420 GEAR MIXER 2 D123 1 1 1
26 •2BM14960 STAY D2 1 1 1
27 •2BM15080 SEAL CASE E D2 2 2 2
' 28 •2BM14320 SEAL BLADE D1234 1 1 1
29 •2BM40130 SEAL CASE A D2 1 1 1
30 •2BM14610 SEAL CASE D12 1 1 1
31 •2BM15060 SEAL CASE B D2 2 2 2
32 •2BM14500 SEAL CASE D123 1 1 1
33 •2BM14940 ROLLER MAGNET D23 1 1 1
34 •2BM14010 PULLY D1234 2 2 2
' 35 •2BM40460 GAER MG H D1234 1 1 1
36 •2BM14970 FLANGE R D2 1 1 1
' 37 •2BM14590 GEAR Z30-Z16 D12 1 1 1
' 38 •2A806250 RING STOPPER 1 1 1
39 •2BM14030 ROLLER BLADE D1234 1 1 1
40 •2BM14040 SHAFT MG BLADE D1234 1 1 1
' 41 •2BM14220 BUSH BIAS D1234 1 1 1
42 •2BM14290 SP MG BLADE D1234 1 1 1
' 43 •2BM14050 JOINT MG D1234 1 1 1
' 44 •2BM40420 GAER Z20H D12 1 1 1
' 45 •2BM40430 GAER Z20H R D12 1 1 1
46 •2BM14980 PITCH PIECE R D2 1 1 1
47 •2BM15010 PITCH PIECE F D2 1 1 1
48 •2BM14400 BIAS JOINT D123 1 1 1
49 •2BM14440 PLATE ANGLE D123 1 1 1
50 •2BM40040 PRESS D CUT D1234 1 1 1
51 •2BM14930 PLATE IDLE D23 1 1 1
' 52 •2BM14110 GEAR Z20-5 D1234 1 1 1
' 53 •2BM40060 CUT WASHER 4 4 4
' 54 •2BM14910 GEAR Z38-5 D23 1 1 1
55 •2BM15050 COVER F D2 1 1 1
56 •2BM40300 SEAL MG D1234 2 2 2
57 •2BM14990 BKT CLUTCH D2 1 1 1
' 58 •2BM40640 GEAR Z30H-Z22H D12 1 1 1
' 59 •2BM27420 CLUTCH 26-E 1 1 1
60 •2BM40150 SEAL CLUTH D1234 1 1 1
61 •2BM14070 SHAFT CLUTCH D1234 1 1 1
' 62 •2BM14090 JOINT D1234 1 1 1
63 •2BM40500 POLY WASHER 16 1 1 1
' 64 •2BM40310 BALL BEARING D1234 2 2 2
65 •2BM40510 POLY WASHER 14 1 1 1
' 66 •2BM40360 GEAR Z14D-8 D1234 1 1 1
' 67 •2BM40370 GEAR Z15-8 D123 2 2 2
' 68 •2BM40590 GEAR Z14-Z12 D123 1 1 1
69 •2BM14570 SHAFT GEAR D12 1 1 1
70 •2BM14530 BUSH 2 2 2
' 71 •2BM14560 GEAR Z14-8 JOINT D12 1 1 1
72 •2BM15000 GUIDE TCNT D2 1 1 1
73 •2BM14200 GUIDE SHUTTER D1234 1 1 1
' 74 •2BM14260 SEAL GUIDE T D1234 1 1 1
' 75 •2BM14250 SEAL SHUTTER D1234 1 1 1
' 76 •2BM14240 SHUTTER D1234 1 1 1
' 77 •2BM14230 SPRING SHUTTER D1234 2 2 2
' 78 •2BM14120 LOCK SHUTTER D1234 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 35 –
Page 39
FIG. 13 DEVELOPER D2 UNIT
2A6
HCN
97
100
HCN
99
98
77
ANG
75
73
79
74
78
HCN
72
HCN
96
HCN
HCN
76
HCN
81
ANJ
82
80
E2E
106
26
91
83
89
86
87
85
88
109
107
108
8
19
28
24
15
32
8
2
8
23
8
31
12
11
13
6
30
29
6
31
1
11
12
22
51
54
53
48
HCN
49
HCN
50
56
55
102
17
52
47
16
110
103
9
4
10
5
11
12
104
27
7
101
37
14
25
12
11
9
5
4
3
109
12
11
10
9
27
7
40
34
105
HCN
HCN
84
90
93
92
56
94
95
20
8
8
60
59
61
21
71
70
69
67
53
67
64
65
6653
E04
36
HCN
38
45
18
HCN
46
102
44
34
68
39
35
62
63
70
HCN
57
64
53
58
E2E
43
42
41
E04
33
– 36 –
Page 40
FIG. 13 DEVELOPER D2 UNIT
Ref.
SP Part. No. Description
No.
' 79 •2BM01140 P.W.BOARD KP-819 ASSY 1 1 1
80 •2BM27440 CONN.CORD LED D2 ASSY 1 1 1
81 •2BM14890 GUIDE SCREW D23 1 1 1
82 •2A627620 WIRE M,DEVELOPING 1 1 1
' 83 •2BM14600 GEAR Z20-8 D12 1 1 1
84 •2BM15020 PLATE MOTOR TONER D2 1 1 1
' 85 •2BM14460 GEAR Z31-Z15-8 D123 1 1 1
86 •2BM14920 SP JOINT T SRP D23 1 1 1
87 •2A614070 JOINT SCRAPER CI D 1 1 1
' 88 •2BM14280 GEAR Z14-8 D23 1 1 1
' 89 •2BM27340 DC MOTOR 1 1 1
' 90 •2BM14540 GEAR WORM 1 1 1
91 •2BM27460 CONN.CORD TM D2 ASSY 1 1 1
' 92 •2BM14470 JOINT FEED T D123 1 1 1
93 •2BM14190 SP JOINT T SW D1234 1 1 1
94 •2BM14880 BKT JOINT TCNT D23 1 1 1
' 95 •2BM14480 WORM WHEEL D123 1 1 1
96 •2BM05190 LABEL POSITION M 1 1 1
97 •2BM14900 COVER TCNT D23 1 1 1
' 98 •2BM01150 P.W.BOARD KP-820 ASSY 1 1 1
99 •2BM27450 CONN.CORD PTR D2 ASSY 1 1 1
100 •2A614030 DETECTION PLATE D2,DEVELOPING(F) 1
100 •2A614040 DETECTION PLATE D2,DEVELOPING(G) 1 1
101 •2BM15090 CORD PRESS D2 3 3 3
102 •2BM40700 SIMM D1234 2 2 2
103 •2BM40660 SHEET PWB D2 1 1 1
104 •2BM14870 COVER PWB D234 1 1 1
105 •2BM15030 COVER R D2 1 1 1
106 •2BM15040 COVER MAG D2 1 1 1
107 •2BM40290 SEAL COVER MAG D2 1 1 1
108 •2BM40160 SEAL COVER MAG D234 2 2 2
' 109 •2BM14270 SEAL LID DEVE D1234 1 1 1
110 •2BM40140 SHEET PWB D1234 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 37 –
Page 41
FIG. 14 DEVELOPER D3 UNIT
2A6
108
112
105
HCN
107
85
106
ANG
94
111
81
80
HCN
87
104
8
31
37
21
20
22
113
114
38
11
12
30
61
64
63
62
65
HCN
HCN
9
10
11
12
24
25
119
60
66
84
86
82
83
88
HCN
HCN
89
E2E
90
116
79
32
115
36
HCN
40
HCN
27
40
113
14
15
114
18
34
17
15
14
19
12
6
15
11
39
6
3
1
11
120
35
59
58
35
5
4
7
2
52
43
117
110
96
97
91
93
95
100
99
92
109
29
41
45
46
47
16
15
13
35
7
12
11
9
4
5
23
42
HCN
118
103
66
101
BHB
BAA
102
28
8
8
70
69
HCN
74
77
63
HCN
48
10
9
33
E04
49
50
26
12
11
78
74
75
57
76
120
51
44
43
72
73
71
67
63
68
56
HCN
E04
E2E
55
54
53
– 38 –
Page 42
FIG. 14 DEVELOPER D3 UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
' 2A693130 PARTS,DEVELOPING UNIT (C),(USA) 1
' 2A693140 PARTS,DEVELOPING UNIT (C),(J/E) 1 1
1 •2BM15110 CASE DLP D3 (1/2) 1 1 1
' 2 •2BM27330 TONER SENSOR ASSY 1 1 1
3 •2BM14310 SENSOR FACE D1234 1 1 1
4 •2BM40570 SEAL SIDE D24 2 2 2
5 •2BM40560 MAGNET SEAL D1234 2 2 2
6 •2BM15400 SEAL CASE E D3 2 2 2
7 •2BM14300 SCRAPER PULLEY D1234 2 2 2
8 •2BM14180 MAGNET MIXER D1234 6 6 6
9 •2BM40190 SEAL BUSH D1234 3 3 3
10 •2BM40200 SPACER D1234 2 2 2
' 11 •2BM14390 OIL SEAL 5 5 5
12 •2BM14330 BUSH D1234 5 5 5
13 •2BM15230 SHAFT SUPPLY B D3 1 1 1
' 14 •2BM15180 GEAR BEVEL Z16 D3 2 2 2
15 •2BM14530 BUSH 4 4 4
' 16 •2BM15170 GEAR Z18-8 D3 1 1 1
17 •2BM15240 BUSH BLOCK SUPPLY D3 1 1 1
18 •2BM15120 SCREW SUPPLY D3 1 1 1
' 19 •2BM15190 GEAR Z19-5 D3 1 1 1
' 20 •2BM15210 GEAR Z35-5 D3 1 1 1
21 •2BM15220 SHAFT SUPPLY A D3 1 1 1
' 22 •2BM15200 GEAR Z18-5 D3 1 1 1
23 •2BM00850 SHAFT CROSS D3 ASSY 1 1 1
24 •2BM40230 SHAFT GEAR MIX 1 1 1 1
' 25 •2BM40220 GEAR Z28-5 MIX2 1 1 1
' 26 •2BM14410 GEAR MIXER 1 D123 1 1 1
27 •2BM14130 TUBE MIXER D1234 1 1 1
28 •2BM14150 FLANGE MIXER L D1234 1 1 1
29 •2BM14160 SCREW MIXER D1234 1 1 1
30 •2BM40100 SHAFT MIXER D123 1 1 1
31 •2BM14170 FLANGE MIXER R D1234 1 1 1
32 •2BM40580 SCRAPER MIXER D1234 1 1 1
' 33 •2BM14420 GEAR MIXER 2 D123 1 1 1
34 •2BM15130 STAY D3 1 1 1
35 •2BM14630 SEAL CASE D134 2 2 2
' 36 •2BM14320 SEAL BLADE D1234 1 1 1
37 •2BM15360 SEAL CASE A D3 1 1 1
38 •2BM15370 SEAL CASE B D3 1 1 1
39 •2BM15380 SEAL CASE C D3 1 1 1
40 •2BM15390 SEAL CASE D D3 2 2 2
41 •2BM14500 SEAL CASE D123 1 1 1
42 •2BM14940 ROLLER MAGNET D23 1 1 1
43 •2BM14010 PULLY D1234 2 2 2
' 44 •2BM40460 GAER MG H D1234 1 1 1
45 •2BM15320 SHAFT CASE D3 3 3 3
' 46 •2BM15410 GEAR Z15 2 2 2
' 47 •2BM15420 GEAR Z38S 1 1 1
' 48 •2BM15280 GEAR Z25-Z15-8 D3 1 1 1
49 •2BM15140 FLANGE R D3 1 1 1
' 50 •2A806250 RING STOPPER 1 1 1
51 •2BM14030 ROLLER BLADE D1234 1 1 1
52 •2BM14040 SHAFT MG BLADE D1234 1 1 1
' 53 •2BM14220 BUSH BIAS D1234 1 1 1
54 •2BM14290 SP MG BLADE D1234 1 1 1
' 55 •2BM14050 JOINT MG D1234 1 1 1
' 56 •2BM40440 GEAR Z25H D3 1 1 1
57 •2BM15160 PITCH PIECE R D3 1 1 1
58 •2BM15270 PITCH PIECE F D3 1 1 1
59 •2BM14400 BIAS JOINT D123 1 1 1
60 •2BM40040 PRESS D CUT D1234 1 1 1
61 •2BM14930 PLATE IDLE D23 1 1 1
' 62 •2BM14110 GEAR Z20-5 D1234 1 1 1
' 63 •2BM40060 CUT WASHER 3 3 3
' 64 •2BM14910 GEAR Z38-5 D23 1 1 1
65 •2BM15290 COVER F D3 1 1 1
66 •2BM40300 SEAL MG D1234 2 2 2
67 •2BM15150 BKT CLUTCH D3 1 1 1
' 68 •2BM40650 GEAR Z30H-Z22H D34 1 1 1
' 69 •2BM27490 CLUTCH 26-F 1 1 1
70 •2BM40150 SEAL CLUTH D1234 1 1 1
71 •2BM14070 SHAFT CLUTCH D1234 1 1 1
' 72 •2BM14090 JOINT D1234 1 1 1
73 •2BM40500 POLY WASHER 16 1 1 1
' 74 •2BM40310 BALL BEARING D1234 2 2 2
75 •2BM40510 POLY WASHER 14 1 1 1
' 76 •2BM40360 GEAR Z14D-8 D1234 1 1 1
' 77 •2BM40370 GEAR Z15-8 D123 1 1 1
' 78 •2BM40590 GEAR Z14-Z12 D123 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 39 –
Page 43
FIG. 14 DEVELOPER D3 UNIT
2A6
108
112
105
HCN
107
85
106
ANG
94
111
81
80
HCN
87
104
8
31
37
21
20
22
113
114
38
11
12
30
61
64
63
62
65
HCN
HCN
9
10
11
12
24
25
119
60
66
84
86
82
83
88
HCN
HCN
89
E2E
90
116
79
32
115
36
HCN
40
HCN
27
40
113
14
15
114
18
34
17
15
14
19
12
6
15
11
39
6
3
1
11
120
35
59
58
35
5
4
7
2
52
43
117
110
96
97
91
93
95
100
99
92
109
29
41
45
46
47
16
15
13
35
7
12
11
9
4
5
23
42
HCN
118
103
66
101
BHB
BAA
102
28
8
8
70
69
HCN
74
77
63
HCN
48
10
9
33
E04
49
50
26
12
11
78
74
75
57
76
120
51
44
43
72
73
71
67
63
68
56
HCN
E04
E2E
55
54
53
– 40 –
Page 44
FIG. 14 DEVELOPER D3 UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
79 •2BM15250 GUIDE TCNT D3 1 1 1
80 •2BM40600 SHEET HEAT A D3 1 1 1
81 •2BM40610 SHEET HEAT B D3 1 1 1
82 •2BM14200 GUIDE SHUTTER D1234 1 1 1
' 83 •2BM14260 SEAL GUIDE T D1234 1 1 1
' 84 •2BM14250 SEAL SHUTTER D1234 1 1 1
' 85 •2BM14240 SHUTTER D1234 1 1 1
' 86 •2BM14230 SPRING SHUTTER D1234 2 2 2
' 87 •2BM14120 LOCK SHUTTER D1234 1 1 1
' 88 •2BM01140 P.W.BOARD KP-819 ASSY 1 1 1
89 •2BM27510 CONN.CORD LED D3 ASSY 1 1 1
90 •2BM14890 GUIDE SCREW D23 1 1 1
91 •2BM15260 PLATE MOTOR TONER D3 1 1 1
' 92 •2BM14460 GEAR Z31-Z15-8 D123 1 1 1
93 •2BM14920 SP JOINT T SRP D23 1 1 1
94 •2A614070 JOINT SCRAPER CI D 1 1 1
' 95 •2BM14280 GEAR Z14-8 D23 1 1 1
' 96 •2BM27340 DC MOTOR 1 1 1
' 97 •2BM14540 GEAR WORM 1 1 1
98 •2BM27530 CONN.CORD TM D3 ASSY 1 1 1
' 99 •2BM14470 JOINT FEED T D123 1 1 1
100 •2BM14190 SP JOINT T SW D1234 1 1 1
101 •2BM14880 BKT JOINT TCNT D23 1 1 1
' 102 •2BM14480 WORM WHEEL D123 1 1 1
103 •2A627610 WIRE C,DEVELOPING 1 1 1
104 •2BM05200 LABEL POSITION C 1 1 1
105 •2BM14900 COVER TCNT D23 1 1 1
' 106 •2BM01150 P.W.BOARD KP-820 ASSY 1 1 1
107 •2BM27520 CONN.CORD PTR D3 ASSY 1 1 1
108 •2A614050 DETECTION PLATE D3,DEVELOPING(F) 1
108 •2A614060 DETECTION PLATE D3,DEVELOPING(G) 1 1
109 •2BM40790 SEAL SCREW D3 1 1 1
110 •2BM14870 COVER PWB D234 1 1 1
111 •2BM40620 SHEET HEAT C D3 1 1 1
112 •2BM40630 SHEET HEAT D D3 1 1 1
113 •2BM15300 PRESS PIECE D3 2 2 2
114 •2BM15350 SPRING D3 2 2 2
115 •2BM15340 COVER MAG D3 1 1 1
' 116 •2BM14270 SEAL LID DEVE D1234 1 1 1
117 •2BM40140 SHEET PWB D1234 1 1 1
118 •2BM15310 COVER R D3 1 1 1
119 •2BM14440 PLATE ANGLE D123 1 1 1
120 •2BM40700 SIMM D1234 2 2 2
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 41 –
Page 45
FIG. 15 DEVELOPER D4 UNIT
2A6
55
54
HCN
HCN
94
53
103
90
44
HCN
98
104
54
89
HCN
32
35
99
7
37
33
7
34
ANJ
91
60
83
E04
59
92
57
58
78
77
84
82
42
HCN
85
86
80
81
42
79
76
74
75
HCN
62
HCN
E2E
70
69
68
E04
95
100
93
30
7
31
102
96
97
101
3
45
12
13
8
47
46
6
12
4
5
1
49
17
52
51
56
13
50
48
12
11
10
43
42
73
61
67
9
8
21
20
HCN
19
64
92
13
12
HCN
36
39
38
12
40
41
BAA
27
E03
29
97
96
66
HCN
88
71
58
HCN
72
25
65
87
28
26
4
18
5
46
6
14
15
24
16
23
2
22
23
HCN
63
– 42 –
Page 46
FIG. 15 DEVELOPER D4 UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
' 2A693150 PARTS,DEVELOPING UNIT (BK) 1 1 1
1 •2BM15440 CASE DLP D4 1 1 1
' 2 •2BM27540 TONER SENSOR ASSY 1 1 1
3 •2BM14310 SENSOR FACE D1234 1 1 1
4 •2BM40560 MAGNET SEAL D1234 2 2 2
5 •2BM40570 SEAL SIDE D24 2 2 2
6 •2BM14300 SCRAPER PULLEY D1234 2 2 2
7 •2BM14180 MAGNET MIXER D1234 6 6 6
8 •2BM15810 SEAL CASE B D4 2 2 2
9 •2BM14500 SEAL CASE D123 1 1 1
10 •2BM40190 SEAL BUSH D1234 1 1 1
11 •2BM40200 SPACER D1234 1 1 1
' 12 •2BM14390 OIL SEAL 5 5 5
13 •2BM14330 BUSH D1234 3 3 3
14 •2BM15510 SCRAPER HOPPER D4 1 1 1
15 •2BM15880 SHEET SCRAPER D4 1 1 1
16 •2BM15580 SP SENSOR D4 1 1 1
' 17 •2BM14210 GEAR Z28-5 D1234 1 1 1
18 •2BM15870 ROLL SUPPLY 1 1 1
' 19 •2BM15860 GEAR SUPPLY 1 1 1
' 20 •33915180 TONER EMPTY DETECTION SENSOR 1 1 1
21 •2BM27590 CONN.CORD SENSOR D4 ASSY 1 1 1
22 •2BM15540 COVER BOTTOM D4 1 1 1
23 •2BM15820 SEAL BOTTOM B D4 2 2 2
24 •2BM15830 SEAL BOTTOM A D4 2 2 2
25 •2BM15550 BKT MOTOR TONER D4 1 1 1
' 26 •2BM27340 DC MOTOR 1 1 1
27 •2BM15850 GP MOTOR GEAR 1 1 1
28 •2BM27600 CONN.CORD TM D4 ASSY 1 1 1
' 29 •2BM15690 GEAR Z35-Z17-5 D4 4 4 4
30 •2BM14130 TUBE MIXER D1234 1 1 1
31 •2BM14150 FLANGE MIXER L D1234 1 1 1
32 •2BM14160 SCREW MIXER D1234 1 1 1
33 •2BM40110 SHAFT MIXER D4 1 1 1
34 •2BM14170 FLANGE MIXER R D1234 1 1 1
35 •2BM40580 SCRAPER MIXER D1234 1 1 1
' 36 •2BM15680 GEAR Z35-5T D4 1 1 1
37 •2BM40530 ROLL MAG2 D4 1 1 1
38 •2BM15770 FLANGE BUSH D4 1 1 1
39 •2BM15840 SEAL FLANGE D4 1 1 1
40 •G4090010 BEARING R-1560X2DD 1 1 1
' 41 •2BM15760 GEAR Z24-5 D4 1 1 1
' 42 •2BM40310 BALL BEARING D1234 3 3 3
' 43 •2BM15740 GEAR Z18-8 D4 1 1 1
44 •2BM15450 STAY DLP D4 1 1 1
' 45 •2BM14320 SEAL BLADE D1234 1 1 1
46 •2BM40010 SEAL CASE A D4 2 2 2
' 47 •2BM15710 GEAR Z22-Z20 D4 1 1 1
48 •2BM15620 PLATE GEAR D4 1 1 1
' 49 •2BM15430 GEAR Z15-8 D4 1 1 1
' 50 •2BM40680 GEAR Z20-Z16 D4 1 1 1
' 51 •2BM40690 GEAR Z17-8 D4 1 1 1
' 52 •2BM15730 GEAR Z24-8 D4 1 1 1
53 •2BM14620 ROLLER MAGNET D4 1 1 1
54 •2BM14010 PULLY D1234 2 2 2
' 55 •2BM40460 GAER MG H D1234 1 1 1
56 •2BM15490 FLANGE R D4 1 1 1
' 57 •2BM14110 GEAR Z20-5 D1234 1 1 1
' 58 •2BM15100 GEAR Z25-5 D34 2 2 2
' 59 •2BM15700 GEAR Z43-Z17-5 D4 1 1 1
60 •2BM15530 BKT CONNECTOR D4 1 1 1
61 •2BM40090 PLATE GEAR MAG2 D4 1 1 1
' 62 •2A806250 RING STOPPER 1 1 1
63 •2BM14030 ROLLER BLADE D1234 1 1 1
64 •2BM15470 PITCH PIECE F D4 1 1 1
65 •2BM15790 PLATE IDLE D4 1 1 1
66 •2BM15610 PLATE JOINT BIAS D4 1 1 1
67 •2BM14040 SHAFT MG BLADE D1234 1 1 1
' 68 •2BM14220 BUSH BIAS D1234 1 1 1
69 •2BM14290 SP MG BLADE D1234 1 1 1
' 70 •2BM14050 JOINT MG D1234 1 1 1
71 •2BM15570 PLATE ANGLE D4 1 1 1
72 •2BM40040 PRESS D CUT D1234 1 1 1
' 73 •2BM40450 GEAR Z39H D4 1 1 1
74 •2BM15480 BKT CLUTCH D4 1 1 1
' 75 •2BM40650 GEAR Z30H-Z22H D34 1 1 1
' 76 •2BM40060 CUT WASHER 1 1 1
' 77 •2BM27960 CLUTCH 26-H 1 1 1
78 •2BM40150 SEAL CLUTH D1234 1 1 1
79 •2BM14070 SHAFT CLUTCH D1234 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 43 –
Page 47
FIG. 15 DEVELOPER D4 UNIT
2A6
55
54
HCN
HCN
94
53
103
90
44
HCN
98
104
54
89
HCN
32
35
99
7
37
33
7
34
ANJ
91
60
83
E04
59
92
57
58
78
77
84
82
42
HCN
85
86
80
81
42
79
76
74
75
HCN
62
HCN
E2E
70
69
68
E04
95
100
93
30
7
31
102
96
97
101
3
45
12
13
8
47
46
6
12
4
5
1
49
17
52
51
56
13
50
48
12
11
10
43
42
73
61
67
9
8
21
20
HCN
19
64
92
13
12
HCN
36
39
38
12
40
41
BAA
27
E03
29
97
96
66
HCN
88
71
58
HCN
72
25
65
87
28
26
4
18
5
46
6
14
15
24
16
23
2
22
23
HCN
63
– 44 –
Page 48
FIG. 15 DEVELOPER D4 UNIT
Ref.
SP Part. No. Description
No.
' 80 •2BM14090 JOINT D1234 1 1 1
81 •2BM40500 POLY WASHER 16 1 1 1
82 •2BM40510 POLY WASHER 14 1 1 1
' 83 •2BM40360 GEAR Z14D-8 D1234 1 1 1
' 84 •2BM40670 GEAR Z14-Z12 D4 1 1 1
' 85 •2BM15750 GEAR Z24-Z18-8 D4 1 1 1
86 •2BM15500 PITCH PIECE R D4 1 1 1
87 •2BM15650 COVER F D4 1 1 1
88 •2BM40300 SEAL MG D1234 1 1 1
89 •2BM15520 COVER MAG D4 1 1 1
90 •2BM40520 SEAL COVER MG D4 1 1 1
91 •2A627590 WIRE K,DEVELOPING 1 1 1
92 •2BM40700 SIMM D1234 2 2 2
93 •2BM14870 COVER PWB D234 1 1 1
94 •2BM15560 COVER R D4 1 1 1
' 95 •2BM15590 SEAL SHUTTER D4 1 1 1
96 •2BM15600 PRESS PIECE D4 2 2 2
97 •2BM15670 SP PRESS D4 2 2 2
98 •2BM15630 COVER MOTOR D4 1 1 1
' 99 •2BM14270 SEAL LID DEVE D1234 1 1 1
100 •2BM40140 SHEET PWB D1234 1 1 1
' 101 •2BM15640 SHUTTER D4 1 1 1
102 •2BM15800 SP SHUTTER D4 1 1 1
103 •2BM15660 COVER HOPPER D4 1 1 1
' 104 •2BM15780 SEAL COVER HOPPER D4 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 45 –
Page 49
FIG. 16 FACE DOWN UNIT
2A6
87
88
72
HCU
86
85
68
71
24
67
30
ANG
24
BUJ
20
21
28
26
18
A
24
16
73
74
70
77
79
78
79
80
69
82
75
78
79
80
76
84
83
23
E04
24
80
81
84
79
80
82
HCU
81
22
KFO
22
HCN
E04
57
62
HCU
76
83
21
20
19
61
E04
E04
32
63
64
KKC
66
B
HCN
31
BAL
65
60
59
B
29
58
27
27
18
19
25
KAR
12
17
14
13
11
A
30
22
52
BUJ
41
21
28
26
18
19
60
HCN
3
AND
2
4
60
6
5
15
HCN
32
34
36
35
10
53
HCN
40
37
39
33
40
E03
9
8
ANG
7
1
HCY
54
55
ANG
49
30
48
43
43
39
43
42
50
30
30
47
45
44
30
43
38
BUK
37
46
56
51
– 46 –
Page 50
FIG. 16 FACE DOWN UNIT
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
1 2A600170 FD UNIT ASS'Y 1 1 1
2 •2BM21010 FRAME FD 1 1 1
' 3 •2BM21260 ACTUATOR SENSOR FU 1 1 1
' 4 •2BM21400 SPRING ACT FU 1 1 1
' 5 •2BM21130 ACTUATOR SENSOR FD 1 1 1
' 6 •2BM21390 SPRING ACT MIDDLE 1 1 1
' 7 •2BM21630 FAN FD 1 1 1
8 •2BM21090 PLATE PRESS DLP BASE 2 2 2
9 •2BM21100 ARM PRESS DLP 2 2 2
' 10 •2BM21110 SPRING PRESS DLP 2 2 2
' 11 •2BM27800 SOLENOID FD 1 1 1
' 12 •2BM21050 LEVER SOLENOID 1 1 1
' 13 •2BM21060 SPRING SOL 1 1 1
14 •2BM21040 FD PLATE SOLENOID 1 1 1
15 •2BM21080 GUIDE CHANGE 1 1 1
' 16 •2BM21070 LEVER GUIDE CHANGE 1 1 1
17 •2BM17990 STOPPER PI 1 1 1
' 18 •2BM21530 SPRING EXIT 6 6 6
19 •2BM20610 BUSH SP 8 8 8
20 •2BM21160 PULLEY EXIT A 4 4 4
21 •2BM21170 SHAFT ROLLER FD 4 4 4
' 22 •2BM21200 ROLLER FD 4 4 4
' 23 •2BM21440 NOB ROLL FD 1 1 1
' 24 •2BM21210 BUSH DRUM 8 8 8
25 •2BM21610 BRUSH ERASER S 2 2 2
26 •2BM21480 SPRING EXIT 2 2 2
' 27 •2A621270 PULLY A,EJECT 2 2 2
' 28 •2A621280 PULLY B,EJECT 2 2 2
29 •2A621200 UPPER GUIDE,EJECT 1 1 1
' 30 •
' 37 •2BM21140 GEAR Z26 4 4 4
' 38 •2BM21330 GEAR Z22 2 2 2
' 39 •2BM21250 FD PULLEY GEAR Z18 2 2 2
' 40 •2BM21220 FD PULLEY BELT Z18 2 2 2
5MVXIIIDN003
31 •2A621220 GROUND PLATE,EJECT 1 1 1
32 •2BM21350 LOCK COVER FU 2 2 2
33 •2BM21450 PLATE EARTH SWITCH 1 1 1
34 •2BM21650 FILM SWITCH 1 1 1
35 •2BM21310 PIN IDLE 2 3 3 3
36 •2BM21300 PIN IDLE 1 3 3 3
RING STOPPER 7 7 7
' 41 •2BM21270 BELT FD 264 1 1 1
' 42 •2BM21280 BELT FD 156 1 1 1
' 43 •2BM21230 FD FLANGE BELT 4 4 4
44 •2BM21470 BKT PITCH JOINT 1 1 1
45 •2A621300 SPRING,FD JOINT 1 1 1
46 •2BM21410 PLATE JOINT 1 1 1
47 •2BM21430 PIN JOINT 1 1 1
' 48 •2BM21600 PROTECT BOARD 1 1 1
' 49 •2BM01190 P.W.BOARD KP-828 ASSY 1 1 1
50 •2A627520 JUNCTION WIRING,FACE DOWN 1 1 1
51 •2BM27830 CONN.CORD C.SWITCHASSY 1 1 1
52 •2BM27820 CONN.CORD P.FULLASSY 1 1 1
53 •2BM21640 COVER CORD FD 1 1 1
54 •2BM21030 COVER GEAR FD 1 1 1
' 55 •2BM01090 P.W.BOARD KP-809 ASSY 1 1 1
' 56 •2BM21340 GEAR INPUT Z24 1 1 1
' 57 •34806150 STOPPER 5 1 1 1
58 •2A621290 SPONGE,EJECT 1 1 1
' 59 •2A621210 UPPER EJECT,ACTUATOR 1 1 1
' 60 •2BM27240 PT.SENSOR GP1S74P 3 3 3
' 61 •73210370 GEAR 18,LOOP 1 1 1
62 •2A621070 LEVER,FEED SHIFT GUIDE 1 1 1
' 63 •61727681 SOLENOID B,CLEANING 1 1 1
' 64 •2A621260 SPRING,SOLENOID RELEASE 1 1 1
65 •2A621060 MOUNT,SOLENOID 1 1 1
66 •2A621080 LEVER,SOLENOID 1 1 1
67 2BM00880 COVER FD ASS'Y 1 1 1
68 •2BM68200 COVER FD ASS'Y 1 1 1
' 69 ••2BM21580 SPRING LEVER FD F 1 1 1
70 ••2BM21500 LEVER COVER FD 1 1 1
71 ••2BM42590 WIRE EARTH FD 1 1 1
72 ••2BM21490 COVER FD 1 1 1
73 ••2BM21560 PLATE FDC R 1 1 1
' 74 ••2BM21570 SPRING LEVER FD R 1 1 1
75 ••2BM21550 PLATE FDC F 1 1 1
' 76 ••2BM21380 STOPPER COVER FD 2 2 2
77 ••2BM21460 BRUSH ERASER 1 1 1
78 ••2BM21510 CASE EXIT FU 2 2 2
' 79 ••2BM21530 SPRING EXIT 4 4 4
80 ••2BM20610 BUSH SP 4 4 4
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 47 –
Page 51
FIG. 16 FACE DOWN UNIT
2A6
87
88
72
HCU
86
85
68
71
24
67
30
ANG
24
BUJ
20
21
28
26
18
A
24
16
73
74
70
77
79
78
79
80
69
82
75
78
79
80
76
84
83
23
E04
24
80
81
84
79
80
82
HCU
81
22
KFO
22
HCN
E04
57
62
HCU
76
83
21
20
19
61
E04
E04
32
63
64
KKC
66
B
HCN
31
BAL
65
60
59
B
29
58
27
27
18
19
25
KAR
12
17
14
13
11
A
30
22
52
BUJ
41
21
28
26
18
19
60
HCN
3
AND
2
4
60
6
5
15
HCN
32
34
36
35
10
53
HCN
40
37
39
33
40
E03
9
8
ANG
7
1
HCY
54
55
ANG
49
30
48
43
43
39
43
42
50
30
30
47
45
44
30
43
38
BUK
37
46
56
51
– 48 –
Page 52
FIG. 16 FACE DOWN UNIT
Ref.
SP Part. No. Description
No.
81 ••2BM21520 SHAFT ROLLER FU 2 2 2
82 ••2BM21160 PULLEY EXIT A 2 2 2
83 ••2BM21670 PULLY EXIT C 2 2 2
84 ••2BM21540 COVER EXIT FU 2 2 2
85 •2BM68190 TRAY FU ASSY 1 1 1
' 86 ••2BM04210 BAND TRAY 2 2 2
87 ••2BM04200 TRAY FU B 1 1 1
88 ••2BM04190 TRAY FU A 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 49 –
Page 53
FIG. 17 BYPASS TRAY
2A6
ANJ
28
30
29
46
42
21
27
45
43
44
28
26
41
HAY
37
38
HCN
31
32
35
36
34
39
40
33
ANH
24
25
23
22
10
17
11
13
12
16
15
HCN
HCN
20
47
15
HCN
14
HCN
48
19
8
7
1
6
5
3
4
9
3
4
49
18
2
– 50 –
Page 54
FIG. 17 BYPASS TRAY
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
1 2A600210 UNIT ASS’Y MPF 1 1 1
2 •2BM68130 COVER RIGHT MPF ASSY 1 1 1
3 ••2BM07130 LOCK COVER MPF 2 2 2
4••2BM07140 SPRING LOCK MPF 2 2 2
5••2BM07120 TRAY EXTENTION MPF 1 1 1
6••2BM07110 BASE TRAY MPF 1 1 1
' 7••2BM07370 LABEL MPF 1 1 1
' 8••2A605010 ORIGINAL SIZE INDICATOR MPF,SIZE 1 1 1
' 9 ••2BM07100 COVER RIGHT MPF 1 1 1
10 •2BM68140 PLATE BOTTOM MPF ASSY 1 1 1
' 11 ••2BM07170 PAD FRICTION 1 1 1
12 ••2BM07200 GUIDE PAPER SIDE F 1 1 1
13 ••2BM07180 GUIDE PAPER SIDE R 1 1 1
14 ••2BM07310 GEAR GUIDE SIDE 1 1 1
15 ••2BM07210 HOLDER GUIDE SIDE 2 2 2
16 ••2BM07160 PLATE BOTTOM B 1 1 1
17 •2BM07150 PLATE BOTTOM A 1 1 1
18 •2BM07020 GUIDE PAPER MPF 1 1 1
' 19 •2BM07050 ACTUATOR CAM MPF 1 1 1
' 20 •2BM07340 RETARD ROLL ASSY 1 1 1
' 21 •2BM01210 P.W.BOARD KP-832 ASSY 1 1 1
' 22 •2A604110 UPPER COVER,BYPASS 1 1 1
23 •2BM07070 PLATE EARTH MPF 1 1 1
24 •2BM07010 FRAME RIGHT MPF 1 1 1
25 •2BM07360 LABEL MP TRAY 1 1 1
' 26 •2BM07060 ACTUATOR PAPER MPF 2 2 2
27 •2BM07260 SHAFT ROLL MPF 1 1 1
' 28 •2A806250 RING STOPPER 2 2 2
' 29 •2BM07320 BUSH POM B 1 1 1
' 30 •2BM07270 ROLL FEED MPF ASSY 1 1 1
' 31 •2BM27120 CLUTCH MPF ASSY 1 1 1
' 32 •2BM27780 CLUTCH 26-B 1 1 1
' 33 •2BM07330 BUSH METAL 1 1 1
34 •2BM68150 PLATE DRIVE MPF ASSY 1 1 1
' 35 ••2BM07240 GEAR MPF Z28 Z30 1 1 1
36 ••2BM07250 SHAFT GEAR MPF 1 1 1
37 ••2BM07230 HOLDER DRIVE MPF 1 1 1
' 38 ••2BM27100 SOLENOID MPF 1 1 1
39 ••2BM07220 PLATE DRIVE MPF 1 1 1
40 ••M2504030 EDGING,ES-0505-2(NIKKO) 1 1 1
41 •2BM07380 SEAL MPF 1 1 1
' 42 •2BM27170 PT.SENSOR GP2S30 1 1 1
43 •2BM27140 CONN.CORD P.SIZE ASSY 1 1 1
44 •2A627820 WIRE MPF 1 1 1
45 •2A627830 JUNCTION WIRING MPF 1 1 1
46 •2BM07030 COVER PWB MPF 1 1 1
' 47 •2BM07290 SPRING RETARD MPF 1 1 1
48 •2BM07080 SPRING BOTTOM MPF 1 1 1
49 2BM05250 LABEL PAPER TYPE E 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 51 –
Page 55
FIG. 18 PRIMARY TRANSFER
85
86
72
78
79
71
80
BHA
43
50
51
HCN
87
81
79
84
82
83
E03
BHA
55
BHA
54
53
52
2A6
89
58
59
KFO
HCN
62
64
87
65
67
70
68
69
71
76
77
63
60
60
60
E06
E03
60
60
61
66
88
75
74
73
HCN
18
HCN
16
35
36
13
42
41
E07
49
BHA
BUL
47
48
13
E04
ANG
7
5
39
40
45
E04
38
HCN
HCN
37
E06
30
32
44
46
60
KBA
60
60
1
57
E04
13
ANG
9
10
E05
BHA
8
11
13
12
E07
7
E06
6
E04
3
2
E04
56
ANJ
BHA
4
5
15
17
E06
16
ANG
14
BHA
HCN
HCN
19
20
ABD
21
30
BAB
33
29
HCN
27
31
34
BAB
33
22
25
23
28
ANG
24
26
– 52 –
Page 56
FIG. 18 PRIMARY TRANSFER
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
' 2A693190 PARTS,MIDDLE TRANSFER UNIT 1 1 1
2 •2BM16160 COVER IMAGE R 1 1 1
3 •2BM16200 JOINT CAM CL 1 1 1
4•2BM16460 PLATE BIAS FLICKER B 1 1 1
5•2BM16150 BUSH CYLINDER 2 2 2
6•2BM16240 PLATE PRESS IMAGE R 1 1 1
' 7•2BM16320 SPRING IMAGE PRESS 2 2 2
8•2BM16350 CAM PRESS R 1 1 1
9•2BM16990 SPRING PLATE IMAGE 1 1 1
' 10 •G3006860 MINIATURE BEARING 686ZZ 1 1 1
11 •2BM16500 STOPPER GUIDE 1 1 1
12 •2BM16370 PLATE IMAGE R ASSY 1 1 1
' 13 •2BM21210 BUSH DRUM 4 4 4
14 •2BM16220 HOLDER CL R 1 1 1
15 •2BM16400 PLATE PICH IMAGE R 1 1 1
16 •2BM16830 SCREW STUD A 4 4 4
17 •2BM16330 SHAFT IMAGE LOCK 1 1 1
18 •2BM16380 LOCK IMAGE 1 1 1
19 •2BM16030 BRACKET SENSOR ID 1 1 1
' 20 •2BM27720 PT.SENSOR KUA0020C 1 1 1
21 •2BM00820 FRAME IMAGE TOP ASSY 1 1 1
22 •2BM16060 SPRING SENSOR ID 1 1 1
23 •2BM16050 PAD CLEANER ID 1 1 1
24 •2BM16040 NOB CLEANER ID 1 1 1
25 •2BM16070 STAY IMAGE 1 1 1
26 •2BM16080 PULLEY IMAGE 3 3 3
27 •2BM16260 BRACKET CLEANER 1 1 1
' 28 •2BM16560 SEAL BKT CLEANER 1 1 1
' 29 •2BM16280 SPRING PRESS CL F 1 1 1
30 •2BM16440 LEVER CL 2 2 2
31 •2BM16520 SHAFT LEVER 1 1 1
' 32 •2BM16270 SPRING PRESS CL R 1 1 1
33 •2BM16190 CAM CLEANER 2 2 2
34 •2BM16180 SHAFT CAM CLEANER 1 1 1
35 •2BM16390 PLATE PICH IMAGE F 1 1 1
36 •2BM16360 PLATE IMAGE F ASSY 1 1 1
37 •2BM16930 EARTH FRAME 1 1 1
38 •2BM16340 CAM PRESS F 1 1 1
' 39 •2BM16010 GEAR LEVER FRAME 1 1 1
40 •2BM16230 PLATE PRESS IMAGE F 1 1 1
41 •2BM16210 HOLDER CL F 1 1 1
42 •2BM16420 LEVER CL RELEASE A 1 1 1
43 •2BM16430 LEVER CL RELEASE B 1 1 1
44 •2BM16250 EARTH IMAGE 1 1 1
45 •2BM16300 STOPPER LEVER IMAGE 1 1 1
' 46 •2BM16310 SPRING STOPPER LEVER 1 1 1
47 •2BM16410 LEVER LOCK 1 1 1
' 48 •2BM16920 SPRING LEVER LOCK 1 1 1
49 •2BM16480 STOPPER SPRING 1 1 1
50 •2BM16490 SPRING LEVER FRAME 1 1 1
51 •2BM16290 COVER IMAGE F 1 1 1
52 •2BM16550 LABEL IMAGE C 1 1 1
53 •2BM16020 LEVER FRAME IMAGE 1 1 1
54 •2BM16530 LABEL IMAGE A 1 1 1
55 •2BM16540 LABEL IMAGE B 1 1 1
56 •2A627560 WIRE,IMAGE DENSITY SENSOR 1 1 1
' 57 2BM93270 BC-800(BRUSH CLEANER) 1 1 1
' 58 •2BM16690 BUSH SCREW R 1 1 1
' 59 •2BM16940 SEAL SHIELD SCREW 1 1 1
60 •2BM16640 SCREW CLEANER 8 8 8
61 •2BM16760 SHAFT SCREW 1 1 1
62 •2BM16630 COVER CLEANER R 1 1 1
' 63 •2BM16590 SPRING SHUTTER 1 1 1
64 •2BM16870 PLATE BAIS SWEEP 1 1 1
65 •2BM16900 BUSH EARTH 1 1 1
' 66 •2BM16570 SHUTTER CLEANER 1 1 1
' 67 •2BM16670 BUSH BRUSH R 1 1 1
' 68 •2BM16890 BUSH SWEEP R 1 1 1
' 69 •2BM16580 SEAL SHUTTER 1 1 1
70 •2BM45010 SEAL SHUTTER B 1 1 1
' 71 •2BM16950 SEAL SWEEP SIDE F 2 2 2
72 •2BM16610 FRAME CLEANER 1 1 1
73 •2BM16740 GUIDE TONER 1 1 1
' 74 •2BM16780 SEAL GUIDE TONER 1 1 1
' 75 •2BM16910 BLADE CLEANER 1 1 1
' 76 •2BM16850 ROLLER SWEEP 1 1 1
' 77 •2BM16600 BRUSH FUR 1 1 1
' 78 •2BM16680 BUSH BRUSH F 1 1 1
' 79 •2BM16730 GEAR BRUSH Z19 2 2 2
' 80 •2BM16810 SEAL BRUSH SIDE F 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 53 –
Page 57
FIG. 18 PRIMARY TRANSFER
85
86
72
78
79
71
80
BHA
43
50
51
HCN
87
81
79
84
82
83
E03
BHA
55
BHA
54
53
52
2A6
89
58
59
KFO
HCN
62
64
87
65
67
70
68
69
71
76
77
63
60
60
60
E06
E03
60
60
61
66
88
75
74
73
HCN
18
HCN
16
35
36
13
42
41
E07
49
BHA
BUL
47
48
13
E04
ANG
7
5
39
40
45
E04
38
HCN
HCN
37
E06
30
32
44
46
60
KBA
60
60
1
57
E04
13
ANG
9
10
E05
BHA
8
11
13
12
E07
7
E06
6
E04
3
2
E04
56
ANJ
BHA
4
5
15
17
E06
16
ANG
14
BHA
HCN
HCN
19
20
ABD
21
30
BAB
33
29
HCN
27
31
34
BAB
33
22
25
23
28
ANG
24
26
– 54 –
Page 58
FIG. 18 PRIMARY TRANSFER
Ref.
SP Part. No. Description
No.
' 81 •2BM16880 BUSH SWEEP F 1 1 1
' 82 •2BM16700 BUSH SCREW F 1 1 1
' 83 •2BM16860 GEAR SCREW Z19 1 1 1
84 •2BM16620 COVER CLEANER F 1 1 1
85 •2BM16980 PLATE GUIDE SWEEP 1 1 1
' 86 •2BM16970 SEAL GUIDE SWEEP 1 1 1
87 •2BM45020 PUSH NUT 2 2 2
' 88 •2BM16820 SEAL BRUSH SIDE R 1 1 1
' 89 •2BM16660 JOINT SCREW 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 55 –
Page 59
FIG. 19 ELECTRICAL PARTS I
19
20
26
15
21
22
BHH
2A6
I
P
O
18
J
N
M
21
16
K
O
P
L
K
1
J
2
G
3
4
D
E
C
B
A
G
M
5
6
F
7
H
N
8
17
H
I
9
10
A
B
C
11
D
F
12
E
14
13
L
23
25
24
26
– 56 –
Page 60
FIG. 19 ELECTRICAL PARTS I
Ref.
SP Part. No. Description
No.
1 2BM28650 CONN.CORD HV-MAIN ASSY 1 1 1
2 2BM28790 CONN.CORD HV T2 ASSY 1 1 1
3 2BM28860 CONN.CORD HV G ASSY 1 1 1
4 2BM28870 CONN.CORD HV MAIN ASSY 1 1 1
5 2BM28560 CONN.CORD D.FEED ASSY 1 1 1
6 2BM28590 CONN.CORD S2568 ASSY 1 1 1
7 2BM28670 CONN.CORD FEED ASSY 1 1 1
8 2BM28570 CONN.CORD FEED MOTOR ASSY 1 1 1
9 2BM28850 CONN.CORD HV ASSY 1 1 1
10 2BM28800 CONN.CORD HV T1 ASSY 1 1 1
11 2BM28840 CONN.CORD HV BK ASSY 1 1 1
12 2BM28830 CONN.CORD HV BC ASSY 1 1 1
13 2BM28820 CONN.CORD HV BM ASSY 1 1 1
14 2BM28810 CONN.CORD HV BY ASSY 1 1 1
15 2A627361 JUNCTION WIRING,MAIN SWITCH 1 1 1
16 2BM28520 CONN.CORD APC ASSY 1 1 1
17 2A627530 WIRE,COVER SWITCH 1 1 1
18 2BM28960 CONN.CORD TSENSOR D4 ASSY 1 1 1
19 2A626100 MOUNT,MAIN SWITCH 1 1 1
' 20 2A627030 SWITCH,MAIN 1 1 1
21 M2104200 EDGING EDS-1 2 2 2
22 2A627290 WIRE,MAIN SWITCH PRIMARY 1 1 1
23 2BM28530 CONN.CORD HD.DLP ASSY 1 1 1
24 19527400 POWER CORD(120) 1
25 2AR27800 POWER CORD(230) 1
26 29927231 POWER CODE AS(240) 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 57 –
Page 61
FIG. 20 ELECTRICAL PARTS II
2A6
M
D
C
14
13
H
E
N
L
K
J
B
I
A
1
3
C
L
6
4
B
5
A
D
E
2
15
16
I
7
J
F
H
12
N
K
11
15
M
10
F
9
8
G
G
– 58 –
Page 62
FIG. 20 ELECTRICAL PARTS II
Ref.
SP Part. No. Description
No.
1 2BM28600 CONN.CORD D.FEED2 ASSY 1 1 1
2 2BM27610 CONN.CORD DRIVE MAIN ASSY 1 1 1
3 2BM28880 CONN.CORD HV T12 ASSY 1 1 1
4 2BM28610 CONN.CORD DLP MOTOR ASSY 1 1 1
5 2BM28620 CONN.CORD MAIN MOTOR ASSY 1 1 1
6 2BM28890 CONN.CORD HV UNIT ASSY 1 1 1
7 2BM28710 CONN.CORD OP.RERAY ASSY 1 1 1
8 2BM28660 CONN.CORD HV-T2 ASSY 1 1 1
9 2BM28720 CONN.CORD PF/DU ASSY 1 1 1
10 2A627550 WIRE,MIDDLE TRANSFER 1 1 1
11 2A627630 WIRE,FIXING CONTROL 1 1 1
12 2A627780 WIRE,DRUM CONTROL 1 1 1
13 2BM28760 CONN.CORD S02597 ASSY 1 1 1
14 2A627570 WIRE YM,DEVELOPING CONTROL 1 1 1
15 2A627580 WIRE CK,DEVELOPING CONTROL 1 1 1
16 2BM28910 CONN.CORD OILROLLFUSEASSY 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 59 –
Page 63
FIG. 21 ELECTRICAL PARTS III
2A6
BHK
2
A
16
B
BHK
HAY
29
17
C
15
BHA
25
27
BHA
BHC
28
E
13
14
HCQ
9
D
7
11
6
12
22
BHA
26
10
27
BHA
A
23
E
8
D
C
20
8
5
4
3
1
21
BHA
25
BHA
BHA
24
19
18
BHA
B
– 60 –
Page 64
FIG. 21 ELECTRICAL PARTS III
Ref.
SP Part. No. Description
No.
1 2A626010 MOUNT,ELECTRICAL COMPONENT 1 1 1
2 2A626210 COVER,ELECTRICAL COMPONENT 1 1 1
3 2A627040 WIRE,OPERATION UNIT KEYBOARD 1 1 1
4 2A627050 WIRE,OPERATION UNIT LED 1 1 1
5 2A627060 WIRE,LCD 1 1 1
6 2A627010 WIRE,INTERFACE CONTROL 1 1 1
7 2A627020 WIRE,INTERFACE DATA 1 1 1
8 2A627480 JUNCTION WIRING,MAIN PCB POWER SOURCE 1 1 1
9 2A627151 WIRE,MAIN SWITCH 1 1 1
10 2A627160 JUNCTION WIRING,KEY COUNTER 1 1 1
11 2A627130 WIRE,OPTION CONTROL 1 1 1
12 2A627690 WIRE FAX,RELAY 1 1 1
' 13 2A627740 FAN,COOLING 1 1 1
14 2A627730 WIRE,ELECTRICAL COMPONENT COOLING 1 1 1
' 15 2A601010 MAIN PCB ASS’Y 1 1 1
' 16 2A628050 SCANNER SUB PCB 1 1 1
' 17 2A601120 RTC ASS’Y 1 1 1
18 2A626160 MOUNT,TOTAL COUNTER 1 1 1
' 19 2A627490 COUNTER,TOTAL 1 1 1
20 2A627700 WIRE,SCANNER UNIT JUNCTION 1 1 1
21 2A627250 WIRE,TOTAL COUNTER 1 1 1
22 2A627100 JUNCTION WIRING,FEEDER 1 1 1
23 2A627720 WIRE,FEEDER POWER SOURCE 1 1 1
24 2A626110 GUIDE,CF 1 1 1
25 2A626120 LID,NIC 2 2 2
26 36726140 LID,VENDOR 1 1 1
27 2A626150 LOWER GRAND PLATE,SCANNER 2 2 2
28 77502090 LID FINISHER CABLE 1 1 1
29 M2108790 SPACER,FGS-6S(KITAGAWA) 1 1 1
30 2A627810 WIRE,KEY COUNTER 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 61 –
Page 65
FIG. 22 OPTION I (Original Tray)
6
BCF
2A6
10
14
9
11
1
BUA
BCF
HBC
13
11
13
HBC
3
7
2
12
BUA
14
9
BUA
5
8
4
– 62 –
Page 66
FIG. 22 OPTION I (Original Tray)
Ref.
SP Part. No. Description
No.
' 2AV60010 ORIGINAL HOLDER ASS’Y 1 1 1
1•2AV12370 COVER A,PLATEN 1 1 1
2•2AV12380 COVER B,PLATEN 1 1 1
3•2AV12390 RIGHT BASE,MAT 1 1 1
4•2AV12400 RIGHT MOVING PLATE,MAT 1 1 1
5•2AV12410 LEFT MOVING PLATE,MAT 1 1 1
6•2AV12420 BASE,MAT 1 1 1
7•19012041 MAT,ORIGINAL HOLDER 1 1 1
8•19012050 SHEET,ORIGINAL HOLDER 1 1 1
9•19012060 HINGE,ORIGINAL HOLDER 2 2 2
10 •60904280 ORIGINAL POCKET 1 1 1
11 •60904310 HINGE,ORIGINAL HOLDER 2 2 2
12 •66012180 ACTUTATION PLATE,ORIGINAL DETECTION SWIT 1 1 1
13 •69312110 PLATE SPRING,ORIGINAL HOLDER 2 2 2
14 •79904140 ORIGINAL HOLDER SPACER 2 2 2
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 63 –
Page 67
FIG. 23 OPTION II
2A6
18
4
3
7
10
5
6
10
10
11
15
16
9
1
2
20
CA-32
19
23
21
22
24
20
19
22
21
17
8
12
13
14
24
23
21
22
21
25
22
23
23
– 64 –
Page 68
FIG. 23 OPTION II
Ref.
SP Part. No. Description
No.
' 1 2A369703 SET PARTS KEYCOUNTER NEW COLOR 1 1 1
2•41529210 SOCKET ASS’Y,KEY COUNTER 1 1 1
3••J0220040 PLUG EL 4P,ELP-04V 1 1 1
4••41525016 SOCKET,KEY COUNTER 2 2 2
5•66060022 RETAINER,KEY COUNTER COVER 1 1 1
6•66060030 RETAINER,KEY COUNTER 1 1 1
7•66060040 MOUNT,KEY COUNTER 1 1 1
8•B2303060 COUNTER-SUNK HEAD SCREW BFHM3X6 (BLACK) 2 2 2
9•B1304300 BINDING SCREW BVM4X30 (BLACK) 1 1 1
10 •B4304060 TRIPLE SCREW M4X6 (BLACK) 4 4 4
11 •B4304100 TRIPLE SCREW M4X10 (BLACK) 2 2 2
12 •B1303080 BINDING SCREW BVM3X8 (BLACK) 1 1 1
13 •B4104060 TRIPLE SCREW M4X6(CHROMIUM) 1 1 1
14 •B4304200 TRIPLE SCREW M4X20(BLACK) 1 1 1
15 •C2303000 NUT BNM3 (BLACK) 1 1 1
16 •2A360010 COVER,KEY COUNTER 1 1 1
' 17 82142540 KEY COUNTER 1 1 1
' 18 2BM93190 TB-82(TONER BOTTLE) 1 1 1
' 19 2A660940 STAY,DESK BASE 2 2 2
20 2A660950 COVER,DESK STAY 2 2 2
21 36502600 CASTER,MACHINE 4 4 4
22 66502120 BOLT,LEVEL 4 4 4
23 B1324120 BINDING SCREW WITH SW (BLACK)M4X8 8 8 8
24 B4104080 TRIPLE SCREW M4X08(CHROMIUM) 2 2 2
' 25 3AT05070 LABEL,STOPPER 4 4 4
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 65 –
Page 69
FIG. 24 ACCESSORY & TOOL
2A6
ACCESSORY TOOL
2
3 4
5 6
7
1
8
11
10
13
12
9
14
– 66 –
Page 70
FIG. 24 ACCESSORY & TOOL
Ref.
SP Part. No. Description
No.
1 2BM02500 PLATE ANKER B 1 1 1
' 2 2A605090 SHEET,CASSETTE SIZE 1 1 1
' 3 2A660350 KEY,FUNCTION COPY (U) 1
' 3 2A660750 KEY,FUNCTION COPY (E) 1 1
' 4 2A660360 KEY,FUNCTION PRINTER (U) 1
' 4 2A660760 KEY,FUNCTION PRINTER (E) 1 1
' 5 2A660370 KEY,FUNCTION SCANNER (U) 1
' 5 2A660770 KEY,FUNCTION SCANNER (E) 1 1
' 6 2A660380 KEY,FUNCTION FAX (U) 1
' 7 2A605080 LABEL,CASTER KIT 1 1 1
8 2A627860 SHIELD,GASKET PAPER FEED DECK 4
' 9 35968110 STOPPER WIRE ASS’Y SP 1 1 1
10 •35912310 STOPPER,WIRE 1 1 1
11 •35912300 HOLDER,SCANNER DRUM 1 1 1
' 12 2A668010 SPECIAL TOOL,SCANNER ADJUSTMENT ORIGINAL 1 1 1
' 13 2A668030 PIN,POSITIONING 1 1 1
' 14 18568120 PIN B,POSITIONING 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
2A6
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 67 –
Page 71
INDEX
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
' 18512090 SLIDER,SCANNER 8 8 8 11
' 18568120 PIN B,POSITIONING 1 1 1 24
19012041 MAT,ORIGINAL HOLDER 1 1 1 22
19012050 SHEET,ORIGINAL HOLDER 1 1 1 22
19012060 HINGE,ORIGINAL HOLDER 2 2 2 22
19527400 POWER CORD(120) 1 19
2AB05070 LABEL,HIGH TEMPERATURE CAUTION(EXP 1 1 1 8
2AC00580 RELEASE SWITCH ASS’Y 1 1 1 11
2AC12230 MOUNT,RELEASE SWITCH 1 1 1 11
2AC12360 GUIDE,RELEASE SWITCH 1 1 1 11
2AC12370 SWITCH,RELEASE DETECTION 1 1 1 11
' 2AC12380 SPRING,RELEASE SWITCH 1 1 1 11
2AR27800 POWER CORD(230) 1 19
2AV02170 SHAFT,HANDLE 4 4 4 3
2AV12080 GUIDE FFC1 1 1 1 11
2AV12300 HOLDER,ADF CONTACT GLASS 2 2 2 11
2AV12370 COVER A,PLATEN 1 1 1 22
2AV12380 COVER B,PLATEN 1 1 1 22
2AV12390 RIGHT BASE,MAT 1 1 1 22
2AV12400 RIGHT MOVING PLATE,MAT 1 1 1 22
2AV12410 LEFT MOVING PLATE,MAT 1 1 1 22
2AV12420 BASE,MAT 1 1 1 22
' 2AV12460 REAR ORIGINAL SIZE INDICATOR(METRI 1 1 11
' 2AV12470 REAR ORIGINAL SIZE INDICATOR(INCH) 1 11
' 2AV12481 LABEL,ORIGINAL SIZE INDICATOR(METR 1 1 11
' 2AV12491 LABEL,ORIGINAL SIZE INDICATOR(INCH 1 11
' 2AV60010 ORIGINAL HOLDER ASS’Y 1 1 1 22
2A012130 MOUNT,SCANNER PULLEY 2 2 2 11
2A105180 LABEL,CAUTION CONTACT GLASS 1 1 1 11
2A360010 COVER,KEY COUNTER 1 1 1 23
' 2A369703 SET PARTS KEYCOUNTER NEW COLOR 1 1 1 23
2A600010 SCANNER FRAME ASS’Y 1 1 1 11
2A600161 SCANNER UNIT ASS’Y 1 1 1 11
2A600170 FD UNIT ASS’Y 1 1 1 16
2A600210 UNIT ASS’Y MPF 1 1 1 17
' 2A600220 TONER CONT. DRIVE ASS’Y 1 1 1 6
2A600230 CONVEYING UNIT ASS’Y 1 1 1 8
' 2A601010 MAIN PCB ASS’Y 1 1 1 21
' 2A601060 ENGINE MAIN PCB ASS’Y 1 1 1 7
2A601090 POWER SOURCE ASS’Y(100) 1 7
2A601103 POWER SOURCE ASS’Y(200) 1 7
2A601110 ENGINE MAIN PCB MOUNT ASS’Y 1 1 1 7
' 2A601120 RTC ASS’Y 1 1 1 21
' 2A601130 CONVEYING UNIT JUNCTION PCB ASS’Y 1 1 1 8
2A601150 POWER SOURCE ASS’Y(200 EXP) 1 7
2A602010 LEFT STAY 1 1 1 3
2A602020 LOWER RIGHT STAY 1 1 1 3
2A602030 UPPER RIGHT STAY 1 1 1 3
2A602040 REAR STAY 1 1 1 3
2A602110 LEFT FRONT HOLDER,HANDLE 1 1 1 3
2A602120 LEFT REAR HOLDER,HANDLE 1 1 1 3
2A602150 RIGHT REAR MOUNT,HOLDER 1 1 1 3
2A602160 LEFT REAR MOUNT,HOLDER 1 1 1 3
' 2A604010 UPPER COVER,PRINTER 1 1 1 1
' 2A604020 FRONT COVER 1 1 1 1
' 2A604030 UPPER RIGHT COVER 1 1 1 1
' 2A604040 UPPER LEFT COVER 1 1 1 1
' 2A604050 INNER LEFT COVER 1 1 1 1
' 2A604060 UPPER REAR COVER 1 1 1 1
' 2A604070 REAR COVER,SCANNER 1 1 1 1
' 2A604080 LOWER COVER,OPERATION UNIT 1 1 1 1
' 2A604090 LOWER REAR COVER 1 1 1 1
' 2A604100 LOWER REAR RIGHT COVER 1 1 1 1
' 2A604110 UPPER COVER,BYPASS 1 1 1 17
' 2A604120 POCKET,DATA 1 1 1 1
2A604200 LEFT PROTECTING PLATE,COVER 1 1 1 1
' 2A604510 FRONT COVER B 1 1 1 1
' 2A605010 ORIGINAL SIZE INDICATOR MPF,SIZE 1 1 1 17
' 2A605020 INNER LABEL,OPERATION 1 1 1 1
' 2A605030 FRONT LABEL,COVER 1 1 1 1
' 2A605080 LABEL,CASTER KIT 1 1 1 24
' 2A605090 SHEET,CASSETTE SIZE 1 1 1 24
' 2A606010 LOWER ROLLER,REGISTRATION 1 1 1 8
2A612090 SHAFT,WIRE DRUM 1 1 1 11
2A612110 MOUNT BASE,LAMP 1 1 1 11
' 2A612120 MIRROR A,SCANNER 1 1 1 11
2A612130 MIRROR FRAME,SCANNER 1 1 1 11
' 2A612140 MIRROR B,SCANNER 2 2 2 11
2A612160 MOUNT,SCANNER MOTOR 1 1 1 11
2A612170 MOUNT,SCANNER PI 1 1 1 11
• Parts with "'" indicates the Service parts.
– 68 –
Page 72
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2A612180 FEED GUIDE,SCANNER WIRE 1 1 1 11
' 2A612200 LEFT ORIGINAL SIZE INDICATOR 1 1 1 11
' 2A612210 STANDARD PLATE,SHADING 1 1 1 11
2A612220 REINFORCEMENT,ORIGINAL HOLDER 2 2 2 11
2A612230 AUXILIARY PLATE,ORIGINAL HOLDER 2 2 2 11
2A612240 COVER,ISU 1 1 1 11
2A612250 ADJUSTING PLATE,MIRROR FRAME PULLE 1 1 1 11
2A612260 SPACER,INVERTER PCB 2 2 2 11
' 2A612270 MOTOR,SCANNER 1 1 1 11
' 2A612280 PULLEY 16/64 1 1 1 11
2A612290 ADJUSTING PLATE,PULLEY 1 1 1 11
' 2A612300 BELT A,SCANNER 1 1 1 11
' 2A612310 SCANNER DRIVE PULLEY 1 1 1 11
' 2A612320 BELT B,SCANNER 1 1 1 11
2A612330 UPPER GUIDE FILM FFC 1 1 1 11
2A612340 COVER,SCANNER DRIVE 1 1 1 11
' 2A612350 FRONT SEAL,CONTACT GLASS 1 1 1 11
2A612360 PIN,SCANNER POSITIONING 2 2 2 3
2A612370 PIN,TENSHION(M4) 4 4 4 11
2A612380 PULLEY,SCANNER DRUM 2 2 2 11
' 2A612400 SPRING,SCANNER 1 1 1 11
2A612410 REFLECTOR,SCANNER 1 1 1 11
2A612420 REAR SHIELD,SCANNER 2 2 2 1
2A612430 REAR GROUND PLATE,SCANNER 4 4 4 1
' 2A612440 CONTACT GLASS,ADF 1 1 1 11
' 2A612450 VIBRATION INSULATOR,MIRROR 2 2 2 11
2A612460 SHEET B,INVERTER PCB 1 1 1 11
2A612470 UPPER SHIELD,SCANNER 4 4 4 11
2A612480 PULLEY SCANNER WIRE 1 1 1 11
2A612490 FRONT SHIELD,SCANNER 1 1 1 11
2A614010 DETECTION PLATE D14,DEVELOPING(F) 2 2,12
2A614020 DETECTION PLATE D14,DEVELOPING(G) 2 2 2,12
2A614030 DETECTION PLATE D2,DEVELOPING(F) 1 13
2A614040 DETECTION PLATE D2,DEVELOPING(G) 1 1 13
2A614050 DETECTION PLATE D3,DEVELOPING(F) 1 14
2A614060 DETECTION PLATE D3,DEVELOPING(G) 1 1 14
2A614070 JOINT SCRAPER CI D 3 3 3 12,13,14
' 2A617010 MOUNT, CONVEYING HEATER 1 1 1 8
2A621060 MOUNT,SOLENOID 1 1 1 16
2A621070 LEVER,FEED SHIFT GUIDE 1 1 1 16
2A621080 LEVER,SOLENOID 1 1 1 16
2A621200 UPPER GUIDE,EJECT 1 1 1 16
' 2A621210 UPPER EJECT,ACTUATOR 1 1 1 16
2A621220 GROUND PLATE,EJECT 1 1 1 16
' 2A621260 SPRING,SOLENOID RELEASE 1 1 1 16
' 2A621270 PULLY A,EJECT 2 2 2 16
' 2A621280 PULLY B,EJECT 2 2 2 16
2A621290 SPONGE,EJECT 1 1 1 16
2A621300 SPRING,FD JOINT 1 1 1 16
2A622010 JOINT SCRAPER CI 1 1 1 6
2A624040 MOUNT,OPERATION UNIT 3 3 3 1
2A624050 GROUND PLATE,OPERATION UNIT 1 1 1 1
2A624060 PROTECTION SHEET,OPERATION UNIT 1 1 1 1
2A624070 SUPPORT PLATE,OPERATION UNIT 1 1 1 1
2A626010 MOUNT,ELECTRICAL COMPONENT 1 1 1 21
2A626090 MOUNT,POWER SOURCE 1 1 1 7
2A626100 MOUNT,MAIN SWITCH 1 1 1 19
2A626110 GUIDE,CF 1 1 1 21
2A626120 LID,NIC 4 4 4 1,11,21
2A626130 MOUNT FAN 1 1 1 7
2A626140 PROTECTING PLATE,DF CONNECTOR 1 1 1 1
2A626150 LOWER GRAND PLATE,SCANNER 10 10 10 3,11,21
2A626160 MOUNT,TOTAL COUNTER 1 1 1 21
2A626210 COVER,ELECTRICAL COMPONENT 1 1 1 21
2A626220 MOUNT,MAIN PCB 1 1 1 7
2A627010 WIRE,INTERFACE CONTROL 1 1 1 21
2A627020 WIRE,INTERFACE DATA 1 1 1 21
' 2A627030 SWITCH,MAIN 1 1 1 19
2A627040 WIRE,OPERATION UNIT KEYBOARD 1 1 1 21
2A627050 WIRE,OPERATION UNIT LED 1 1 1 21
2A627060 WIRE,LCD 1 1 1 21
2A627100 JUNCTION WIRING,FEEDER 1 1 1 21
2A627130 WIRE,OPTION CONTROL 1 1 1 21
2A627151 WIRE,MAIN SWITCH 1 1 1 21
2A627160 JUNCTION WIRING,KEY COUNTER 1 1 1 21
2A627170 WIRE,ENGINE MAIN PCB 1 1 1 7
2A627250 WIRE,TOTAL COUNTER 1 1 1 21
2A627290 WIRE,MAIN SWITCH PRIMARY 1 1 1 19
2A627361 JUNCTION WIRING,MAIN SWITCH 1 1 1 19
' 2A627380 WIRE,LAMP INVERTER 1 1 1 11
• Parts with "'" indicates the Service parts.
– 69 –
Page 73
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2A627390 JUNCTION WIRING,OPERATION UNIT KEY 1 1 1 1
2A627400 JUNCTION WIRING,OPERATION UNIT LED 1 1 1 1
2A627410 JUNCTION WIRING,LCD 1 1 1 1
2A627470 WIRE,PRIMARY 1 1 1 7
2A627480 JUNCTION WIRING,MAIN PCB POWER SOU 1 1 1 21
' 2A627490 COUNTER,TOTAL 1 1 1 21
2A627510 WIRE,FACE DOWN 1 1 1 7
2A627520 JUNCTION WIRING,FACE DOWN 1 1 1 16
2A627530 WIRE,COVER SWITCH 1 1 1 19
2A627550 WIRE,MIDDLE TRANSFER 1 1 1 20
2A627560 WIRE,IMAGE DENSITY SENSOR 1 1 1 18
2A627570 WIRE YM,DEVELOPING CONTROL 1 1 1 20
2A627580 WIRE CK,DEVELOPING CONTROL 1 1 1 20
2A627590 WIRE K,DEVELOPING 1 1 1 15
2A627600 WIRE Y,DEVELOPING 1 1 1 12
2A627610 WIRE C,DEVELOPING 1 1 1 14
2A627620 WIRE M,DEVELOPING 1 1 1 13
2A627630 WIRE,FIXING CONTROL 1 1 1 20
2A627640 WIRE,FIXING 1 1 1 9
2A627650 JUNCTION WIRING,INTERFACE CONTROL 1 1 1 7
2A627660 JUNCTION WIRING,INTERFACE DATA 1 1 1 7
2A627680 WIRE,ENGINE MAIN PCB POWER SOURCE 1 1 1 7
2A627690 WIRE FAX,RELAY 1 1 1 21
2A627700 WIRE,SCANNER UNIT JUNCTION 1 1 1 21
2A627710 WIRE,SCANNER UNIT 1 1 1 11
2A627720 WIRE,FEEDER POWER SOURCE 1 1 1 21
2A627730 WIRE,ELECTRICAL COMPONENT COOLING 1 1 1 21
' 2A627740 FAN,COOLING 1 1 1 21
2A627770 WIRE,DRUM UNIT 1 1 1 10
2A627780 WIRE,DRUM CONTROL 1 1 1 20
2A627790 WIRE FAX,INTERLOCK 1 1 1 11
2A627800 WIRE,POWER SOURCE DETECTION 1 1 1 7
2A627810 WIRE,KEY COUNTER 1 1 1 21
2A627820 WIRE MPF 1 1 1 17
2A627830 JUNCTION WIRING MPF 1 1 1 17
2A627840 WIRE,MACHINE INSIDE SENSOR 1 1 1 3
' 2A627850 HEATER,CONVEYING 1 1 1 8
2A627860 SHIELD,GASKET PAPER FEED DECK 4 24
2A627930 CORE 11-25X14 3 7
' 2A628050 SCANNER SUB PCB 1 1 1 21
' 2A628060 POWER SOURCE PCB(100) 1 7
' 2A628070 POWER SOURCE PCB(200) 1 1 7
' 2A660350 KEY,FUNCTION COPY (U) 1 24
' 2A660360 KEY,FUNCTION PRINTER (U) 1 24
' 2A660370 KEY,FUNCTION SCANNER (U) 1 24
' 2A660380 KEY,FUNCTION FAX (U) 1 24
' 2A660750 KEY,FUNCTION COPY (E) 1 1 24
' 2A660760 KEY,FUNCTION PRINTER (E) 1 1 24
' 2A660770 KEY,FUNCTION SCANNER (E) 1 1 24
' 2A660940 STAY,DESK BASE 2 2 2 23
2A660950 COVER,DESK STAY 2 2 2 23
' 2A668010 SPECIAL TOOL,SCANNER ADJUSTMENT OR 1 1 1 24
' 2A668030 PIN,POSITIONING 1 1 1 24
' 2A693010 PARTS,PCB ENGINE INTERFACE(SP) 1 1 1 7
' 2A693020 PARTS,LAMP SCANNER(SP) 1 1 1 11
' 2A693040 PARTS,OPERATION UNIT(USA)SP 1 1
' 2A693050 PARTS,OPERATION UNIT(EUR)SP 1 1 1
' 2A693060 PARTS,PCB INVERTER(SP) 1 1 1 11
' 2A693070 PARTS,WIRE SCANNER(SP) 2 2 2 11
' 2A693080 PARTS,DRUM UNIT 1 1 1 10
' 2A693090 PARTS,DEVELOPING UNIT(Y),(USA) 1 12
' 2A693100 PARTS,DEVELOPING UNIT(Y),(J/E) 1 1 12
' 2A693110 PARTS,DEVELOPING UNIT(M),(USA) 1 13
' 2A693120 PARTS,DEVELOPING UNIT(M),(J/E) 1 1 13
' 2A693130 PARTS,DEVELOPING UNIT(C),(USA) 1 14
' 2A693140 PARTS,DEVELOPING UNIT(C),(J/E) 1 1 14
' 2A693150 PARTS,DEVELOPING UNIT(BK) 1 1 1 15
' 2A693170 PARTS,FIXING UNIT 120 1 9
' 2A693180 PARTS,FIXING UNIT 230 1 1 9
' 2A693190 PARTS,MIDDLE TRANSFER UNIT 1 1 1 18
' 2BL27480 SWITCH INTERLOCK 1 1 1 11
2BM00030 COVER RIGHT ASSY 1 1 1 1
2BM00110 FRAME FRONT ASSY 1 1 1 2
2BM00140 FRAME BASE ASSY 1 1 1 2
2BM00150 STAY MIDDLE ASSY 1 1 1 2
2BM00160 RAIL LOW R ASSY 1 1 1 2
2BM00170 RAIL LOW L ASSY 1 1 1 2
2BM00180 RAIL PRO R ASSY 1 1 1 2
2BM00190 RAIL PRO L ASSY 1 1 1 2
2BM00200 RAIL IMAGE R ASSY 1 1 1 2
• Parts with "'" indicates the Service parts.
– 70 –
Page 74
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM00210 FRAME PROCESS ASSY 1 1 1 4
2BM00780 SHAFT CROSS D2 ASSY 1 1 1 13
2BM00790 FEED TONER D4 ASSY 1 1 1 2
2BM00820 FRAME IMAGE TOP ASSY 1 1 1 18
2BM00850 SHAFT CROSS D3 ASSY 1 1 1 14
2BM00860 SHAFT CROSS D1 ASSY 1 1 1 12
2BM00880 COVER FD ASS’Y 1 1 1 16
2BM00900 FAN UNIT 1 1 1 3
2BM00920 STAY BASE L UNIT 1 1 1 2
2BM00930 STAY BASE R UNIT 1 1 1 2
' 2BM00940 TUBE TONER D4 ASS’Y 1 1 1 3
' 2BM00950 DUCT WASTE TONER UNIT 1 1 1 2
2BM00960 BOX CONTROLLER ASSY 1 1 1 7
' 2BM00980 BRAKE DRUM ASSY 1 1 1 10
2BM01020 CONT BOX 1 1 1 7
' 2BM01070 P.W.BOARD KP-802 ASSY 1 1 1 7
' 2BM01090 P.W.BOARD KP-809 ASSY 1 1 1 16
2BM01100 P.W.BOARD KP-811 ASSY 1 1 1 9
' 2BM01140 P.W.BOARD KP-819 ASSY 3 3 3 12,13,14
' 2BM01150 P.W.BOARD KP-820 ASSY 3 3 3 12,13,14
' 2BM01160 P.W.BOARD KP-822 ASSY 1 1 1 6
' 2BM01170 P.W.BOARD KP-824 ASSY 1 1 1 5
' 2BM01190 P.W.BOARD KP-828 ASSY 1 1 1 16
' 2BM01200 P.W.BOARD KP-830 ASSY 1 1 1 2
' 2BM01210 P.W.BOARD KP-832 ASSY 1 1 1 17
2BM01230 P.W.BOARD KP-849 ASSY 1 1 1 2
' 2BM01260 P.W.BOARD KP-895 ASSY 1 1 1 2
' 2BM01270 P.W.BOARD KP-896 ASSY 1 1 1 2
2BM02010 FRAME FRONT 1 1 1 2
2BM02020 CHANNEL BOTTOM 1 1 1 2
2BM02030 STAY RAIL FRONT 1 1 1 2
2BM02040 PILOT PIN 2 2 2 2
2BM02060 LEVER INTER LOCK 1 1 1 2
2BM02070 FRAME REAR 1 1 1 2
2BM02080 COVER HV DRUM 1 1 1 2
2BM02090 PLATE HV D1 1 1 1 2
2BM02100 PLATE HV D2 1 1 1 2
2BM02110 PIN CONTACT HV 5 5 5 2
2BM02120 SPRING HV L 2 2 2 2
2BM02140 COVER HV IMAGE 1 1 1 2
2BM02150 PLATE HV IM 1 1 1 2
2BM02160 SPRING HV S 3 3 3 2
2BM02170 COVER HV FEED 1 1 1 2
2BM02180 PLATE HV TC 1 1 1 2
2BM02190 PLATE HV DC 1 1 1 2
2BM02200 BRACKET CONN D12 1 1 1 2
2BM02210 SCREW CONNECTOR 10 10 10 2
2BM02220 SPRING CONNECTOR 8 8 8 2
2BM02230 BRACKET CONN D34 2 2 2 2
2BM02390 PLATE EARTH MAIN 1 1 1 2
2BM02400 PLATE EARTH DC 1 1 1 2
2BM02410 PLATE EARTH TC 1 1 1 2
2BM02420 PLATE EARTH OP 1 1 1 2
' 2BM02430 BUSH PIN 1 1 1 2
' 2BM02440 BUSH PIN OVAL 2 2 2 2
2BM02450 HOLDER OF 1 1 1 3
2BM02460 LUTCH 1 1 1 3
2BM02470 COVER OZON 1 1 1 3
2BM02480 HOLDER HARNESS 1 1 1 2
2BM02490 PLATE ANKER A 1 1 1 2
2BM02500 PLATE ANKER B 1 1 1 24
2BM02510 FRAME BASE 1 1 1 2
2BM02520 LOCK PIN 1 1 1 2
2BM02530 BASE PULLEY FEED 4 4 4 2
' 2BM02540 PULLEY FEED 4 4 4 2
2BM02550 PLATE EARTH LOWER 1 1 1 2
2BM02560 GUIDE PAPER IN 1 1 1 2
2BM02570 GUIDE PAPER OUT 1 1 1 2
2BM02580 DUCT BASE LOW 1 1 1 2
2BM02630 STAY RAIL LOW R A 1 1 1 2
2BM02640 STAY RAIL LOW R B 1 1 1 2
2BM02650 STAY RAIL LOW L A 1 1 1 2
2BM02660 STAY RAIL LOW L B 1 1 1 2
2BM02670 SLIDE RAIL LOW 2 2 2 2
2BM02680 STAY PRO R ASSY 1 1 1 2
2BM02690 STAY RAIL PRO R B 1 1 1 2
2BM02700 SLIDE RAIL PRO 2 2 2 2
2BM02710 GUIDE CONTAINER D4 1 1 1 2
2BM02720 BKT PULLEY IMAGE 1 1 1 2
2BM02730 SUPPORT PULLEY TRANS 1 1 1 2
• Parts with "'" indicates the Service parts.
– 71 –
Page 75
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM02740 PULLEY IMAGE L 1 1 1 2
2BM02750 STAY RAIL PRO L A 1 1 1 2
2BM02760 STAY RAIL PRO L B 1 1 1 2
2BM02780 RAIL IMAGE R 1 1 1 2
' 2BM02790 BRACKET LOCK IMAGE 1 1 1 2
' 2BM02800 LEVER LOCK IMAGE 1 1 1 2
' 2BM02810 PULLEY IMAGE 1 1 1 2
2BM02820 SPRING LOCK IMAGE 1 1 1 2
2BM02830 COVER LEFT PROCESS 1 1 1 4
2BM02840 SCREW PROCESS 4 4 4 4
2BM02850 PLATE SCANNER BASE 1 1 1 2
2BM02860 STAY BASE R 1 1 1 2
2BM02870 STAY BASE L 1 1 1 2
2BM02890 COVER HV DLP 1 1 1 2
2BM02900 SPRING SW DU 1 1 1 2
' 2BM02910 SWITCH DU 1 1 1 2
2BM02920 SCREW FEED UNIT 3 3 3 8
2BM02930 HOLDER FRONT 2 2 2 2
2BM02980 PLATE LOCK L 1 1 1 4
2BM02990 PLATE LOCK R 1 1 1 4
2BM04030 SP PRESS2 DLP 1 1 1 1
2BM04100 PLATE MAGCHATCH 2 2 2 1
' 2BM04150 COVER RIGHT 1 1 1 1
2BM04160 SUPPORT COVER ASSY 1 1 1 1
' 2BM04170 COVER LEFT 1 1 1 1
2BM04190 TRAY FU A 1 1 1 16
2BM04200 TRAY FU B 1 1 1 16
' 2BM04210 BAND TRAY 2 2 2 16
' 2BM04270 PROTECTOR OZONE 1 1 1 1
' 2BM04280 BAND COVER 2 2 2 1
2BM04290 PLATE EARTH RC 1 1 1 1
2BM04310 INNER FRONT COVER 1 1 1 2
2BM05080 LABEL FUSER 1 1 1 9
2BM05090 LABEL CAUTION FUSER 1 1 1 9
2BM05180 LABEL POSITION Y 1 1 1 12
2BM05190 LABEL POSITION M 1 1 1 13
2BM05200 LABEL POSITION C 1 1 1 14
2BM05220 LABEL CLEANER 1 1 1 4
2BM05250 LABEL PAPER TYPE E 1 1 1 17
2BM07010 FRAME RIGHT MPF 1 1 1 17
2BM07020 GUIDE PAPER MPF 1 1 1 17
2BM07030 COVER PWB MPF 1 1 1 17
' 2BM07050 ACTUATOR CAM MPF 1 1 1 17
' 2BM07060 ACTUATOR PAPER MPF 2 2 2 17
2BM07070 PLATE EARTH MPF 1 1 1 17
2BM07080 SPRING BOTTOM MPF 1 1 1 17
2BM07100 COVER RIGHT MPF 1 1 1 17
2BM07110 BASE TRAY MPF 1 1 1 17
2BM07120 TRAY EXTENTION MPF 1 1 1 17
2BM07130 LOCK COVER MPF 2 2 2 17
2BM07140 SPRING LOCK MPF 2 2 2 17
2BM07150 PLATE BOTTOM A 1 1 1 17
2BM07160 PLATE BOTTOM B 1 1 1 17
' 2BM07170 PAD FRICTION 1 1 1 17
2BM07180 GUIDE PAPER SIDE R 1 1 1 17
2BM07200 GUIDE PAPER SIDE F 1 1 1 17
2BM07210 HOLDER GUIDE SIDE 2 2 2 17
2BM07220 PLATE DRIVE MPF 1 1 1 17
2BM07230 HOLDER DRIVE MPF 1 1 1 17
' 2BM07240 GEAR MPF Z28 Z30 1 1 1 17
2BM07250 SHAFT GEAR MPF 1 1 1 17
2BM07260 SHAFT ROLL MPF 1 1 1 17
' 2BM07270 ROLL FEED MPF ASSY 1 1 1 17
' 2BM07290 SPRING RETARD MPF 1 1 1 17
2BM07310 GEAR GUIDE SIDE 1 1 1 17
' 2BM07320 BUSH POM B 1 1 1 17
' 2BM07330 BUSH METAL 6 6 6 6,17
' 2BM07340 RETARD ROLL ASSY 1 1 1 17
2BM07360 LABEL MP TRAY 1 1 1 17
' 2BM07370 LABEL MPF 1 1 1 17
2BM07380 SEAL MPF 1 1 1 17
2BM08510 FRAME FRONT PROCESS 1 1 1 4
2BM08520 FRAME REAR PROCESS 1 1 1 4
2BM08530 STAY PROCESS BASE 1 1 1 4
2BM08540 STAY ACCURIDE PRO R 1 1 1 4
2BM08550 COVER BOTTOM PROCESS 1 1 1 4
2BM08560 PIN REAR PROCESS 1 1 1 4
2BM08570 LOCK MCH 1 1 1 4
2BM08580 SPRING LOCK MCH 1 1 1 4
' 2BM08590 LOCK PROCESS 1 1 1 4
• Parts with "'" indicates the Service parts.
– 72 –
Page 76
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM08610 PRESS ARM D4 2 2 2 4
2BM08620 SPRING D4 PROCESS 2 2 2 4
2BM14010 PULLY D1234 8 8 8
2BM14030 ROLLER BLADE D1234 4 4 4
2BM14040 SHAFT MG BLADE D1234 4 4 4
' 2BM14050 JOINT MG D1234 4 4 4
' 2BM14060 BUSH CLUTCH D1234 1 1 1 6
2BM14070 SHAFT CLUTCH D1234 4 4 4
' 2BM14090 JOINT D1234 4 4 4
' 2BM14110 GEAR Z20-5 D1234 4 4 4
' 2BM14120 LOCK SHUTTER D1234 4 4 4
2BM14130 TUBE MIXER D1234 4 4 4
2BM14150 FLANGE MIXER L D1234 4 4 4
2BM14160 SCREW MIXER D1234 4 4 4
2BM14170 FLANGE MIXER R D1234 4 4 4
2BM14180 MAGNET MIXER D1234 24 24 24
2BM14190 SP JOINT T SW D1234 3 3 3
2BM14200 GUIDE SHUTTER D1234 4 4 4
' 2BM14210 GEAR Z28-5 D1234 3 3 3
' 2BM14220 BUSH BIAS D1234 4 4 4
2BM14230 SPRING SHUTTER D1234 8 8 8
2BM14240 SHUTTER D1234 4 4 4
2BM14250 SEAL SHUTTER D1234 4 4 4
2BM14260 SEAL GUIDE T D1234 4 4 4
' 2BM14270 SEAL LID DEVE D1234 4 4 4
' 2BM14280 GEAR Z14-8 D23 2 2 2
2BM14290 SP MG BLADE D1234 4 4 4
2BM14300 SCRAPER PULLEY D1234 8 8 8
2BM14310 SENSOR FACE D1234 4 4 4
' 2BM14320 SEAL BLADE D1234 4 4 4
2BM14330 BUSH D1234 18 18 18
2BM14390 OIL SEAL 21 21 21
2BM14400 BIAS JOINT D123 3 3 3
' 2BM14410 GEAR MIXER 1 D123 3 3 3
' 2BM14420 GEAR MIXER 2 D123 3 3 3
2BM14440 PLATE ANGLE D123 3 3 3
' 2BM14460 GEAR Z31-Z15-8 D123 3 3 3
' 2BM14470 JOINT FEED T D123 3 3 3
' 2BM14480 WORM WHEEL D123 3 3 3
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
2,12,13,14
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14
2,12,13,14
12,13,15
12,13,14,15
2,12,13,14
2,12,13,14
2,12,13,14
2,12,13,14
12,13,14,15
13,14
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
2,12,13,14
15
12,13,14
12,13,14
12,13,14
12,13,14
12,13,14
12,13,14
12,13,14
2BM14500 SEAL CASE D123 4 4 4
2BM14530 BUSH 8 8 8
' 2BM14540 GEAR WORM 3 3 3 12,13,14
' 2BM14560 GEAR Z14-8 JOINT D12 2 2 2 12,13
2BM14570 SHAFT GEAR D12 2 2 2 12,13
2BM14580 SHAFT T BRAKE D12 2 2 2 12,13
' 2BM14590 GEAR Z30-Z16 D12 2 2 2 12,13
' 2BM14600 GEAR Z20-8 D12 2 2 2 12,13
2BM14610 SEAL CASE D12 3 3 3 12,13
2BM14620 ROLLER MAGNET D4 2 2 2 12,15
2BM14630 SEAL CASE D134 4 4 4 12,14
2BM14640 GUIDE SCREW D14 2 2 2 2,12
2BM14660 CASE DLP D1 1 1 1 12
2BM14670 STAY D1 1 1 1 12
2BM14680 FLANGE R D1 1 1 1 12
2BM14690 PITCH PIECE R D1 1 1 1 12
2BM14700 BKT CLUTCH D1 1 1 1 12
2BM14710 GUIDE TCNT D1 1 1 1 12
2BM14720 PITCH PIECE F D1 1 1 1 12
2BM14730 PLATE MOTOR TONER D1 1 1 1 12
2BM14740 BKT JOINT TCNT D1 1 1 1 12
2BM14750 COVER R D1 1 1 1 12
2BM14760 COVER TCNT R D1 1 1 1 12
2BM14770 COVER MAG D1 1 1 1 12
2BM14780 COVER F D1 1 1 1 12
2BM14790 COVER TCNT F D1 1 1 1 12
2BM14800 SEAL CASE A D1 2 2 2 12
2BM14810 SEAL CASE B D1 1 1 1 12
2BM14820 SEAL CASE C D1 1 1 1 12
2BM14830 SP JOINT T SRP D1 1 1 1 12
' 2BM14840 GEAR Z30-5 D1 1 1 1 12
2BM14850 PLATE IDLE D1 1 1 1 12
2BM14860 SHEET COVER MAG D1 1 1 1 12
2BM14870 COVER PWB D234 3 3 3 13,14,15
2BM14880 BKT JOINT TCNT D23 2 2 2 13,14
2BM14890 GUIDE SCREW D23 2 2 2 13,14
2BM14900 COVER TCNT D23 2 2 2 13,14
' 2BM14910 GEAR Z38-5 D23 2 2 2 13,14
2BM14920 SP JOINT T SRP D23 2 2 2 13,14
2BM14930 PLATE IDLE D23 2 2 2 13,14
12,13,14,15
12,13,14
• Parts with "'" indicates the Service parts.
– 73 –
Page 77
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM14940 ROLLER MAGNET D23 2 2 2 13,14
2BM14950 CASE DLP D2 1 1 1 13
2BM14960 STAY D2 1 1 1 13
2BM14970 FLANGE R D2 1 1 1 13
2BM14980 PITCH PIECE R D2 1 1 1 13
2BM14990 BKT CLUTCH D2 1 1 1 13
2BM15000 GUIDE TCNT D2 1 1 1 13
2BM15010 PITCH PIECE F D2 1 1 1 13
2BM15020 PLATE MOTOR TONER D2 1 1 1 13
2BM15030 COVER R D2 1 1 1 13
2BM15040 COVER MAG D2 1 1 1 13
2BM15050 COVER F D2 1 1 1 13
2BM15060 SEAL CASE B D2 2 2 2 13
2BM15070 SEAL CASE D D2 2 2 2 13
2BM15080 SEAL CASE E D2 2 2 2 13
2BM15090 CORD PRESS D2 3 3 3 13
' 2BM15100 GEAR Z25-5 D34 2 2 2 15
2BM15110 CASE DLP D3 )1/2) 1 1 1 14
2BM15120 SCREW SUPPLY D3 1 1 1 14
2BM15130 STAY D3 1 1 1 14
2BM15140 FLANGE R D3 1 1 1 14
2BM15150 BKT CLUTCH D3 1 1 1 14
2BM15160 PITCH PIECE R D3 1 1 1 14
' 2BM15170 GEAR Z18-8 D3 1 1 1 14
' 2BM15180 GEAR BEVEL Z16 D3 2 2 2 14
' 2BM15190 GEAR Z19-5 D3 1 1 1 14
' 2BM15200 GEAR Z18-5 D3 1 1 1 14
' 2BM15210 GEAR Z35-5 D3 1 1 1 14
2BM15220 SHAFT SUPPLY A D3 1 1 1 14
2BM15230 SHAFT SUPPLY B D3 1 1 1 14
2BM15240 BUSH BLOCK SUPPLY D3 1 1 1 14
2BM15250 GUIDE TCNT D3 1 1 1 14
2BM15260 PLATE MOTOR TONER D3 1 1 1 14
2BM15270 PITCH PIECE F D3 1 1 1 14
' 2BM15280 GEAR Z25-Z15-8 D3 1 1 1 14
2BM15290 COVER F D3 1 1 1 14
2BM15300 PRESS PIECE D3 2 2 2 14
2BM15310 COVER R D3 1 1 1 14
2BM15320 SHAFT CASE D3 3 3 3 14
2BM15340 COVER MAG D3 1 1 1 14
2BM15350 SPRING D3 2 2 2 14
2BM15360 SEAL CASE A D3 1 1 1 14
2BM15370 SEAL CASE B D3 1 1 1 14
2BM15380 SEAL CASE C D3 1 1 1 14
2BM15390 SEAL CASE D D3 2 2 2 14
2BM15400 SEAL CASE E D3 2 2 2 14
' 2BM15410 GEAR Z15 2 2 2 14
' 2BM15420 GEAR Z38S 1 1 1 14
' 2BM15430 GEAR Z15-8 D4 1 1 1 15
2BM15440 CASE DLP D4 1 1 1 15
2BM15450 STAY DLP D4 1 1 1 15
2BM15470 PITCH PIECE F D4 1 1 1 15
2BM15480 BKT CLUTCH D4 1 1 1 15
2BM15490 FLANGE R D4 1 1 1 15
2BM15500 PITCH PIECE R D4 1 1 1 15
2BM15510 SCRAPER HOPPER D4 1 1 1 15
2BM15520 COVER MAG D4 1 1 1 15
2BM15530 BKT CONNECTOR D4 1 1 1 15
2BM15540 COVER BOTTOM D4 1 1 1 15
2BM15550 BKT MOTOR TONER D4 1 1 1 15
2BM15560 COVER R D4 1 1 1 15
2BM15570 PLATE ANGLE D4 1 1 1 15
2BM15580 SP SENSOR D4 1 1 1 15
' 2BM15590 SEAL SHUTTER D4 1 1 1 15
2BM15600 PRESS PIECE D4 2 2 2 15
2BM15610 PLATE JOINT BIAS D4 1 1 1 15
2BM15620 PLATE GEAR D4 1 1 1 15
2BM15630 COVER MOTOR D4 1 1 1 15
' 2BM15640 SHUTTER D4 1 1 1 15
2BM15650 COVER F D4 1 1 1 15
2BM15660 COVER HOPPER D4 1 1 1 15
2BM15670 SP PRESS D4 2 2 2 15
' 2BM15680 GEAR Z35-5T D4 1 1 1 15
' 2BM15690 GEAR Z35-Z17-5 D4 4 4 4 15
' 2BM15700 GEAR Z43-Z17-5 D4 1 1 1 15
' 2BM15710 GEAR Z22-Z20 D4 1 1 1 15
' 2BM15730 GEAR Z24-8 D4 1 1 1 15
' 2BM15740 GEAR Z18-8 D4 1 1 1 15
' 2BM15750 GEAR Z24-Z18-8 D4 1 1 1 15
' 2BM15760 GEAR Z24-5 D4 1 1 1 15
• Parts with "'" indicates the Service parts.
– 74 –
Page 78
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM15770 FLANGE BUSH D4 1 1 1 15
' 2BM15780 SEAL COVER HOPPER D4 1 1 1 15
2BM15790 PLATE IDLE D4 1 1 1 15
2BM15800 SP SHUTTER D4 1 1 1 15
2BM15810 SEAL CASE B D4 2 2 2 15
2BM15820 SEAL BOTTOM B D4 2 2 2 15
2BM15830 SEAL BOTTOM A D4 2 2 2 15
2BM15840 SEAL FLANGE D4 1 1 1 15
2BM15850 GP MOTOR GEAR 1 1 1 15
' 2BM15860 GEAR SUPPLY 1 1 1 15
2BM15870 ROLL SUPPLY 1 1 1 15
2BM15880 SHEET SCRAPER D4 1 1 1 15
2BM15910 CASE FEED TK 1 1 1 2
2BM15920 BUSH FEED TK 1 1 1 2
2BM15930 SCREW FEED TK 1 1 1 2
2BM15940 PLATE FEED TK 1 1 1 2
2BM15950 SEAL FEED TK A 1 1 1 2
2BM15960 SEAL FEED TK B 2 2 2 2
2BM15970 SEAL FEED TK C 1 1 1 2
' 2BM16010 GEAR LEVER FRAME 1 1 1 18
2BM16020 LEVER FRAME IMAGE 1 1 1 18
2BM16030 BRACKET SENSOR ID 1 1 1 18
2BM16040 NOB CLEANER ID 1 1 1 18
2BM16050 PAD CLEANER ID 1 1 1 18
2BM16060 SPRING SENSOR ID 1 1 1 18
2BM16070 STAY IMAGE 1 1 1 18
2BM16080 PULLEY IMAGE 3 3 3 18
2BM16150 BUSH CYLINDER 2 2 2 18
2BM16160 COVER IMAGE R 1 1 1 18
2BM16180 SHAFT CAM CLEANER 1 1 1 18
2BM16190 CAM CLEANER 2 2 2 18
2BM16200 JOINT CAM CL 1 1 1 18
2BM16210 HOLDER CL F 1 1 1 18
2BM16220 HOLDER CL R 1 1 1 18
2BM16230 PLATE PRESS IMAGE F 1 1 1 18
2BM16240 PLATE PRESS IMAGE R 1 1 1 18
2BM16250 EARTH IMAGE 1 1 1 18
2BM16260 BRACKET CLEANER 1 1 1 18
' 2BM16270 SPRING PRESS CL R 1 1 1 18
' 2BM16280 SPRING PRESS CL F 1 1 1 18
2BM16290 COVER IMAGE F 1 1 1 18
2BM16300 STOPPER LEVER IMAGE 1 1 1 18
' 2BM16310 SPRING STOPPER LEVER 1 1 1 18
' 2BM16320 SPRING IMAGE PRESS 2 2 2 18
2BM16330 SHAFT IMAGE LOCK 1 1 1 18
2BM16340 CAM PRESS F 1 1 1 18
2BM16350 CAM PRESS R 1 1 1 18
2BM16360 PLATE IMAGE F ASSY 1 1 1 18
2BM16370 PLATE IMAGE R ASSY 1 1 1 18
2BM16380 LOCK IMAGE 1 1 1 18
2BM16390 PLATE PICH IMAGE F 1 1 1 18
2BM16400 PLATE PICH IMAGE R 1 1 1 18
2BM16410 LEVER LOCK 1 1 1 18
2BM16420 LEVER CL RELEASE A 1 1 1 18
2BM16430 LEVER CL RELEASE B 1 1 1 18
2BM16440 LEVER CL 2 2 2 18
2BM16460 PLATE BIAS FLICKER B 1 1 1 18
2BM16480 STOPPER SPRING 1 1 1 18
2BM16490 SPRING LEVER FRAME 1 1 1 18
2BM16500 STOPPER GUIDE 1 1 1 18
2BM16520 SHAFT LEVER 1 1 1 18
2BM16530 LABEL IMAGE A 1 1 1 18
2BM16540 LABEL IMAGE B 1 1 1 18
2BM16550 LABEL IMAGE C 1 1 1 18
' 2BM16560 SEAL BKT CLEANER 1 1 1 18
' 2BM16570 SHUTTER CLEANER 1 1 1 18
' 2BM16580 SEAL SHUTTER 1 1 1 18
' 2BM16590 SPRING SHUTTER 1 1 1 18
' 2BM16600 BRUSH FUR 1 1 1 18
2BM16610 FRAME CLEANER 1 1 1 18
2BM16620 COVER CLEANER F 1 1 1 18
2BM16630 COVER CLEANER R 1 1 1 18
2BM16640 SCREW CLEANER 8 8 8 18
' 2BM16660 JOINT SCREW 1 1 1 18
' 2BM16670 BUSH BRUSH R 1 1 1 18
' 2BM16680 BUSH BRUSH F 1 1 1 18
' 2BM16690 BUSH SCREW R 1 1 1 18
' 2BM16700 BUSH SCREW F 1 1 1 18
' 2BM16730 GEAR BRUSH Z19 2 2 2 18
2BM16740 GUIDE TONER 1 1 1 18
• Parts with "'" indicates the Service parts.
– 75 –
Page 79
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM16760 SHAFT SCREW 1 1 1 18
' 2BM16780 SEAL GUIDE TONER 1 1 1 18
' 2BM16810 SEAL BRUSH SIDE F 1 1 1 18
' 2BM16820 SEAL BRUSH SIDE R 1 1 1 18
2BM16830 SCREW STUD A 4 4 4 18
' 2BM16850 ROLLER SWEEP 1 1 1 18
' 2BM16860 GEAR SCREW Z19 1 1 1 18
2BM16870 PLATE BAIS SWEEP 1 1 1 18
' 2BM16880 BUSH SWEEP F 1 1 1 18
' 2BM16890 BUSH SWEEP R 1 1 1 18
2BM16900 BUSH EARTH 1 1 1 18
' 2BM16910 BLADE CLEANER 1 1 1 18
' 2BM16920 SPRING LEVER LOCK 1 1 1 18
2BM16930 EARTH FRAME 1 1 1 18
' 2BM16940 SEAL SHIELD SCREW 1 1 1 18
' 2BM16950 SEAL SWEEP SIDE F 2 2 2 18
' 2BM16970 SEAL GUIDE SWEEP 1 1 1 18
2BM16980 PLATE GUIDE SWEEP 1 1 1 18
2BM16990 SPRING PLATE IMAGE 1 1 1 18
2BM17010 CASE LOW 1 1 1 8
2BM17020 PLATE BOTTOM FEED 1 1 1 8
2BM17030 PLATE FRONT LEVER 1 1 1 8
2BM17040 SHAFT FRONT LEVER 1 1 1 8
' 2BM17050 LEVER FEED FRONT 1 1 1 8
' 2BM17060 HOOK LEVER FRONT 1 1 1 8
' 2BM17070 SPRING FRONT LEVER 2 2 2 8
2BM17090 PLATE CONTACT TRANS 1 1 1 8
2BM17100 PLATE EARTH CASE 1 1 1 8
2BM17110 SEAL MASK PLATE 1 1 1 8
2BM17120 PLATE RELEASE 1 1 1 8
2BM17130 SPRING RELEASE 1 1 1 8
2BM17140 GUIDE CASE LOW LEFT 1 1 1 8
2BM17150 GUIDE CHANGE DU 1 1 1 8
2BM17160 LEVER LOCK CASE LOW 1 1 1 8
2BM17170 HOOK LOCK FUSER 1 1 1 8
2BM17180 PLATE LEVER SOL 1 1 1 8
' 2BM17190 ANGLE SOLENOID 1 1 1 8
2BM17200 COVER GUIDE DU 1 1 1 8
2BM17210 SPRING LOCK FUSER 2 2 2 8
2BM17220 SPRING SOLENOID 1 1 1 8
2BM17230 PLATE GEAR FUSER 1 1 1 8
' 2BM17240 GEAR IDLE Z24S 1 1 1 8
2BM17250 PLATE GEAR TC 1 1 1 8
' 2BM17260 GEAR JOINT Z22S 1 1 1 8
' 2BM17270 GEAR Z22S-Z14S 1 1 1 8
' 2BM17280 ROLLER MIDDLE 1 1 1 8
2BM17290 GUIDE MIDDLE 1 1 1 8
2BM17300 SHAFT PULLEY MIDDLE 1 1 1 8
' 2BM17310 PULLEY MIDDLE 4 4 4 8
2BM17320 LEVER GUDIE MIDDLE 1 1 1 8
' 2BM17330 BUSH REGIST UP 4 4 4 8
' 2BM17340 SPRING GUIDE MIDDLE 1 1 1 8
' 2BM17350 SPRING MIDDLE F 2 2 2 8
' 2BM17360 SPRING MIDDLE R 1 1 1 8
' 2BM17380 GEAR REGIST Z32 1 1 1 8
' 2BM17390 JOINT ROLL TRANS 1 1 1 8
' 2BM17400 ROLLER REGIST UP 1 1 1 8
' 2BM17420 SPRING REGIST F 1 1 1 8
' 2BM17440 PAD REG SENSOR 1 1 1 8
2BM17460 PLATE EARTH REG A 1 1 1 8
' 2BM17480 HIGH-MEG R ASSY 2 2 2 8
2BM17490 SHEET REGIST A 1 1 1 8
2BM17500 SHEET REGIST B 1 1 1 8
' 2BM17510 DUCT FEED UP 1 1 1 8
' 2BM17520 SEAL BELT LOW 4 4 4 8
2BM17530 PLATE BELT 1 1 1 8
' 2BM17540 BELT TRANS 2 2 2 8
' 2BM17550 PULLEY BELT 4 4 4 8
2BM17560 SHAFT BELT L 1 1 1 8
' 2BM17570 GEAR Z22S 1 1 1 8
2BM17590 SHAFT BELT R 1 1 1 8
' 2BM17600 BUSH TRANS UNIT 1 1 1 8
' 2BM17610 CAM TRANS 2 2 2 8
' 2BM17620 GEAR Z42S 1 1 1 8
' 2BM17630 PULLEY TENSION BELT 4 4 4 8
2BM17640 SHAFT TENSION BELT 2 2 2 8
2BM17650 RIB BELT 6 6 6 8
2BM17680 COVER CL FEED 1 1 1 8
2BM17690 CASE TRANS 1 1 1 8
' 2BM17700 ROLLER TRANSFER 1 1 1 8
• Parts with "'" indicates the Service parts.
– 76 –
Page 80
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM17710 GUIDE CHUTE LOW 1 1 1 8
2BM17720 LEVER TRANS F 1 1 1 8
2BM17730 LEVER TRANS R 1 1 1 8
2BM17740 LEVER TRANS B 1 1 1 8
2BM17750 PLATE EARTH WIRE F 1 1 1 8
2BM17780 PLATE CONTACT TC 1 1 1 8
' 2BM17790 SPRING TC 2 2 2 8
' 2BM17890 LEVER LOCK TB 1 1 1 8
2BM17900 HOLDER LOCK TB 1 1 1 8
2BM17910 SPRING LOCK TB 1 1 1 8
' 2BM17930 LATCH JOINT 1 1 1 8
' 2BM17950 GEAR REGIST Z24 1 1 1 8
2BM17960 SCREW FAN BELT 6 6 6 3,8
2BM17970 PLATE EARTH FEED 1 1 1 8
2BM17980 SEAL MASK BELT 2 2 2 8
2BM17990 STOPPER PI 1 1 1 16
2BM18010 FRAME DRUM 1 1 1 10
2BM18030 COVER DRUM F 1 1 1 10
2BM18040 COVER DRUM R 1 1 1 10
2BM18050 COVER DRUM UP 1 1 1 10
2BM18060 ROLL CLN 1 1 1 10
2BM18070 SCREW DRUM 1 1 1 10
' 2BM18080 GEAR Z17H CLN 1 1 1 10
2BM18090 BUSH ROLL CLN 2 2 2 10
2BM18110 SHAFT ROLL CLN F 1 1 1 10
2BM18120 SHAFT ROLL CLN R 1 1 1 10
' 2BM18130 GEAR Z18S SCREW 1 1 1 10
' 2BM18140 GEAR Z16S CLN 1 1 1 10
2BM18150 BUSH SCREW 1 1 1 10
2BM18170 PLATE MCH U 1 1 1 10
2BM18180 SHAFT DRUM IDLE 1 1 1 10
2BM18190 PLATE CONTACT MCH 1 1 1 10
2BM18200 STAY DRUM FRAME 1 1 1 10
2BM18210 SHUTTER DRUM 1 1 1 10
' 2BM18240 SPRING SHUTTER 1 1 1 10
2BM18280 PLATE UNIT MOUNT 1 1 1 10
' 2BM18290 SPRING CONTACT MCH 1 1 1 10
2BM18320 HOLDER SEPARATOR 4 4 4 10
2BM18330 SEPARATOR DRUM 4 4 4 10
2BM18340 COVER DRUM PWB 1 1 1 10
' 2BM18360 SEAL SHUTTER DRUM 1 1 1 10
' 2BM18380 GEAR Z17HZ22H IDLE 1 1 1 10
2BM18440 SPRING CONTACT GRID 1 1 1 10
' 2BM18460 SEAL SCREW DRUM 1 1 1 10
2BM18470 HANDLE 1 1 1 10
2BM18510 BRACKET SENSOR WASTE 1 1 1 2
2BM18520 SEAL SENSOR WASTE 1 1 1 2
' 2BM19010 GEAR Z14HZ28H DRUM 1 1 1 10
2BM19020 BKT CONT MCH 1 1 1 10
2BM19030 PLATE CONT MCH R 1 1 1 10
2BM19040 PLATE CONT MCH L 1 1 1 10
2BM19050 SPRING CONT MCH 1 1 1 10
2BM19100 ARM ROLL CLN 2 2 2 10
2BM19110 SPACER DRUM SHAFT 1 1 1 10
2BM19120 SEAL PROTECT MCH 1 1 1 10
' 2BM20010 ROLLER FIX 1 1 1 9
' 2BM20020 ROLLER PRESS 1 1 1 9
' 2BM20030 GEAR FUSER Z43 1 1 1 9
' 2BM20040 BEARING FUSER 4 4 4 9
2BM20050 FRAME BOTTOM 1 1 1 9
2BM20060 HOLDER HARNESS R.F 1 1 1 9
2BM20070 HOLDER HARNESS RR 1 1 1 9
2BM20080 HOLDER HARNESS LOWER 1 1 1 9
2BM20090 FRAME FRONT FUSER 1 1 1 9
2BM20100 CASE SOLENOID 1 1 1 9
' 2BM20110 PIN ACTUATOR CLUTCH 1 1 1 9
' 2BM20120 ACTUATOR CLUTCH 1 1 1 9
' 2BM20130 SPRING SOL 1 1 1 9
2BM20140 PLATE PRESS FRONT 1 1 1 9
2BM20150 FRAME REAR FUSER 1 1 1 9
2BM20160 PLATE PRESS REAR 1 1 1 9
' 2BM20170 PIN PRESSURE 2 2 2 9
' 2BM20180 SPRING PRESSURE 2 2 2 9
2BM20190 BKT SEPARETOR LOW 1 1 1 9
2BM20200 STAY SEPARATOR LOW 1 1 1 9
' 2BM20210 SEPARETOR LOW 6 6 6 9
2BM20220 BKT SEPARATOR UP 1 1 1 9
2BM20230 STAY SEPARATOR UP 1 1 1 9
' 2BM20240 SEPARATOR UP 6 6 6 9
2BM20250 SHEET PROTECT STAY 1 1 1 9
• Parts with "'" indicates the Service parts.
– 77 –
Page 81
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
' 2BM20260 SPRING SEPARETOR 12 12 12 9
2BM20270 FRAME TOP FUSER 1 1 1 9
2BM20280 HOLDER HERNESS TOP R 1 1 1 9
2BM20290 BKT THERMISTER UP 1 1 1 9
2BM20310 BKT THERMOSTAT 2 2 2 9
2BM20330 GUIDE ENTRANCE LOW 1 1 1 9
2BM20340 GUIDE ENTRANCE UP 1 1 1 9
2BM20350 GUIDE EXIT LOW 1 1 1 9
2BM20360 COVER BOTTOM FUSER 1 1 1 9
2BM20370 COVER FRONT FUSER 1 1 1 9
2BM20380 COVER REAR FUSER 1 1 1 9
2BM20390 COVER EXIT FUSER 1 1 1 9
2BM20400 BKT LAMP FRONT 1 1 1 9
2BM20410 BKT LAMP REAR 1 1 1 9
2BM20430 SPRING CONNECTOR 2 2 2 9
' 2BM20450 GEAR INPUT Z30 1 1 1 9
' 2BM20460 GEAR IDLE Z24 2 2 2 9
' 2BM20470 GEAR IDLE Z32Z14 1 1 1 9
' 2BM20480 GEAR IDLE Z24Z16 1 1 1 9
' 2BM20490 GEAR IDLE Z30 1 1 1 9
' 2BM20500 HANDLE GEAR 1 1 1 9
' 2BM20510 GEAR LOCK Z10 1 1 1 9
' 2BM20520 GEAR EXIT ROLL Z18 2 2 2 9
2BM20530 PLATE LOCK GEAR 1 1 1 9
2BM20540 LOCK PLATE PUSH 1 1 1 9
' 2BM20550 SPRING LOCK GEAR 1 1 1 9
' 2BM20560 ROLLER EXIT 1 1 1 9
2BM20580 COVER TOP FUSER 1 1 1 9
2BM20610 BUSH SP 16 16 16 9,16
2BM20620 SHAFT MECH CLUTCH 1 1 1 9
' 2BM20630 CAM ROLLER OIL 2 2 2 9
' 2BM20650 MECH CLUTCH OIL 1 1 1 9
2BM20660 PIN ACTUATOR OIL 2 2 2 9
2BM20670 BKT COVER TOP F 1 1 1 9
2BM20680 BKT COVER TOP R 1 1 1 9
2BM20690 LOCK OIL UNIT 2 2 2 9
2BM20700 LOCK COVER TOP F 1 1 1 9
2BM20710 LOCK COVER TOP R 1 1 1 9
2BM20720 PUSH OIL 2 2 2 9
' 2BM20730 LEVER OIL F 1 1 1 9
' 2BM20740 LEVER OIL R 1 1 1 9
2BM20750 COVER SHAFT OIL 1 1 1 9
' 2BM20780 SPRING LOCK OIL 2 2 2 9
' 2BM20790 SPRING EXIT 4 4 4 9
' 2BM20800 SPRING OIL UNIT 2 2 2 9
' 2BM20810 SPRING LOCK F 1 1 1 9
' 2BM20820 SPRING LOCK R 1 1 1 9
' 2BM20830 THERMISTOR UP 1 1 1 9
' 2BM20840 THERMISTOR LOW 1 1 1 9
' 2BM20850 THERMOSTAT 2 2 2 9
' 2BM20860 LAMP HEATER UPPER 240 1 1 9
' 2BM20870 LAMP HEATER LOW 240 1 1 9
' 2BM20880 LAMP HEATER UPPER 120 1 9
' 2BM20890 LAMP HEATER LOW 120 1 9
2BM21010 FRAME FD 1 1 1 16
2BM21030 COVER GEAR FD 1 1 1 16
2BM21040 FD PLATE SOLENOID 1 1 1 16
' 2BM21050 LEVER SOLENOID 1 1 1 16
' 2BM21060 SPRING SOL 1 1 1 16
' 2BM21070 LEVER GUIDE CHANGE 1 1 1 16
2BM21080 GUIDE CHANGE 1 1 1 16
2BM21090 PLATE PRESS DLP BASE 2 2 2 16
2BM21100 ARM PRESS DLP 2 2 2 16
' 2BM21110 SPRING PRESS DLP 2 2 2 16
' 2BM21130 ACTUATOR SENSOR FD 1 1 1 16
' 2BM21140 GEAR Z26 4 4 4 16
2BM21160 PULLEY EXIT A 6 6 6 16
2BM21170 SHAFT ROLLER FD 4 4 4 16
' 2BM21200 ROLLER FD 4 4 4 16
' 2BM21210 BUSH DRUM 17 17 17 8,9,16,18
' 2BM21220 FD PULLEY BELT Z18 2 2 2 16
' 2BM21230 FD FLANGE BELT 4 4 4 16
' 2BM21250 FD PULLEY GEAR Z18 2 2 2 16
' 2BM21260 ACTUATOR SENSOR FU 1 1 1 16
' 2BM21270 BELT FD 264 1 1 1 16
' 2BM21280 BELT FD 156 1 1 1 16
2BM21300 PIN IDLE 1 3 3 3 16
2BM21310 PIN IDLE 2 3 3 3 16
' 2BM21330 GEAR Z22 2 2 2 16
' 2BM21340 GEAR INPUT Z24 1 1 1 16
• Parts with "'" indicates the Service parts.
– 78 –
Page 82
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM21350 LOCK COVER FU 2 2 2 16
' 2BM21380 STOPPER COVER FD 2 2 2 16
' 2BM21390 SPRING ACT MIDDLE 1 1 1 16
' 2BM21400 SPRING ACT FU 1 1 1 16
2BM21410 PLATE JOINT 1 1 1 16
2BM21430 PIN JOINT 1 1 1 16
' 2BM21440 NOB ROLL FD 1 1 1 16
2BM21450 PLATE EARTH SWITCH 1 1 1 16
2BM21460 BRUSH ERASER 1 1 1 16
2BM21470 BKT PITCH JOINT 1 1 1 16
2BM21480 SPRING EXIT 2 2 2 16
2BM21490 COVER FD 1 1 1 16
2BM21500 LEVER COVER FD 1 1 1 16
2BM21510 CASE EXIT FU 2 2 2 16
2BM21520 SHAFT ROLLER FU 2 2 2 16
' 2BM21530 SPRING EXIT 10 10 10 16
2BM21540 COVER EXIT FU 2 2 2 16
2BM21550 PLATE FDC F 1 1 1 16
2BM21560 PLATE FDC R 1 1 1 16
' 2BM21570 SPRING LEVER FD R 1 1 1 16
' 2BM21580 SPRING LEVER FD F 1 1 1 16
' 2BM21600 PROTECT BOARD 1 1 1 16
2BM21610 BRUSH ERASER S 2 2 2 16
' 2BM21630 FAN FD 1 1 1 16
2BM21640 COVER CORD FD 1 1 1 16
2BM21650 FILM SWITCH 1 1 1 16
2BM21670 PULLY EXIT C 2 2 2 16
2BM22010 PLATE DRIVE MAIN A 1 1 1 5
2BM22020 PLATE DRIVE MAIN B 1 1 1 5
2BM22030 PLATE DEIVE MAIN C 1 1 1 5
2BM22040 PLATE DRIVE MAIN D 1 1 1 5
' 2BM22050 GEAR Z144H 1 1 1 5
' 2BM22060 GEAR Z36H Z117H 1 1 1 5
' 2BM22070 GEAR Z30 Z58H ASSY 1 1 1 5
' 2BM22080 GEAR Z30 Z57H ASSY 2 2 2 5
' 2BM22090 GEAR Z25 Z29 1 1 1 5
' 2BM22100 GEAR Z29 IDLE 1 1 1 5
' 2BM22110 GEAR Z26 IDLE 3 3 3 5
' 2BM22130 GEAR Z30 JOINT MIX 4 4 4 5
' 2BM22140 GEAR Z43H 1 1 1 5
' 2BM22150 GEAR Z21H Z26 1 1 1 5
' 2BM22160 GEAR Z14 Z29 1 1 1 5
' 2BM22170 GEAR Z23 IDLE 6 6 6 5
' 2BM22180 GEAR Z28 1 1 1 5
2BM22190 HOLDER ASSY A 1 1 1 5
2BM22200 HOLDER ASSY B 1 1 1 5
2BM22220 HOLDER ASSY CHY 1 1 1 5
2BM22230 HOLDER ASSY CHM 1 1 1 5
2BM22240 HOLDER ASSY CHC 1 1 1 5
2BM22250 HOLDER ASSY CHK 1 1 1 5
2BM22260 HOUSING CL CAM 1 1 1 5
' 2BM22270 BUSH CL CAM 1 1 1 5
' 2BM22280 CLUTCH ASSY CAM 1 1 1 5
' 2BM22320 JOINT ROLL SCREW 1 1 1 5
' 2BM22330 JOINT CAM 1 1 1 5
2BM22340 LEVER SOLENOID 4 4 4 5
' 2BM22350 ACUTUATER CAM 1 1 1 5
' 2BM22360 BUSH 6-9-4 1 1 1 5
2BM22370 PLATE SOLENOID 4 4 4 5
2BM22380 PLATE SENSOR 1 1 1 5
2BM22400 SHAFT JOINT DRUM 1 1 1 5
2BM22410 SHAFT JOINT MIX 4 4 4 5
2BM22420 SHAFT JOINT CAM 1 1 1 5
2BM22430 SHAFT JOINT SCREW 1 1 1 5
2BM22440 SPRING LEVER 5 5 5 5,6
2BM22450 SPRING JOINT DRUM 1 1 1 5
2BM22460 SPRING JOINT CAM 2 2 2 5
2BM22470 SPRING ACUTUATOR 1 1 1 5
2BM22480 SEAL SOLENOID 8 8 8 5
2BM22490 CASE HV JOINT DLP 1 1 1 5
2BM22500 LID HV UNIT 1 1 1 5
2BM22510 EARTH DLP 4 4 4 5
2BM22520 EARTH DRUM 1 1 1 5
2BM22530 PLATE HV JOINT 4 4 4 5
2BM22540 PLATE HV DRUM 1 1 1 5
2BM22550 PLATE DRIVE FEED A 1 1 1 6
2BM22560 PLATE DRIVE FEED B 1 1 1 6
2BM22570 PLATE DRIVE FEED C 1 1 1 6
' 2BM22580 GEAR Z30 Z66H 2 2 2 6
' 2BM22590 GEAR Z33 Z47H 1 1 1 6
• Parts with "'" indicates the Service parts.
– 79 –
Page 83
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
' 2BM22600 GEAR Z24 2 2 2 6
' 2BM22610 GEAR Z36 1 1 1 6
' 2BM22620 GEAR Z26 1 1 1 6
' 2BM22630 GEAR Z14 Z30 1 1 1 6
' 2BM22640 GEAR Z23 JO 1 1 1 6
' 2BM22650 GEAR Z33 Z23 1 1 1 6
' 2BM22660 GEAR Z25 JOINT 1 1 1 6
' 2BM22670 GEAR Z22 JOINT BE 1 1 1 6
' 2BM22680 GEAR BEVEL Z20 1 1 1 6
' 2BM22690 GEAR Z21 1 1 1 6
' 2BM22700 GEAR Z14 Z36 1 1 1 6
' 2BM22710 GEAR Z27 Z40 1 1 1 6
' 2BM22740 GEAR Z29 JO 2 2 2 6
2BM22750 HOUSING CL REGIST 1 1 1 6
' 2BM22760 BUSH SHAFT 6 1 1 1 6
' 2BM22770 BUSH POM MID 1 1 1 6
' 2BM22790 JOINT ROLL REGIST 2 2 2 6
2BM22810 SHAFT JOINT MID 1 1 1 6
2BM22820 SHAFT JOINT REGIST 1 1 1 6
2BM22830 SHAFT JOINT BEVEL 1 1 1 6
2BM22840 SPRING JOINT REGIST 2 2 2 6
2BM22850 SPRING JOINT LOW 1 1 1 6
2BM22860 PLATE DRIVE TK 1 1 1 6
2BM22870 HOLDER CL TK 1 1 1 6
' 2BM22880 JOINT TK FEED 1 1 1 6
' 2BM22910 GEAR Z23 Z33 2 2 2 6
' 2BM22920 GEAR Z21 Z36 1 1 1 6
' 2BM22930 GEAR Z14 Z40 1 1 1 6
' 2BM22940 GEAR Z41 1 1 1 6
' 2BM22950 GEAR Z24 L 1 1 1 6
' 2BM22970 GEAR Z30 CL TK 1 1 1 6
2BM22980 SHAFT JOINT TK 1 1 1 6
2BM22990 SPRING JOINT TK 2 2 2 6
2BM23010 DACT FAN 1 1 1 3
2BM23510 PLATE DRIVE FUSER A 1 1 1 6
2BM23520 HOLDER SHAFT FUSER 1 1 1 6
2BM23530 PLATE PULLEY 1 1 1 6
' 2BM23540 GEAR P50 Z23 1 1 1 6
' 2BM23550 GEAR Z46 JOINT FUSER 1 1 1 6
' 2BM23560 GEAR Z51 2 2 2 6
' 2BM23570 GEAR Z40 JO 1 1 1 6
' 2BM23580 PULLEY BELT 1 1 1 6
' 2BM23590 JOINT FUSER 1 1 1 6
2BM23600 SHAFT JOINT FUSER 1 1 1 6
2BM23610 HOLDER STMOTOR 1 1 1 6
2BM23620 SPRING JOINT FUSER 1 1 1 6
' 2BM23630 BELT S2M138 1 1 1 6
2BM23660 SPRING JOINT MIX 4 4 4 5
' 2BM23690 GEAR Z23 TK1 1 1 1 6
' 2BM23700 GEAR Z23 TK2 1 1 1 6
' 2BM23710 GEAR Z37 BEVEL Z25 1 1 1 6
' 2BM23720 CLUTCH ASSY 2 4 4 4 5
2BM23730 HOLDER HARNESS D 1 1 1 5
' 2BM23750 GEAR Z34 1 1 1 5
' 2BM23760 GEAR Z53 1 1 1 5
2BM23770 HOUSING JOINT ASSY 4 4 4 5
2BM23780 SPRING HV 5 5 5 5
' 2BM23800 BUSH MAIN C 1 1 1 5
2BM23810 EARTH DRUM T1 1 1 1 5
2BM23820 JOINT MIX 4 4 4 5
2BM23830 JOINT DRUM 1 1 1 5
2BM26120 OD SENSOR 1 1 1 10
' 2BM26130 INTERLOCK SWITCH 1 1 1 2
' 2BM27100 SOLENOID MPF 1 1 1 17
' 2BM27120 CLUTCH MPF ASSY 1 1 1 17
2BM27140 CONN.CORD P.SIZE ASSY 1 1 1 17
' 2BM27160 SOLENOID FEED 1 1 1 8
' 2BM27170 PT.SENSOR GP2S30 2 2 2 8,17
' 2BM27210 CLUTCH SP CAM 1 1 1 8
' 2BM27230 FAN BELT 2 2 2 8
' 2BM27240 PT.SENSOR GP1S74P 6 6 6 2,5,8,16
' 2BM27260 CONN CORD FEED2 ASSY 1 1 1 8
2BM27290 CONN.CORD OD SENSOR ASSY 1 1 1 10
' 2BM27300 LED ASSY 1 1 1 10
' 2BM27330 TONER SENSOR ASSY 3 3 3 12,13,14
' 2BM27340 DC MOTOR 4 4 4 12,13,14
15
' 2BM27350 CLUTCH 26-D 1 1 1 12
2BM27370 CONN.CORD LED D1 ASSY 1 1 1 12
2BM27380 CONN.CORD PTR D1 ASSY 1 1 1 12
• Parts with "'" indicates the Service parts.
– 80 –
Page 84
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM27390 CONN.CORD TM D1 ASSY 1 1 1 12
' 2BM27420 CLUTCH 26-E 1 1 1 13
2BM27440 CONN.CORD LED D2 ASSY 1 1 1 13
2BM27450 CONN.CORD PTR D2 ASSY 1 1 1 13
2BM27460 CONN.CORD TM D2 ASSY 1 1 1 13
' 2BM27490 CLUTCH 26-F 1 1 1 14
2BM27510 CONN.CORD LED D3 ASSY 1 1 1 14
2BM27520 CONN.CORD PTR D3 ASSY 1 1 1 14
2BM27530 CONN.CORD TM D3 ASSY 1 1 1 14
' 2BM27540 TONER SENSOR ASSY 1 1 1 15
2BM27590 CONN.CORD SENSOR D4 ASSY 1 1 1 15
2BM27600 CONN.CORD TM D4 ASSY 1 1 1 15
2BM27610 CONN.CORD DRIVE MAIN ASSY 1 1 1 20
' 2BM27630 CLUTCH 26-C 1 1 1 5
' 2BM27640 SOLENOID CAM 1 1 1 5
' 2BM27650 SOLENOID Y 1 1 1 5
' 2BM27660 SOLENOID M 1 1 1 5
' 2BM27670 SOLENOID C 1 1 1 5
' 2BM27680 SOLENOID K 1 1 1 5
' 2BM27690 MOTOR MAIN 2 2 2 5,6
' 2BM27700 MOTOR DLP 2 2 2 5
' 2BM27720 PT.SENSOR KUA0020C 1 1 1 18
' 2BM27740 SOLENOID FUSER 1 1 1 9
' 2BM27750 CLUTCH REGIST 1 1 1 6
' 2BM27760 CLUTCH 26-A 1 1 1 6
' 2BM27780 CLUTCH 26-B 1 1 1 17
' 2BM27790 MOTOR STEP 1 1 1 6
' 2BM27800 SOLENOID FD 1 1 1 16
2BM27820 CONN.CORD P.FULLASSY 1 1 1 16
2BM27830 CONN.CORD C.SWITCHASSY 1 1 1 16
2BM27860 CONN.CORD PS1 ASSY 1 1 1 7
' 2BM27890 HUMIDITY SENSOR 1 1 1 3
' 2BM27950 CLUTCH 26-G 1 1 1 6
' 2BM27960 CLUTCH 26-H 1 1 1 15
' 2BM27970 FAN MOTOR 1 1 1 7
' 2BM28240 PWB HV MAIN 1 1 1 2
' 2BM28250 PWB HV DC 1 1 1 2
' 2BM28260 PWB HV TC 1 1 1 2
' 2BM28270 PWD HV DLP 1 1 1 2
2BM28520 CONN.CORD APC ASSY 1 1 1 19
2BM28530 CONN.CORD HD.DLP ASSY 1 1 1 19
2BM28560 CONN.CORD D.FEED ASSY 1 1 1 19
2BM28570 CONN.CORD FEED MOTOR ASSY 1 1 1 19
2BM28590 CONN.CORD S2568 ASSY 1 1 1 19
2BM28600 CONN.CORD D.FEED2 ASSY 1 1 1 20
2BM28610 CONN.CORD DLP MOTOR ASSY 1 1 1 20
2BM28620 CONN.CORD MAIN MOTOR ASSY 1 1 1 20
2BM28650 CONN.CORD HV-MAIN ASSY 1 1 1 19
2BM28660 CONN.CORD HV-T2 ASSY 1 1 1 20
2BM28670 CONN.CORD FEED ASSY 1 1 1 19
2BM28710 CONN.CORD OP.RERAY ASSY 1 1 1 20
2BM28720 CONN.CORD PF/DU ASSY 1 1 1 20
2BM28760 CONN.CORD S02597 ASSY 1 1 1 20
2BM28780 CONN.CORD T.SENSOR ASSY 1 1 1 2
2BM28790 CONN.CORD HV T2 ASSY 1 1 1 19
2BM28800 CONN.CORD HV T1 ASSY 1 1 1 19
2BM28810 CONN.CORD HV BY ASSY 1 1 1 19
2BM28820 CONN.CORD HV BM ASSY 1 1 1 19
2BM28830 CONN.CORD HV BC ASSY 1 1 1 19
2BM28840 CONN.CORD HV BK ASSY 1 1 1 19
2BM28850 CONN.CORD HV ASSY 1 1 1 19
2BM28860 CONN.CORD HV G ASSY 1 1 1 19
2BM28870 CONN.CORD HV MAIN ASSY 1 1 1 19
2BM28880 CONN.CORD HV T12 ASSY 1 1 1 20
2BM28890 CONN.CORD HV UNIT ASSY 1 1 1 20
2BM28910 CONN.CORD OILROLLFUSEASSY 1 1 1 20
2BM28960 CONN.CORD TSENSOR D4 ASSY 1 1 1 19
2BM40010 SEAL CASE A D4 2 2 2 15
2BM40040 PRESS D CUT D1234 4 4 4 12,13,14
2BM40060 CUT WASHER 12 12 12 2,6,12,13
2BM40090 PLATE GEAR MAG2 D4 1 1 1 15
2BM40100 SHAFT MIXER D123 3 3 3 12,13,14
2BM40110 SHAFT MIXER D4 1 1 1 15
2BM40120 SEAL CASE D D1 1 1 1 12
2BM40130 SEAL CASE A D2 1 1 1 13
2BM40140 SHEET PWB D1234 4 4 4
2BM40150 SEAL CLUTH D1234 4 4 4
2BM40160 SEAL COVER MAG D234 2 2 2 13
15
14,15
12,13,14,15
12,13,14,15
• Parts with "'" indicates the Service parts.
– 81 –
Page 85
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM40190 SEAL BUSH D1234 10 10 10
2BM40200 SPACER D1234 7 7 7
' 2BM40220 GEAR Z28-5 MIX2 3 3 3 12,13,14
2BM40230 SHAFT GEAR MIX 1 3 3 3 12,13,14
2BM40290 SEAL COVER MAG D2 1 1 1 13
2BM40300 SEAL MG D1234 7 7 7
' 2BM40310 BALL BEARING D1234 9 9 9
' 2BM40360 GEAR Z14D-8 D1234 4 4 4
' 2BM40370 GEAR Z15-8 D123 5 5 5 12,13,14
' 2BM40420 GAER Z20H D12 2 2 2 12,13
' 2BM40430 GAER Z20H R D12 2 2 2 12,13
' 2BM40440 GEAR Z25H D3 1 1 1 14
' 2BM40450 GEAR Z39H D4 1 1 1 15
' 2BM40460 GAER MG H D1234 4 4 4
2BM40500 POLY WASHER 16 4 4 4
2BM40510 POLY WASHER 14 4 4 4
2BM40520 SEAL COVER MG D4 1 1 1 15
2BM40530 ROLL MAG2 D4 1 1 1 15
2BM40560 MAGNET SEAL D1234 8 8 8
2BM40570 SEAL SIDE D24 8 8 8
2BM40580 SCRAPER MIXER D1234 4 4 4
' 2BM40590 GEAR Z14-Z12 D123 3 3 3 12,13,14
2BM40600 SHEET HEAT A D3 1 1 1 14
2BM40610 SHEET HEAT B D3 1 1 1 14
2BM40620 SHEET HEAT C D3 1 1 1 14
2BM40630 SHEET HEAT D D3 1 1 1 14
' 2BM40640 GEAR Z30H-Z22H D12 2 2 2 12,13
' 2BM40650 GEAR Z30H-Z22H D34 2 2 2 14,15
2BM40660 SHEET PWB D2 1 1 1 13
' 2BM40670 GEAR Z14-Z12 D4 1 1 1 15
' 2BM40680 GEAR Z20-Z16 D4 1 1 1 15
' 2BM40690 GEAR Z17-8 D4 1 1 1 15
2BM40700 SIMM D1234 7 7 7 12,13,14
2BM40710 SIMM D1 1 1 1 12
2BM40790 SEAL SCREW D3 1 1 1 14
2BM41010 PLATE PIN PRESSURE 2 2 2 9
2BM41080 STUD SCREW 465 4 4 4 2,9
2BM41090 BUSH OIL SHAFT 1 1 1 9
2BM42010 SPRING CONN FEED 4 4 4 2
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
12,13,14,15
15
2BM42030 BRACKET CONN DRUM 1 1 1 2
2BM42040 STOPPER IMAGE 1 1 1 2
2BM42050 SEAL OZON A 2 2 2 3
2BM42060 SEAL OZON B 2 2 2 3
2BM42070 SHEET DUCT A 1 1 1 2
' 2BM42200 FAN MOTOR 1 1 1 3
2BM42210 SHEET INNER FRONT 1 1 1 2
2BM42220 BUSH SCREW TK F 1 1 1 2
2BM42240 BKT SEAL OIL 1 1 1 2
2BM42250 GEAR FEED TK Z23 1 1 1 2
2BM42260 BKT SENSOR LOW D4 1 1 1 2
2BM42270 BKT SENSOR UP D4 1 1 1 2
2BM42280 CUT WASHER 1 1 1 2
' 2BM42290 FOOT R 2 2 2 2
' 2BM42300 FOOT F 2 2 2 2
2BM42310 SEAL FEED TK D 1 1 1 2
' 2BM42430 LOCK PROCESS R 1 1 1 4
2BM42440 SPRING CONN DRUM 2 2 2 2
2BM42450 STUD SCREW 485 4 4 4 2
2BM42480 SEAL FEED TK E 1 1 1 2
2BM42510 PLATE CONTROLLER A 1 1 1 7
2BM42520 PLATE EARTH DRV FUS 1 1 1 2
2BM42530 PLATE EARTH MAIN B 1 1 1 2
2BM42540 PLATE EARTH DRV TK A 1 1 1 2
2BM42560 PLATE EARTH L 1 1 1 2
2BM42570 PLATE EARTH FG 1 1 1 2
2BM42590 WIRE EARTH FD 1 1 1 16
2BM42600 SEAL FEED TONER 1 1 1 2
2BM42620 SEAL STAY PRO A 1 1 1 2
2BM42630 SEAL RAIL PRO B 2 2 2 2
2BM42640 STUD SCREW 2 2 2 10
2BM42660 SPRING FRAME PRO 4 4 4 4
2BM42680 SEAL FUSER UP 1 1 1 9
2BM42710 LABEL CAUTION S 1 1 1 9
2BM42730 SHIELD REG SENSOR A 1 1 1 2
2BM42740 SHIELD REG SENSOR B 1 1 1 2
' 2BM42790 FILTER KIT 1 1 1 3
2BM43010 SLOPE IMAGE UNIT 1 1 1 8
2BM43060 PLATE SUPPORT FEED 1 1 1 8
2BM43070 PLATE EARTH BOTTOM 1 1 1 8
• Parts with "'" indicates the Service parts.
– 82 –
Page 86
Part. No.SP Description
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
2BM43080 METAL BUSH TRANS 1 1 1 8
2BM43090 WIRE EARTH GUIDE 1 1 1 8
2BM43100 PLATE DU SENSOR 1 1 1 8
2BM43120 REFLECTOR DU SENSOR 1 1 1 8
2BM43130 PLATE CONTACT CHARGE 1 1 1 8
2BM43200 SEAL PLATE BELT 2 2 2 8
2BM43230 SPRING CASE UP 1 1 1 8
2BM43250 PLATE REG SENSOR 1 1 1 8
2BM43260 GUIDE PAPER REGIST 1 1 1 8
2BM44030 CONN.CORD FEED_EARTH ASSY 1 1 1 8
2BM44040 CONN CORD FEED DC ASSY 1 1 1 8
' 2BM44070 PT.SENSOR KR1207-KM 1 1 1 8
2BM45010 SEAL SHUTTER B 1 1 1 18
2BM45020 PUSH NUT 2 2 2 18
' 2BM68090 FEED TONER ASSY 1 1 1 2
' 2BM68100 TONER SENSOR ASSY 1 1 1 2
' 2BM68110 DRIVE ASSY C 1 1 1 6
' 2BM68120 HOLDER SW OIL ASSY 1 1 1 2
2BM68130 COVER RIGHT MPF ASSY 1 1 1 17
2BM68140 PLATE BOTTOM MPF ASSY 1 1 1 17
2BM68150 PLATE DRIVE MPF ASSY 1 1 1 17
2BM68160 GUIDE LEFT ASSY 1 1 1 8
2BM68170 BELT ASSY 1 1 1 8
2BM68190 TRAY FU ASSY 1 1 1 16
2BM68200 COVER FD ASSY 1 1 1 16
' 2BM68220 COVER OZONE ASSY 1 1 1 3
2BM68230 SHAFT JOINT MIX ASSY 4 4 4 5
' 2BM68260 BLADE ASSY 1 1 1 10
' 2BM93040 DR-800A(DRIVE UNIT A) 1 1 1 5
' 2BM93050 DR-800B(DRIVE UNIT B) 1 1 1 6
' 2BM93190 TB-82(TONER BOTTLE) 1 1 1 23
' 2BM93270 BC-800(BRUSH CLEANER) 1 1 1 18
28107400 BEARING,688ZZNR 2 2 2 11
29812291 CUSHION,CONTACT GLASS 9 9 9 11
29927231 POWER CODE AS(240) 1 19
' 3AT05070 LABEL,STOPPER 4 4 4 23
' 33915180 TONER EMPTY DETECTION SENSOR 1 1 1 15
33921200 HOLDER,JOINT 2 2 2 11
' 33973300 STOPPER 7,CARTRIDGE 1 1 1 11
' 34806150 STOPPER 5 8 8 8 11,16
34922480 BEARING,REGISTRATION FULCRUM 4 4 4 5
' 34927070 FAN,COOLING 1 1 1 7
' 35327400 SWITCH,FEED 2 2 2 11
' 35912010 CONTACT GLASS 1 1 1 11
35912040 PULLEY A,SCANNER WIRE 8 8 8 11
35912140 RETAINER,WIRE 2 2 2 11
35912210 SPRING,MIRROR HOLDER 2 2 2 11
35912300 HOLDER,SCANNER DRUM 1 1 1 24
35912310 STOPPER,WIRE 1 1 1 24
35912360 GUIDE FFC2 1 1 1 11
' 35912531 SPONGE,ORIGINAL SIZE INDICATOR 1 1 1 11
' 35927290 SENSOR,ORIGINAL DETECTION 1 1 1 11
' 35968110 STOPPER WIRE ASS’Y SP 1 1 1 24
36502600 CASTER,MACHINE 4 4 4 23
' 36504400 COVER,COUNTER 4 4 4 1
36726140 LID,VENDOR 1 1 1 21
41525016 SOCKET,KEY COUNTER 2 2 2 23
41529210 SOCKET ASS’Y,KEY COUNTER 1 1 1 23
5MMK116SZ001
'
5MMM176CJ003
'
5MMM176CJ005
5MMT163SN006
'
5MMT273SZ004
5MMT622SN003
'
5MVM122DB003
5MVM166DN004
'
5MVM170XN002
5MVM176DB006
'
5MVM176DB018
'
5MVXIIIDN003
'
5PLPXAQAPKX
'
5PLPXATAPKX
'
5PLPXBEAPKX
'
5PLPXBHAPKX
'
5PLPXBRAPKX
60804120 MAGNET CATCH 2 2 2 2
60904280 ORIGINAL POCKET 1 1 1 22
60904310 HINGE,ORIGINAL HOLDER 2 2 2 22
' 61727681 SOLENOID B,CLEANING 1 1 1 16
NUT FUSER 2 2 2 9
METAL BUSH KD 5 5 5 5,8
BUSHING SBK 1 1 1 6
NUT FUSER A 4 4 4 9
TP SCREW 3 3 3 4
SHAFT EXIT 2 2 2 9
BUSH POM 5 5 5 8
BUSH MIXER GEAR 1 1 1 9
BUSH MAG 1 1 1 6
BUSHING POM 1 1 1 9
PULLEY EXIT 4 4 4 9
RING STOPPER 13 13 13 12,13,14
MC-800 MAIN CHARGER ASS’Y 1 1 1 10
TR-800S SEC TRANSFER UNIT 1 1 1 8
LK-800 SCANNER UNIT 1 1 1 2
SC-800 SEPARATE CHARGER 1 1 1 8
MK-800D(SC-800 SEPARATE CHARGER) 1 1 1 8
15,16,17
• Parts with "'" indicates the Service parts.
– 83 –
Page 87
Part. No.SP Description
66012180 ACTUTATION PLATE,ORIGINAL DETECTIO 1 1 1 22
66060022 RETAINER,KEY COUNTER COVER 1 1 1 23
66060030 RETAINER,KEY COUNTER 1 1 1 23
66060040 MOUNT,KEY COUNTER 1 1 1 23
' 66321360 STATIC ELIMINATOR,EJECT 1 1 1 3
66502120 BOLT,LEVEL 4 4 4 23
68305100 CAUTION LABEL,HIGH TEMPERATURE(JPN 1 1 1 8
69312110 PLATE SPRING,ORIGINAL HOLDER 2 2 2 22
' 73210370 GEAR 18,LOOP 1 1 1 16
75712080 MIRROR HOLDER 4 4 4 11
77502090 LID FINISHER CABLE 1 1 1 21
79904140 ORIGINAL HOLDER SPACER 2 2 2 22
' 82142540 KEY COUNTER 1 1 1 23
B1303080 BINDING SCREW BVM3X8 (BLACK) 1 1 1 23
B1304300 BINDING SCREW BVM4X30 (BLACK) 1 1 1 23
B1324120 +BINDING SCREW WITH SW (BLACK) M4X 8 8 8 23
B2303060 COUNTER-SUNK HEAD SCREW BFHM3X6 (B 2 2 2 23
B4104060 TRIPLE SCREW M4X6(CHROMIUM) 1 1 1 23
B4104080 TRIPLE SCREW M4X08(CHROMIUM) 2 2 2 23
B4304060 TRIPLE SCREW M4X6 (BLACK) 4 4 4 23
B4304100 TRIPLE SCREW M4X10 (BLACK) 2 2 2 23
B4304200 TRIPLE SCREW M4X20(BLACK) 1 1 1 23
C2303000 NUT BNM3 (BLACK) 1 1 1 23
' G3006860 MINIATURE BEARING 686ZZ 1 1 1 18
G3169010 BEARING 6901ZZNR 2 2 2 10
G4090010 BEARING R-1560X2DD 1 1 1 15
J0220040 PLUG EL 4P,ELP-04V 1 1 1 23
' M1656050 FUSE,21506.3(LITTEL-FUSE) 1 1 7
M2104200 EDGING EDS-1 2 2 2 19
M2104220 EDGING,EDS-1717U 5 5 5 7
M2104260 EDGING,EDS-0607U(KITAGAWA) 5 5 5 5,6
M2105740 MINIATURE CLAMP,UAMS-05S-2 8 8 8 7,11
M2108000 SPACER,KGLS-3S 3 3 3 7
M2108600 SPACER,PHD-08(KITAGAWA) 1 1 1 7
M2108790 SPACER,FGS-6S(KITAGAWA) 1 1 1 21
M2504030 EDGING,ES-0505-2(NIKKO) 1 1 1 17
' M5560020 FUSE,CES6-N1-10A(SOC) 1 7
' M5561000 FUSE,CES6-N1(SOC) 1 7
Quantity
120V 240V
230V
Fig. No.
Part. No.SP Description
Quantity
120V 240V
230V
2A6
Fig. No.
• Parts with "'" indicates the Service parts.
– 84 –
Page 88
CLASSIFICATION OF THE SCREWS IN ILLUSTRATION
REF. ITEM # DESCRIPTION
ABD B0303080 ROUND HEAD SCREW M3X8 (BLACK)
ABZ B1304450 BINDING SCREW BVM4X45
AND B0003030 ROUND HEAD SCREW M3X3
ANF B8023160 BINDING TAP-TIGHT B SCREW M3X16
ANG B4073080 TRIPLE TAP-TITE B SCREW M3X8
ANH B4073100 TRIPLE TAP-TITE B SCREW M3X10
ANI B3023040 BINDING TAP-TIGHT S SCREW M3X4
ANJ B8023120 BINDING TAP-TITE B SCREW M3X12
BAA B1003040 BINDING SCREW,CVM3X4
BAB B1003060 BINDING SCREW CVM3X6
BAD B1004120 BINDING SCREW CVM4X12
BAH B1006150 BINDING SCREW CVM6X15
BAL B1003050 BINDING SCREW CVM3X5
BAW B1004080 BINDING SCREW M4X8
BHB B3023080 BINDING TAP TIGHT SCREW M3X8
BHC B3024060 BINDING TAP-TIGHT SCREW M4X6
BHD B3024080 BINDING TAP-TIGHT SCREW M4X8
BHH B3024100 BINDING TAP-TIGHT SCREW M4X10
BHK B3023140 BINDING TAP TIGHT SCREW M3X14
BKB B3203080
BKC B3024200 BINDING TAP-TIGHT S SCREW M4X20
BKD B3204080
BKE B4073060 TRIPLE TAP-TITE B SCREW M3X6
BKF B3024250 BINDING TAPTITE S SCREW M4X25
BKG B3384080
BKH B3203060
BINDING TAP-TIGHT S SCREW M3X8(UNICR)
BINDING SCREW TAPPING S M4X8 (UNICRO)
COUNTERSUNK HEAD TAPTITE S M4X08(BLACK)
BINDING TAP-TITE S SCREW M3X6(UNICR)
REF. ITEM # DESCRIPTION REF. ITEM # DESCRIPTION
BMJ B1003250 BINDING SCREW CVM3X25
BUD B8204100 BINDING TAP-TITE B SCREW M4X10
BUJ B8024140 BINDING TAP-TIGHT B SCREW M4X14
BUK B8023200 BINDING TAP-TIGHT B SCREW M3X20
BUL B8023060 BINDING TAP-TITE B SCREW M3X6
BVJ B1304160 BINDING SCREW BVM4X16 (BLACK)
BVV B1324080
EFE B3004120 TAPPING SCREW M4X12 (B-TYP)
E03 D1000300 STOP RING (E-3)
E04 D1000400 STOP RING (E-4)
E05 D1000500 STOP RING (E-5)
E06 D1000600 STOP RING (E-6)
E07 D1000700 STOP RING (E-7)
E2E D1000250 STOP RING (E-2.5)
HAK B4003060 TRIPLE SEREW M3X6
HAY B4053060 TRIPLE TAP-TITE S SCREW M3X06
HBO B4304080 TRIPLE SCREW M4X8(BLACK)
HCH B4104160 TRIPLE SCREW M4X16(CHROMIUM)
HCN B8023080 BINDING TAP-TITE B SCREW M3X8
HCQ B3024300 BINDING TAPTITE S SCREW M4X30
HCR B1003080 BINDING SCREW M3X8
HCS B3023100 BINDING TAP TIGHT SCREW M3X10
HCT B8024080 BINDING TAP-TIGHT B SCREW M4X08
HCU B8203080
HCX B8023100 BINDING TAP-TITE B SCREW M3X10
HCY B8024100 BINDING TAP-TIGHT B SCREW M4X10
BINDING SCREW WITH SW (BLACK) M4X8
BINDING TAP-TITE B SCREW M3X8(UNICR)
HUK B3024140 BINDING TAP-TIGHT S SCREW M4X14
KAM E0020120 SPRING PIN 2X12
KAN E0020140 SPRING PIN 2X14
KAO E0020160 SPRING PIN 2X16
KAR E0025080 SPRING PIN 2.5X8
KBA E0120120 SPRING PIN 2X12 (SUS)
KBD E0130280 SPRING PIN 3X28(SUS)
KBH E0025160 SPRING PIN 2.5X16
KFB E5120120 SPRING PIN H7A 2X12 SUS
KFH E5125180 PARALLEL PIN H7A 2.5X18 SUS
KFJ E5120140 PARALLEL PIN H7A 2X14 SUS
KFN E5125160 PARALLEL PIN H7A 2.5X16 SUS
KFO E5120100 SPRING PIN H7A 2X10 SUS
KKK E0025120 SPRING PIN 2.5X12
RBS E0025100 SPRING PIN 2.5X10
RDB D4000200 STOP RING CSTW-2
RDE D4000500 STOP RING CSTW-5
RKE D2002500 STOP RING C-25
TGB C4204000 CROWN WASHER TWM4
WFD C3790090 WA VE WASHER SUS WW5.4X9.0X0.15T
WPI C2890100 POLY CUT WASHER 6.2X10X0.5T
WPJ E5130140 PARALLEL PIN H7A 3X14 SUS
WPK C2890120
POLYESTER SLIDER WASHER 8.2X12X0.5T
Page 89
KYOCERA MITA EUROPE B.V.
Hoeksteen 40, 2132 MS Hoofddorp,
The Netherlands
Phone: (020) 6540000
Home page: http://www.kyoceramita-europe.com
Email: info@kyoceramita-europe.com
KYOCERA MITA NEDERLAND B.V.
Hoeksteen 40, 2132 MS Hoofddorp,
The Netherlands
Phone: (020) 5877200
KYOCERA MITA (UK) LIMITED
8 Beacontree Plaza
Gillette Way,
Reading RG2 0BS UK
Phone: (0118) 931 150
0
KYOCERA MITA ITALIA S.P.A.
Via Verdi 89/91 20063 Cernusco sul Naviglio
(Milano) Italy
Phone: 02-92179 1
S.A. KYOCERA MITA BELGIUM N.V.
Hermesstraat 8A, 1930 Zaventem, Belgium
Phone: (02) 7209270
KYOCERA MITA FRANCE S.A.
Parc les Algorithmes
SAINT AUBIN
91194 GIF-SUR-YVETTE
France
Phone: (01) 69852600
KYOCERA MITA ESPAÑA S.A.
Edificio Mita, Avda. De Manacor Nº2,
Urb. Parque Rozas, Apartado de Correos 76,
28230 Las Rozas, Madrid, Spain
Phone: (91) 631-8392
KYOCERA MITA FINLAND OY
Kirvesmiehenkatu 4, 00810 Helsinki,
Finland
Phone: (09) 478-05200
KYOCERA MITA (SCHWEIZ) AG
Hölzliwisen, Industriestrasse 28,
8604 Volketswil, Switzerland
Phone: (01) 908 4949
KYOCERA MITA DEUTSCHLAND GMBH
Mollsfeld 12 40670 Meerbusch,
Germany
Phone: 02159-918120
KYOCERA MITA GMBH AUSTRIA
Eduard-Kittenberger-Gasse 95,
1230, Wien, Austria
Phone: (01) 86338-0
KYOCERA MITA SVENSKA AB
Siktgatan 2,
162 50 Vällingby, Sweden
Phone: (08) 4719999
KYOCERA MITA DANMARK A/S
Industrivej 11, DK-4632 Bjæverskov,
Denmark
Phone: 56871100
KYOCERA MITA PORTUGAL LDA.
CASCAISTOCK-Armazem nº8,
Rua das Fisgas, Alcoitão,
2765 Estoril, Portugal
Phone: (21) 4602221
KYOCERA MITA SOUTH AFRICA
(PTY) LTD.
UNIT 3, "Kyalami Crescent,"
Kyalami Business Park,
1685 Midrand, South Africa
Phone: (11) 466-3290
KYOCERA MITA
AMERICA, INC.
Headquarters:
225 Sand Road, P.O. Box 40008,
Fairfield, New Jersey 07004-0008,
U.S.A.
Phone: (973) 808-8444
© 2001 KYOCERA MITA CORPORATION
KYOCERA MITA AUSTRALIA PTY.
LTD.
Level 3, 6-10 Talavera Road, North Ryde,
N.S.W. 2113 Australia
Phone: (02) 9888-9999
KYOCERA MITA NEW ZEALAND LTD.
1-3 Parkhead Place,
Albany, Auckland,
New Zealand
Phone: (09) 415-4517
KYOCERA MITA (THAILAND) CORP.,
LTD.
9/209 Ratchada-Prachachem Road,
Bang Sue, Bangkok 10800, Thailand
Phone: (02) 586-0320
KYOCERA MITA SINGAPORE
PTE LTD.
121 Genting Lane, 3rd Level,
Singapore 349572
Phone: (65) 7418733
KYOCERA MITA HONG KONG
LIMITED
11/F., Mita Centre,
552-566, Castle Peak Road,
Tsuen Wan, New Territories,
Hong Kong
Phone: (852) 24297422
KYOCERA MITA
CORPORATION
2-28, 1-chome, Tamatsukuri, Chuo-ku
Osaka 540-8585, Japan
Phone: (06) 6764-3555
is a trademark of Kyocera Corporation
is a registered trademark of KYOCERA MITA CORPORATION
Printed in Holland
Loading...
